100uPet ACF flex ALPIDE manufacturing

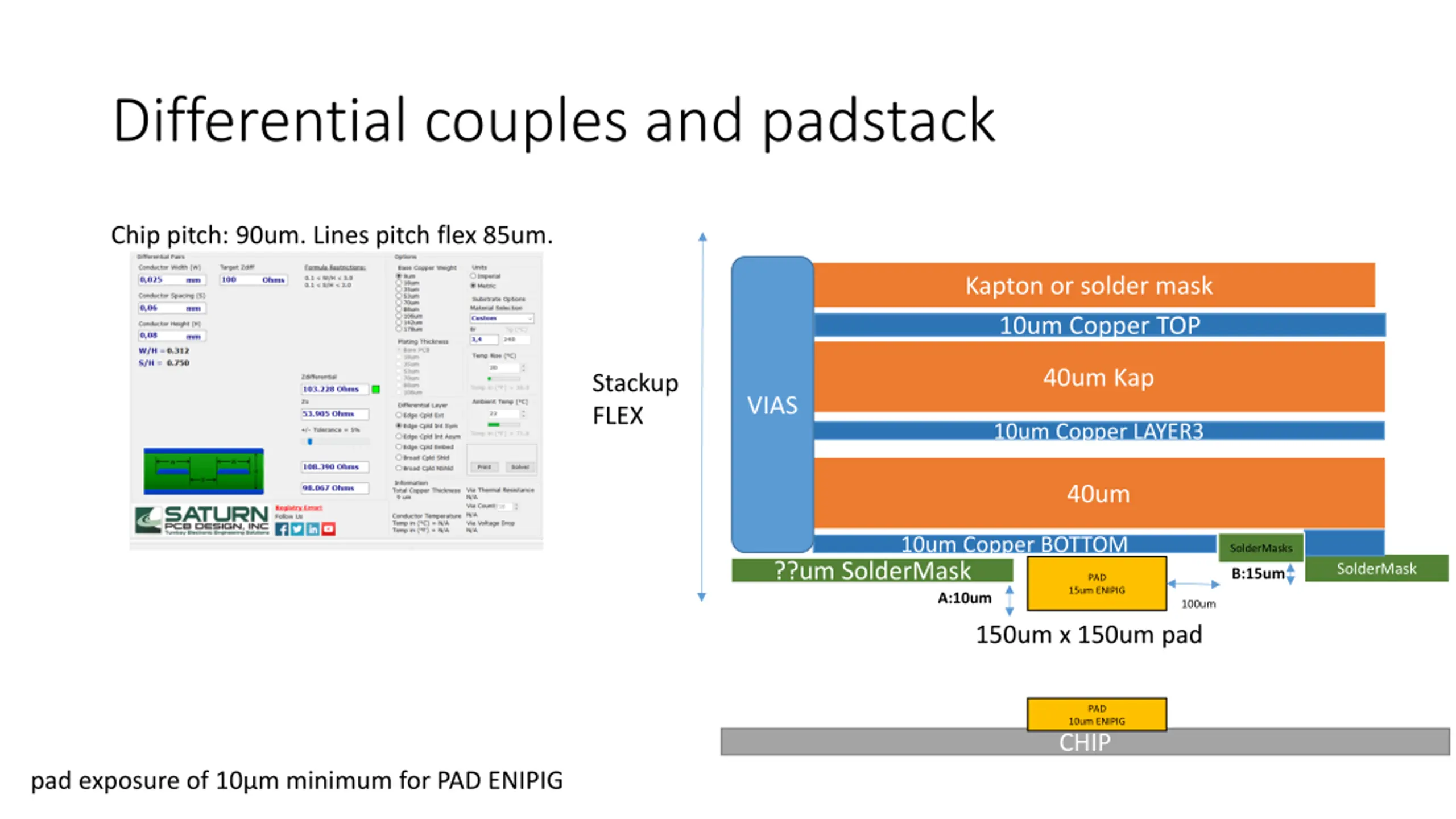

Differential couples and padstack Chip pitch: 90um. Lines pitch flex 85um. Kapton or solder mask 10um Copper TOP 40um Kap Stackup FLEX VIAS 10um Copper LAYER3 40um 10um Copper BOTTOM SolderMasks ??um SolderMask SolderMask B:15um PAD 15um ENIPIG A:10um 100um 150um x 150um pad PAD 10um ENIPIG CHIP pad exposure of 10 m minimum for PAD ENIPIG

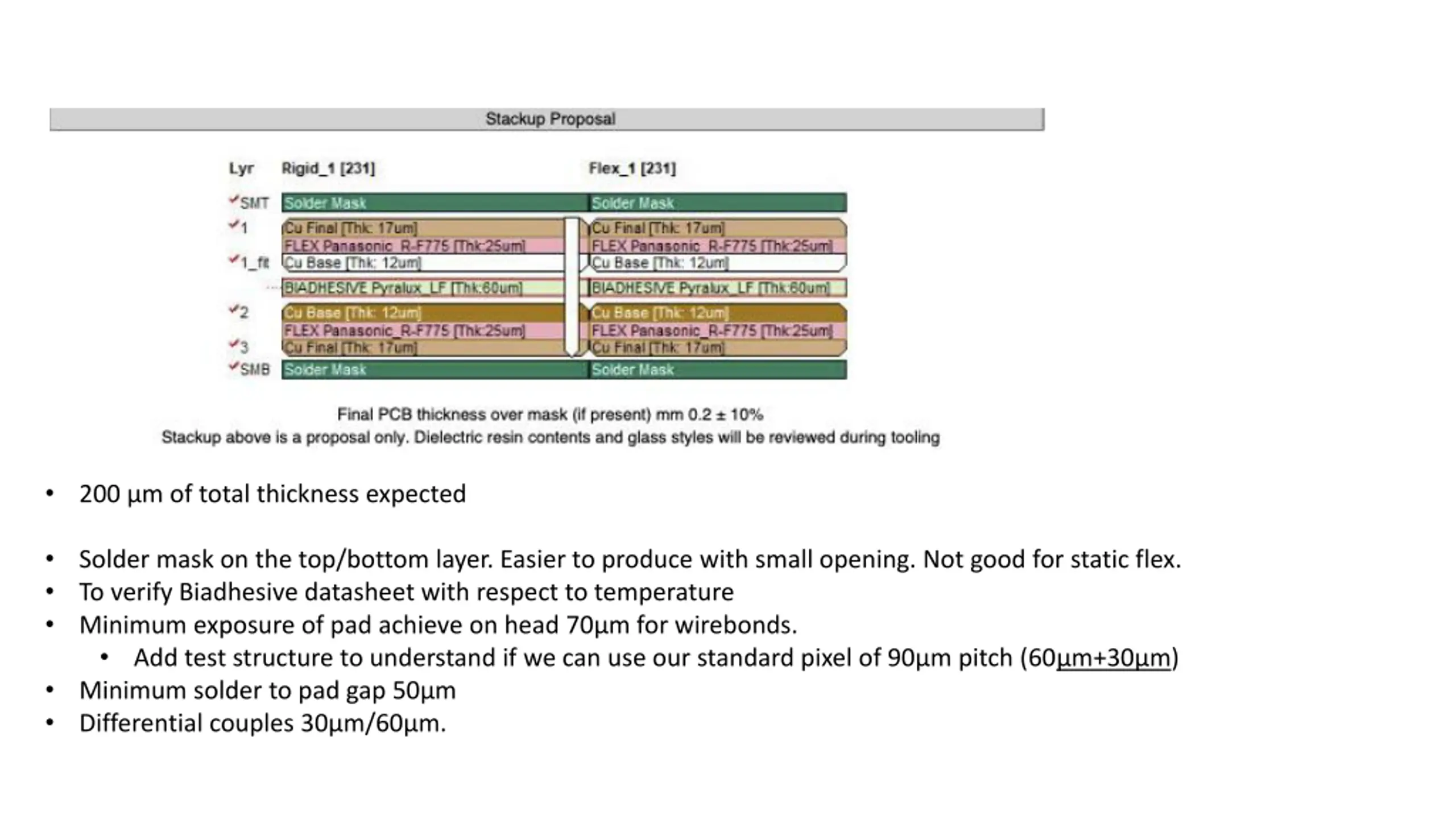

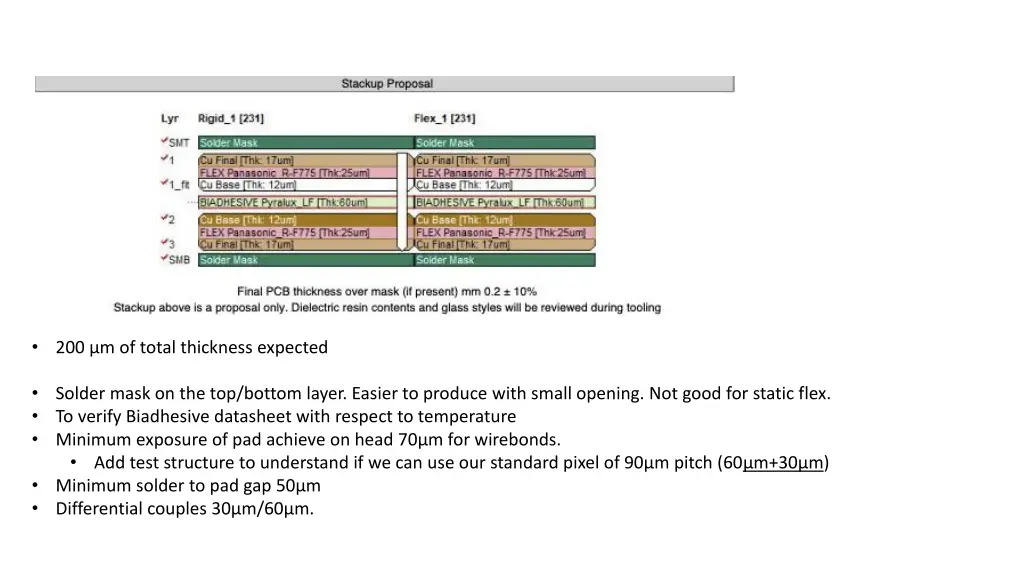

200 m of total thickness expected Solder mask on the top/bottom layer. Easier to produce with small opening. Not good for static flex. To verify Biadhesive datasheet with respect to temperature Minimum exposure of pad achieve on head 70 m for wirebonds. Add test structure to understand if we can use our standard pixel of 90 m pitch (60 m+30 m) Minimum solder to pad gap 50 m Differential couples 30 m/60 m.
