A Scalable Processing-in-Memory Accelerator for Parallel Graph Processing Junwhan Ahn, Sungpack Hong*, Sungjoo Yoo, Onur Mutlu+, Kiyoung Choi *Oracle Labs +Carnegie Mellon University Seoul National University
Graphs Abstract representation of object relationships Vertex: object (e.g., person, article, ) Edge: relationship (e.g., friendships, hyperlinks, ) Recent trend: explosive increase in graph size 36 Million Wikipedia Pages 1.4 Billion Facebook Users 300 Million Twitter Users 30 Billion Instagram Photos

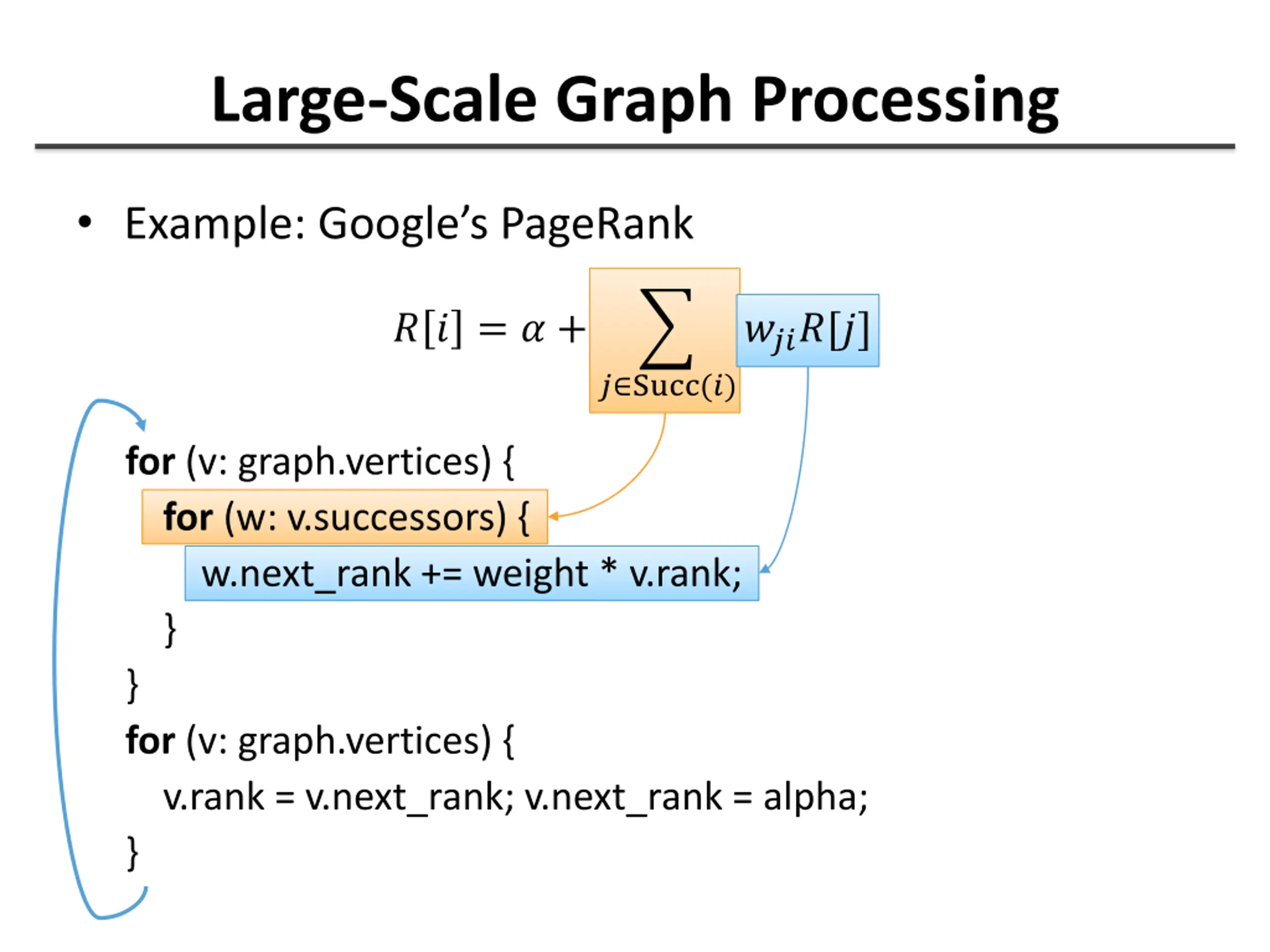

Large-Scale Graph Processing Example: Google s PageRank ? ? = ? + ????[?] ? Succ(?) for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } for (v: graph.vertices) { v.rank = v.next_rank; v.next_rank = alpha; }

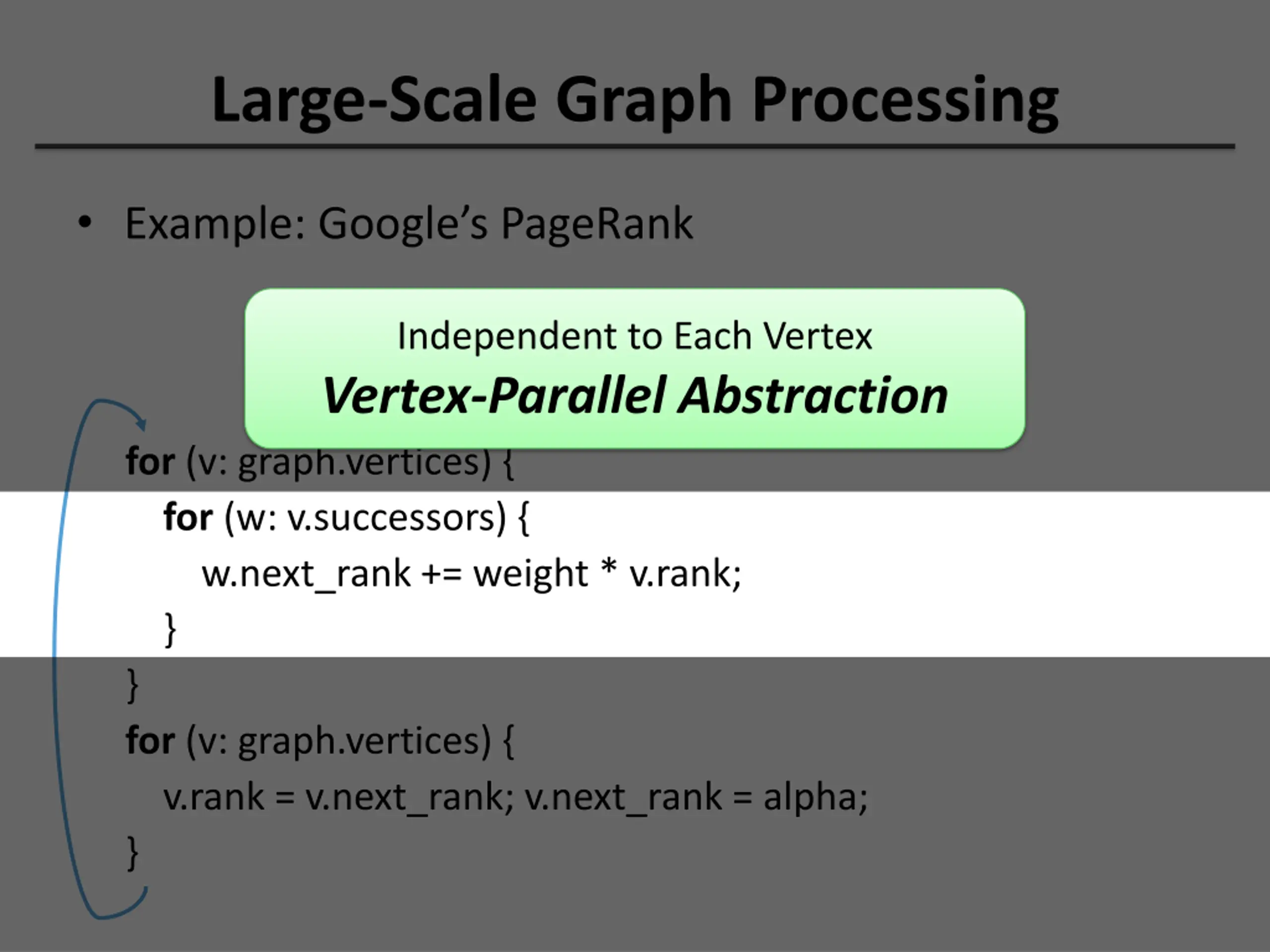

Large-Scale Graph Processing Example: Google s PageRank ? ? = ? + Independent to Each Vertex Vertex-Parallel Abstraction ????[?] ? Succ(?) for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } for (v: graph.vertices) { v.rank = v.next_rank; v.next_rank = alpha; }

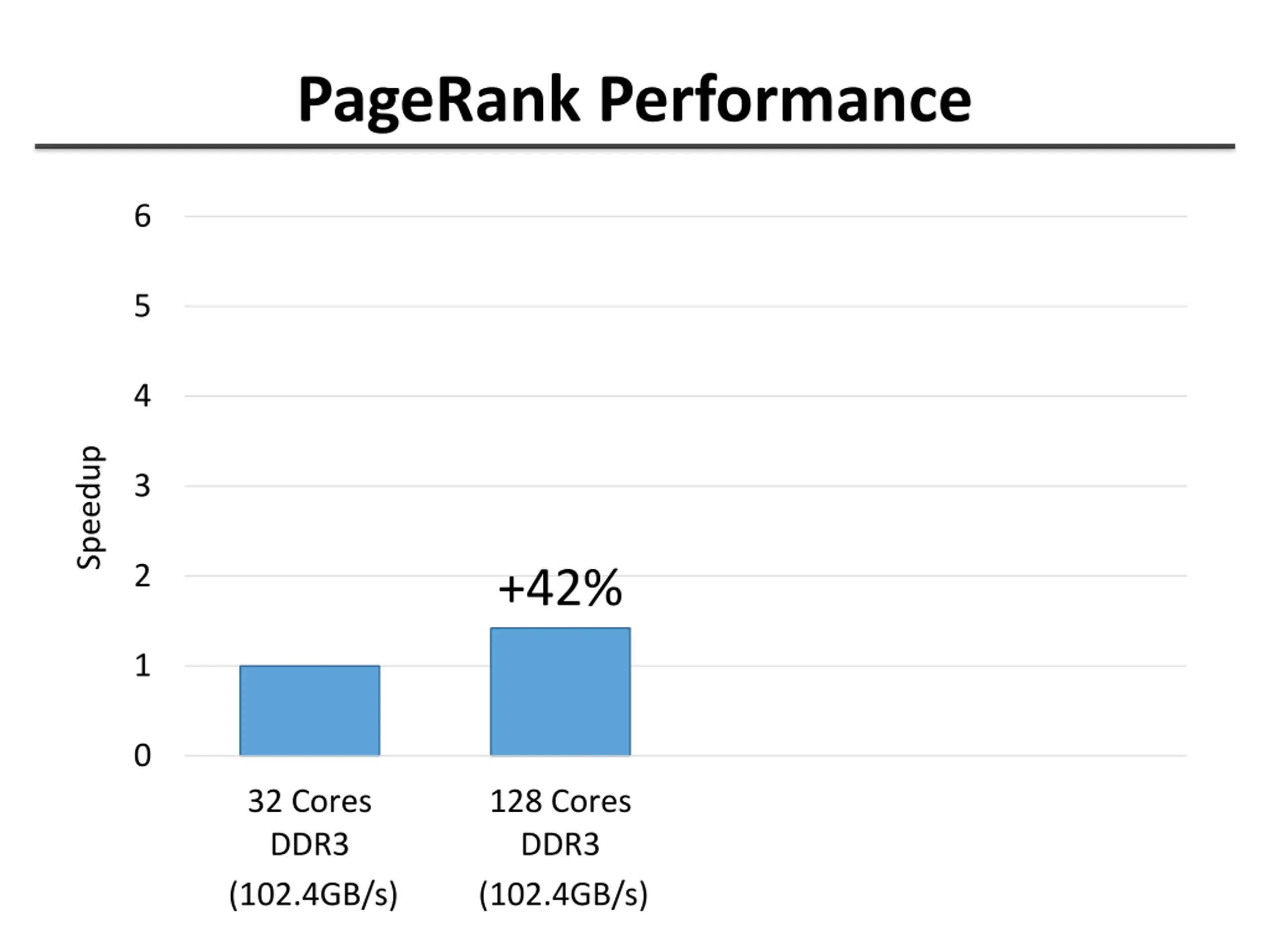

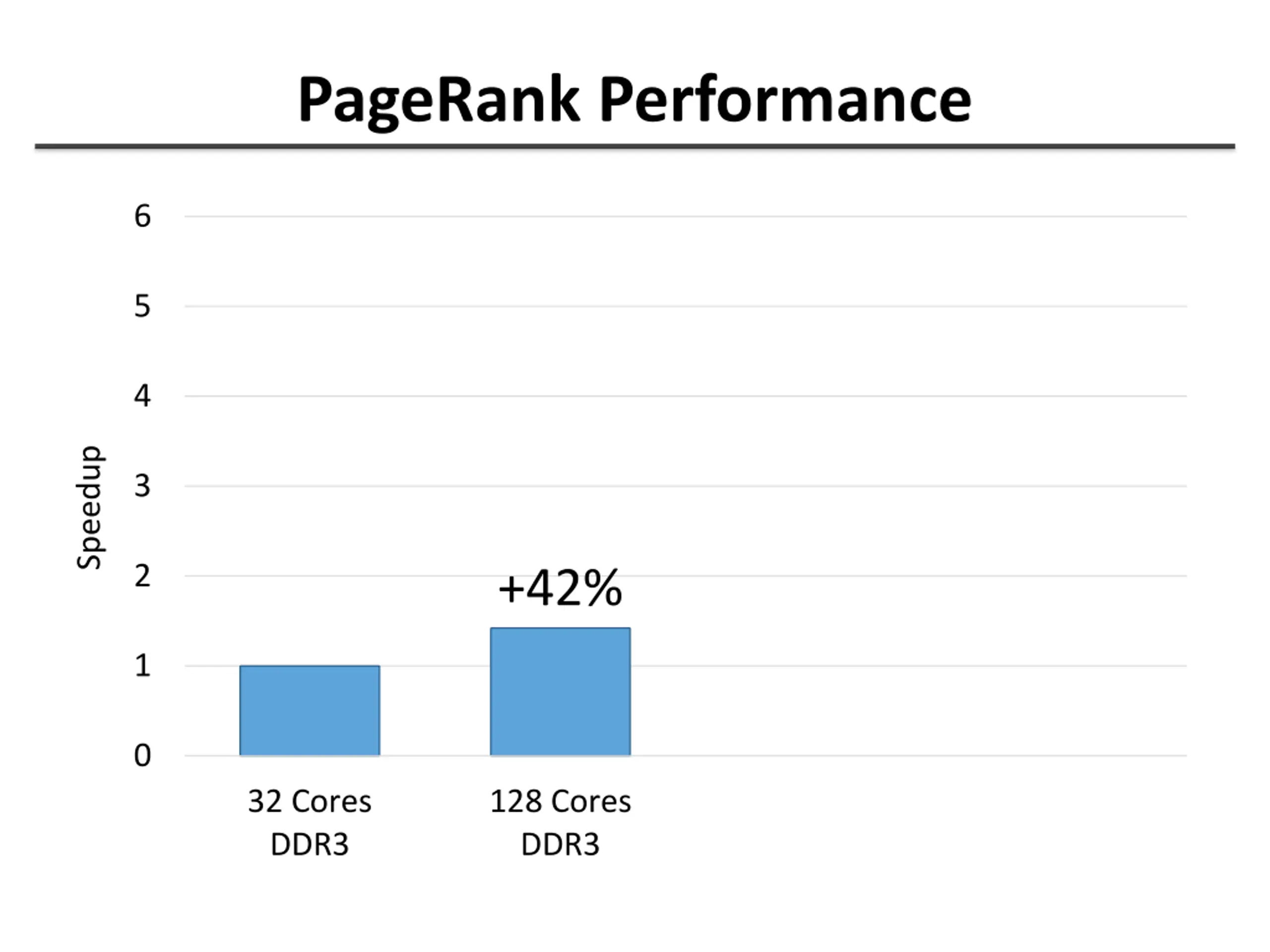

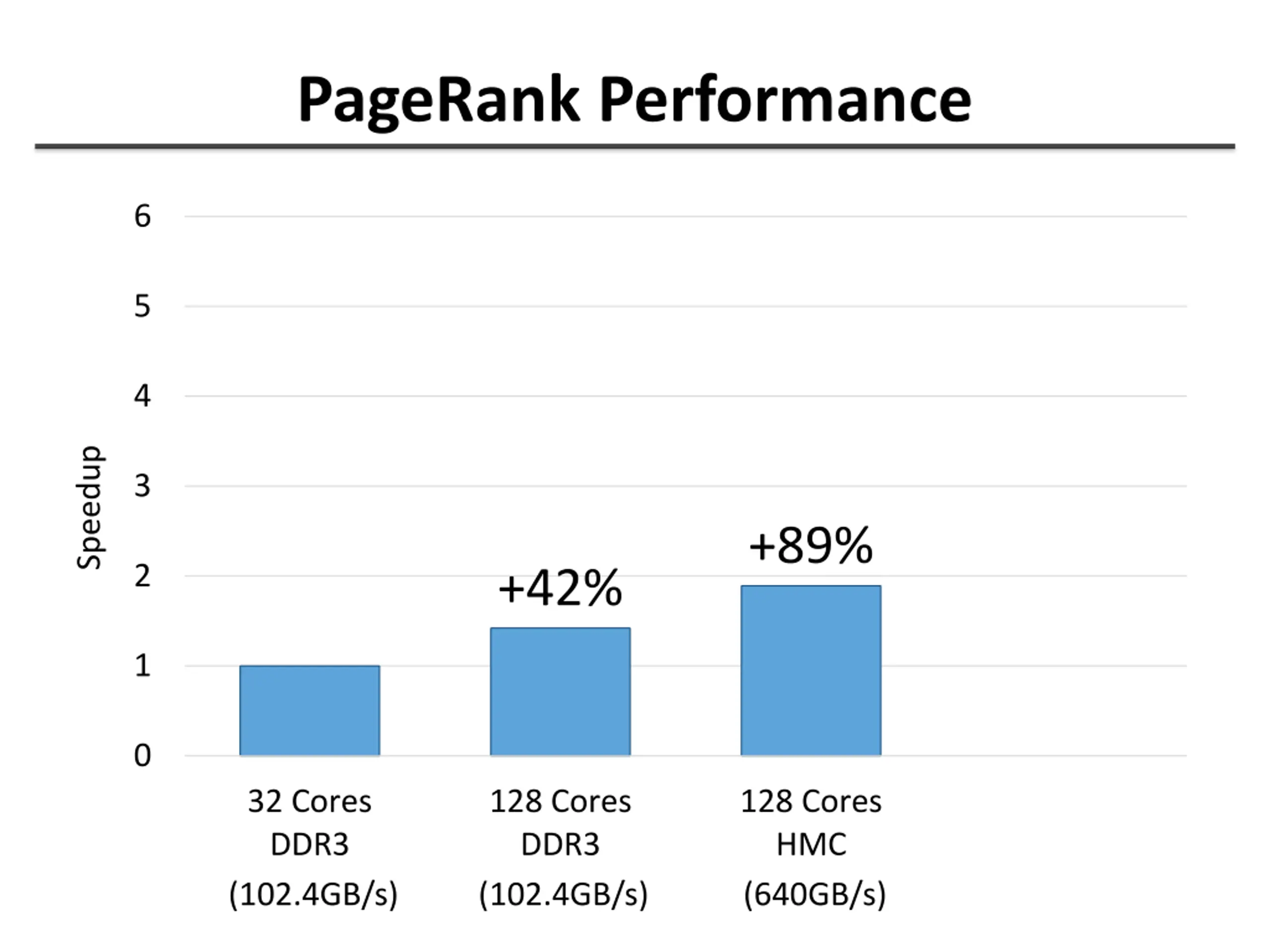

PageRank Performance 6 5 4 Speedup 3 2 +42% 1 0 32 Cores DDR3 128 Cores DDR3

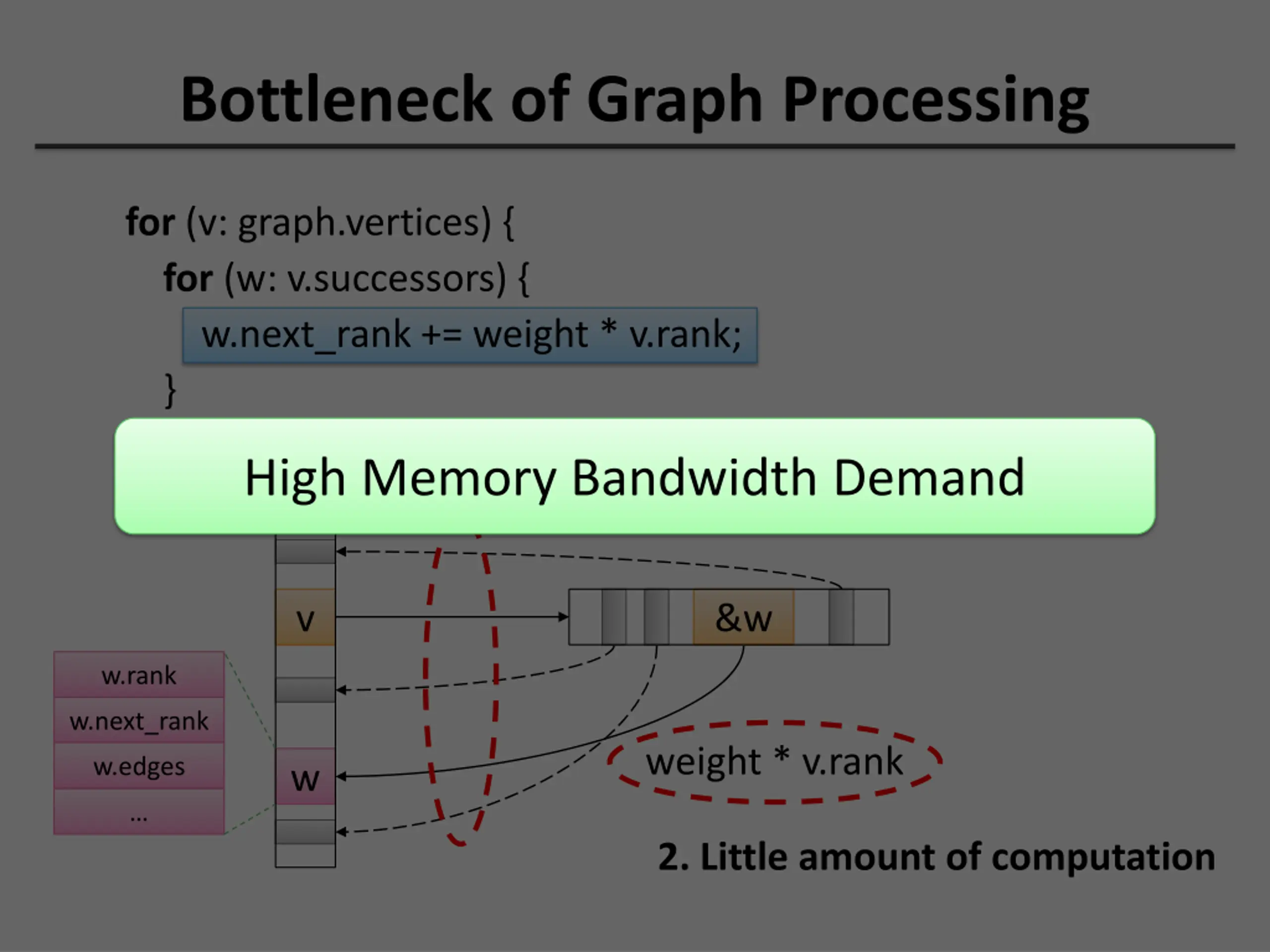

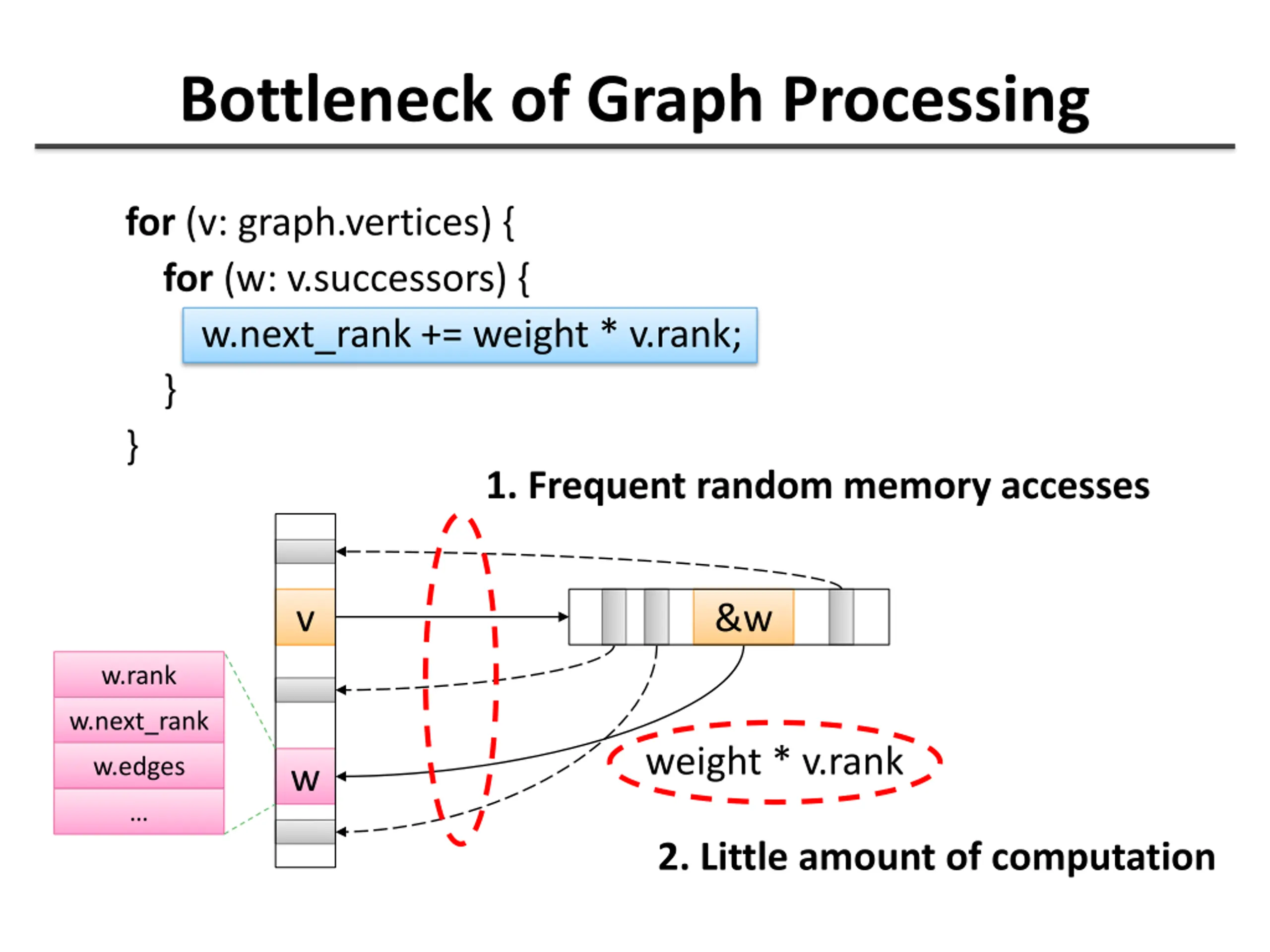

Bottleneck of Graph Processing for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } 1. Frequent random memory accesses v &w w.rank w.next_rank weight * v.rank w.edges w 2. Little amount of computation
Bottleneck of Graph Processing for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } High Memory Bandwidth Demand 1. Frequent random memory accesses v &w w.rank w.next_rank weight * v.rank w.edges w 2. Little amount of computation
PageRank Performance 6 5 4 Speedup 3 2 +42% 1 0 32 Cores DDR3 (102.4GB/s) 128 Cores DDR3 (102.4GB/s)

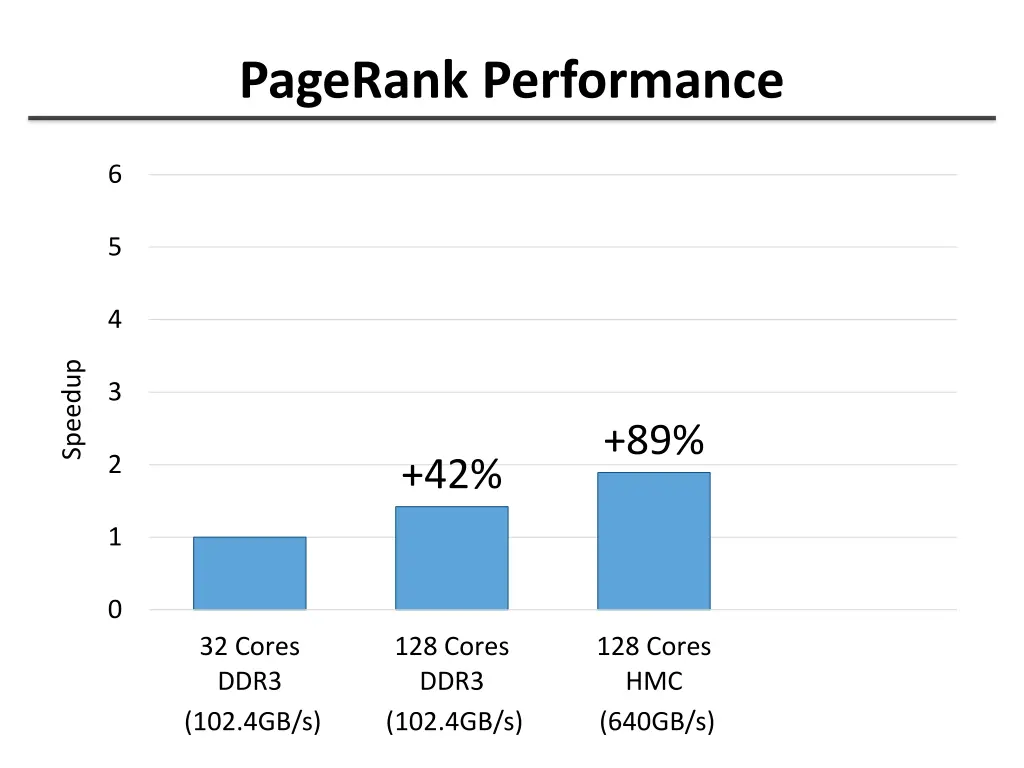

PageRank Performance 6 5 4 Speedup 3 +89% 2 +42% 1 0 32 Cores DDR3 (102.4GB/s) 128 Cores DDR3 (102.4GB/s) 128 Cores HMC (640GB/s)
PageRank Performance 6 5 4 Speedup 3 +89% 2 +42% 1 0 32 Cores DDR3 (102.4GB/s) 128 Cores DDR3 (102.4GB/s) 128 Cores HMC (640GB/s)

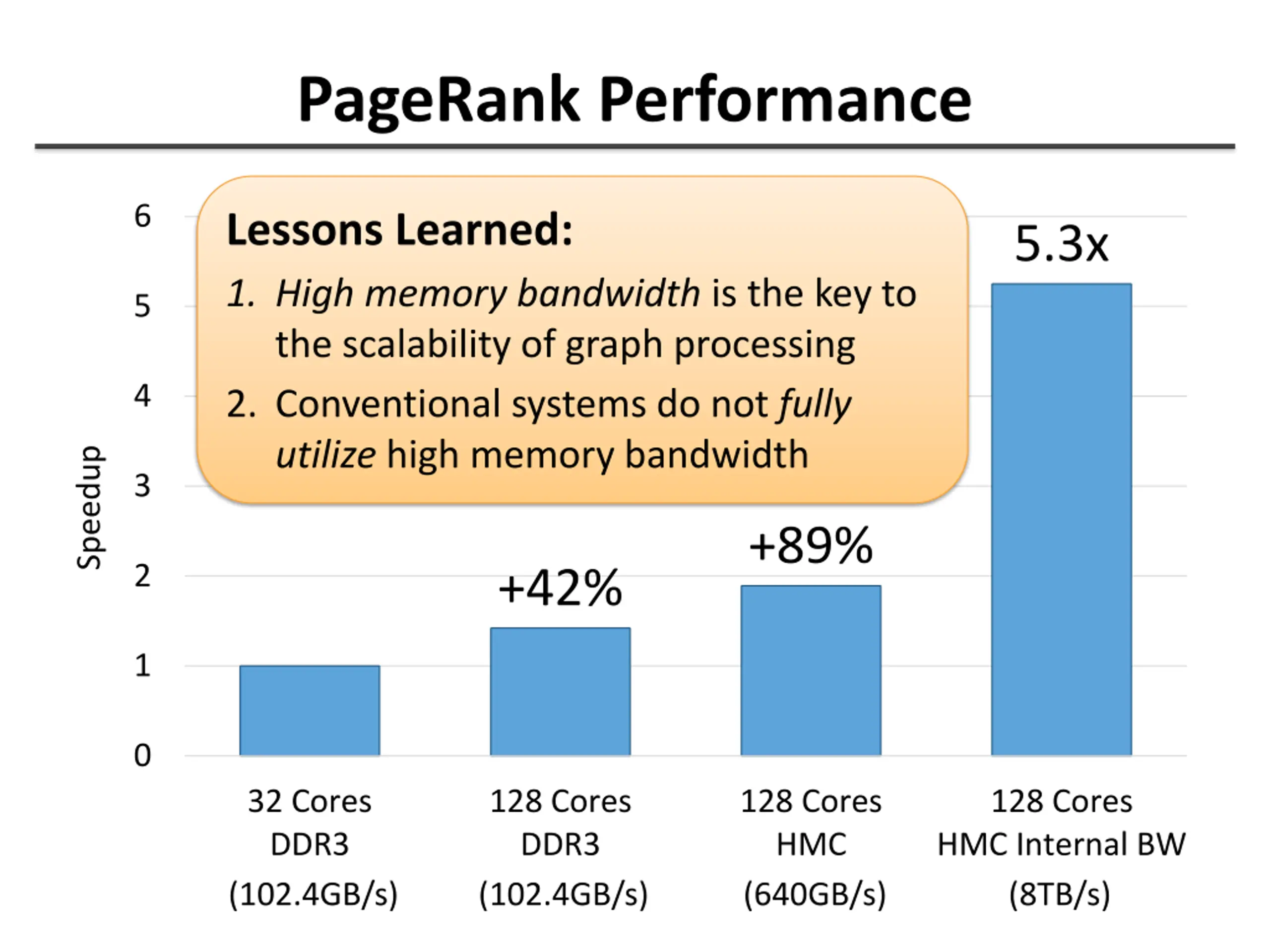

PageRank Performance 6 Lessons Learned: 1. High memory bandwidth is the key to the scalability of graph processing 2. Conventional systems do not fully utilize high memory bandwidth 5.3x 5 4 Speedup 3 +89% 2 +42% 1 0 32 Cores DDR3 (102.4GB/s) 128 Cores DDR3 (102.4GB/s) 128 Cores HMC (640GB/s) 128 Cores HMC Internal BW (8TB/s)

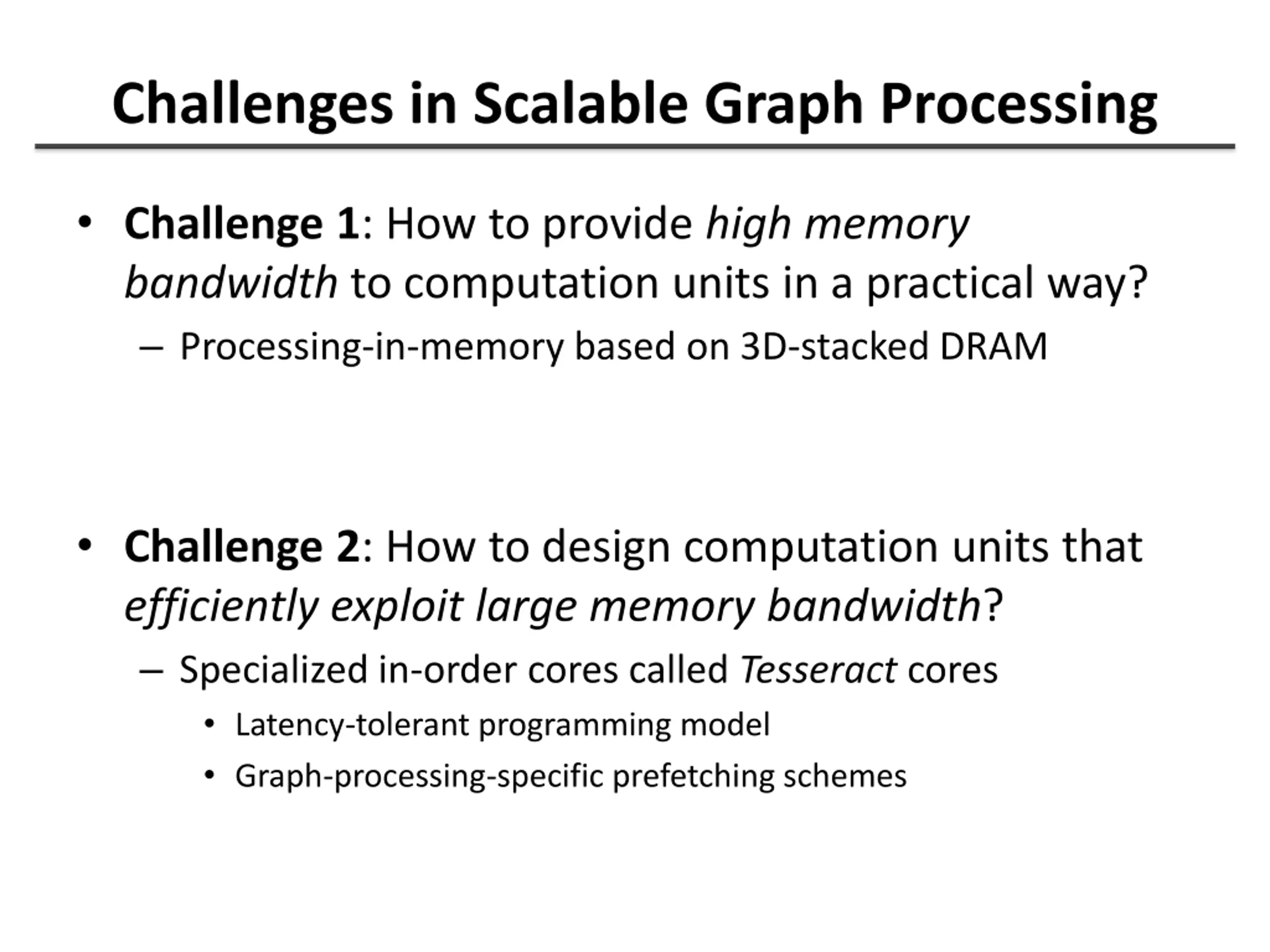

Challenges in Scalable Graph Processing Challenge 1: How to provide high memory bandwidth to computation units in a practical way? Processing-in-memory based on 3D-stacked DRAM Challenge 2: How to design computation units that efficiently exploit large memory bandwidth? Specialized in-order cores called Tesseract cores Latency-tolerant programming model Graph-processing-specific prefetching schemes
Tesseract System Host Processor Memory-Mapped Accelerator Interface (Noncacheable, Physically Addressed) DRAM Controller In-Order Core LP PF Buffer Crossbar Network MTP NI Message Queue
Tesseract System Host Processor Memory-Mapped Accelerator Interface (Noncacheable, Physically Addressed) DRAM Controller In-Order Core LP PF Buffer Crossbar Network MTP NI Message Queue

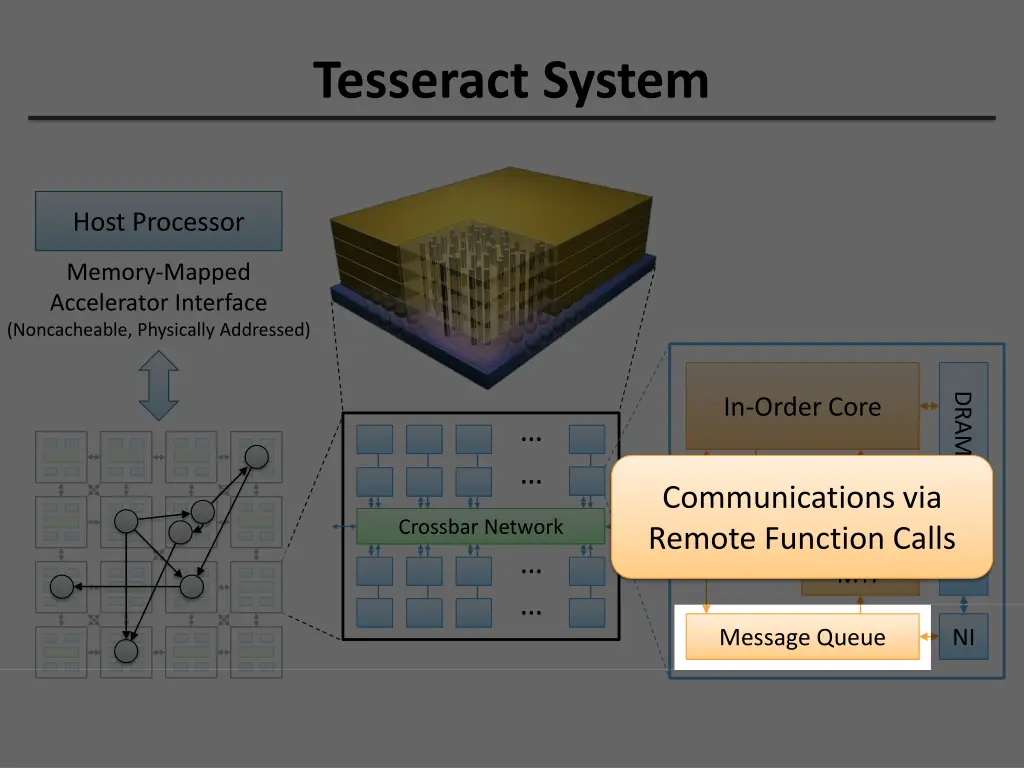

Tesseract System Host Processor Memory-Mapped Accelerator Interface (Noncacheable, Physically Addressed) DRAM Controller In-Order Core Communications via Remote Function Calls LP PF Buffer Crossbar Network MTP NI Message Queue

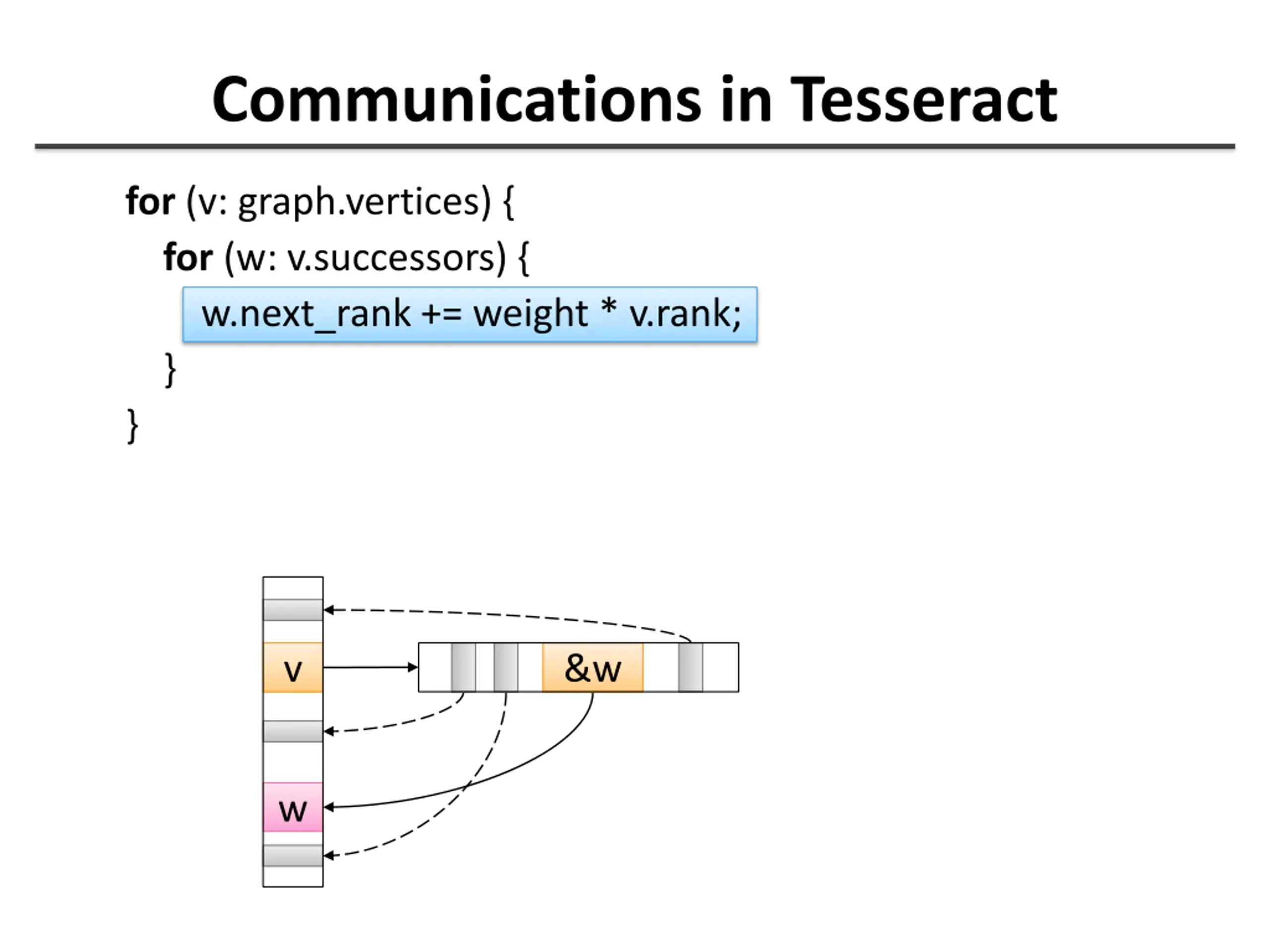

Communications in Tesseract for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } v &w w

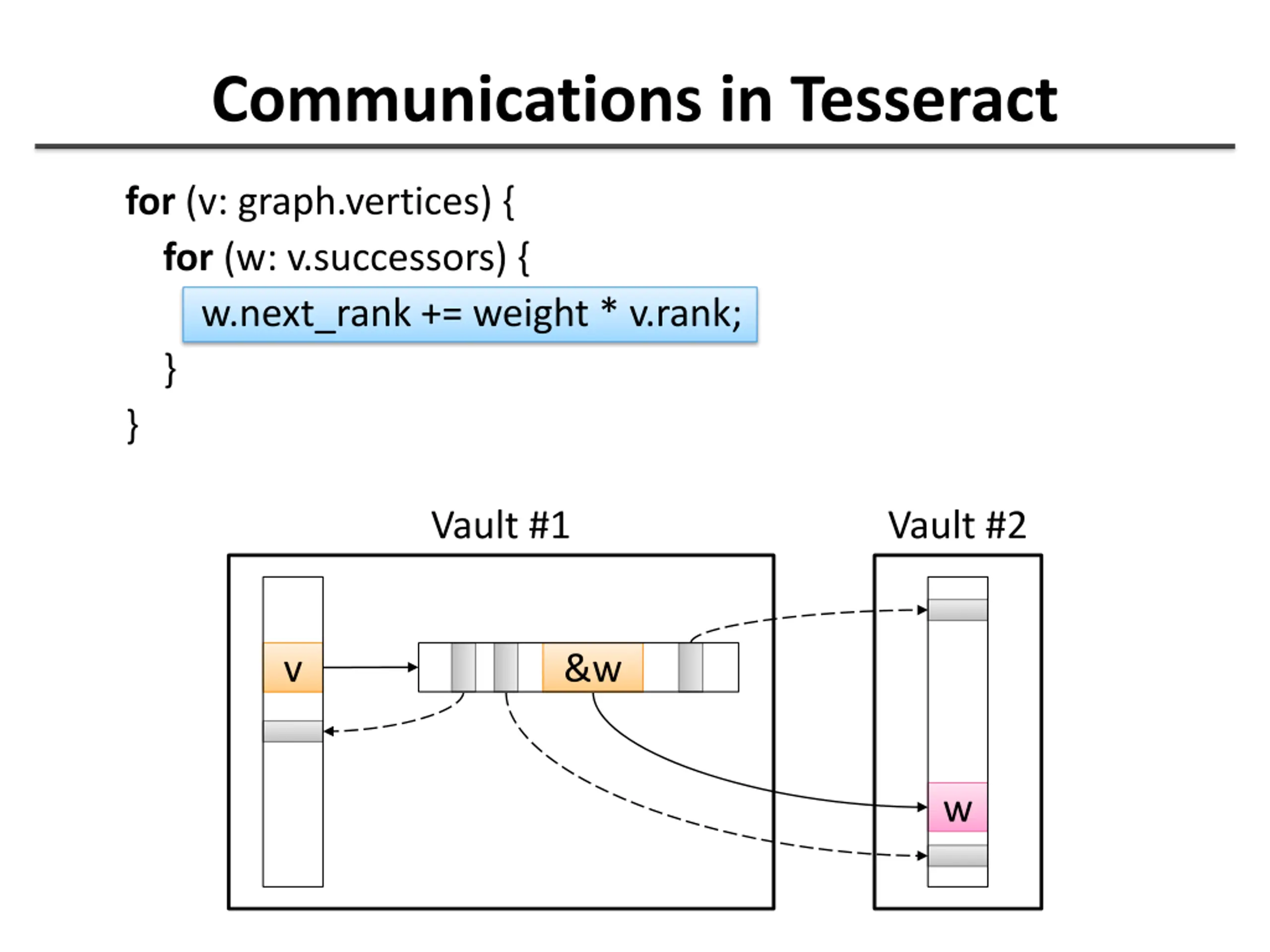

Communications in Tesseract for (v: graph.vertices) { for (w: v.successors) { w.next_rank += weight * v.rank; } } Vault #1 Vault #2 v &w w

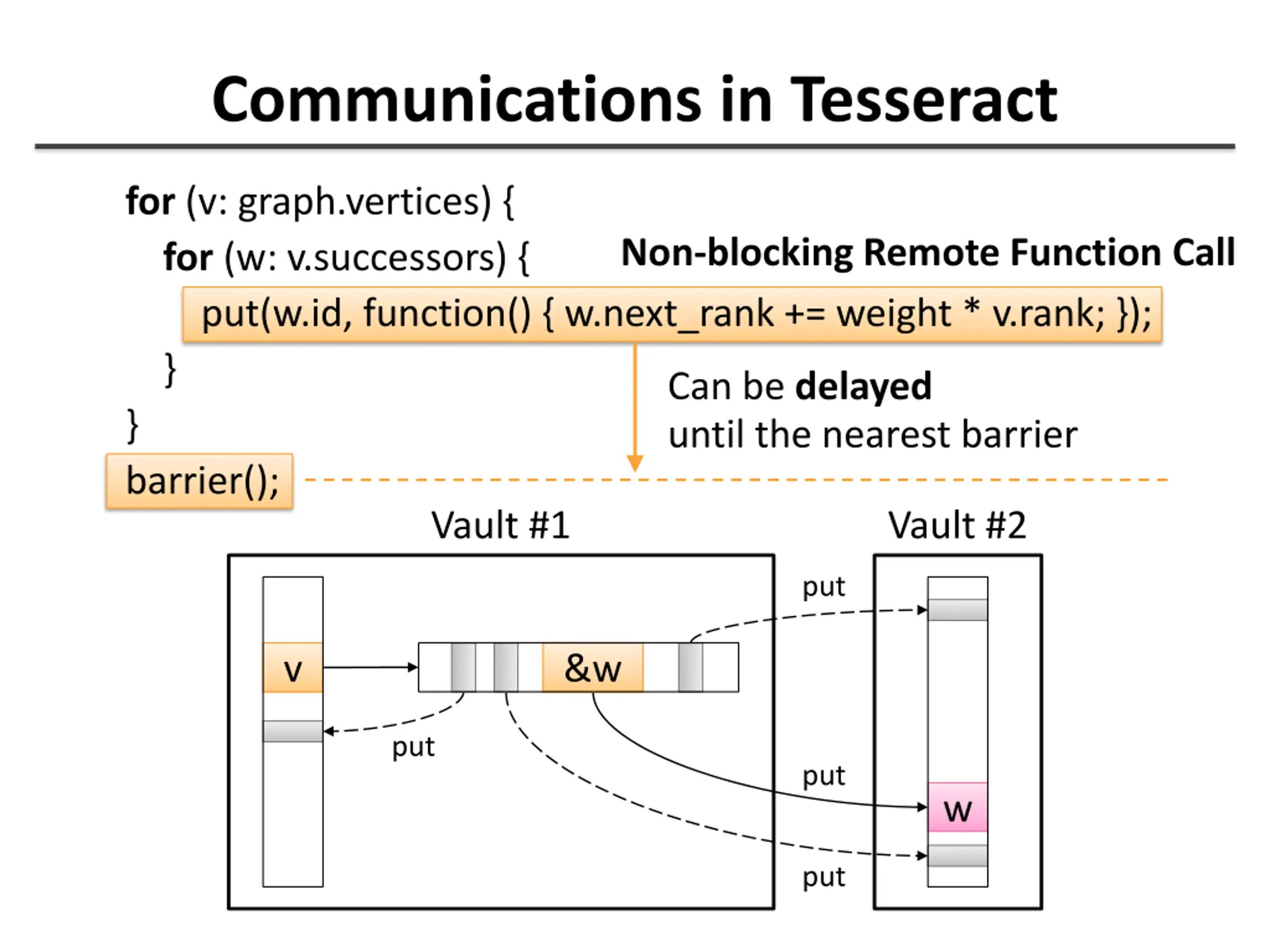

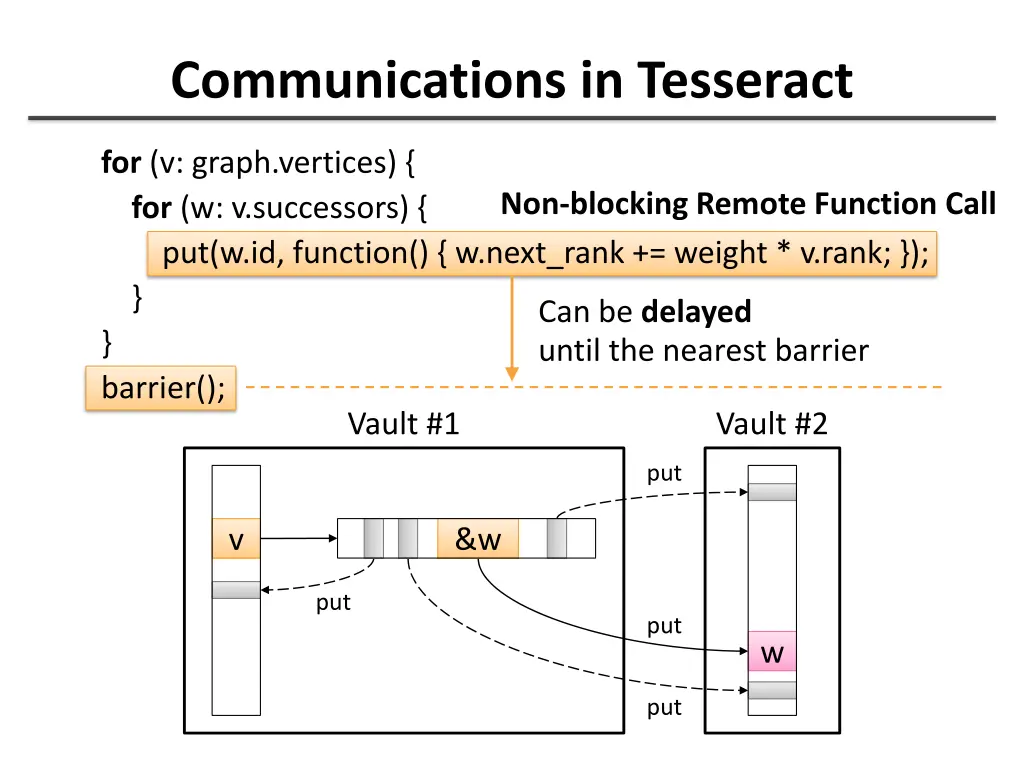

Communications in Tesseract for (v: graph.vertices) { for (w: v.successors) { put(w.id, function() { w.next_rank += weight * v.rank; }); } } barrier(); Vault #1 Non-blocking Remote Function Call Can be delayed until the nearest barrier Vault #2 put v &w put put w put

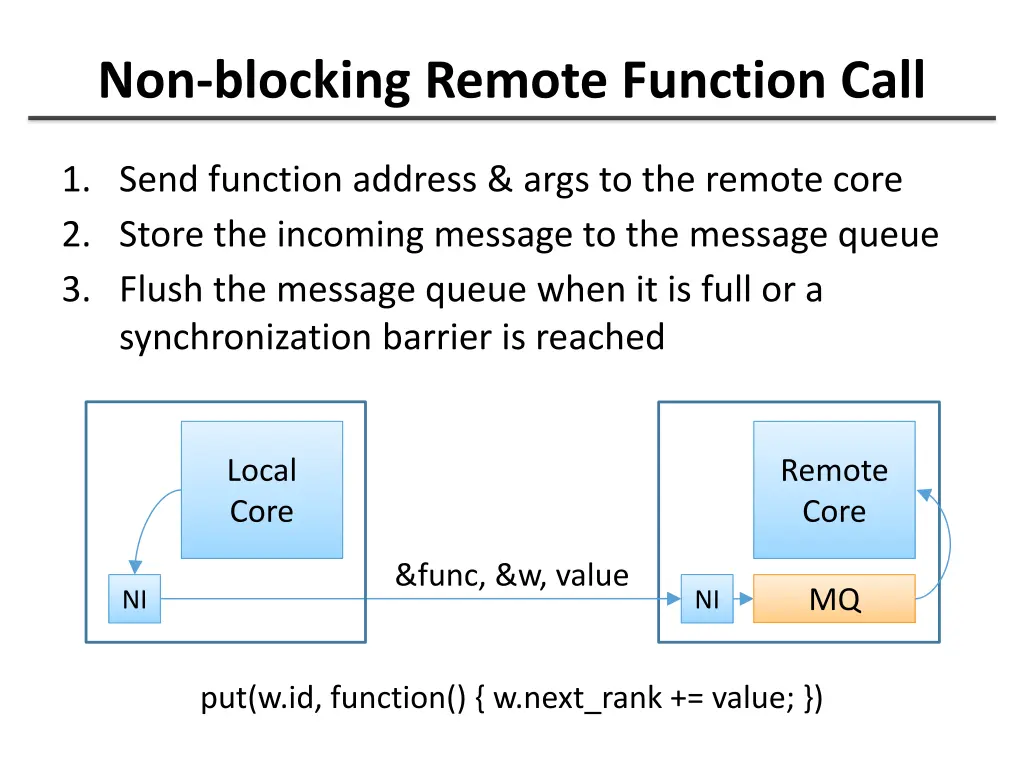

Non-blocking Remote Function Call 1. Send function address & args to the remote core 2. Store the incoming message to the message queue 3. Flush the message queue when it is full or a synchronization barrier is reached Local Core Remote Core &func, &w, value MQ NI NI put(w.id, function() { w.next_rank += value; })

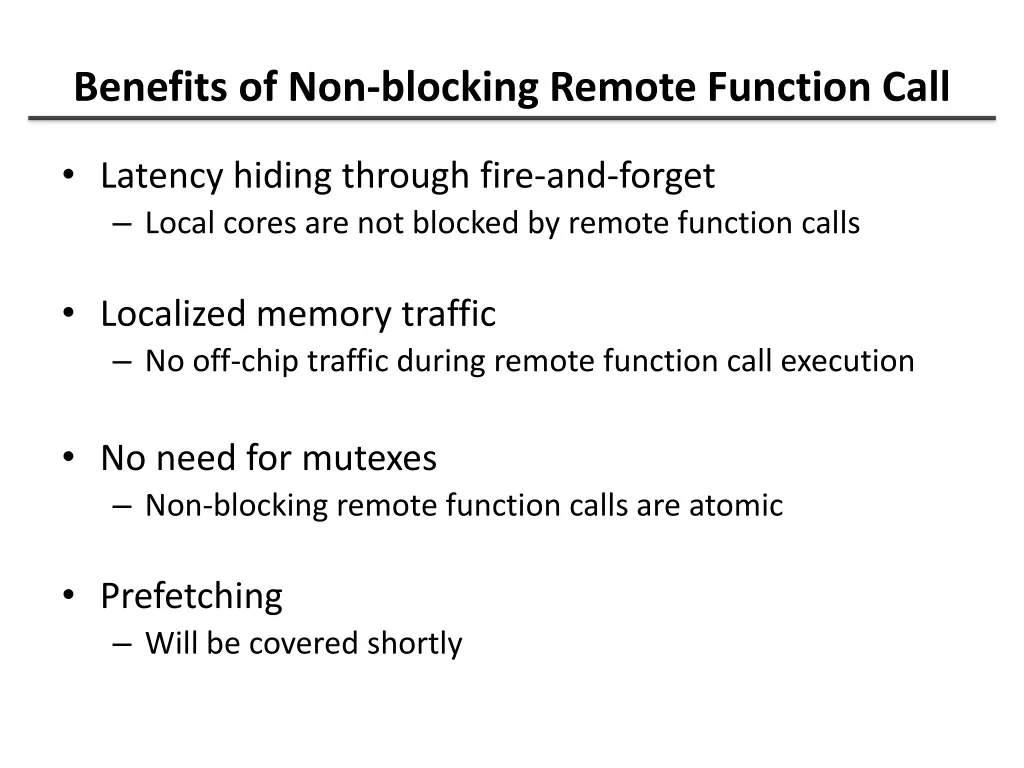

Benefits of Non-blocking Remote Function Call Latency hiding through fire-and-forget Local cores are not blocked by remote function calls Localized memory traffic No off-chip traffic during remote function call execution No need for mutexes Non-blocking remote function calls are atomic Prefetching Will be covered shortly

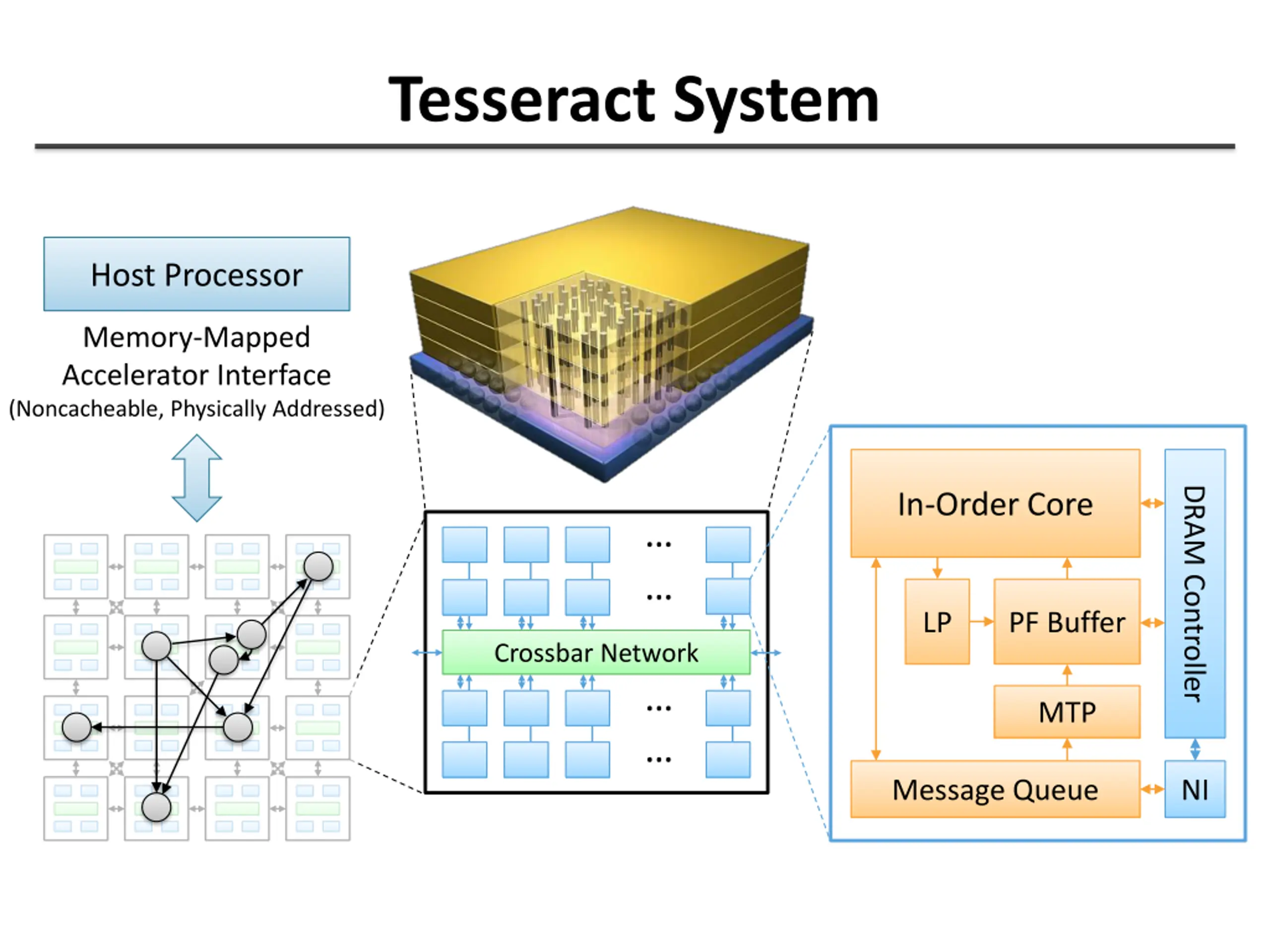

Tesseract System Host Processor Memory-Mapped Accelerator Interface (Noncacheable, Physically Addressed) DRAM Controller In-Order Core LP PF Buffer Crossbar Network MTP NI Message Queue

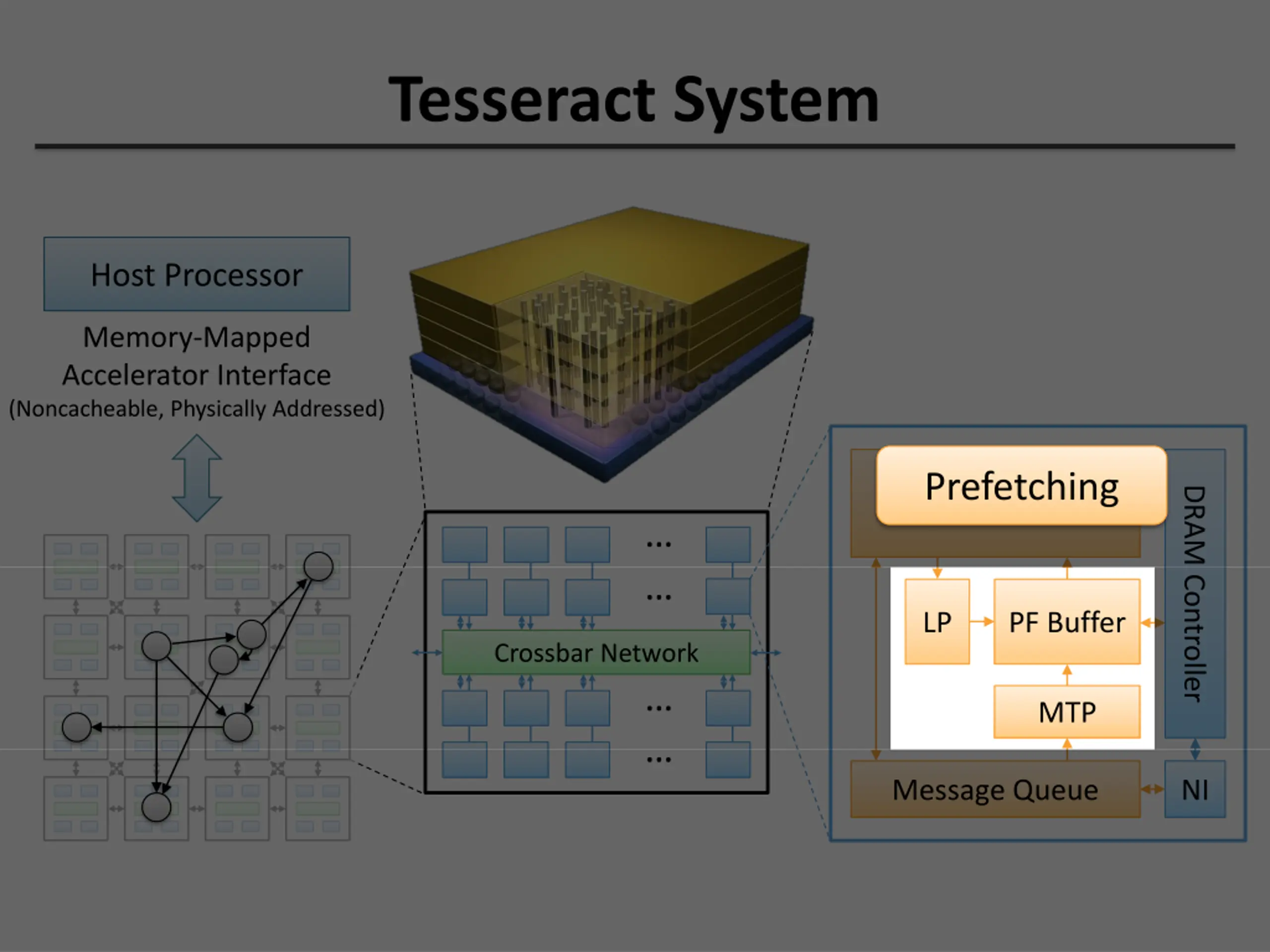

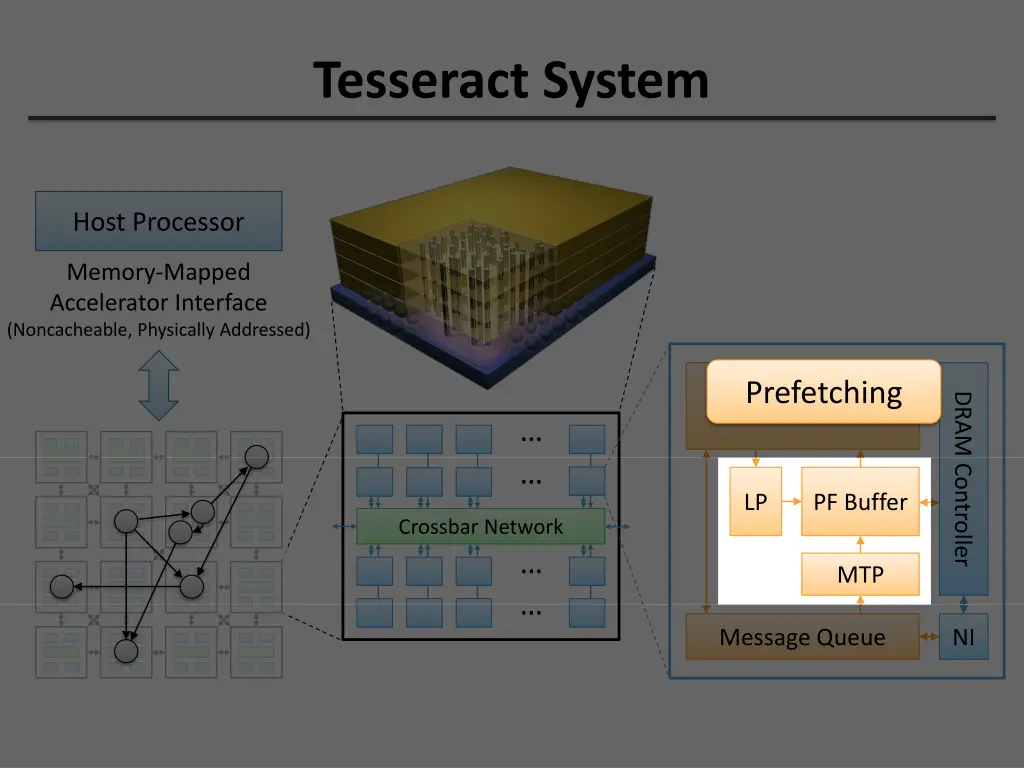

Tesseract System Host Processor Memory-Mapped Accelerator Interface (Noncacheable, Physically Addressed) In-Order Core Prefetching DRAM Controller LP PF Buffer Crossbar Network MTP NI Message Queue

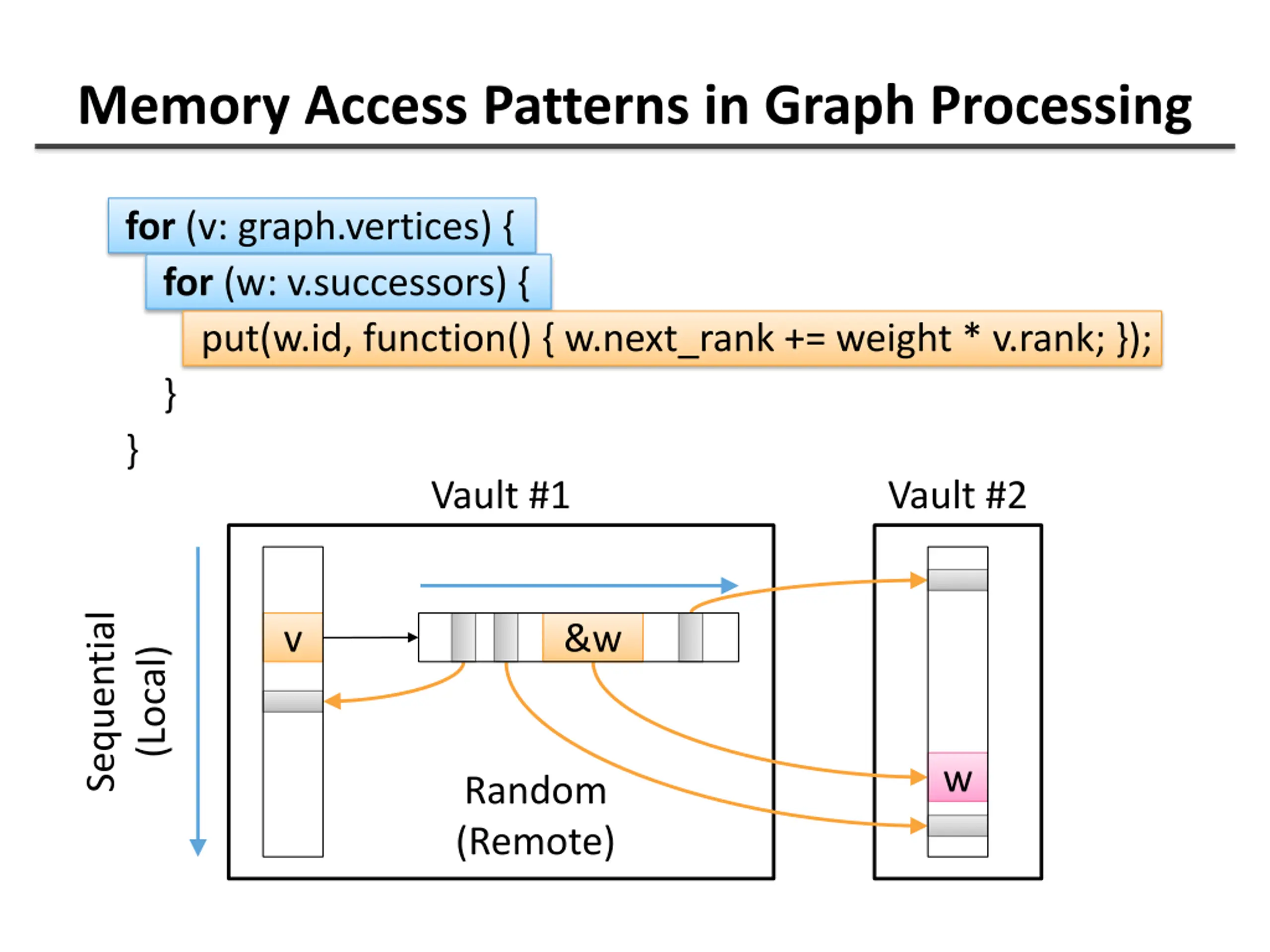

Memory Access Patterns in Graph Processing for (v: graph.vertices) { for (w: v.successors) { put(w.id, function() { w.next_rank += weight * v.rank; }); } } Vault #1 Vault #2 Sequential v &w (Local) w Random (Remote)

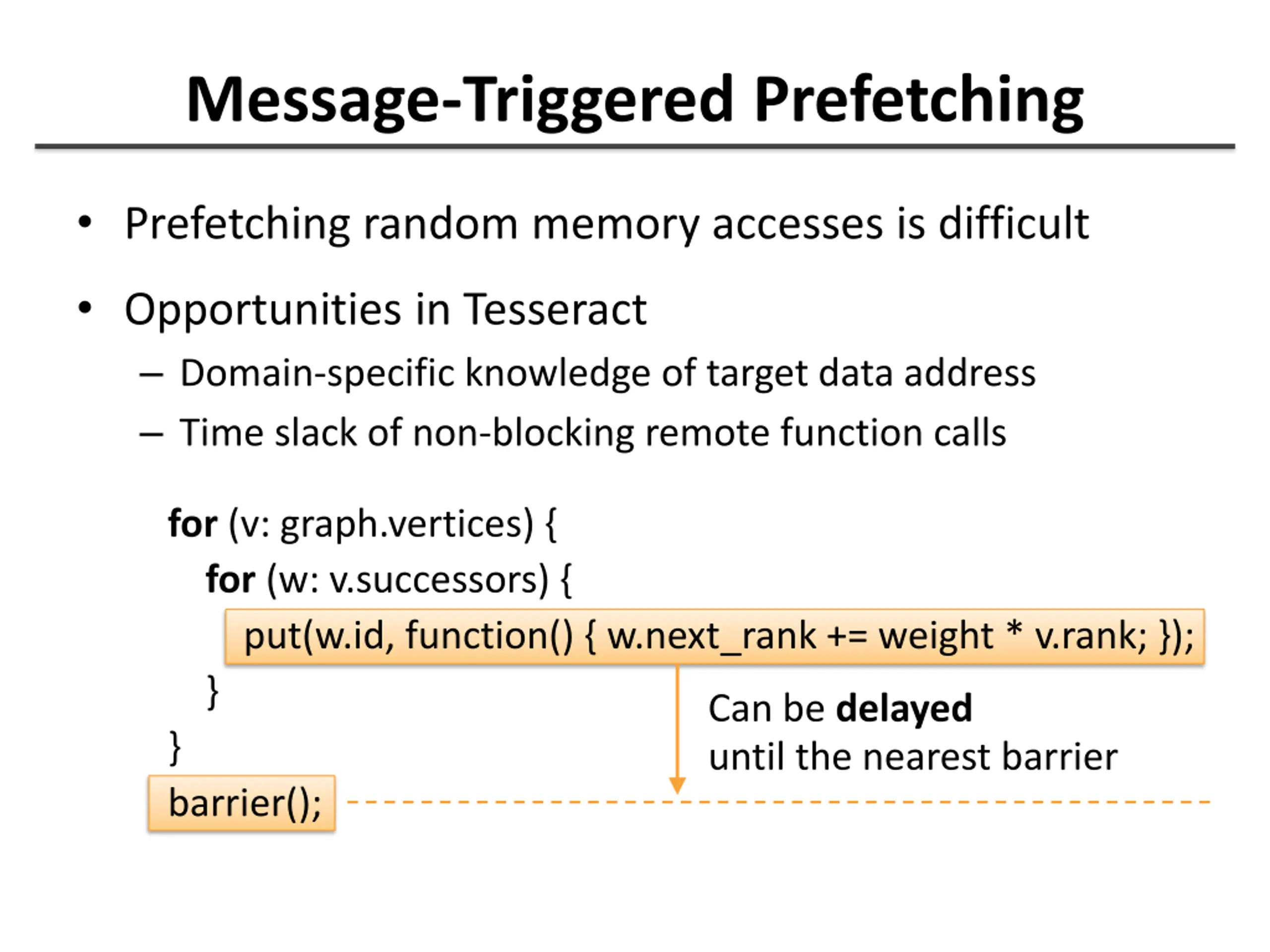

Message-Triggered Prefetching Prefetching random memory accesses is difficult Opportunities in Tesseract Domain-specific knowledge of target data address Time slack of non-blocking remote function calls for (v: graph.vertices) { for (w: v.successors) { put(w.id, function() { w.next_rank += weight * v.rank; }); } } barrier(); Can be delayed until the nearest barrier

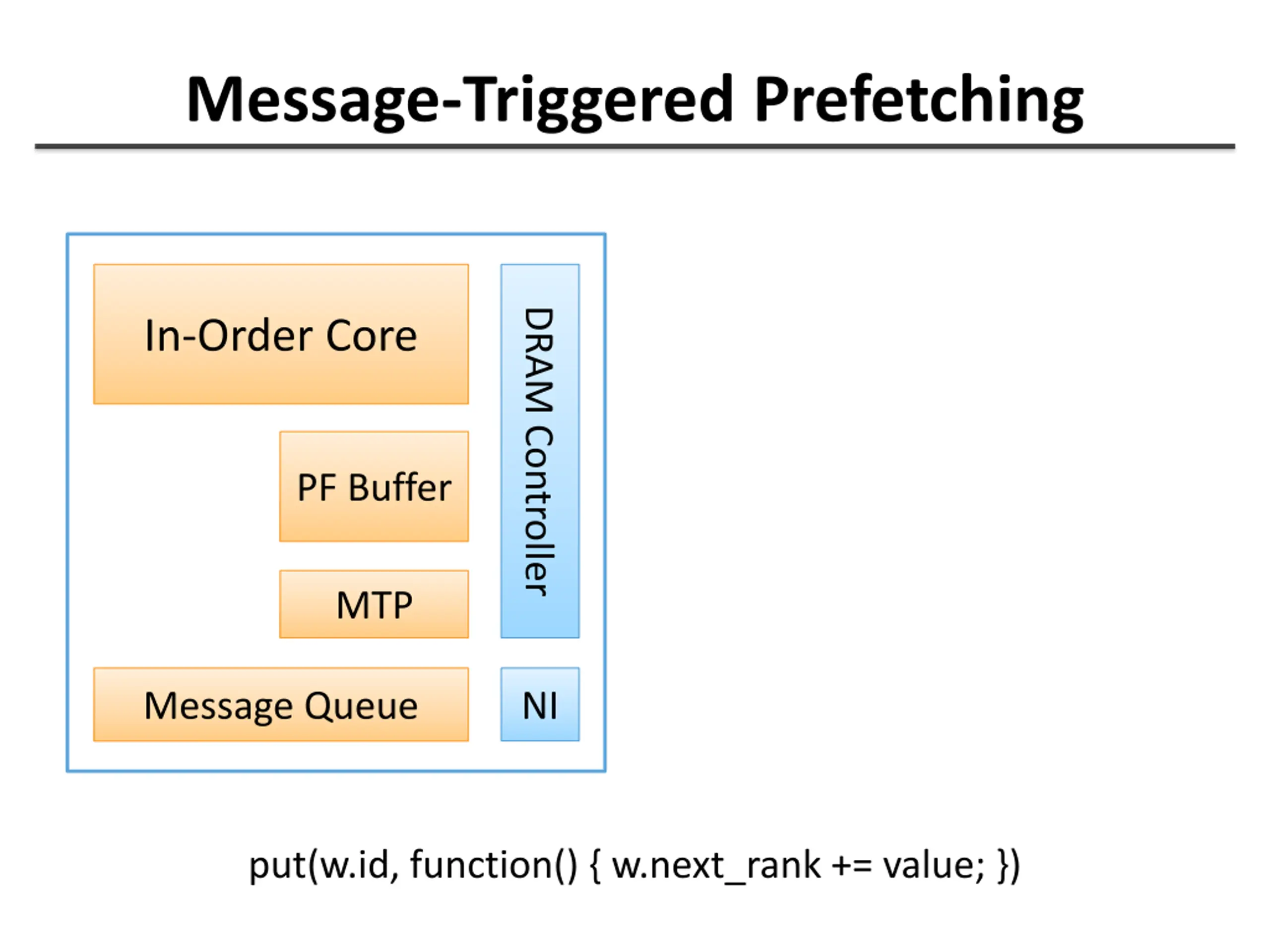

Message-Triggered Prefetching DRAM Controller In-Order Core PF Buffer MTP NI Message Queue put(w.id, function() { w.next_rank += value; })

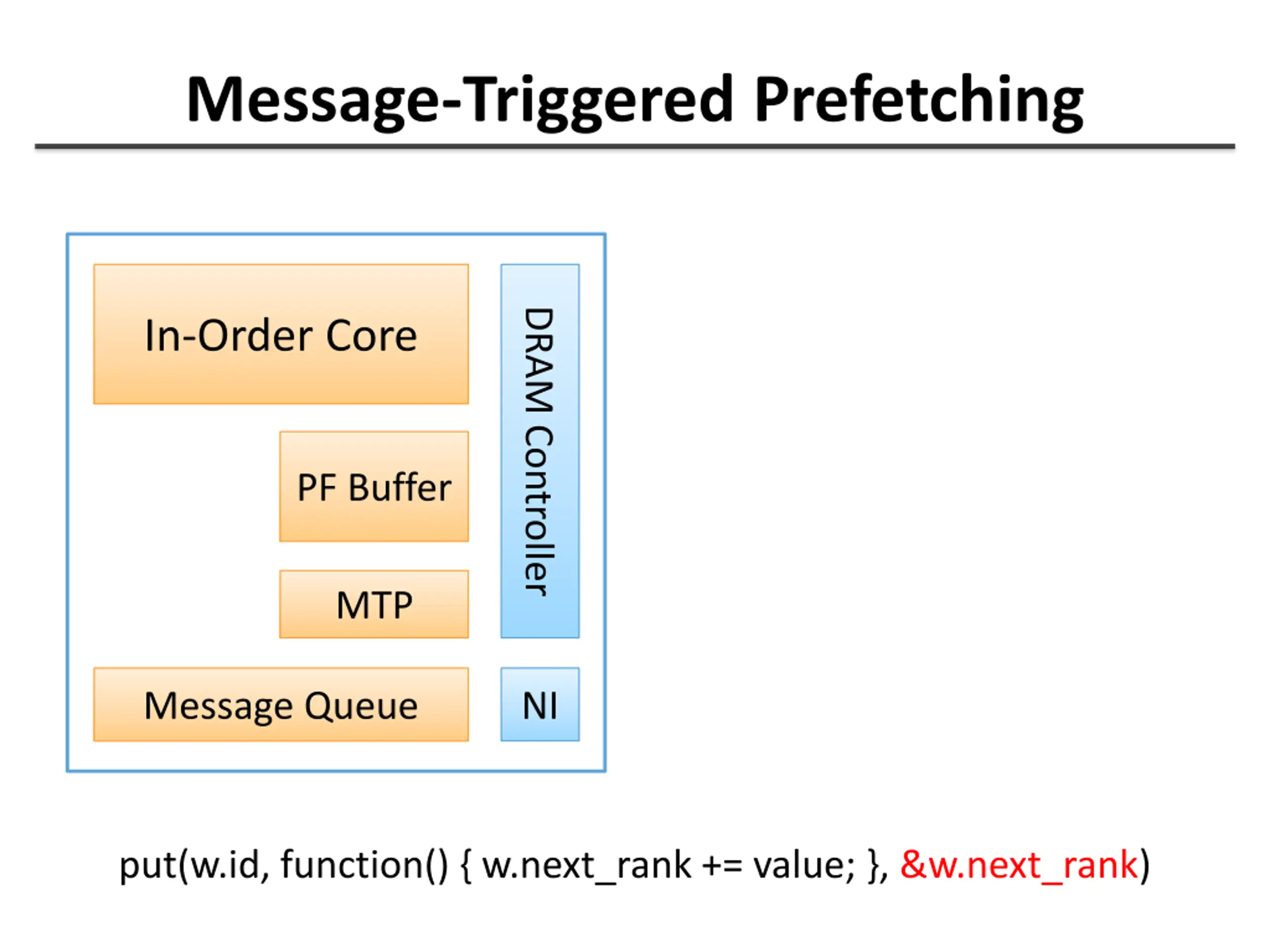

Message-Triggered Prefetching DRAM Controller In-Order Core PF Buffer MTP NI Message Queue put(w.id, function() { w.next_rank += value; }, &w.next_rank)

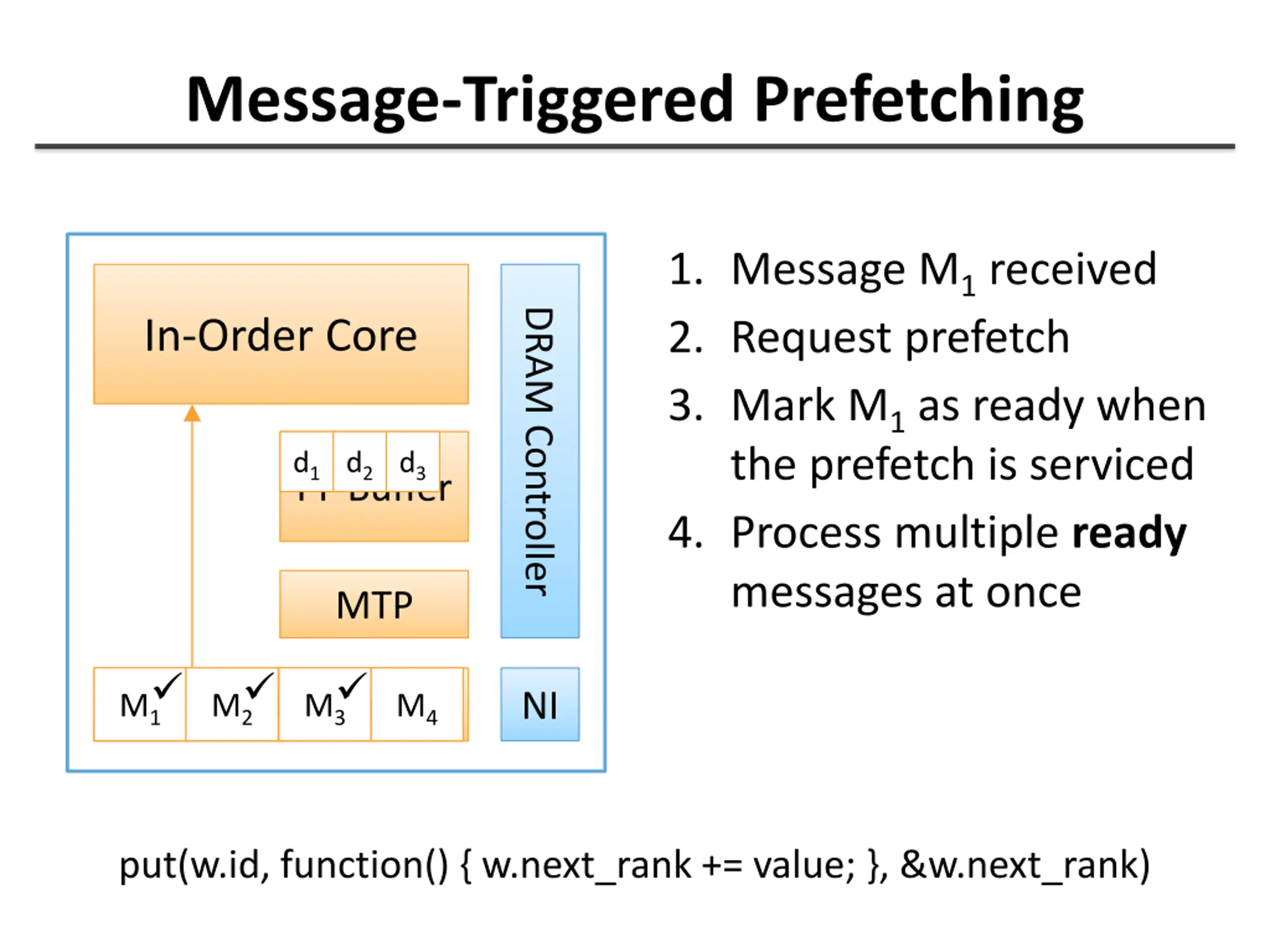

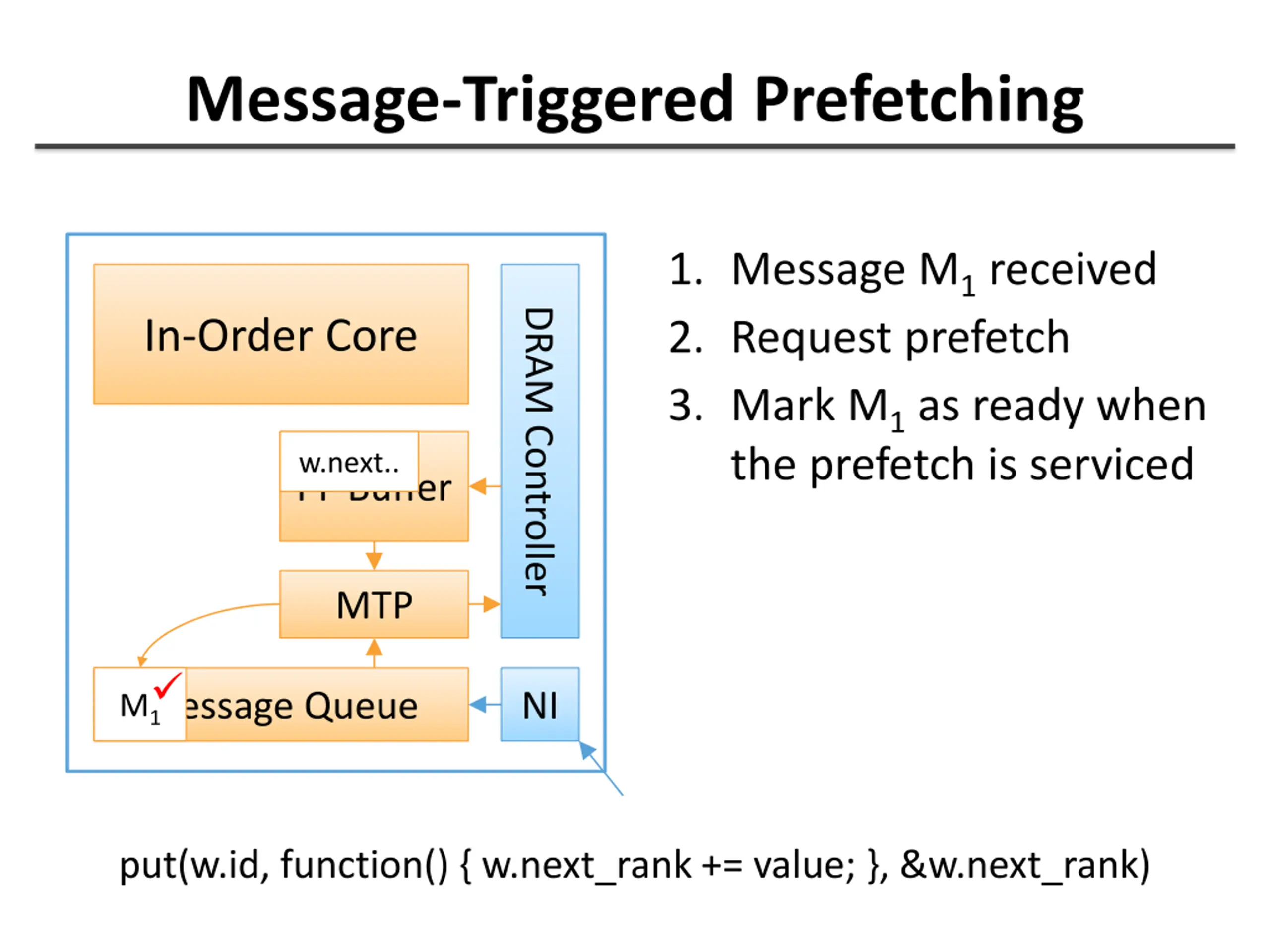

Message-Triggered Prefetching 1. Message M1received 2. Request prefetch 3. Mark M1as ready when the prefetch is serviced DRAM Controller In-Order Core w.next.. PF Buffer MTP M1 NI Message Queue put(w.id, function() { w.next_rank += value; }, &w.next_rank)
Message-Triggered Prefetching 1. Message M1received 2. Request prefetch 3. Mark M1as ready when the prefetch is serviced 4. Process multiple ready messages at once DRAM Controller In-Order Core d1 d2 d3 PF Buffer MTP M1 M2 M3 NI Message Queue M4 put(w.id, function() { w.next_rank += value; }, &w.next_rank)

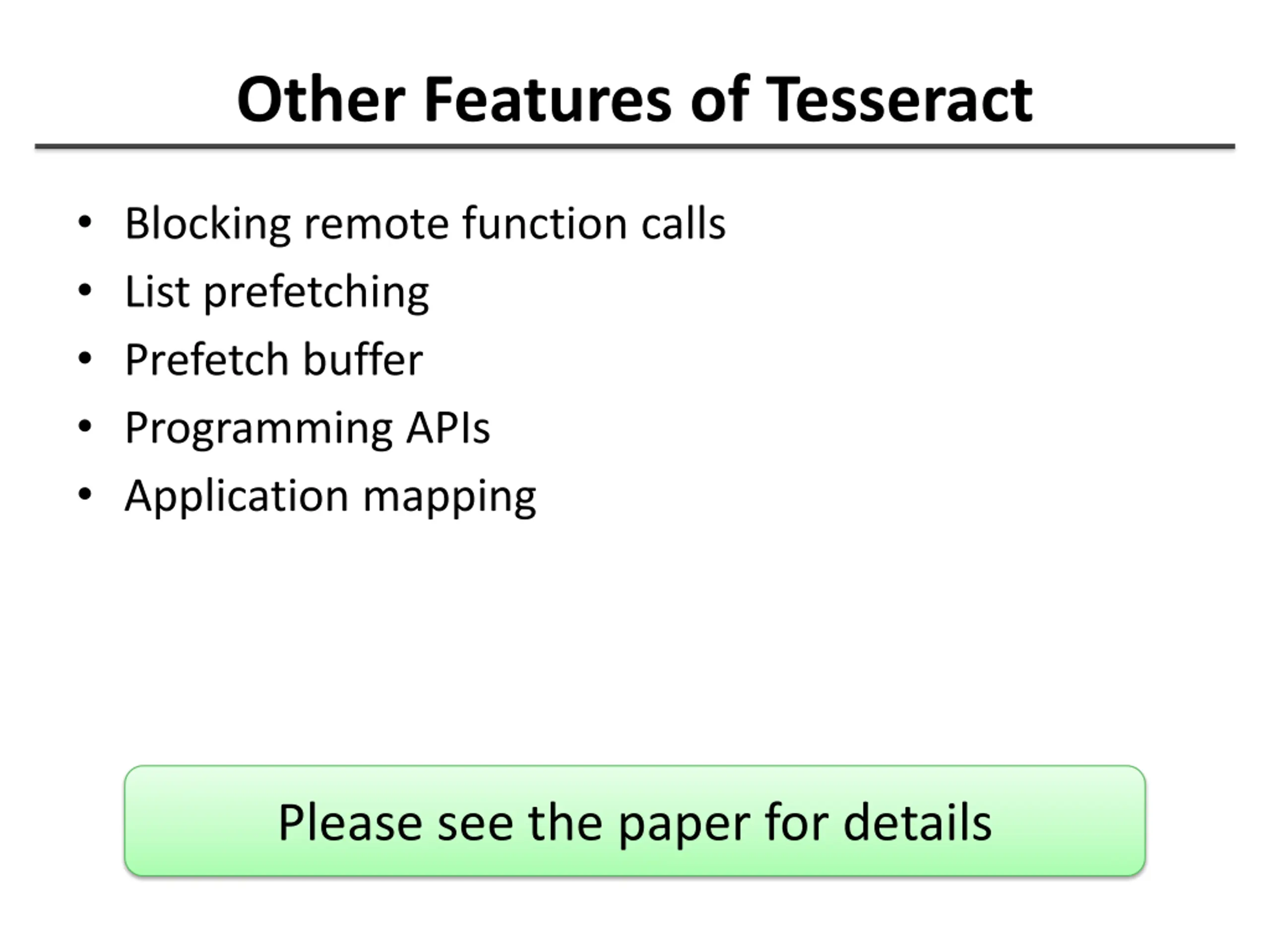

Other Features of Tesseract Blocking remote function calls List prefetching Prefetch buffer Programming APIs Application mapping Please see the paper for details

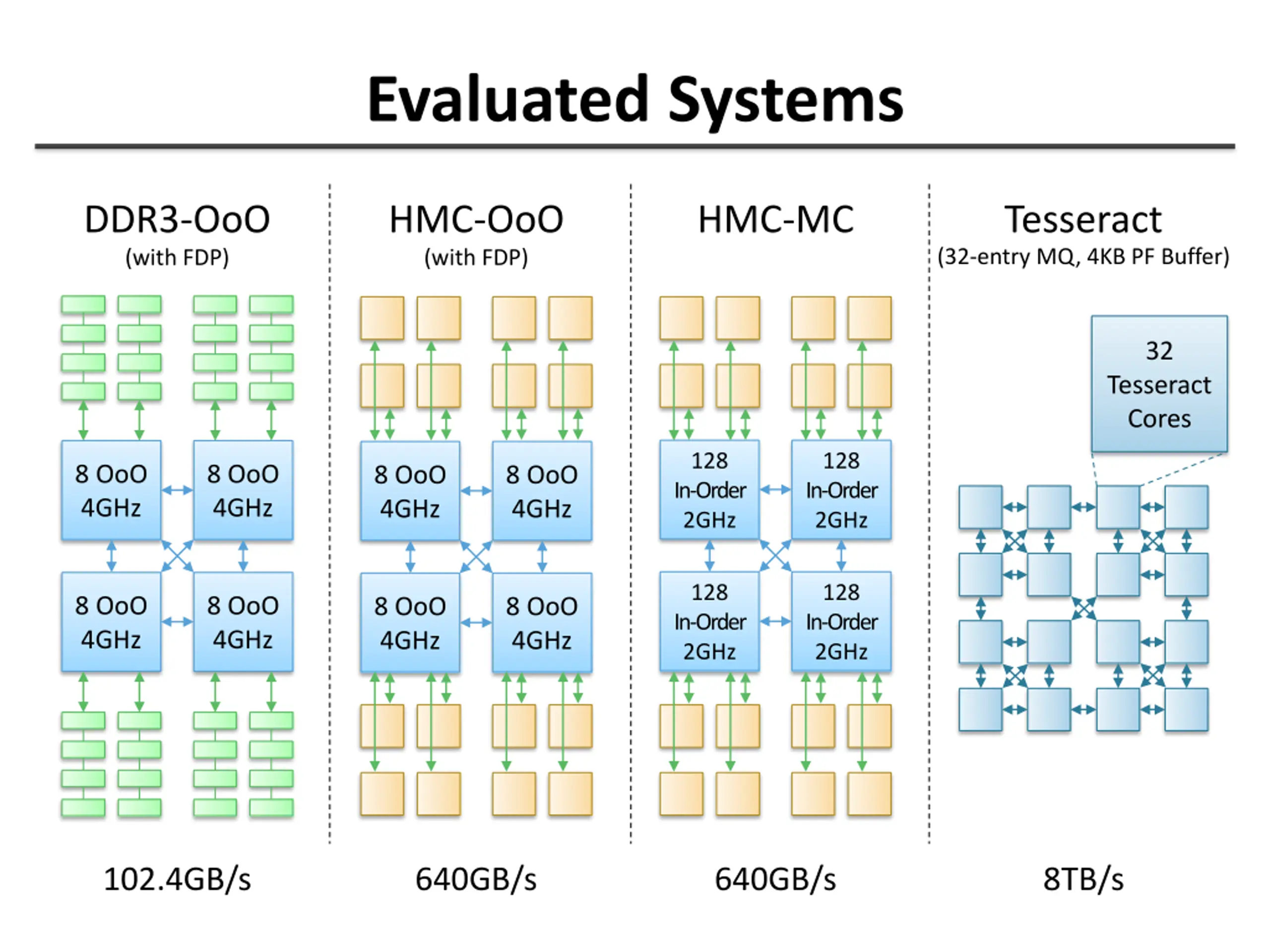

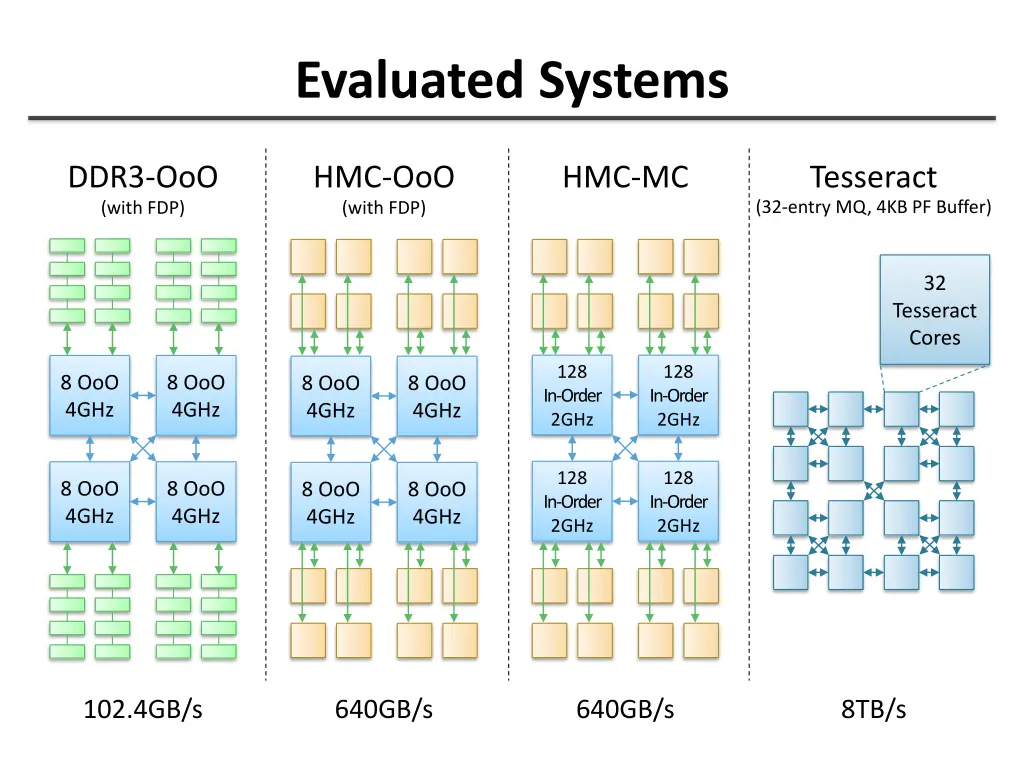

Evaluated Systems DDR3-OoO (with FDP) HMC-OoO (with FDP) HMC-MC Tesseract (32-entry MQ, 4KB PF Buffer) 32 Tesseract Cores 128 In-Order 2GHz 128 In-Order 2GHz 8 OoO 4GHz 8 OoO 4GHz 8 OoO 4GHz 8 OoO 4GHz 128 In-Order 2GHz 128 In-Order 2GHz 8 OoO 4GHz 8 OoO 4GHz 8 OoO 4GHz 8 OoO 4GHz 102.4GB/s 640GB/s 640GB/s 8TB/s

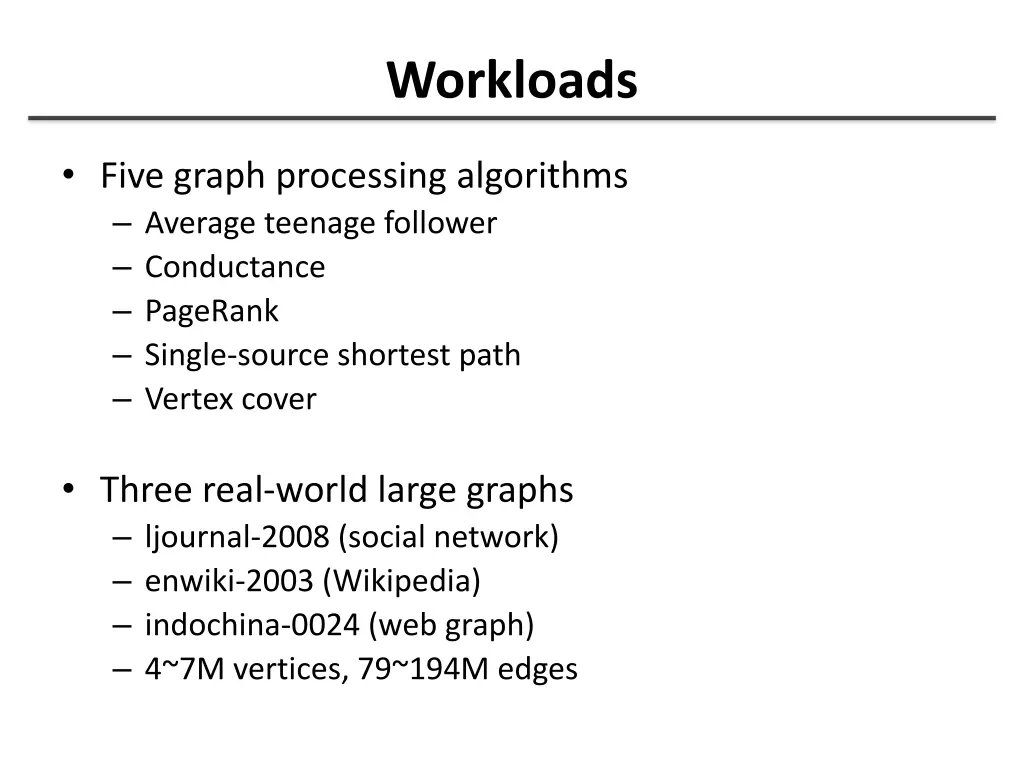

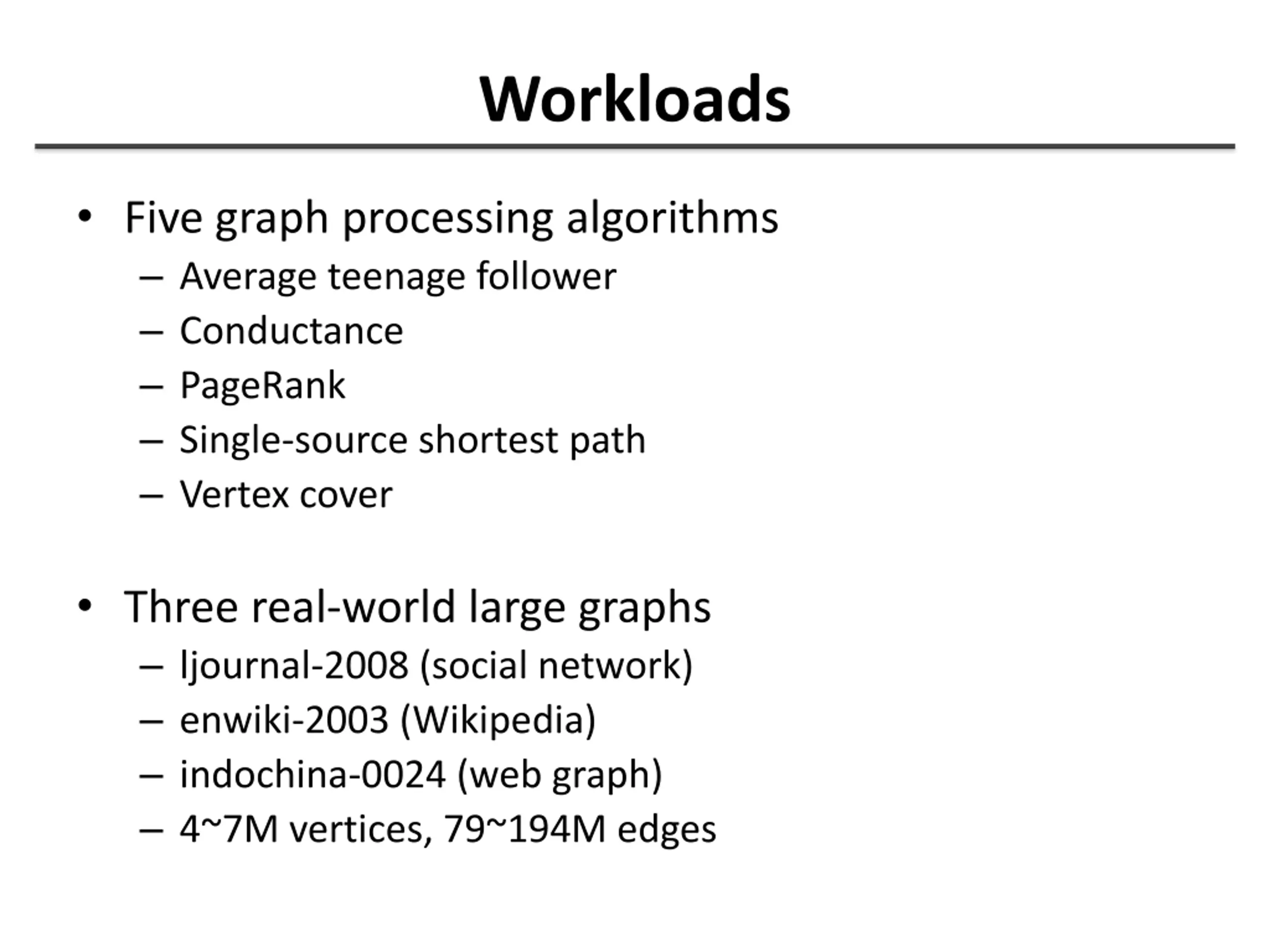

Workloads Five graph processing algorithms Average teenage follower Conductance PageRank Single-source shortest path Vertex cover Three real-world large graphs ljournal-2008 (social network) enwiki-2003 (Wikipedia) indochina-0024 (web graph) 4~7M vertices, 79~194M edges

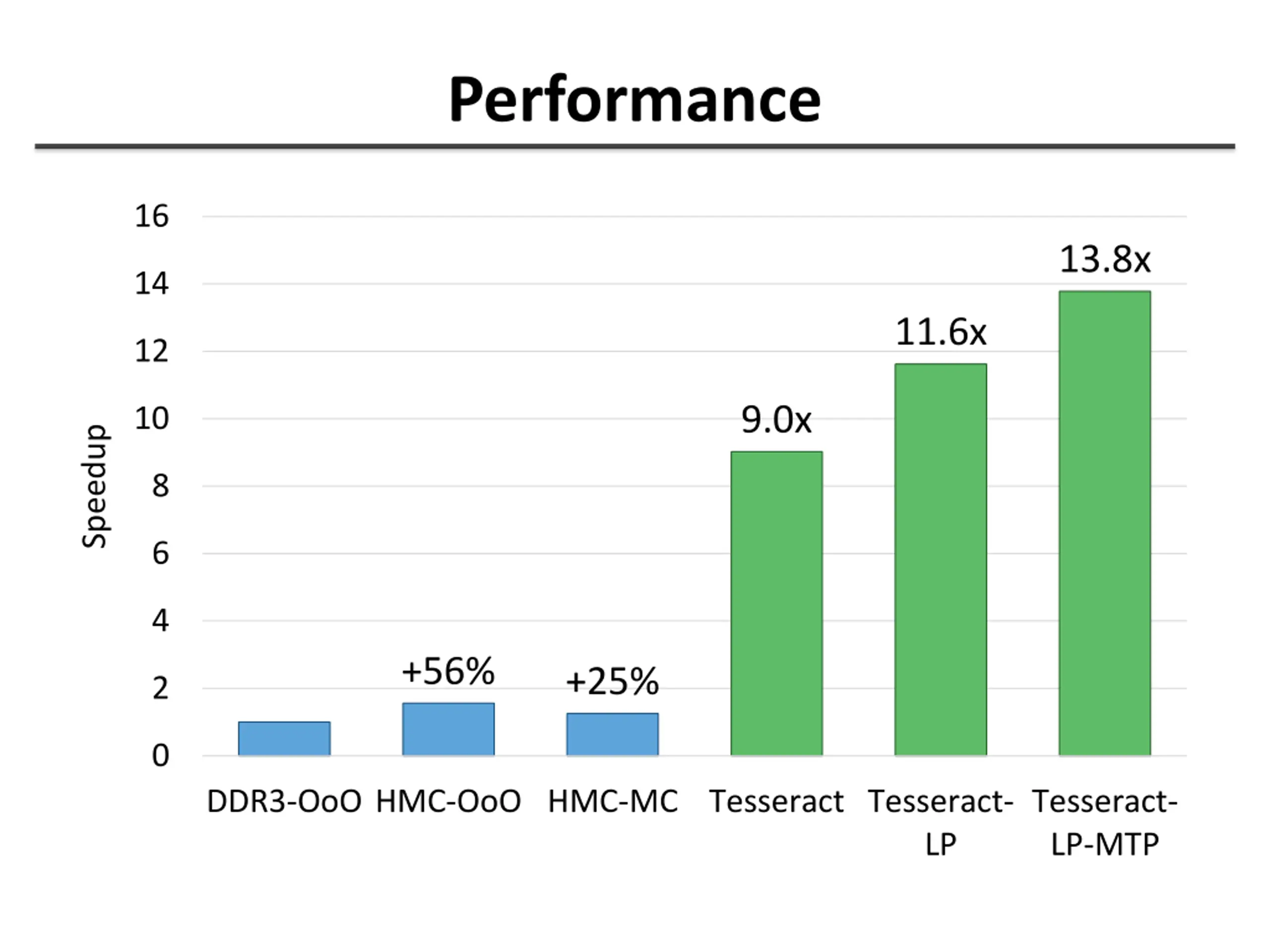

Performance 16 13.8x 14 11.6x 12 9.0x 10 Speedup 8 6 4 +56% +25% 2 0 DDR3-OoO HMC-OoO HMC-MC Tesseract Tesseract- Tesseract- LP-MTP LP

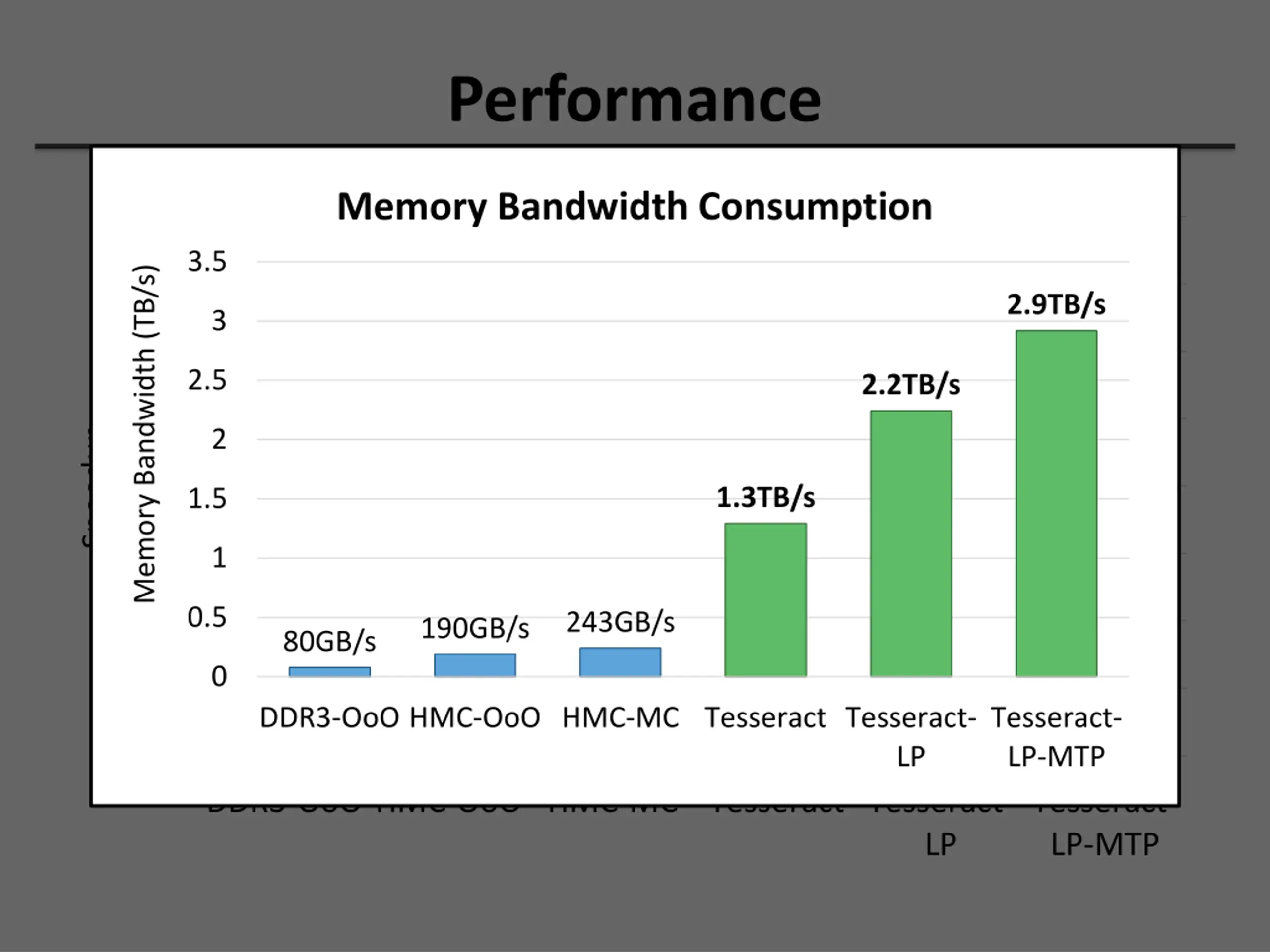

Performance Memory Bandwidth Consumption 16 13.8x 3.5 14 Memory Bandwidth (TB/s) 2.9TB/s 3 11.6x 2.2TB/s 12 2.5 9.0x 10 Speedup 2 8 1.3TB/s 1.5 6 1 0.5 4 243GB/s 190GB/s 80GB/s +56% 0 +25% 2 DDR3-OoO HMC-OoO HMC-MC Tesseract Tesseract- Tesseract- LP-MTP 0 LP DDR3-OoO HMC-OoO HMC-MC Tesseract Tesseract- Tesseract- LP-MTP LP

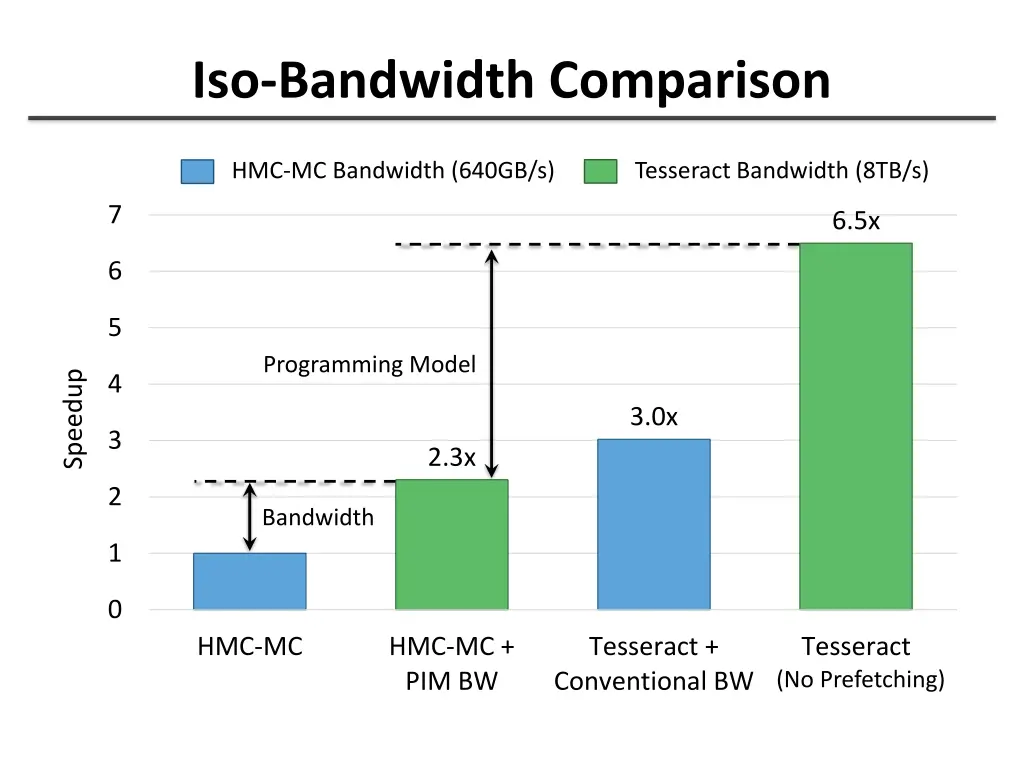

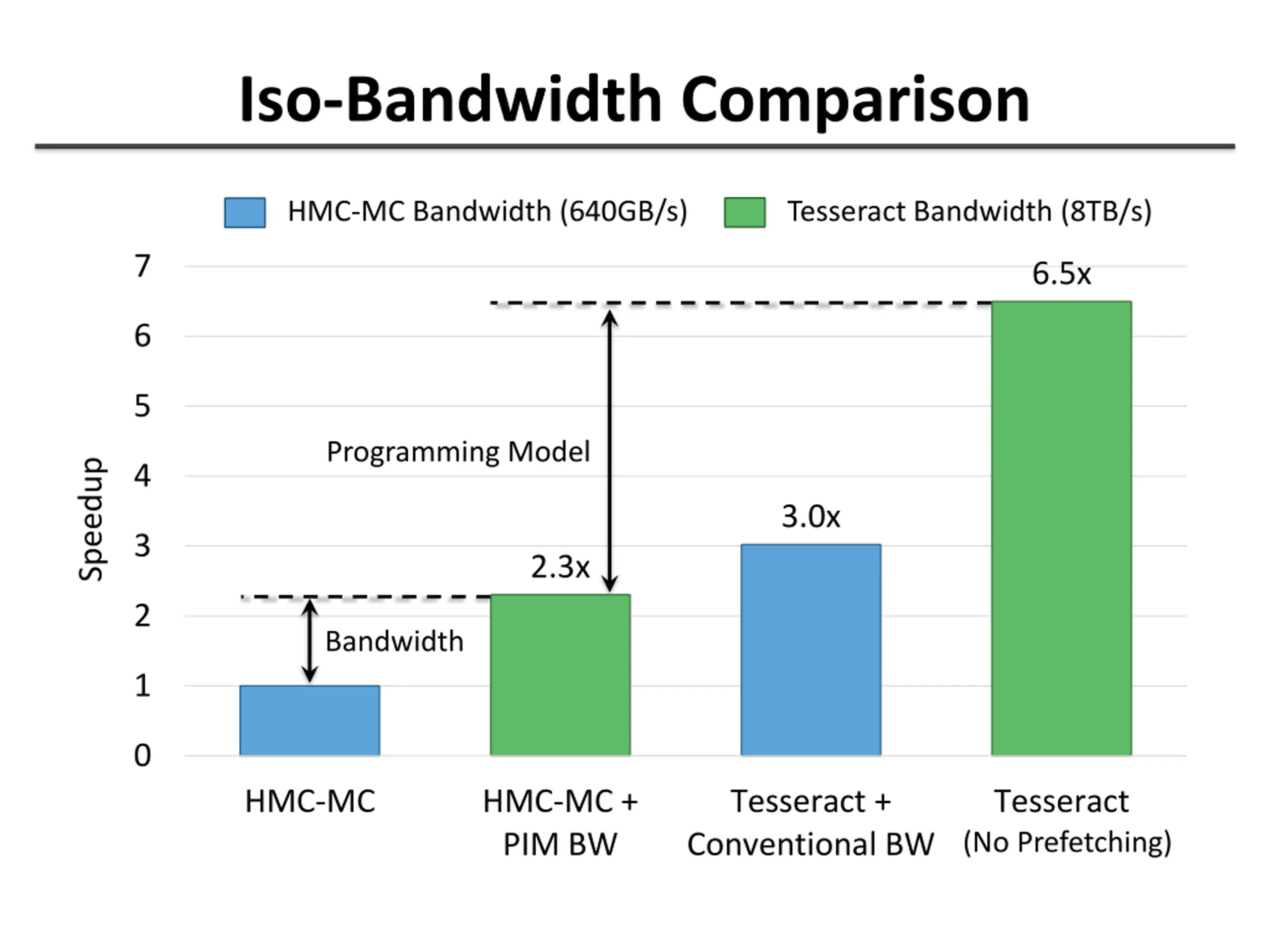

Iso-Bandwidth Comparison HMC-MC Bandwidth (640GB/s) Tesseract Bandwidth (8TB/s) 7 6.5x 6 5 Programming Model Speedup 4 3.0x 3 2.3x 2 Bandwidth 1 0 HMC-MC HMC-MC + PIM BW Tesseract + Conventional BW Tesseract (No Prefetching)

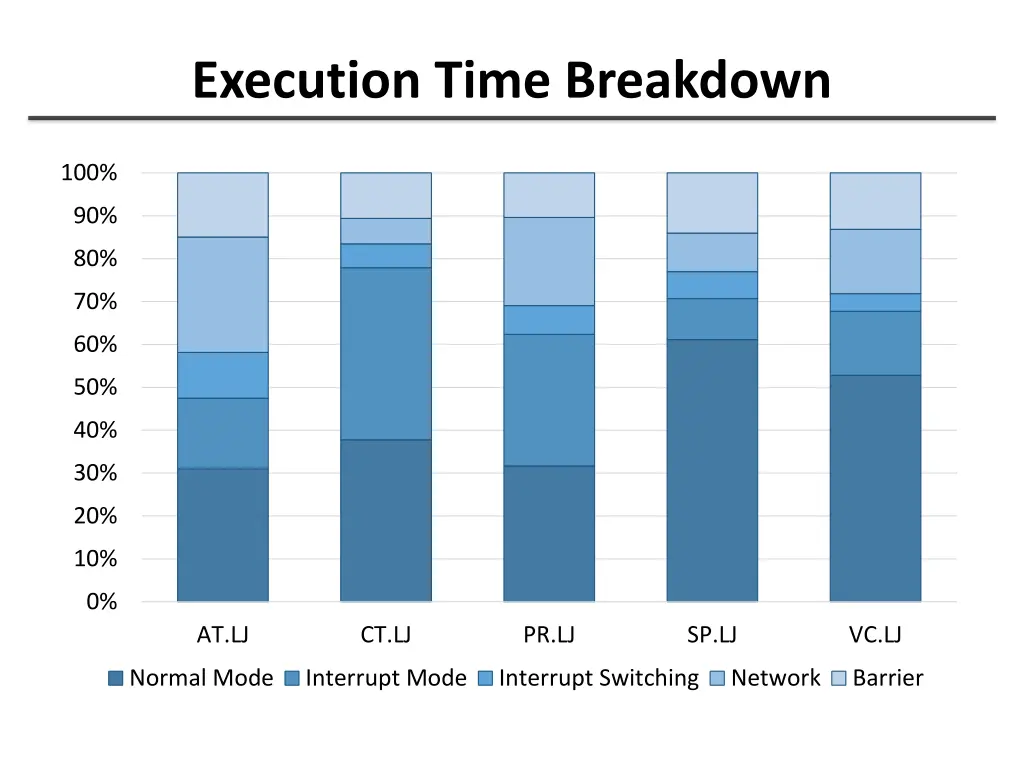

Execution Time Breakdown 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0% AT.LJ CT.LJ PR.LJ SP.LJ VC.LJ Normal Mode Interrupt Mode Interrupt Switching Network Barrier

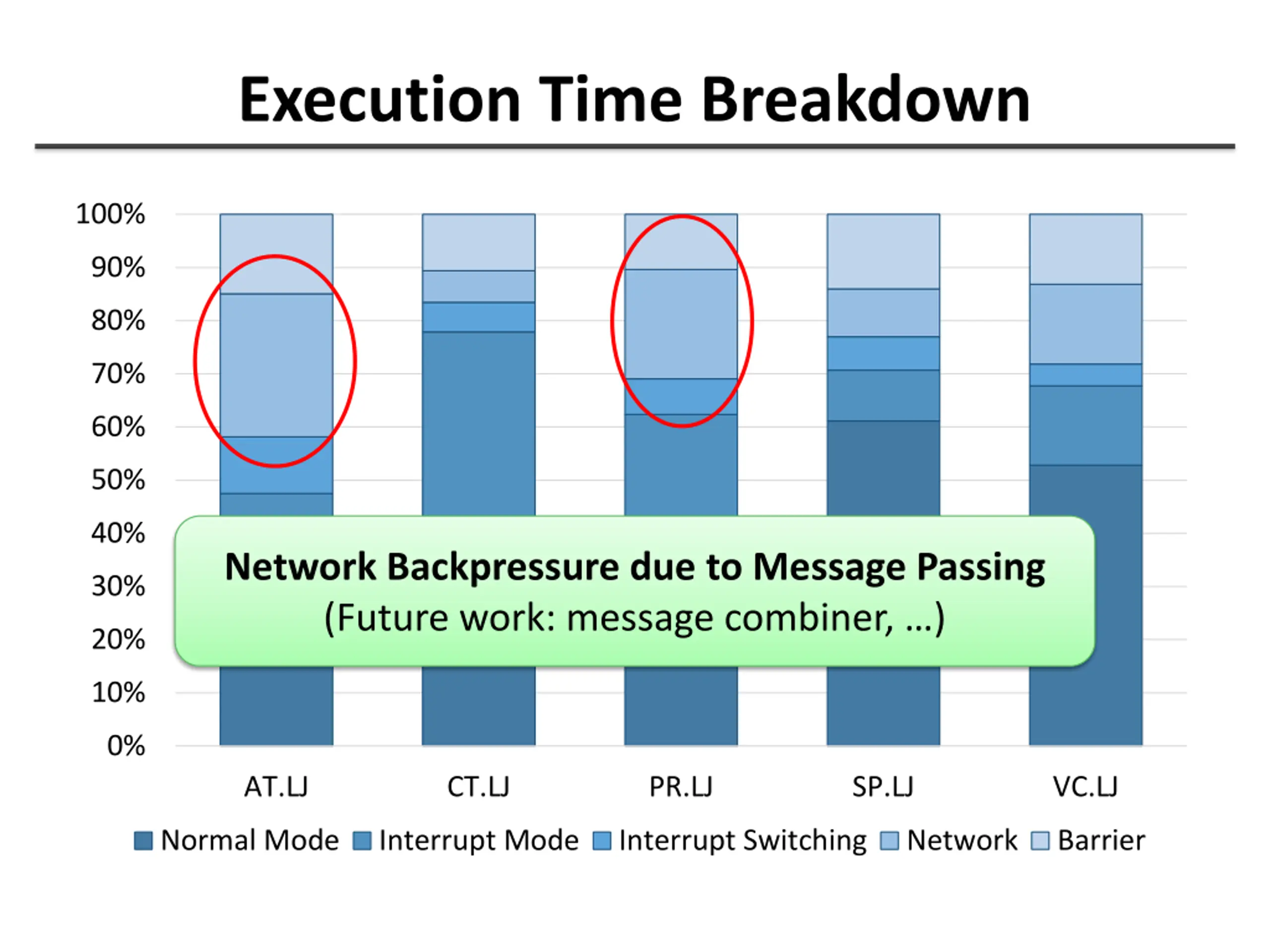

Execution Time Breakdown 100% 90% 80% 70% 60% 50% 40% Network Backpressure due to Message Passing (Future work: message combiner, ) 30% 20% 10% 0% AT.LJ CT.LJ PR.LJ SP.LJ VC.LJ Normal Mode Interrupt Mode Interrupt Switching Network Barrier

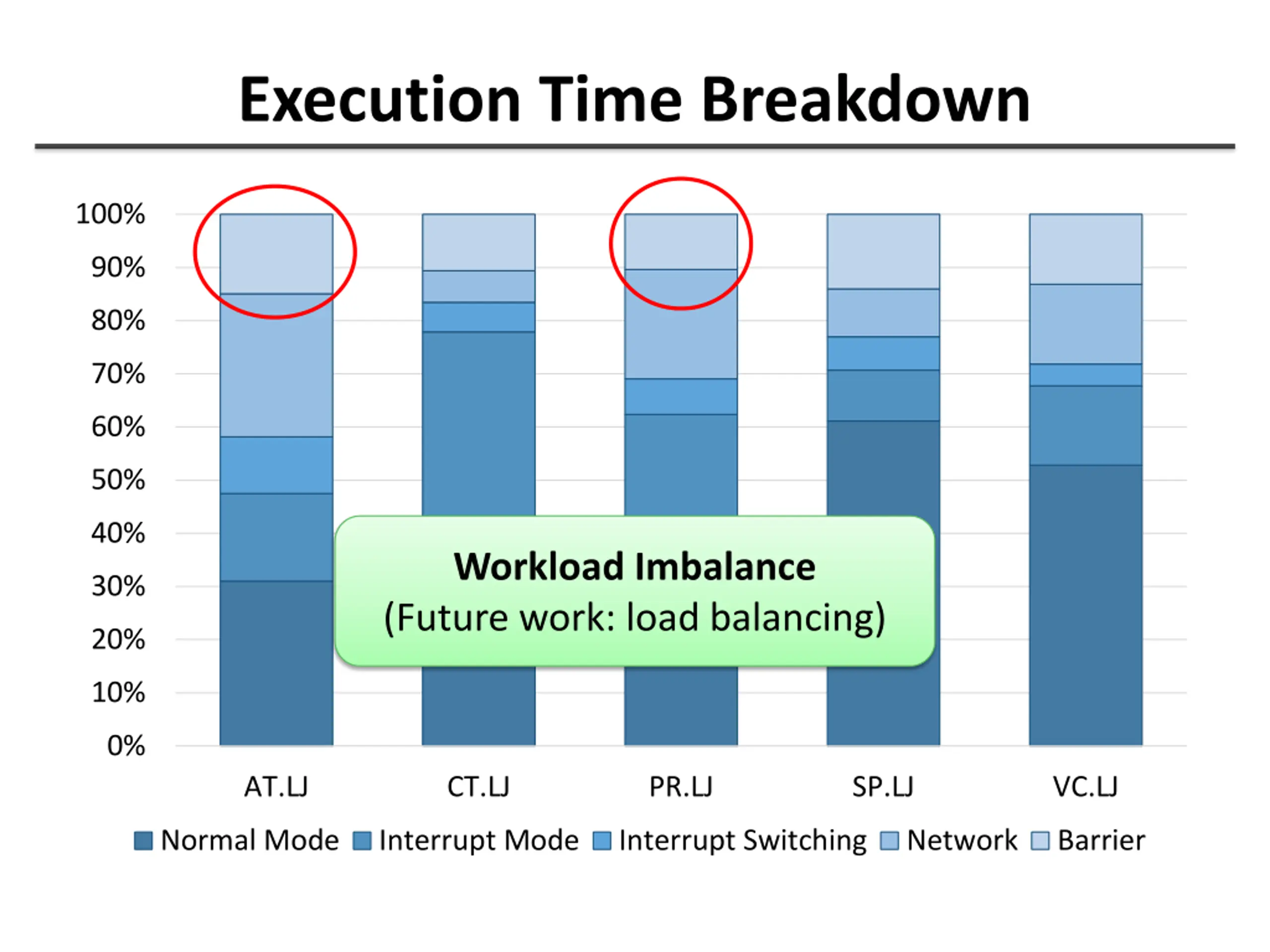

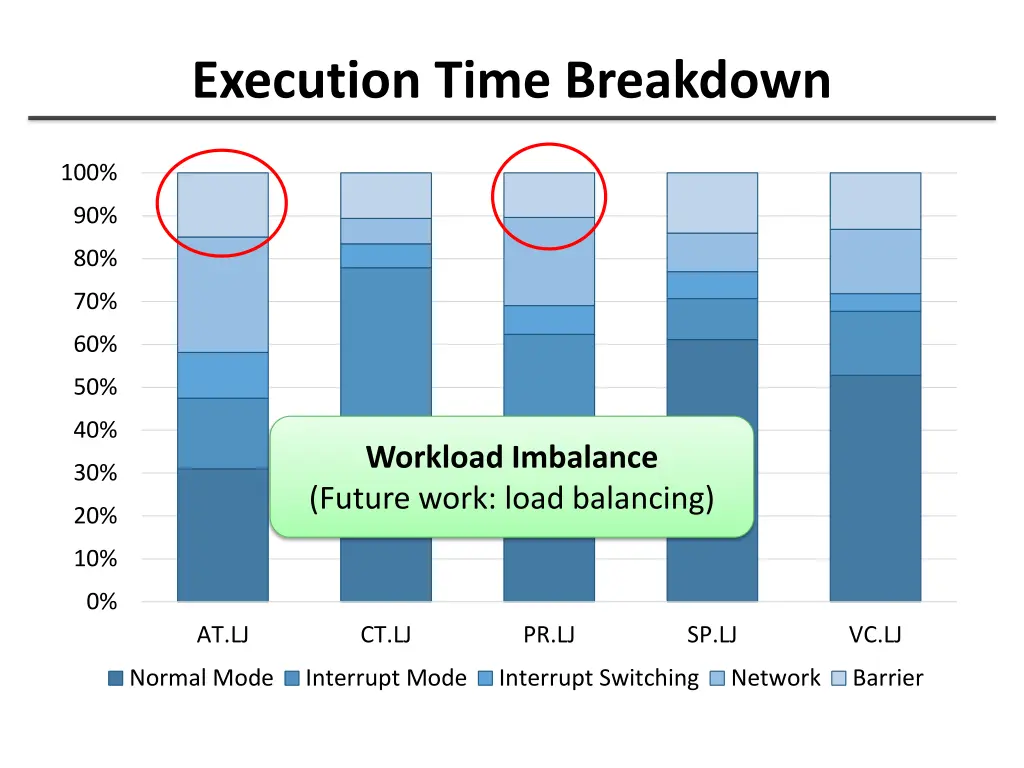

Execution Time Breakdown 100% 90% 80% 70% 60% 50% 40% Workload Imbalance (Future work: load balancing) 30% 20% 10% 0% AT.LJ CT.LJ PR.LJ SP.LJ VC.LJ Normal Mode Interrupt Mode Interrupt Switching Network Barrier

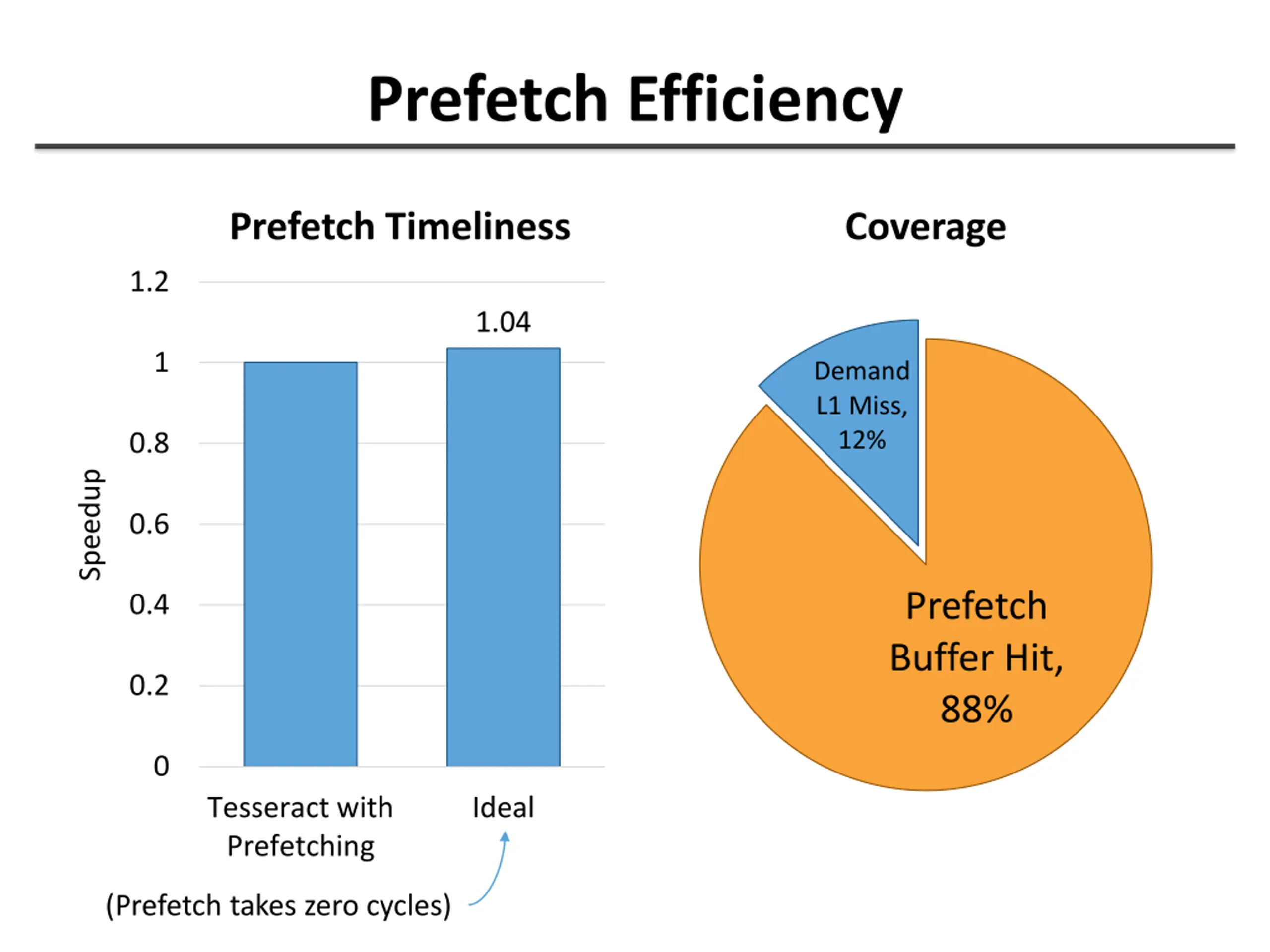

Prefetch Efficiency Prefetch Timeliness Coverage 1.2 1.04 1 Demand L1 Miss, 12% 0.8 Speedup 0.6 Prefetch Buffer Hit, 88% 0.4 0.2 0 Tesseract with Prefetching Ideal (Prefetch takes zero cycles)

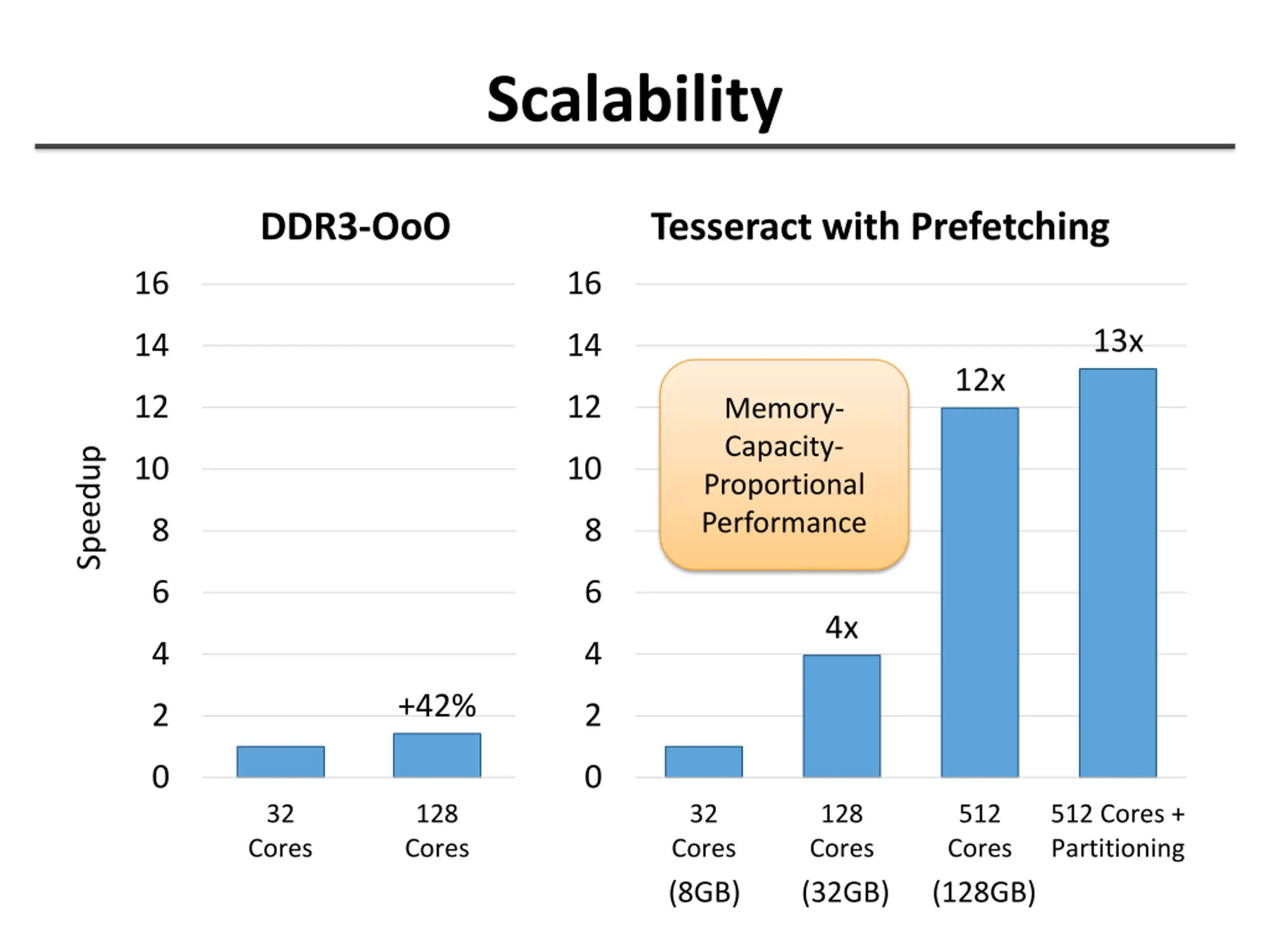

Scalability DDR3-OoO Tesseract with Prefetching 16 16 13x 14 14 12x 12 12 Memory- Capacity- Proportional Performance Speedup 10 10 8 8 6 6 4x 4 4 +42% 2 2 0 0 32 128 Cores 32 128 Cores (32GB) 512 Cores (128GB) 512 Cores + Partitioning Cores Cores (8GB)

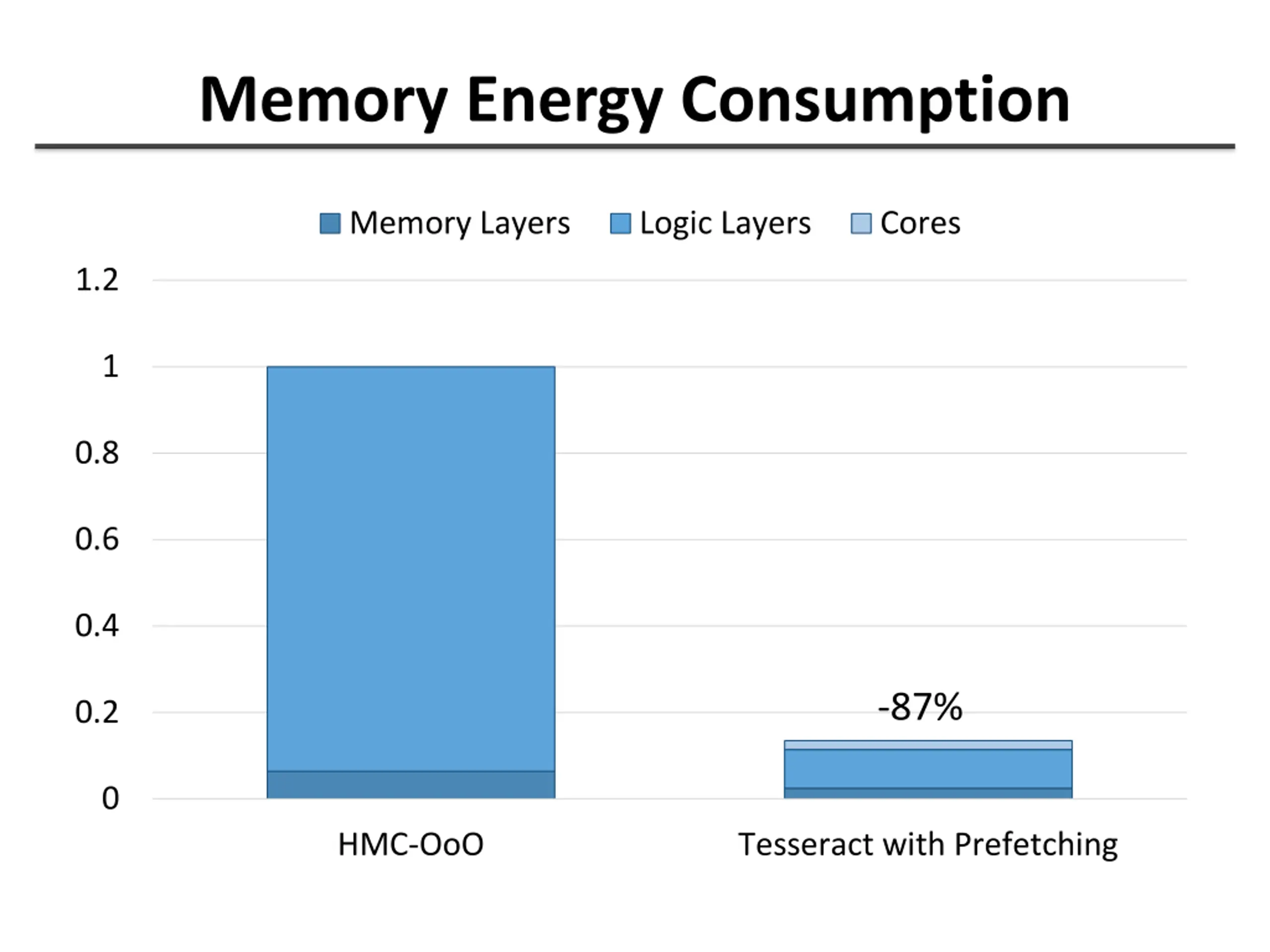

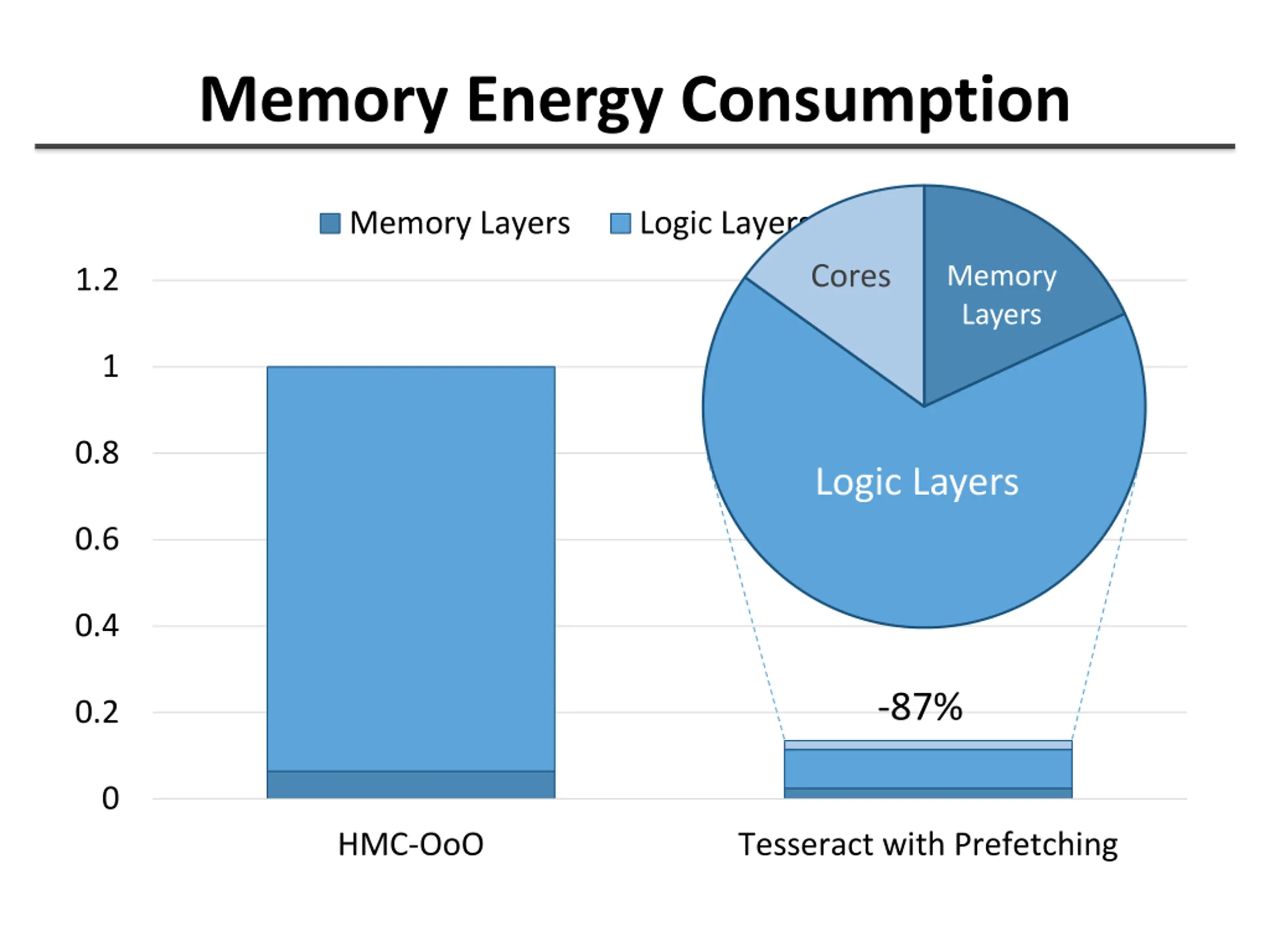

Memory Energy Consumption Memory Layers Logic Layers Cores 1.2 1 0.8 0.6 0.4 -87% 0.2 0 HMC-OoO Tesseract with Prefetching
Memory Energy Consumption Memory Layers Logic Layers Cores Cores Memory Layers 1.2 1 0.8 Logic Layers 0.6 0.4 -87% 0.2 0 HMC-OoO Tesseract with Prefetching

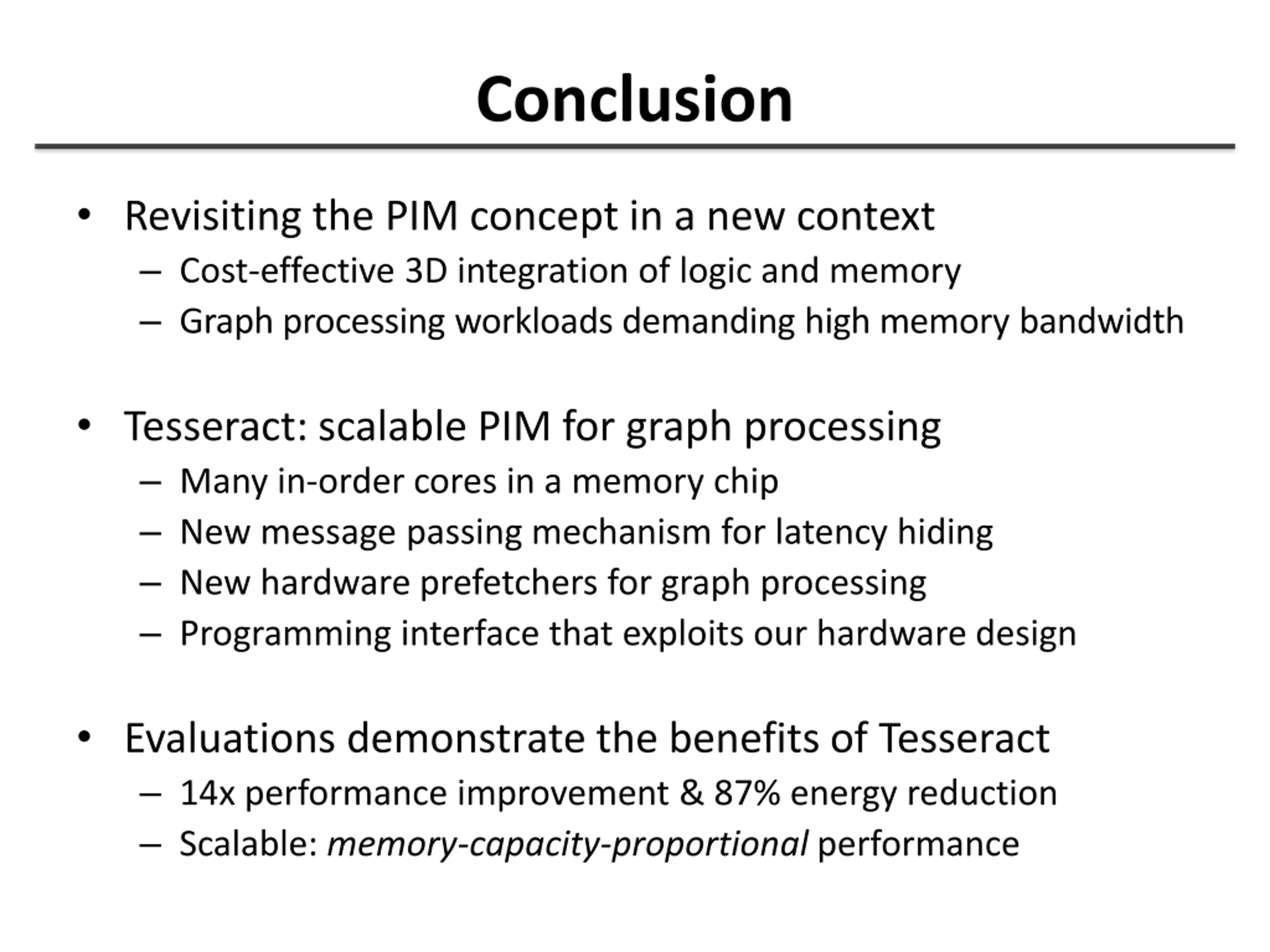

Conclusion Revisiting the PIM concept in a new context Cost-effective 3D integration of logic and memory Graph processing workloads demanding high memory bandwidth Tesseract: scalable PIM for graph processing Many in-order cores in a memory chip New message passing mechanism for latency hiding New hardware prefetchers for graph processing Programming interface that exploits our hardware design Evaluations demonstrate the benefits of Tesseract 14x performance improvement & 87% energy reduction Scalable: memory-capacity-proportional performance
