Integrating NSF NCARs data infrastructure with the OSDF HTC25 Harsha Hampapura, Associate Scientist II NSF National Center for Atmospheric Research

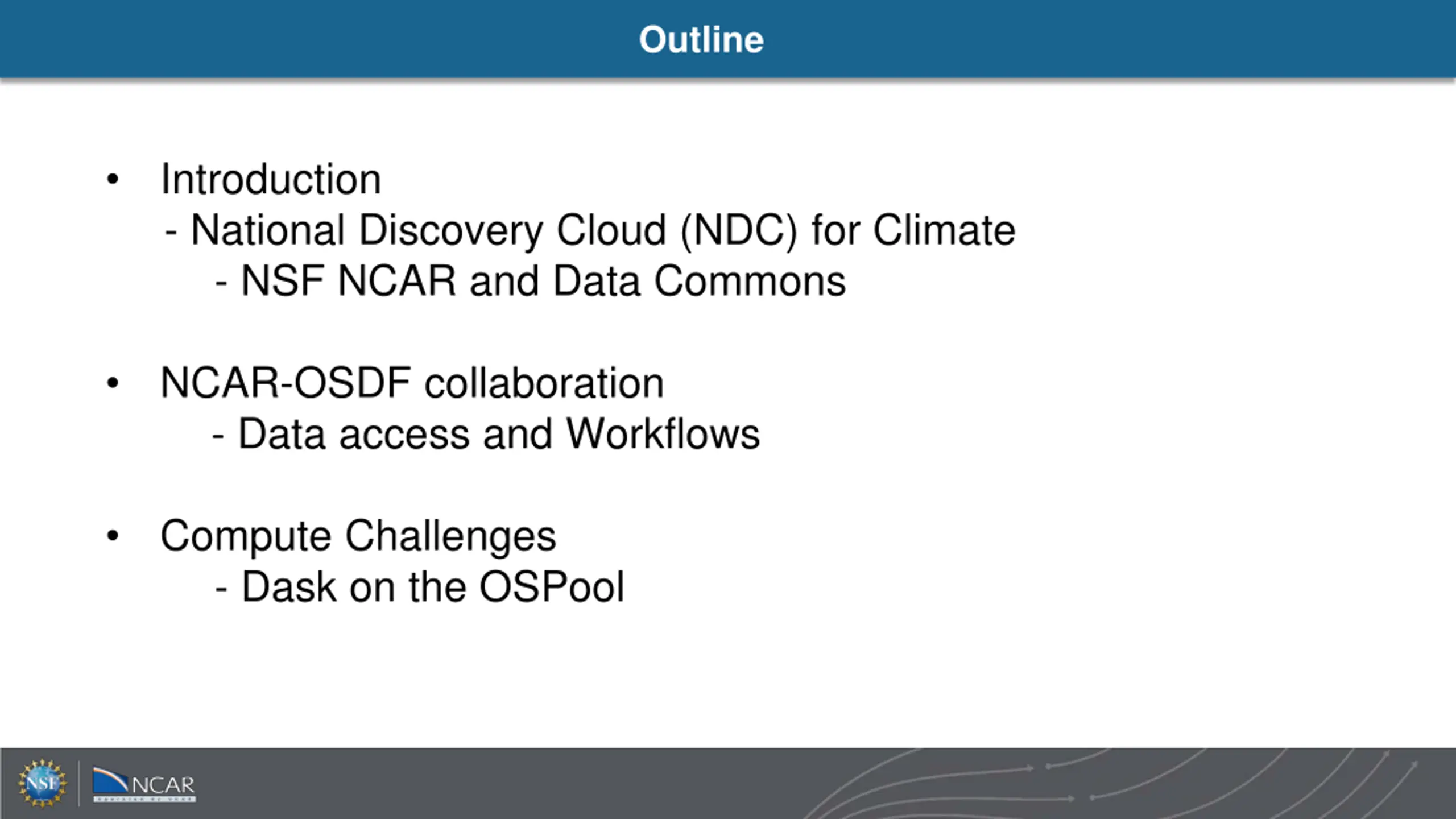

Outline Introduction - National Discovery Cloud (NDC) for Climate - NSF NCAR and Data Commons NCAR-OSDF collaboration - Data access and Workflows Compute Challenges - Dask on the OSPool

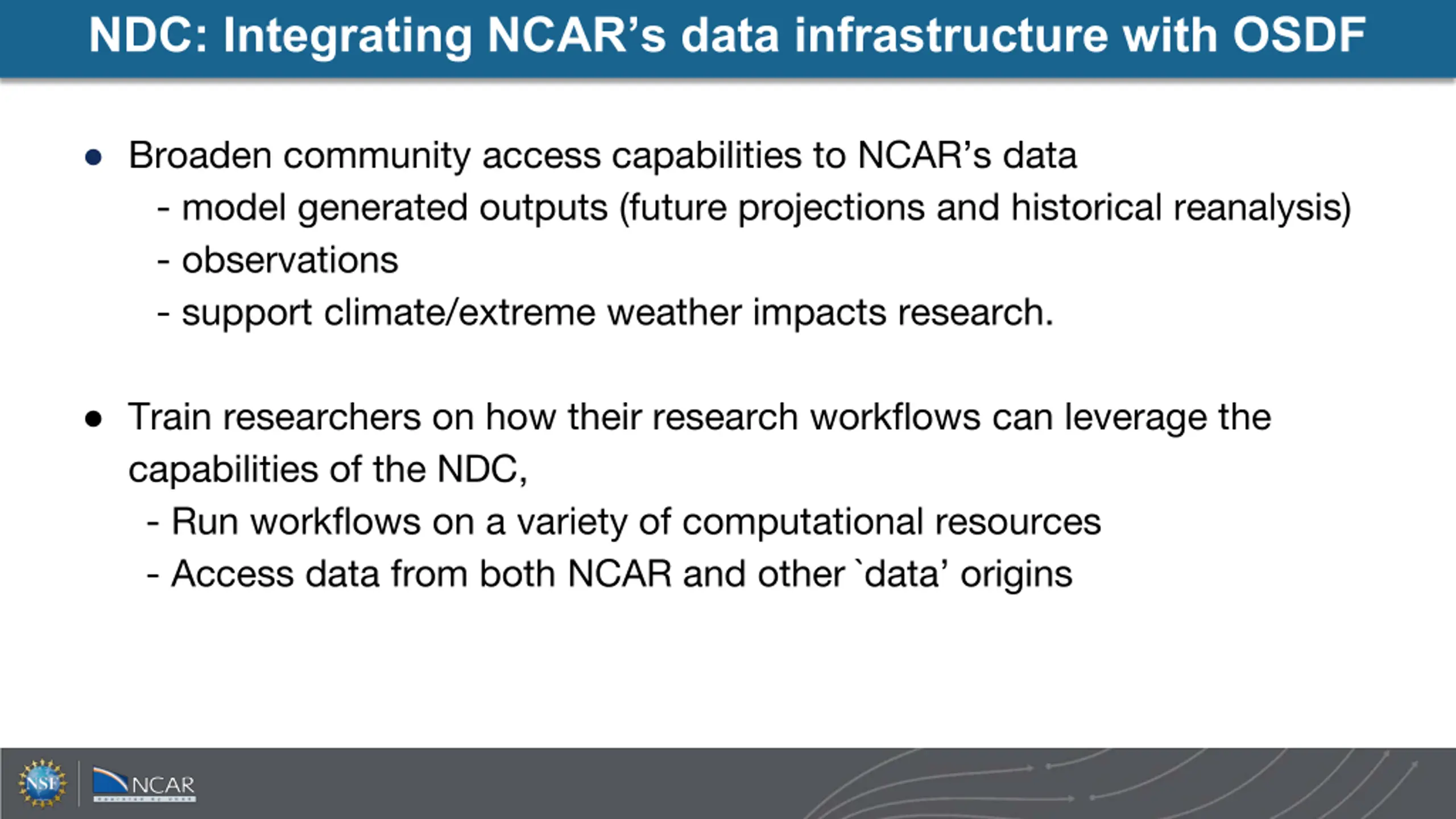

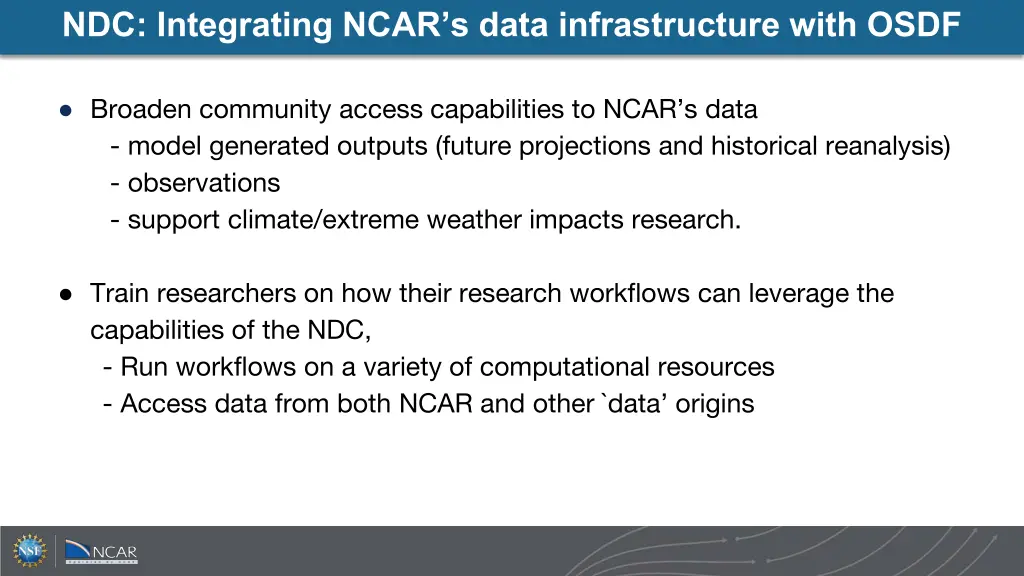

NDC: Integrating NCARs data infrastructure with OSDF Broaden community access capabilities to NCAR s data - model generated outputs (future projections and historical reanalysis) - observations - support climate/extreme weather impacts research. Train researchers on how their research workflows can leverage the capabilities of the NDC, - Run workflows on a variety of computational resources - Access data from both NCAR and other `data origins

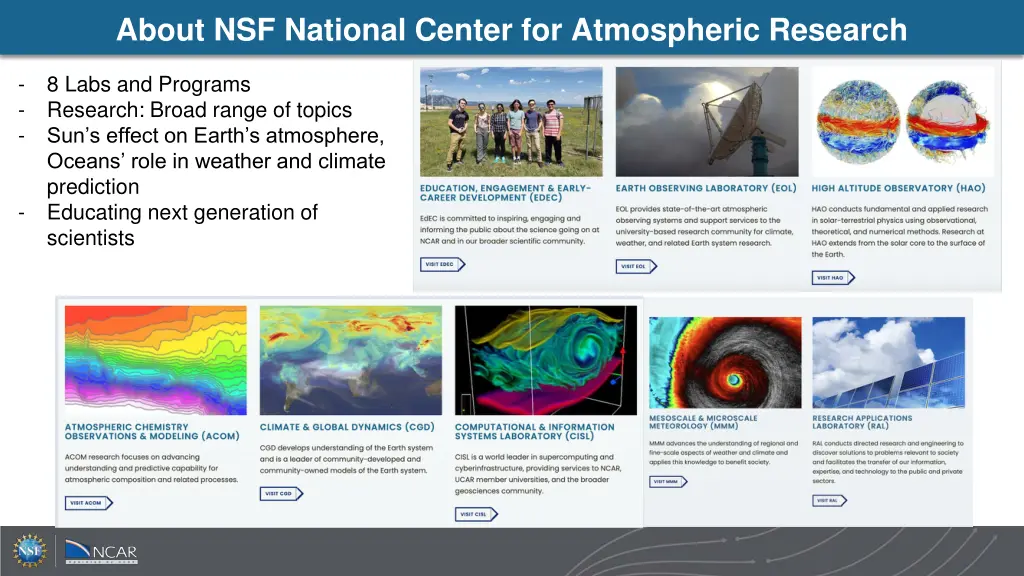

About NSF National Center for Atmospheric Research - - - 8 Labs and Programs Research: Broad range of topics Sun s effect on Earth s atmosphere, Oceans role in weather and climate prediction Educating next generation of scientists -

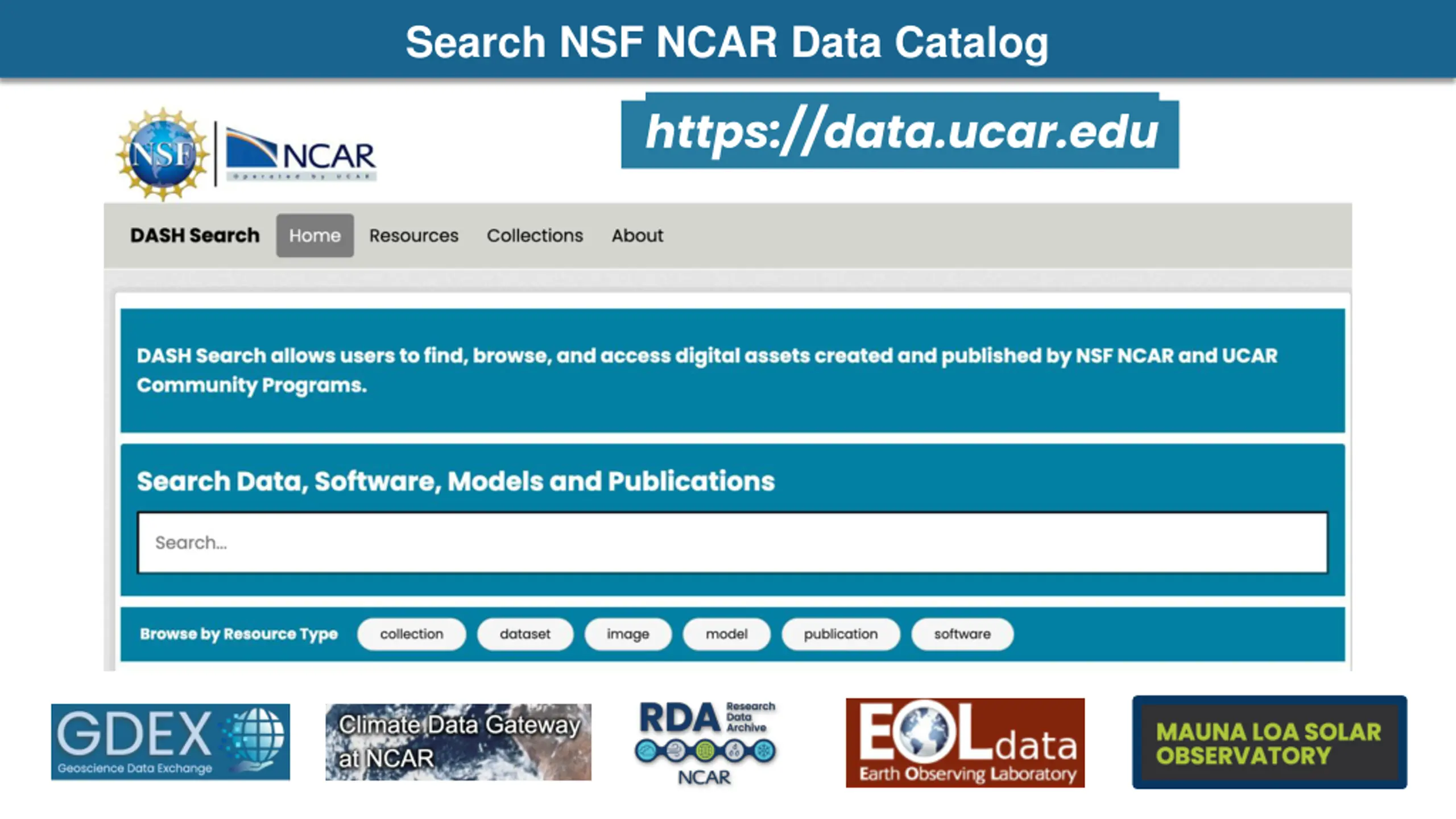

Search NSF NCAR Data Catalog https://data.ucar.edu

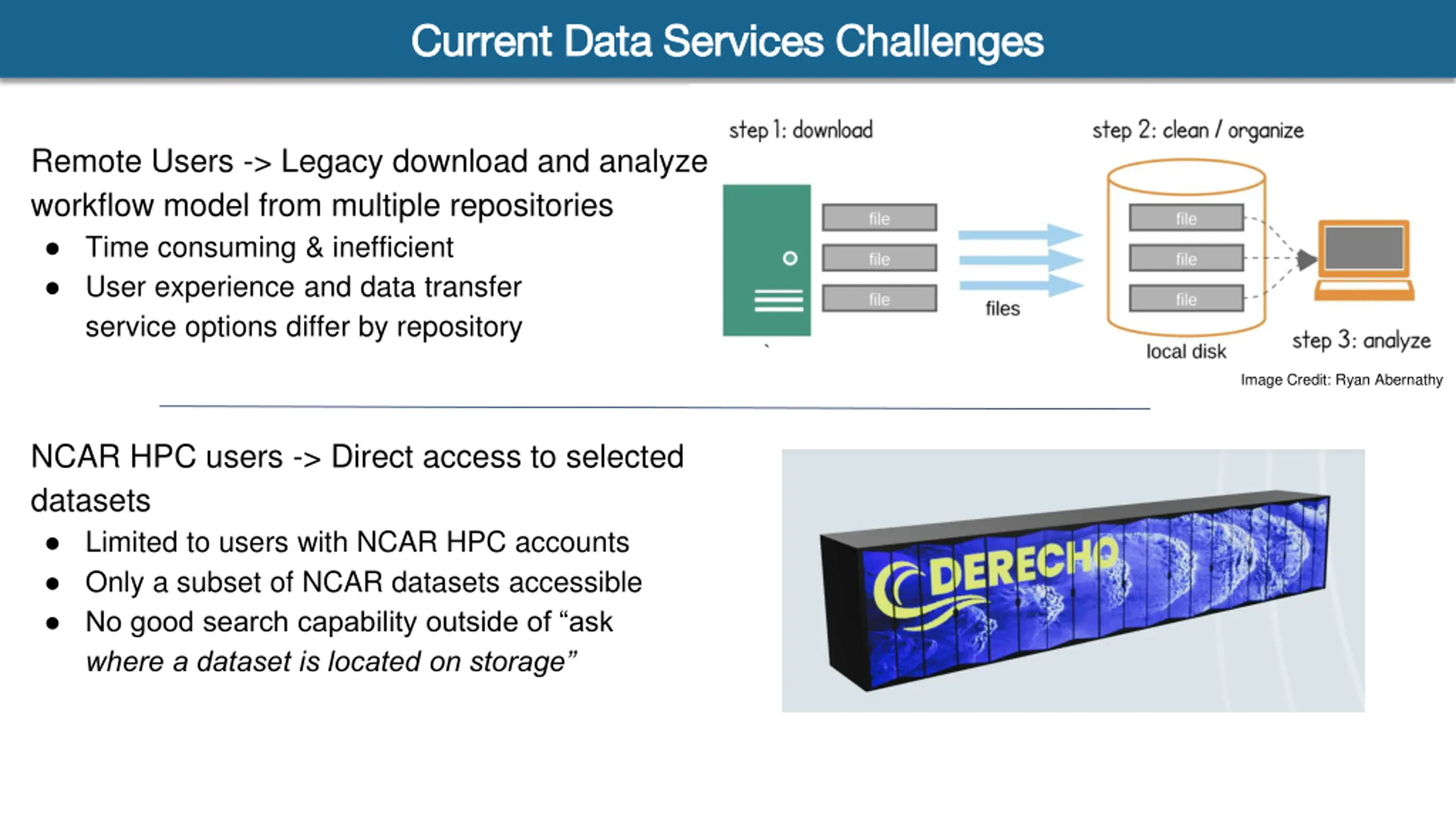

Current Data Services Challenges Current Data Services Challenges Remote Users -> Legacy download and analyze workflow model from multiple repositories Time consuming & inefficient User experience and data transfer service options differ by repository Image Credit: Ryan Abernathy NCAR HPC users -> Direct access to selected datasets Limited to users with NCAR HPC accounts Only a subset of NCAR datasets accessible No good search capability outside of ask where a dataset is located on storage NSF NCAR NG-GDEX Project Plan Responsibilities

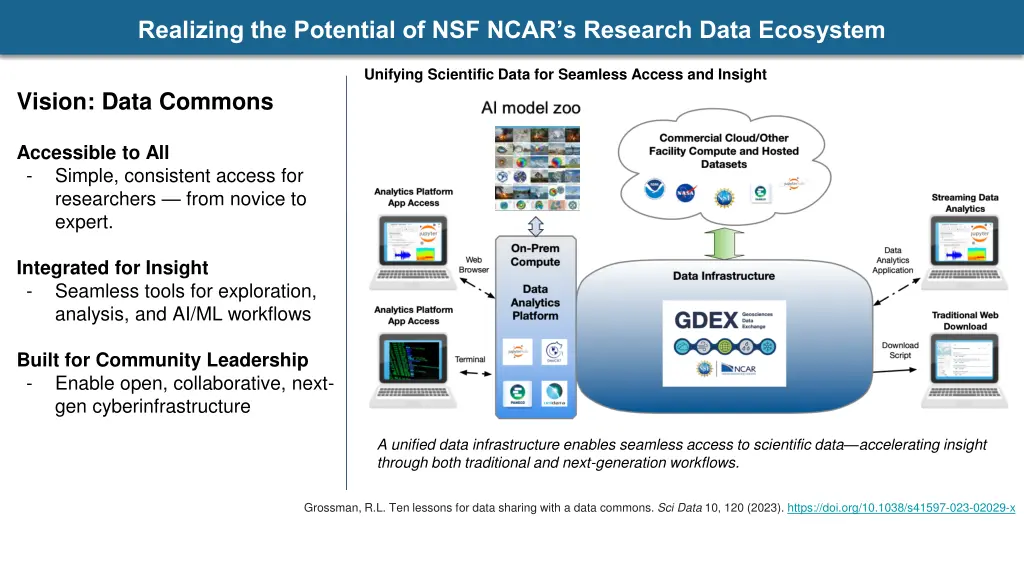

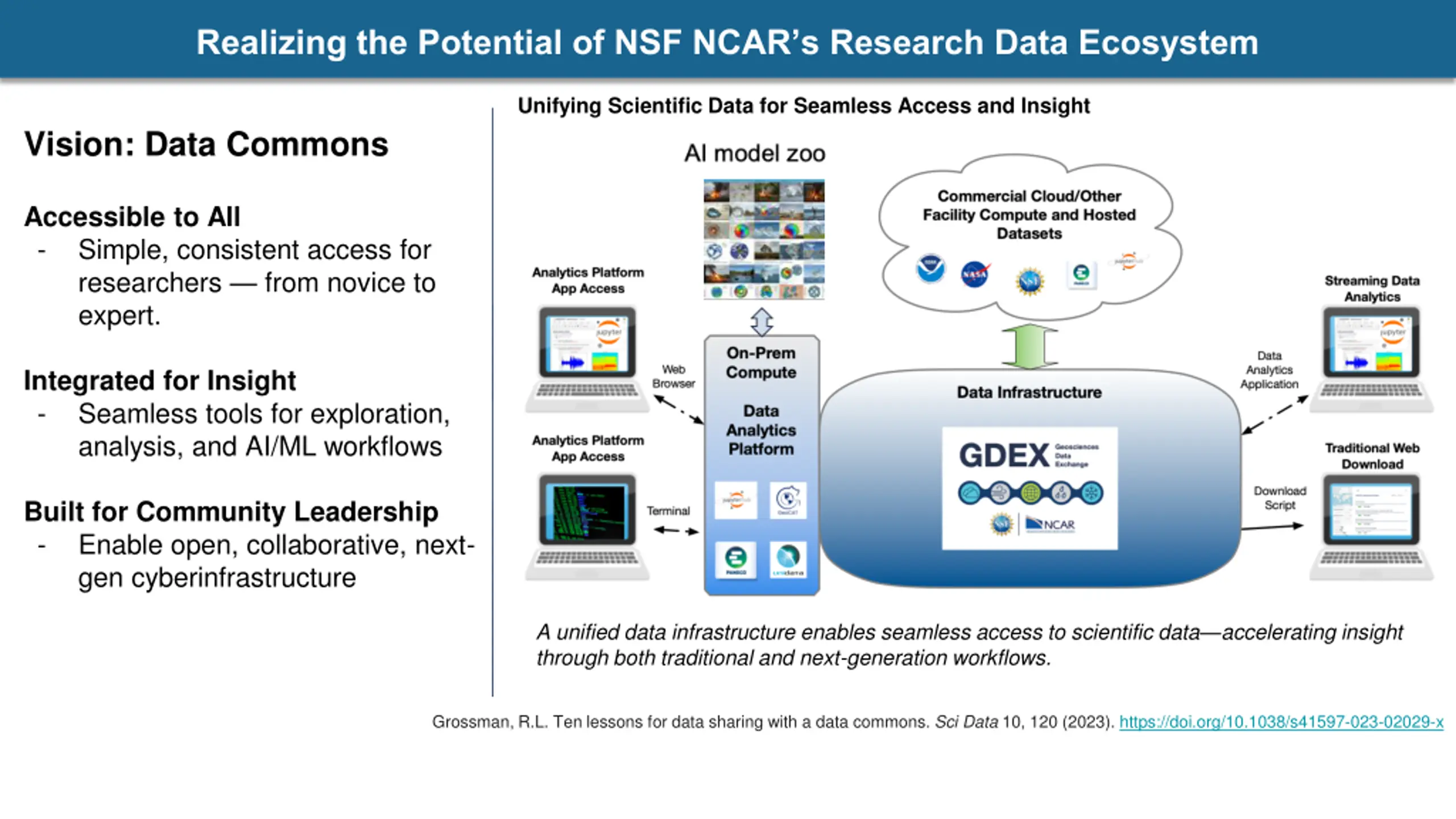

Realizing the Potential of NSF NCARs Research Data Ecosystem Unifying Scientific Data for Seamless Access and Insight Vision: Data Commons Accessible to All - Simple, consistent access for researchers from novice to expert. Integrated for Insight - Seamless tools for exploration, analysis, and AI/ML workflows Built for Community Leadership - Enable open, collaborative, next- gen cyberinfrastructure A unified data infrastructure enables seamless access to scientific data accelerating insight through both traditional and next-generation workflows. Grossman, R.L. Ten lessons for data sharing with a data commons. Sci Data 10, 120 (2023). https://doi.org/10.1038/s41597-023-02029-x Pivoting to NSF NCAR s Integrated Research Data Commons -Forget about the data format/location, do the science

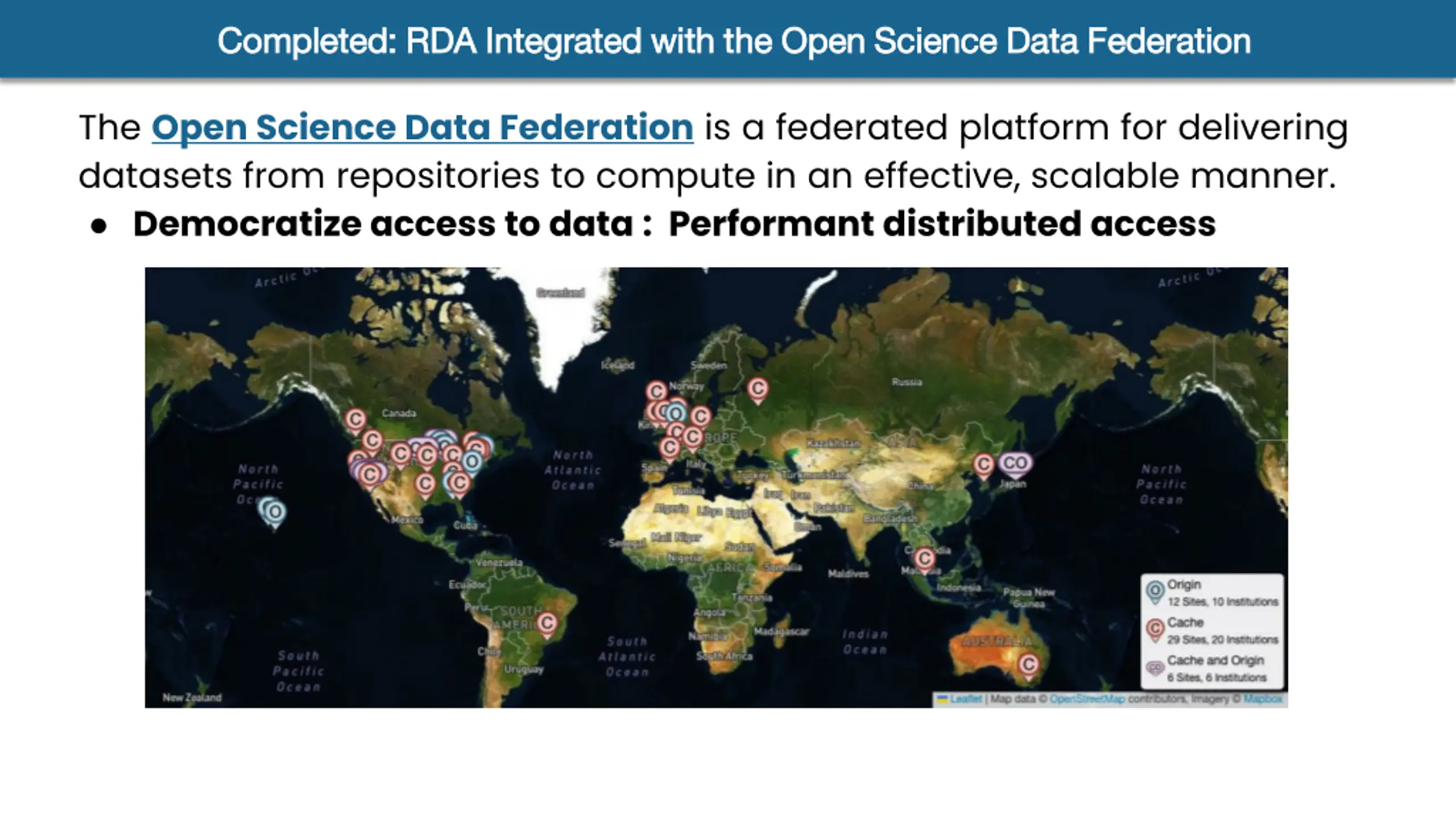

Completed: RDA Integrated with the Open Science Data Federation Completed: RDA Integrated with the Open Science Data Federation The Open Science Data Federation is a federated platform for delivering datasets from repositories to compute in an effective, scalable manner. Democratize access to data : Performant distributed access Pivoting to NSF NCAR s Integrated Research Data Commons -Forget about the data format/location, do the science

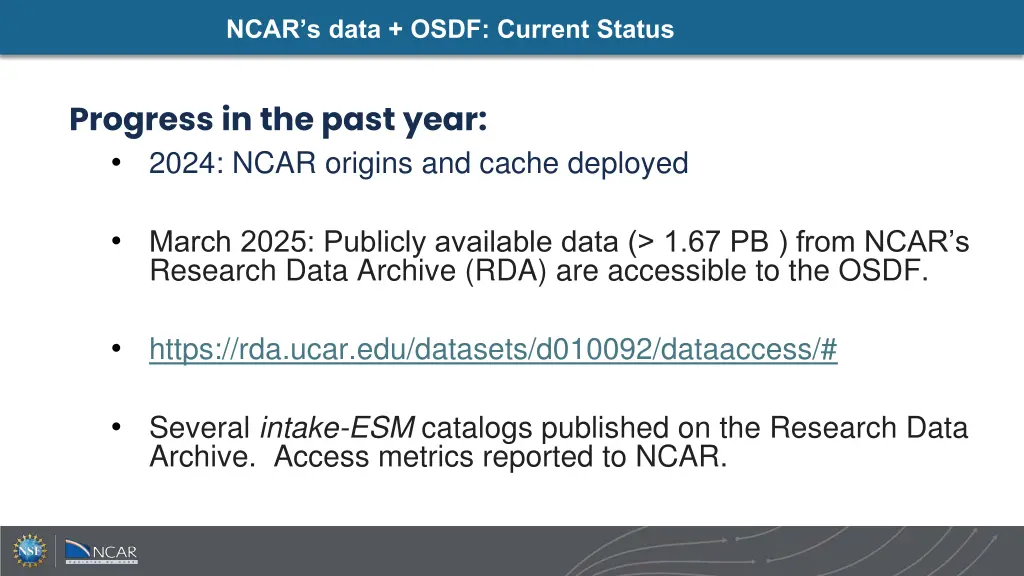

NCARs data + OSDF: Current Status Progress in the past year: 2024: NCAR origins and cache deployed March 2025: Publicly available data (> 1.67 PB ) from NCAR s Research Data Archive (RDA) are accessible to the OSDF. https://rda.ucar.edu/datasets/d010092/dataaccess/# Several intake-ESM catalogs published on the Research Data Archive. Access metrics reported to NCAR.

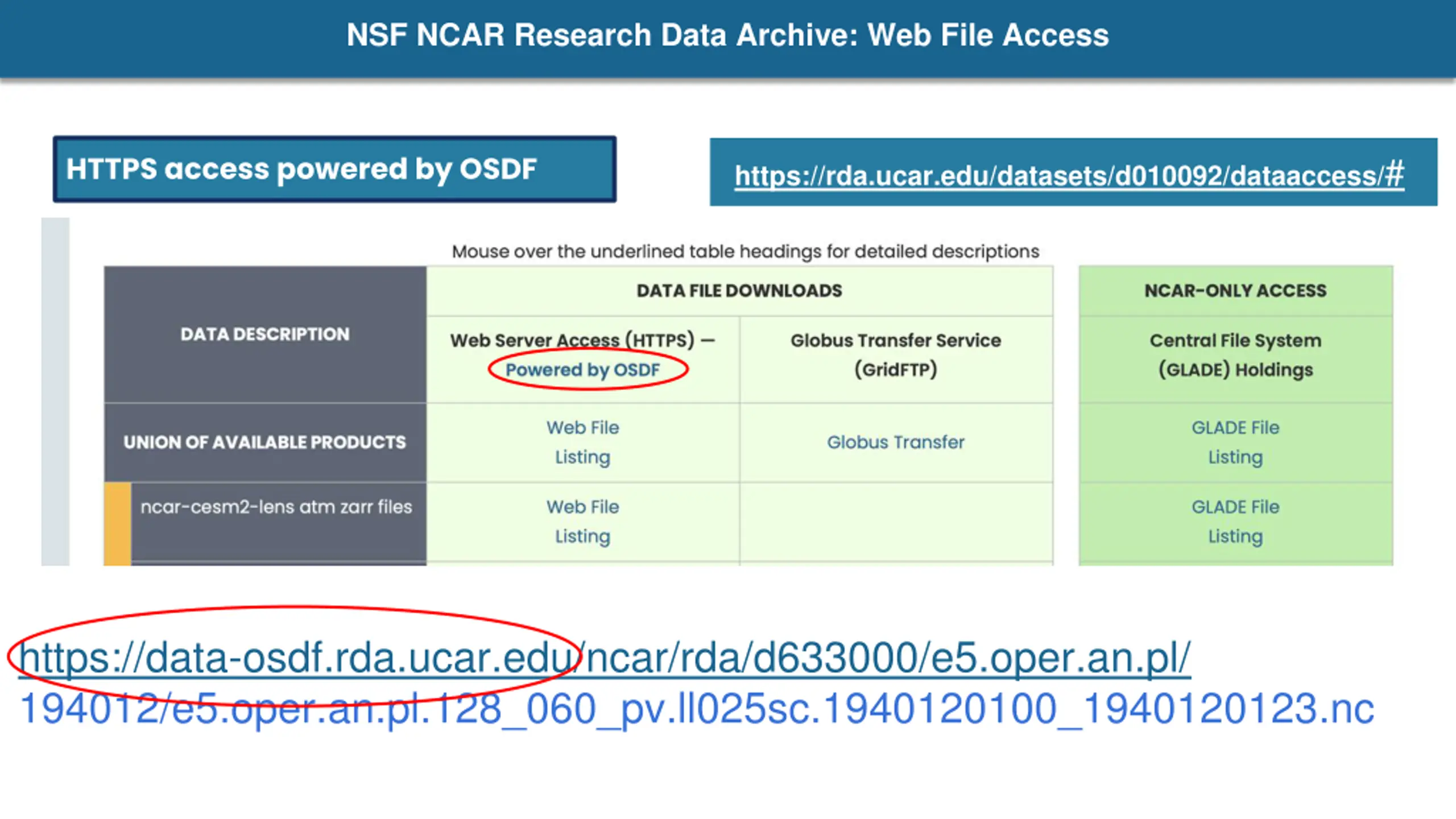

NSF NCAR Research Data Archive: Web File Access HTTPS access powered by OSDF https://rda.ucar.edu/datasets/d010092/dataaccess/# https://data-osdf.rda.ucar.edu/ncar/rda/d633000/e5.oper.an.pl/ 194012/e5.oper.an.pl.128_060_pv.ll025sc.1940120100_1940120123.nc

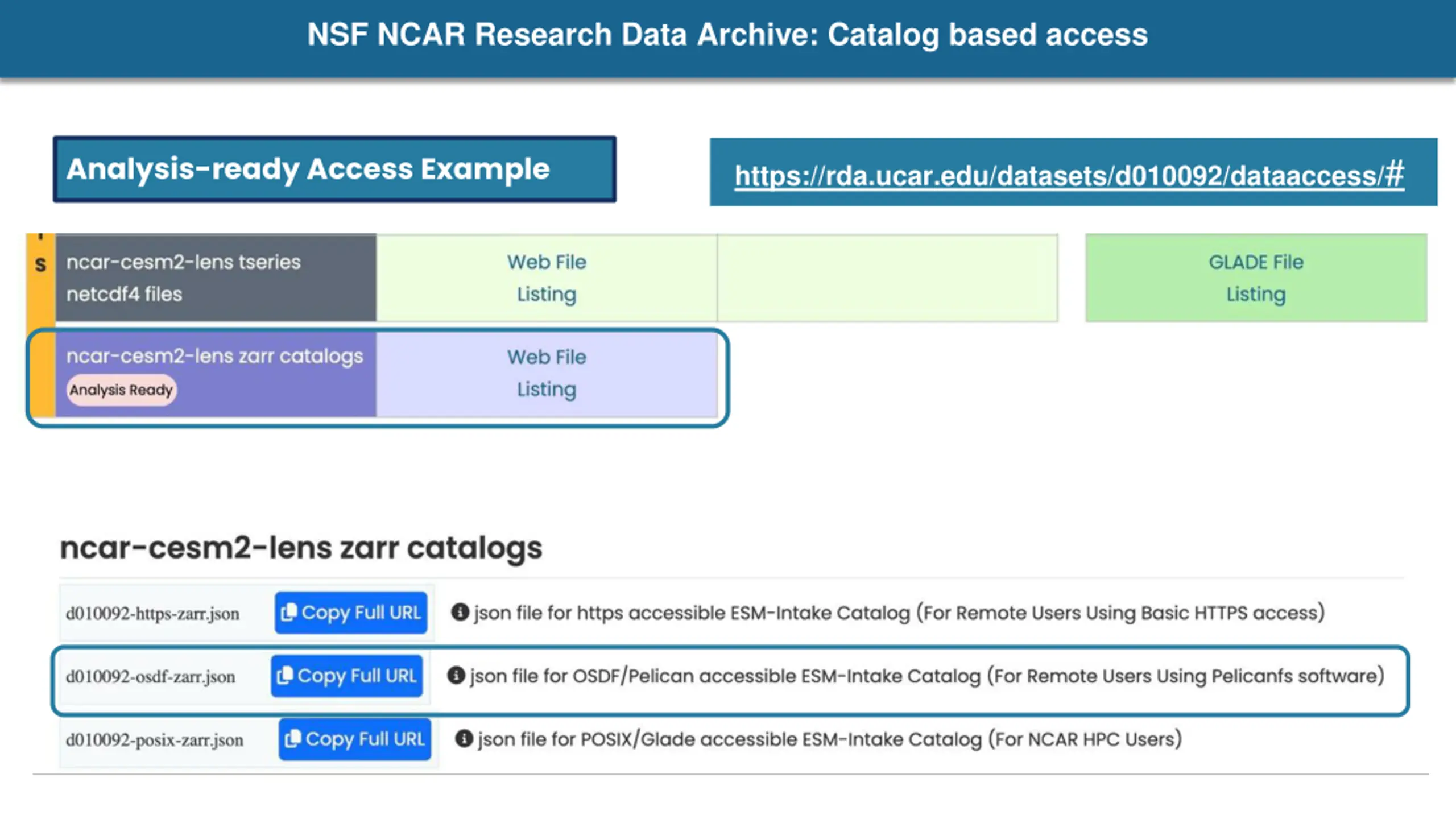

NSF NCAR Research Data Archive: Catalog based access Analysis-ready Access Example https://rda.ucar.edu/datasets/d010092/dataaccess/#

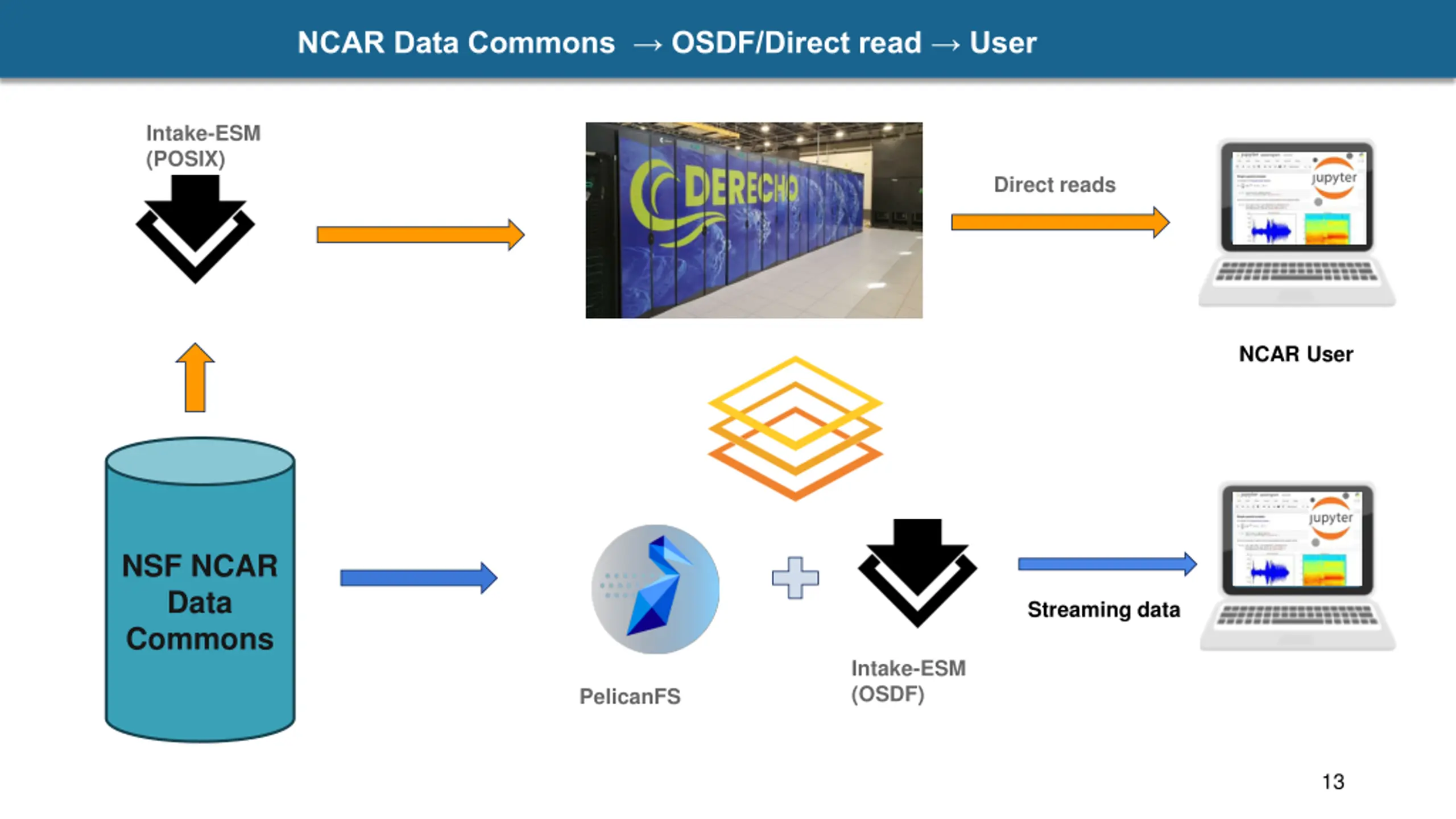

NCAR Data Commons OSDF/Direct read User Intake-ESM (POSIX) Direct reads NCAR User NSF NCAR Data Commons Streaming data Intake-ESM (OSDF) PelicanFS 13
PelicanFS: fsspec for the Pelican Platform Questions about PelicanFS? Talk to

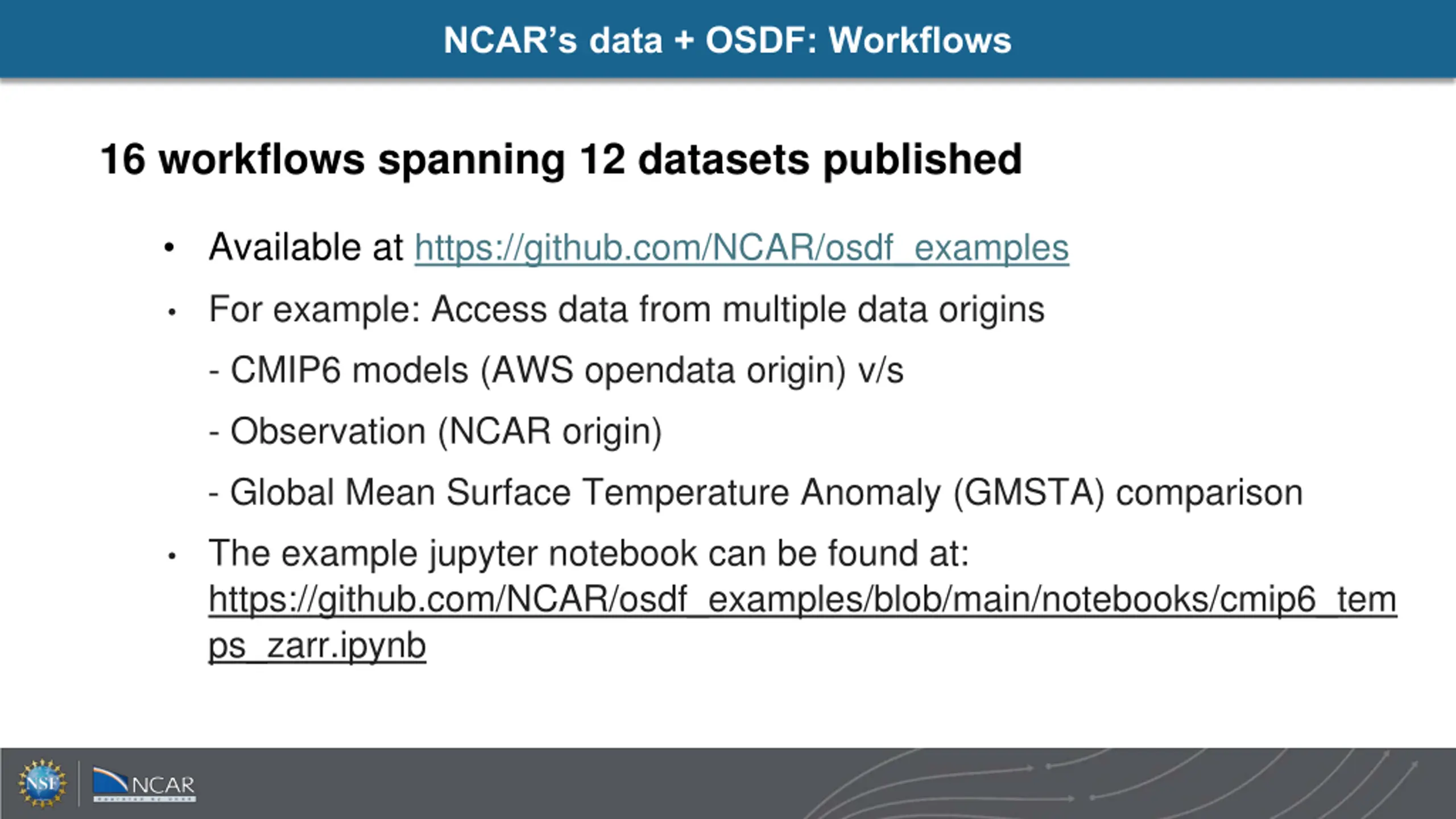

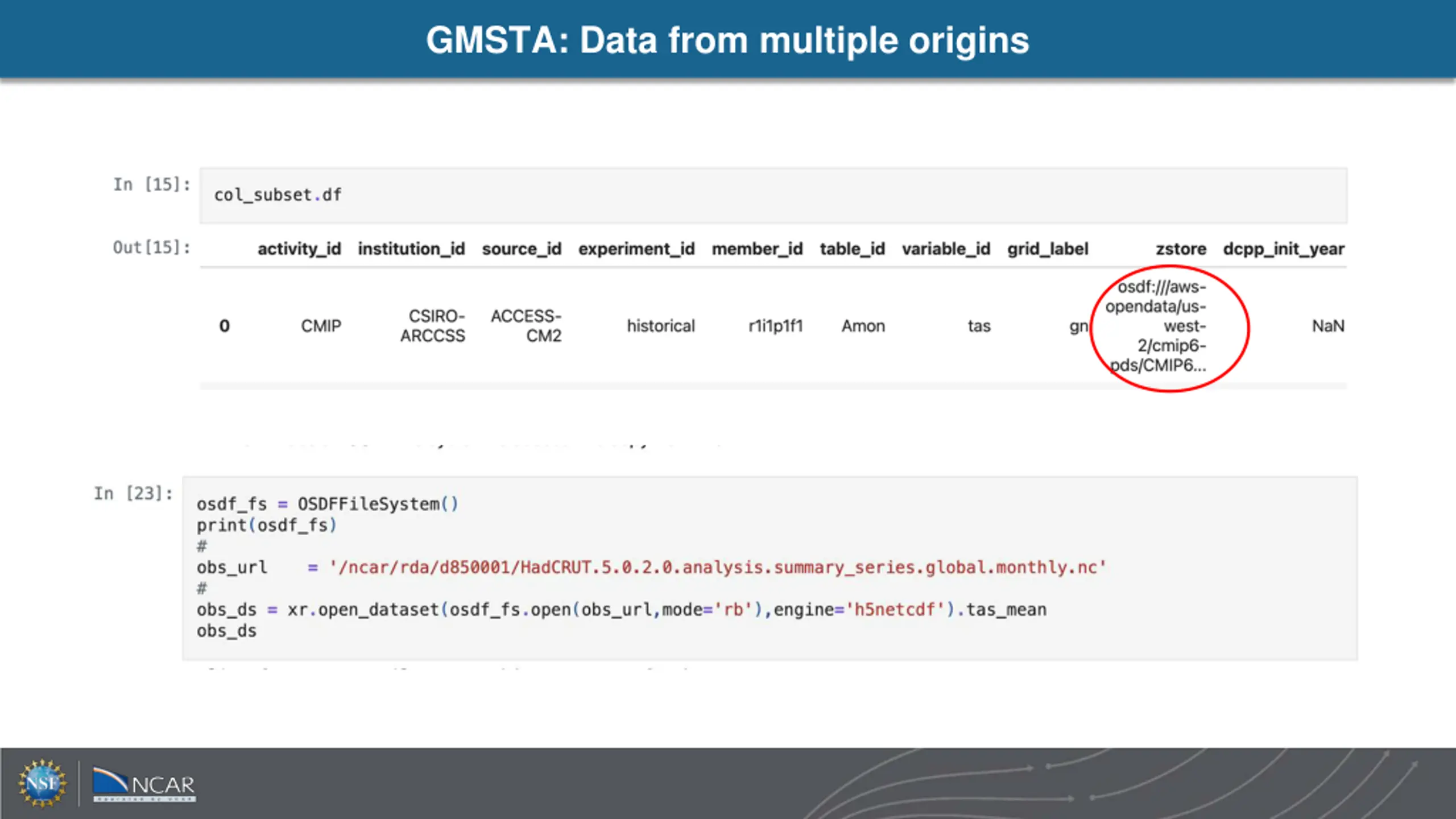

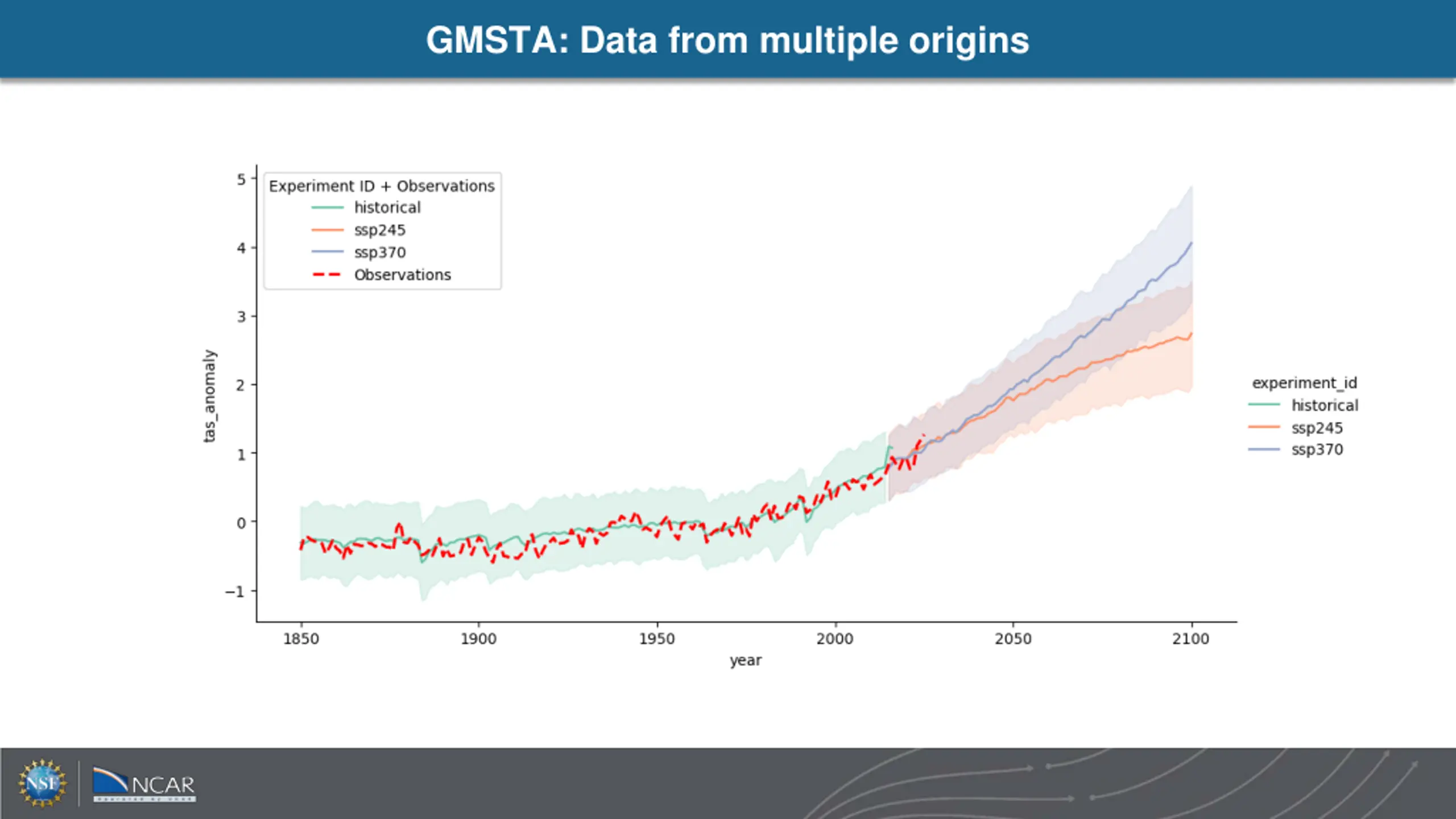

NCARs data + OSDF: Workflows 16 workflows spanning 12 datasets published Available at https://github.com/NCAR/osdf_examples For example: Access data from multiple data origins - CMIP6 models (AWS opendata origin) v/s - Observation (NCAR origin) - Global Mean Surface Temperature Anomaly (GMSTA) comparison The example jupyter notebook can be found at: https://github.com/NCAR/osdf_examples/blob/main/notebooks/cmip6_tem ps_zarr.ipynb

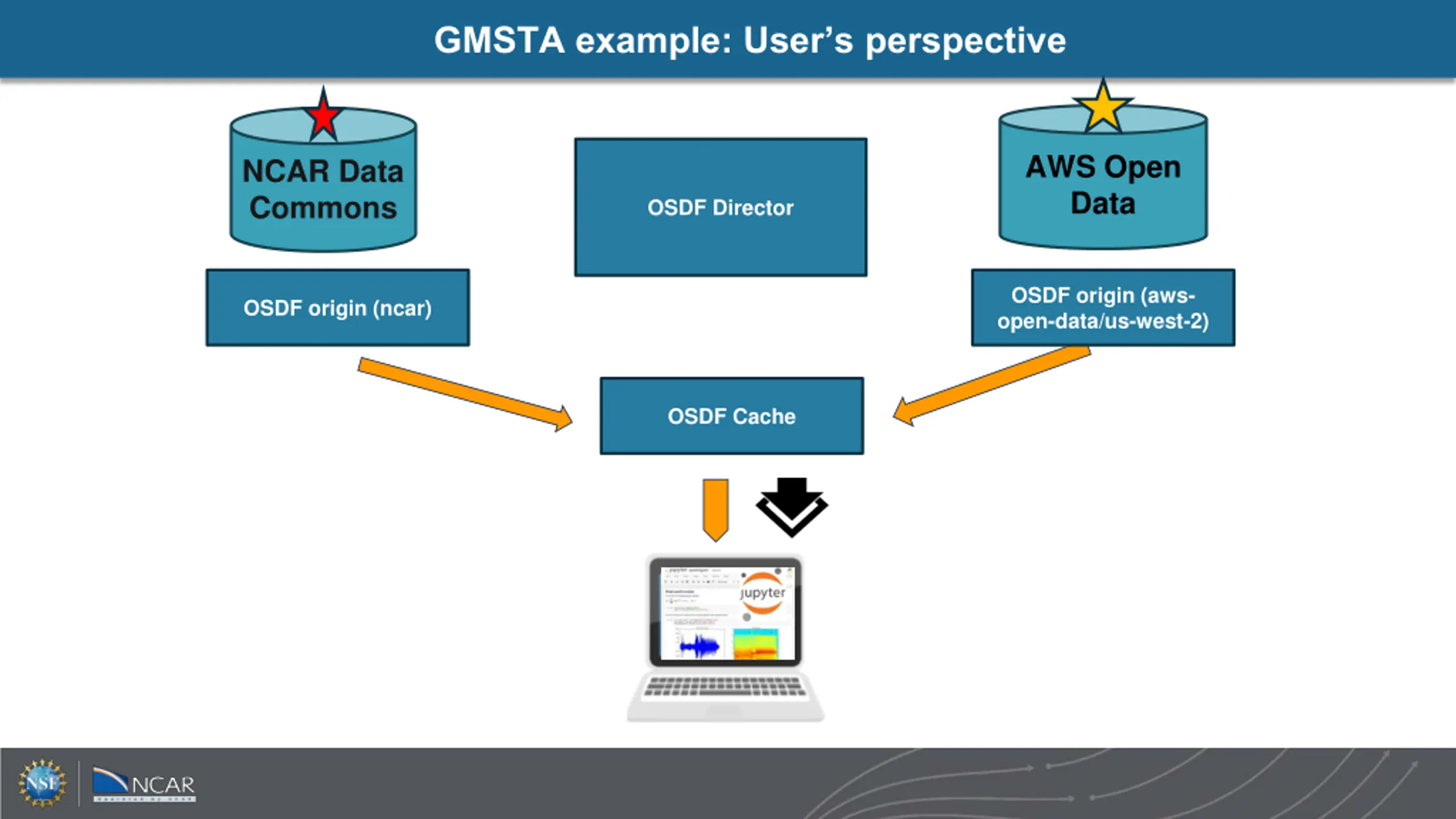

GMSTA example: Users perspective AWS Open Data NCAR Data Commons OSDF Director OSDF origin (aws- open-data/us-west-2) OSDF origin (ncar) OSDF Cache
GMSTA example: Users perspective AWS Open Data NCAR Data Commons OSDF Director OSDF origin (aws- open-data/us-west-2) OSDF origin (ncar) OSDF Cache

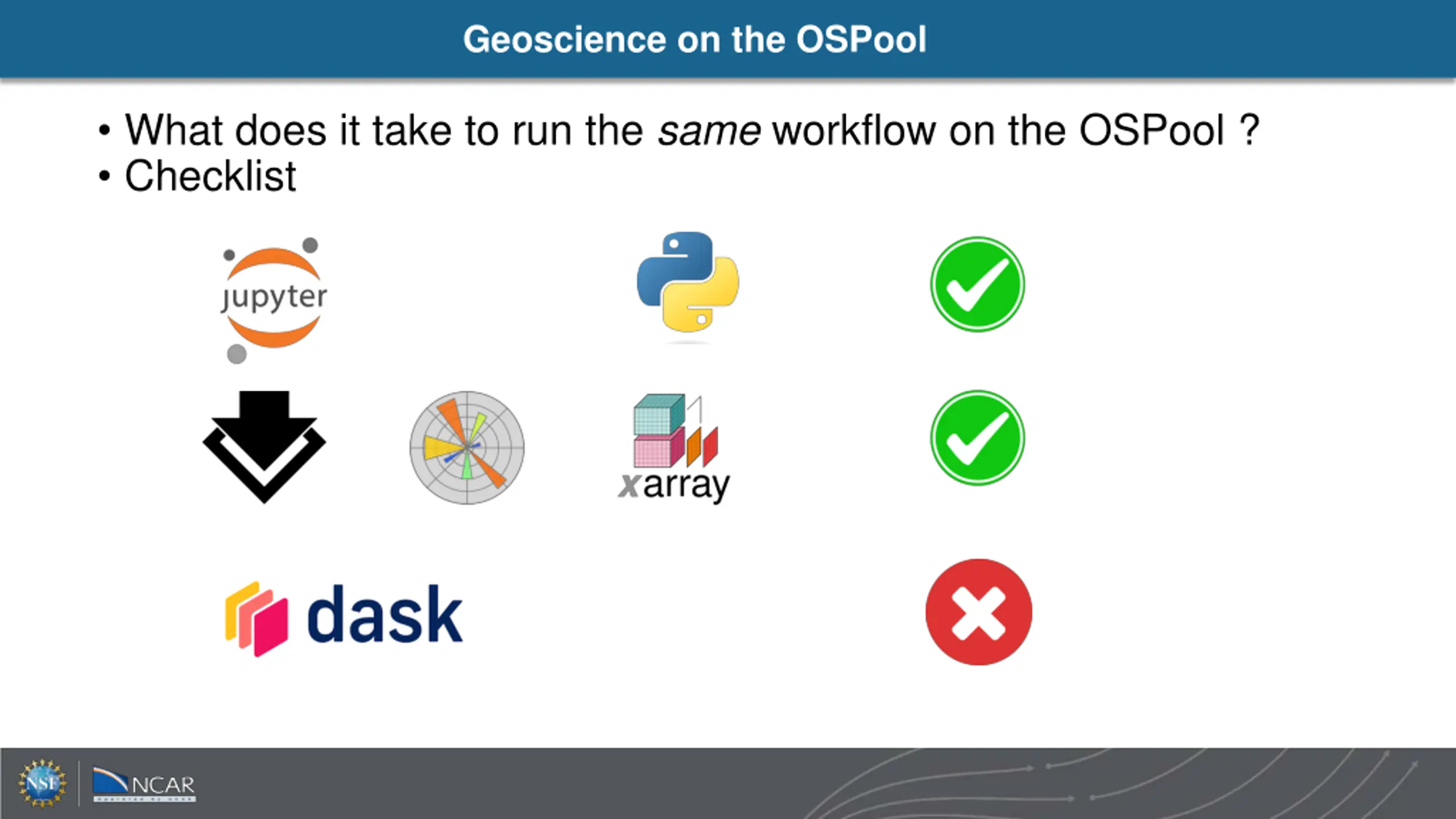

Geoscience on the OSPool What does it take to run the same workflow on the OSPool ? Checklist

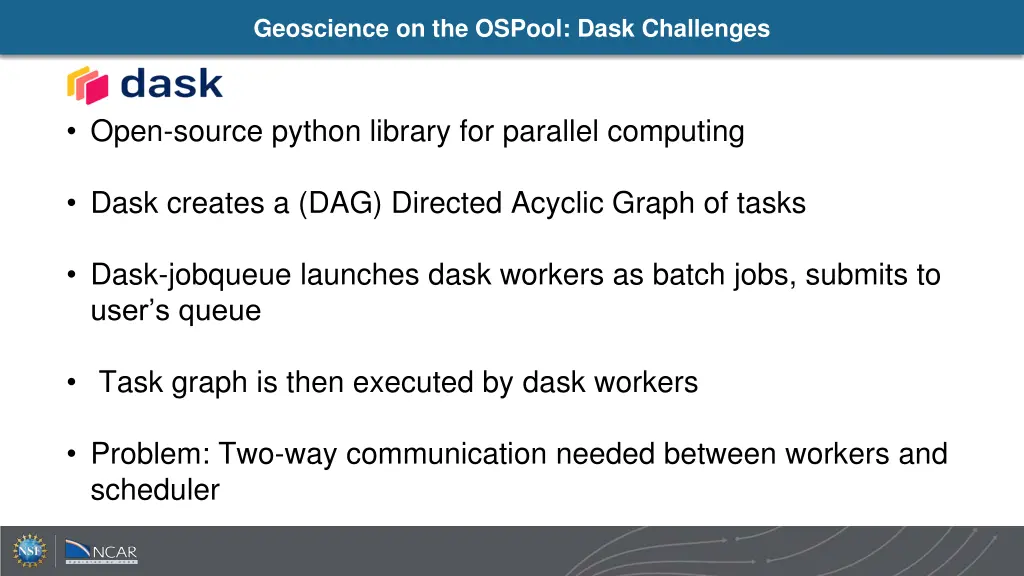

Geoscience on the OSPool: Dask Challenges Open-source python library for parallel computing Dask creates a (DAG) Directed Acyclic Graph of tasks Dask-jobqueue launches dask workers as batch jobs, submits to user s queue Task graph is then executed by dask workers Problem: Two-way communication needed between workers and scheduler

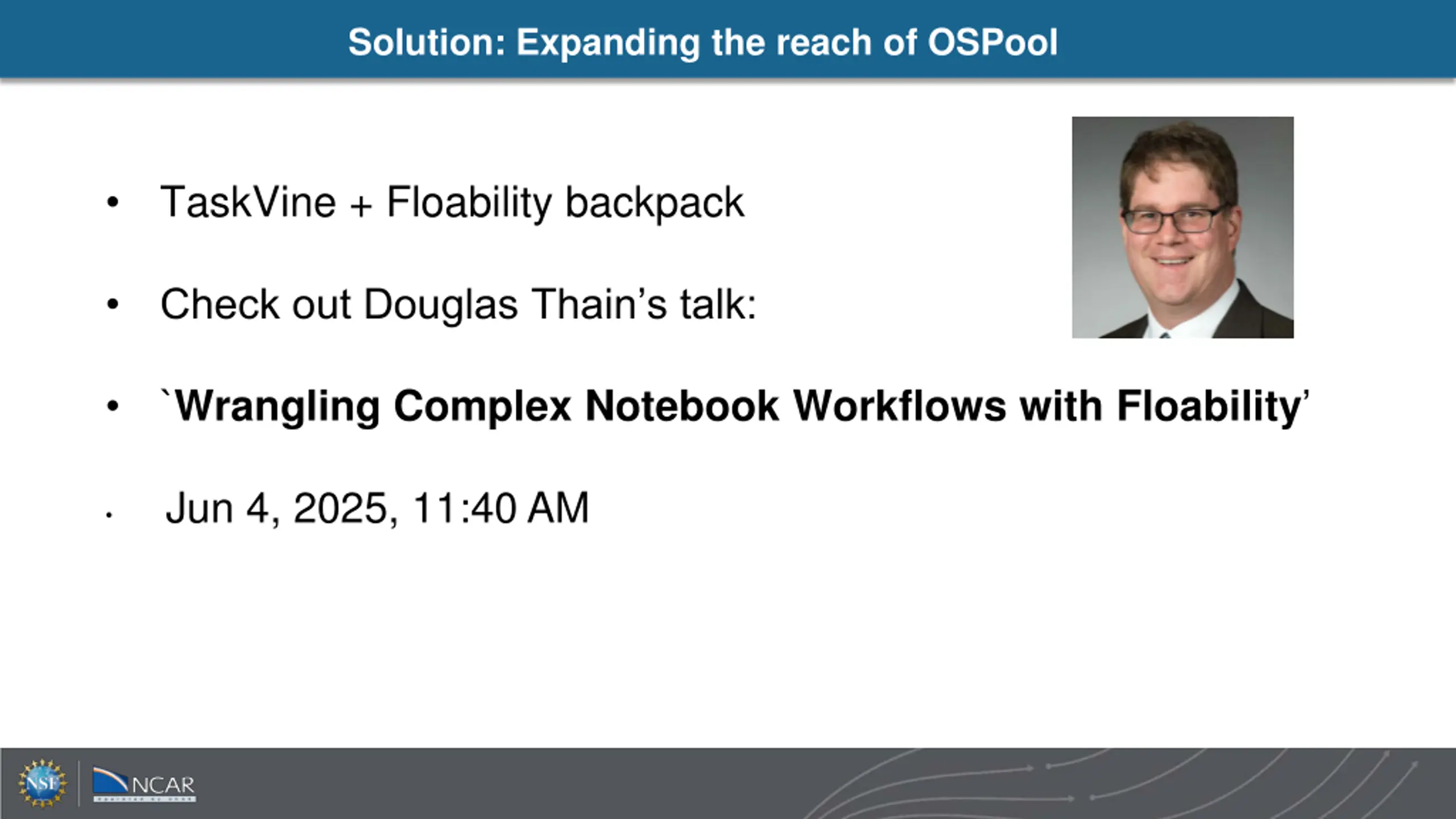

Solution: Expanding the reach of OSPool TaskVine + Floability backpack Check out Douglas Thain s talk: `Wrangling Complex Notebook Workflows with Floability Jun 4, 2025, 11:40 AM
Thank you ! Questions ? Let s Connect harshah@ucar.edu
