Access Control and Audit: Comprehensive Overview of Attribute-Based Access Control

Access Control and Audit Indrakshi Ray Computer Science Department Colorado State University Fort Collins CO 80523

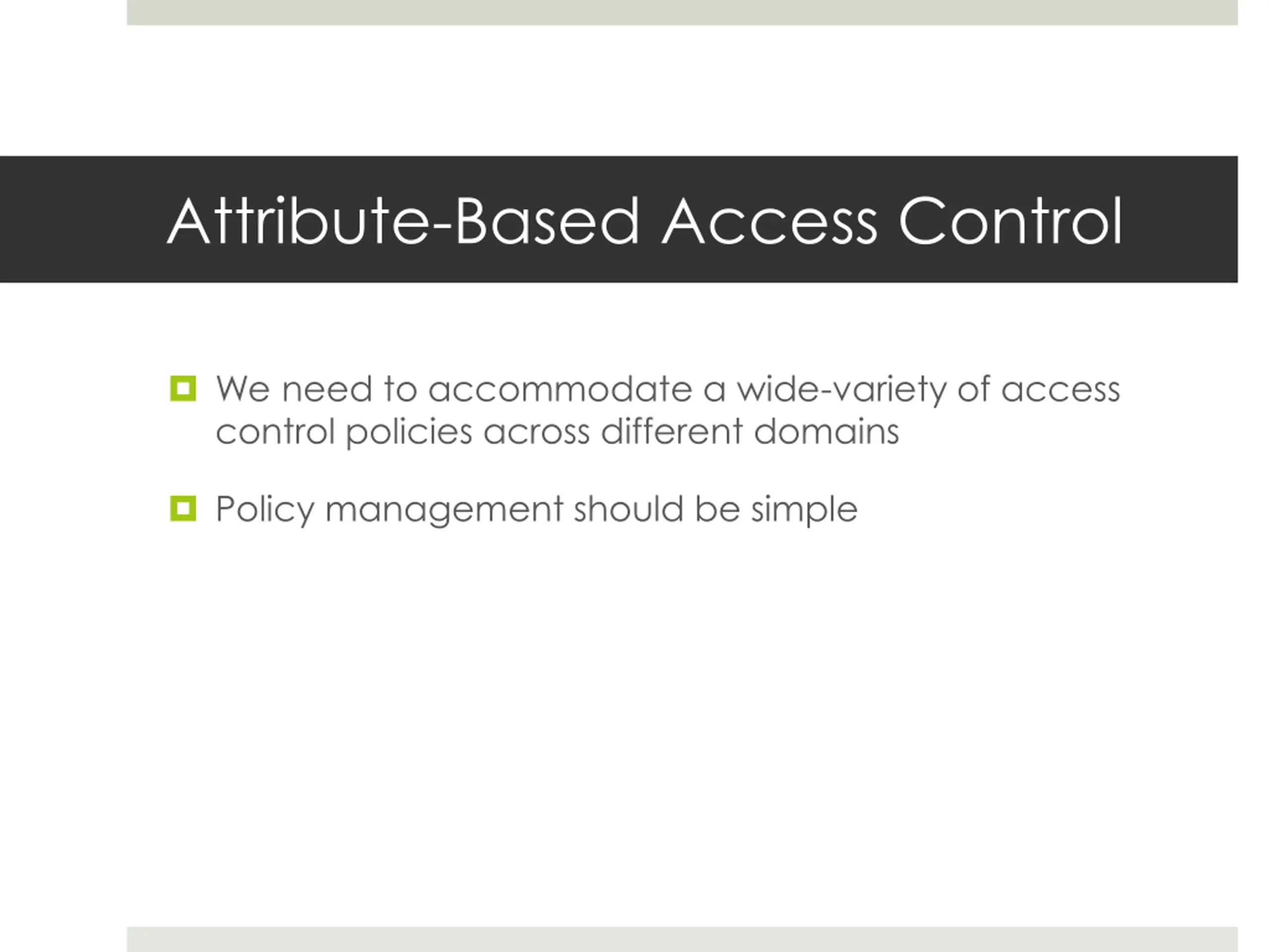

Attribute-Based Access Control We need to accommodate a wide-variety of access control policies across different domains Policy management should be simple

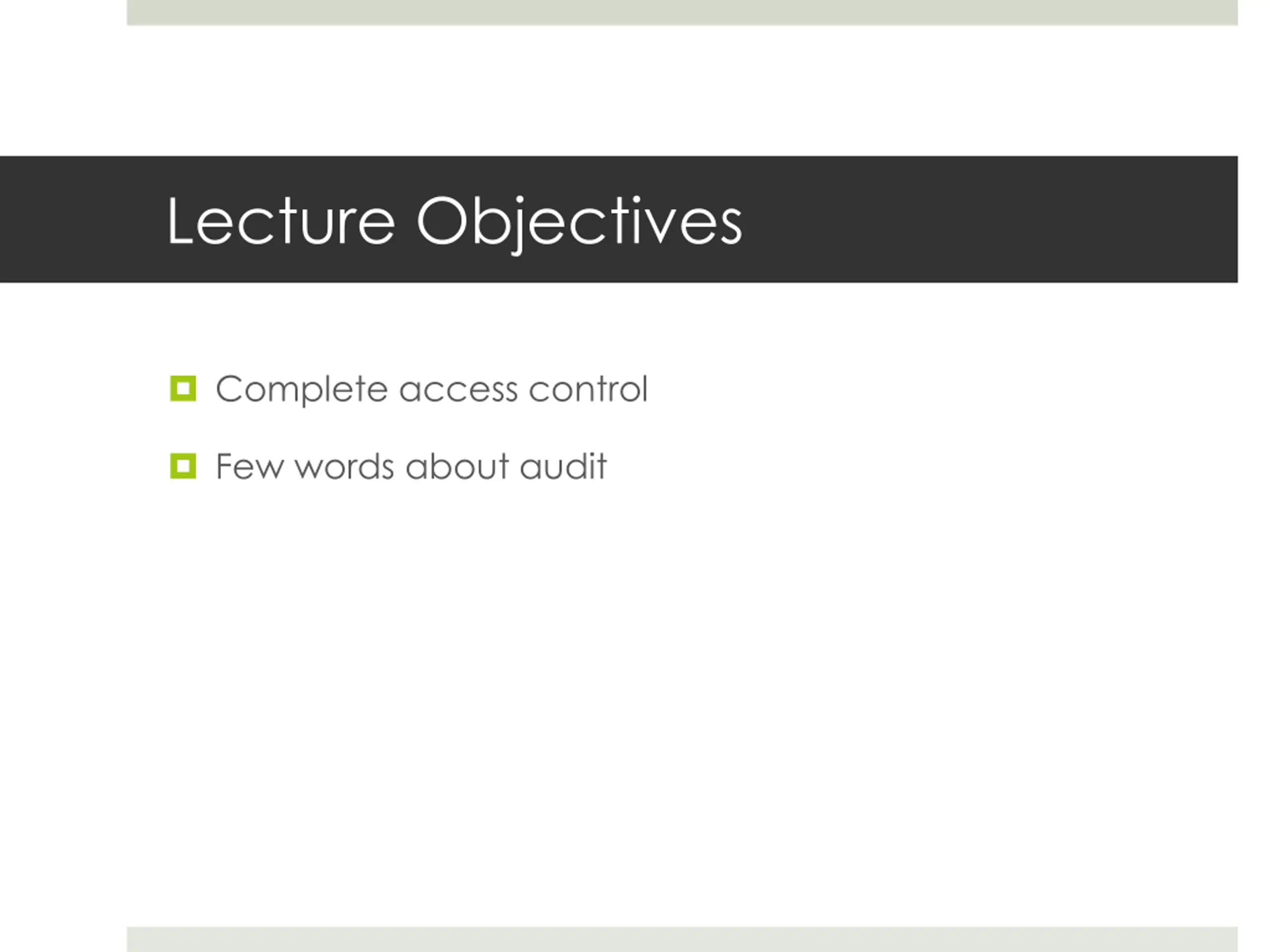

Lecture Objectives Complete access control Few words about audit

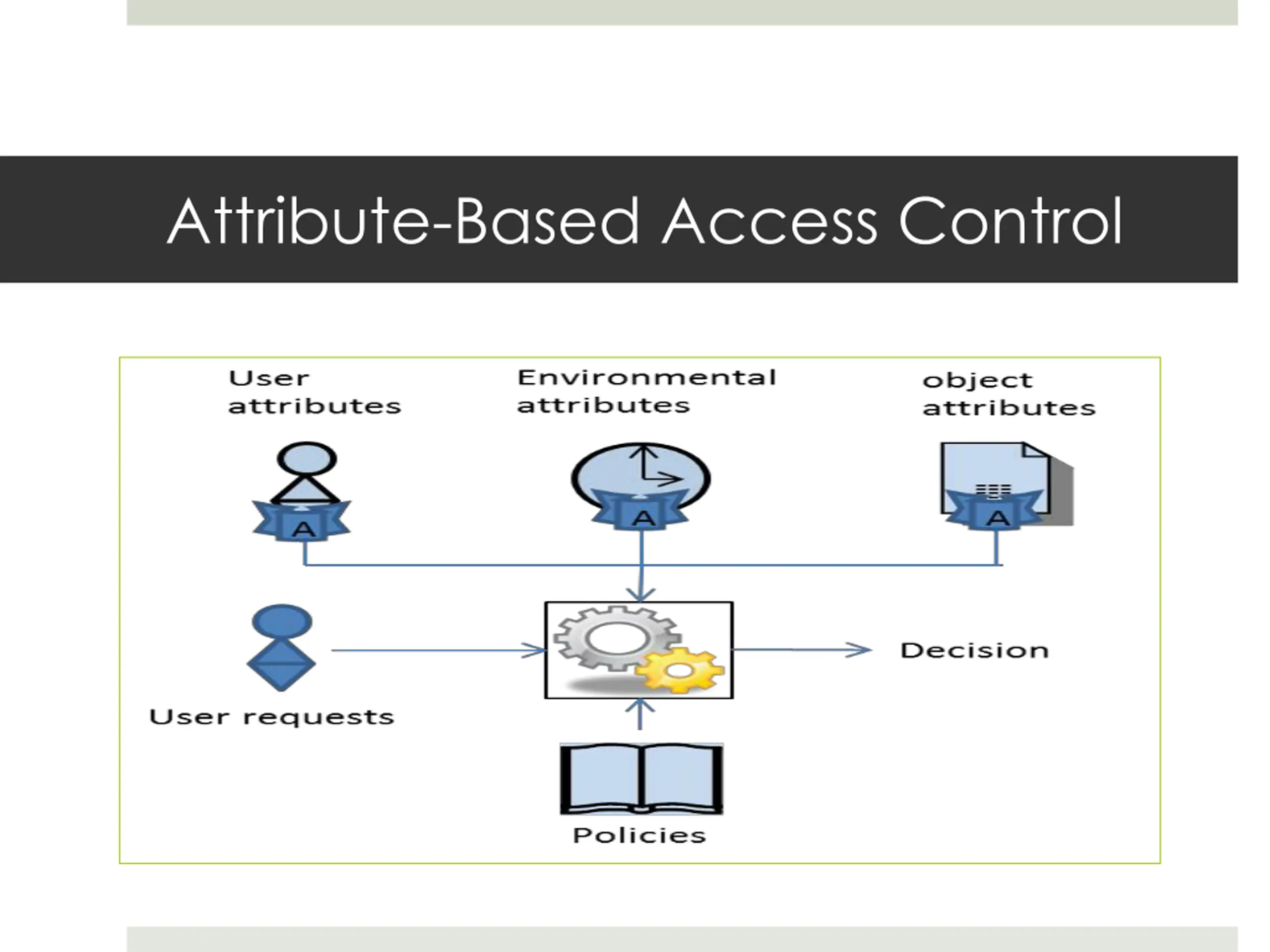

Attribute-Based Access Control

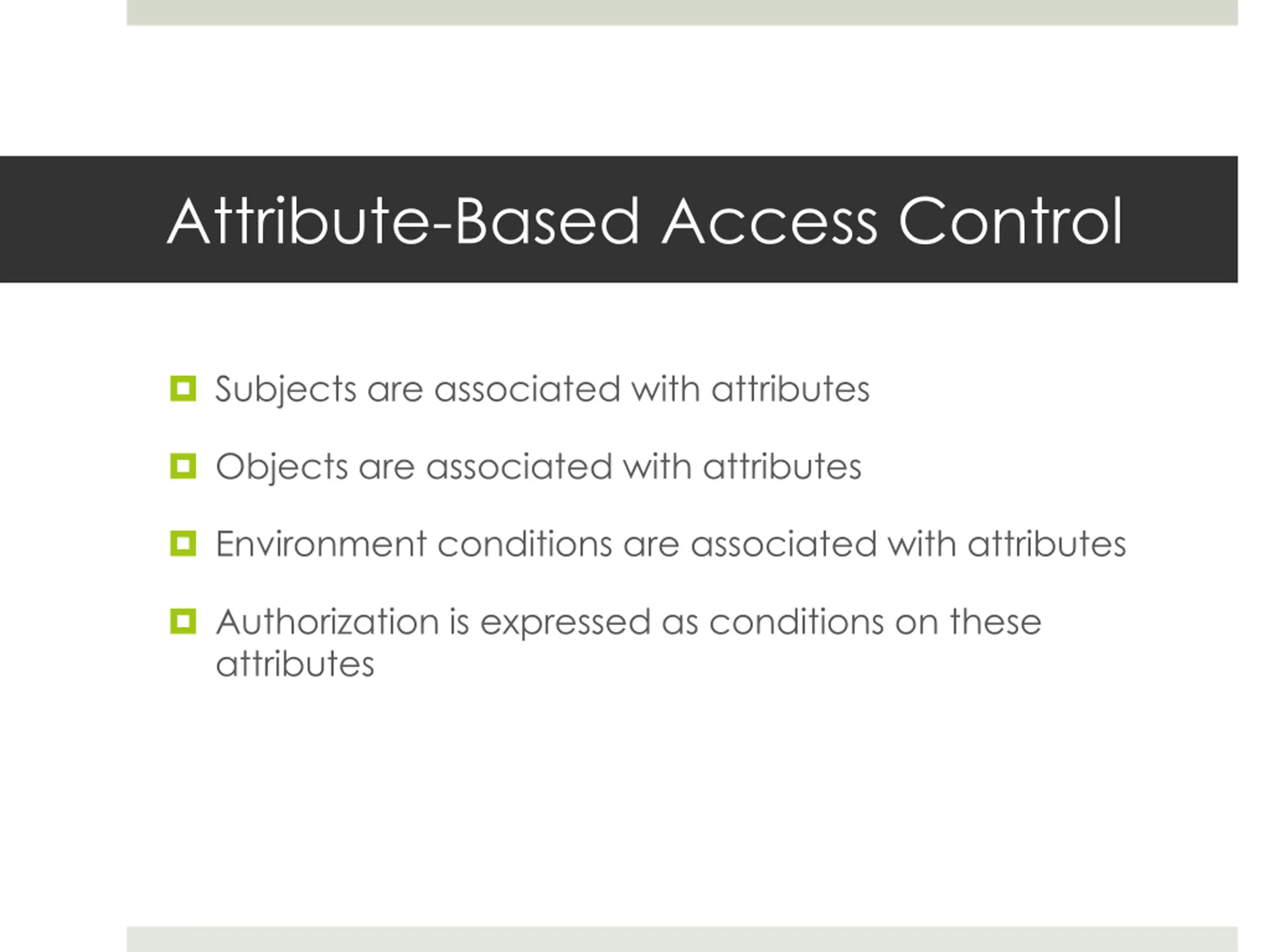

Attribute-Based Access Control Subjects are associated with attributes Objects are associated with attributes Environment conditions are associated with attributes Authorization is expressed as conditions on these attributes

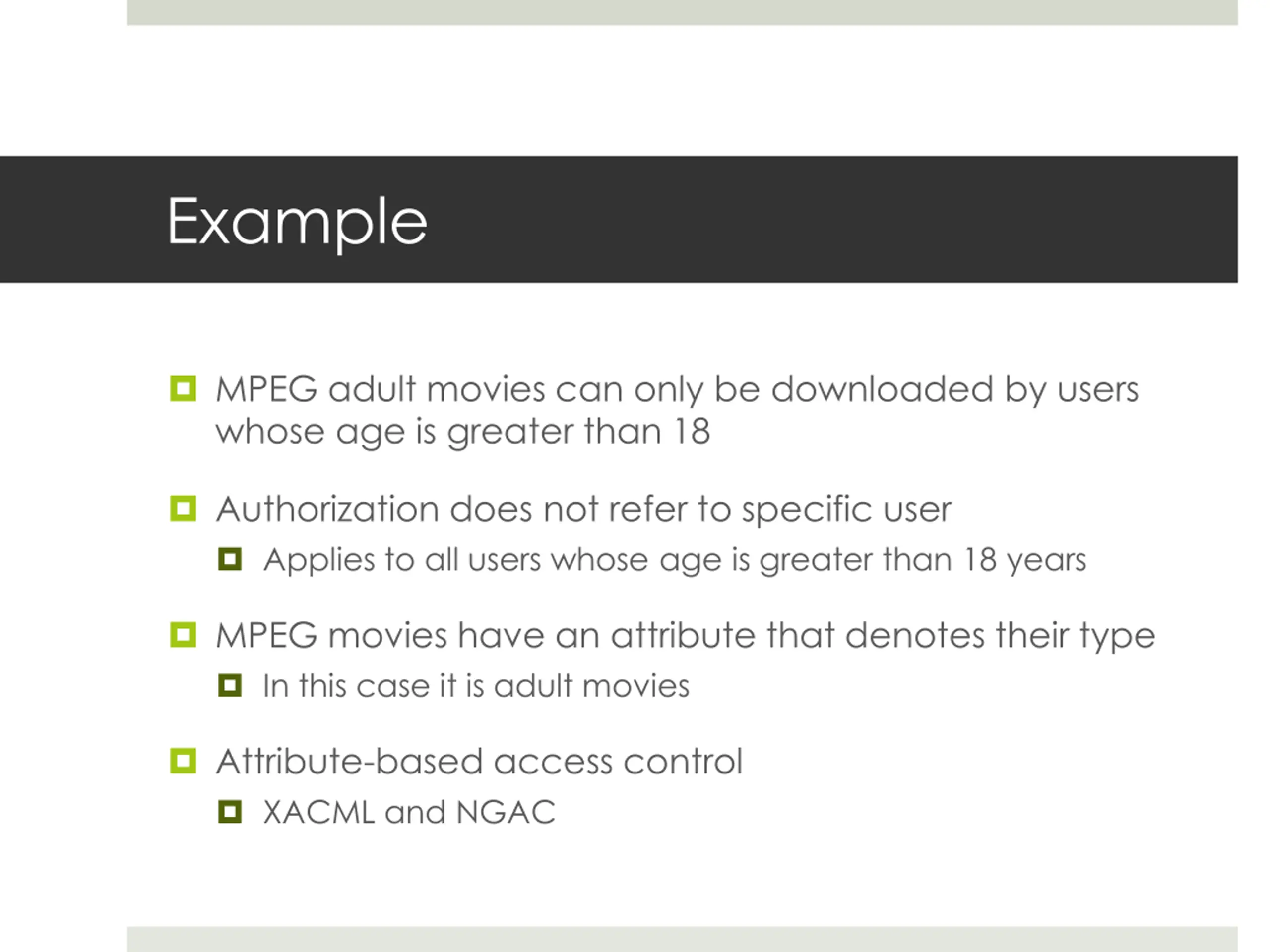

Example MPEG adult movies can only be downloaded by users whose age is greater than 18 Authorization does not refer to specific user Applies to all users whose age is greater than 18 years MPEG movies have an attribute that denotes their type In this case it is adult movies Attribute-based access control XACML and NGAC

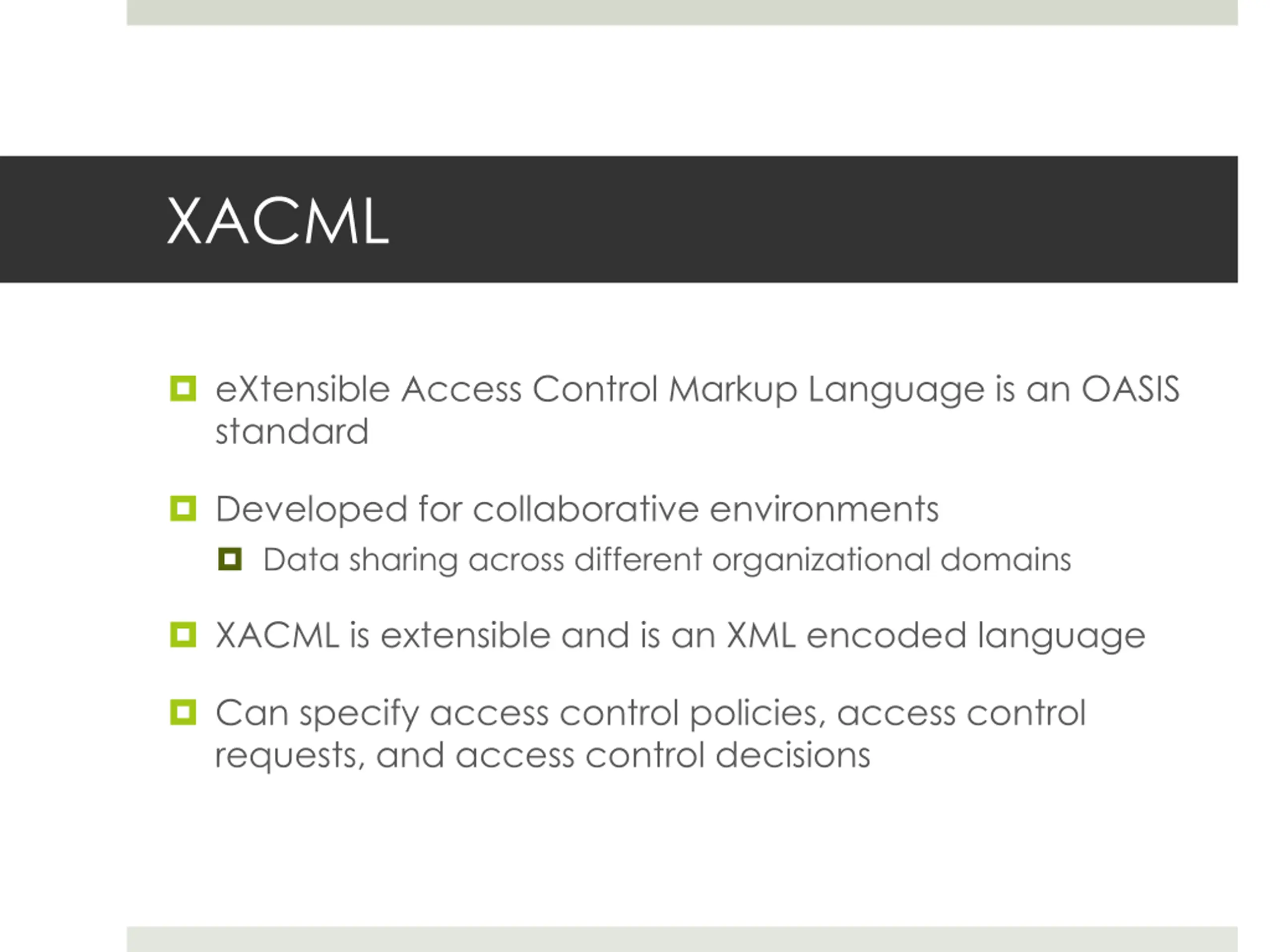

XACML eXtensible Access Control Markup Language is an OASIS standard Developed for collaborative environments Data sharing across different organizational domains XACML is extensible and is an XML encoded language Can specify access control policies, access control requests, and access control decisions

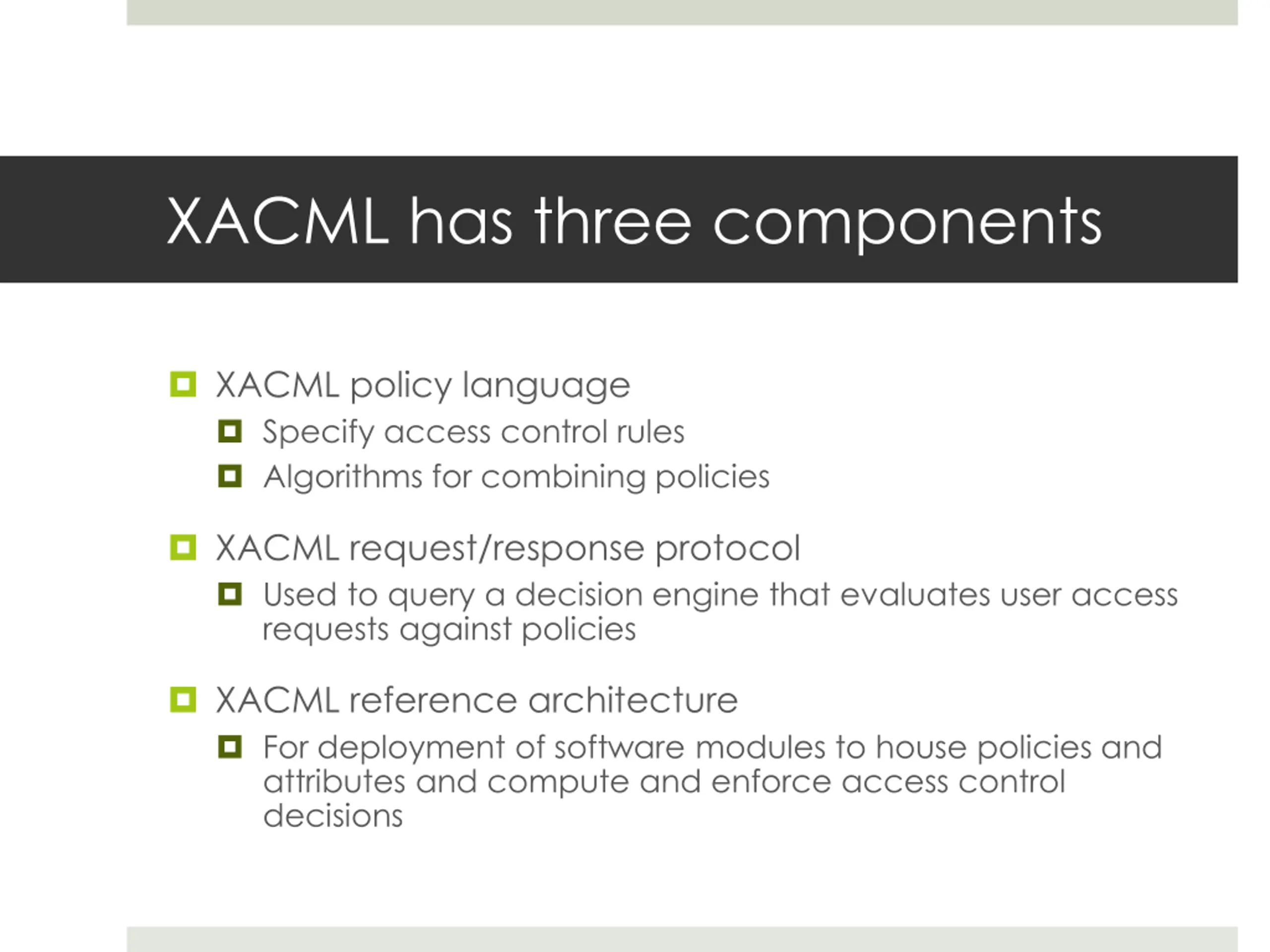

XACML has three components XACML policy language Specify access control rules Algorithms for combining policies XACML request/response protocol Used to query a decision engine that evaluates user access requests against policies XACML reference architecture For deployment of software modules to house policies and attributes and compute and enforce access control decisions

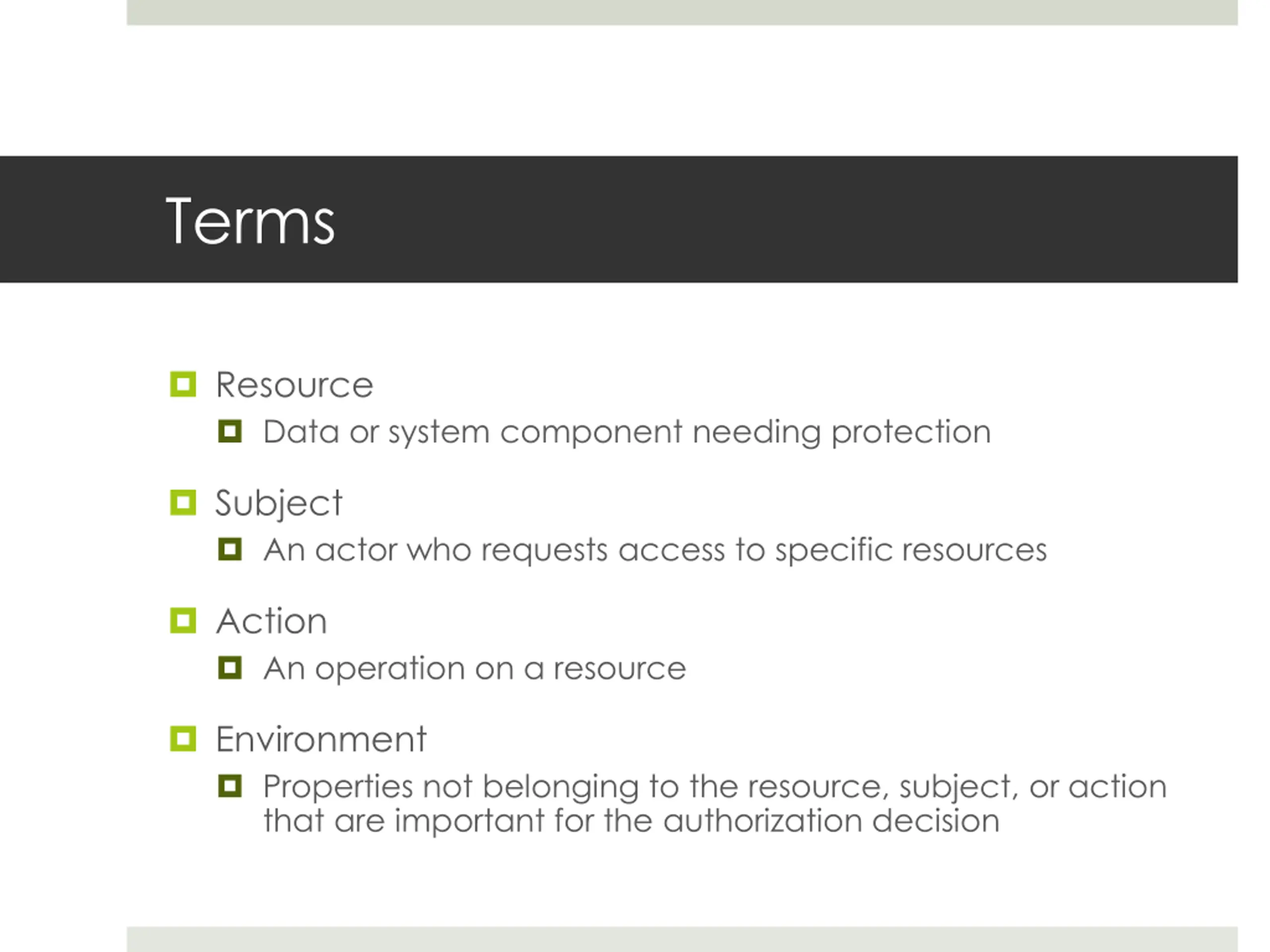

Terms Resource Data or system component needing protection Subject An actor who requests access to specific resources Action An operation on a resource Environment Properties not belonging to the resource, subject, or action that are important for the authorization decision

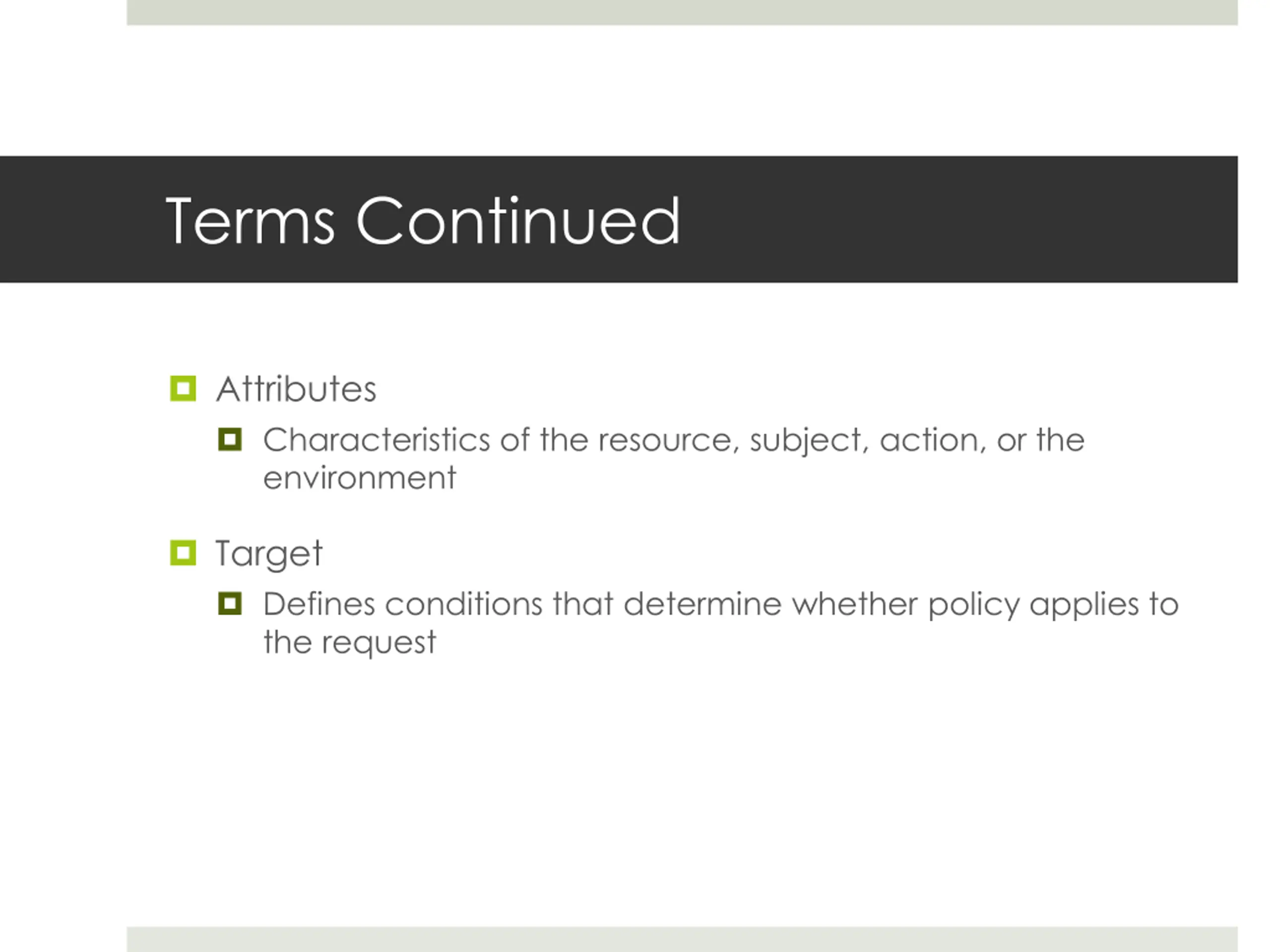

Terms Continued Attributes Characteristics of the resource, subject, action, or the environment Target Defines conditions that determine whether policy applies to the request

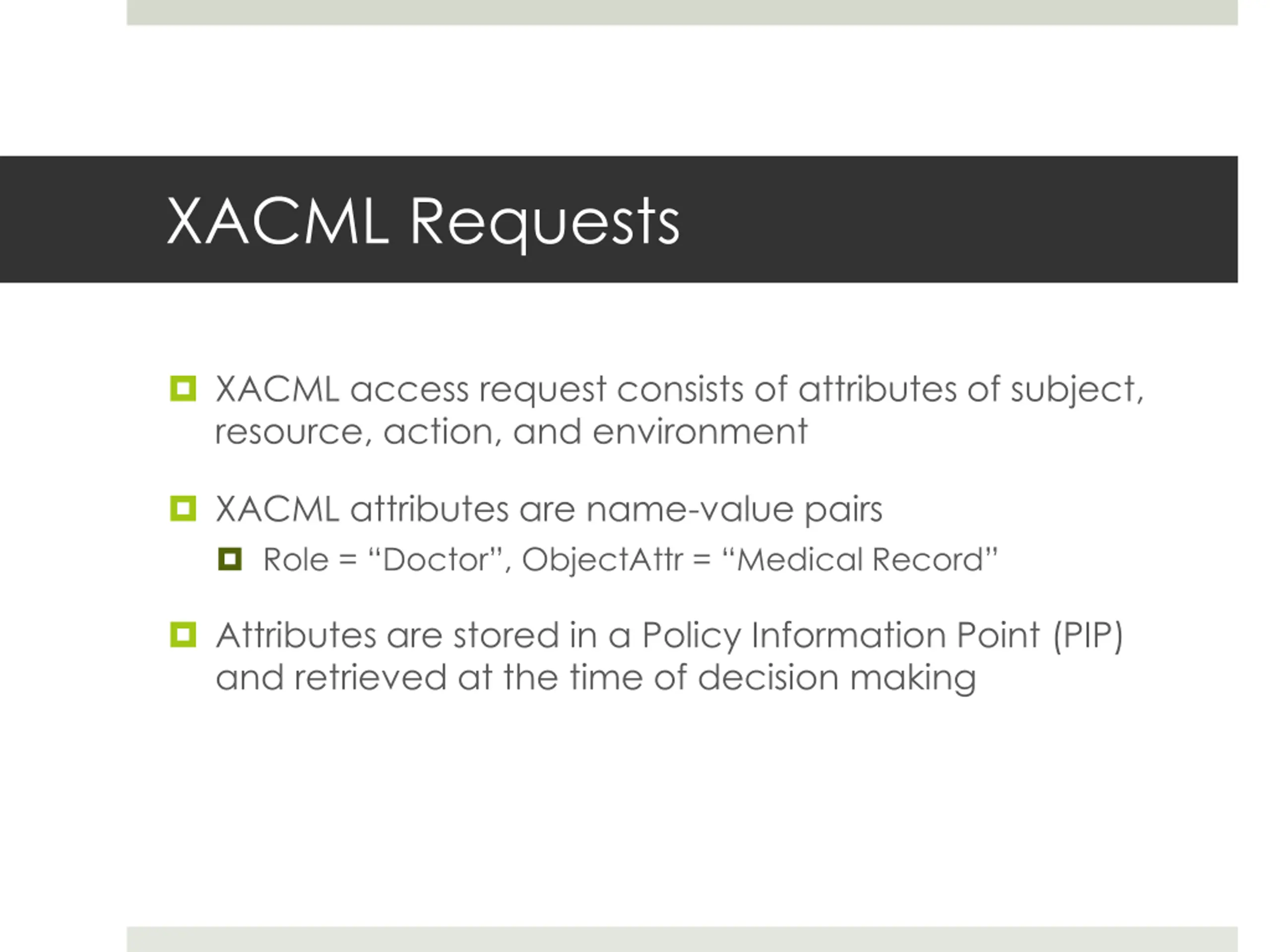

XACML Requests XACML access request consists of attributes of subject, resource, action, and environment XACML attributes are name-value pairs Role = Doctor , ObjectAttr = Medical Record Attributes are stored in a Policy Information Point (PIP) and retrieved at the time of decision making

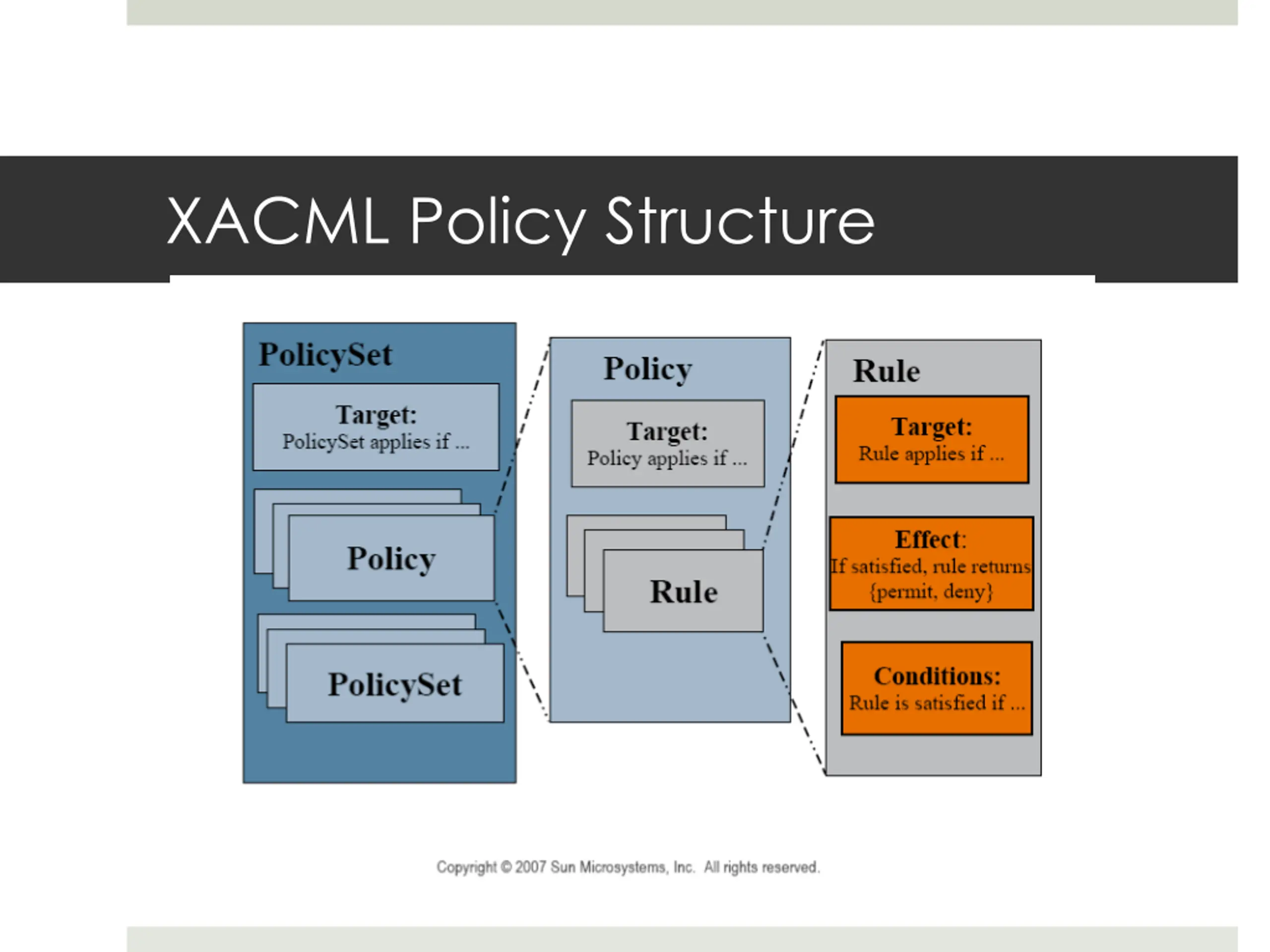

XACML Policy Structure

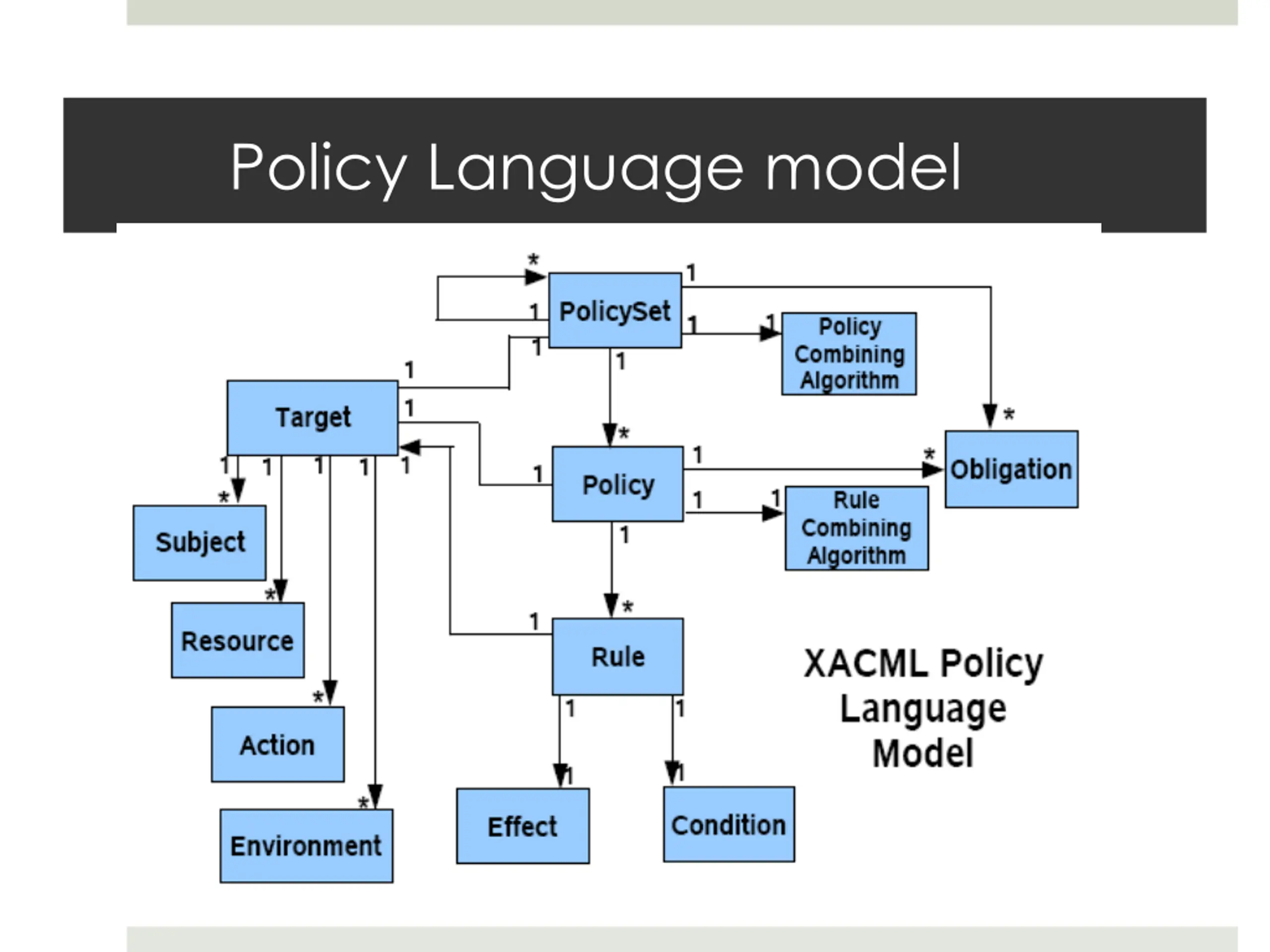

Policy Language model

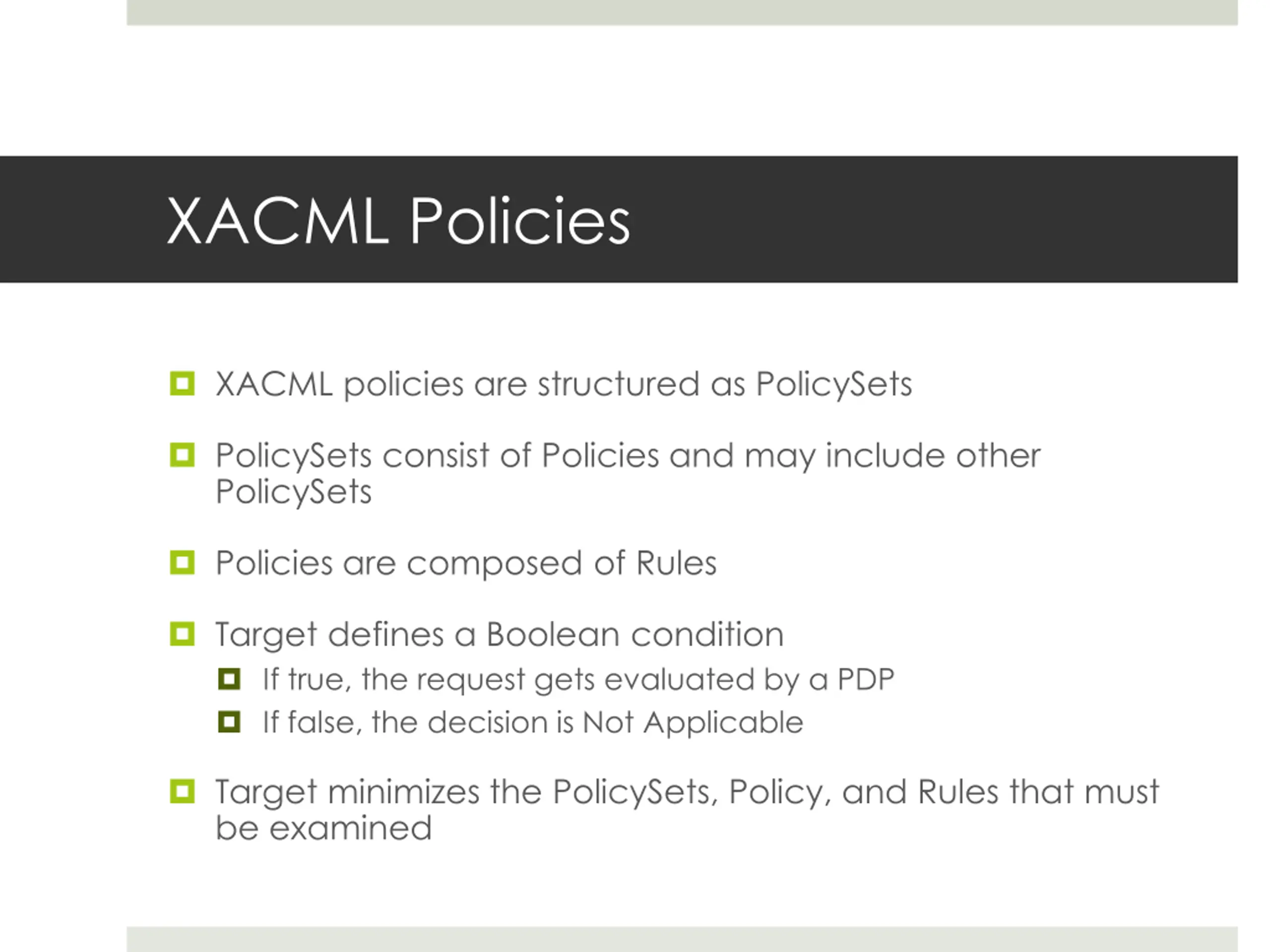

XACML Policies XACML policies are structured as PolicySets PolicySets consist of Policies and may include other PolicySets Policies are composed of Rules Target defines a Boolean condition If true, the request gets evaluated by a PDP If false, the decision is Not Applicable Target minimizes the PolicySets, Policy, and Rules that must be examined

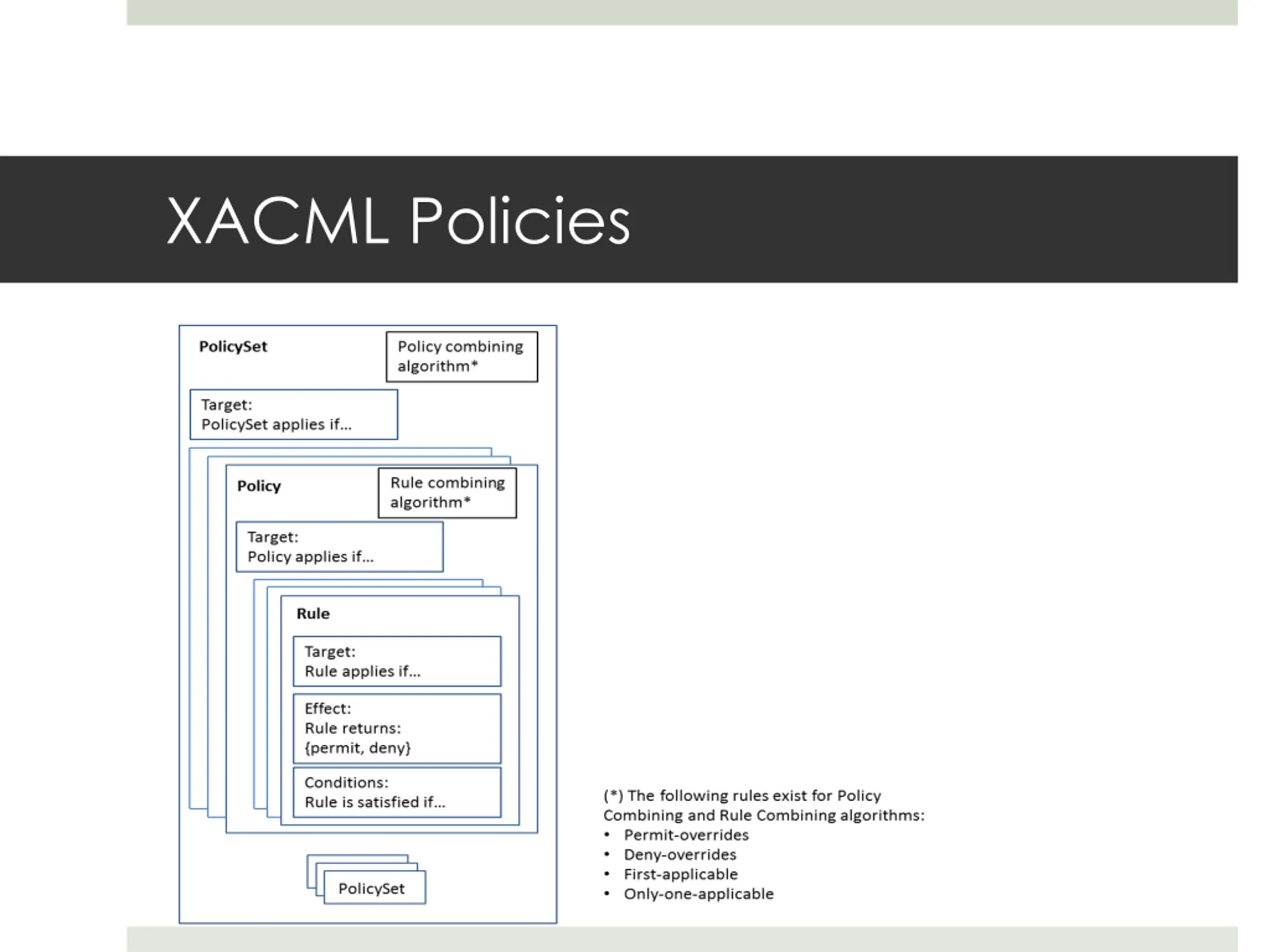

XACML Policies

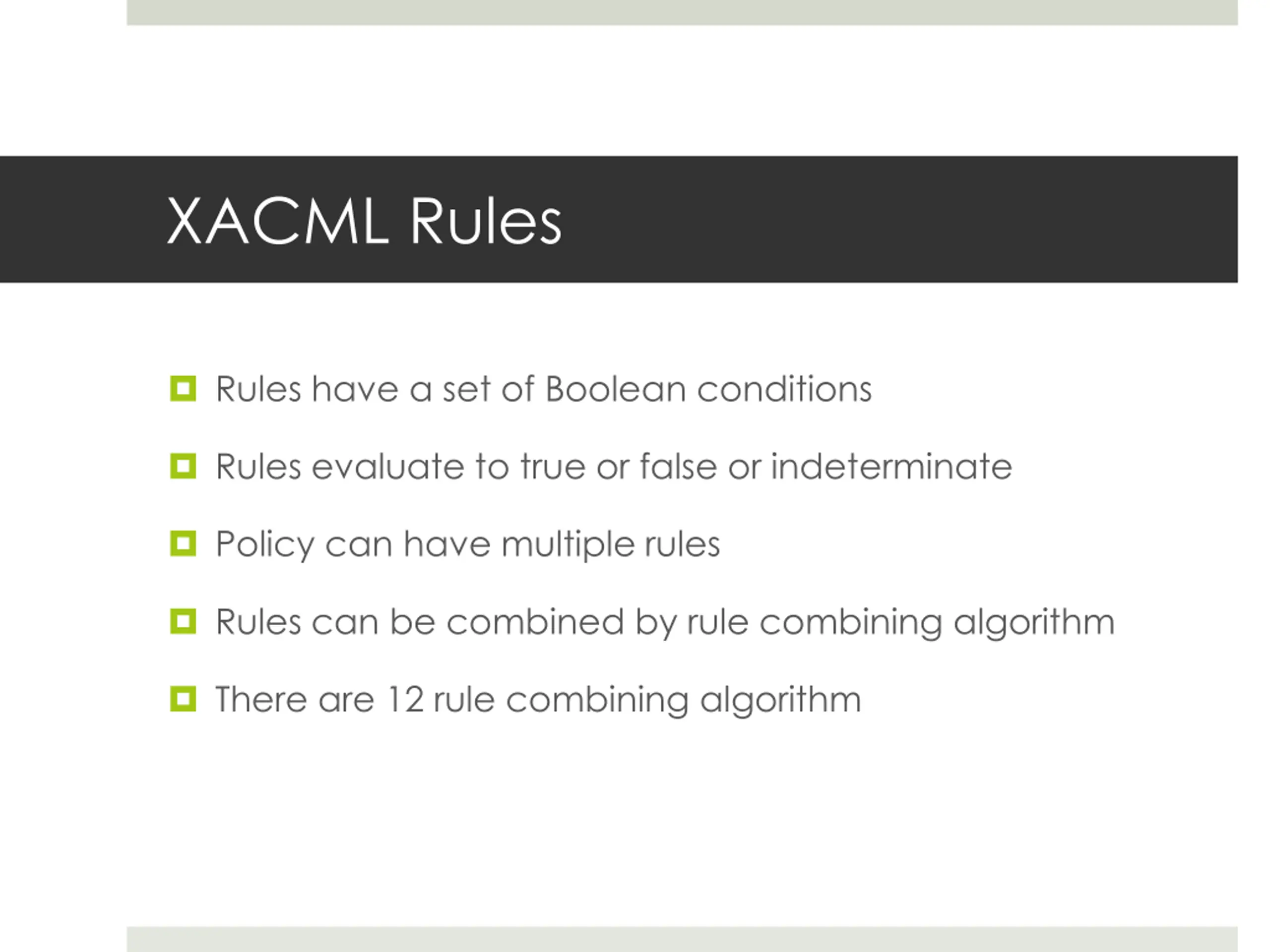

XACML Rules Rules have a set of Boolean conditions Rules evaluate to true or false or indeterminate Policy can have multiple rules Rules can be combined by rule combining algorithm There are 12 rule combining algorithm

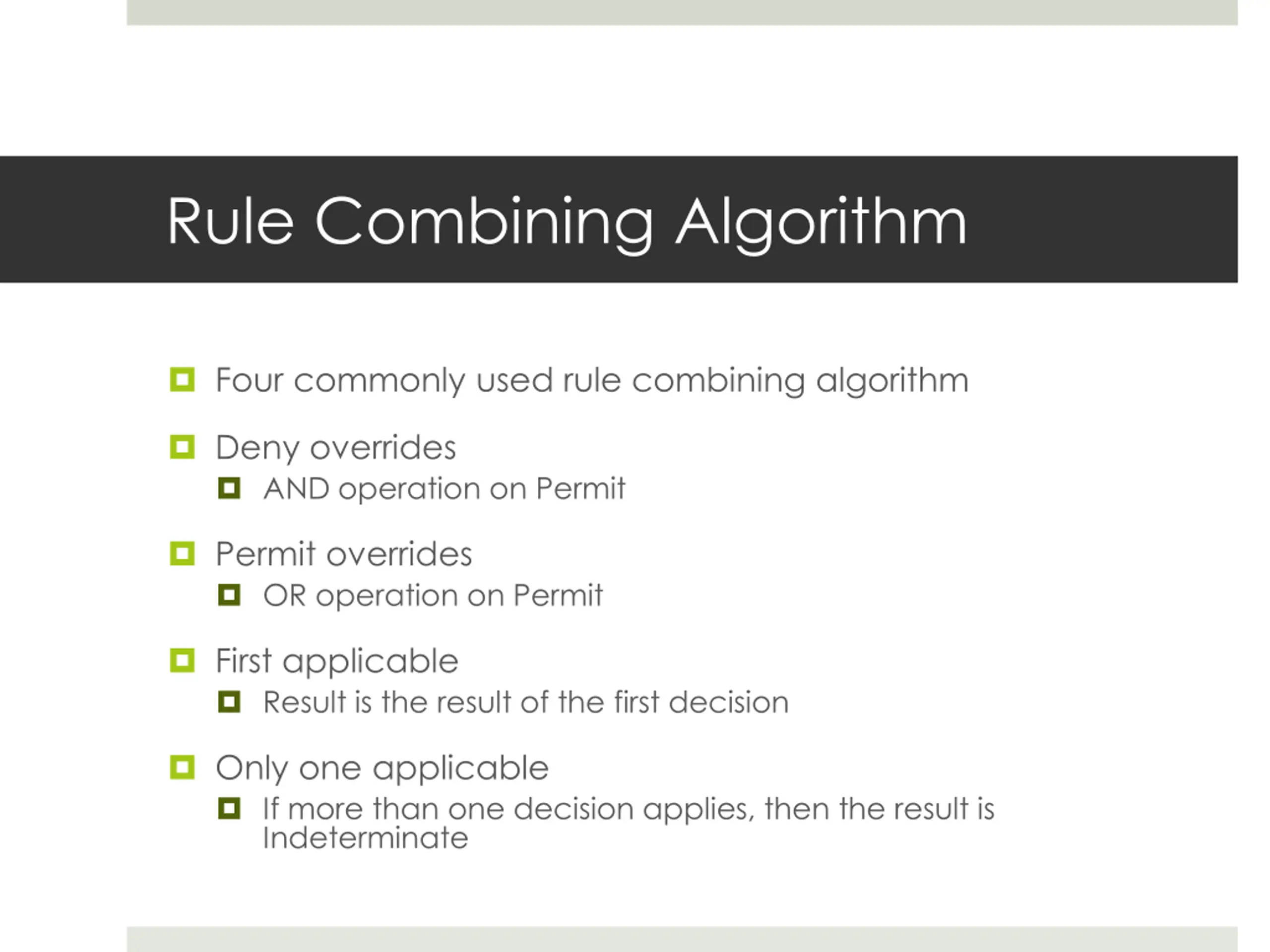

Rule Combining Algorithm Four commonly used rule combining algorithm Deny overrides AND operation on Permit Permit overrides OR operation on Permit First applicable Result is the result of the first decision Only one applicable If more than one decision applies, then the result is Indeterminate

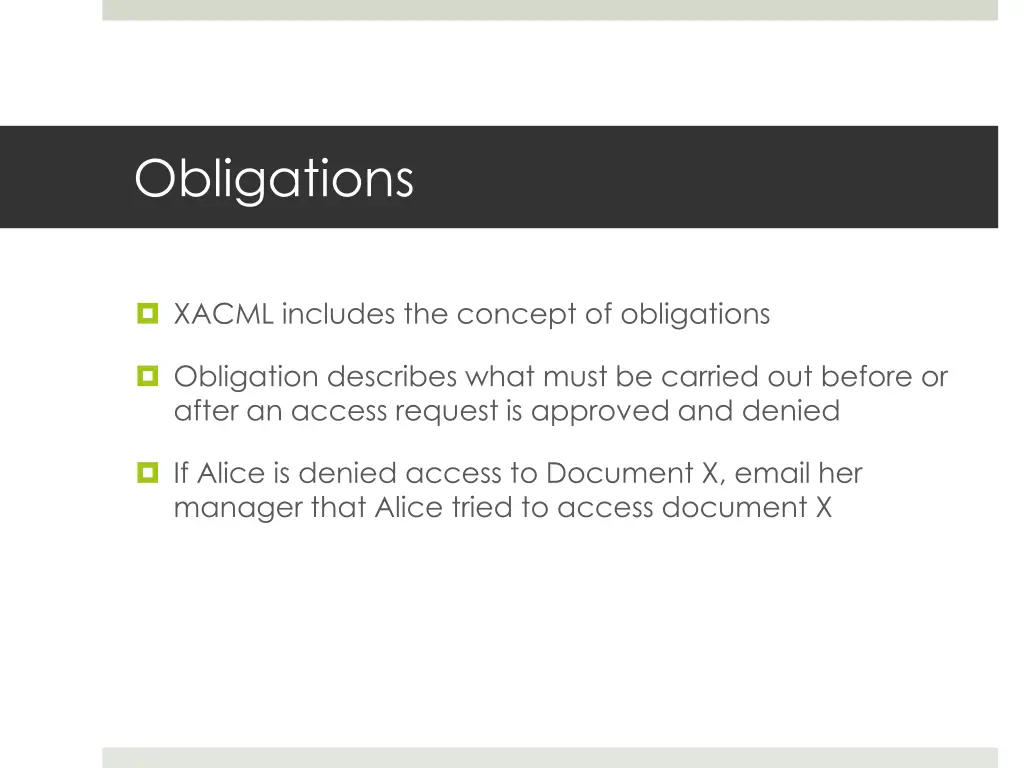

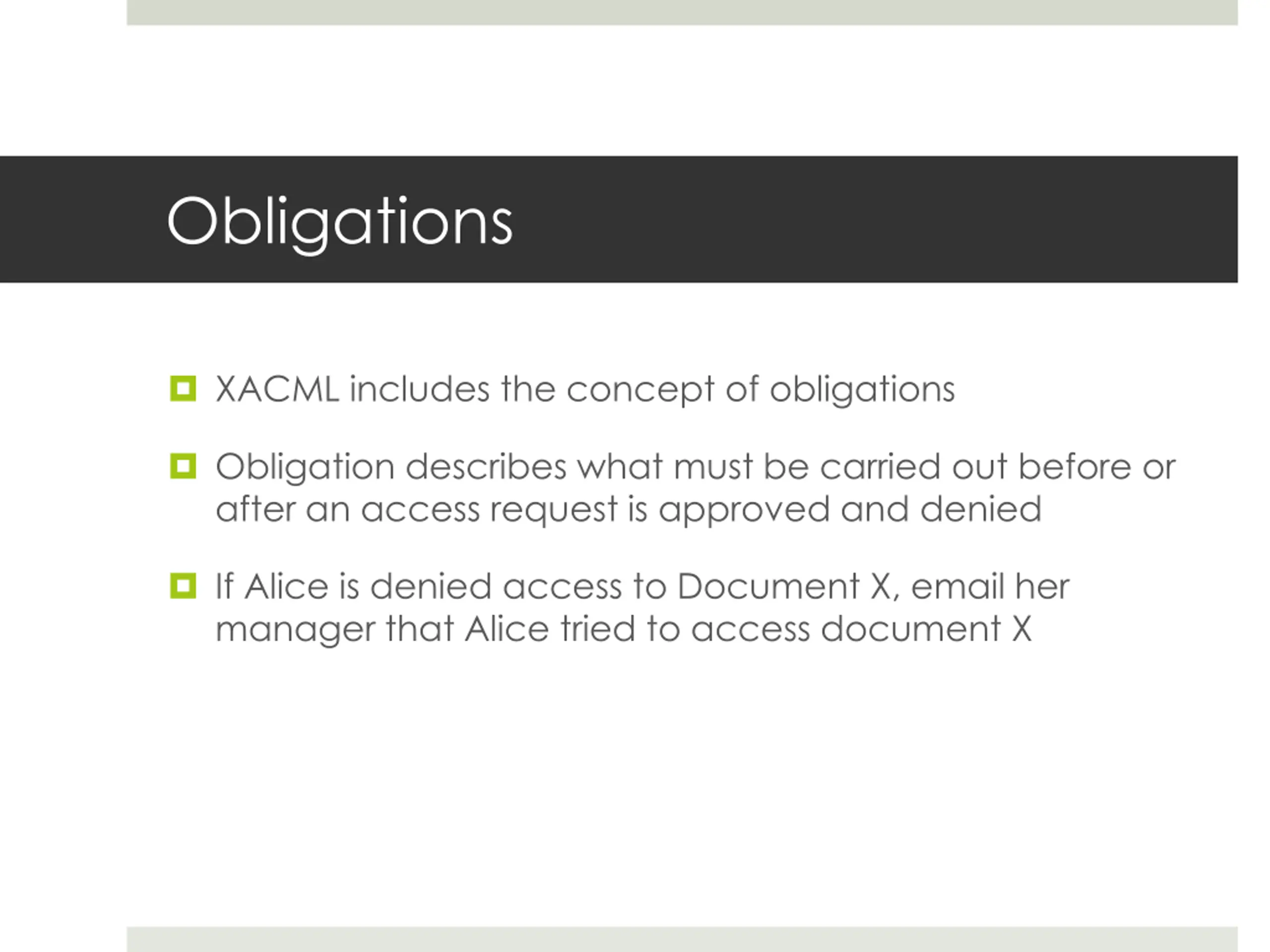

Obligations XACML includes the concept of obligations Obligation describes what must be carried out before or after an access request is approved and denied If Alice is denied access to Document X, email her manager that Alice tried to access document X

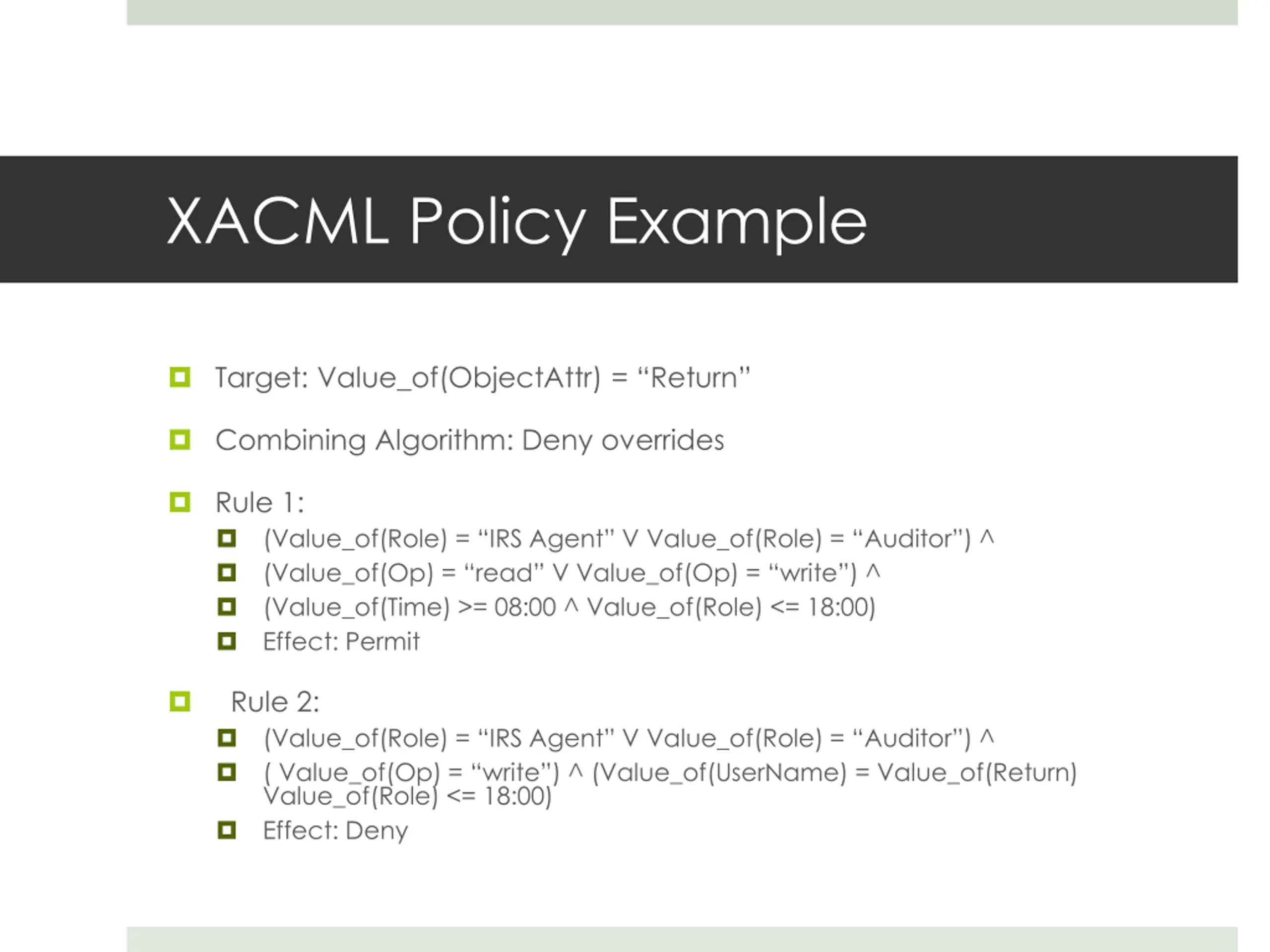

XACML Policy Example Target: Value_of(ObjectAttr) = Return Combining Algorithm: Deny overrides Rule 1: (Value_of(Role) = IRS Agent V Value_of(Role) = Auditor ) ^ (Value_of(Op) = read V Value_of(Op) = write ) ^ (Value_of(Time) >= 08:00 ^ Value_of(Role) <= 18:00) Effect: Permit Rule 2: (Value_of(Role) = IRS Agent V Value_of(Role) = Auditor ) ^ ( Value_of(Op) = write ) ^ (Value_of(UserName) = Value_of(Return) Value_of(Role) <= 18:00) Effect: Deny

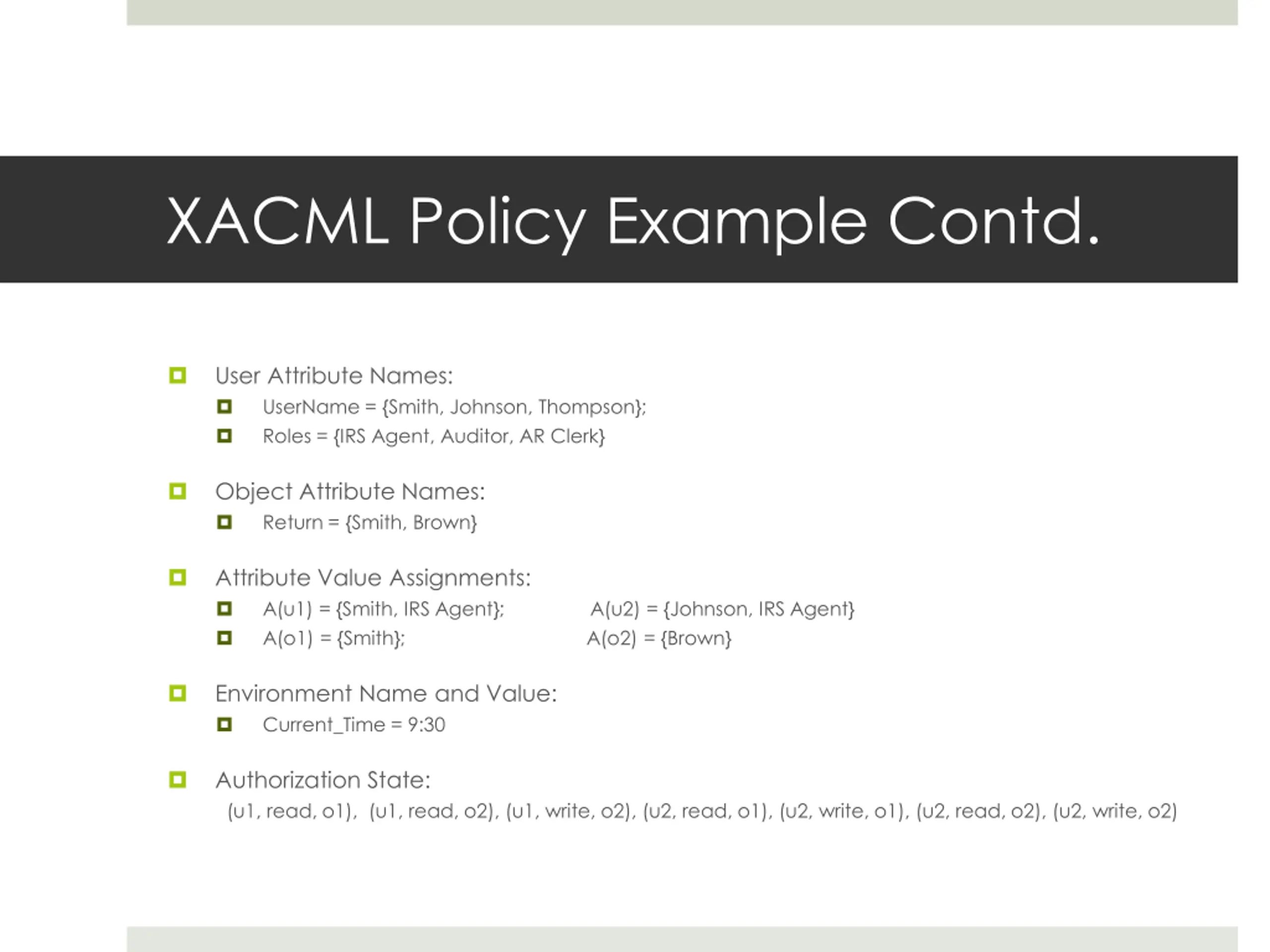

XACML Policy Example Contd. User Attribute Names: UserName = {Smith, Johnson, Thompson}; Roles = {IRS Agent, Auditor, AR Clerk} Object Attribute Names: Return = {Smith, Brown} Attribute Value Assignments: A(u1) = {Smith, IRS Agent}; A(o1) = {Smith}; A(u2) = {Johnson, IRS Agent} A(o2) = {Brown} Environment Name and Value: Current_Time = 9:30 Authorization State: (u1, read, o1), (u1, read, o2), (u1, write, o2), (u2, read, o1), (u2, write, o1), (u2, read, o2), (u2, write, o2)

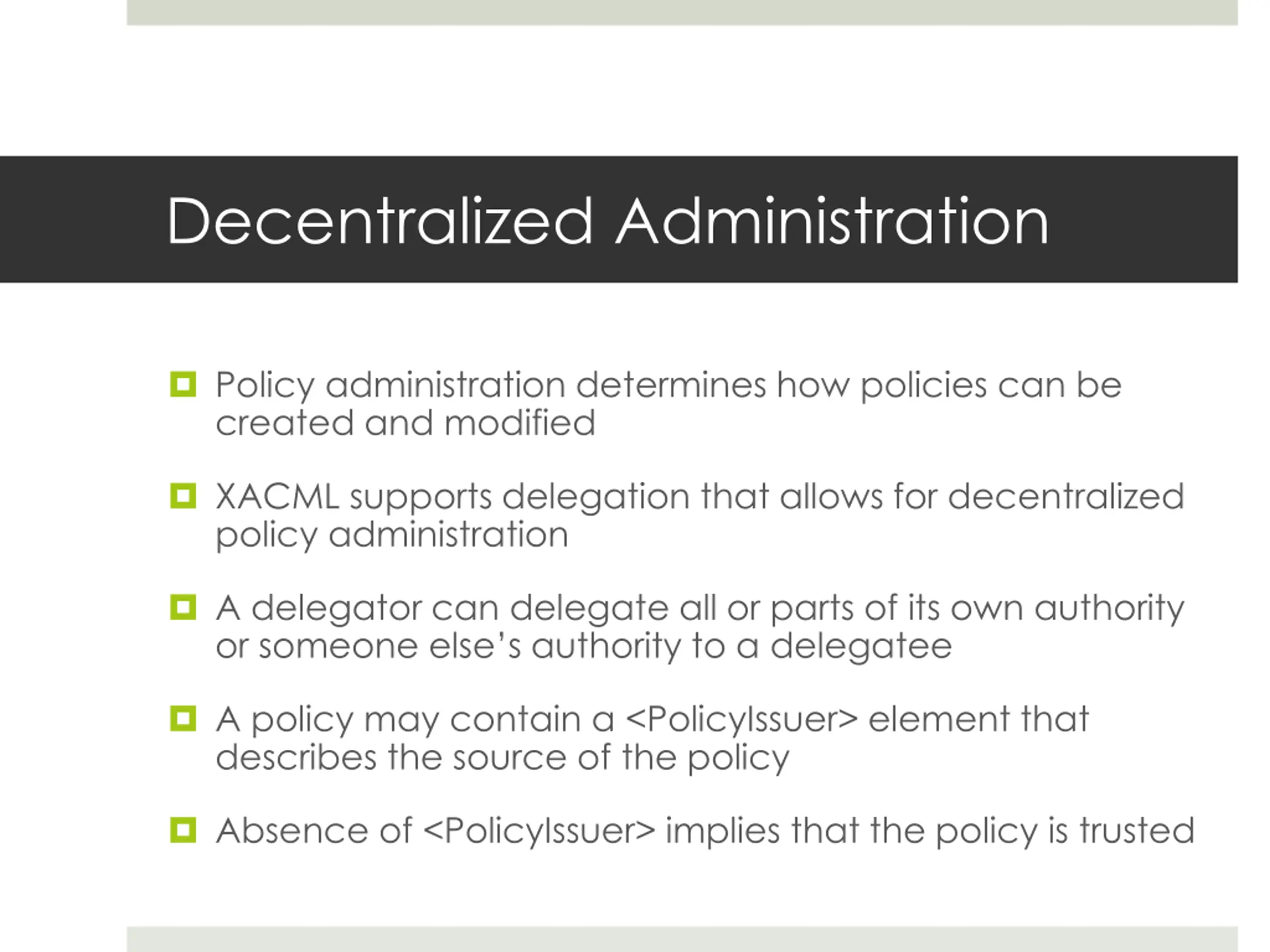

Decentralized Administration Policy administration determines how policies can be created and modified XACML supports delegation that allows for decentralized policy administration A delegator can delegate all or parts of its own authority or someone else s authority to a delegatee A policy may contain a <PolicyIssuer> element that describes the source of the policy Absence of <PolicyIssuer> implies that the policy is trusted

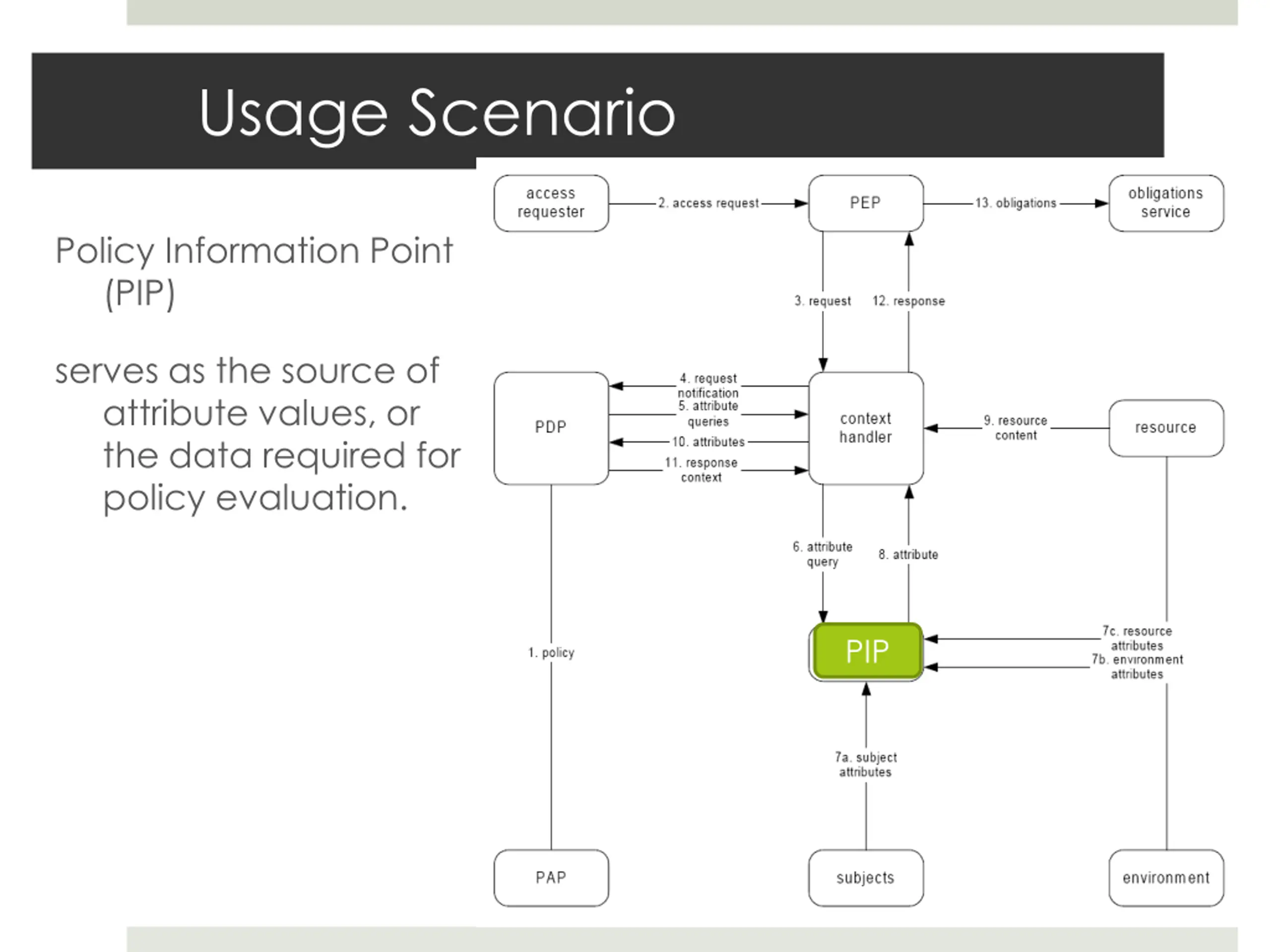

Usage Scenario Policy Information Point (PIP) serves as the source of attribute values, or the data required for policy evaluation. PIP

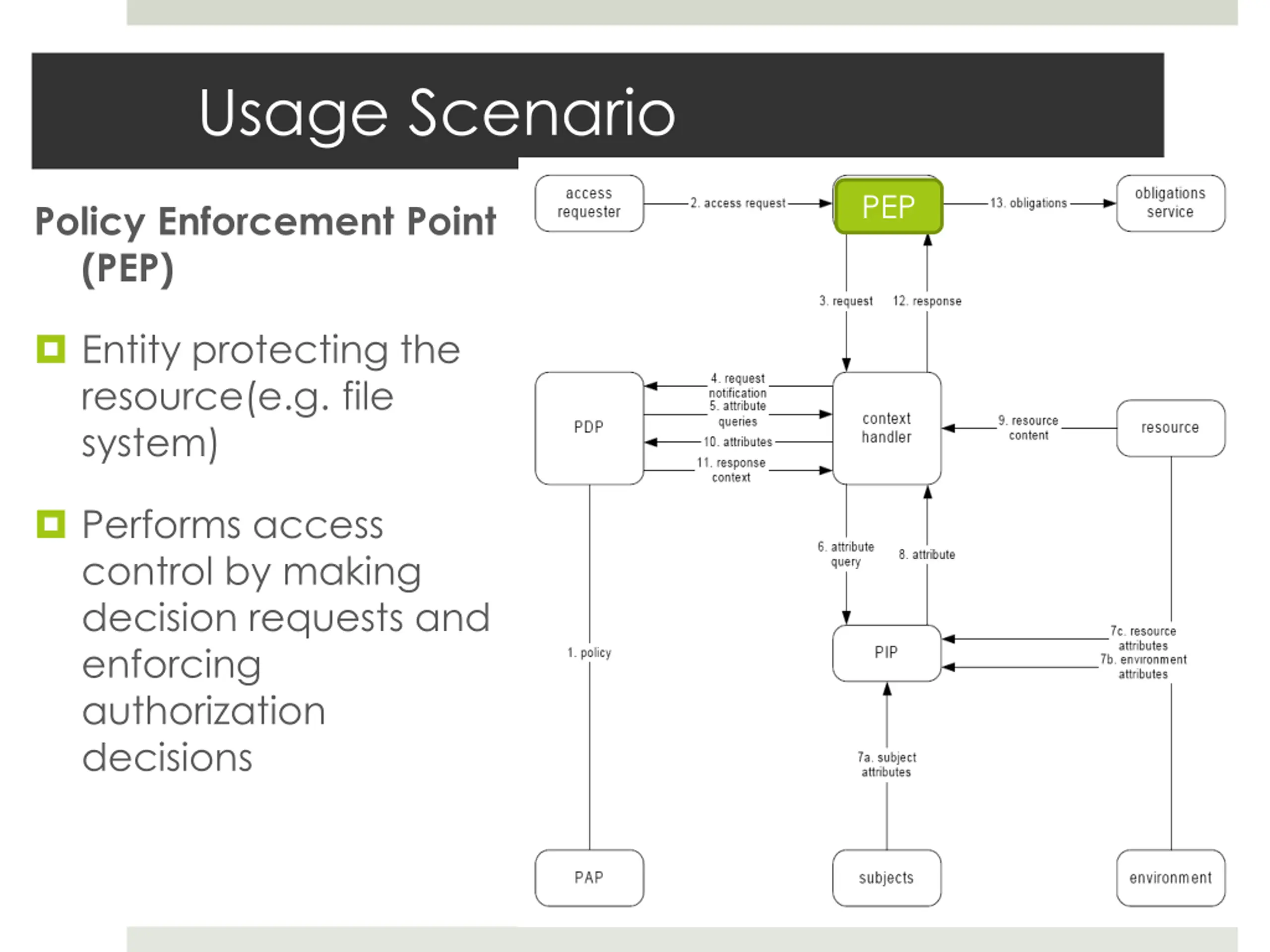

Usage Scenario PEP Policy Enforcement Point (PEP) Entity protecting the resource(e.g. file system) Performs access control by making decision requests and enforcing authorization decisions

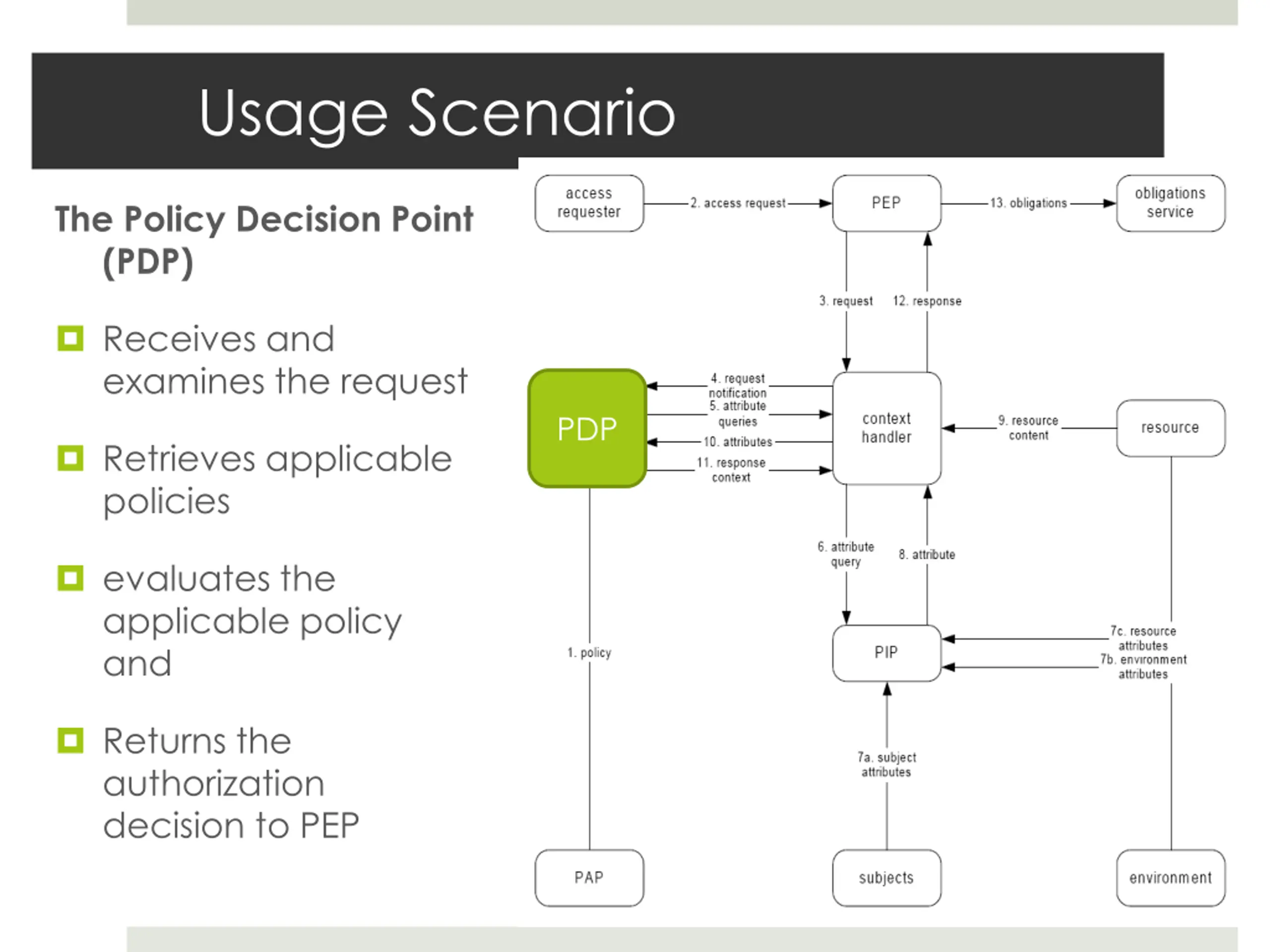

Usage Scenario The Policy Decision Point (PDP) Receives and examines the request PDP Retrieves applicable policies evaluates the applicable policy and Returns the authorization decision to PEP

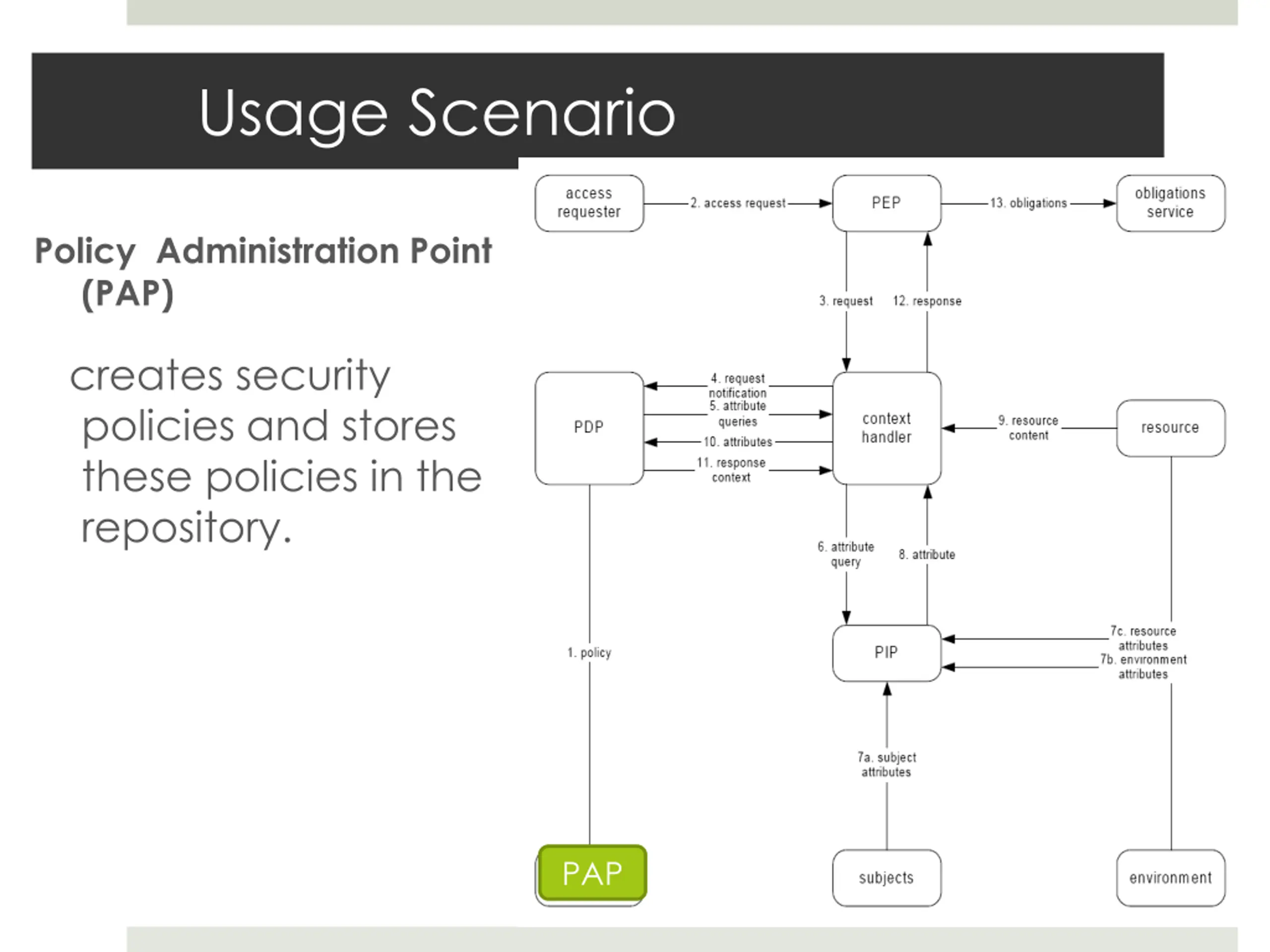

Usage Scenario Policy Administration Point (PAP) creates security policies and stores these policies in the repository. PAP

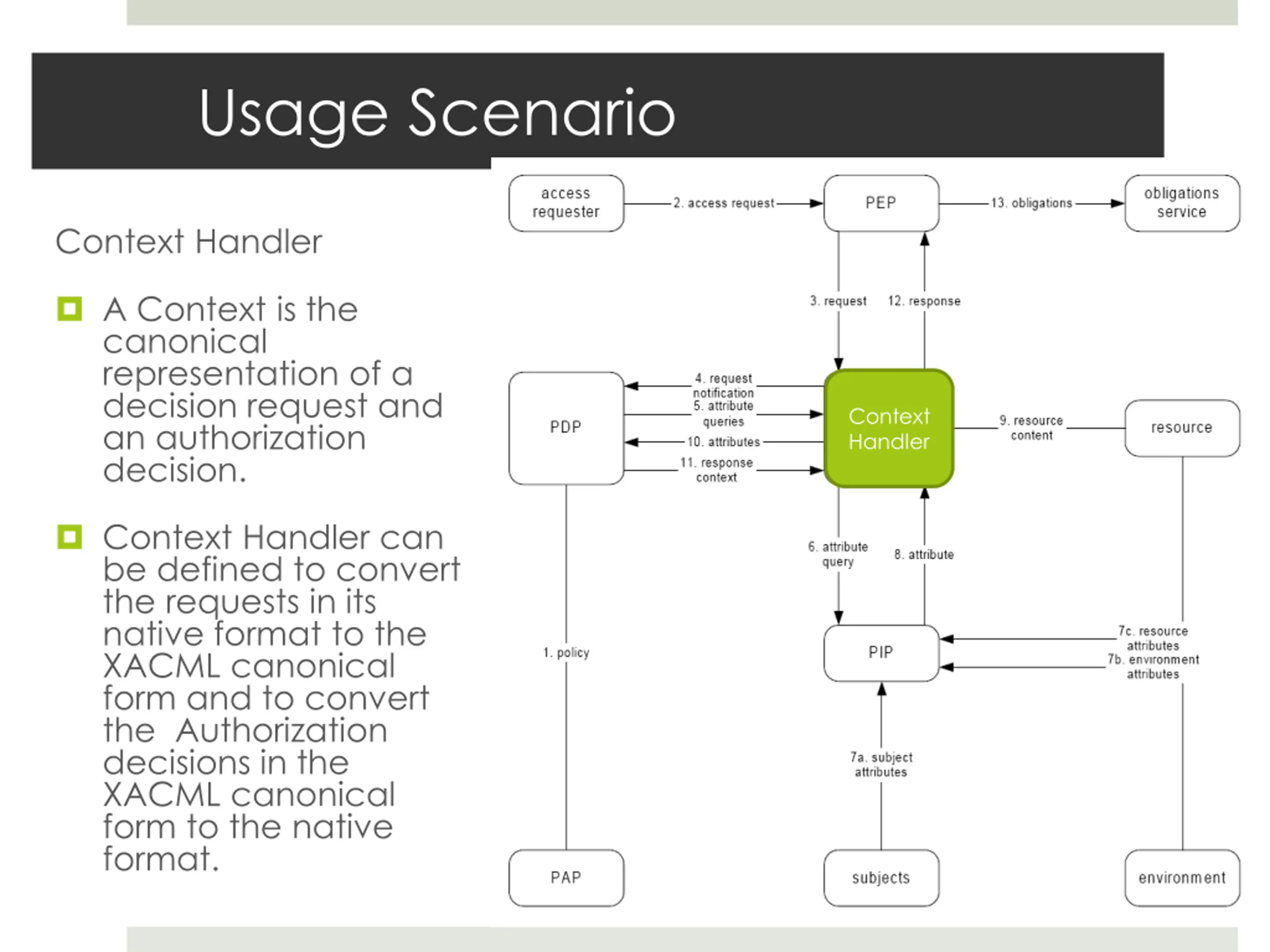

Usage Scenario Context Handler A Context is the canonical representation of a decision request and an authorization decision. Context Handler Context Handler can be defined to convert the requests in its native format to the XACML canonical form and to convert the Authorization decisions in the XACML canonical form to the native format.

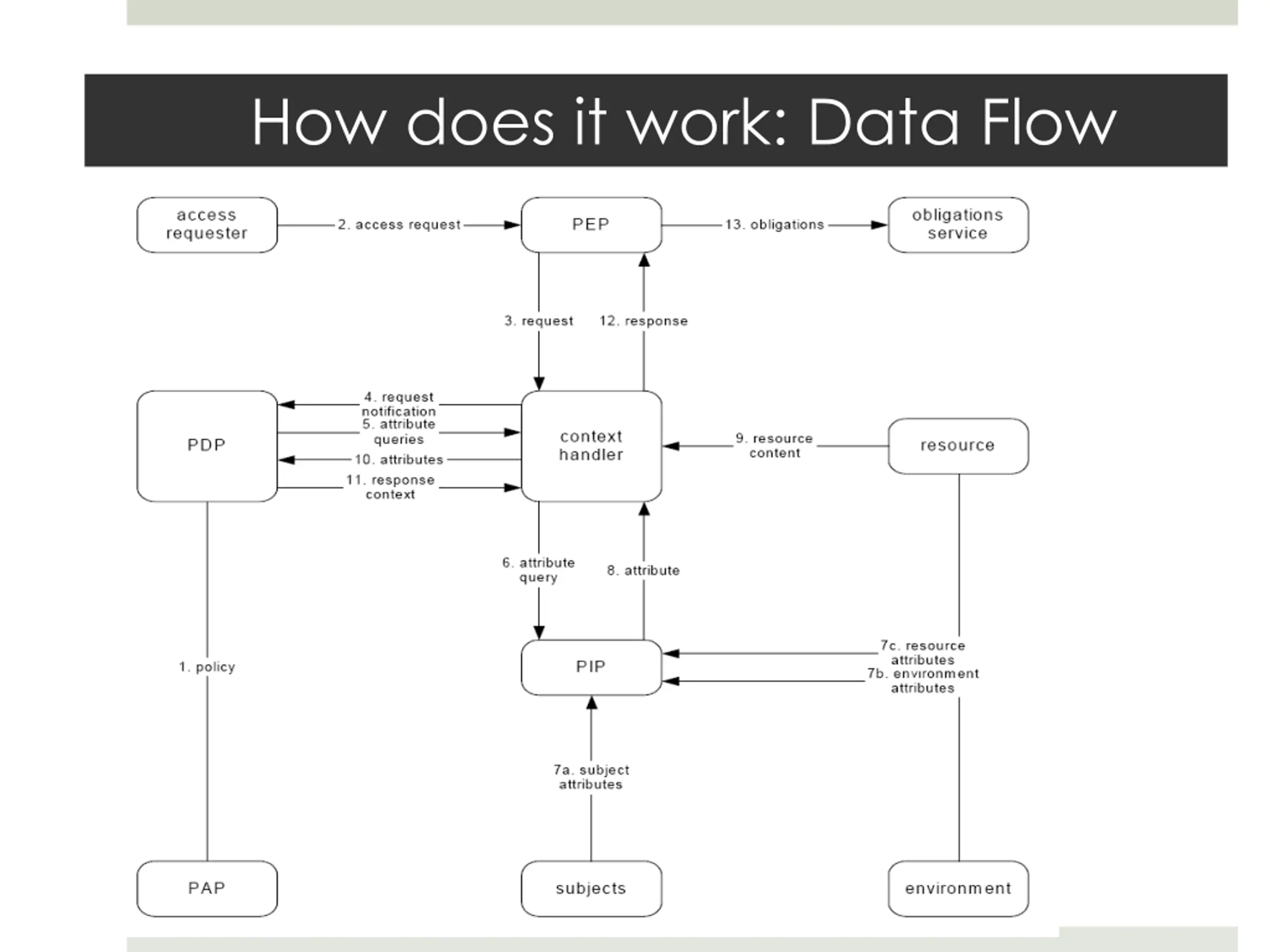

How does it work: Data Flow

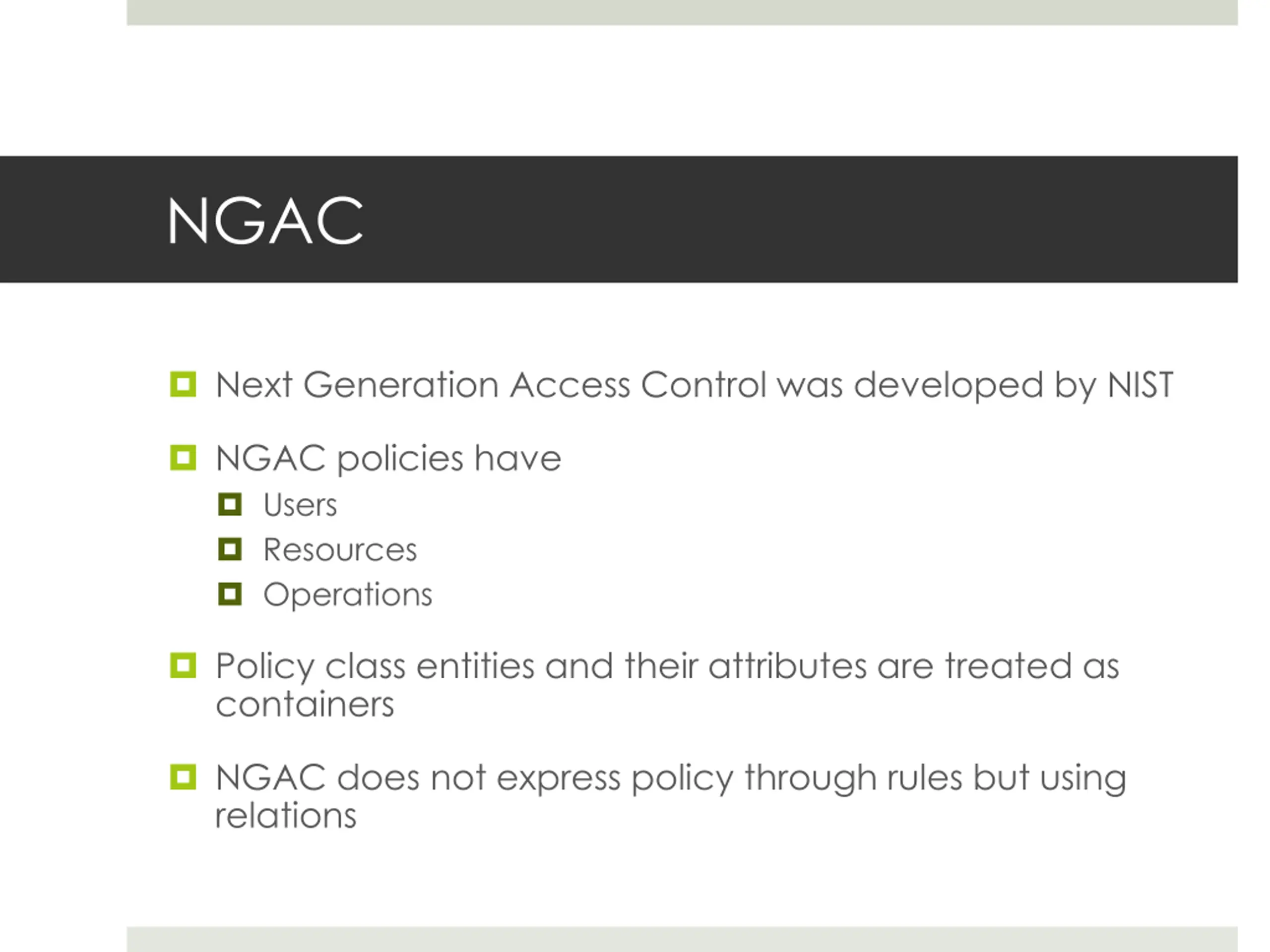

NGAC Next Generation Access Control was developed by NIST NGAC policies have Users Resources Operations Policy class entities and their attributes are treated as containers NGAC does not express policy through rules but using relations

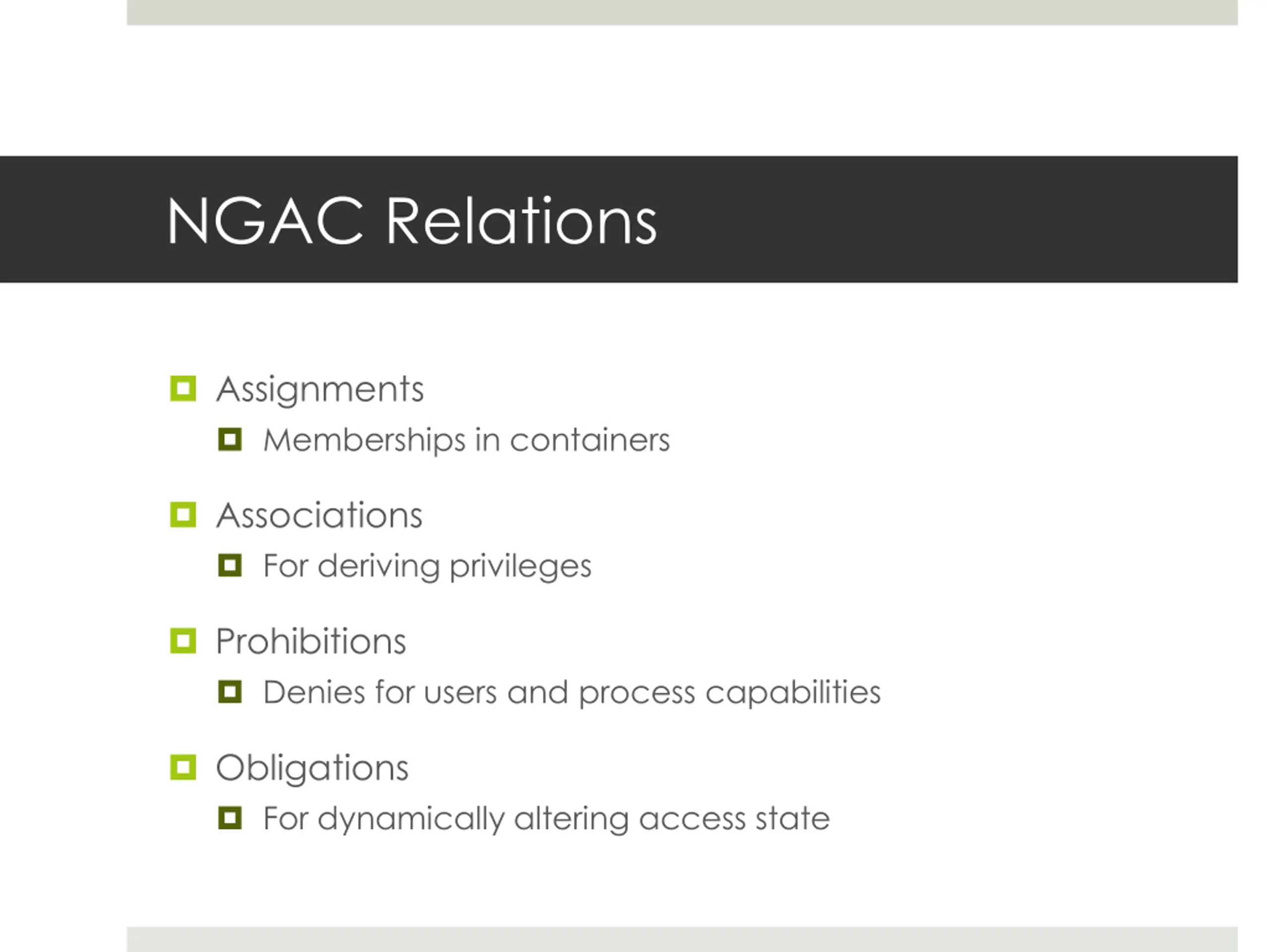

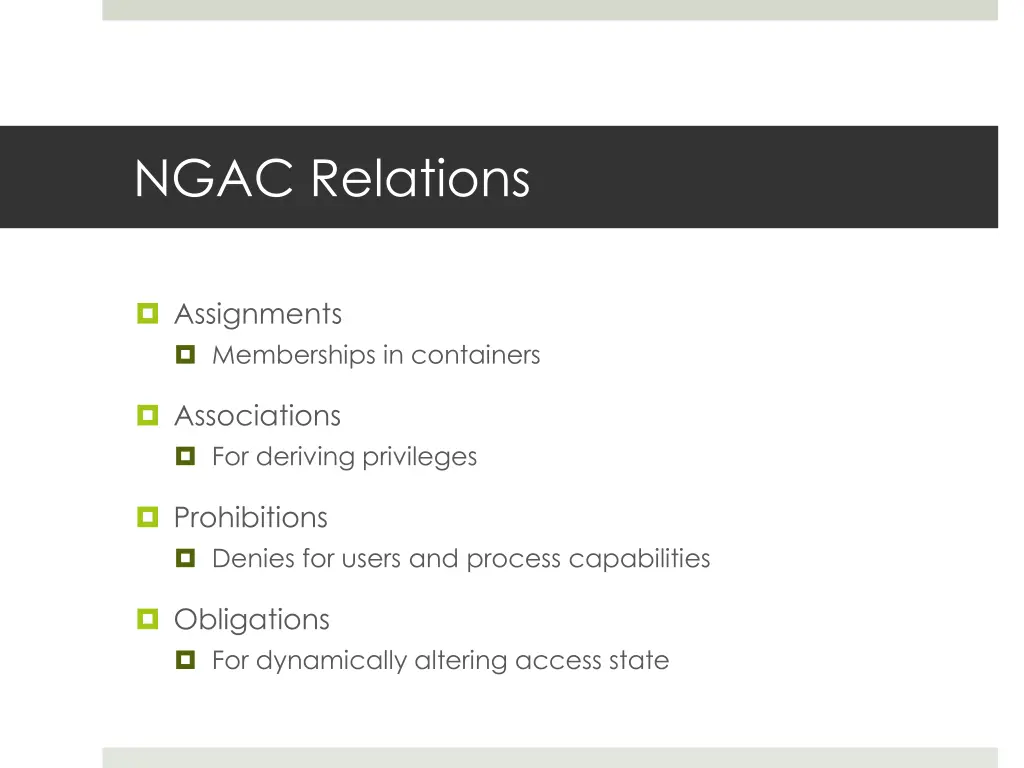

NGAC Relations Assignments Memberships in containers Associations For deriving privileges Prohibitions Denies for users and process capabilities Obligations For dynamically altering access state

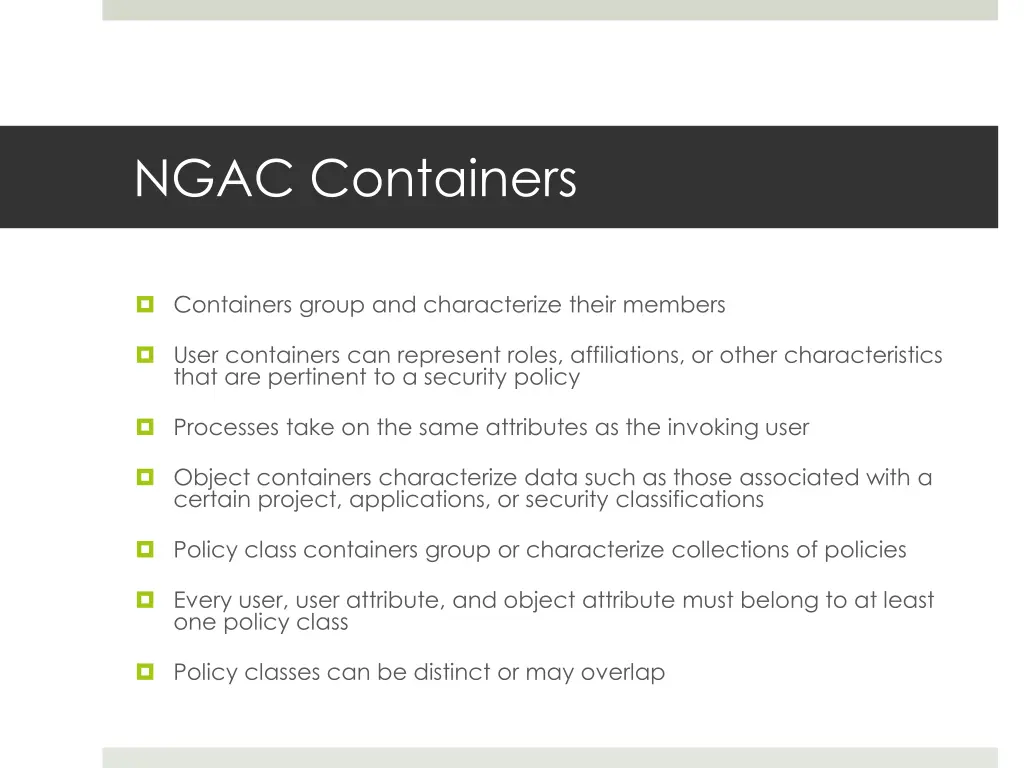

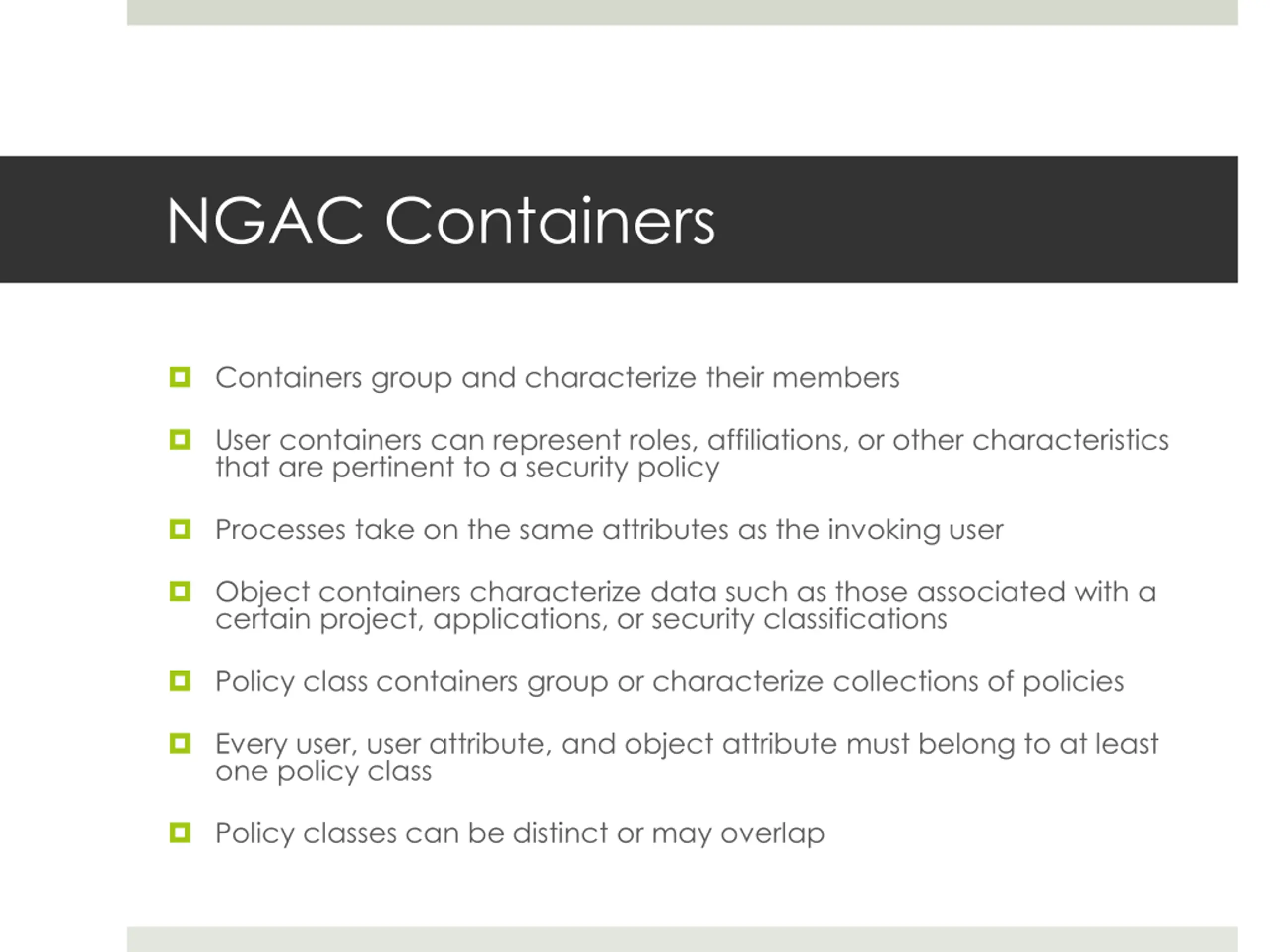

NGAC Containers Containers group and characterize their members User containers can represent roles, affiliations, or other characteristics that are pertinent to a security policy Processes take on the same attributes as the invoking user Object containers characterize data such as those associated with a certain project, applications, or security classifications Policy class containers group or characterize collections of policies Every user, user attribute, and object attribute must belong to at least one policy class Policy classes can be distinct or may overlap

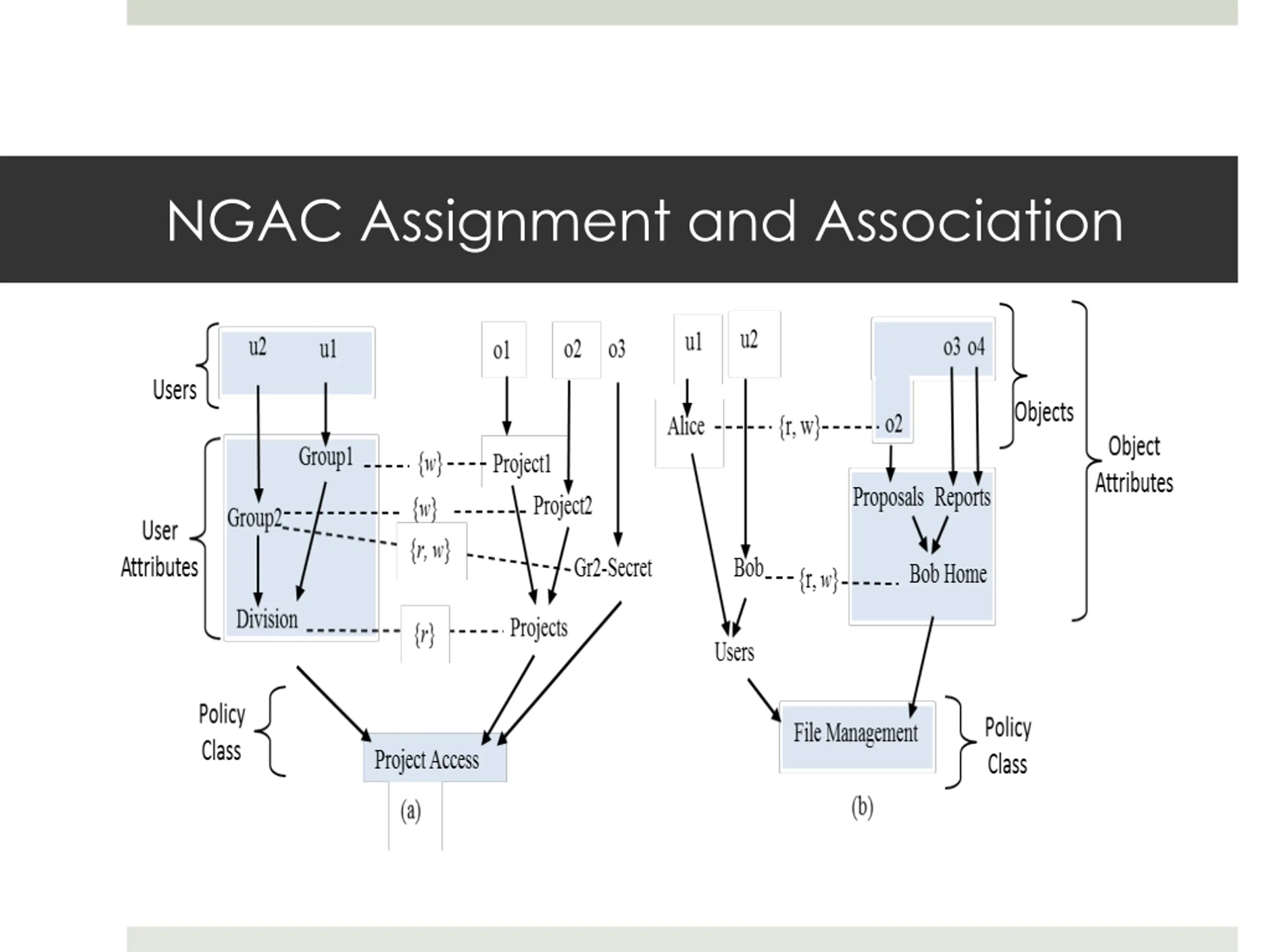

NGAC Assignment and Association

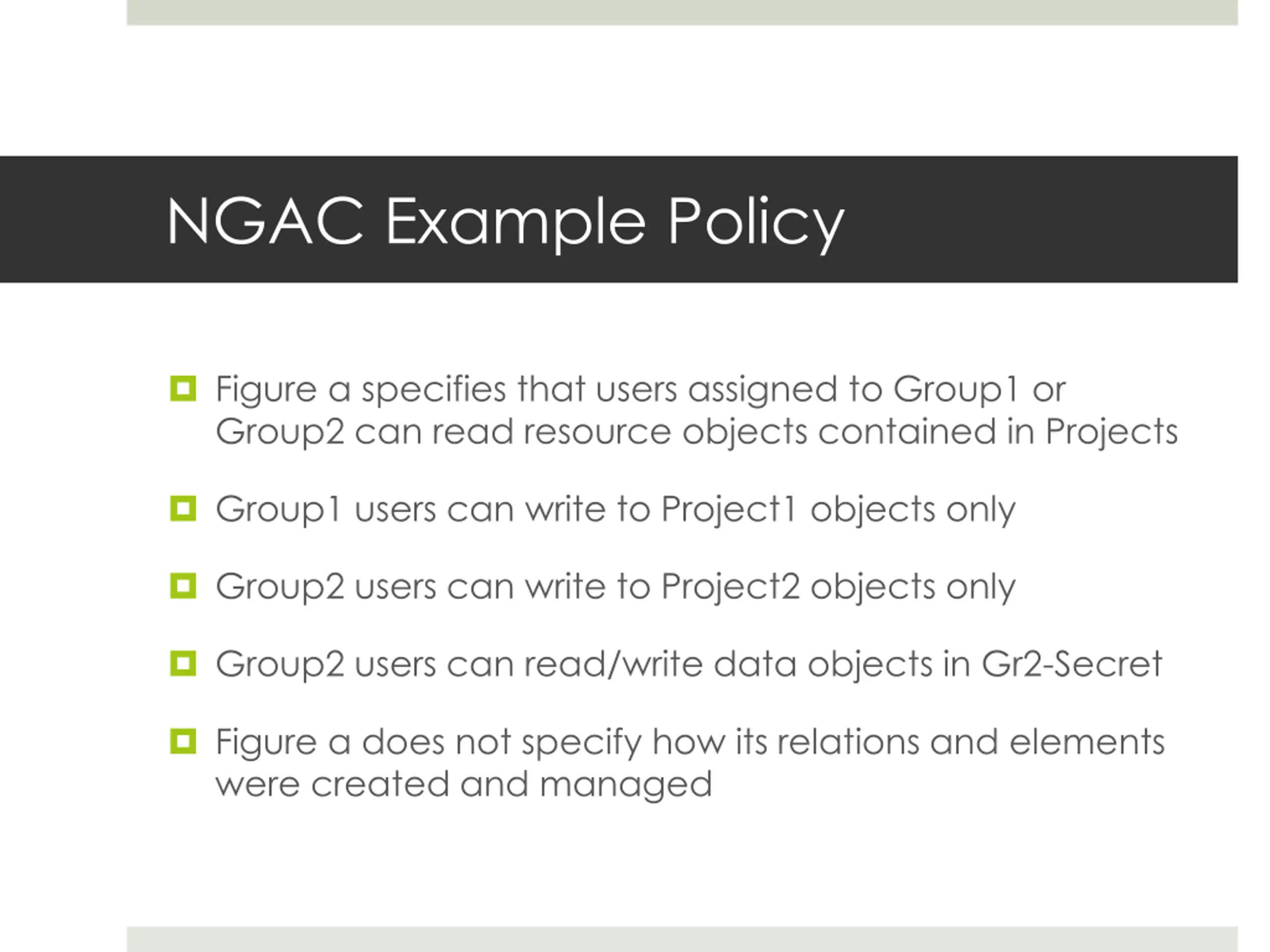

NGAC Example Policy Figure a specifies that users assigned to Group1 or Group2 can read resource objects contained in Projects Group1 users can write to Project1 objects only Group2 users can write to Project2 objects only Group2 users can read/write data objects in Gr2-Secret Figure a does not specify how its relations and elements were created and managed

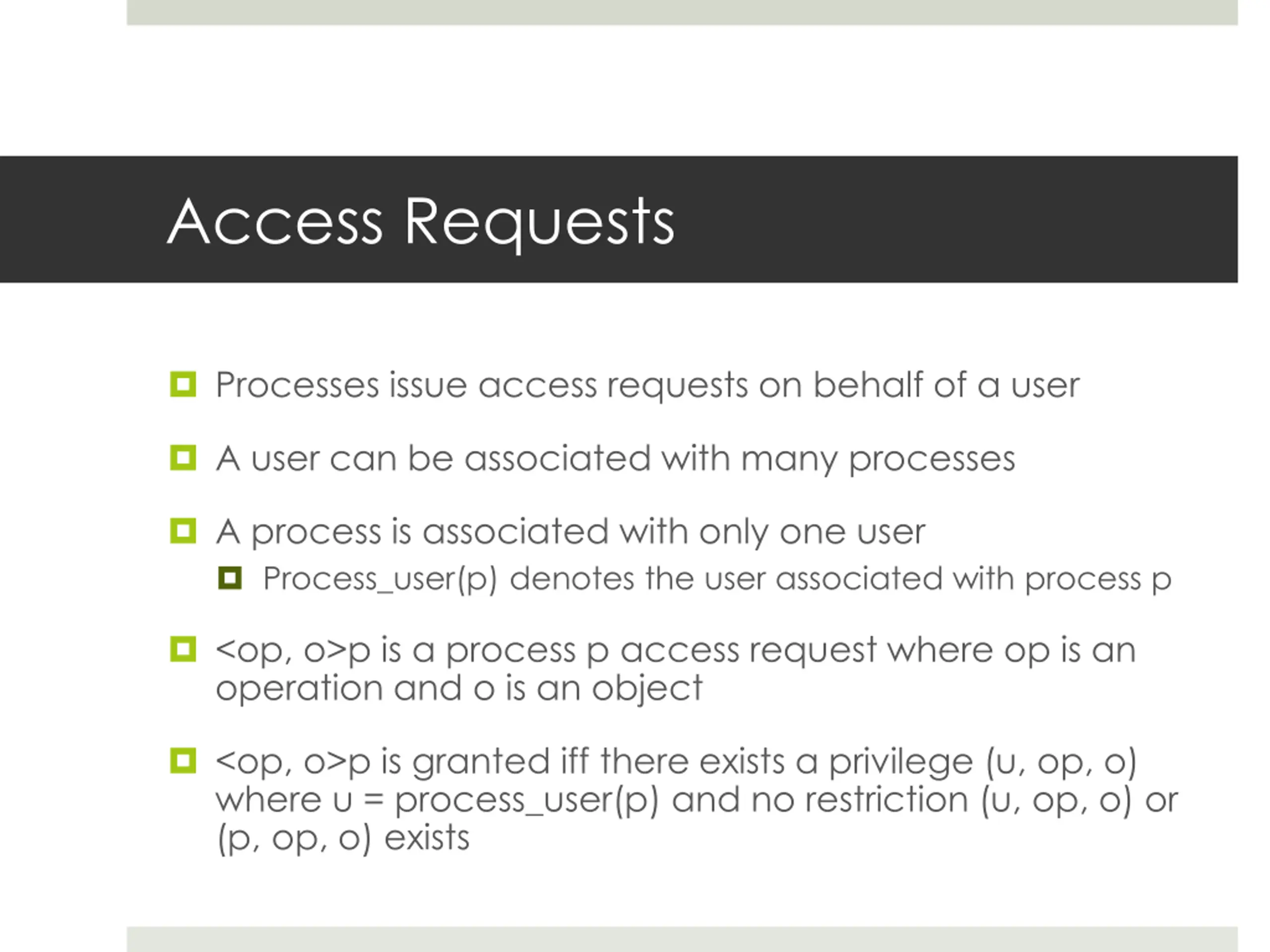

Access Requests Processes issue access requests on behalf of a user A user can be associated with many processes A process is associated with only one user Process_user(p) denotes the user associated with process p <op, o>p is a process p access request where op is an operation and o is an object <op, o>p is granted iff there exists a privilege (u, op, o) where u = process_user(p) and no restriction (u, op, o) or (p, op, o) exists

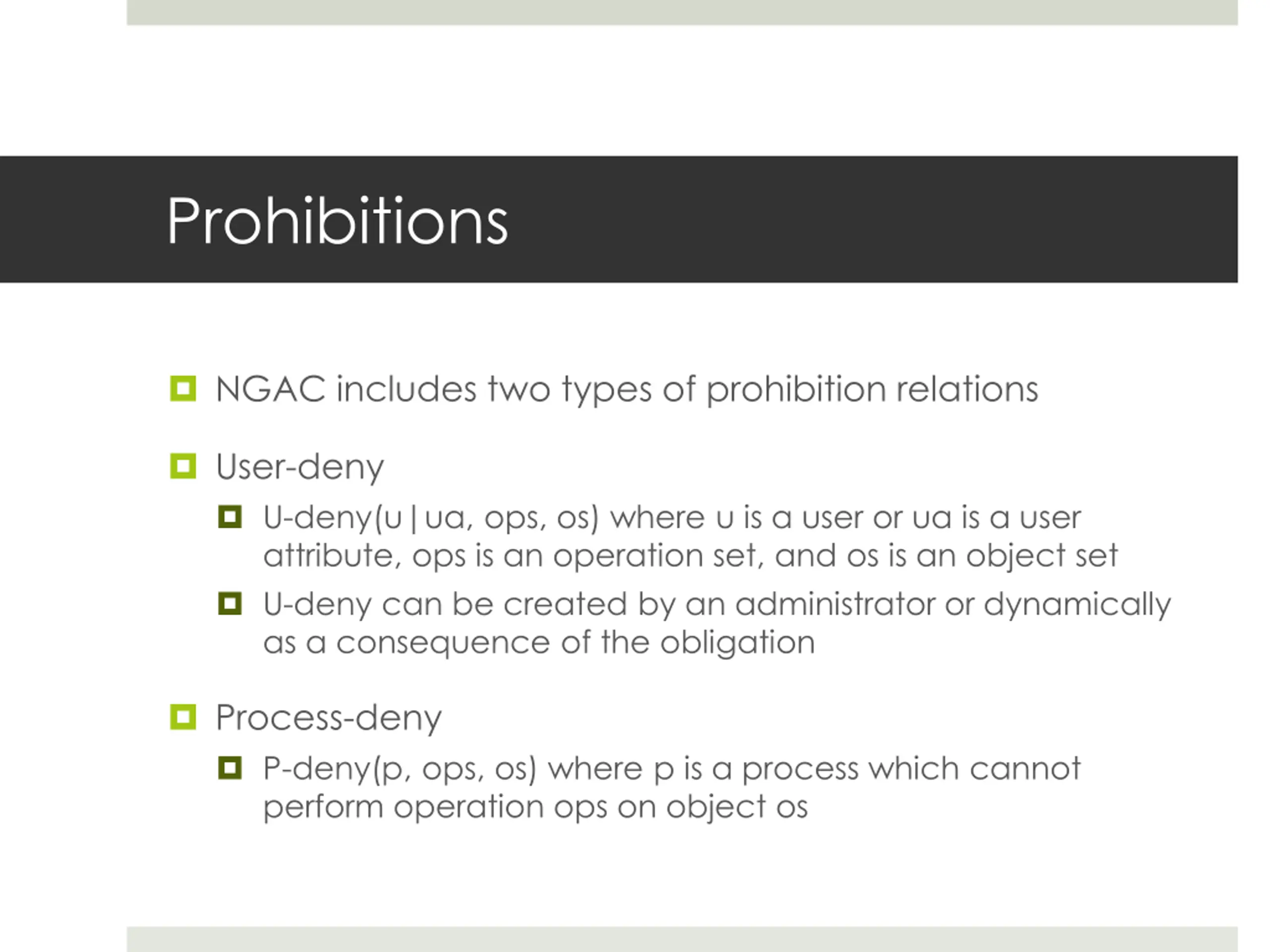

Prohibitions NGAC includes two types of prohibition relations User-deny U-deny(u|ua, ops, os) where u is a user or ua is a user attribute, ops is an operation set, and os is an object set U-deny can be created by an administrator or dynamically as a consequence of the obligation Process-deny P-deny(p, ops, os) where p is a process which cannot perform operation ops on object os

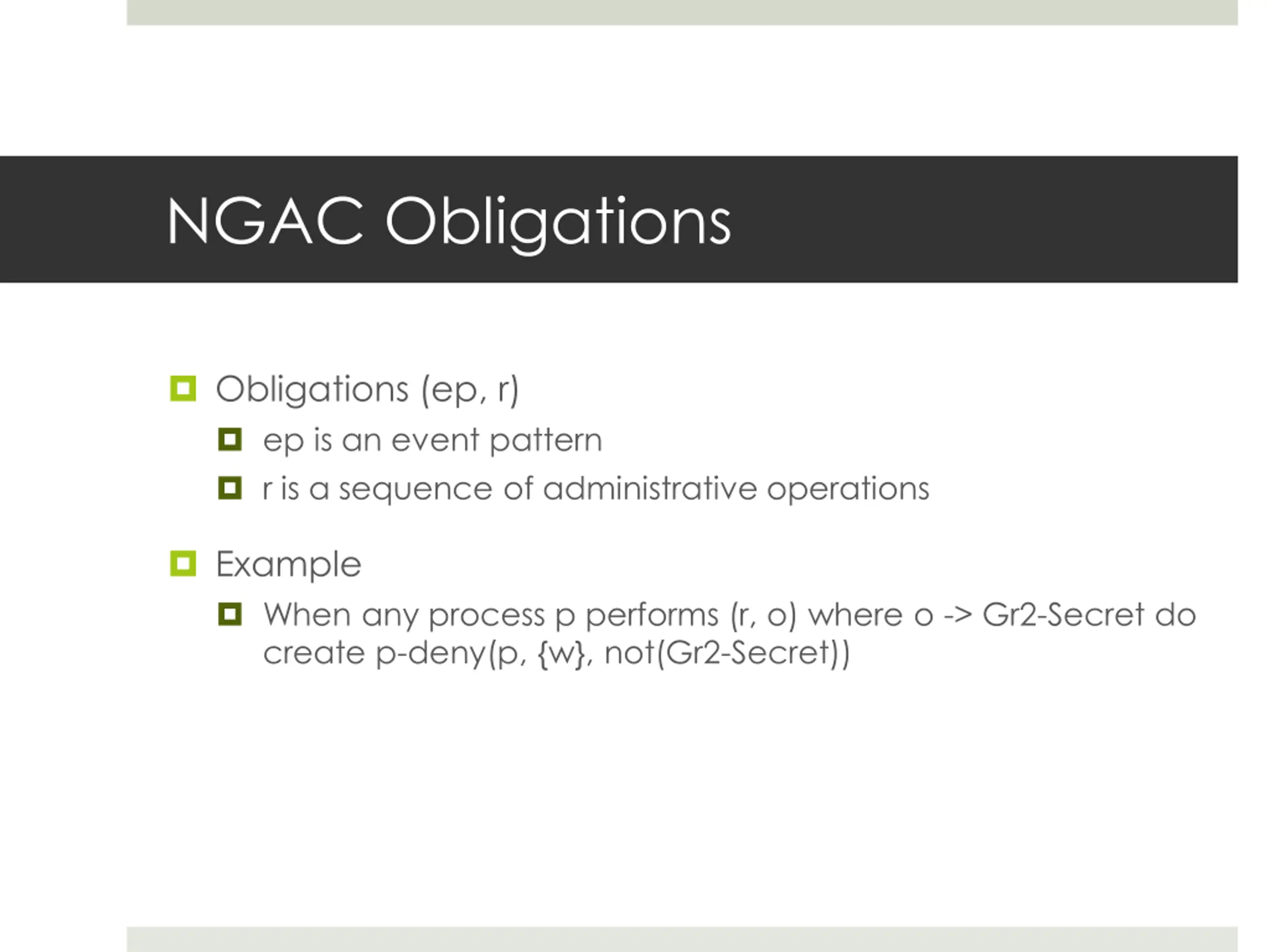

NGAC Obligations Obligations (ep, r) ep is an event pattern r is a sequence of administrative operations Example When any process p performs (r, o) where o -> Gr2-Secret do create p-deny(p, {w}, not(Gr2-Secret))

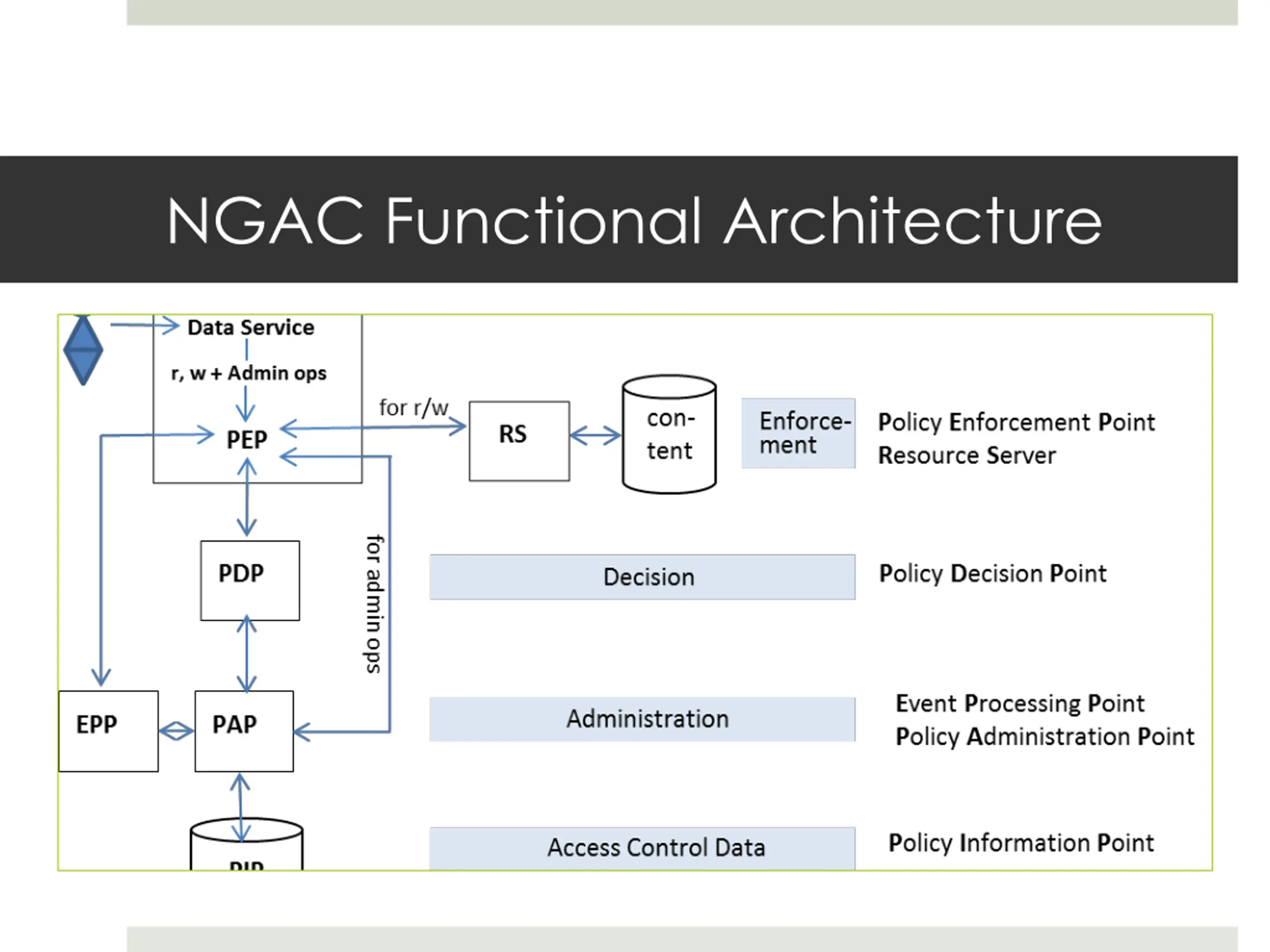

NGAC Functional Architecture

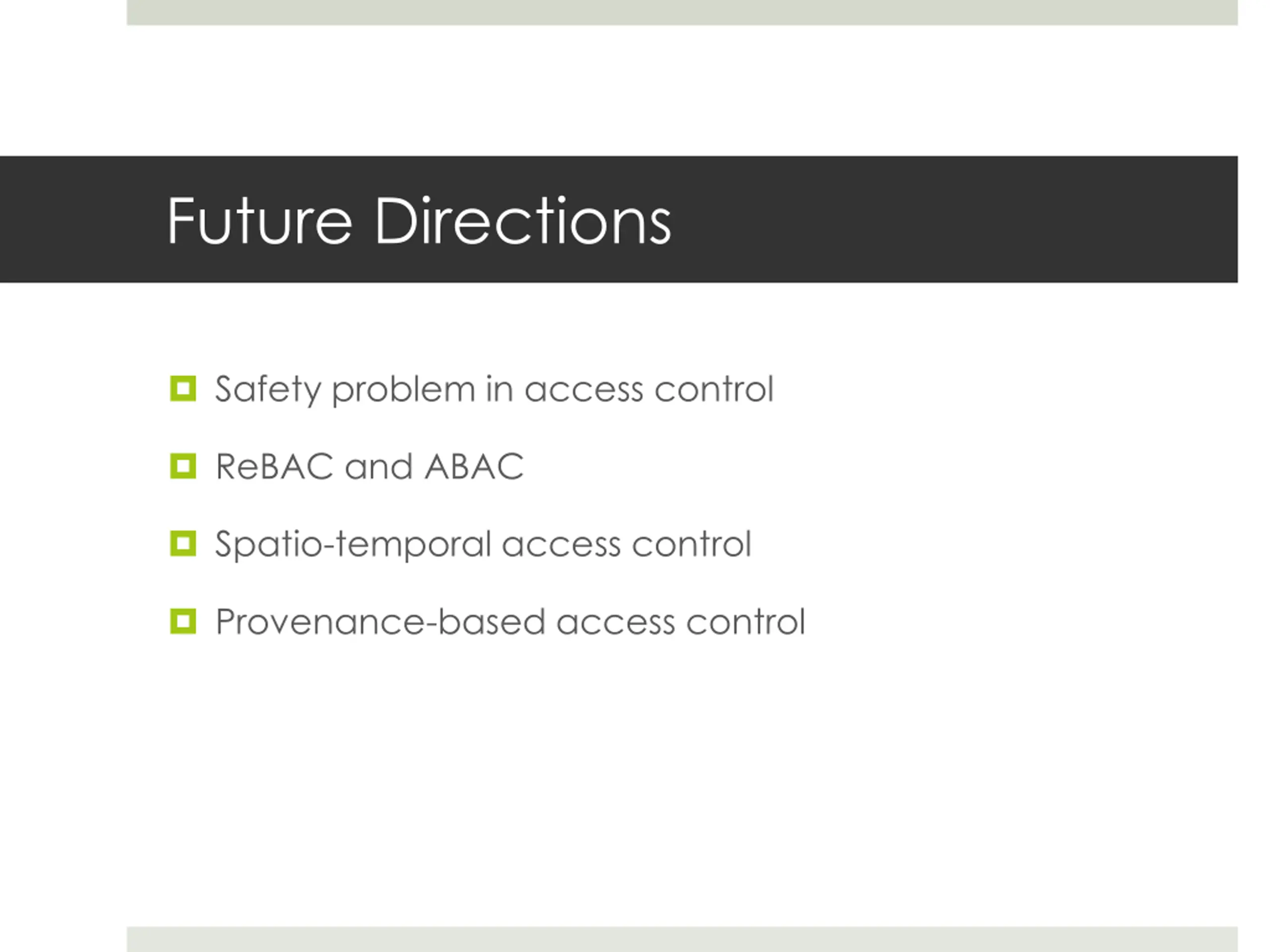

Future Directions Safety problem in access control ReBAC and ABAC Spatio-temporal access control Provenance-based access control

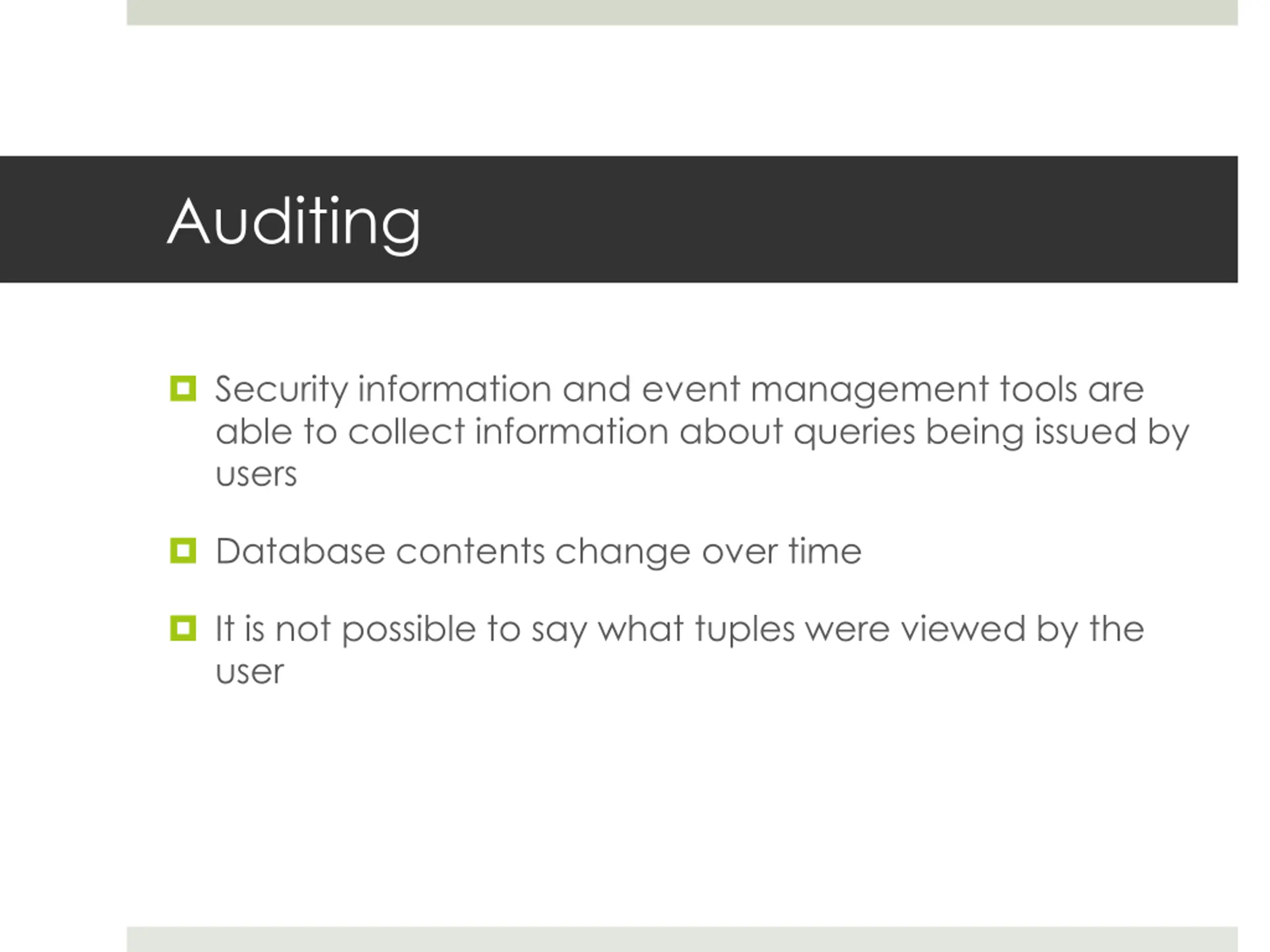

Auditing Security information and event management tools are able to collect information about queries being issued by users Database contents change over time It is not possible to say what tuples were viewed by the user

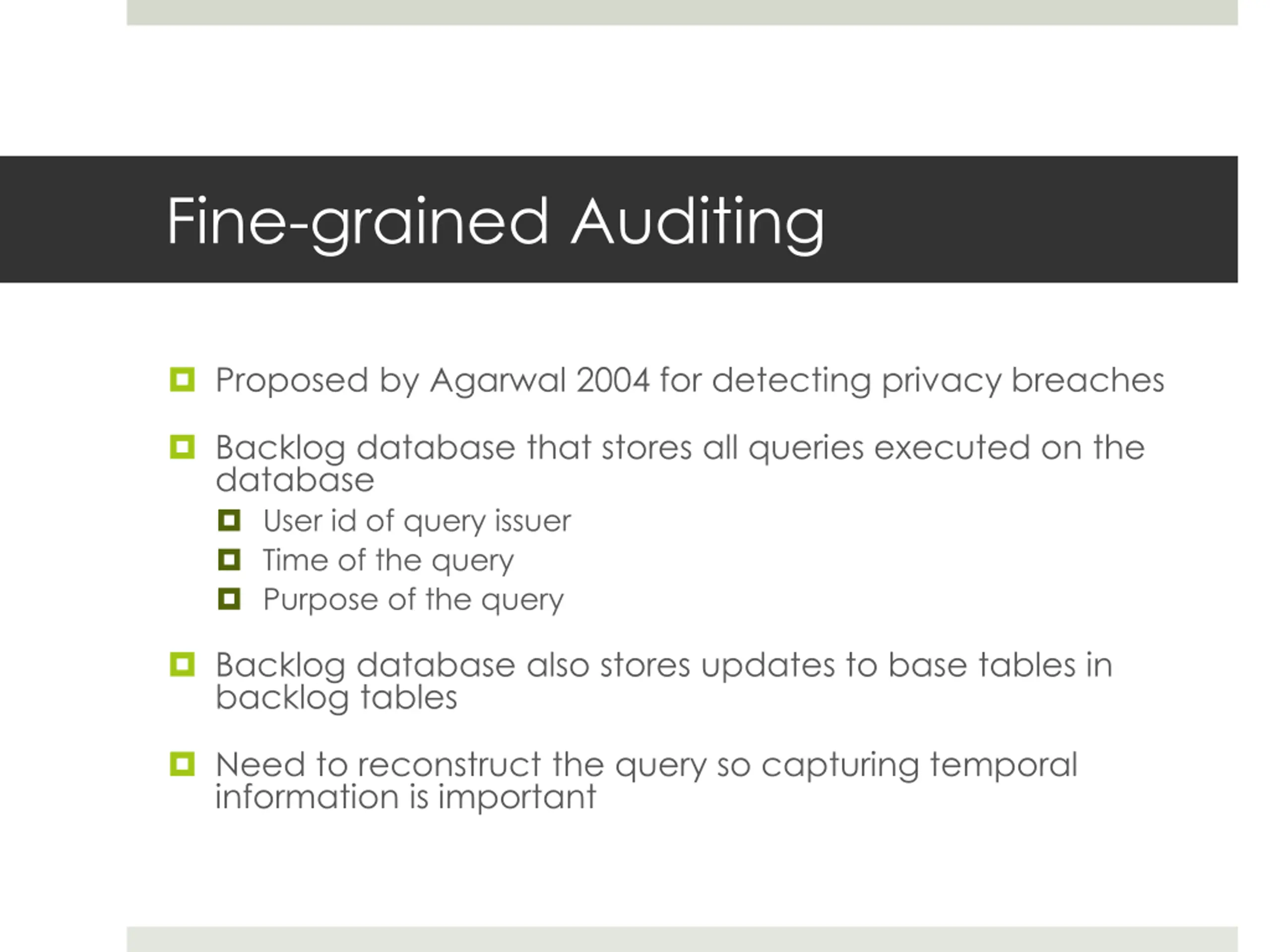

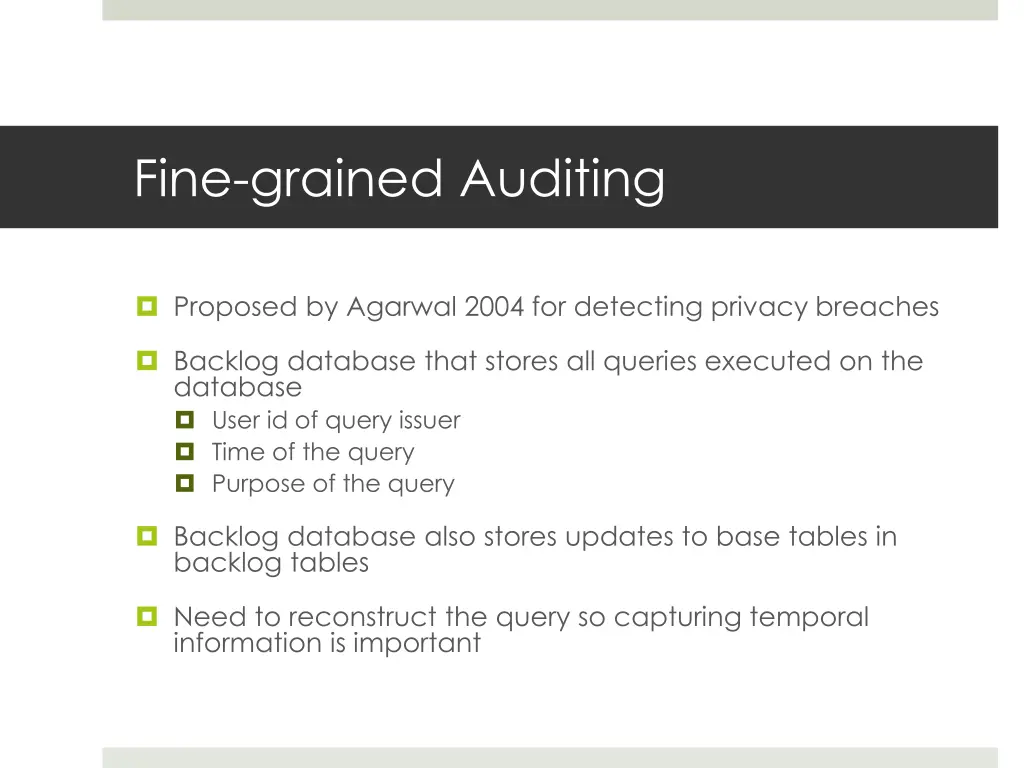

Fine-grained Auditing Proposed by Agarwal 2004 for detecting privacy breaches Backlog database that stores all queries executed on the database User id of query issuer Time of the query Purpose of the query Backlog database also stores updates to base tables in backlog tables Need to reconstruct the query so capturing temporal information is important

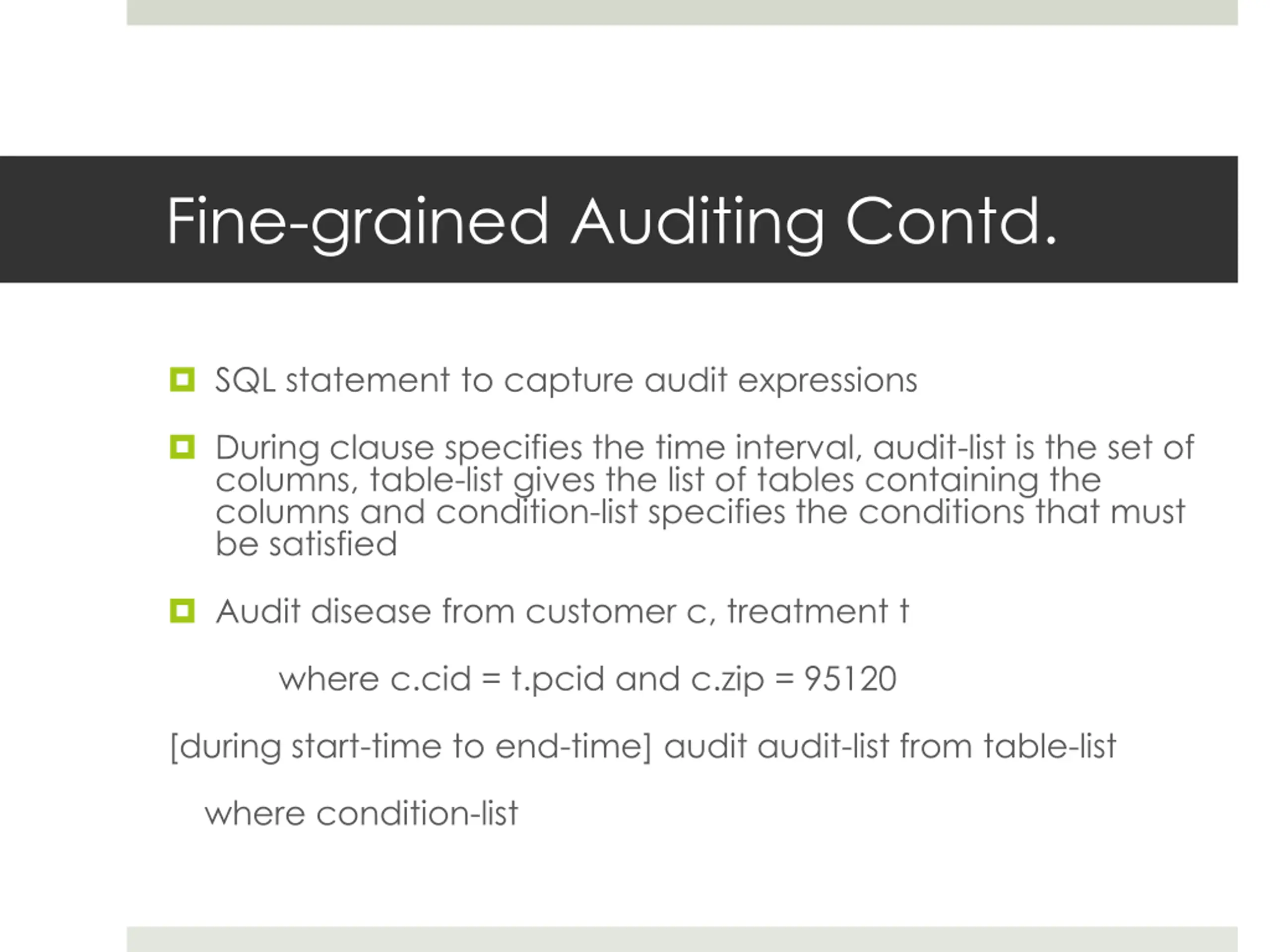

Fine-grained Auditing Contd. SQL statement to capture audit expressions During clause specifies the time interval, audit-list is the set of columns, table-list gives the list of tables containing the columns and condition-list specifies the conditions that must be satisfied Audit disease from customer c, treatment t where c.cid = t.pcid and c.zip = 95120 [during start-time to end-time] audit audit-list from table-list where condition-list

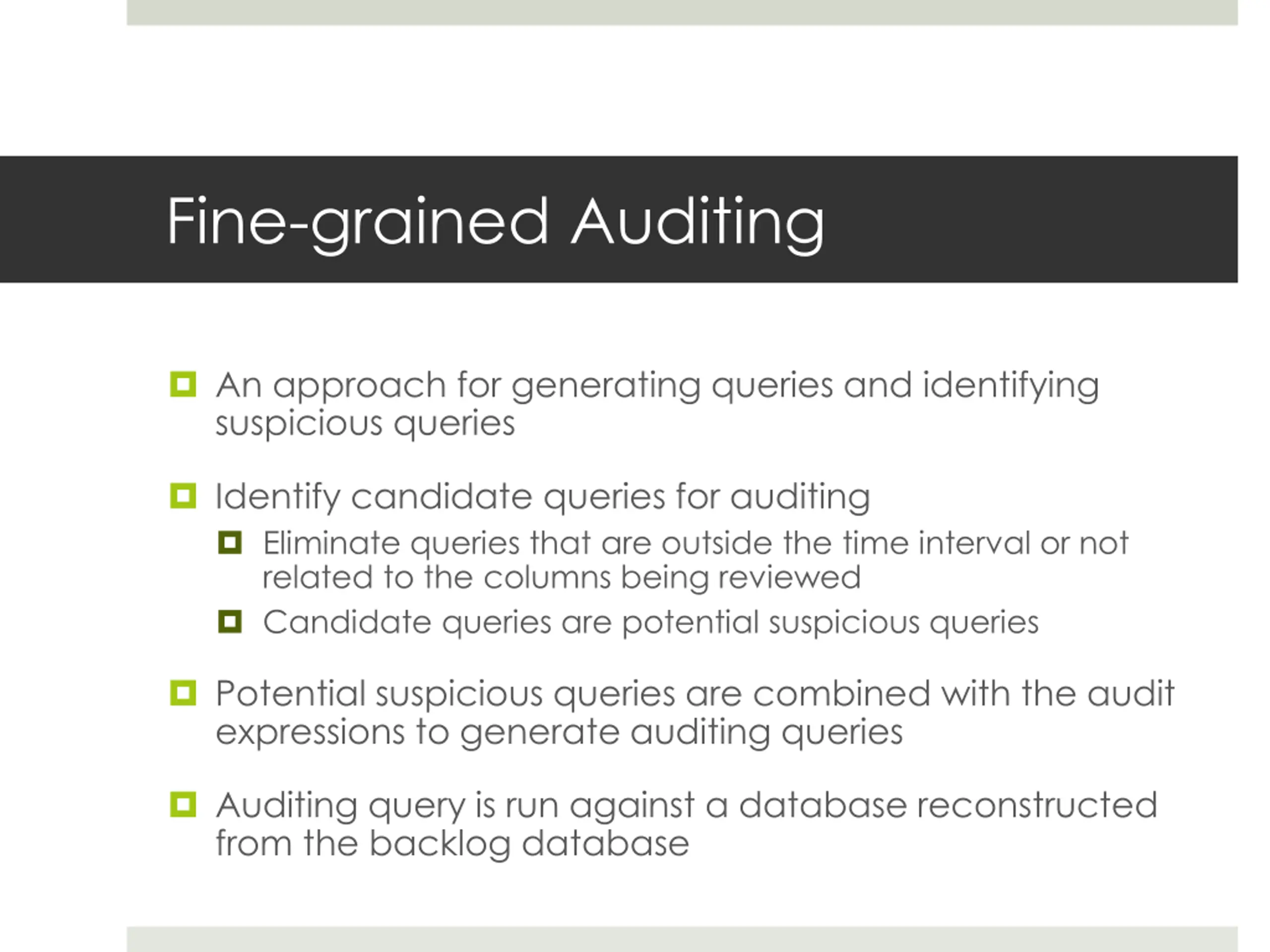

Fine-grained Auditing An approach for generating queries and identifying suspicious queries Identify candidate queries for auditing Eliminate queries that are outside the time interval or not related to the columns being reviewed Candidate queries are potential suspicious queries Potential suspicious queries are combined with the audit expressions to generate auditing queries Auditing query is run against a database reconstructed from the backlog database

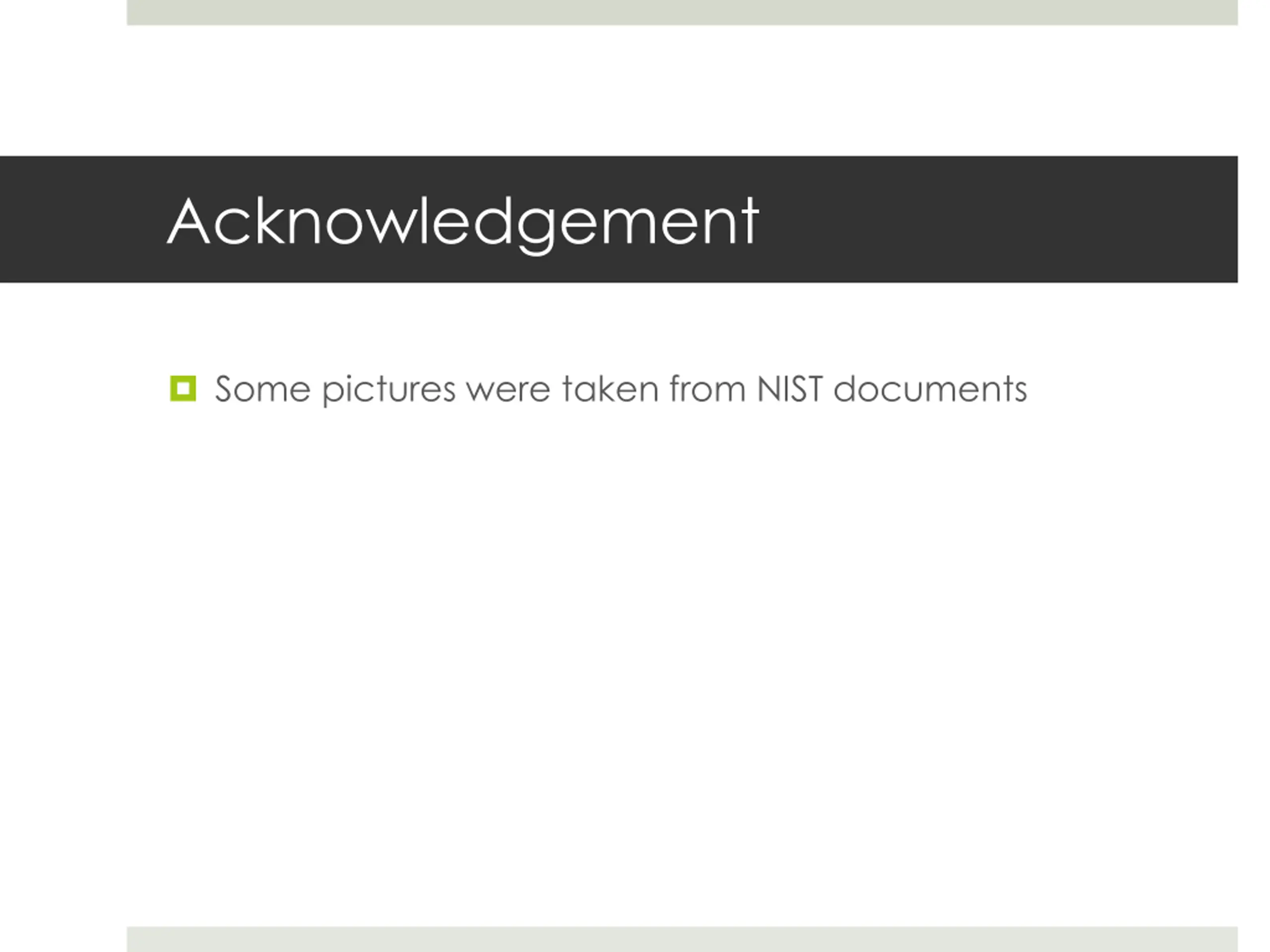

Acknowledgement Some pictures were taken from NIST documents

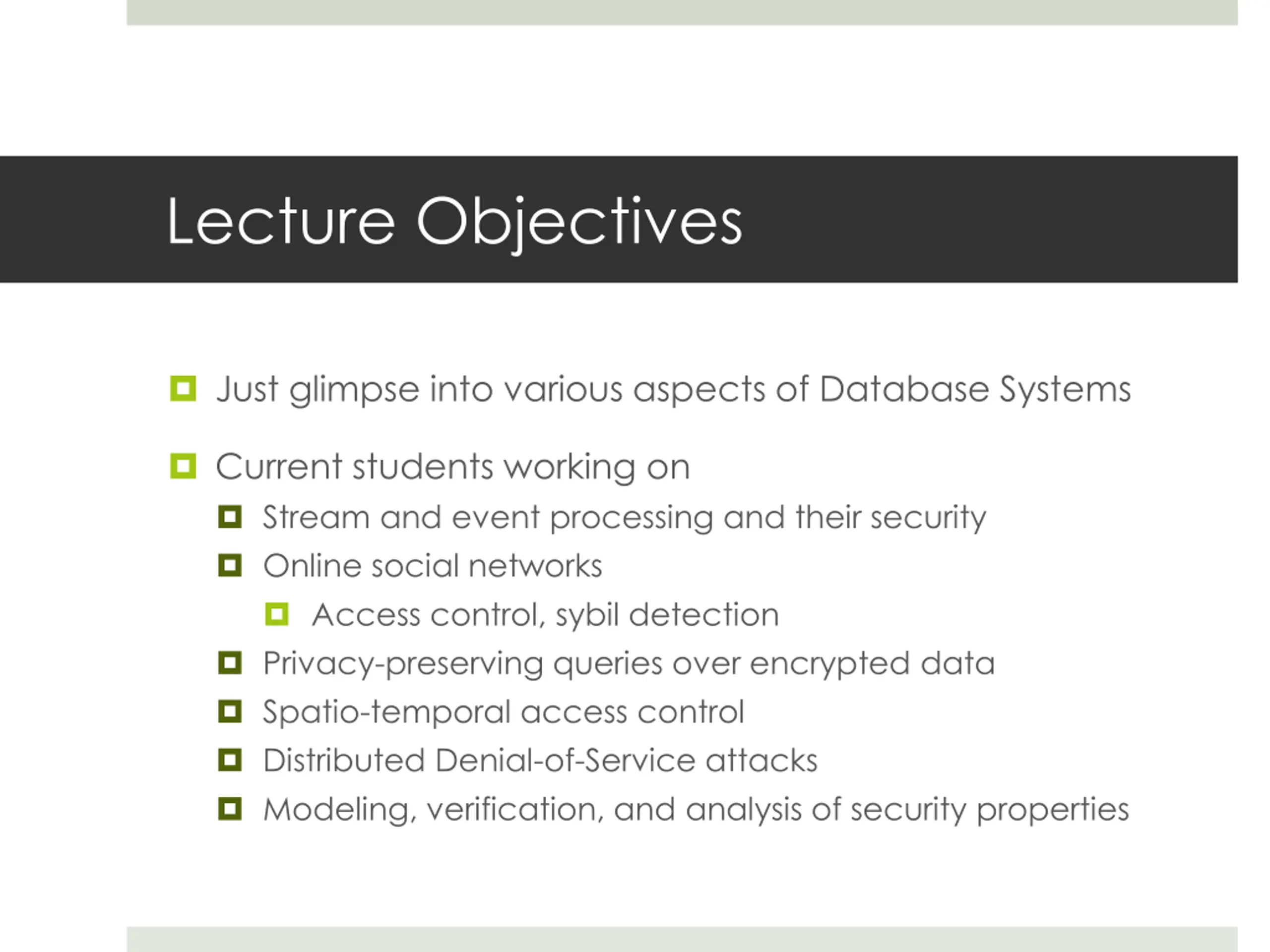

Lecture Objectives Just glimpse into various aspects of Database Systems Current students working on Stream and event processing and their security Online social networks Access control, sybil detection Privacy-preserving queries over encrypted data Spatio-temporal access control Distributed Denial-of-Service attacks Modeling, verification, and analysis of security properties
