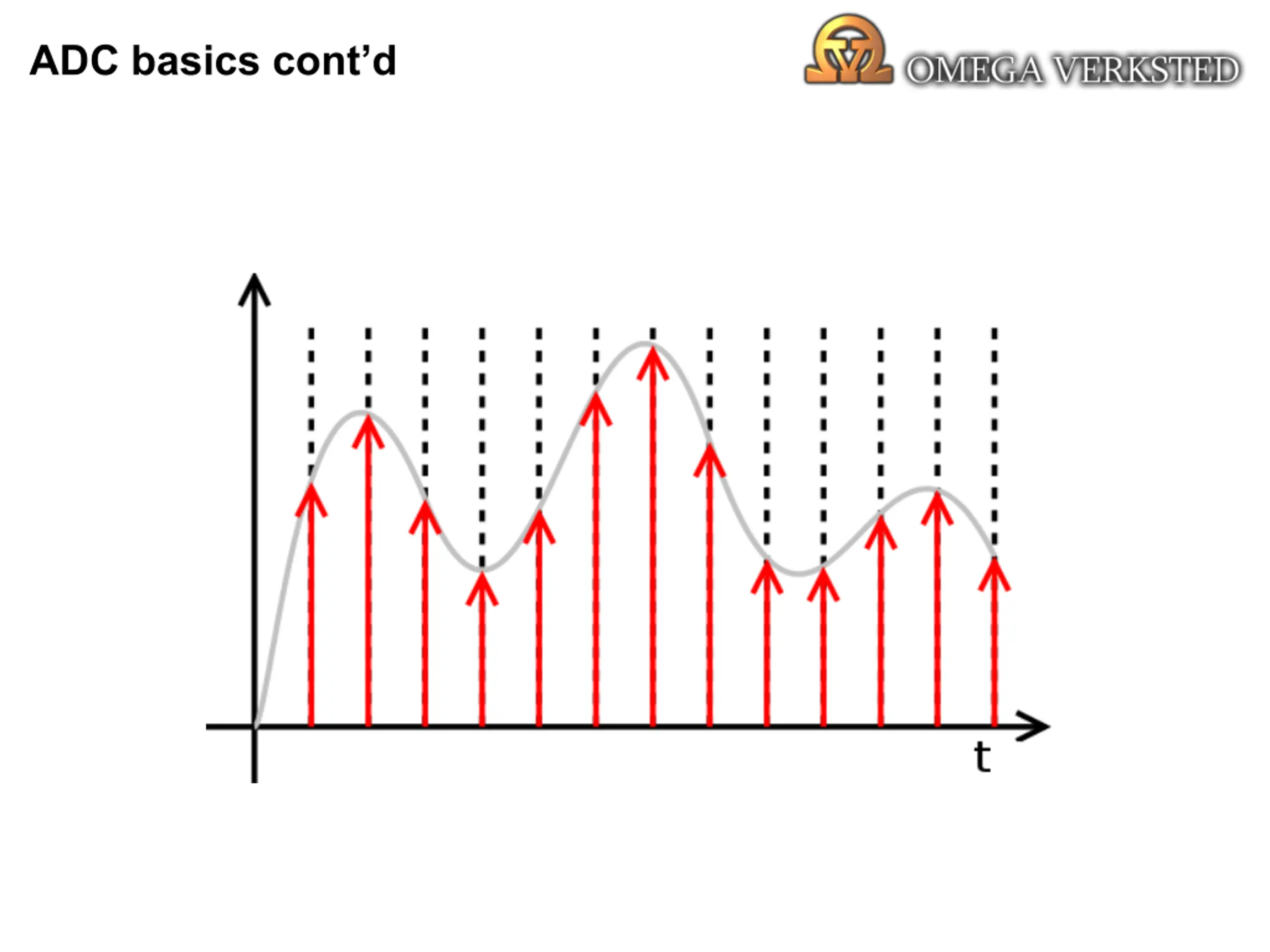

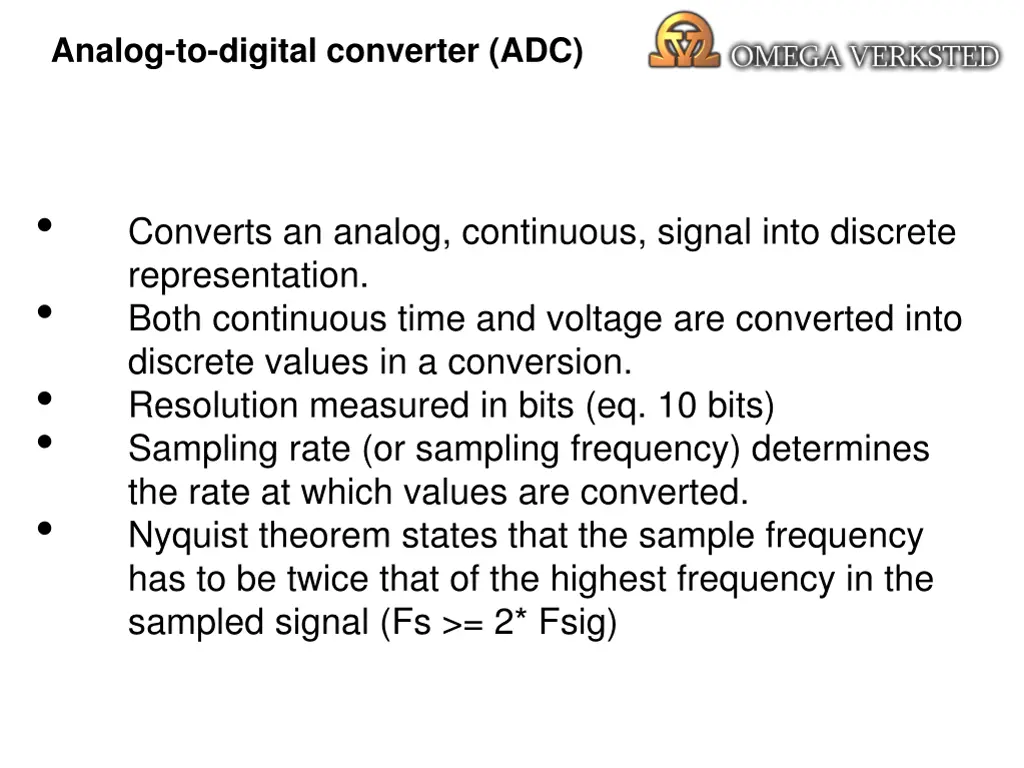

Analog-to-digital converter (ADC) Converts an analog, continuous, signal into discrete representation. Both continuous time and voltage are converted into discrete values in a conversion. Resolution measured in bits (eq. 10 bits) Sampling rate (or sampling frequency) determines the rate at which values are converted. Nyquist theorem states that the sample frequency has to be twice that of the highest frequency in the sampled signal (Fs >= 2* Fsig)

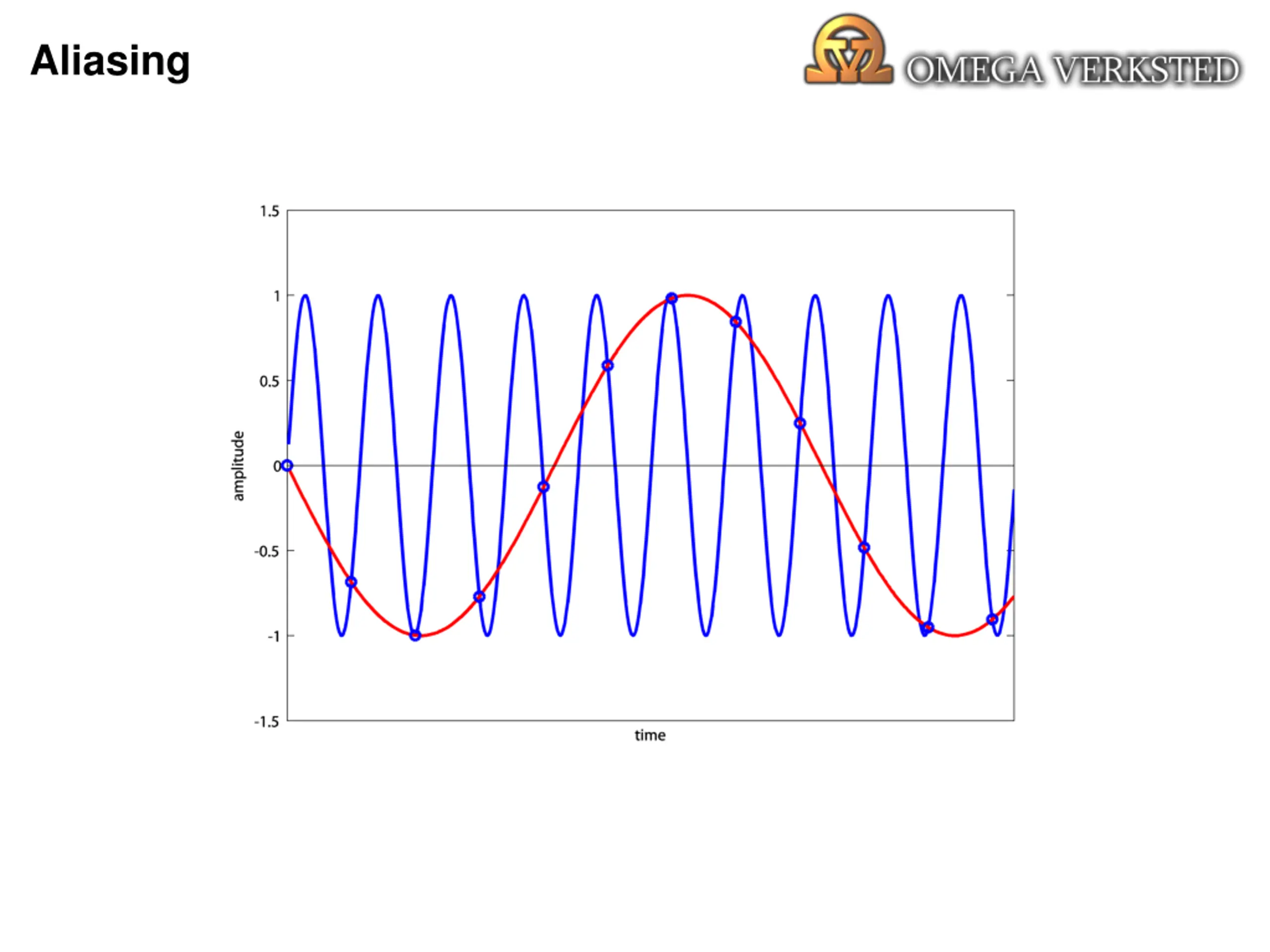

ADC usage on the AVR Initializing an ADC on the AVR can be accomplished like this: Set the bit resolution (we use 8 bit in this task) Select the reference voltage Set the ADC clock prescaler so the speed is between 50kHz and 2MHz Enable the ADC Getting a sample from the ADC: Choose which ADC input channel to use Clear the ADC conversion done interrupt flag. Start a new conversion. Wait for the conversion to complete by monitoring the interrupt flag. Read out the value from the result register.

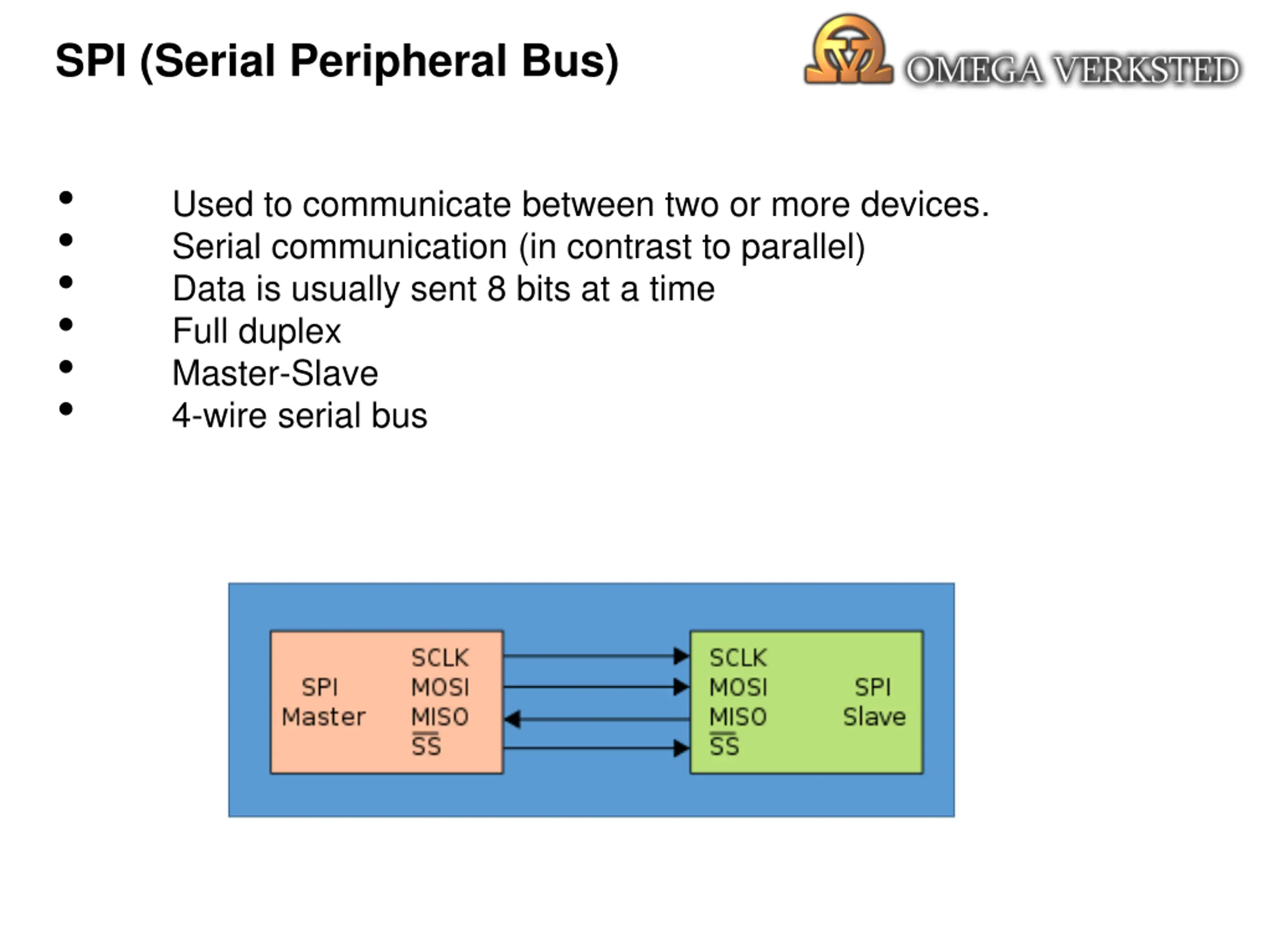

SPI (Serial Peripheral Bus) Used to communicate between two or more devices. Serial communication (in contrast to parallel) Data is usually sent 8 bits at a time Full duplex Master-Slave 4-wire serial bus

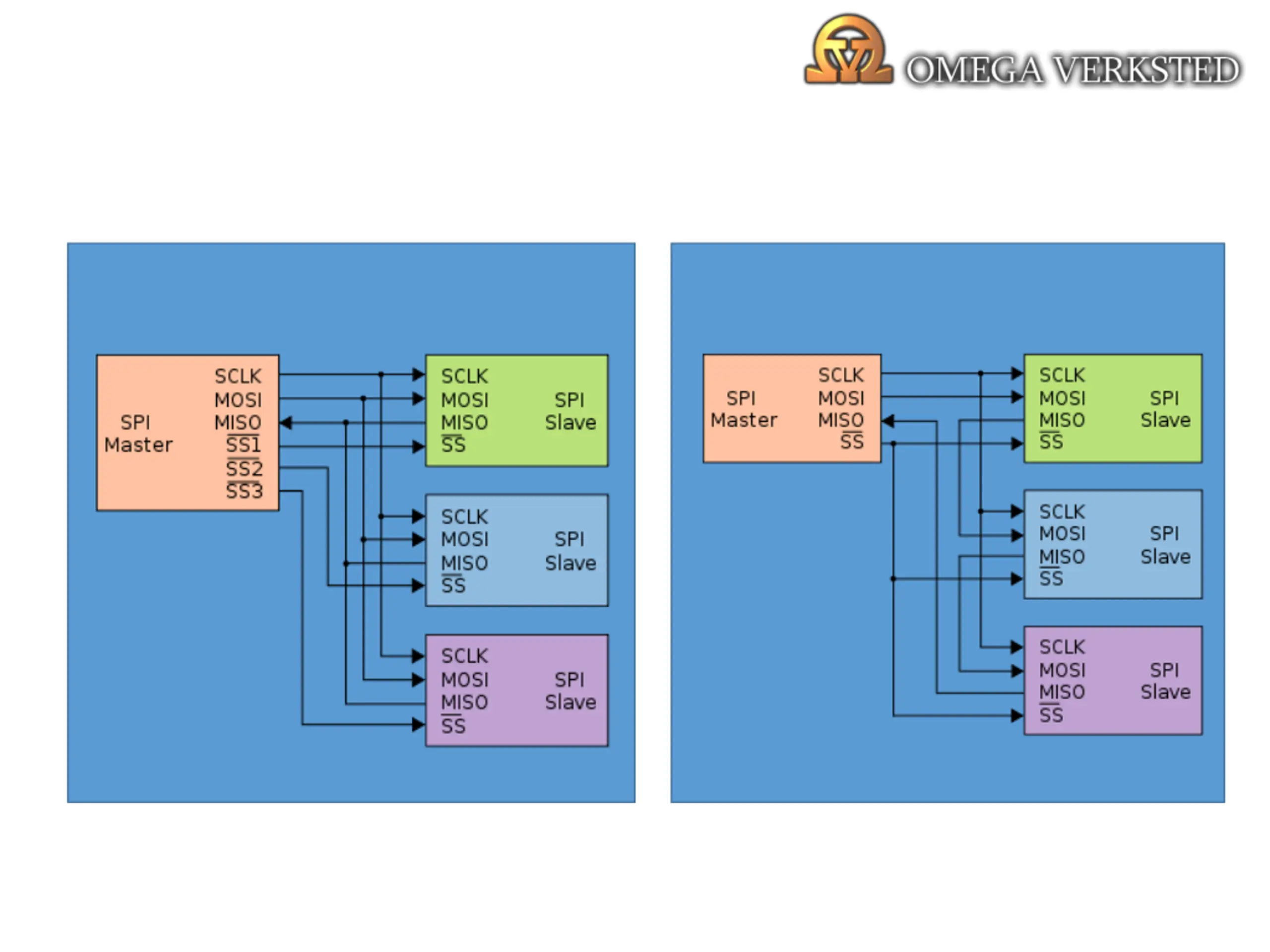

SPI Typical Bus Daisy-chained Bus

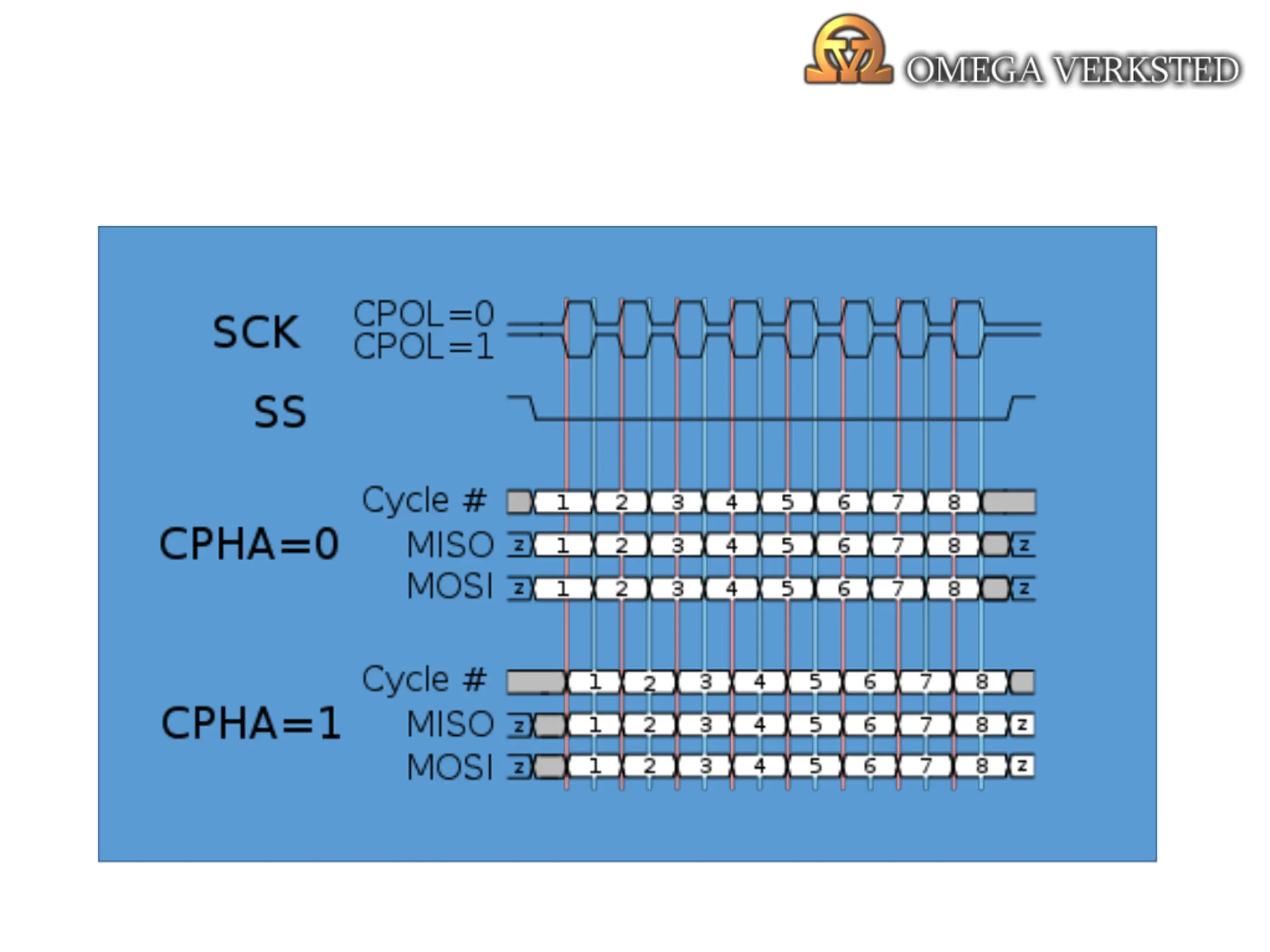

SPI usage on the AVR Initializing Configure SS pin as output. Enable SPI and set clock divisor (in this task dividing by 4 is fine). Transmit: Set the SS low on the correct slave. Fill the data register with the 8 bits (one char) you want to send. Make a while loop to wait for data transmition to complete. Set the SS high again.

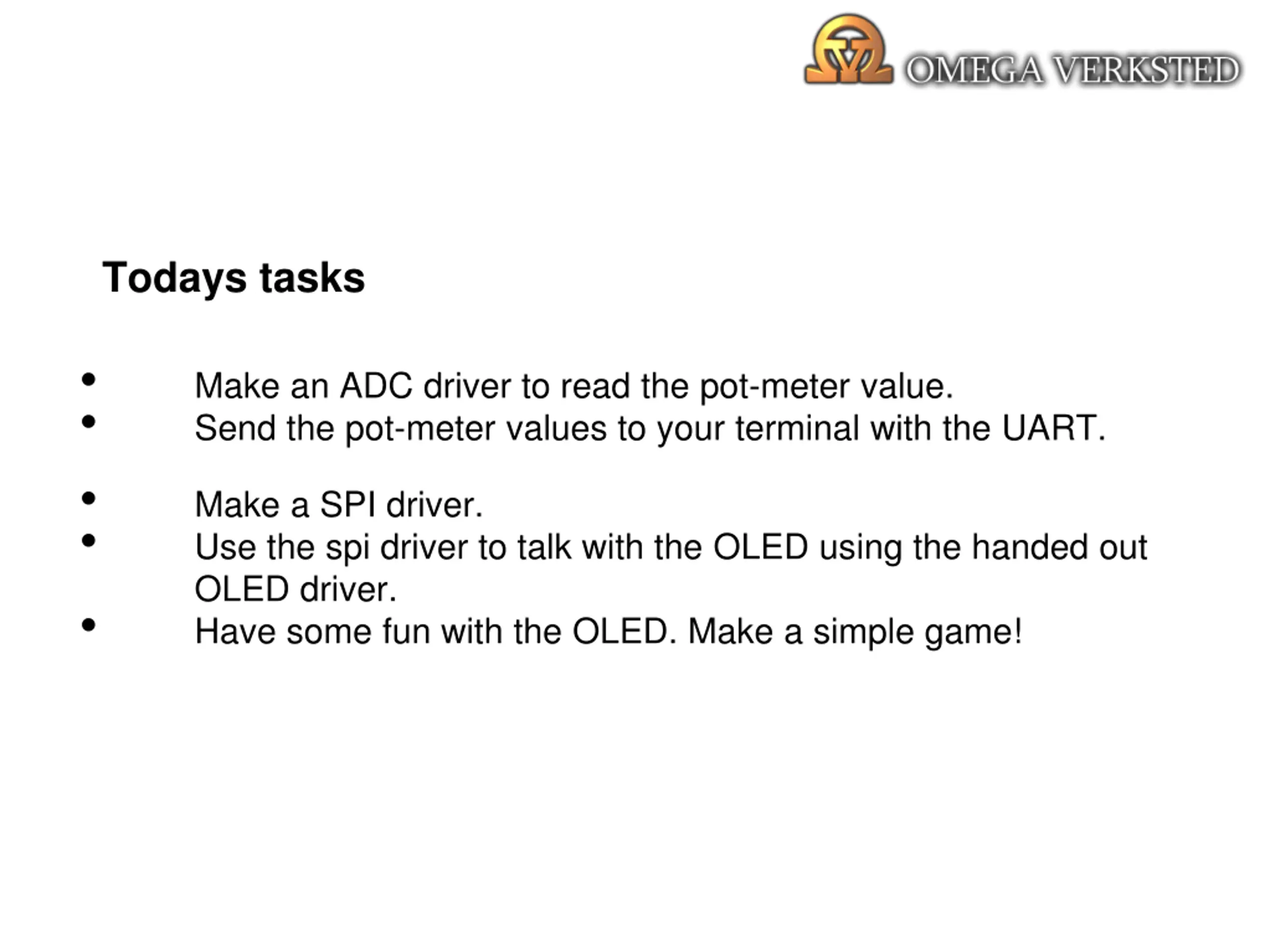

Todays tasks Make an ADC driver to read the pot-meter value. Send the pot-meter values to your terminal with the UART. Make a SPI driver. Use the spi driver to talk with the OLED using the handed out OLED driver. Have some fun with the OLED. Make a simple game!
