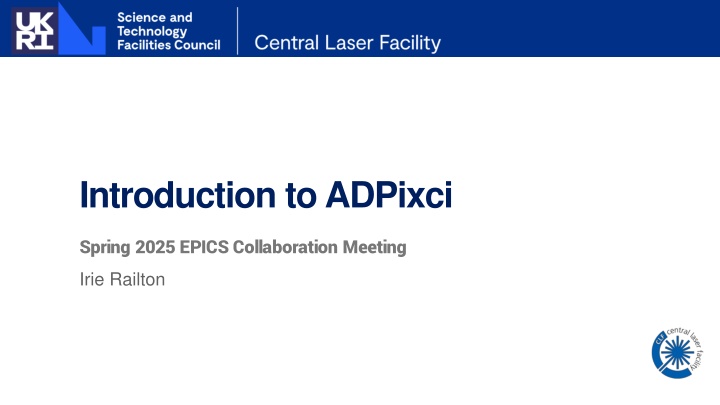

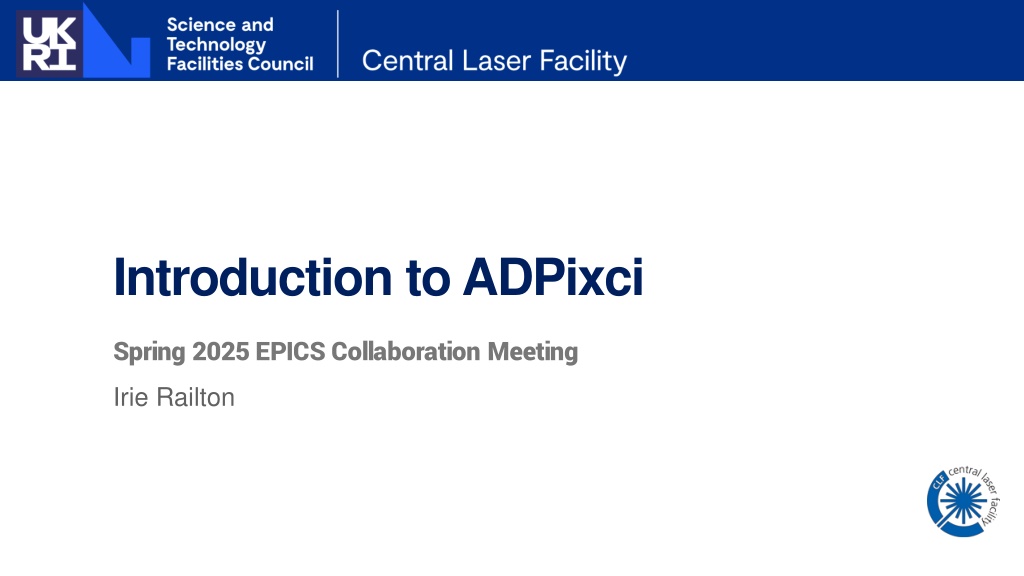

Introduction to ADPixci Spring 2025 EPICS Collaboration Meeting Irie Railton

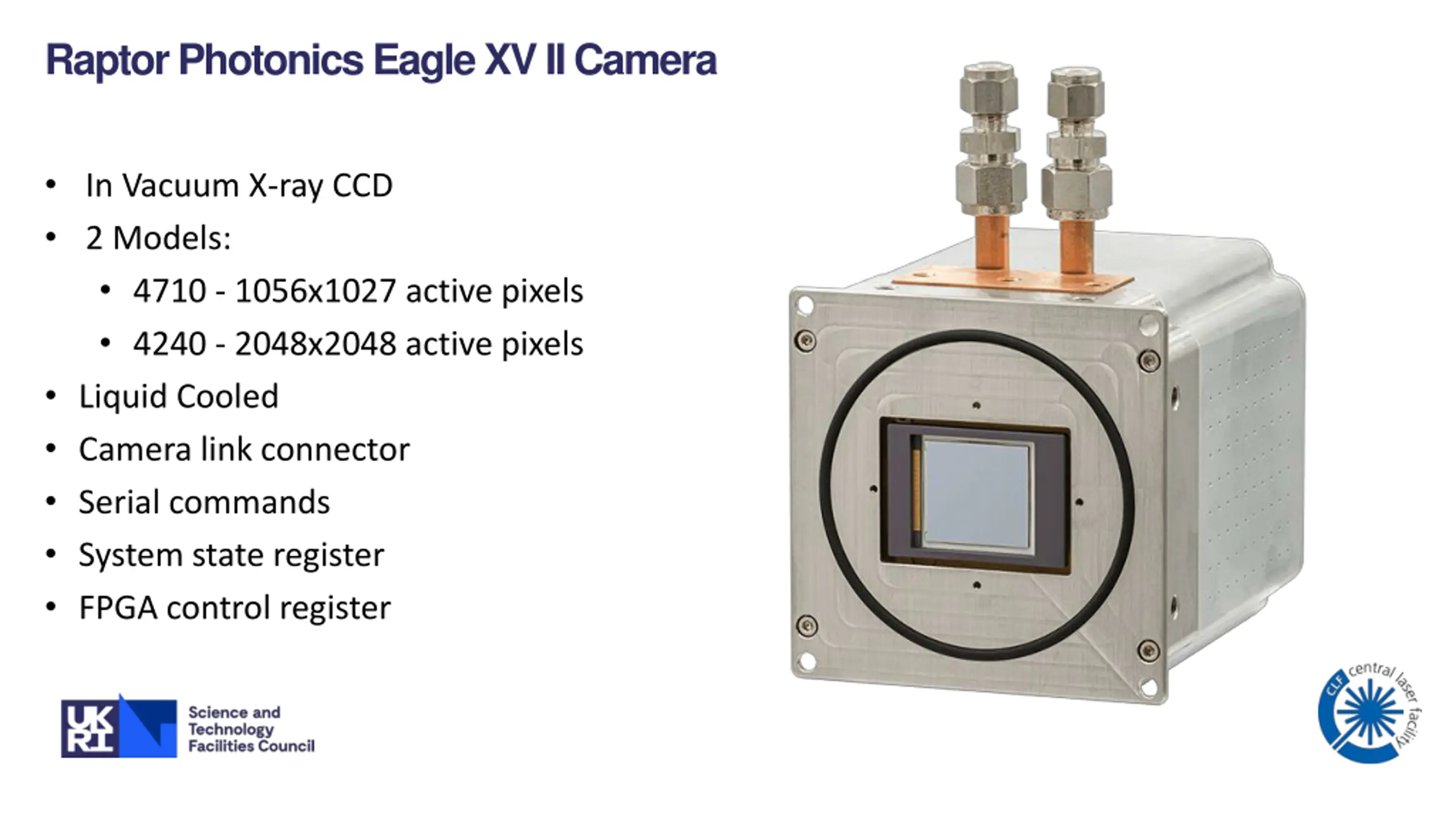

Raptor Photonics Eagle XV II Camera In Vacuum X-ray CCD 2 Models: 4710 - 1056x1027 active pixels 4240 - 2048x2048 active pixels Liquid Cooled Camera link connector Serial commands System state register FPGA control register

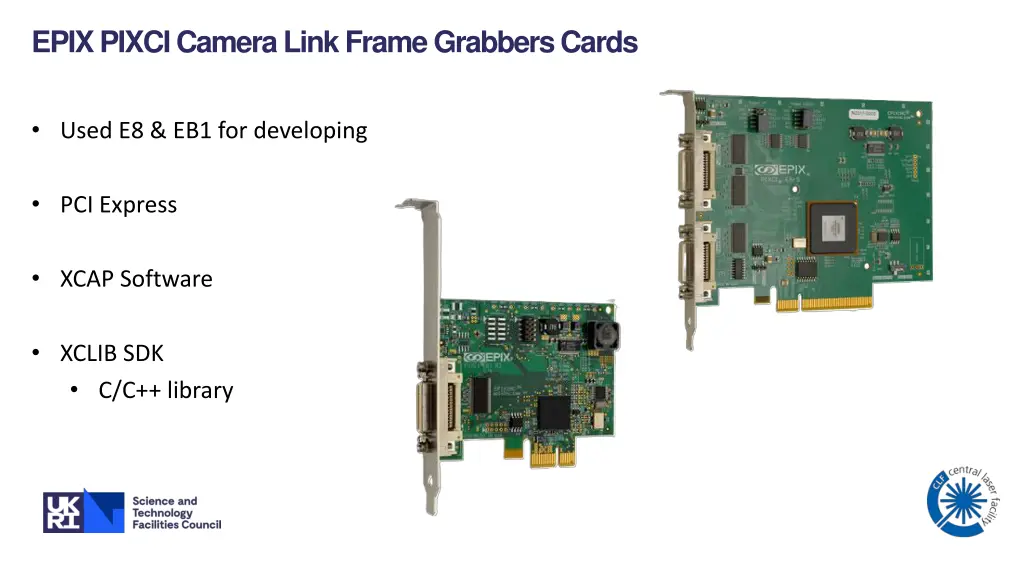

EPIX PIXCI Camera Link Frame Grabbers Cards Used E8 & EB1 for developing PCI Express XCAP Software XCLIB SDK C/C++ library

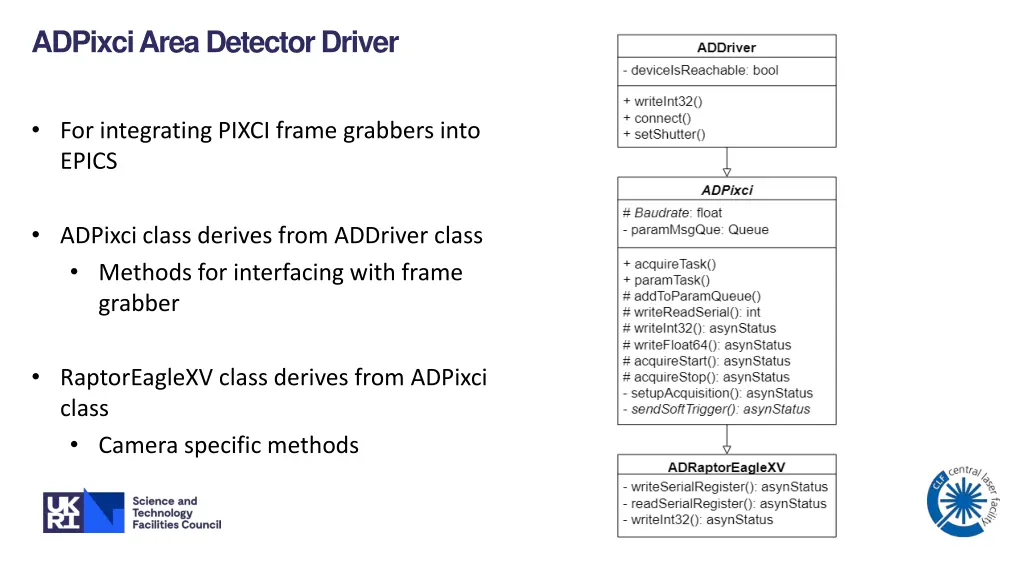

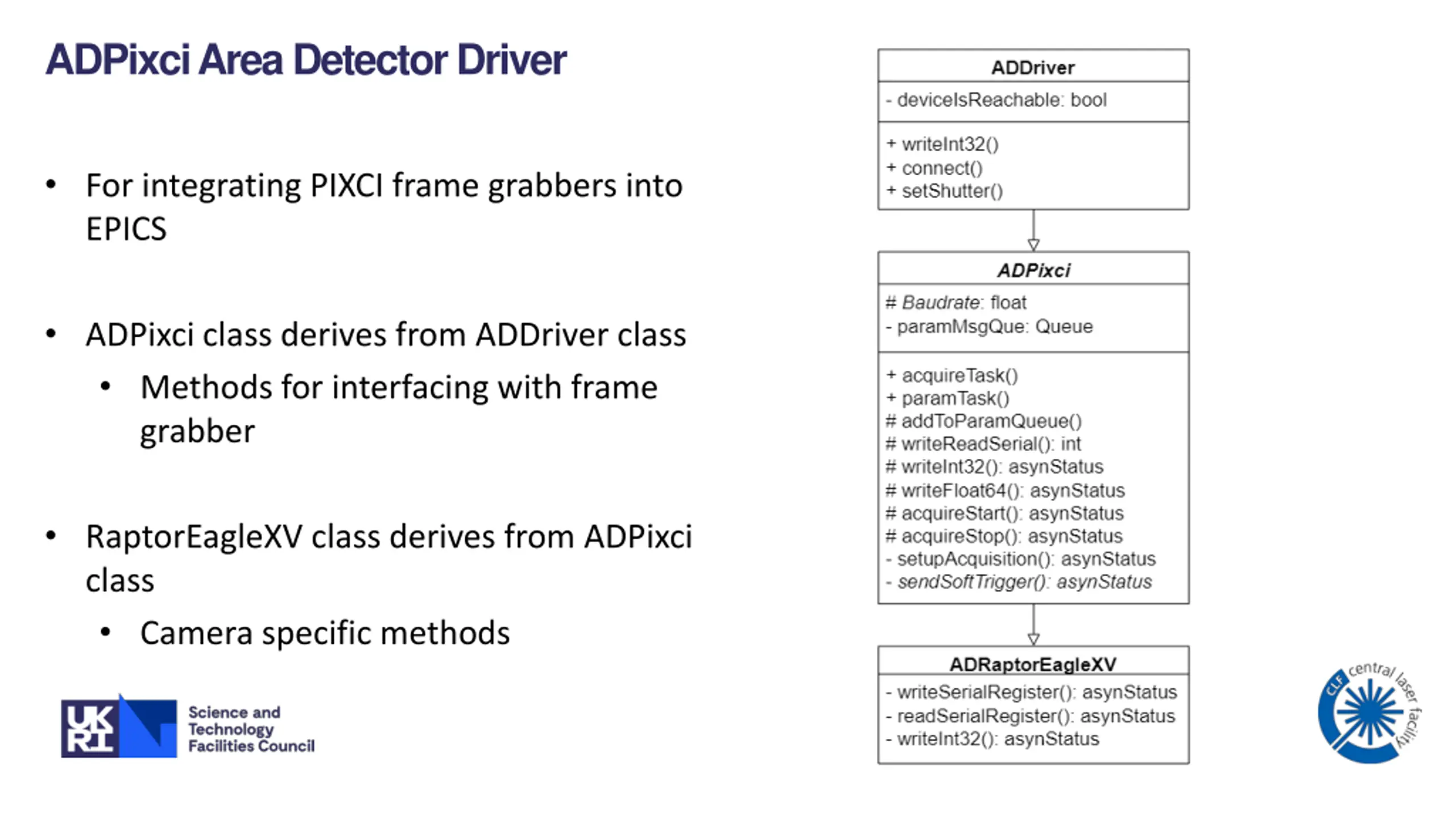

ADPixci Area Detector Driver For integrating PIXCI frame grabbers into EPICS ADPixci class derives from ADDriver class Methods for interfacing with frame grabber RaptorEagleXV class derives from ADPixci class Camera specific methods

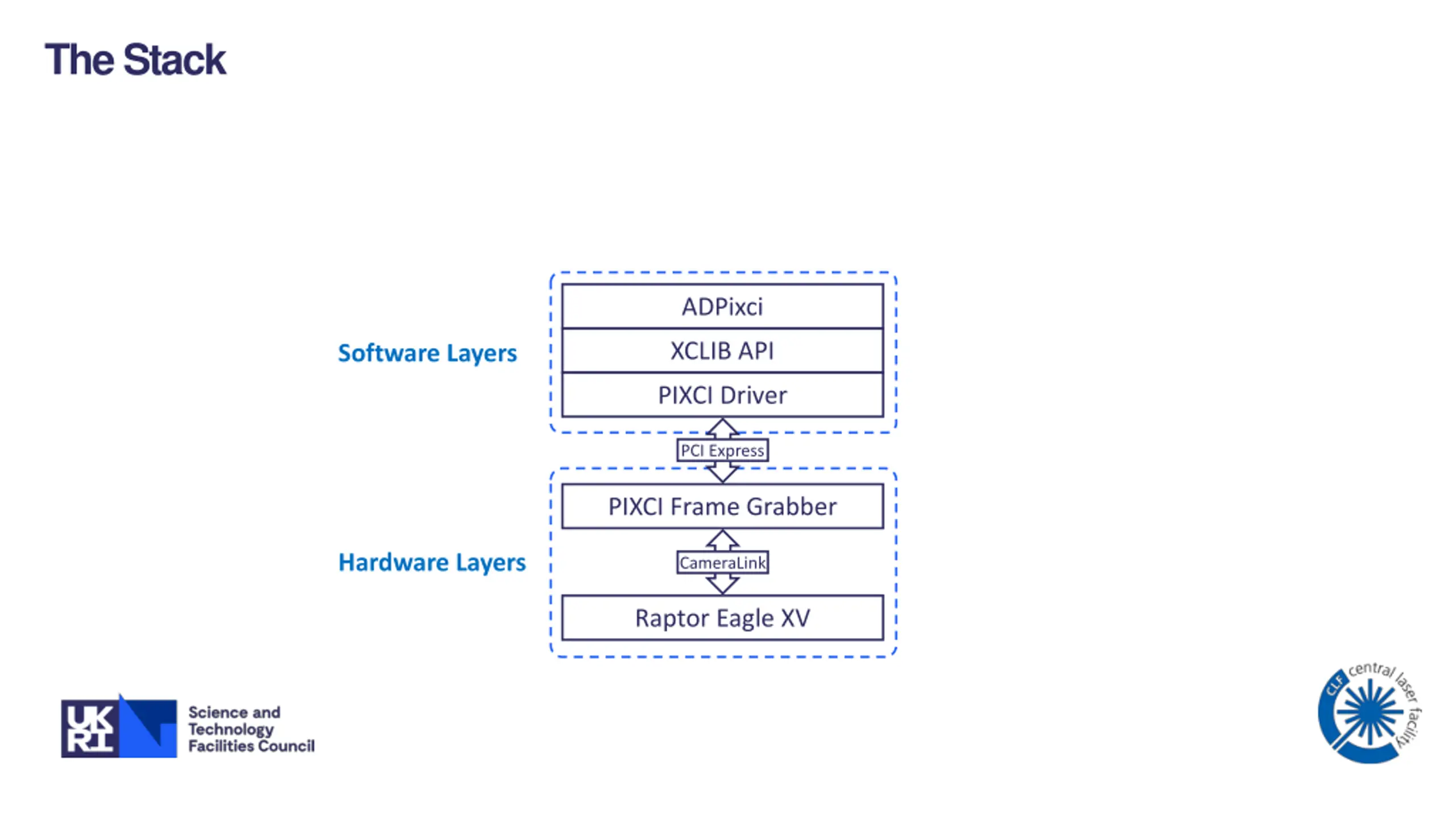

The Stack ADPixci XCLIB API Software Layers PIXCI Driver PCI Express PIXCI Frame Grabber Hardware Layers CameraLink Raptor Eagle XV

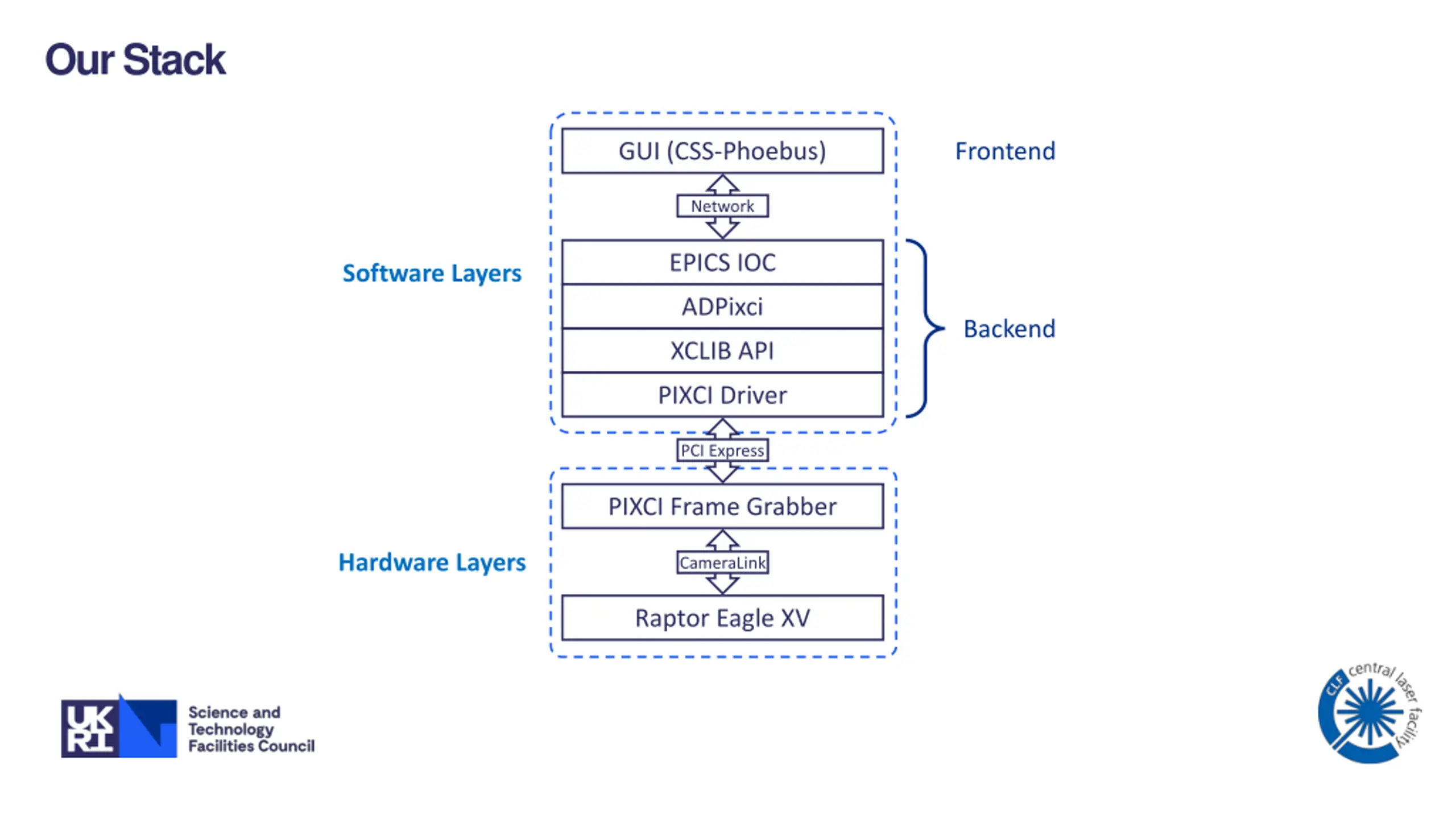

Our Stack GUI (CSS-Phoebus) Frontend Network EPICS IOC Software Layers ADPixci Backend XCLIB API PIXCI Driver PCI Express PIXCI Frame Grabber Hardware Layers CameraLink Raptor Eagle XV

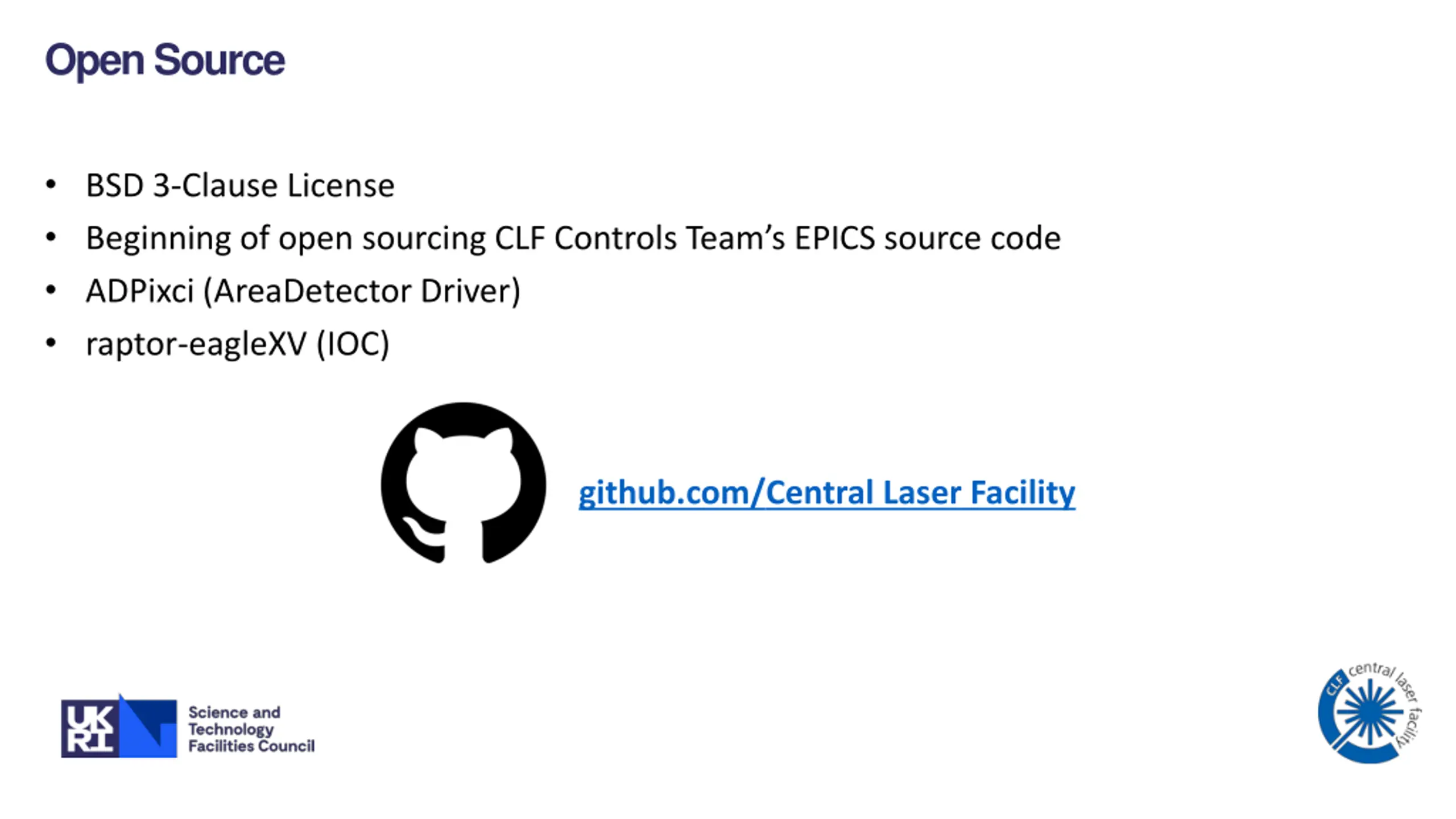

Open Source BSD 3-Clause License Beginning of open sourcing CLF Controls Team s EPICS source code ADPixci (AreaDetector Driver) raptor-eagleXV (IOC) github.com/Central Laser Facility

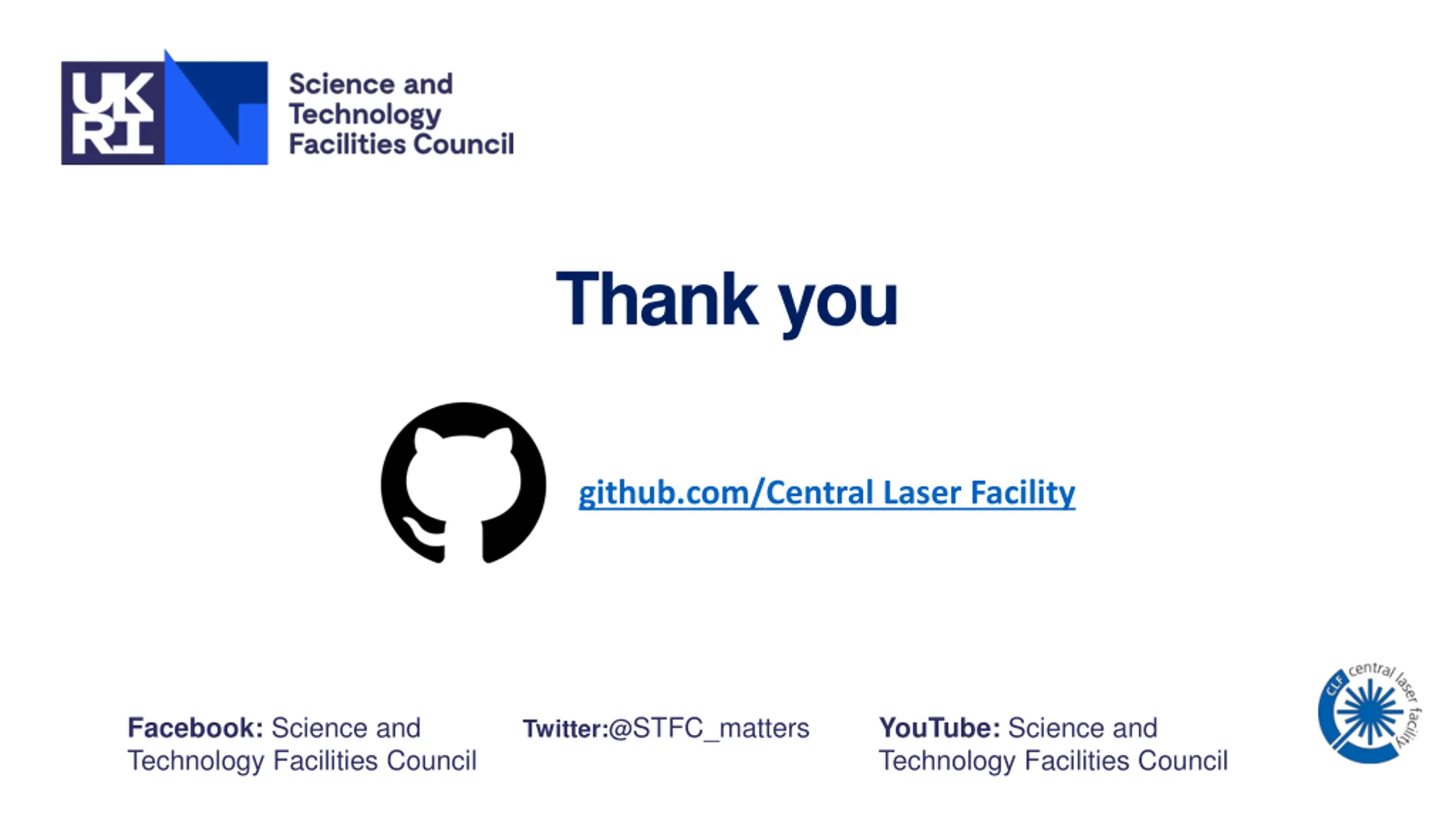

Thank you github.com/Central Laser Facility Facebook: Science and Technology Facilities Council Twitter:@STFC_matters YouTube: Science and Technology Facilities Council
