ARRAYS : TWO DIMENSION (2-D) CONT. IN C++ LANGAUGE ThirteenLecture

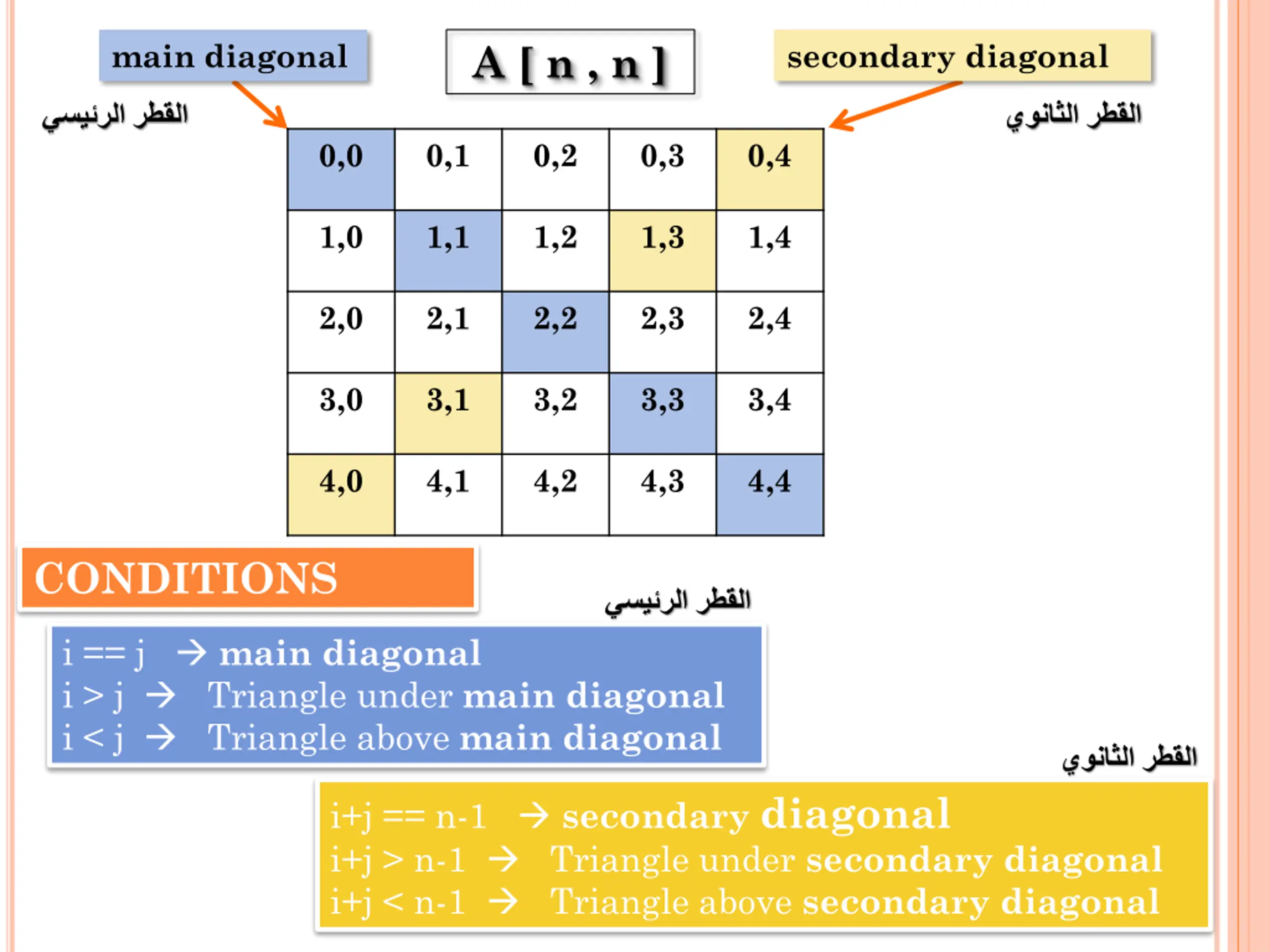

A [ n , n ] main diagonal secondary diagonal 0,0 0,1 0,2 0,3 0,4 1,0 1,1 1,2 1,3 1,4 2,0 2,1 2,2 2,3 2,4 3,0 3,1 3,2 3,3 3,4 4,0 4,1 4,2 4,3 4,4 CONDITIONS i == j main diagonal i > j Triangle under main diagonal i < j Triangle above main diagonal i+j == n-1 secondary diagonal i+j > n-1 Triangle under secondary diagonal i+j < n-1 Triangle above secondary diagonal

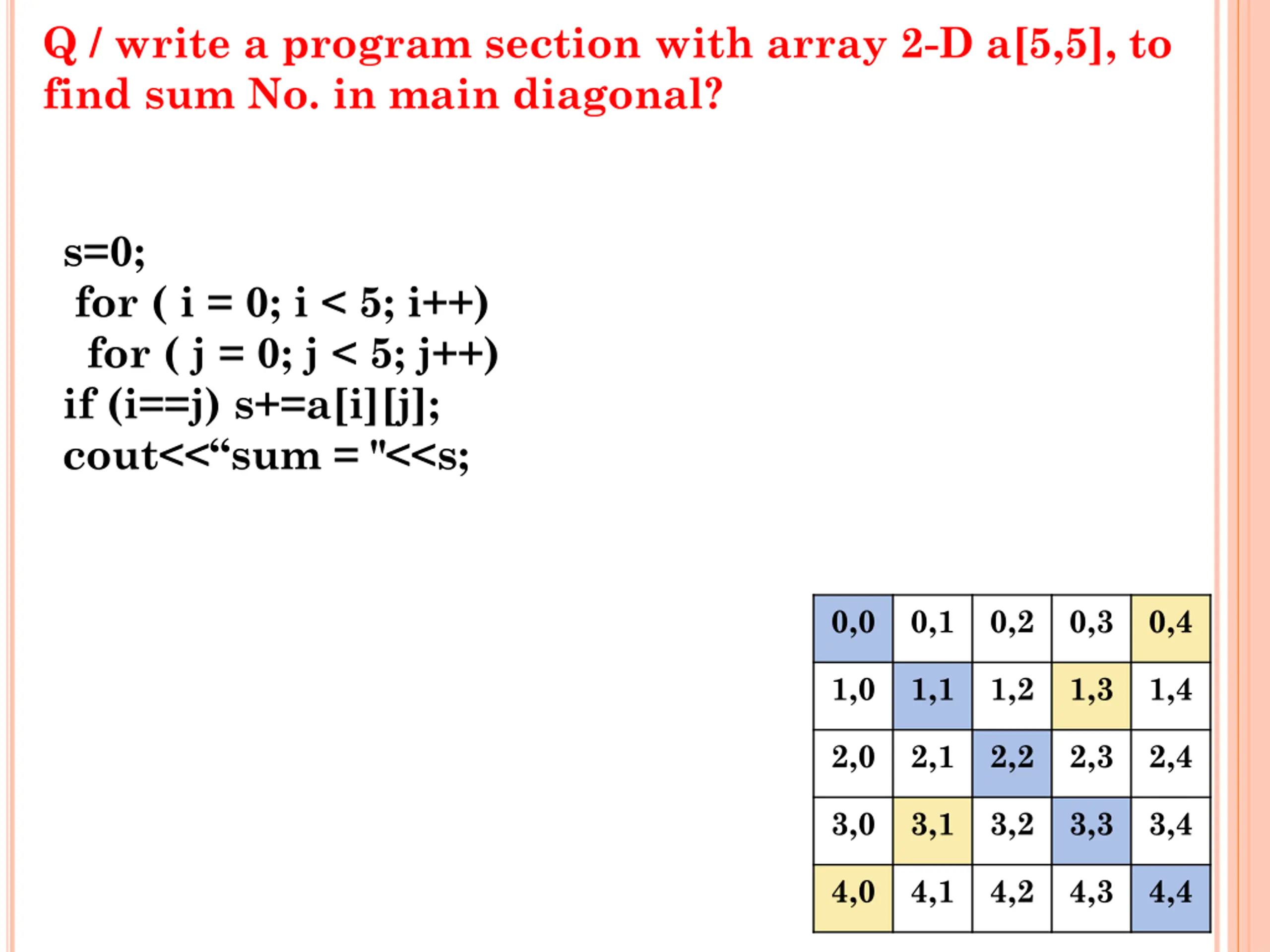

Q / write a program section with array 2-D a[5,5], to find sum No. in main diagonal? s=0; for ( i = 0; i < 5; i++) for ( j = 0; j < 5; j++) if (i==j) s+=a[i][j]; cout<< sum = "<<s; 0,0 0,1 0,2 0,3 0,4 1,0 1,1 1,2 1,3 1,4 2,0 2,1 2,2 2,3 2,4 3,0 3,1 3,2 3,3 3,4 4,0 4,1 4,2 4,3 4,4

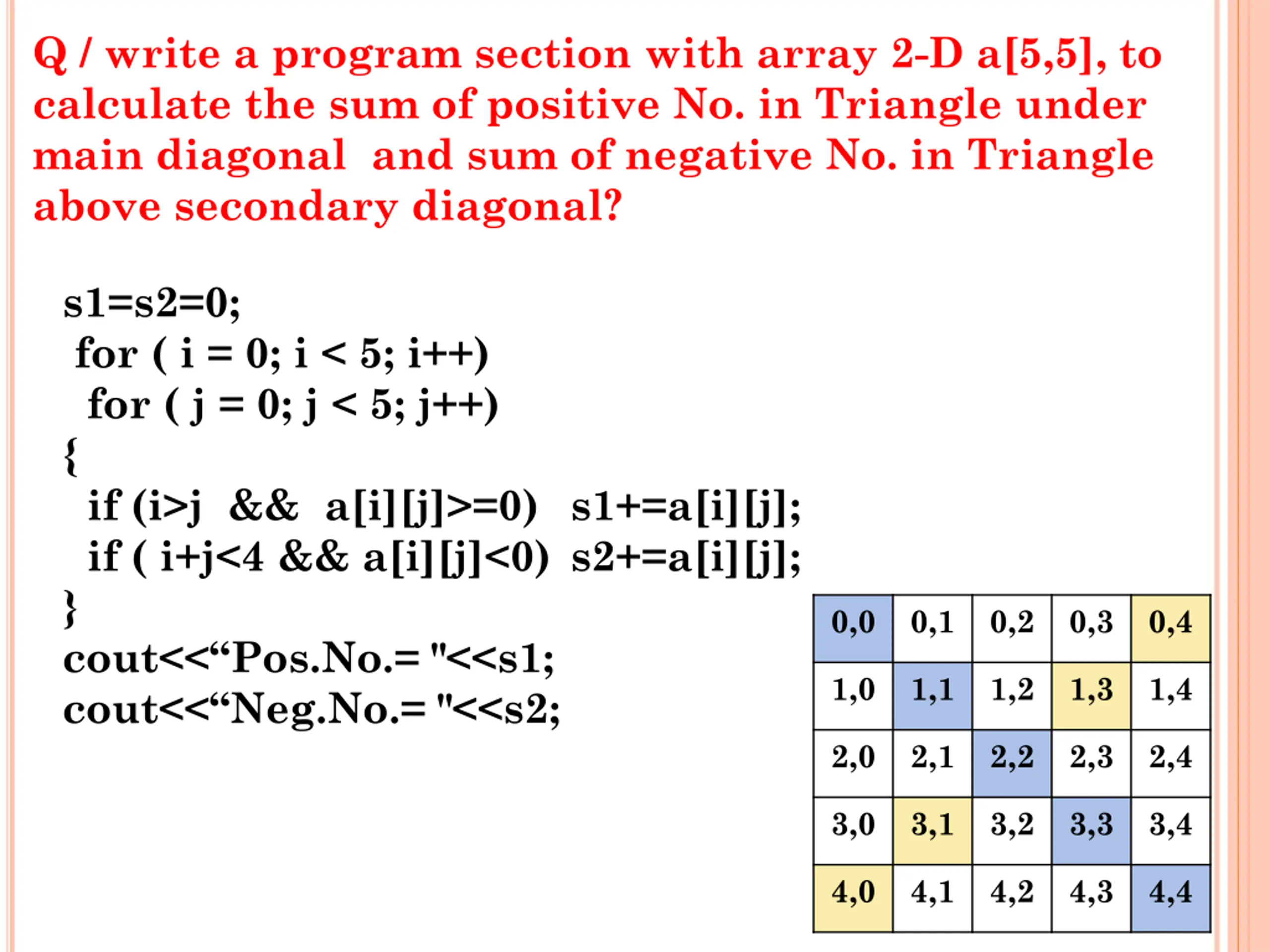

Q / write a program section with array 2-D a[5,5], to calculate the sum of positive No. in Triangle under main diagonal and sum of negative No. in Triangle above secondary diagonal? s1=s2=0; for ( i = 0; i < 5; i++) for ( j = 0; j < 5; j++) { if (i>j && a[i][j]>=0) s1+=a[i][j]; if ( i+j<4 && a[i][j]<0) s2+=a[i][j]; } cout<< Pos.No.= "<<s1; cout<< Neg.No.= "<<s2; 0,0 0,1 0,2 0,3 0,4 1,0 1,1 1,2 1,3 1,4 2,0 2,1 2,2 2,3 2,4 3,0 3,1 3,2 3,3 3,4 4,0 4,1 4,2 4,3 4,4

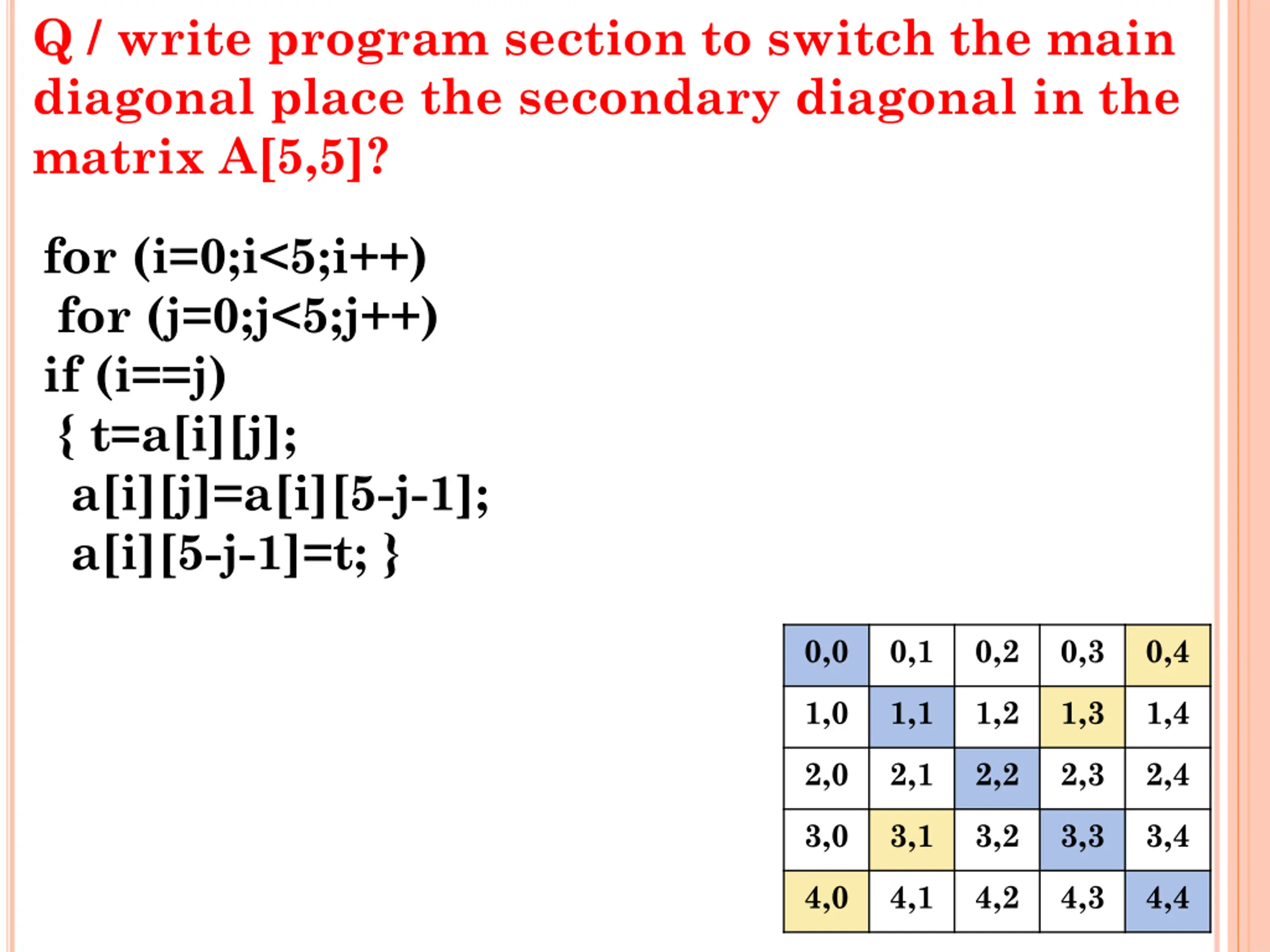

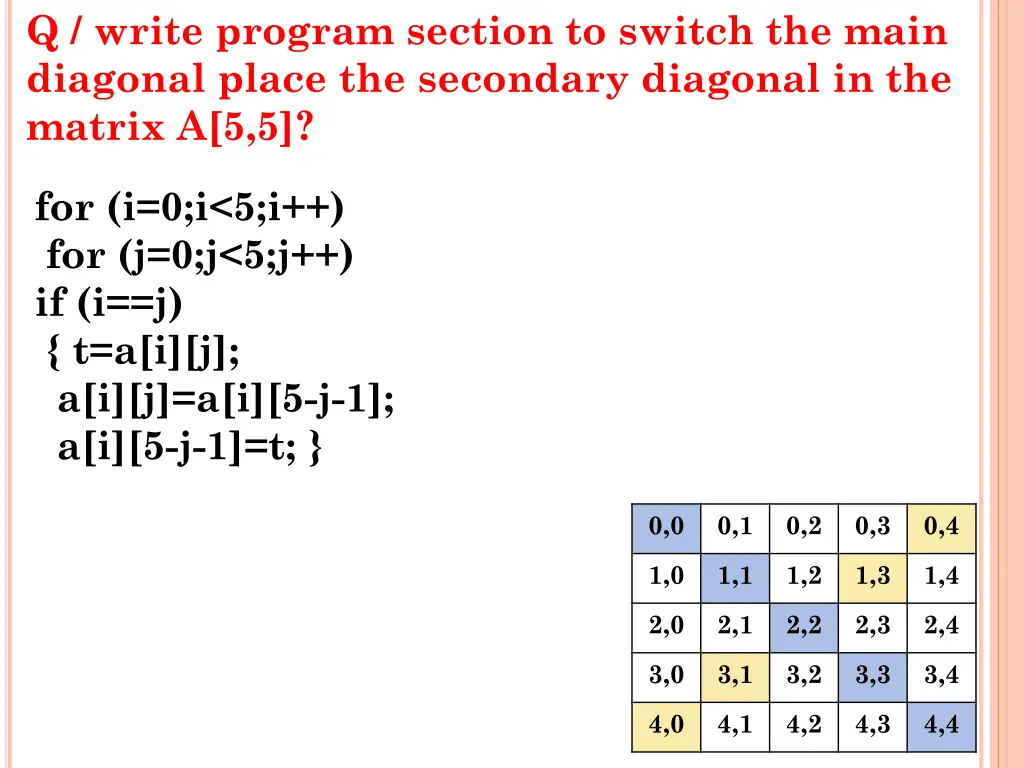

Q / write program section to switch the main diagonal place the secondary diagonal in the matrix A[5,5]? for (i=0;i<5;i++) for (j=0;j<5;j++) if (i==j) { t=a[i][j]; a[i][j]=a[i][5-j-1]; a[i][5-j-1]=t; } 0,0 0,1 0,2 0,3 0,4 1,0 1,1 1,2 1,3 1,4 2,0 2,1 2,2 2,3 2,4 3,0 3,1 3,2 3,3 3,4 4,0 4,1 4,2 4,3 4,4

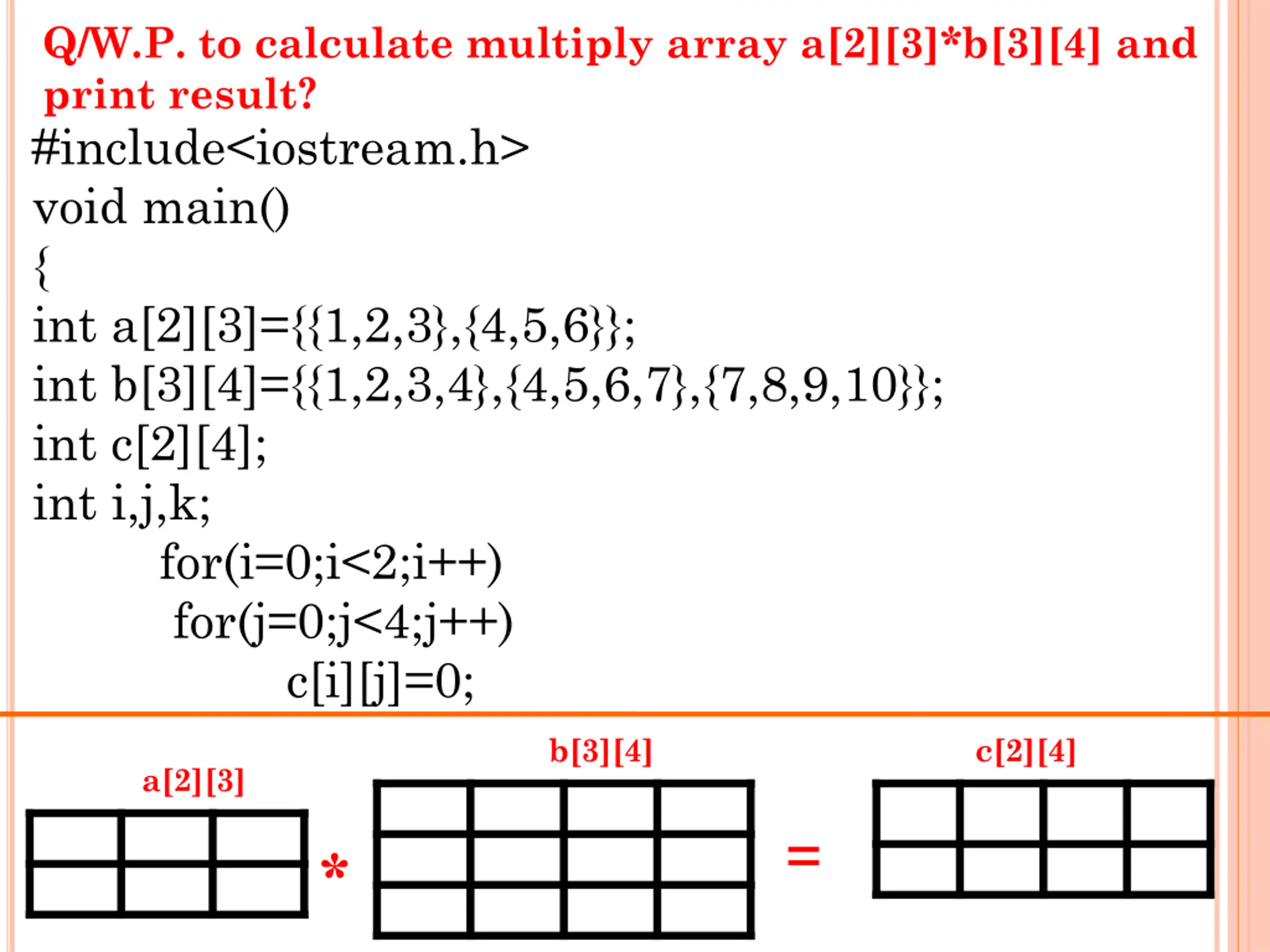

Q/W.P. to calculate multiply array a[2][3]*b[3][4] and print result? #include<iostream.h> void main() { int a[2][3]={{1,2,3},{4,5,6}}; int b[3][4]={{1,2,3,4},{4,5,6,7},{7,8,9,10}}; int c[2][4]; int i,j,k; for(i=0;i<2;i++) for(j=0;j<4;j++) c[i][j]=0; b[3][4] c[2][4] a[2][3] = *

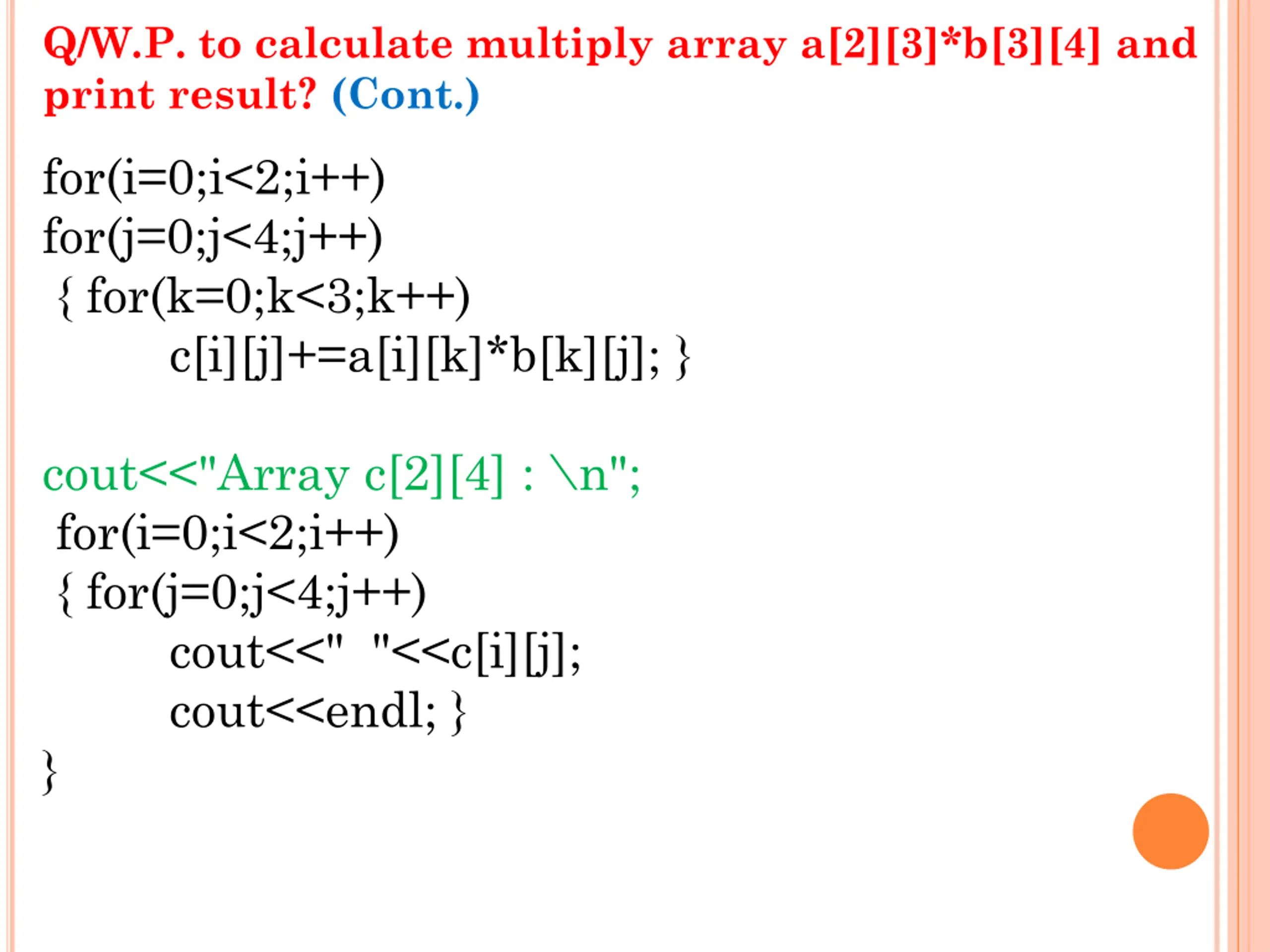

Q/W.P. to calculate multiply array a[2][3]*b[3][4] and print result? (Cont.) for(i=0;i<2;i++) for(j=0;j<4;j++) { for(k=0;k<3;k++) c[i][j]+=a[i][k]*b[k][j]; } cout<<"Array c[2][4] : \n"; for(i=0;i<2;i++) { for(j=0;j<4;j++) cout<<" "<<c[i][j]; cout<<endl; } }

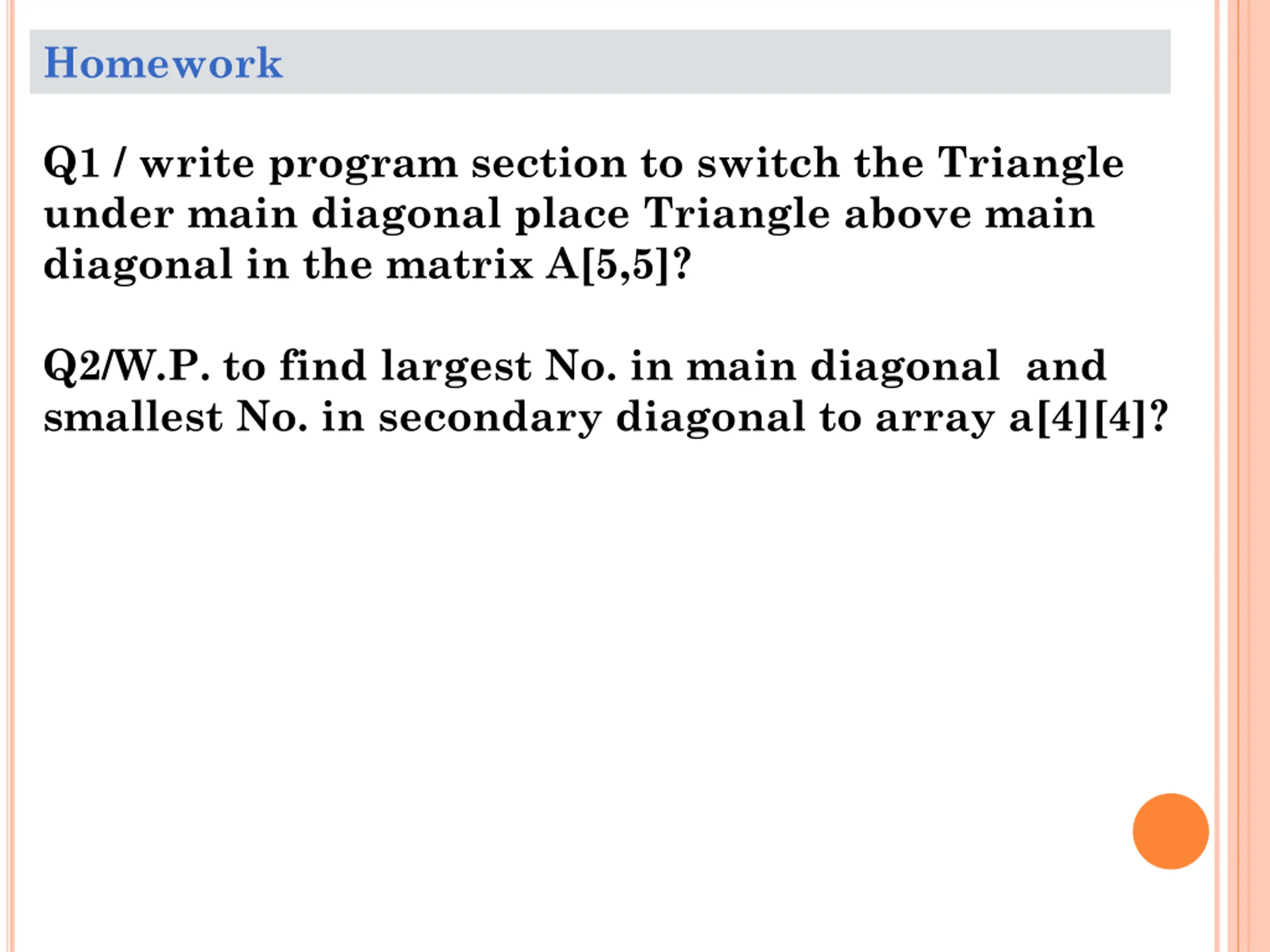

Homework Q1 / write program section to switch the Triangle under main diagonal place Triangle above main diagonal in the matrix A[5,5]? Q2/W.P. to find largest No. in main diagonal and smallest No. in secondary diagonal to array a[4][4]?
