CMPT 409/815 Advanced Algorithms September 23, 2020

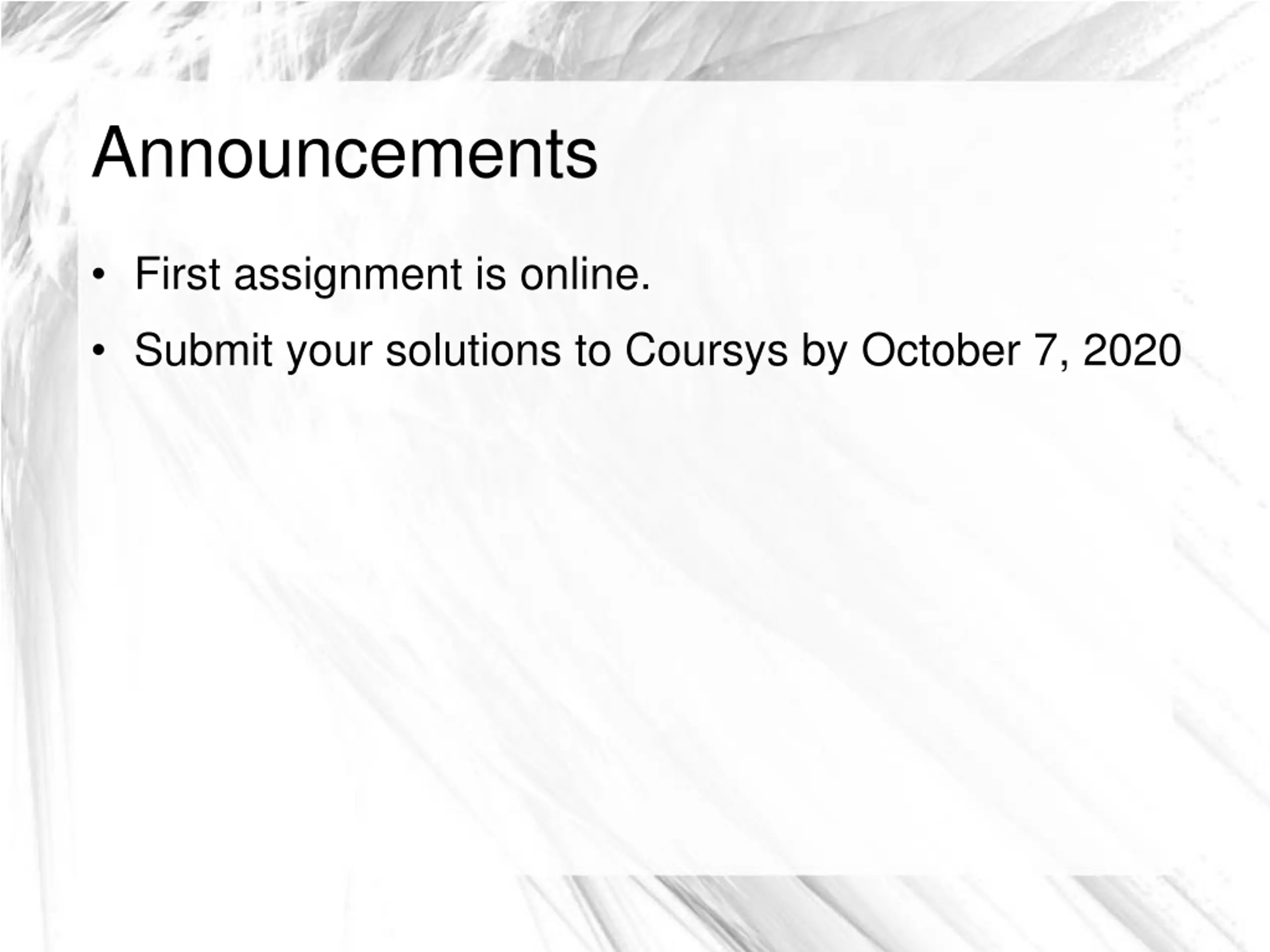

Announcements First assignment is online. Submit your solutions to Coursys by October 7, 2020

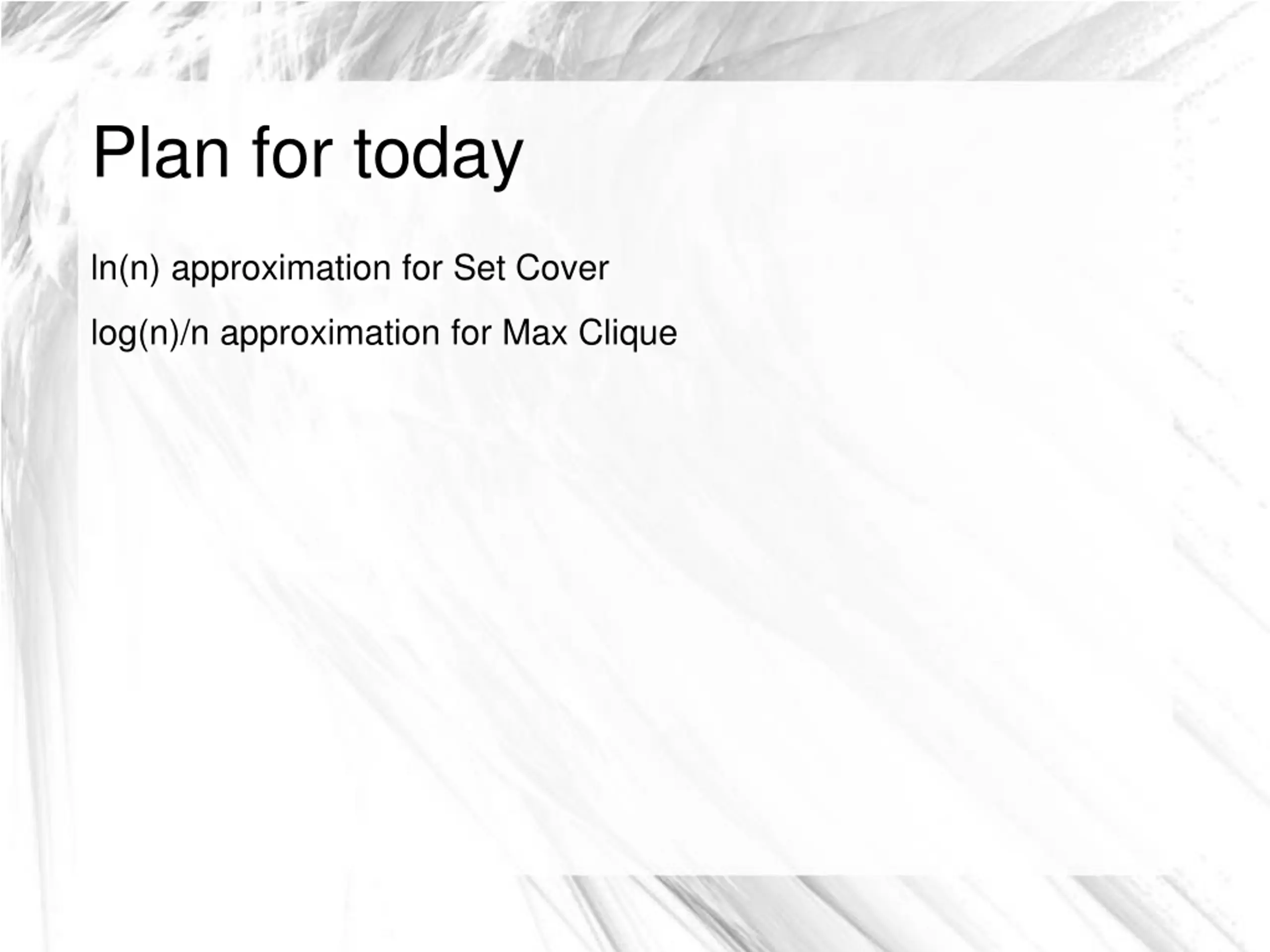

Plan for today ln(n) approximation for Set Cover log(n)/n approximation for Max Clique

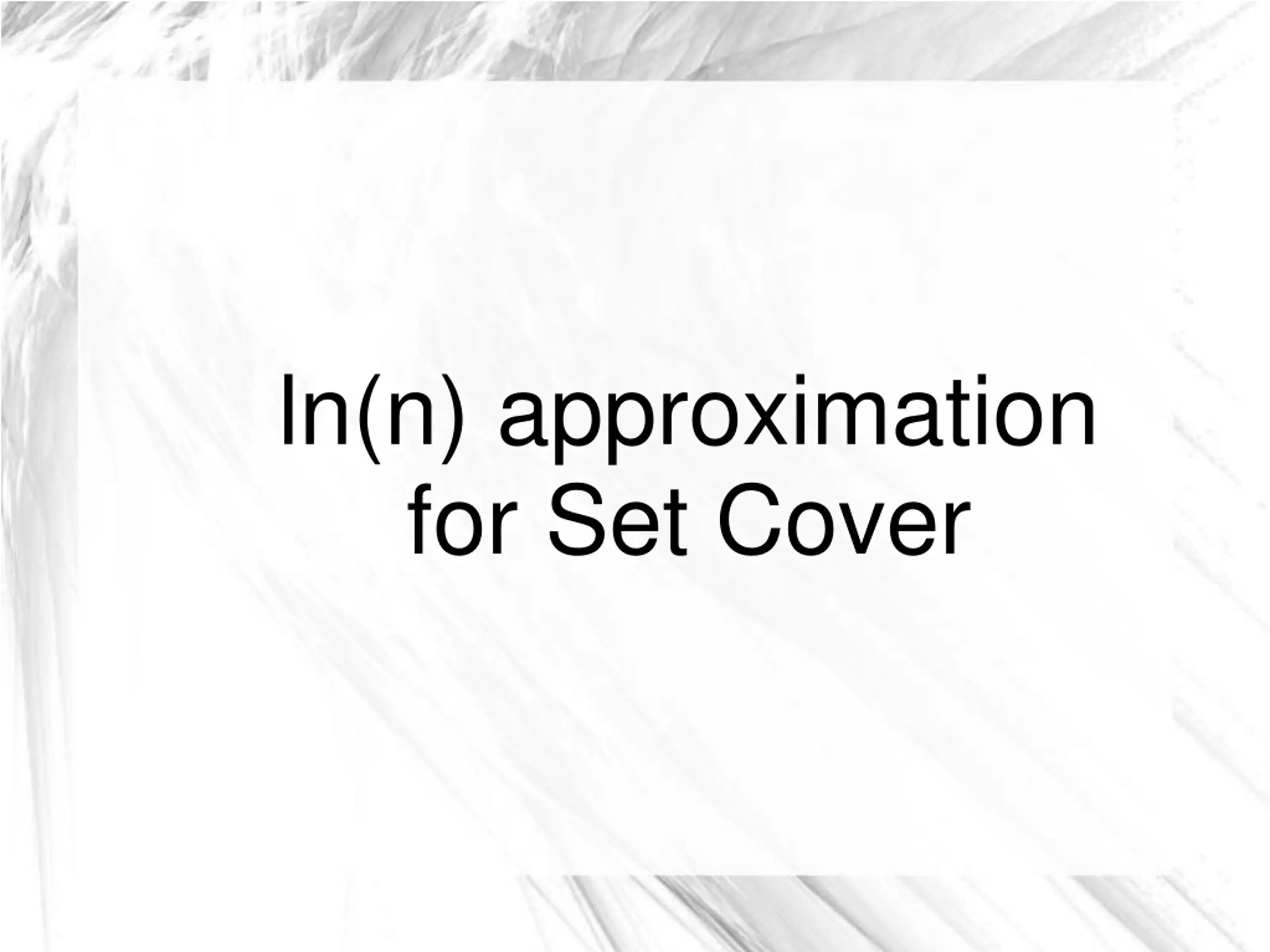

ln(n) approximation for Set Cover

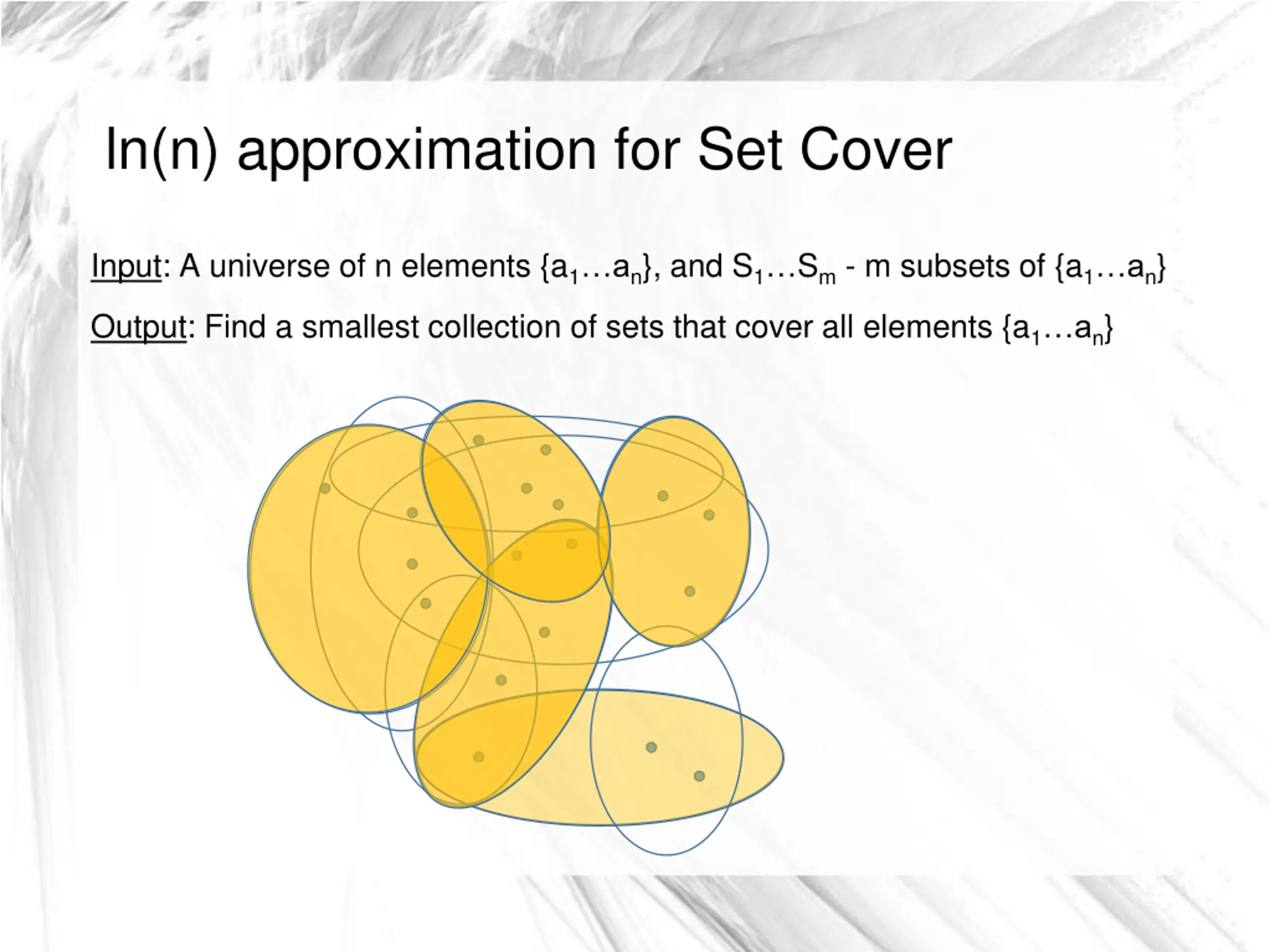

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm- m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an}

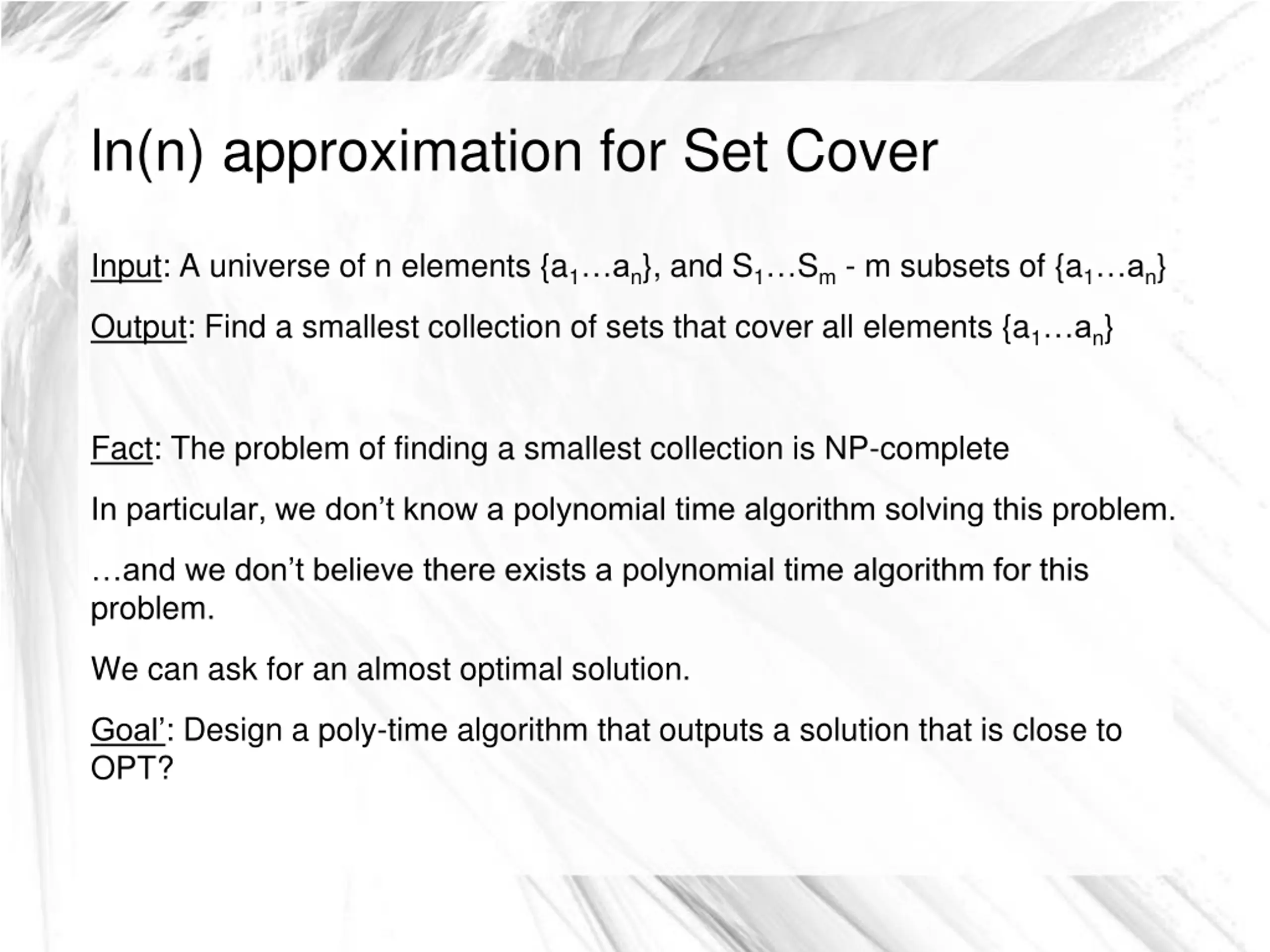

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm- m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Fact: The problem of finding a smallest collection is NP-complete In particular, we don t know a polynomial time algorithm solving this problem. and we don t believe there exists a polynomial time algorithm for this problem. We can ask for an almost optimal solution. Goal : Design a poly-time algorithm that outputs a solution that is close to OPT?

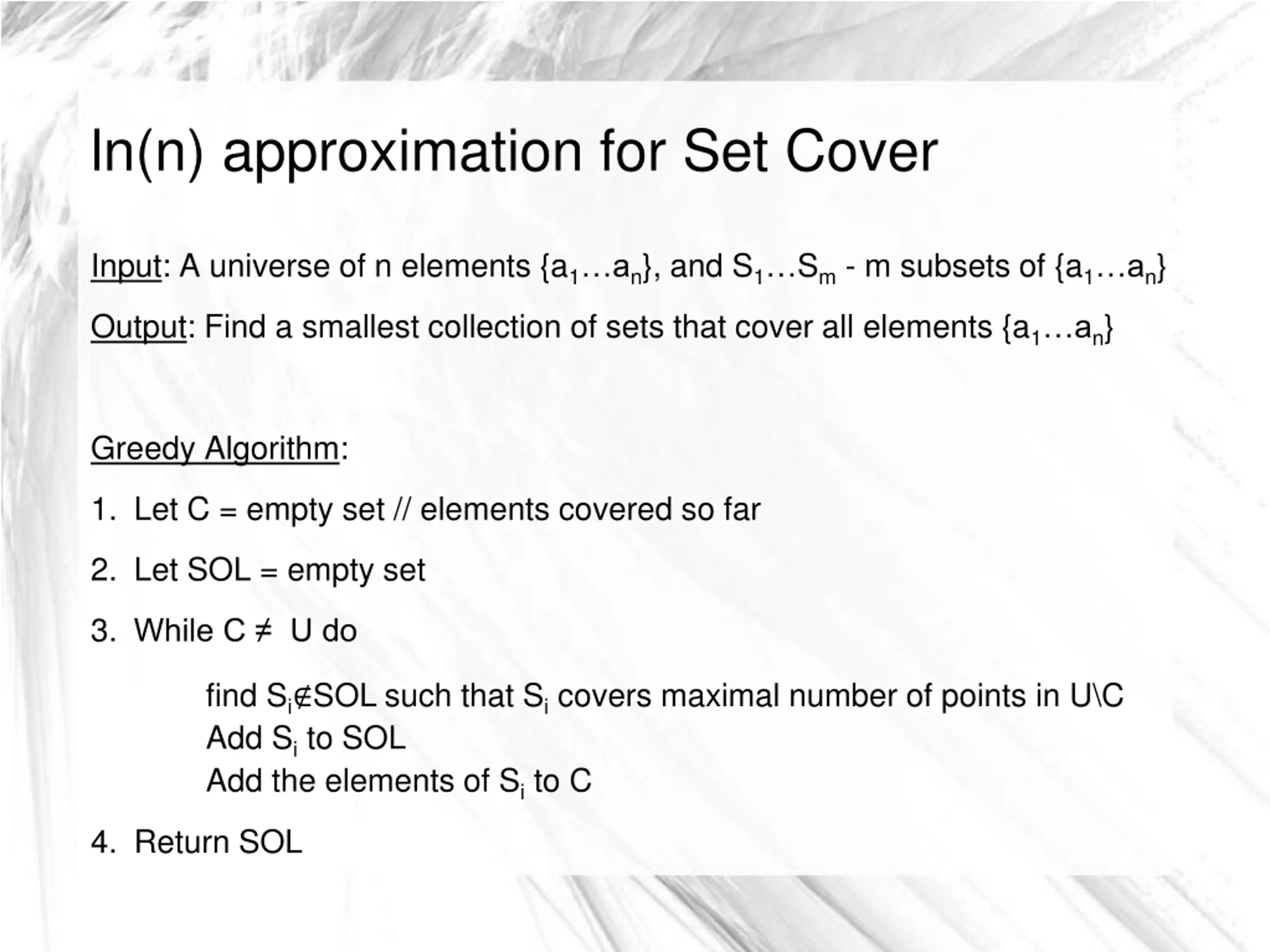

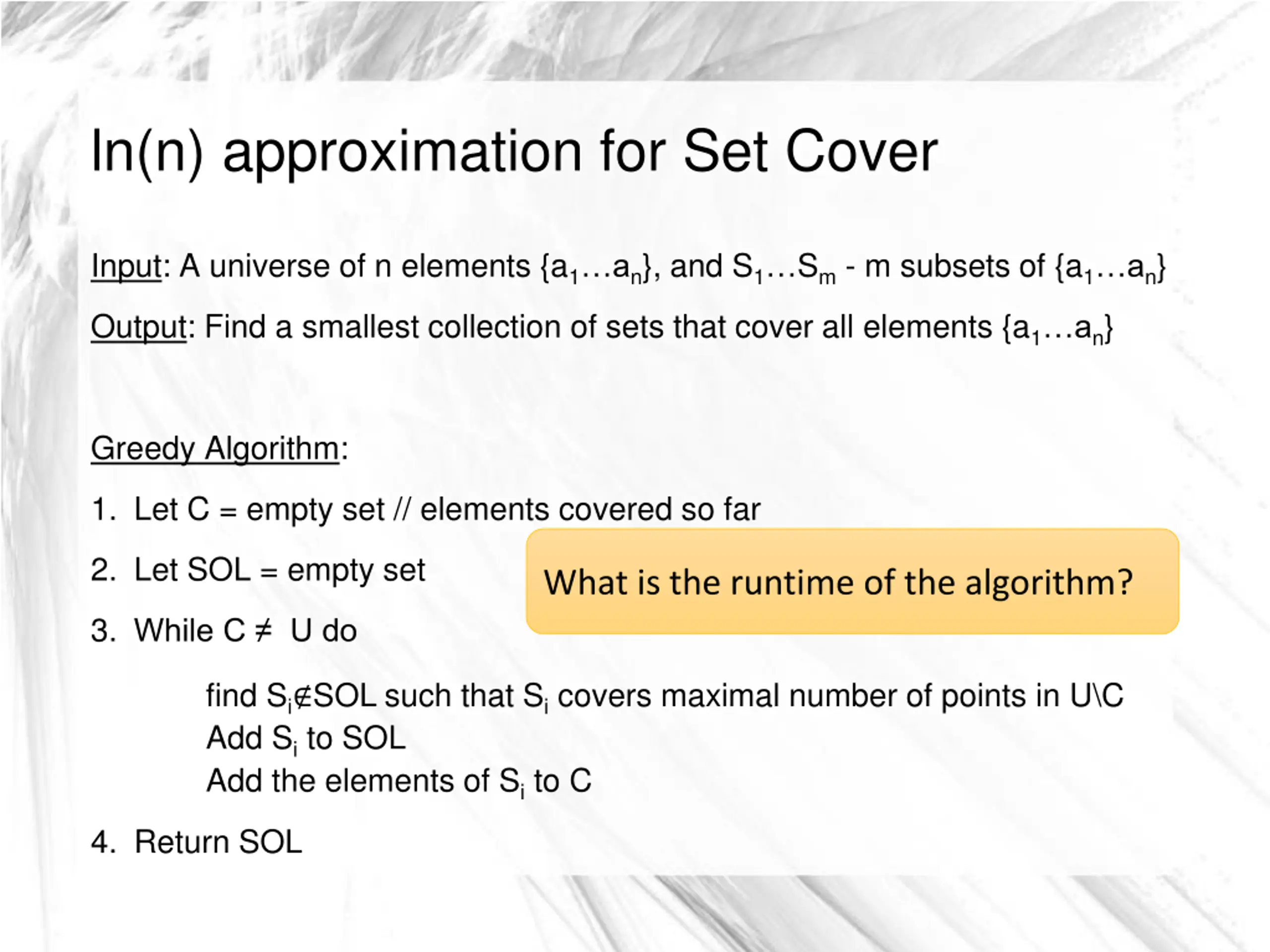

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm- m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Greedy Algorithm: 1. Let C = empty set // elements covered so far 2. Let SOL = empty set What is the runtime of the algorithm? 3. While C U do find Si SOL such that Sicovers maximal number of points in U\C Add Sito SOL Add the elements of Sito C 4. Return SOL

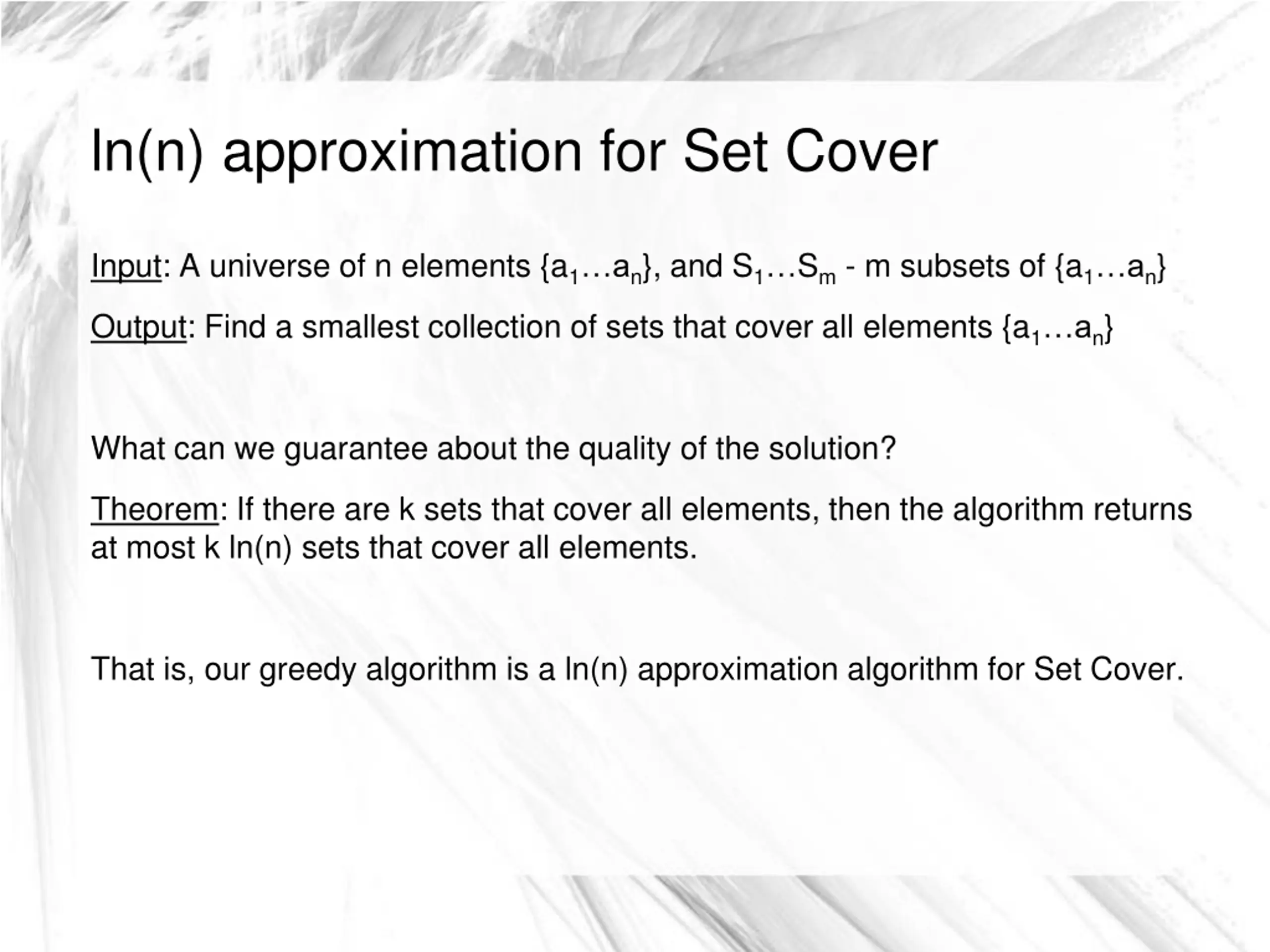

ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} What can we guarantee about the quality of the solution? Theorem: If there are k sets that cover all elements, then the algorithm returns at most k ln(n) sets that cover all elements. That is, our greedy algorithm is a ln(n) approximation algorithm for Set Cover.

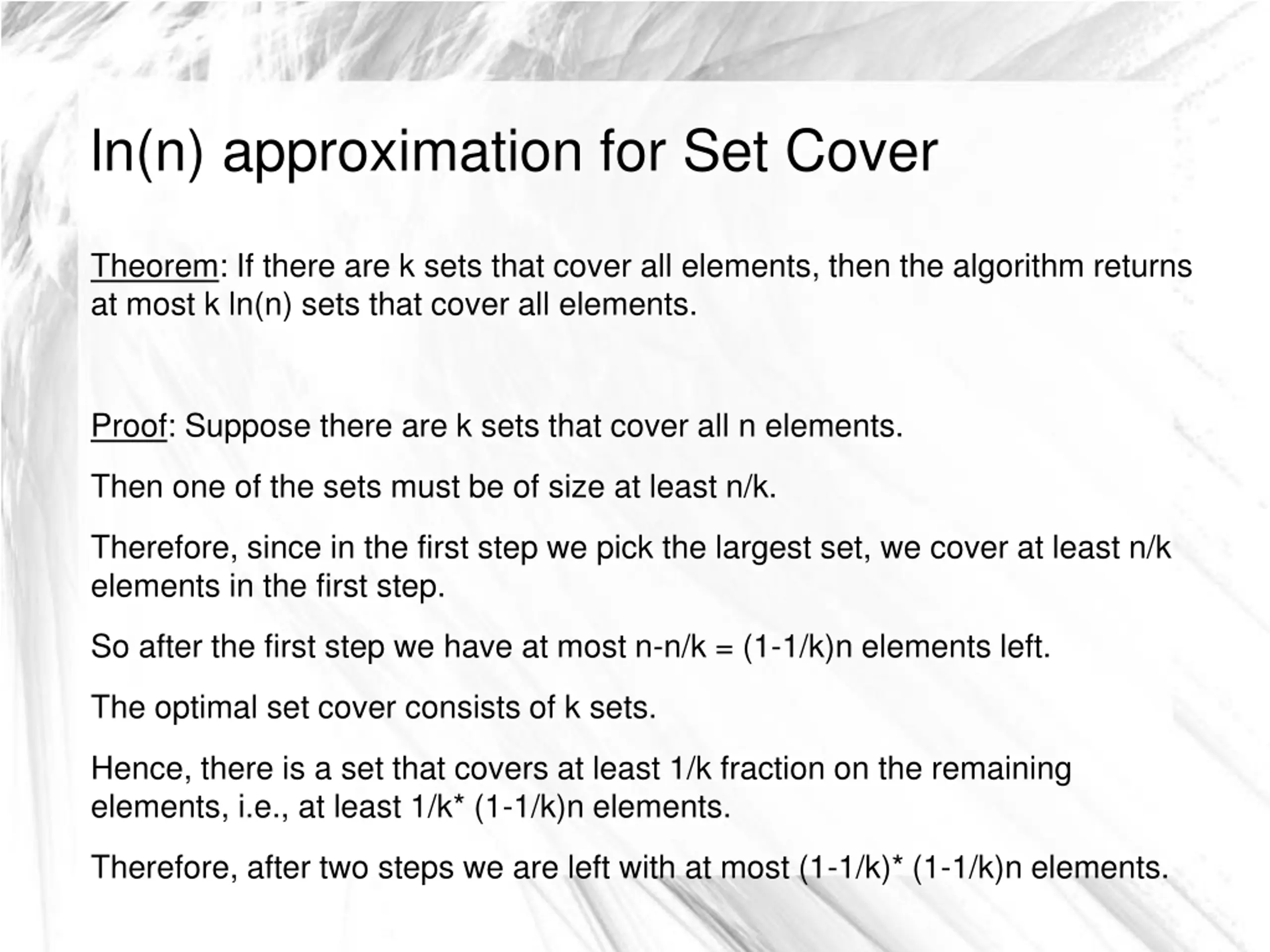

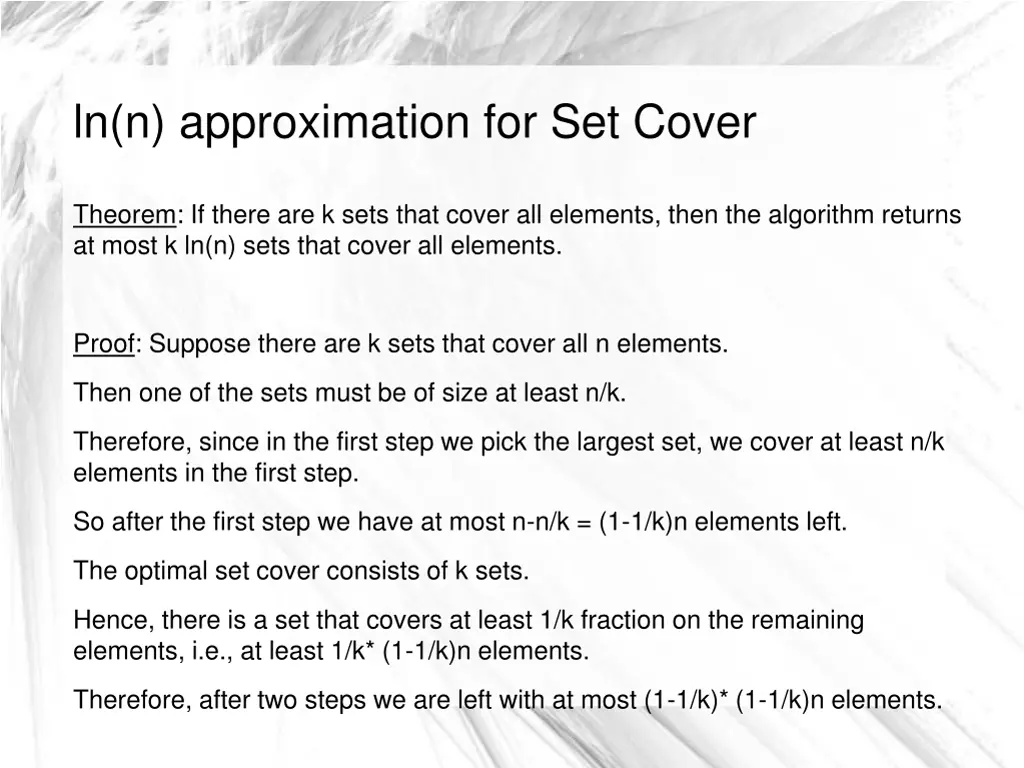

ln(n) approximation for Set Cover Theorem: If there are k sets that cover all elements, then the algorithm returns at most k ln(n) sets that cover all elements. Proof: Suppose there are k sets that cover all n elements. Then one of the sets must be of size at least n/k. Therefore, since in the first step we pick the largest set, we cover at least n/k elements in the first step. So after the first step we have at most n-n/k = (1-1/k)n elements left. The optimal set cover consists of k sets. Hence, there is a set that covers at least 1/k fraction on the remaining elements, i.e., at least 1/k* (1-1/k)n elements. Therefore, after two steps we are left with at most (1-1/k)* (1-1/k)n elements.

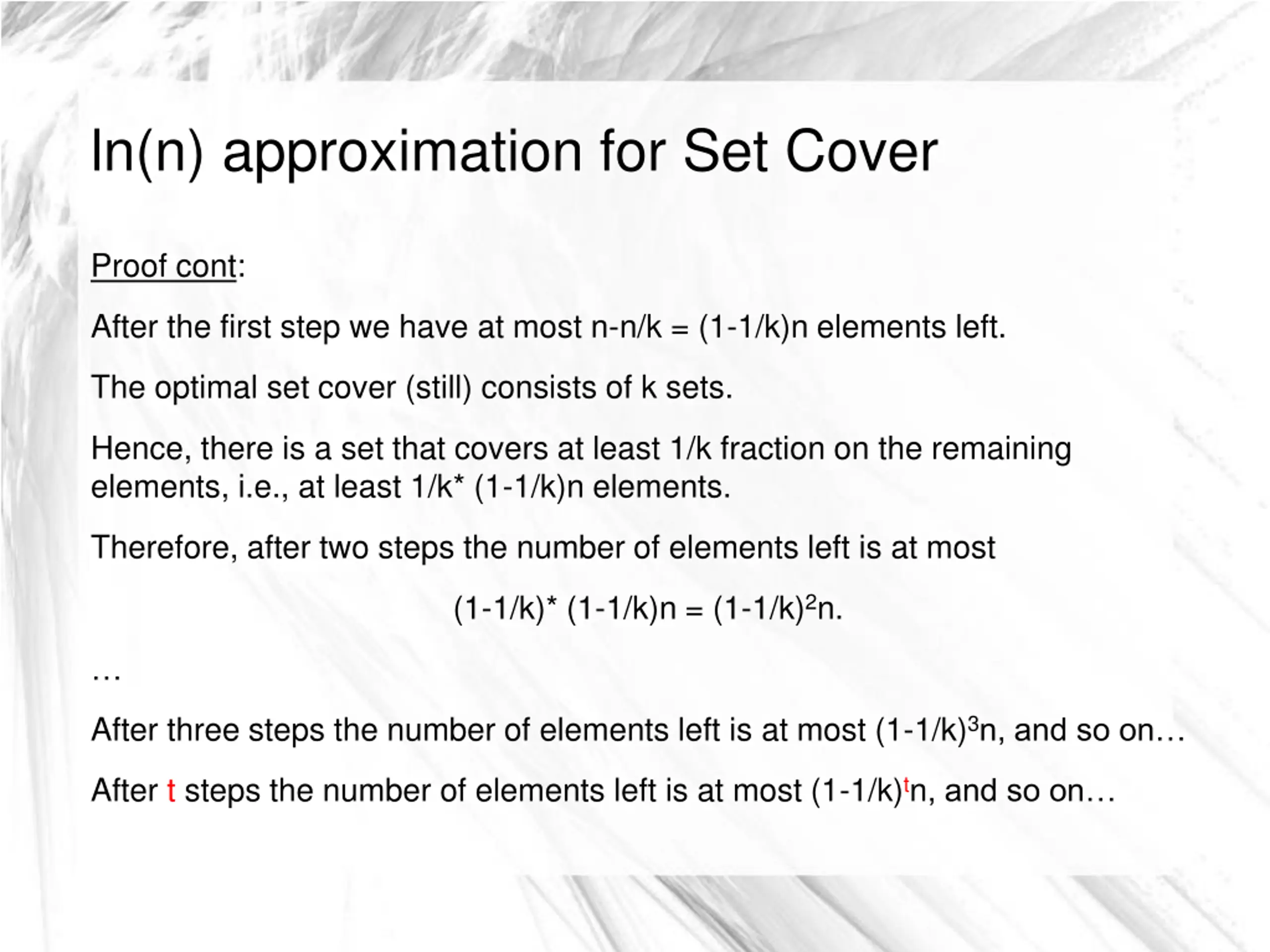

ln(n) approximation for Set Cover Proof cont: After the first step we have at most n-n/k = (1-1/k)n elements left. The optimal set cover (still) consists of k sets. Hence, there is a set that covers at least 1/k fraction on the remaining elements, i.e., at least 1/k* (1-1/k)n elements. Therefore, after two steps the number of elements left is at most (1-1/k)* (1-1/k)n = (1-1/k)2n. After three steps the number of elements left is at most (1-1/k)3n, and so on After t steps the number of elements left is at most (1-1/k)tn, and so on

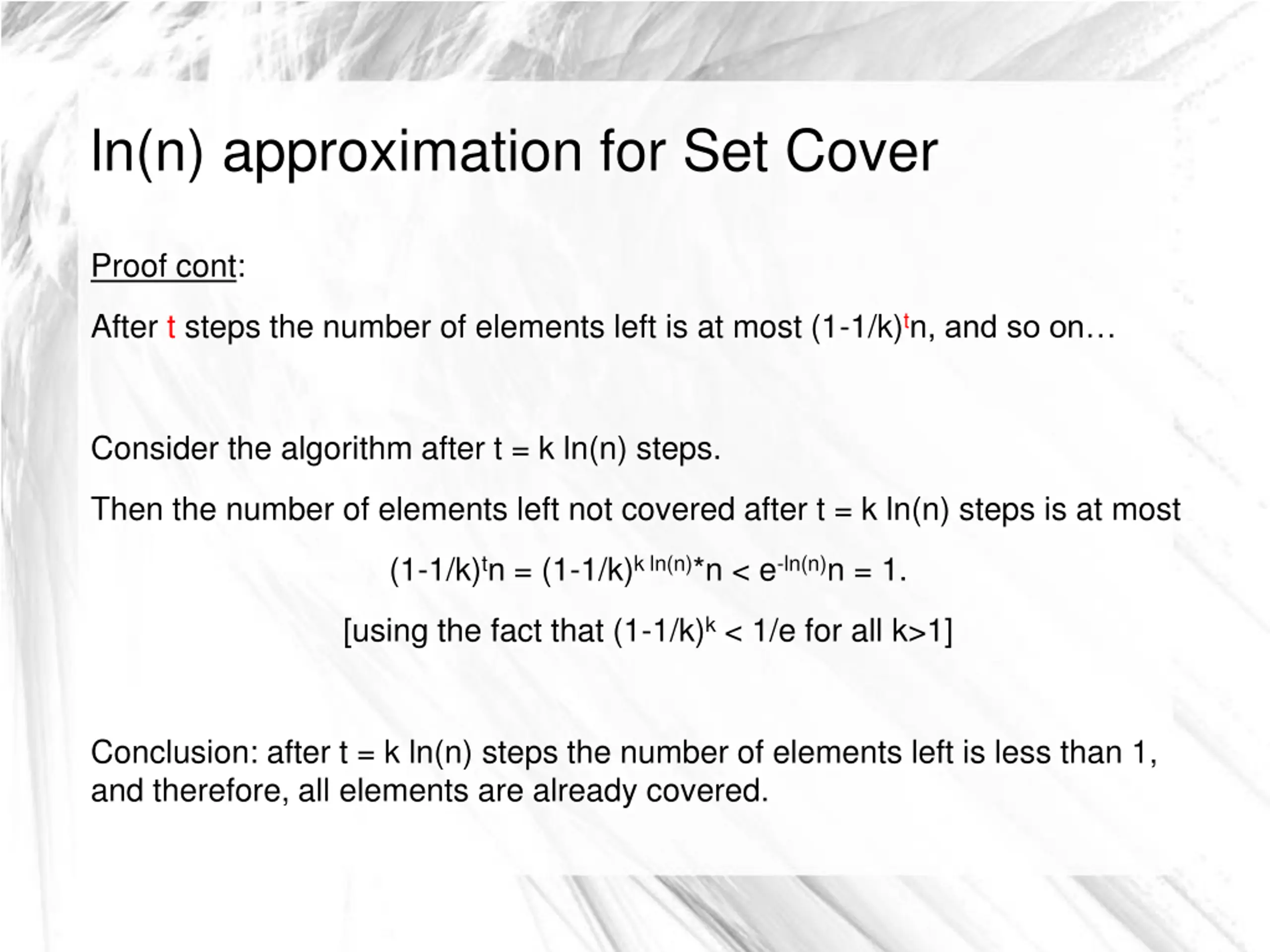

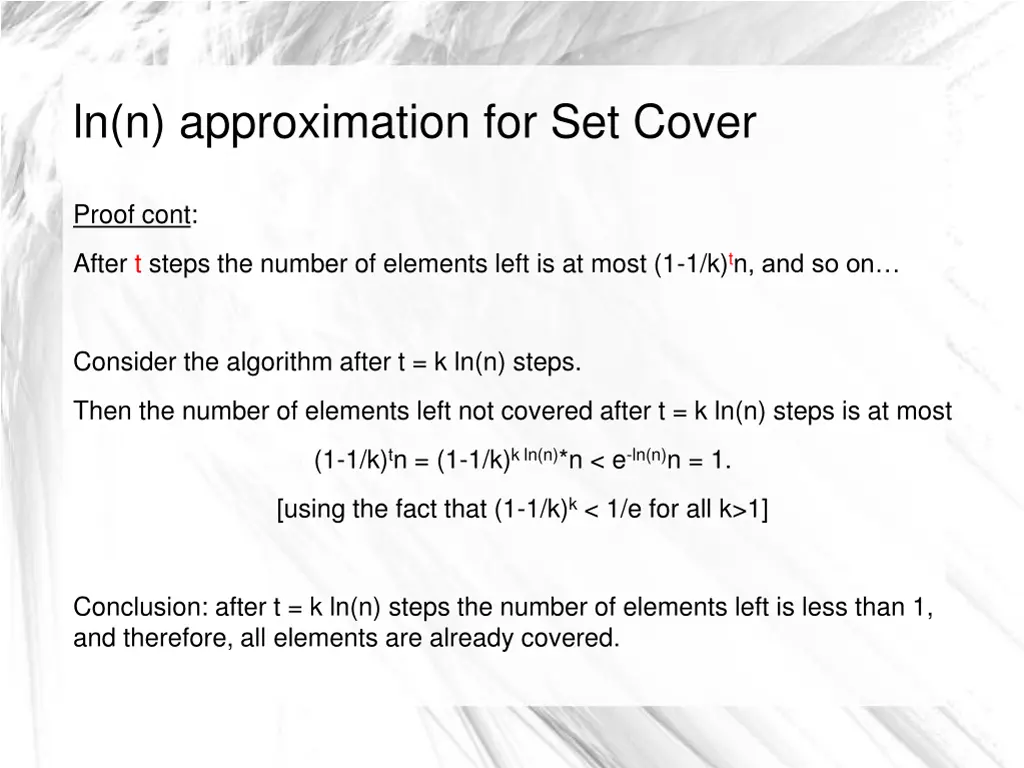

ln(n) approximation for Set Cover Proof cont: After t steps the number of elements left is at most (1-1/k)tn, and so on Consider the algorithm after t = k ln(n) steps. Then the number of elements left not covered after t = k ln(n) steps is at most (1-1/k)tn = (1-1/k)k ln(n)*n < e-ln(n)n = 1. [using the fact that (1-1/k)k < 1/e for all k>1] Conclusion: after t = k ln(n) steps the number of elements left is less than 1, and therefore, all elements are already covered.
ln(n) approximation for Set Cover Input: A universe of n elements {a1 an}, and S1 Sm - m subsets of {a1 an} Output: Find a smallest collection of sets that cover all elements {a1 an} Greedy Algorithm: 1. Let C = empty set // elements covered so far 2. Let SOL = empty set 3. While C U do find Si SOL such that Si covers maximal number of points in U\C Add Si to SOL Add the elements of Si to C 4. Return SOL

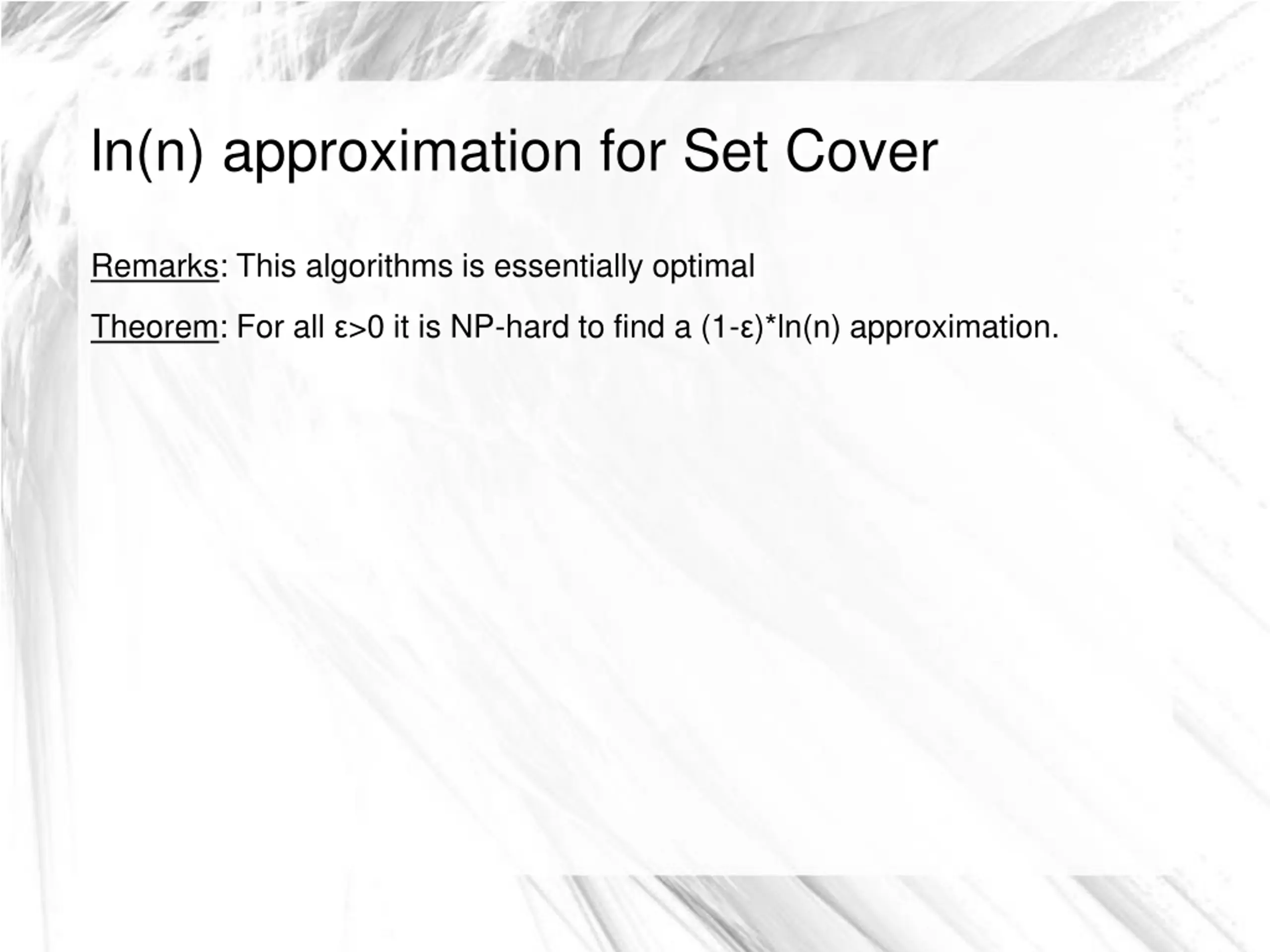

ln(n) approximation for Set Cover Remarks: This algorithms is essentially optimal Theorem: For all >0 it is NP-hard to find a (1- )*ln(n) approximation.
Questions? Comments?

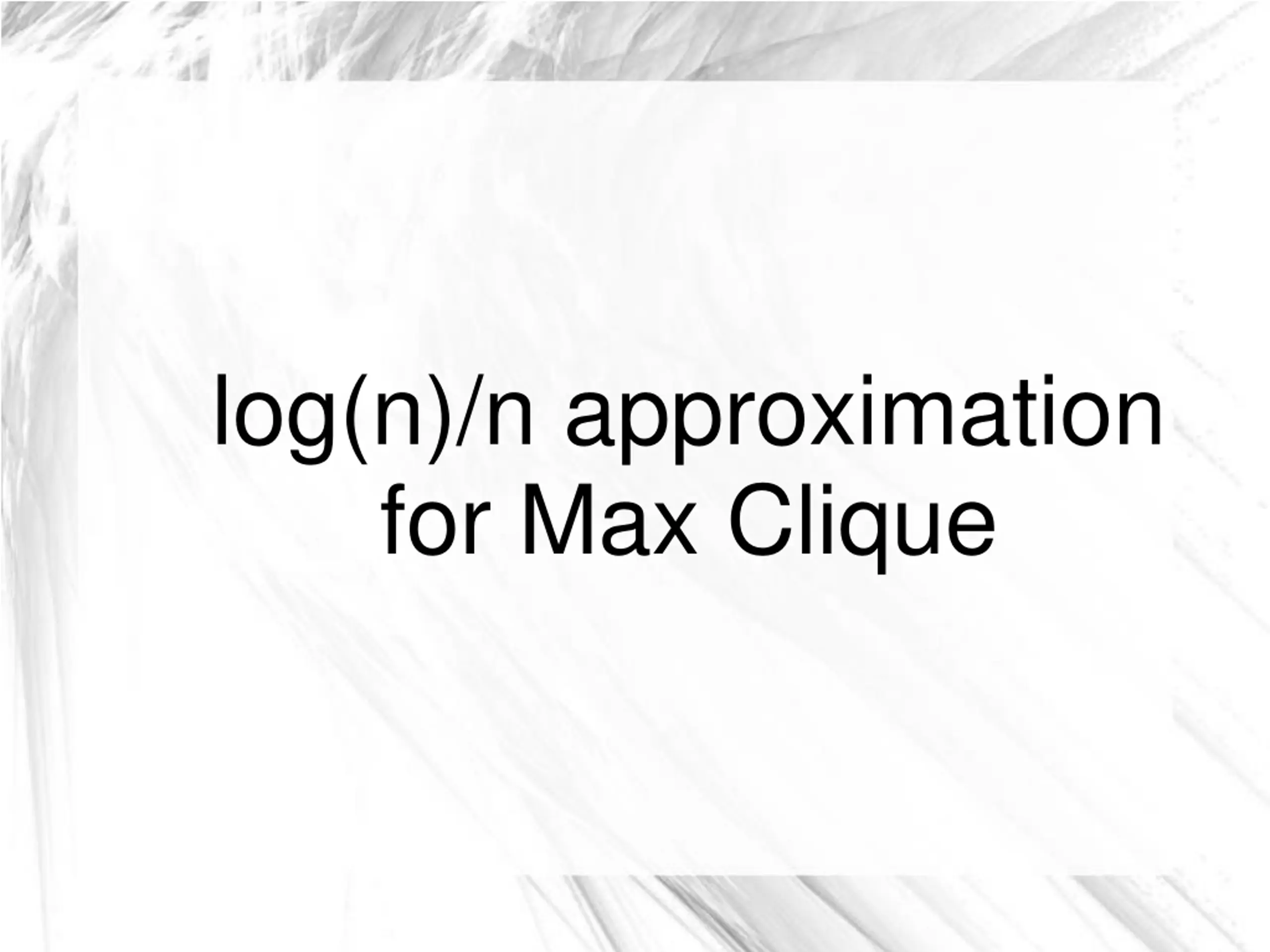

log(n)/n approximation for Max Clique

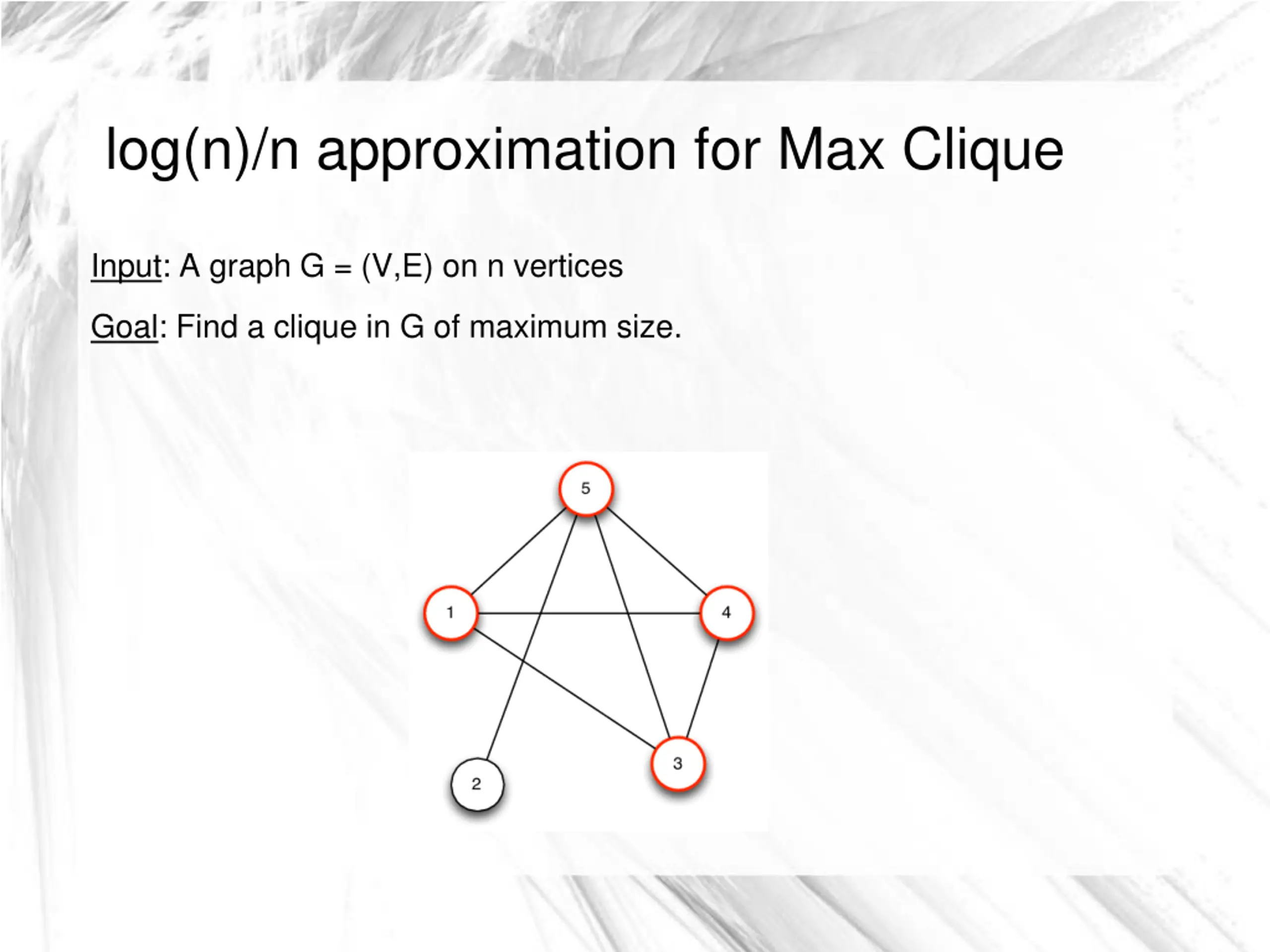

log(n)/n approximation for Max Clique Input: A graph G = (V,E) on n vertices Goal: Find a clique in G of maximum size.

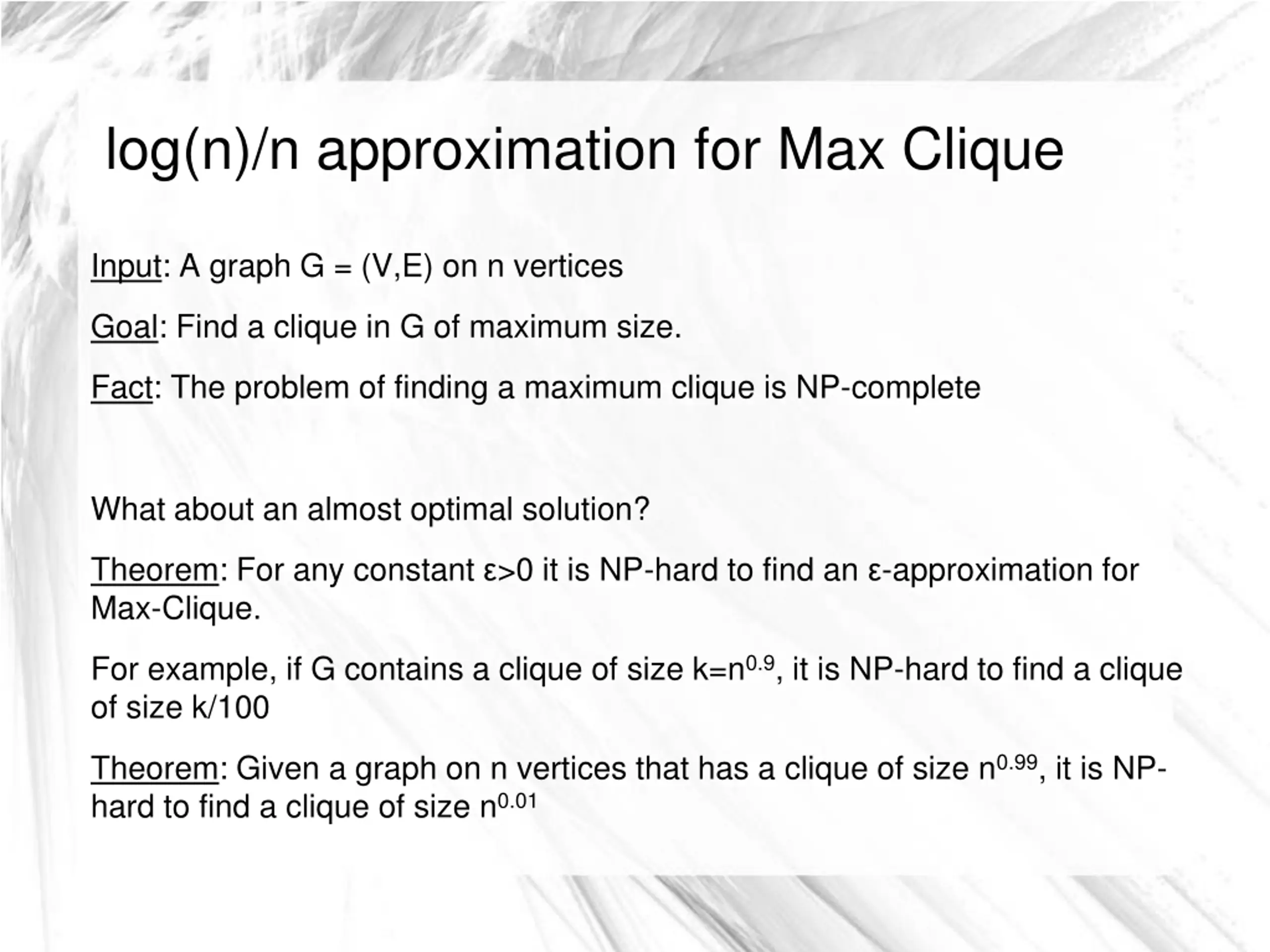

log(n)/n approximation for Max Clique Input: A graph G = (V,E) on n vertices Goal: Find a clique in G of maximum size. Fact: The problem of finding a maximum clique is NP-complete What about an almost optimal solution? Theorem: For any constant >0 it is NP-hard to find an -approximation for Max-Clique. For example, if G contains a clique of size k=n0.9, it is NP-hard to find a clique of size k/100 Theorem: Given a graph on n vertices that has a clique of size n0.99, it is NP- hard to find a clique of size n0.01

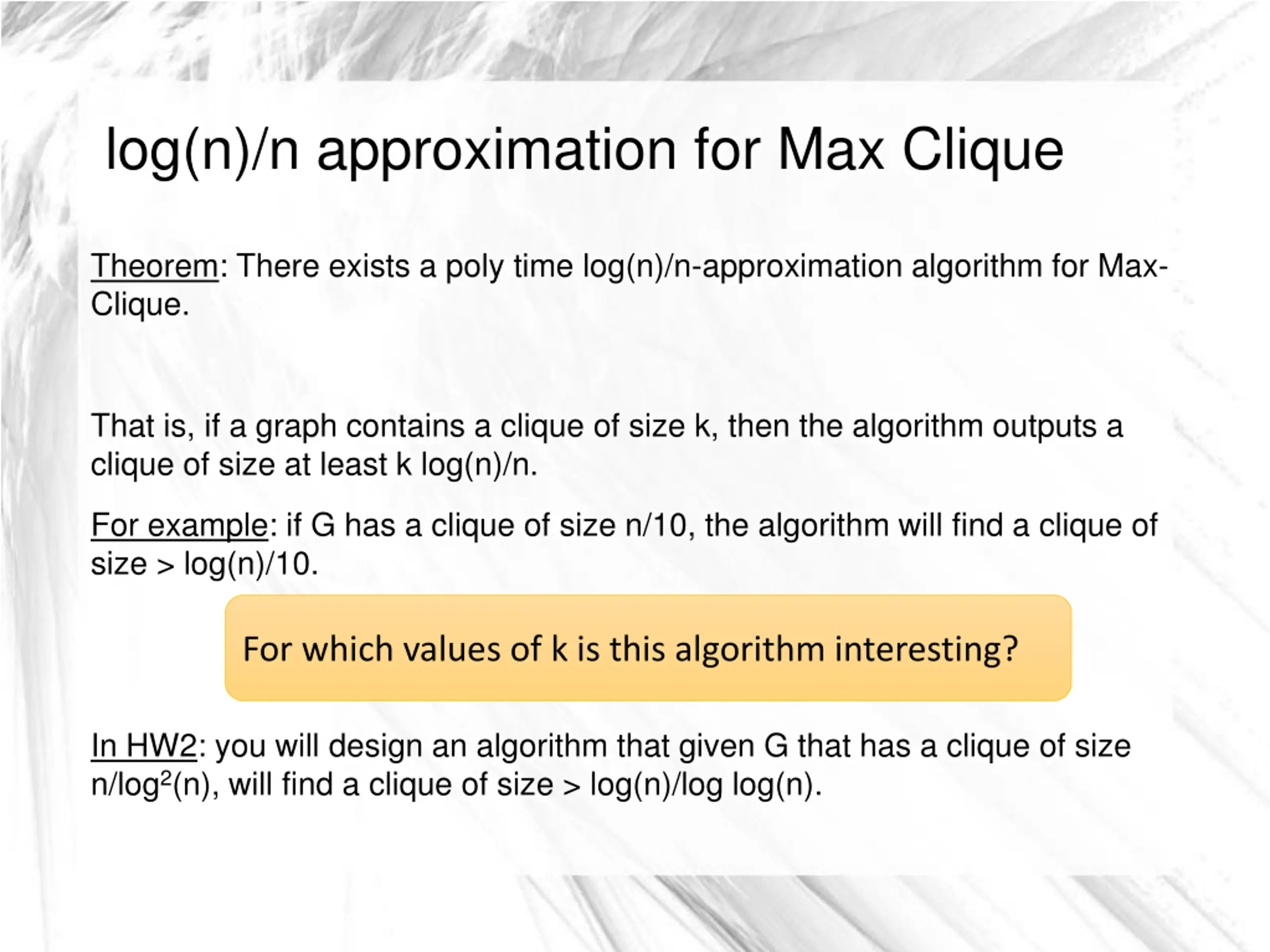

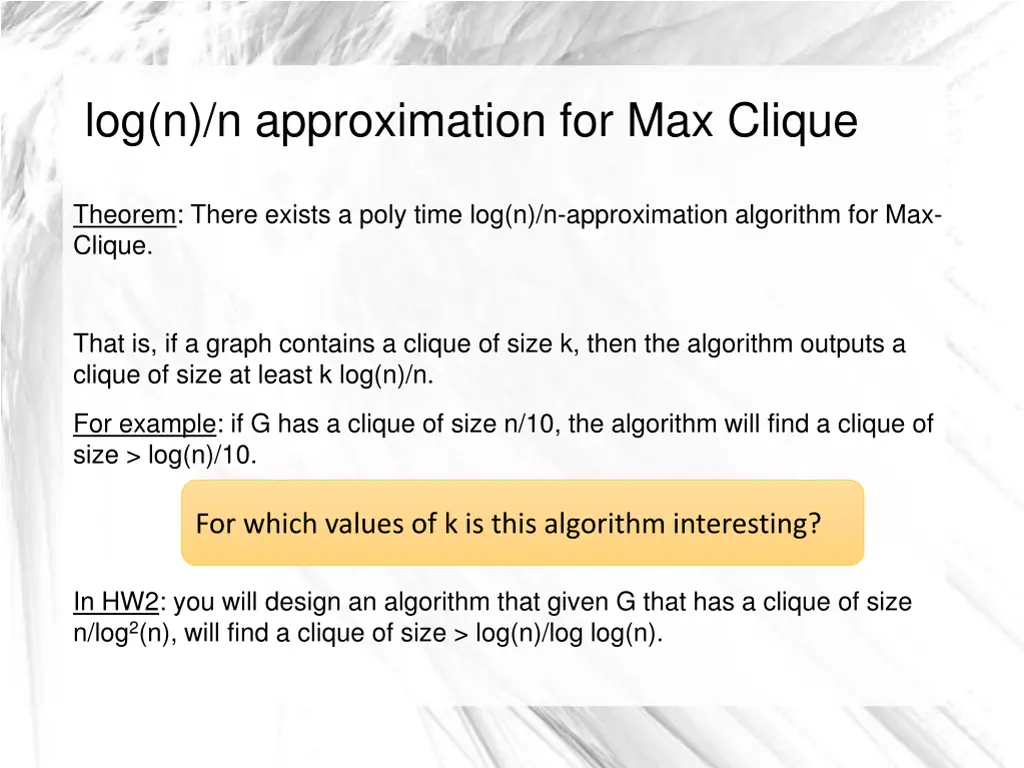

log(n)/n approximation for Max Clique Theorem: There exists a poly time log(n)/n-approximation algorithm for Max- Clique. That is, if a graph contains a clique of size k, then the algorithm outputs a clique of size at least k log(n)/n. For example: if G has a clique of size n/10, the algorithm will find a clique of size > log(n)/10. For which values of k is this algorithm interesting? In HW2: you will design an algorithm that given G that has a clique of size n/log2(n), will find a clique of size > log(n)/log log(n).

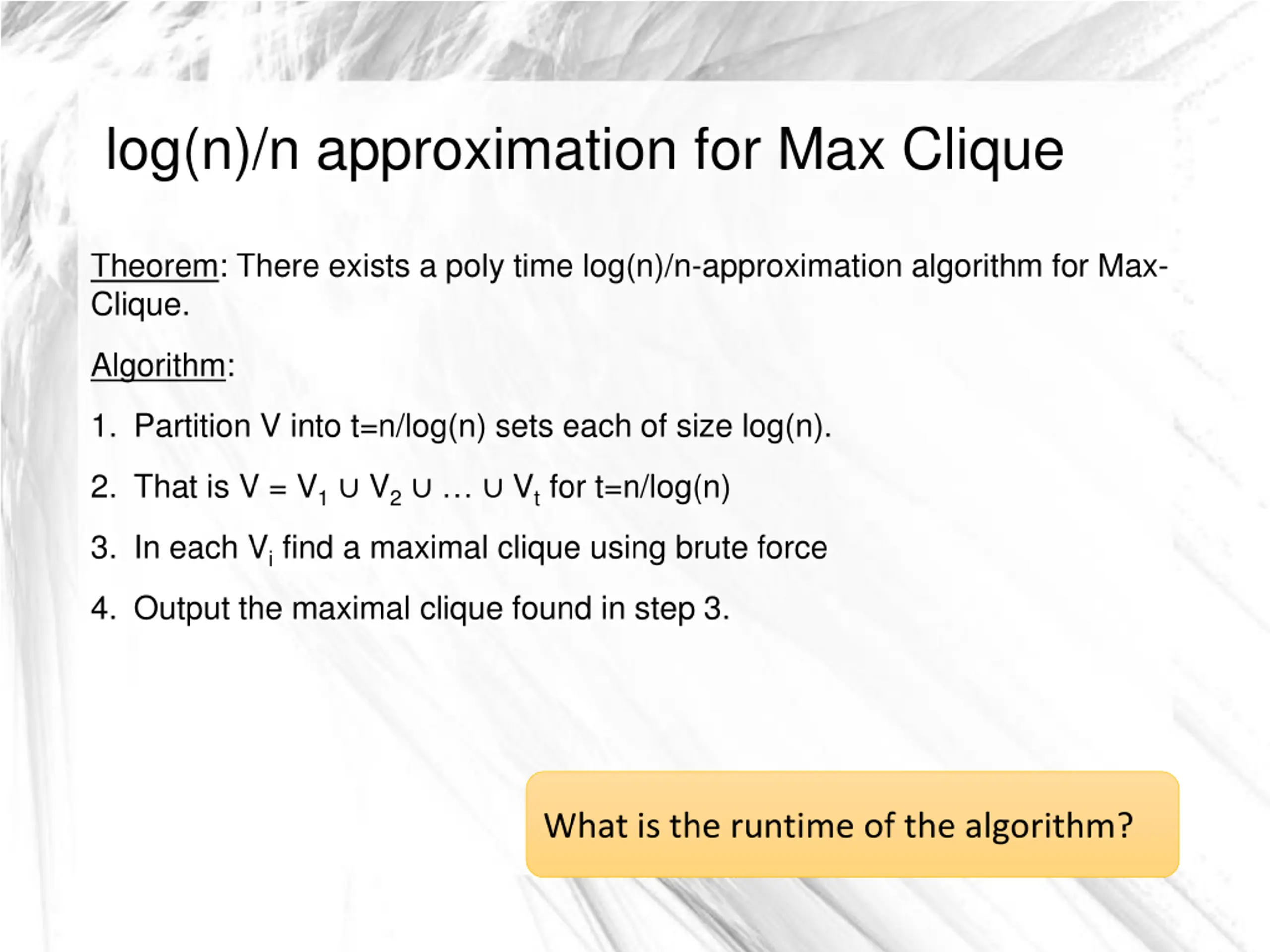

log(n)/n approximation for Max Clique Theorem: There exists a poly time log(n)/n-approximation algorithm for Max- Clique. Algorithm: 1. Partition V into t=n/log(n) sets each of size log(n). 2. That is V = V1 V2 Vt for t=n/log(n) 3. In each Vi find a maximal clique using brute force 4. Output the maximal clique found in step 3. What is the runtime of the algorithm?

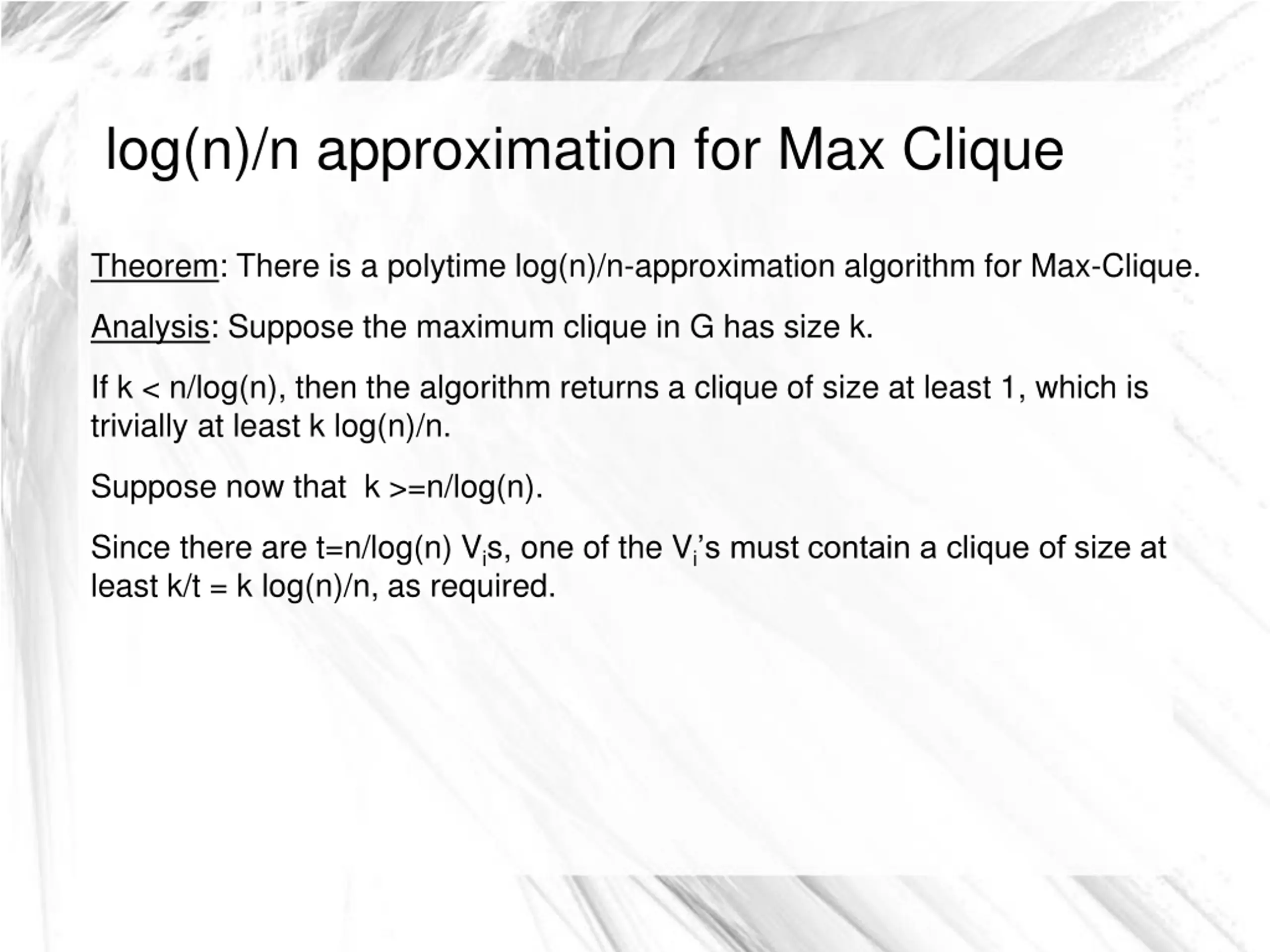

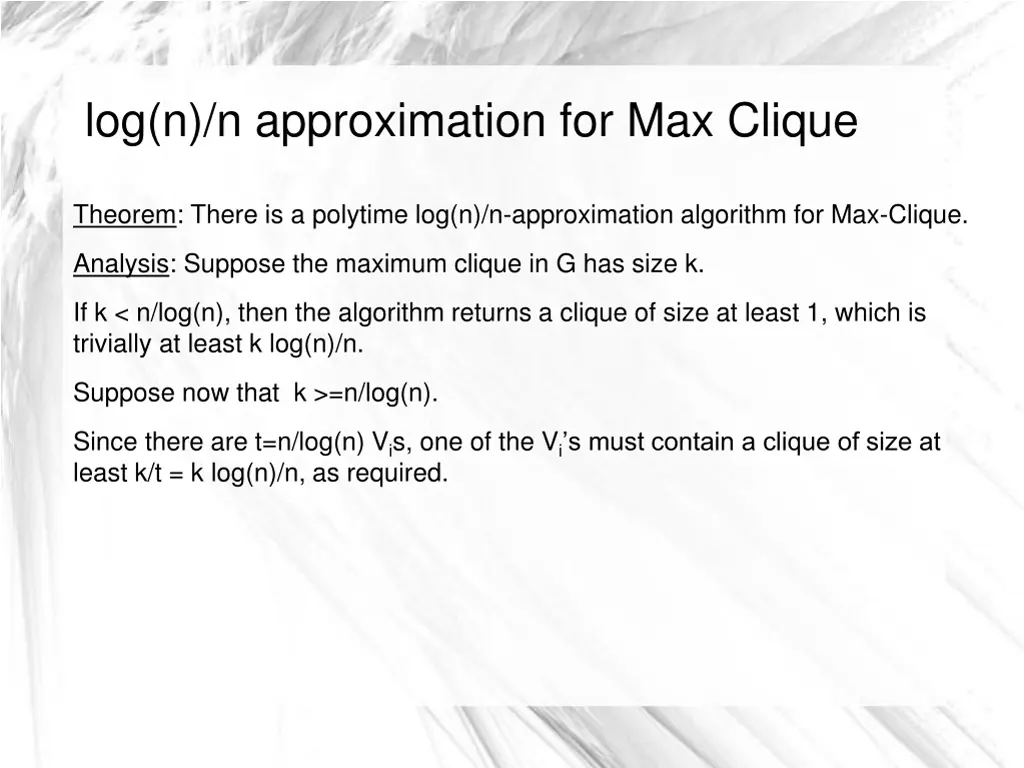

log(n)/n approximation for Max Clique Theorem: There is a polytime log(n)/n-approximation algorithm for Max-Clique. Analysis: Suppose the maximum clique in G has size k. If k < n/log(n), then the algorithm returns a clique of size at least 1, which is trivially at least k log(n)/n. Suppose now that k >=n/log(n). Since there are t=n/log(n) Vis, one of the Vi s must contain a clique of size at least k/t = k log(n)/n, as required.
Questions? Comments?
