ILC TDR Cavity and Gradient Rongli Geng April 26, 2011 31stILC Cavity Group Meeting

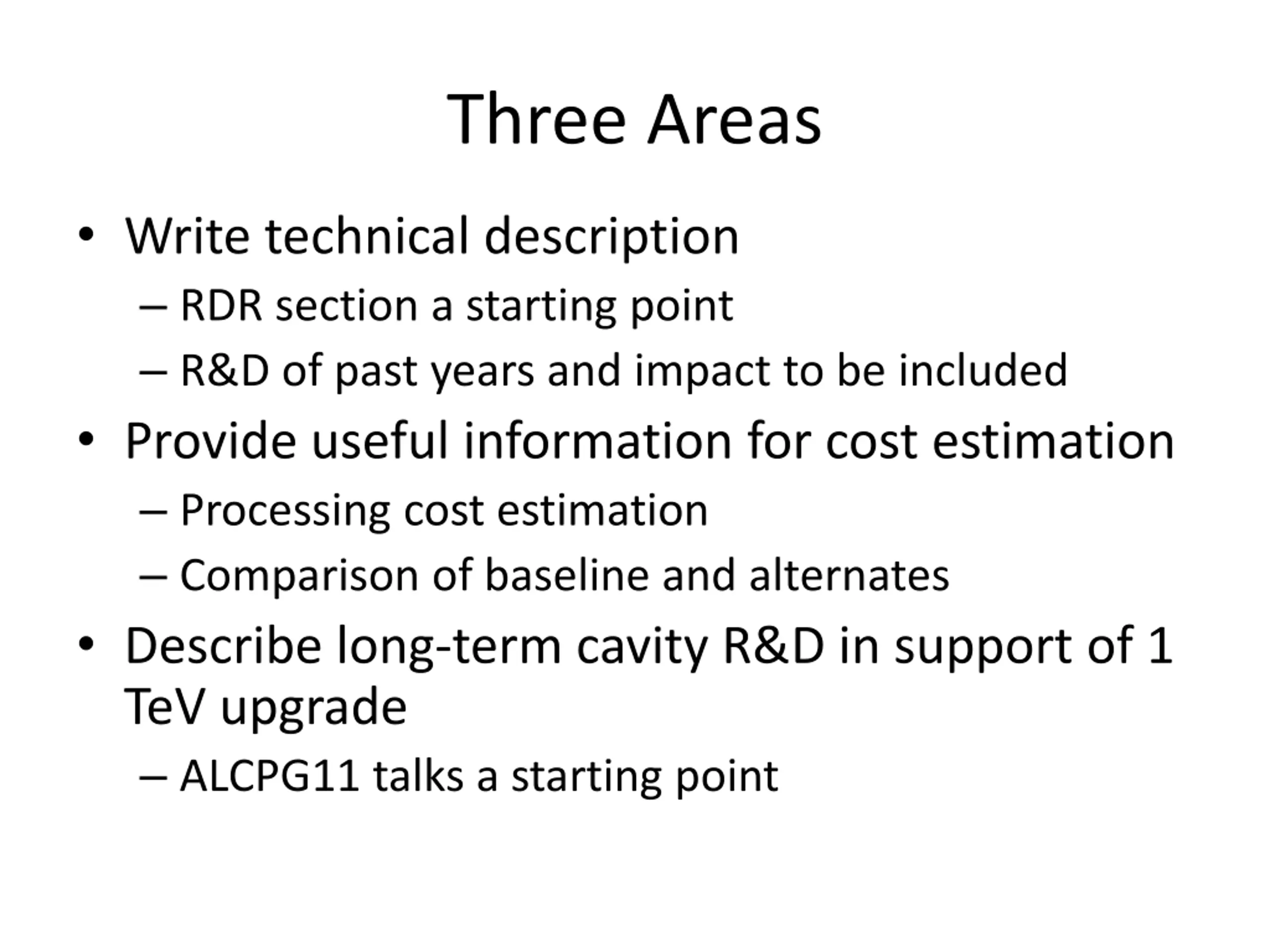

Three Areas Write technical description RDR section a starting point R&D of past years and impact to be included Provide useful information for cost estimation Processing cost estimation Comparison of baseline and alternates Describe long-term cavity R&D in support of 1 TeV upgrade ALCPG11 talks a starting point

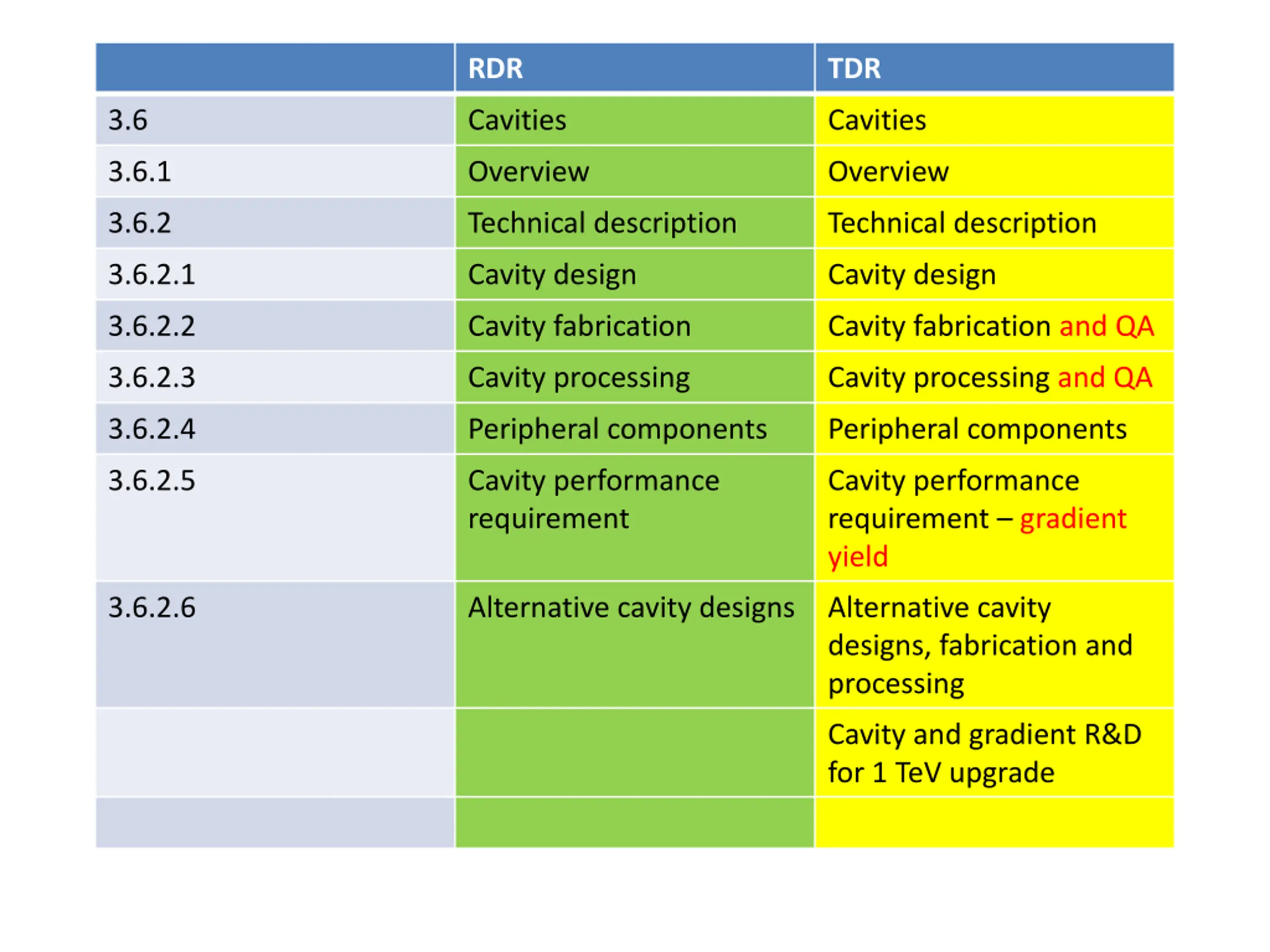

RDR TDR 3.6 Cavities Cavities 3.6.1 Overview Overview 3.6.2 Technical description Technical description 3.6.2.1 Cavity design Cavity design 3.6.2.2 Cavity fabrication Cavity fabrication and QA 3.6.2.3 Cavity processing Cavity processing and QA 3.6.2.4 Peripheral components Peripheral components 3.6.2.5 Cavity performance requirement Cavity performance requirement gradient yield 3.6.2.6 Alternative cavity designs Alternative cavity designs, fabrication and processing Cavity and gradient R&D for 1 TeV upgrade

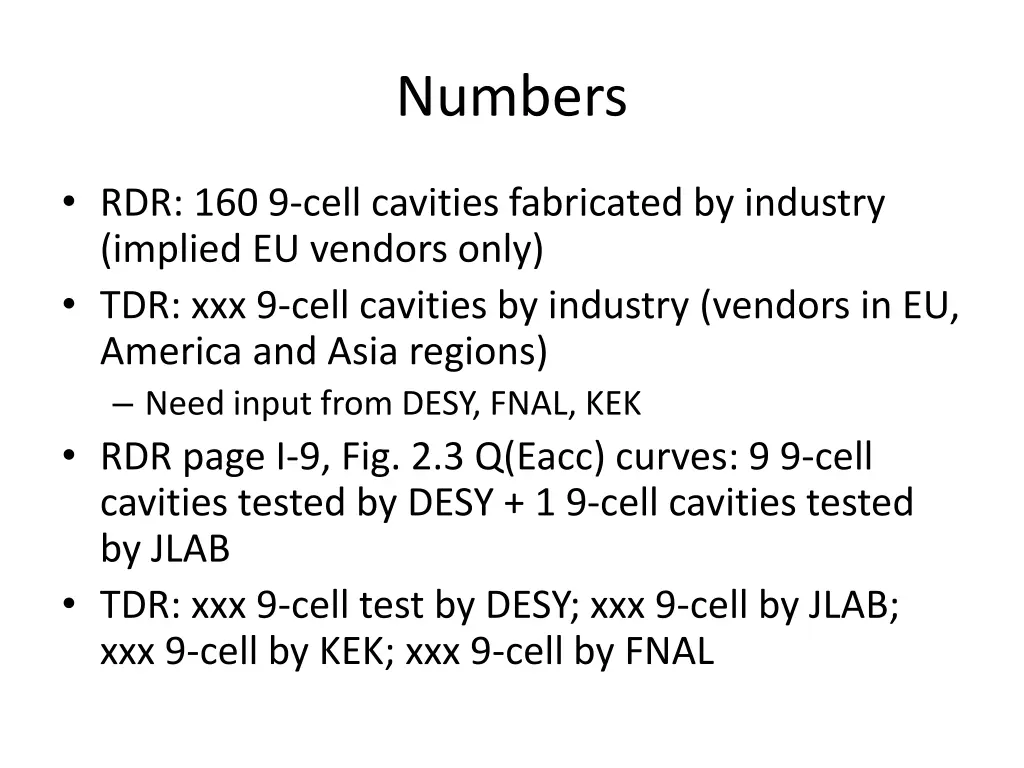

Numbers RDR: 160 9-cell cavities fabricated by industry (implied EU vendors only) TDR: xxx 9-cell cavities by industry (vendors in EU, America and Asia regions) Need input from DESY, FNAL, KEK RDR page I-9, Fig. 2.3 Q(Eacc) curves: 9 9-cell cavities tested by DESY + 1 9-cell cavities tested by JLAB TDR: xxx 9-cell test by DESY; xxx 9-cell by JLAB; xxx 9-cell by KEK; xxx 9-cell by FNAL
