Fluid Mechanics II Dr. Afsaneh Mojra Dept of Mechanical Engineering

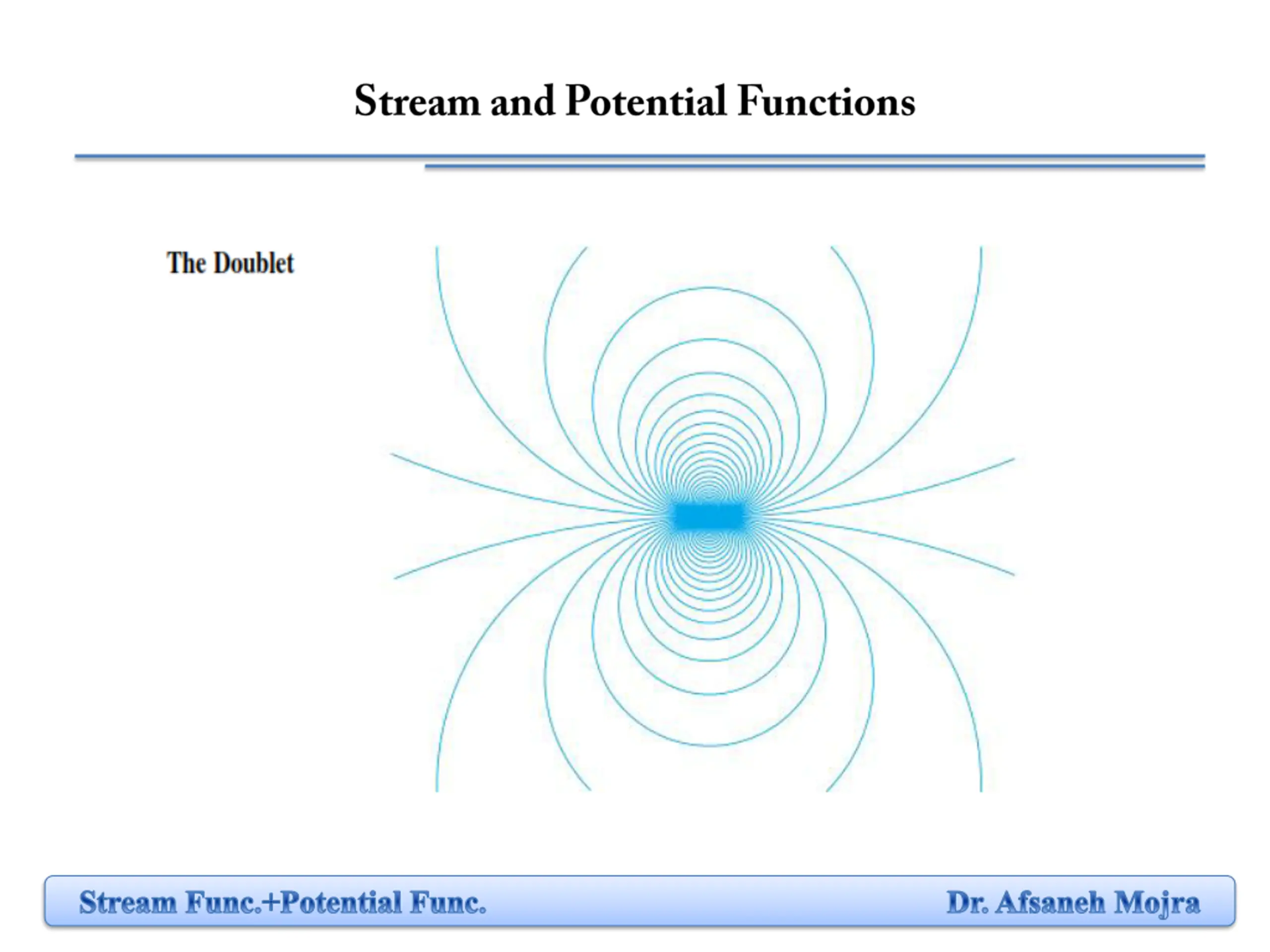

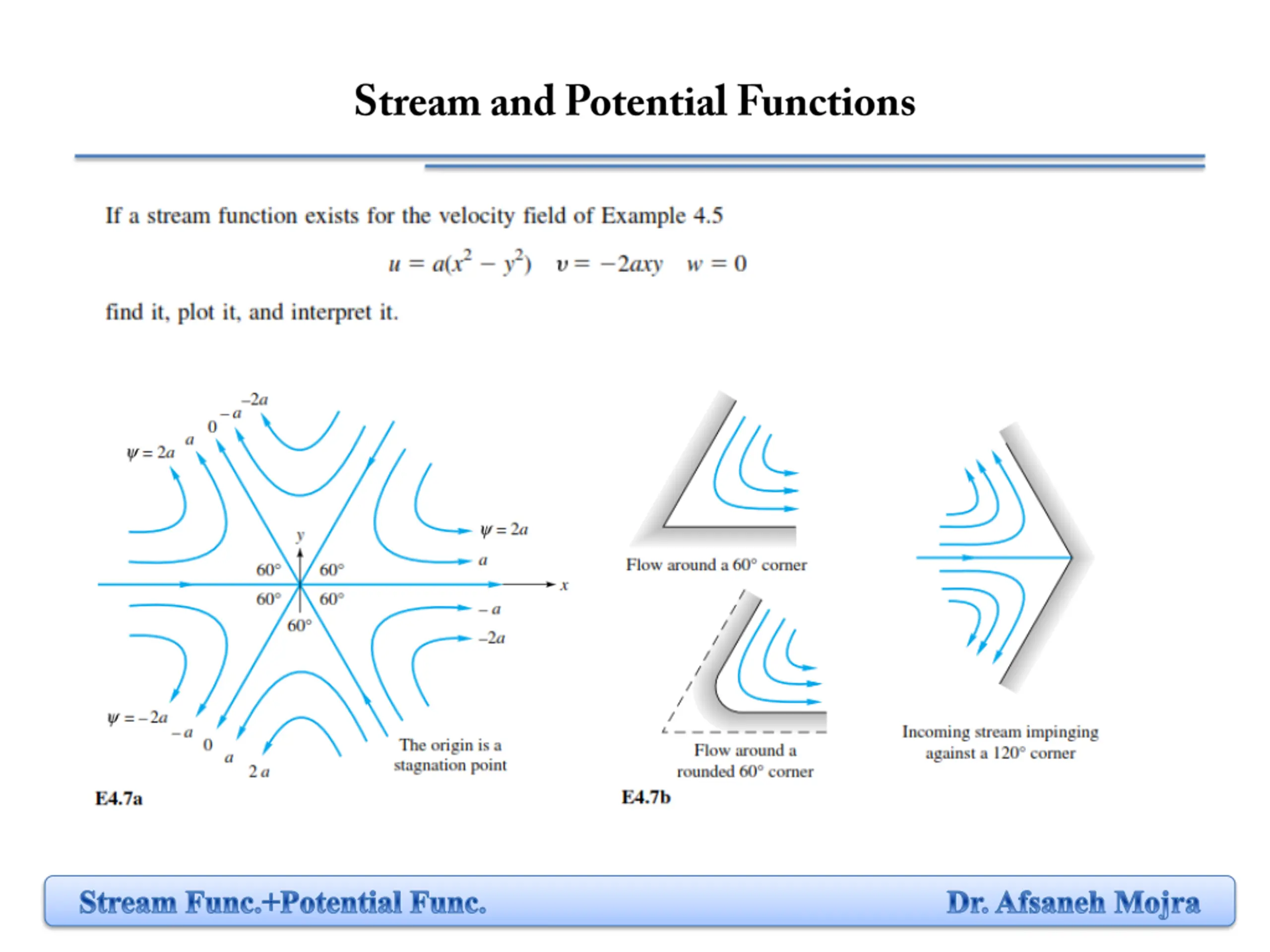

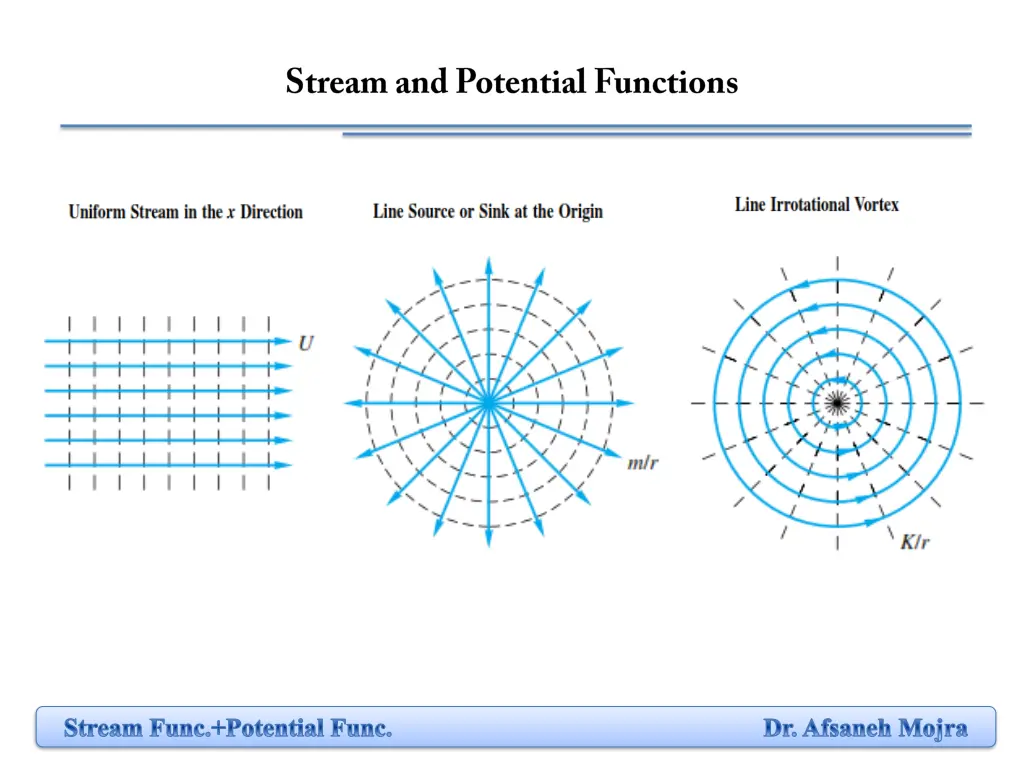

Stream Func.+Potential Func. Dr. Afsaneh Mojra

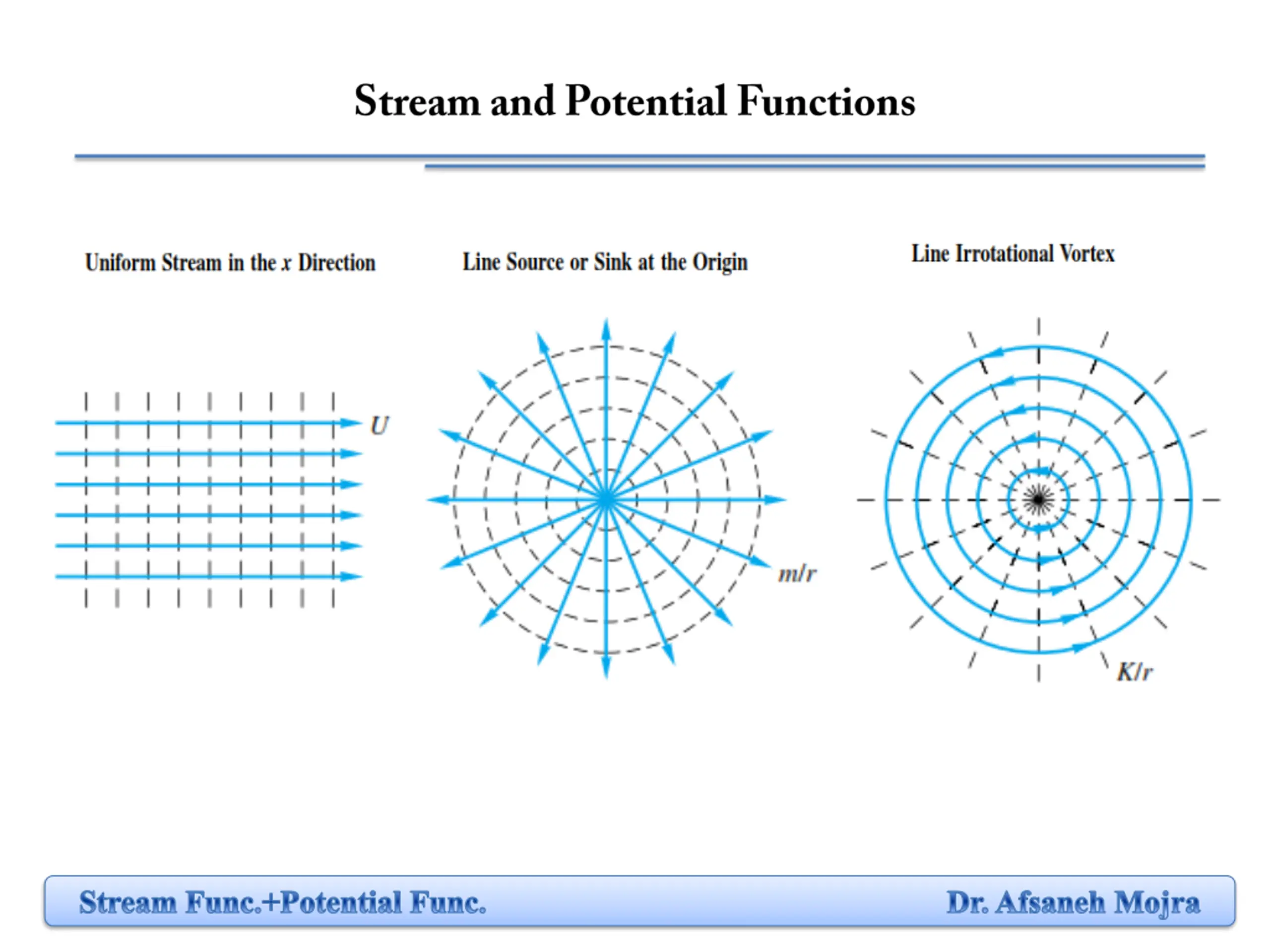

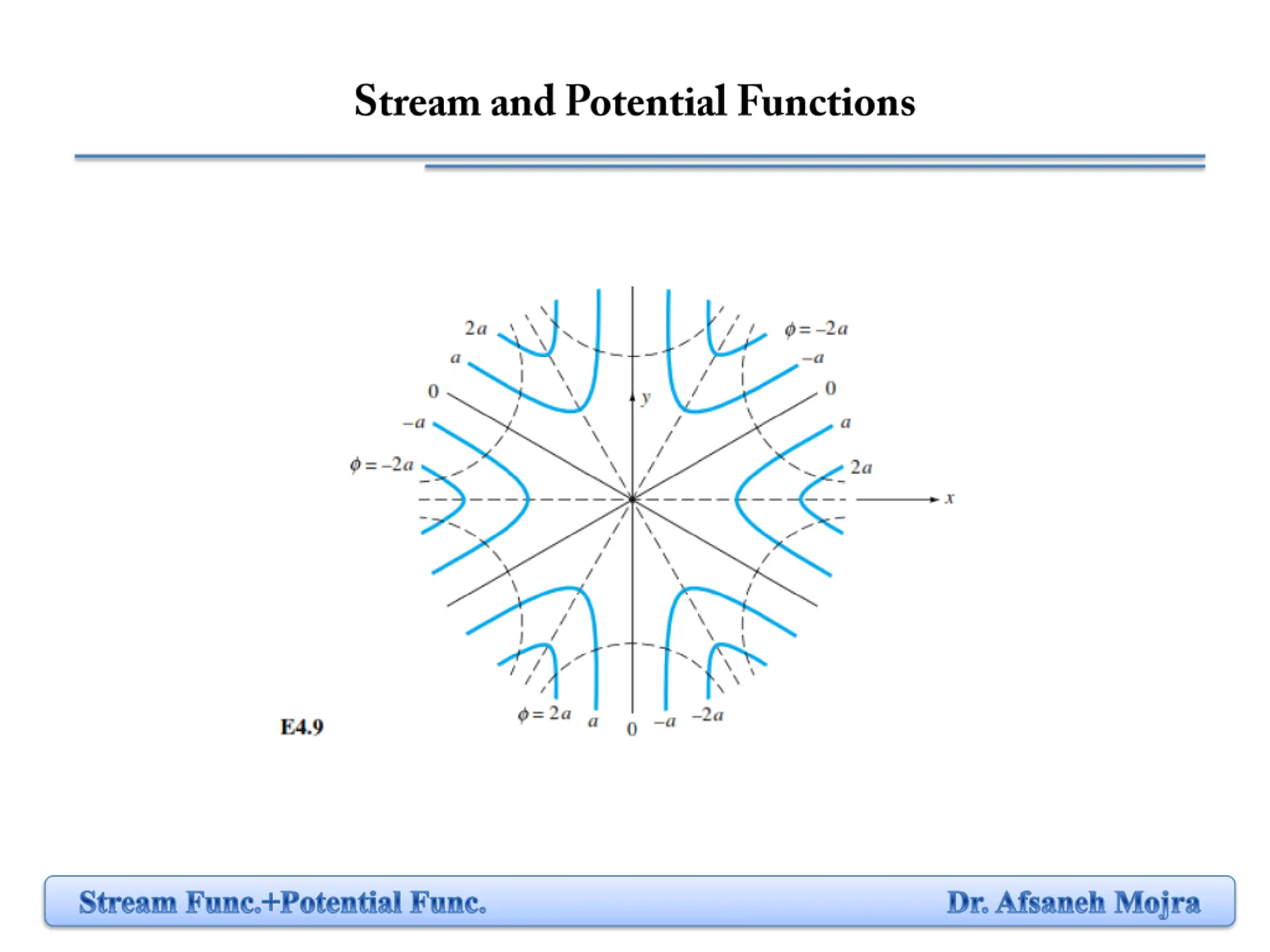

Stream Func.+Potential Func. Dr. Afsaneh Mojra

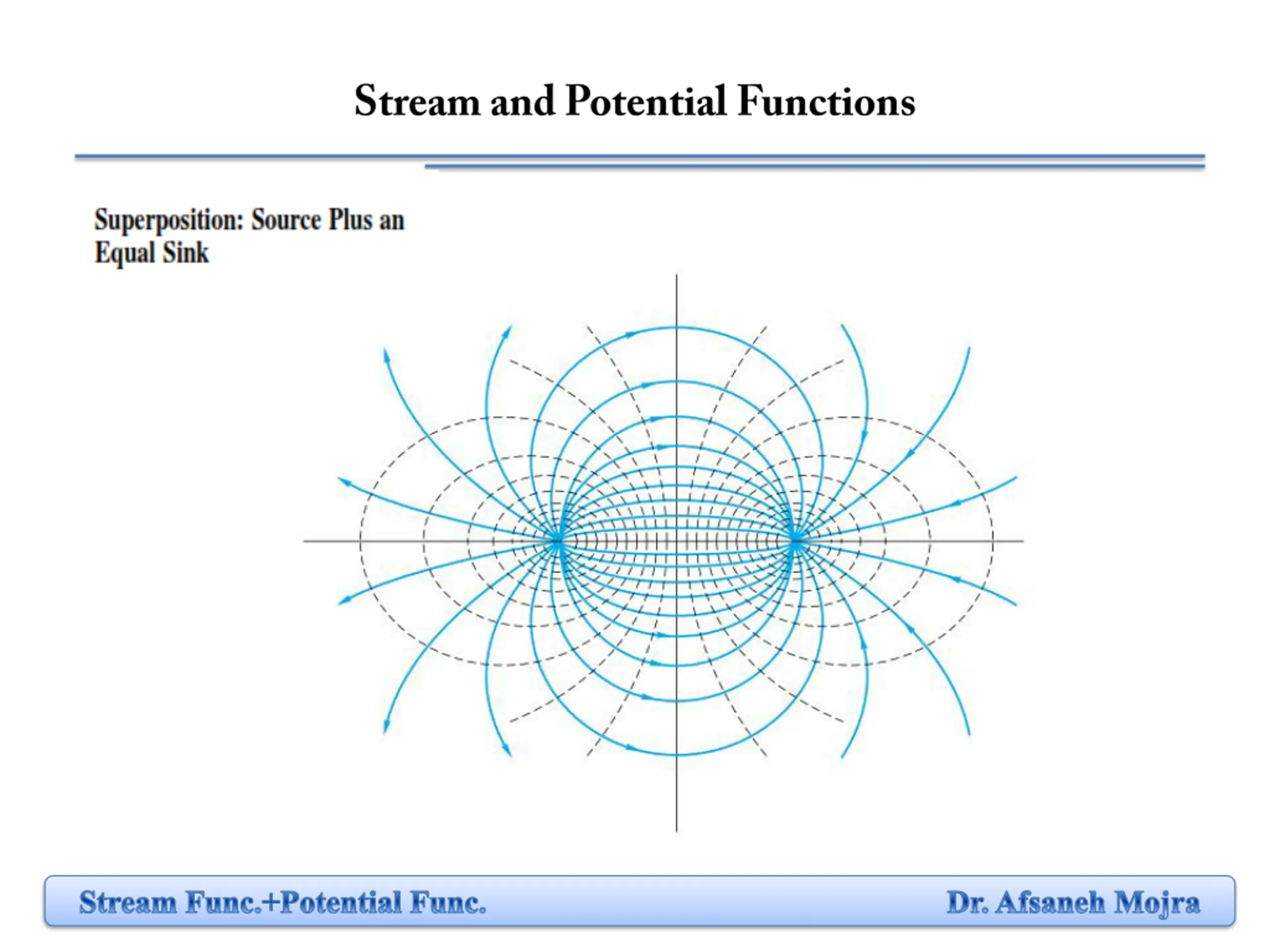

Stream Func.+Potential Func. Dr. Afsaneh Mojra
Stream Func.+Potential Func. Dr. Afsaneh Mojra
Stream Func.+Potential Func. Dr. Afsaneh Mojra

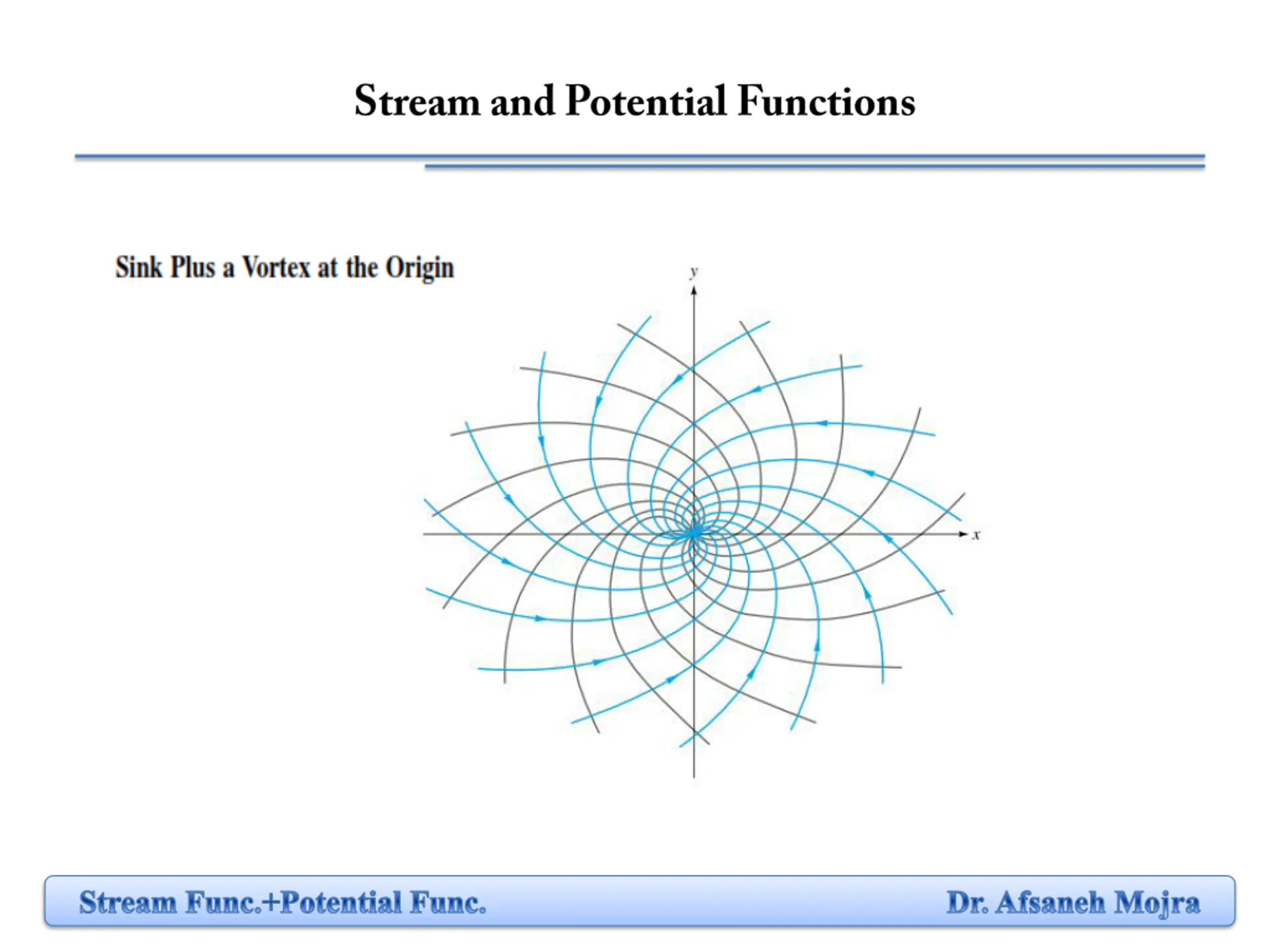

Stream Func.+Potential Func. Dr. Afsaneh Mojra

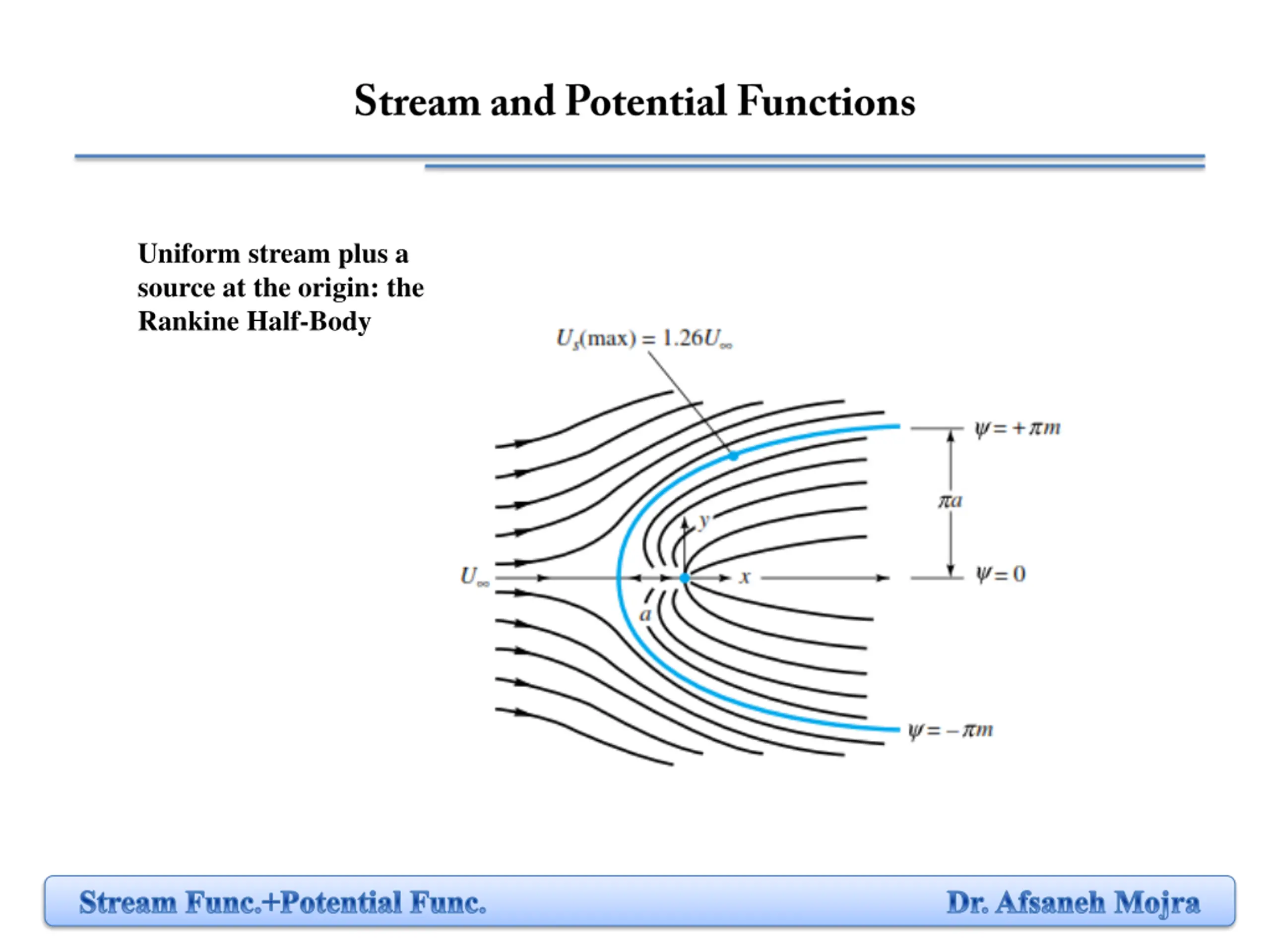

Uniform stream plus a source at the origin: the Rankine Half-Body Stream Func.+Potential Func. Dr. Afsaneh Mojra

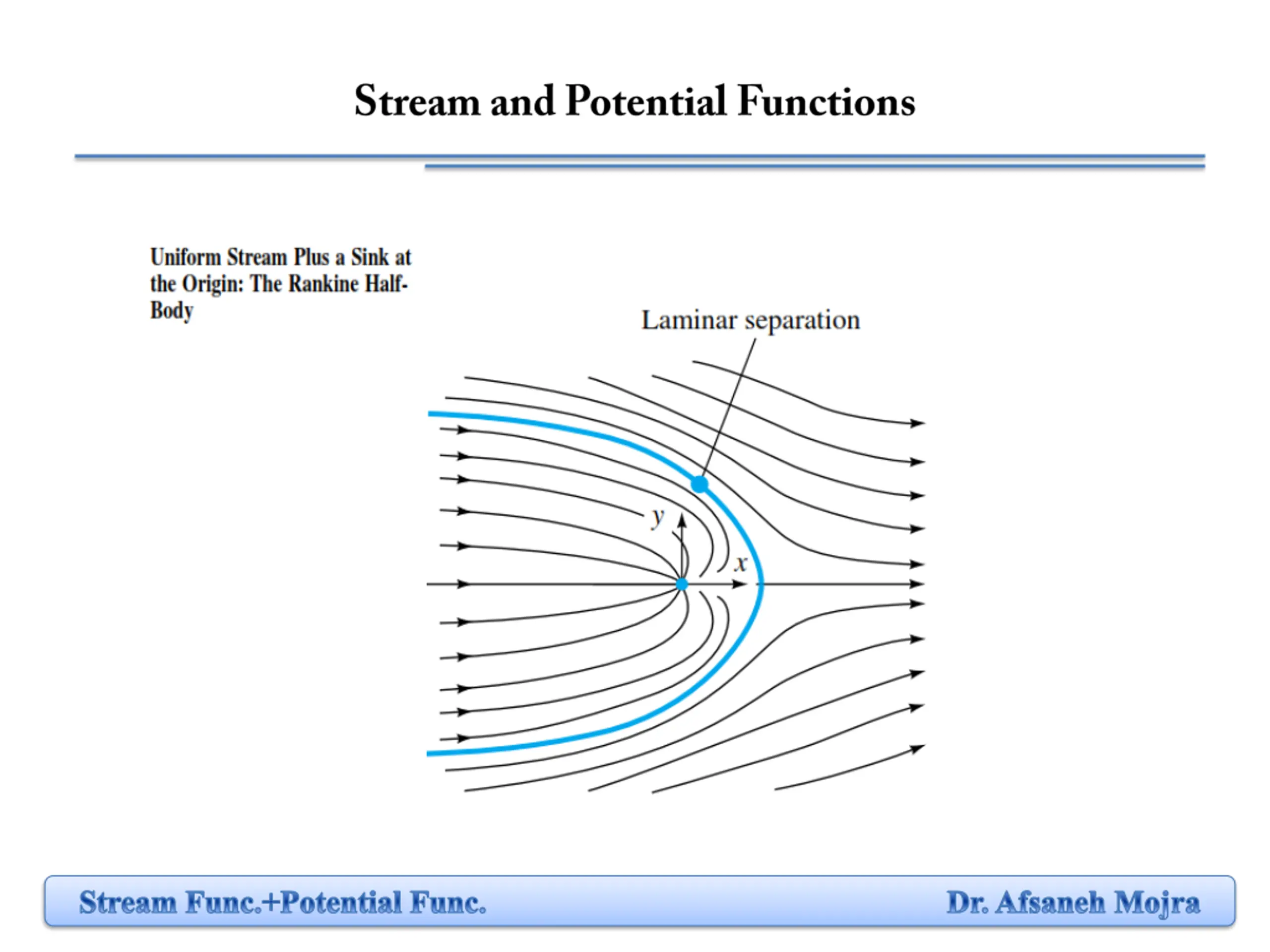

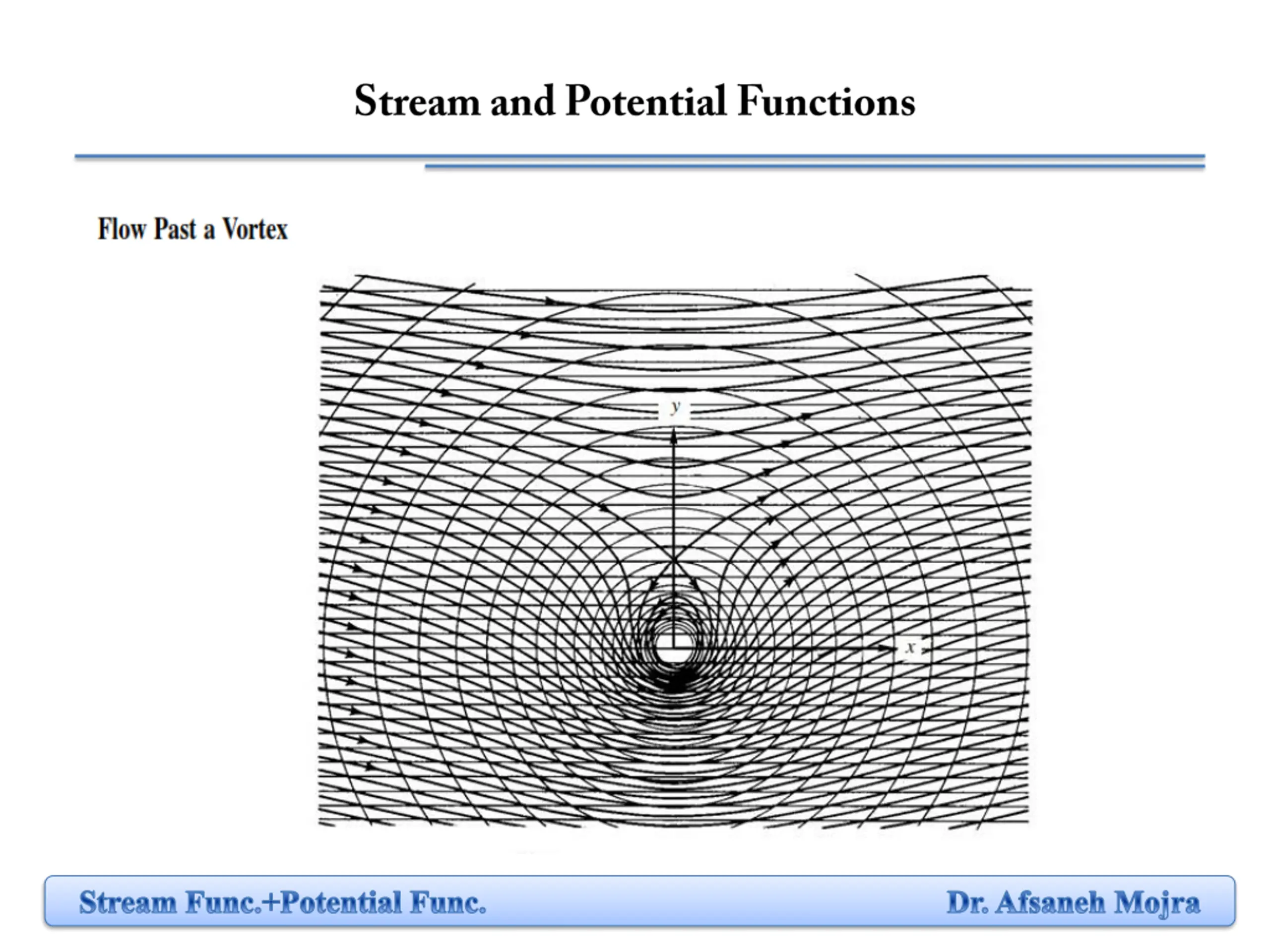

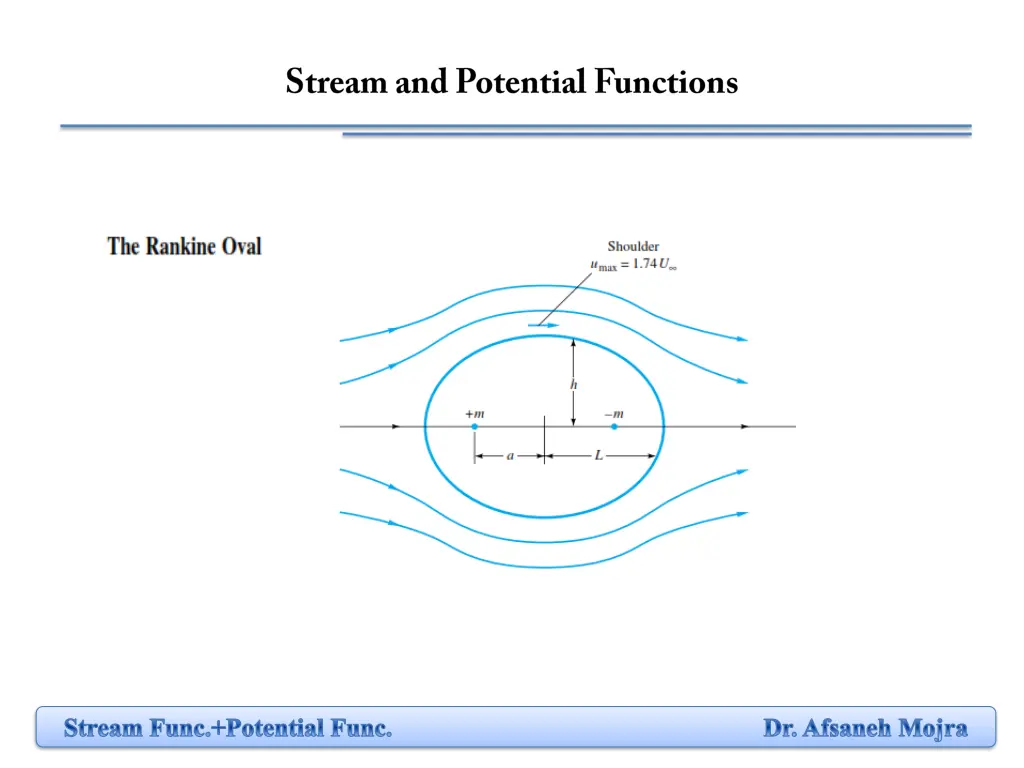

Stream Func.+Potential Func. Dr. Afsaneh Mojra

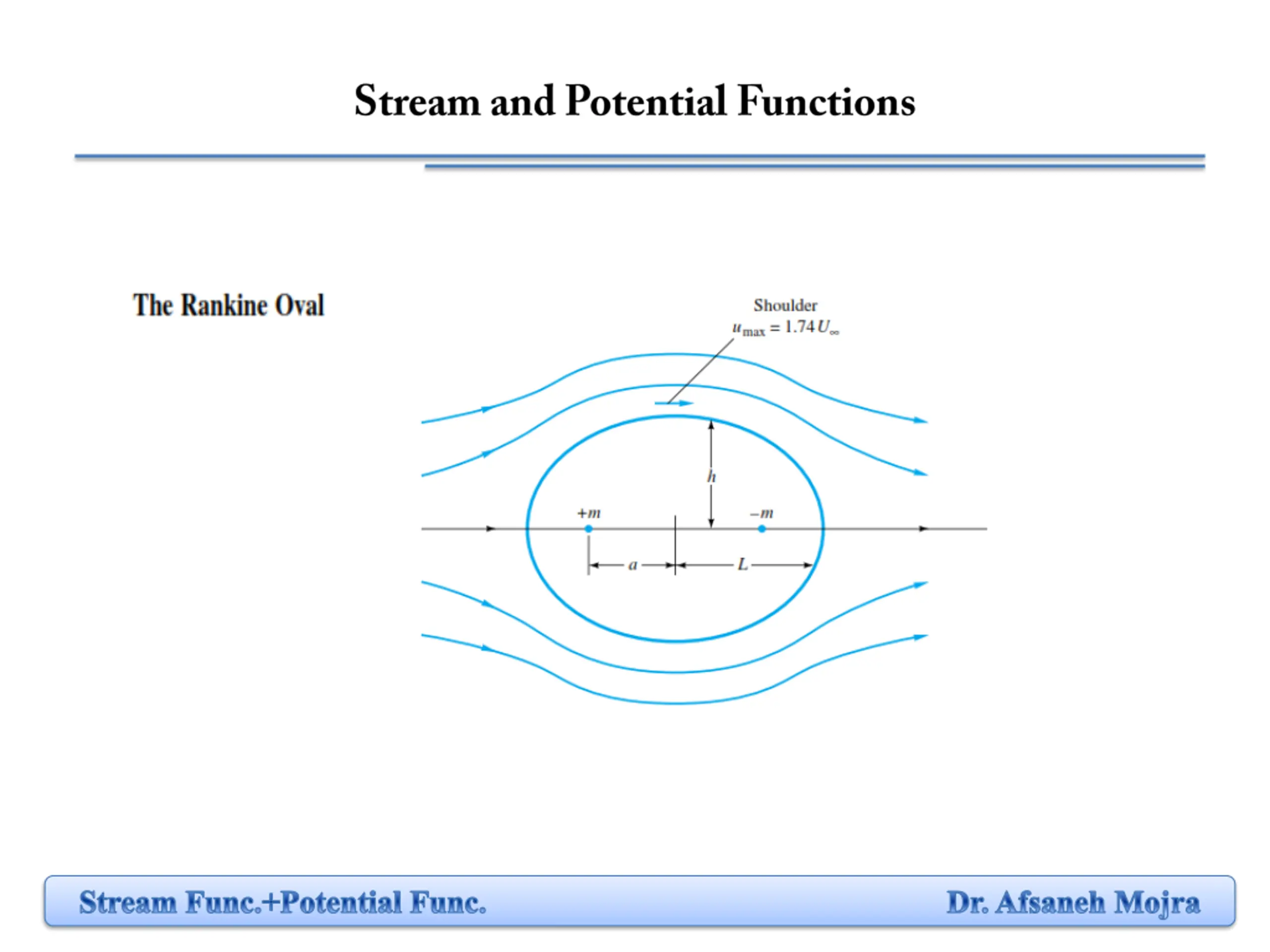

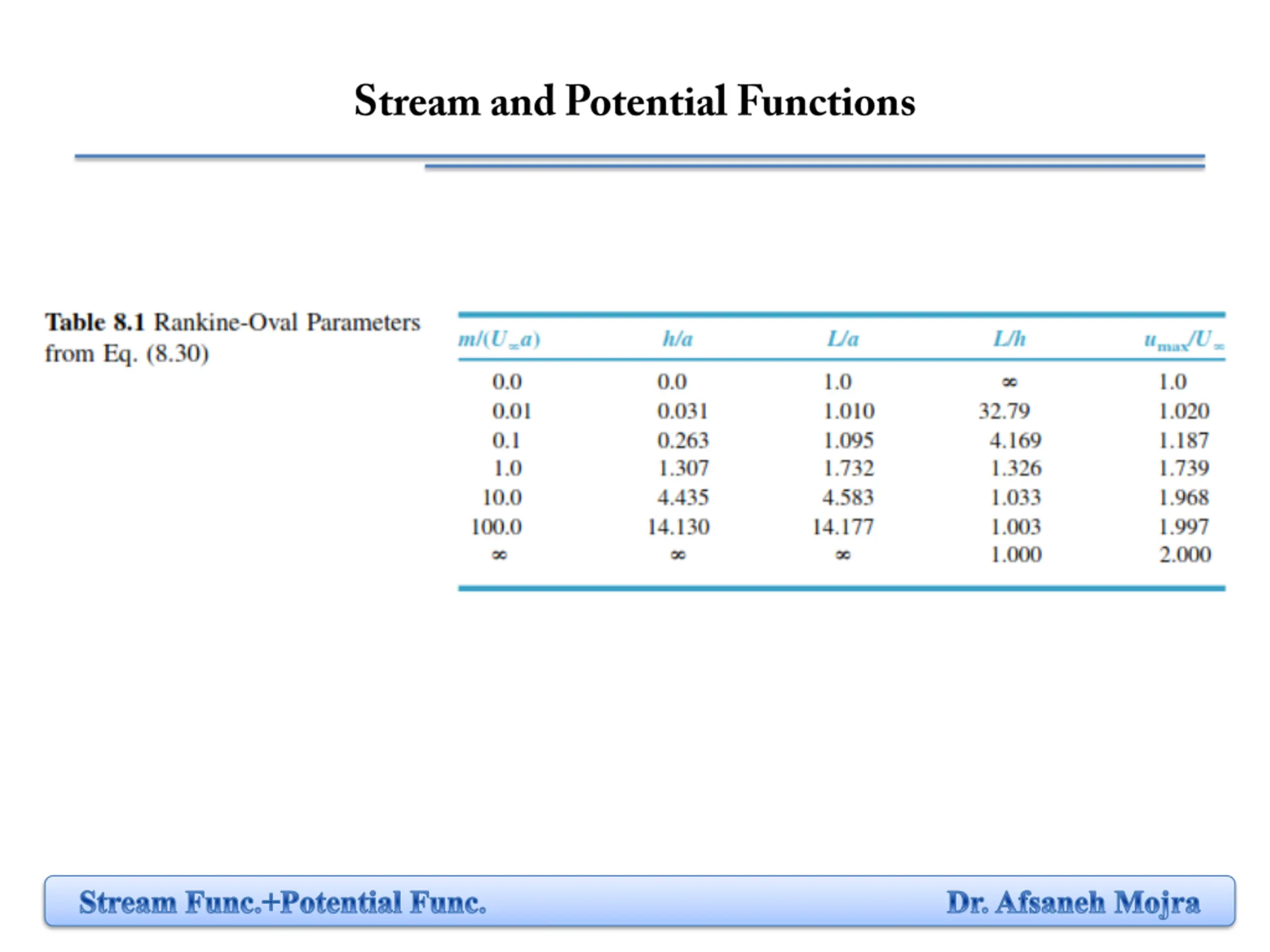

Stream Func.+Potential Func. Dr. Afsaneh Mojra

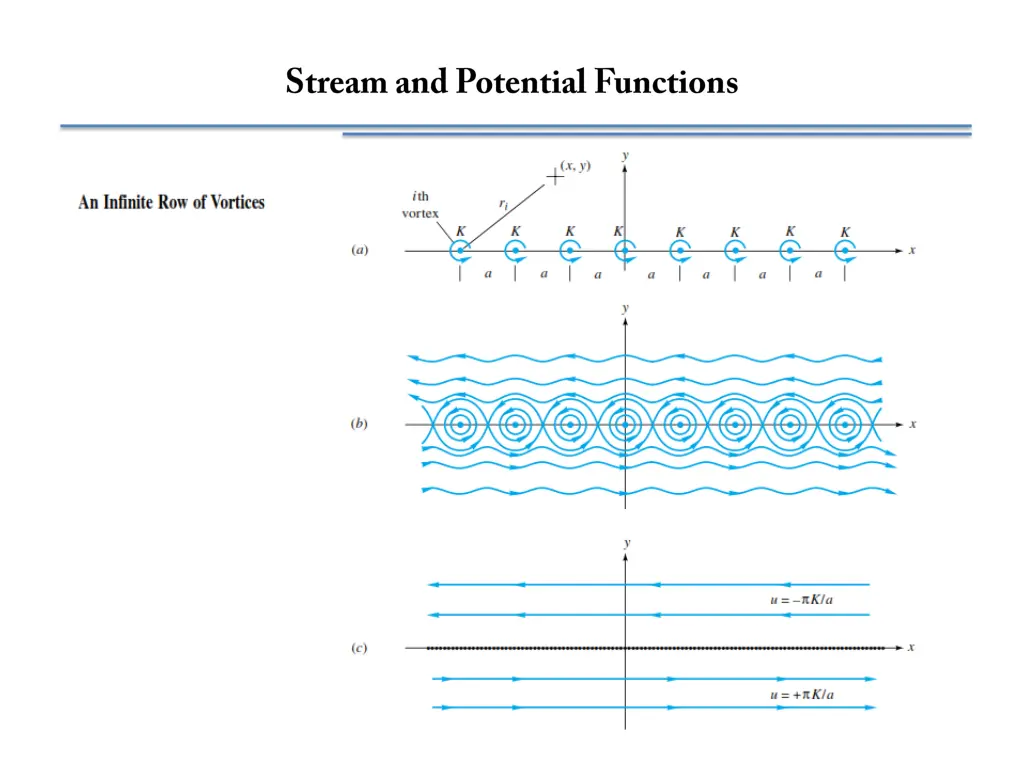

Stream Func.+Potential Func. Dr. Afsaneh Mojra
Stream Func.+Potential Func. Dr. Afsaneh Mojra

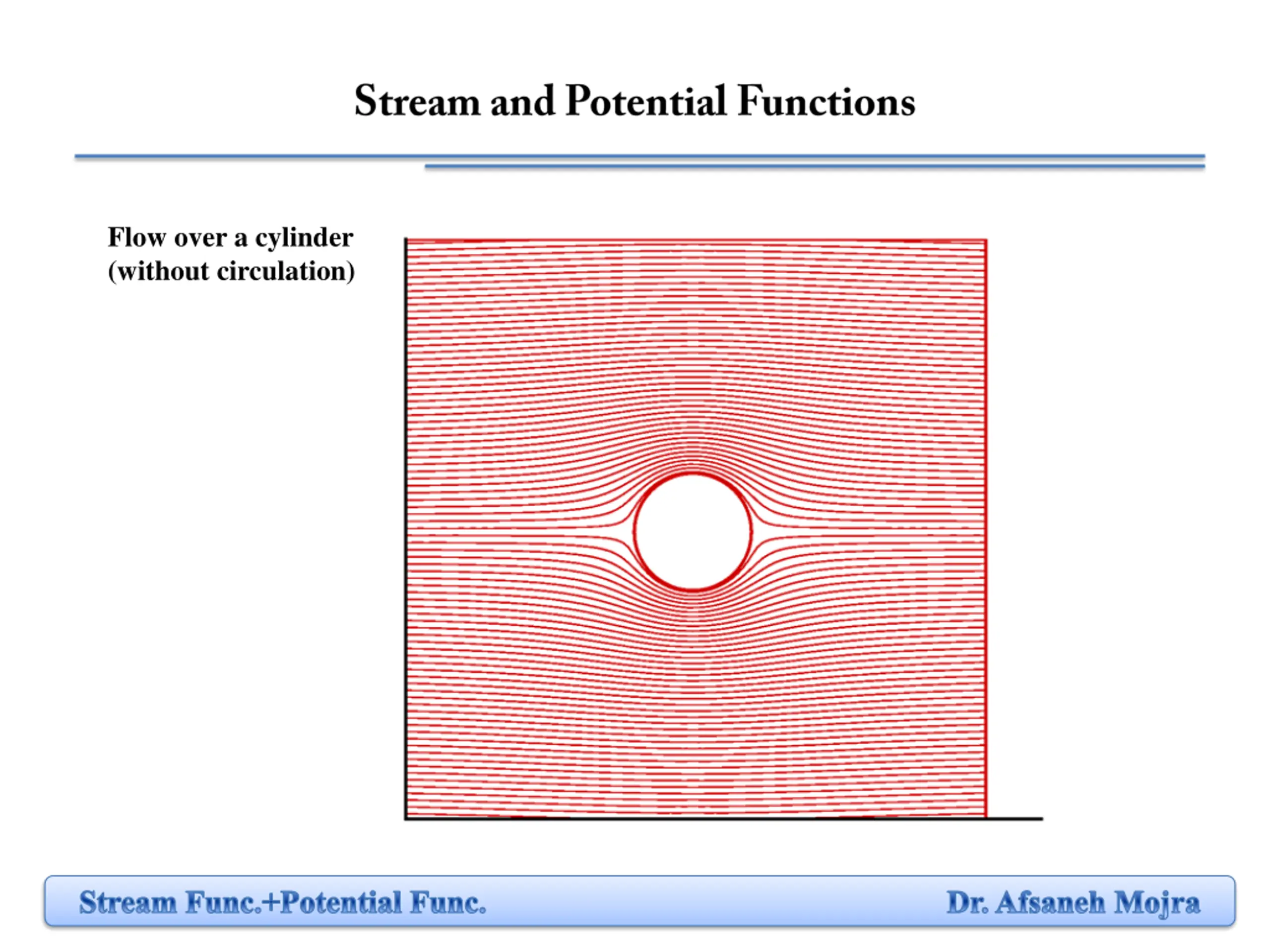

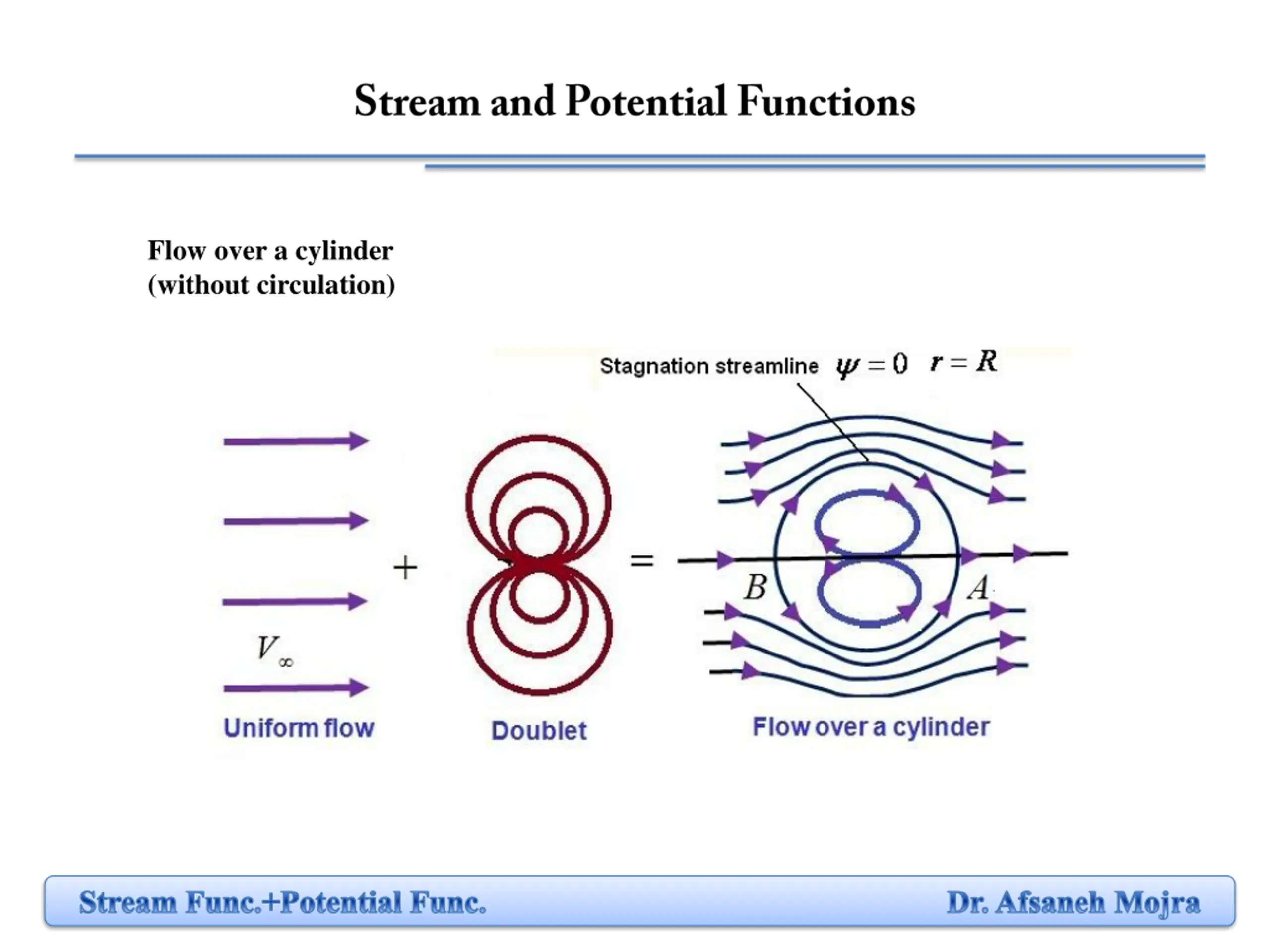

Flow over a cylinder (without circulation) Stream Func.+Potential Func. Dr. Afsaneh Mojra
Flow over a cylinder (without circulation) Stream Func.+Potential Func. Dr. Afsaneh Mojra

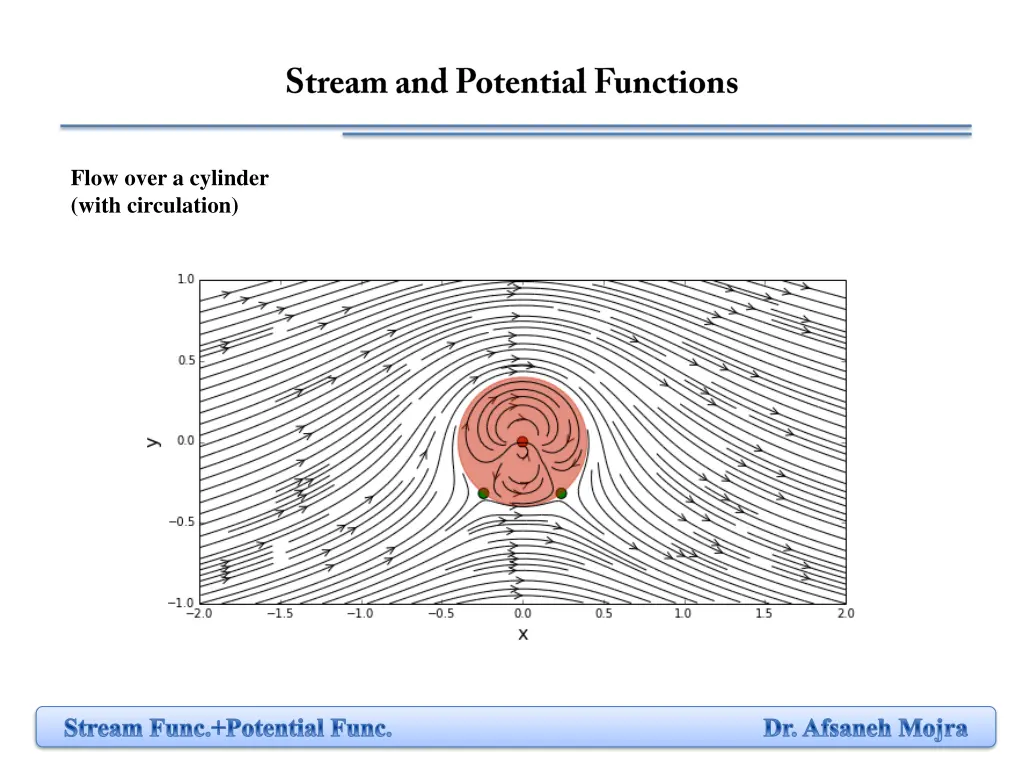

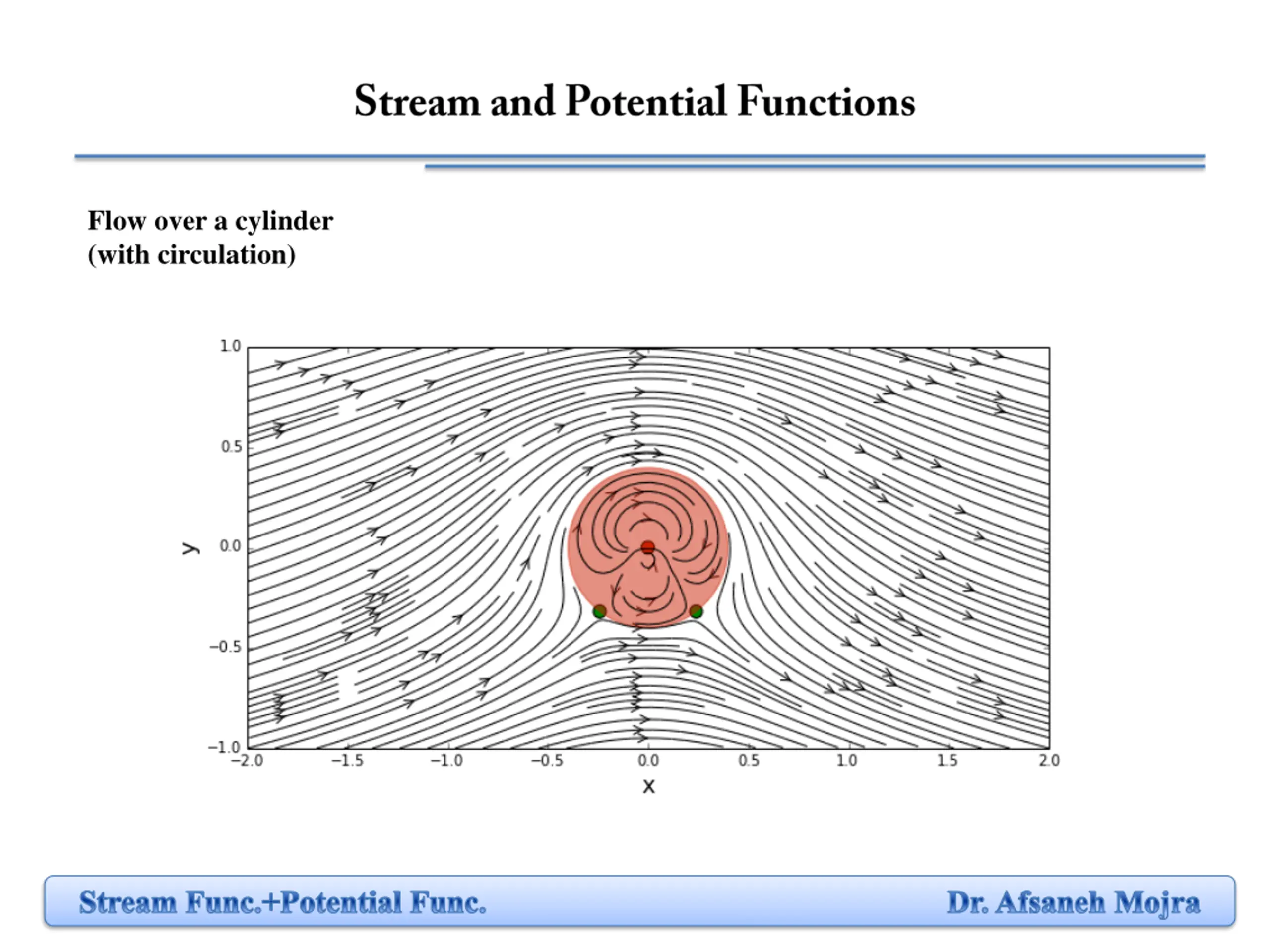

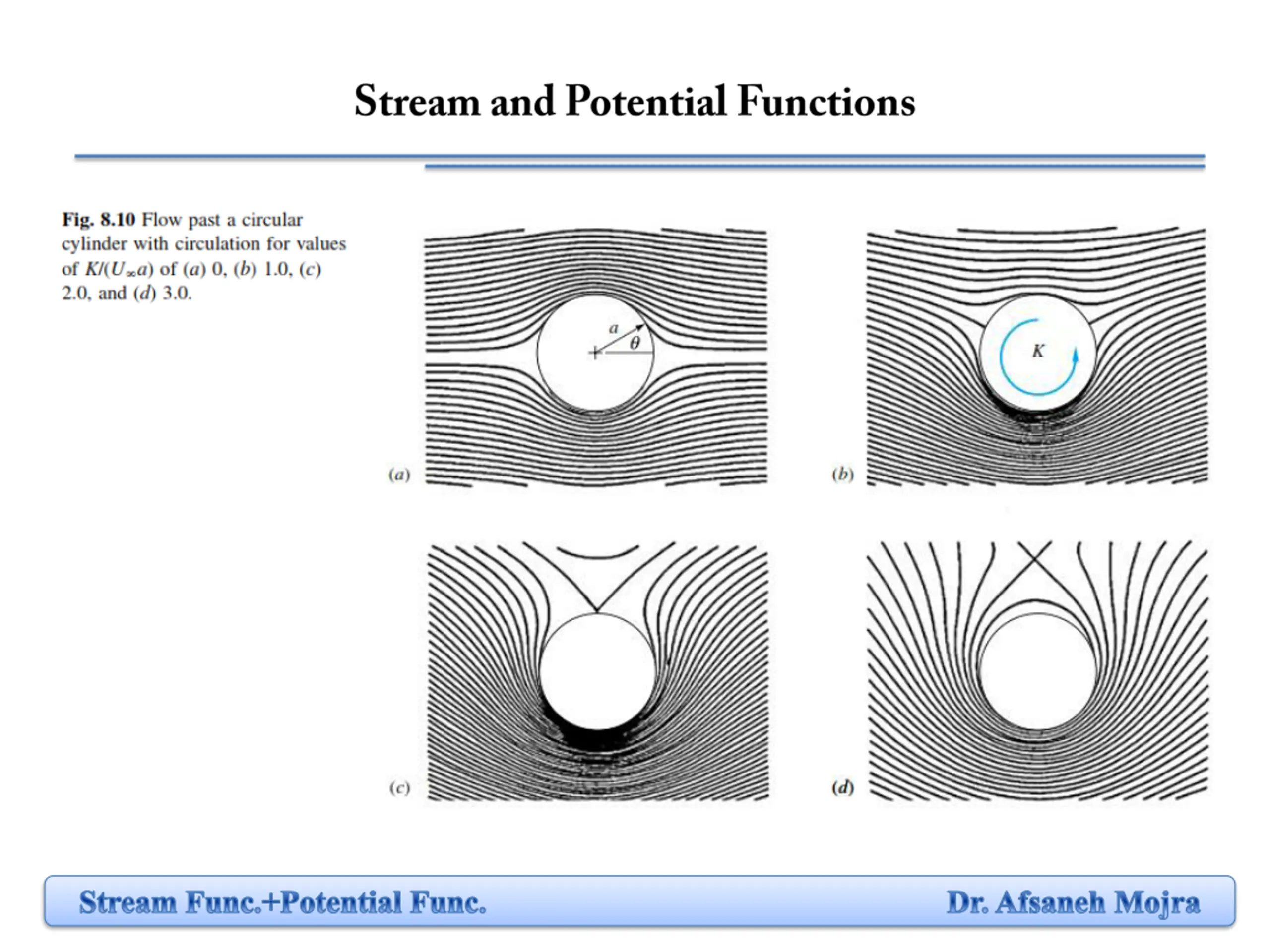

Flow over a cylinder (with circulation) Stream Func.+Potential Func. Dr. Afsaneh Mojra
Stream Func.+Potential Func. Dr. Afsaneh Mojra
