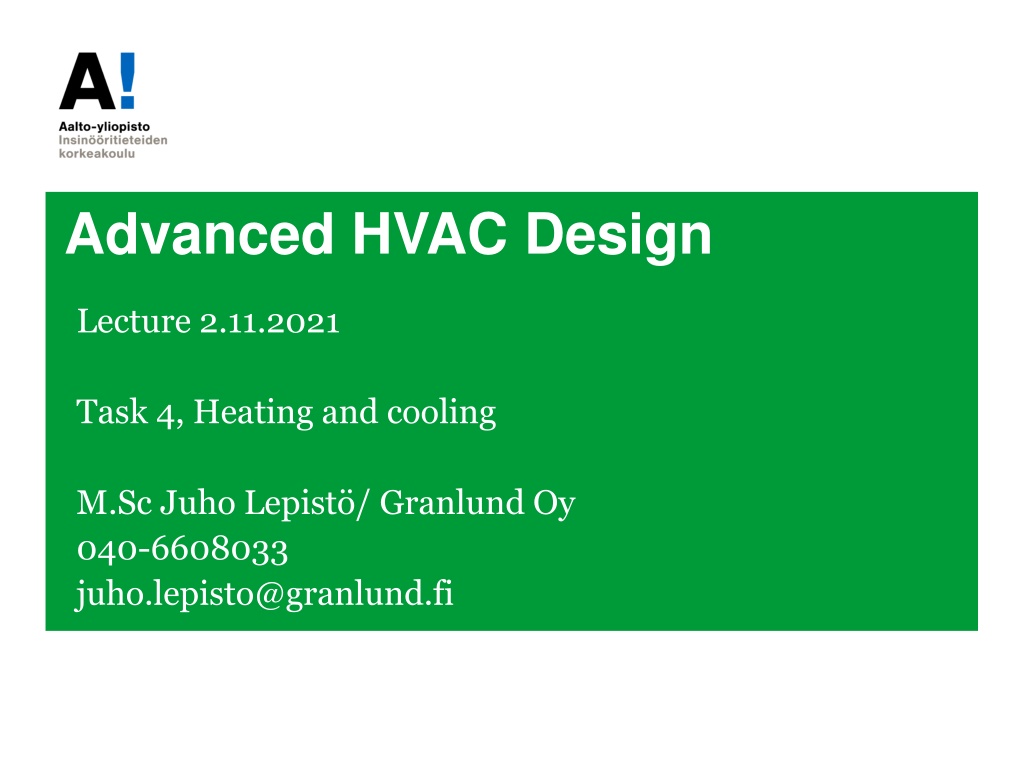

Advanced HVAC Design Lecture 2.11.2021 Task 4, Heating and cooling M.Sc Juho Lepist / Granlund Oy 040-6608033 juho.lepisto@granlund.fi

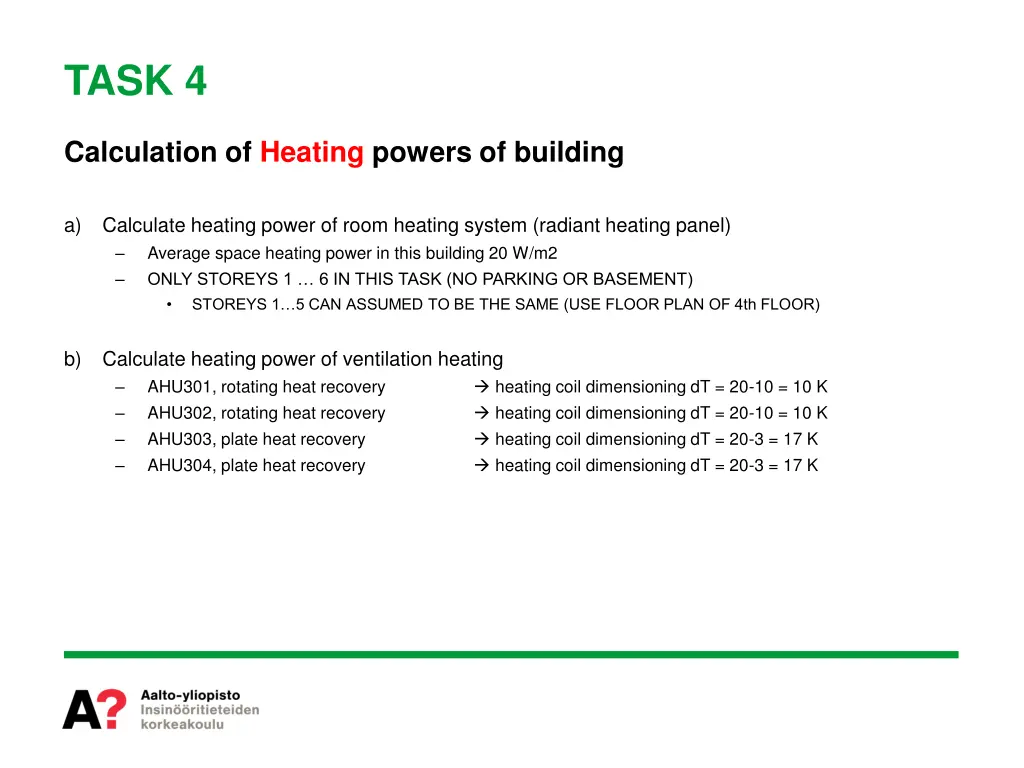

TASK 4 Calculation of Heating powers of building a) Calculate heating power of room heating system (radiant heating panel) Average space heating power in this building 20 W/m2 ONLY STOREYS 1 6 IN THIS TASK (NO PARKING OR BASEMENT) STOREYS 1 5 CAN ASSUMED TO BE THE SAME (USE FLOOR PLAN OF 4th FLOOR) b) Calculate heating power of ventilation heating AHU301, rotating heat recovery AHU302, rotating heat recovery AHU303, plate heat recovery AHU304, plate heat recovery heating coil dimensioning dT = 20-10 = 10 K heating coil dimensioning dT = 20-10 = 10 K heating coil dimensioning dT = 20-3 = 17 K heating coil dimensioning dT = 20-3 = 17 K

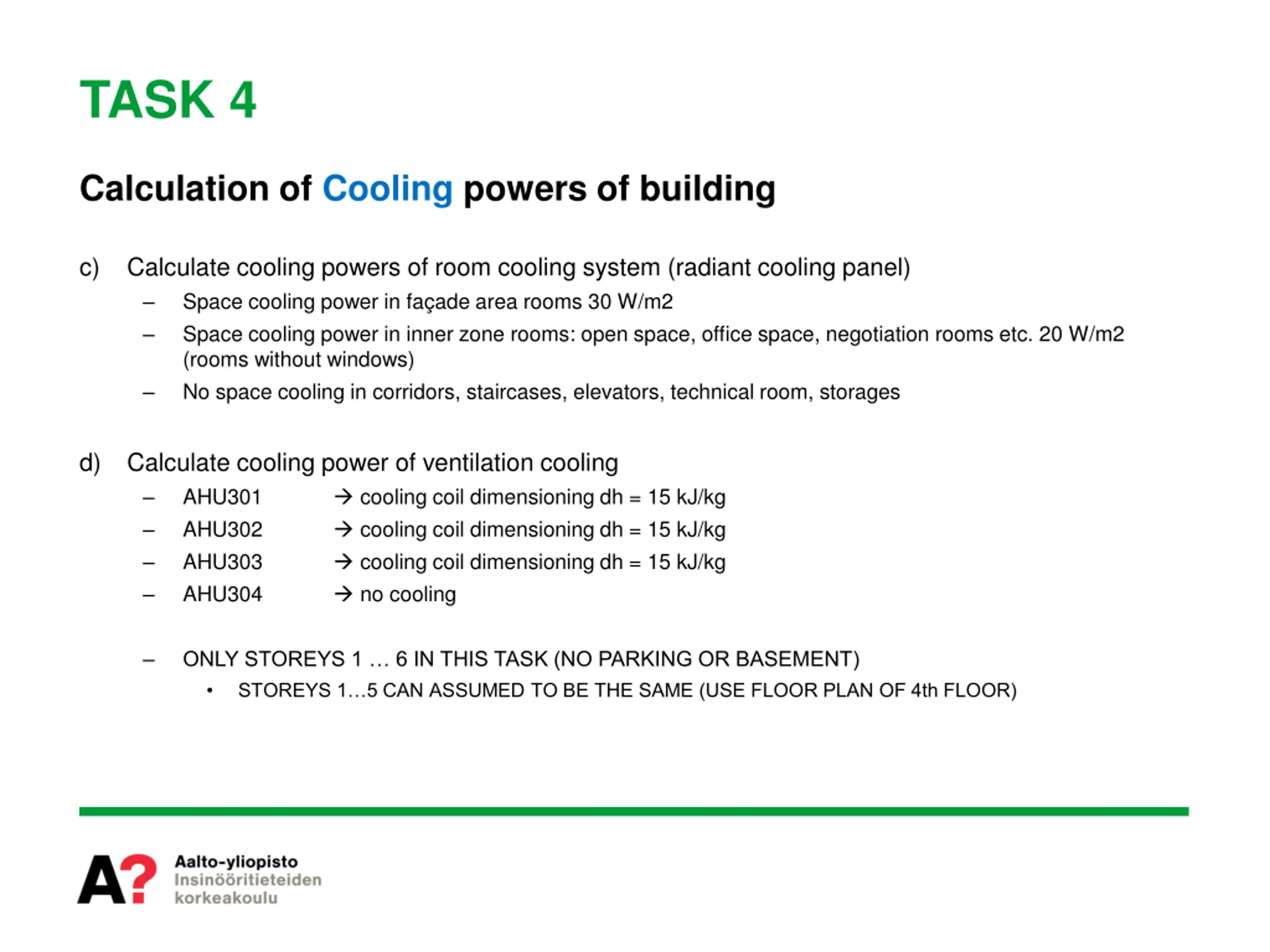

TASK 4 Calculation of Cooling powers of building c) Calculate cooling powers of room cooling system (radiant cooling panel) Space cooling power in fa ade area rooms 30 W/m2 Space cooling power in inner zone rooms: open space, office space, negotiation rooms etc. 20 W/m2 (rooms without windows) No space cooling in corridors, staircases, elevators, technical room, storages d) Calculate cooling power of ventilation cooling AHU301 cooling coil dimensioning dh = 15 kJ/kg AHU302 cooling coil dimensioning dh = 15 kJ/kg AHU303 cooling coil dimensioning dh = 15 kJ/kg AHU304 no cooling ONLY STOREYS 1 6 IN THIS TASK (NO PARKING OR BASEMENT) STOREYS 1 5 CAN ASSUMED TO BE THE SAME (USE FLOOR PLAN OF 4th FLOOR)

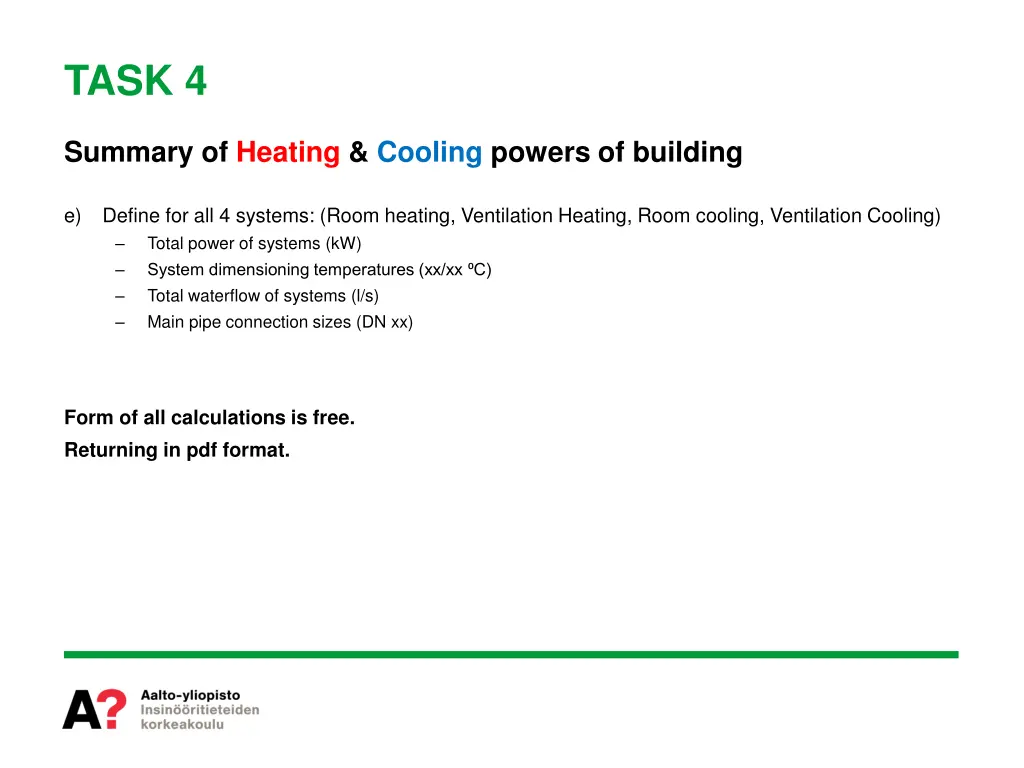

TASK 4 Summary of Heating & Cooling powers of building e) Define for all 4 systems: (Room heating, Ventilation Heating, Room cooling, Ventilation Cooling) Total power of systems (kW) System dimensioning temperatures (xx/xx C) Total waterflow of systems (l/s) Main pipe connection sizes (DN xx) Form of all calculations is free. Returning in pdf format.
