EUV 1

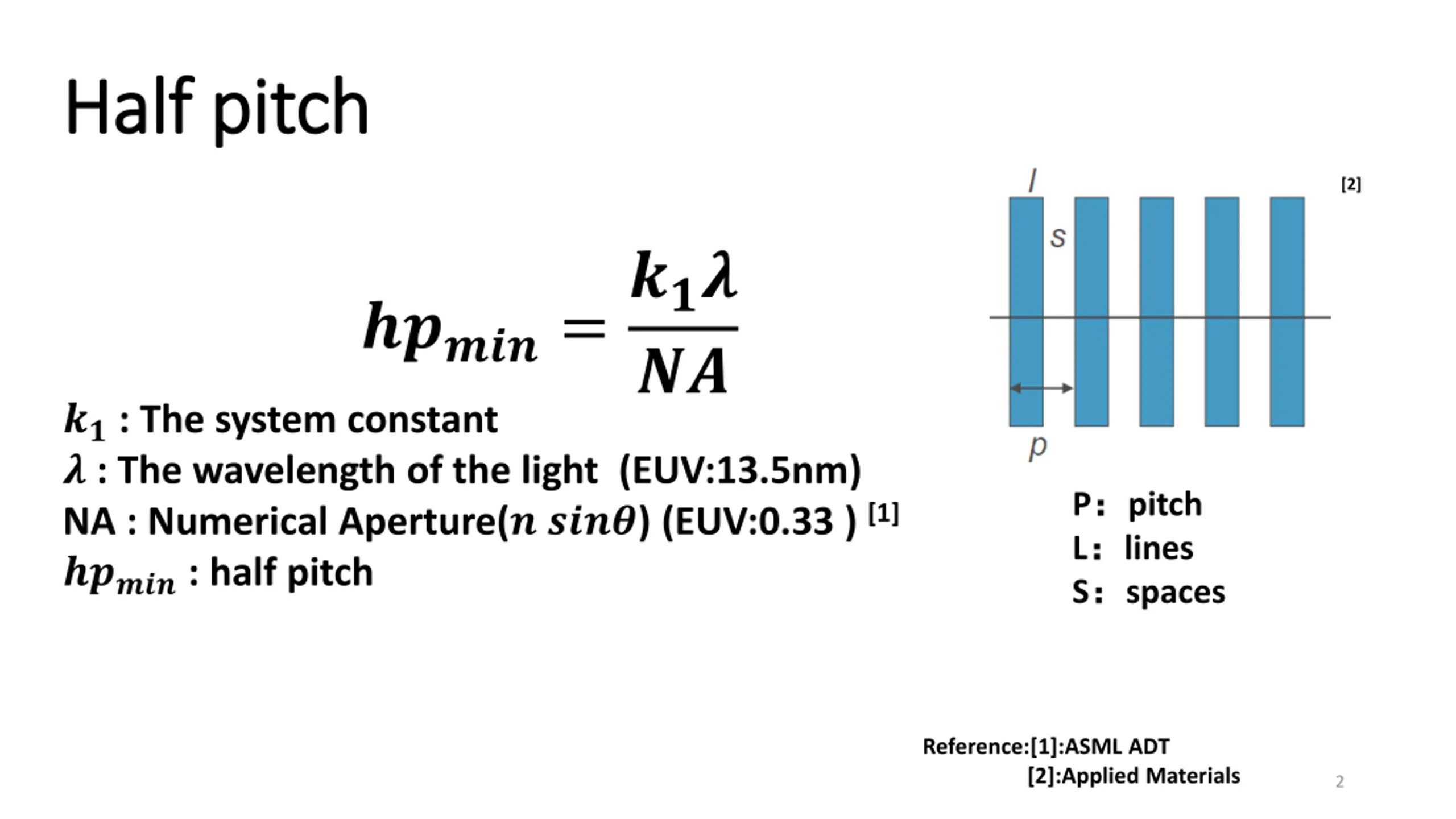

Half pitch Half pitch [2] ?????=??? ?? ??: The system constant ? : The wavelength of the light (EUV:13.5nm) NA : Numerical Aperture(? ????) (EUV:0.33 ) [1] ????? : half pitch P pitch L lines S spaces Reference:[1]:ASML ADT [2]:Applied Materials 2

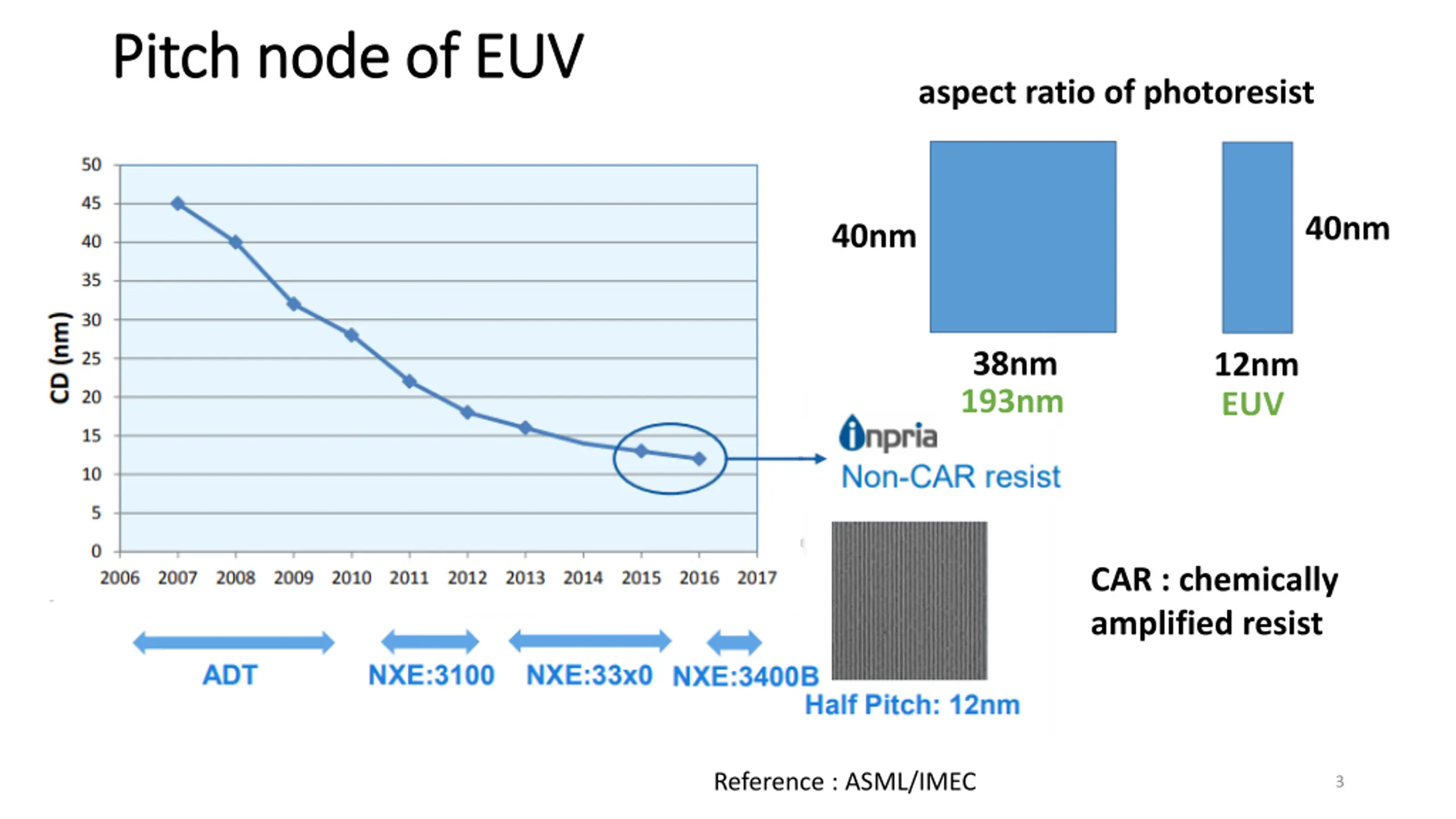

Pitch node of EUV Pitch node of EUV aspect ratio of photoresist 40nm 40nm 38nm 193nm 12nm EUV CAR : chemically amplified resist Reference : ASML/IMEC 3

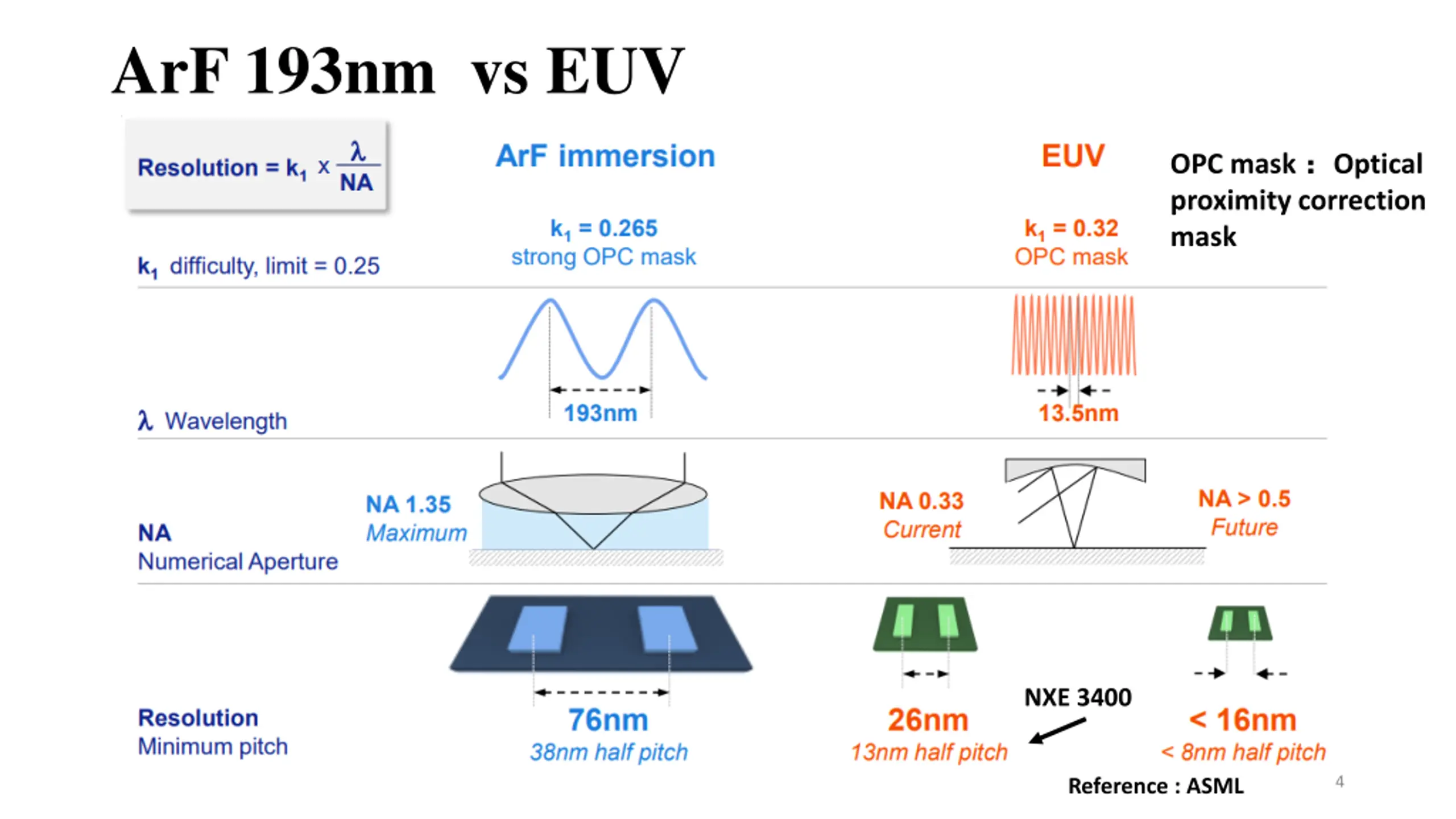

ArF 193nm vs EUV OPC mask Optical proximity correction mask NXE 3400 4 Reference : ASML

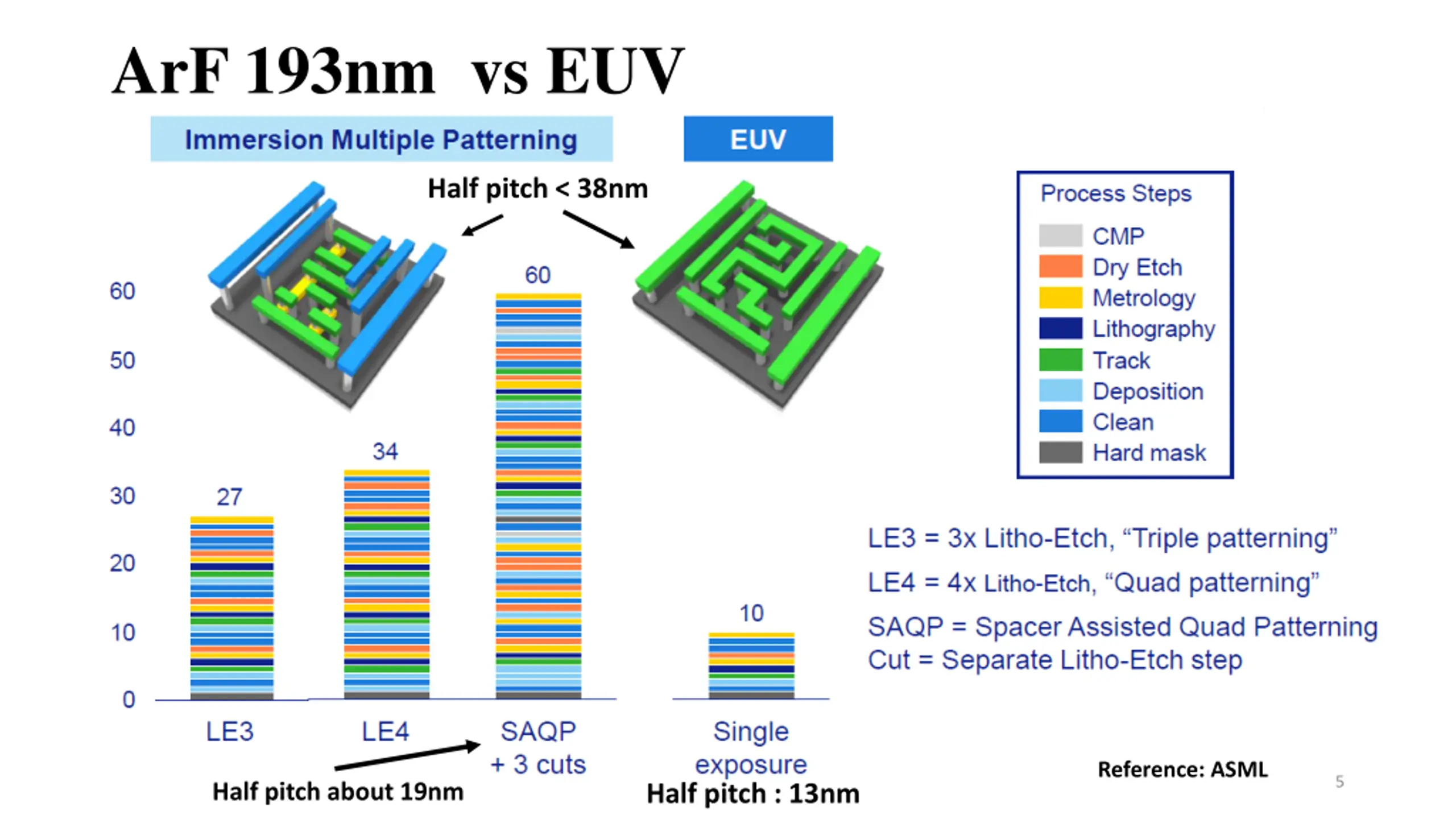

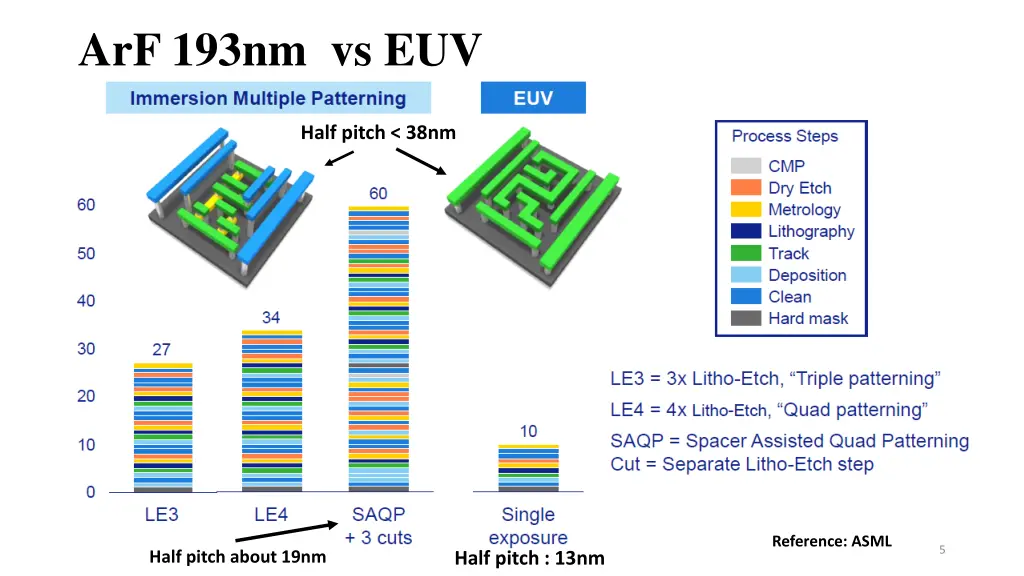

ArF 193nm vs EUV Half pitch < 38nm Reference: ASML 5 Half pitch about 19nm Half pitch : 13nm

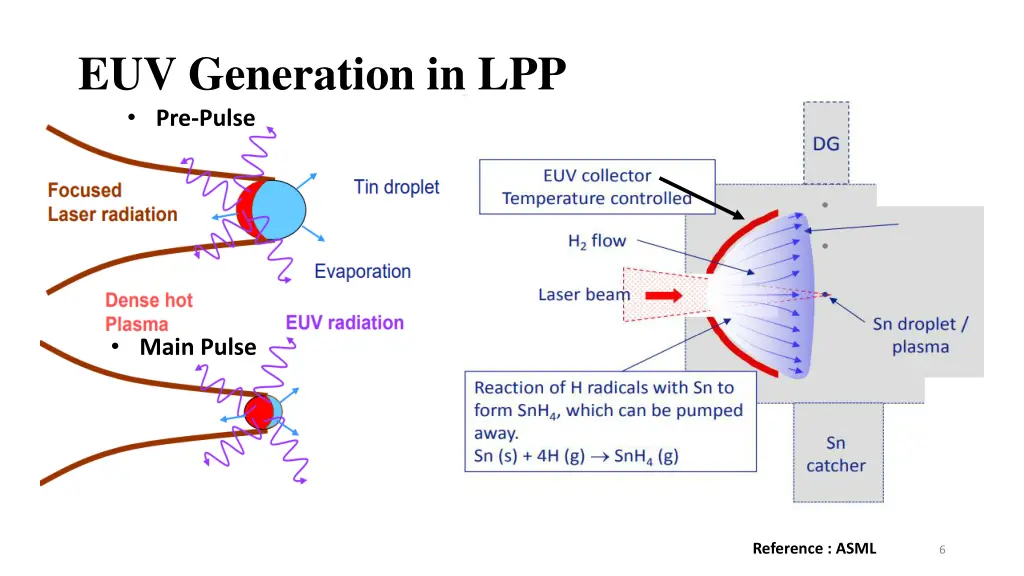

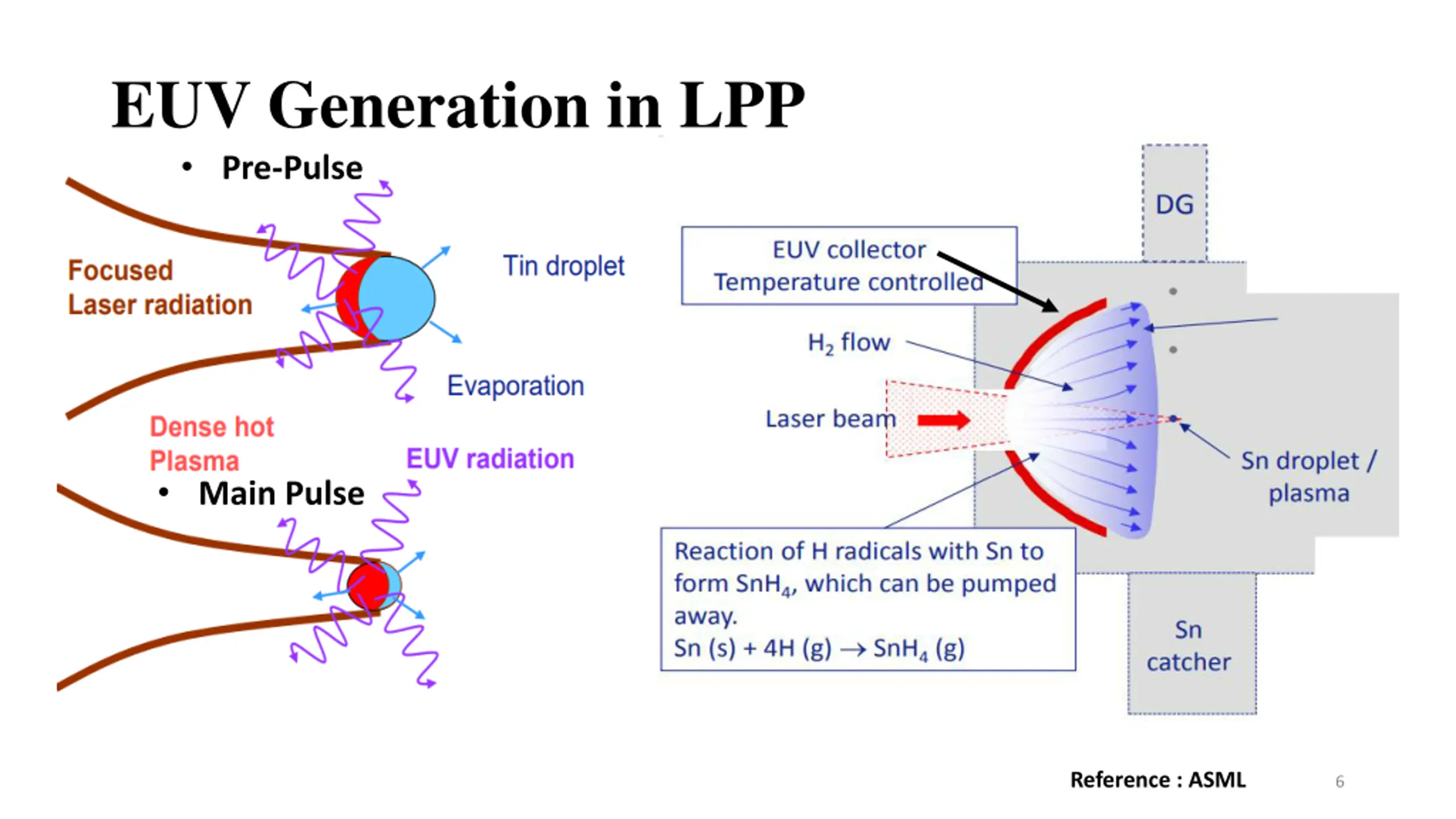

EUV Generation in LPP Pre-Pulse Main Pulse Reference : ASML 6

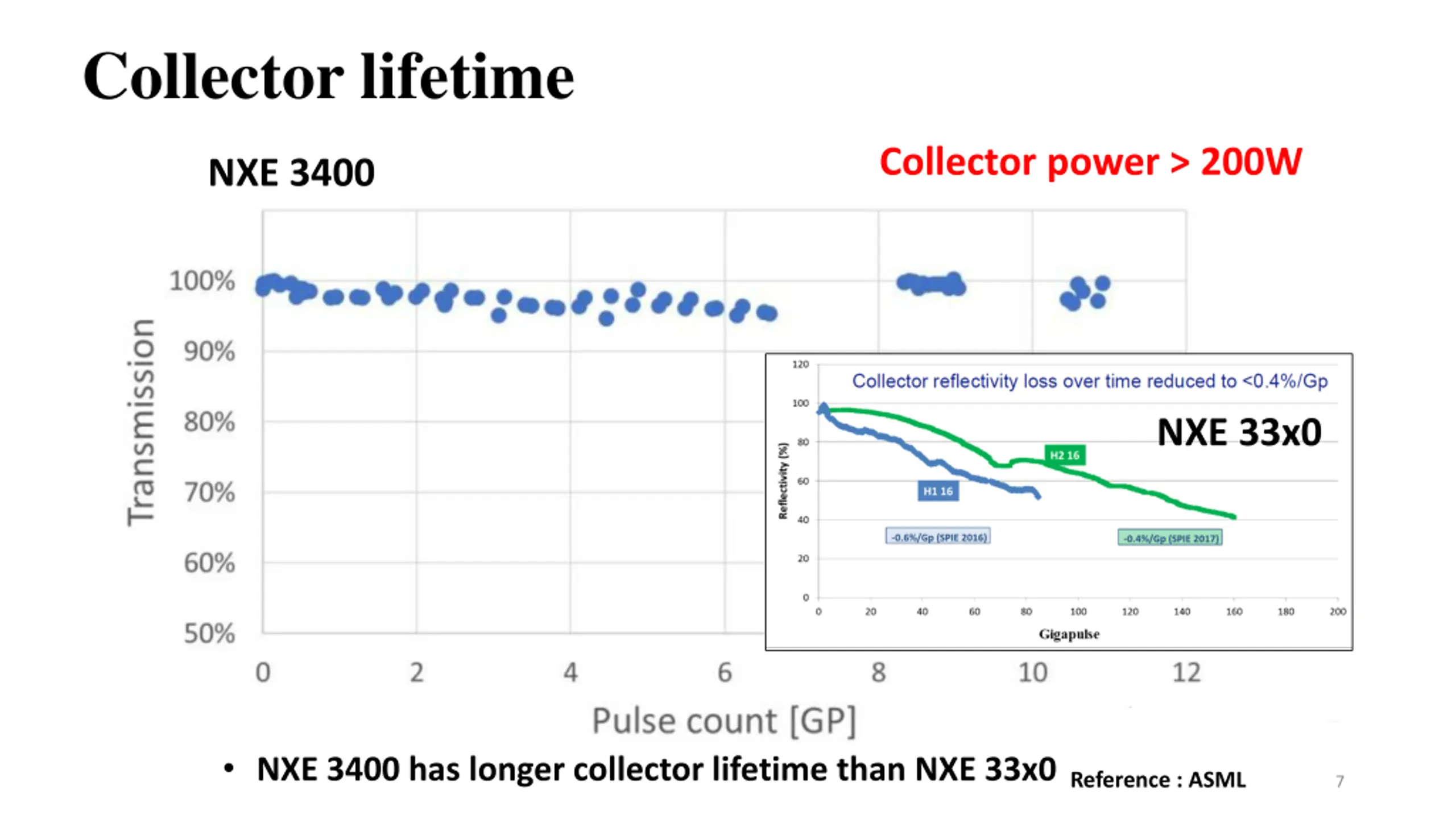

Collector lifetime Collector power > 200W NXE 3400 NXE 33x0 NXE 3400 has longer collector lifetime than NXE 33x0 Reference : ASML 7

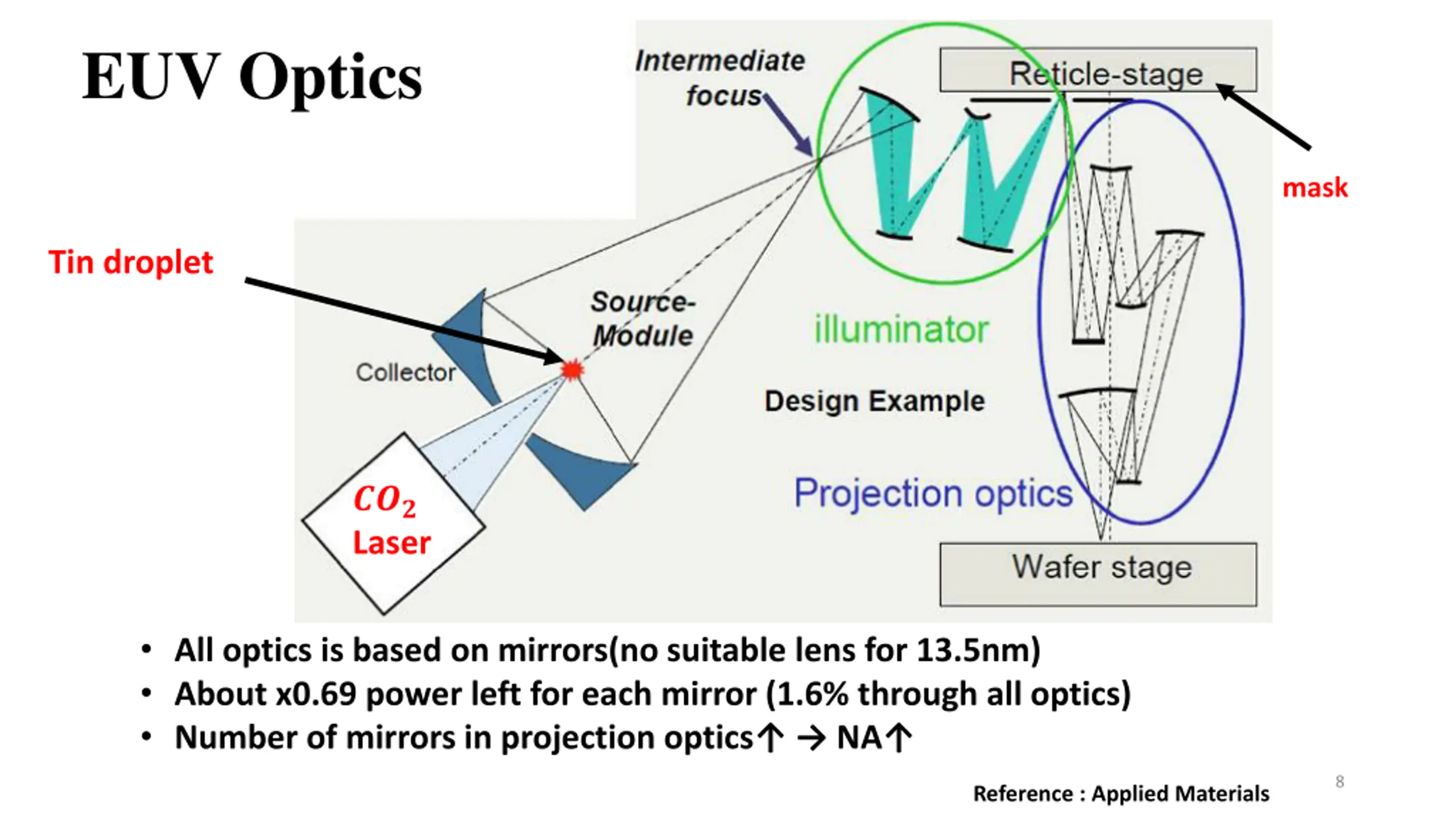

EUV Optics mask Tin droplet ??? Laser All optics is based on mirrors(no suitable lens for 13.5nm) About x0.69 power left for each mirror (1.6% through all optics) Number of mirrors in projection optics NA 8 Reference : Applied Materials
EUV Reticle (mask) 9 Reference : ASML

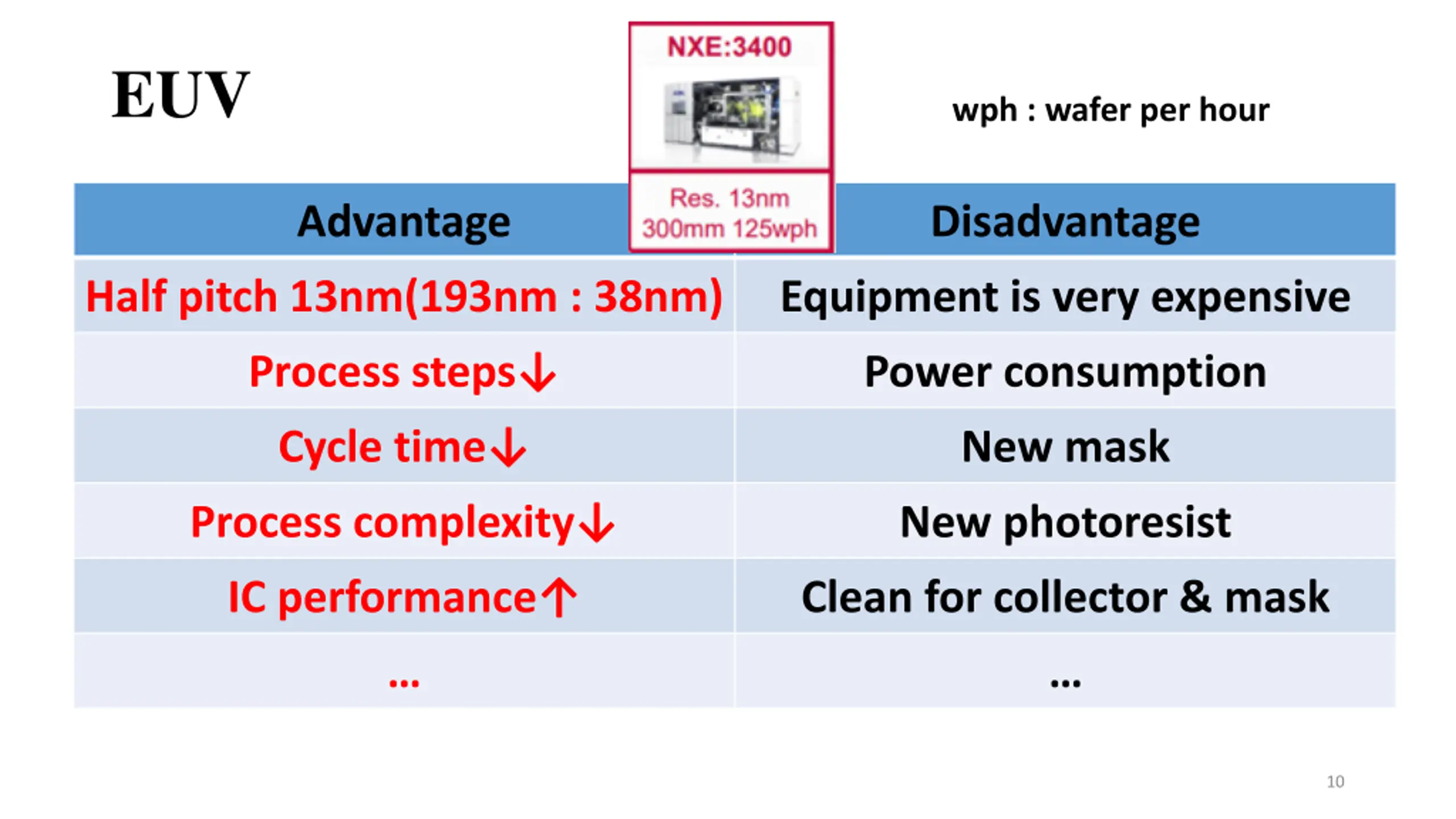

EUV wph : wafer per hour Advantage Disadvantage Half pitch 13nm(193nm : 38nm) Equipment is very expensive Process steps Power consumption Cycle time New mask Process complexity New photoresist IC performance Clean for collector & mask 10
