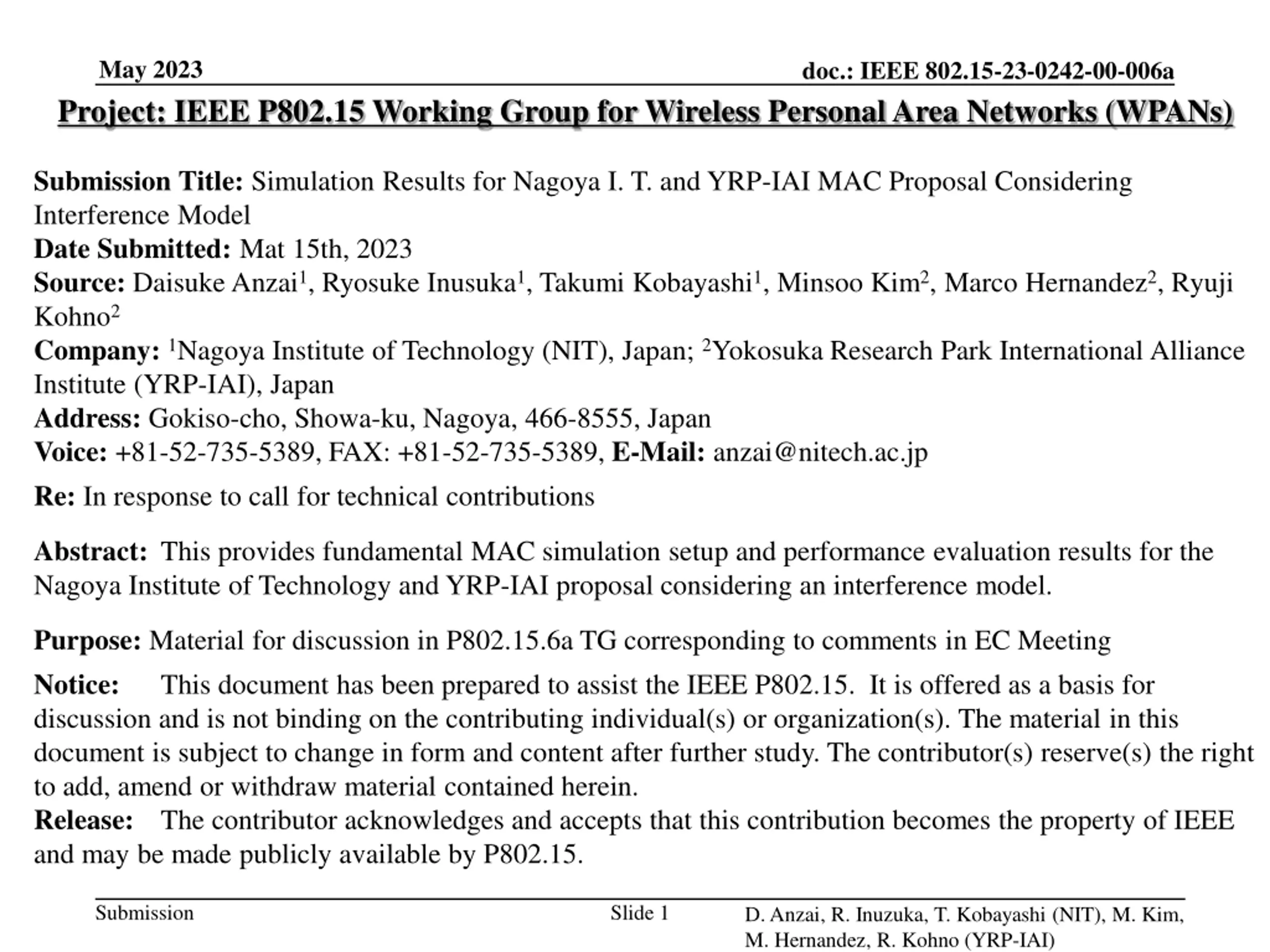

May 2023 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) doc.: IEEE 802.15-23-0242-00-006a Submission Title: Simulation Results for Nagoya I. T. and YRP-IAI MAC Proposal Considering Interference Model Date Submitted: Mat 15th, 2023 Source: Daisuke Anzai1, Ryosuke Inusuka1, Takumi Kobayashi1, Minsoo Kim2, Marco Hernandez2, Ryuji Kohno2 Company:1Nagoya Institute of Technology (NIT), Japan; 2Yokosuka Research Park International Alliance Institute (YRP-IAI), Japan Address: Gokiso-cho, Showa-ku, Nagoya, 466-8555, Japan Voice: +81-52-735-5389, FAX: +81-52-735-5389, E-Mail: anzai@nitech.ac.jp Re: In response to call for technical contributions Abstract: This provides fundamental MAC simulation setup and performance evaluation results for the Nagoya Institute of Technology and YRP-IAI proposal considering an interference model. Purpose: Material for discussion in P802.15.6a TG corresponding to comments in EC Meeting Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Submission Slide 1 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

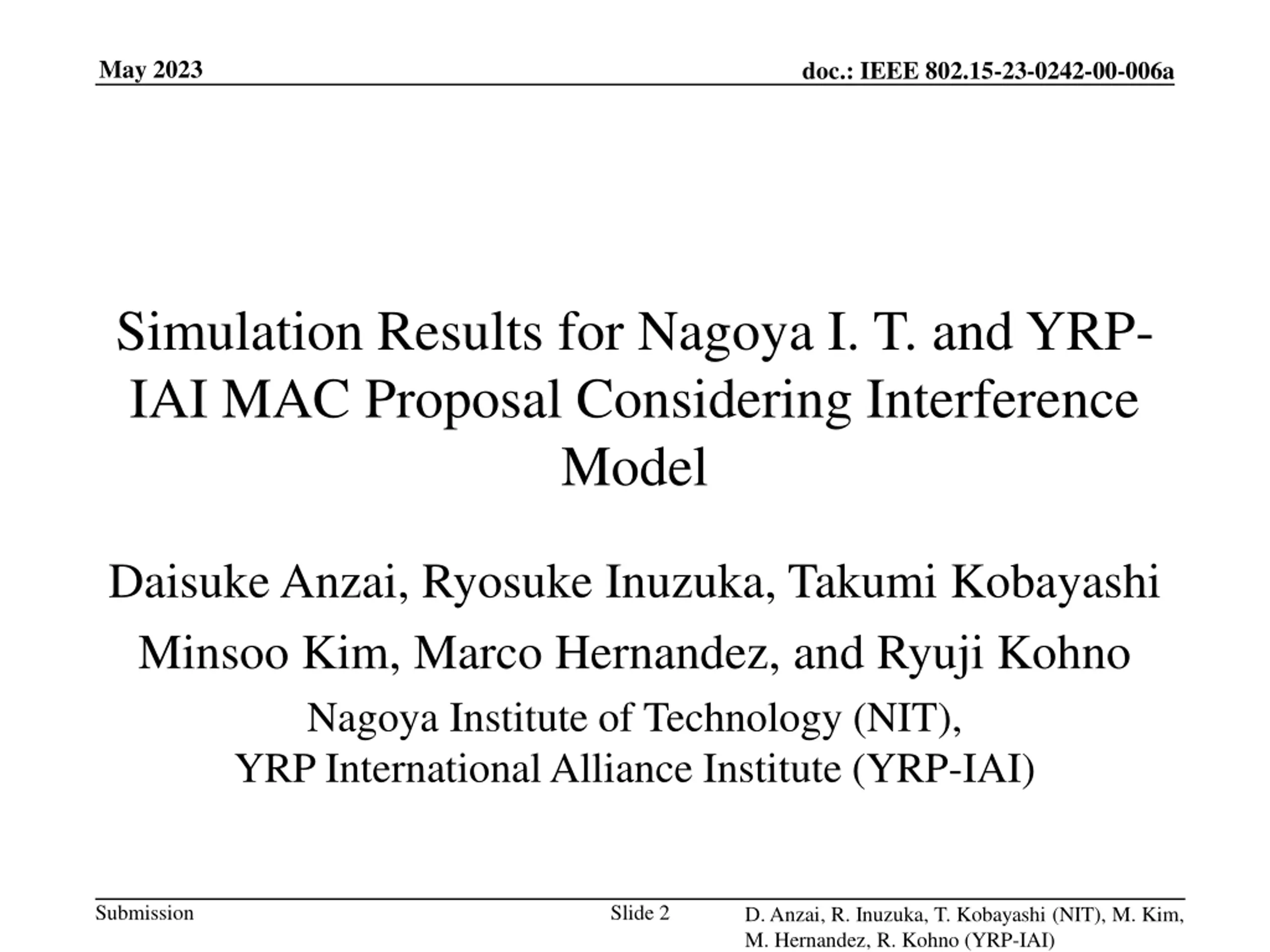

May 2023 doc.: IEEE 802.15-23-0242-00-006a Simulation Results for Nagoya I. T. and YRP- IAI MAC Proposal Considering Interference Model Daisuke Anzai, Ryosuke Inuzuka, Takumi Kobayashi Minsoo Kim, Marco Hernandez, and Ryuji Kohno Nagoya Institute of Technology (NIT), YRP International Alliance Institute (YRP-IAI) Submission Slide 2 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

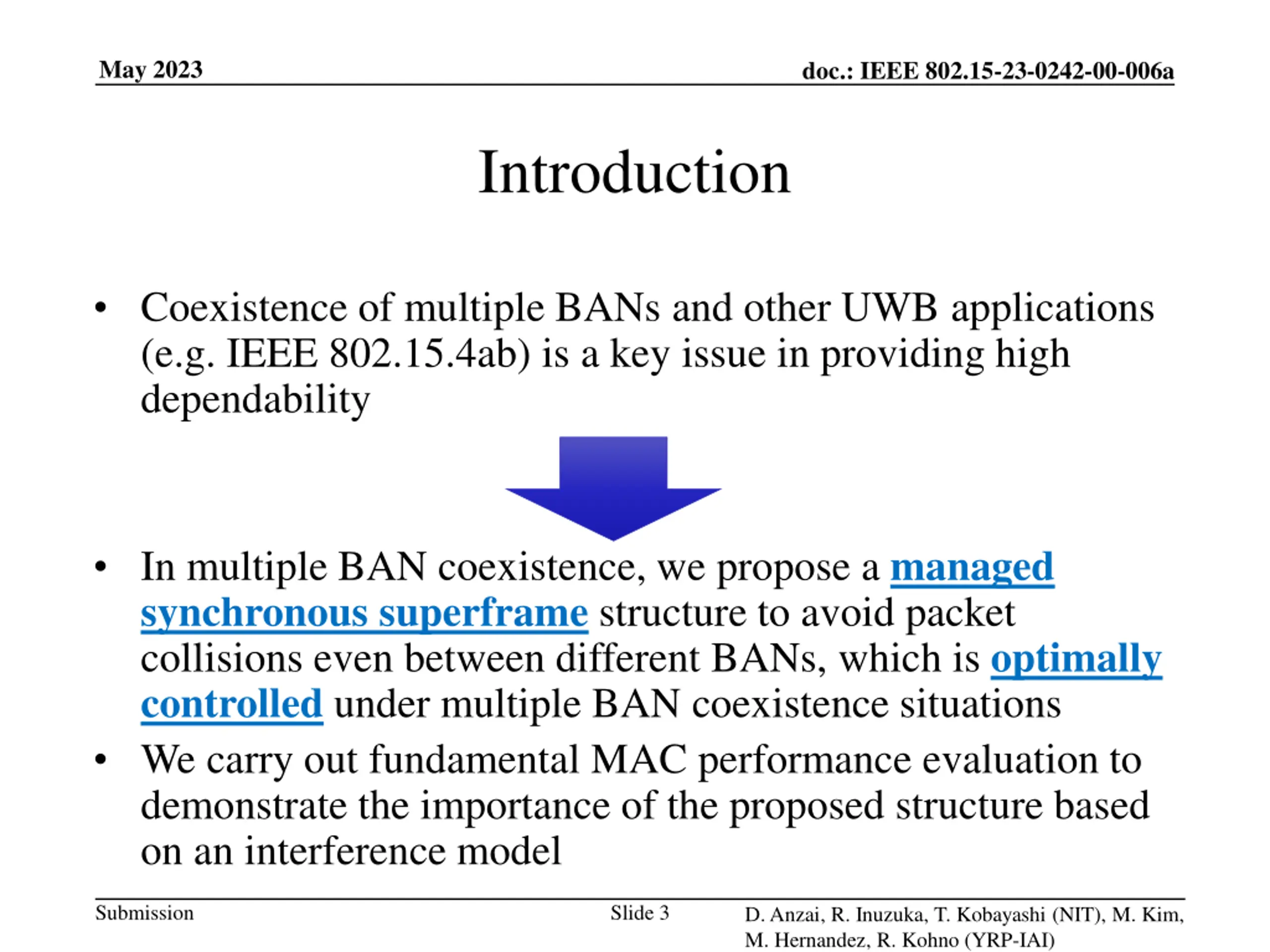

May 2023 doc.: IEEE 802.15-23-0242-00-006a Introduction Coexistence of multiple BANs and other UWB applications (e.g. IEEE 802.15.4ab) is a key issue in providing high dependability In multiple BAN coexistence, we propose a managed synchronous superframe structure to avoid packet collisions even between different BANs, which is optimally controlled under multiple BAN coexistence situations We carry out fundamental MAC performance evaluation to demonstrate the importance of the proposed structure based on an interference model Submission Slide 3 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

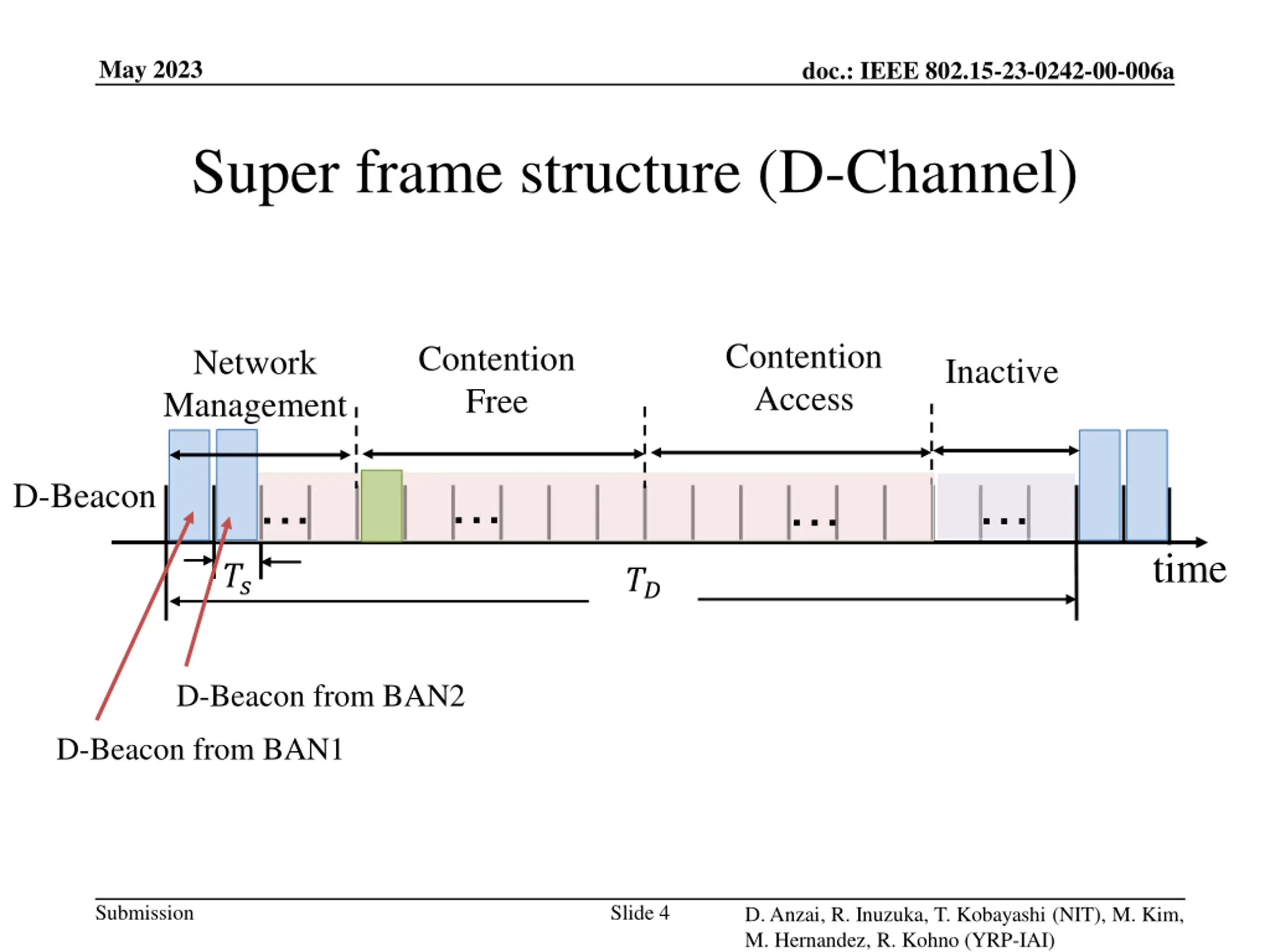

May 2023 doc.: IEEE 802.15-23-0242-00-006a Super frame structure (D-Channel) Contention Access Contention Free Network Management Inactive D-Beacon time ?? ?? D-Beacon from BAN2 D-Beacon from BAN1 Submission Slide 4 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

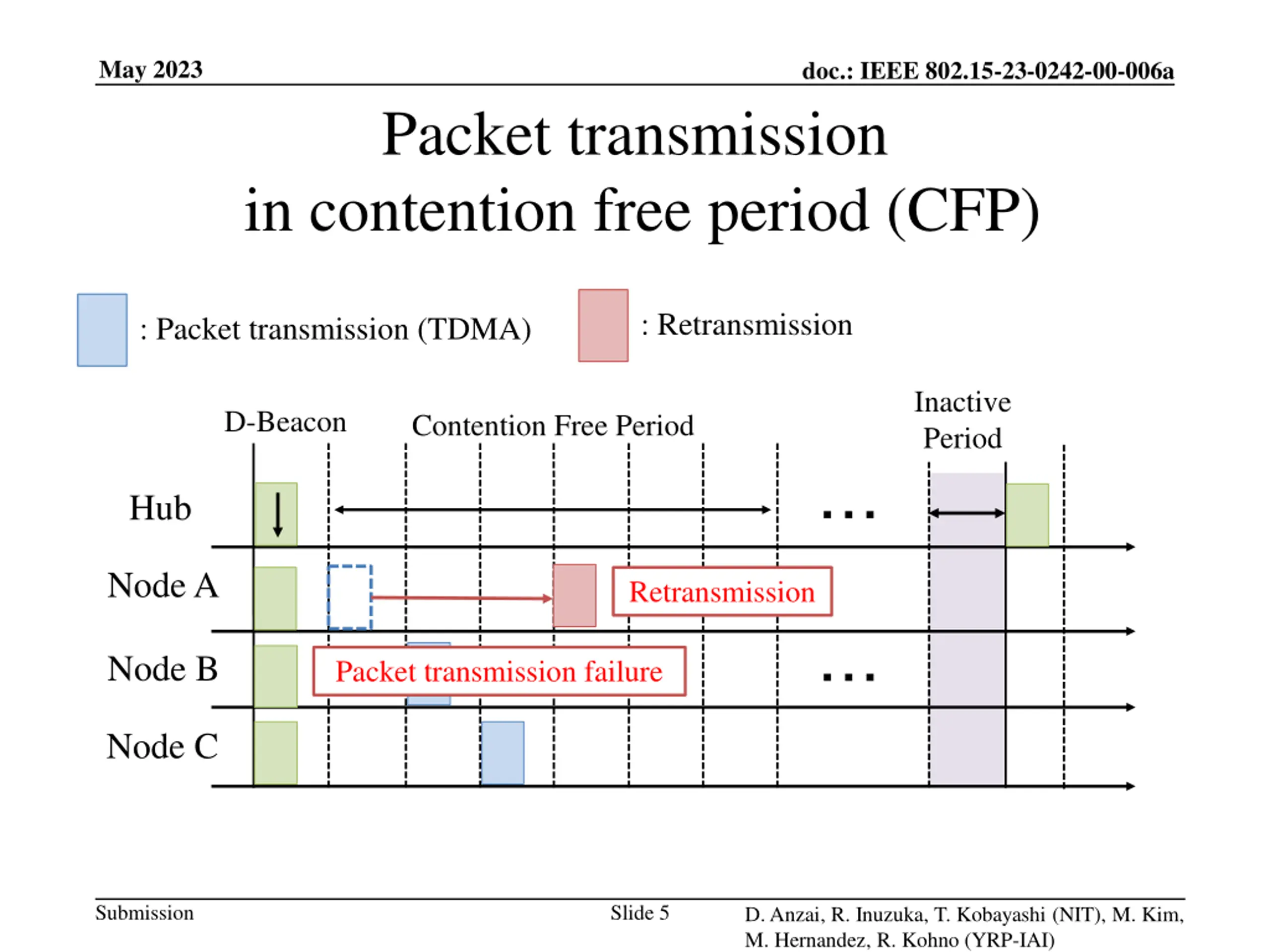

May 2023 doc.: IEEE 802.15-23-0242-00-006a Packet transmission in contention free period (CFP) : Retransmission : Packet transmission (TDMA) Inactive Period D-Beacon Contention Free Period Hub Node A Retransmission Node B Packet transmission failure Node C Submission Slide 5 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

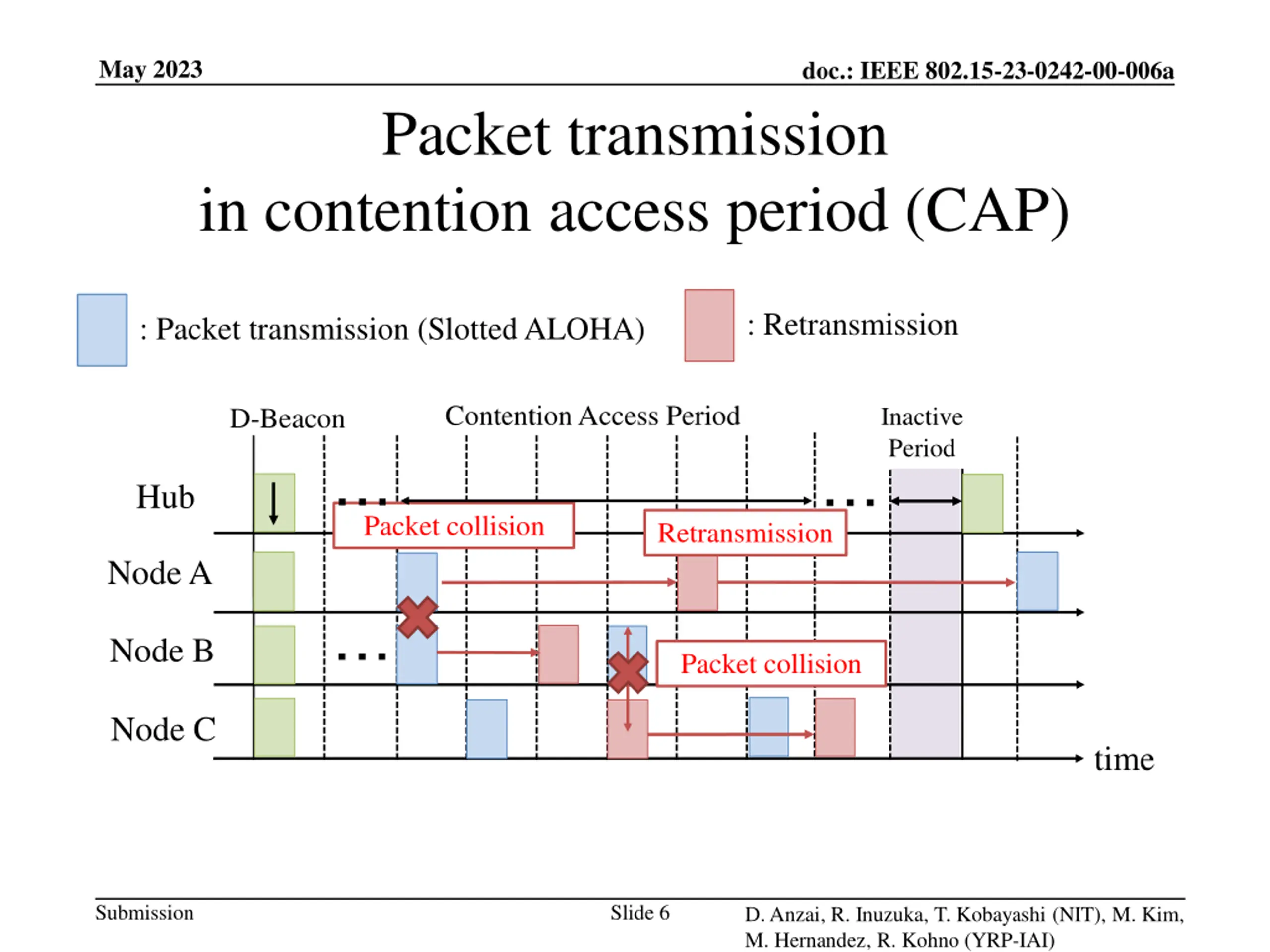

May 2023 doc.: IEEE 802.15-23-0242-00-006a Packet transmission in contention access period (CAP) : Retransmission : Packet transmission (Slotted ALOHA) ContentionAccess Period Inactive Period D-Beacon Hub Packet collision Retransmission Node A Node B Packet collision Node C time Submission Slide 6 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

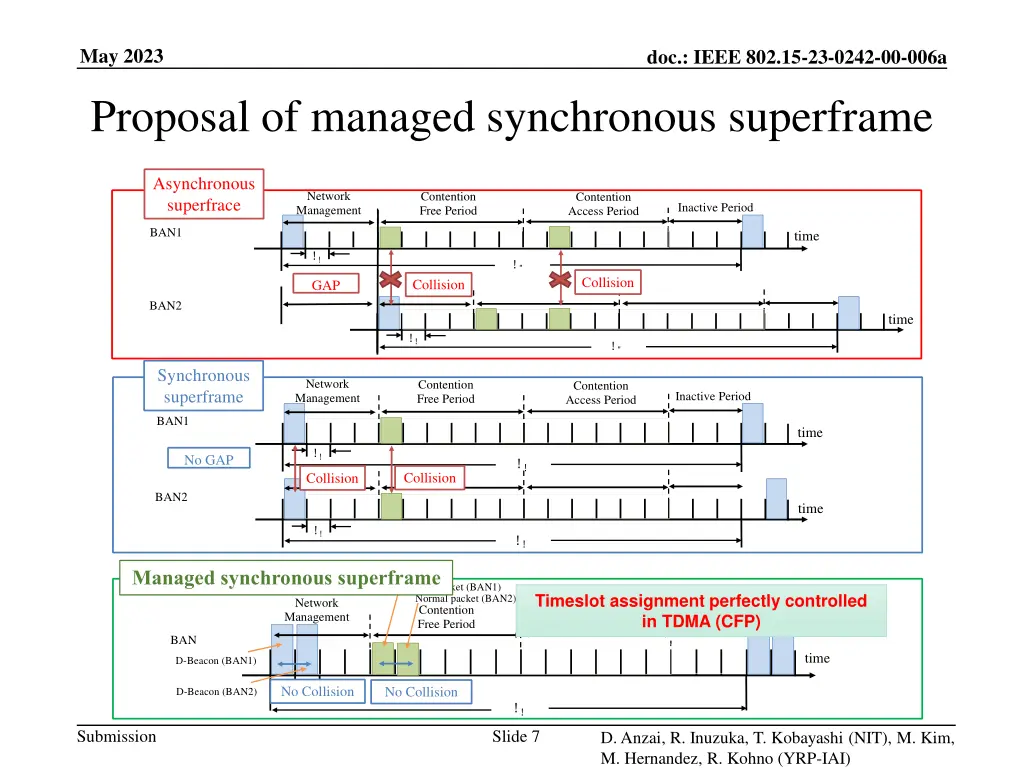

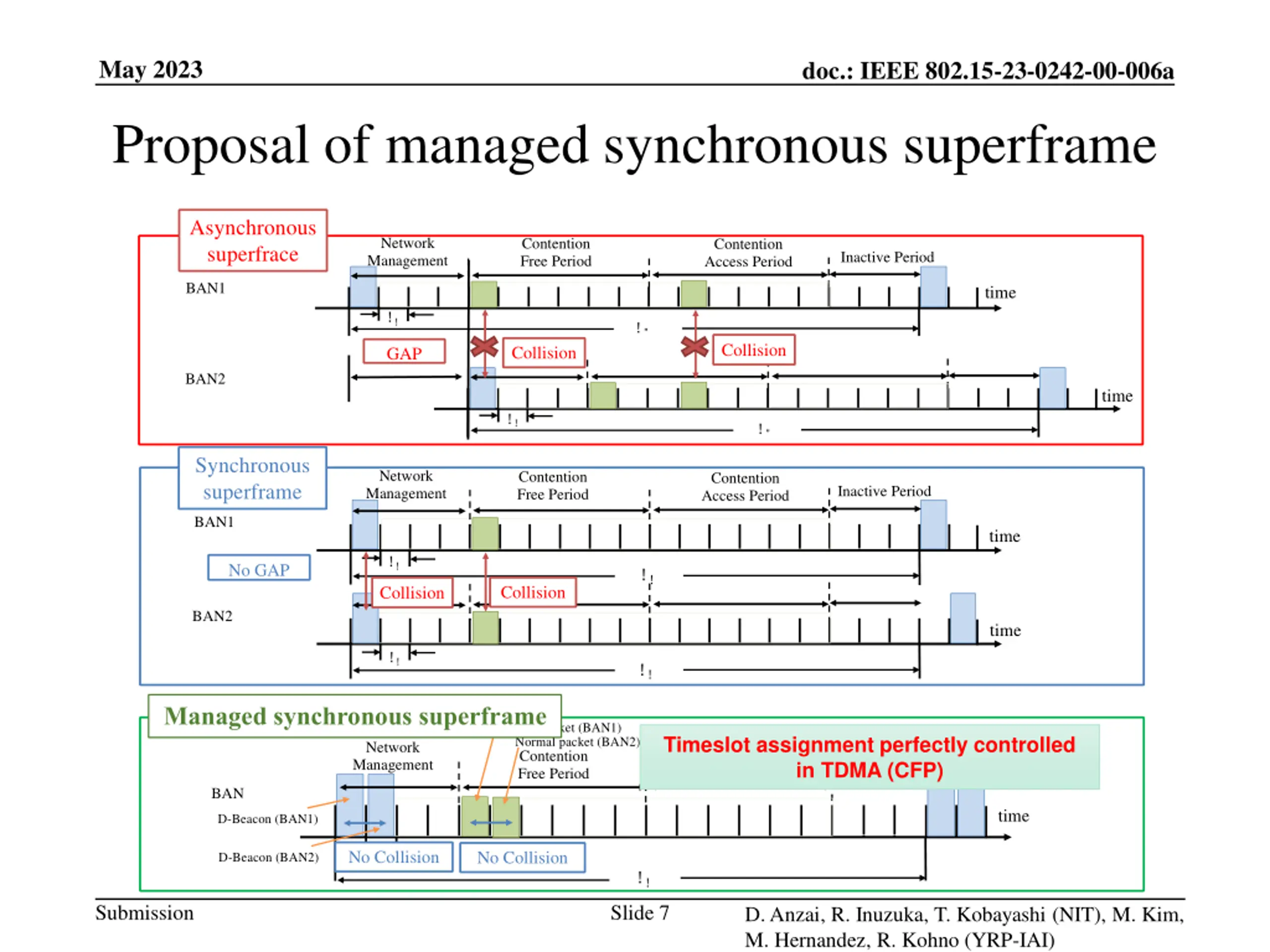

May 2023 Proposal of managed synchronous superframe doc.: IEEE 802.15-23-0242-00-006a Asynchronous superfrace Network Management Contention Free Period Contention Access Period Inactive Period BAN1 time !! !" Collision Collision GAP BAN2 time !! !" Synchronous superframe Network Management Contention Free Period Contention Access Period Inactive Period BAN1 time !! No GAP !! Collision Collision BAN2 time !! !! Unified superframce Managed synchronous superframe Normal packet (BAN1) Normal packet (BAN2) Contention Free Period Timeslot assignment perfectly controlled Network Management Contention Access Period Inactive Period in TDMA (CFP) BAN time D-Beacon (BAN1) No Collision No Collision D-Beacon (BAN2) !! Submission Slide 7 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

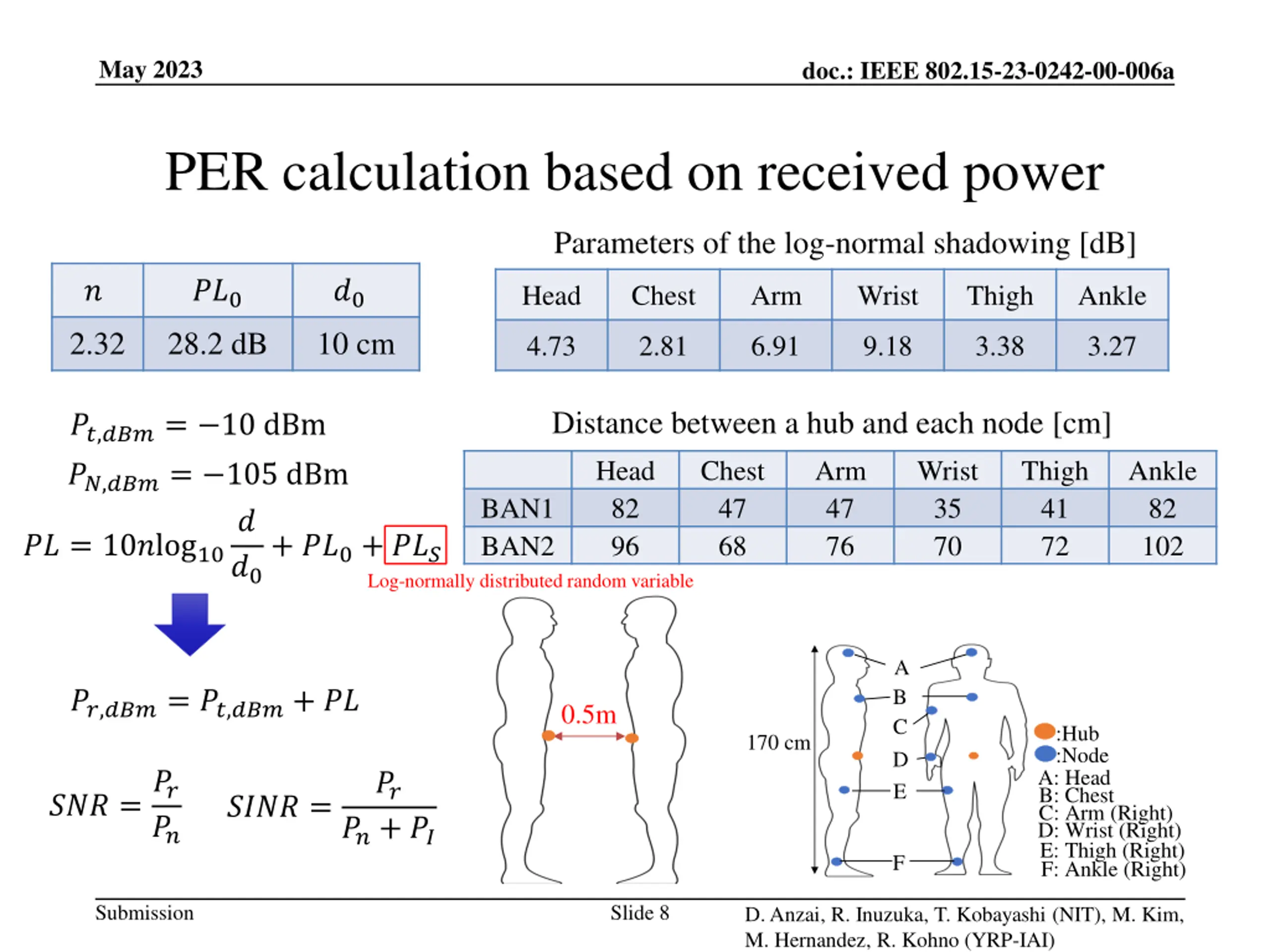

May 2023 doc.: IEEE 802.15-23-0242-00-006a PER calculation based on received power Parameters of the log-normal shadowing [dB] ? ??0 28.2 dB ?0 10 cm Head Chest Arm Wrist Thigh Ankle 2.32 4.73 2.81 6.91 9.18 3.38 3.27 Distance between a hub and each node [cm] ??,???= 10 dBm Head 82 96 Chest 47 68 Arm 47 76 Wrist 35 70 Thigh 41 72 Ankle 82 102 ??,???= 105 dBm BAN1 BAN2 ? ?0 ?? = 10?log10 + ??0+ ??? Log-normally distributed random variable A B C D E ??,???= ??,???+ ?? 0.5m :Hub :Node 170 cm A: Head B: Chest C: Arm (Right) D: Wrist (Right) E: Thigh (Right) F: Ankle (Right) ??? =?? ?? ???? = ?? ??+ ?? F Submission Slide 8 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)
May 2023 doc.: IEEE 802.15-23-0242-00-006a Simulation parameters Network Management Contention Free Contention Access Inactive D-Beacon time 4 ms Modulation scheme BPSK ?? 40 s Number of BANs 2 ?? Number of super frames 500 Number of nodes in each BAN 5 Number of timeslots 100 Max number of retransmissions 5 Network management 5 ARQ protocol Stop-and-Wait Contention free period 60 timeslot Max waiting timeslot (CAP) 10 Contention access period 30 timeslot Packet generation distribution Poisson Inactive period 5 timeslot Data rate 50 Mbps GAP 0-99 timeslot Packet length 2000 bit Submission Slide 9 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

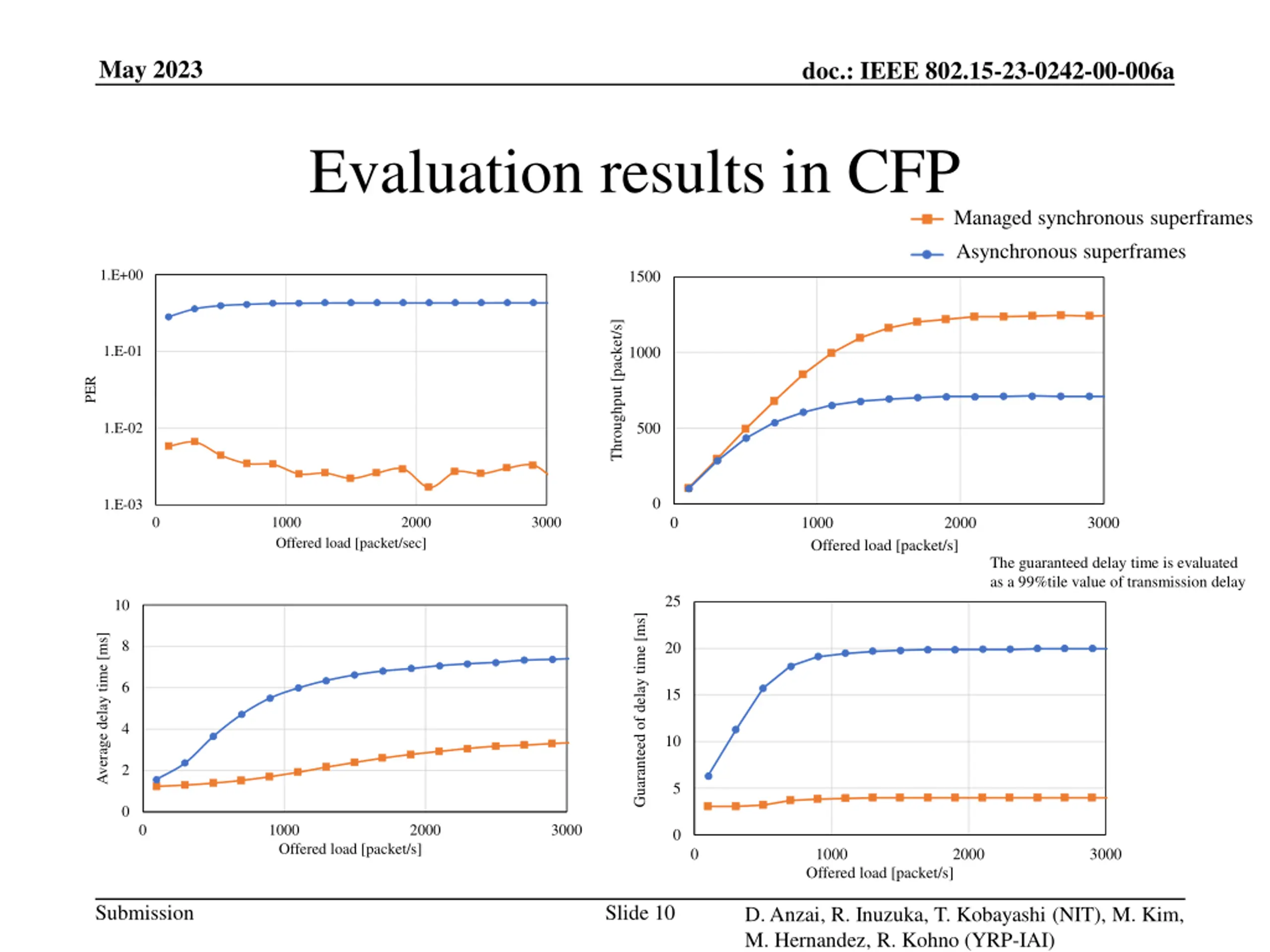

May 2023 doc.: IEEE 802.15-23-0242-00-006a Evaluation results in CFP Managed synchronous superframes Asynchronous superframes 1.E+00 1500 Throughput [packet/s] 1.E-01 1000 PER 500 1.E-02 0 1.E-03 0 1000 Offered load [packet/s] 2000 3000 0 1000 Offered load [packet/sec] 2000 3000 The guaranteed delay time is evaluated as a 99%tile value of transmission delay 25 10 Guaranteed of delay time [ms] Average delay time [ms] 8 20 6 15 4 10 2 5 0 0 1000 Offered load [packet/s] 2000 3000 0 0 1000 Offered load [packet/s] 2000 3000 Submission Slide 10 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)

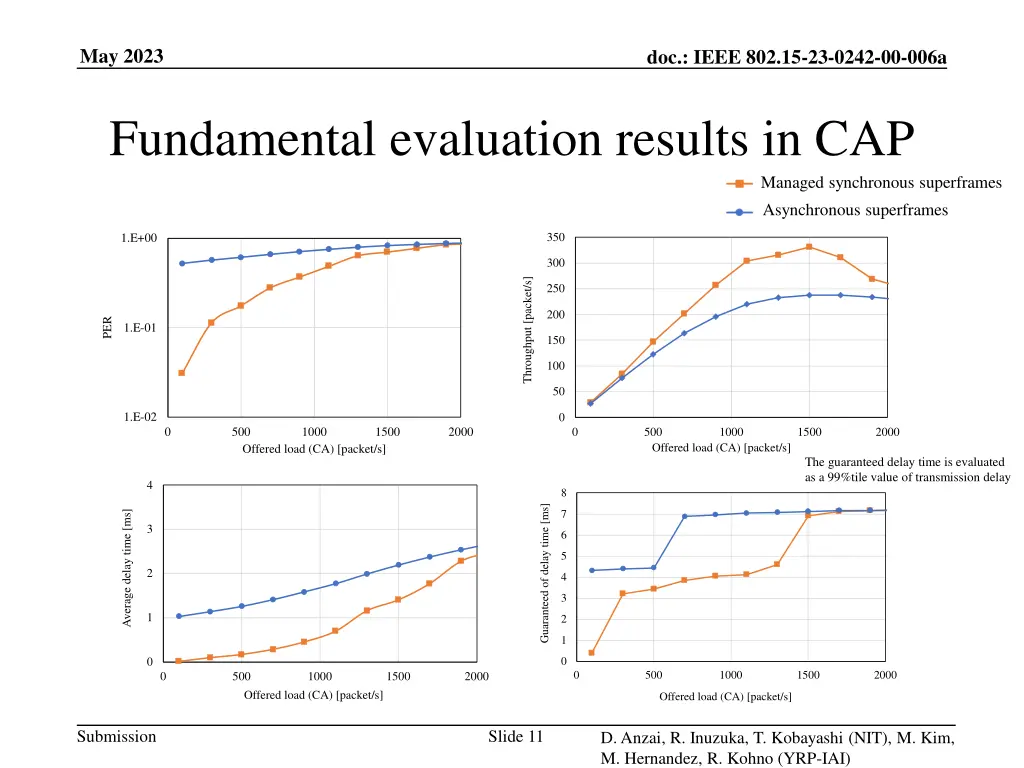

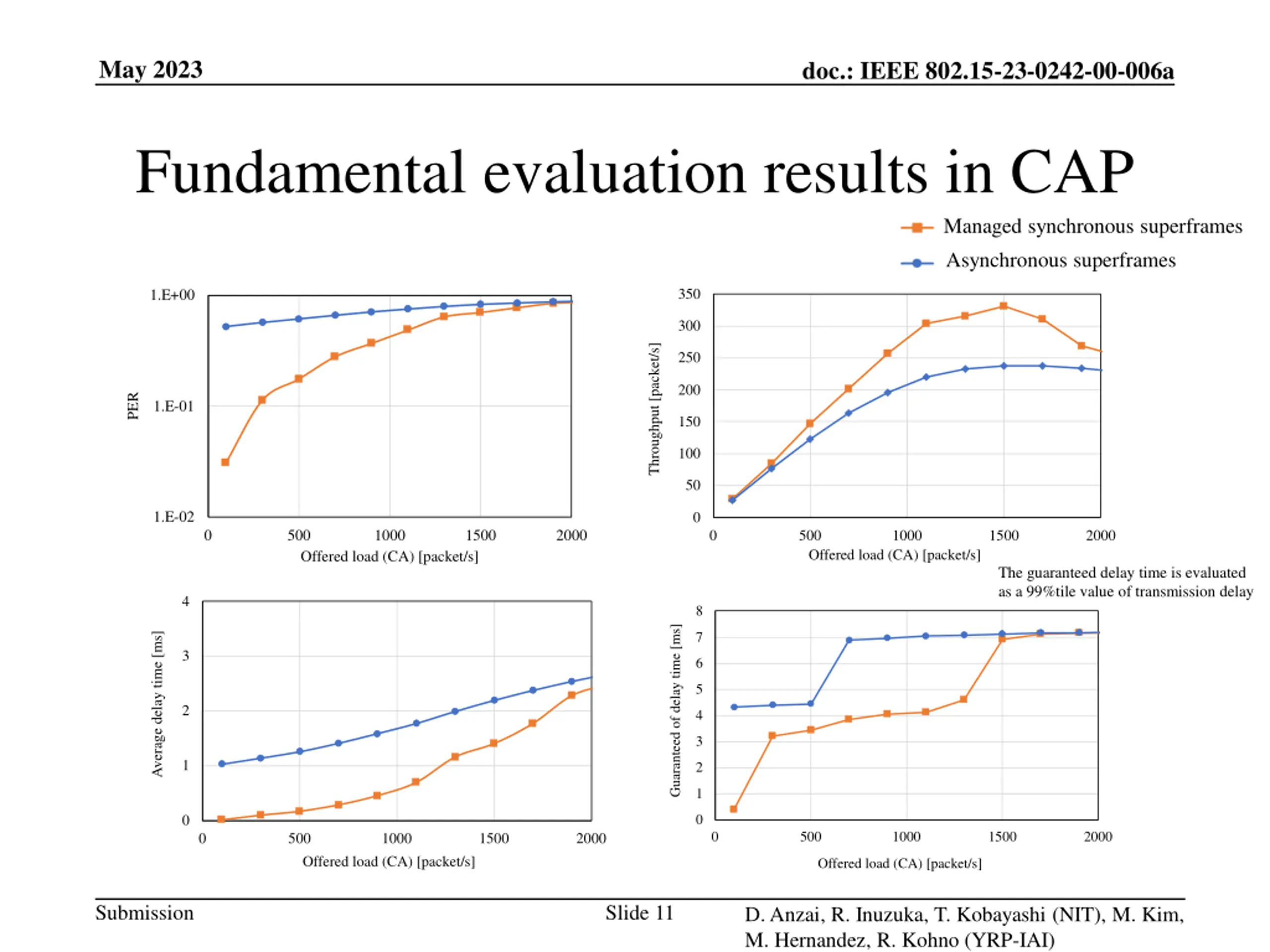

May 2023 doc.: IEEE 802.15-23-0242-00-006a Fundamental evaluation results in CAP Managed synchronous superframes Asynchronous superframes 350 1.E+00 300 Throughput [packet/s] 250 200 PER 1.E-01 150 100 50 1.E-02 0 0 500 1000 1500 2000 0 500 Offered load (CA) [packet/s] 1000 1500 2000 Offered load (CA) [packet/s] The guaranteed delay time is evaluated as a 99%tile value of transmission delay 4 8 Guaranteed of delay time [ms] 7 Average delay time [ms] 3 6 5 2 4 3 1 2 1 0 0 0 500 1000 1500 2000 0 500 1000 1500 2000 Offered load (CA) [packet/s] Offered load (CA) [packet/s] Submission Slide 11 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)
May 2023 doc.: IEEE 802.15-23-0242-00-006a References 1. D. Anzai, R. Inuzuka, M. Kim, T. Kobayashi, M. Hernandez, R. Kohno, Fundamental MAC Performance Evaluation under Multiple IEEE802.15.6ma BAN Co-Existence, in Proc. IEEE ISMICT 2023, Lincoln, USA, Mach 2023. D. Anzai, I. Balasingham, G. Fischer, J. Wang, Reliable and High-Speed Implant Ultra-Wideband Communications with EAI/Springer Innovations in Communication and Computing, pp. 27-32, March 2020. Y. Shimizu, D. Anzai, R. C-Santiago, P. A. Floor, I. Balasingham, and J. Wang, Performance evaluation of an ultra-wideband transmit diversity in a living animal experiment IEEE Trans. Microw. Theory Tech., vol. 65, no. 7, pp. 2596- 2606, July 2017. D. Anzai, K. Katsu, R. Chavez-Santiago, Q. Wang, D. Plettemeier, J. Wang, and I. Balasingham, Experimental evaluation of implant UWB-IR transmission with living animal for body area networks, IEEE Trans. Microw. Theory Tech., vol. 62, no. 1, pp. 183-192, Jan. 2014. J. Shi, D. Anzai, and J. Wang, Channel modeling and performance analysis of diversity reception for implant UWB wireless link, IEICE Trans. Commun., no. E95-B, vol. 10, pp. 3197-3205, Oct. 2012. 2. Transmit Receive Diversity, 3. 4. 5. Submission Slide 12 D. Anzai, R. Inuzuka, T. Kobayashi (NIT), M. Kim, M. Hernandez, R. Kohno (YRP-IAI)
