Advanced Molecular Modeling Techniques for Structural Analysis
Discover the world of Hyperchem with advanced techniques for creating 3D structures, selecting atoms, changing compound views, and analyzing properties like charge density and molecular orbitals. Explore methods for energy calculations and interactions with molecules in the air using semiempirical approaches. Visualize molecular properties and optimize geometries for a deeper understanding of chemical structures.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

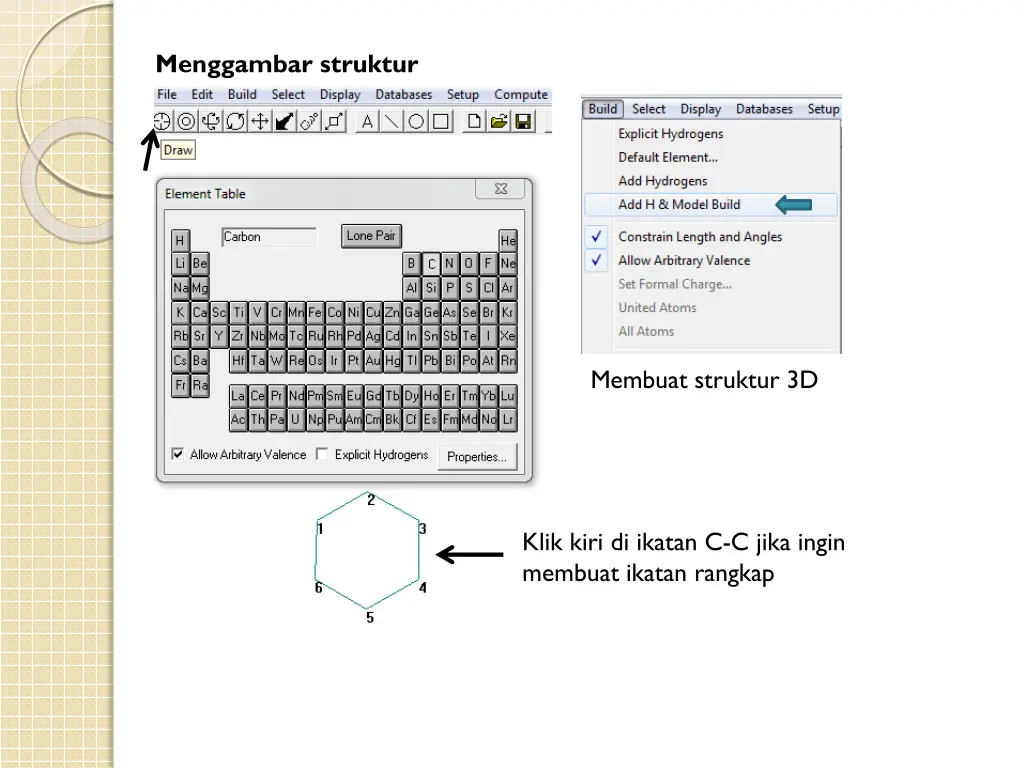

Menggambar struktur Membuat struktur 3D Klik kiri di ikatan C-C jika ingin membuat ikatan rangkap
Memilih atom atau molekul Item yang dipilih, berwarna hijau

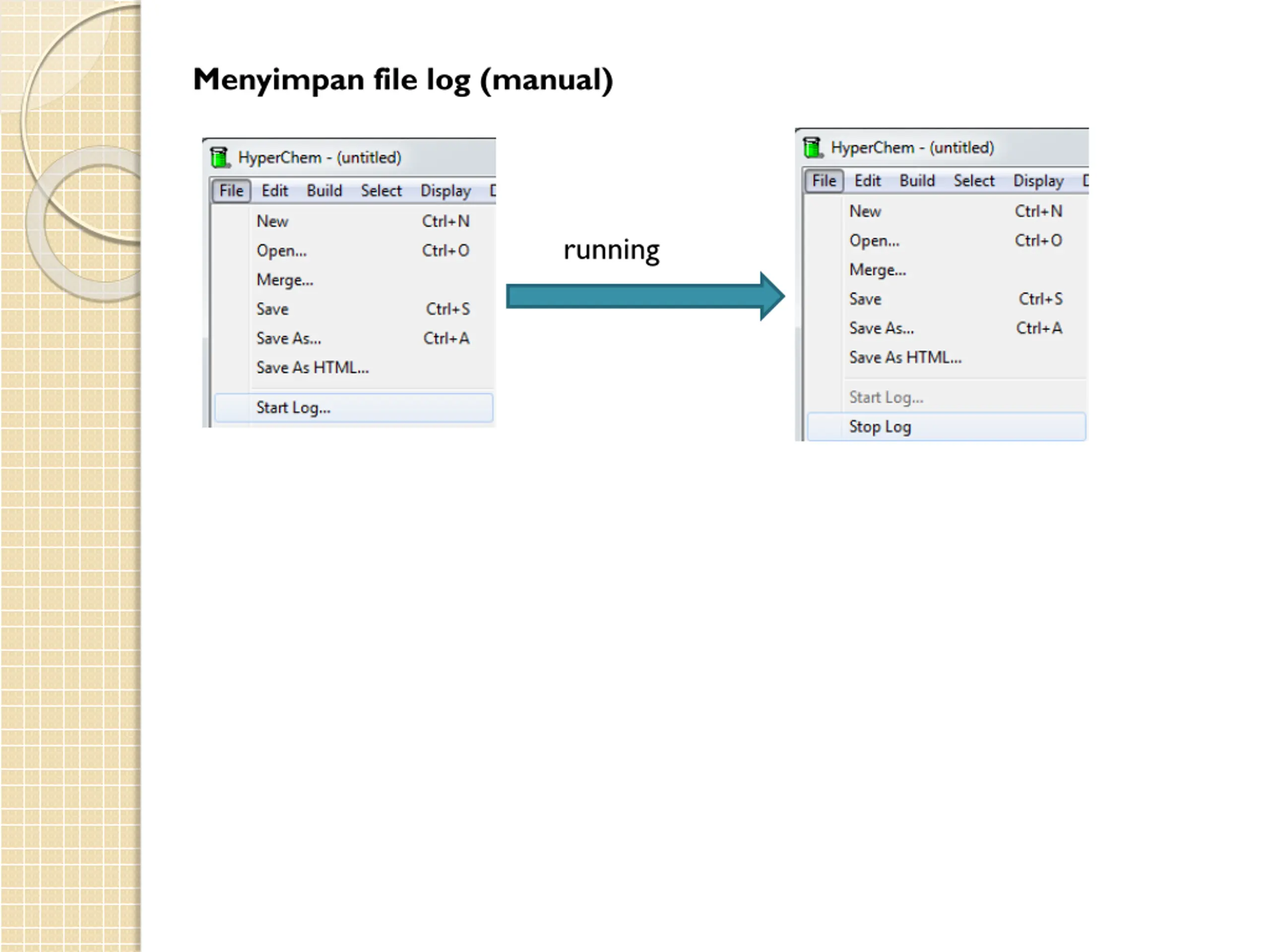

Menyimpan file log (manual) running

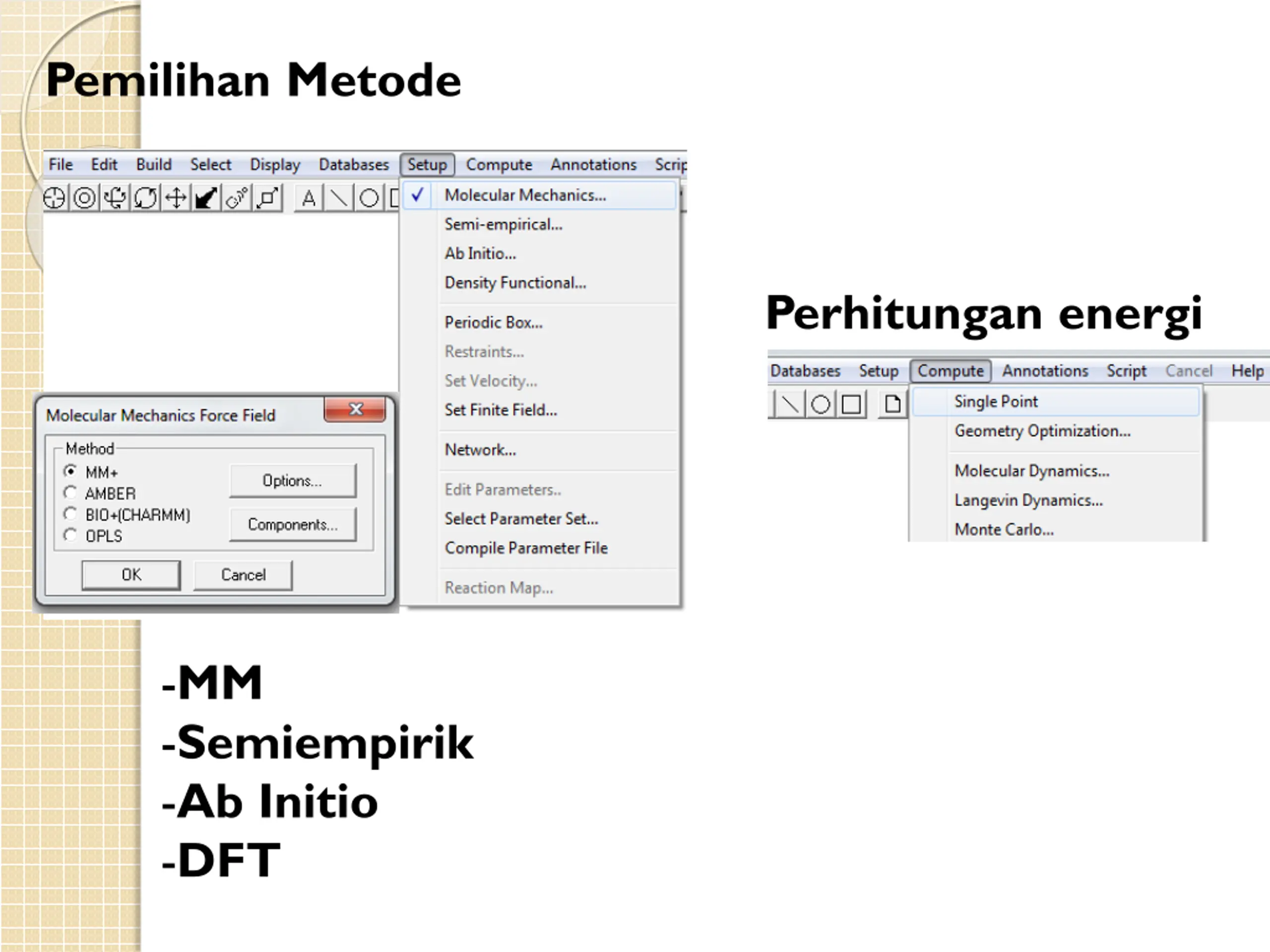

Pemilihan Metode Perhitungan energi -MM -Semiempirik -Ab Initio -DFT

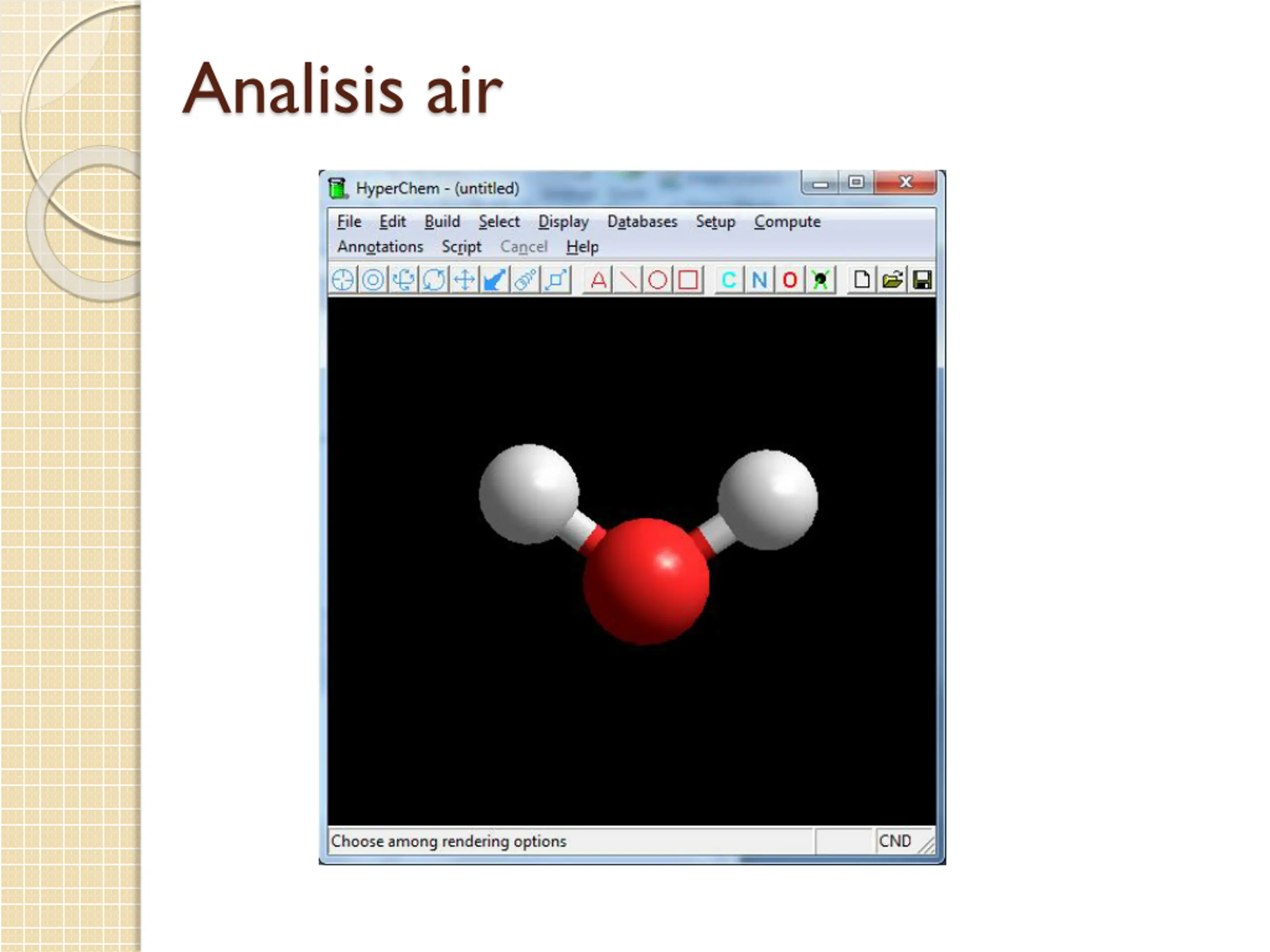

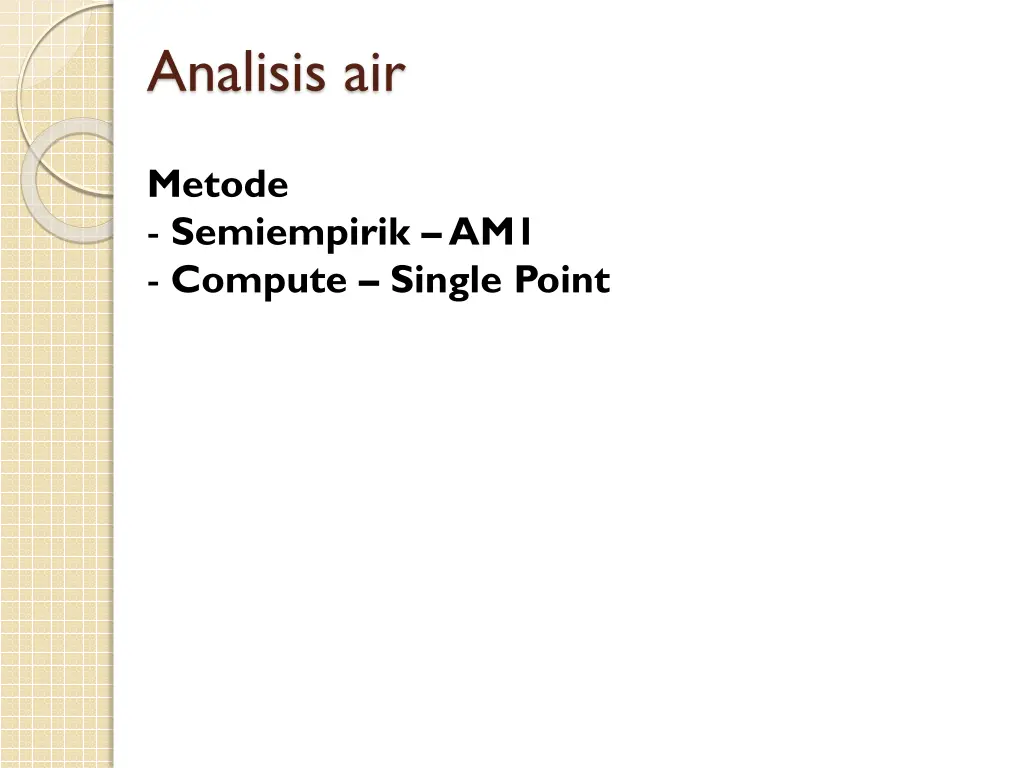

Analisis air Metode - Semiempirik AM1 - Compute Single Point

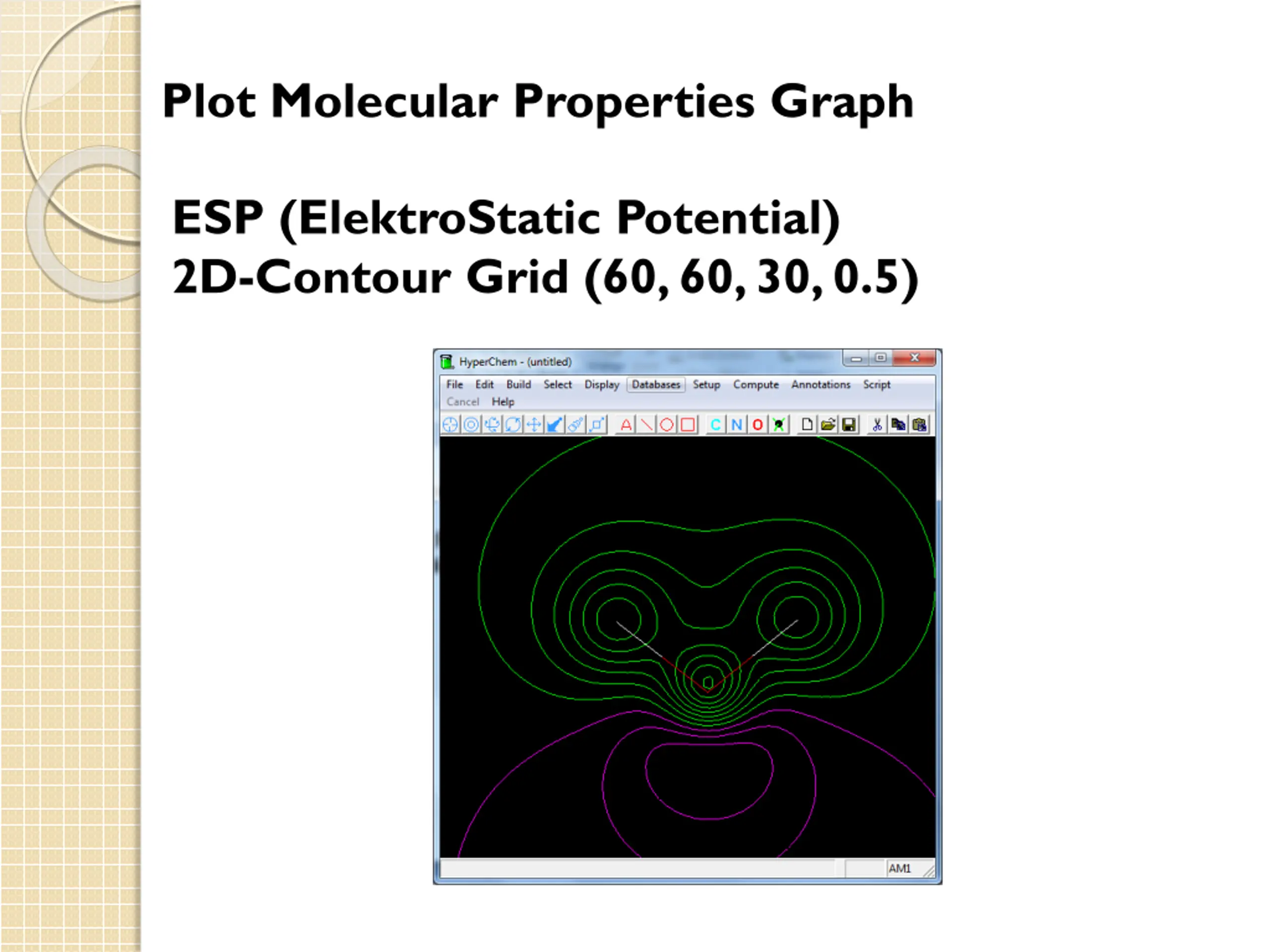

Plot Molecular Properties Graph ESP (ElektroStatic Potential) 2D-Contour Grid (60, 60, 30, 0.5)

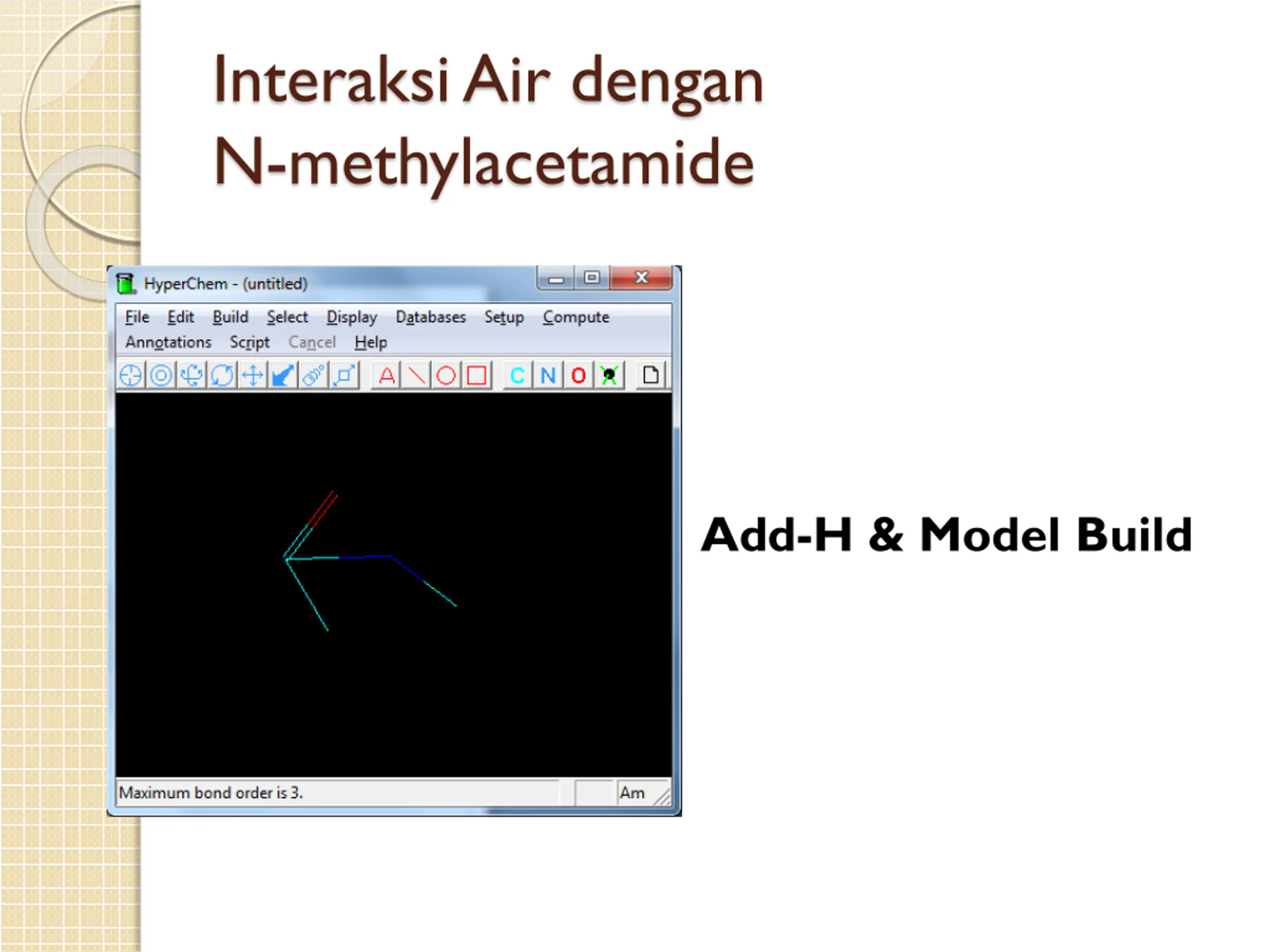

Interaksi Air dengan N-methylacetamide Add-H & Model Build
Cis Trans - Select -> atom Pilih select tool -> Drag H to O Build -> Constrain bond torsi Pilih trans Deselect Double click select tool - - - - -

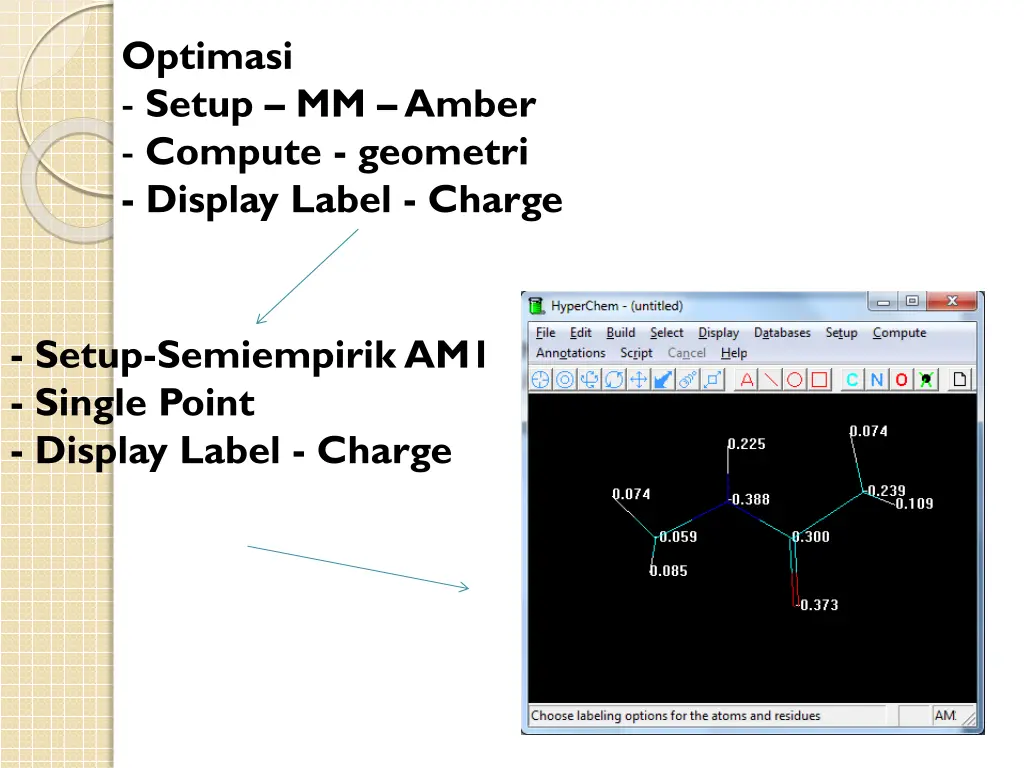

Optimasi - Setup MM Amber - Compute - geometri - Display Label - Charge - Setup-Semiempirik AM1 - Single Point - Display Label - Charge

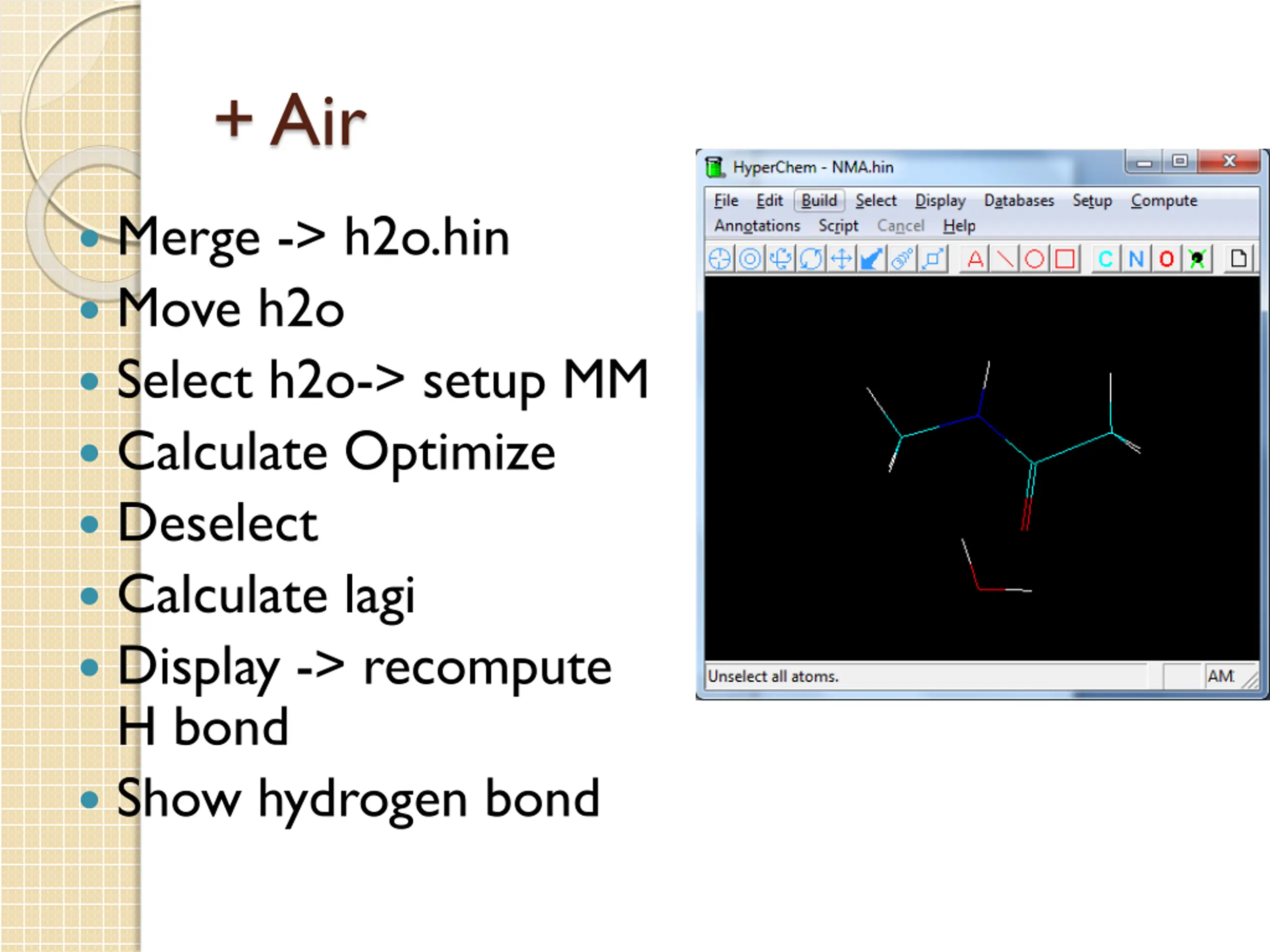

+ Air Merge -> h2o.hin Move h2o Select h2o-> setup MM Calculate Optimize Deselect Calculate lagi Display -> recompute H bond Show hydrogen bond

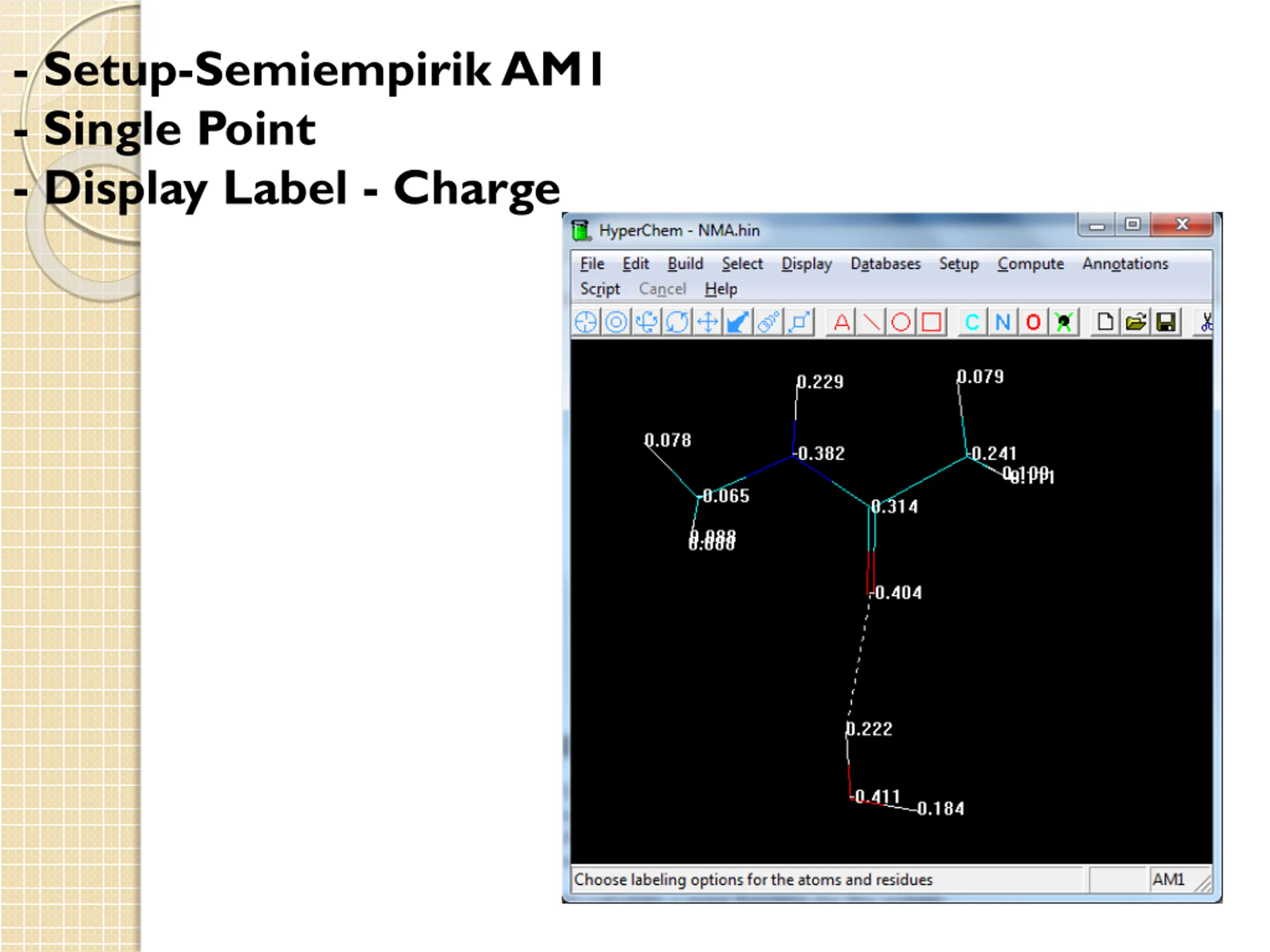

- Setup-Semiempirik AM1 - Single Point - Display Label - Charge

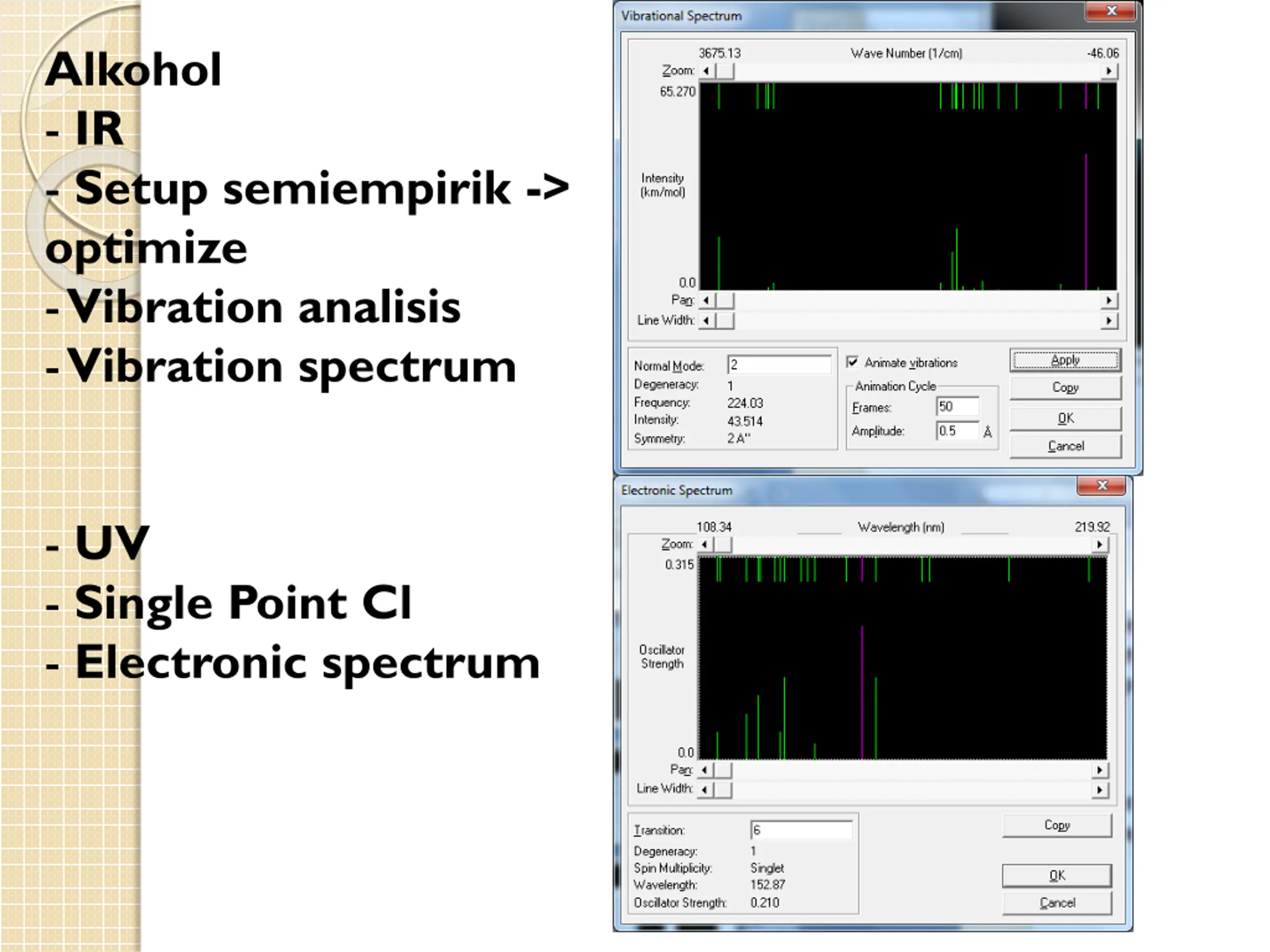

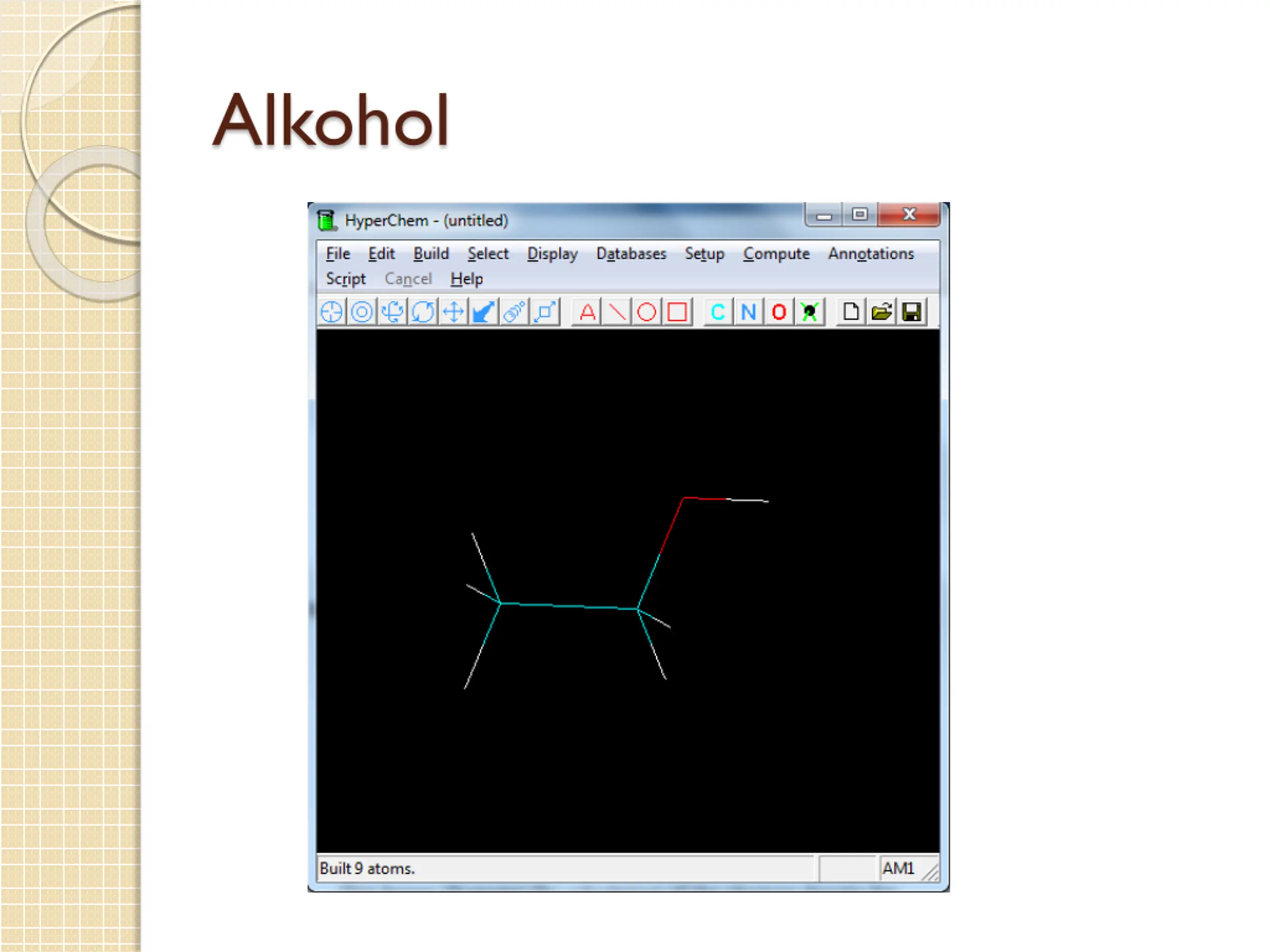

Alkohol - IR - Setup semiempirik -> optimize - Vibration analisis - Vibration spectrum - UV - Single Point Cl - Electronic spectrum

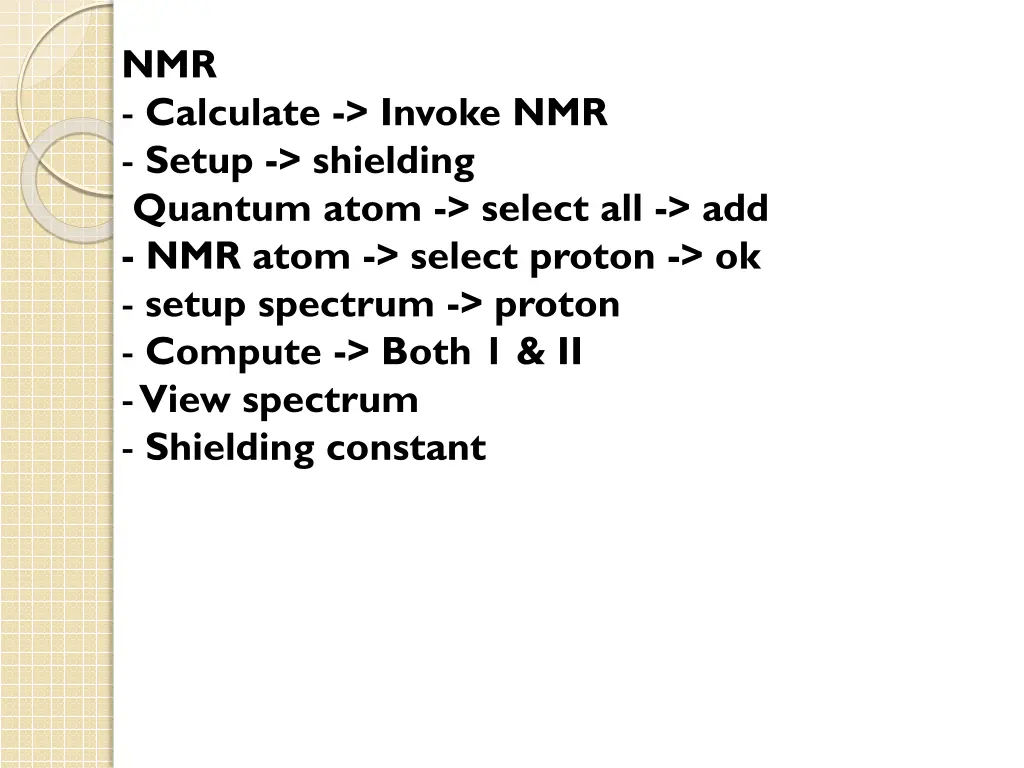

NMR - Calculate -> Invoke NMR - Setup -> shielding Quantum atom -> select all -> add - NMR atom -> select proton -> ok - setup spectrum -> proton - Compute -> Both 1 & II - View spectrum - Shielding constant

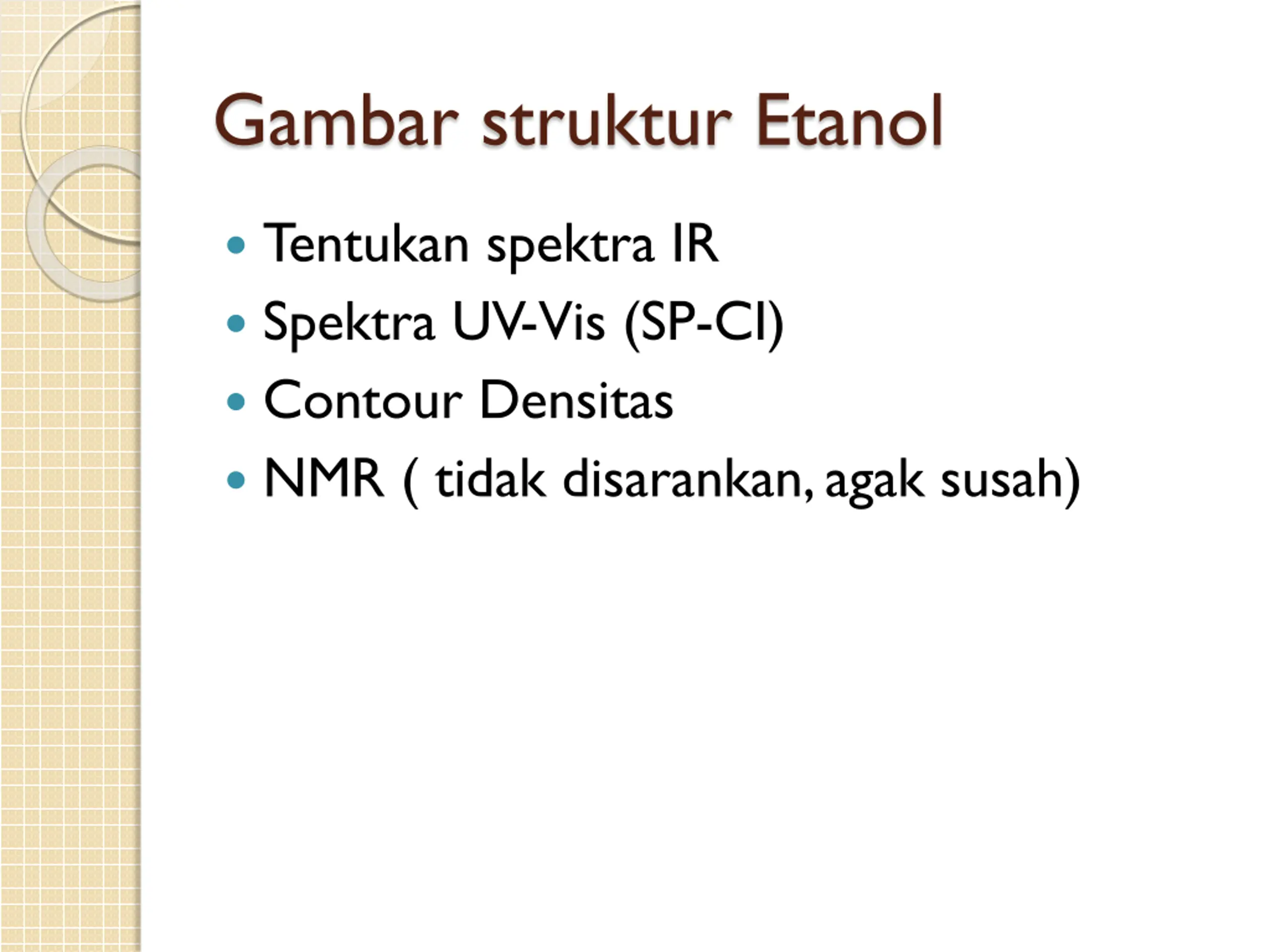

Gambar struktur Etanol Tentukan spektra IR Spektra UV-Vis (SP-CI) Contour Densitas NMR ( tidak disarankan, agak susah)
