Presentation Transcript

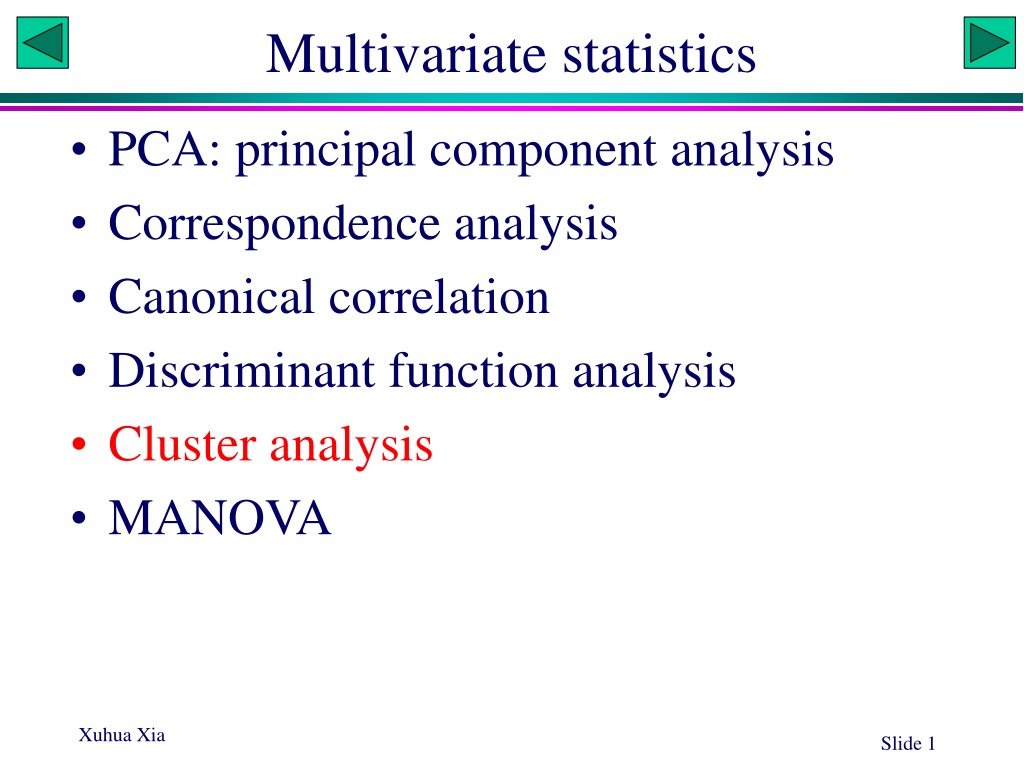

Multivariate statistics PCA: principal component analysis Correspondence analysis Canonical correlation Discriminant function analysis Cluster analysis MANOVA Xuhua Xia Slide 1

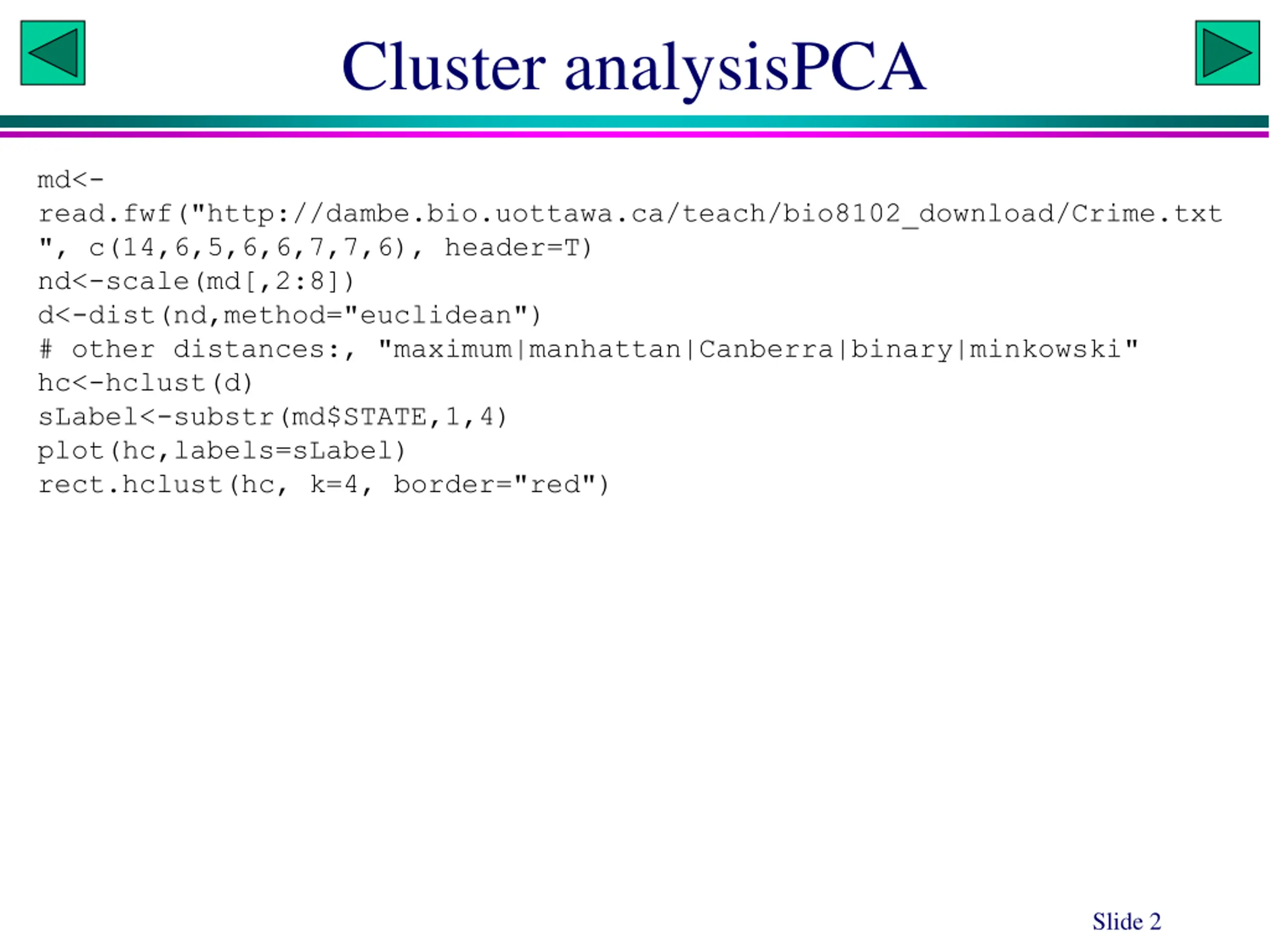

Cluster analysisPCA md<- read.fwf("http://dambe.bio.uottawa.ca/teach/bio8102_download/Crime.txt ", c(14,6,5,6,6,7,7,6), header=T) nd<-scale(md[,2:8]) d<-dist(nd,method="euclidean") # other distances:, "maximum|manhattan|Canberra|binary|minkowski" hc<-hclust(d) sLabel<-substr(md$STATE,1,4) plot(hc,labels=sLabel) rect.hclust(hc, k=4, border="red") Slide 2

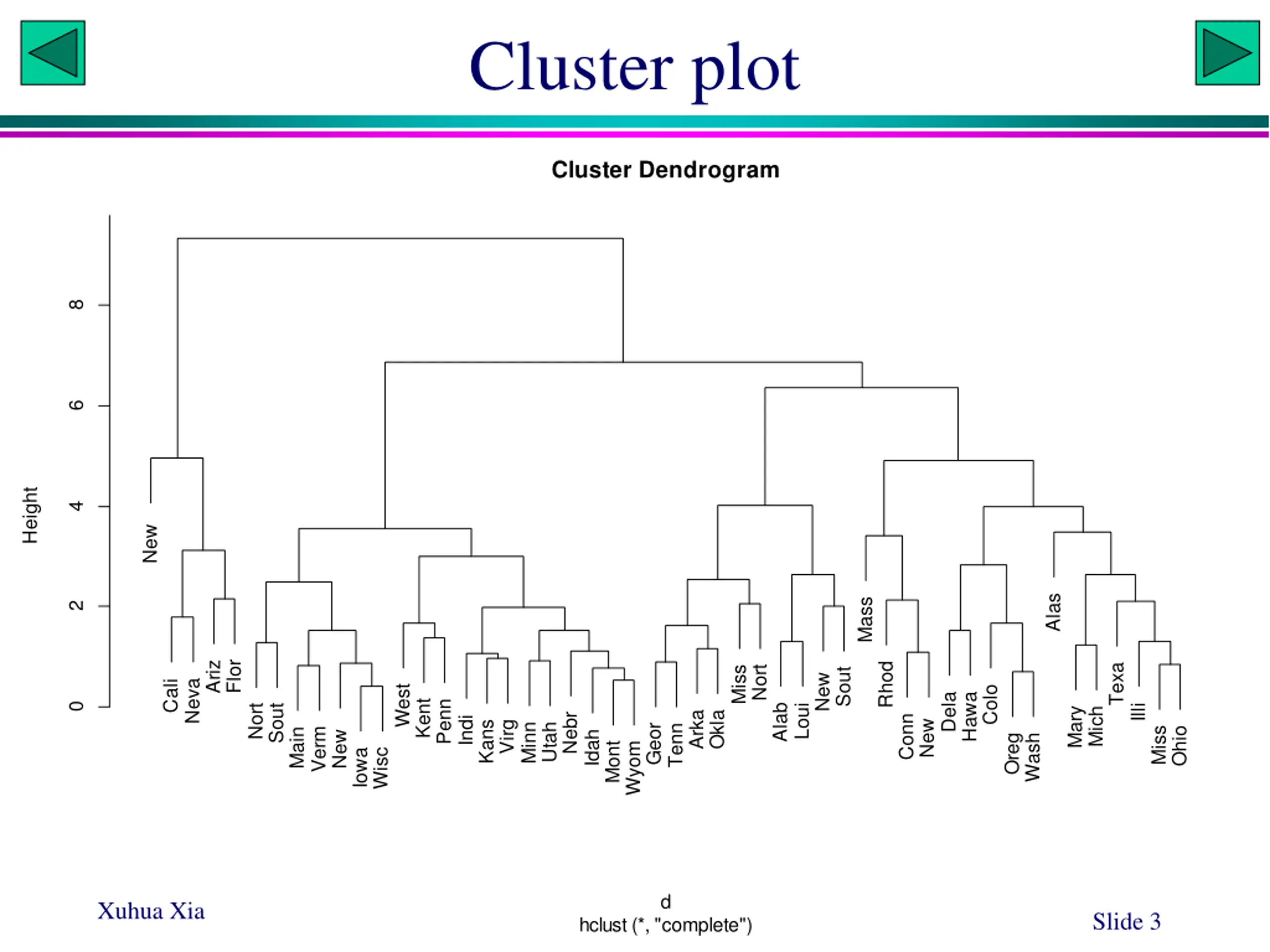

Cluster plot Cluster Dendrogram 8 6 Height 4 New Alas Mass 2 Flor Ariz Rhod Texa Nort Miss Sout New Neva Cali West Colo Dela Hawa Kent Penn 0 Alab Loui Illi Nort Sout Mary Mich Arka Okla Nebr New Conn Indi Kans Virg Minn Utah Geor Tenn New Miss Ohio Verm Main Idah Wash Oreg Mont Wyom Wisc Iowa d Xuhua Xia Slide 3 hclust (*, "complete")

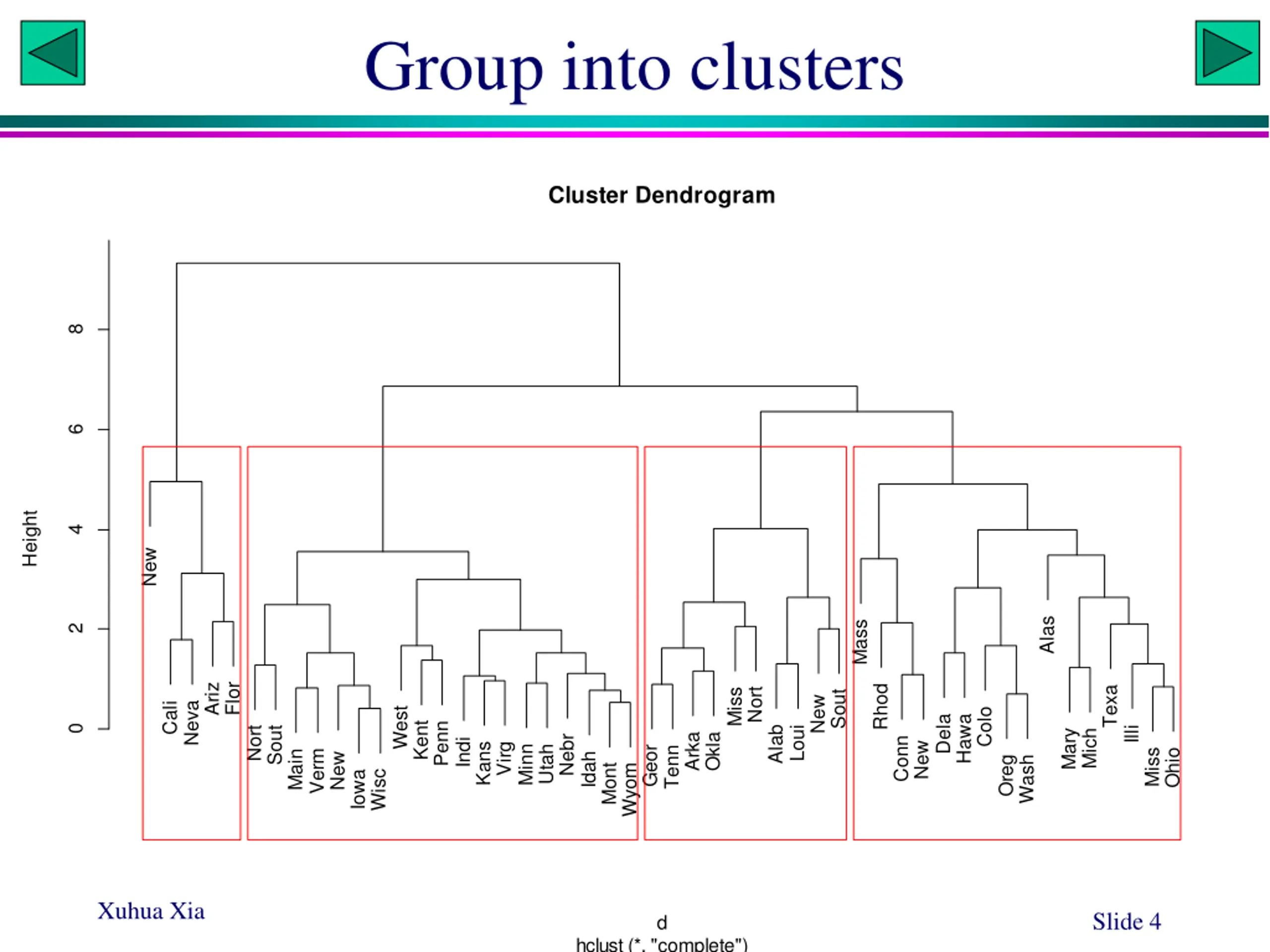

Group into clusters Cluster Dendrogram 8 6 Height 4 New Alas Mass 2 Flor Ariz Rhod Texa Nort Miss Sout New Neva Cali West Colo Dela Hawa Kent Penn 0 Alab Loui Illi Nort Sout Mary Mich Arka Okla Nebr New Conn Indi Kans Virg Minn Utah Geor Tenn New Miss Ohio Verm Main Idah Wash Oreg Mont Wyom Wisc Iowa Xuhua Xia Slide 4 d hclust (*, "complete")

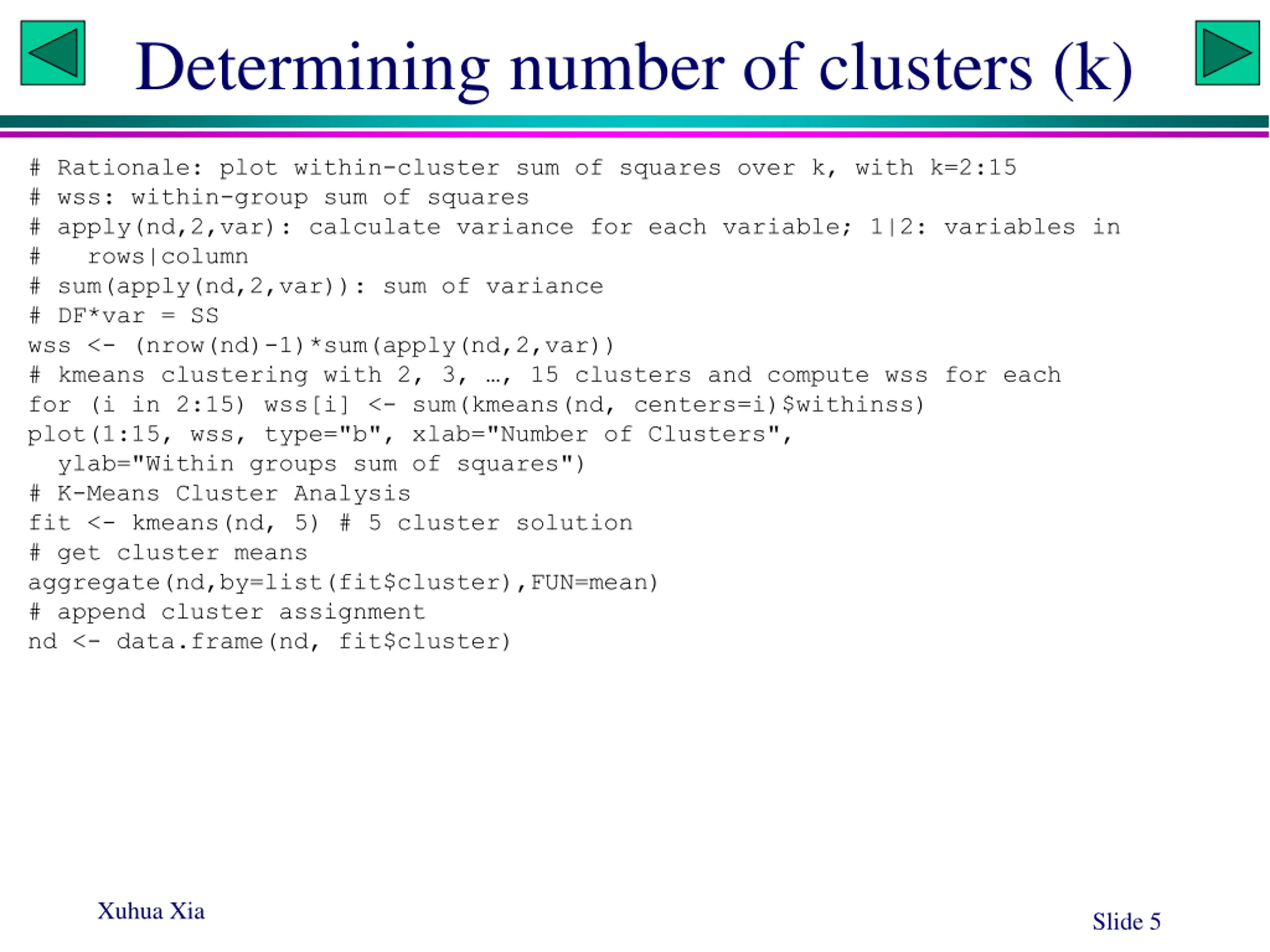

Determining number of clusters (k) # Rationale: plot within-cluster sum of squares over k, with k=2:15 # wss: within-group sum of squares # apply(nd,2,var): calculate variance for each variable; 1|2: variables in # rows|column # sum(apply(nd,2,var)): sum of variance # DF*var = SS wss <- (nrow(nd)-1)*sum(apply(nd,2,var)) # kmeans clustering with 2, 3, , 15 clusters and compute wss for each for (i in 2:15) wss[i] <- sum(kmeans(nd, centers=i)$withinss) plot(1:15, wss, type="b", xlab="Number of Clusters", ylab="Within groups sum of squares") # K-Means Cluster Analysis fit <- kmeans(nd, 5) # 5 cluster solution # get cluster means aggregate(nd,by=list(fit$cluster),FUN=mean) # append cluster assignment nd <- data.frame(nd, fit$cluster) Xuhua Xia Slide 5

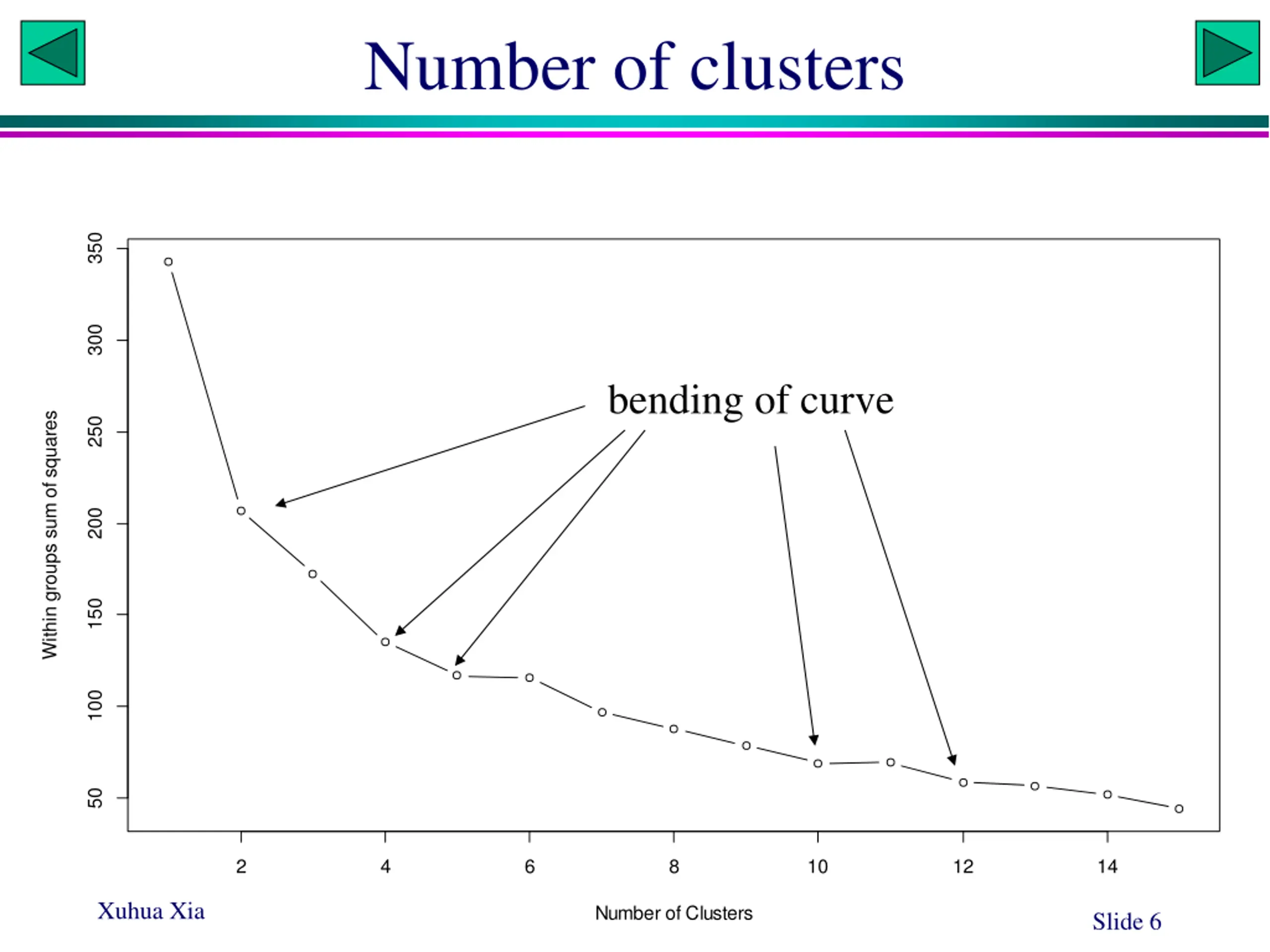

Number of clusters 350 300 bending of curve Within groups sum of squares 250 200 150 100 50 2 4 6 8 10 12 14 Xuhua Xia Number of Clusters Slide 6
