Course: Process Control, NMBU Dec 2017 - April 2018 Cascade control By Finn Aakre Haugen, PhD, TechTeach (finnhaugen@hotmail.com) F. Haugen. Process Control. NMBU. 2018. 1

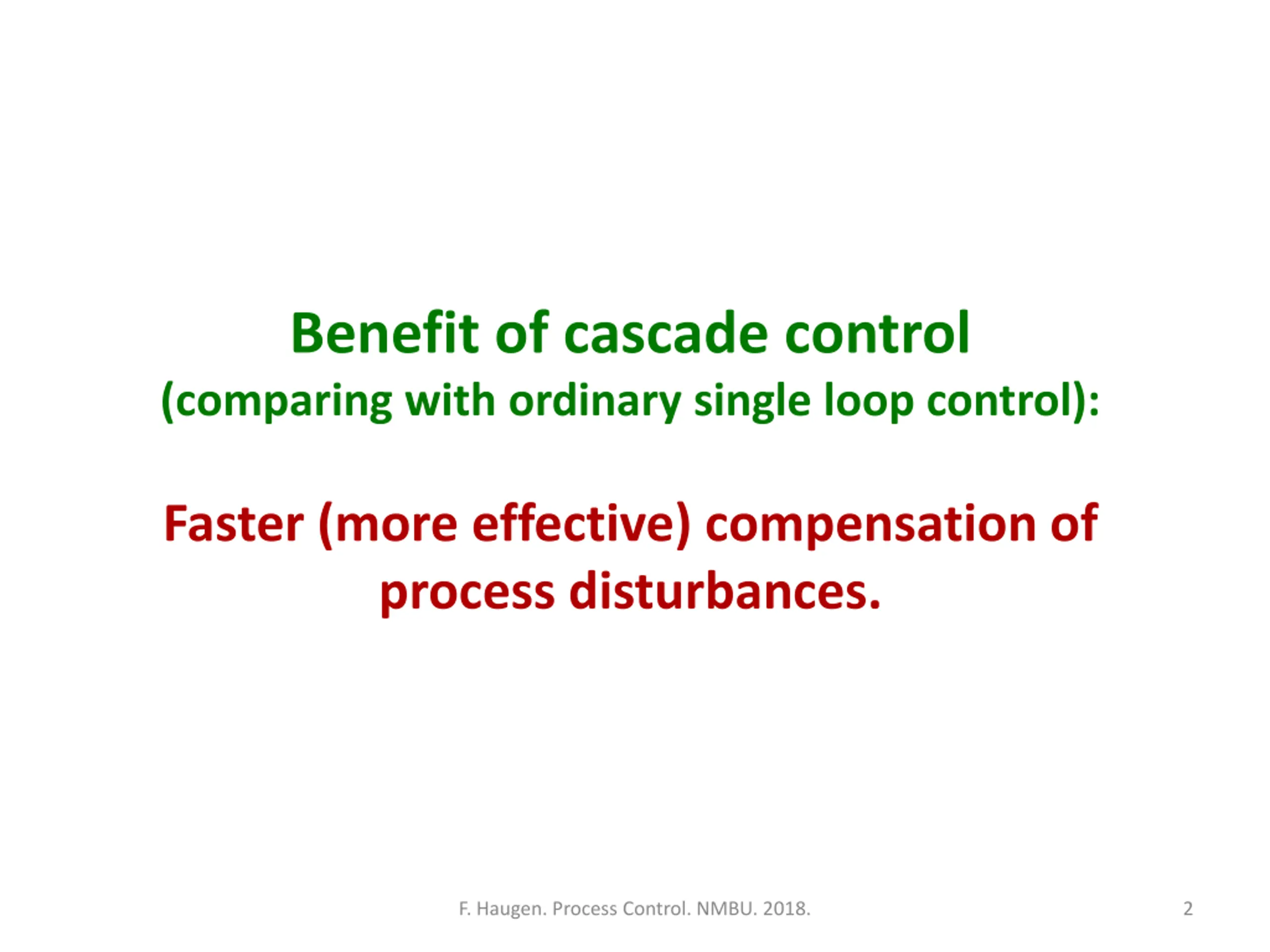

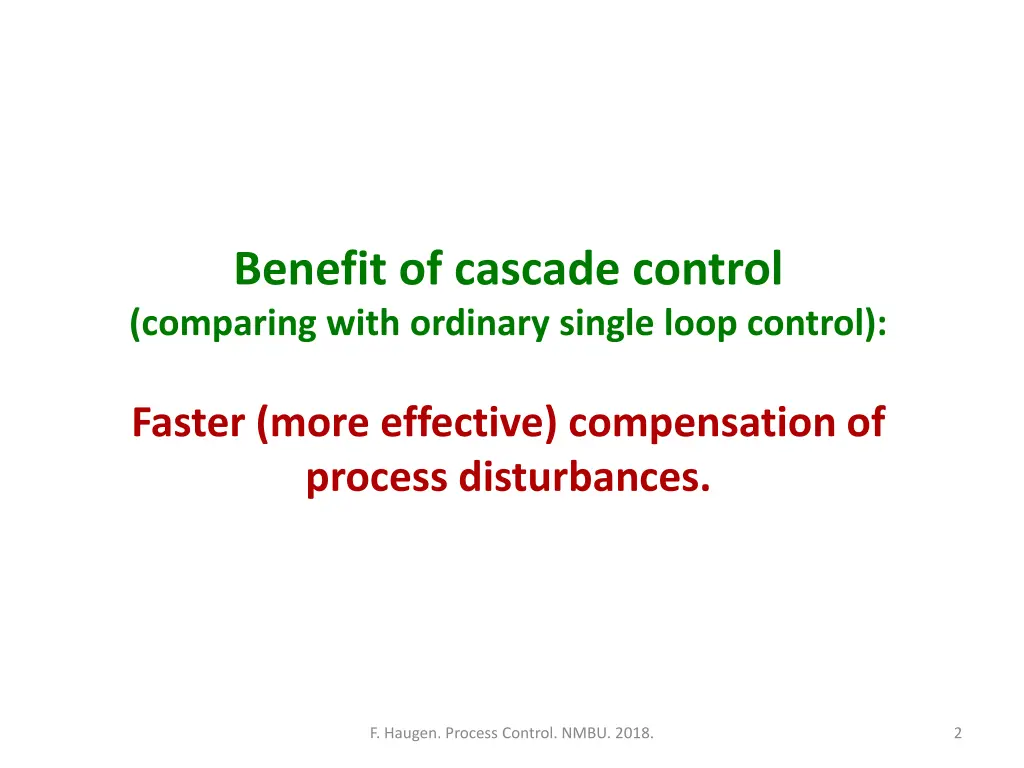

Benefit of cascade control (comparing with ordinary single loop control): Faster (more effective) compensation of process disturbances. F. Haugen. Process Control. NMBU. 2018. 2

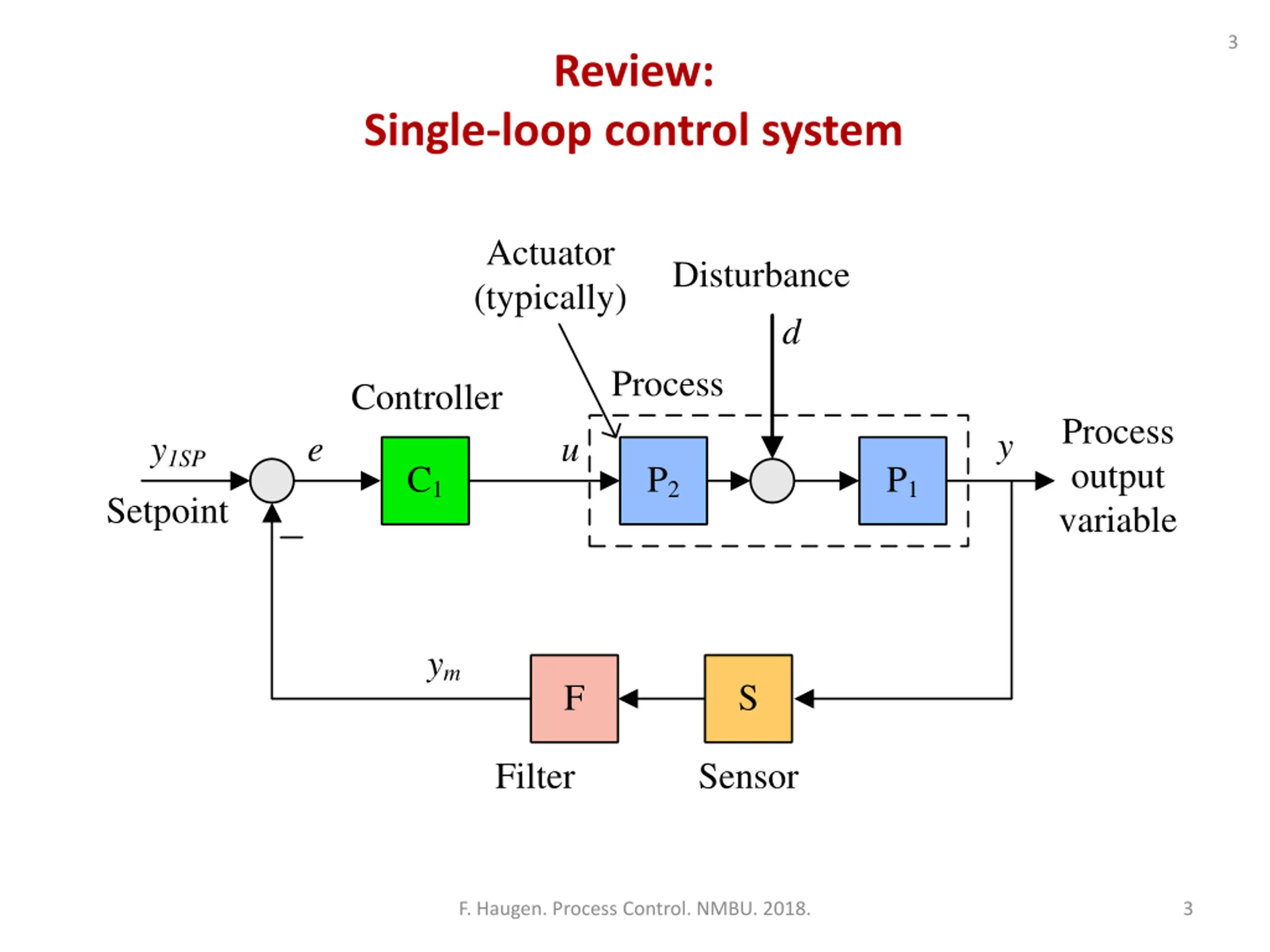

3 Review: Single-loop control system Actuator (typically) Disturbance d Process Controller Process output variable y y1SP e u C1 P2 P1 Setpoint ym F S Filter Sensor F. Haugen. Process Control. NMBU. 2018. 3

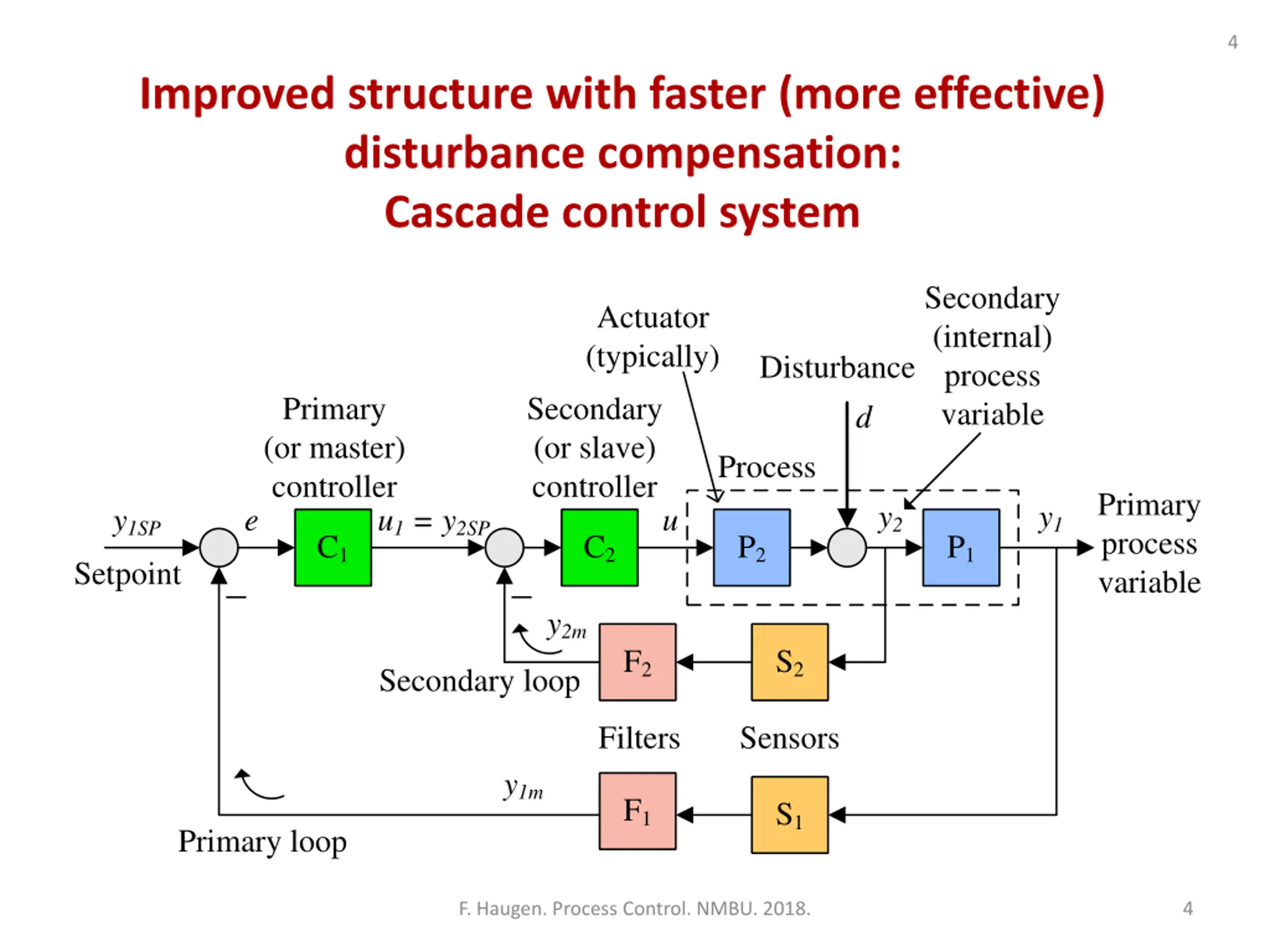

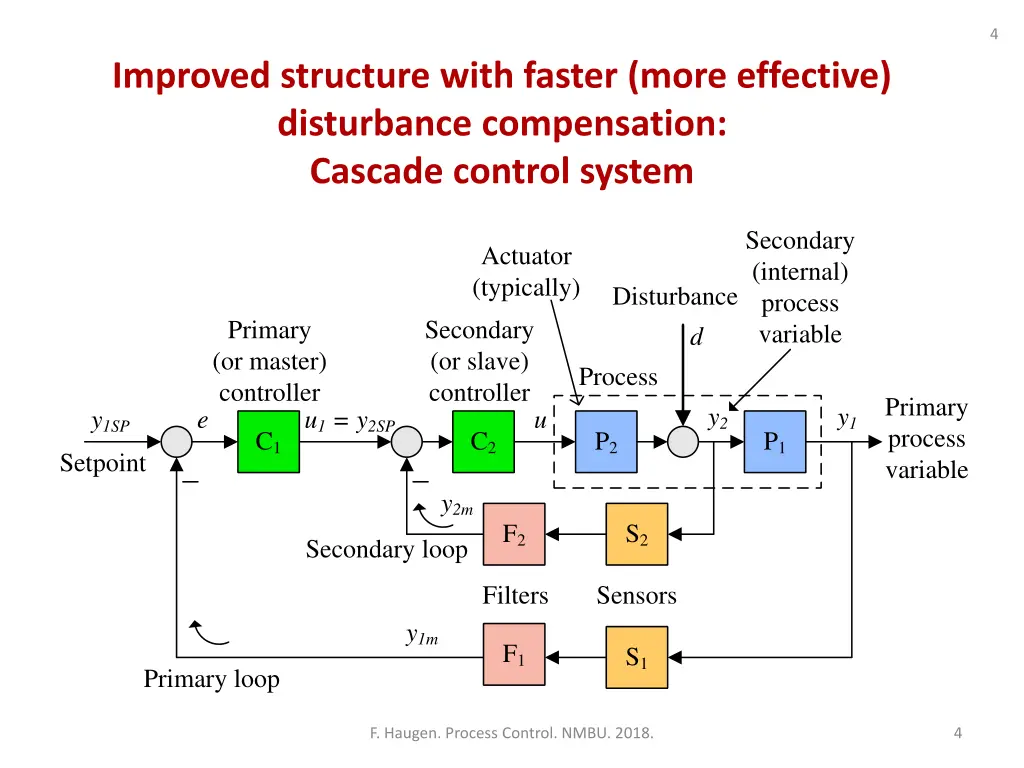

4 Improved structure with faster (more effective) disturbance compensation: Cascade control system Secondary (internal) process variable Actuator (typically) Disturbance Primary (or master) controller Secondary (or slave) controller d Process Primary process variable y2 y1 y1SP e u1 = y2SP u C1 C2 P2 P1 Setpoint y2m F2 S2 Secondary loop Filters Sensors y1m F1 S1 Primary loop F. Haugen. Process Control. NMBU. 2018. 4

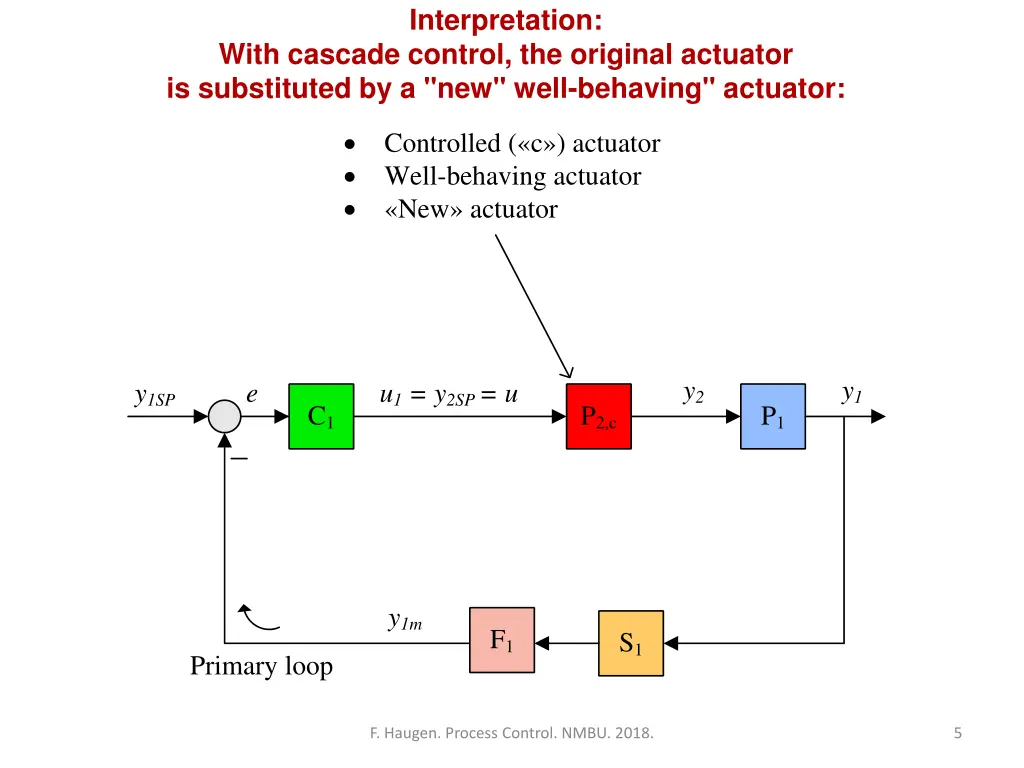

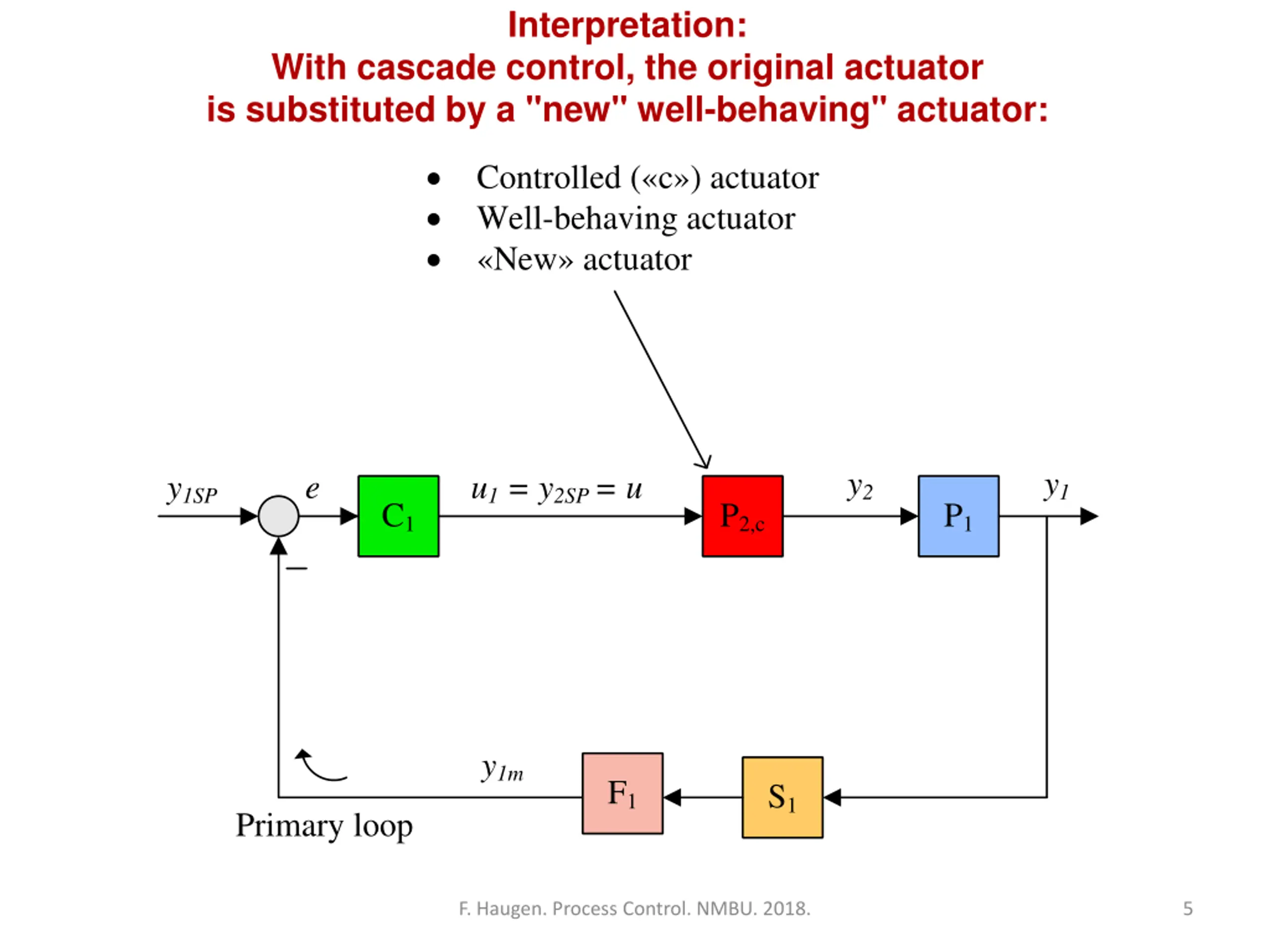

Interpretation: With cascade control, the original actuator is substituted by a "new" well-behaving" actuator: Controlled ( c ) actuator Well-behaving actuator New actuator y2 y1 y1SP e u1 = y2SP = u C1 P2,c P1 y1m F1 S1 Primary loop F. Haugen. Process Control. NMBU. 2018. 5

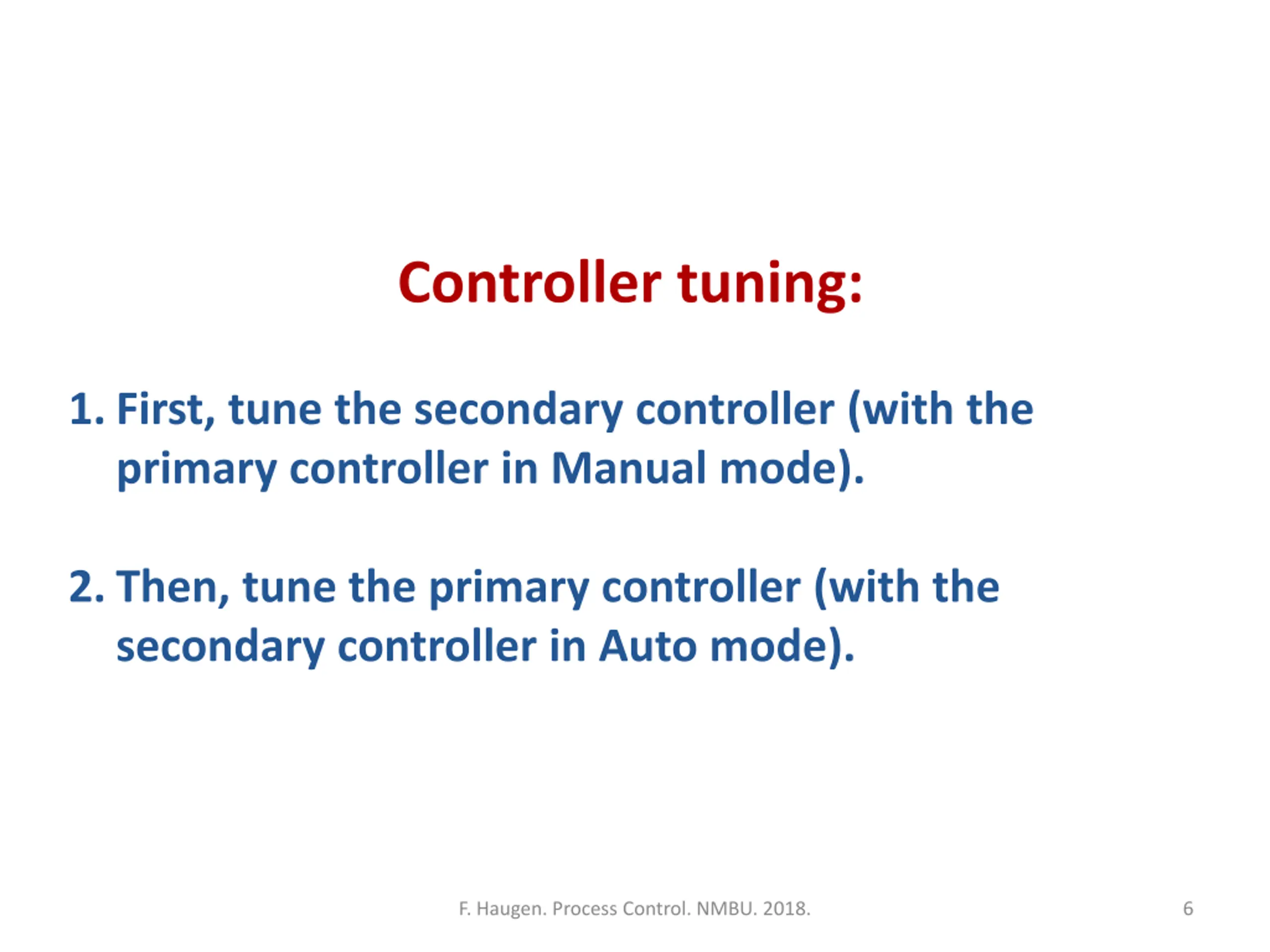

Controller tuning: 1.First, tune the secondary controller (with the primary controller in Manual mode). 2.Then, tune the primary controller (with the secondary controller in Auto mode). F. Haugen. Process Control. NMBU. 2018. 6

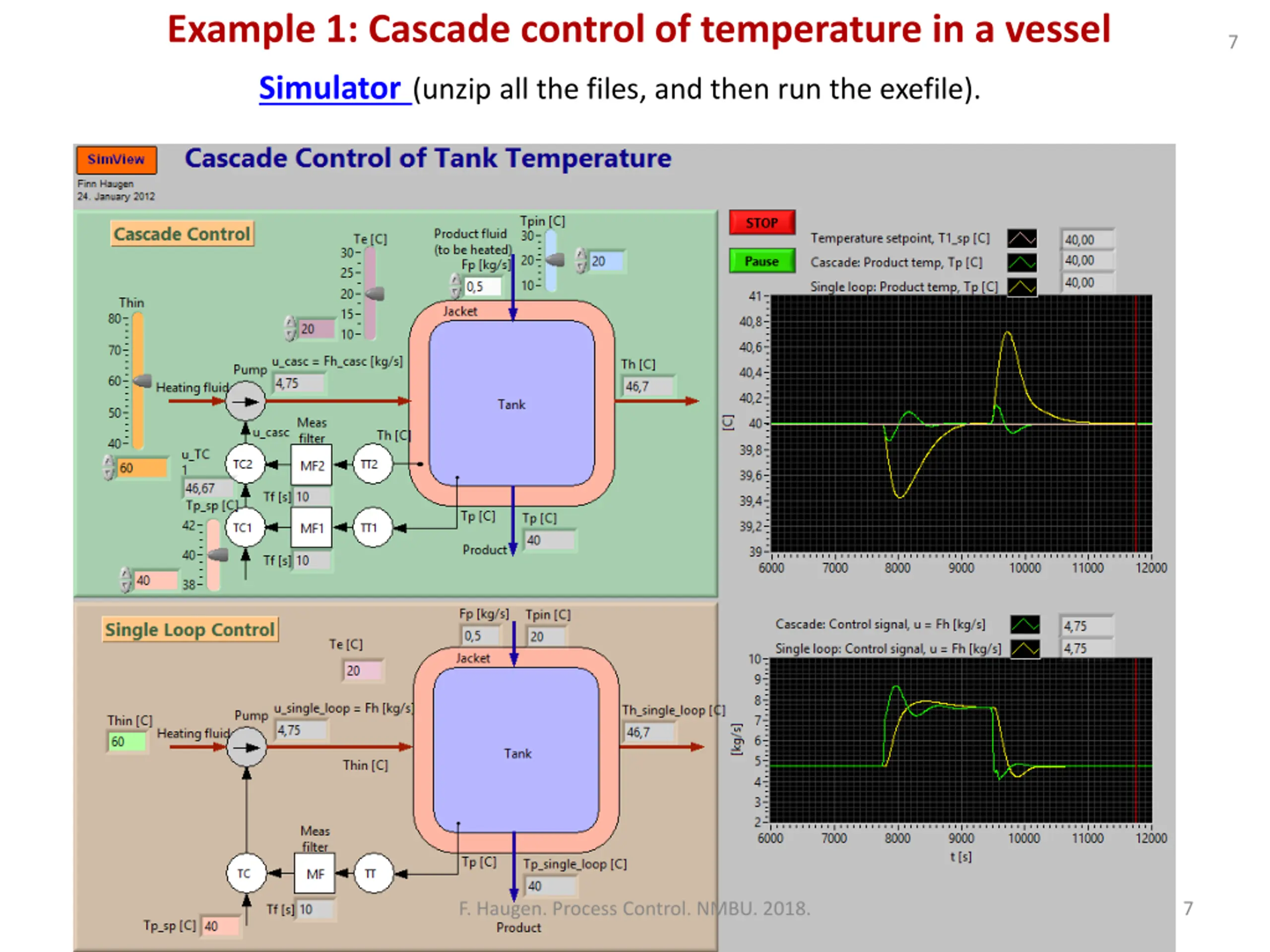

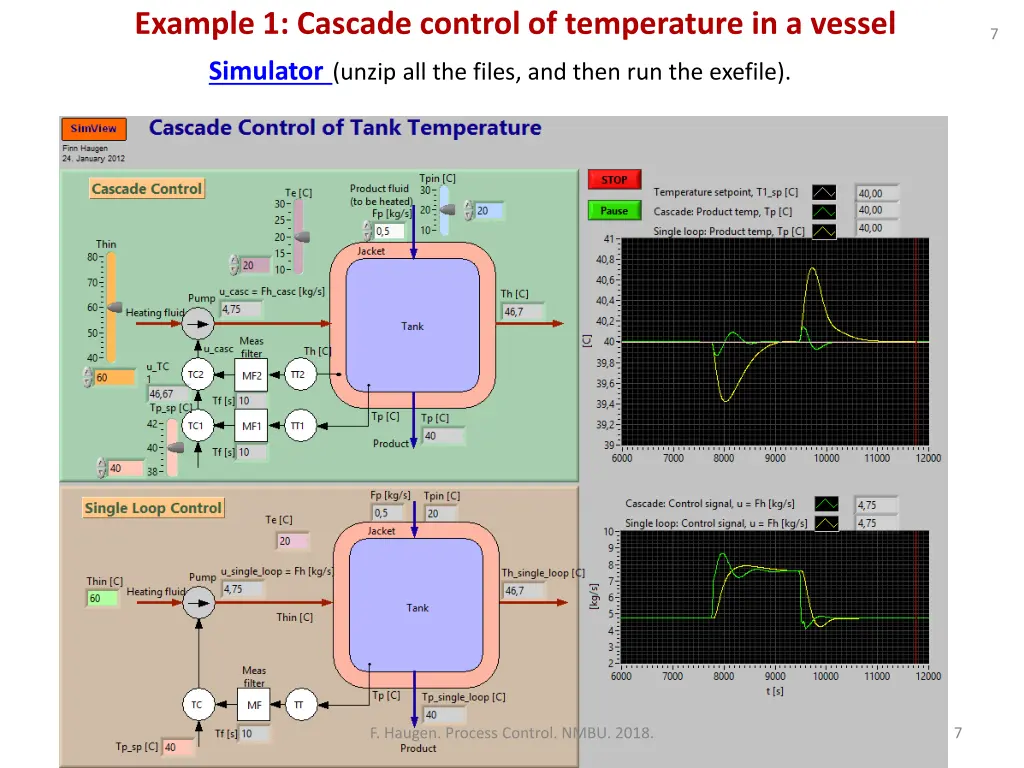

Example 1: Cascade control of temperature in a vessel Simulator(unzip all the files, and then run the exefile). 7 F. Haugen. Process Control. NMBU. 2018. 7

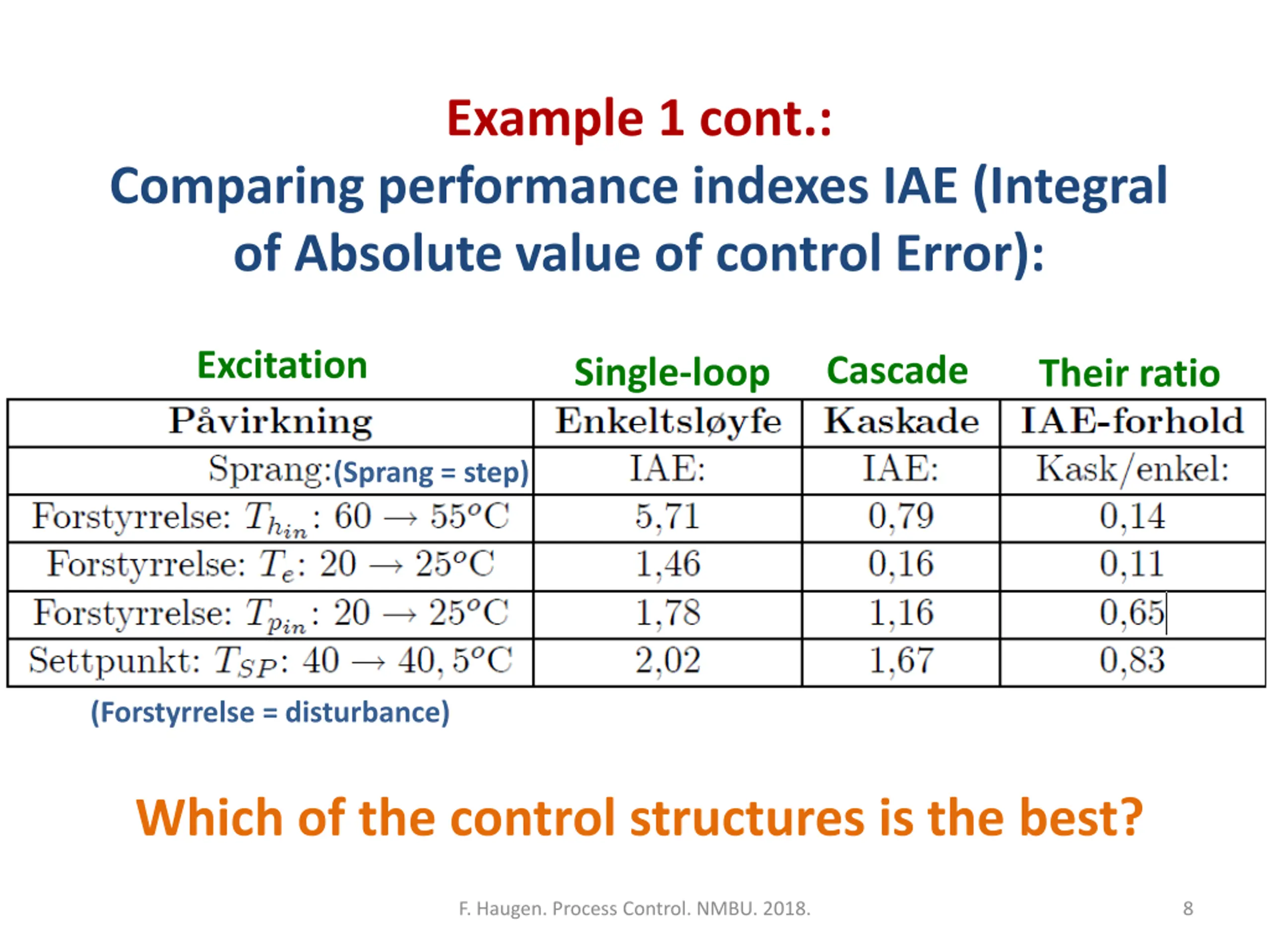

Example 1 cont.: Comparing performance indexes IAE (Integral of Absolute value of control Error): Excitation Cascade Single-loop Their ratio (Sprang = step) (Forstyrrelse = disturbance) Which of the control structures is the best? F. Haugen. Process Control. NMBU. 2018. 8

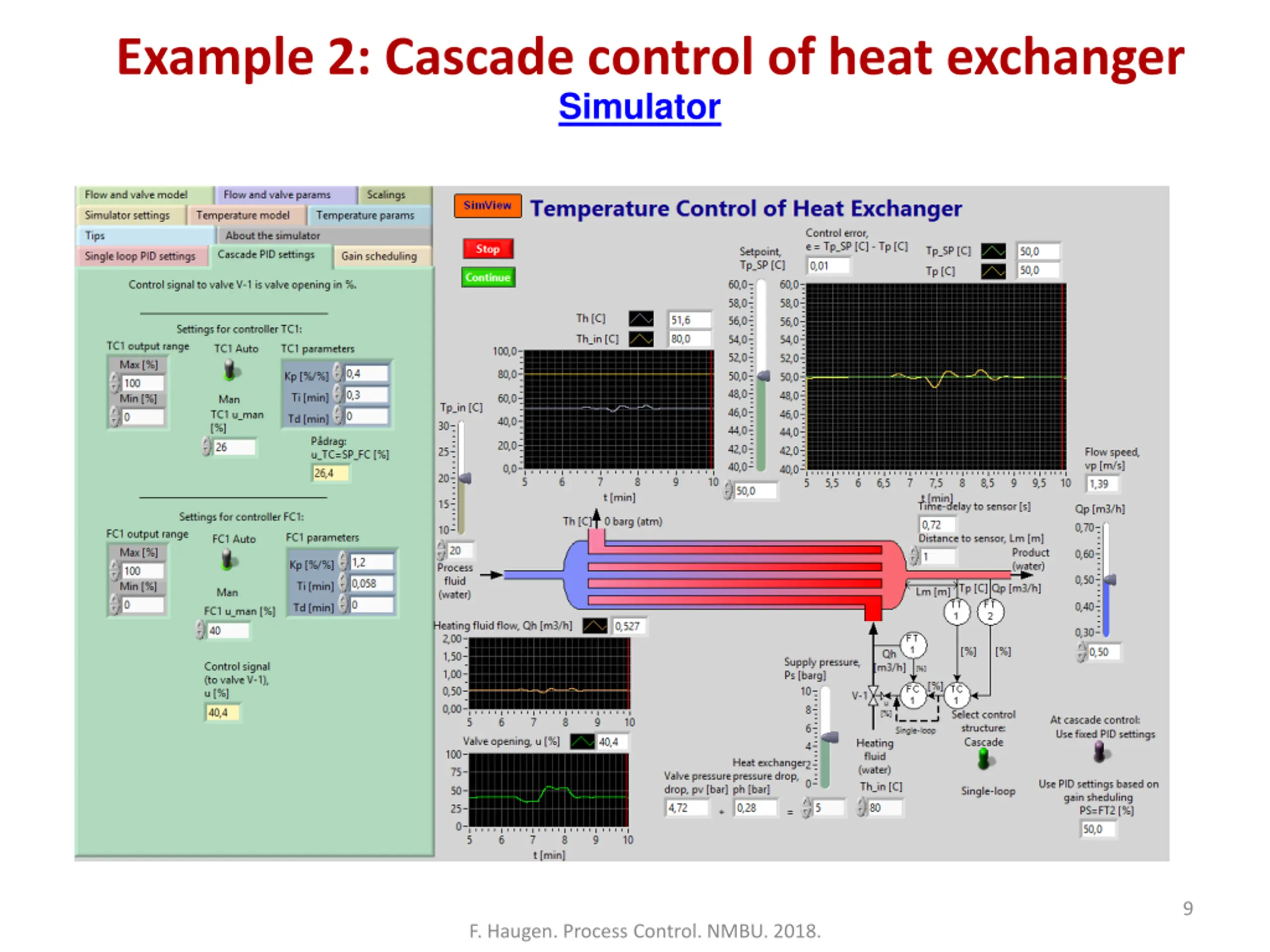

Example 2: Cascade control of heat exchanger Simulator 9 F. Haugen. Process Control. NMBU. 2018.
