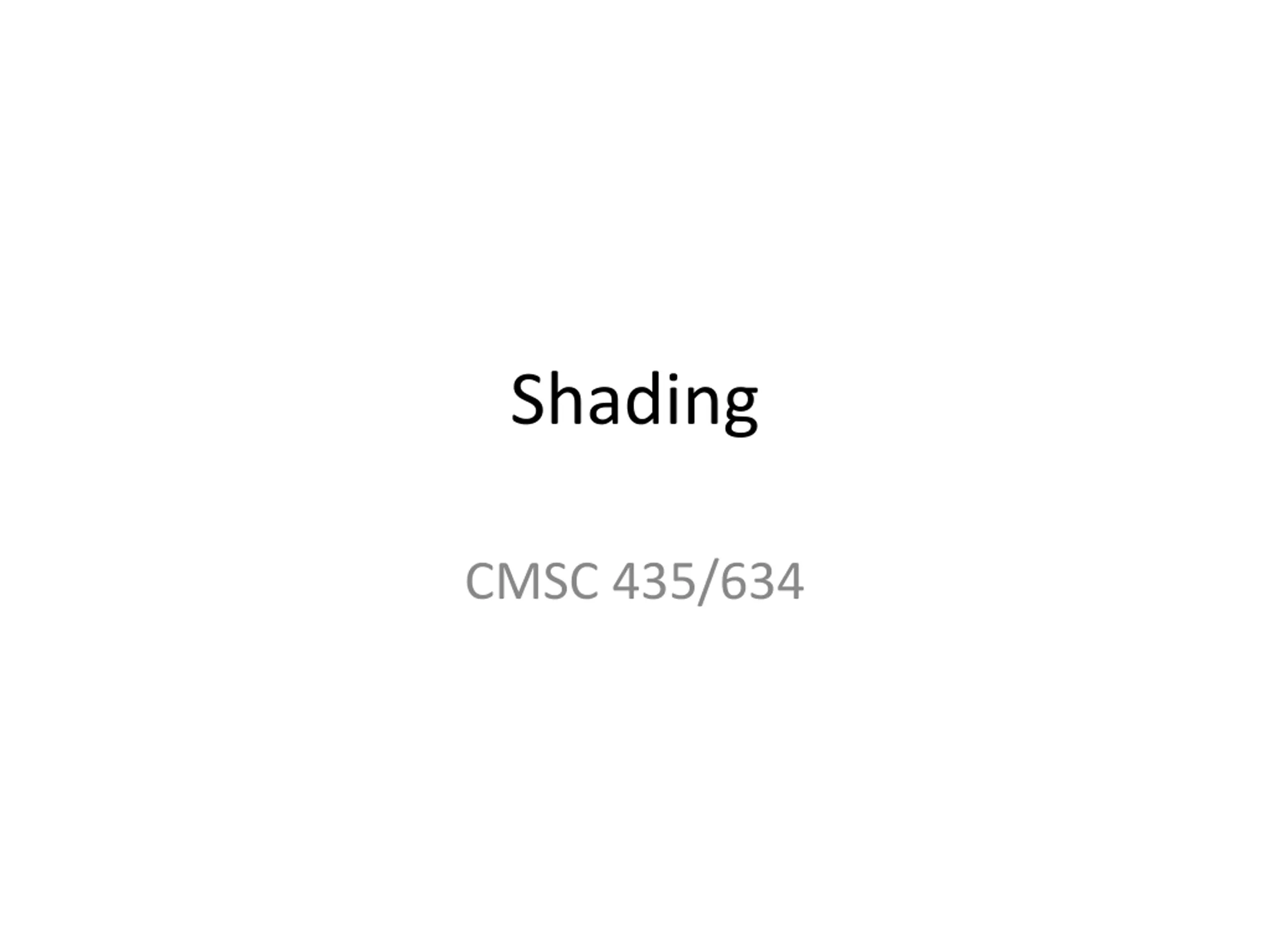

Shading CMSC 435/634

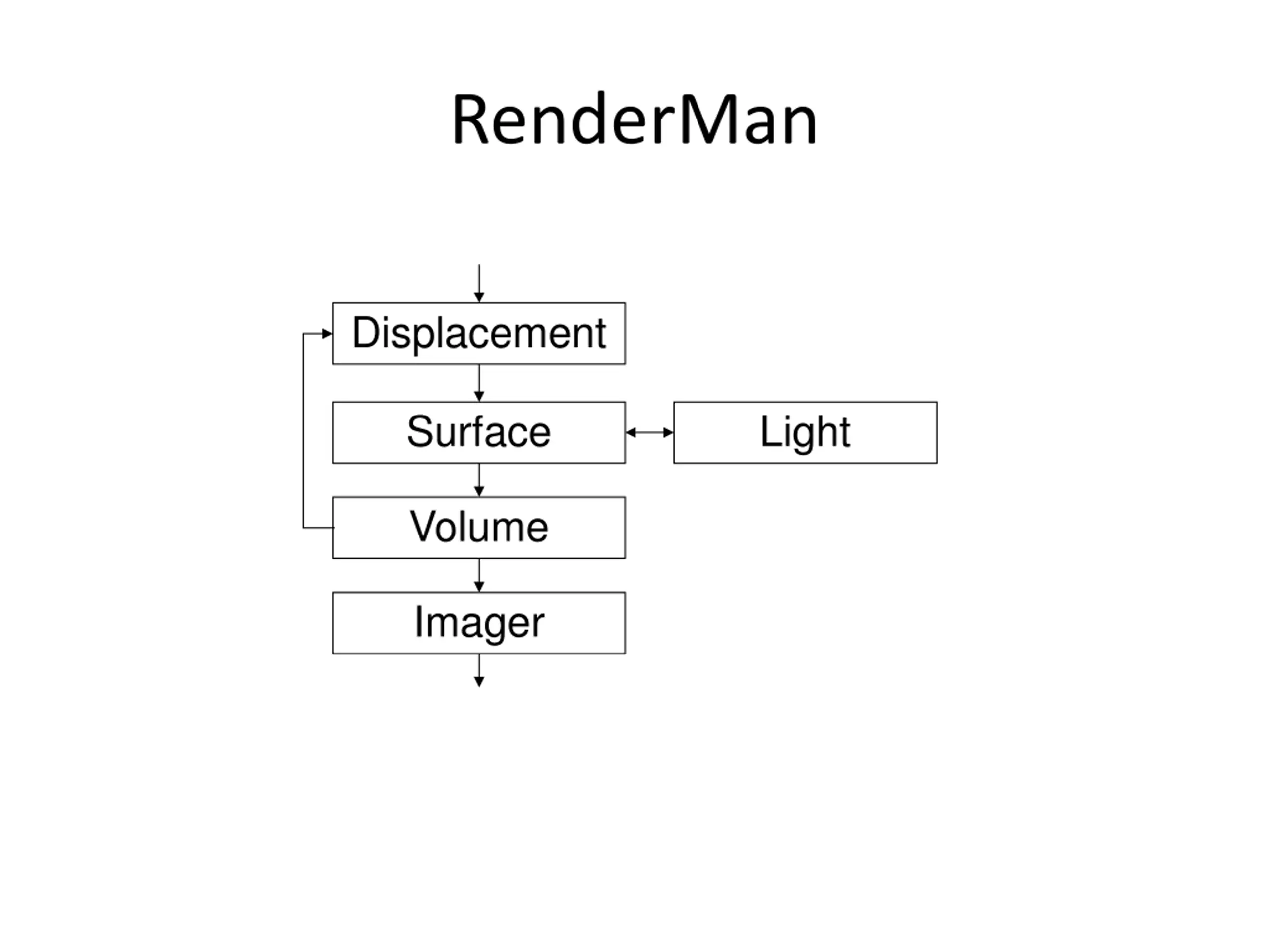

RenderMan Displacement Surface Light Volume Imager

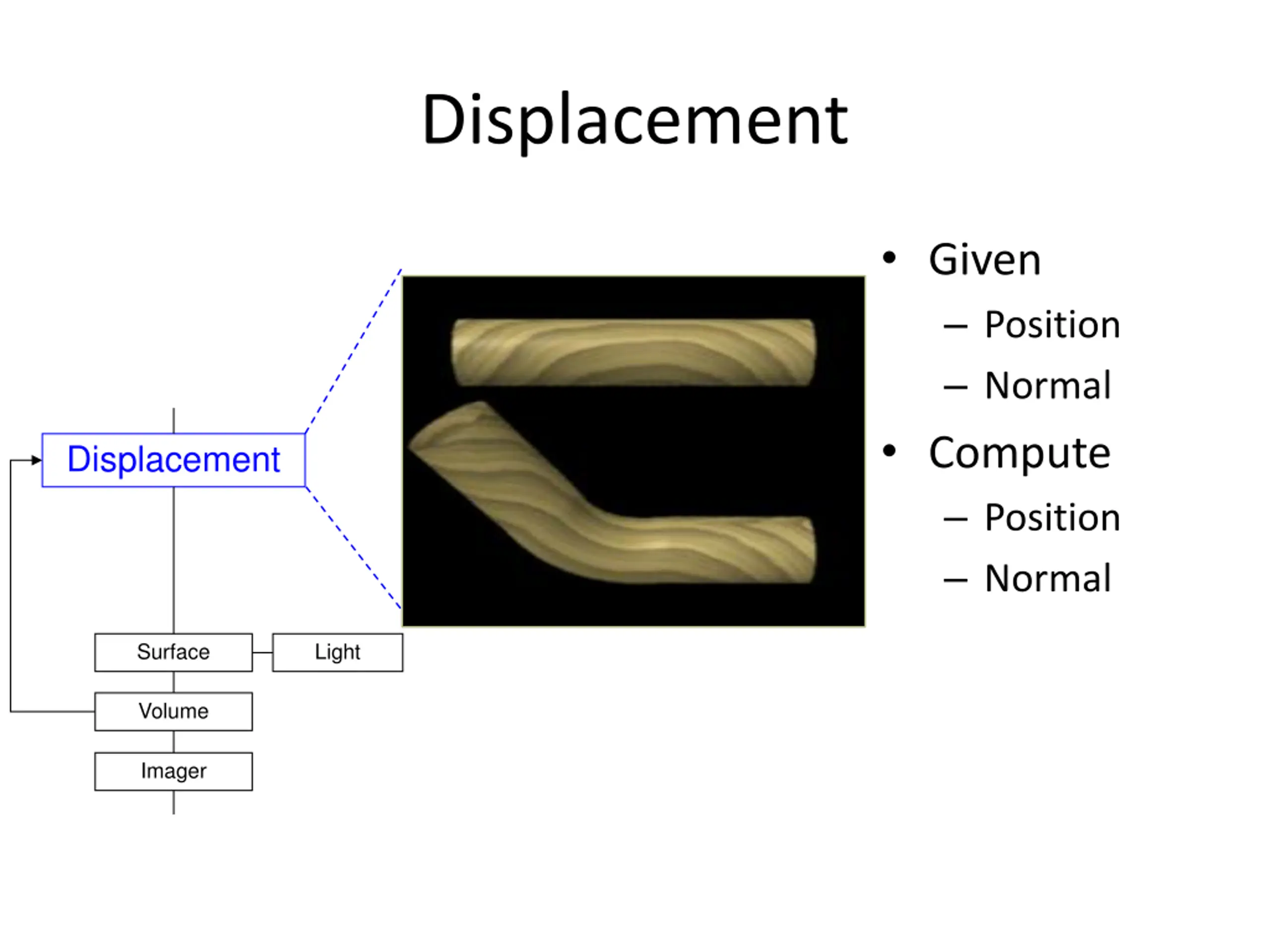

Displacement Given Position Normal Compute Position Normal Displacement Surface Light Volume Imager

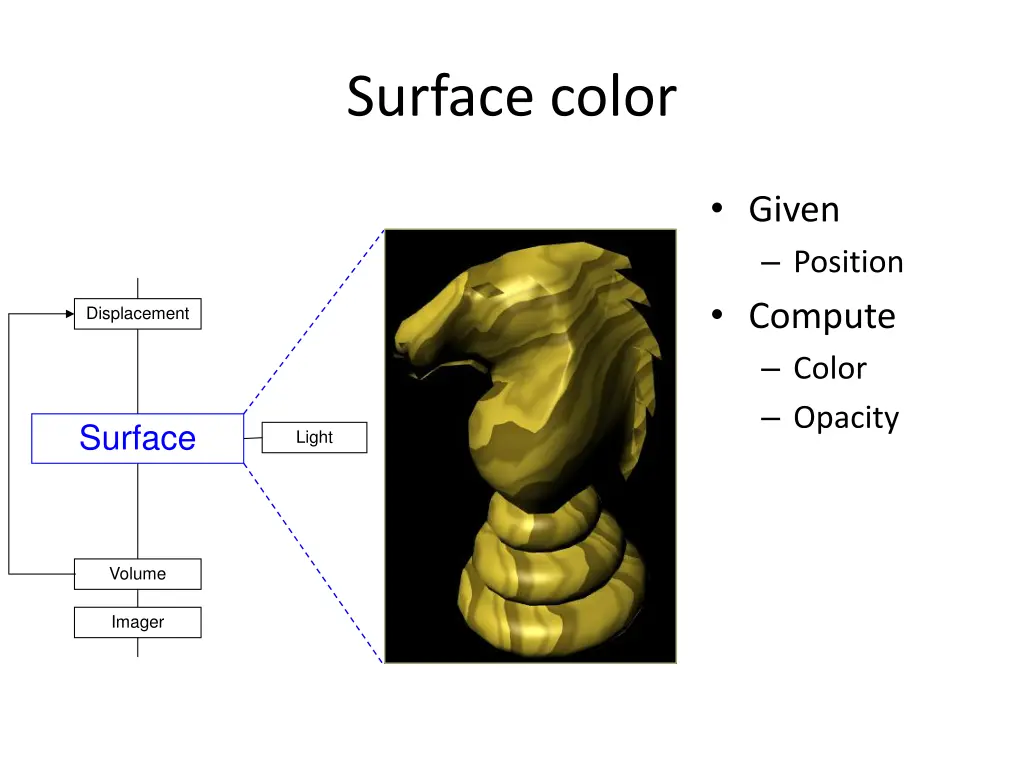

Surface color Given Position Compute Color Opacity Displacement Surface Light Volume Imager

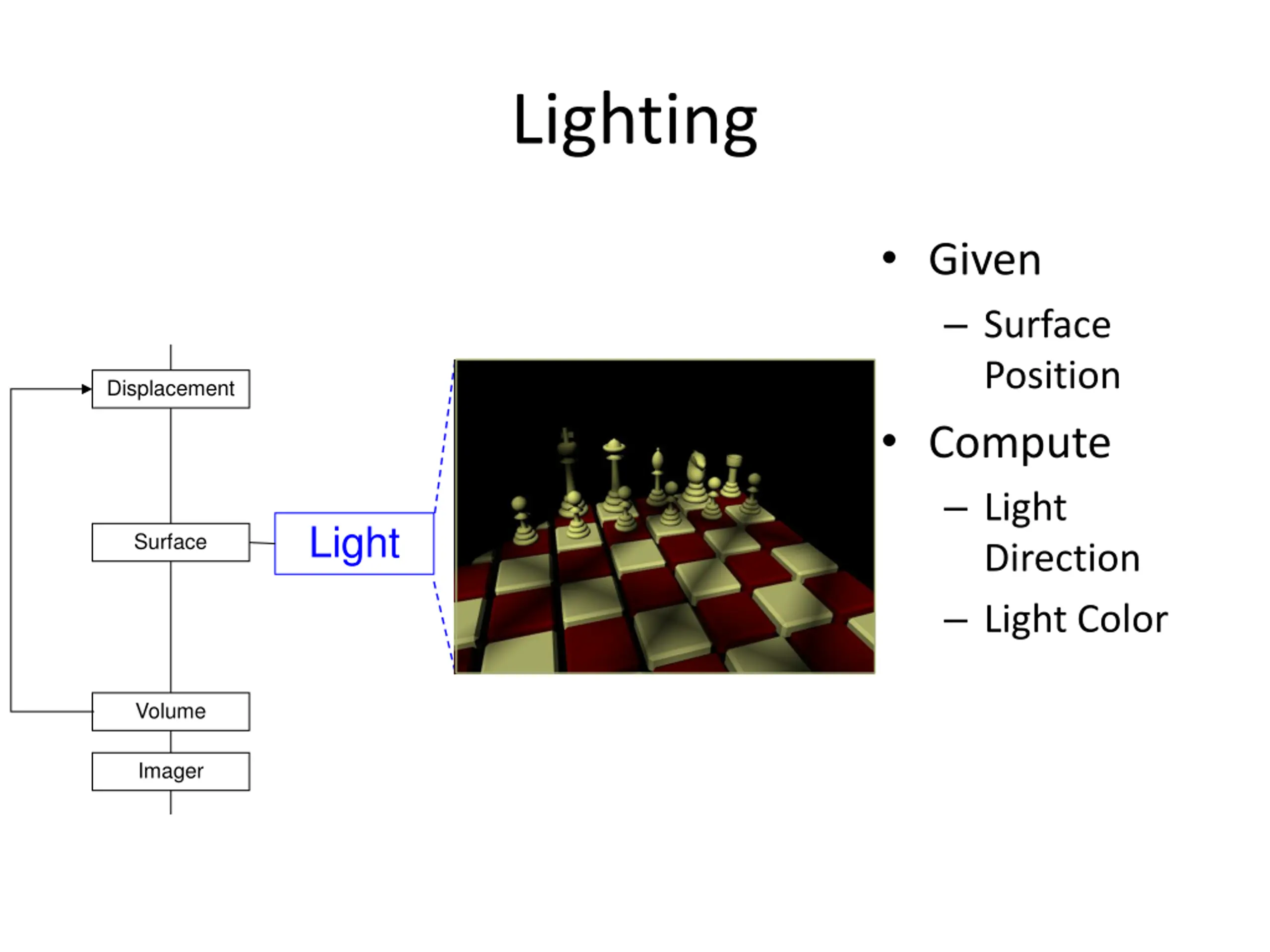

Lighting Given Surface Position Compute Light Direction Light Color Displacement Light Surface Volume Imager

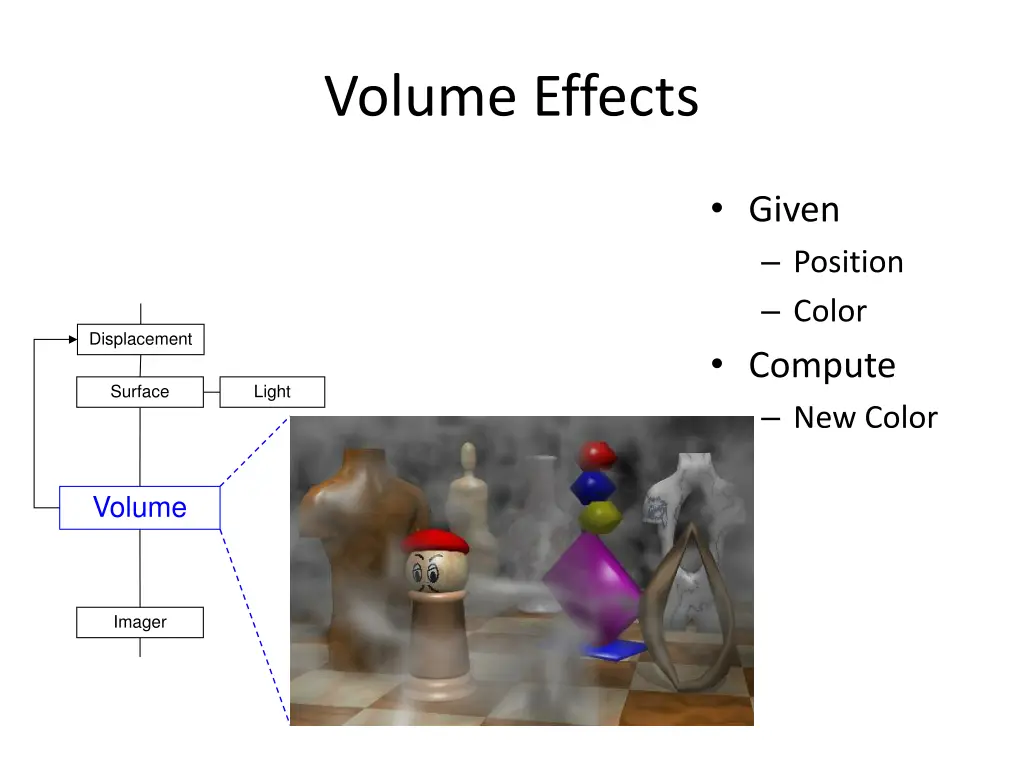

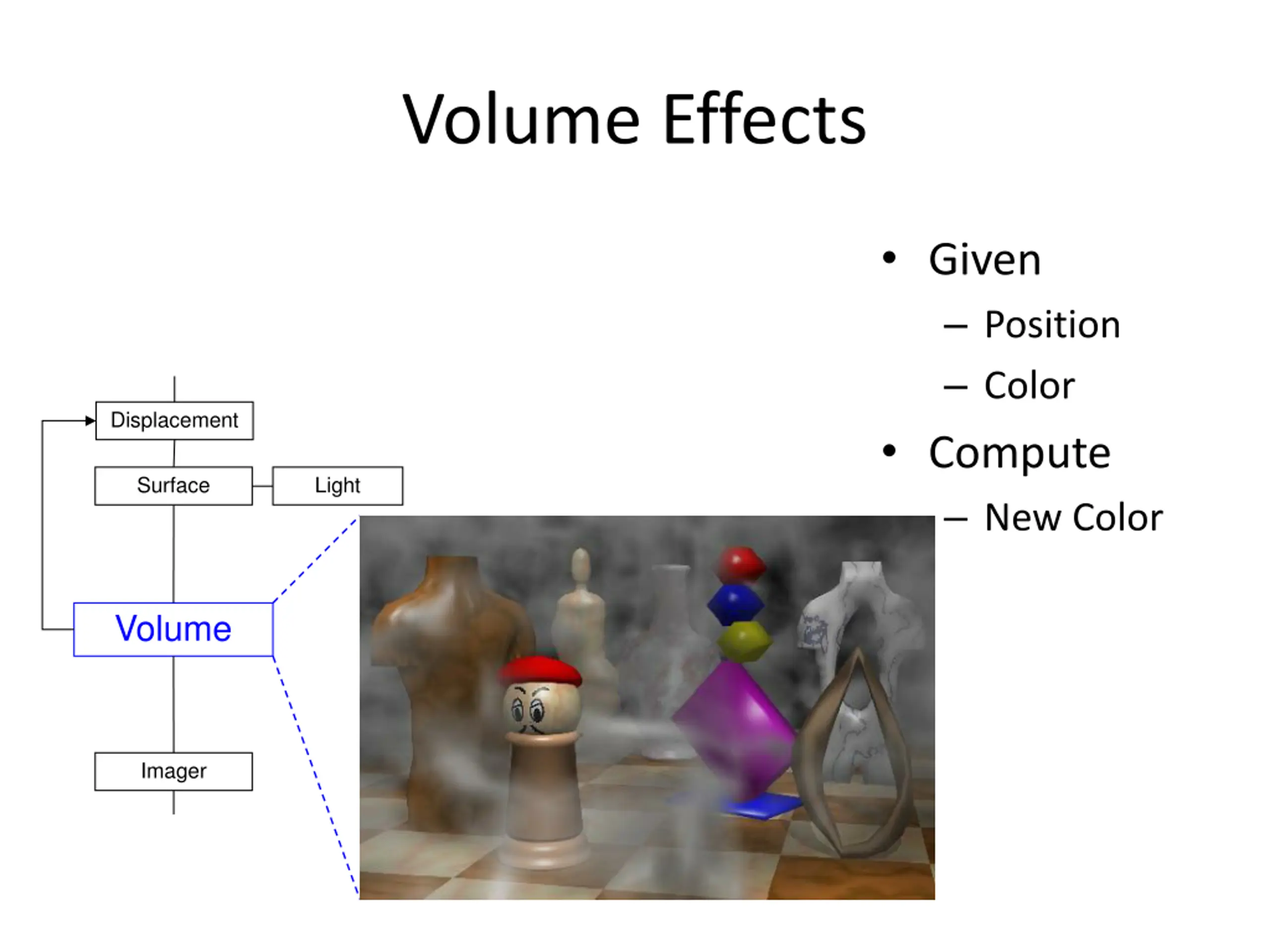

Volume Effects Given Position Color Compute New Color Displacement Surface Light Volume Imager

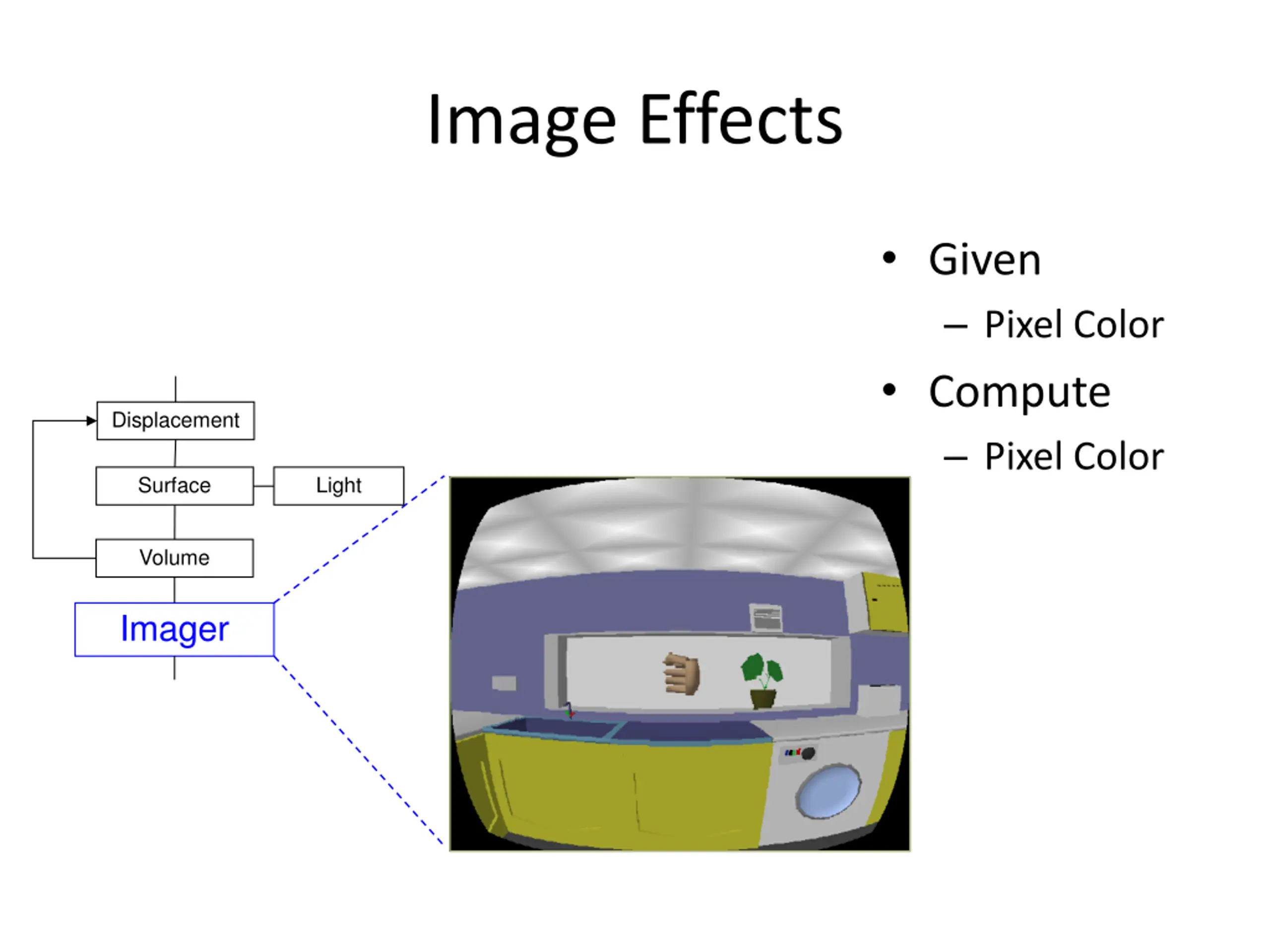

Image Effects Given Pixel Color Compute Pixel Color Displacement Surface Light Volume Imager

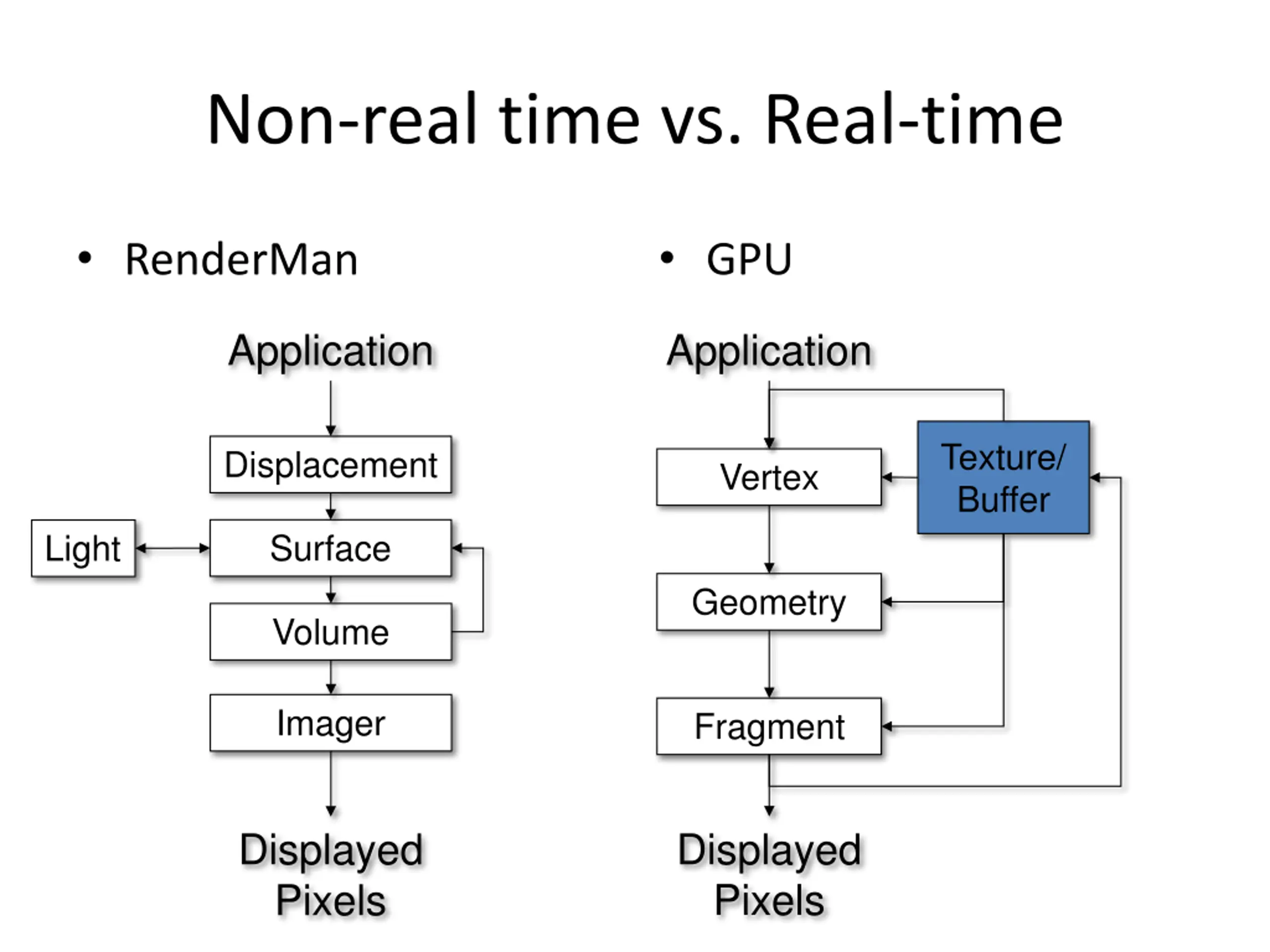

Non-real time vs. Real-time RenderMan GPU Application Application Texture/ Buffer Displacement Vertex Surface Light Geometry Volume Imager Fragment Displayed Pixels Displayed Pixels

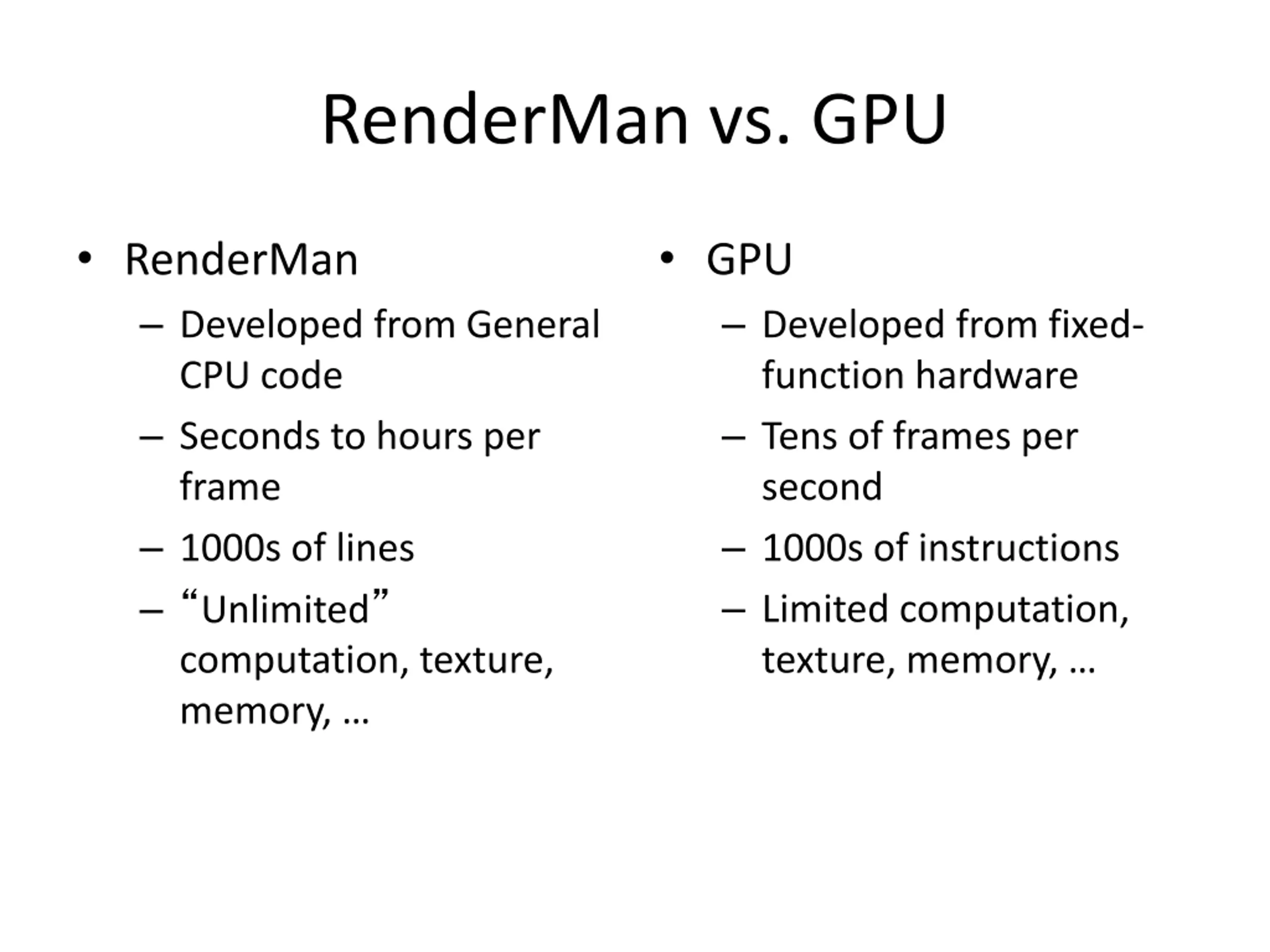

RenderMan vs. GPU RenderMan Developed from General CPU code Seconds to hours per frame 1000s of lines Unlimited computation, texture, memory, GPU Developed from fixed- function hardware Tens of frames per second 1000s of instructions Limited computation, texture, memory,

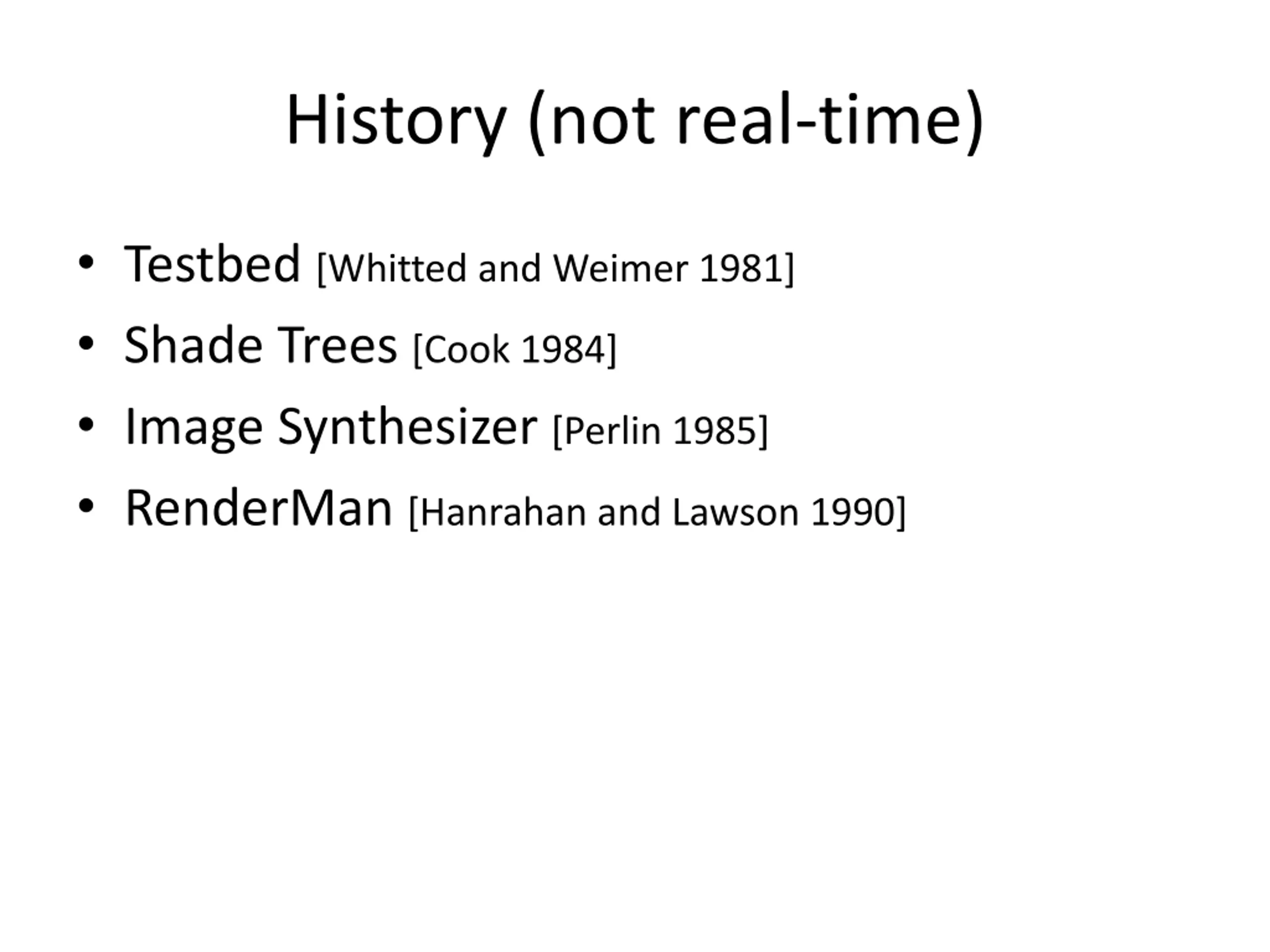

History (not real-time) Testbed [Whitted and Weimer 1981] Shade Trees [Cook 1984] Image Synthesizer [Perlin 1985] RenderMan [Hanrahan and Lawson 1990]

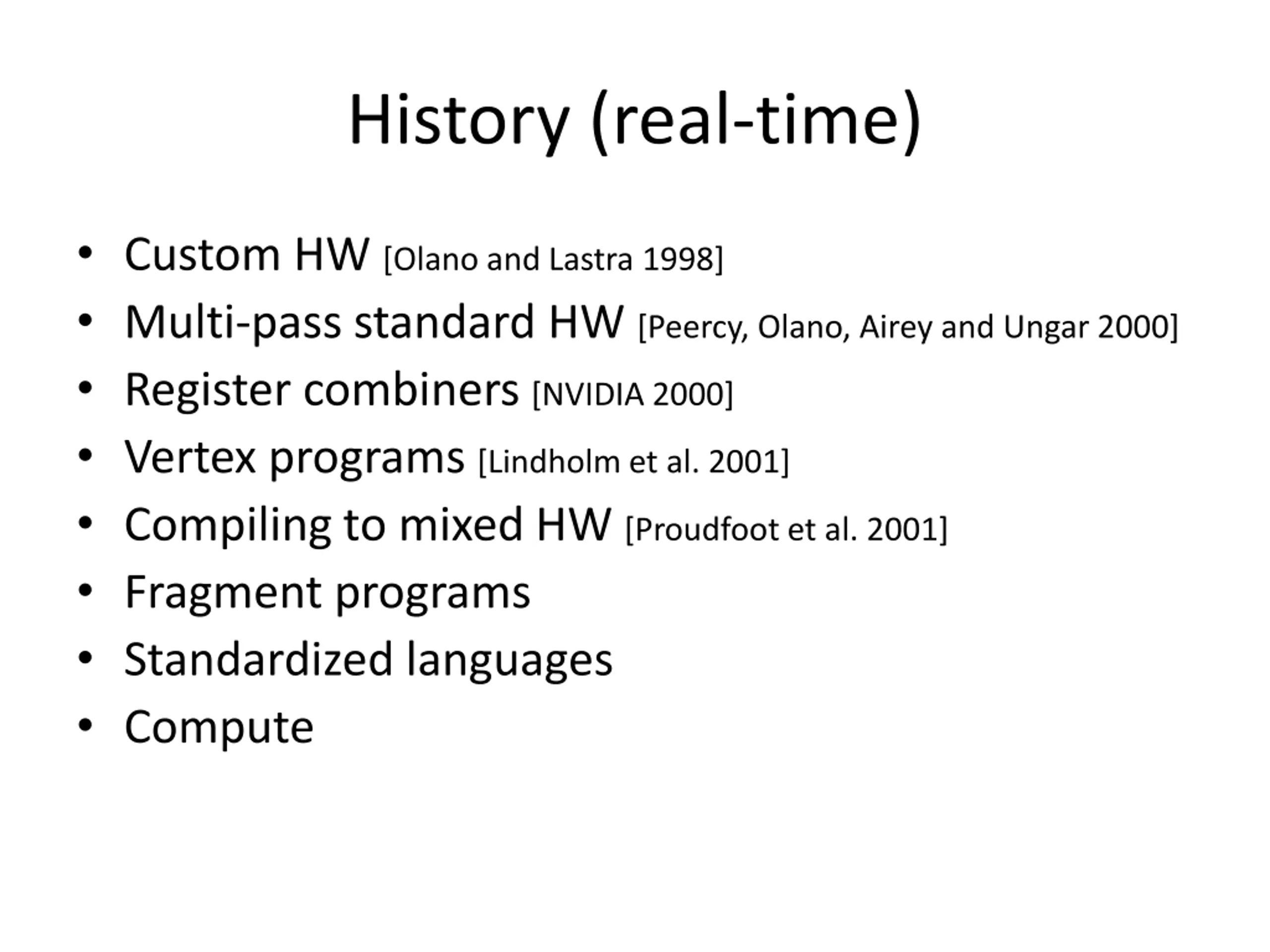

History (real-time) Custom HW [Olano and Lastra 1998] Multi-pass standard HW [Peercy, Olano, Airey and Ungar 2000] Register combiners [NVIDIA 2000] Vertex programs [Lindholm et al. 2001] Compiling to mixed HW [Proudfoot et al. 2001] Fragment programs Standardized languages Compute

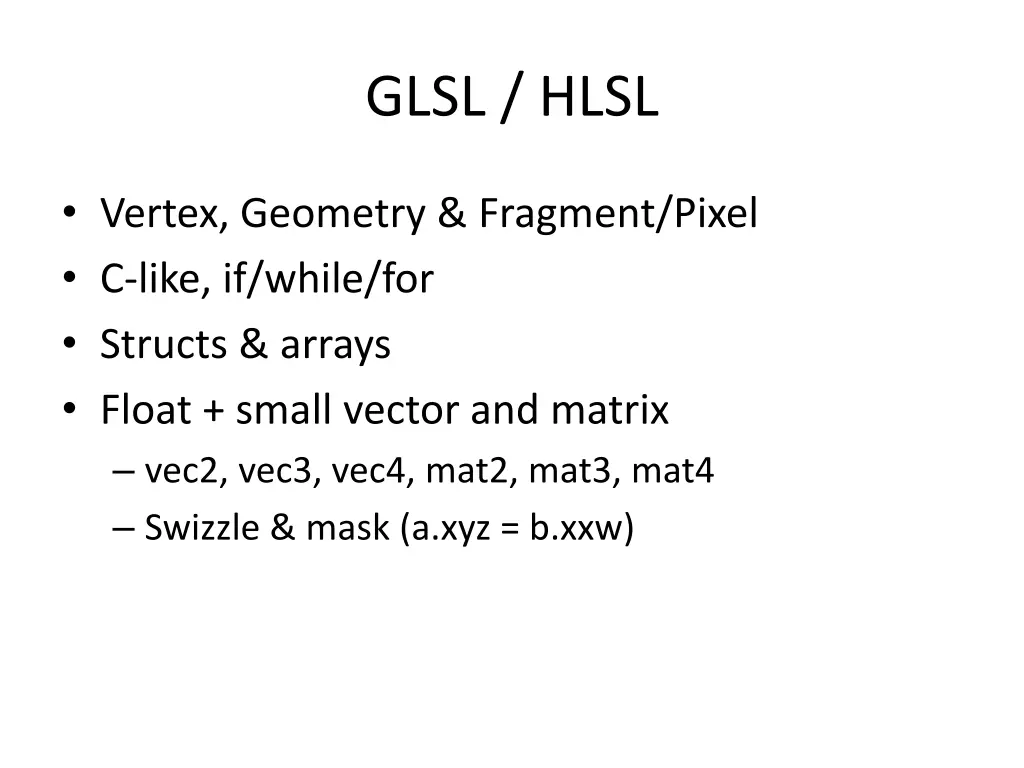

GLSL / HLSL Vertex, Geometry & Fragment/Pixel C-like, if/while/for Structs & arrays Float + small vector and matrix vec2, vec3, vec4, mat2, mat3, mat4 Swizzle & mask (a.xyz = b.xxw)

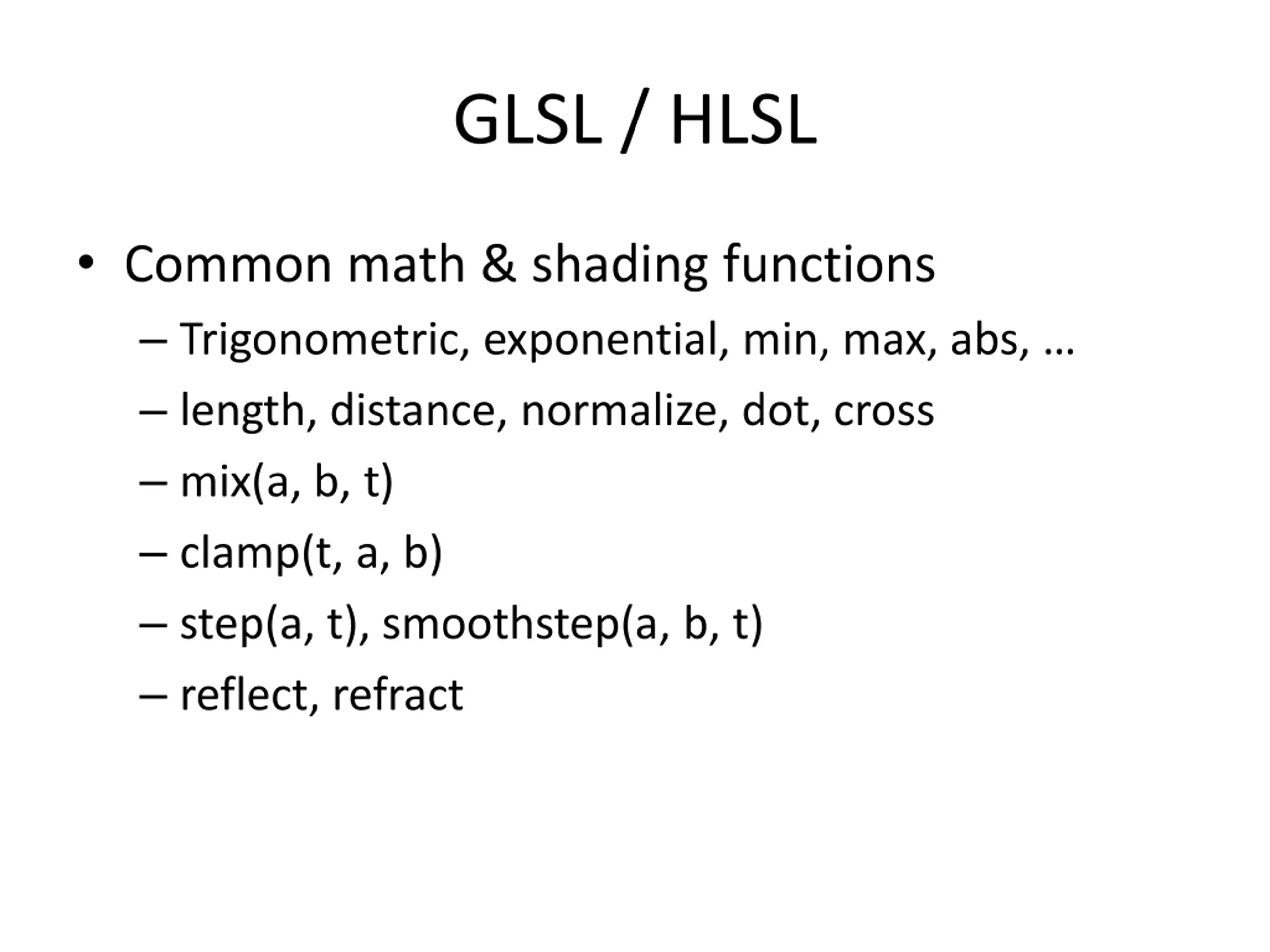

GLSL / HLSL Common math & shading functions Trigonometric, exponential, min, max, abs, length, distance, normalize, dot, cross mix(a, b, t) clamp(t, a, b) step(a, t), smoothstep(a, b, t) reflect, refract

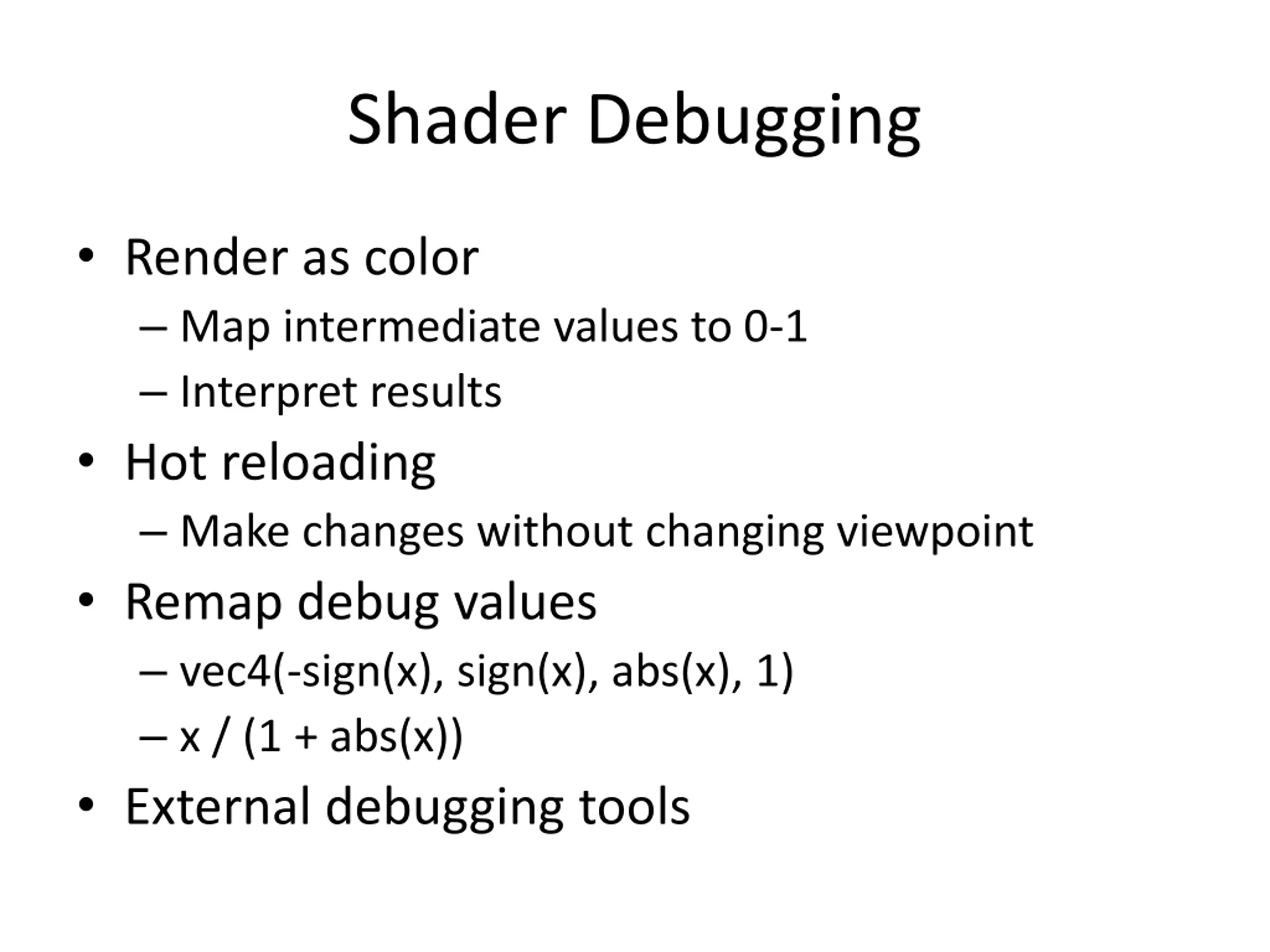

Shader Debugging Render as color Map intermediate values to 0-1 Interpret results Hot reloading Make changes without changing viewpoint Remap debug values vec4(-sign(x), sign(x), abs(x), 1) x / (1 + abs(x)) External debugging tools

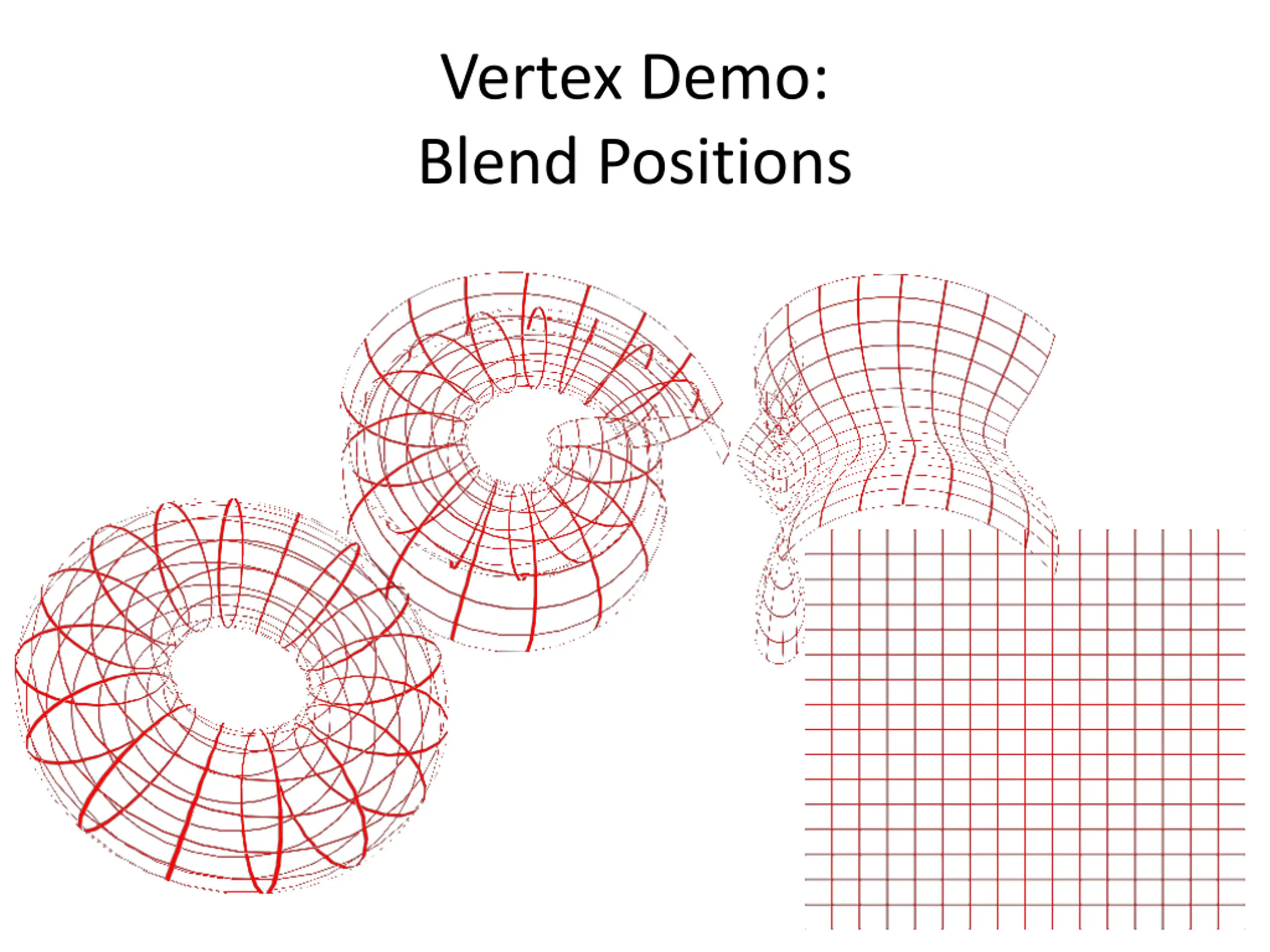

Vertex Demo: Blend Positions

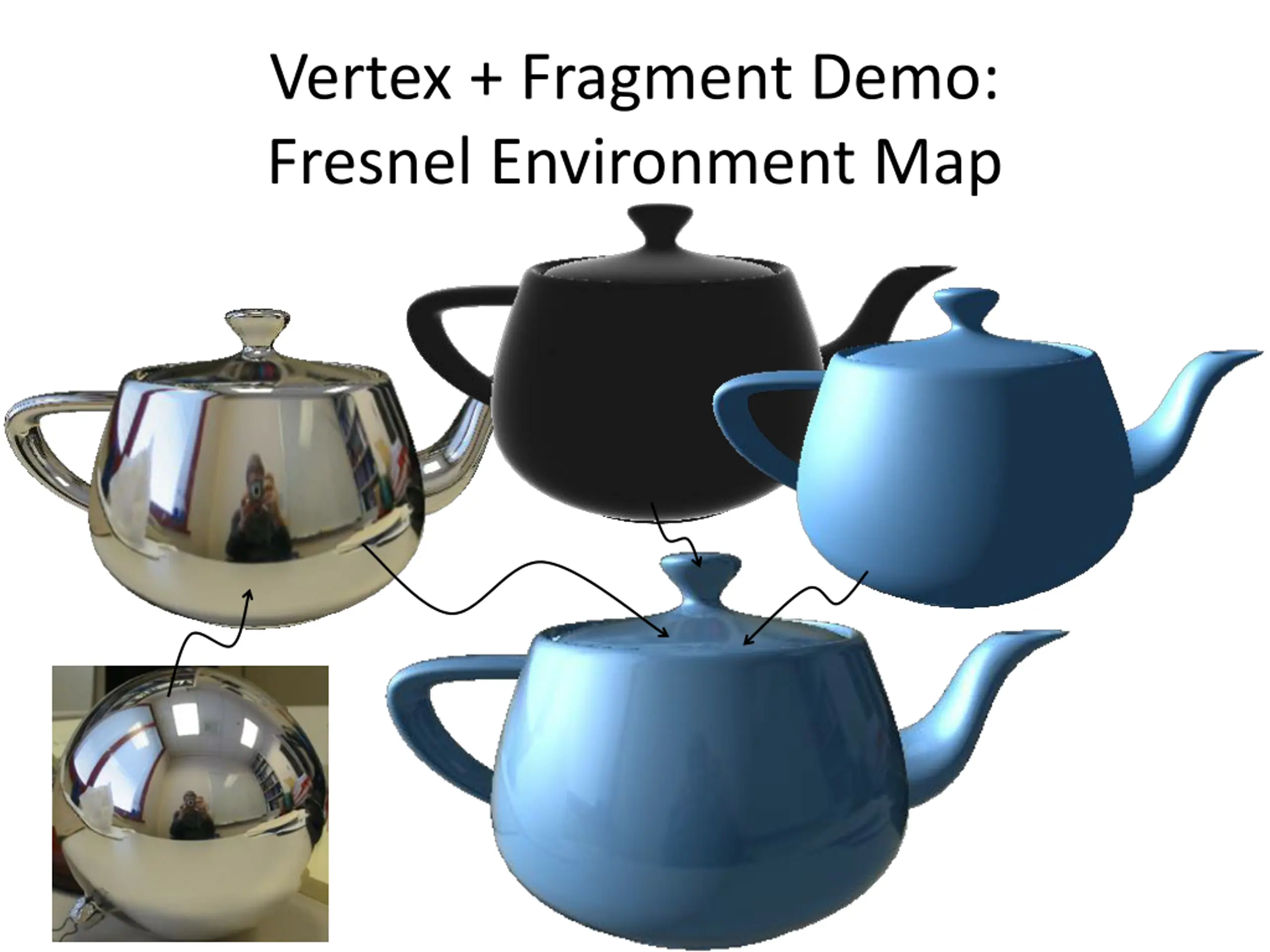

Vertex + Fragment Demo: Fresnel Environment Map

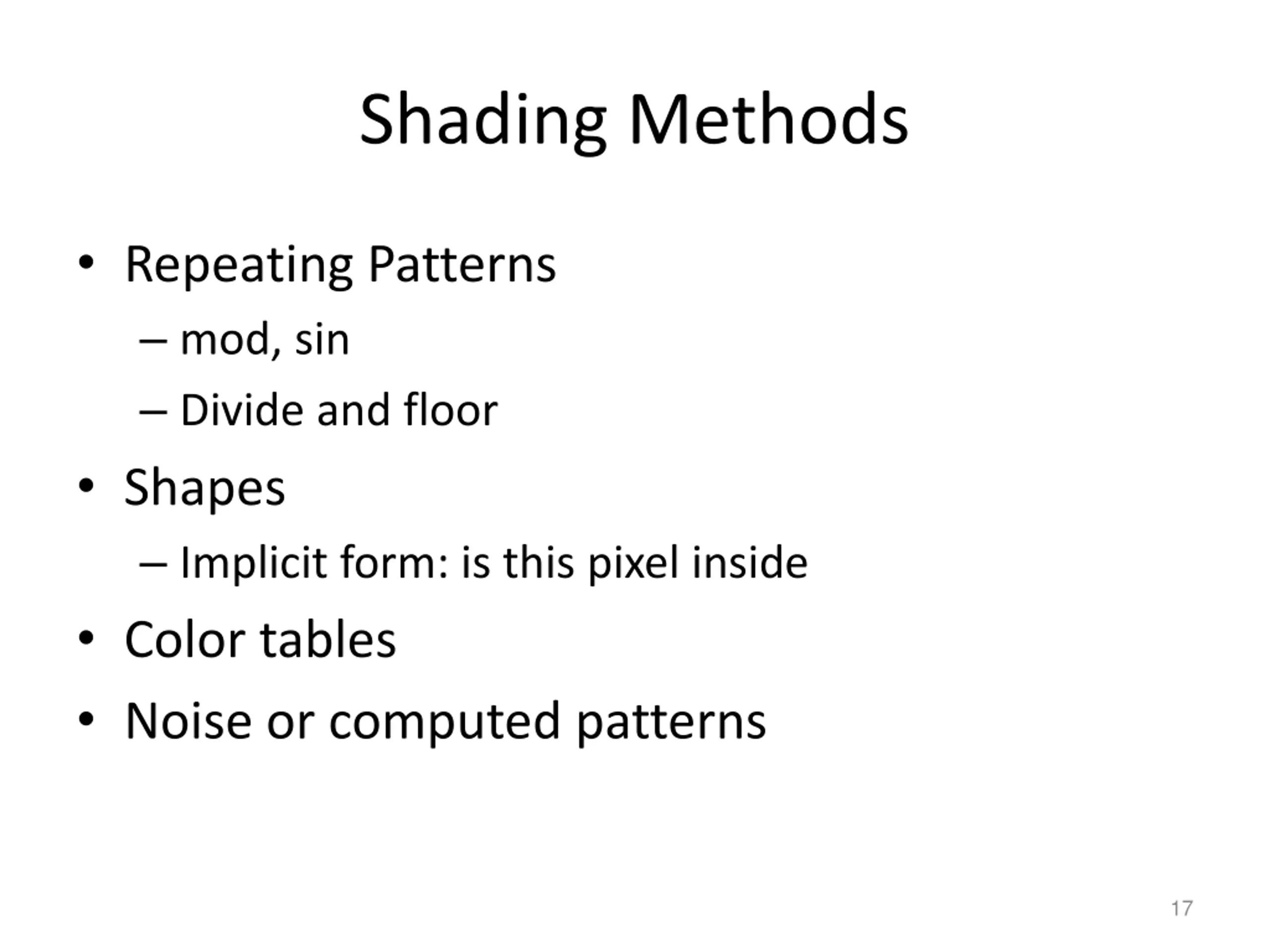

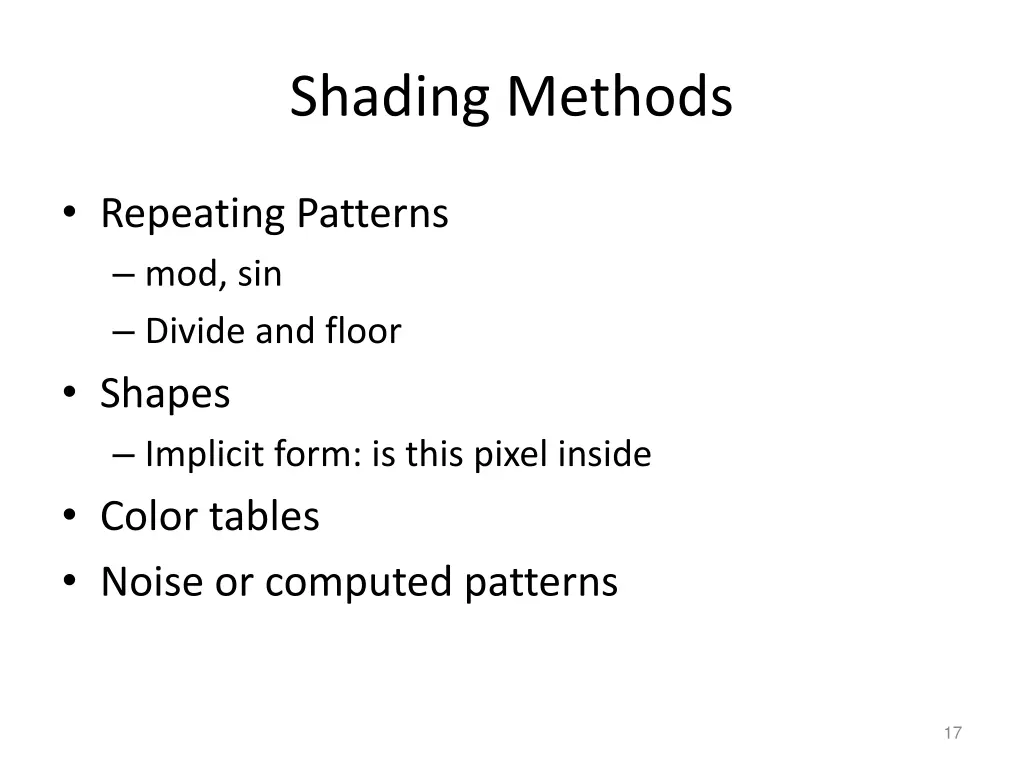

Shading Methods Repeating Patterns mod, sin Divide and floor Shapes Implicit form: is this pixel inside Color tables Noise or computed patterns 17

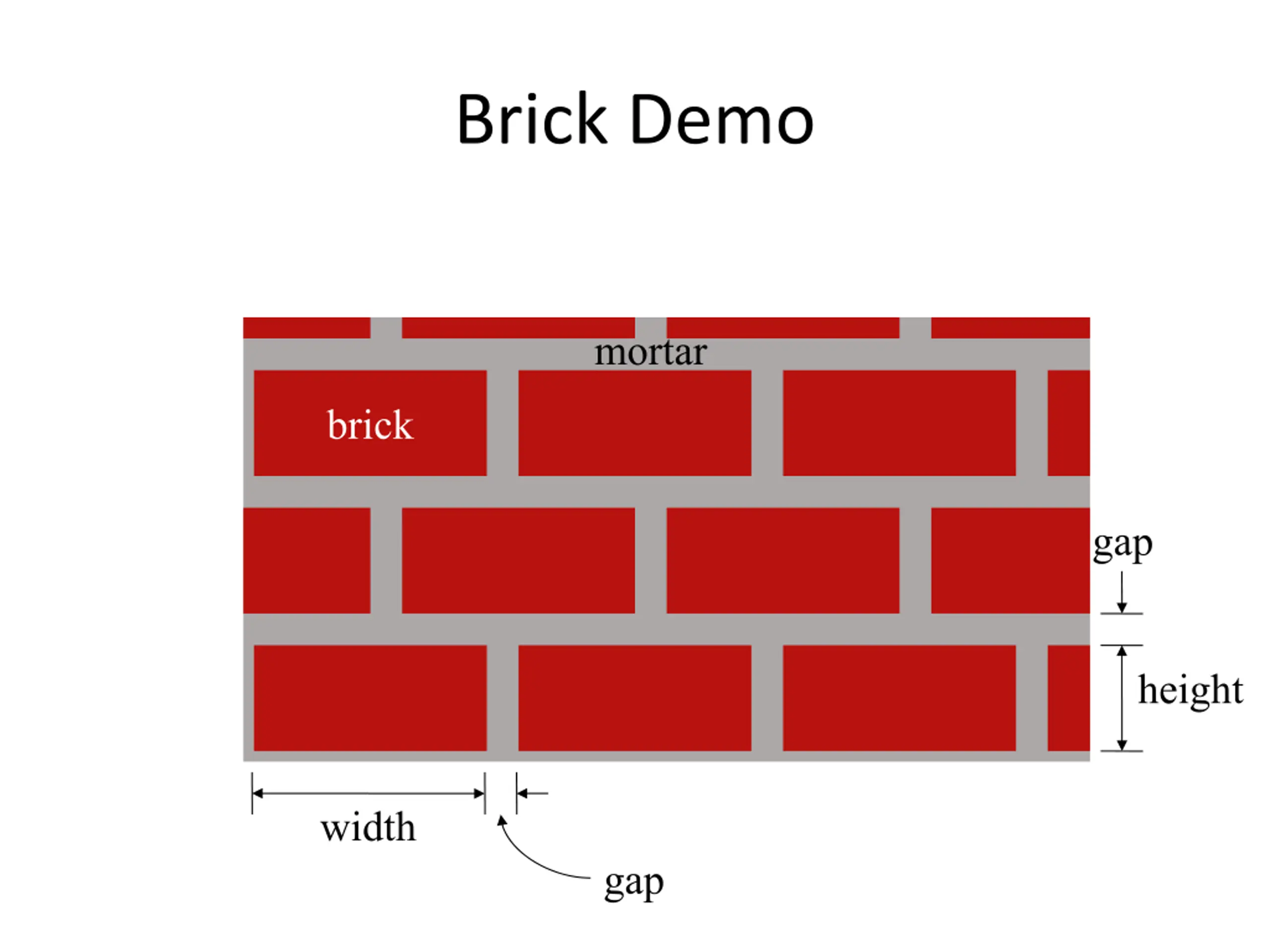

Brick Demo mortar brick gap height width gap

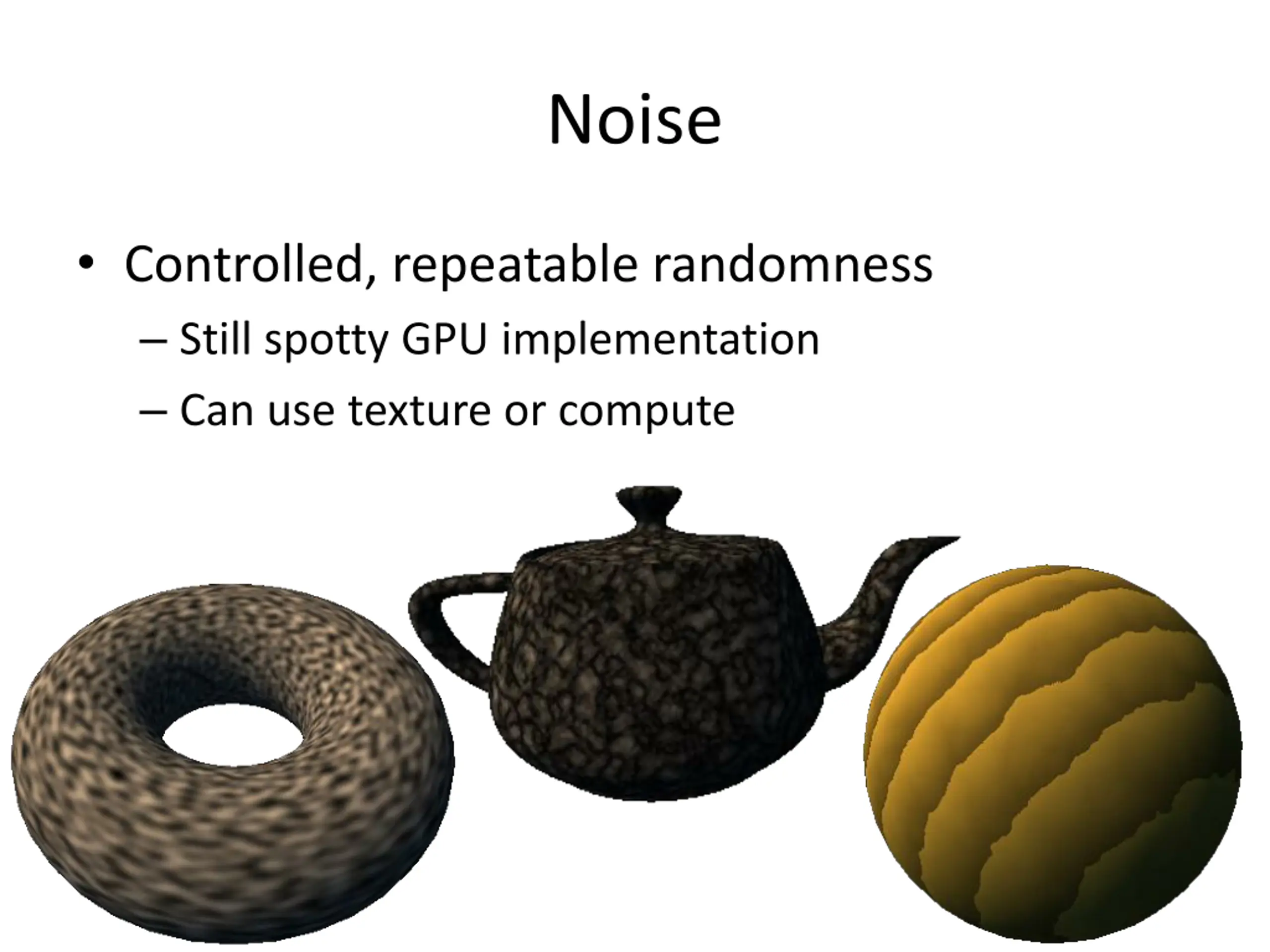

Noise Controlled, repeatable randomness Still spotty GPU implementation Can use texture or compute

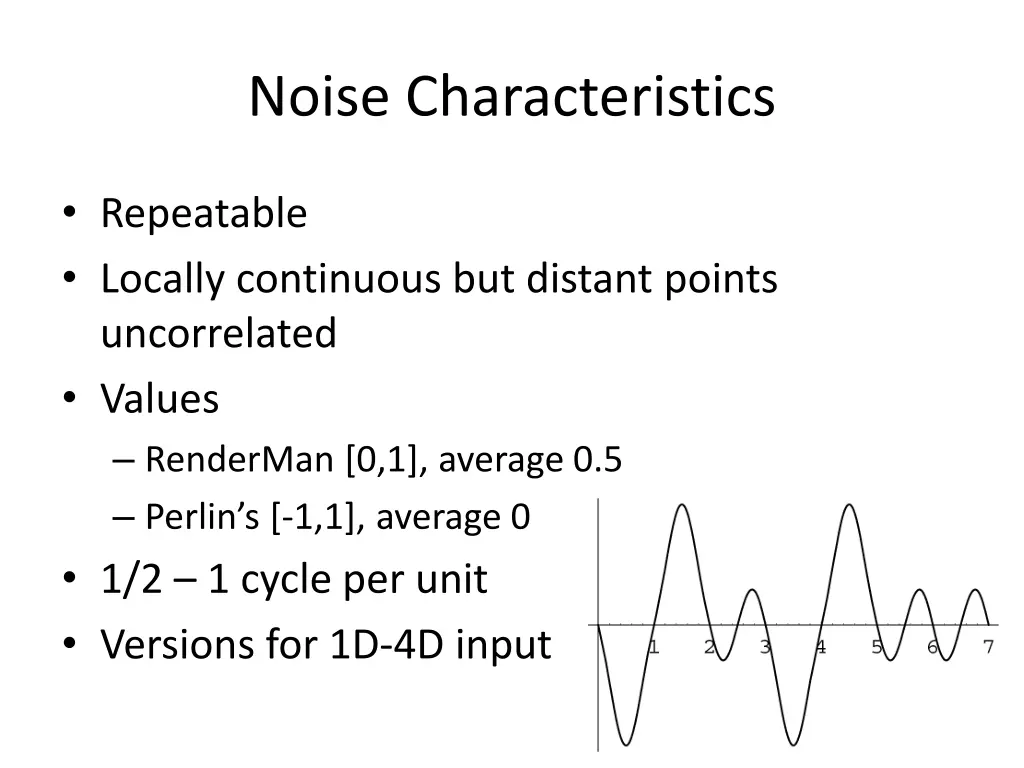

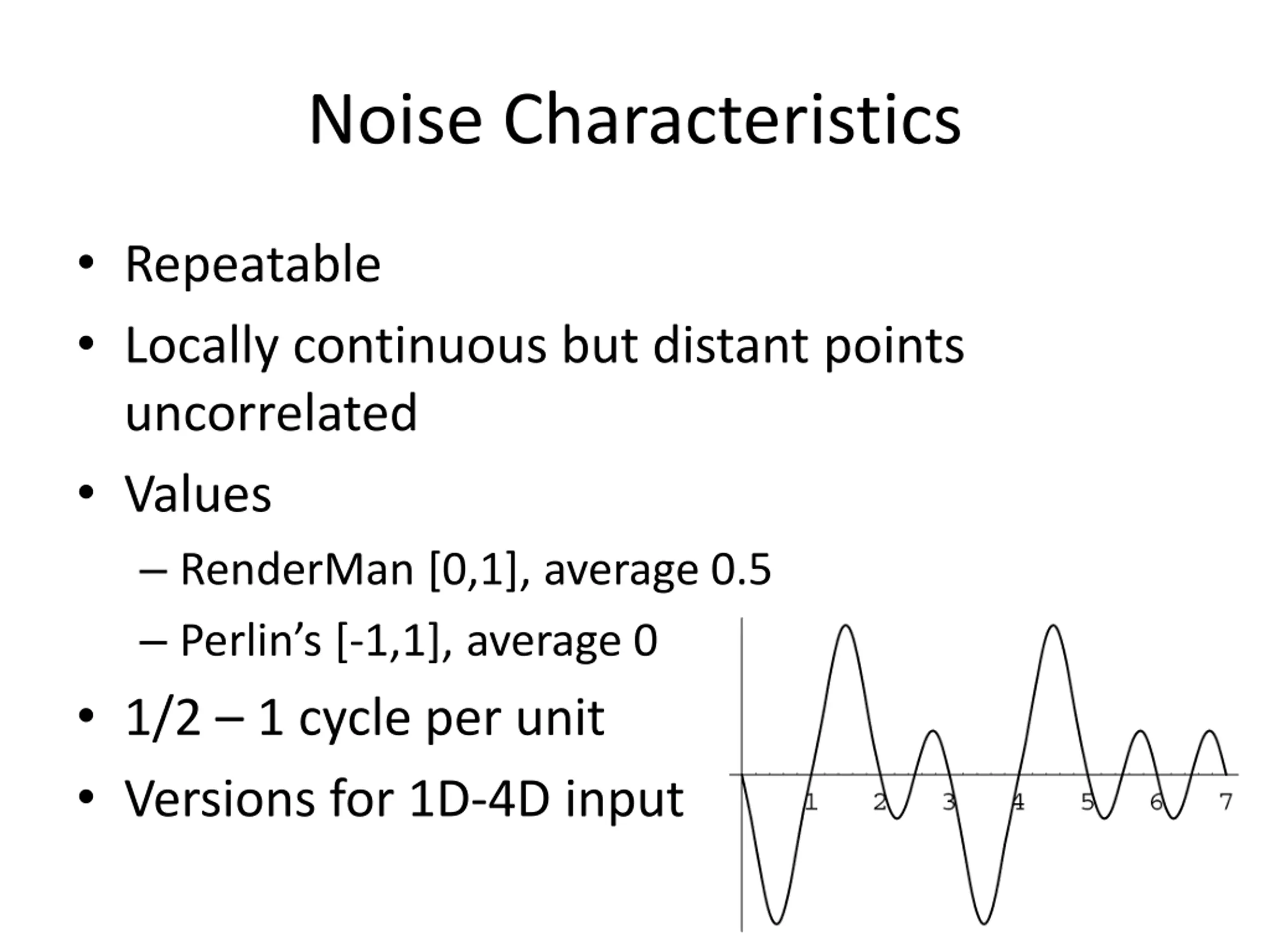

Noise Characteristics Repeatable Locally continuous but distant points uncorrelated Values RenderMan [0,1], average 0.5 Perlin s [-1,1], average 0 1/2 1 cycle per unit Versions for 1D-4D input

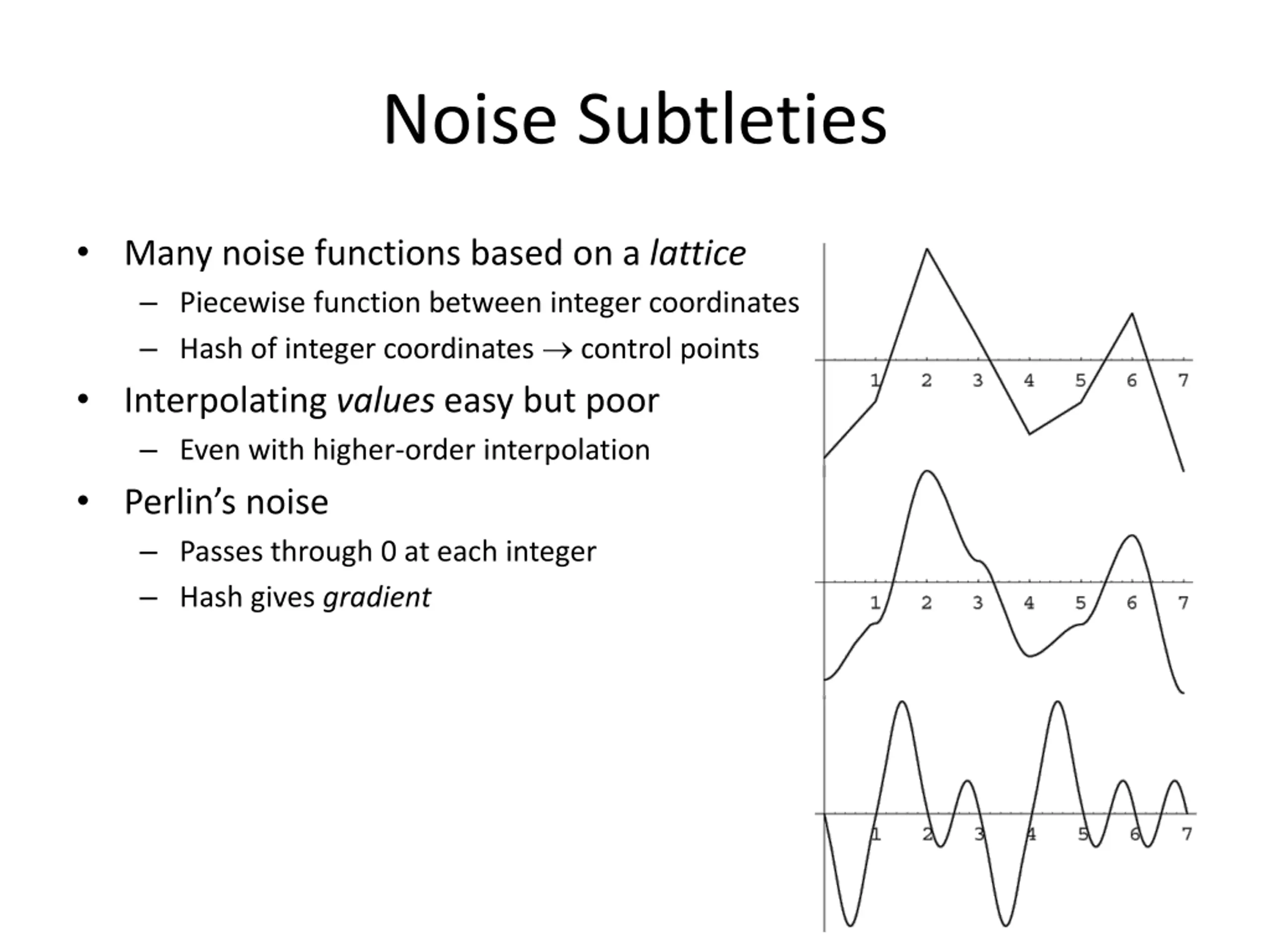

Noise Subtleties Many noise functions based on a lattice Piecewise function between integer coordinates Hash of integer coordinates control points Interpolating values easy but poor Even with higher-order interpolation Perlin s noise Passes through 0 at each integer Hash gives gradient

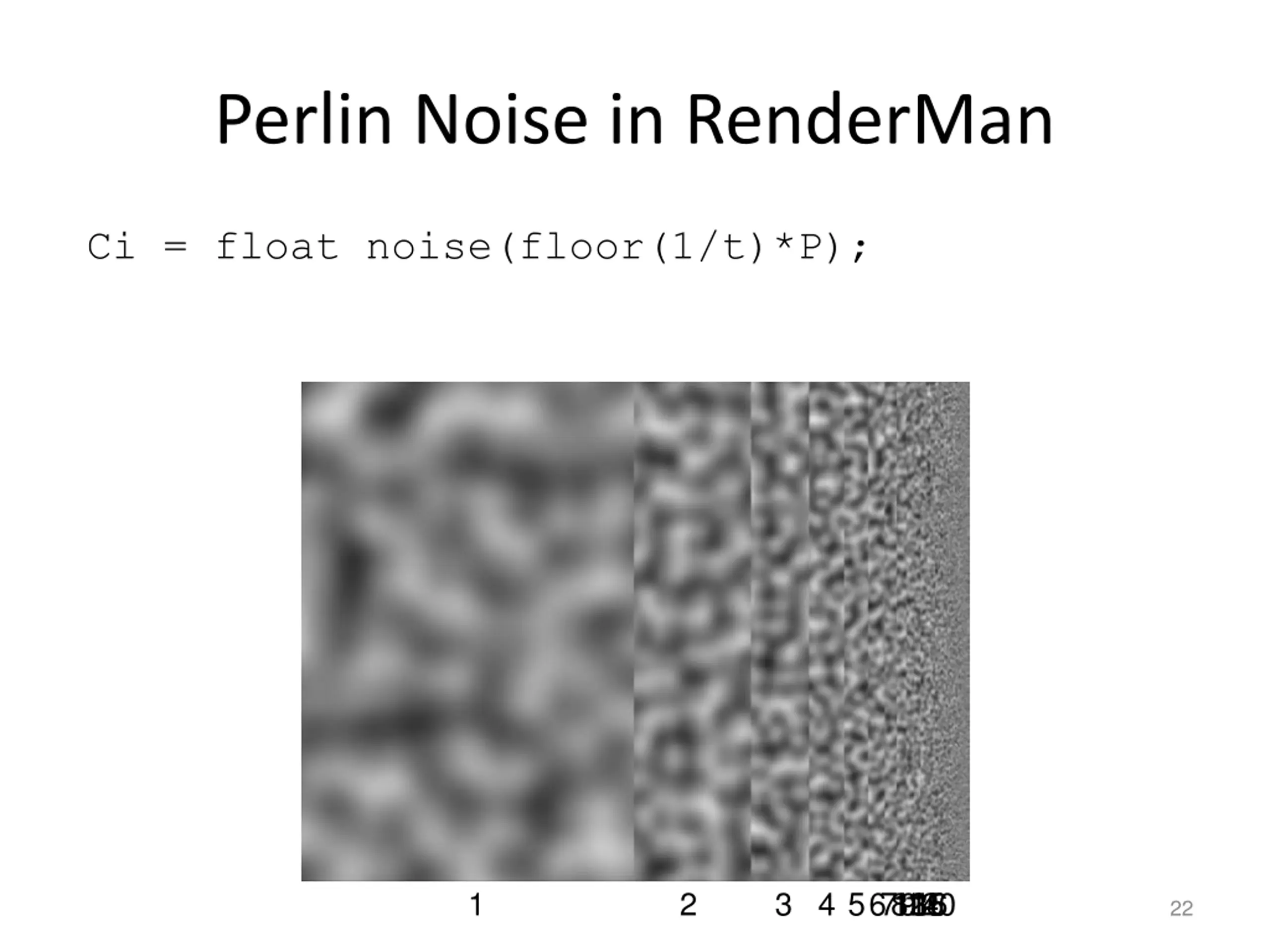

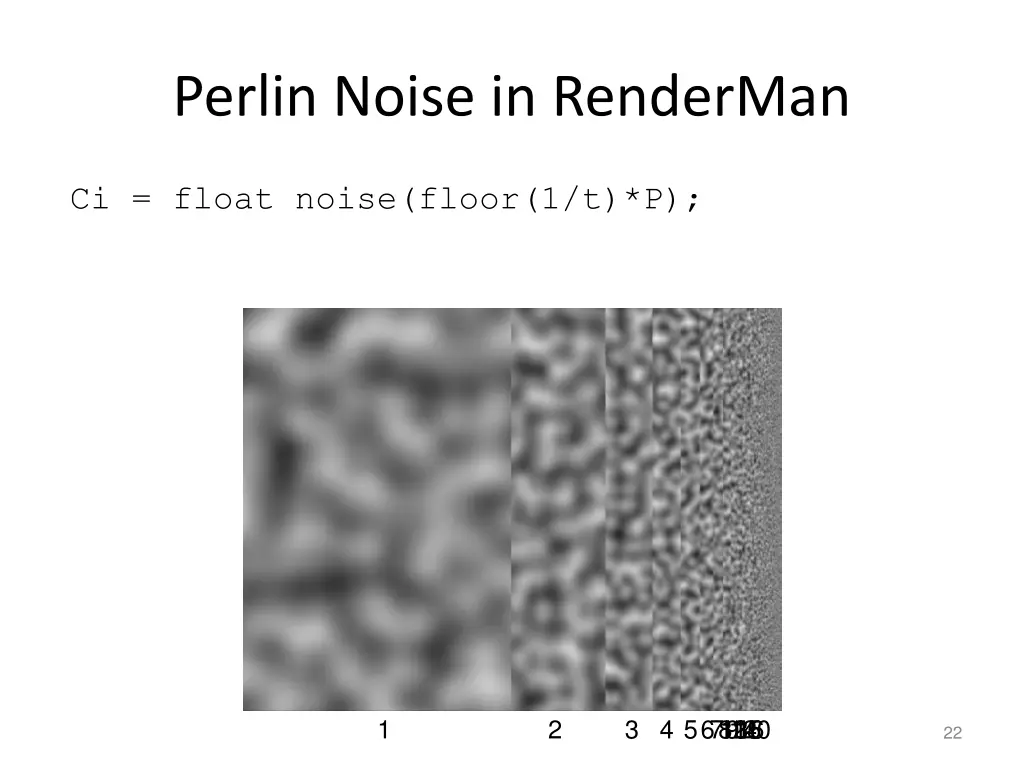

Perlin Noise in RenderMan Ci = float noise(floor(1/t)*P); 1 2 3 4 56 7 8 9 12 13 14 15 16 20 22

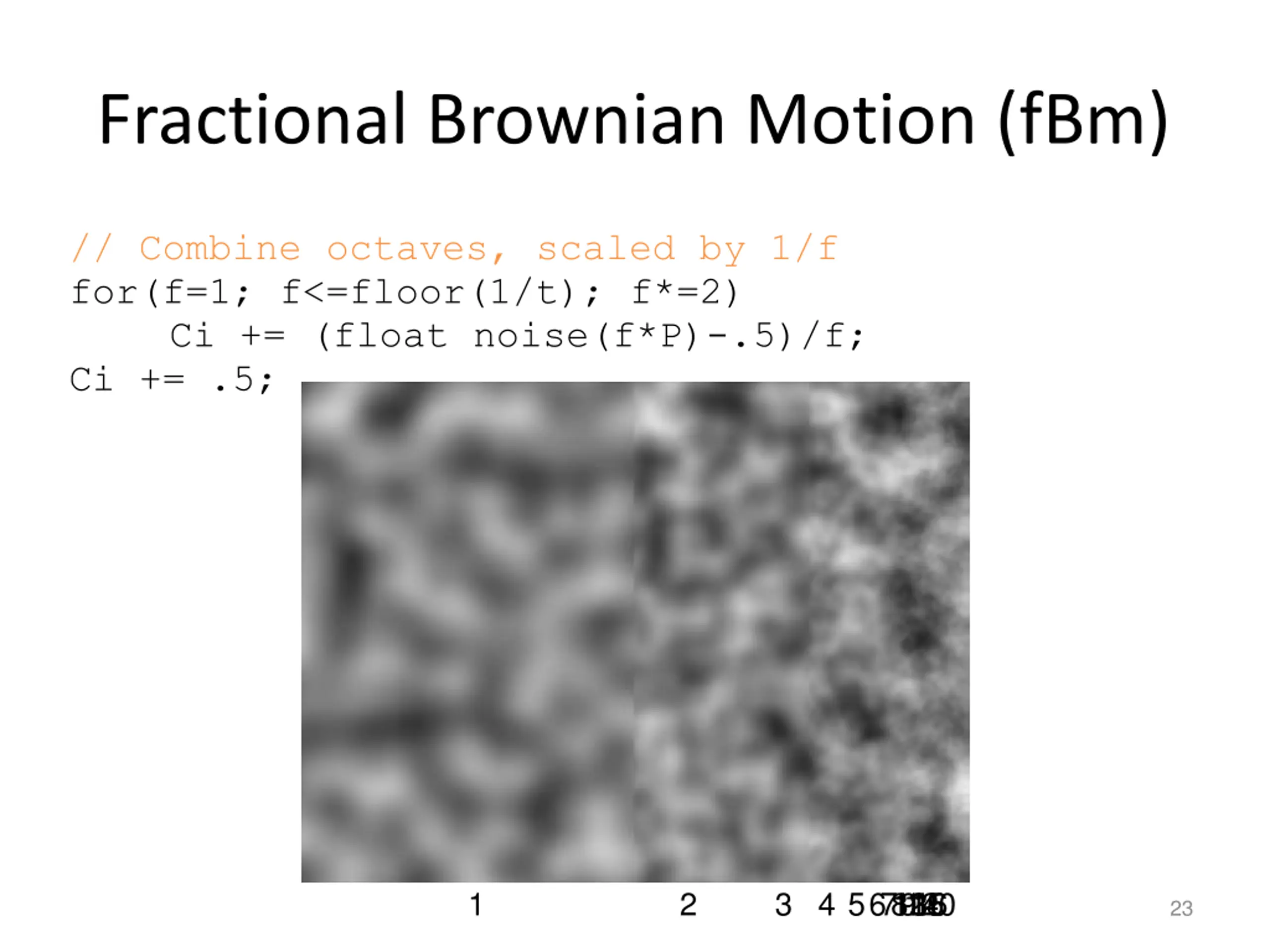

Fractional Brownian Motion (fBm) // Combine octaves, scaled by 1/f for(f=1; f<=floor(1/t); f*=2) Ci += (float noise(f*P)-.5)/f; Ci += .5; 1 2 3 4 56 7 8 9 12 13 14 15 16 20 23
Turbulence // fBm using abs(noise) for(f=1; f<=floor(1/t); f*=2) Ci += abs(float noise(f*P)-.5)/f; Ci += .5; 1 2 3 4 56 7 8 9 12 13 14 15 16 20 24

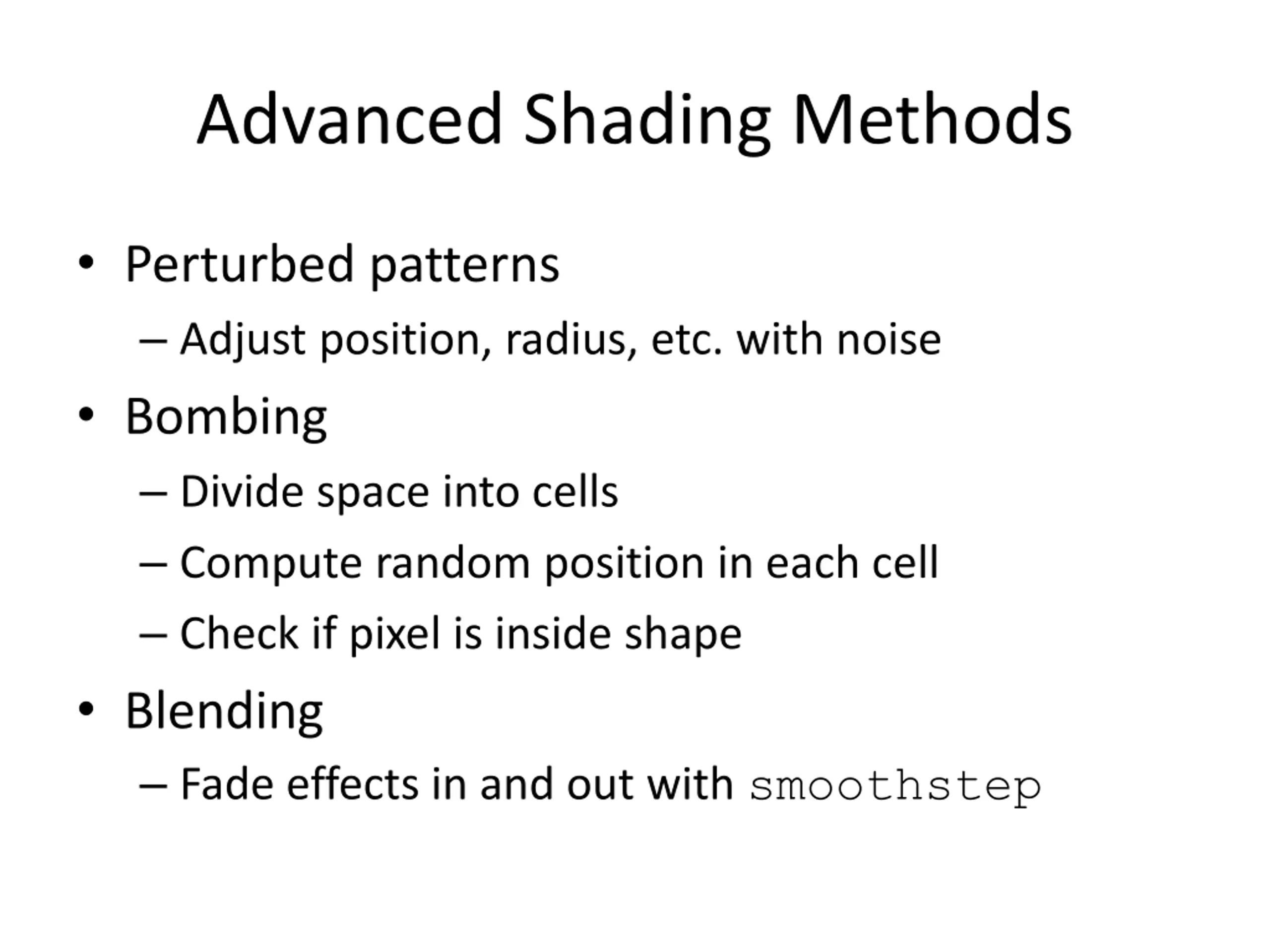

Advanced Shading Methods Perturbed patterns Adjust position, radius, etc. with noise Bombing Divide space into cells Compute random position in each cell Check if pixel is inside shape Blending Fade effects in and out with smoothstep
