  1. A primer on Advanced Semantic Discovery (ASD) on oneM2M: main network principles and proposed simulation tools Andrea Cimmino and Ra l Garc a Castro, Ontology Engineering Group Universidad Polit cnica de Madrid, Spain Date 2021/01/12 cimmino@fi.upm.es

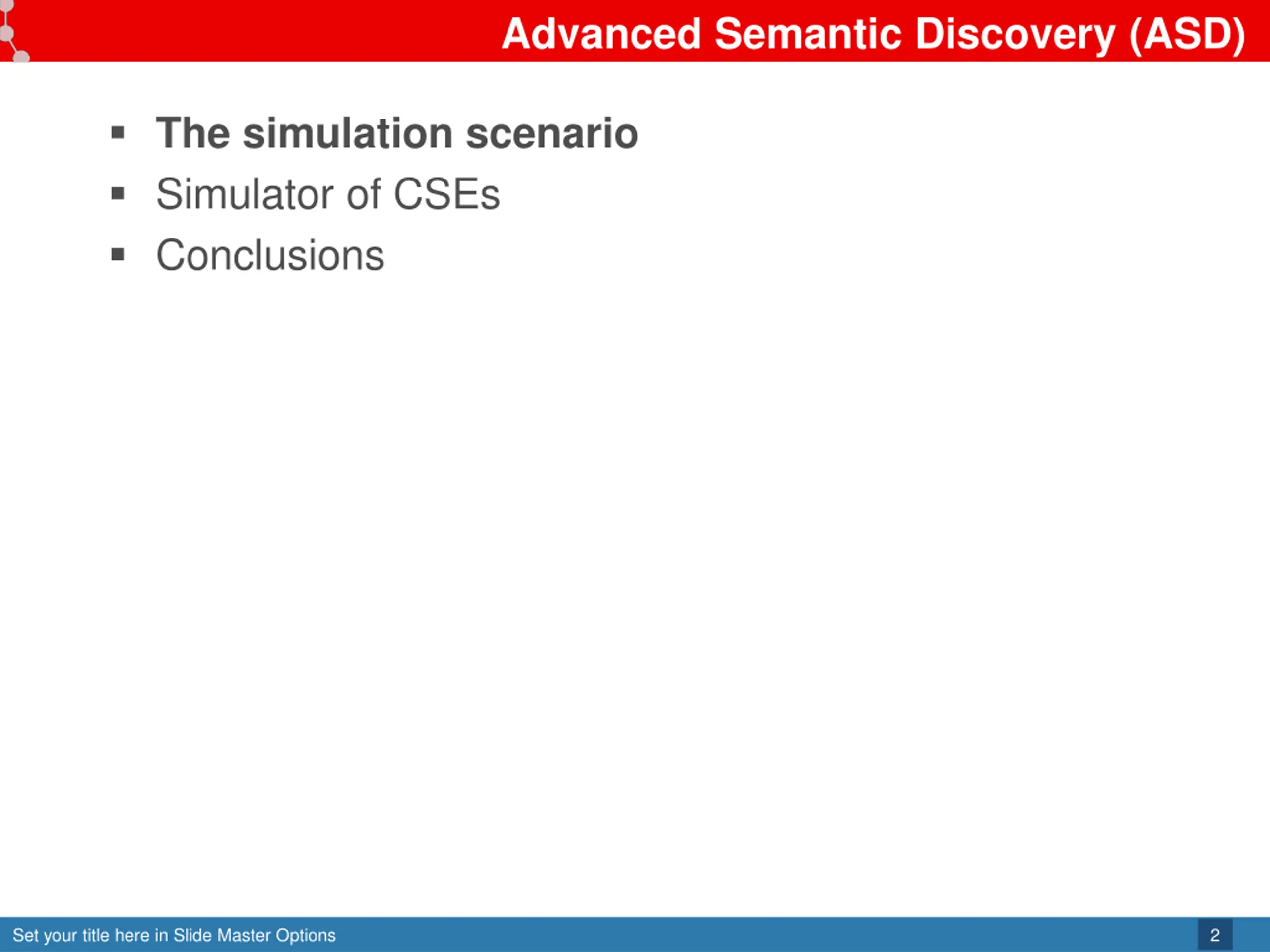

  2. Advanced Semantic Discovery (ASD) The simulation scenario Simulator of CSEs Conclusions Set your title here in Slide Master Options 2

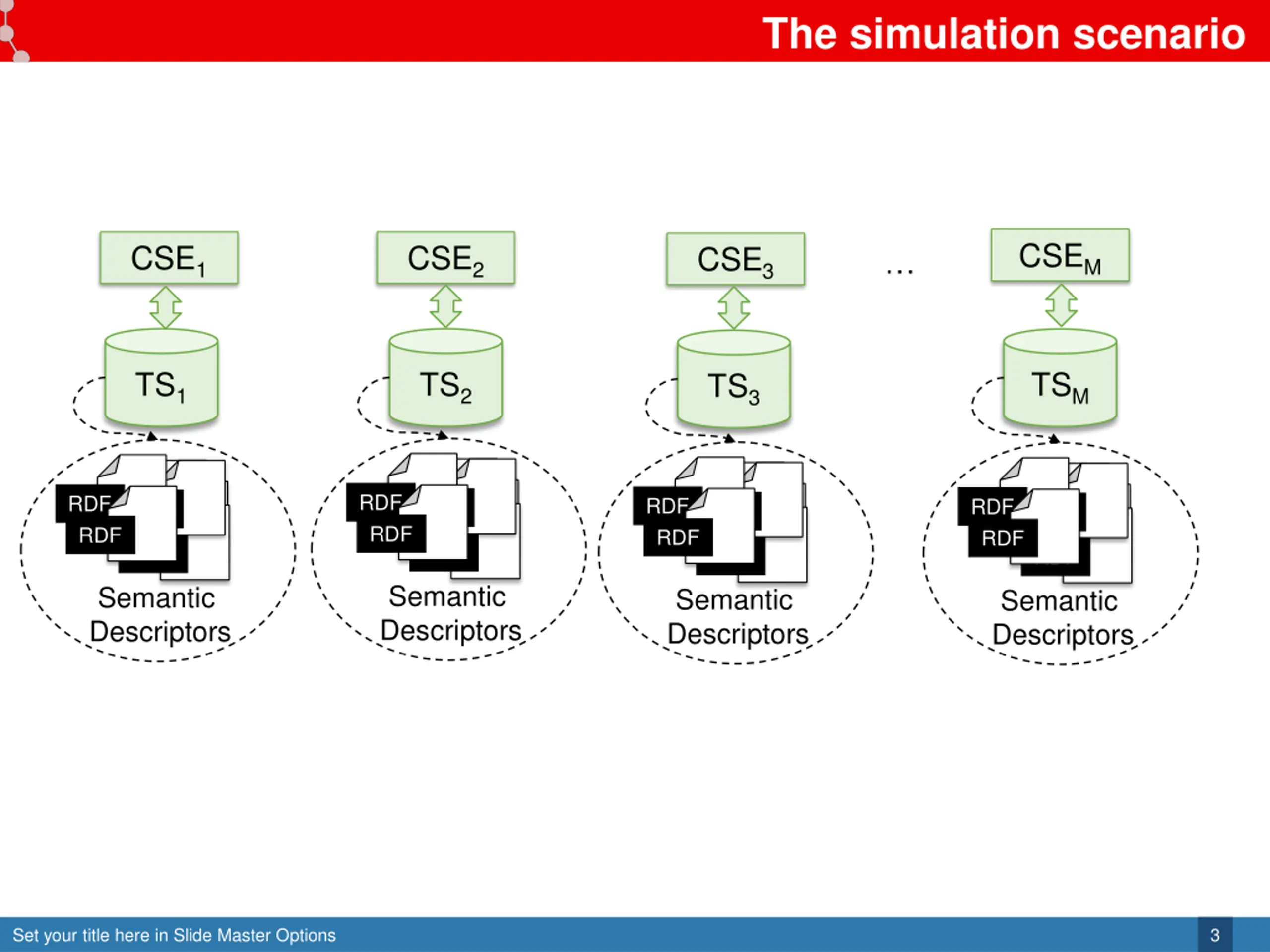

  3. The simulation scenario CSEM CSE1 CSE2 CSE3 TS1 TS2 TSM TS3 RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF Semantic Descriptors Semantic Descriptors Semantic Descriptors Semantic Descriptors Set your title here in Slide Master Options 3

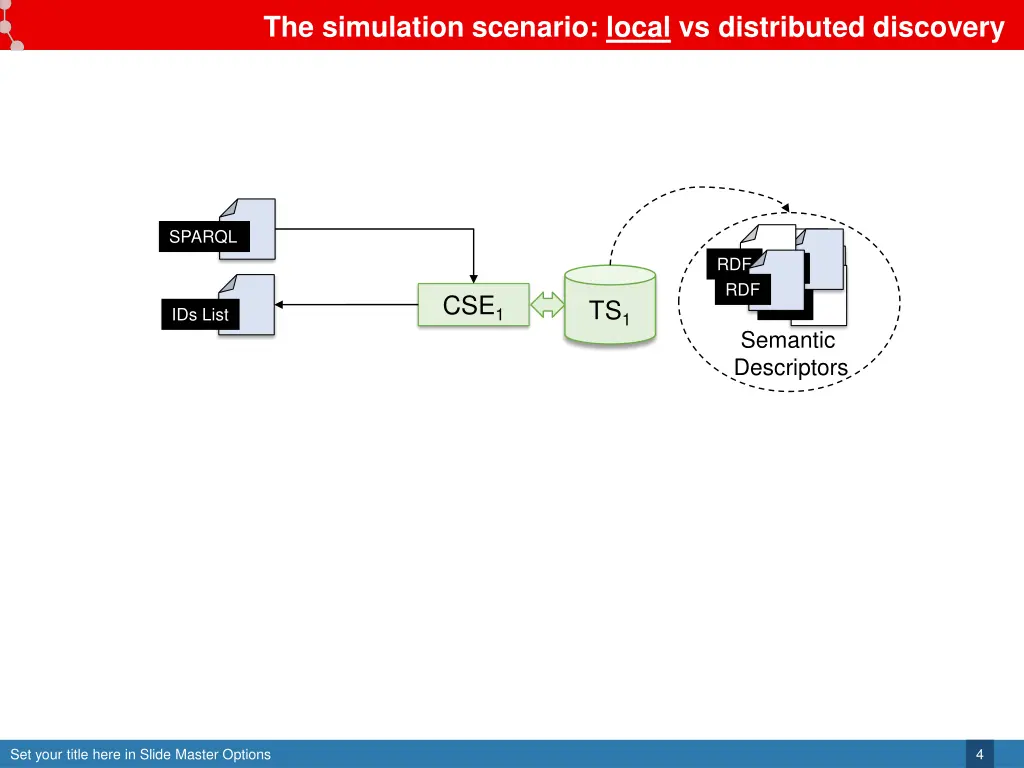

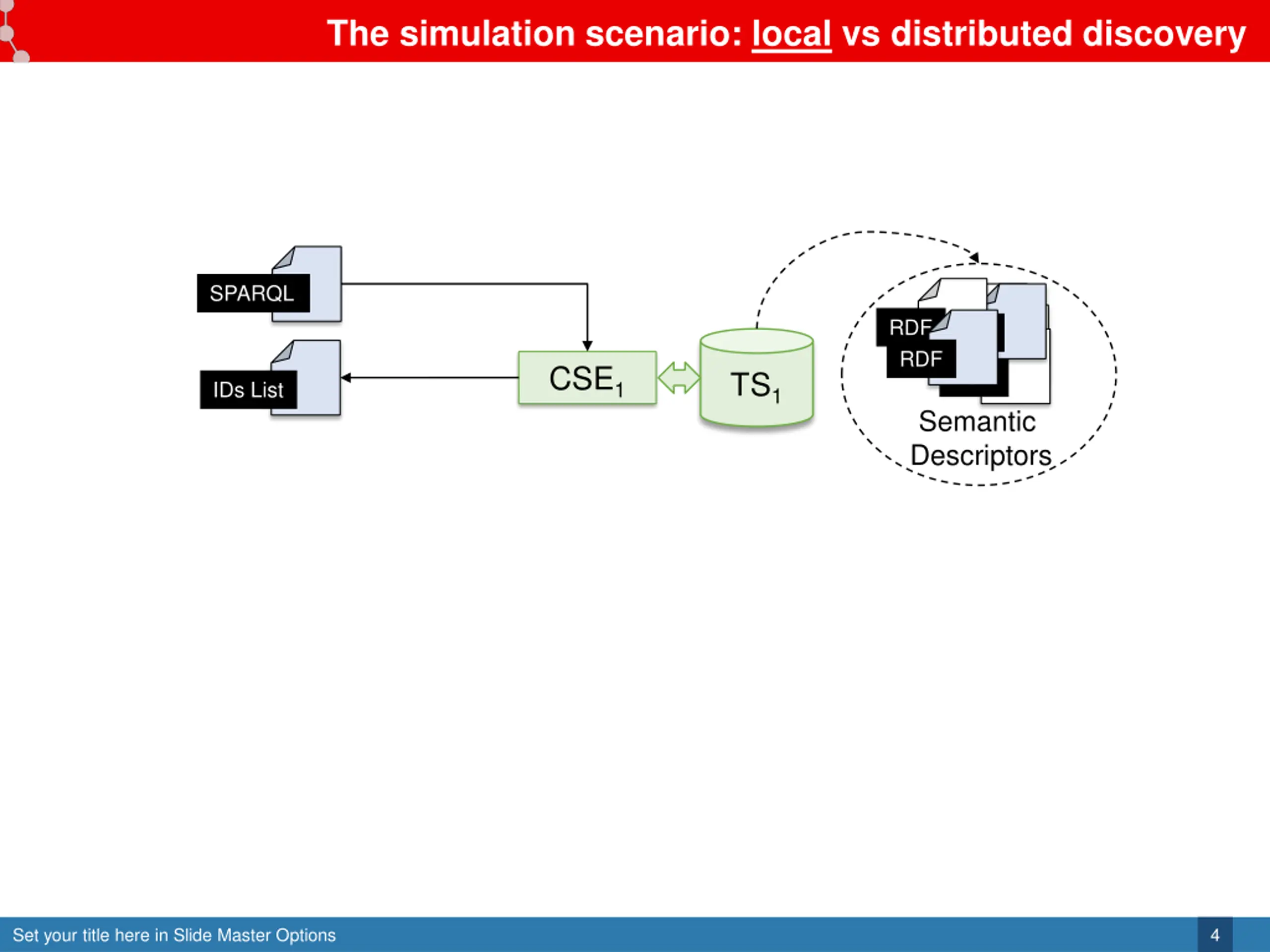

  4. The simulation scenario: local vs distributed discovery SPARQL RDF RDF RDF RDF RDF RDF CSE1 TS1 IDs List Semantic Descriptors Set your title here in Slide Master Options 4

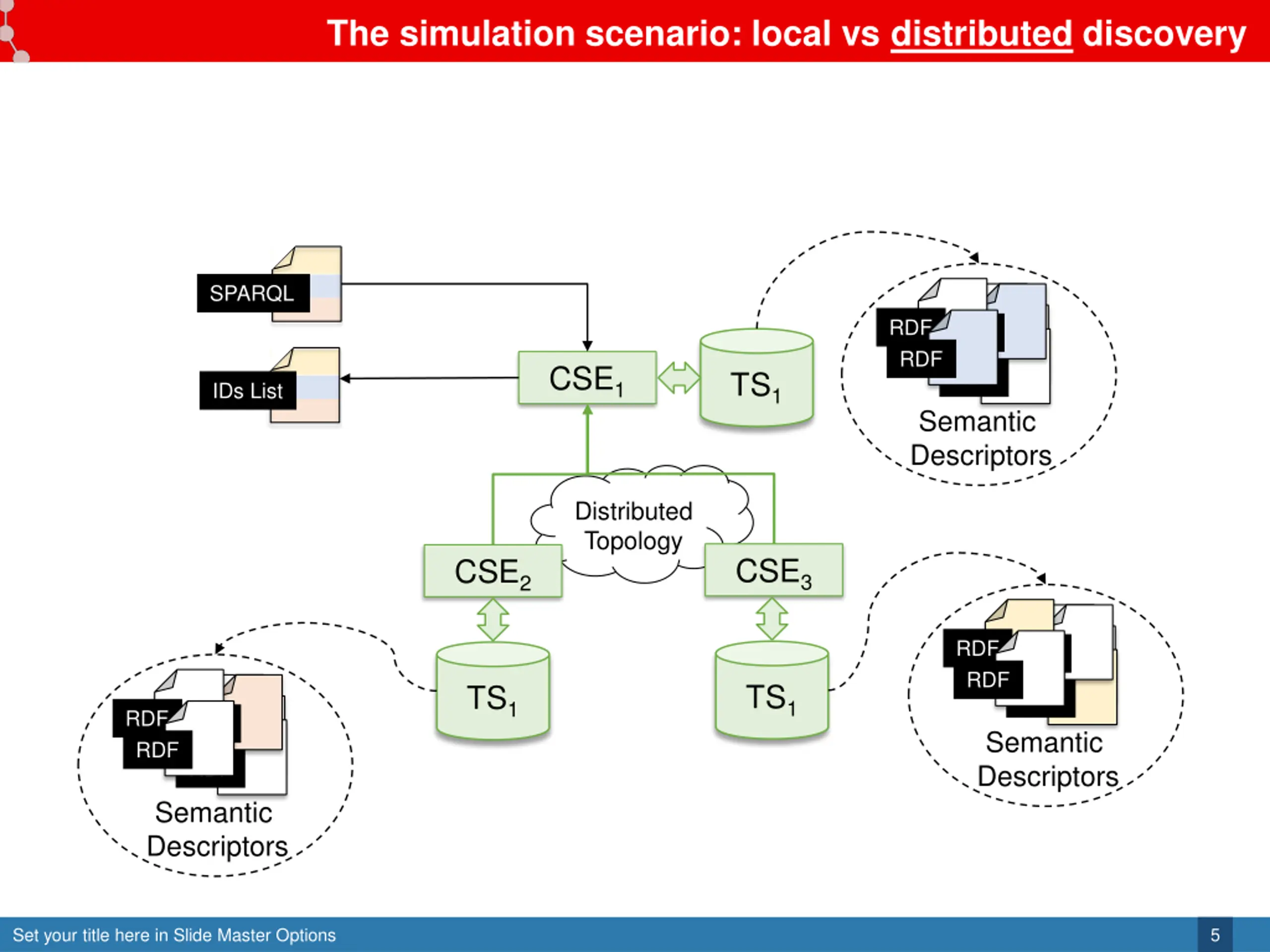

  5. The simulation scenario: local vs distributed discovery SPARQL RDF RDF RDF RDF RDF RDF CSE1 TS1 IDs List Semantic Descriptors Distributed Topology CSE3 CSE2 RDF RDF RDF RDF RDF RDF TS1 TS1 RDF RDF RDF RDF RDF RDF Semantic Descriptors Semantic Descriptors Set your title here in Slide Master Options 5

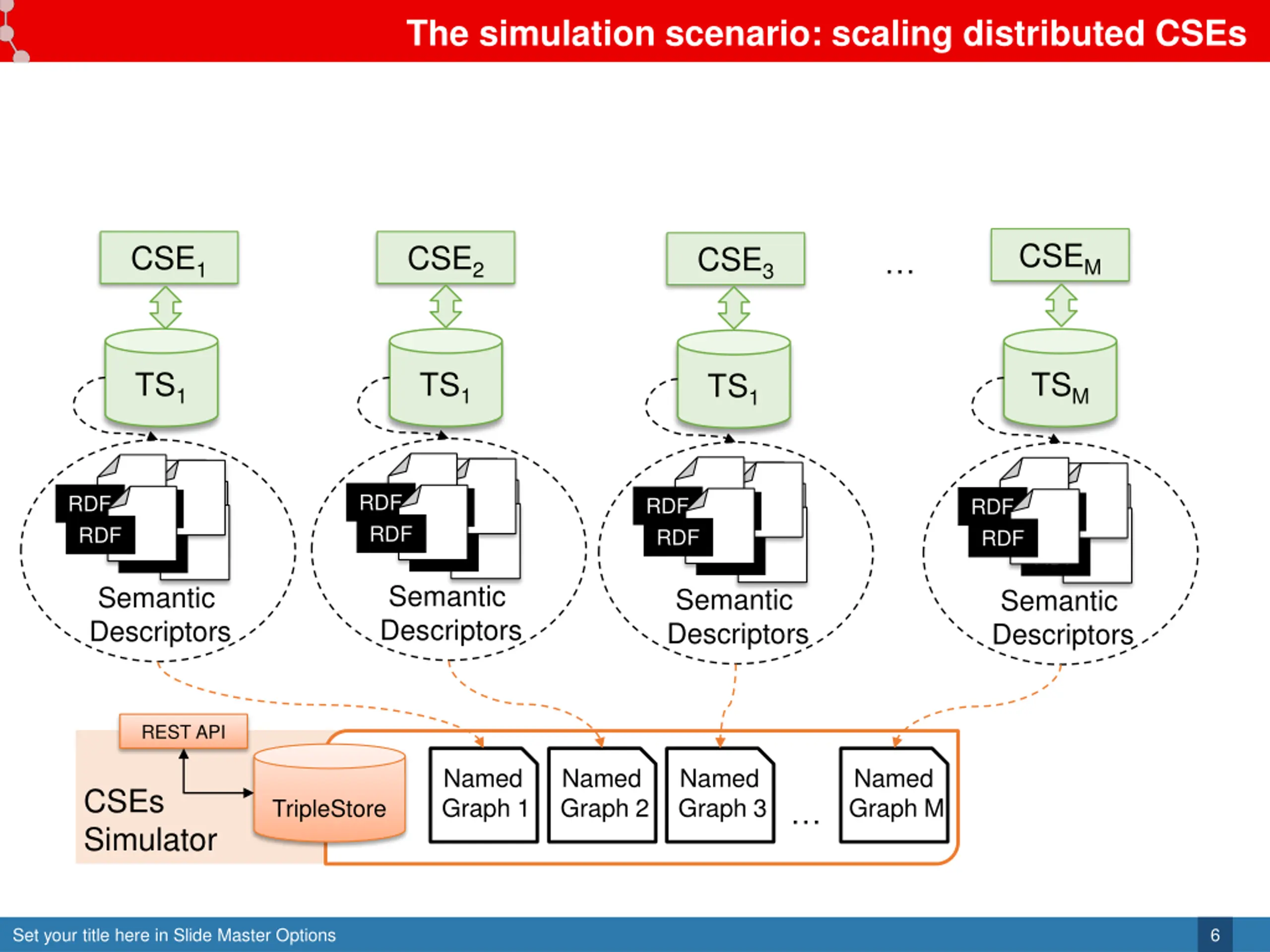

  6. The simulation scenario: scaling distributed CSEs CSEM CSE1 CSE2 CSE3 TS1 TS1 TSM TS1 RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF Semantic Descriptors Semantic Descriptors Semantic Descriptors Semantic Descriptors REST API Named Graph 1 Named Graph 2 Named Graph 3 Named Graph M CSEs Simulator TripleStore Set your title here in Slide Master Options 6

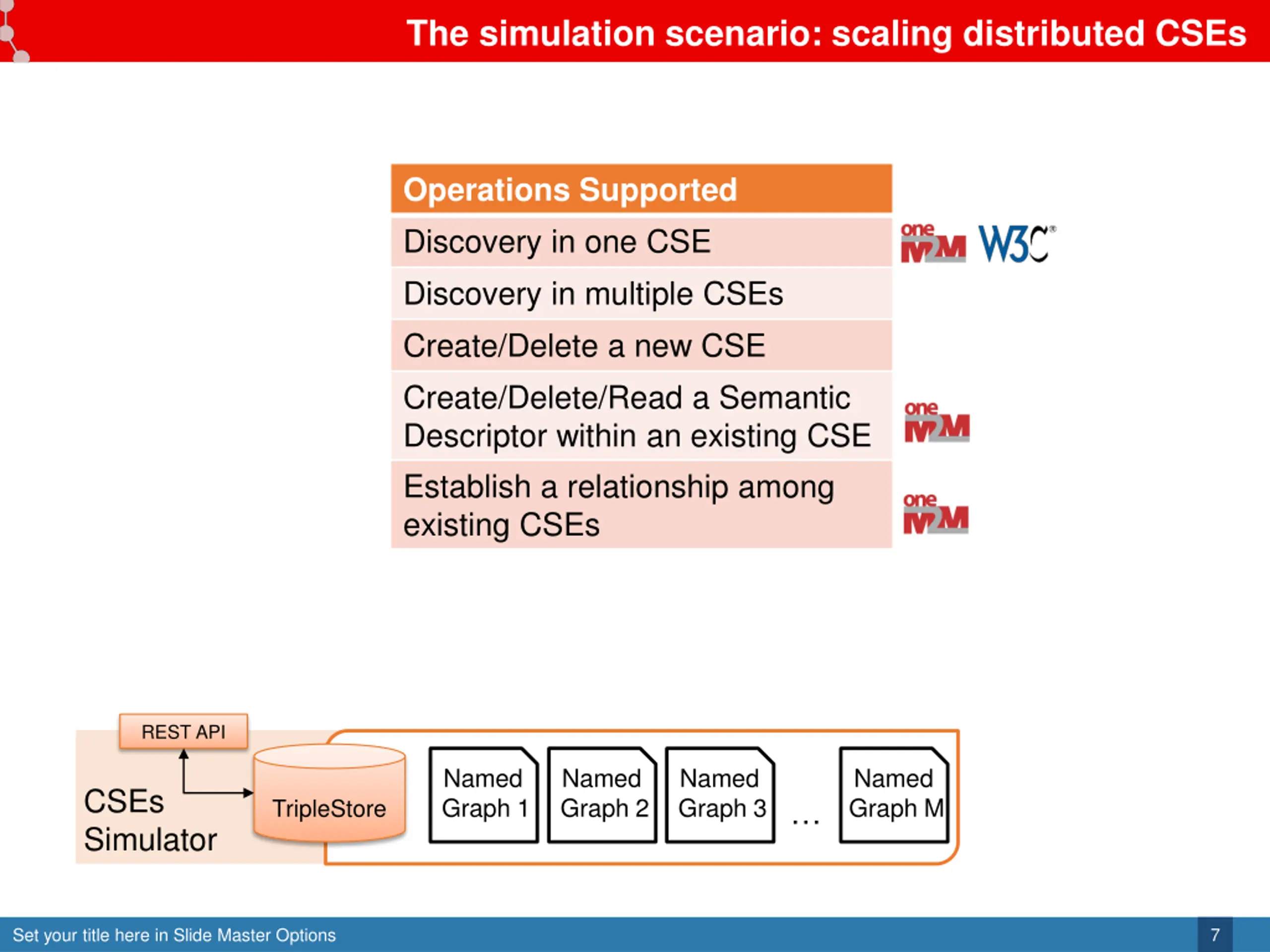

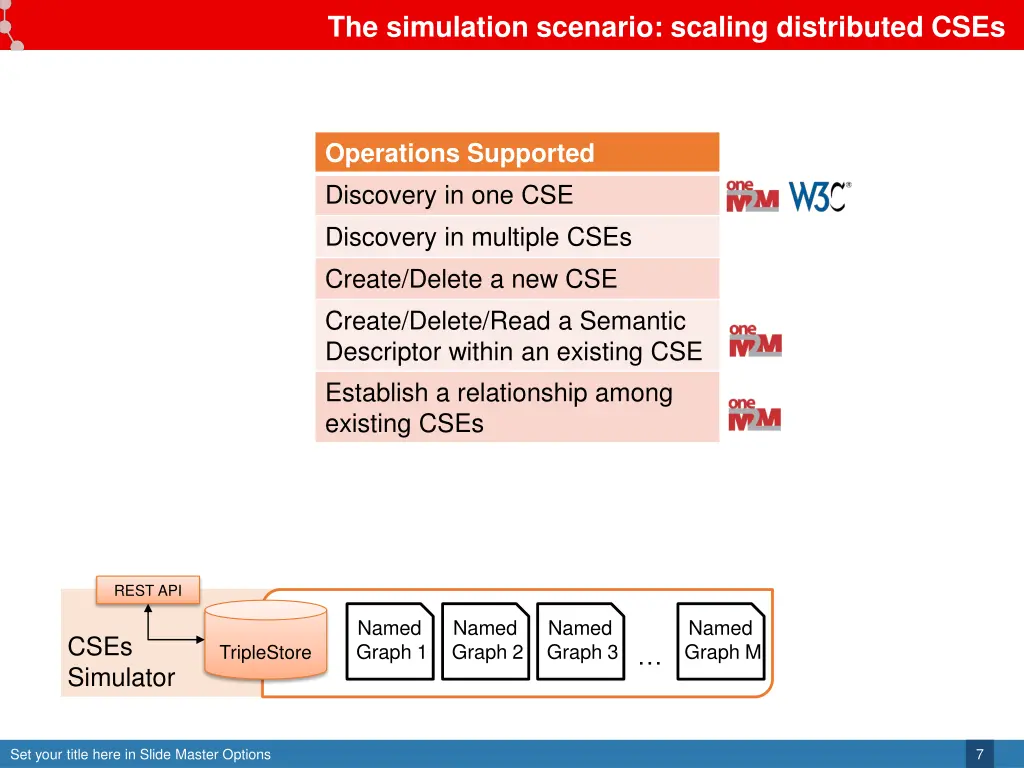

  7. The simulation scenario: scaling distributed CSEs Operations Supported Discovery in one CSE Discovery in multiple CSEs Create/Delete a new CSE Create/Delete/Read a Semantic Descriptor within an existing CSE Establish a relationship among existing CSEs REST API Named Graph 1 Named Graph 2 Named Graph 3 Named Graph M CSEs Simulator TripleStore Set your title here in Slide Master Options 7

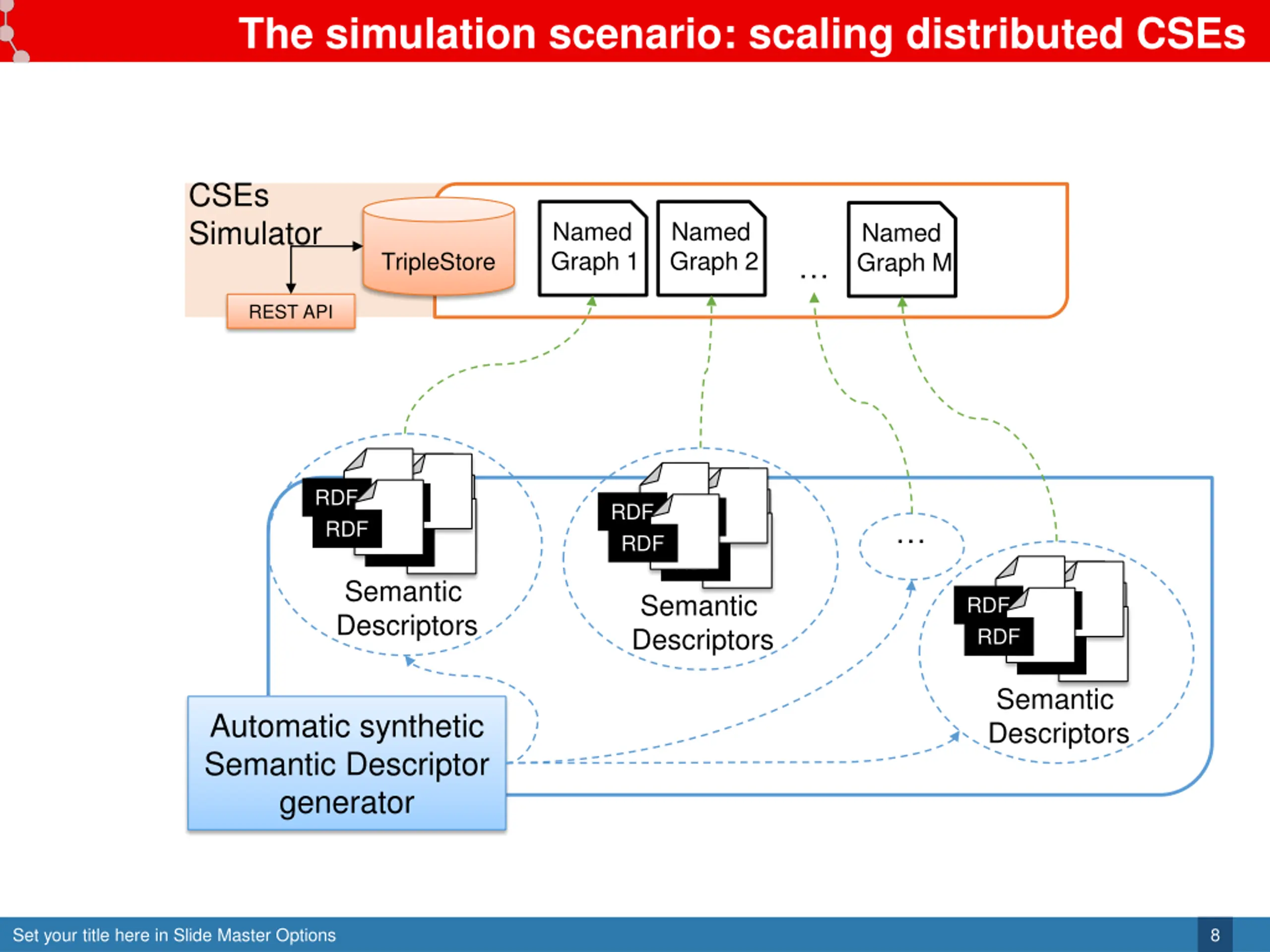

  8. The simulation scenario: scaling distributed CSEs CSEs Simulator Named Graph 1 Named Graph 2 Named Graph M TripleStore REST API RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF RDF Semantic Descriptors Semantic Descriptors RDF RDF RDF RDF RDF RDF Semantic Descriptors Automatic synthetic Semantic Descriptor generator Set your title here in Slide Master Options 8

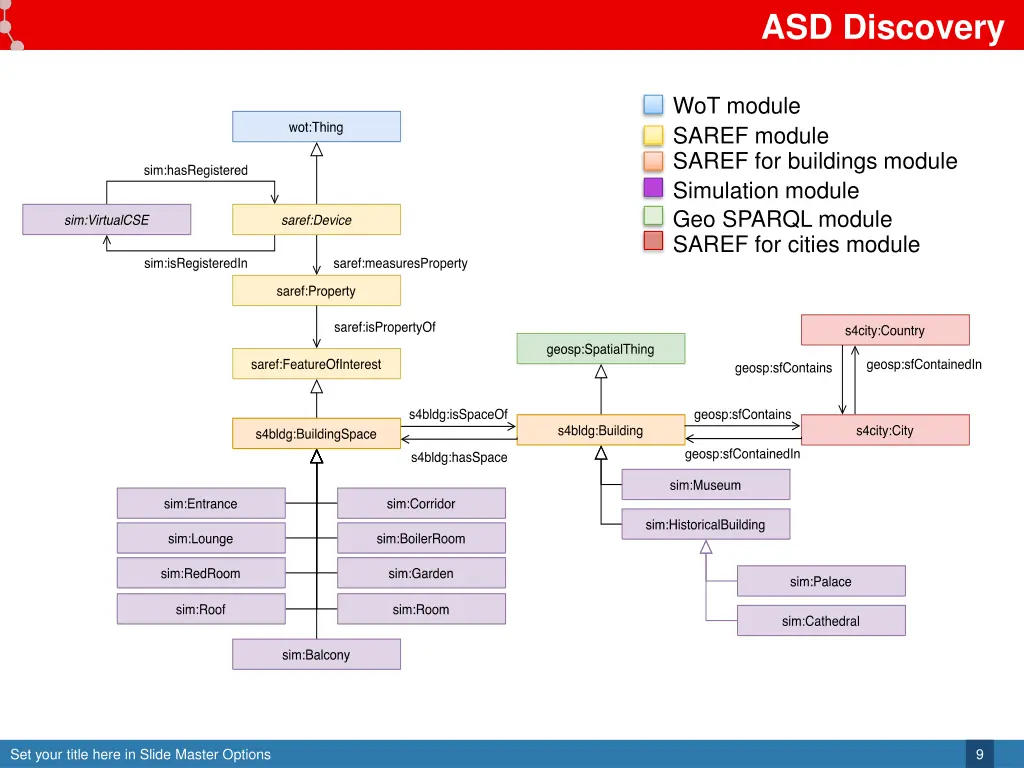

  9. ASD Discovery WoT module SAREF module SAREF for buildings module Simulation module Geo SPARQL module SAREF for cities module Set your title here in Slide Master Options 9

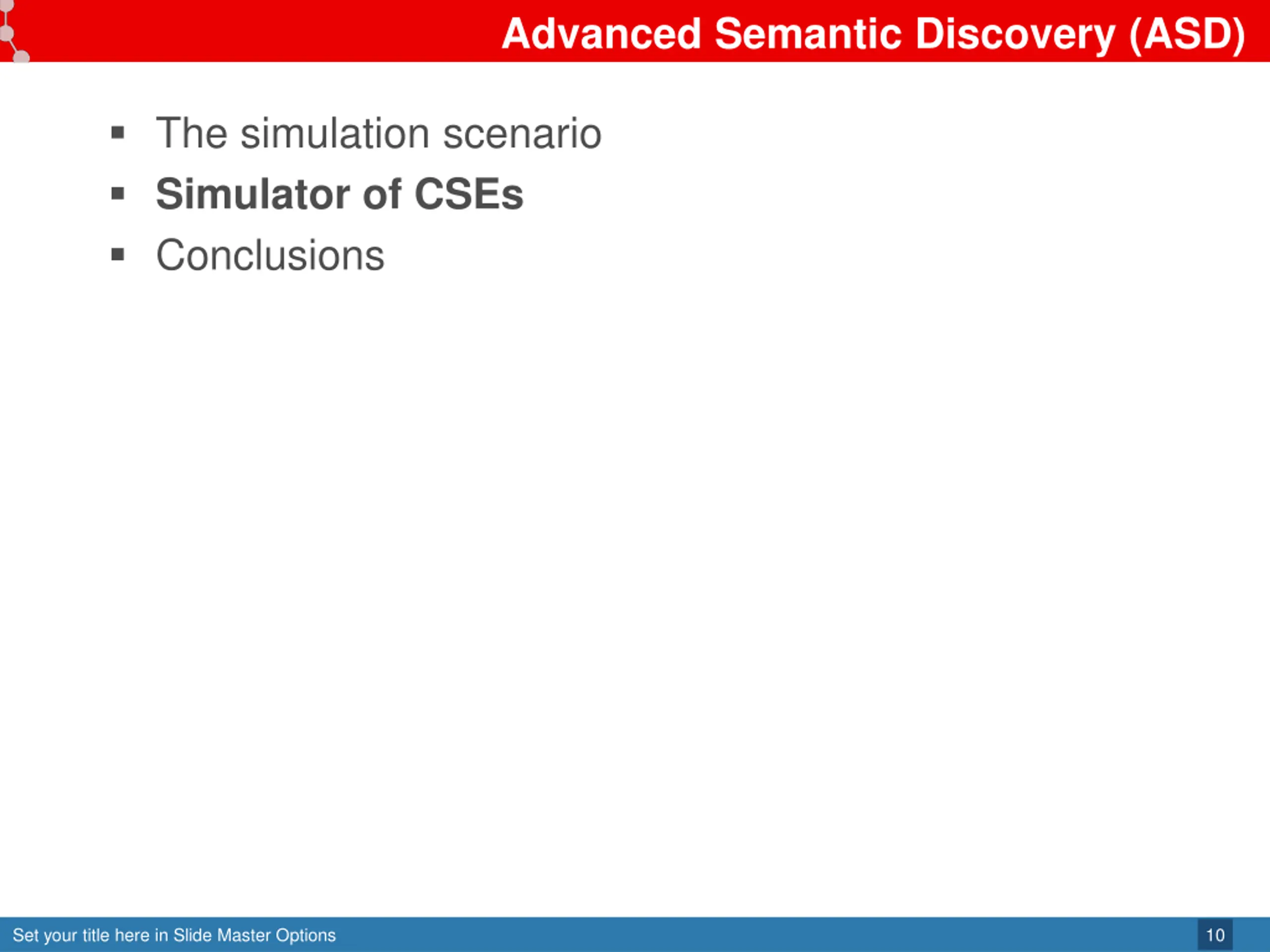

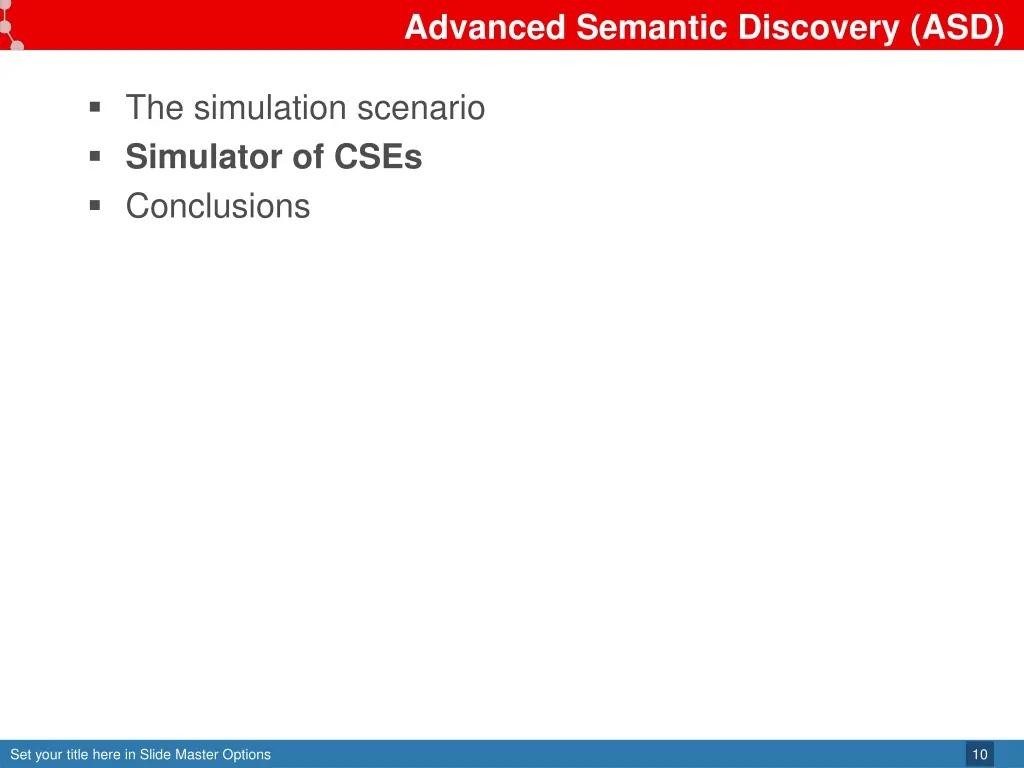

  10. Advanced Semantic Discovery (ASD) The simulation scenario Simulator of CSEs Conclusions Set your title here in Slide Master Options 10

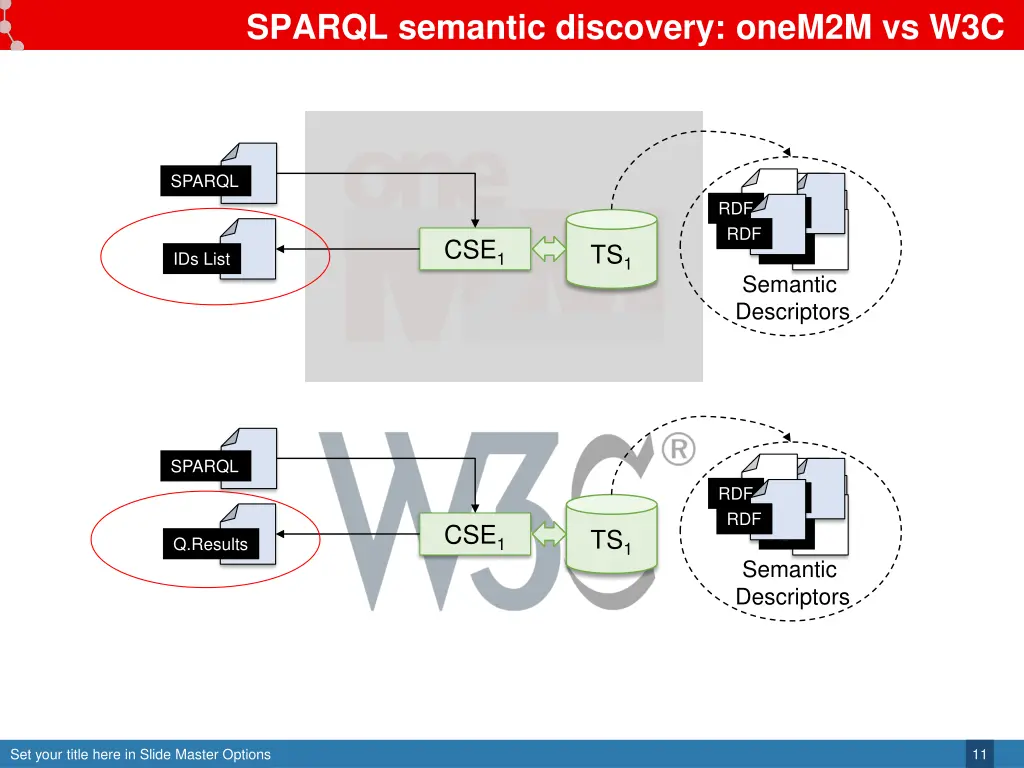

  11. SPARQL semantic discovery: oneM2M vs W3C SPARQL RDF RDF RDF RDF RDF RDF CSE1 TS1 IDs List Semantic Descriptors SPARQL RDF RDF RDF RDF RDF RDF CSE1 TS1 Q.Results Semantic Descriptors Set your title here in Slide Master Options 11

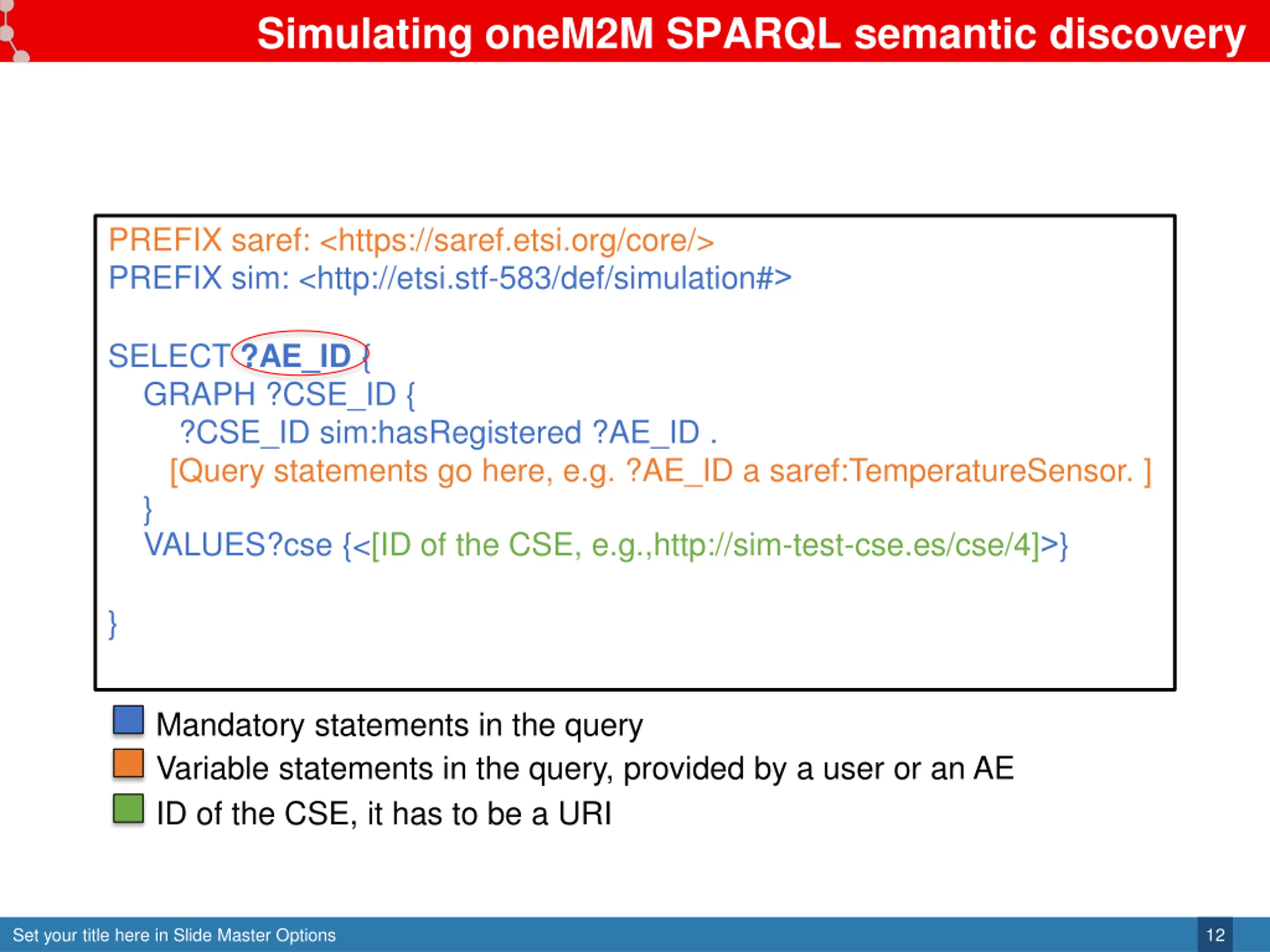

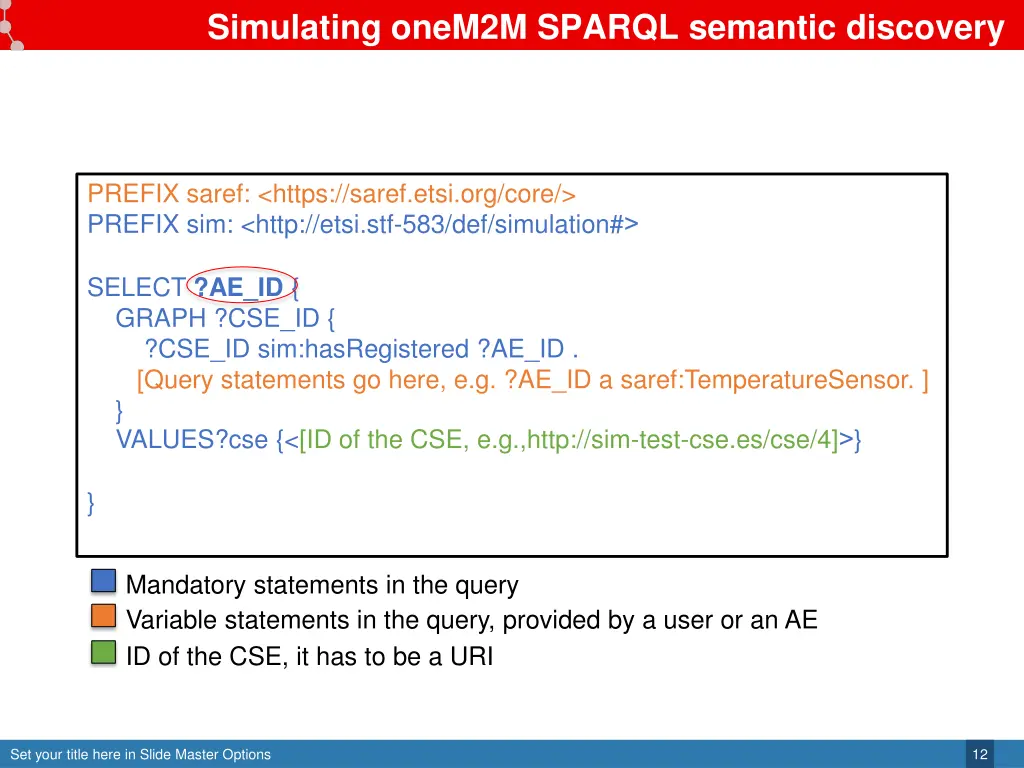

  12. Simulating oneM2M SPARQL semantic discovery PREFIX saref: <https://saref.etsi.org/core/> PREFIX sim: <http://etsi.stf-583/def/simulation#> SELECT ?AE_ID { GRAPH ?CSE_ID { ?CSE_ID sim:hasRegistered ?AE_ID . [Query statements go here, e.g. ?AE_ID a saref:TemperatureSensor. ] } VALUES?cse {<[ID of the CSE, e.g.,http://sim-test-cse.es/cse/4]>} } Mandatory statements in the query Variable statements in the query, provided by a user or an AE ID of the CSE, it has to be a URI Set your title here in Slide Master Options 12

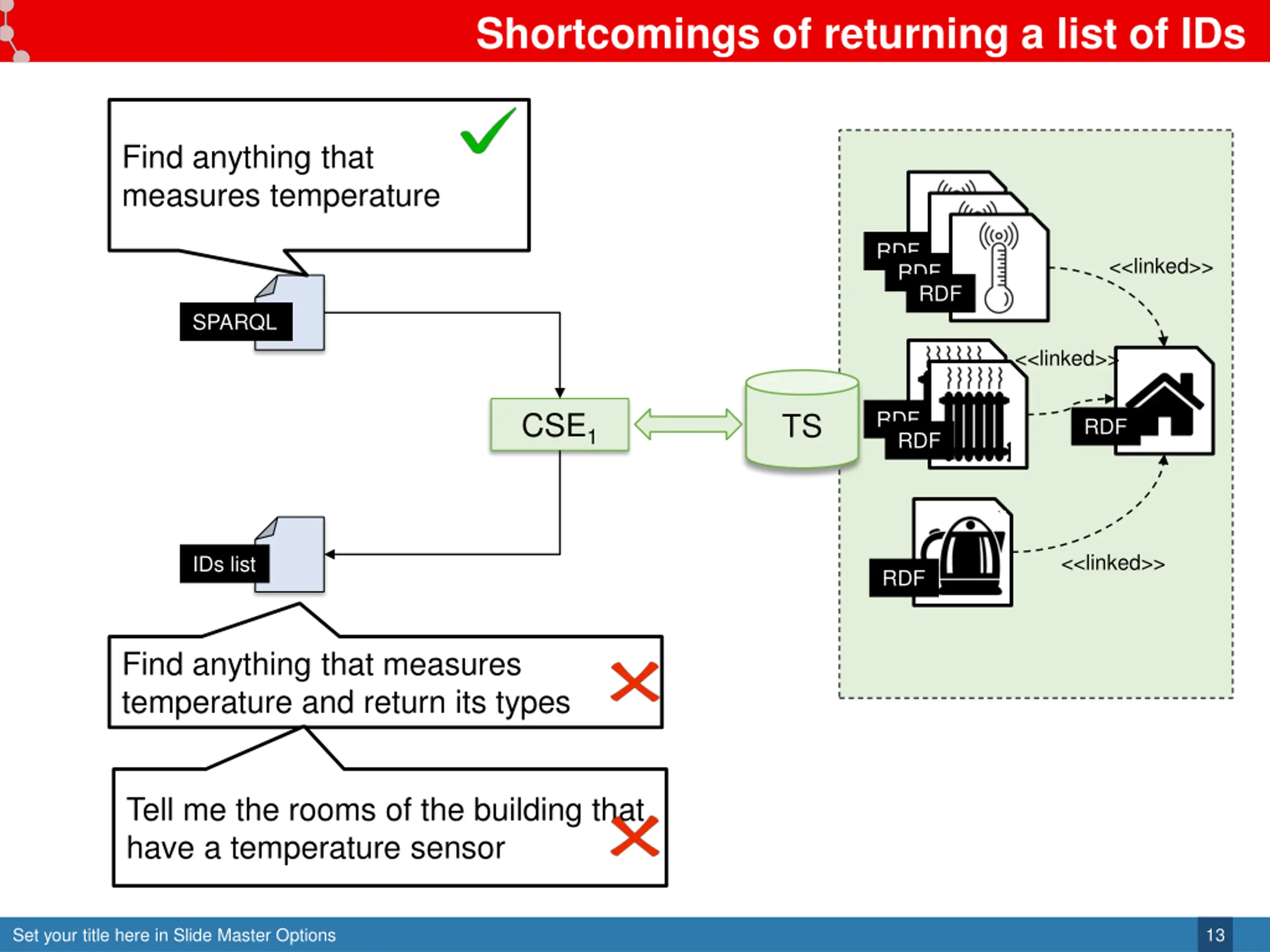

  13. Shortcomings of returning a list of IDs Find anything that measures temperature RDF RDF <<linked>> RDF SPARQL <<linked>> CSE1 RDF RDF TS RDF <<linked>> IDs list RDF Find anything that measures temperature and return its types Tell me the rooms of the building that have a temperature sensor Set your title here in Slide Master Options 13

  14. Shortcomings of returning a list of IDs: efficiency and scalability Find anything that measures temperature and return its types Find anything that measures temperature RDF RDF <<linked>> RDF SPARQL <<linked>> CSE1 RDF RDF TS RDF IDs list <<linked>> 1. For each ID, retrieve its Semantic Descriptor 2. Aggregate the Semantic Descriptors 3. Solve the former query locally by a client (AE) RDF Set your title here in Slide Master Options 14

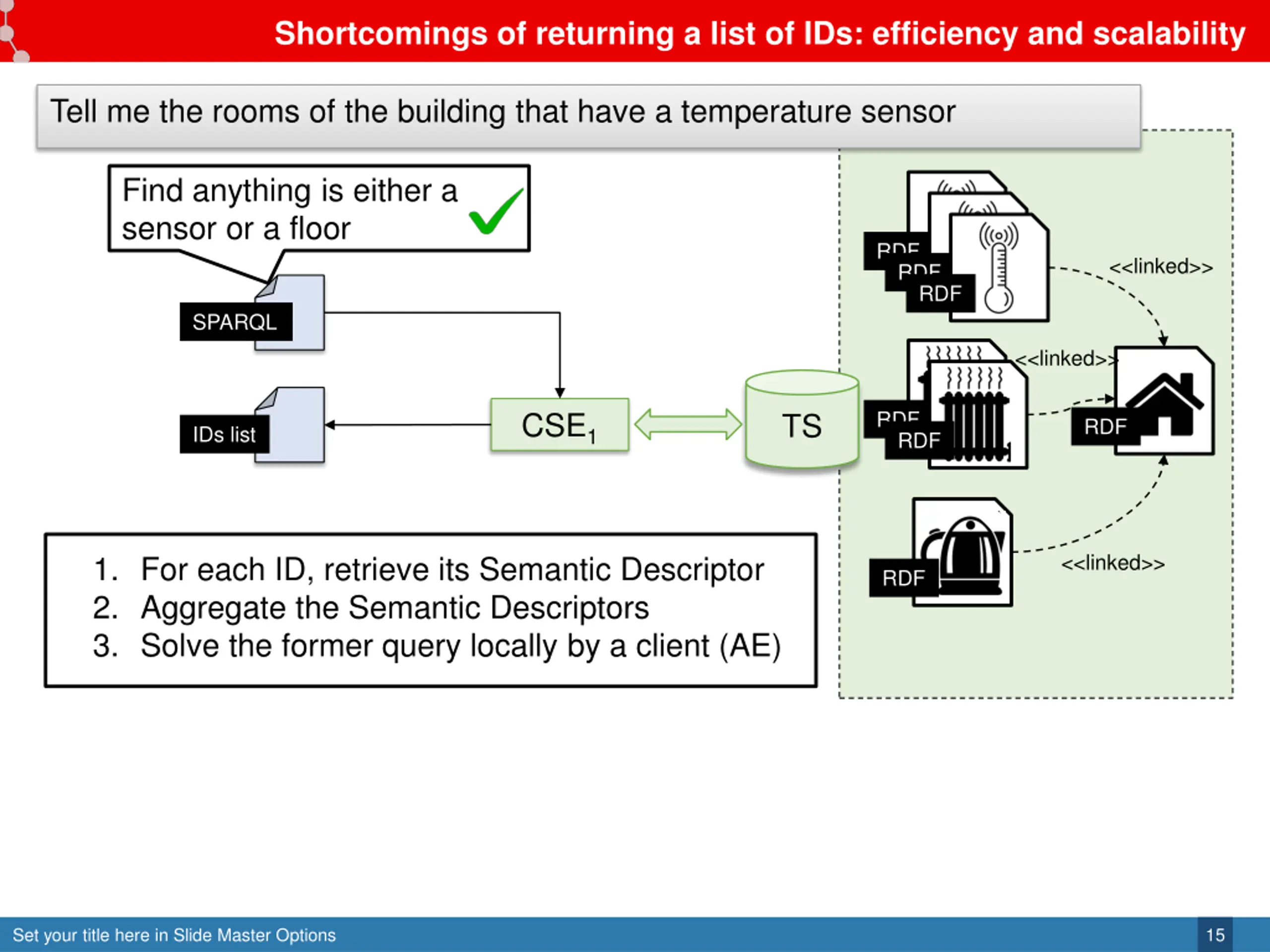

  15. Shortcomings of returning a list of IDs: efficiency and scalability Tell me the rooms of the building that have a temperature sensor Find anything is either a sensor or a floor RDF RDF <<linked>> RDF SPARQL <<linked>> CSE1 RDF RDF TS RDF IDs list <<linked>> 1. For each ID, retrieve its Semantic Descriptor 2. Aggregate the Semantic Descriptors 3. Solve the former query locally by a client (AE) RDF Set your title here in Slide Master Options 15

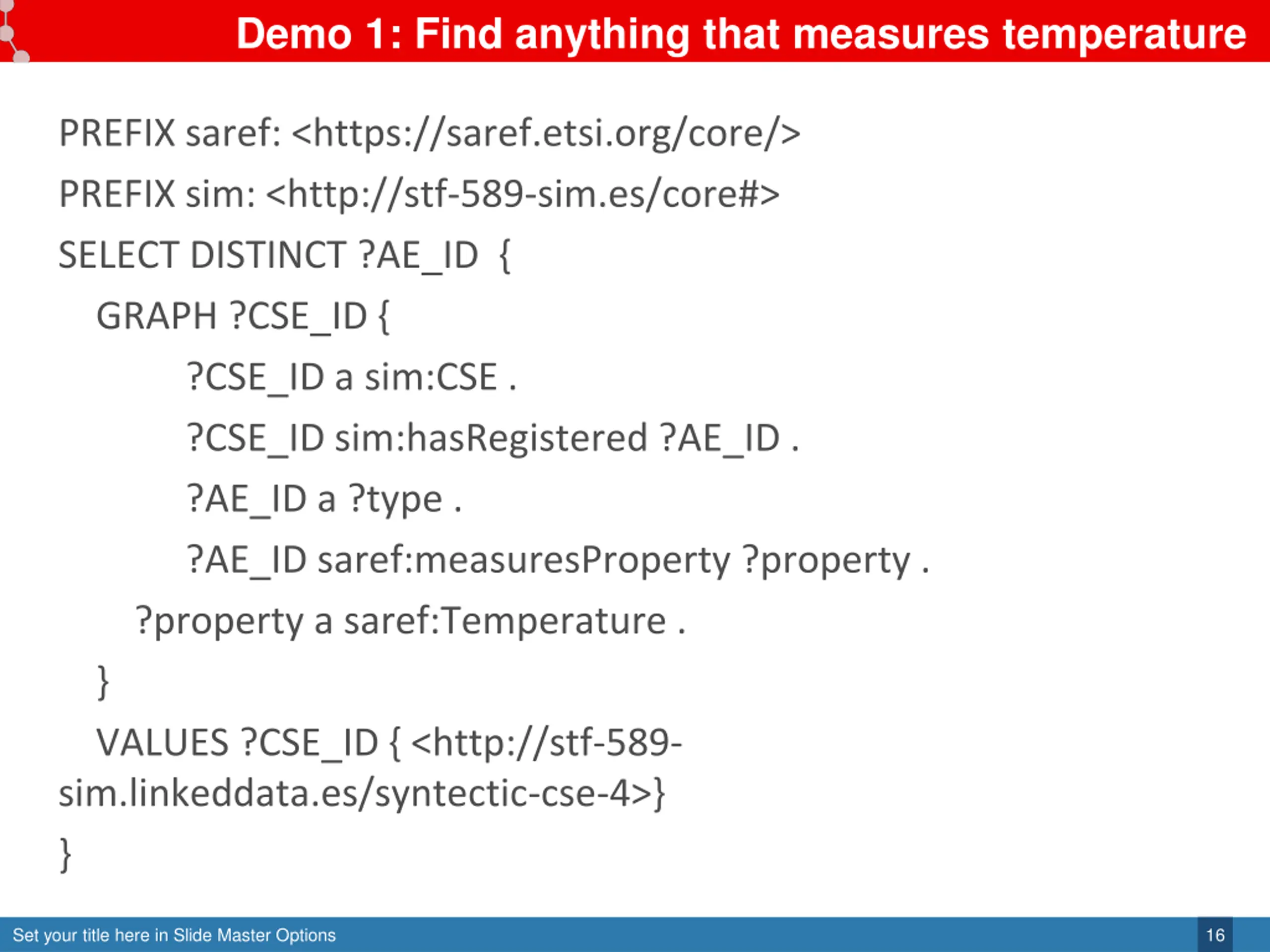

  16. Demo 1: Find anything that measures temperature PREFIX saref: <https://saref.etsi.org/core/> PREFIX sim: <http://stf-589-sim.es/core#> SELECT DISTINCT ?AE_ID { GRAPH ?CSE_ID { ?CSE_ID a sim:CSE . ?CSE_ID sim:hasRegistered ?AE_ID . ?AE_ID a ?type . ?AE_ID saref:measuresProperty ?property . ?property a saref:Temperature . } VALUES ?CSE_ID { <http://stf-589- sim.linkeddata.es/syntectic-cse-4>} } Set your title here in Slide Master Options 16

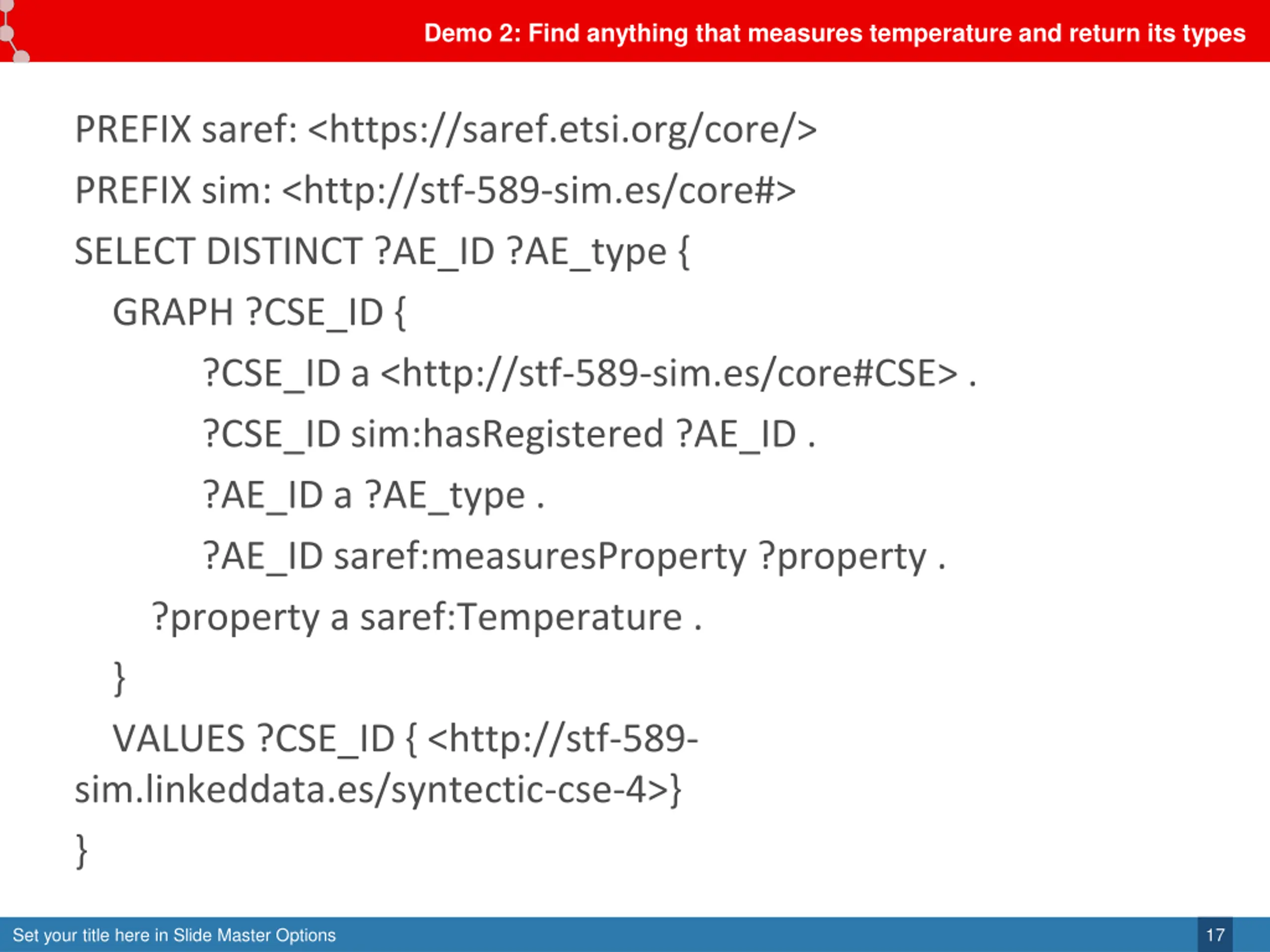

  17. Demo 2: Find anything that measures temperature and return its types PREFIX saref: <https://saref.etsi.org/core/> PREFIX sim: <http://stf-589-sim.es/core#> SELECT DISTINCT ?AE_ID ?AE_type { GRAPH ?CSE_ID { ?CSE_ID a <http://stf-589-sim.es/core#CSE> . ?CSE_ID sim:hasRegistered ?AE_ID . ?AE_ID a ?AE_type . ?AE_ID saref:measuresProperty ?property . ?property a saref:Temperature . } VALUES ?CSE_ID { <http://stf-589- sim.linkeddata.es/syntectic-cse-4>} } Set your title here in Slide Master Options 17

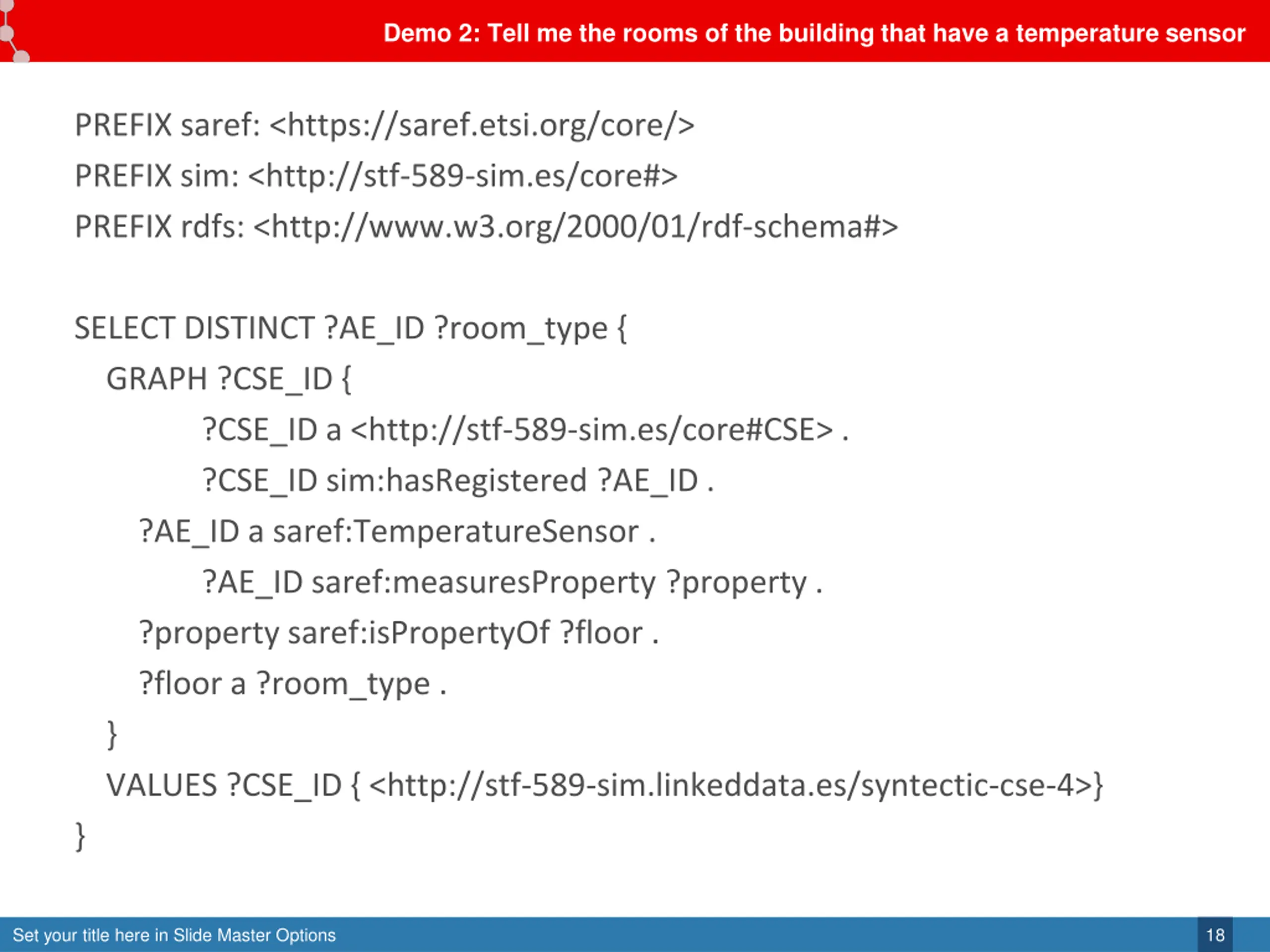

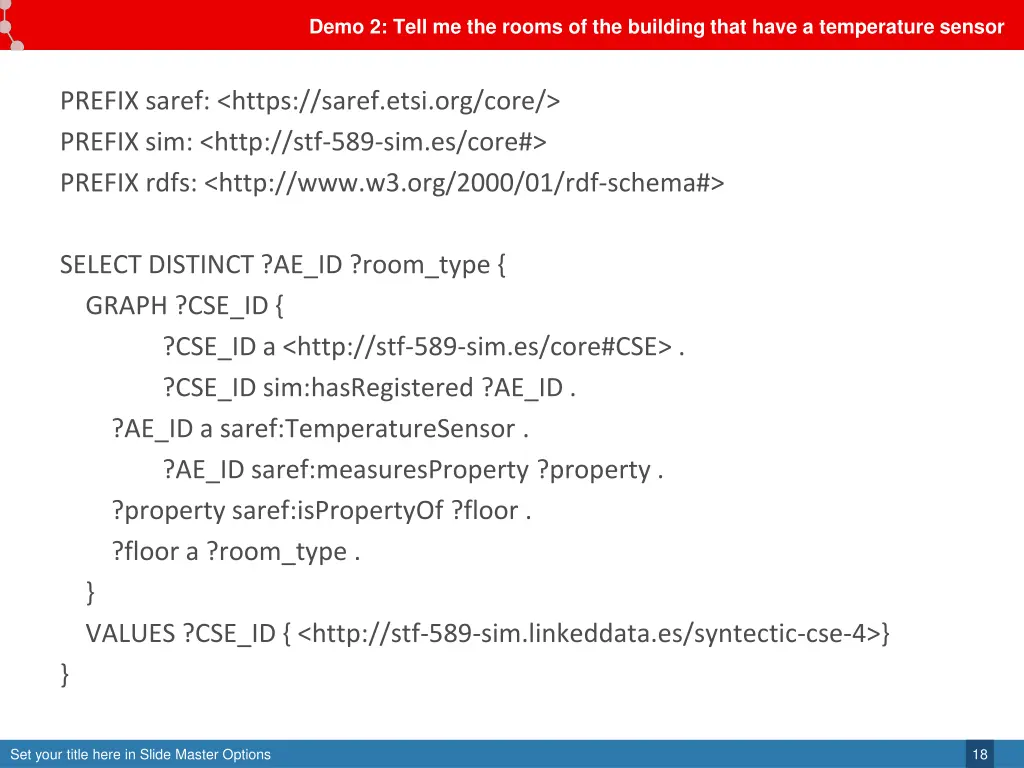

  18. Demo 2: Tell me the rooms of the building that have a temperature sensor PREFIX saref: <https://saref.etsi.org/core/> PREFIX sim: <http://stf-589-sim.es/core#> PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#> SELECT DISTINCT ?AE_ID ?room_type { GRAPH ?CSE_ID { ?CSE_ID a <http://stf-589-sim.es/core#CSE> . ?CSE_ID sim:hasRegistered ?AE_ID . ?AE_ID a saref:TemperatureSensor . ?AE_ID saref:measuresProperty ?property . ?property saref:isPropertyOf ?floor . ?floor a ?room_type . } VALUES ?CSE_ID { <http://stf-589-sim.linkeddata.es/syntectic-cse-4>} } Set your title here in Slide Master Options 18

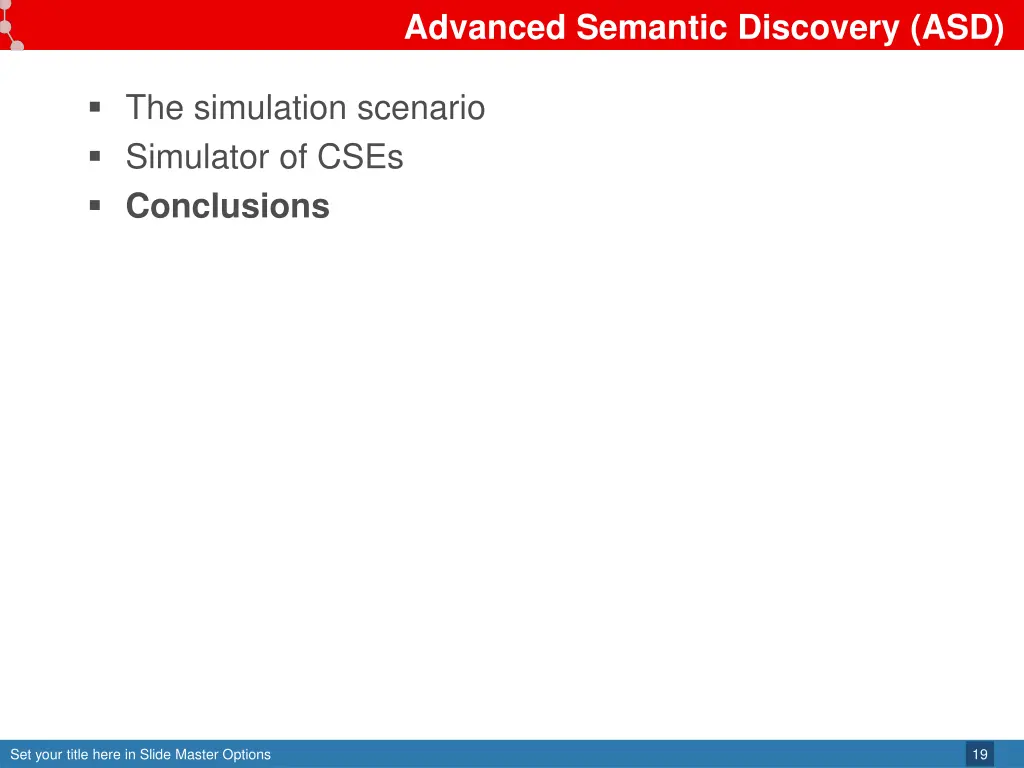

  19. Advanced Semantic Discovery (ASD) The simulation scenario Simulator of CSEs Conclusions Set your title here in Slide Master Options 19

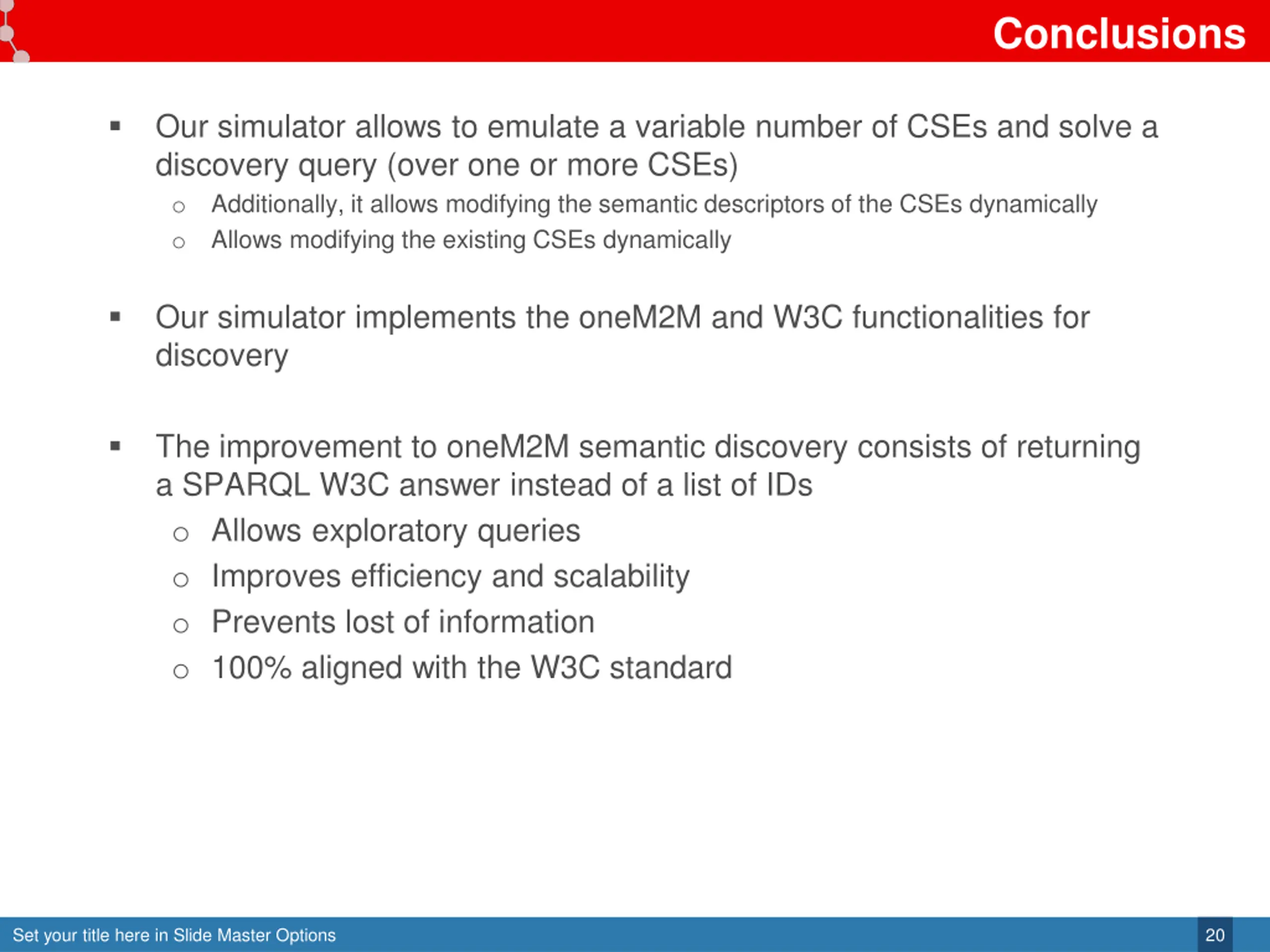

  20. Conclusions Our simulator allows to emulate a variable number of CSEs and solve a discovery query (over one or more CSEs) o Additionally, it allows modifying the semantic descriptors of the CSEs dynamically o Allows modifying the existing CSEs dynamically Our simulator implements the oneM2M and W3C functionalities for discovery The improvement to oneM2M semantic discovery consists of returning a SPARQL W3C answer instead of a list of IDs o Allows exploratory queries o Improves efficiency and scalability o Prevents lost of information o 100% aligned with the W3C standard Set your title here in Slide Master Options 20

  21. Questions? Set your title here in Slide Master Options 21

  22. Set your title here in Slide Master Options 22
