Shadows UMBC Graphics for Games

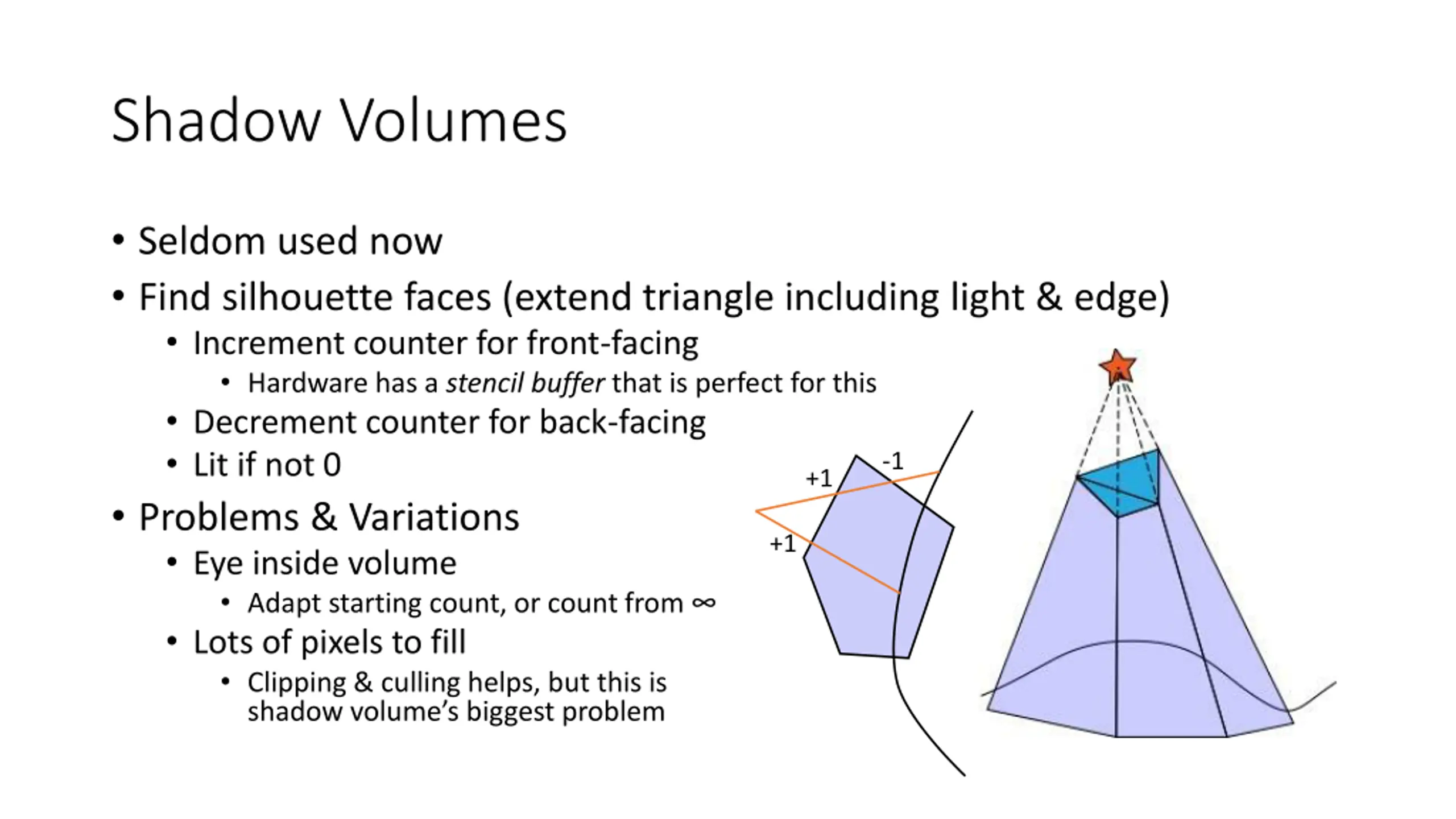

Shadow Volumes Seldom used now Find silhouette faces (extend triangle including light & edge) Increment counter for front-facing Hardware has a stencil buffer that is perfect for this Decrement counter for back-facing Lit if not 0 Problems & Variations Eye inside volume Adapt starting count, or count from Lots of pixels to fill Clipping & culling helps, but this is shadow volume s biggest problem -1 +1 +1
Shadow Rays Trace rays through some representation of the geometry Ray tracing s primary shadow method Distance Field Shadows Pre-process 3D grid of distances to closest object Ray march (like volume shadows) At each step, can go at least as far as the distance stored there before you hit anything

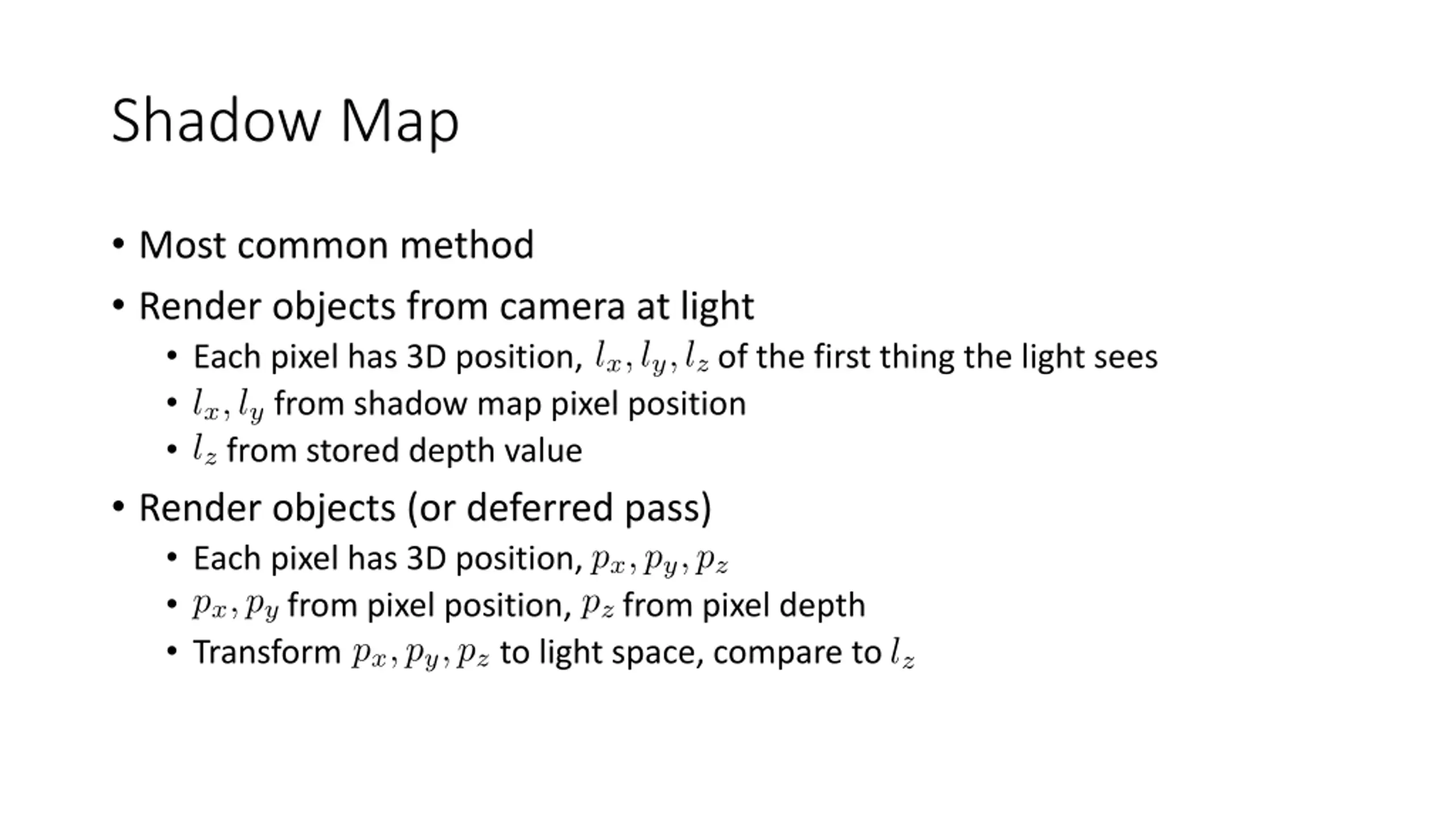

Shadow Map Most common method Render objects from camera at light Each pixel has 3D position, from shadow map pixel position from stored depth value Render objects (or deferred pass) Each pixel has 3D position, from pixel position, Transform of the first thing the light sees from pixel depth to light space, compare to

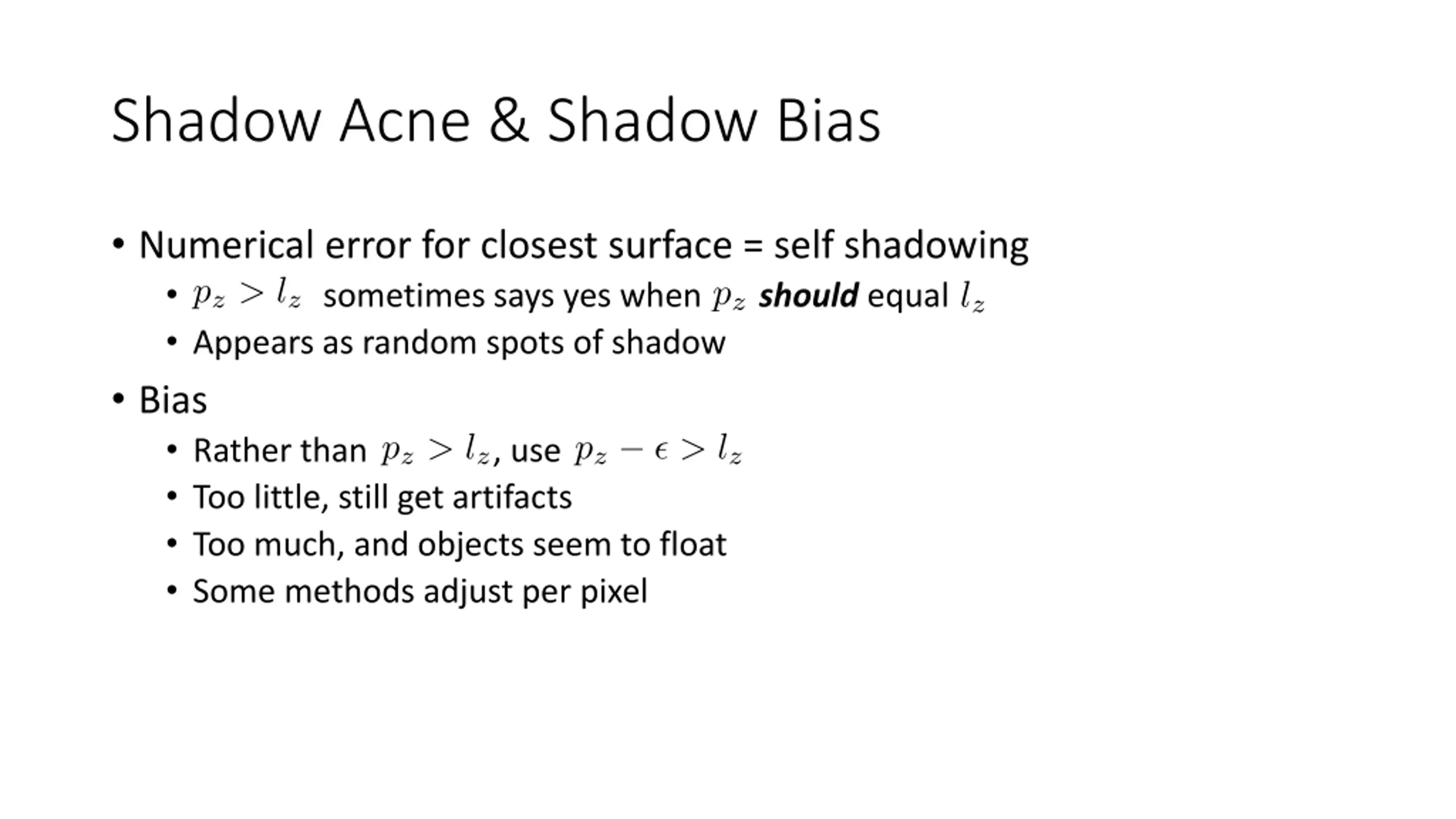

Shadow Acne & Shadow Bias Numerical error for closest surface = self shadowing sometimes says yes when Appears as random spots of shadow Bias Rather than , use Too little, still get artifacts Too much, and objects seem to float Some methods adjust per pixel should equal

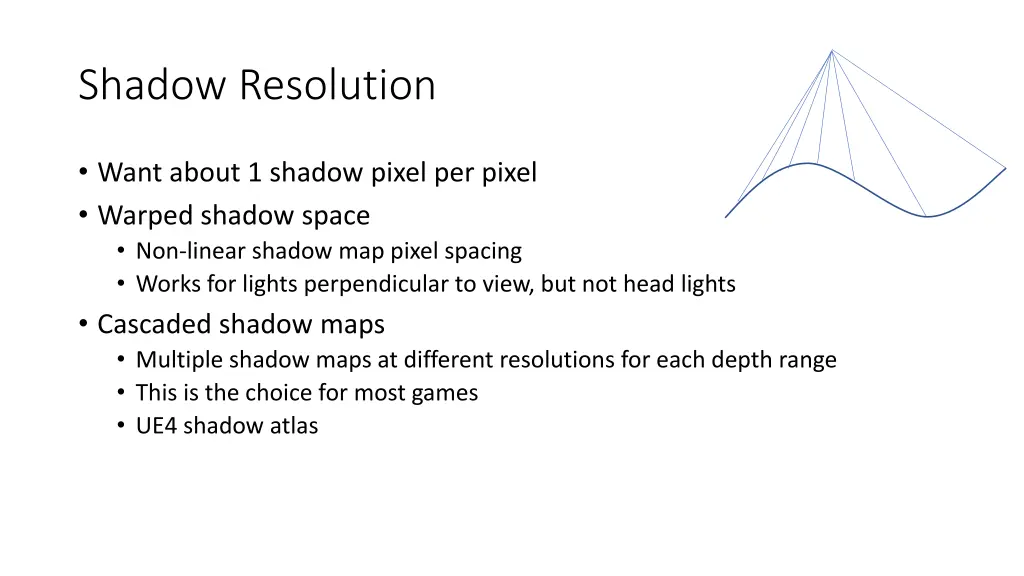

Shadow Resolution Want about 1 shadow pixel per pixel Warped shadow space Non-linear shadow map pixel spacing Works for lights perpendicular to view, but not head lights Cascaded shadow maps Multiple shadow maps at different resolutions for each depth range This is the choice for most games UE4 shadow atlas

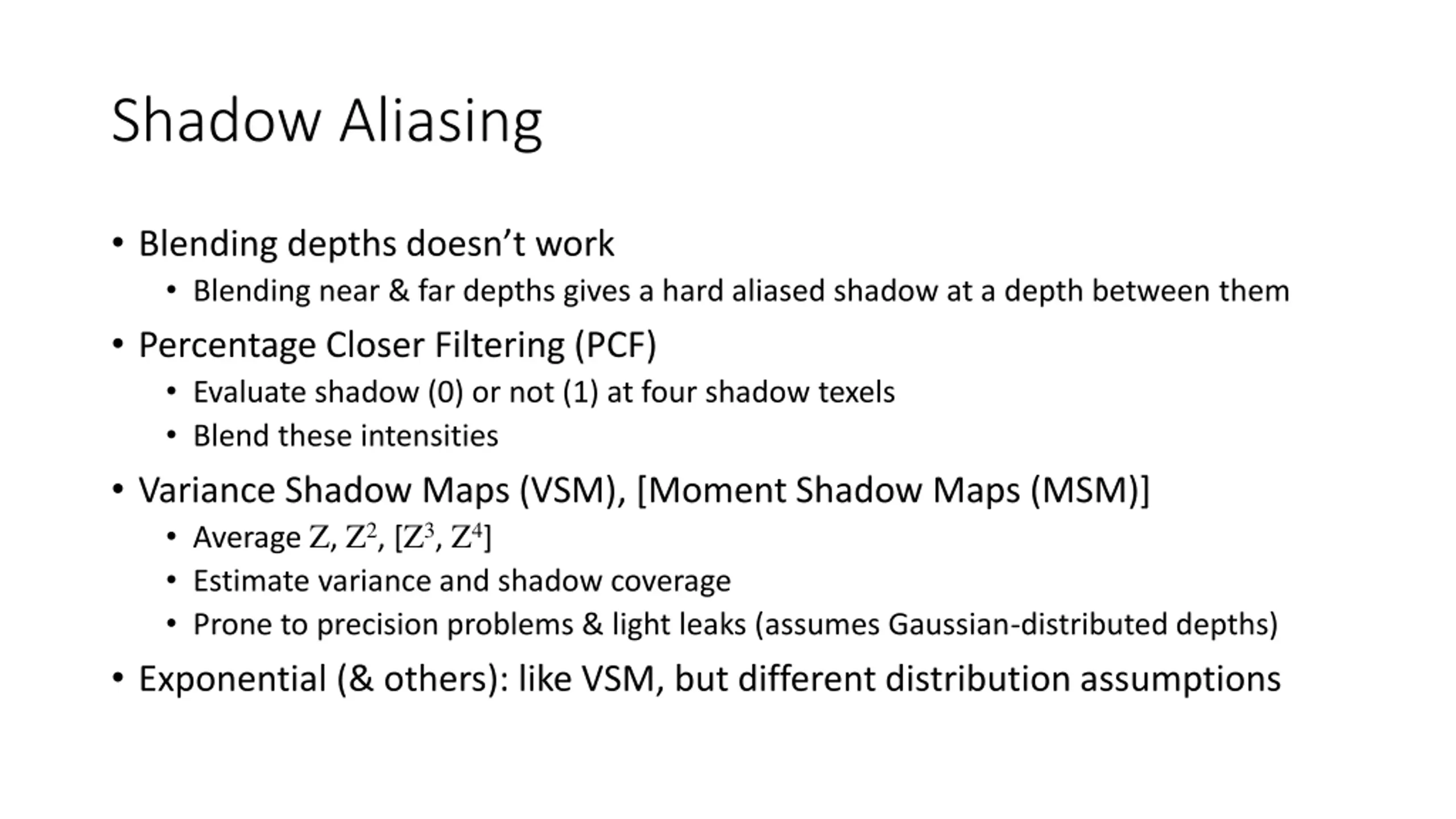

Shadow Aliasing Blending depths doesn t work Blending near & far depths gives a hard aliased shadow at a depth between them Percentage Closer Filtering (PCF) Evaluate shadow (0) or not (1) at four shadow texels Blend these intensities Variance Shadow Maps (VSM), [Moment Shadow Maps (MSM)] Average Z, Z2, [Z3, Z4] Estimate variance and shadow coverage Prone to precision problems & light leaks (assumes Gaussian-distributed depths) Exponential (& others): like VSM, but different distribution assumptions

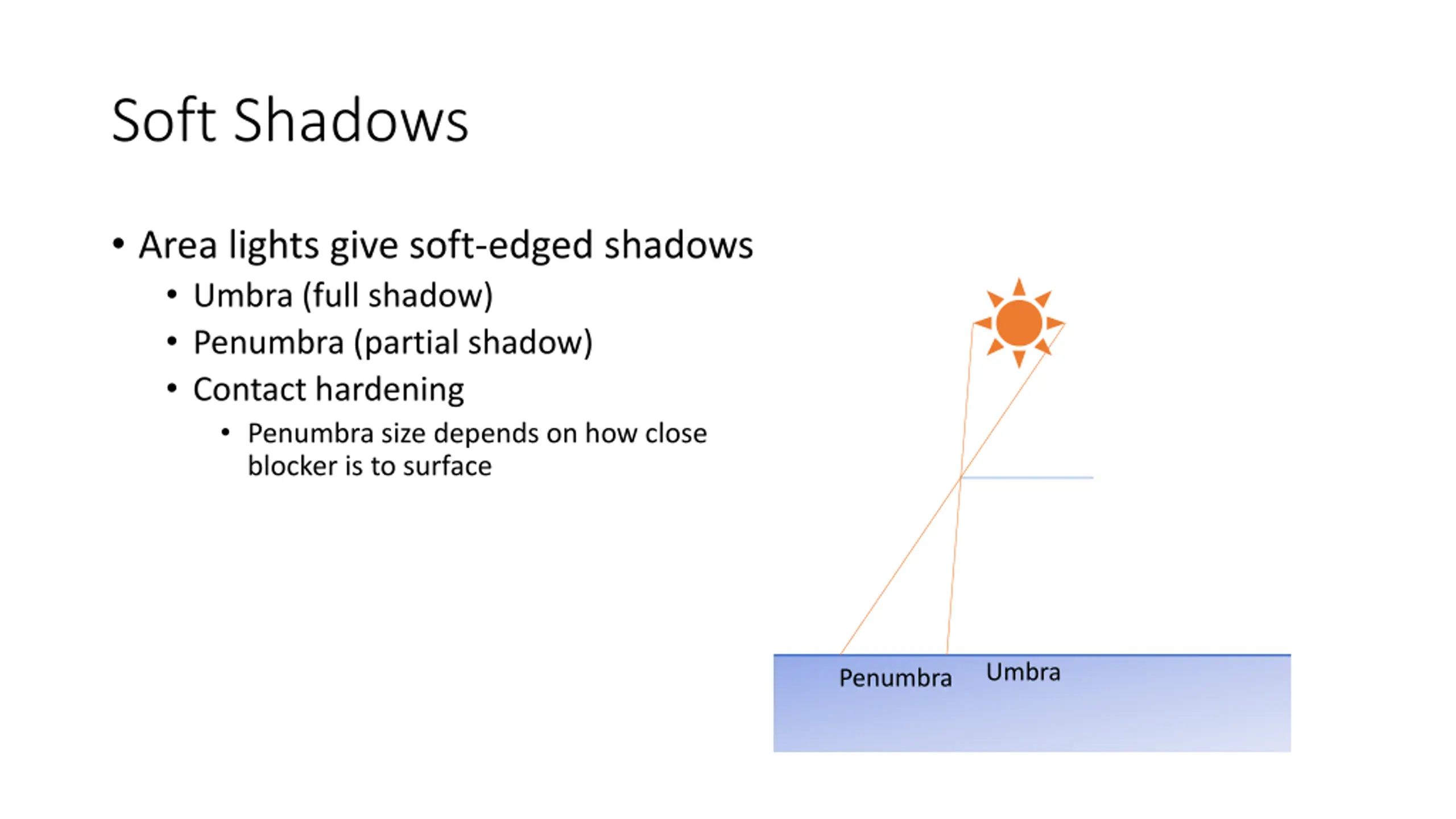

Soft Shadows Area lights give soft-edged shadows Umbra (full shadow) Penumbra (partial shadow) Contact hardening Penumbra size depends on how close blocker is to surface Umbra Penumbra

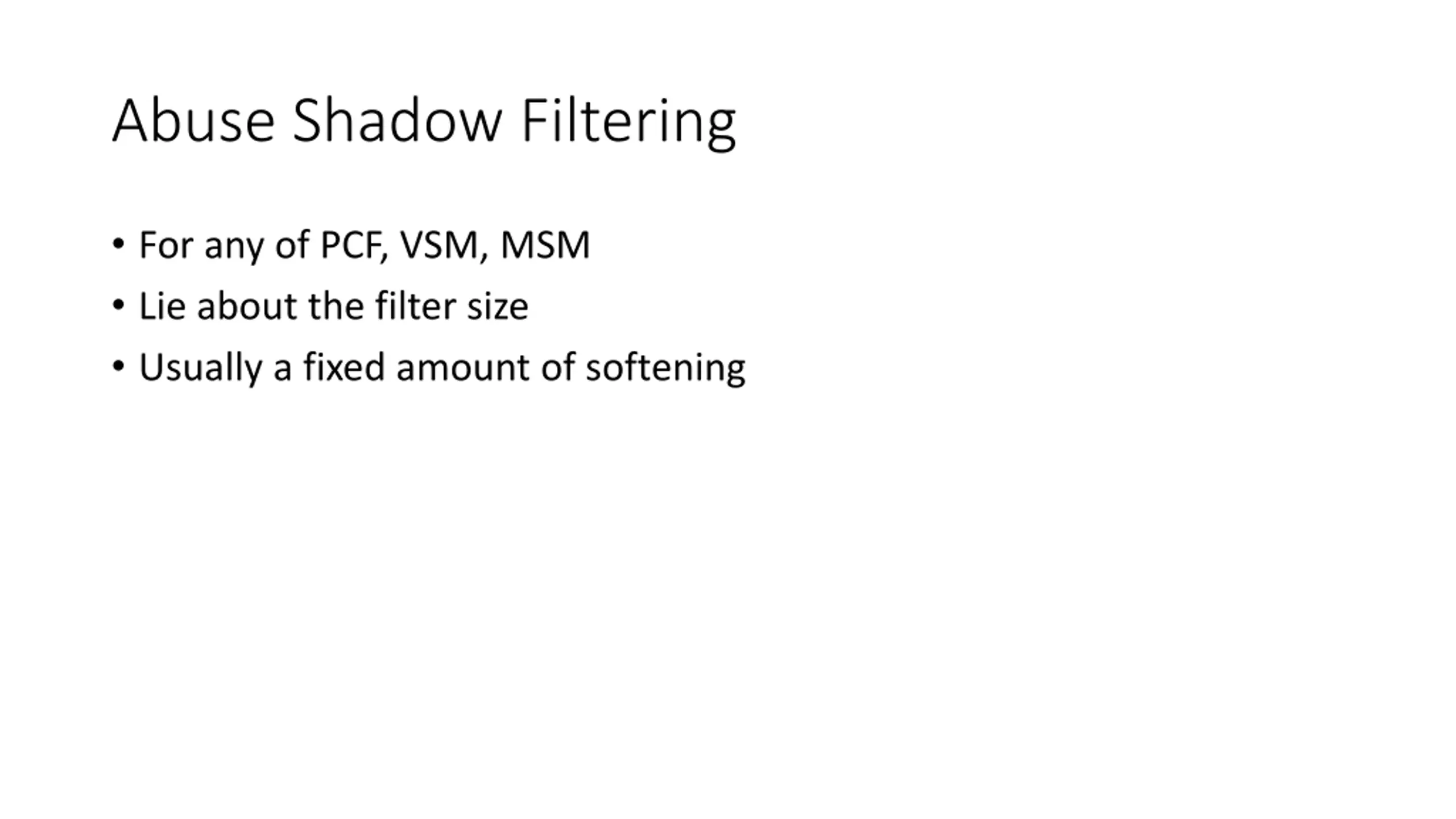

Abuse Shadow Filtering For any of PCF, VSM, MSM Lie about the filter size Usually a fixed amount of softening

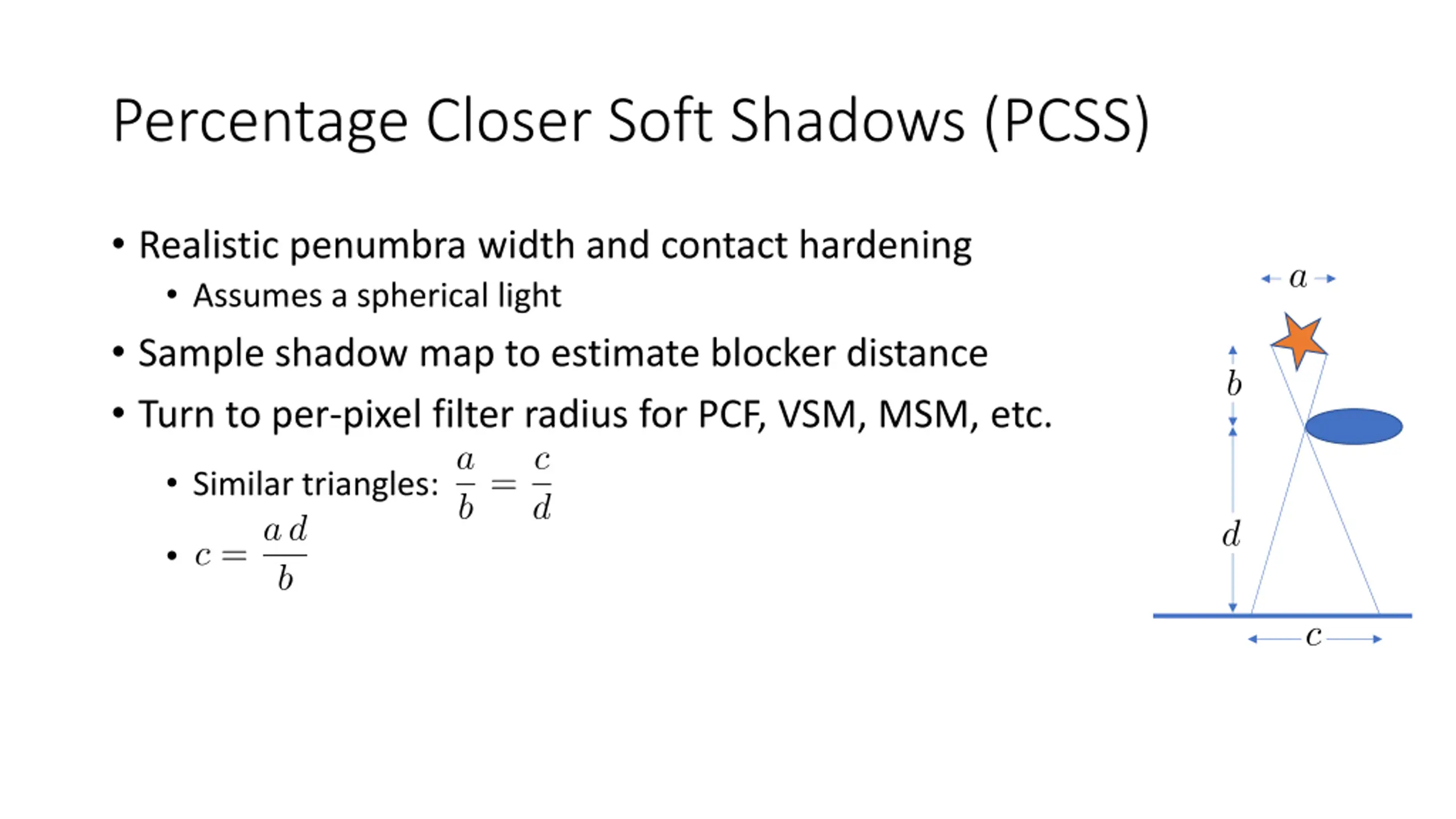

Percentage Closer Soft Shadows (PCSS) Realistic penumbra width and contact hardening Assumes a spherical light Sample shadow map to estimate blocker distance Turn to per-pixel filter radius for PCF, VSM, MSM, etc. Similar triangles:

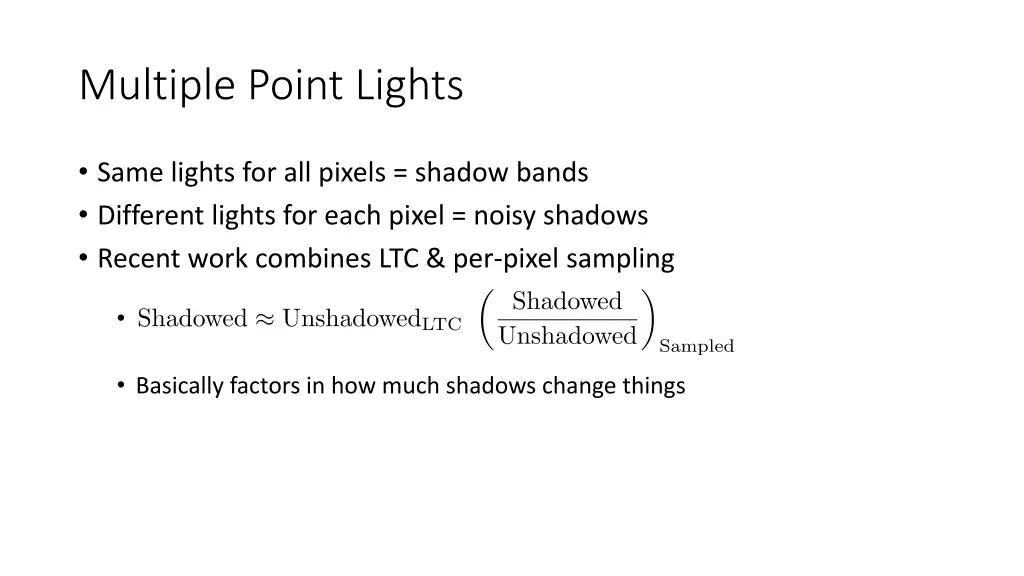

Multiple Point Lights Same lights for all pixels = shadow bands Different lights for each pixel = noisy shadows Recent work combines LTC & per-pixel sampling Basically factors in how much shadows change things
