Advanced Techniques in Electrical Discharge Machining (EDM)

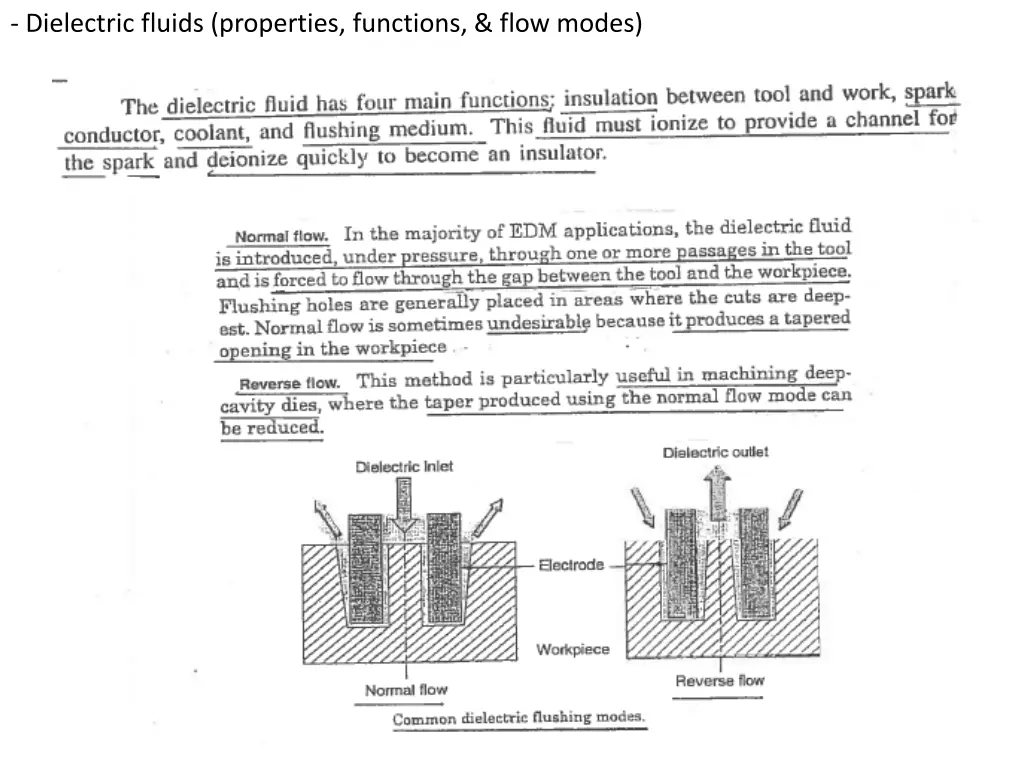

Explore the intricate process and mechanics of Electrical Discharge Machining (EDM), including die sinking and wire cut methods. Learn about the role of dielectric fluids, process parameters, and material removal rate estimation in this cutting-edge technology.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Dr. Fayez Abogharbia Emeritus Prof.
Chapter 4 Thermal NTM Lecture 1

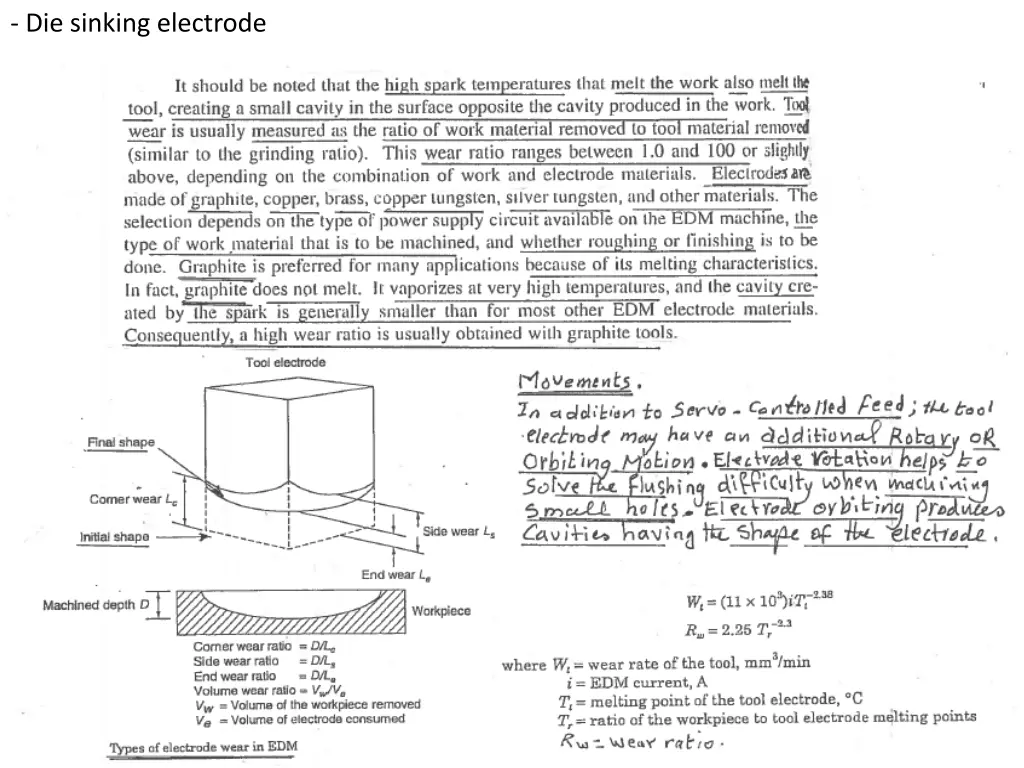

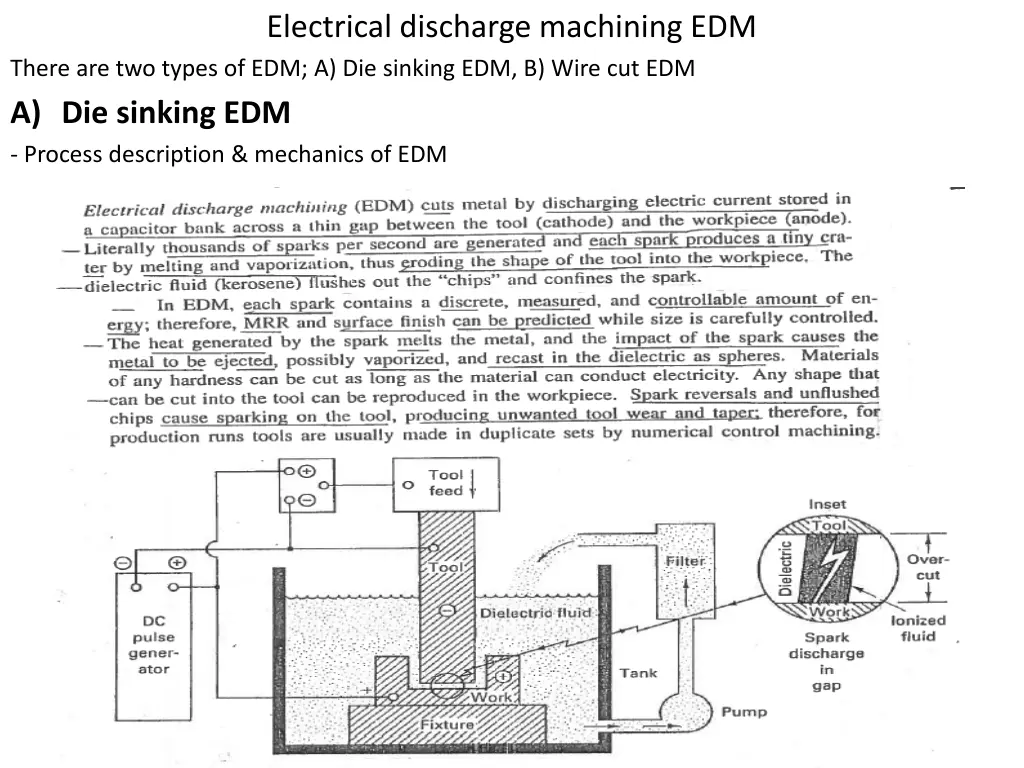

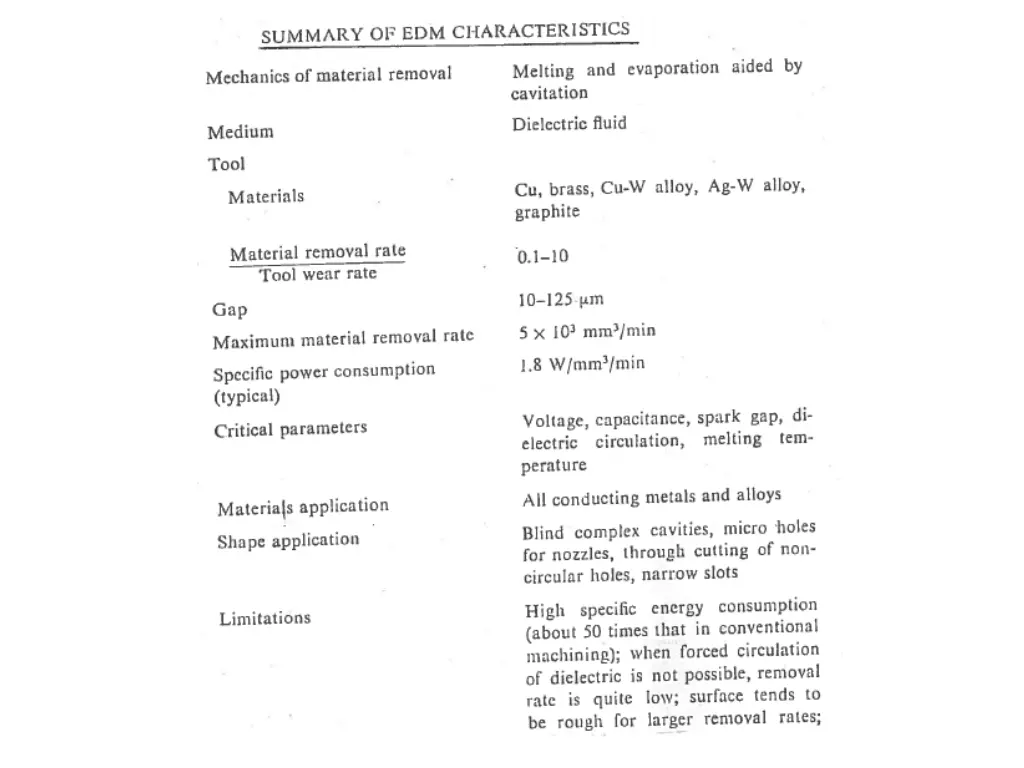

Electrical discharge machining EDM There are two types of EDM; A) Die sinking EDM, B) Wire cut EDM A) Die sinking EDM - Process description & mechanics of EDM

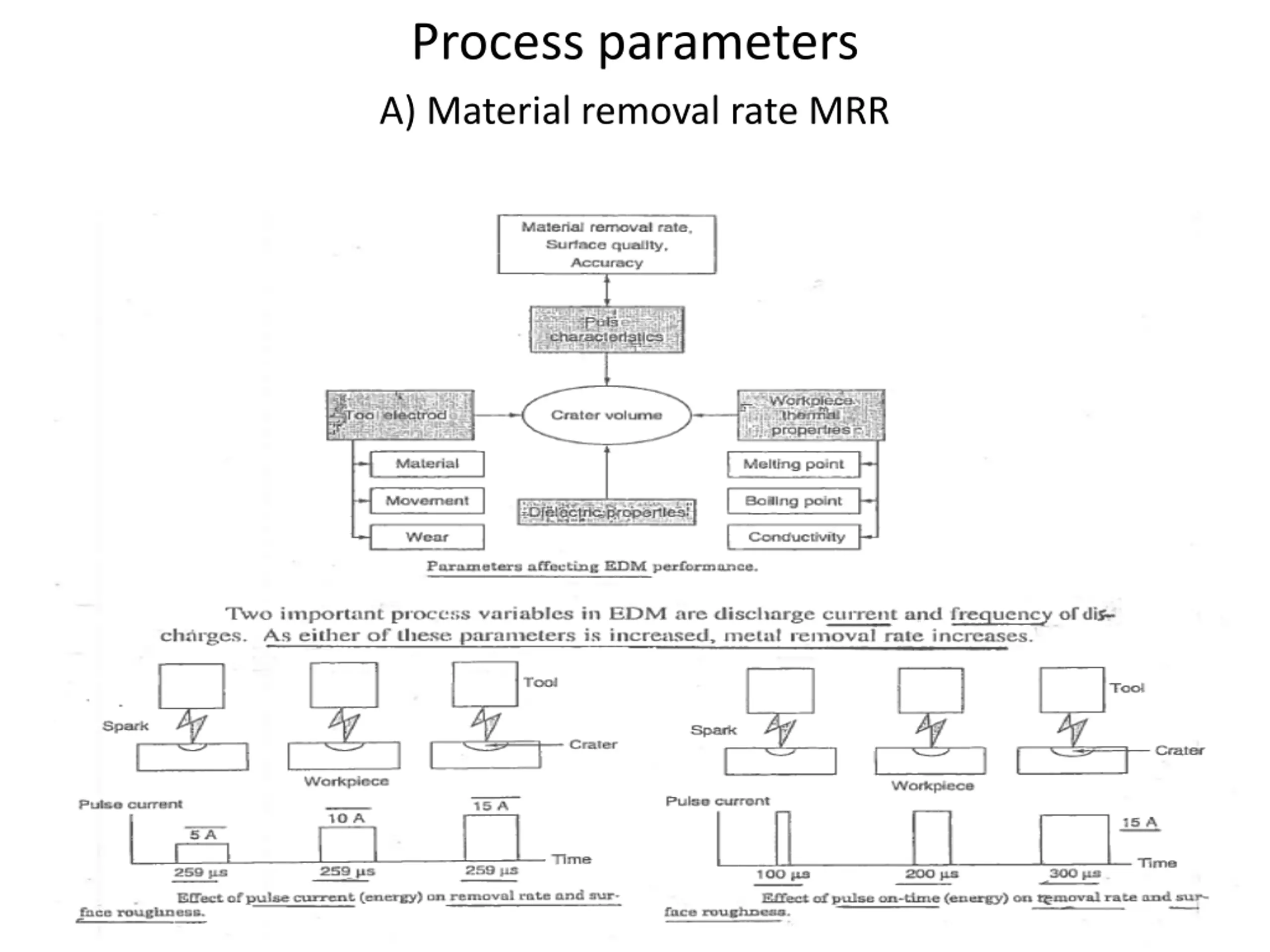

Process parameters A) Material removal rate MRR

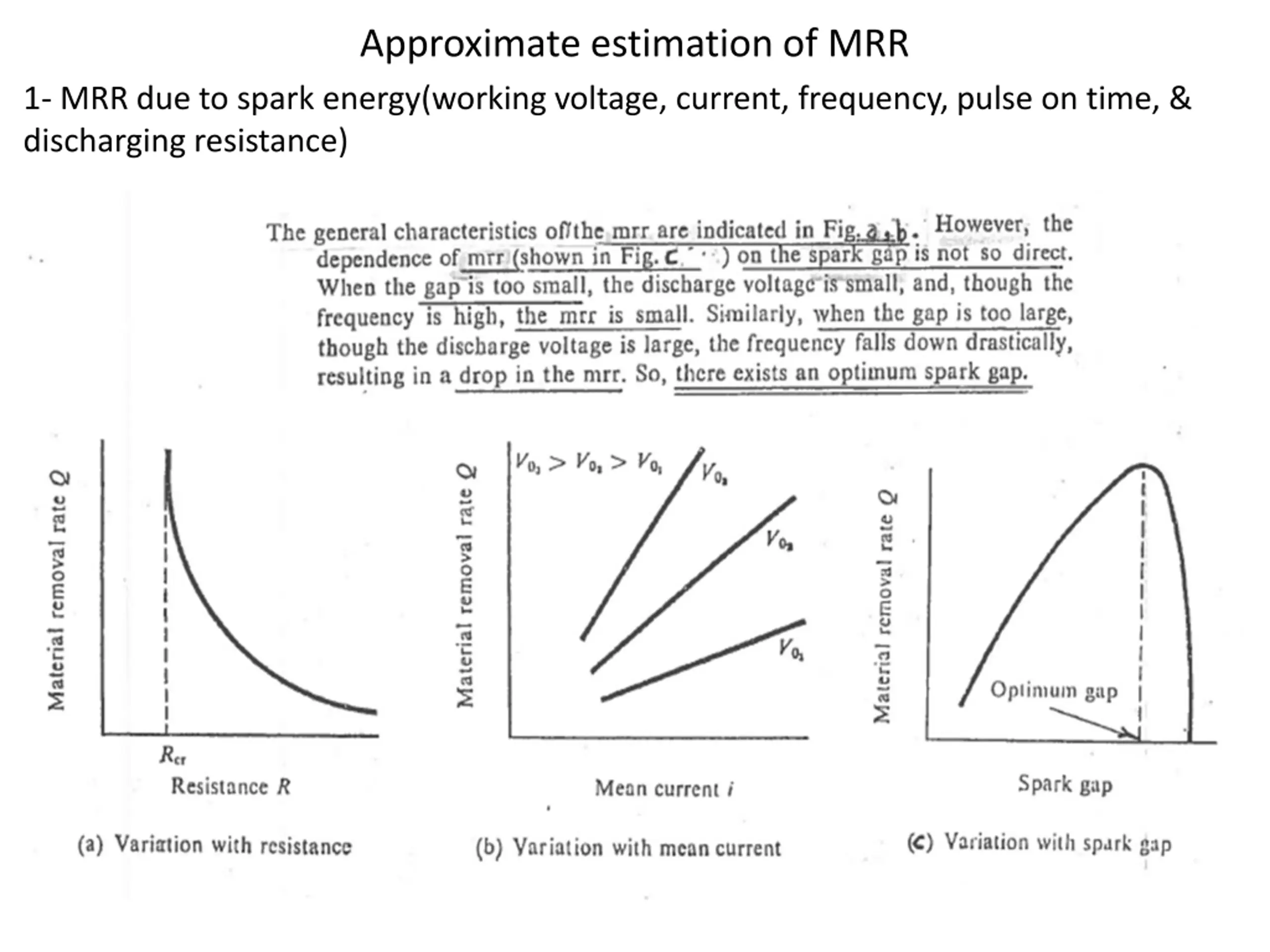

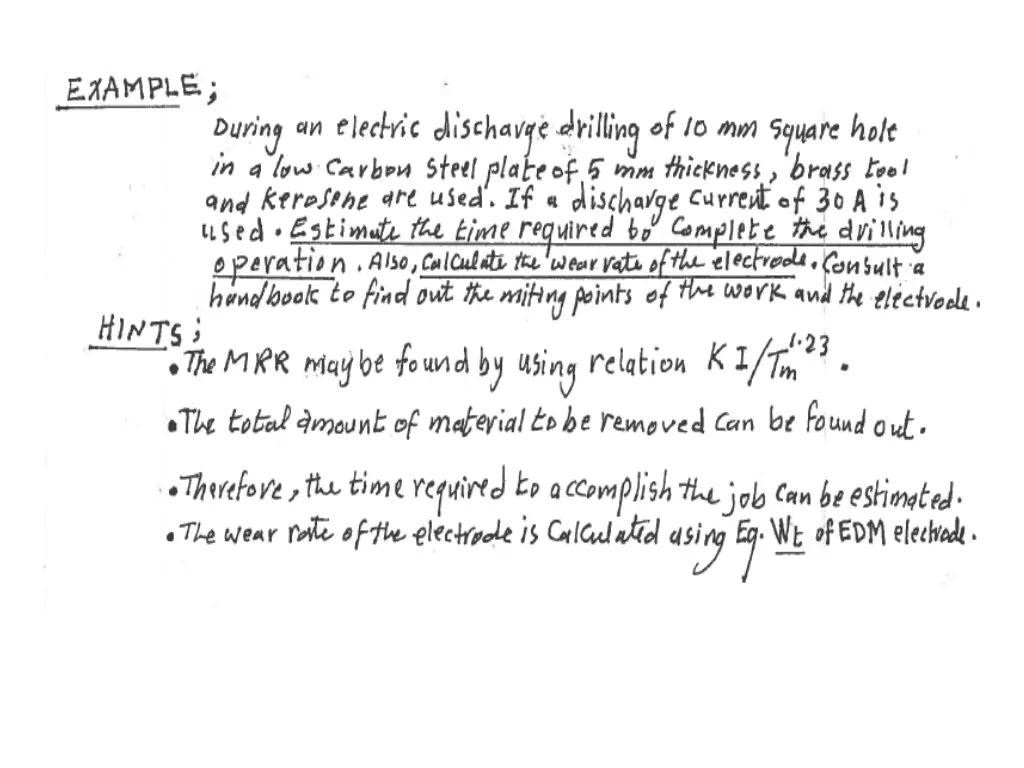

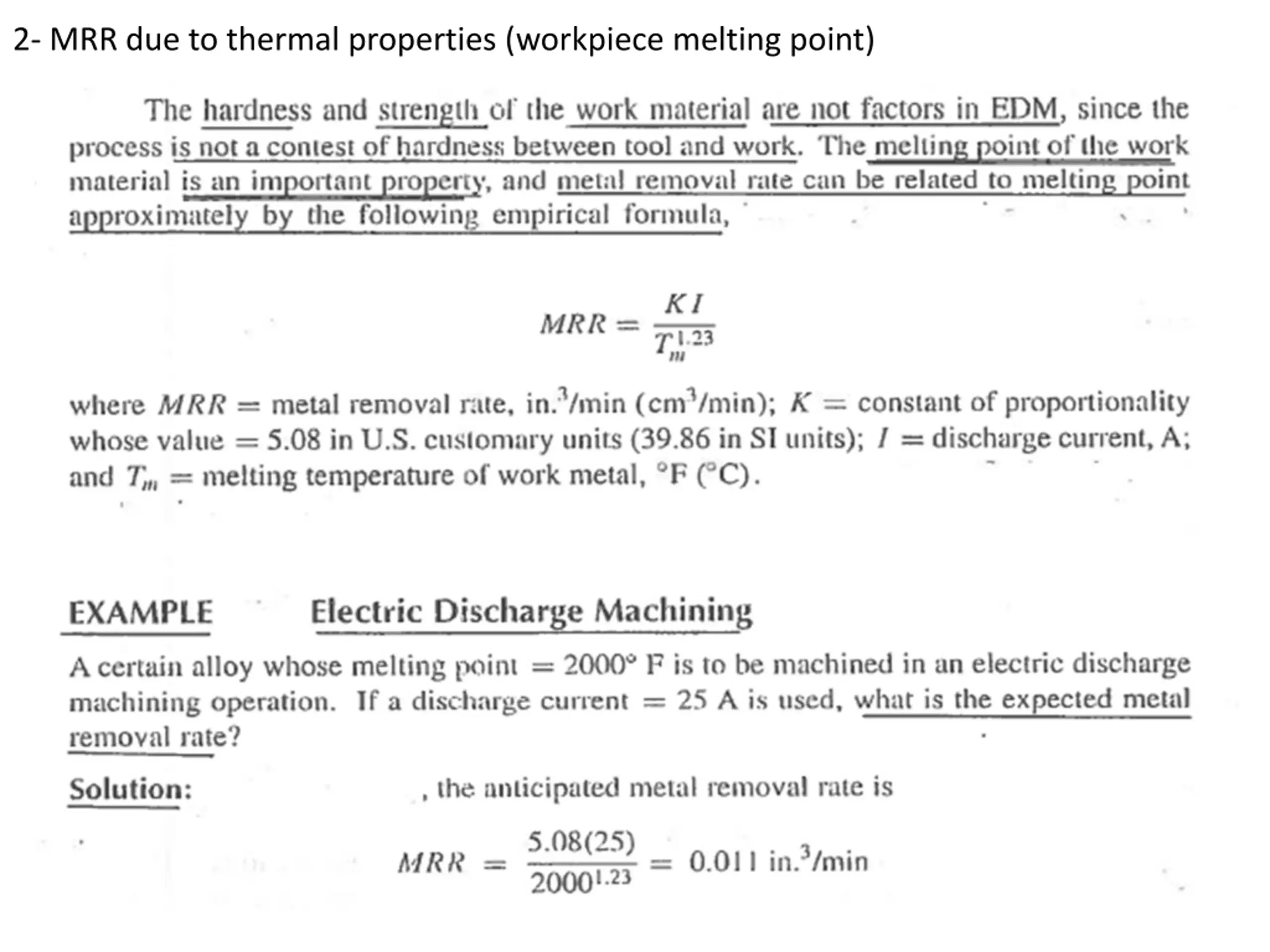

Approximate estimation of MRR 1- MRR due to spark energy(working voltage, current, frequency, pulse on time, & discharging resistance)
