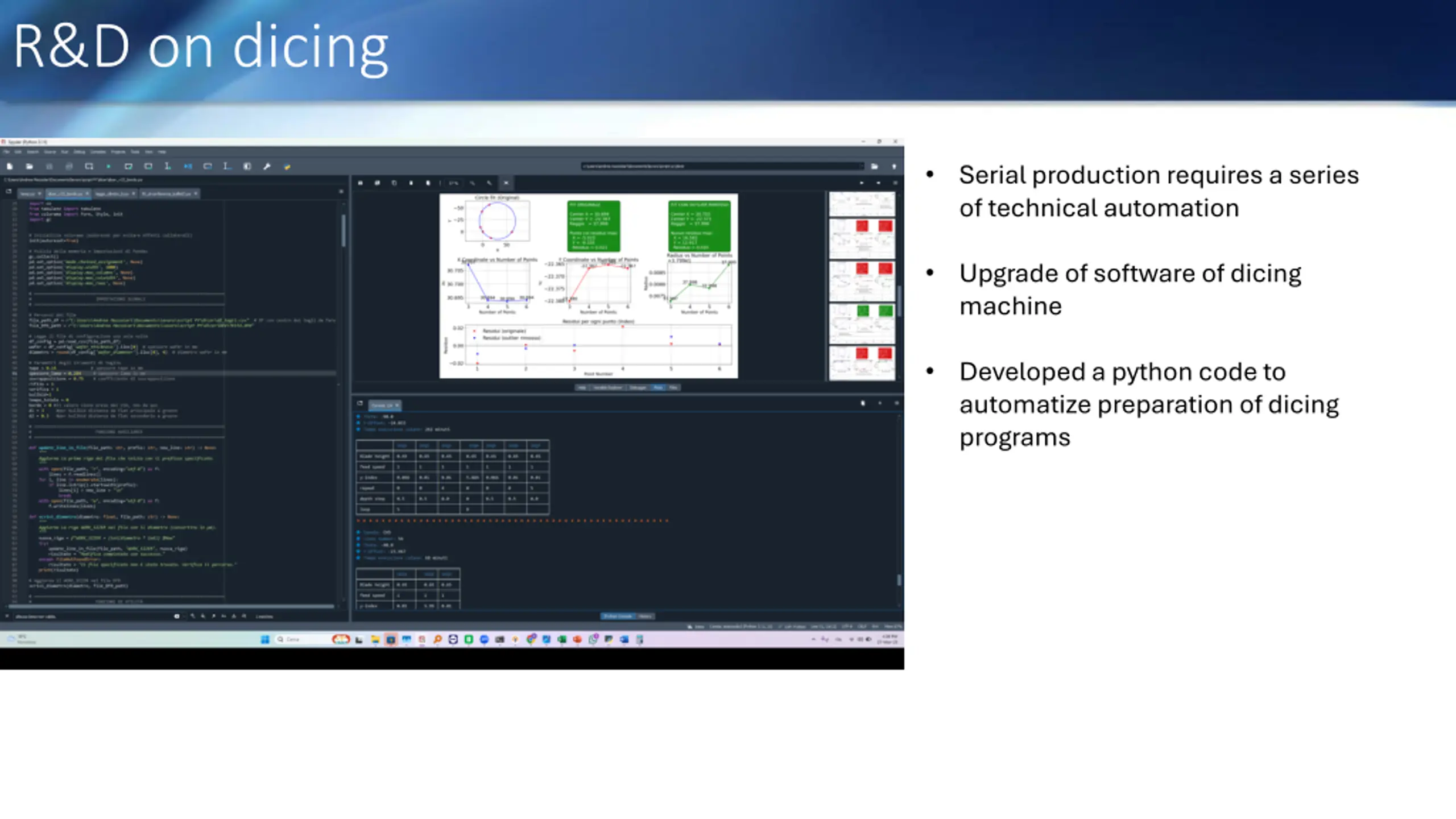

R&D on dicing Serial production requiresa series of technical automation Upgrade of software of dicing machine Developeda pythoncode to automatize preparation of dicing programs

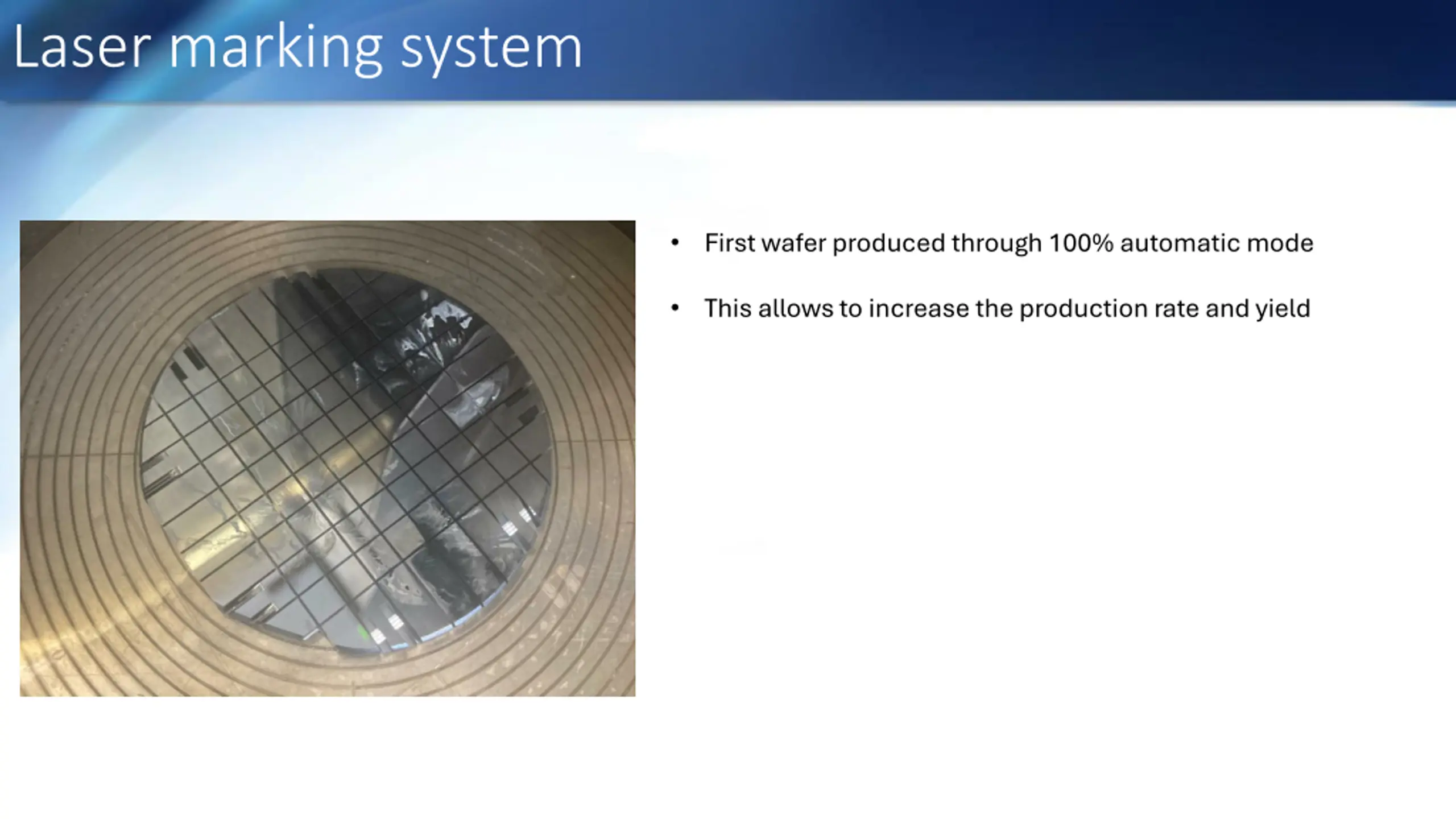

Laser marking system First wafer produced through100% automatic mode Thisallowsto increase the production rate and yield

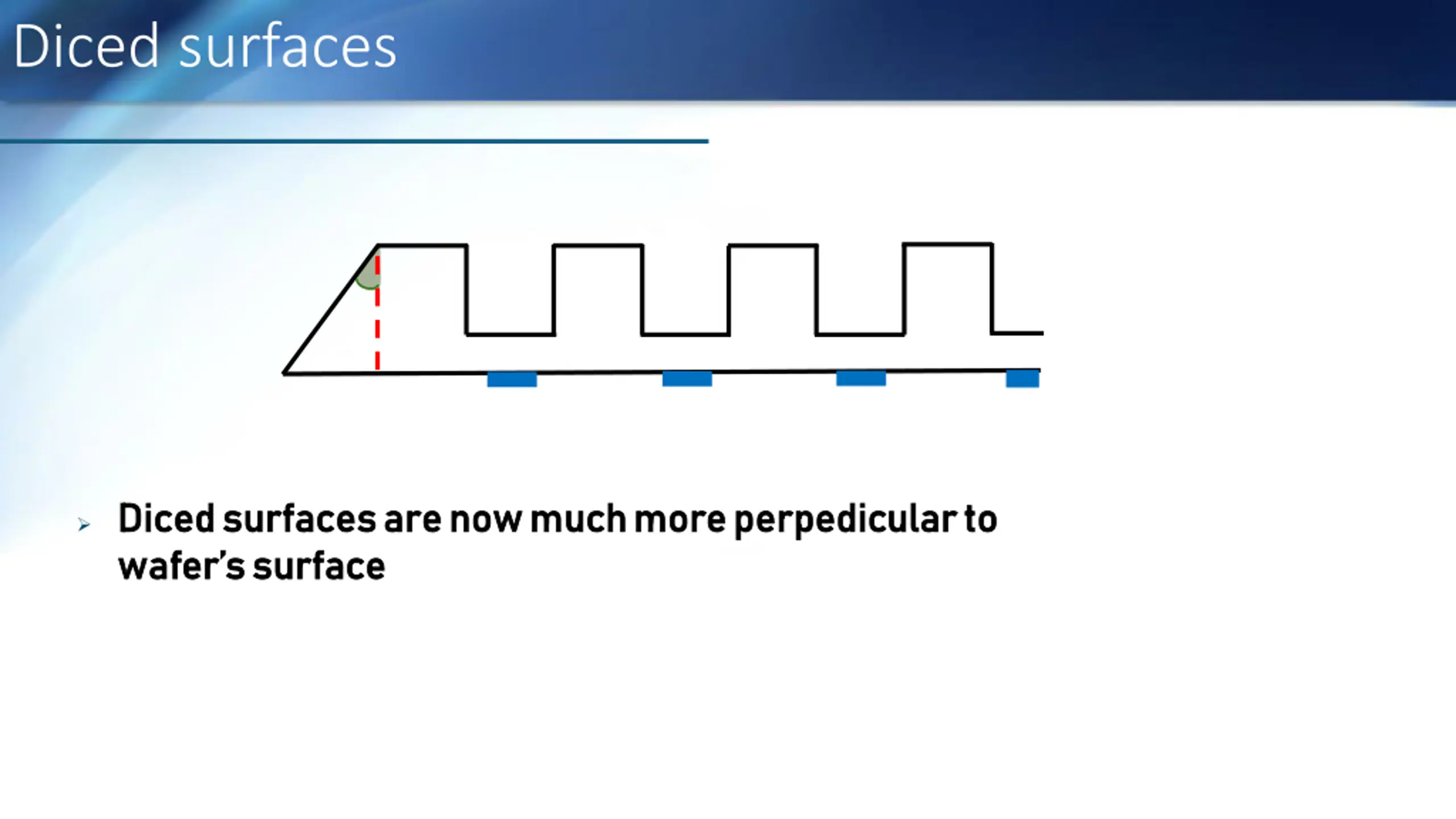

Diced surfaces Diced Dicedsurfaces surfacesare wafer s wafer ssurface surface are now nowmuch muchmore more perpedicular perpedicularto to

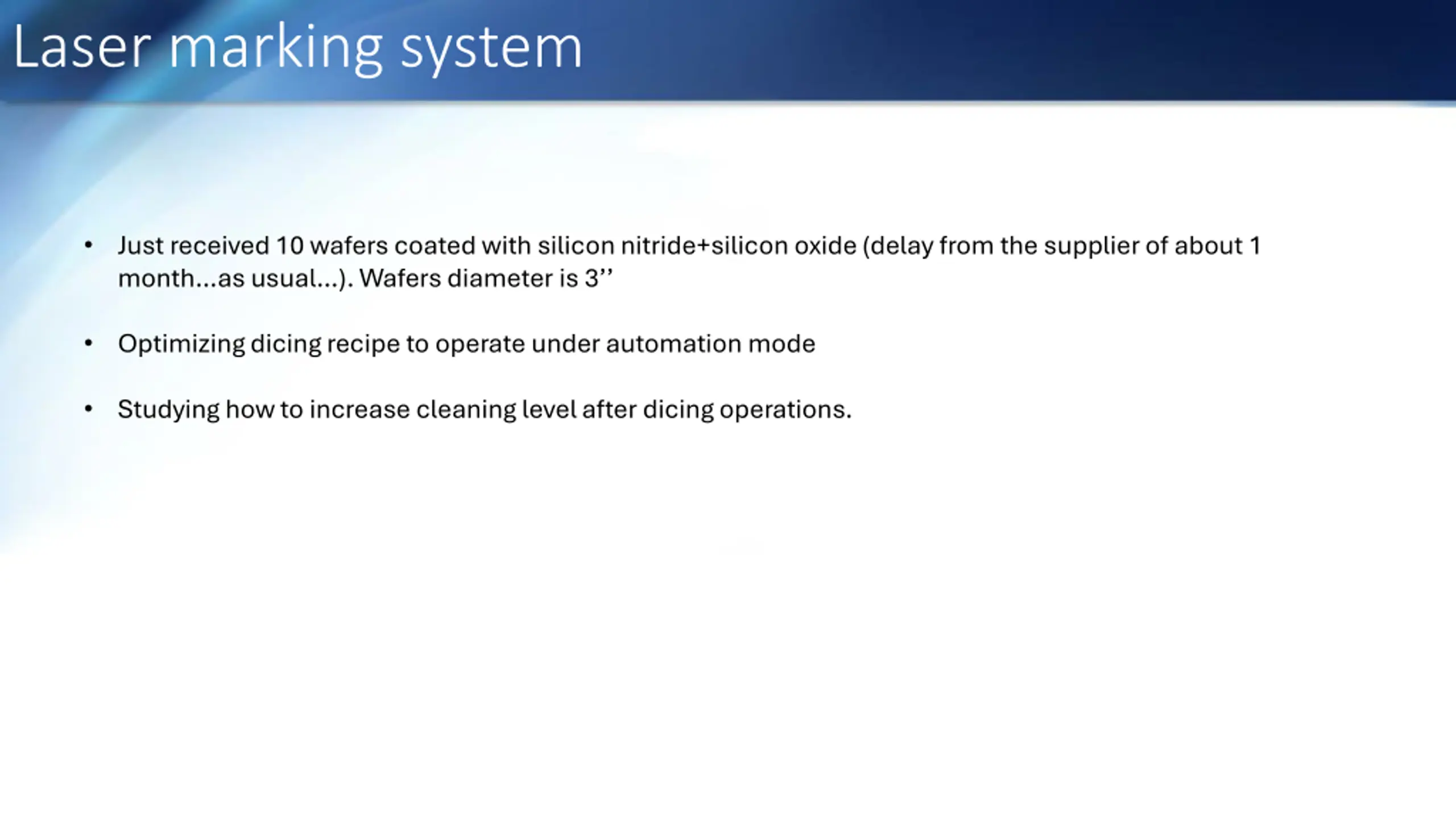

Laser marking system Just received10 wafers coated with silicon nitride+siliconoxide(delay from the supplier of about1 month asusual ). Wafers diameter is 3 Optimizing dicingrecipe to operate under automation mode Studyinghowto increasecleaninglevelafter dicingoperations.
