Advanced Water Leak Detection System with ERTL Tested Panel and PVC Cable
Discover the features of an ERTL Tested Water Leak Detection Panel with up to 8 zones, built-in modules, LCD display, and audible alarm. The system uses PVC twisted pair stainless steel cables that are corrosion-resistant and restorable. Check out the technical specifications for the water leak panel and detection cable, including supply voltage, relay type, and installation dimensions.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

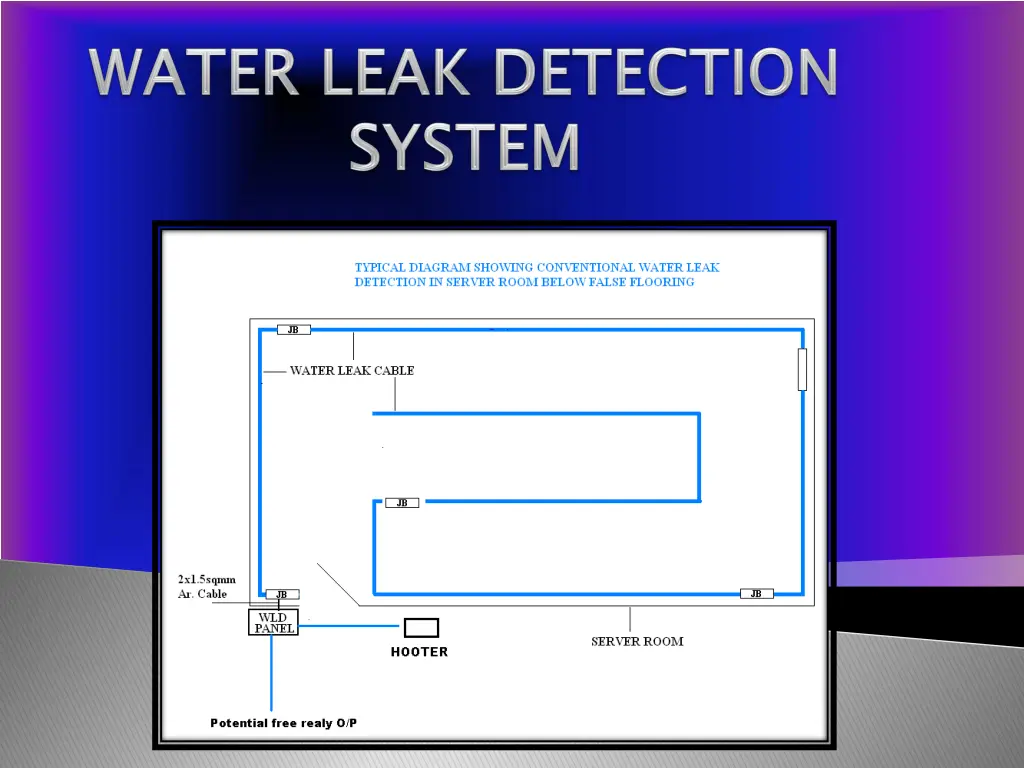

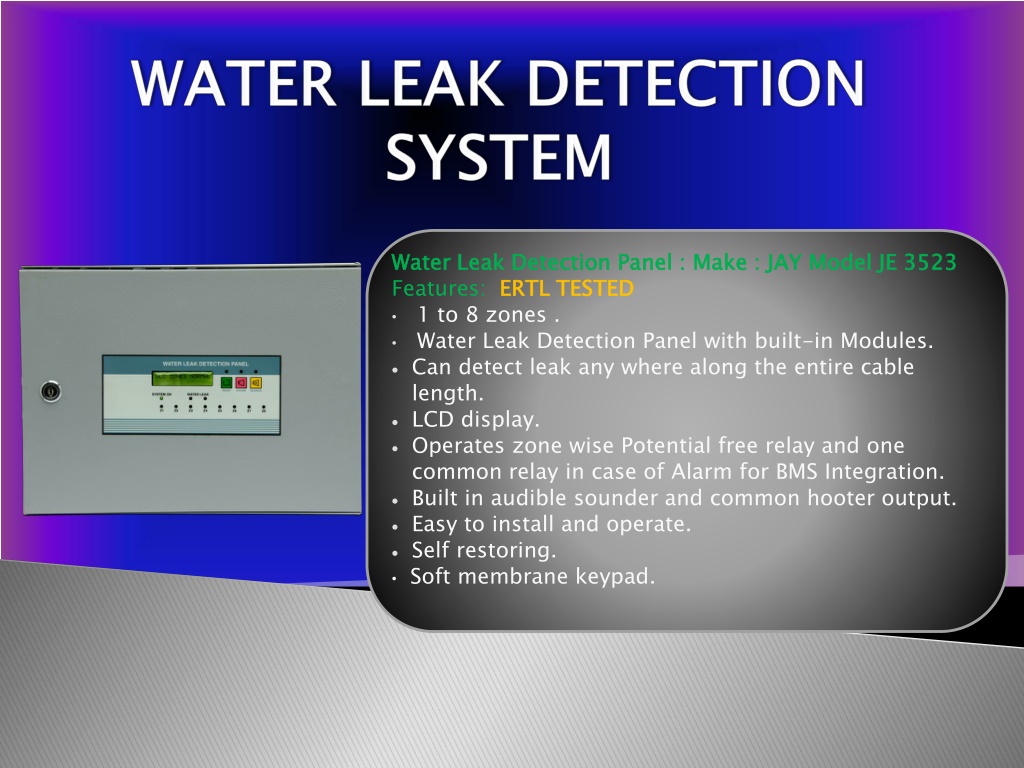

Water Leak Detection Features: ERTL TESTED 1 to 8 zones . Water Leak Detection Panel with built-in Modules. Can detect leak any where along the entire cable length. LCD display. Operates zone wise Potential free relay and one common relay in case of Alarm for BMS Integration. Built in audible sounder and common hooter output. Easy to install and operate. Self restoring. Soft membrane keypad. Water Leak Detection Panel : Make : JAY Model JE 3523 ERTL TESTED Panel : Make : JAY Model JE 3523

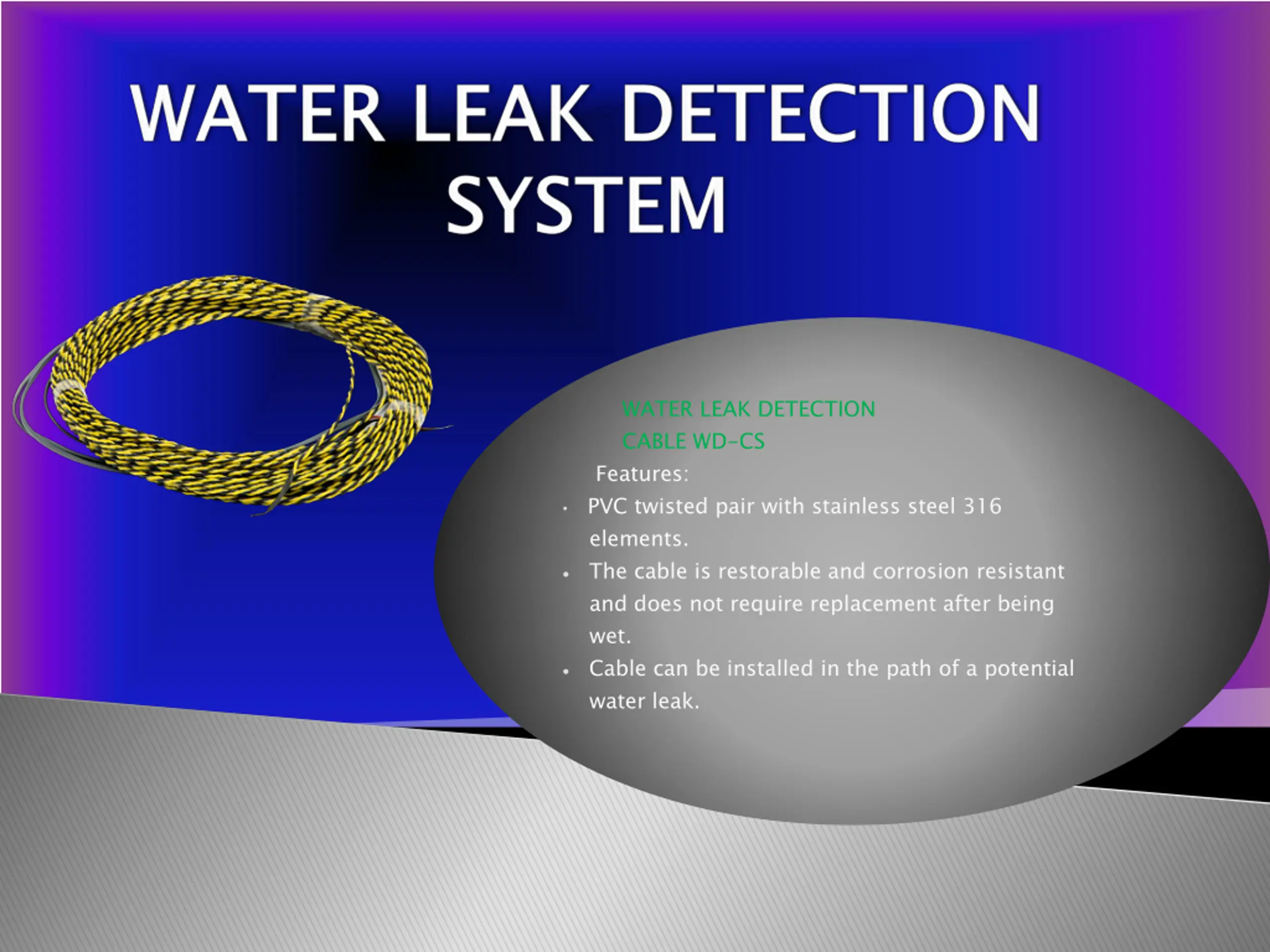

WATER LEAK DETECTION CABLE WD-CS Features: PVC twisted pair with stainless steel 316 elements. The cable is restorable and corrosion resistant and does not require replacement after being wet. Cable can be installed in the path of a potential water leak.

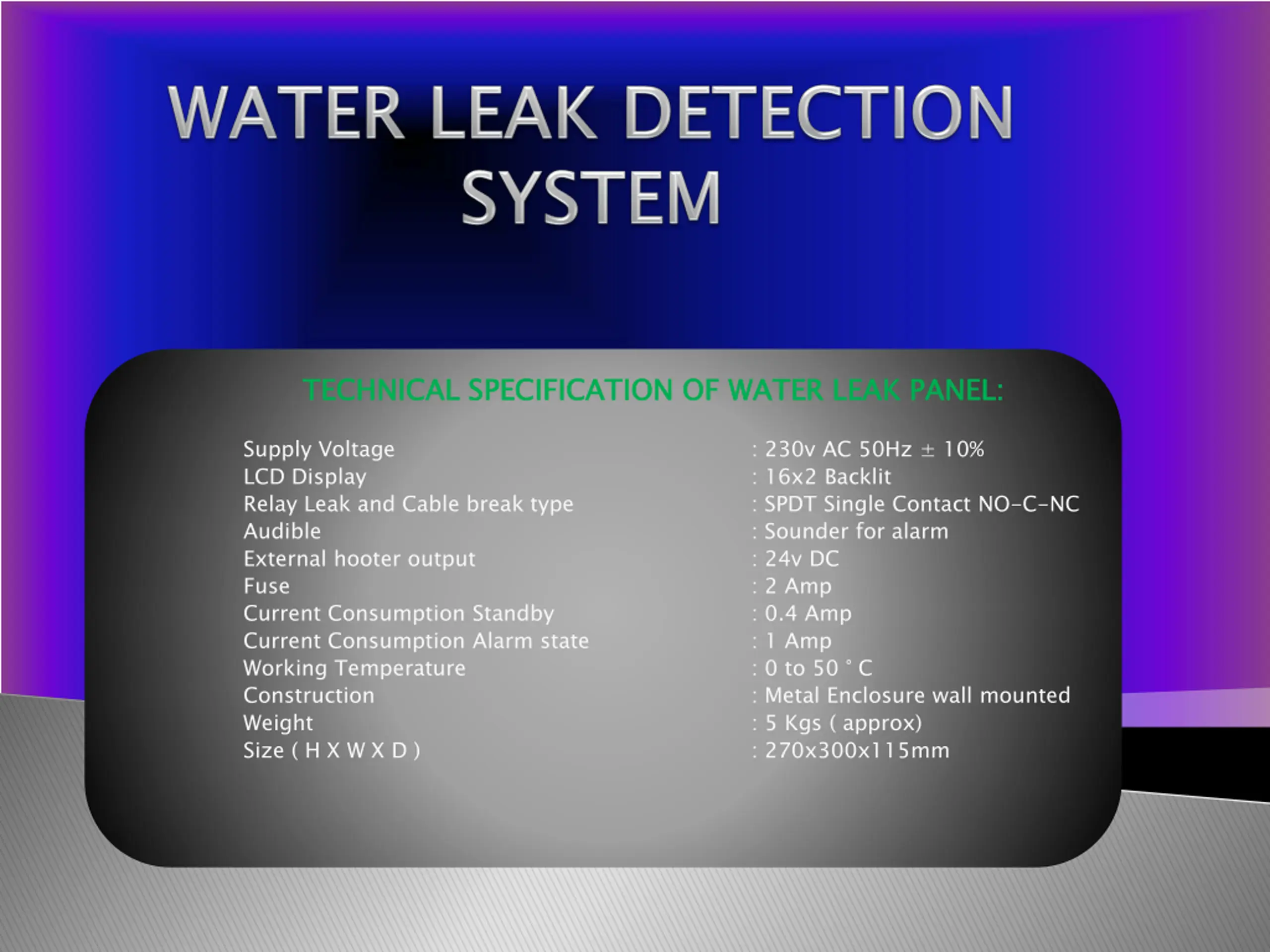

TECHNICAL SPECIFICATION OF WATER LEAK PANEL: TECHNICAL SPECIFICATION OF WATER LEAK PANEL: Supply Voltage LCD Display Relay Leak and Cable break type Audible External hooter output Fuse Current Consumption Standby Current Consumption Alarm state Working Temperature Construction Weight Size ( H X W X D ) : 230v AC 50Hz 10% : 16x2 Backlit : SPDT Single Contact NO-C-NC : Sounder for alarm : 24v DC : 2 Amp : 0.4 Amp : 1 Amp : 0 to 50 C : Metal Enclosure wall mounted : 5 Kgs ( approx) : 270x300x115mm

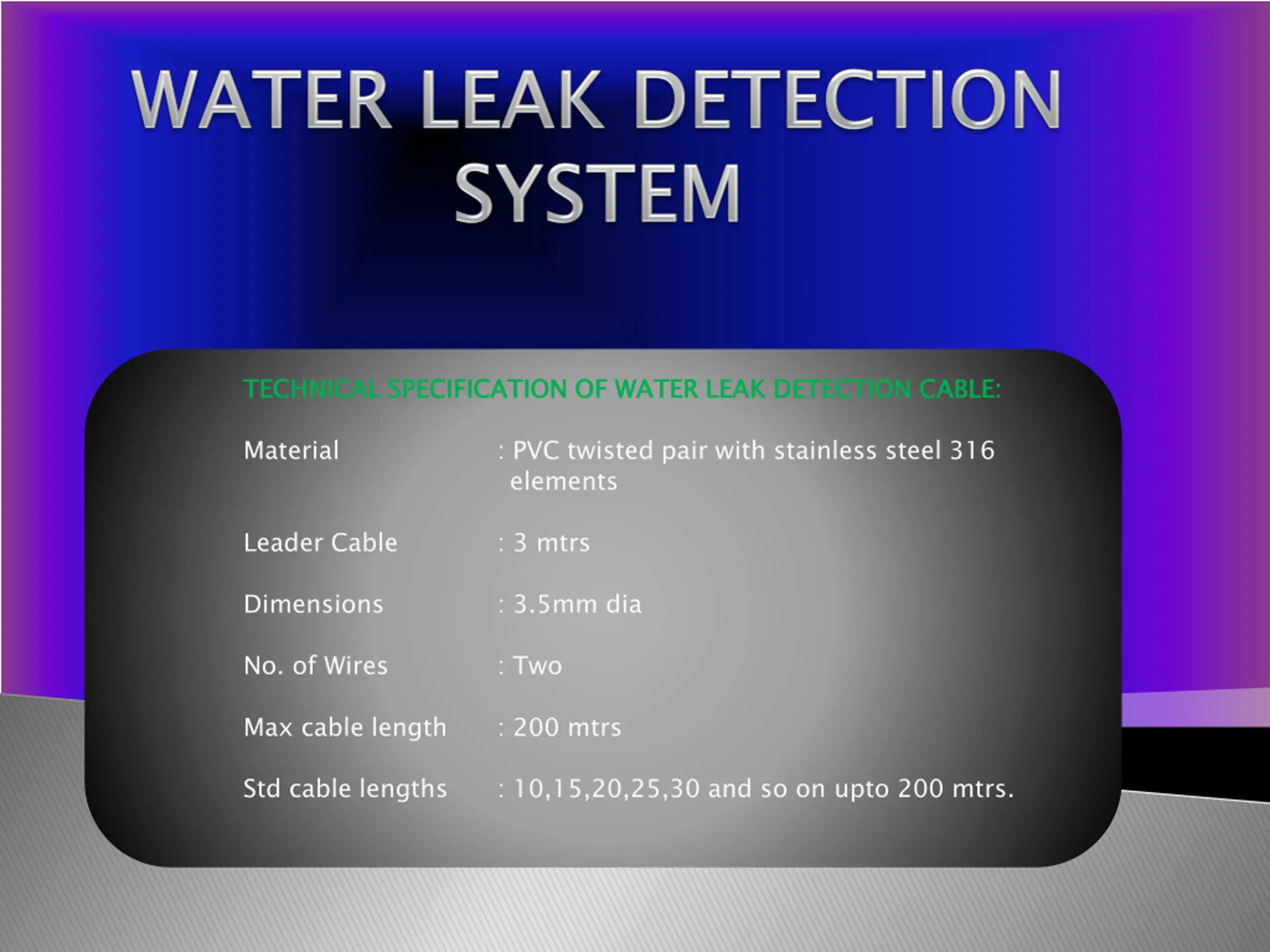

TECHNICAL SPECIFICATION OF WATER LEAK DETECTION CABLE: TECHNICAL SPECIFICATION OF WATER LEAK DETECTION CABLE: Material : PVC twisted pair with stainless steel 316 elements Leader Cable : 3 mtrs Dimensions : 3.5mm dia No. of Wires : Two Max cable length : 200 mtrs Std cable lengths : 10,15,20,25,30 and so on upto 200 mtrs.
