Bezpenost Windows pro pokro il : protokoly a sledov n p ihl en Ing. Ond ej eve ek | GOPAS a.s. | MCM:Directory | MVP:Enterprise Security | CEH: Certified Ethical Hacker | CHFI: Computer Hacking Forensic Investigator ondrej@sevecek.com | www.sevecek.com | GOPAS: info@gopas,cz| www.gopas.cz| www.facebook.com/P.S.GOPAS
Logon auditing Advanced Windows Security
Logon auditing Account Logon Event "authentication event" when an account database validates credentials Logon Event "session event" every time an Access Token is created or closed
Auditing (Interactive Logon) SQL FS WFE 2 Logon Client 1 Account Logon DC

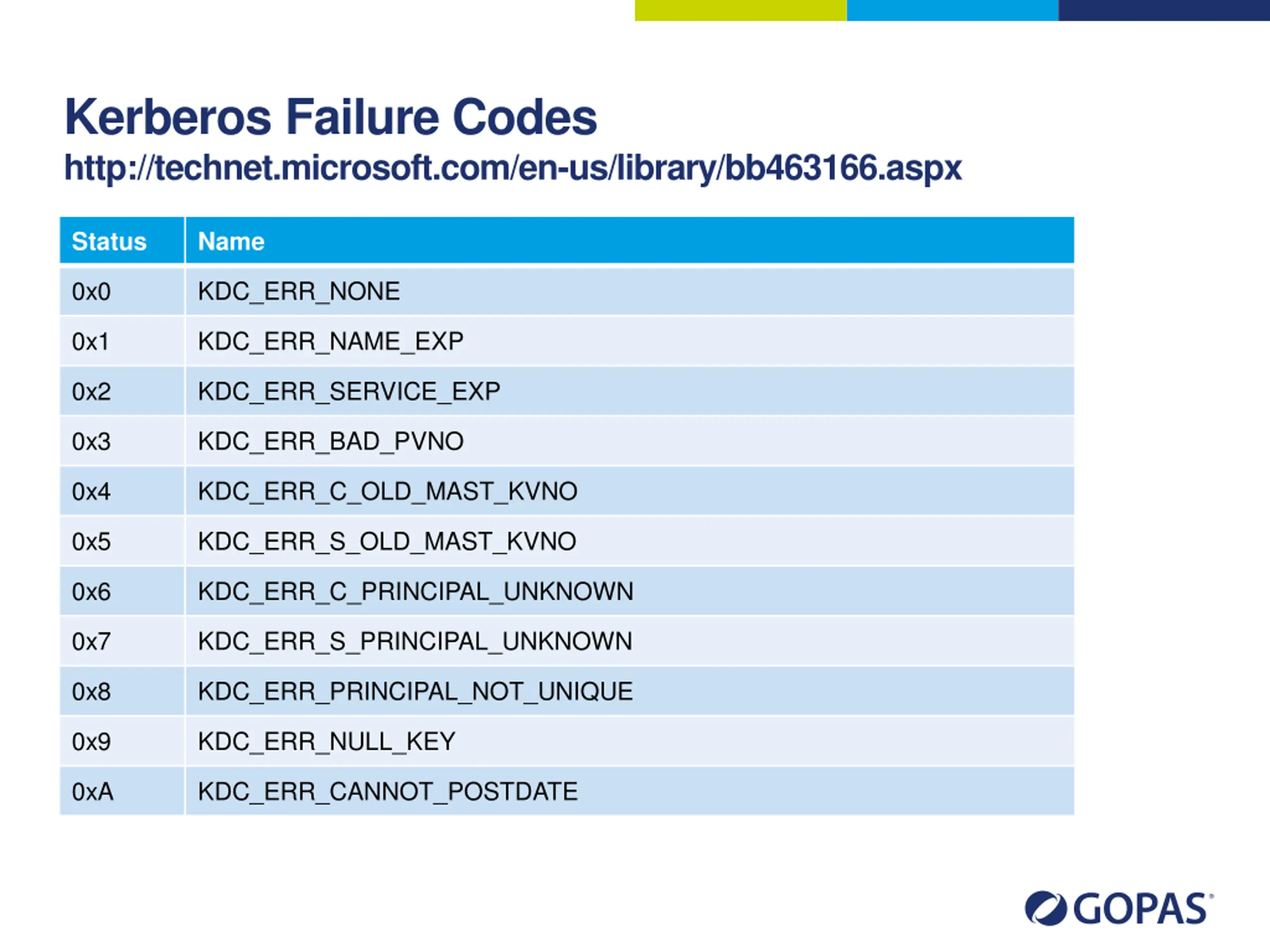

Kerberos Failure Codes http://technet.microsoft.com/en-us/library/bb463166.aspx Status Name 0x0 KDC_ERR_NONE 0x1 KDC_ERR_NAME_EXP 0x2 KDC_ERR_SERVICE_EXP 0x3 KDC_ERR_BAD_PVNO 0x4 KDC_ERR_C_OLD_MAST_KVNO 0x5 KDC_ERR_S_OLD_MAST_KVNO 0x6 KDC_ERR_C_PRINCIPAL_UNKNOWN 0x7 KDC_ERR_S_PRINCIPAL_UNKNOWN 0x8 KDC_ERR_PRINCIPAL_NOT_UNIQUE 0x9 KDC_ERR_NULL_KEY 0xA KDC_ERR_CANNOT_POSTDATE

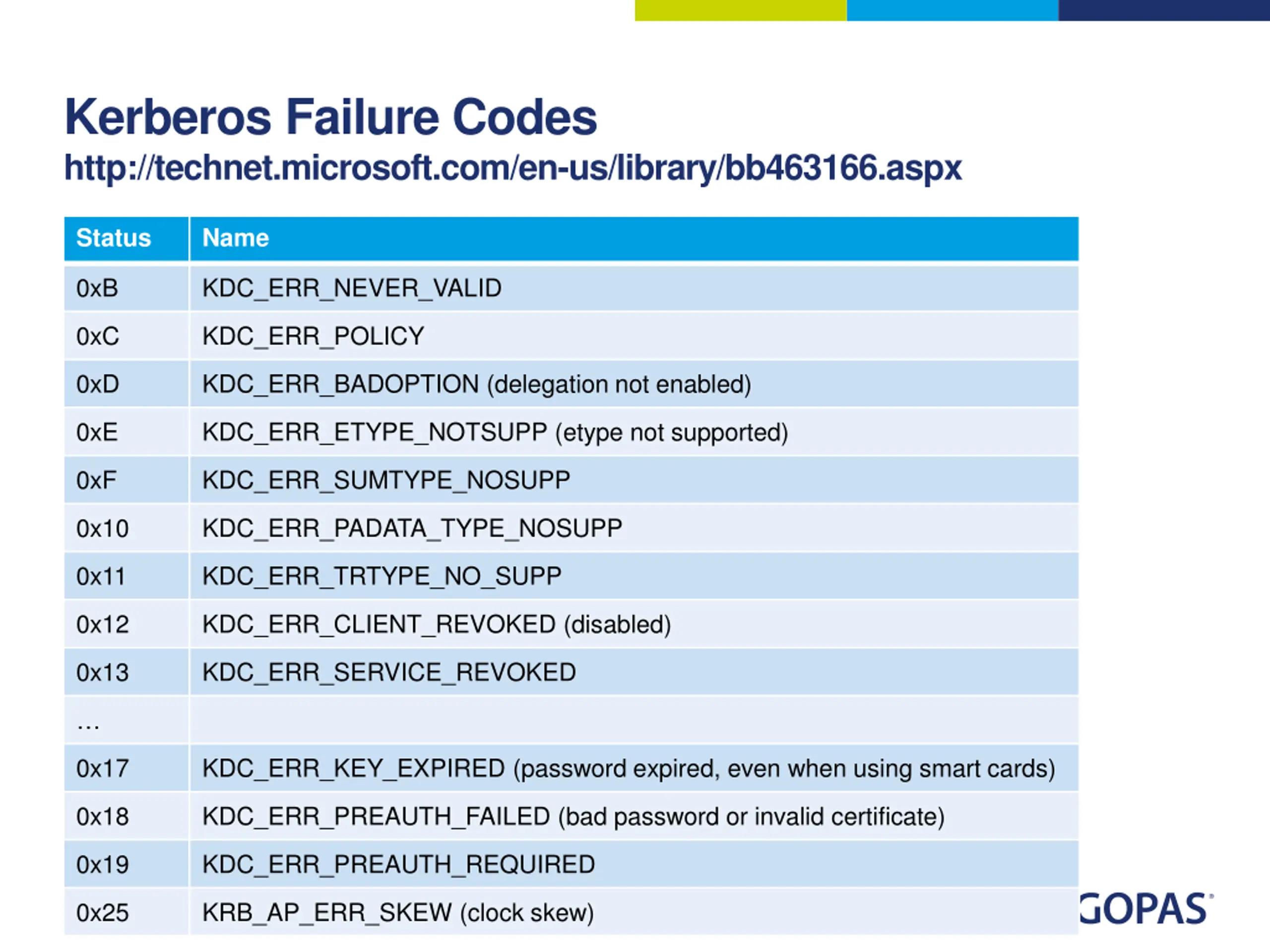

Kerberos Failure Codes http://technet.microsoft.com/en-us/library/bb463166.aspx Status Name 0xB KDC_ERR_NEVER_VALID 0xC KDC_ERR_POLICY 0xD KDC_ERR_BADOPTION (delegation not enabled) 0xE KDC_ERR_ETYPE_NOTSUPP (etype not supported) 0xF KDC_ERR_SUMTYPE_NOSUPP 0x10 KDC_ERR_PADATA_TYPE_NOSUPP 0x11 KDC_ERR_TRTYPE_NO_SUPP 0x12 KDC_ERR_CLIENT_REVOKED (disabled) 0x13 KDC_ERR_SERVICE_REVOKED 0x17 KDC_ERR_KEY_EXPIRED (password expired, even when using smart cards) 0x18 KDC_ERR_PREAUTH_FAILED (bad password or invalid certificate) 0x19 KDC_ERR_PREAUTH_REQUIRED 0x25 KRB_AP_ERR_SKEW (clock skew)
Logon types Type Interactive Network Batch Service Unlock NetworkCleartext NewCredentials RemoteInteractive CachedInteractive CachedRemoteInteractive CachedUnlock Value 2 3 4 5 7 8 9 10 11 12 13
Logon sessions gwmi win32_LogonSession | select LogonId, @{ n = 'LogonIdHex' ; e = { '0x{0:X}' -f ([int] $_.LogonId) } }, AuthenticationPackage, LogonType, StartTime, @{ n = 'Login' ; e = { $_.GetRelated('Win32_Account') | select -f 1 | select -Expand Caption } }, @{ n = 'SID' ; e = { $_.GetRelated('Win32_Account') | select -f 1 | select -Expand SID } }

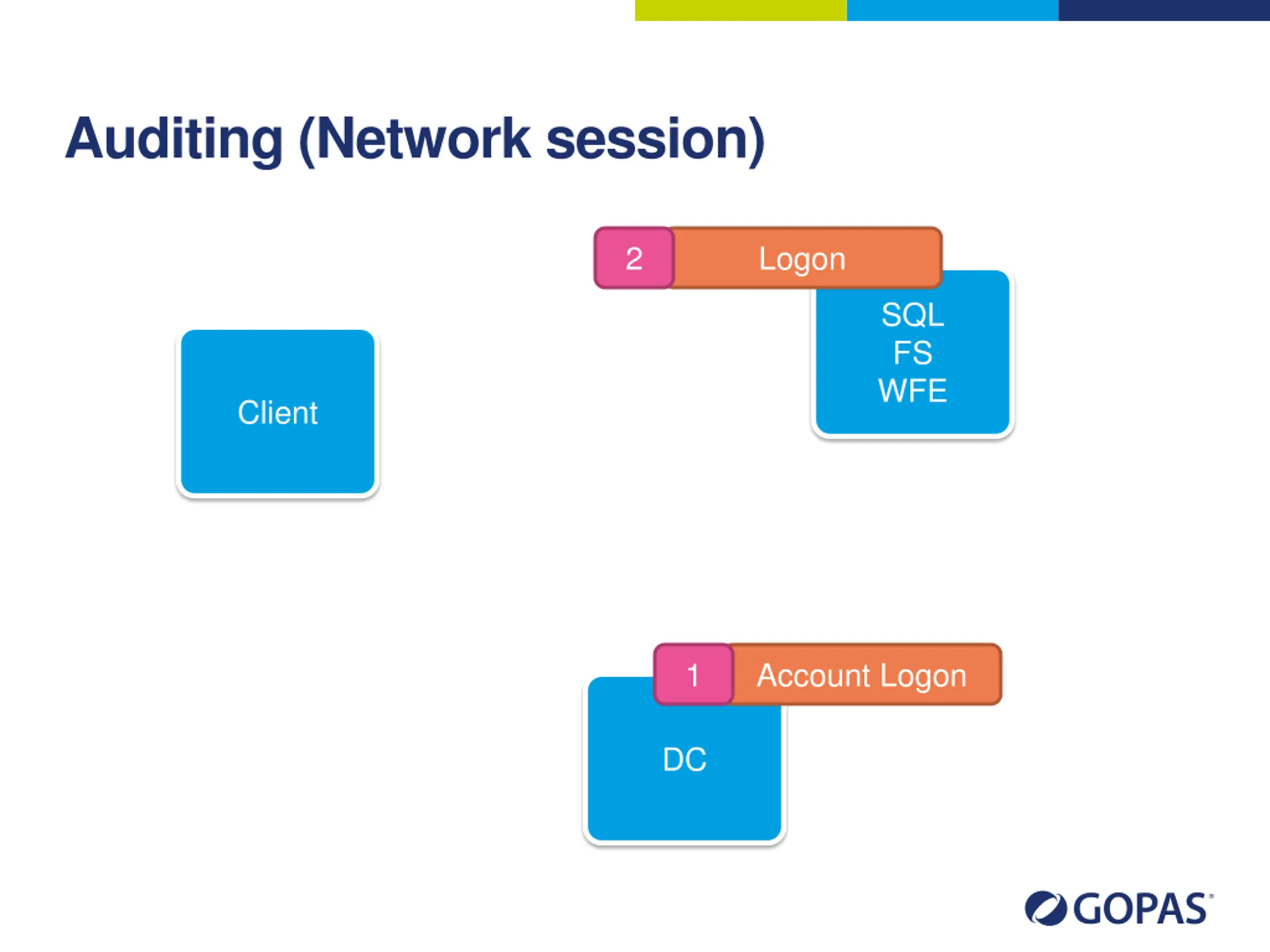

Auditing (Network session) 2 Logon SQL FS WFE Client 1 Account Logon DC

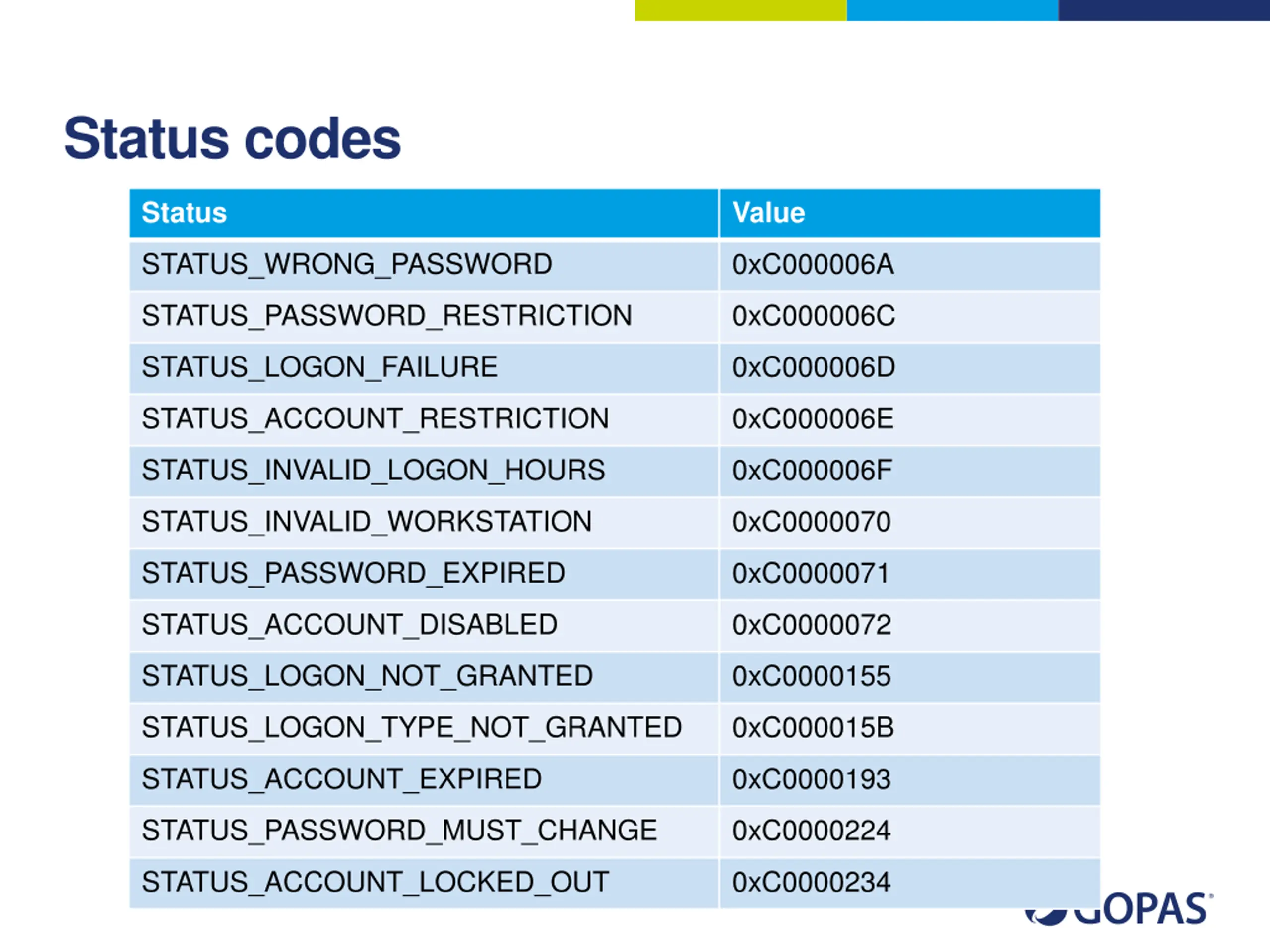

Status codes Status Value STATUS_WRONG_PASSWORD 0xC000006A STATUS_PASSWORD_RESTRICTION 0xC000006C STATUS_LOGON_FAILURE 0xC000006D STATUS_ACCOUNT_RESTRICTION 0xC000006E STATUS_INVALID_LOGON_HOURS 0xC000006F STATUS_INVALID_WORKSTATION 0xC0000070 STATUS_PASSWORD_EXPIRED 0xC0000071 STATUS_ACCOUNT_DISABLED 0xC0000072 STATUS_LOGON_NOT_GRANTED 0xC0000155 STATUS_LOGON_TYPE_NOT_GRANTED 0xC000015B STATUS_ACCOUNT_EXPIRED 0xC0000193 STATUS_PASSWORD_MUST_CHANGE 0xC0000224 STATUS_ACCOUNT_LOCKED_OUT 0xC0000234

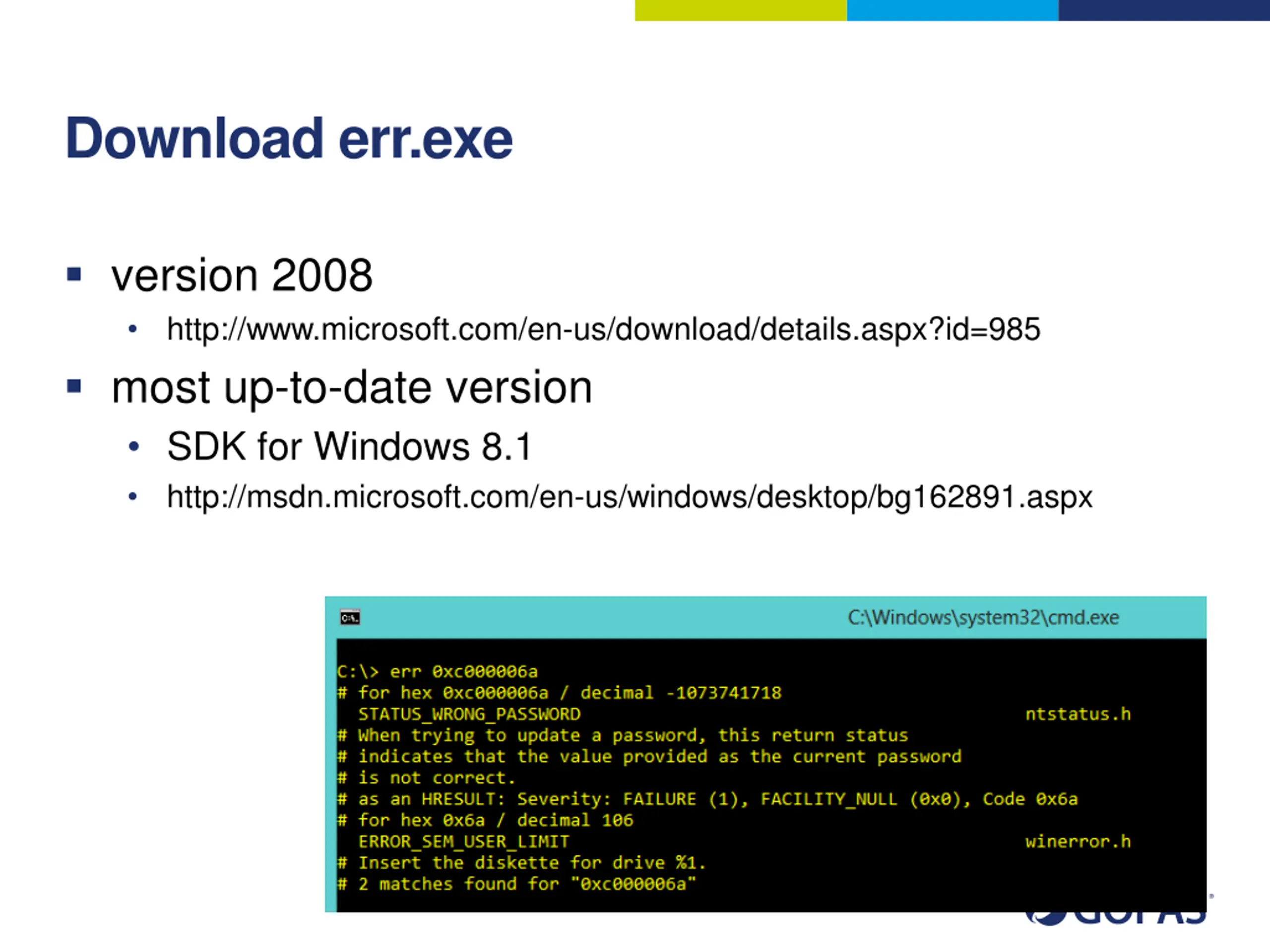

Download err.exe version 2008 http://www.microsoft.com/en-us/download/details.aspx?id=985 most up-to-date version SDK for Windows 8.1 http://msdn.microsoft.com/en-us/windows/desktop/bg162891.aspx
Auditing (Interactive logoff) SQL FS WFE 1 Logoff immediately at logoff Client DC
Auditing (Network session logoff) 1 Logoff SQL FS WFE when TCP connection closed Client DC
Dkuji za pozornost Ing. Ond ej eve ek | GOPAS a.s. | MCM:Directory | MVP:Enterprise Security | CEH: Certified Ethical Hacker | CHFI: Computer Hacking Forensic Investigator ondrej@sevecek.com | www.sevecek.com | GOPAS: info@gopas,cz | www.gopas.cz| www.facebook.com/P.S.GOPAS
