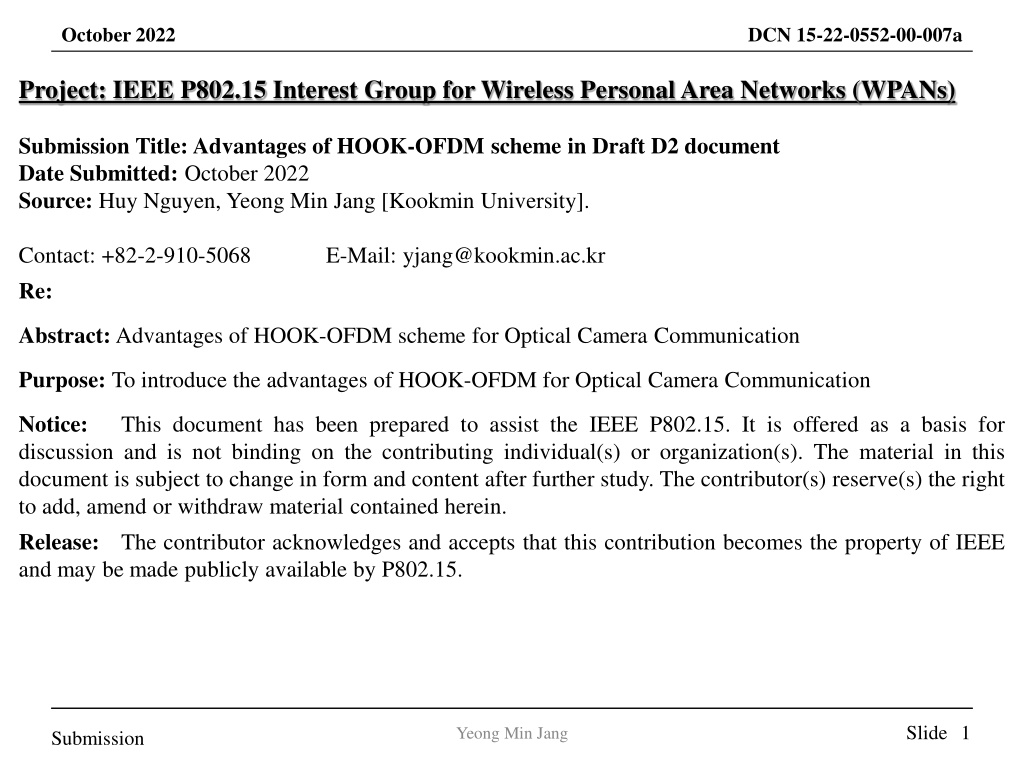

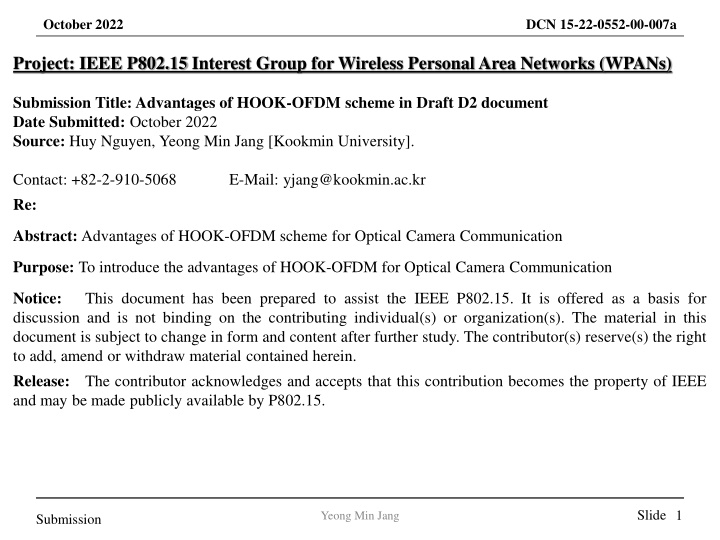

October 2022 DCN 15-22-0552-00-007a Project: IEEE P802.15 Interest Group for Wireless Personal Area Networks (WPANs) Submission Title: Advantages of HOOK-OFDM scheme in Draft D2 document Date Submitted: October 2022 Source: Huy Nguyen, Yeong Min Jang [Kookmin University]. Contact: +82-2-910-5068 Re: E-Mail: yjang@kookmin.ac.kr Abstract: Advantages of HOOK-OFDM scheme for Optical Camera Communication Purpose: To introduce the advantages of HOOK-OFDM for Optical Camera Communication Notice: discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. This document has been prepared to assist the IEEE P802.15. It is offered as a basis for Slide 1 Yeong Min Jang Submission

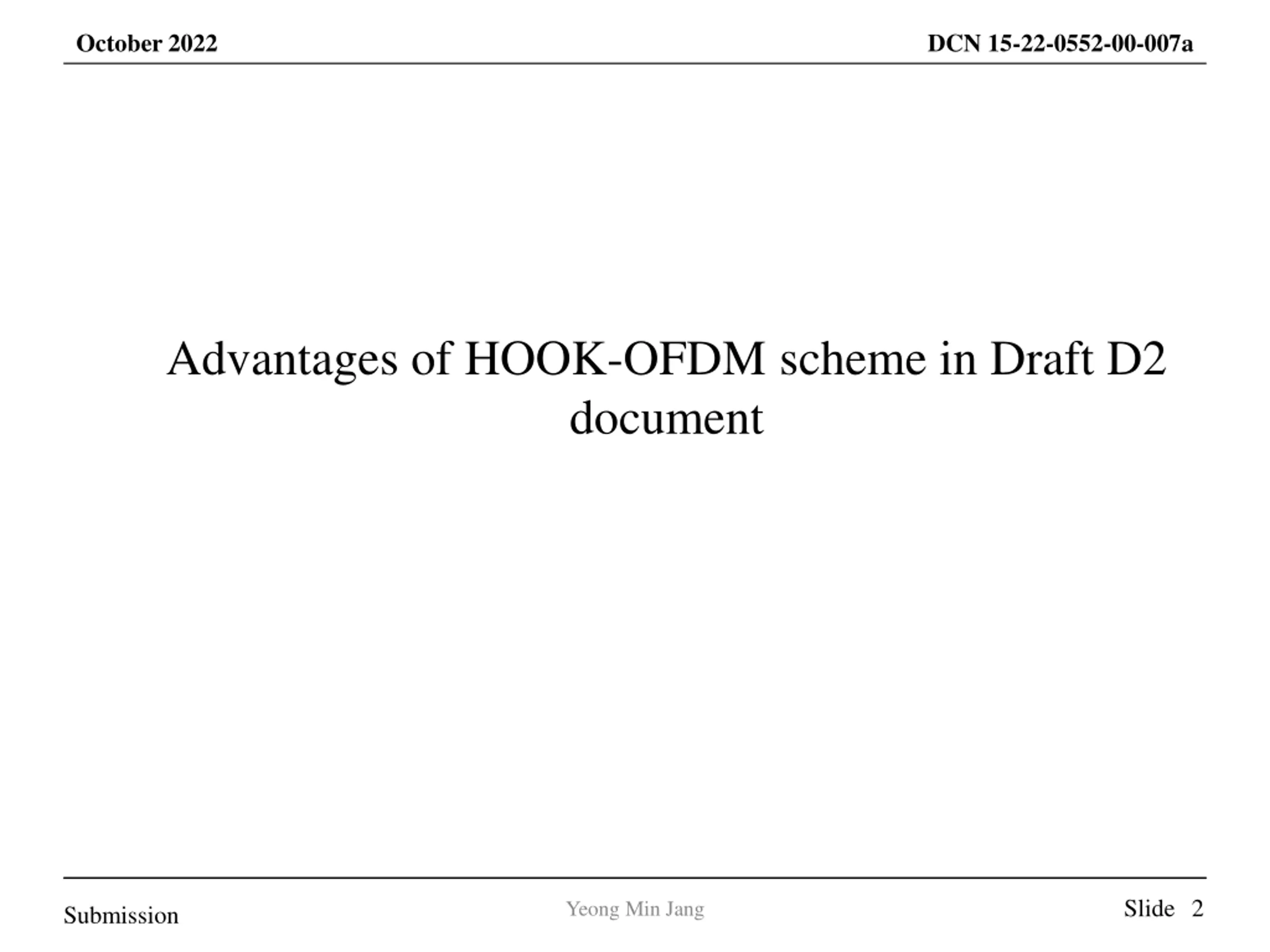

October 2022 DCN 15-22-0552-00-007a Advantages of HOOK-OFDM scheme in Draft D2 document Slide 2 Yeong Min Jang Submission

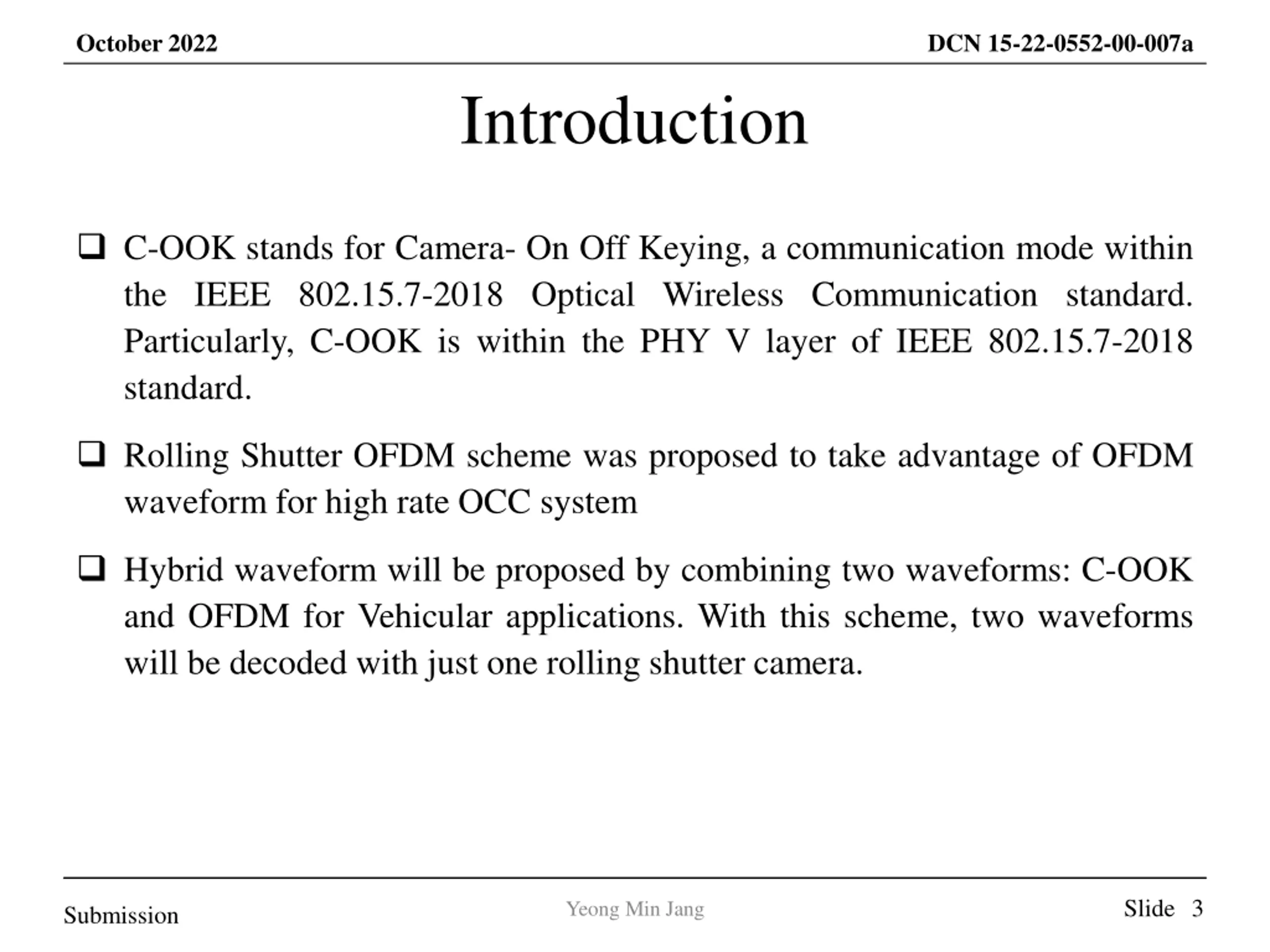

October 2022 DCN 15-22-0552-00-007a Introduction C-OOK stands for Camera- On Off Keying, a communication mode within the IEEE 802.15.7-2018 Optical Wireless Communication standard. Particularly, C-OOK is within the PHY V layer of IEEE 802.15.7-2018 standard. Rolling Shutter OFDM scheme was proposed to take advantage of OFDM waveform for high rate OCC system Hybrid waveform will be proposed by combining two waveforms: C-OOK and OFDM for Vehicular applications. With this scheme, two waveforms will be decoded with just one rolling shutter camera. Slide 3 Yeong Min Jang Submission

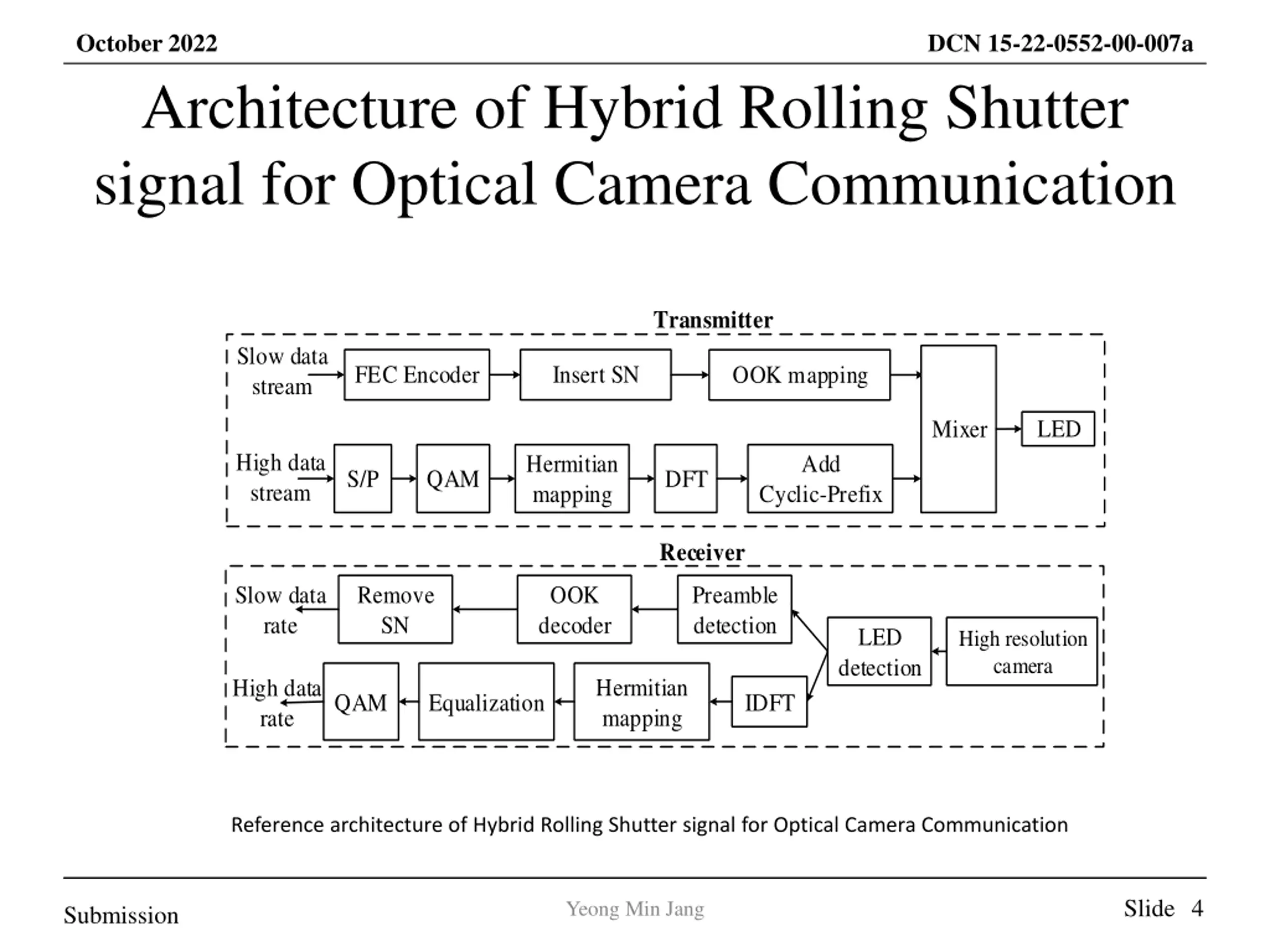

October 2022 Architecture of Hybrid Rolling Shutter signal for Optical Camera Communication DCN 15-22-0552-00-007a Transmitter Slow data stream FEC Encoder Insert SN OOK mapping LED Mixer High data stream Hermitian mapping Add S/P QAM DFT Cyclic-Prefix Receiver Slow data rate Remove SN OOK decoder Preamble detection LED detection High resolution camera Hermitian mapping High data rate QAM Equalization IDFT Reference architecture of Hybrid Rolling Shutter signal for Optical Camera Communication Slide 4 Yeong Min Jang Submission

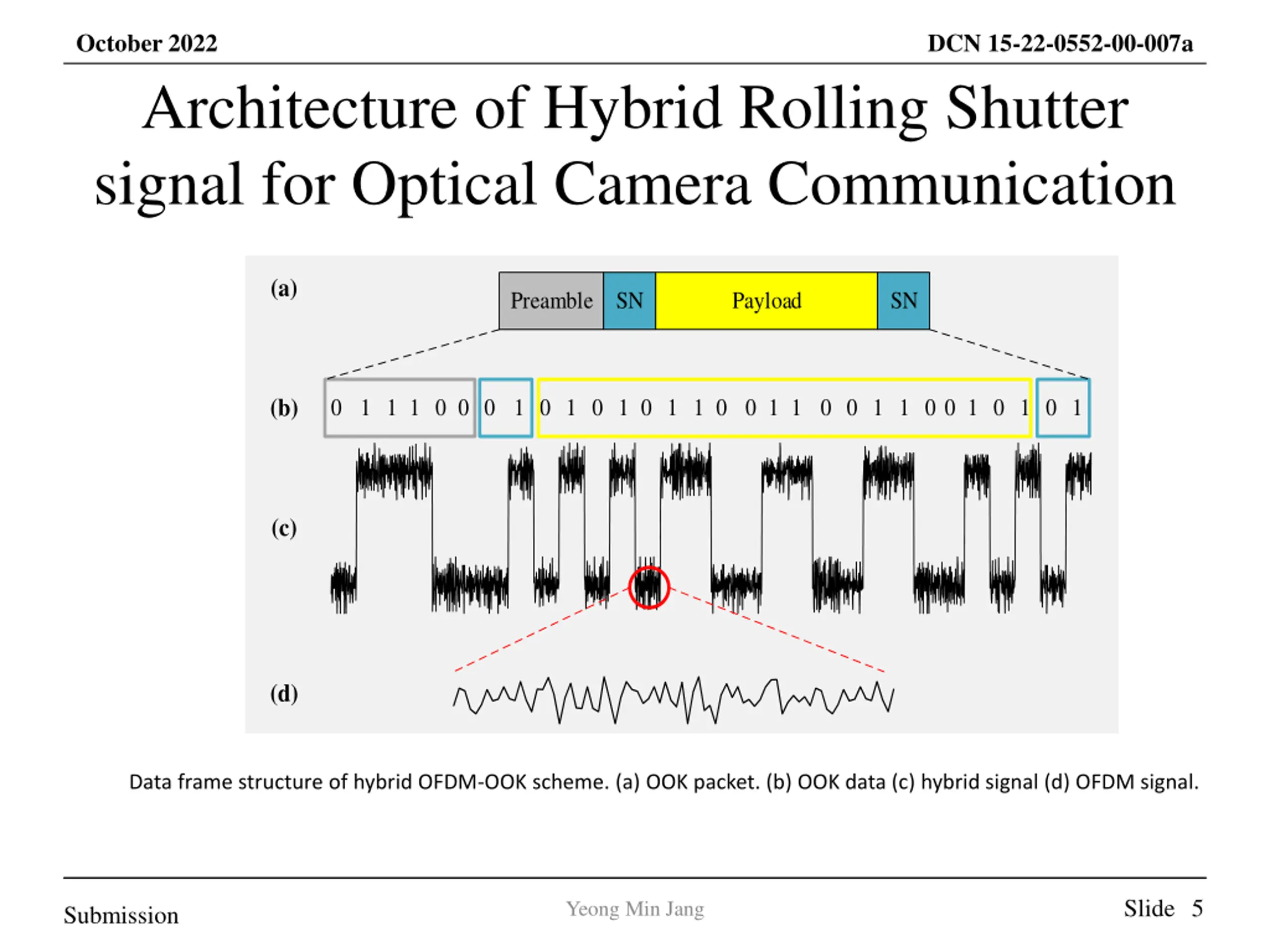

October 2022 Architecture of Hybrid Rolling Shutter signal for Optical Camera Communication DCN 15-22-0552-00-007a (a) Preamble SN Payload SN (b) 0 1 1 1 0 0 0 1 0 1 0 1 0 1 1 0 0 1 1 0 0 1 1 0 0 1 0 1 0 1 (c) (d) Data frame structure of hybrid OFDM-OOK scheme. (a) OOK packet. (b) OOK data (c) hybrid signal (d) OFDM signal. Slide 5 Yeong Min Jang Submission

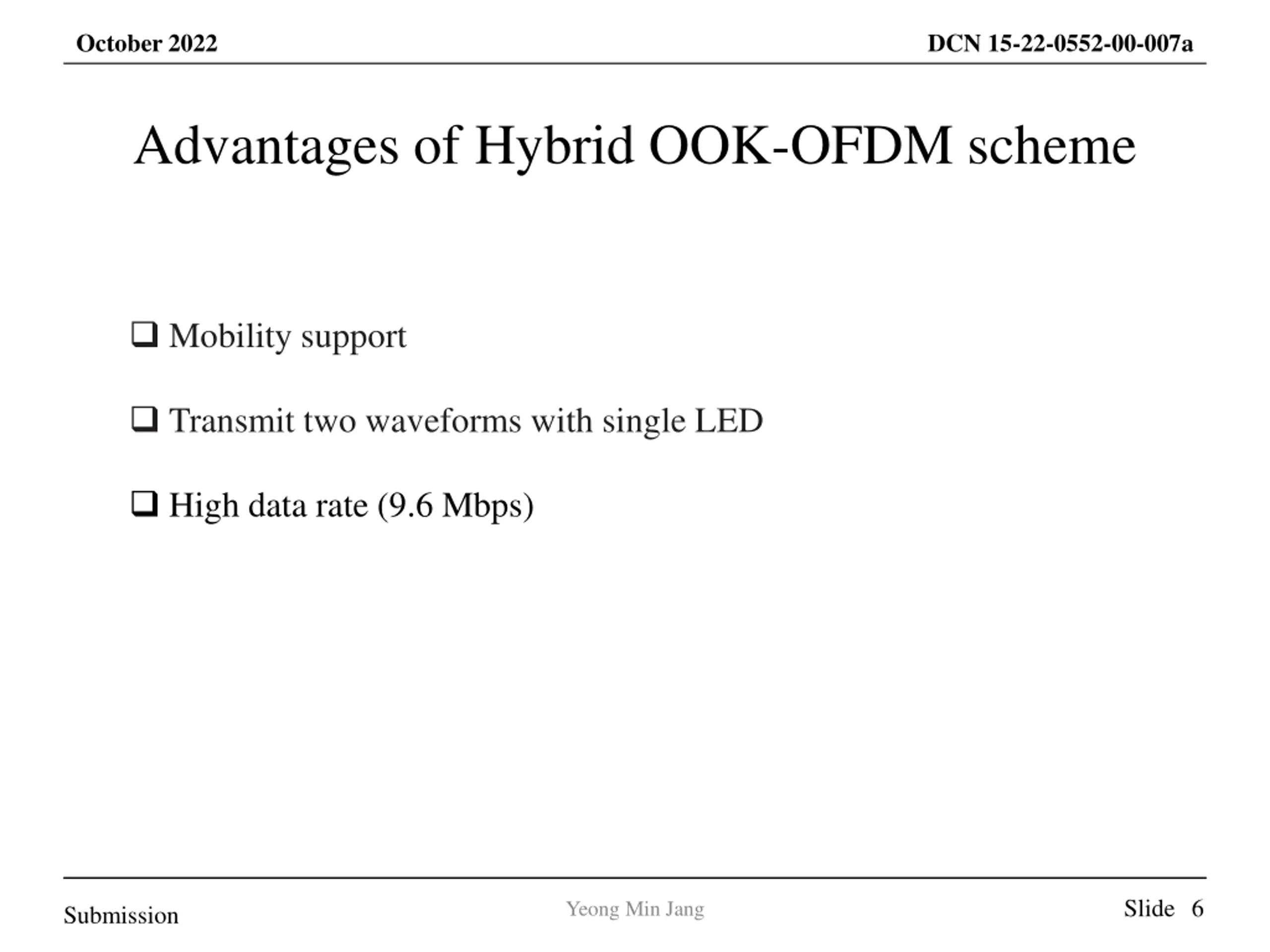

October 2022 DCN 15-22-0552-00-007a Advantages of Hybrid OOK-OFDM scheme Mobility support Transmit two waveforms with single LED High data rate (9.6 Mbps) Slide 6 Yeong Min Jang Submission
