Aero Design Specifications and Performance Analysis
Learn about the detailed specifications and performance analysis of an aircraft design, including weight distribution, airfoil characteristics, drag coefficients, and operational parameters like glide range and turning radius.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

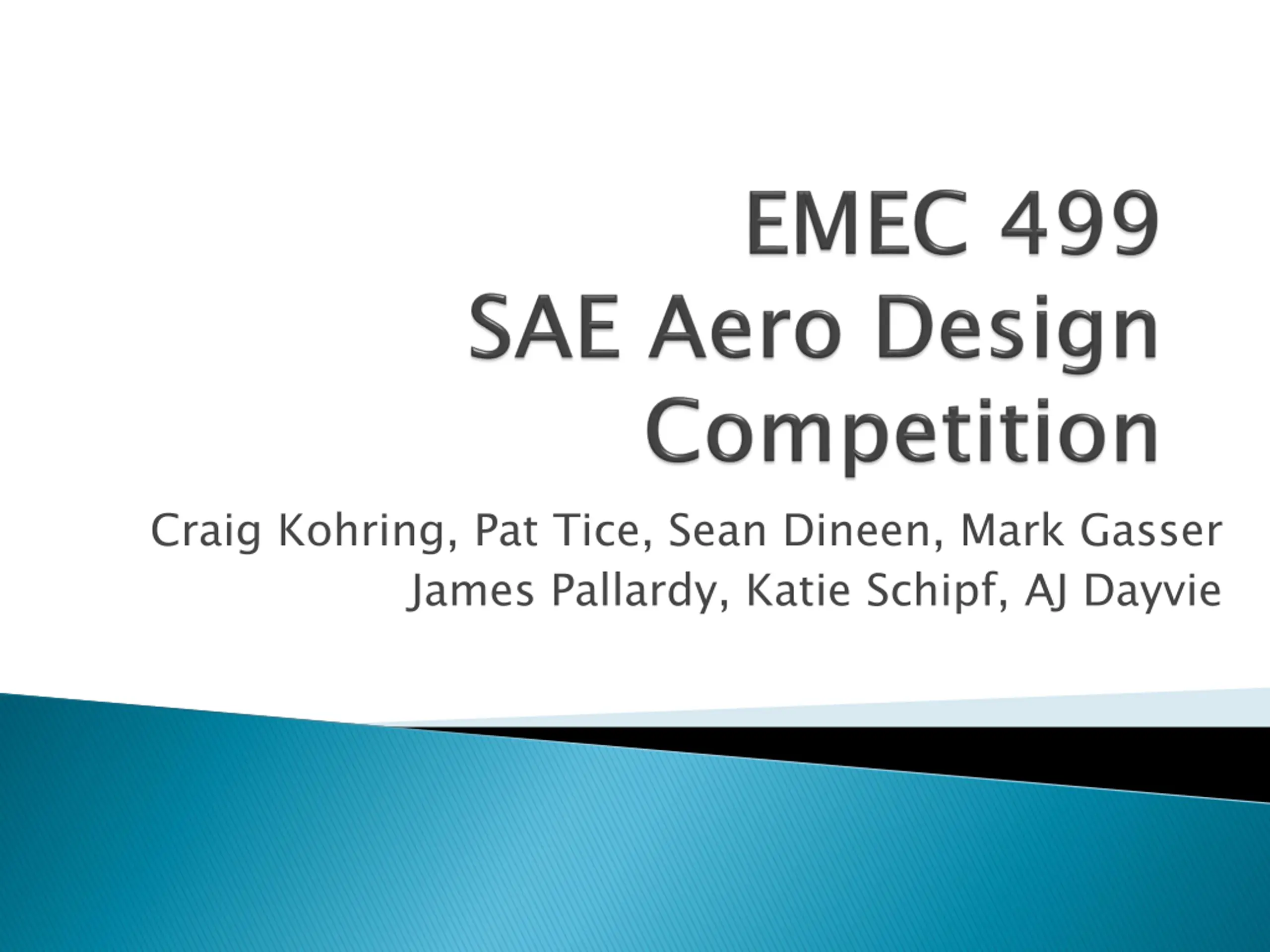

Craig Kohring, Pat Tice, Sean Dineen, Mark Gasser James Pallardy, Katie Schipf, AJ Dayvie

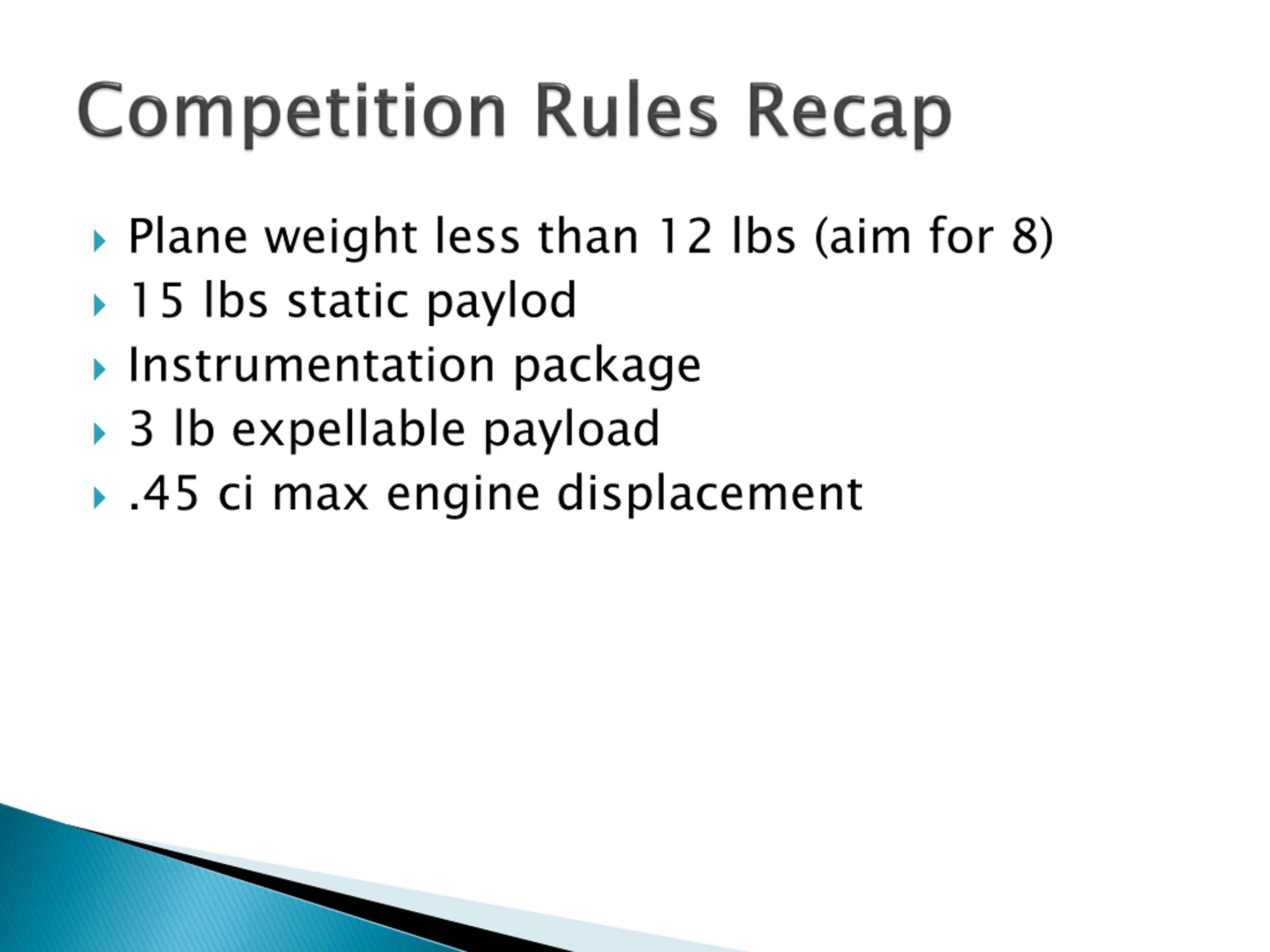

Plane weight less than 12 lbs (aim for 8) 15 lbs static paylod Instrumentation package 3 lb expellable payload .45 ci max engine displacement

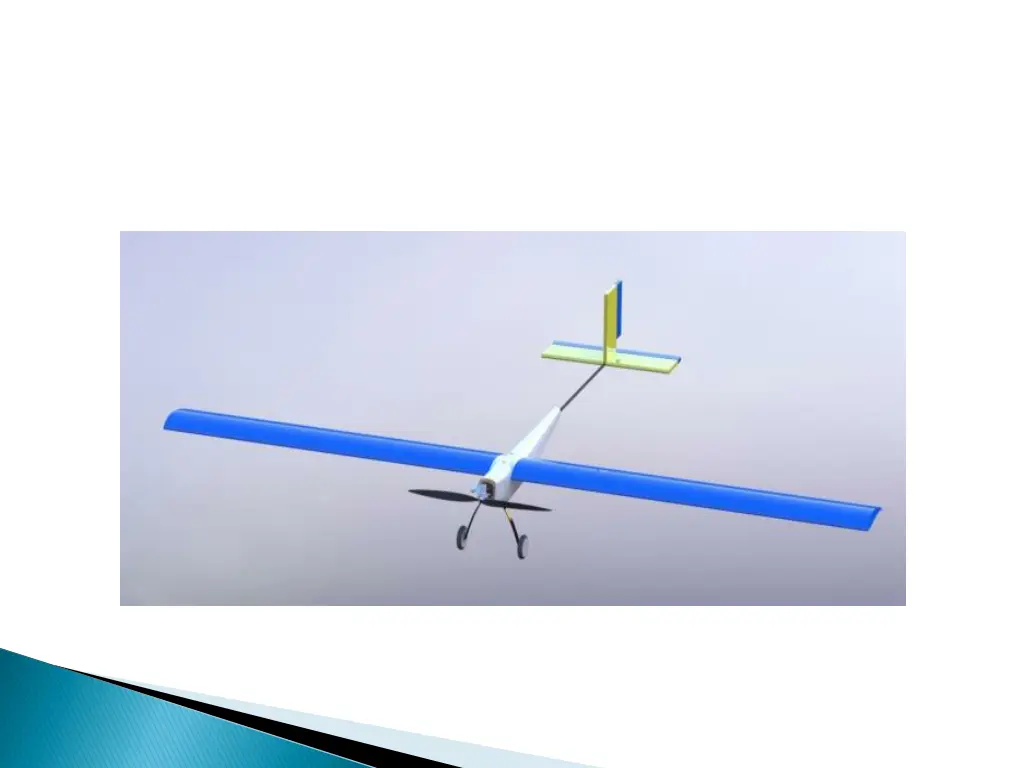

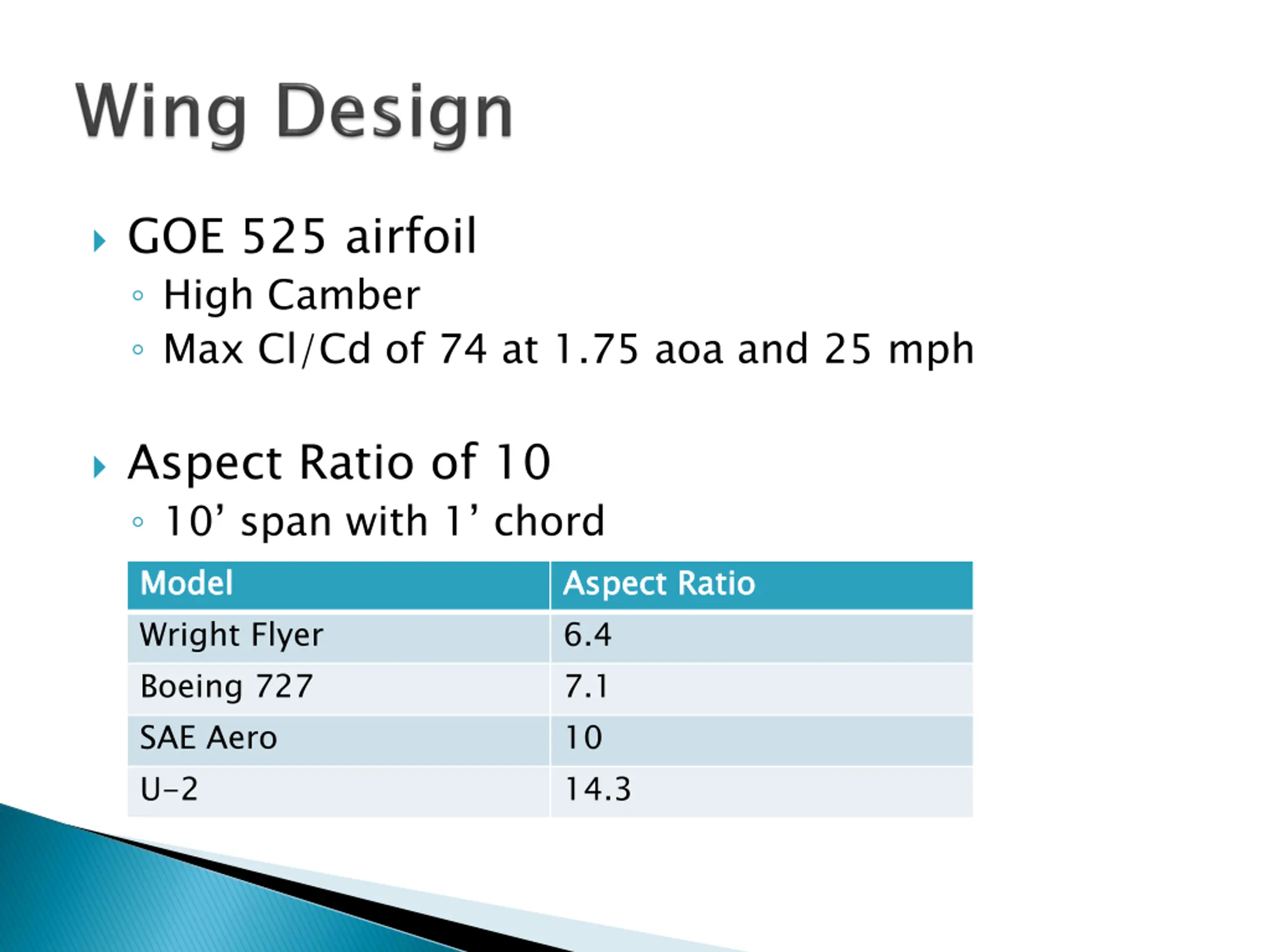

GOE 525 airfoil High Camber Max Cl/Cd of 74 at 1.75 aoa and 25 mph Aspect Ratio of 10 10 span with 1 chord Model Wright Flyer Boeing 727 SAE Aero U-2 Model Aspect 6.4 7.1 10 14.3 Aspect Ratio Ratio

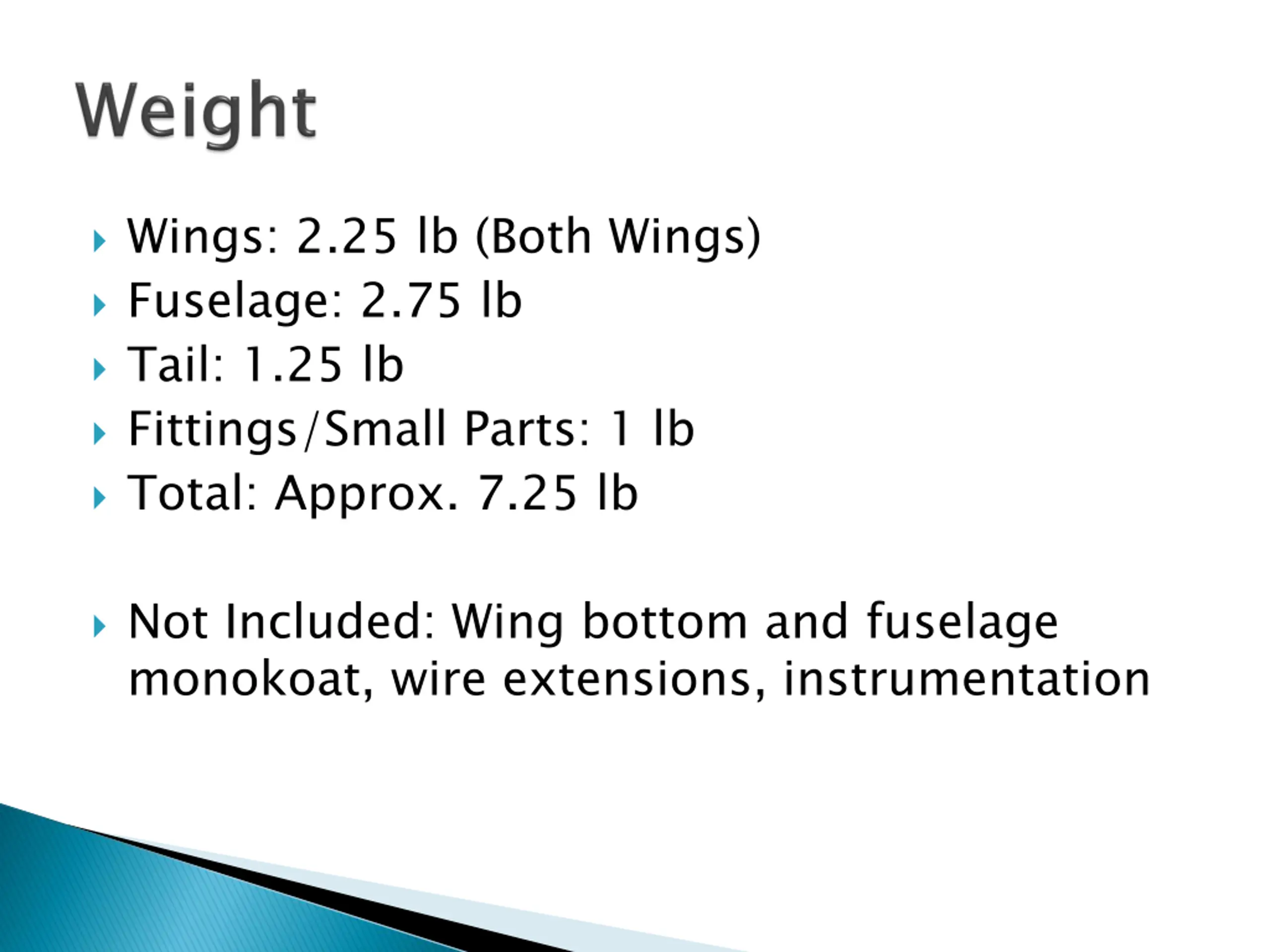

Wings: 2.25 lb (Both Wings) Fuselage: 2.75 lb Tail: 1.25 lb Fittings/Small Parts: 1 lb Total: Approx. 7.25 lb Not Included: Wing bottom and fuselage monokoat, wire extensions, instrumentation

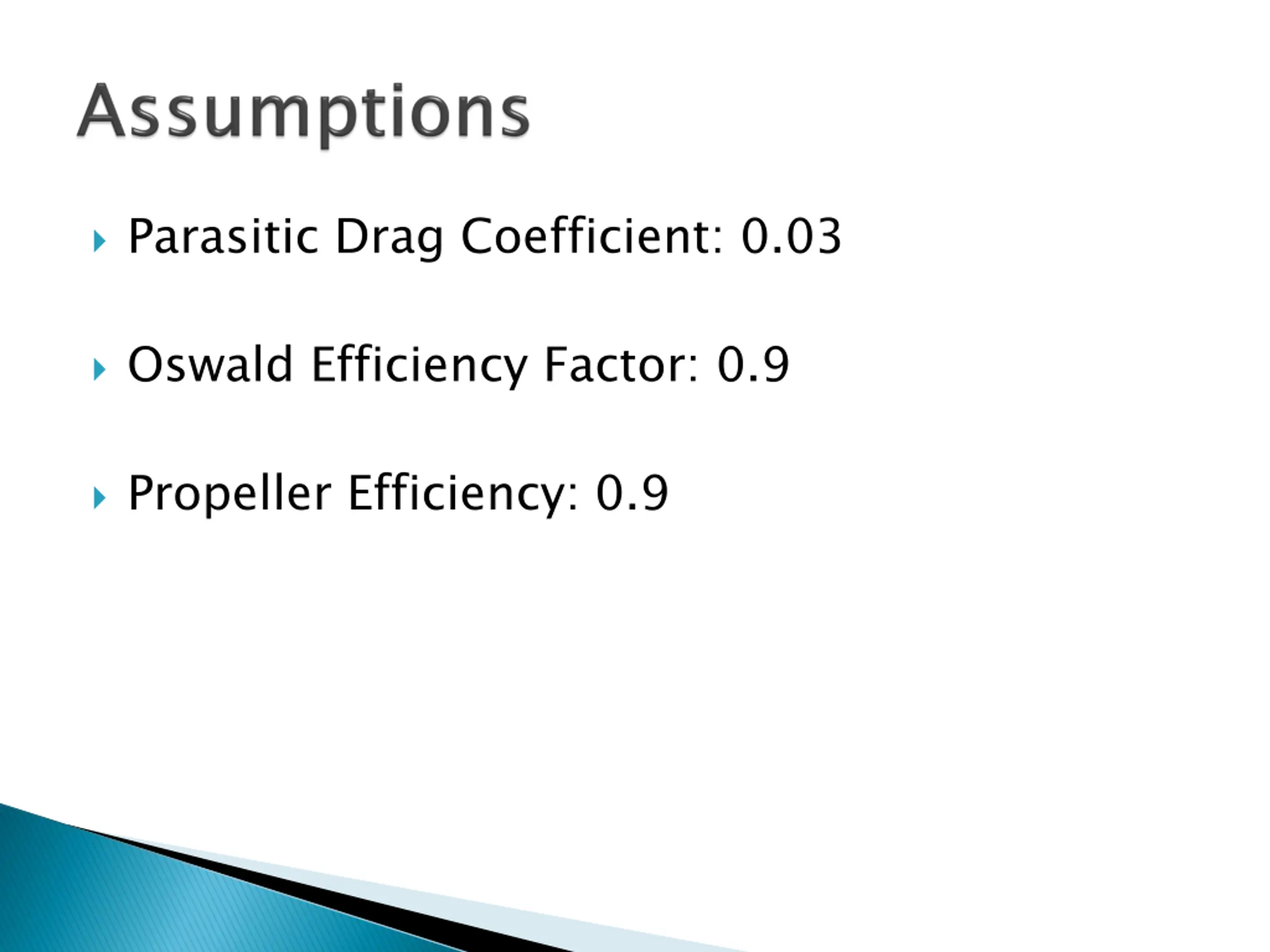

Parasitic Drag Coefficient: 0.03 Oswald Efficiency Factor: 0.9 Propeller Efficiency: 0.9

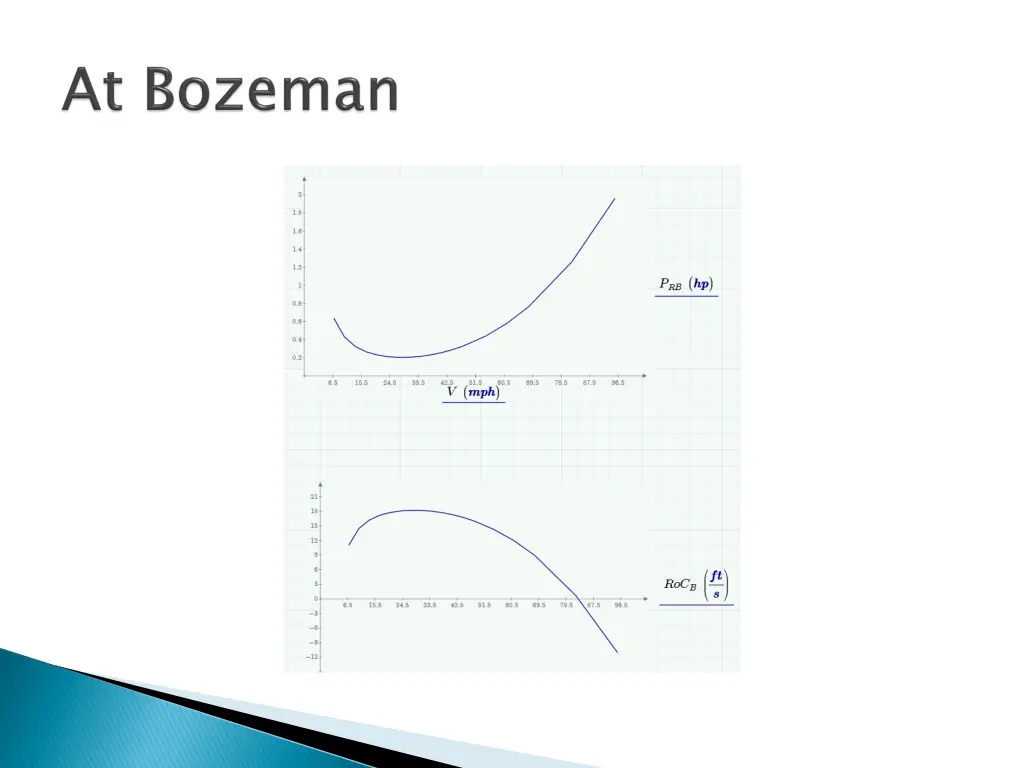

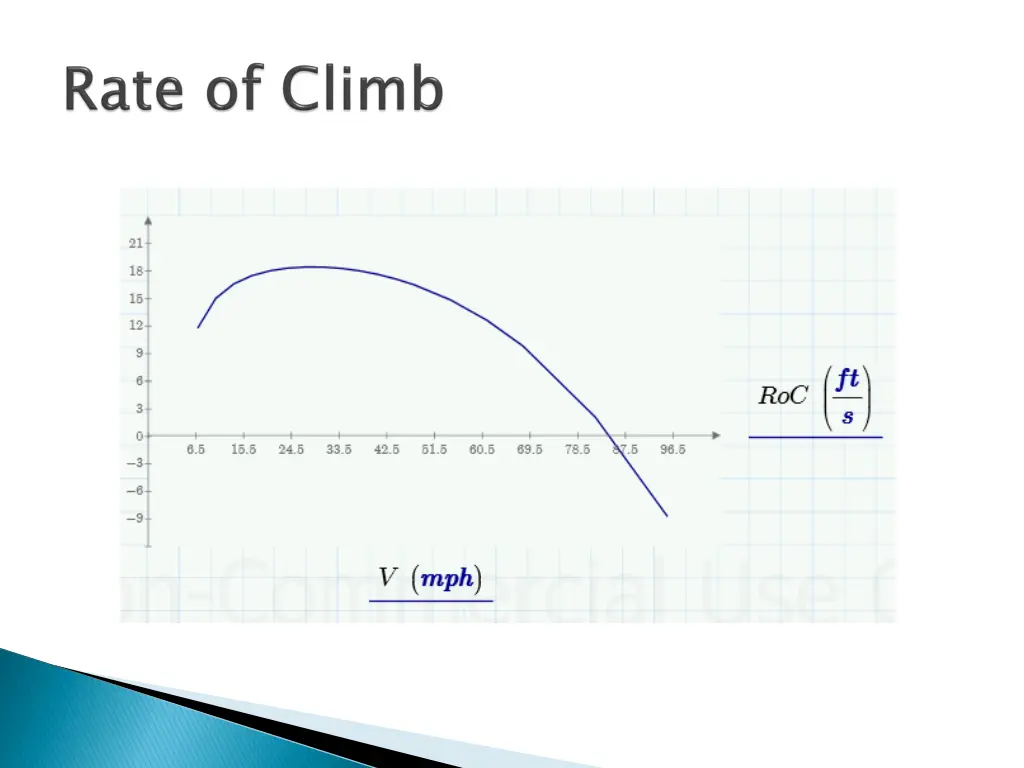

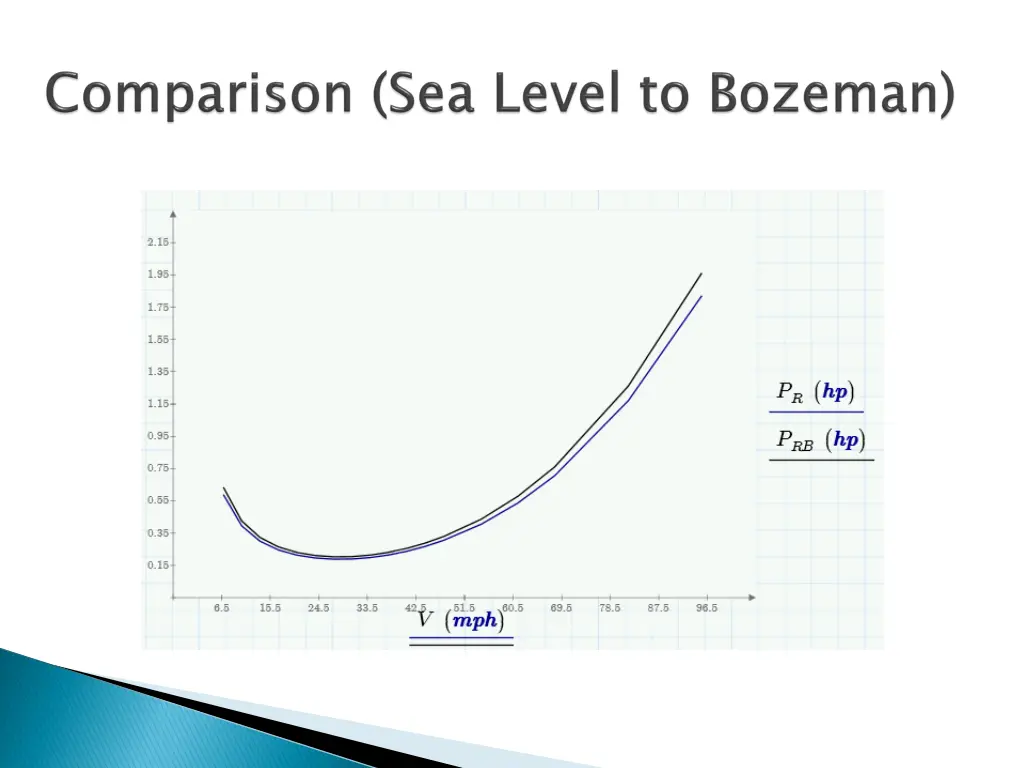

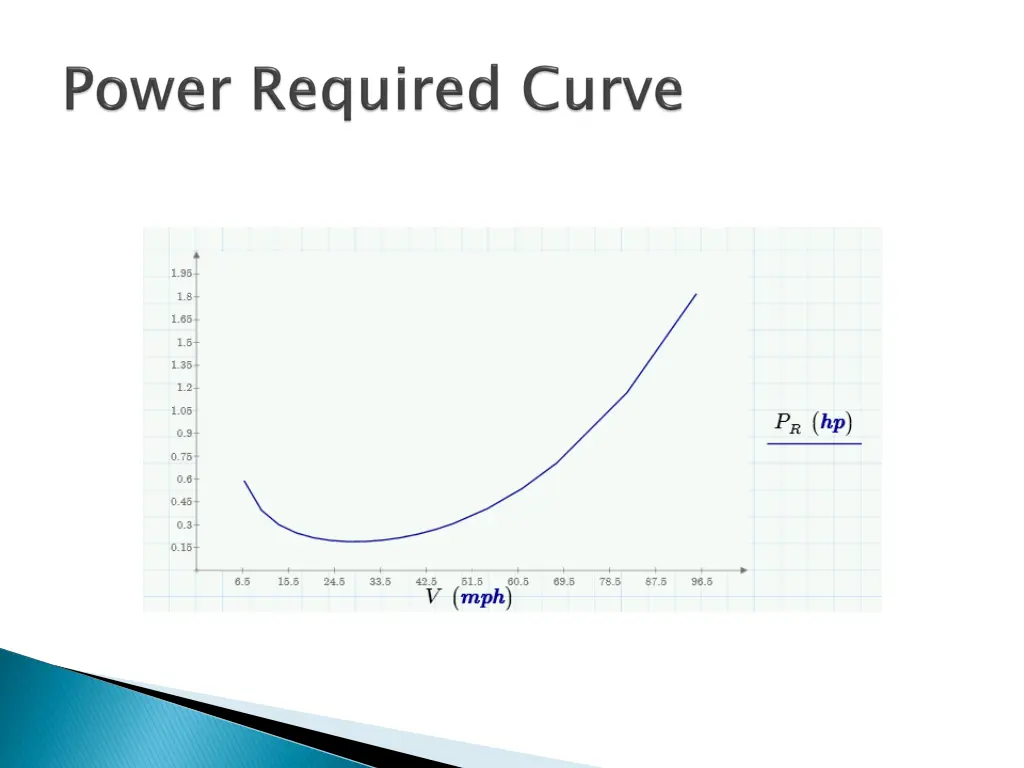

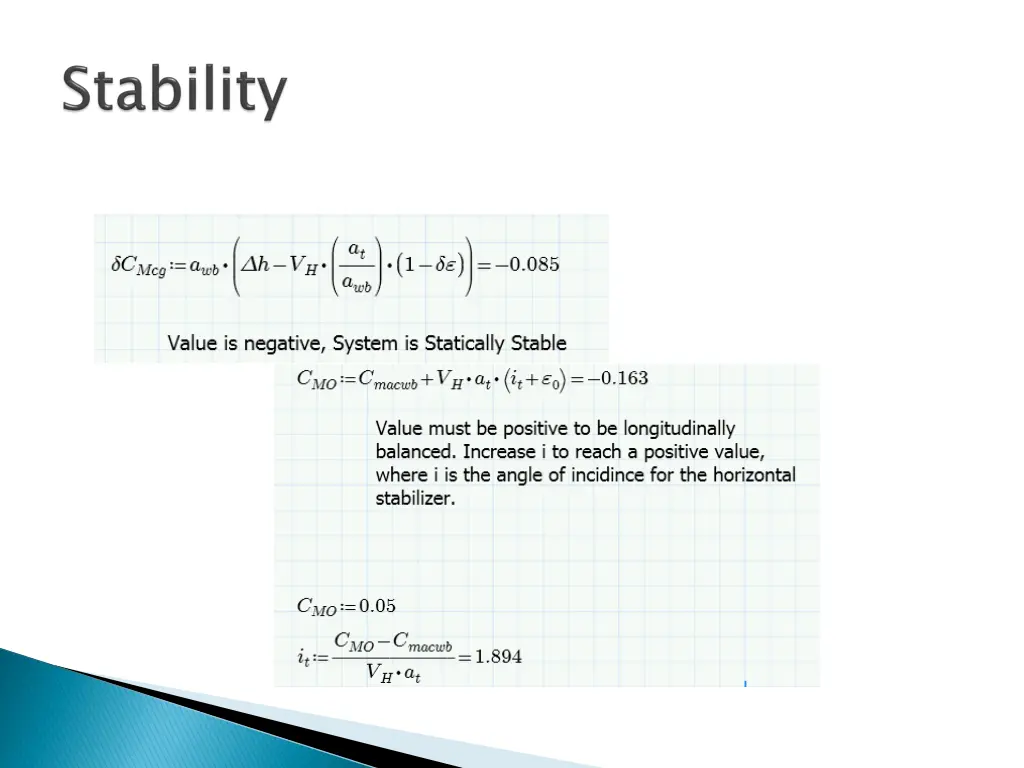

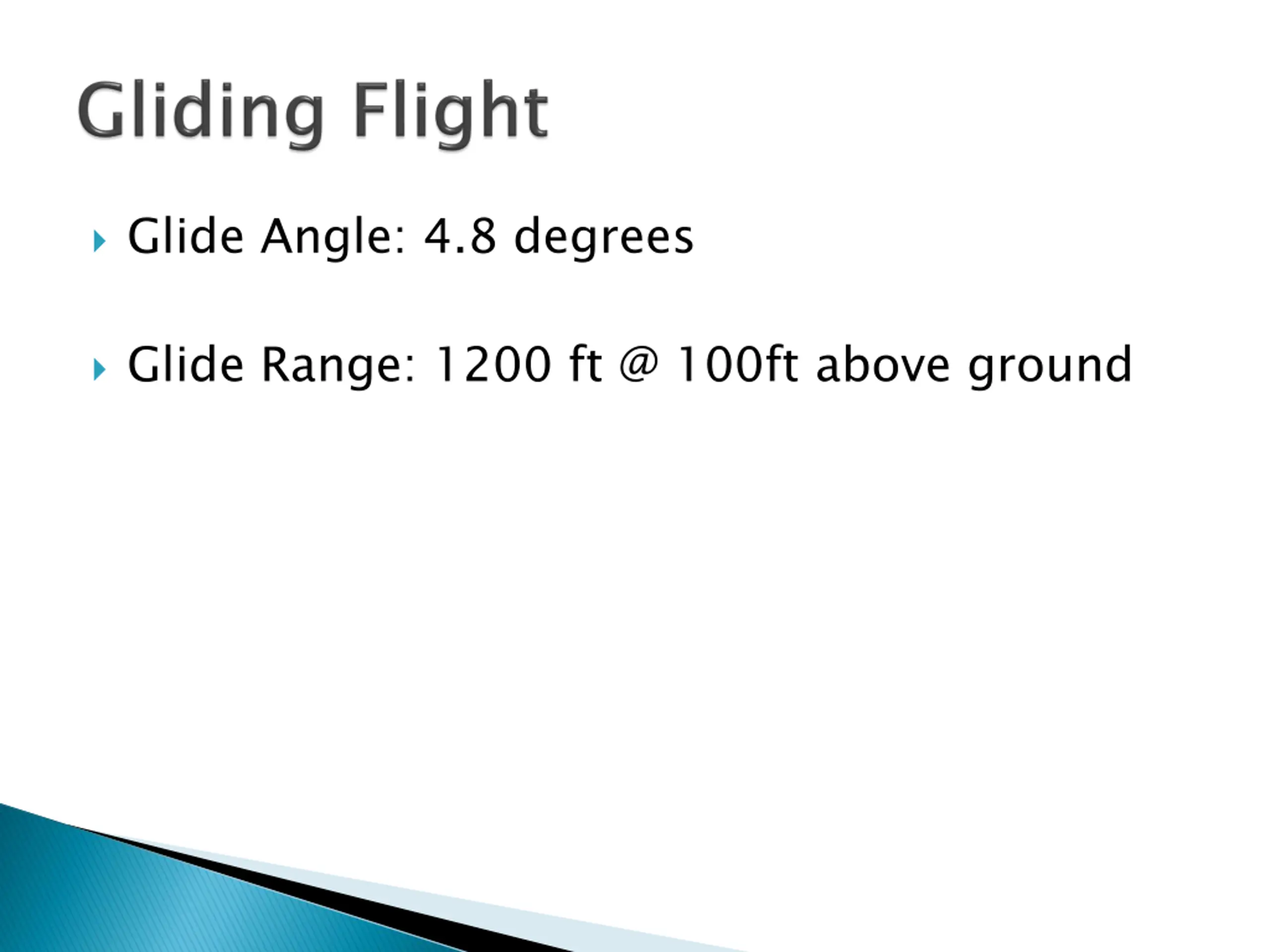

Glide Angle: 4.8 degrees Glide Range: 1200 ft @ 100ft above ground

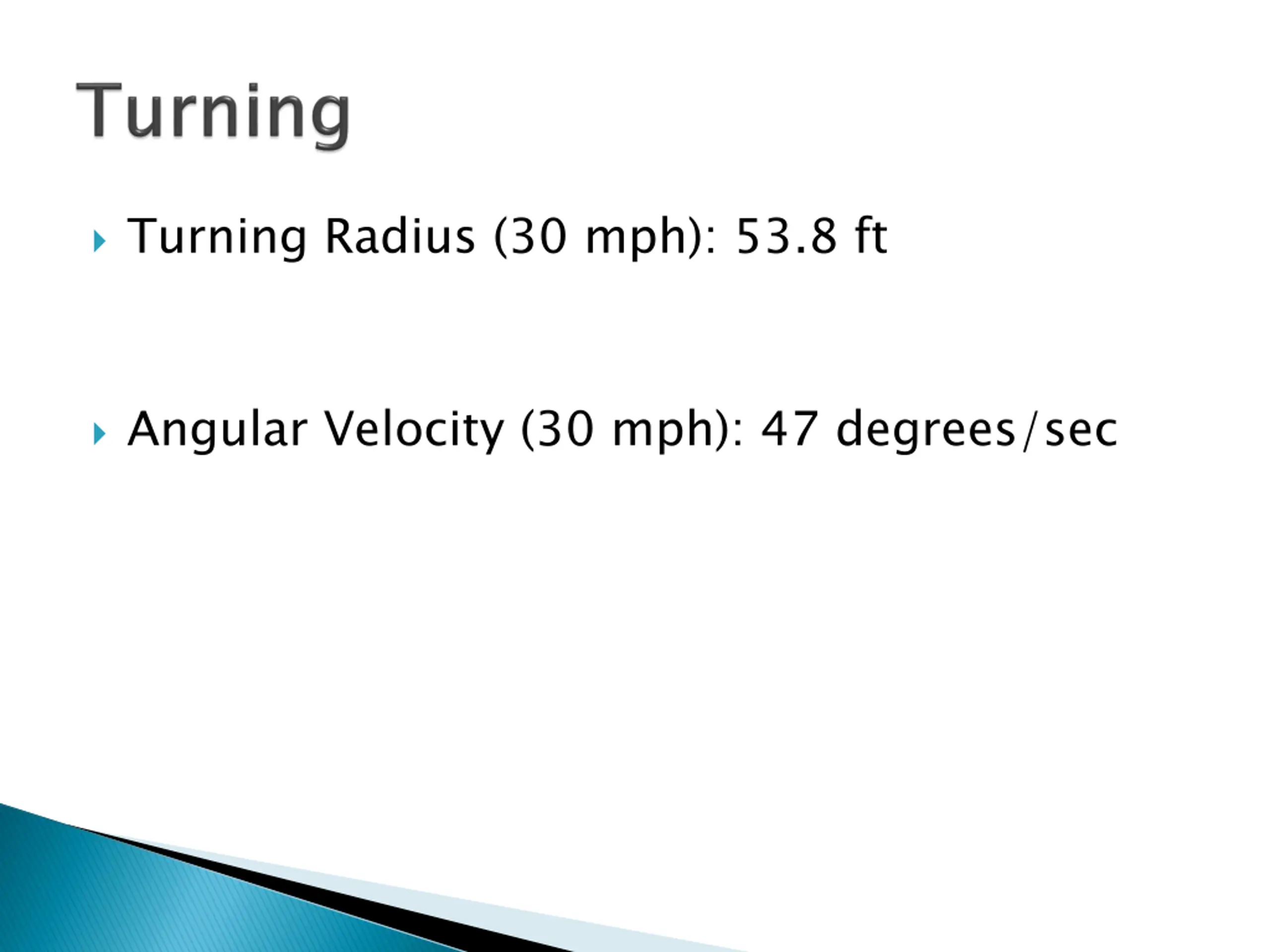

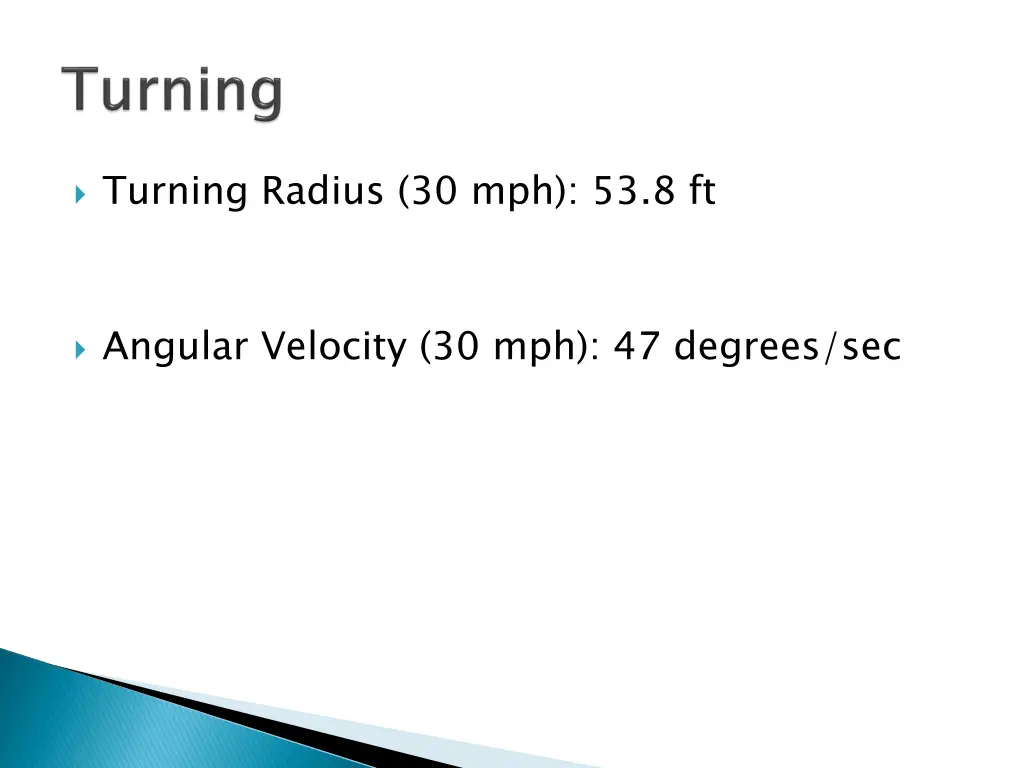

Turning Radius (30 mph): 53.8 ft Angular Velocity (30 mph): 47 degrees/sec

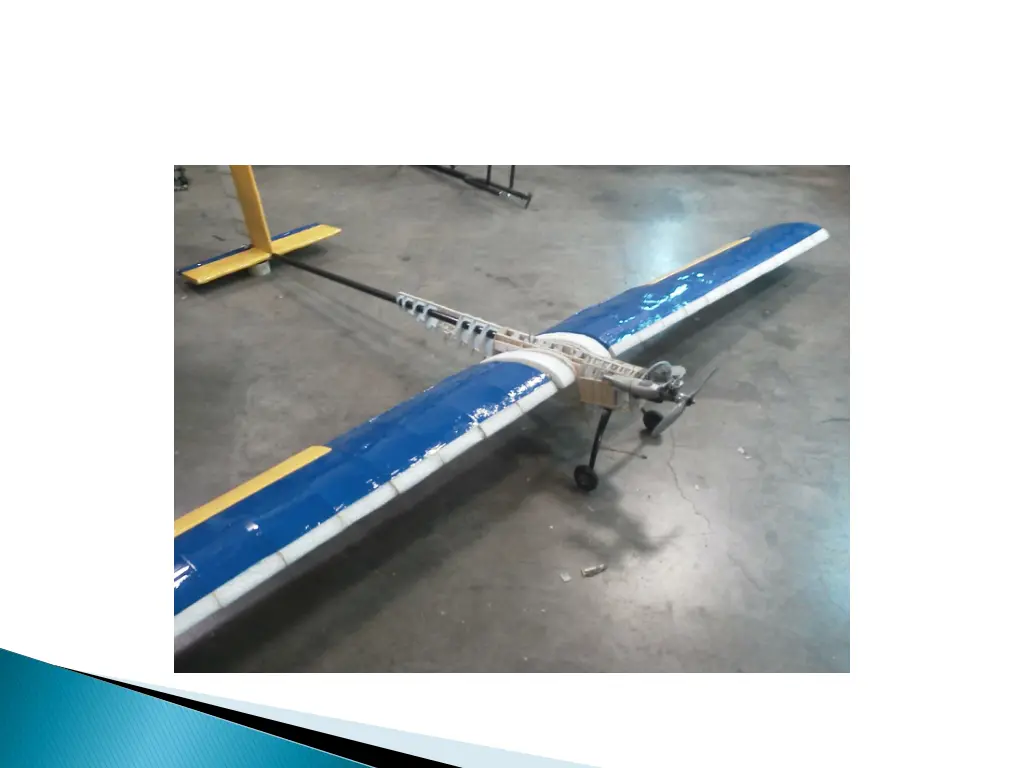

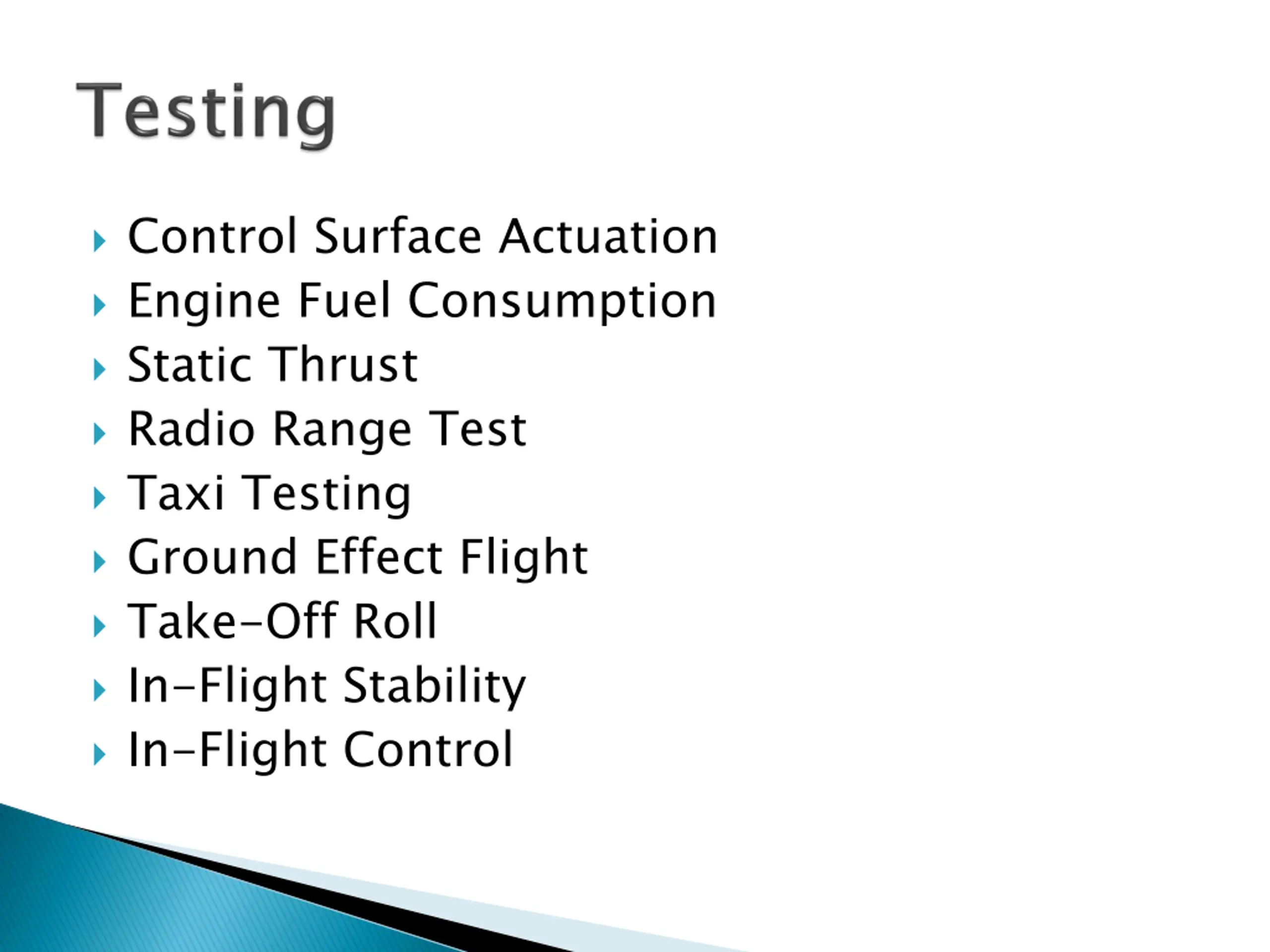

Control Surface Actuation Engine Fuel Consumption Static Thrust Radio Range Test Taxi Testing Ground Effect Flight Take-Off Roll In-Flight Stability In-Flight Control
