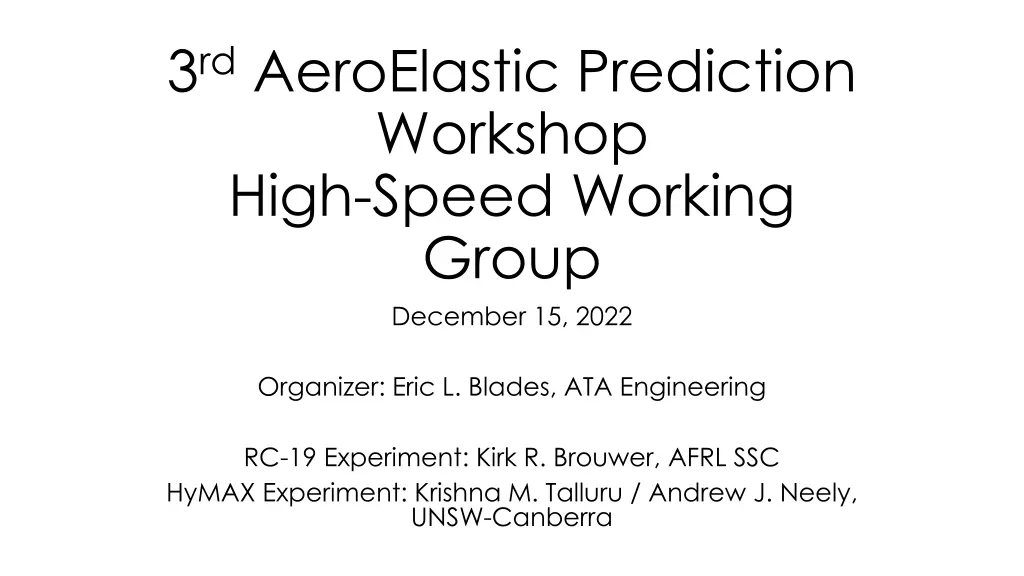

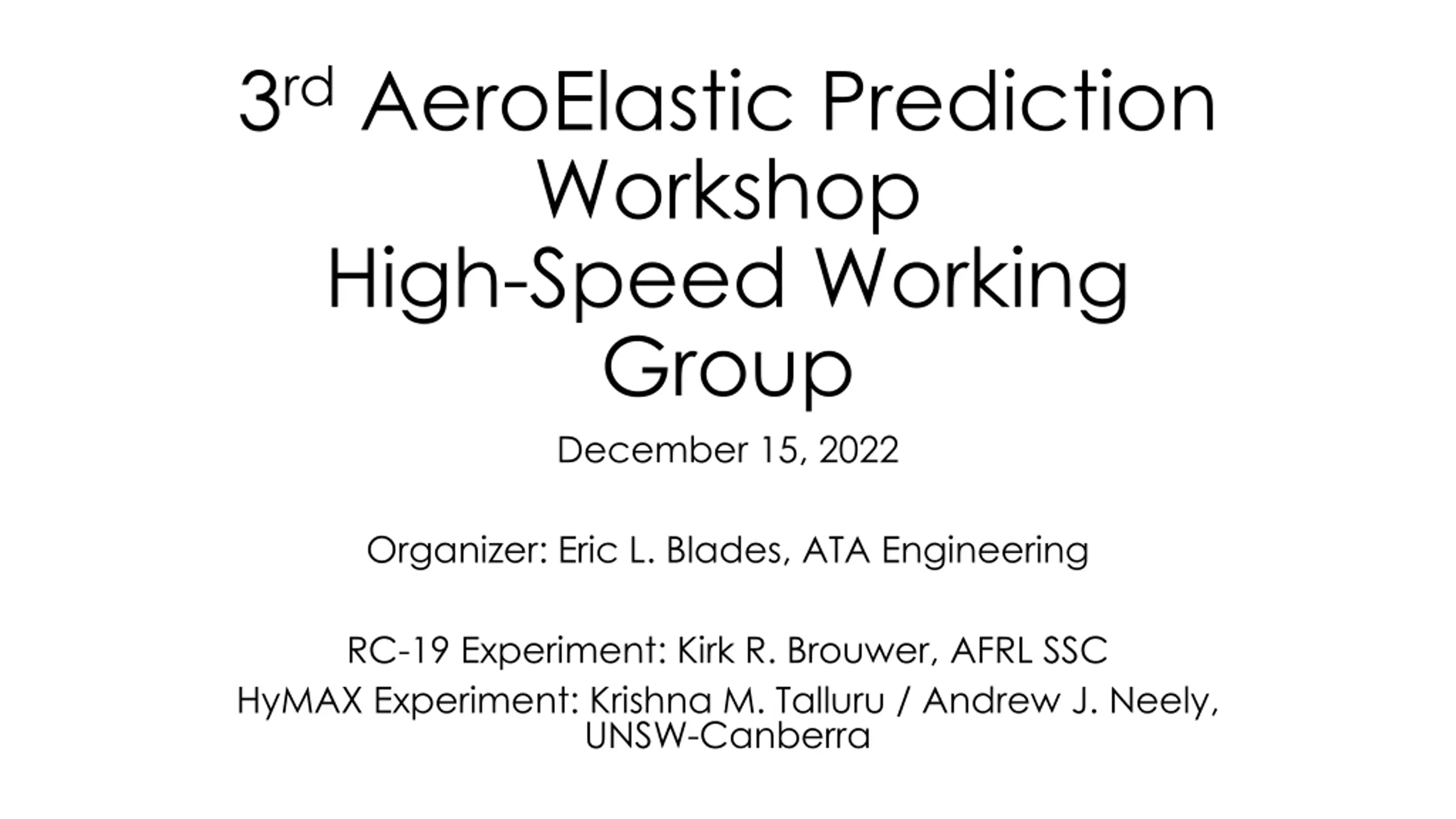

3rdAeroElastic Prediction Workshop High-Speed Working Group December 15, 2022 Organizer: Eric L. Blades, ATA Engineering RC-19 Experiment: Kirk R. Brouwer, AFRL SSC HyMAX Experiment: Krishna M. Talluru / Andrew J. Neely, UNSW-Canberra

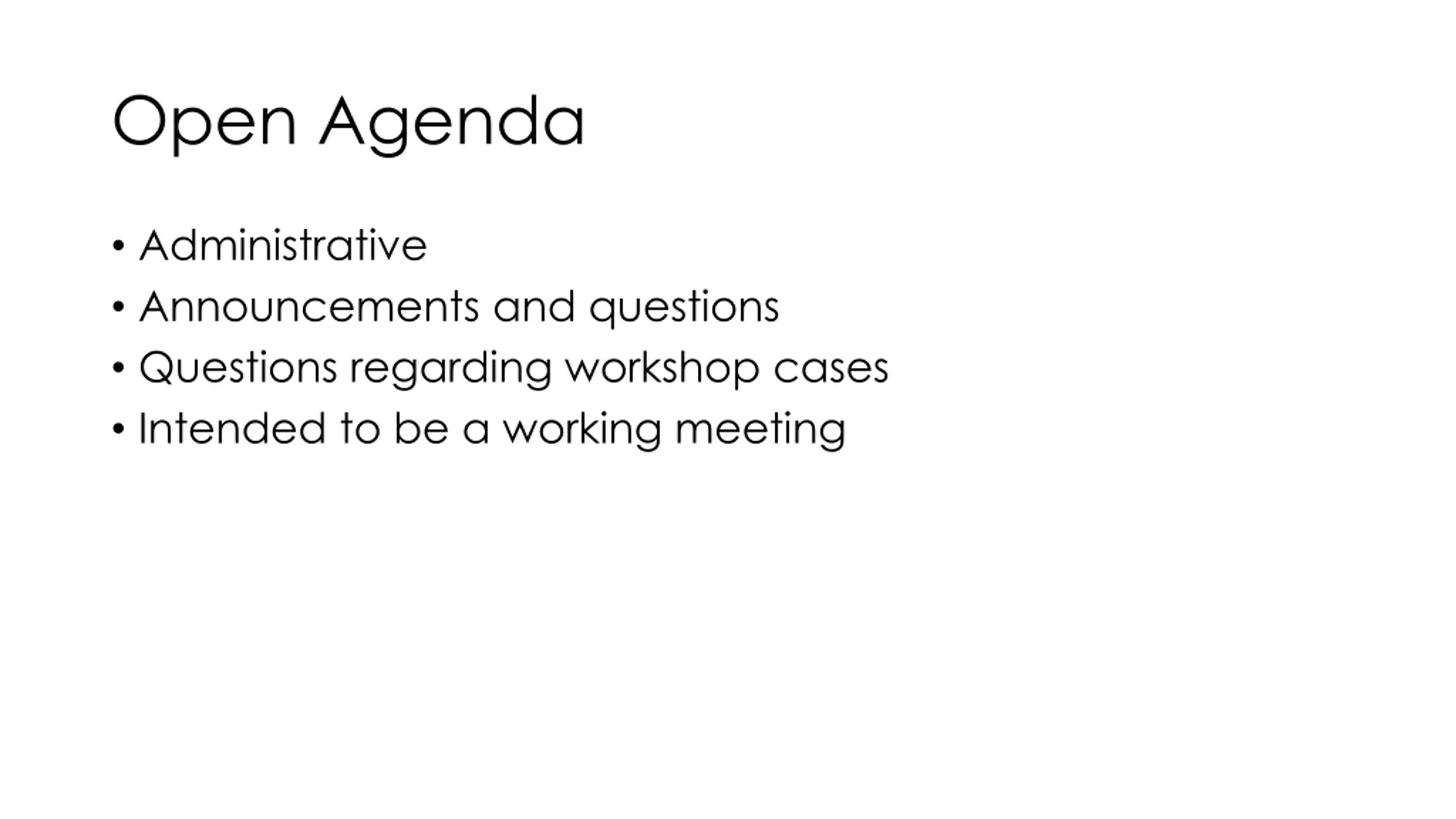

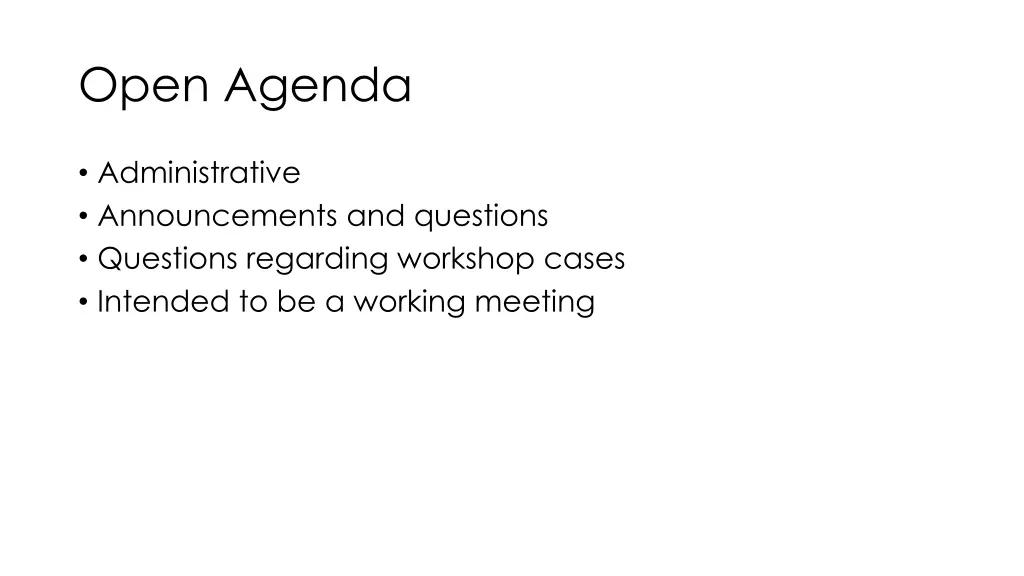

Open Agenda Administrative Announcements and questions Questions regarding workshop cases Intended to be a working meeting

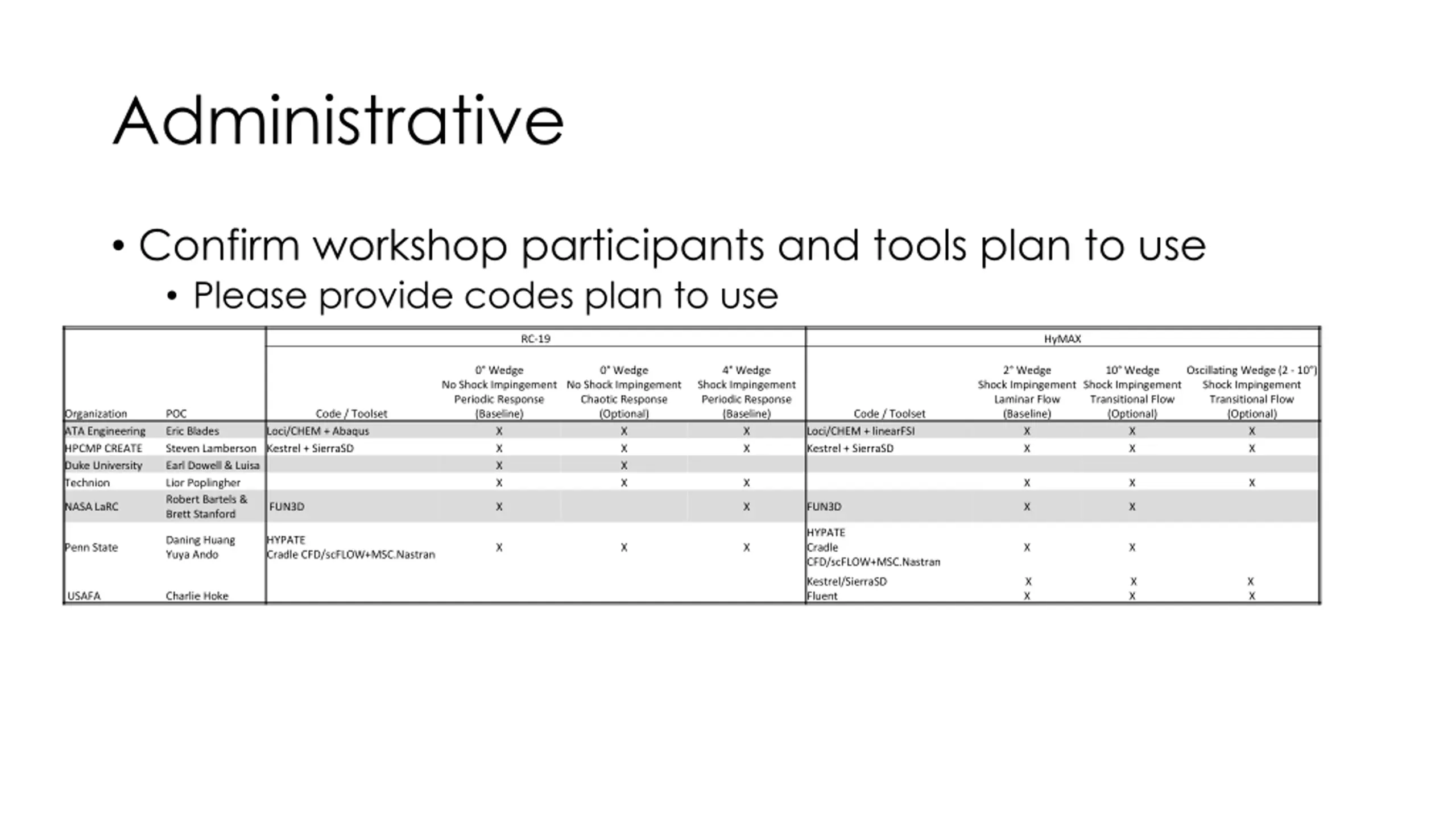

Administrative Confirm workshop participants and tools plan to use Please provide codes plan to use RC-19 HyMAX 0 Wedge 0 Wedge 4 Wedge 2 Wedge 10 Wedge Shock Impingement Transitional Flow (Optional) X X Oscillating Wedge (2 - 10 ) Shock Impingement Transitional Flow (Optional) X X No Shock Impingement Periodic Response (Baseline) X X X X No Shock Impingement Chaotic Response (Optional) X X X X Shock Impingement Periodic Response (Baseline) X X Shock Impingement Laminar Flow (Baseline) X X Organization ATA Engineering HPCMP CREATE Duke University Technion POC Eric Blades Steven Lamberson Kestrel + SierraSD Earl Dowell & Luisa Lior Poplingher Robert Bartels & Brett Stanford Code / Toolset Code / Toolset Loci/CHEM + Abaqus Loci/CHEM + linearFSI Kestrel + SierraSD X X X X NASA LaRC FUN3D X X FUN3D X X HYPATE Cradle CFD/scFLOW+MSC.Nastran Daning Huang Yuya Ando HYPATE Cradle CFD/scFLOW+MSC.Nastran Penn State X X X X X Kestrel/SierraSD Fluent X X X X X X USAFA Charlie Hoke

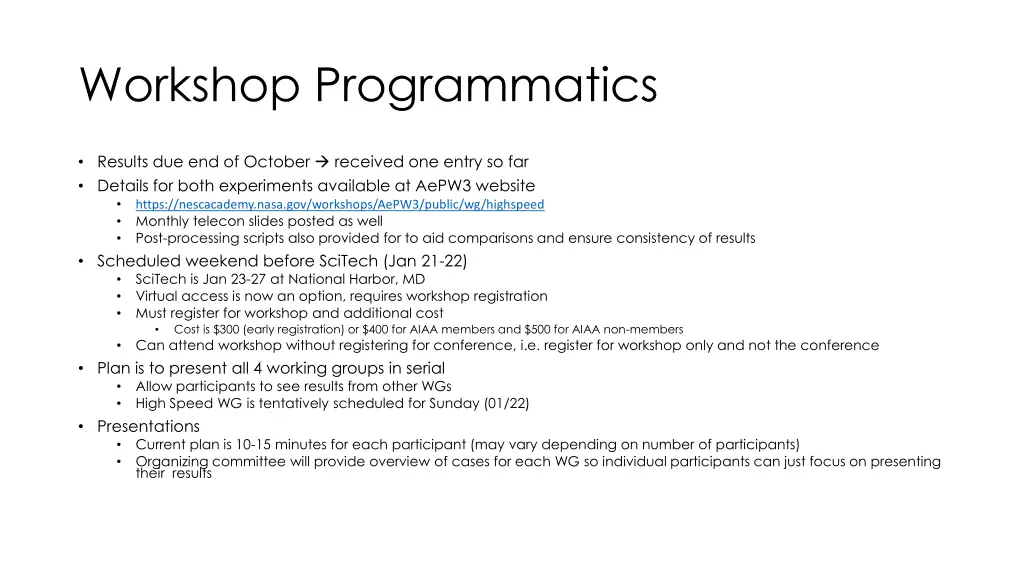

Workshop Programmatics Results due end of October received one entry so far Details for both experiments available at AePW3 website https://nescacademy.nasa.gov/workshops/AePW3/public/wg/highspeed Monthly telecon slides posted as well Post-processing scripts also provided for to aid comparisons and ensure consistency of results Scheduled weekend before SciTech (Jan 21-22) SciTech is Jan 23-27 at National Harbor, MD Virtual access is now an option, requires workshop registration Must register for workshop and additional cost Cost is $300 (early registration) or $400 for AIAA members and $500 for AIAA non-members Can attend workshop without registering for conference, i.e. register for workshop only and not the conference Plan is to present all 4 working groups in serial Allow participants to see results from other WGs High Speed WG is tentatively scheduled for Sunday (01/22) Presentations Current plan is 10-15 minutes for each participant (may vary depending on number of participants) Organizing committee will provide overview of cases for each WG so individual participants can just focus on presenting their results

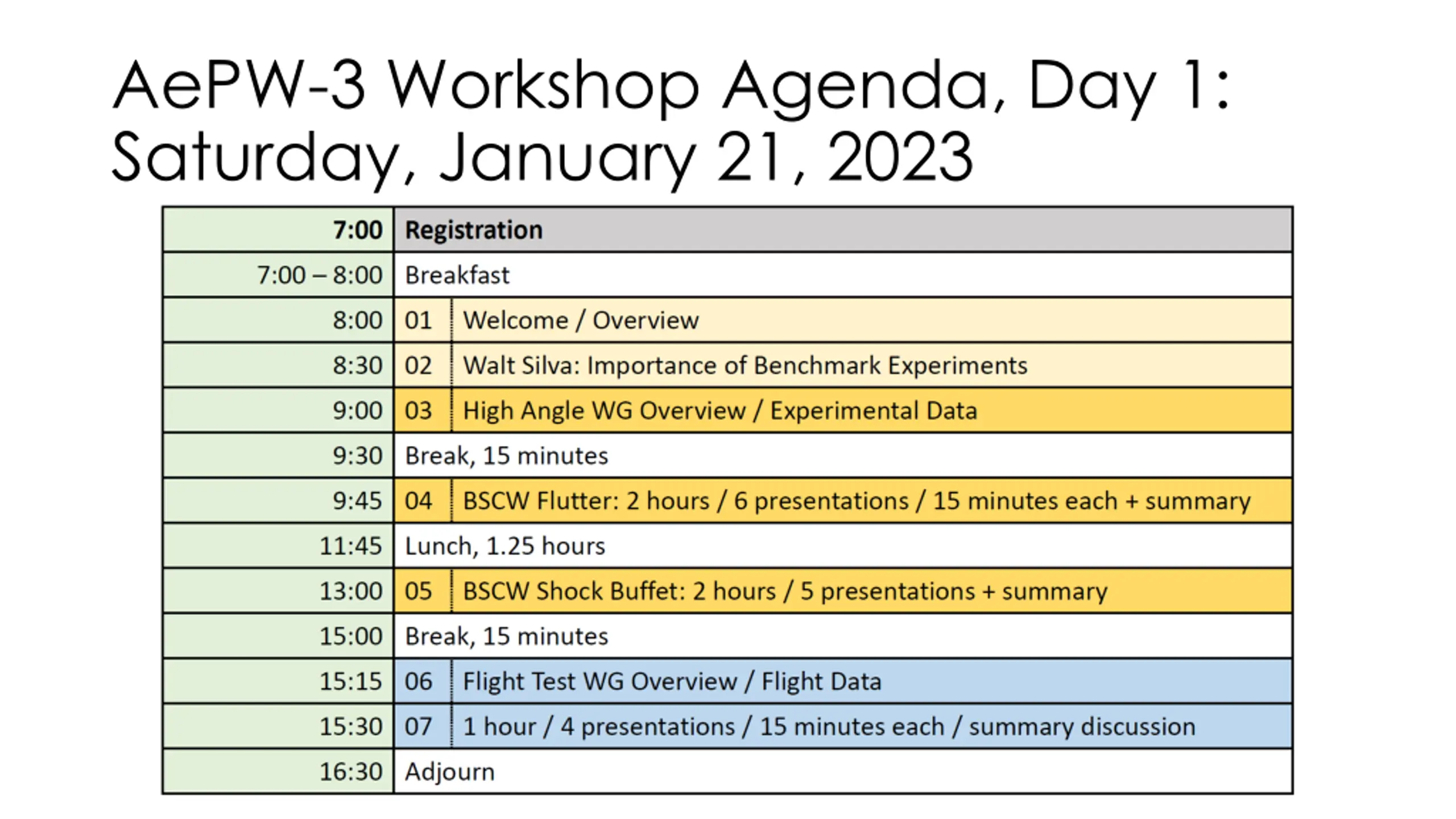

AePW-3 Workshop Agenda, Day 1: Saturday, January 21, 2023

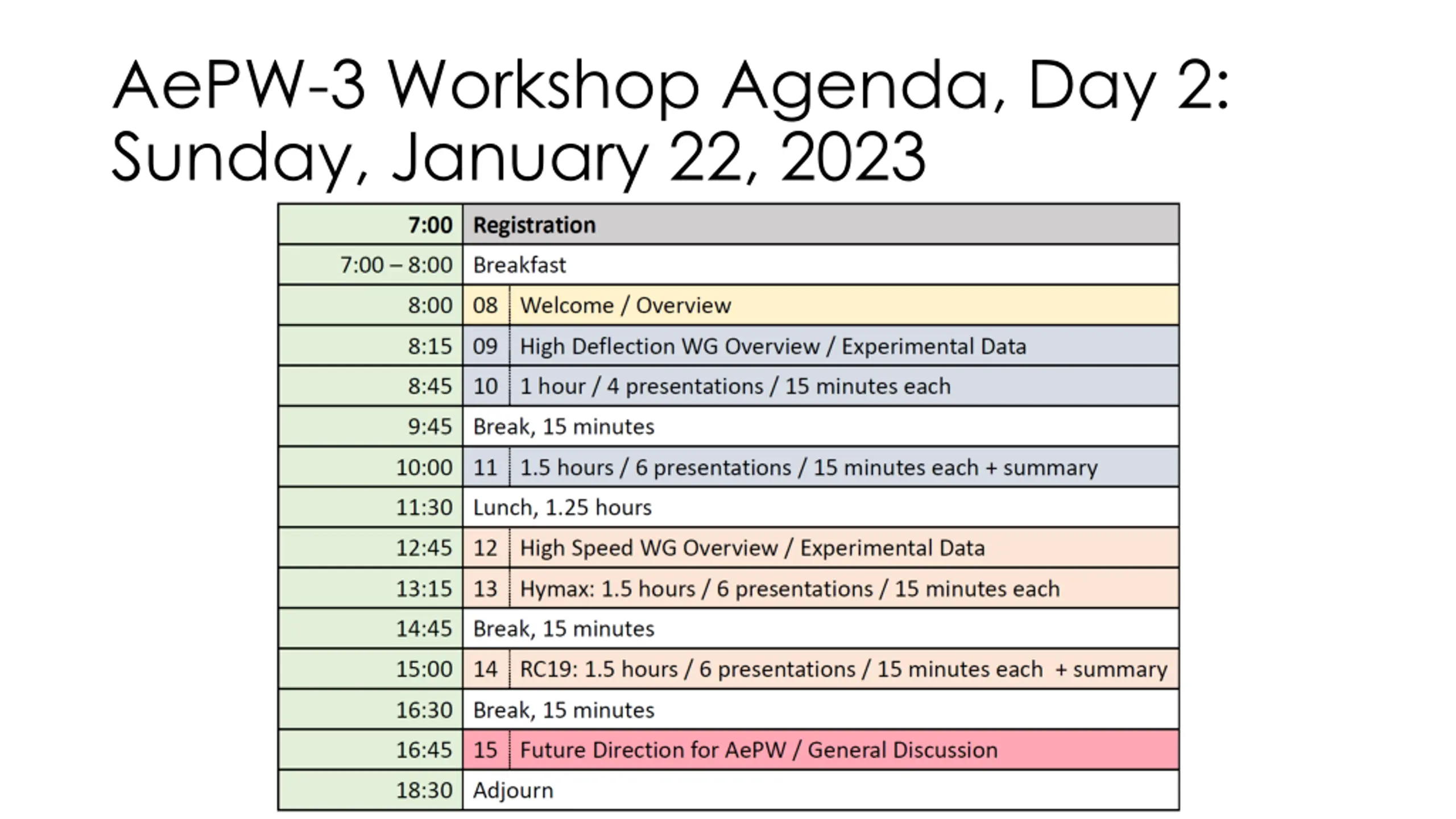

AePW-3 Workshop Agenda, Day 2: Sunday, January 22, 2023
Data Packages HyMAX and RC-19 post-processing data packages are available on the AePW3 web site

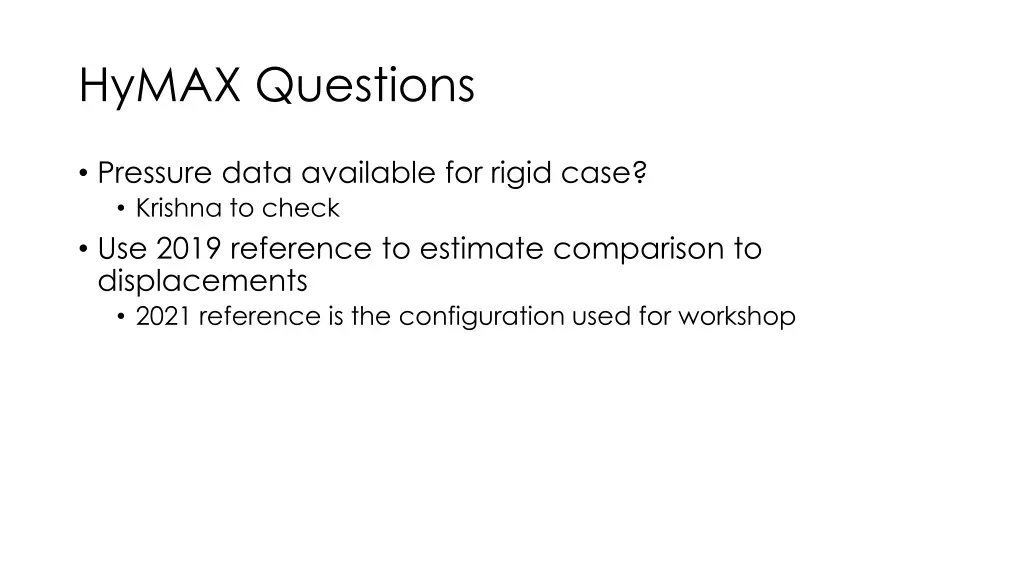

HyMAX Questions Pressure data available for rigid case? Krishna to check Use 2019 reference to estimate comparison to displacements 2021 reference is the configuration used for workshop

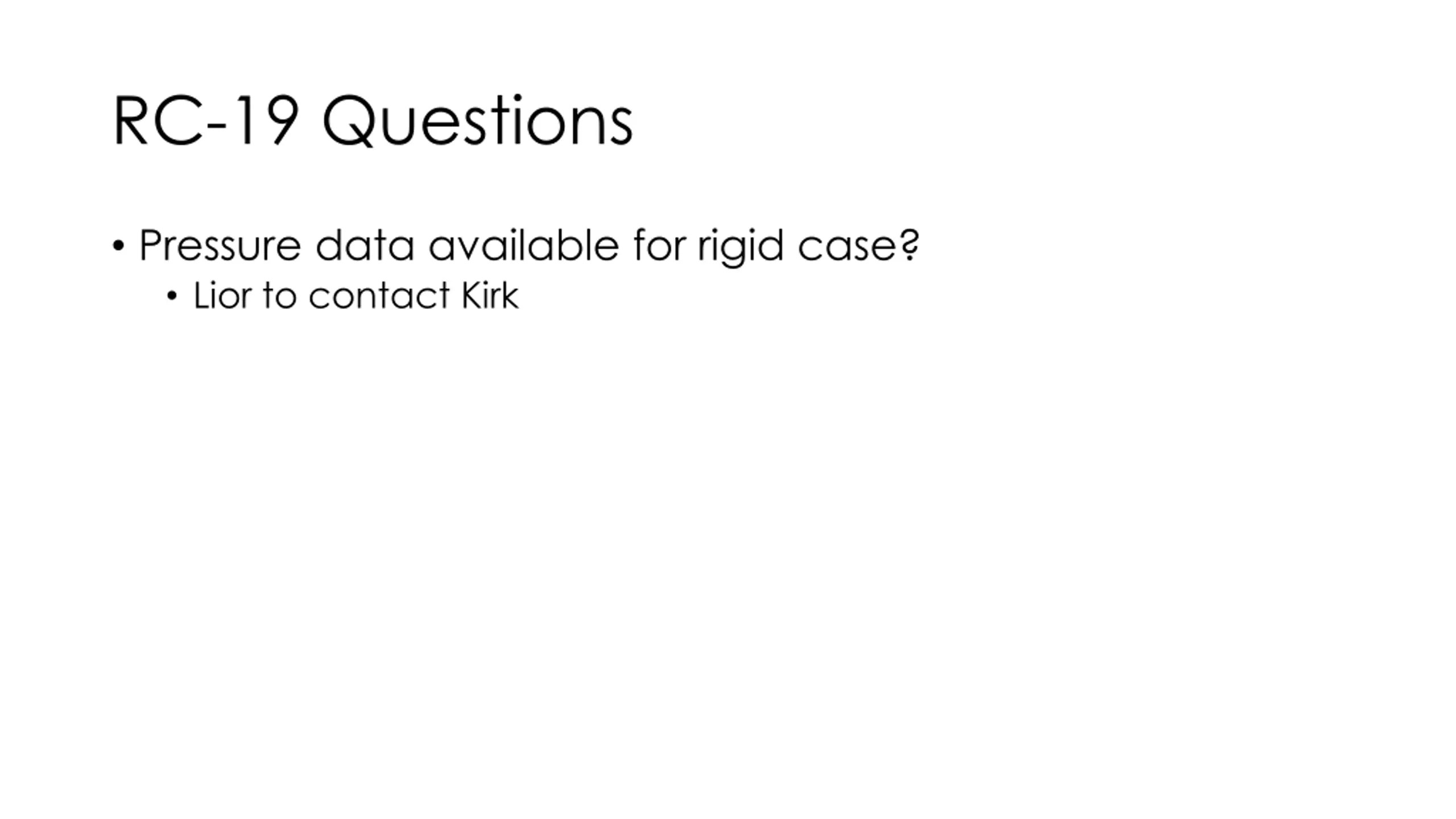

RC-19 Questions Pressure data available for rigid case? Lior to contact Kirk
Questions and Comments
