AGL CES #3 Demo Concept: Lightweight Easy Integration
This demo, led by Tanikawa-san from Panasonic, targets instrument cluster hardware and software with a focus on lightweight design, low SoC priority, easy integration, and container-based In-Vehicle Infotainment (IVI) and cluster apps running on one SoC. The concept emphasizes graphics and audio sharing through container technology, making it effortless to install HTML5 apps and manage system resources. Support for AGL OSS license tools like OpenChain AutomotiveWG project, meta-spdxscanner, SPDX Lite, SW360, and FOSSology enhances collaboration. Explore the evolution of AGL demos from the past to the latest AGL CES Demo 2020.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

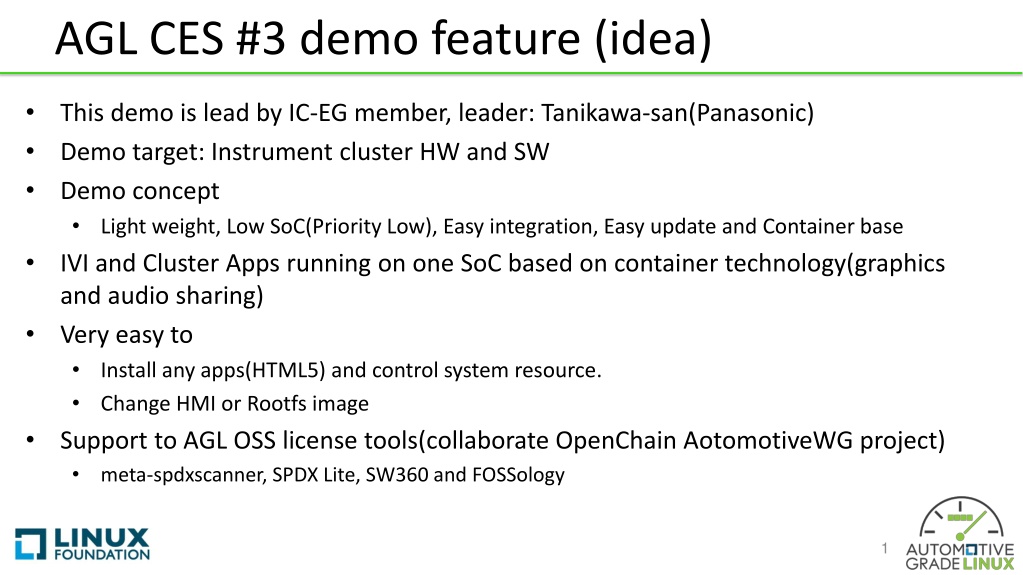

AGL CES #3 demo feature (idea) This demo is lead by IC-EG member, leader: Tanikawa-san(Panasonic) Demo target: Instrument cluster HW and SW Demo concept Light weight, Low SoC(Priority Low), Easy integration, Easy update and Container base IVI and Cluster Apps running on one SoC based on container technology(graphics and audio sharing) Very easy to Install any apps(HTML5) and control system resource. Change HMI or Rootfs image Support to AGL OSS license tools(collaborate OpenChain AotomotiveWG project) meta-spdxscanner, SPDX Lite, SW360 and FOSSology 1
AGL CES2020 DEMO 3rd AGL Demo

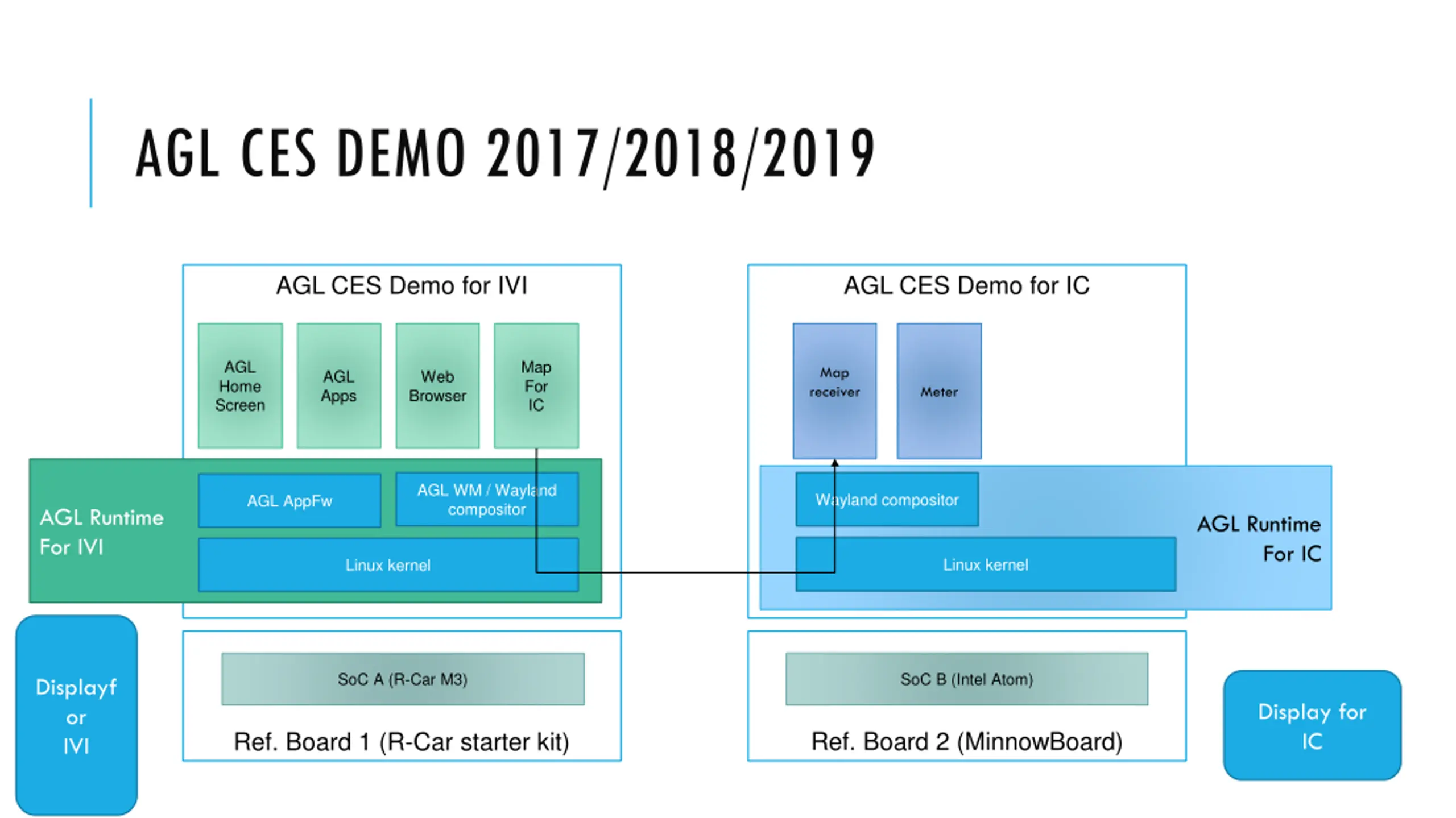

AGL CES DEMO 2017/2018/2019 AGL CES Demo for IVI AGL CES Demo for IC AGL Home Screen Map For IC Map receiver AGL Apps Web Browser Meter AGL WM / Wayland compositor Wayland compositor AGL AppFw AGL Runtime For IVI AGL Runtime For IC Linux kernel Linux kernel SoC A (R-Car M3) SoC B (Intel Atom) Displayf or IVI Display for IC Ref. Board 2 (MinnowBoard) Ref. Board 1 (R-Car starter kit)

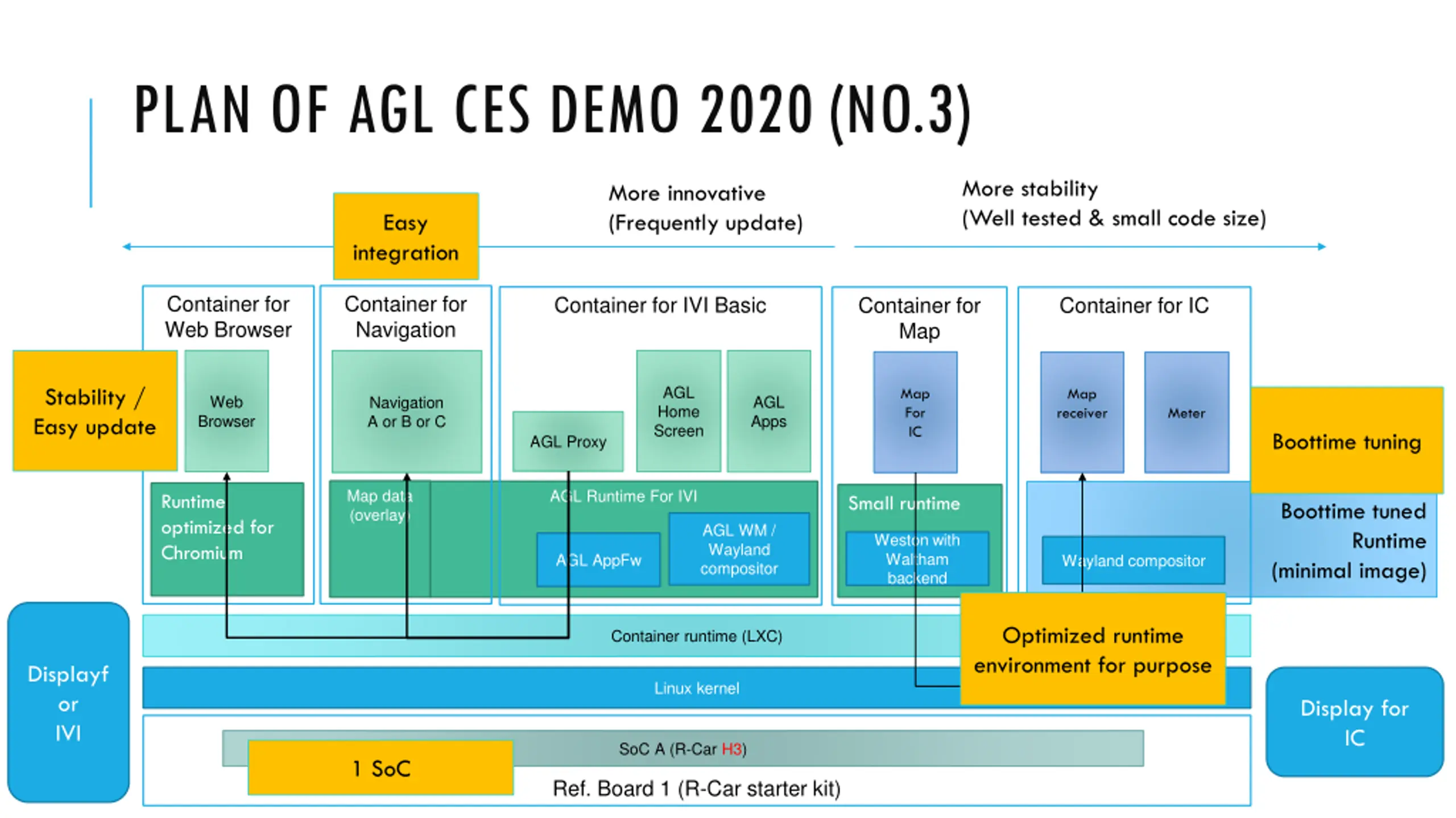

PLAN OF AGL CES DEMO 2020 (NO.3) More stability (Well tested & small code size) More innovative (Frequently update) Easy integration Container for Navigation Container for Web Browser Container for IVI Basic Container for Map Container for IC AGL Home Screen Stability / Easy update Map For IC Map receiver Web Browser AGL Apps Navigation A or B or C Meter Boottime tuning AGL Proxy Map data (overlay) AGL Runtime For IVI Runtime optimized for Chromium Small runtime Boottime tuned Runtime (minimal image) AGL WM / Wayland compositor Weston with Waltham backend AGL AppFw Wayland compositor Optimized runtime environment for purpose Container runtime (LXC) Displayf or IVI Linux kernel Display for IC SoC A (R-Car H3) 1 SoC Ref. Board 1 (R-Car starter kit)
