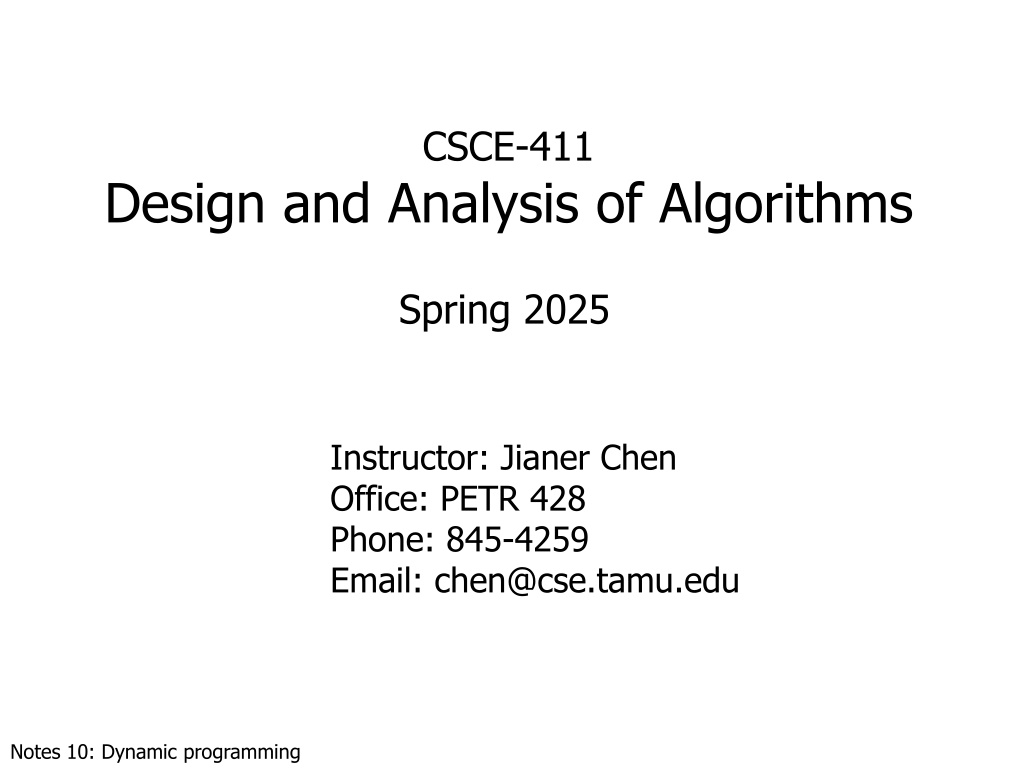

  1. CSCE-411 Design and Analysis of Algorithms Spring 2025 Instructor: Jianer Chen Office: PETR 428 Phone: 845-4259 Email: chen@cse.tamu.edu Notes 10: Dynamic programming

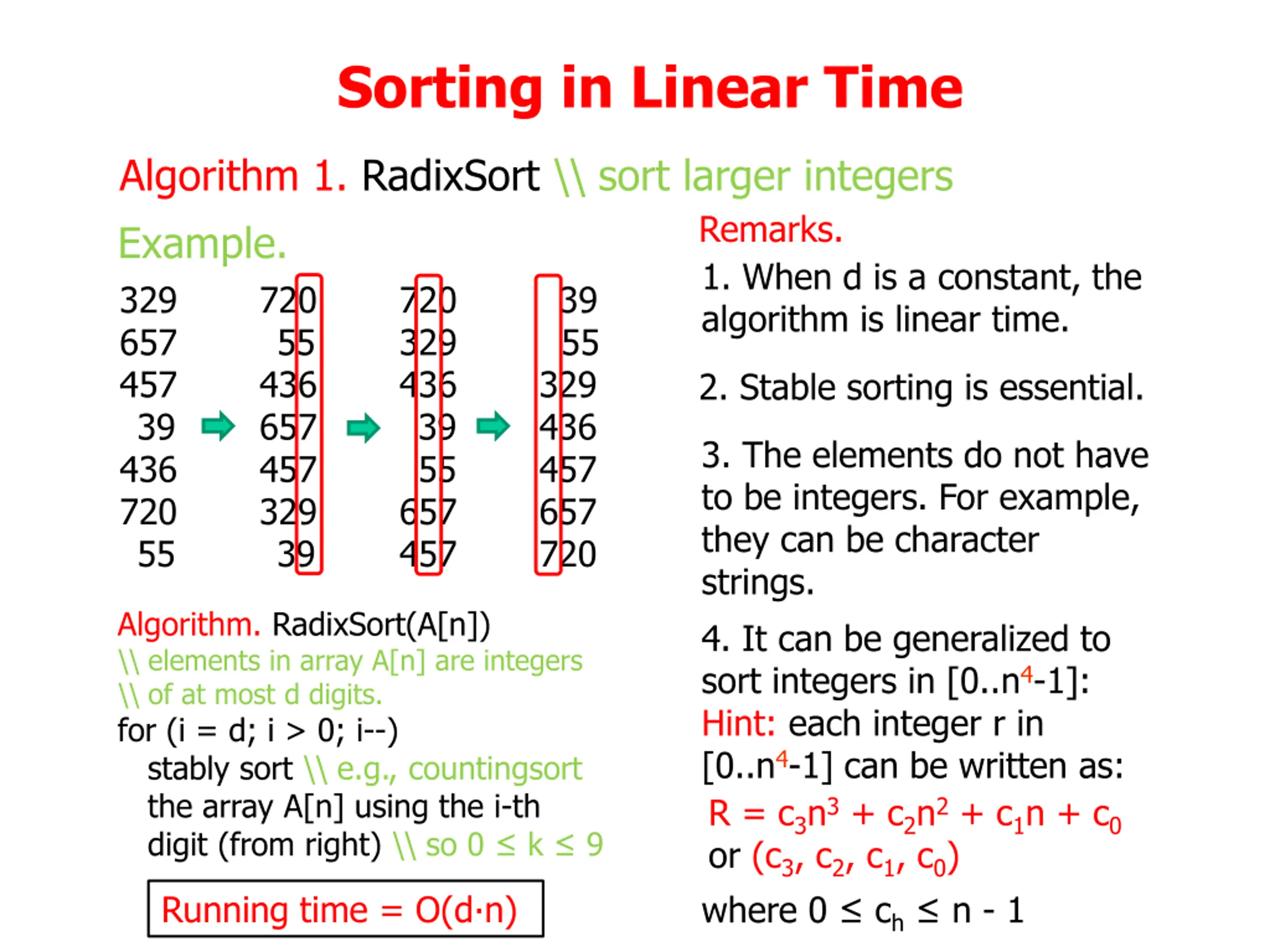

  2. Sorting in Linear Time Algorithm 1. RadixSort \\ sort larger integers Remarks. 1. When d is a constant, the algorithm is linear time. Example. 329 657 457 39 436 720 55 720 55 436 657 457 329 39 720 329 436 39 55 657 457 39 55 329 436 457 657 720 2. Stable sorting is essential. 3. The elements do not have to be integers. For example, they can be character strings. 4. It can be generalized to sort integers in [0..n4-1]: Hint: each integer r in [0..n4-1] can be written as: R = c3n3 + c2n2 + c1n + c0 or (c3, c2, c1, c0) where 0 ch n - 1 Algorithm. RadixSort(A[n]) \\ elements in array A[n] are integers \\ of at most d digits. for (i = d; i > 0; i--) stably sort \\ e.g., countingsort the array A[n] using the i-th digit (from right) \\ so 0 k 9 Running time = O(d n)

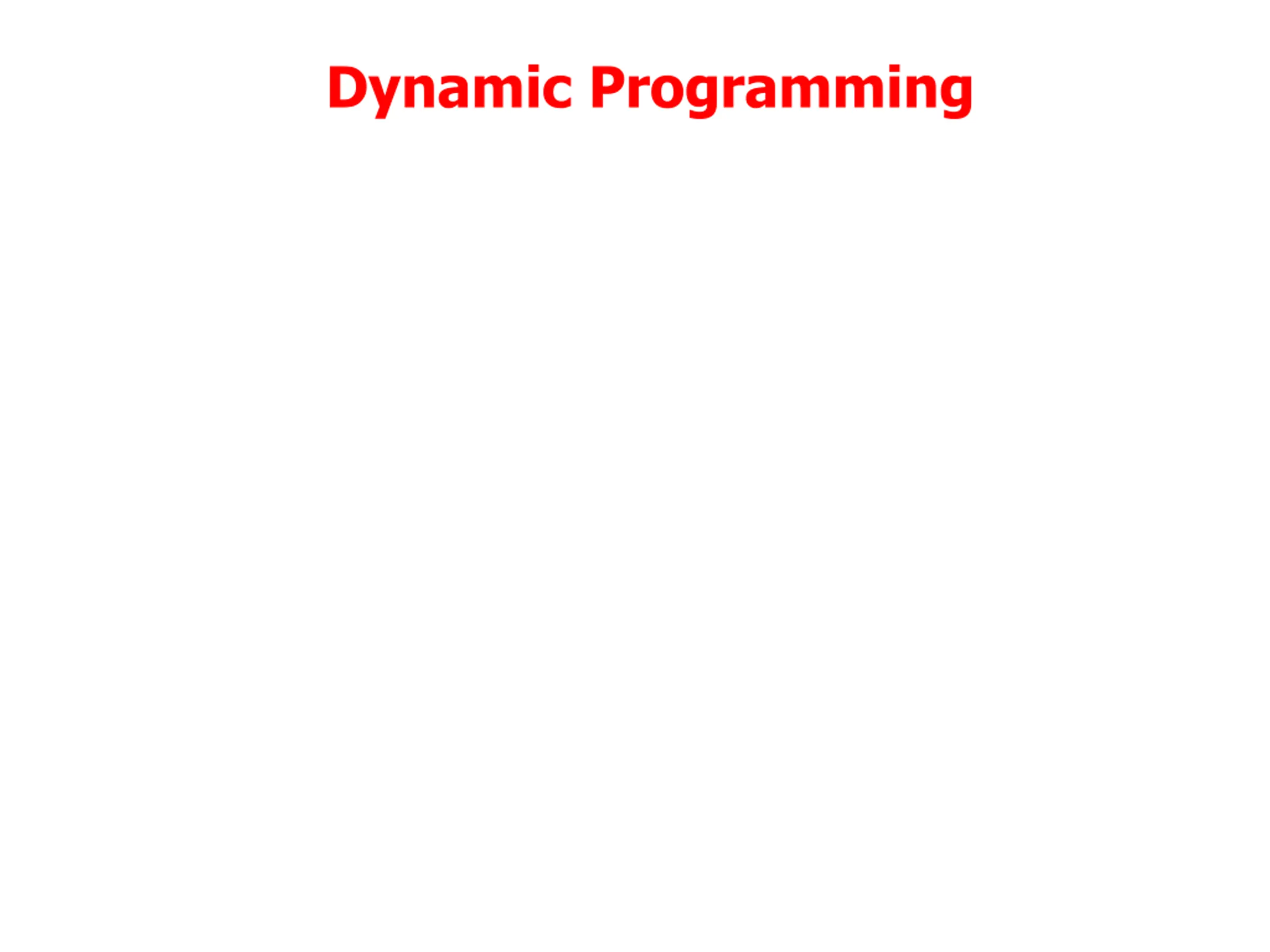

  3. Dynamic Programming

  4. Dynamic Programming Longest Common Subsequence

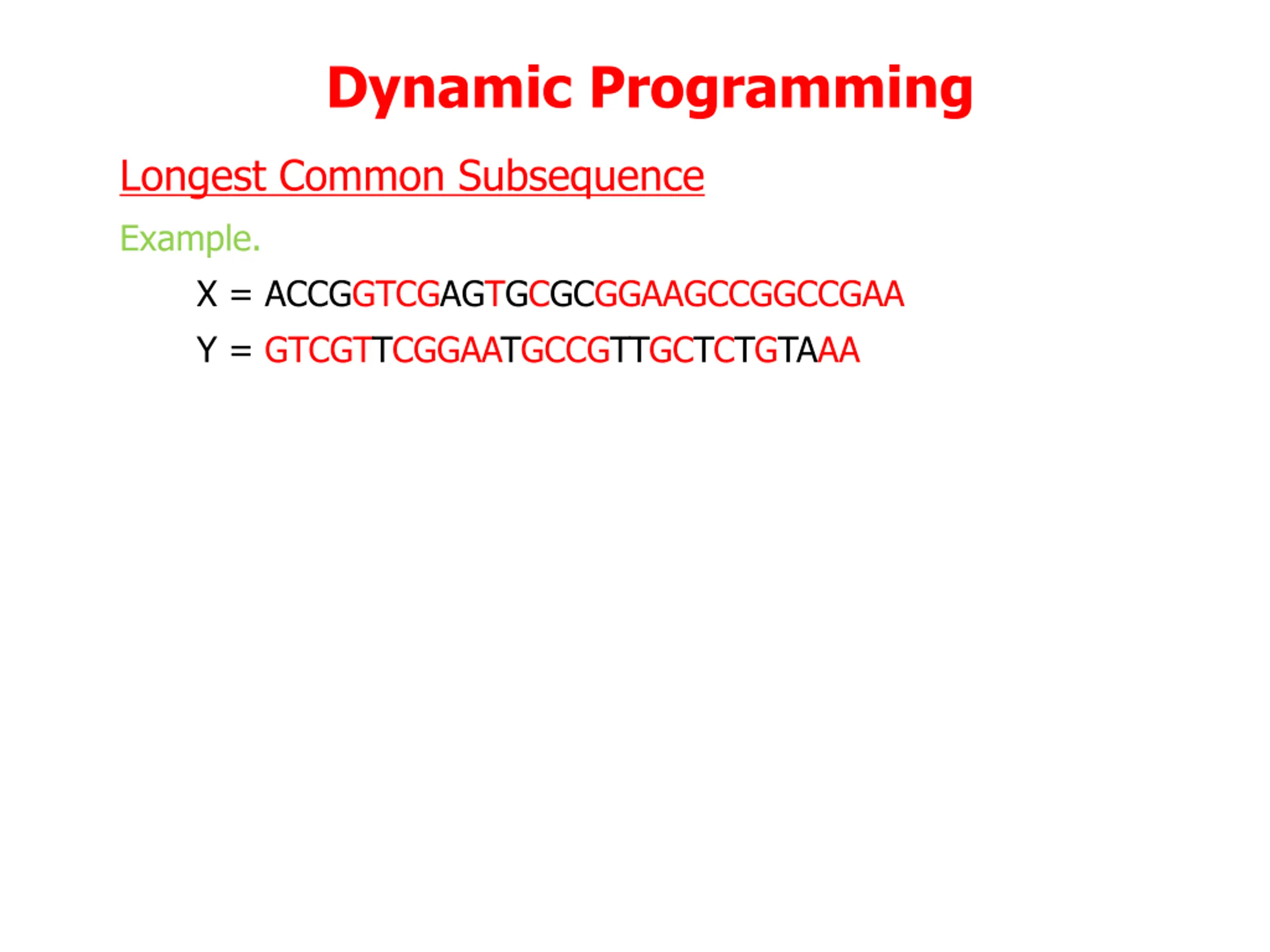

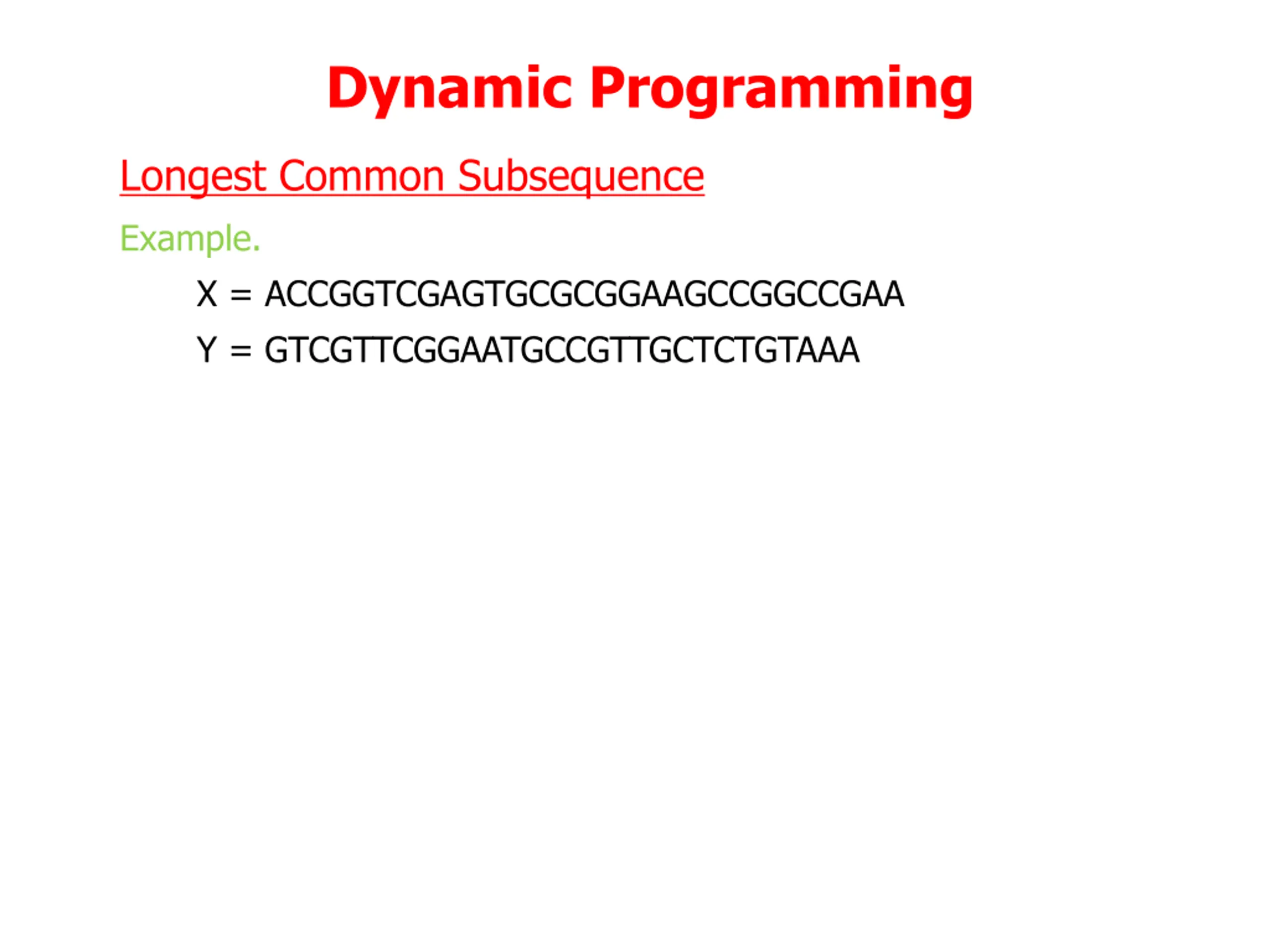

  5. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA

  6. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA

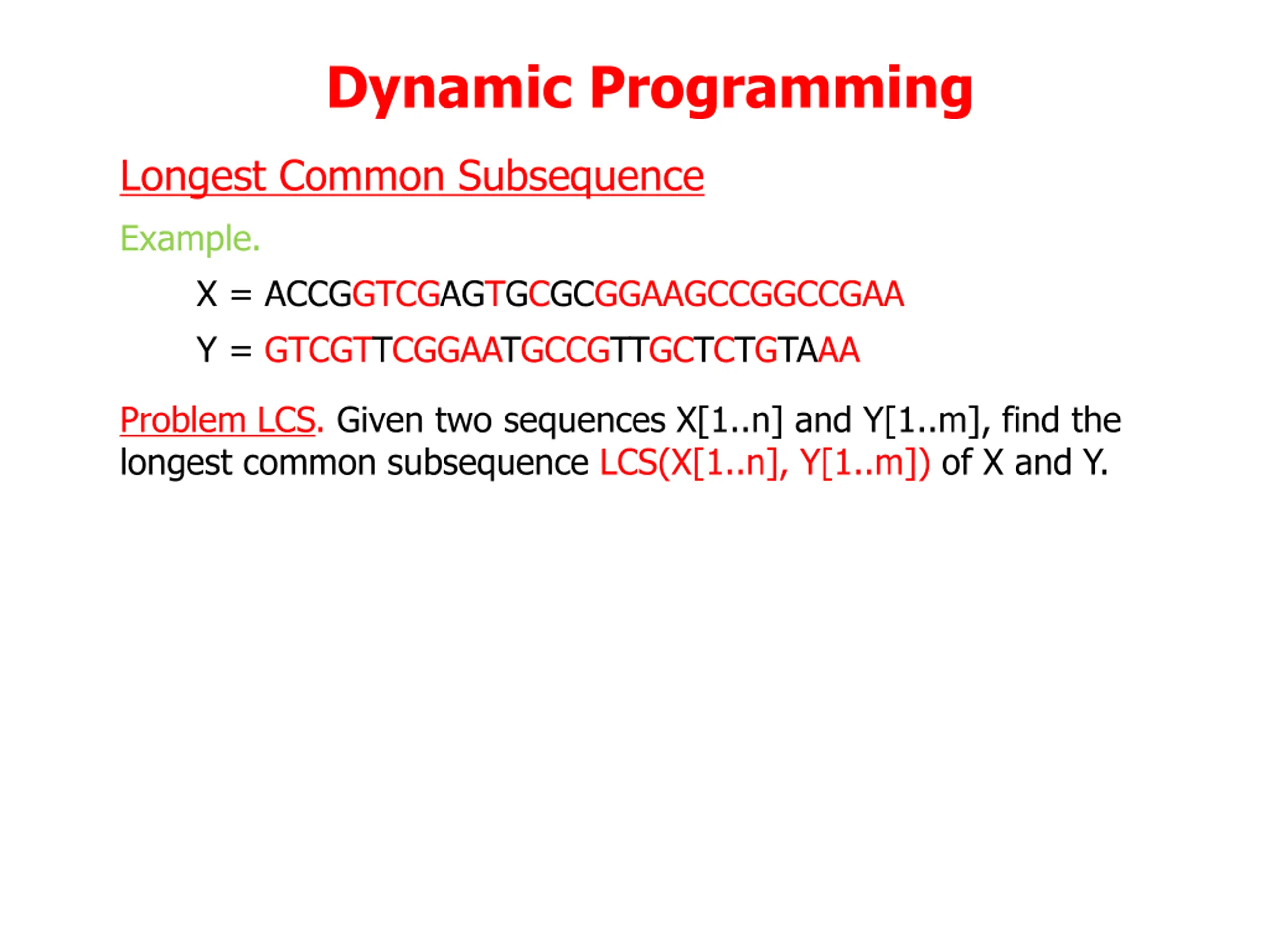

  7. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y.

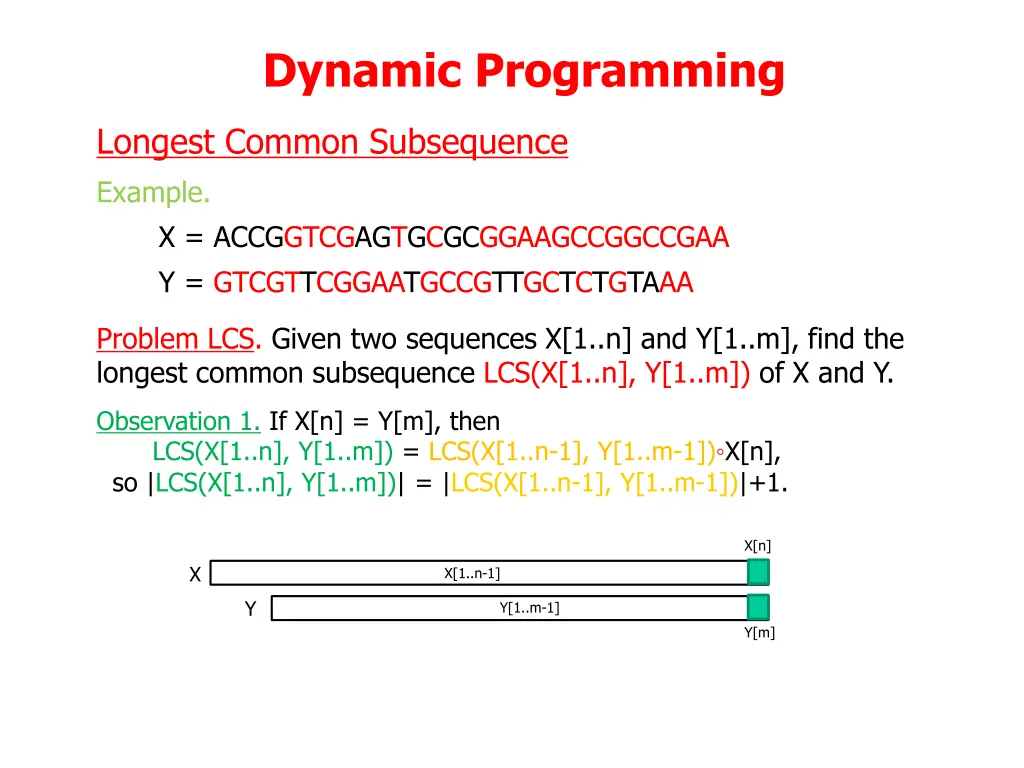

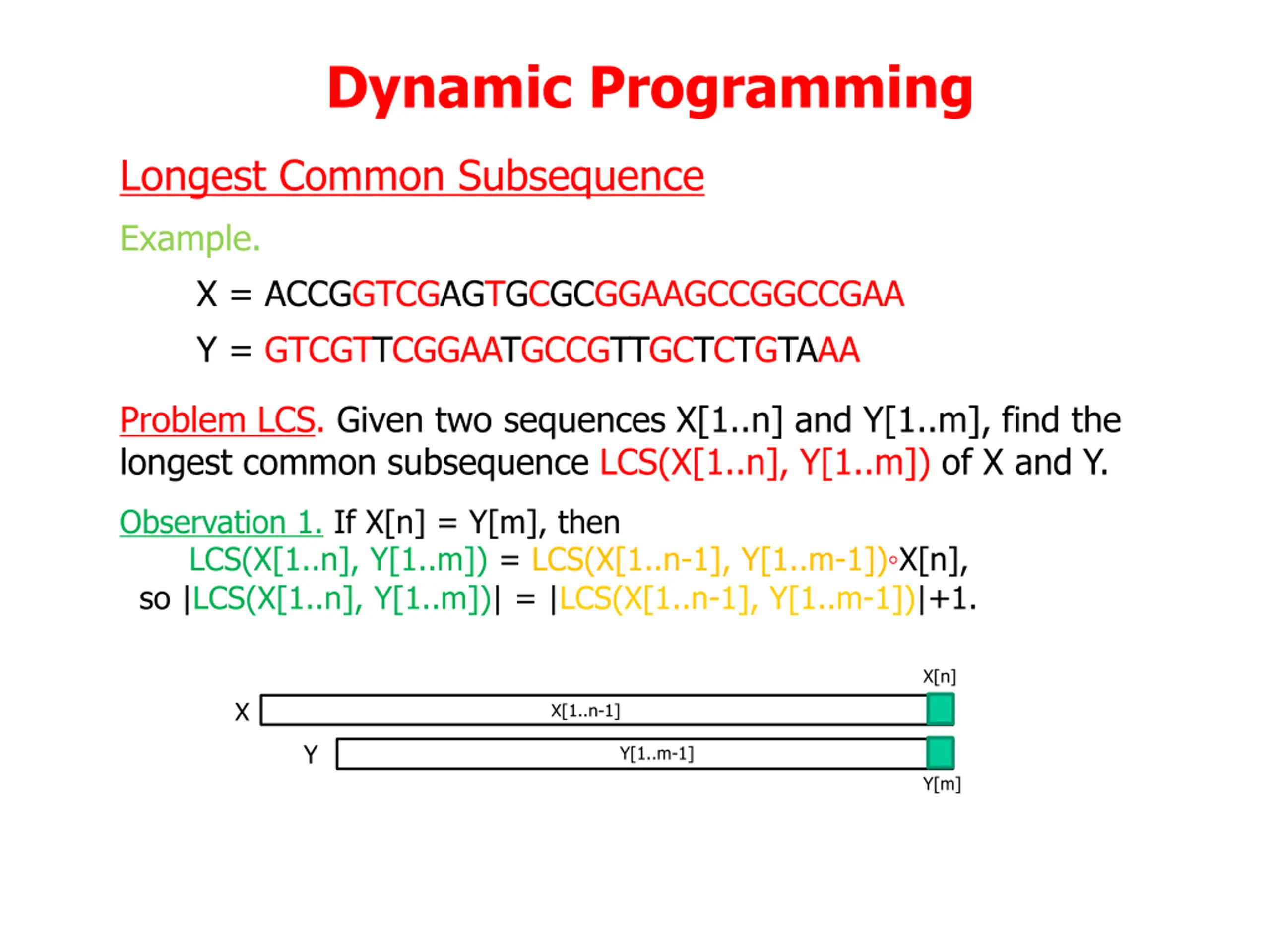

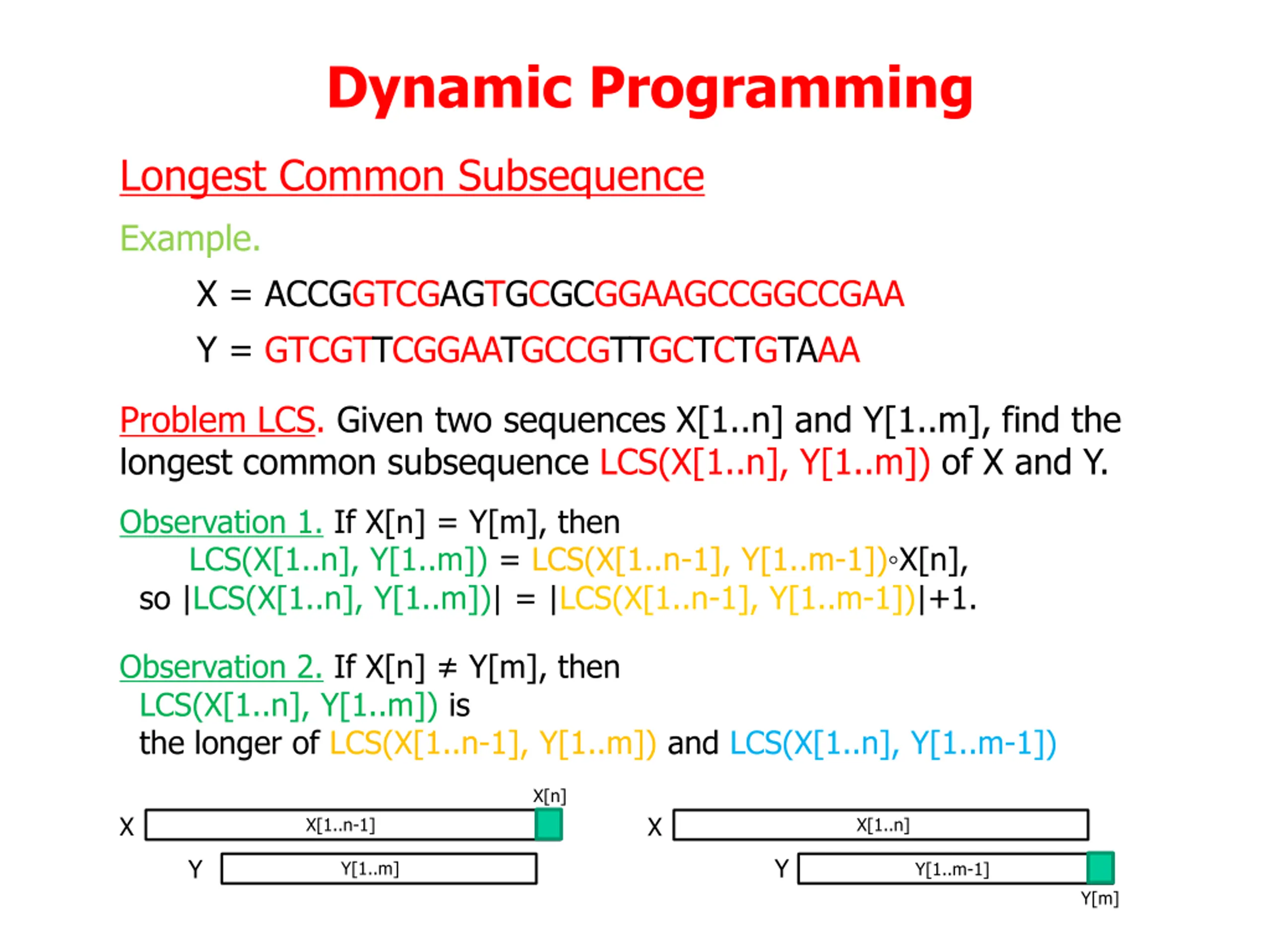

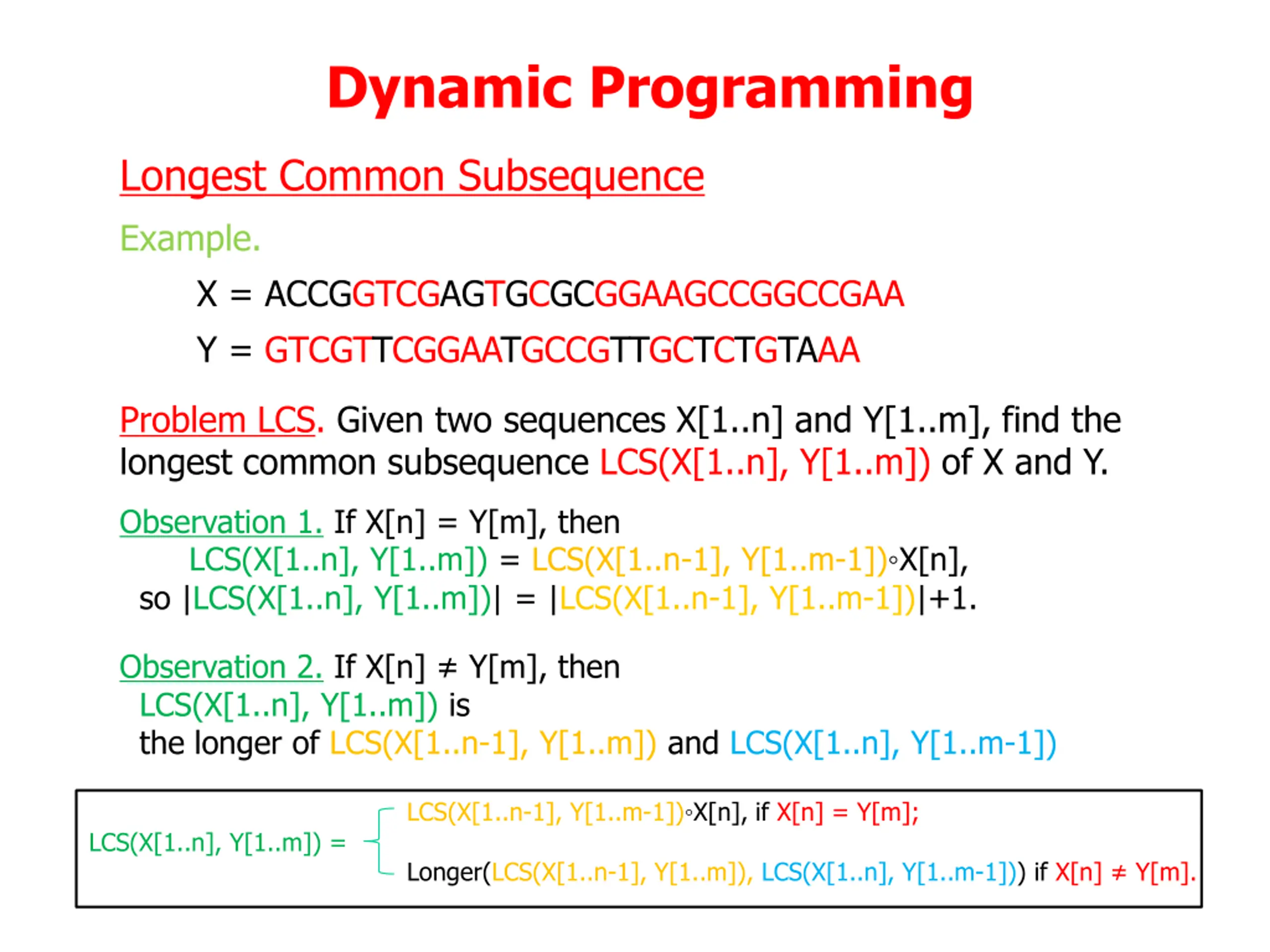

  8. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. Observation 1. If X[n] = Y[m], then LCS(X[1..n], Y[1..m]) = LCS(X[1..n-1], Y[1..m-1]) X[n], so |LCS(X[1..n], Y[1..m])| = |LCS(X[1..n-1], Y[1..m-1])|+1. X[n] X X[1..n-1] Y Y[1..m-1] Y[m]

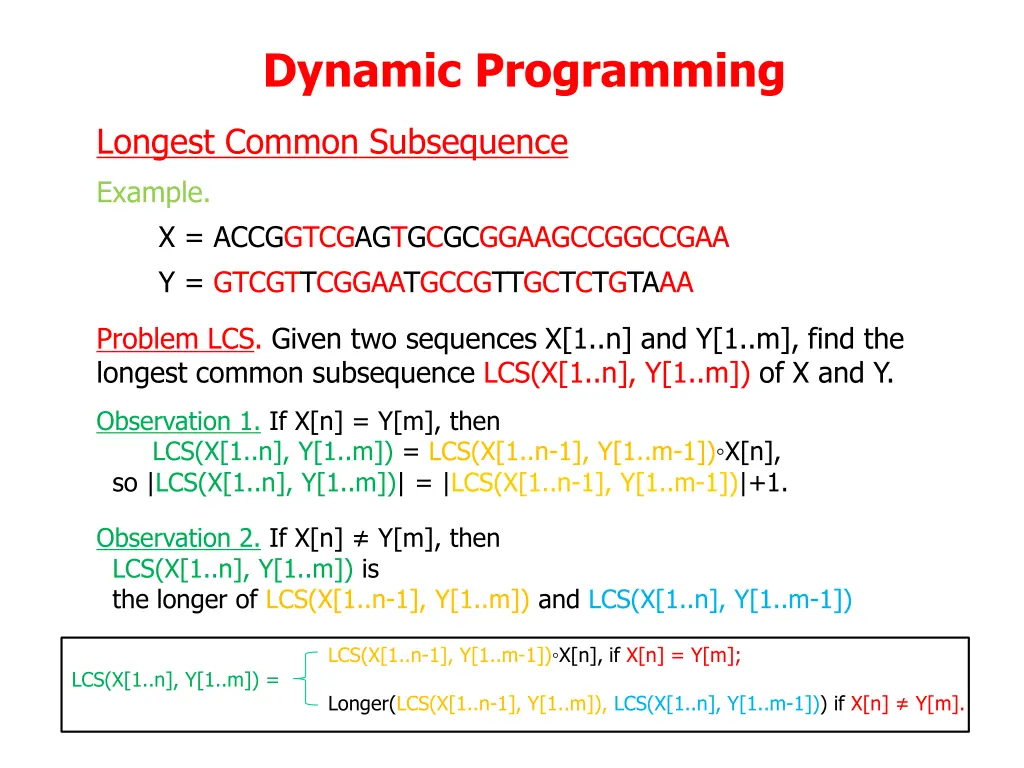

  9. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. Observation 1. If X[n] = Y[m], then LCS(X[1..n], Y[1..m]) = LCS(X[1..n-1], Y[1..m-1]) X[n], so |LCS(X[1..n], Y[1..m])| = |LCS(X[1..n-1], Y[1..m-1])|+1. Observation 2. If X[n] Y[m], then LCS(X[1..n], Y[1..m]) is the longer of LCS(X[1..n-1], Y[1..m]) and LCS(X[1..n], Y[1..m-1]) X[n] X X X[1..n-1] X[1..n] Y Y Y[1..m] Y[1..m-1] Y[m]

  10. Dynamic Programming Longest Common Subsequence Example. X = ACCGGTCGAGTGCGCGGAAGCCGGCCGAA Y = GTCGTTCGGAATGCCGTTGCTCTGTAAA Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. Observation 1. If X[n] = Y[m], then LCS(X[1..n], Y[1..m]) = LCS(X[1..n-1], Y[1..m-1]) X[n], so |LCS(X[1..n], Y[1..m])| = |LCS(X[1..n-1], Y[1..m-1])|+1. Observation 2. If X[n] Y[m], then LCS(X[1..n], Y[1..m]) is the longer of LCS(X[1..n-1], Y[1..m]) and LCS(X[1..n], Y[1..m-1]) LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m].

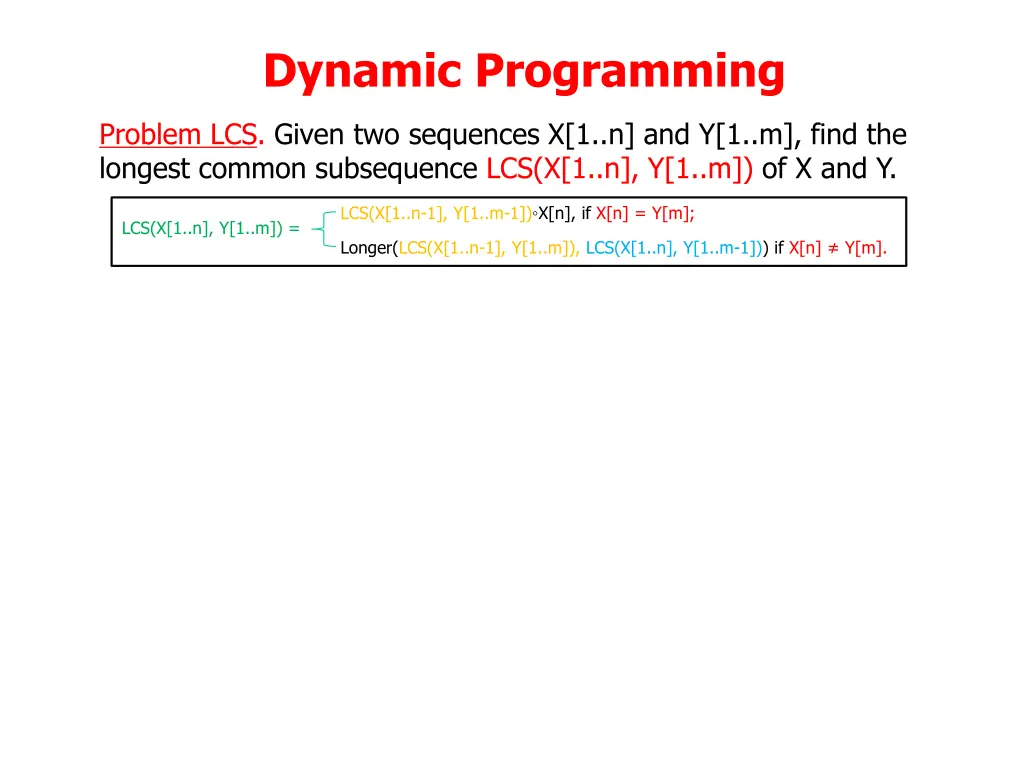

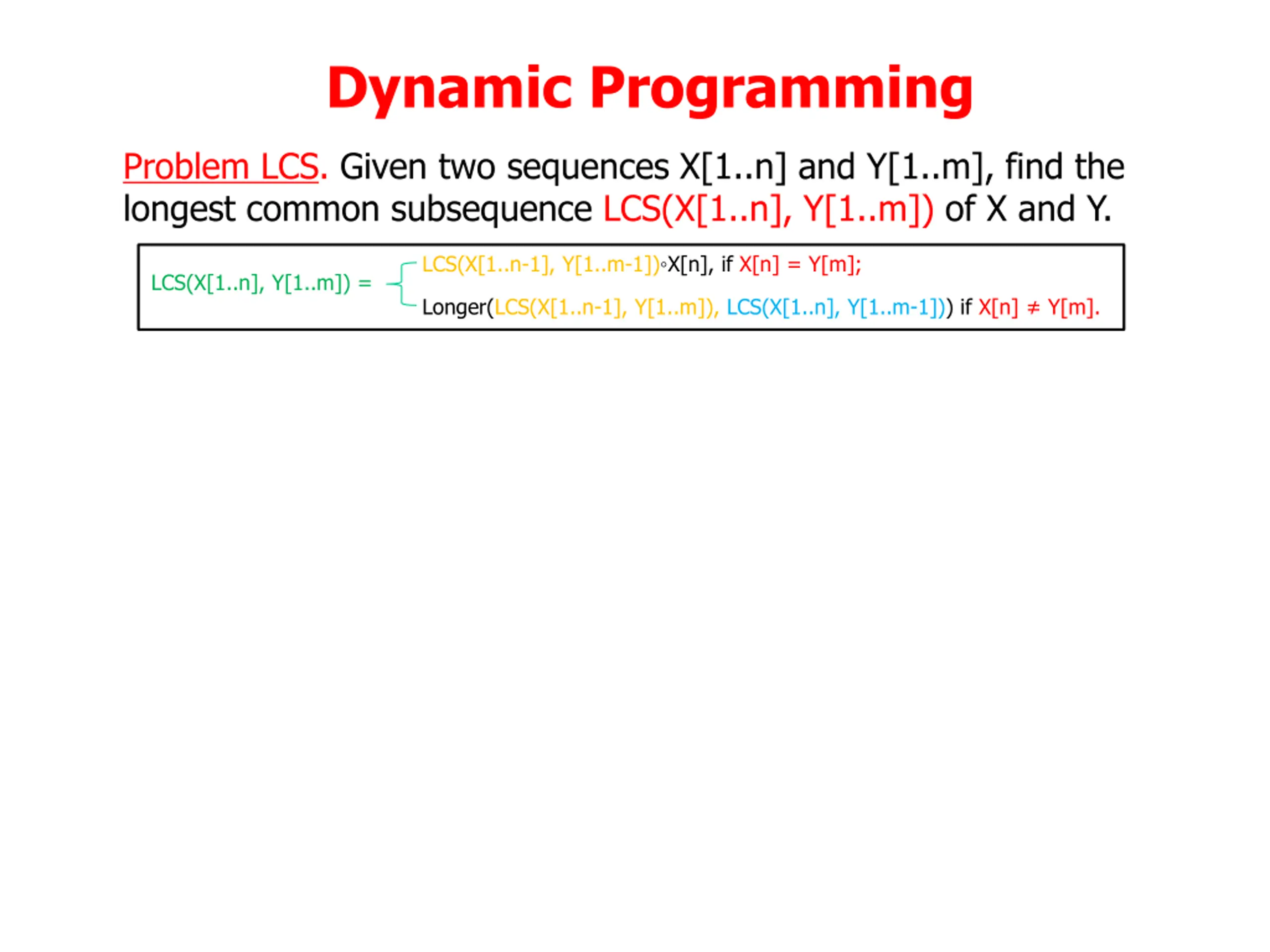

  11. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m].

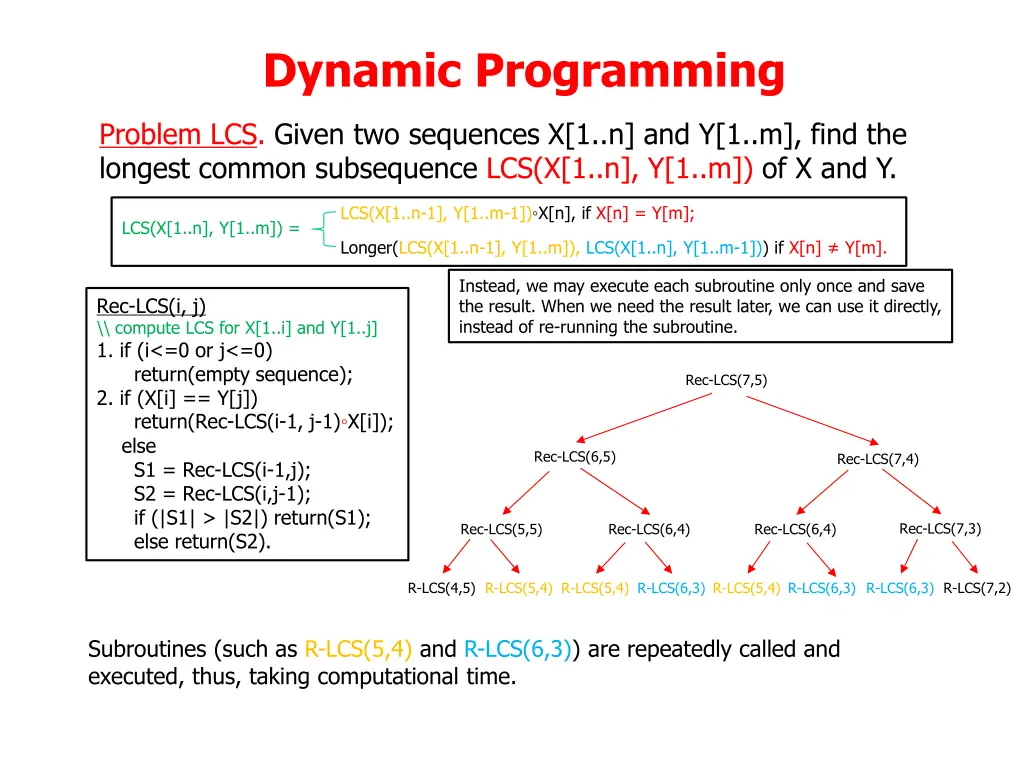

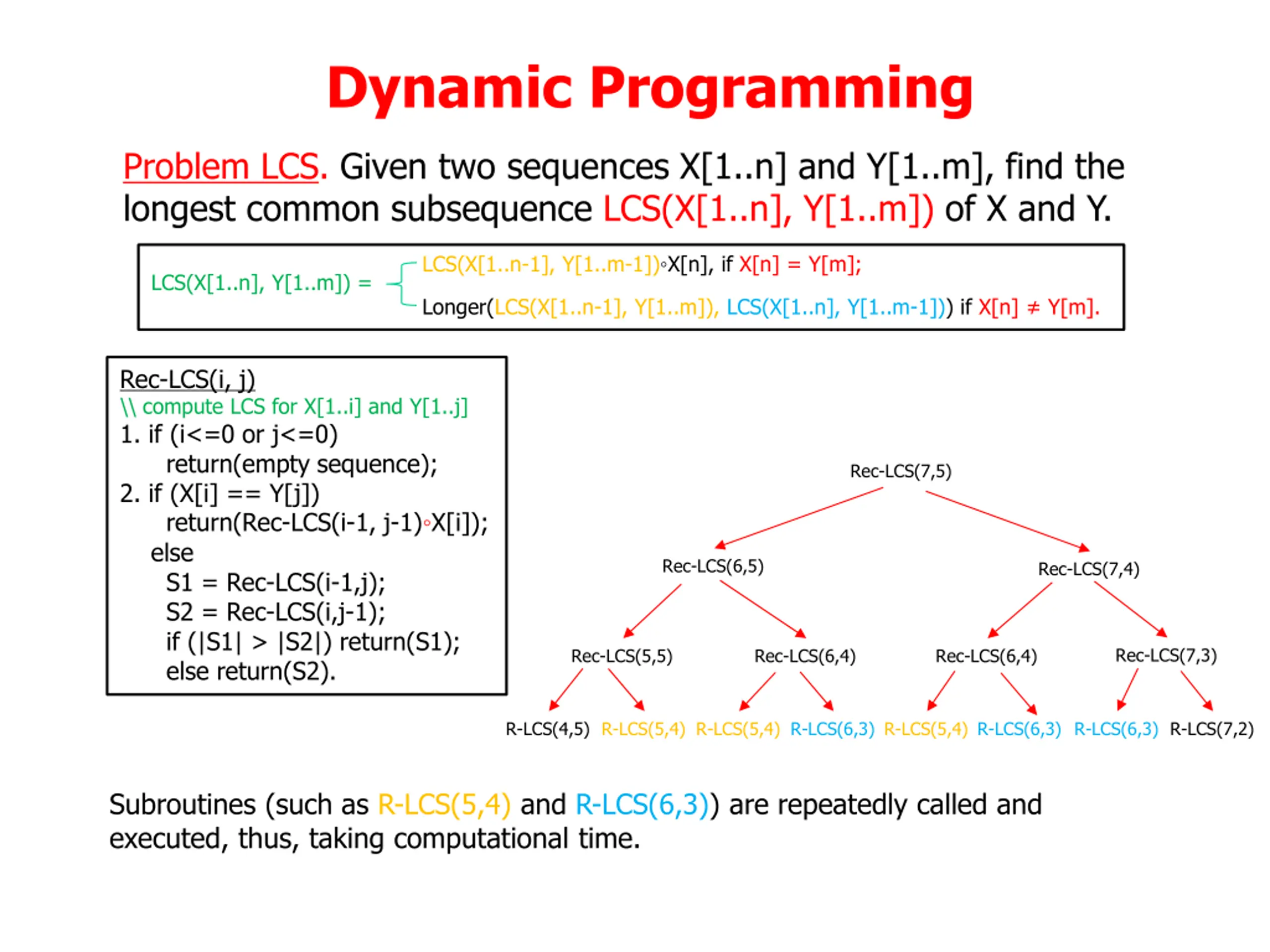

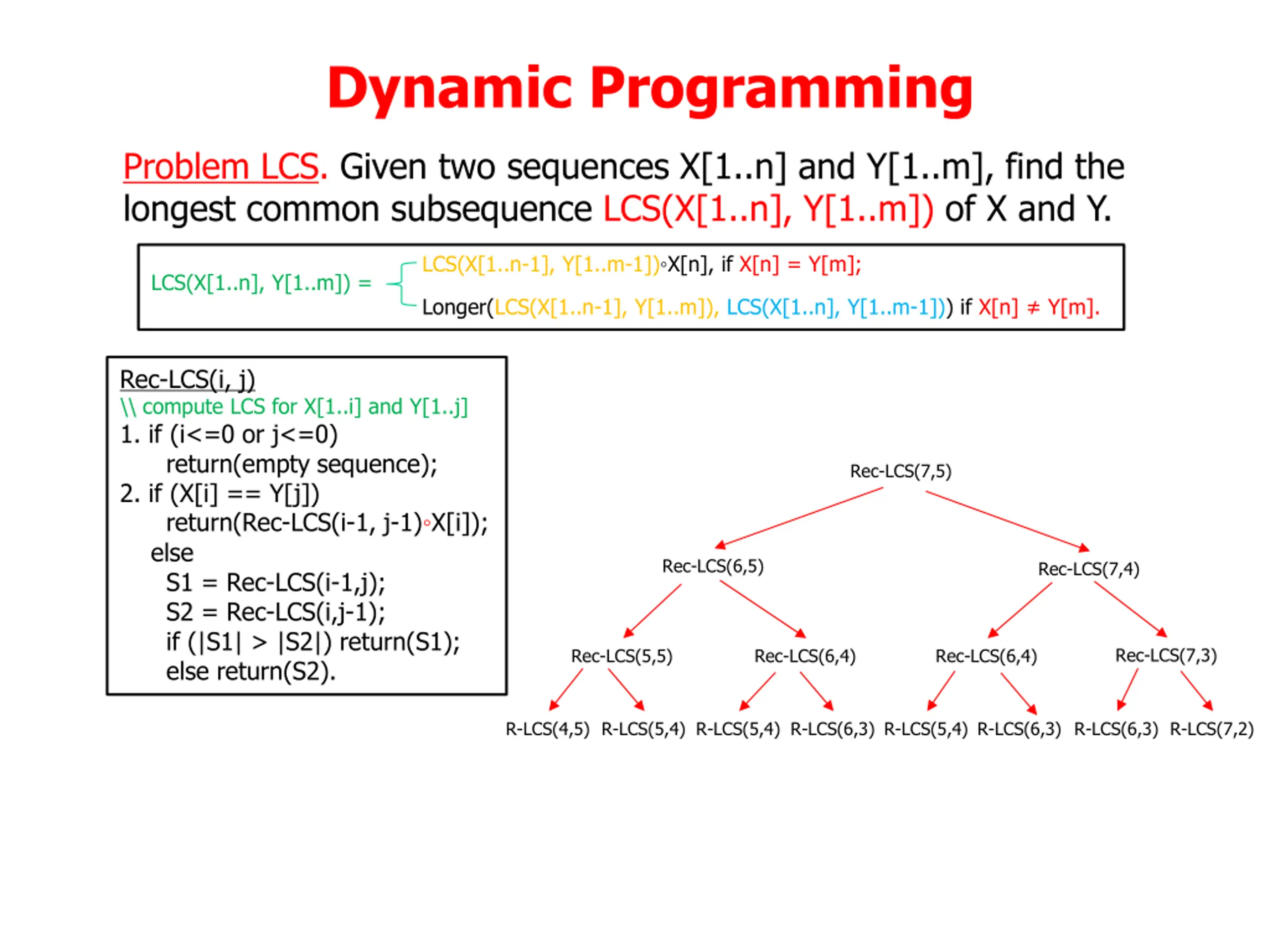

  12. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2).

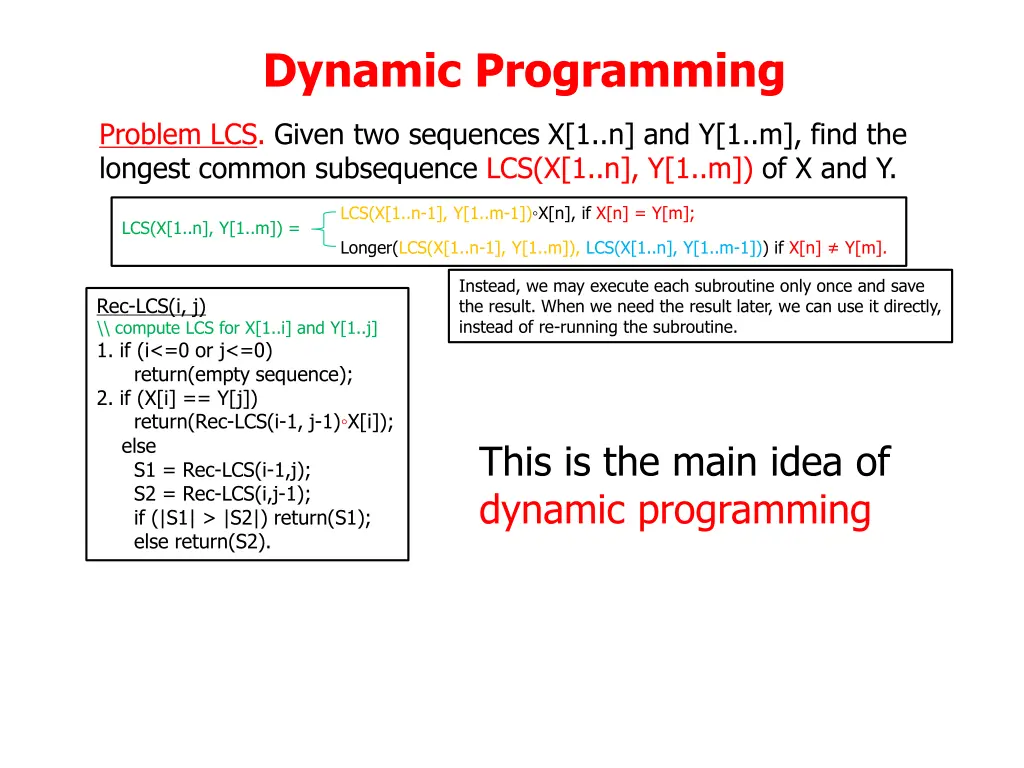

  13. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2). Rec-LCS(7,5) Rec-LCS(6,5) Rec-LCS(7,4) Rec-LCS(7,3) Rec-LCS(5,5) Rec-LCS(6,4) Rec-LCS(6,4) R-LCS(4,5) R-LCS(5,4) R-LCS(5,4) R-LCS(6,3) R-LCS(5,4) R-LCS(6,3) R-LCS(6,3) R-LCS(7,2)

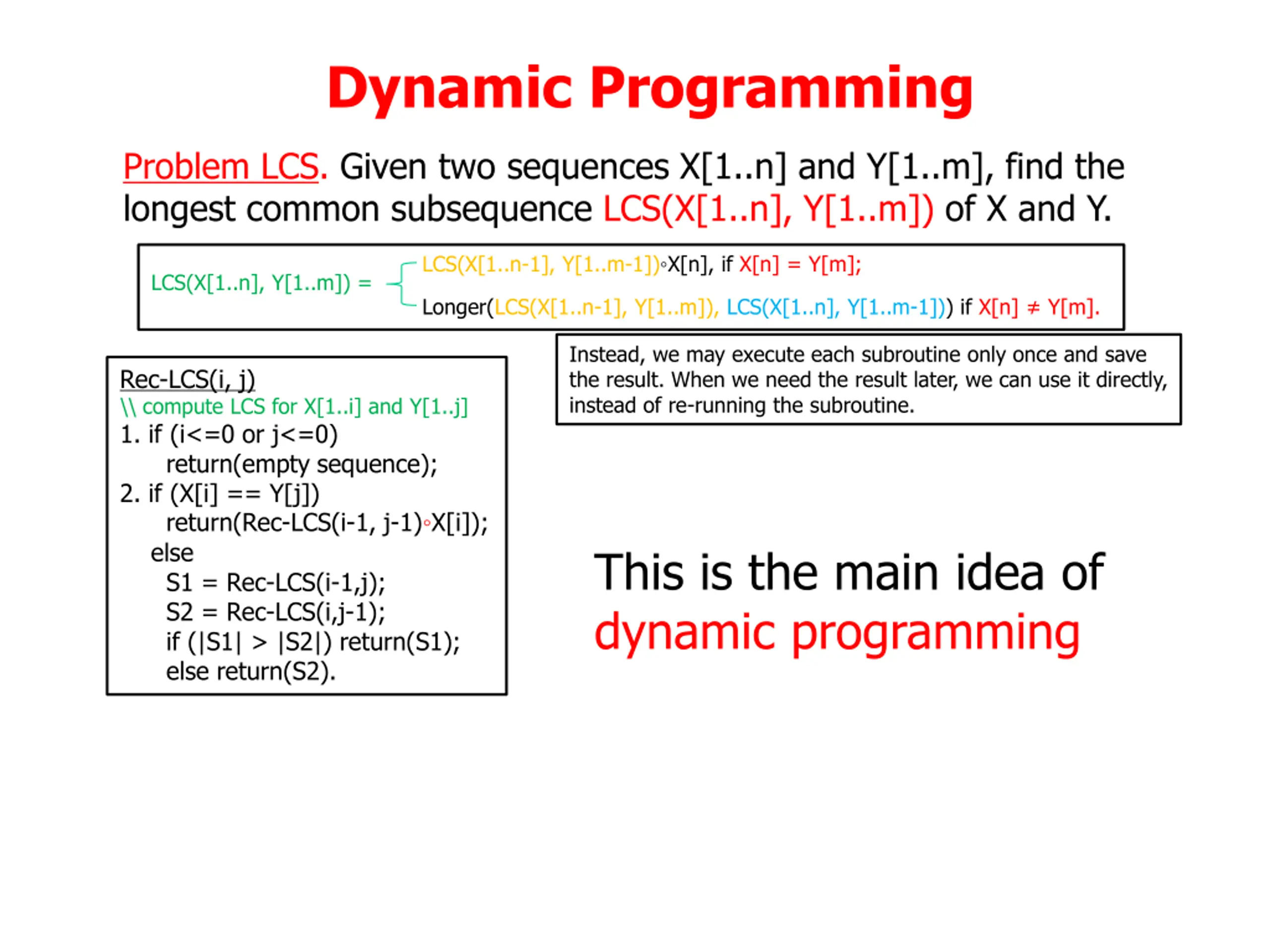

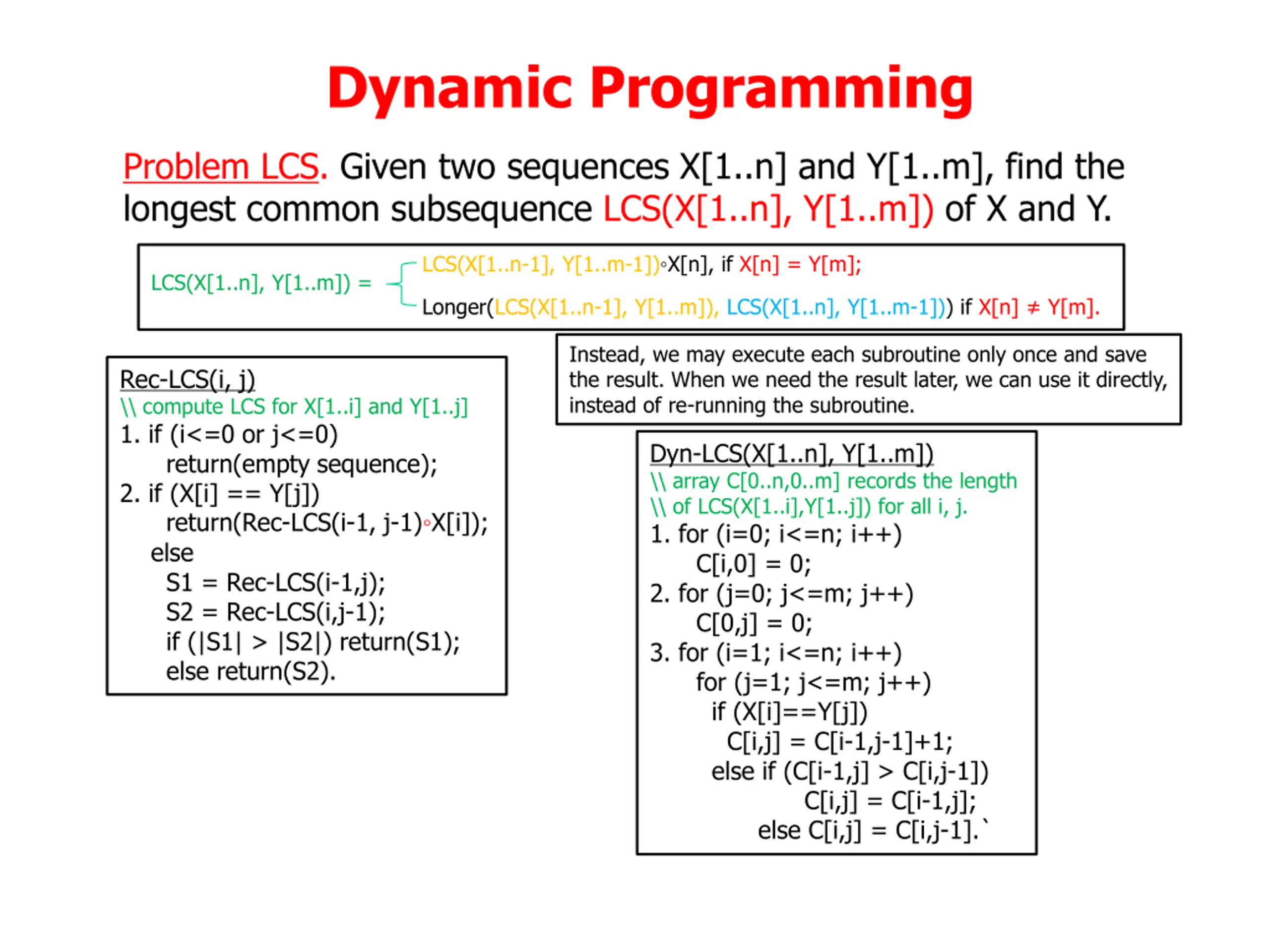

  14. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2). Rec-LCS(7,5) Rec-LCS(6,5) Rec-LCS(7,4) Rec-LCS(7,3) Rec-LCS(5,5) Rec-LCS(6,4) Rec-LCS(6,4) R-LCS(4,5) R-LCS(5,4) R-LCS(5,4) R-LCS(6,3) R-LCS(5,4) R-LCS(6,3) R-LCS(6,3) R-LCS(7,2) Subroutines (such as R-LCS(5,4) and R-LCS(6,3)) are repeatedly called and executed, thus, taking computational time.

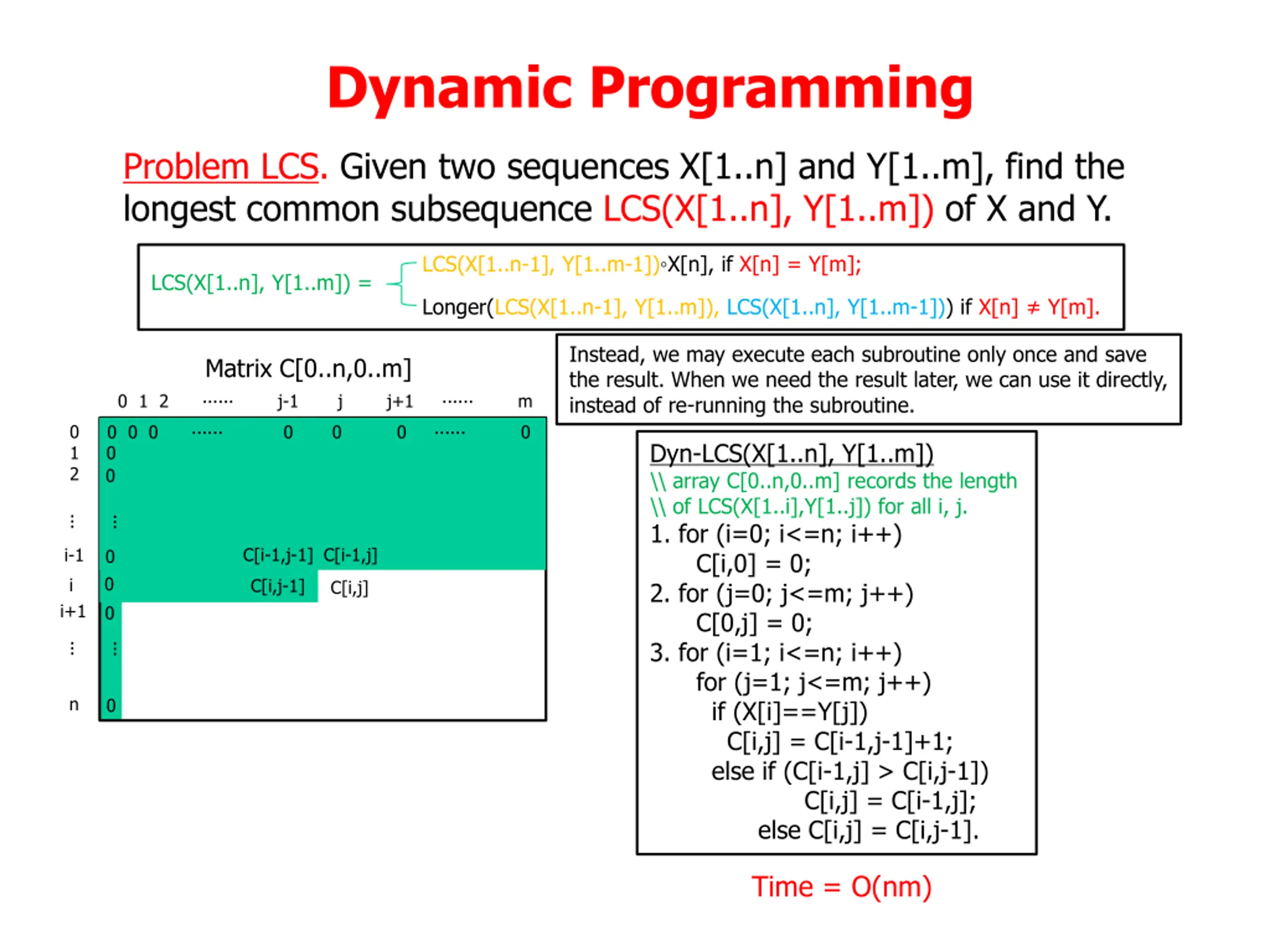

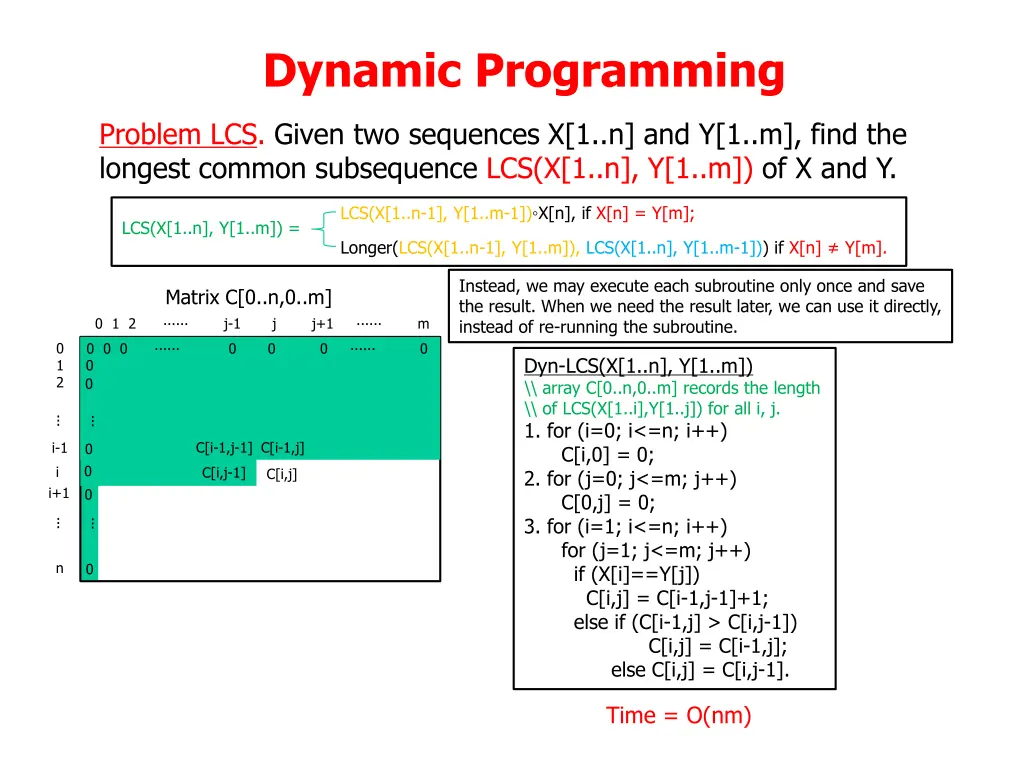

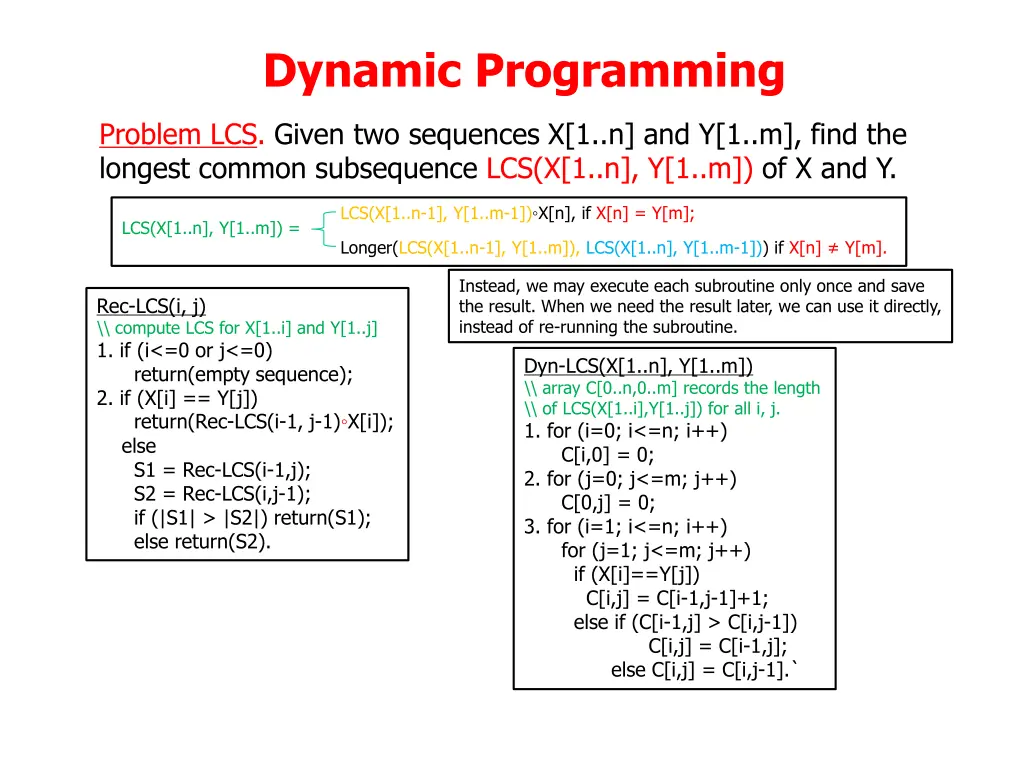

  15. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2). Rec-LCS(7,5) Rec-LCS(6,5) Rec-LCS(7,4) Rec-LCS(7,3) Rec-LCS(5,5) Rec-LCS(6,4) Rec-LCS(6,4) R-LCS(4,5) R-LCS(5,4) R-LCS(5,4) R-LCS(6,3) R-LCS(5,4) R-LCS(6,3) R-LCS(6,3) R-LCS(7,2) Subroutines (such as R-LCS(5,4) and R-LCS(6,3)) are repeatedly called and executed, thus, taking computational time.

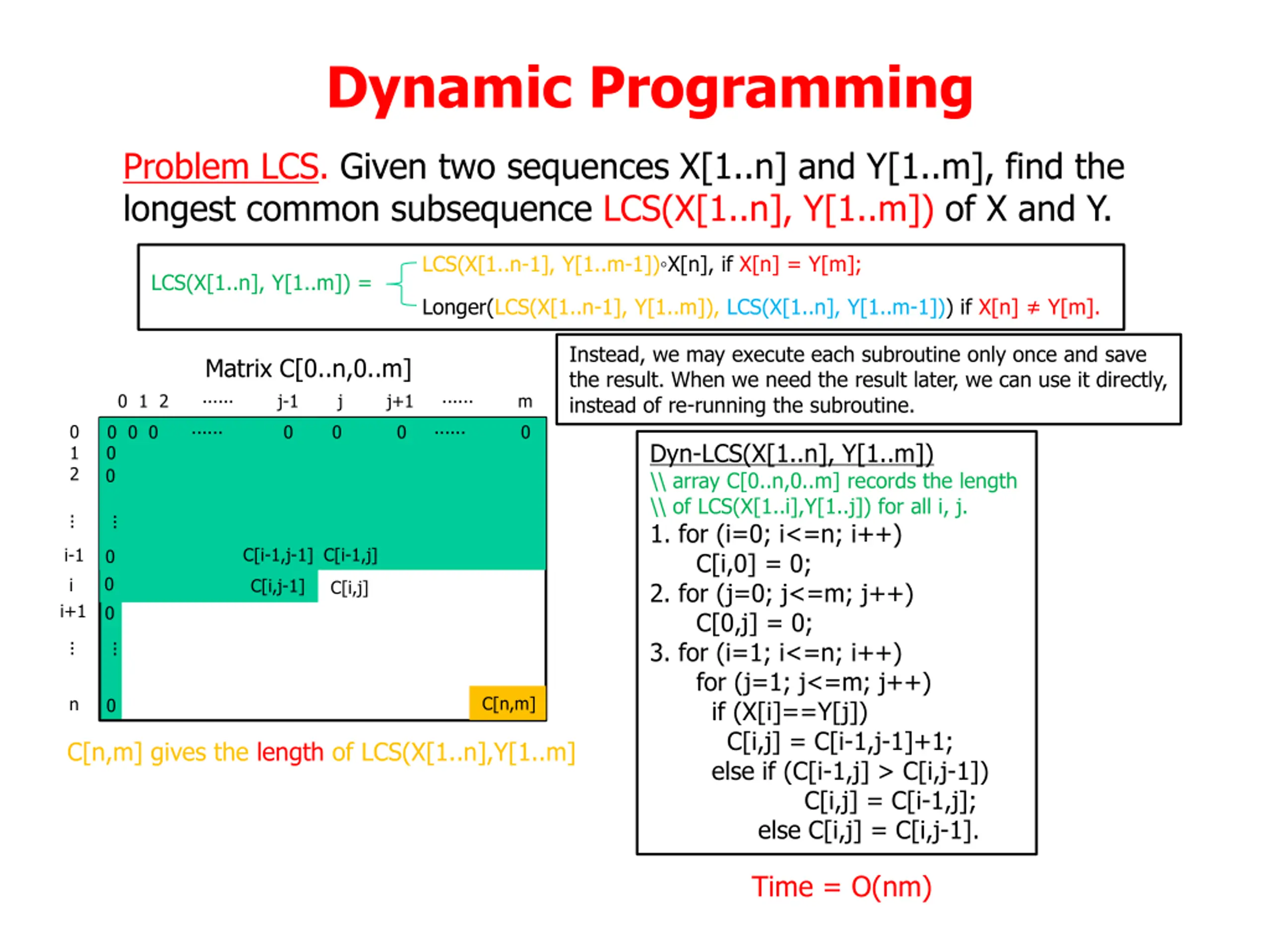

  16. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2). This is the main idea of dynamic programming

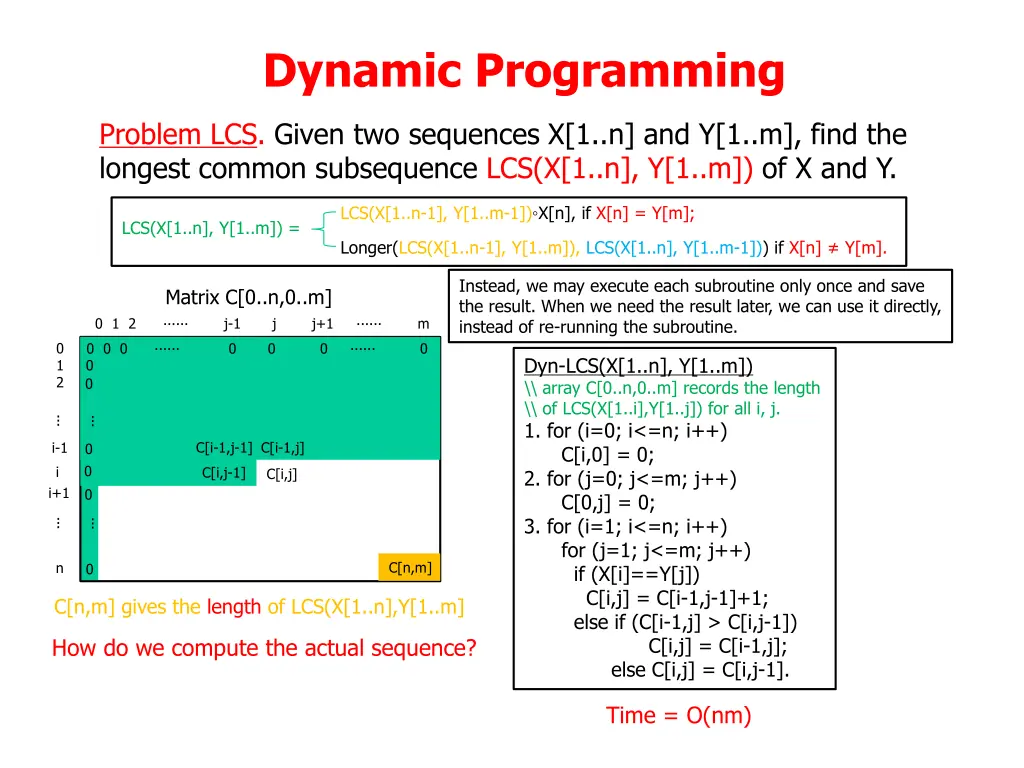

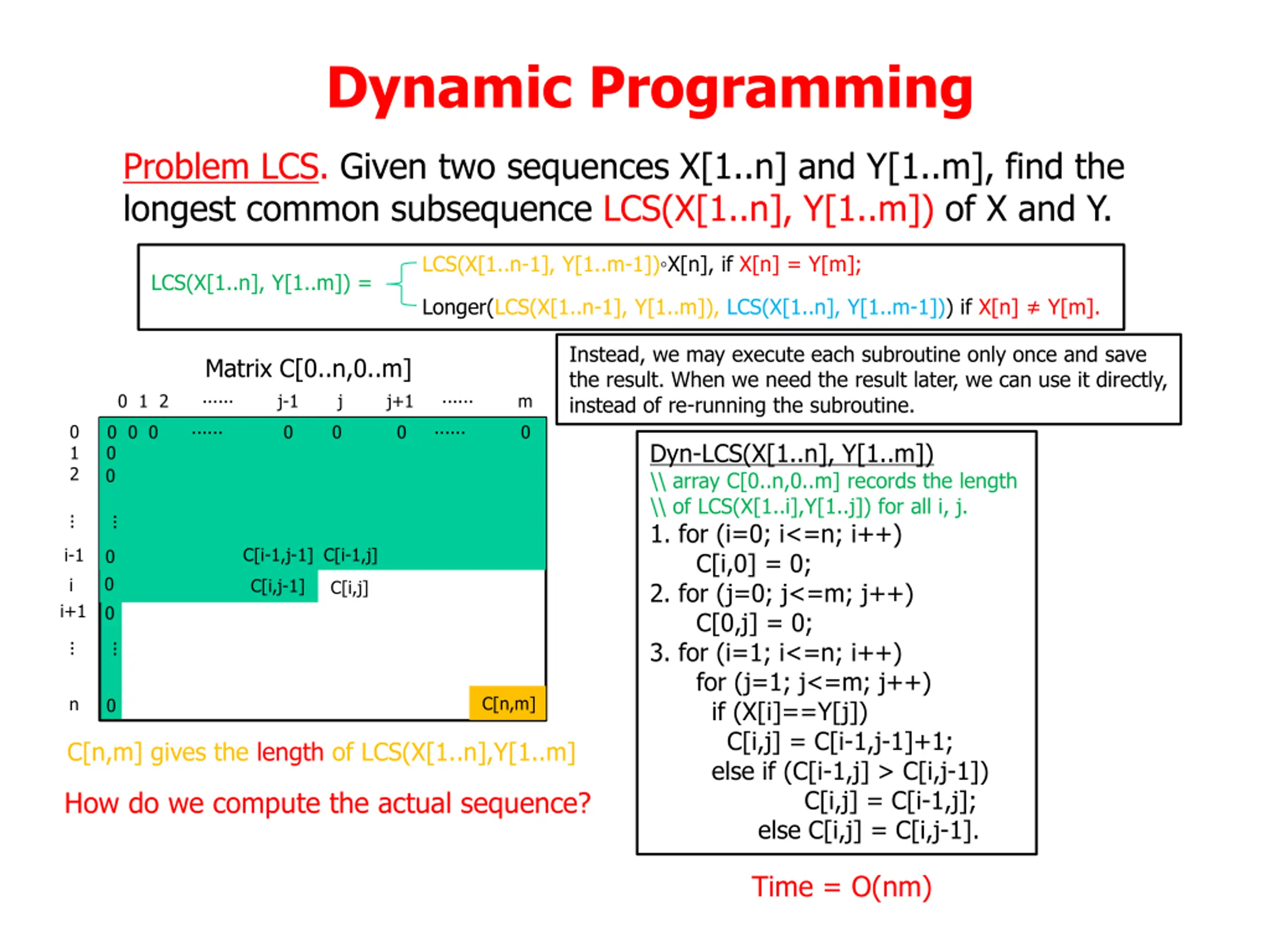

  17. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Rec-LCS(i, j) \\ compute LCS for X[1..i] and Y[1..j] 1. if (i<=0 or j<=0) return(empty sequence); 2. if (X[i] == Y[j]) return(Rec-LCS(i-1, j-1) X[i]); else S1 = Rec-LCS(i-1,j); S2 = Rec-LCS(i,j-1); if (|S1| > |S2|) return(S1); else return(S2). Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1].`

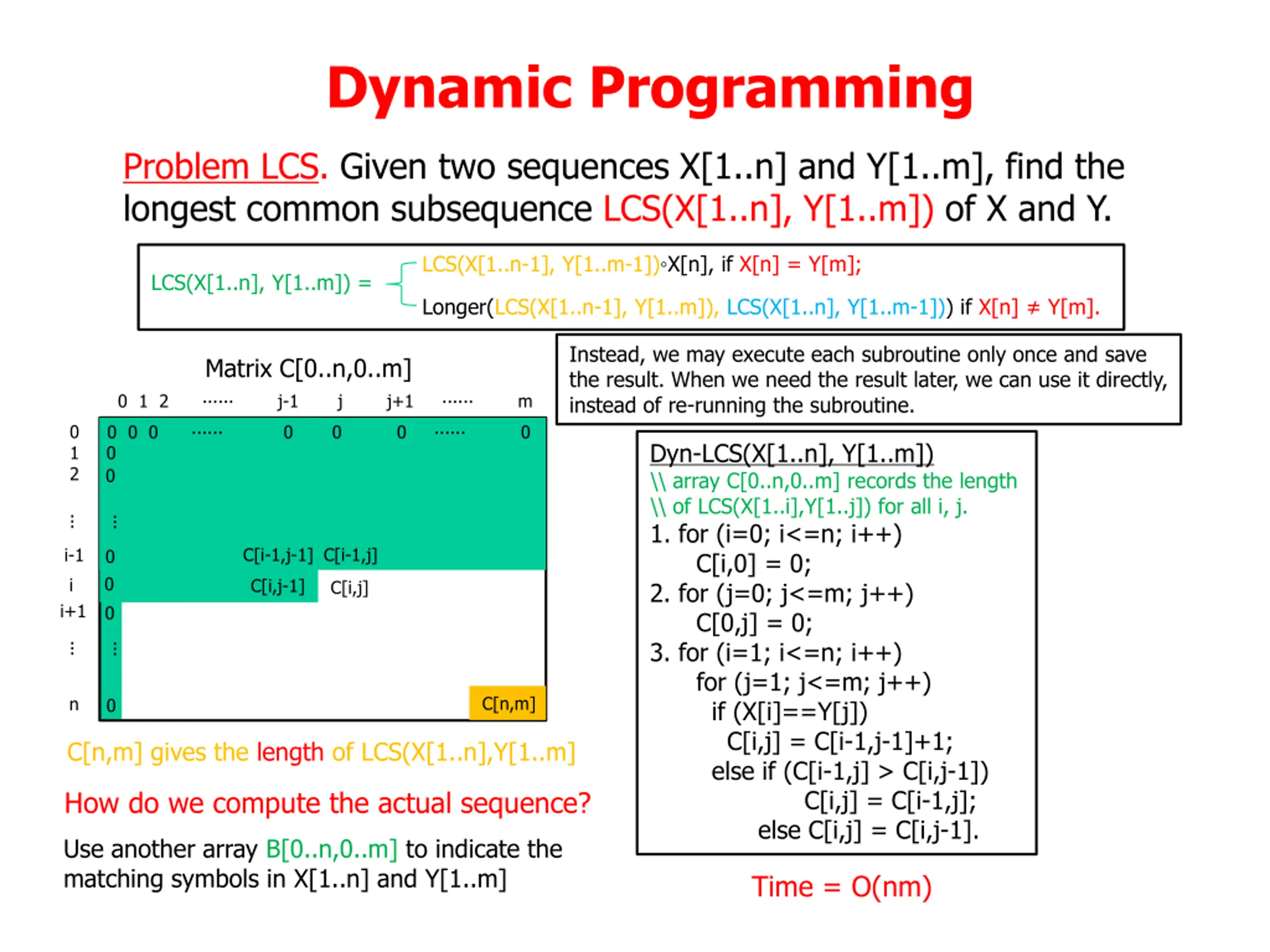

  18. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 n 0 Time = O(nm)

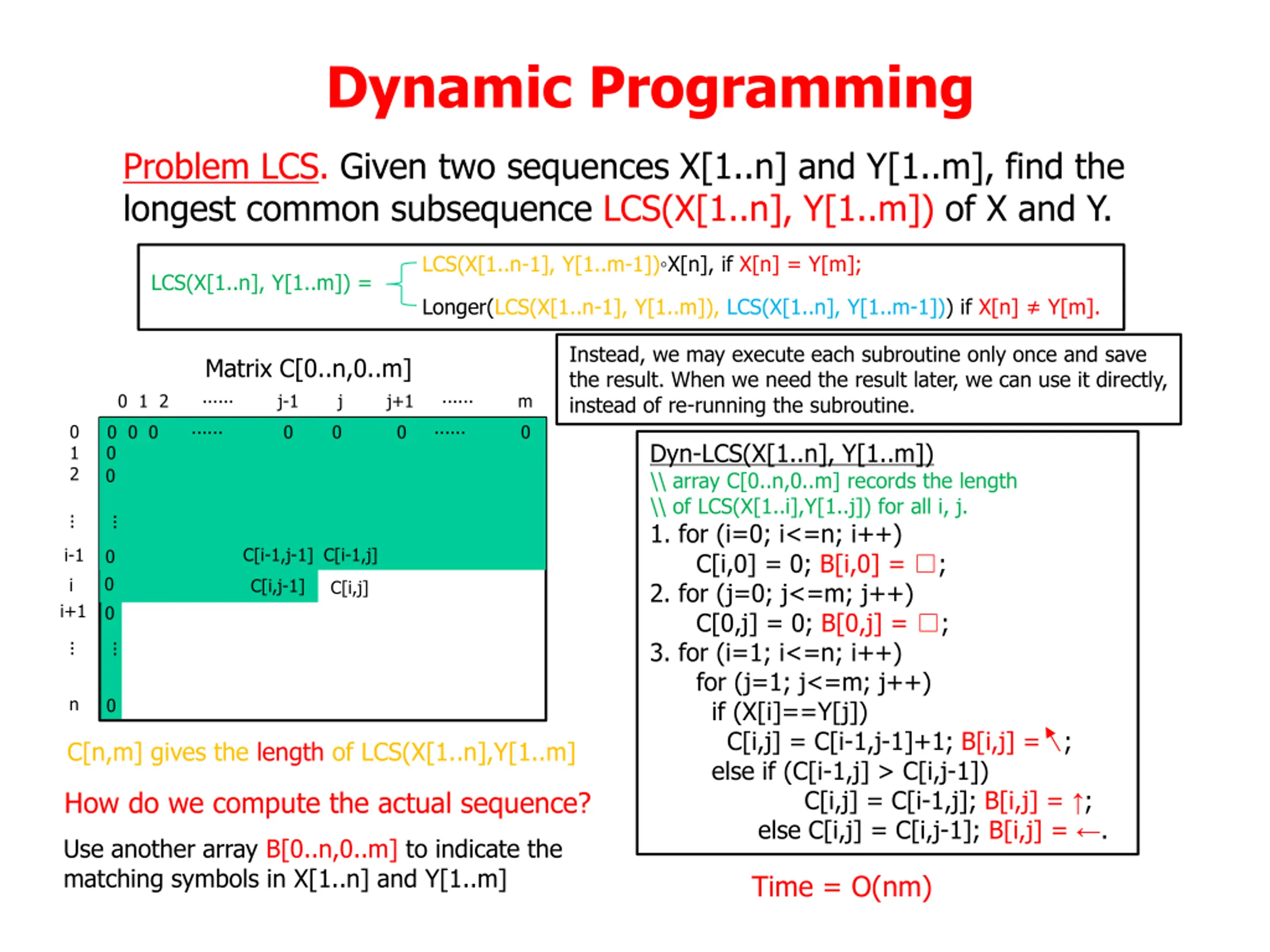

  19. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 C[n,m] n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] Time = O(nm)

  20. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 C[n,m] n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Time = O(nm)

  21. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 C[n,m] n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Use another array B[0..n,0..m] to indicate the matching symbols in X[1..n] and Y[1..m] Time = O(nm)

  22. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; B[i,0] = ; 2. for (j=0; j<=m; j++) C[0,j] = 0; B[0,j] = ; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; B[i,j] = ; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; B[i,j] = ; else C[i,j] = C[i,j-1]; B[i,j] = . i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Use another array B[0..n,0..m] to indicate the matching symbols in X[1..n] and Y[1..m] Time = O(nm)

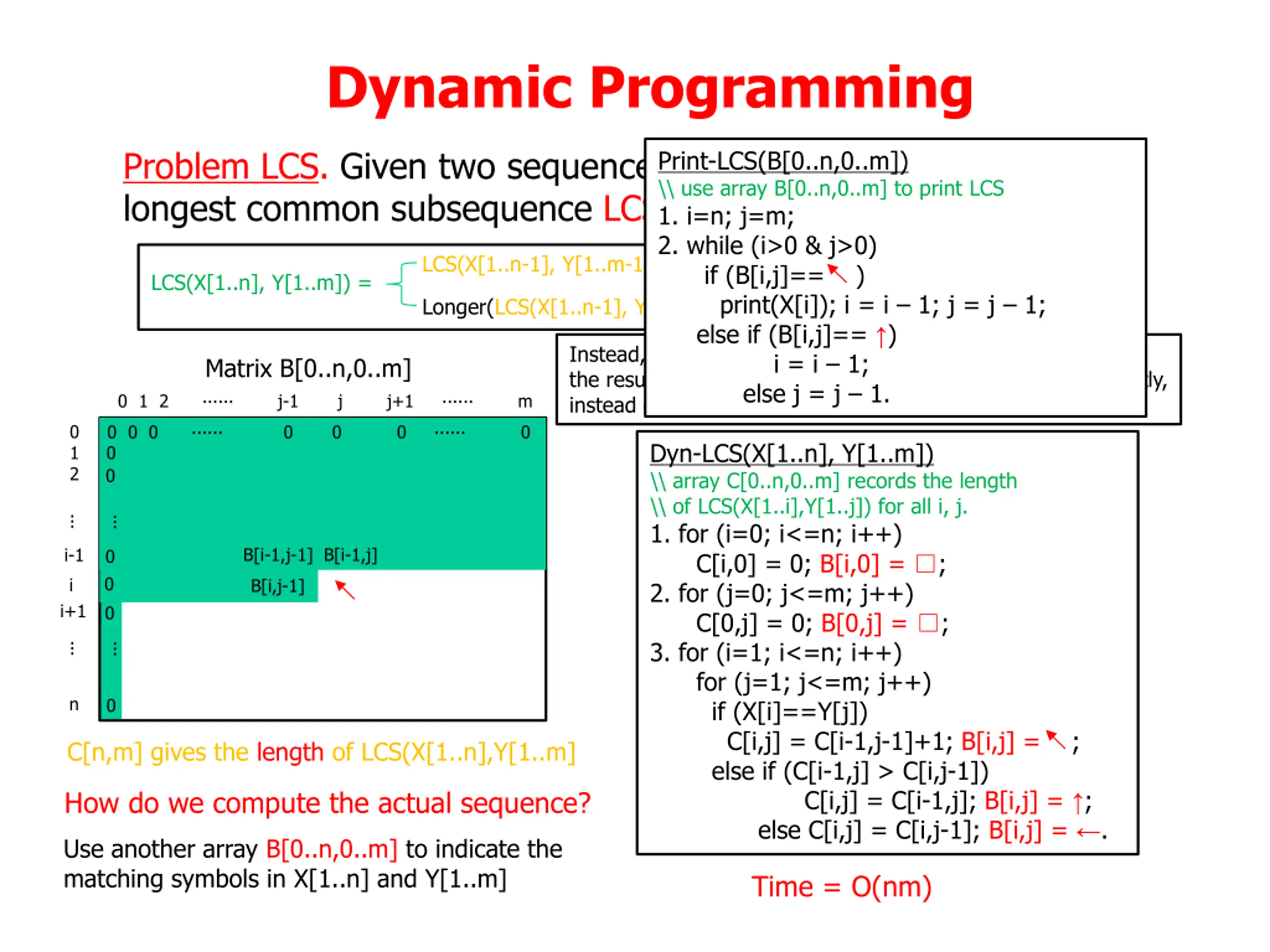

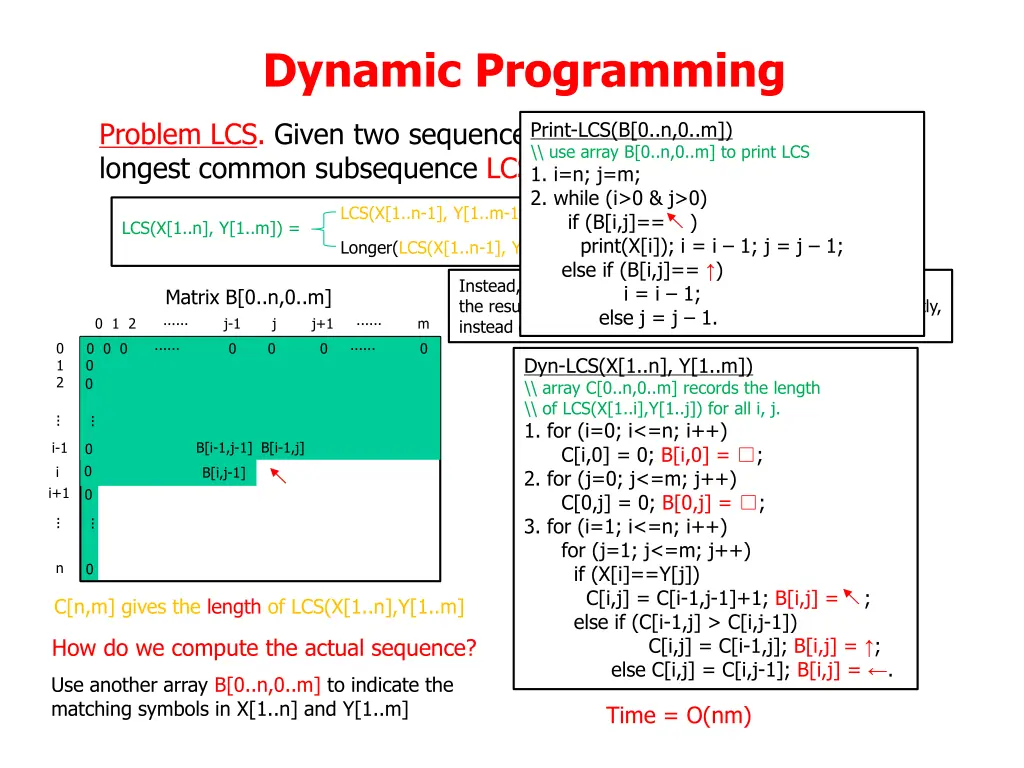

  23. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. Print-LCS(B[0..n,0..m]) \\ use array B[0..n,0..m] to print LCS 1. i=n; j=m; 2. while (i>0 & j>0) if (B[i,j]== ) LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. print(X[i]); i = i 1; j = j 1; else if (B[i,j]== ) i = i 1; else j = j 1. Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix B[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; B[i,0] = ; 2. for (j=0; j<=m; j++) C[0,j] = 0; B[0,j] = ; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; B[i,j] = ; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; B[i,j] = ; else C[i,j] = C[i,j-1]; B[i,j] = . i-1 0 B[i-1,j-1] B[i-1,j] 0 i i+1 B[i,j-1] 0 n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Use another array B[0..n,0..m] to indicate the matching symbols in X[1..n] and Y[1..m] Time = O(nm)

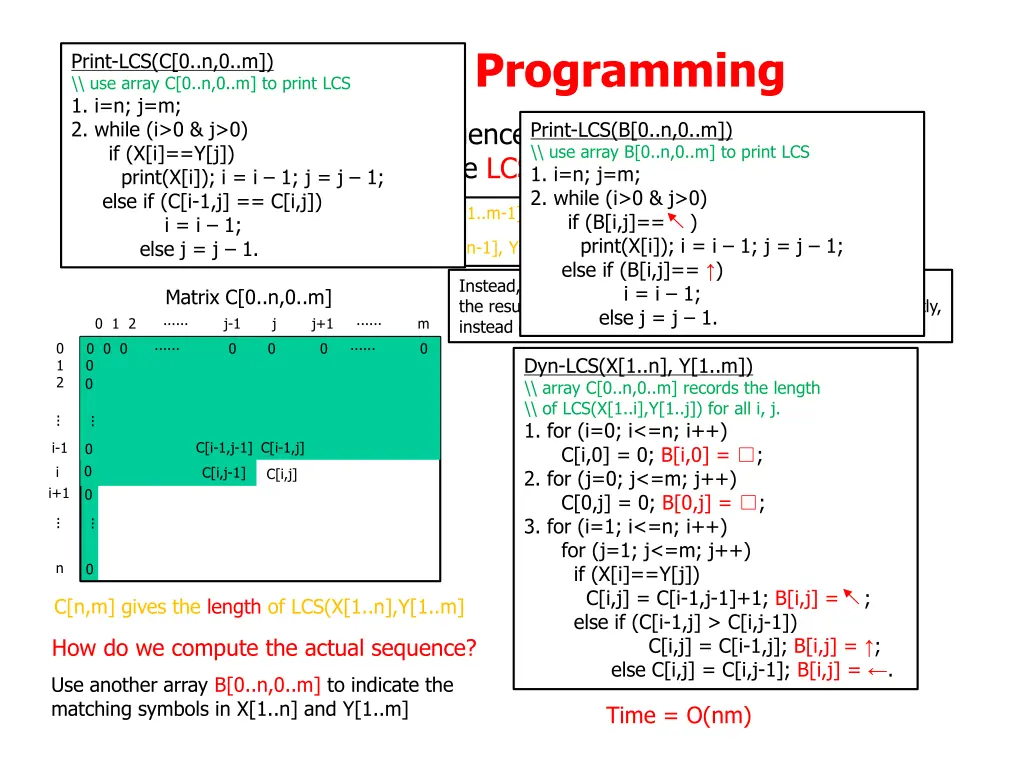

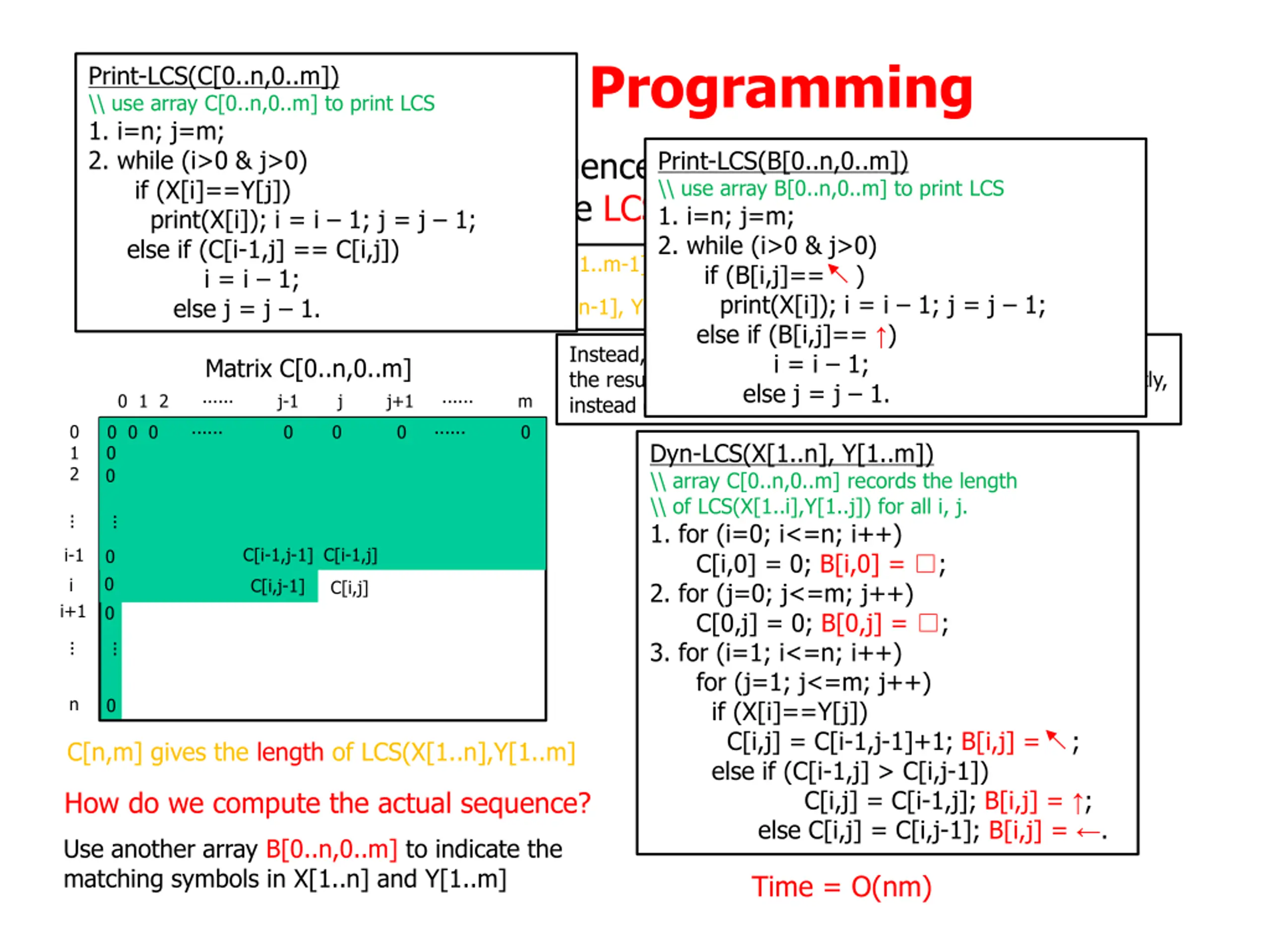

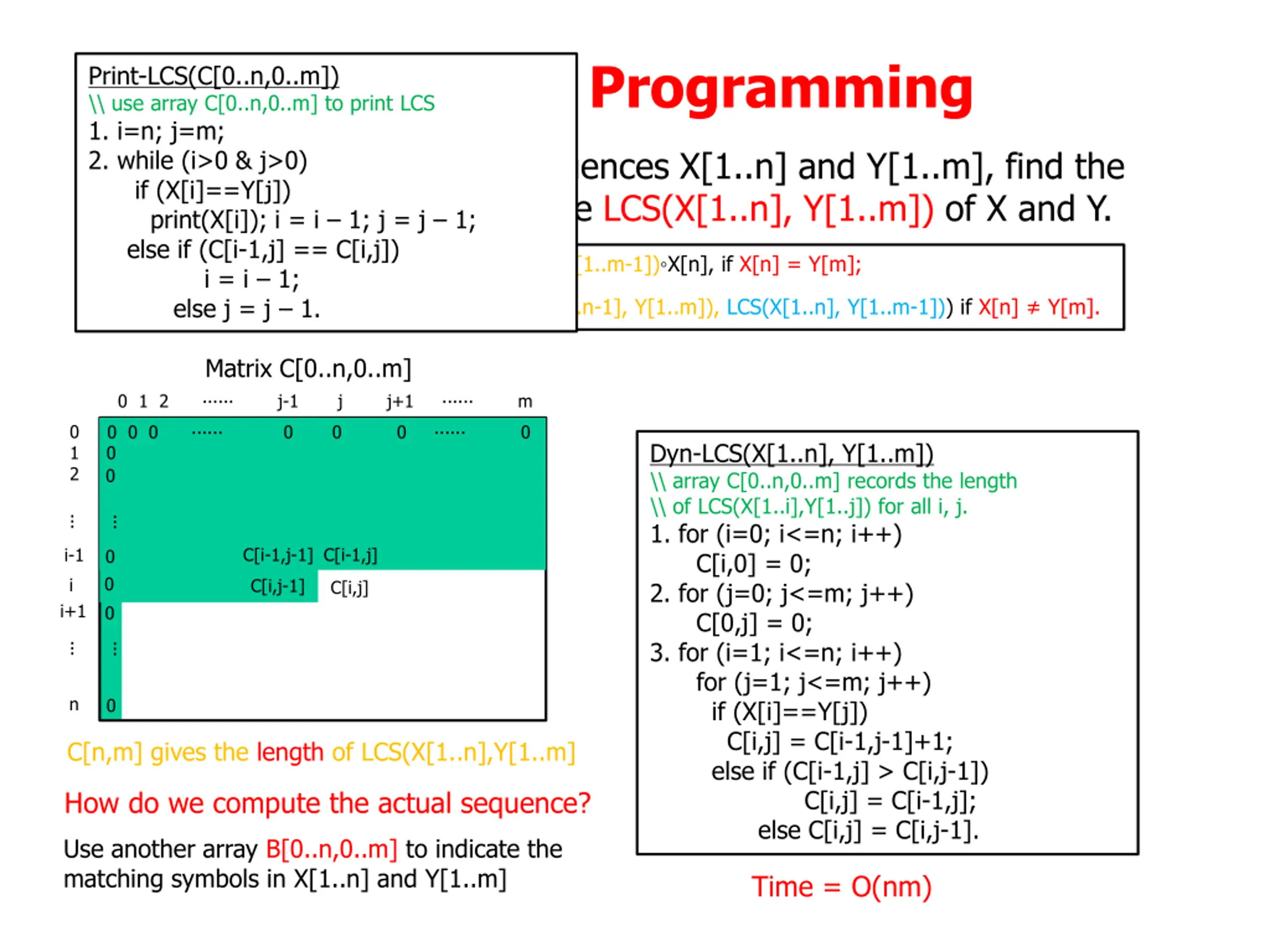

  24. Dynamic Programming \\ use array C[0..n,0..m] to print LCS 1. i=n; j=m; 2. while (i>0 & j>0) if (X[i]==Y[j]) print(X[i]); i = i 1; j = j 1; else if (C[i-1,j] == C[i,j]) i = i 1; else j = j 1. Print-LCS(C[0..n,0..m]) Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. Print-LCS(B[0..n,0..m]) \\ use array B[0..n,0..m] to print LCS 1. i=n; j=m; 2. while (i>0 & j>0) if (B[i,j]== ) LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m])) if X[n] Y[m]. print(X[i]); i = i 1; j = j 1; else if (B[i,j]== ) i = i 1; else j = j 1. 0 1 2 j-1 j j+1 m Instead, we may execute each subroutine only once and save the result. When we need the result later, we can use it directly, instead of re-running the subroutine. Matrix C[0..n,0..m] 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; B[i,0] = ; 2. for (j=0; j<=m; j++) C[0,j] = 0; B[0,j] = ; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; B[i,j] = ; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; B[i,j] = ; else C[i,j] = C[i,j-1]; B[i,j] = . i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Use another array B[0..n,0..m] to indicate the matching symbols in X[1..n] and Y[1..m] Time = O(nm)

  25. Dynamic Programming \\ use array C[0..n,0..m] to print LCS 1. i=n; j=m; 2. while (i>0 & j>0) if (X[i]==Y[j]) print(X[i]); i = i 1; j = j 1; else if (C[i-1,j] == C[i,j]) i = i 1; else j = j 1. Print-LCS(C[0..n,0..m]) Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Matrix C[0..n,0..m] 0 1 2 j-1 j j+1 m 0 1 2 0 0 0 0 0 0 0 0 0 Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. i-1 0 C[i-1,j-1] C[i-1,j] 0 i i+1 C[i,j-1] C[i,j] 0 n 0 C[n,m] gives the length of LCS(X[1..n],Y[1..m] How do we compute the actual sequence? Use another array B[0..n,0..m] to indicate the matching symbols in X[1..n] and Y[1..m] Time = O(nm)

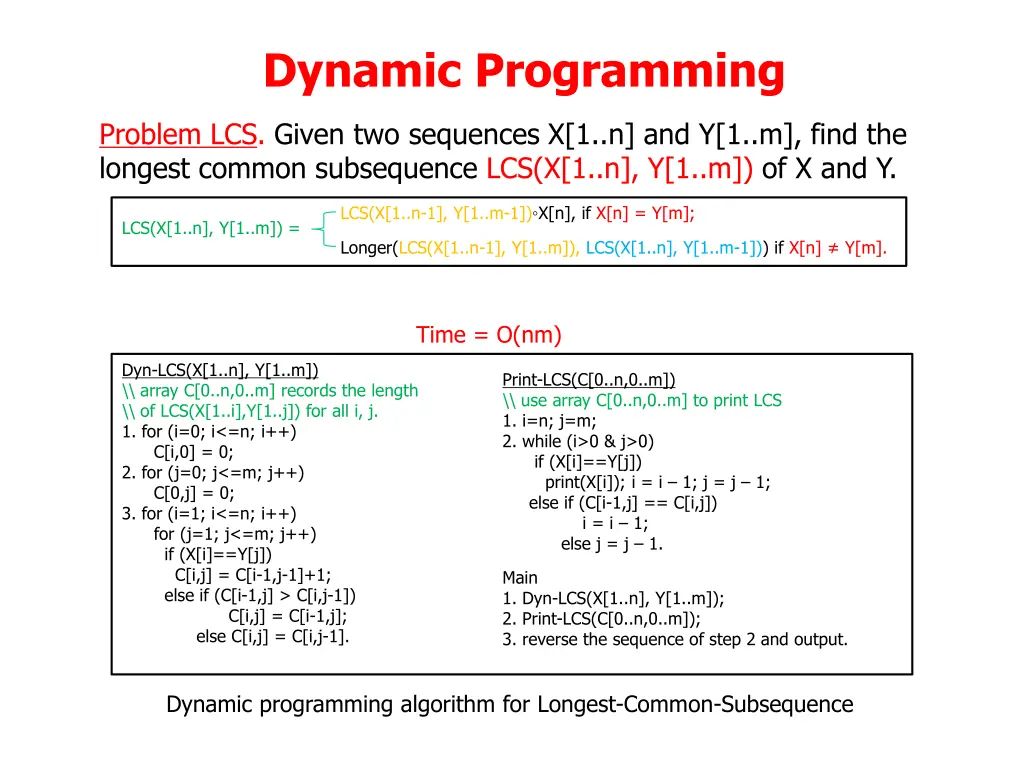

  26. Dynamic Programming Problem LCS. Given two sequences X[1..n] and Y[1..m], find the longest common subsequence LCS(X[1..n], Y[1..m]) of X and Y. LCS(X[1..n-1], Y[1..m-1]) X[n], if X[n] = Y[m]; LCS(X[1..n], Y[1..m]) = Longer(LCS(X[1..n-1], Y[1..m]), LCS(X[1..n], Y[1..m-1])) if X[n] Y[m]. Time = O(nm) Dyn-LCS(X[1..n], Y[1..m]) \\ array C[0..n,0..m] records the length \\ of LCS(X[1..i],Y[1..j]) for all i, j. 1. for (i=0; i<=n; i++) C[i,0] = 0; 2. for (j=0; j<=m; j++) C[0,j] = 0; 3. for (i=1; i<=n; i++) for (j=1; j<=m; j++) if (X[i]==Y[j]) C[i,j] = C[i-1,j-1]+1; else if (C[i-1,j] > C[i,j-1]) C[i,j] = C[i-1,j]; else C[i,j] = C[i,j-1]. Print-LCS(C[0..n,0..m]) \\ use array C[0..n,0..m] to print LCS 1. i=n; j=m; 2. while (i>0 & j>0) if (X[i]==Y[j]) print(X[i]); i = i 1; j = j 1; else if (C[i-1,j] == C[i,j]) i = i 1; else j = j 1. Main 1. Dyn-LCS(X[1..n], Y[1..m]); 2. Print-LCS(C[0..n,0..m]); 3. reverse the sequence of step 2 and output. Dynamic programming algorithm for Longest-Common-Subsequence
