All You Should Know About Server Waits and Optimization Strategies by Damian Widera

All(*) you should know about waits Damian Widera

Damian Widera PM & Technical Lead MCT since 2005 MVP since 2009 @DamianWidera Fb: damian.widera.10 damian.widera@live.com http://sqlblog.com/blogs/damian_widera/ http://1drv.ms/1qM1cGI

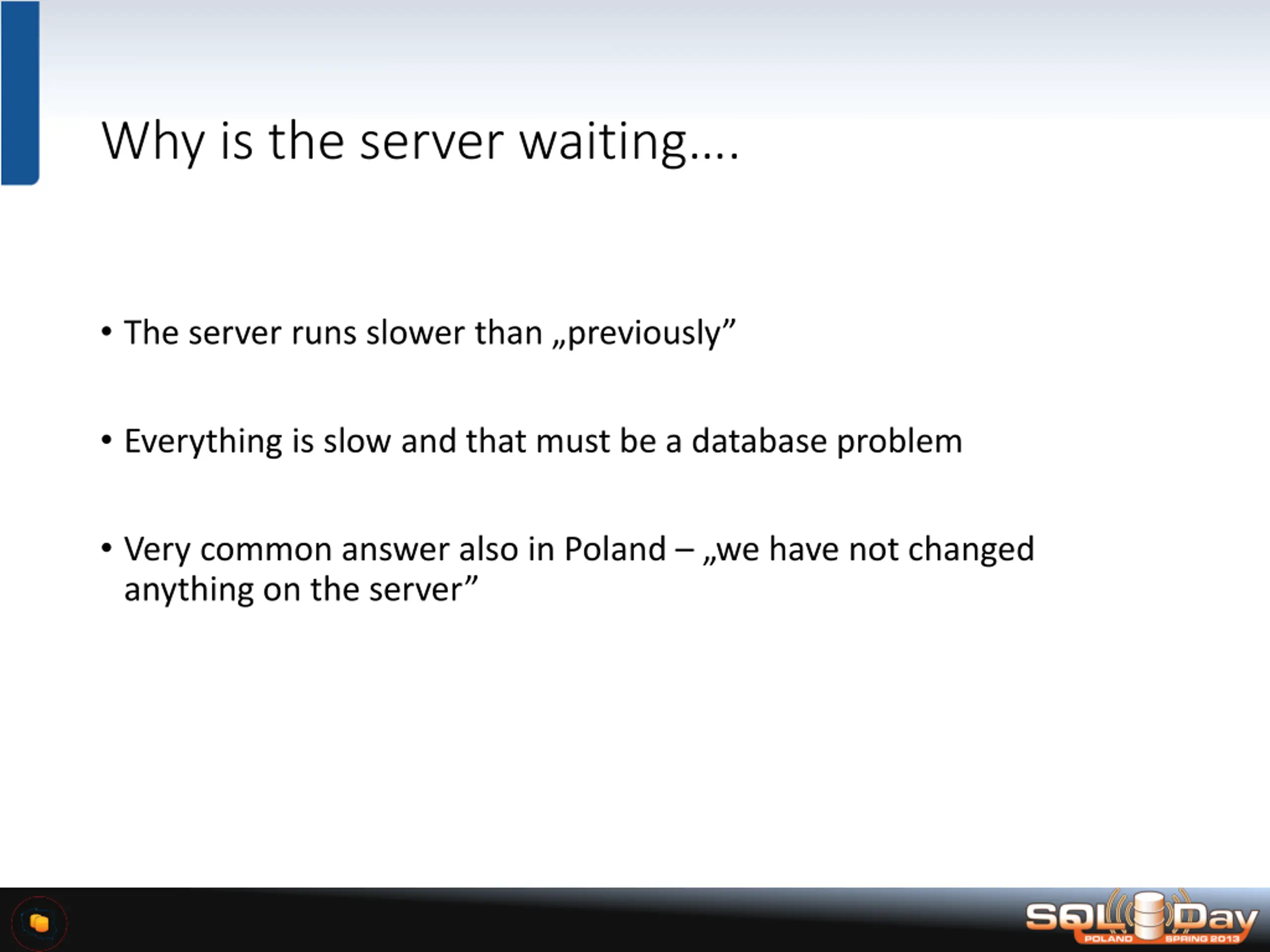

Why is the server waiting. The server runs slower than previously Everything is slow and that must be a database problem Very common answer also in Poland we have not changed anything on the server

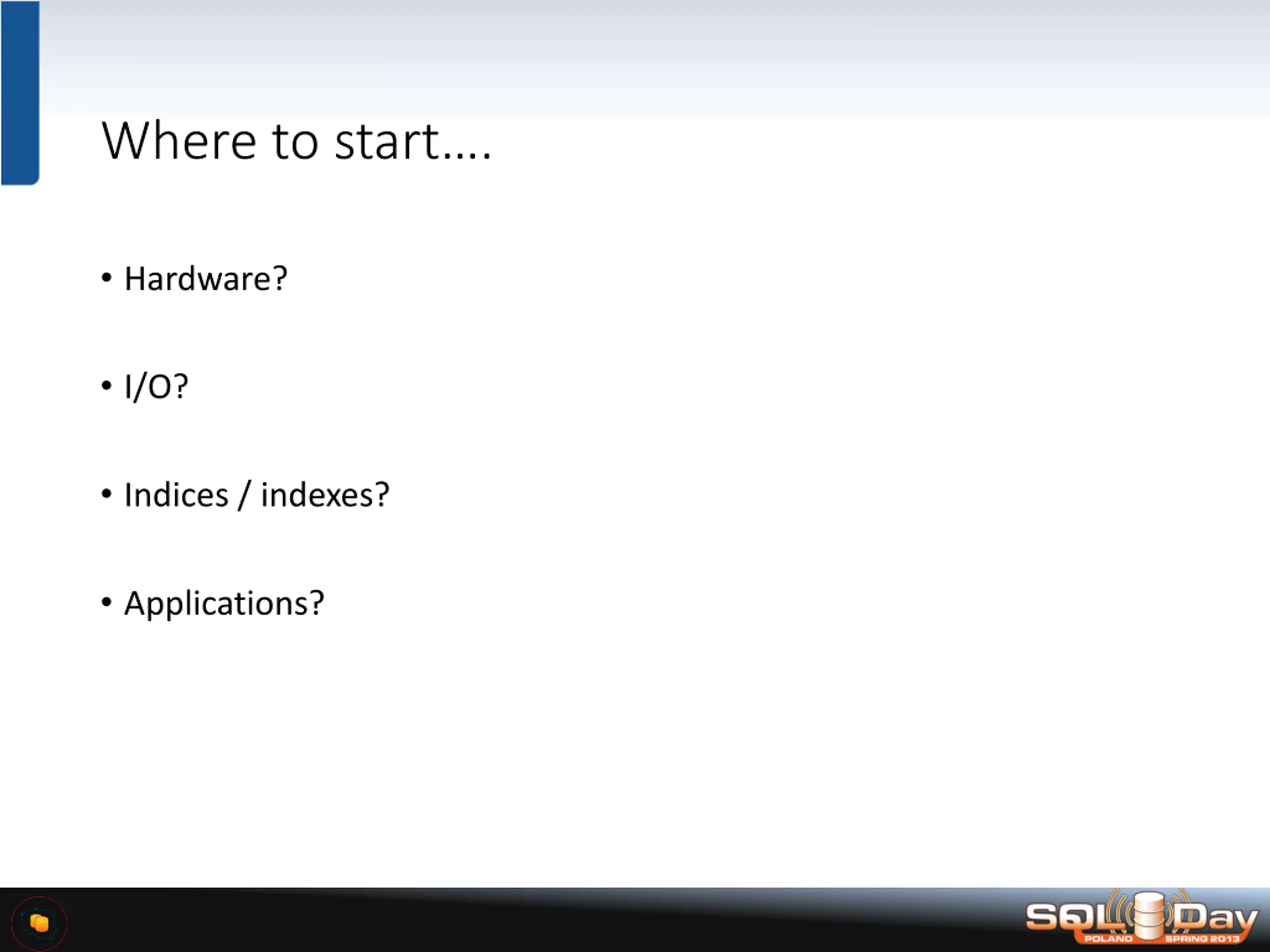

Where to start. Hardware? I/O? Indices / indexes? Applications? 4

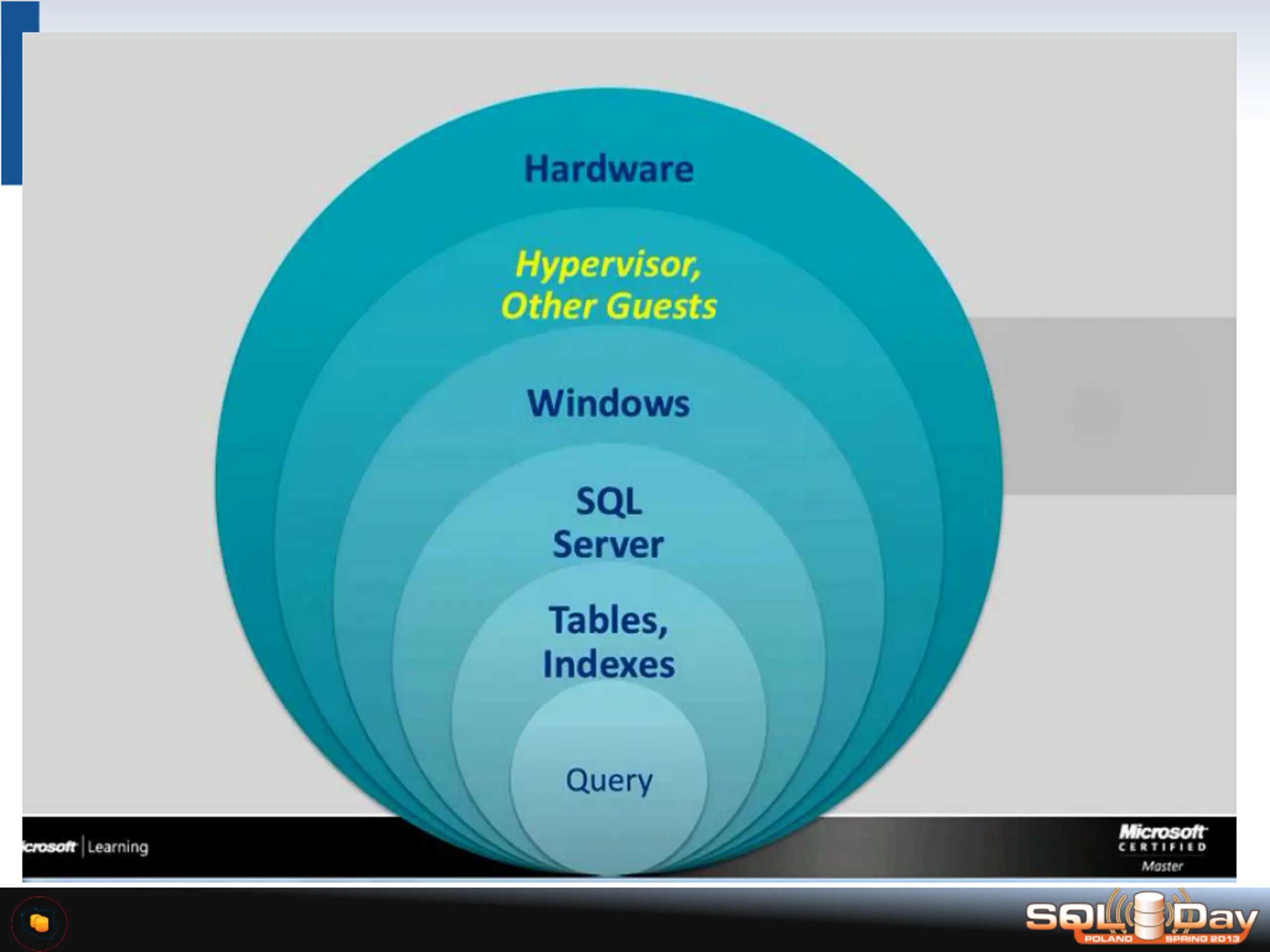

Wirtualizacja 5

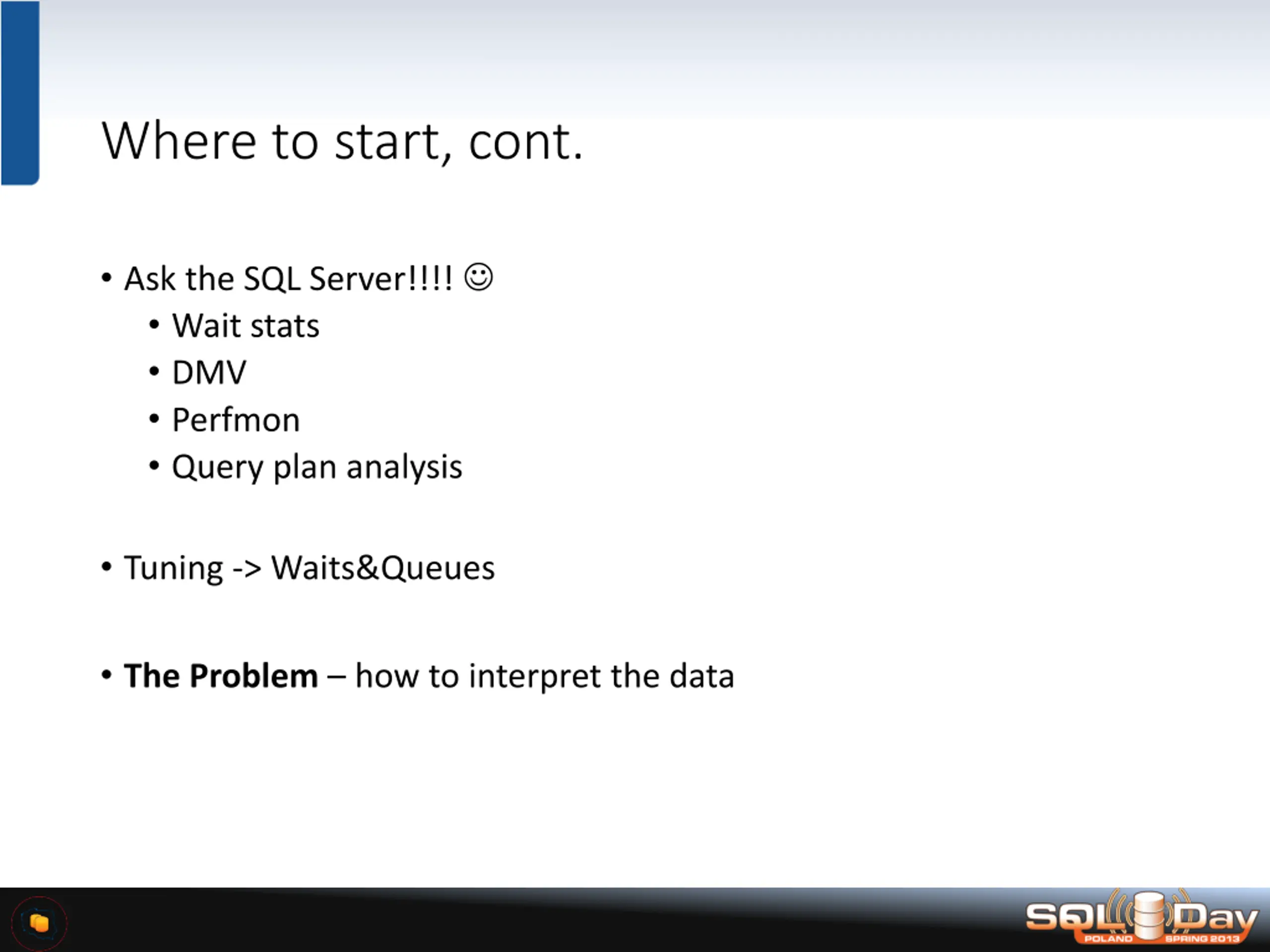

Where to start, cont. Ask the SQL Server!!!! Wait stats DMV Perfmon Query plan analysis Tuning -> Waits&Queues The Problem how to interpret the data 6

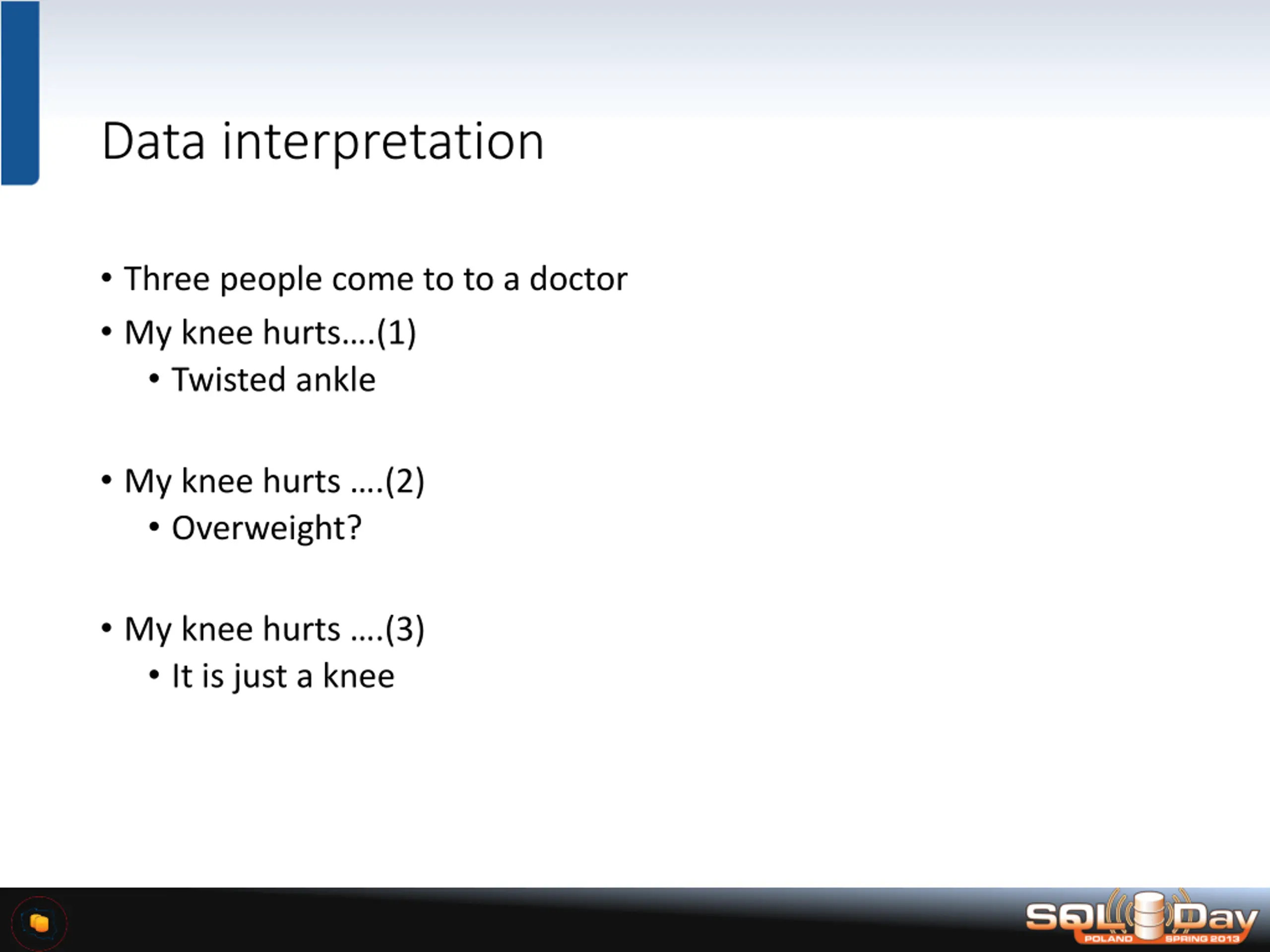

Data interpretation Three people come to to a doctor My knee hurts .(1) Twisted ankle My knee hurts .(2) Overweight? My knee hurts .(3) It is just a knee 7

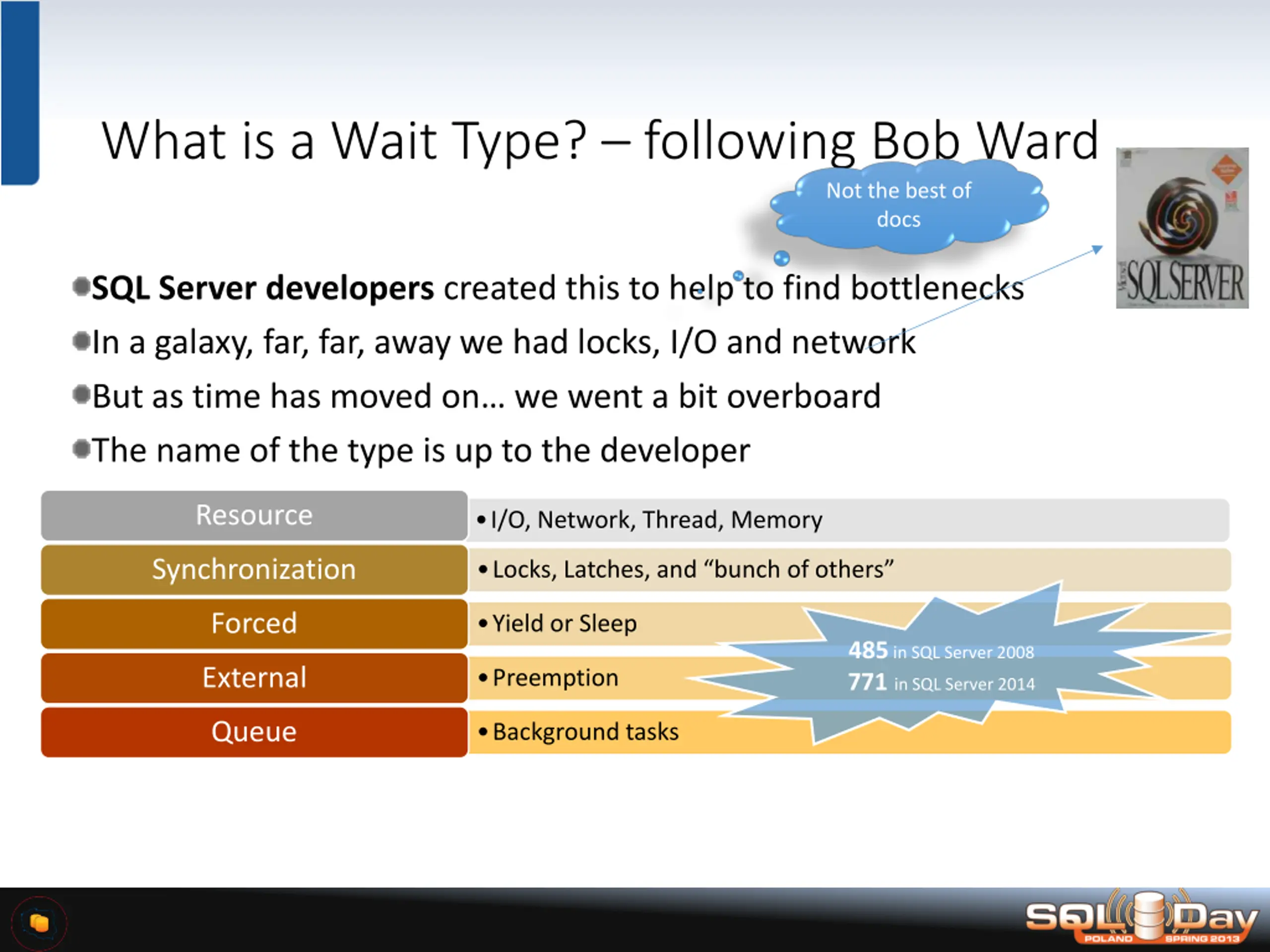

What is a Wait Type? following Bob Ward Not the best of docs SQL Server developers created this to help to find bottlenecks In a galaxy, far, far, away we had locks, I/O and network But as time has moved on we went a bit overboard The name of the type is up to the developer Resource I/O, Network, Thread, Memory Synchronization Locks, Latches, and bunch of others Forced Yield or Sleep 485 in SQL Server 2008 771 in SQL Server 2014 External Preemption Queue Background tasks

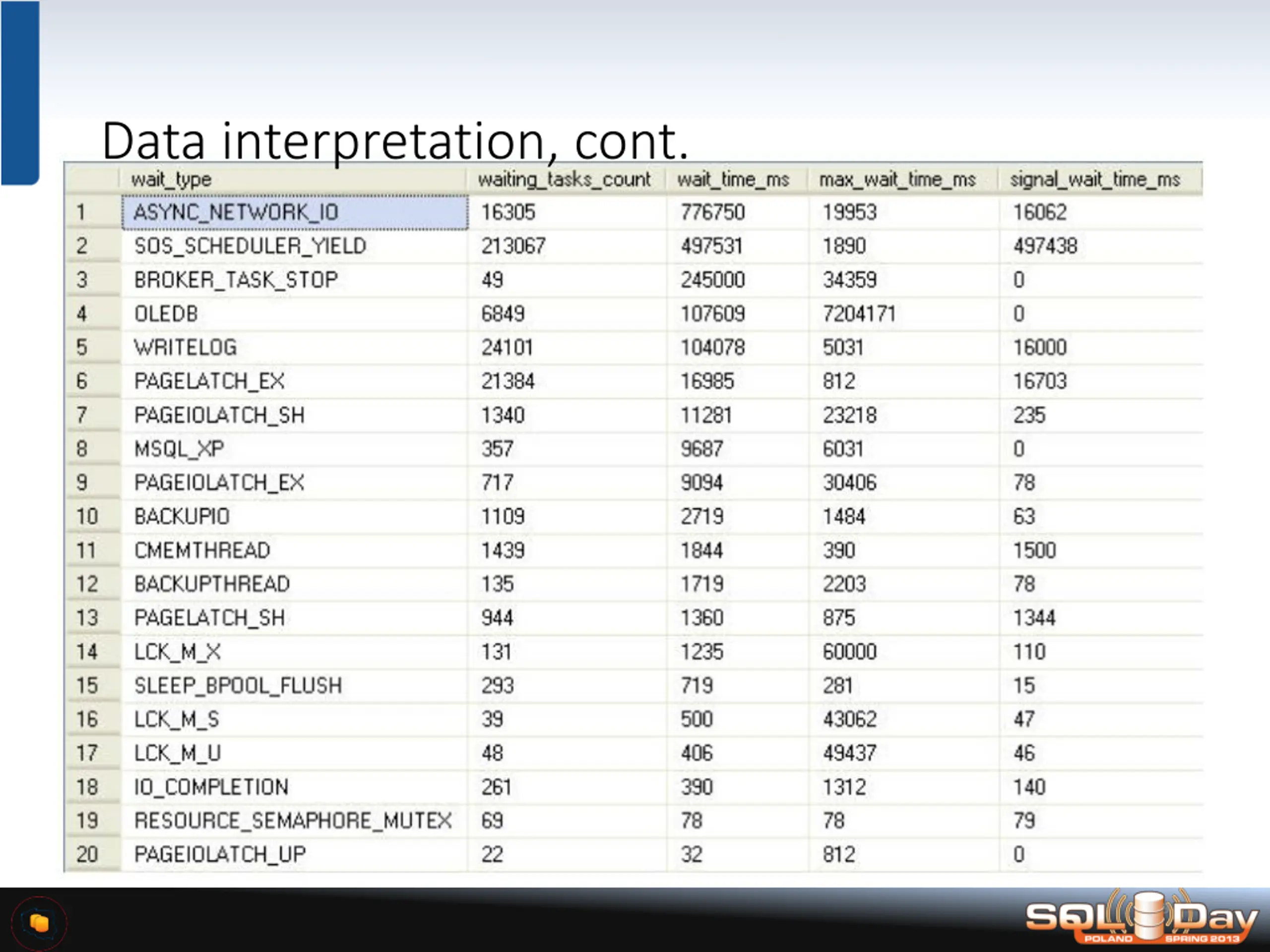

Data interpretation, cont. 9

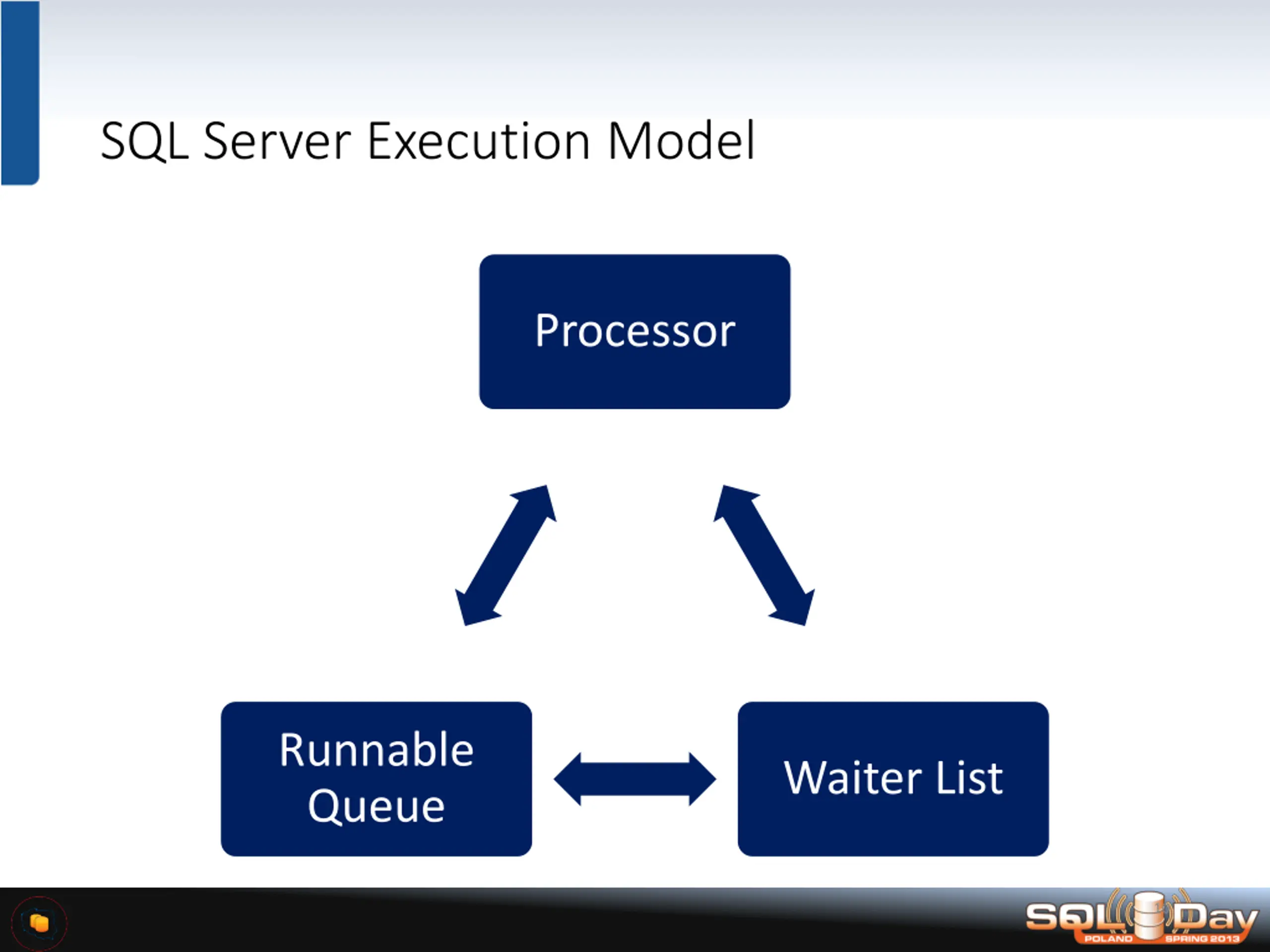

SQL Server Execution Model Processor Runnable Queue Waiter List 10

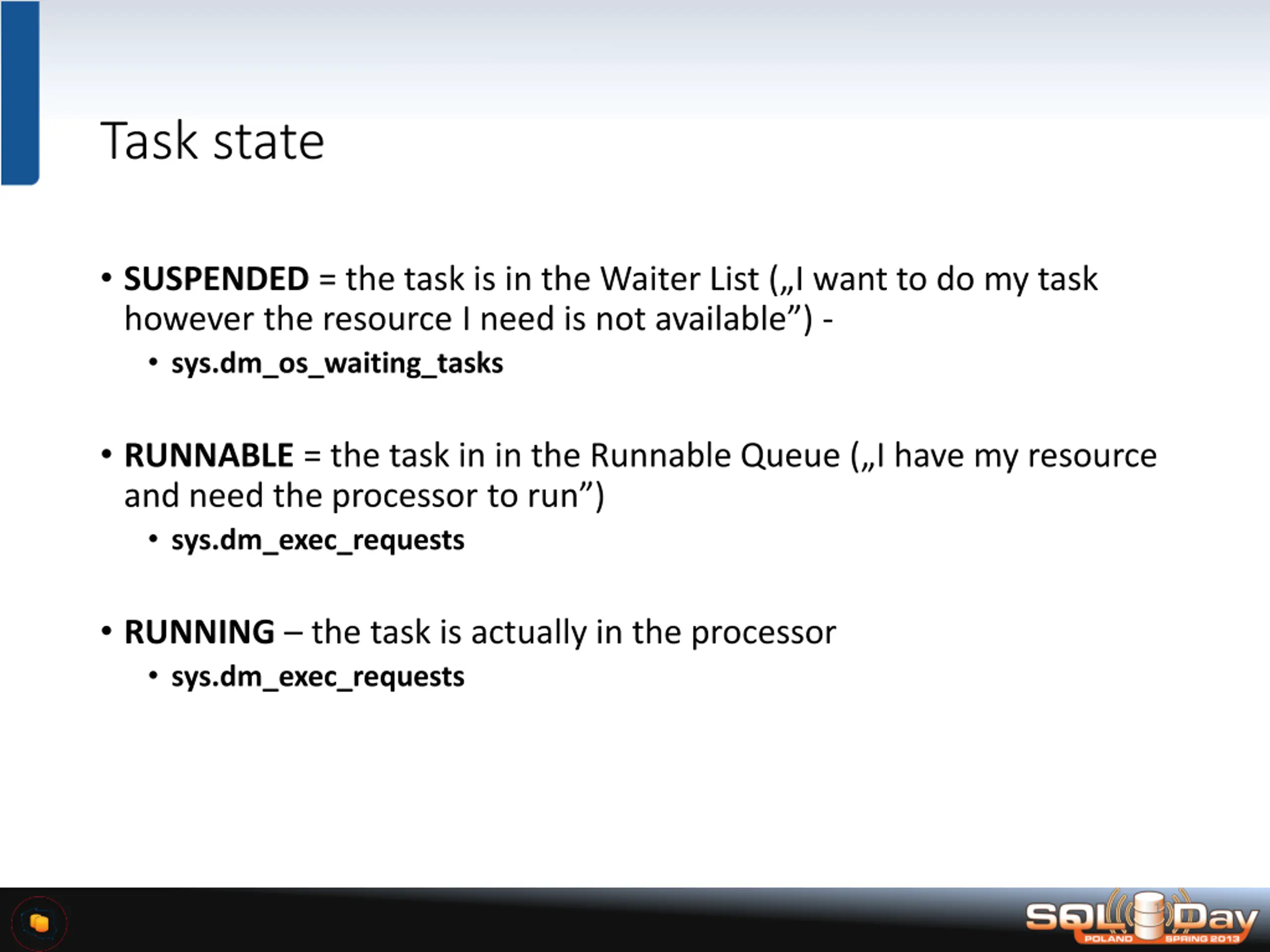

Task state SUSPENDED = the task is in the Waiter List ( I want to do my task however the resource I need is not available ) - sys.dm_os_waiting_tasks RUNNABLE = the task in in the Runnable Queue ( I have my resource and need the processor to run ) sys.dm_exec_requests RUNNING the task is actually in the processor sys.dm_exec_requests 11

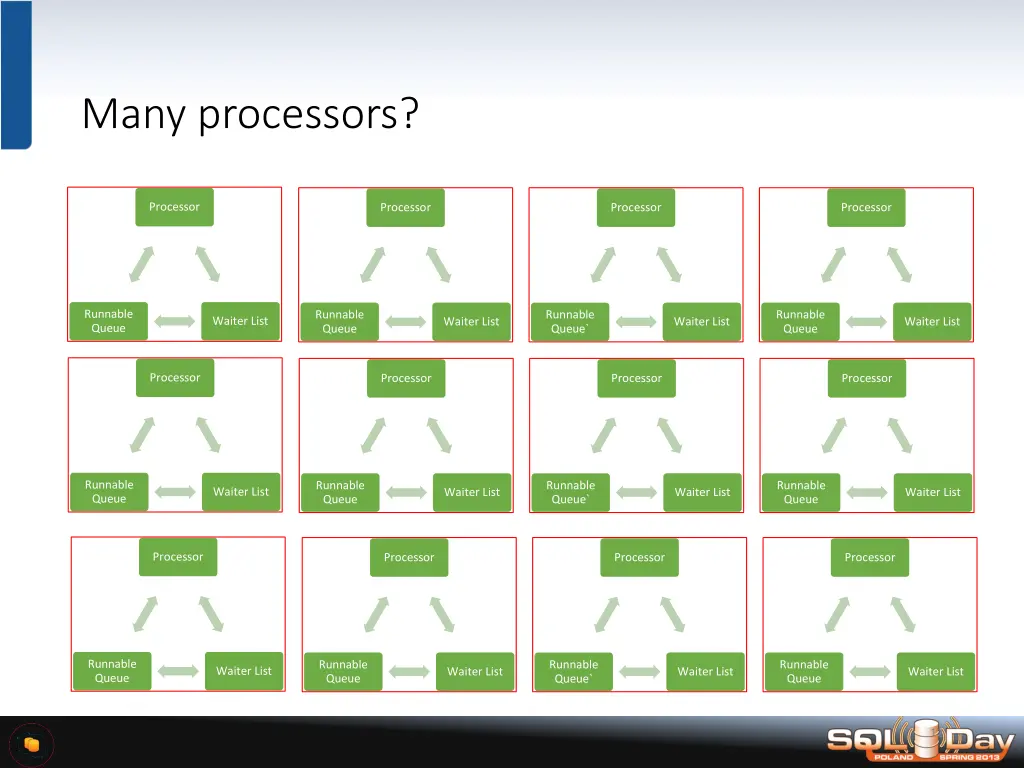

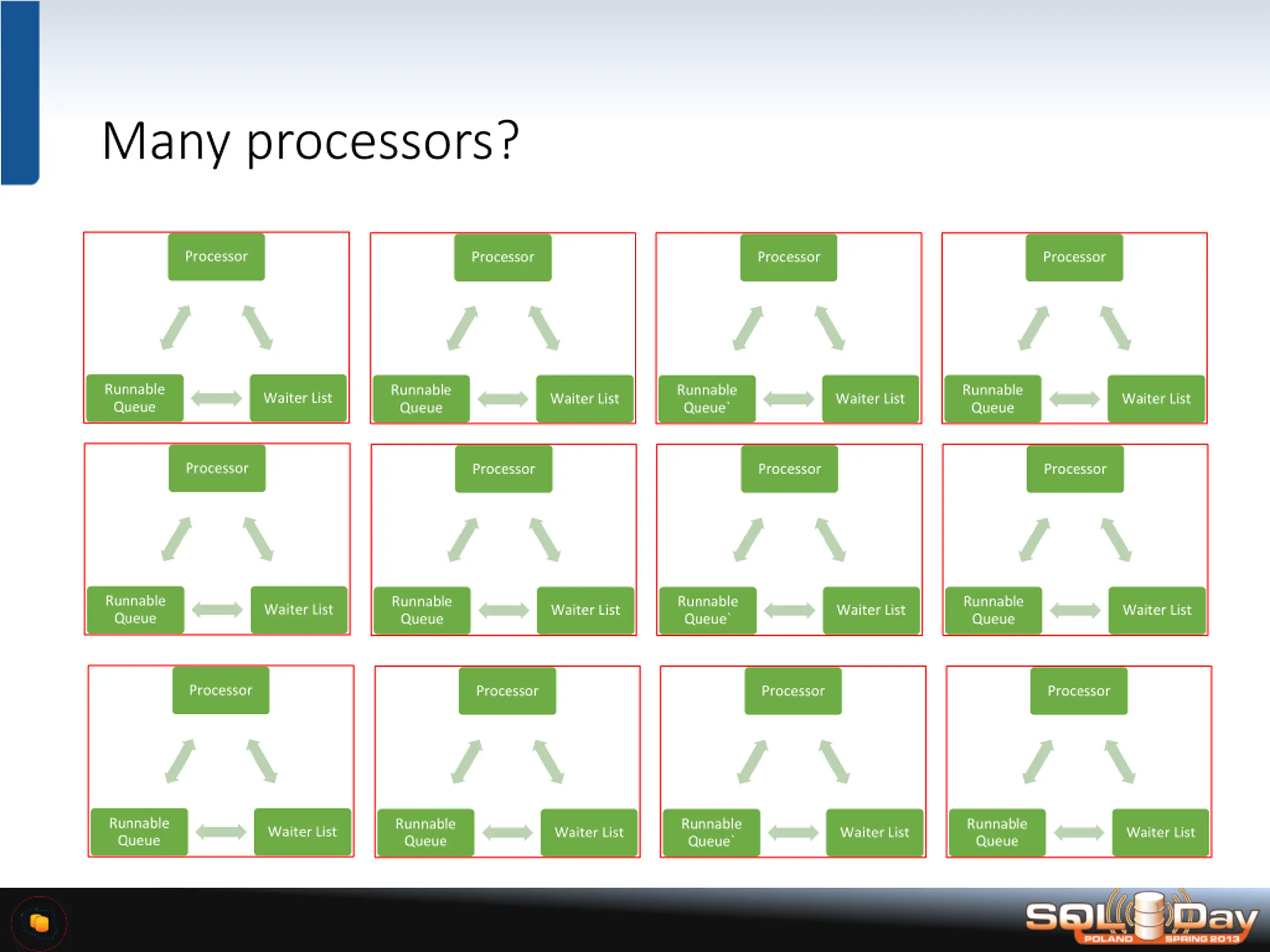

Many processors? Processor Processor Processor Processor Runnable Queue Runnable Queue Runnable Queue Runnable Queue` Waiter List Waiter List Waiter List Waiter List Processor Processor Processor Processor Runnable Queue Runnable Queue Runnable Queue Runnable Queue` Waiter List Waiter List Waiter List Waiter List Processor Processor Processor Processor Runnable Queue Runnable Queue Runnable Queue Runnable Queue` Waiter List Waiter List Waiter List Waiter List 12

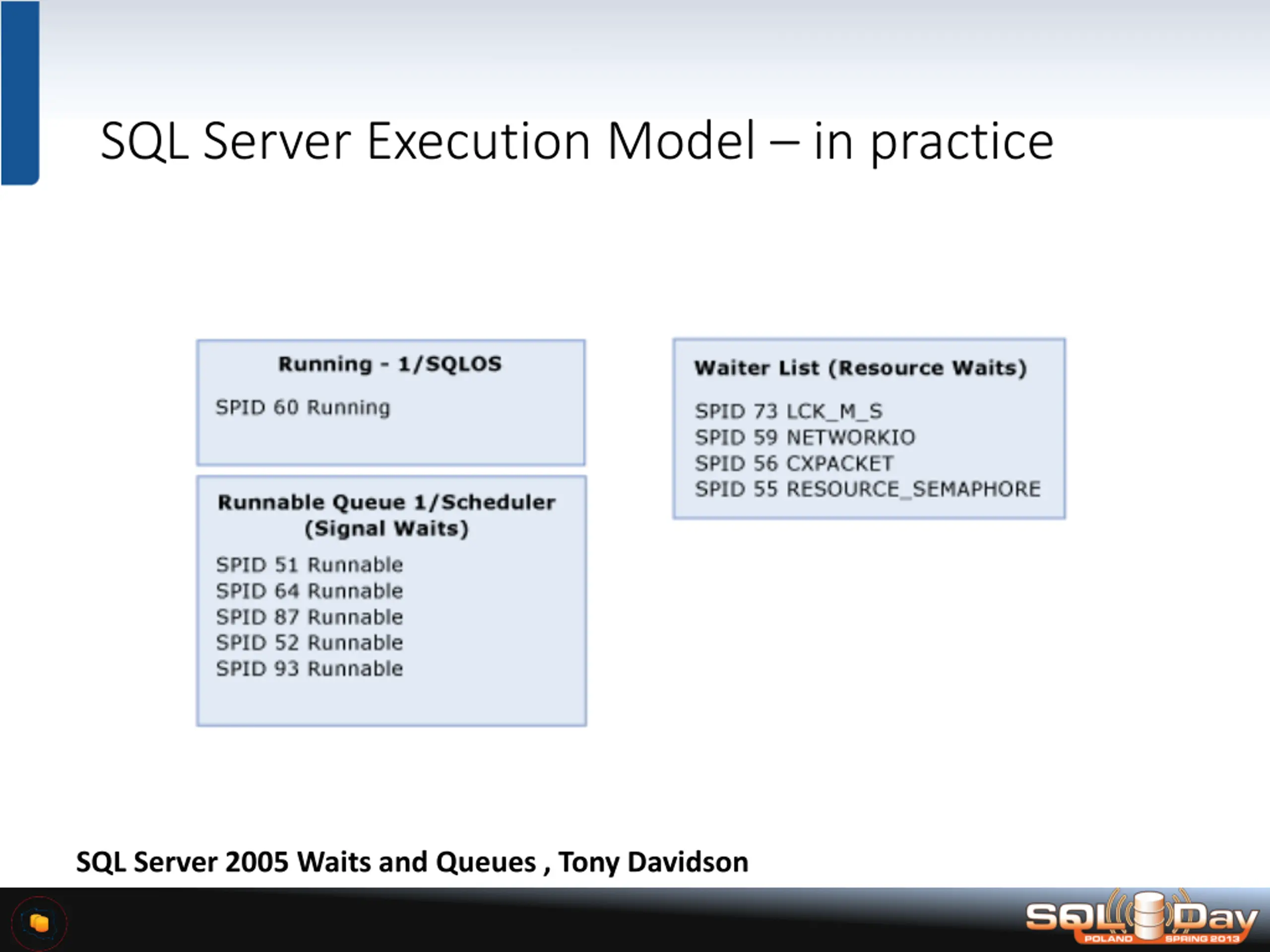

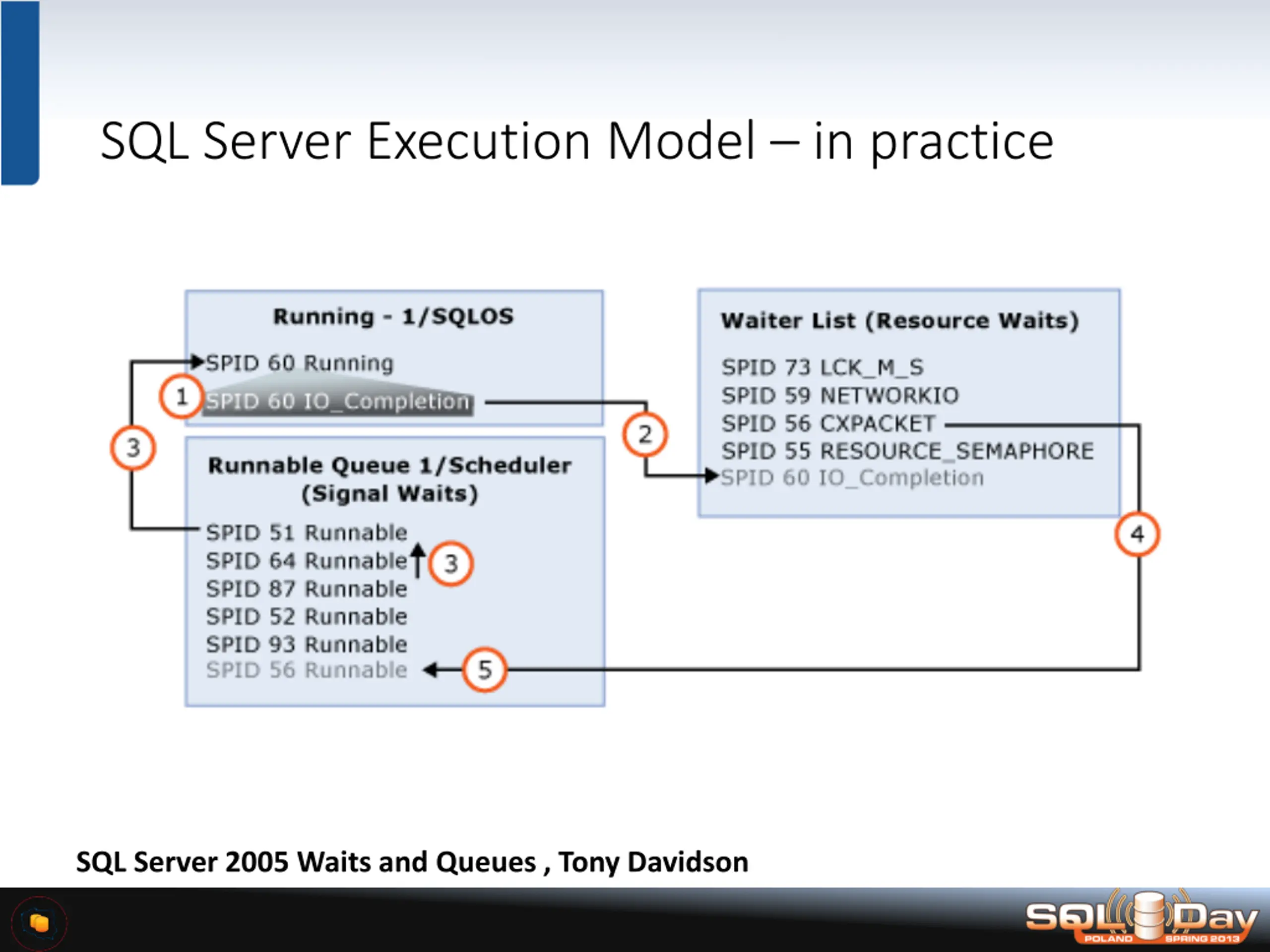

SQL Server Execution Model in practice SQL Server 2005 Waits and Queues , Tony Davidson

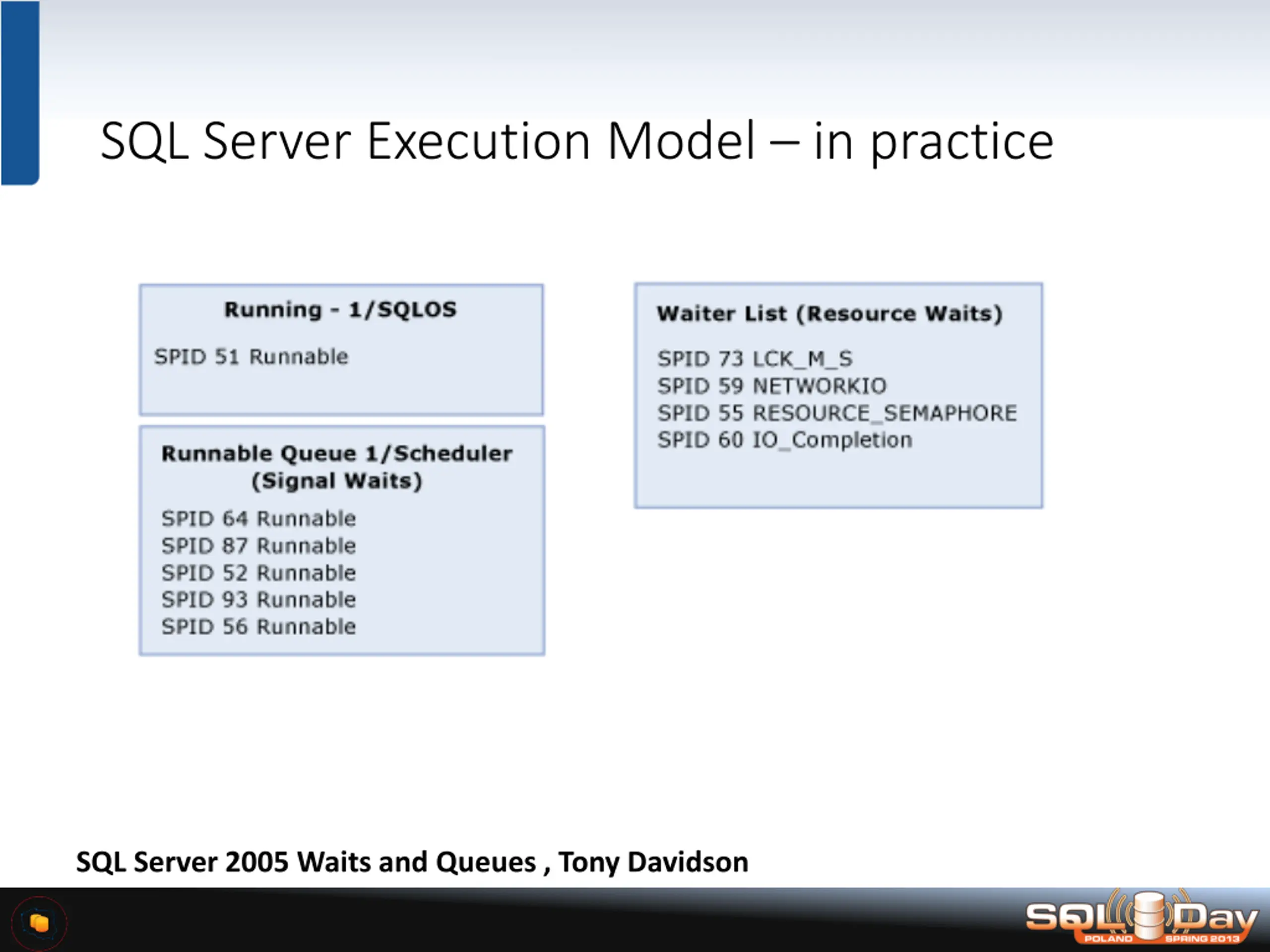

SQL Server Execution Model in practice SQL Server 2005 Waits and Queues , Tony Davidson

SQL Server Execution Model in practice SQL Server 2005 Waits and Queues , Tony Davidson

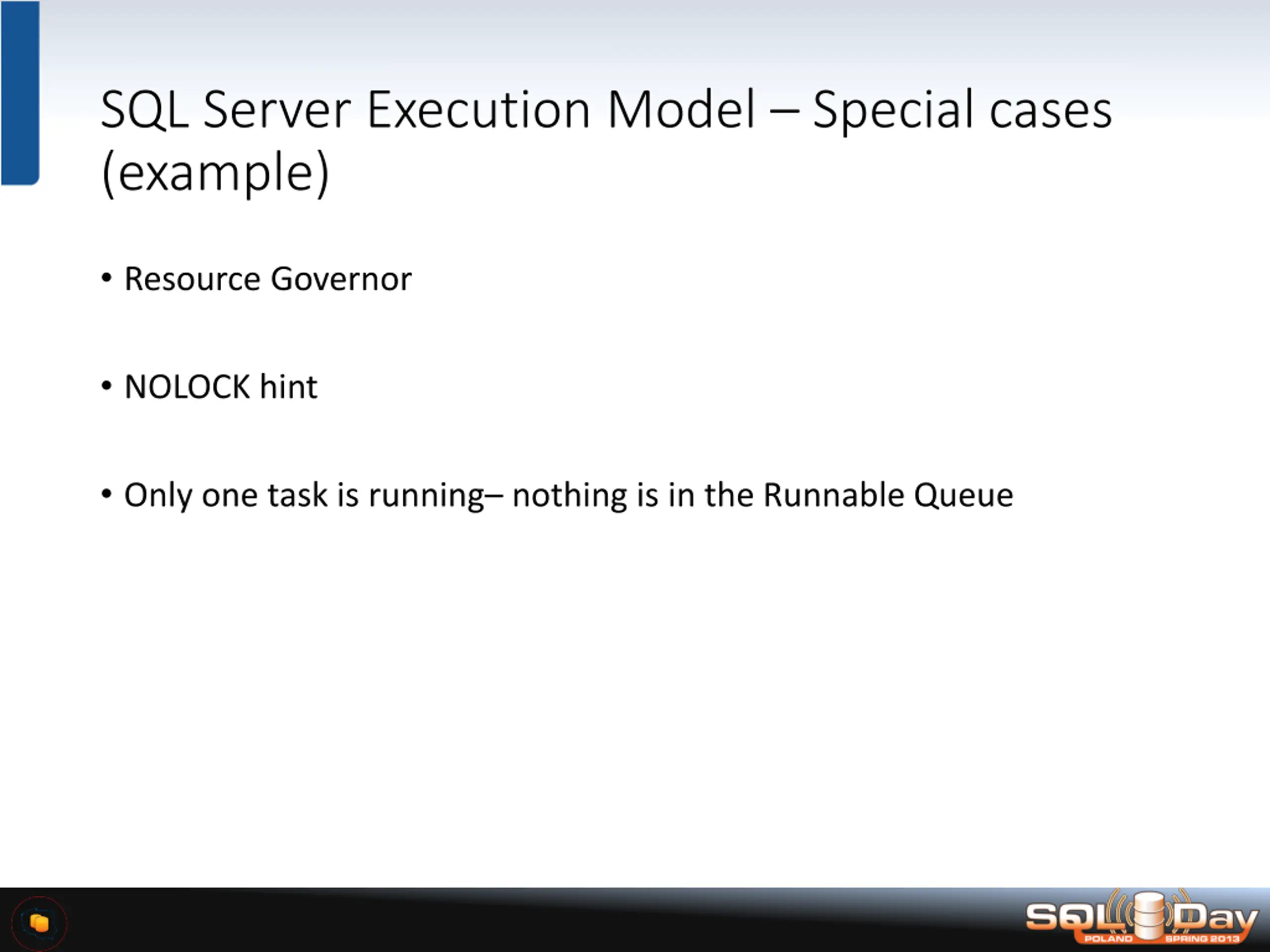

SQL Server Execution Model Special cases (example) Resource Governor NOLOCK hint Only one task is running nothing is in the Runnable Queue

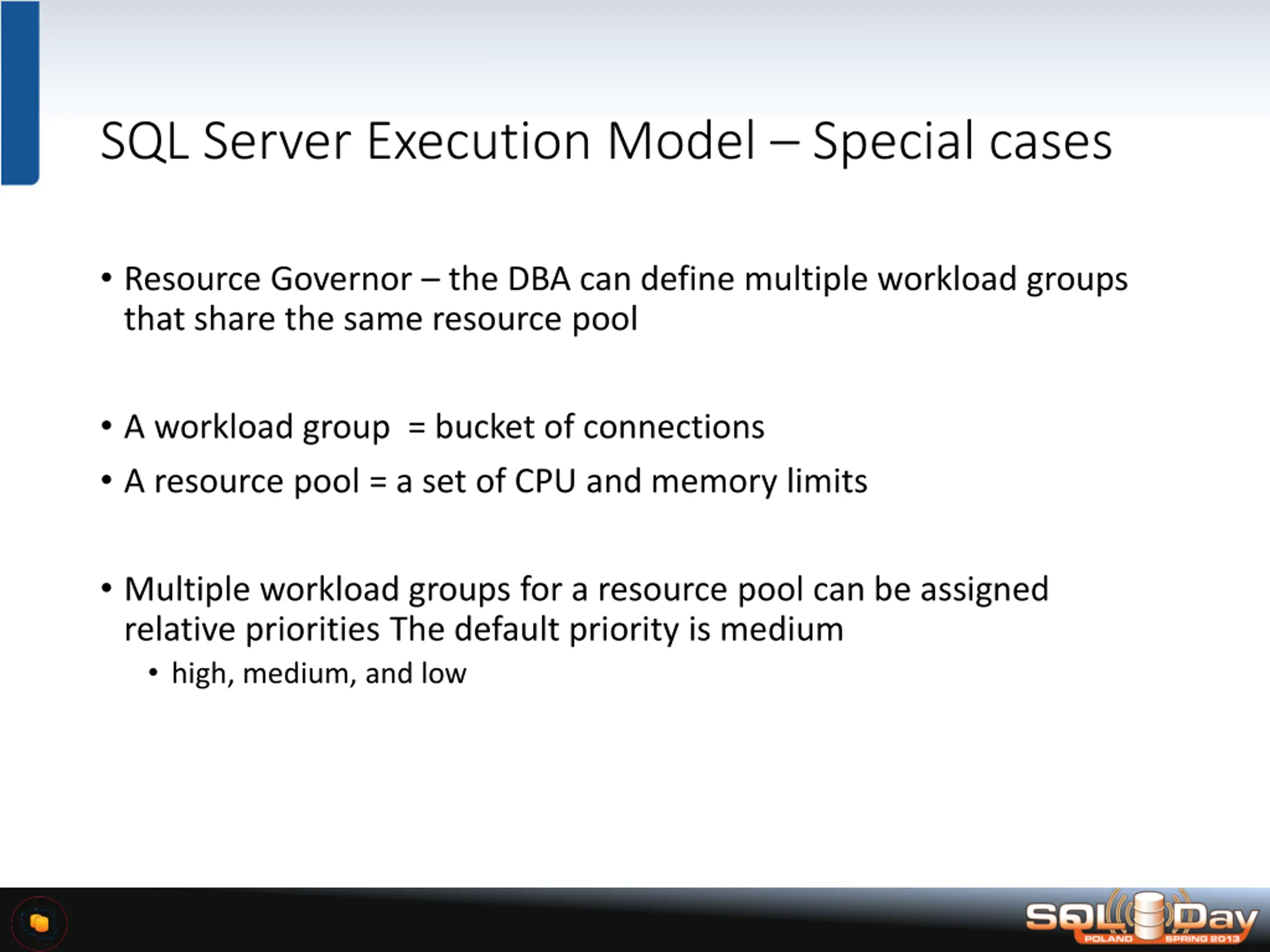

SQL Server Execution Model Special cases Resource Governor the DBA can define multiple workload groups that share the same resource pool A workload group = bucket of connections A resource pool = a set of CPU and memory limits Multiple workload groups for a resource pool can be assigned relative priorities The default priority is medium high, medium, and low

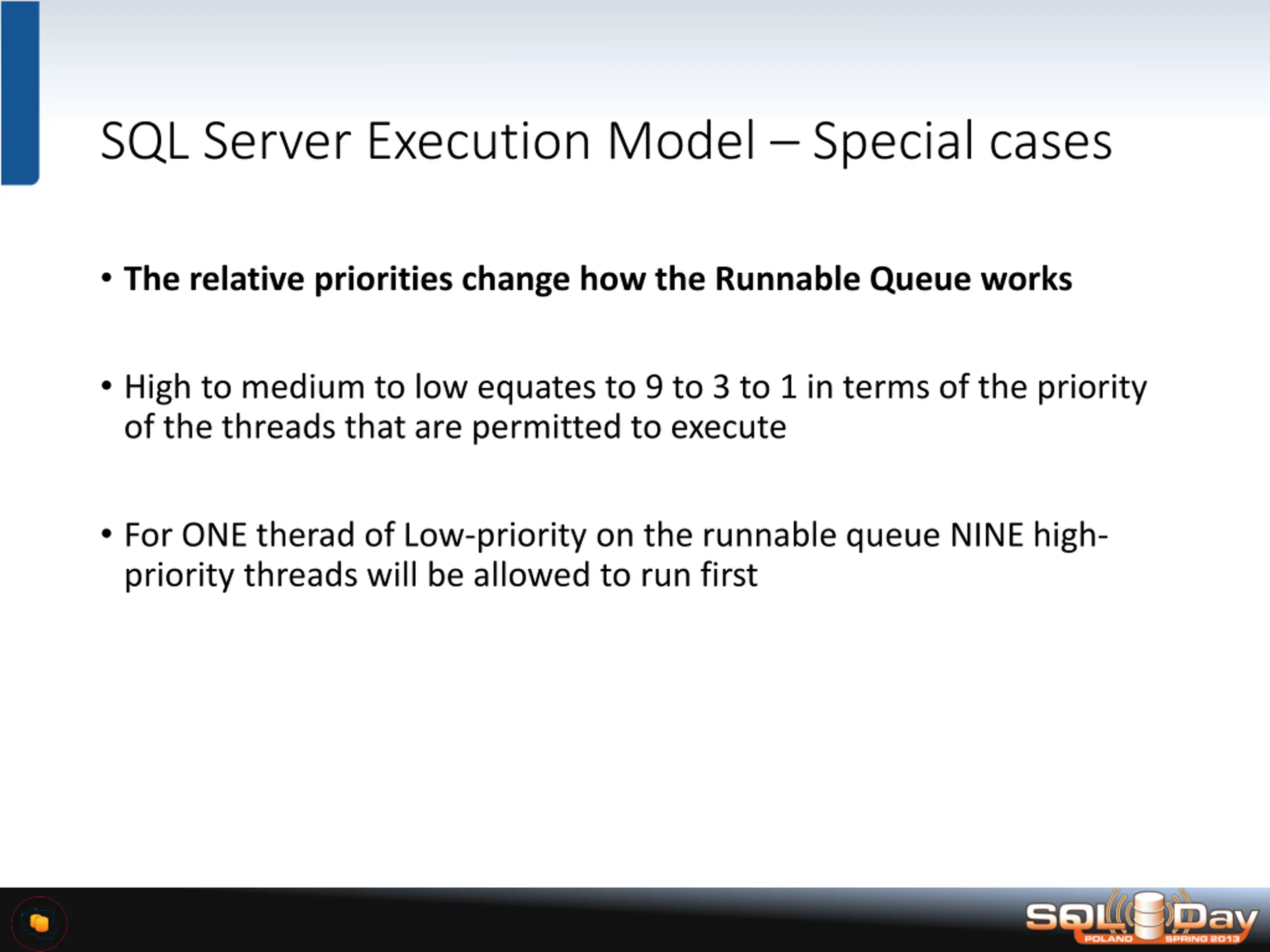

SQL Server Execution Model Special cases The relative priorities change how the Runnable Queue works High to medium to low equates to 9 to 3 to 1 in terms of the priority of the threads that are permitted to execute For ONE therad of Low-priority on the runnable queue NINE high- priority threads will be allowed to run first

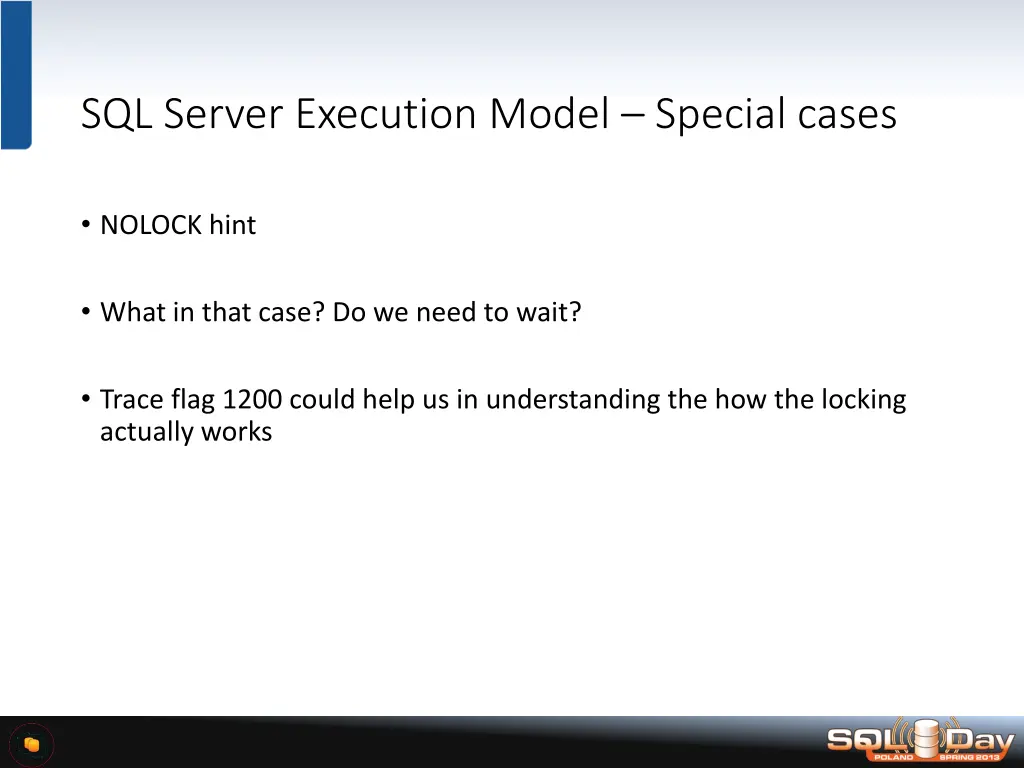

SQL Server Execution Model Special cases NOLOCK hint What in that case? Do we need to wait? Trace flag 1200 could help us in understanding the how the locking actually works

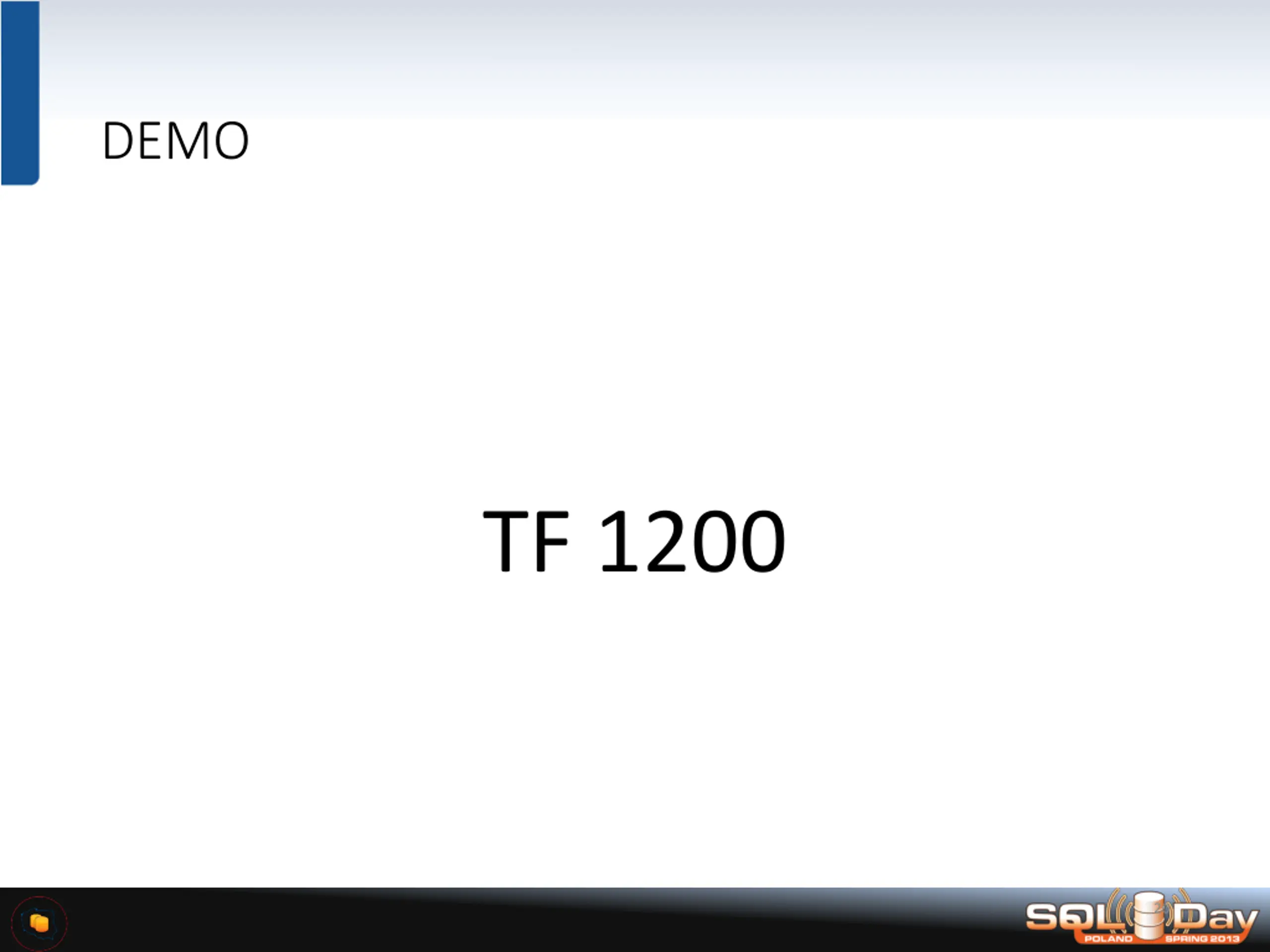

DEMO TF 1200 20

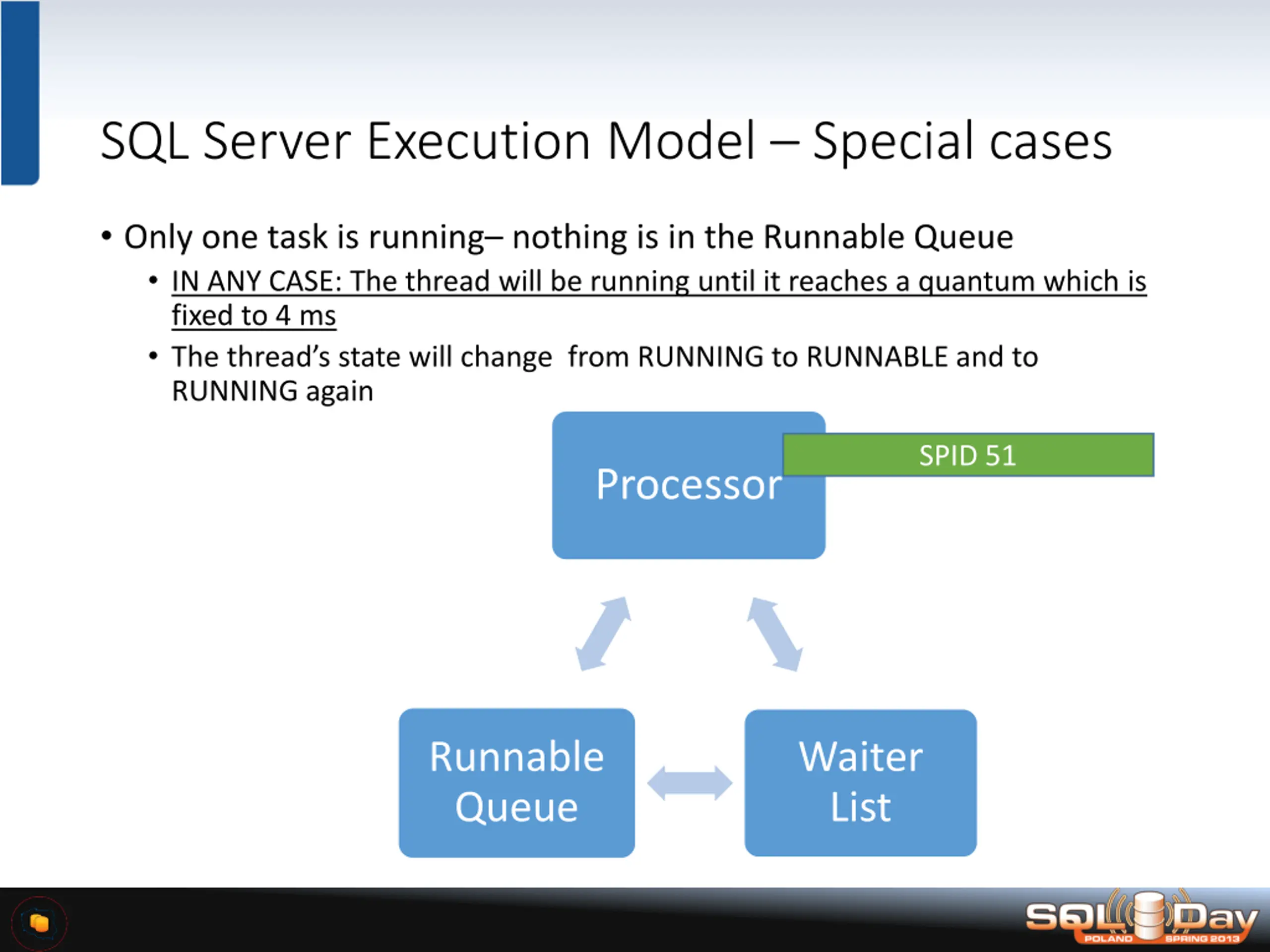

SQL Server Execution Model Special cases Only one task is running nothing is in the Runnable Queue IN ANY CASE: The thread will be running until it reaches a quantum which is fixed to 4 ms The thread s state will change from RUNNING to RUNNABLE and to RUNNING again SPID 51 Processor Runnable Queue Waiter List

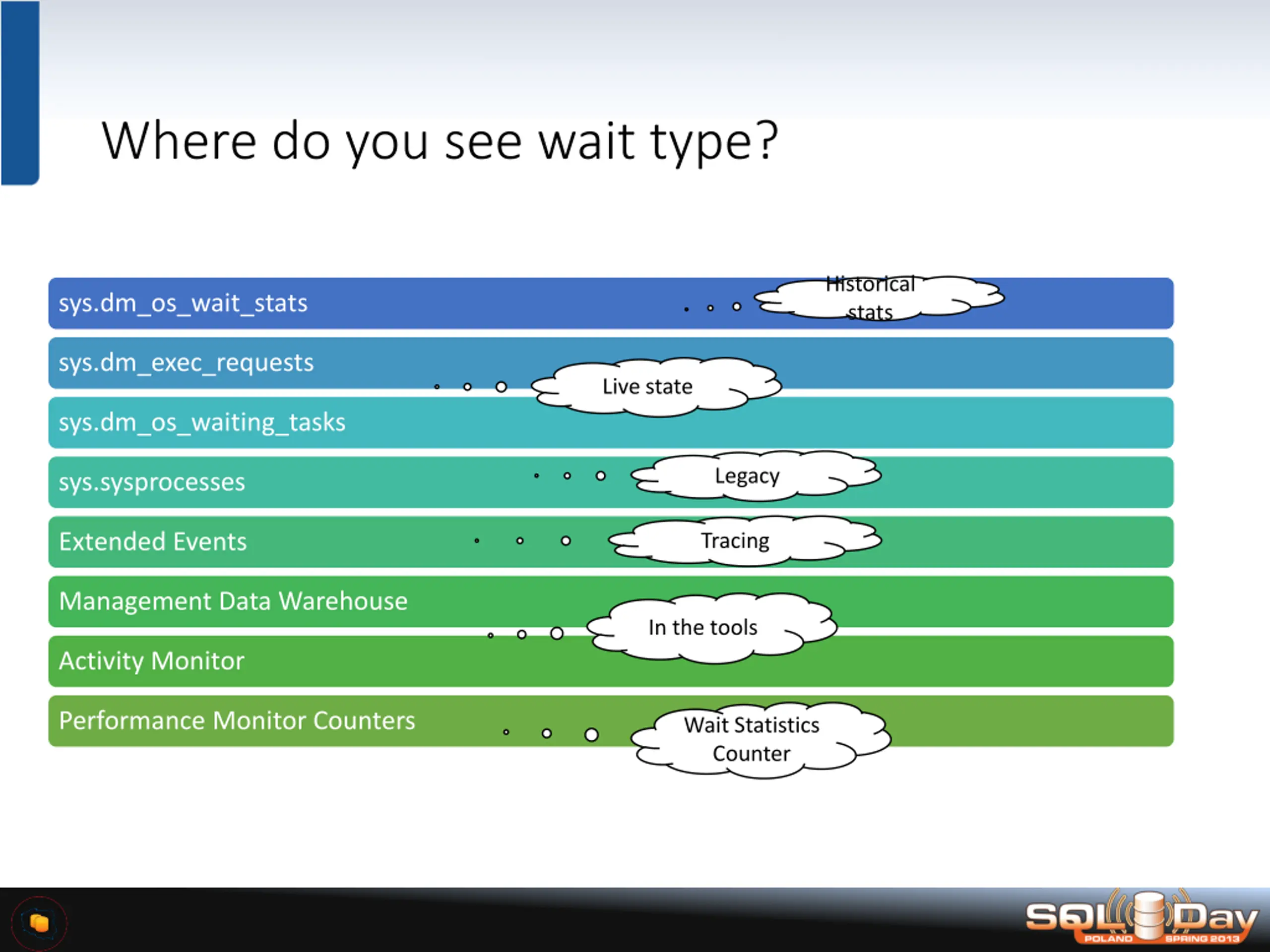

Where do you see wait type? Historical stats sys.dm_os_wait_stats sys.dm_exec_requests Live state sys.dm_os_waiting_tasks Legacy sys.sysprocesses Extended Events Tracing Management Data Warehouse In the tools Activity Monitor Performance Monitor Counters Wait Statistics Counter

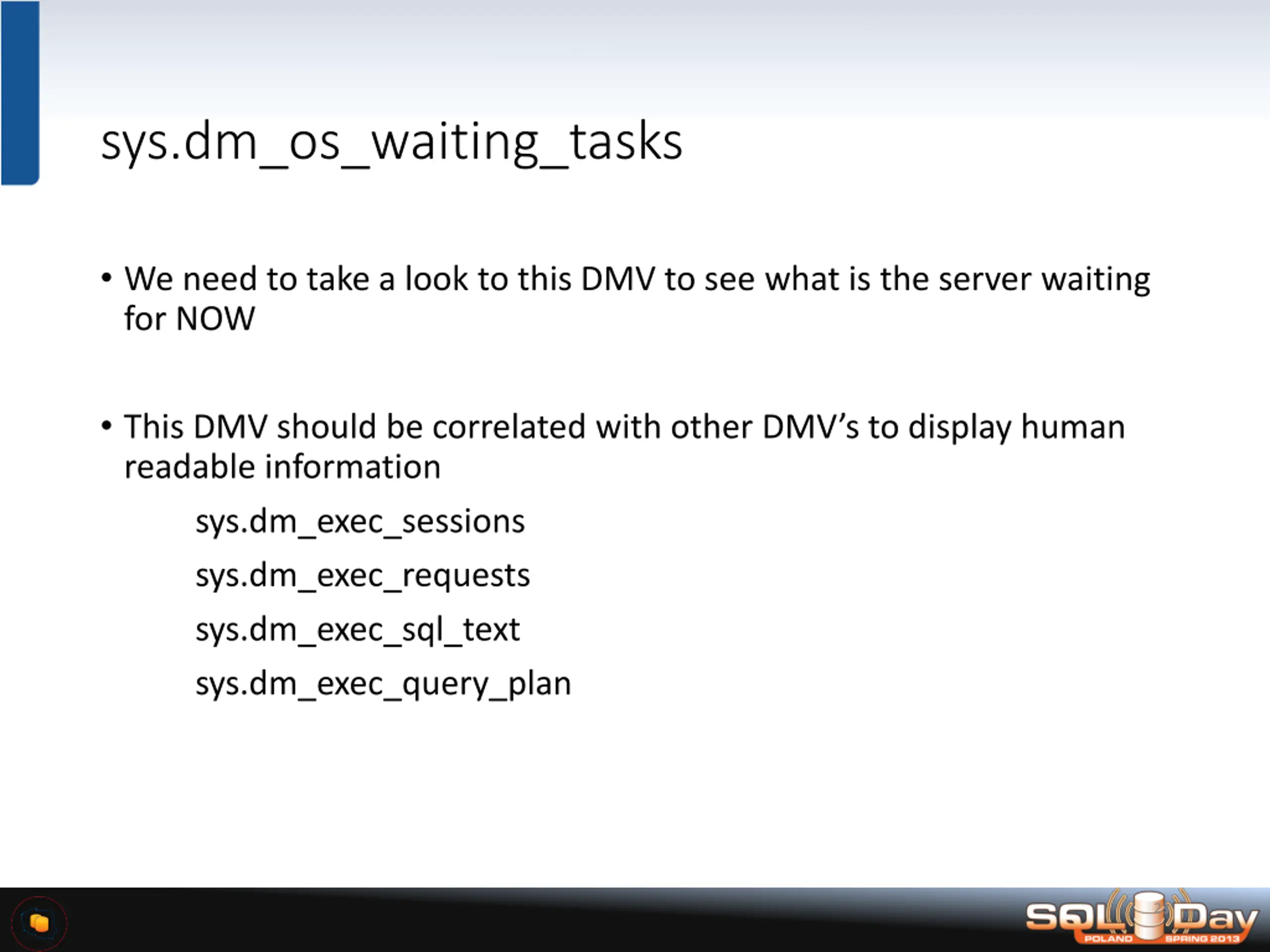

sys.dm_os_waiting_tasks We need to take a look to this DMV to see what is the server waiting for NOW This DMV should be correlated with other DMV s to display human readable information sys.dm_exec_sessions sys.dm_exec_requests sys.dm_exec_sql_text sys.dm_exec_query_plan 23

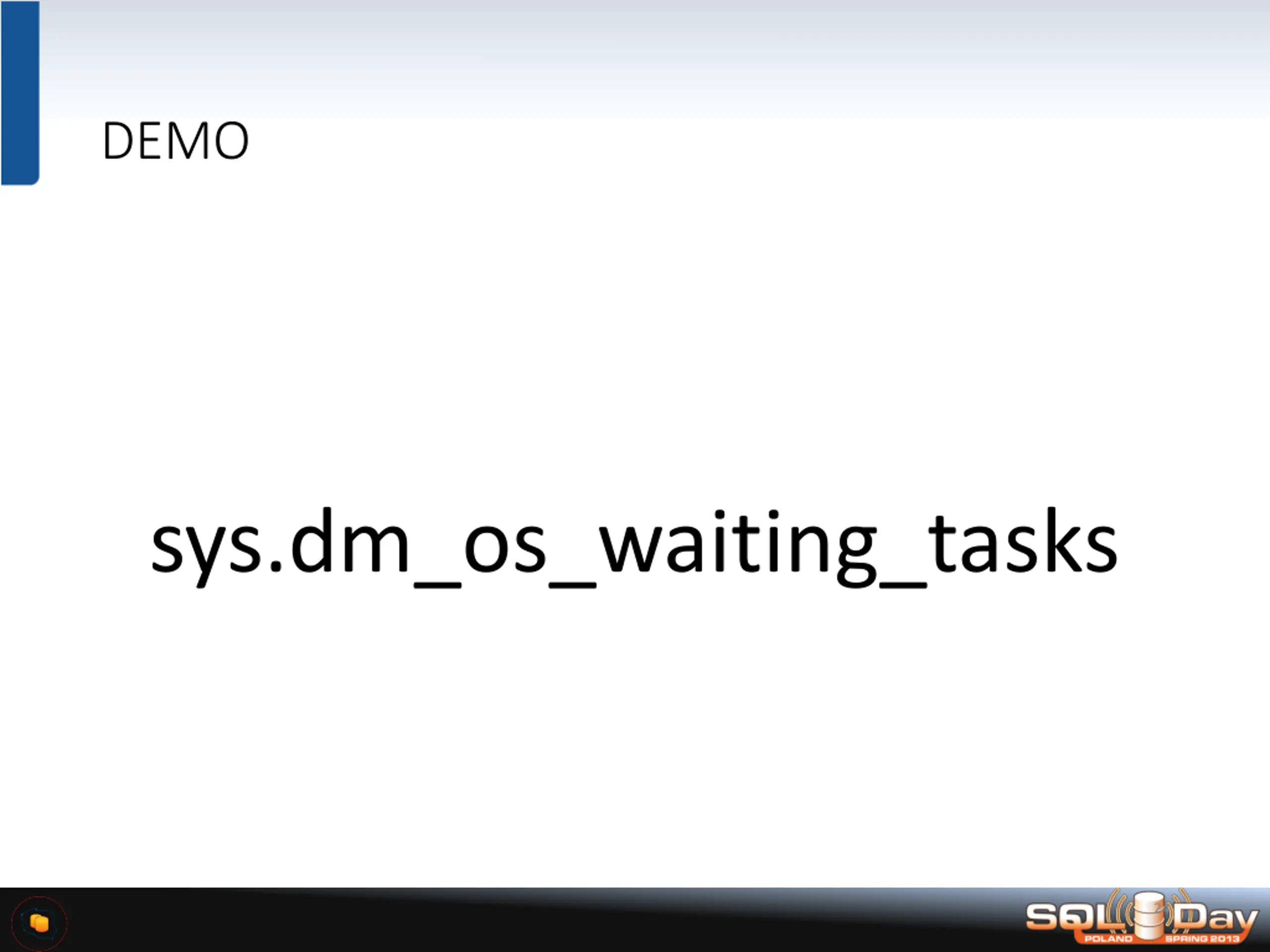

DEMO sys.dm_os_waiting_tasks 24

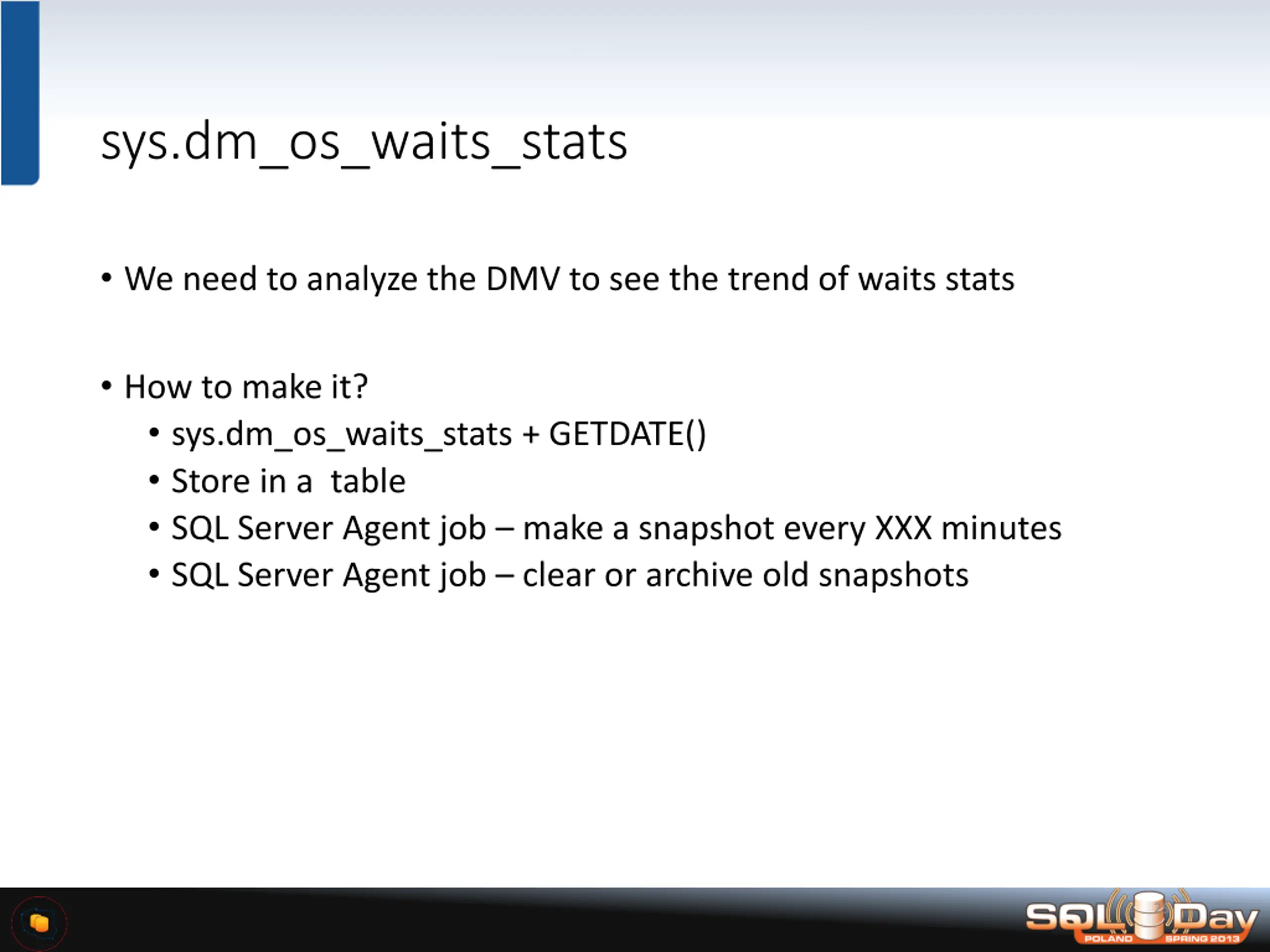

sys.dm_os_waits_stats We need to analyze the DMV to see the trend of waits stats How to make it? sys.dm_os_waits_stats + GETDATE() Store in a table SQL Server Agent job make a snapshot every XXX minutes SQL Server Agent job clear or archive old snapshots 25

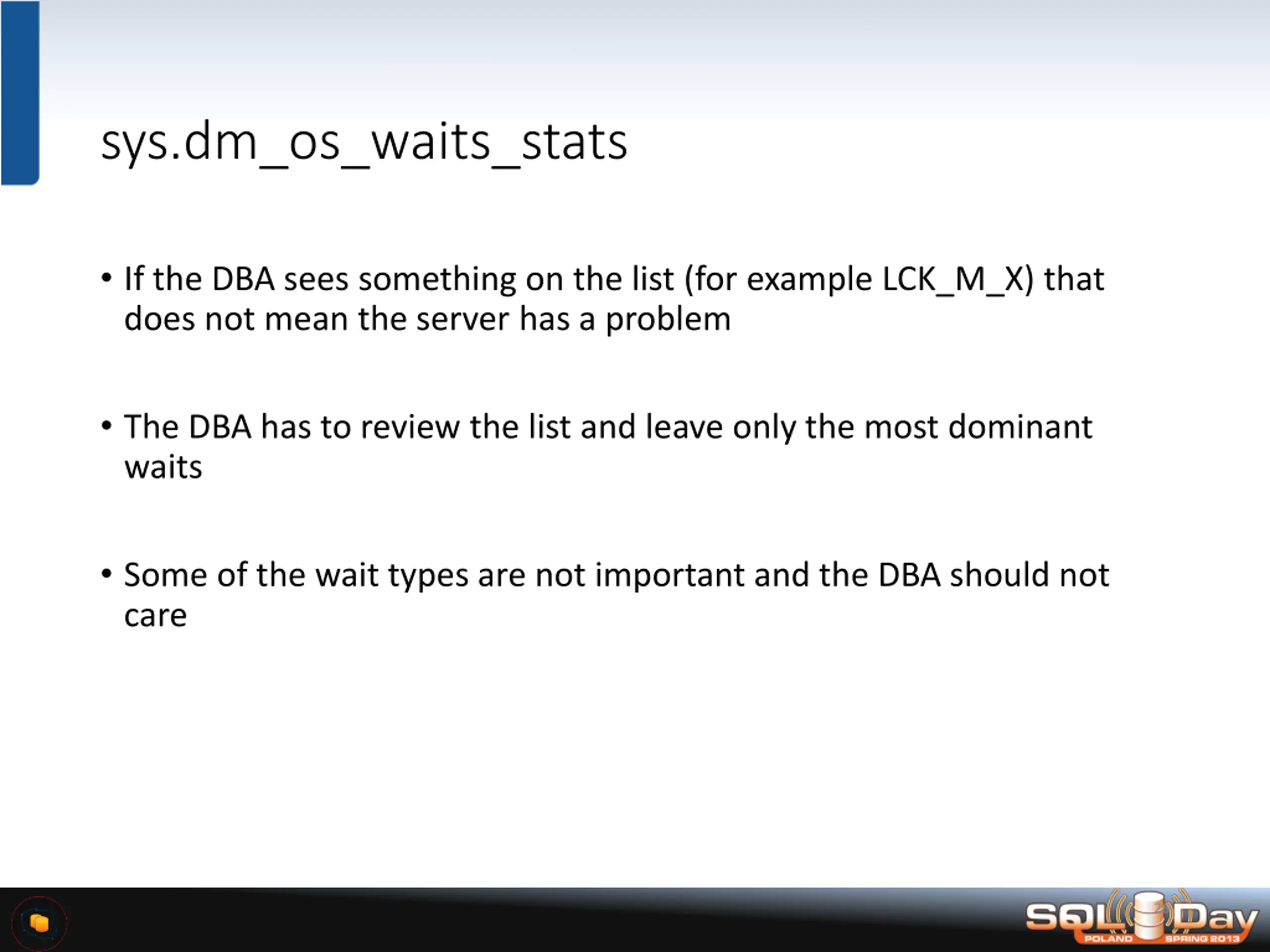

sys.dm_os_waits_stats If the DBA sees something on the list (for example LCK_M_X) that does not mean the server has a problem The DBA has to review the list and leave only the most dominant waits Some of the wait types are not important and the DBA should not care 26

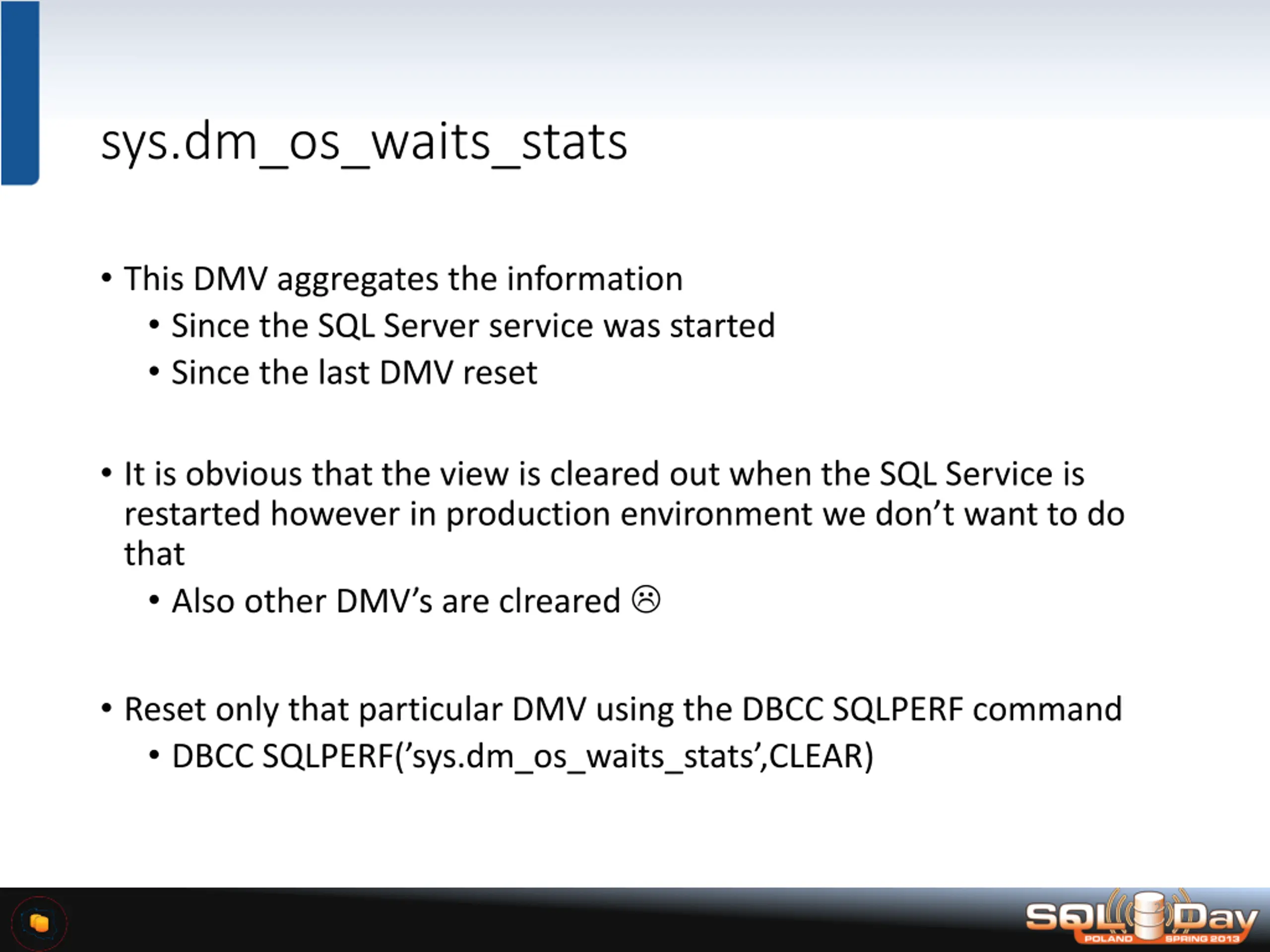

sys.dm_os_waits_stats This DMV aggregates the information Since the SQL Server service was started Since the last DMV reset It is obvious that the view is cleared out when the SQL Service is restarted however in production environment we don t want to do that Also other DMV s are clreared Reset only that particular DMV using the DBCC SQLPERF command DBCC SQLPERF( sys.dm_os_waits_stats ,CLEAR) 27

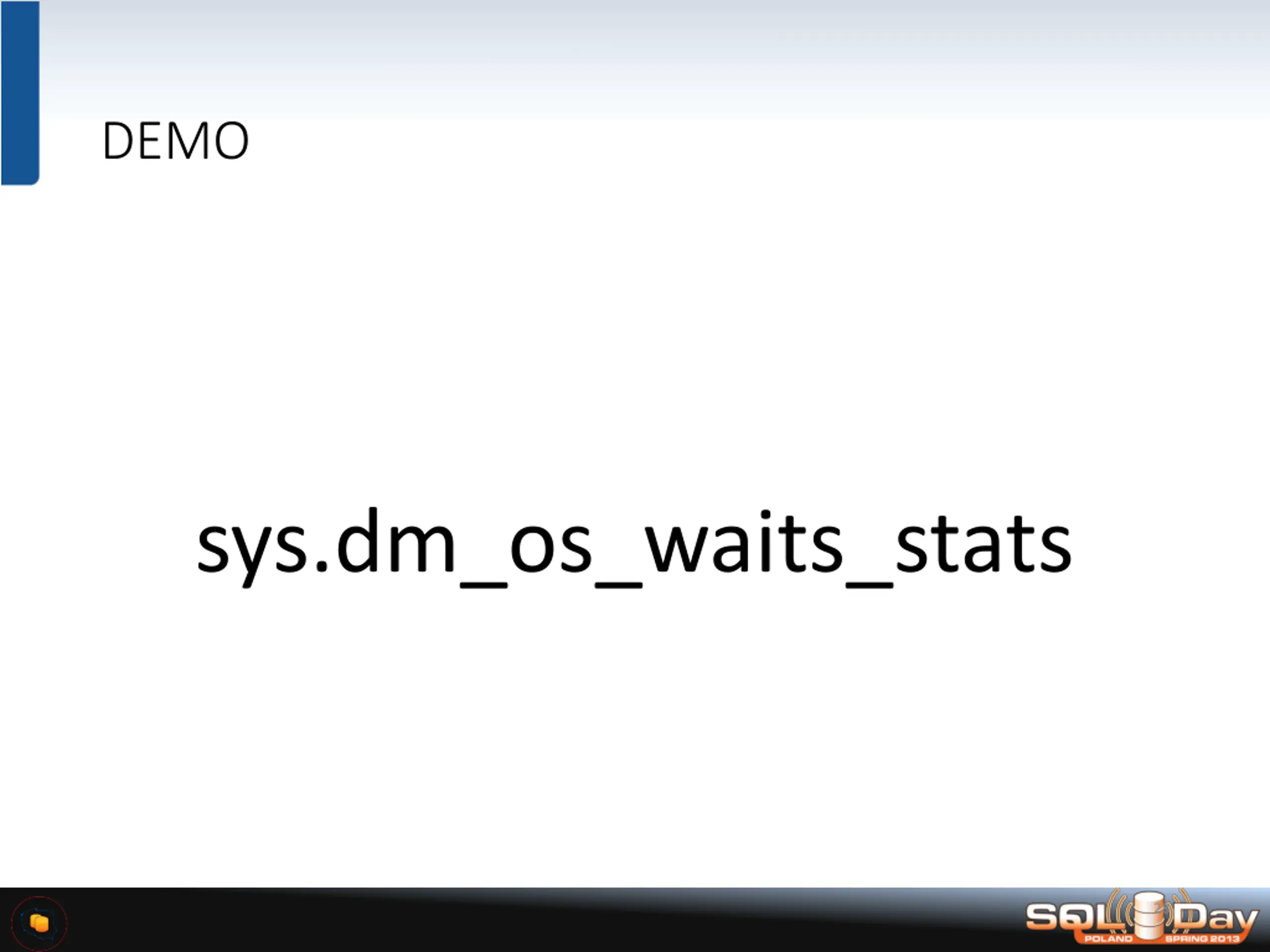

DEMO sys.dm_os_waits_stats 28

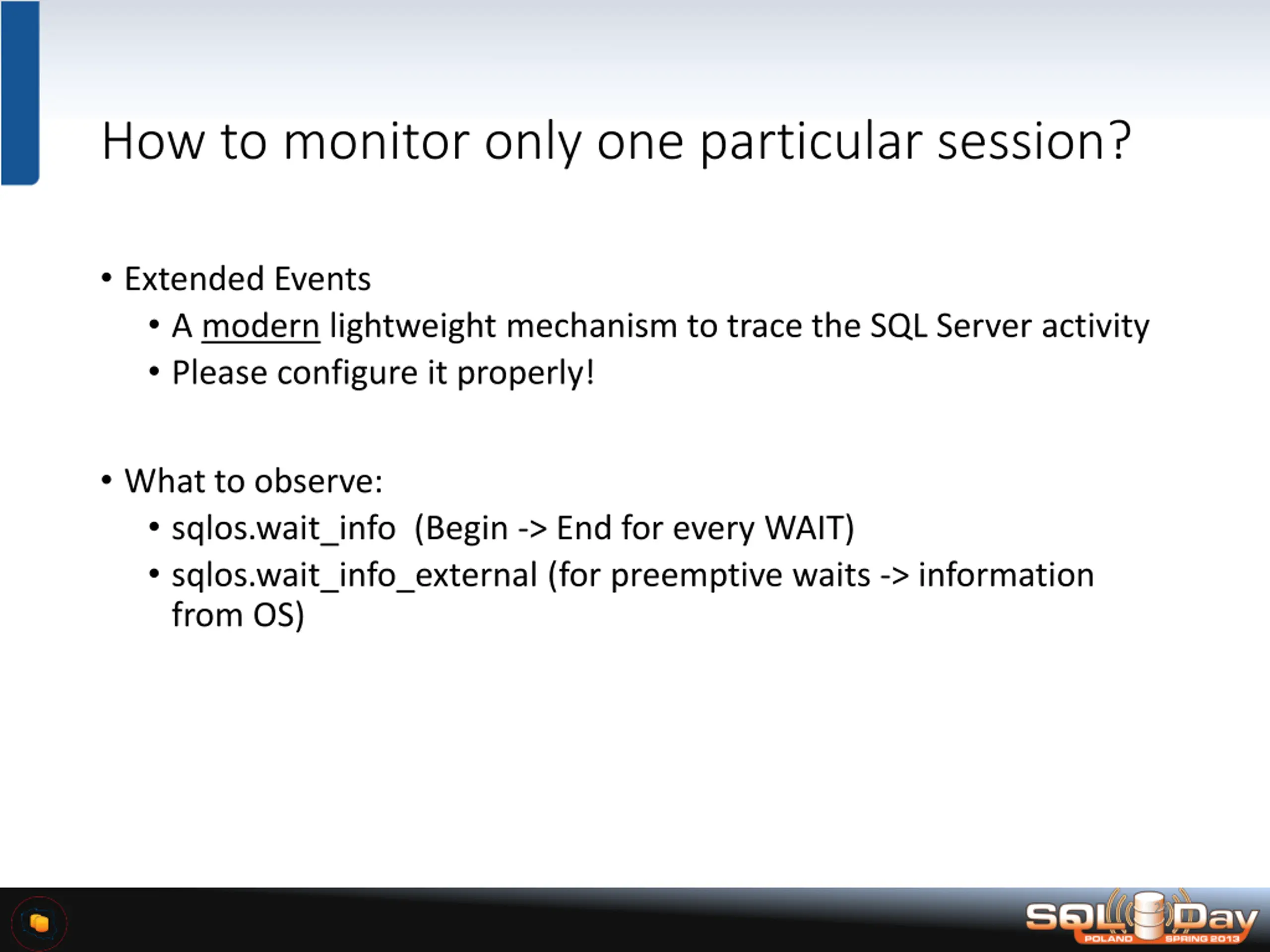

How to monitor only one particular session? Extended Events A modern lightweight mechanism to trace the SQL Server activity Please configure it properly! What to observe: sqlos.wait_info (Begin -> End for every WAIT) sqlos.wait_info_external (for preemptive waits -> information from OS) 29

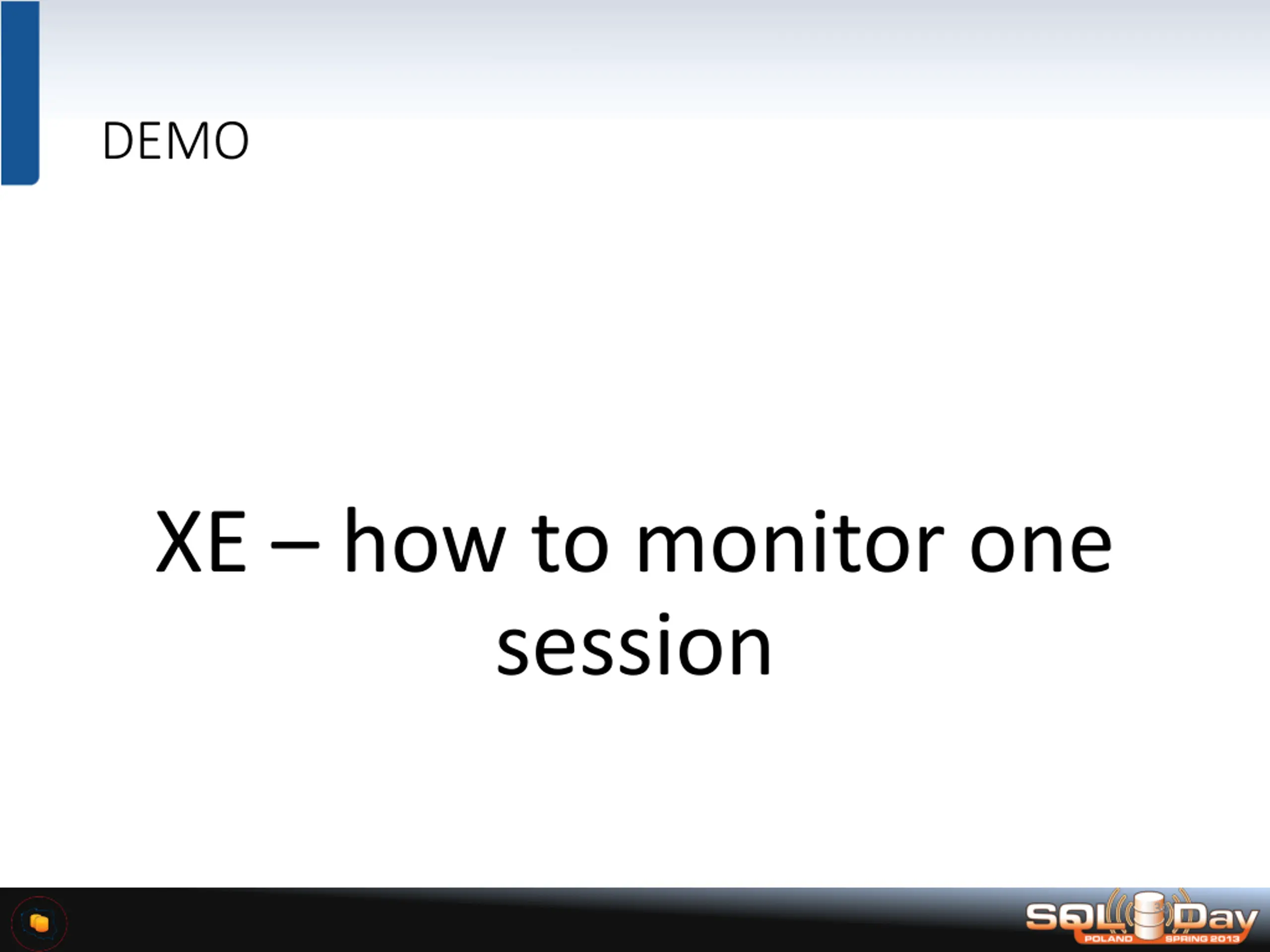

DEMO XE how to monitor one session 30

Waits stats across the world 31

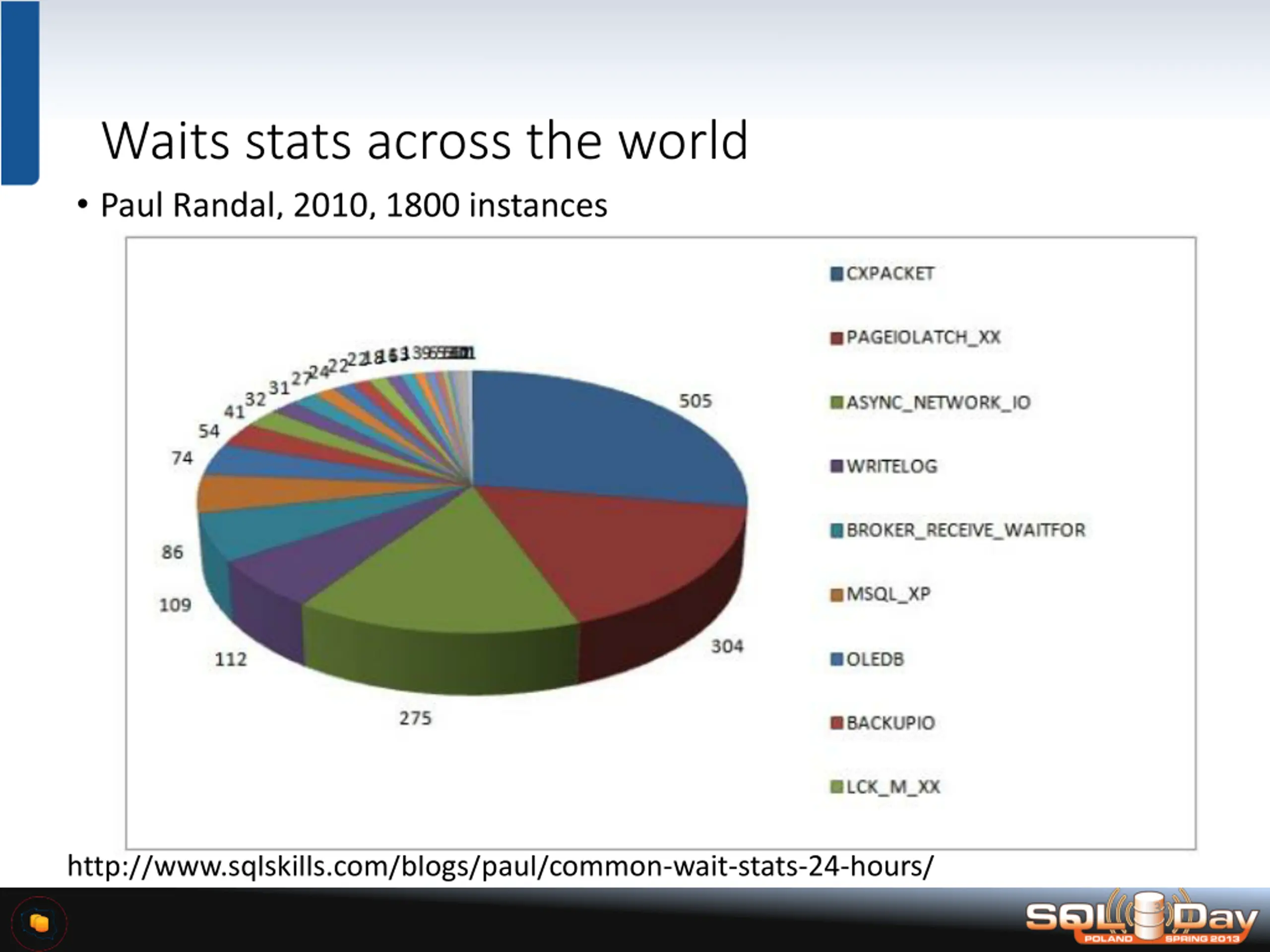

Waits stats across the world Paul Randal, 2010, 1800 instances http://www.sqlskills.com/blogs/paul/common-wait-stats-24-hours/ 32

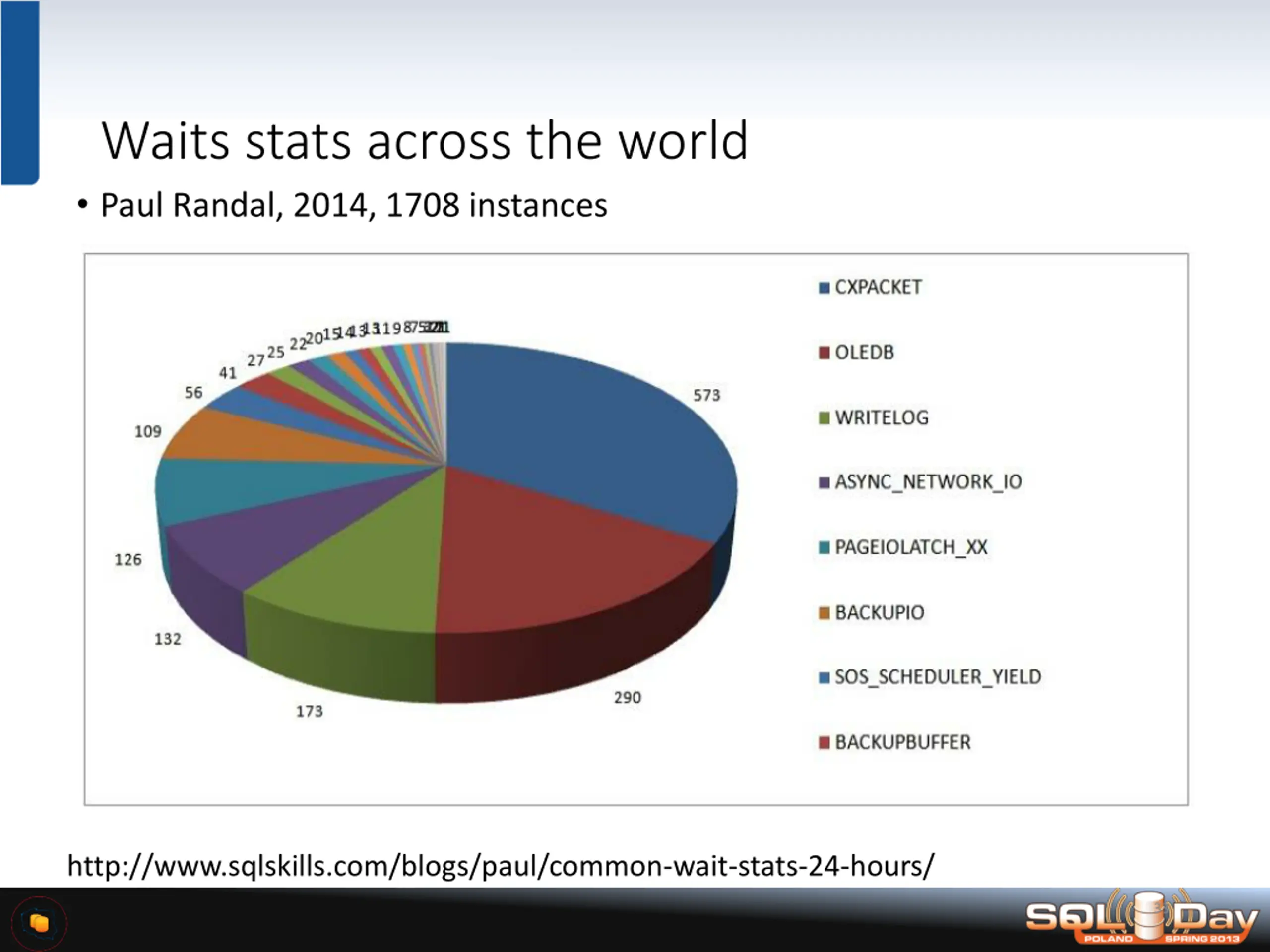

Waits stats across the world Paul Randal, 2014, 1708 instances http://www.sqlskills.com/blogs/paul/common-wait-stats-24-hours/ 33

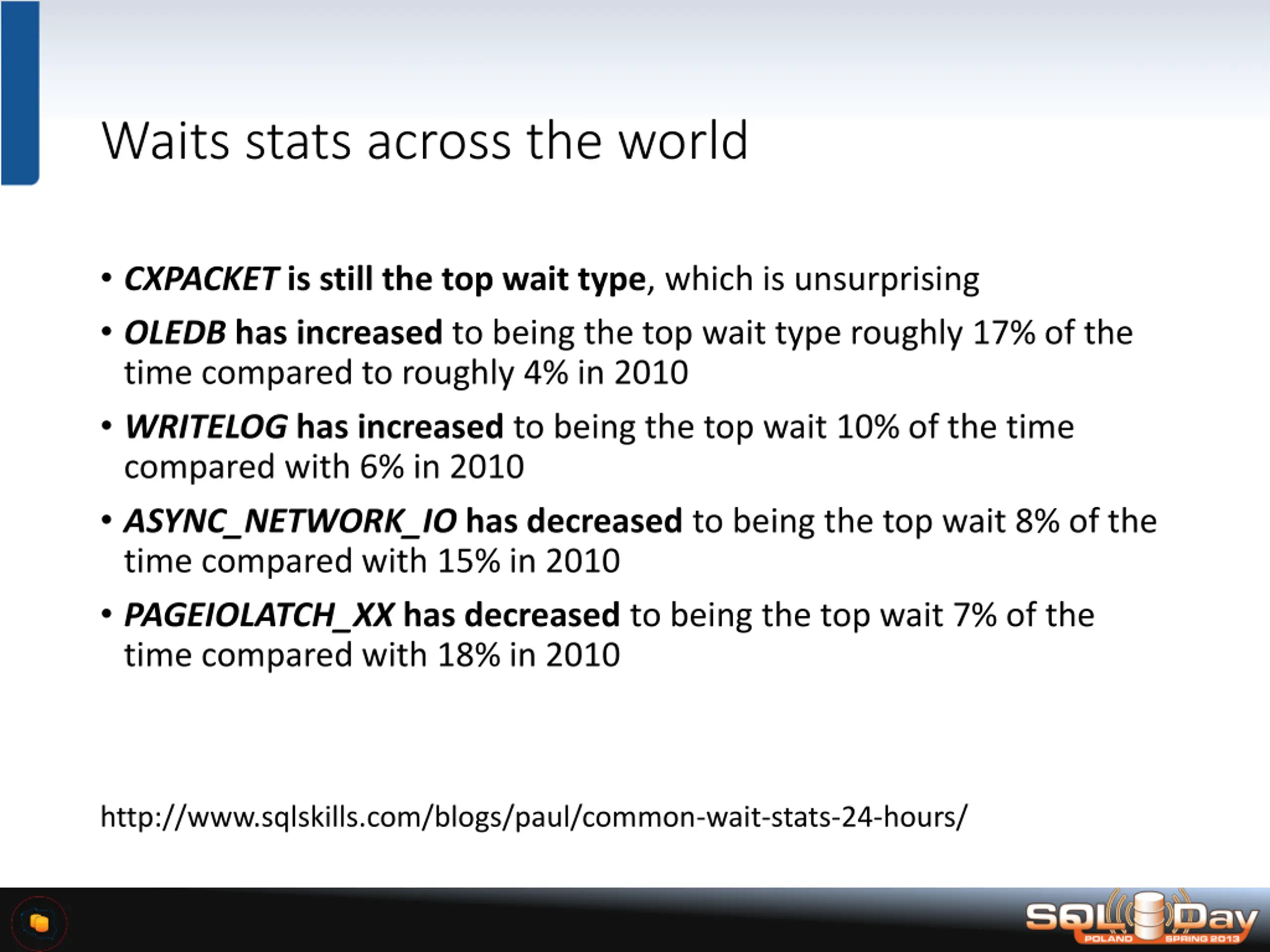

Waits stats across the world CXPACKET is still the top wait type, which is unsurprising OLEDB has increased to being the top wait type roughly 17% of the time compared to roughly 4% in 2010 WRITELOG has increased to being the top wait 10% of the time compared with 6% in 2010 ASYNC_NETWORK_IO has decreased to being the top wait 8% of the time compared with 15% in 2010 PAGEIOLATCH_XX has decreased to being the top wait 7% of the time compared with 18% in 2010 http://www.sqlskills.com/blogs/paul/common-wait-stats-24-hours/

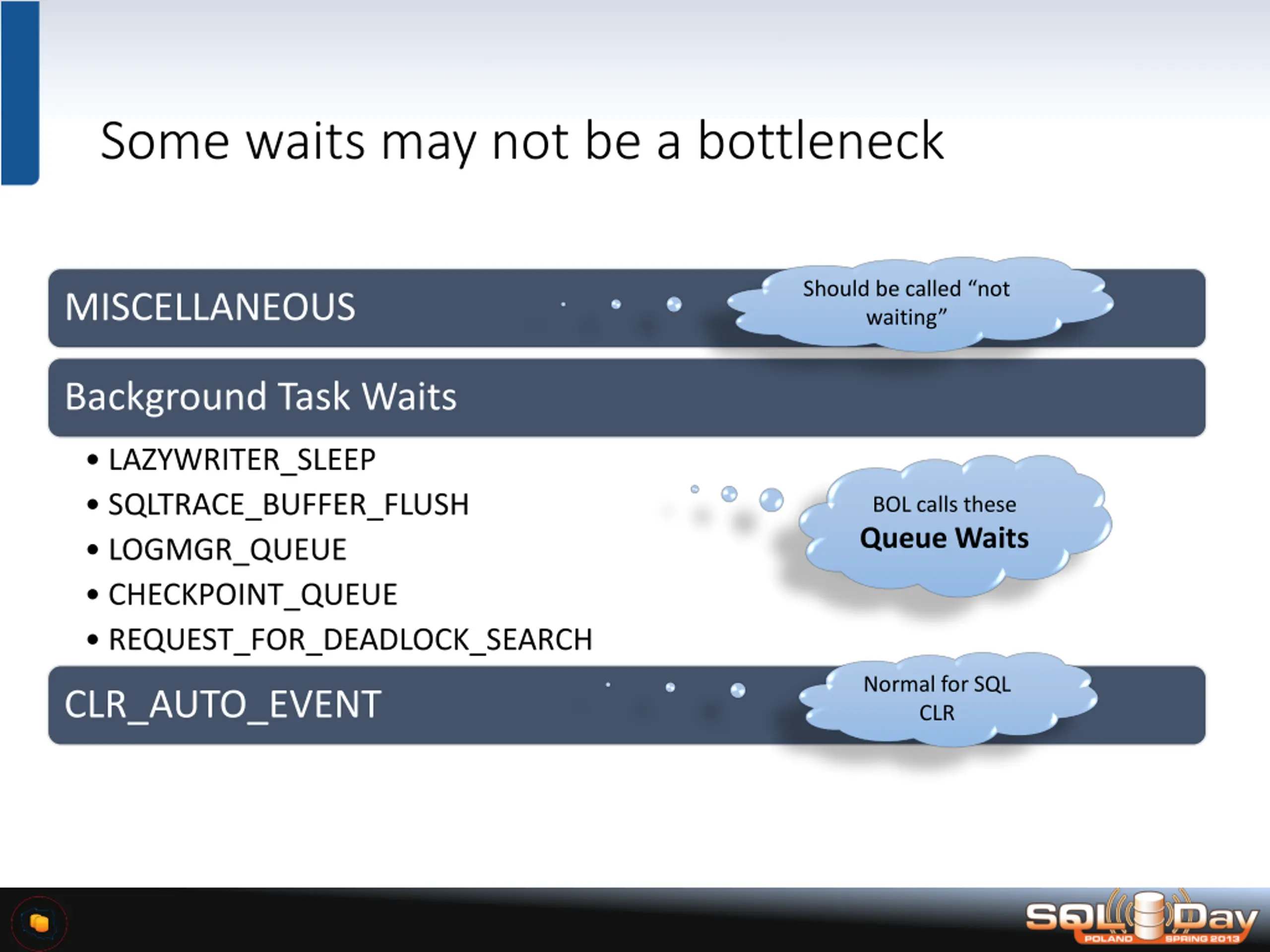

Some waits may not be a bottleneck Should be called not waiting MISCELLANEOUS Background Task Waits LAZYWRITER_SLEEP SQLTRACE_BUFFER_FLUSH LOGMGR_QUEUE CHECKPOINT_QUEUE REQUEST_FOR_DEADLOCK_SEARCH BOL calls these Queue Waits Normal for SQL CLR CLR_AUTO_EVENT

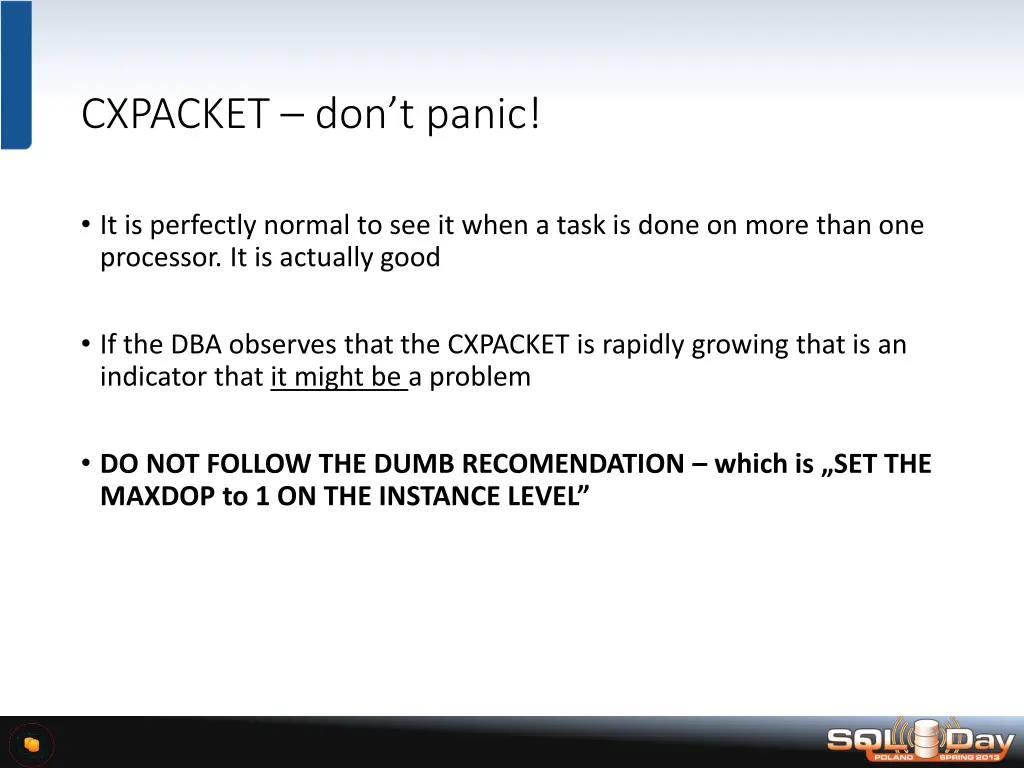

CXPACKET dont panic! It is perfectly normal to see it when a task is done on more than one processor. It is actually good If the DBA observes that the CXPACKET is rapidly growing that is an indicator that it might be a problem DO NOT FOLLOW THE DUMB RECOMENDATION which is SET THE MAXDOP to 1 ON THE INSTANCE LEVEL 36

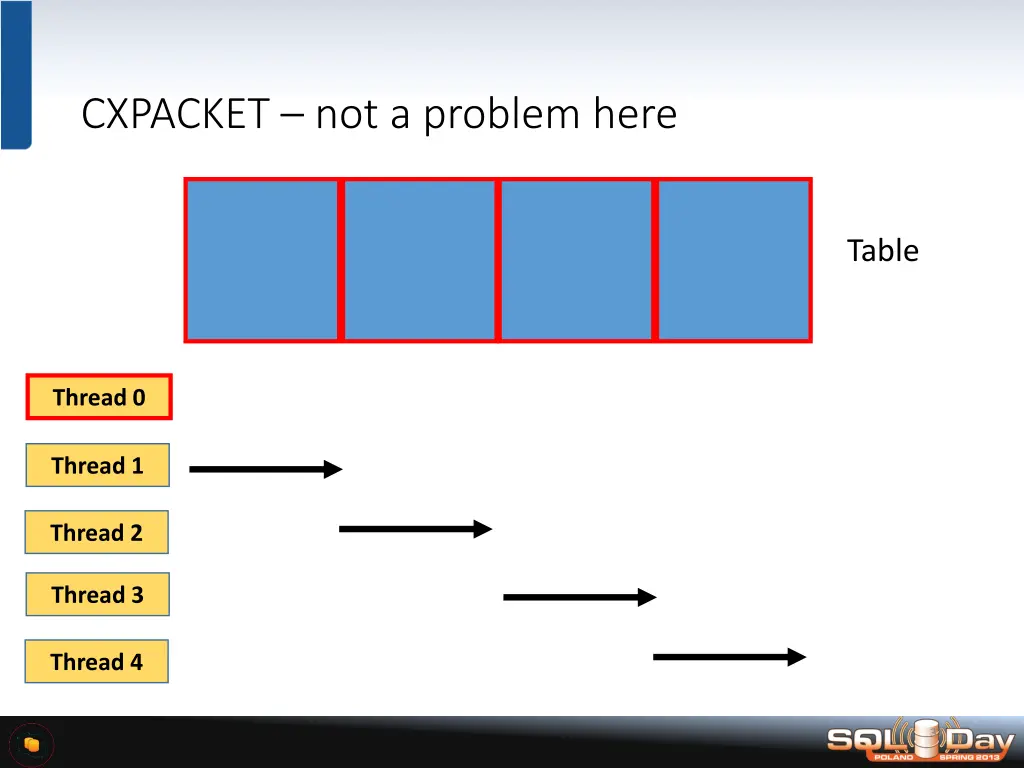

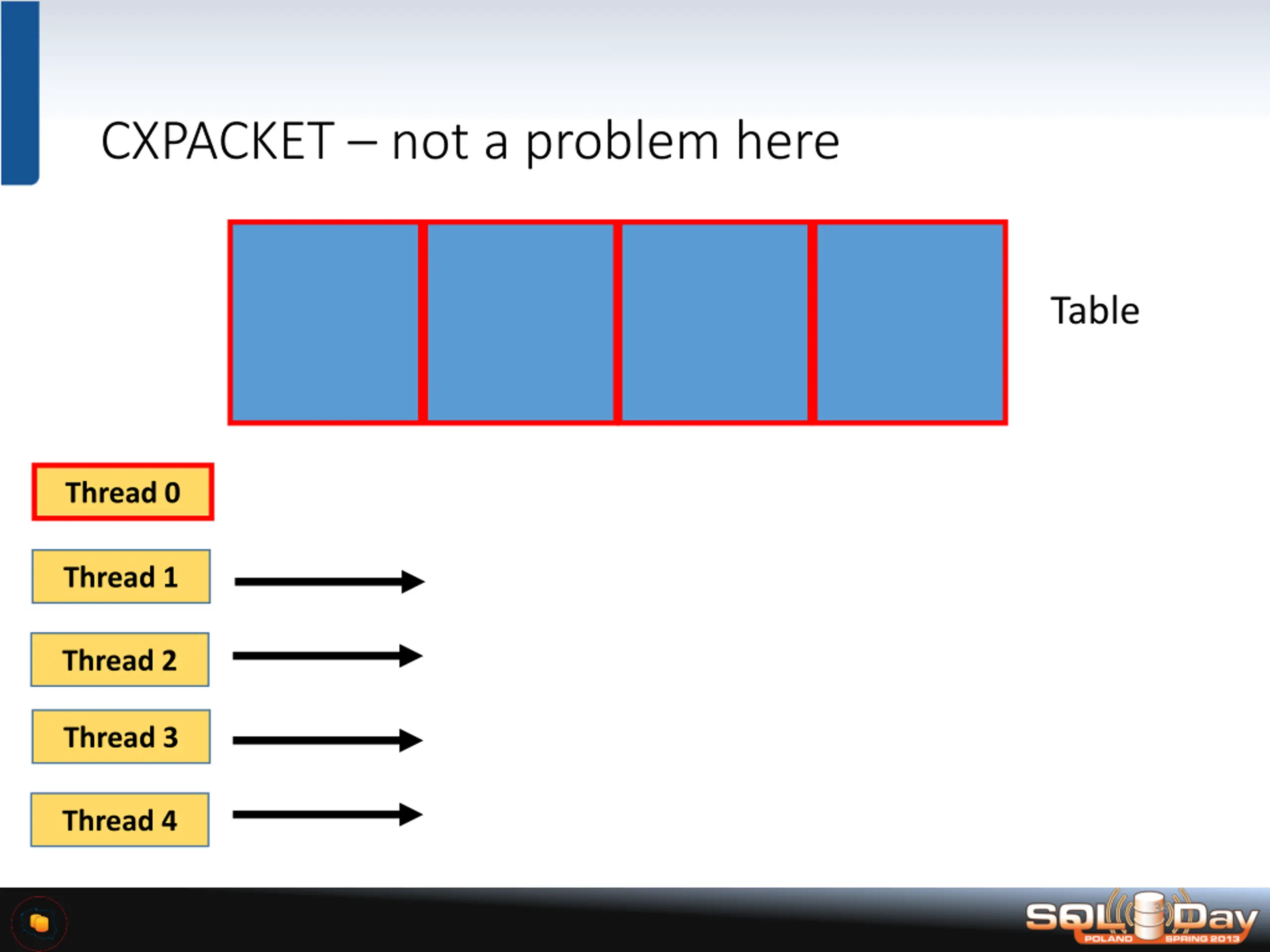

CXPACKET not a problem here Table Thread 0 Thread 1 Thread 2 Thread 3 Thread 4 37

CXPACKET not a problem here Table Thread 0 Thread 1 Thread 2 Thread 3 Thread 4 38

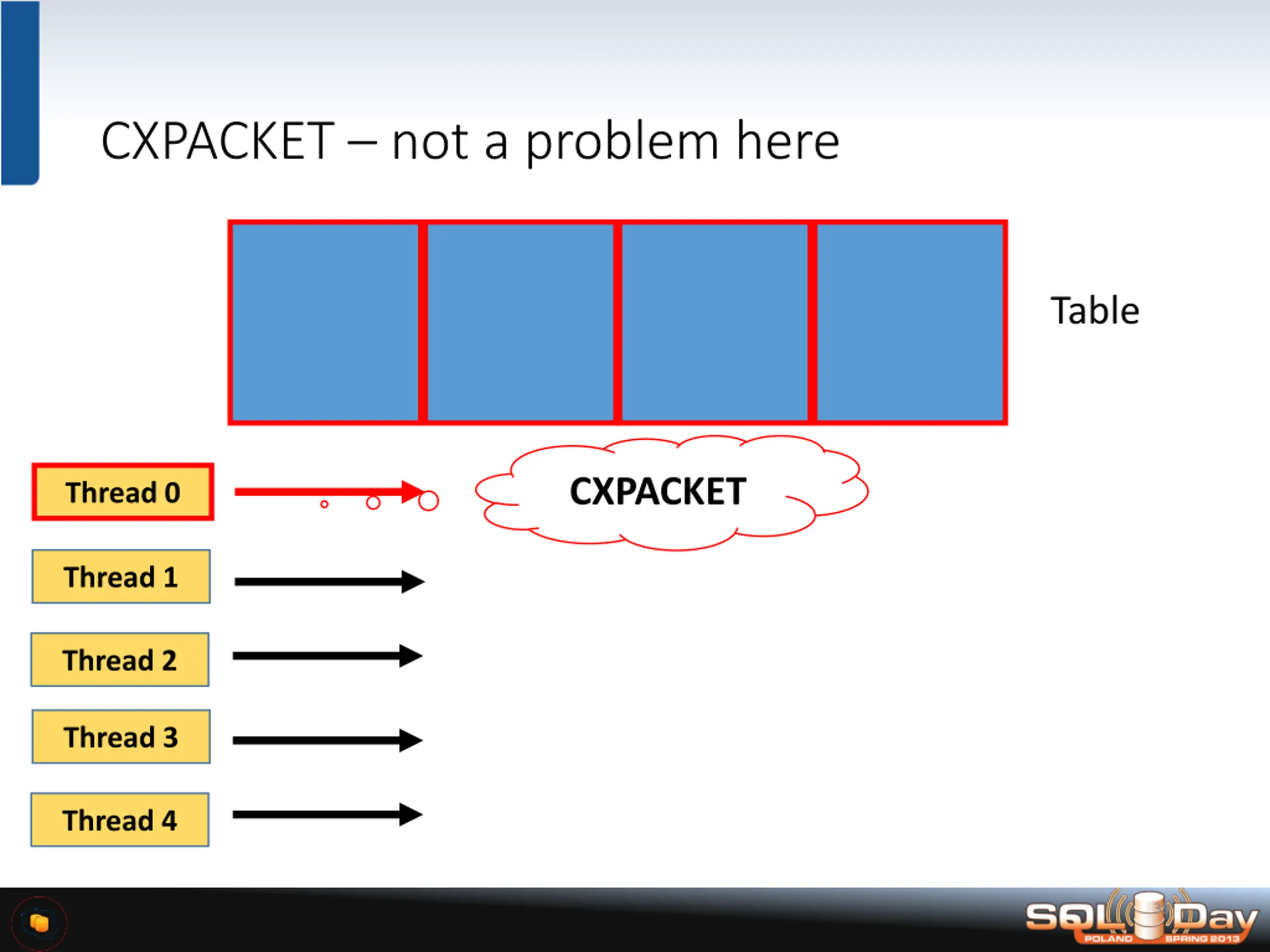

CXPACKET not a problem here Table CXPACKET Thread 0 Thread 1 Thread 2 Thread 3 Thread 4 39

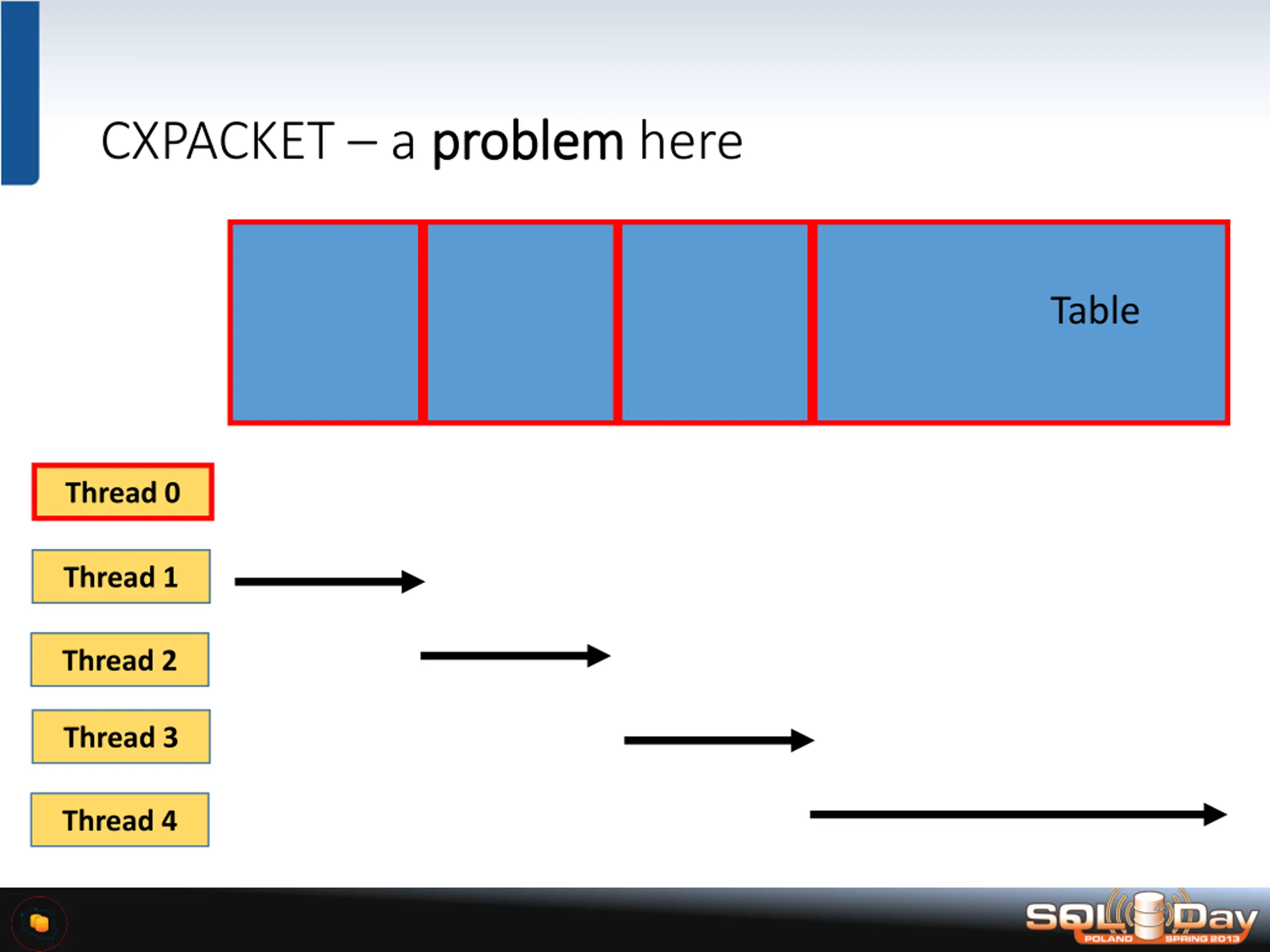

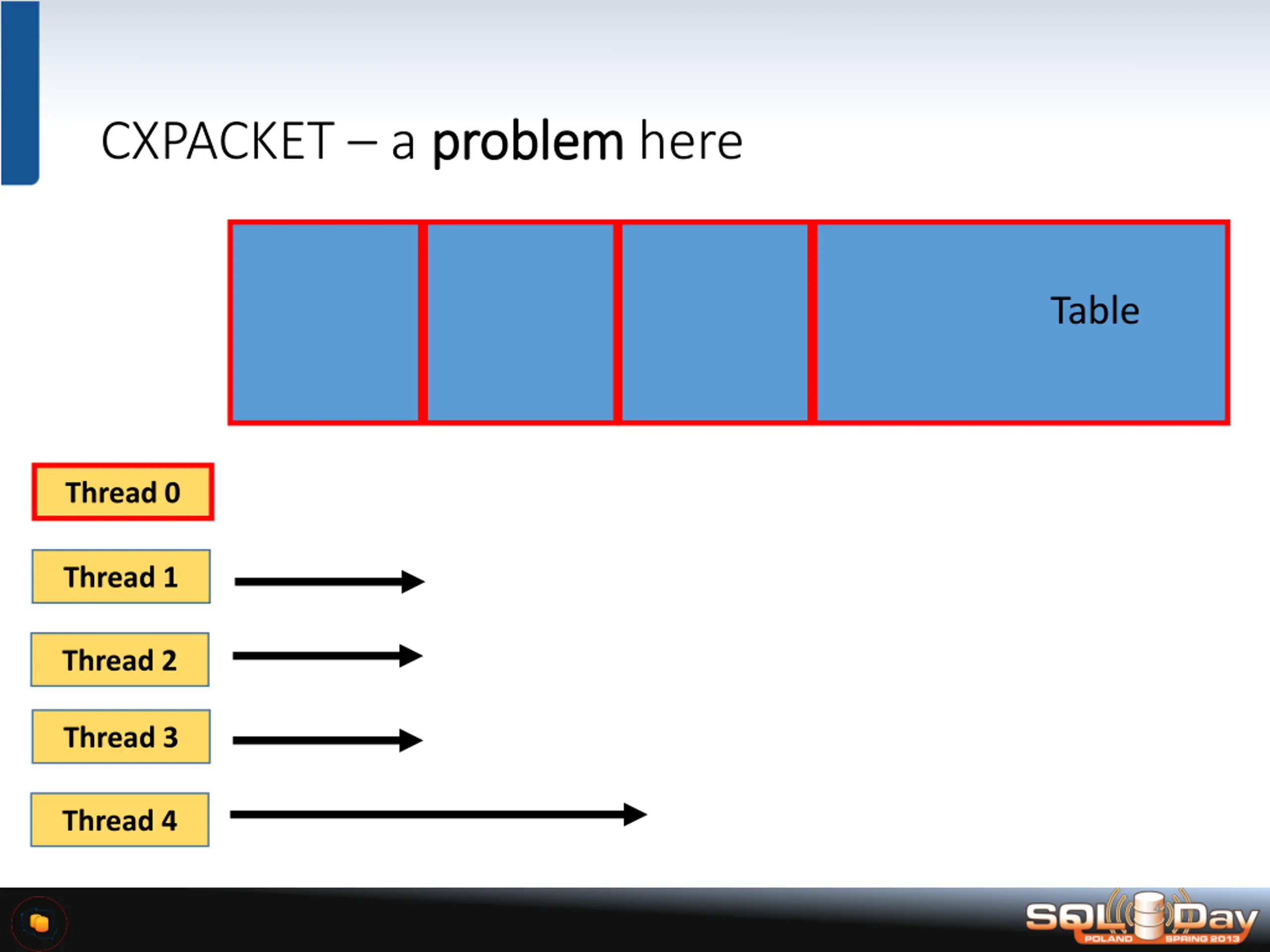

CXPACKET a problem problem here Table Thread 0 Thread 1 Thread 2 Thread 3 Thread 4 40

CXPACKET a problem problem here Table Thread 0 Thread 1 Thread 2 Thread 3 Thread 4 41

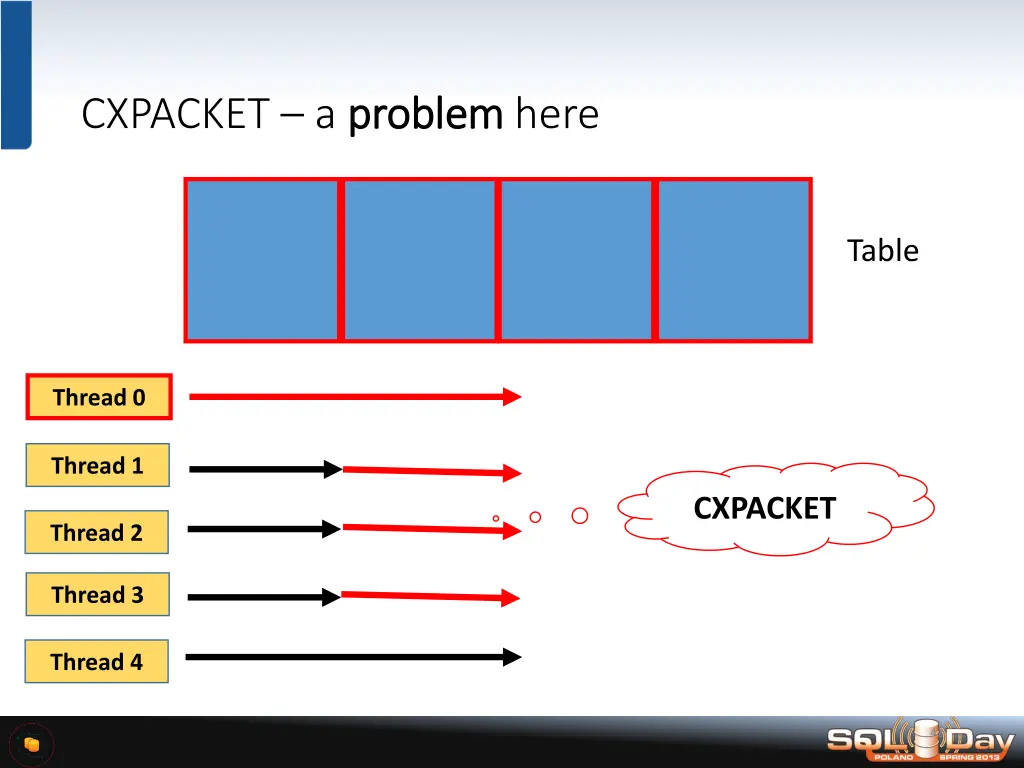

CXPACKET a problem problem here Table Thread 0 Thread 1 CXPACKET Thread 2 Thread 3 Thread 4 42

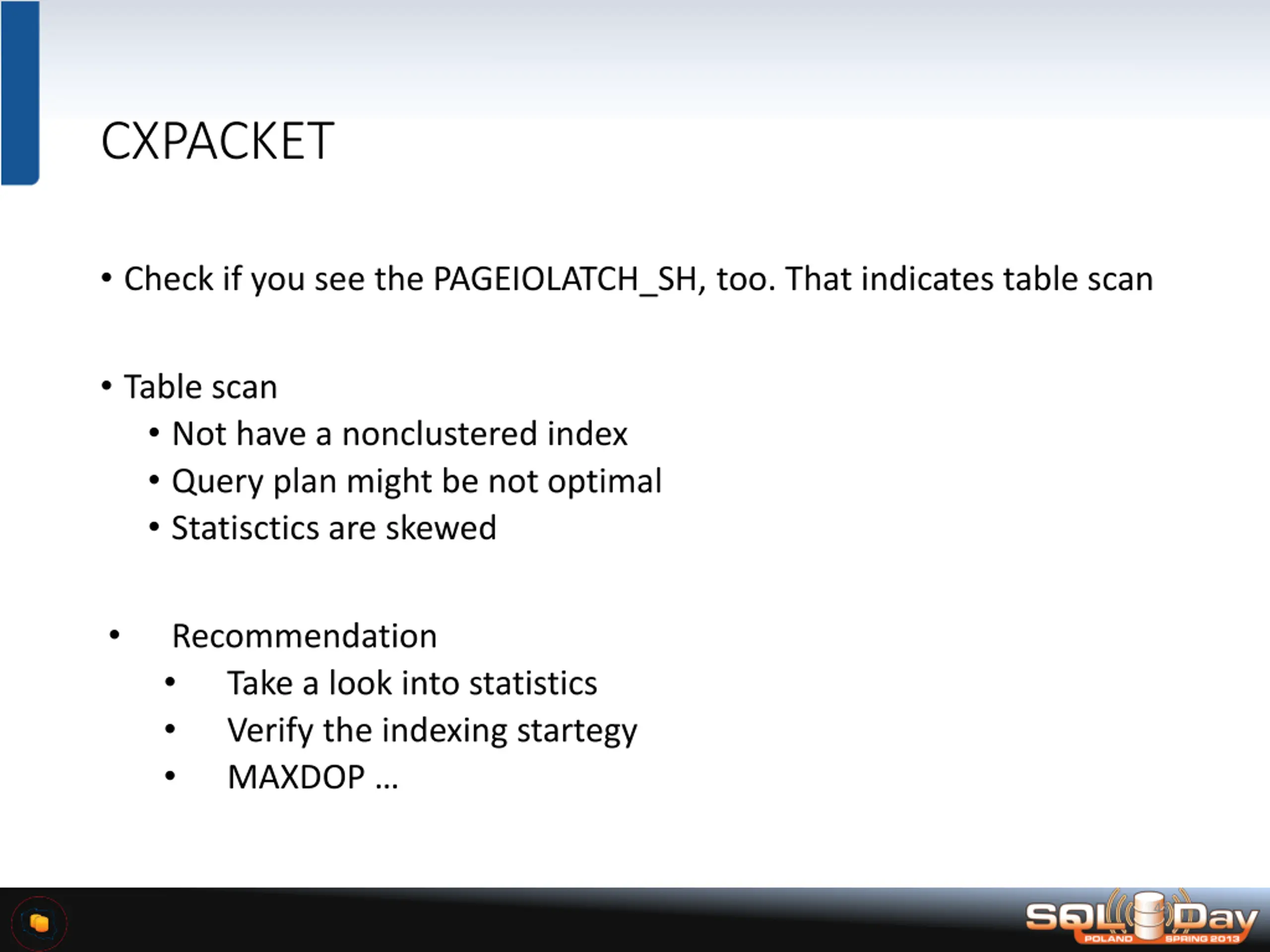

CXPACKET Check if you see the PAGEIOLATCH_SH, too. That indicates table scan Table scan Not have a nonclustered index Query plan might be not optimal Statisctics are skewed Recommendation Take a look into statistics Verify the indexing startegy MAXDOP 43

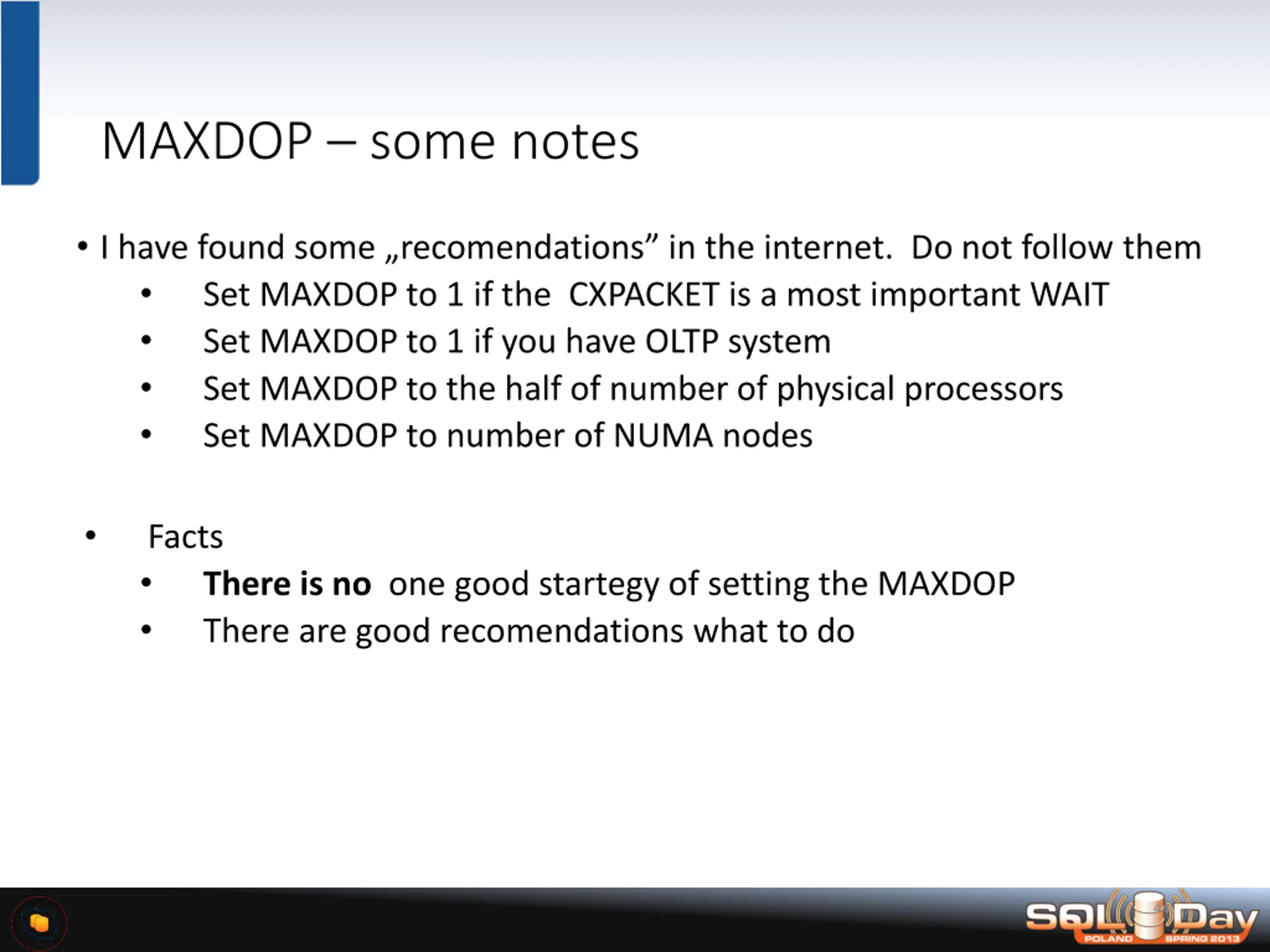

MAXDOP some notes I have found some recomendations in the internet. Do not follow them Set MAXDOP to 1 if the CXPACKET is a most important WAIT Set MAXDOP to 1 if you have OLTP system Set MAXDOP to the half of number of physical processors Set MAXDOP to number of NUMA nodes Facts There is no one good startegy of setting the MAXDOP There are good recomendations what to do 44

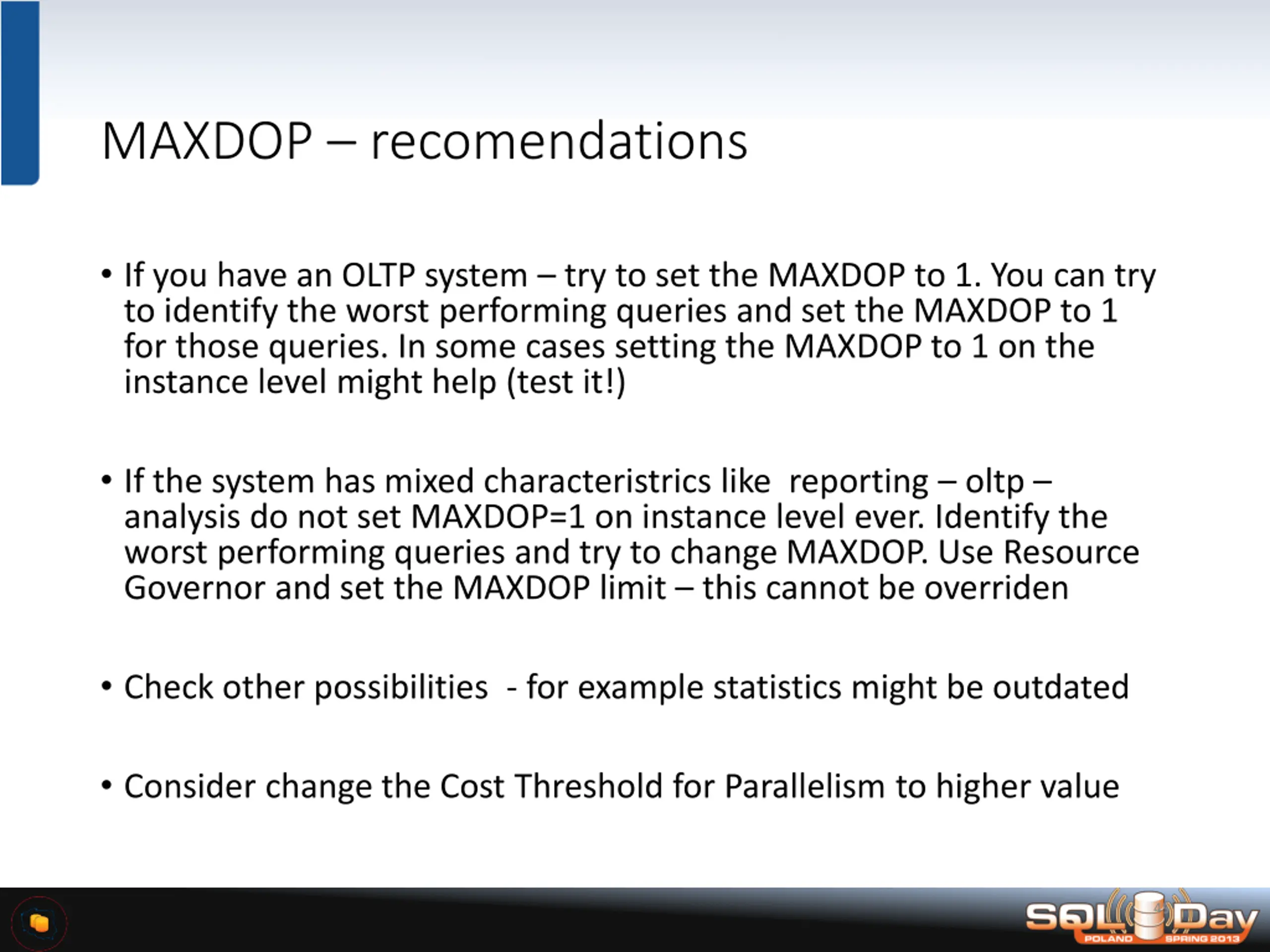

MAXDOP recomendations If you have an OLTP system try to set the MAXDOP to 1. You can try to identify the worst performing queries and set the MAXDOP to 1 for those queries. In some cases setting the MAXDOP to 1 on the instance level might help (test it!) If the system has mixed characteristrics like reporting oltp analysis do not set MAXDOP=1 on instance level ever. Identify the worst performing queries and try to change MAXDOP. Use Resource Governor and set the MAXDOP limit this cannot be overriden Check other possibilities - for example statistics might be outdated Consider change the Cost Threshold for Parallelism to higher value 45

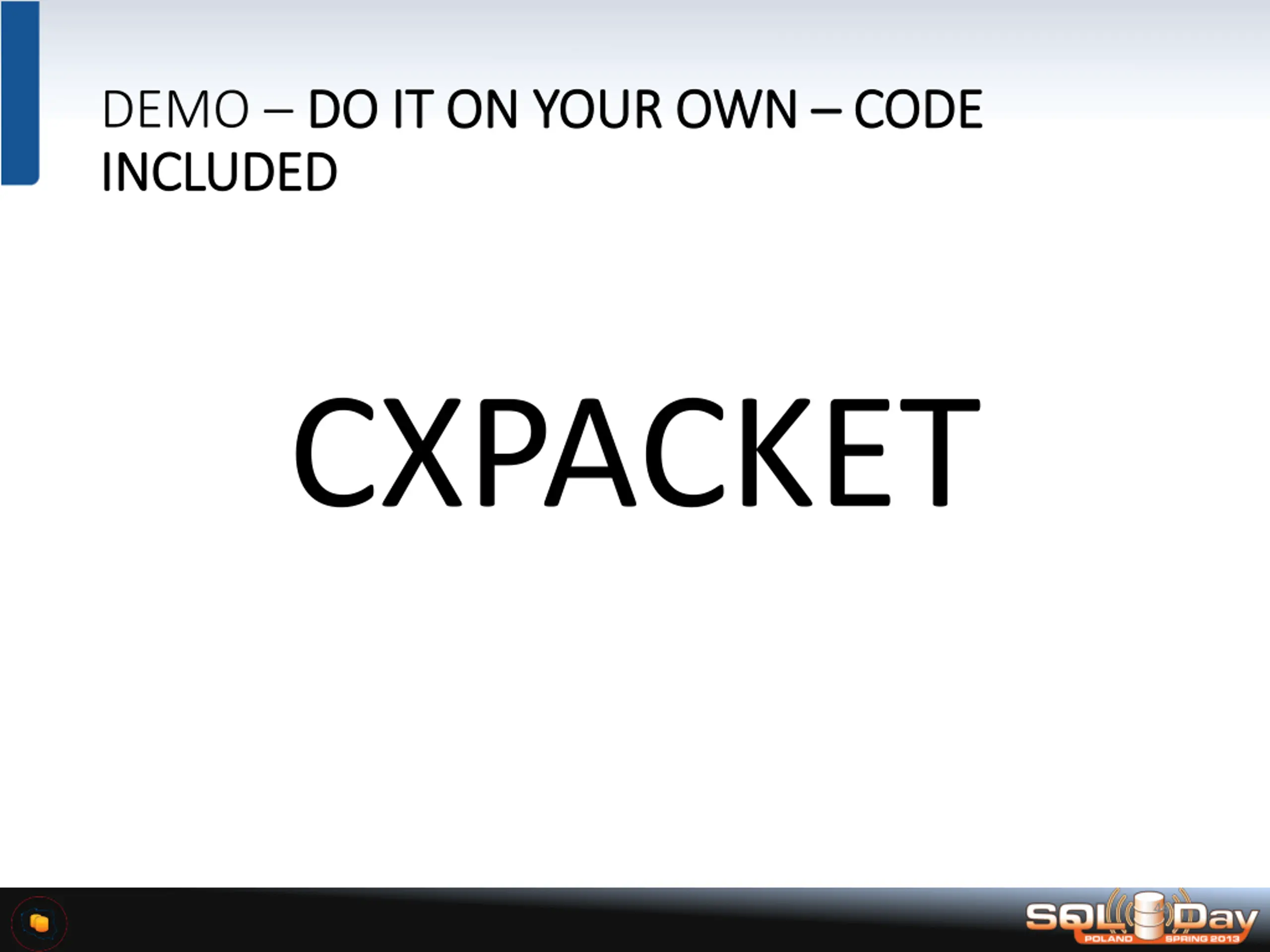

DEMO DO IT ON YOUR OWN DO IT ON YOUR OWN CODE INCLUDED INCLUDED CODE CXPACKET 46

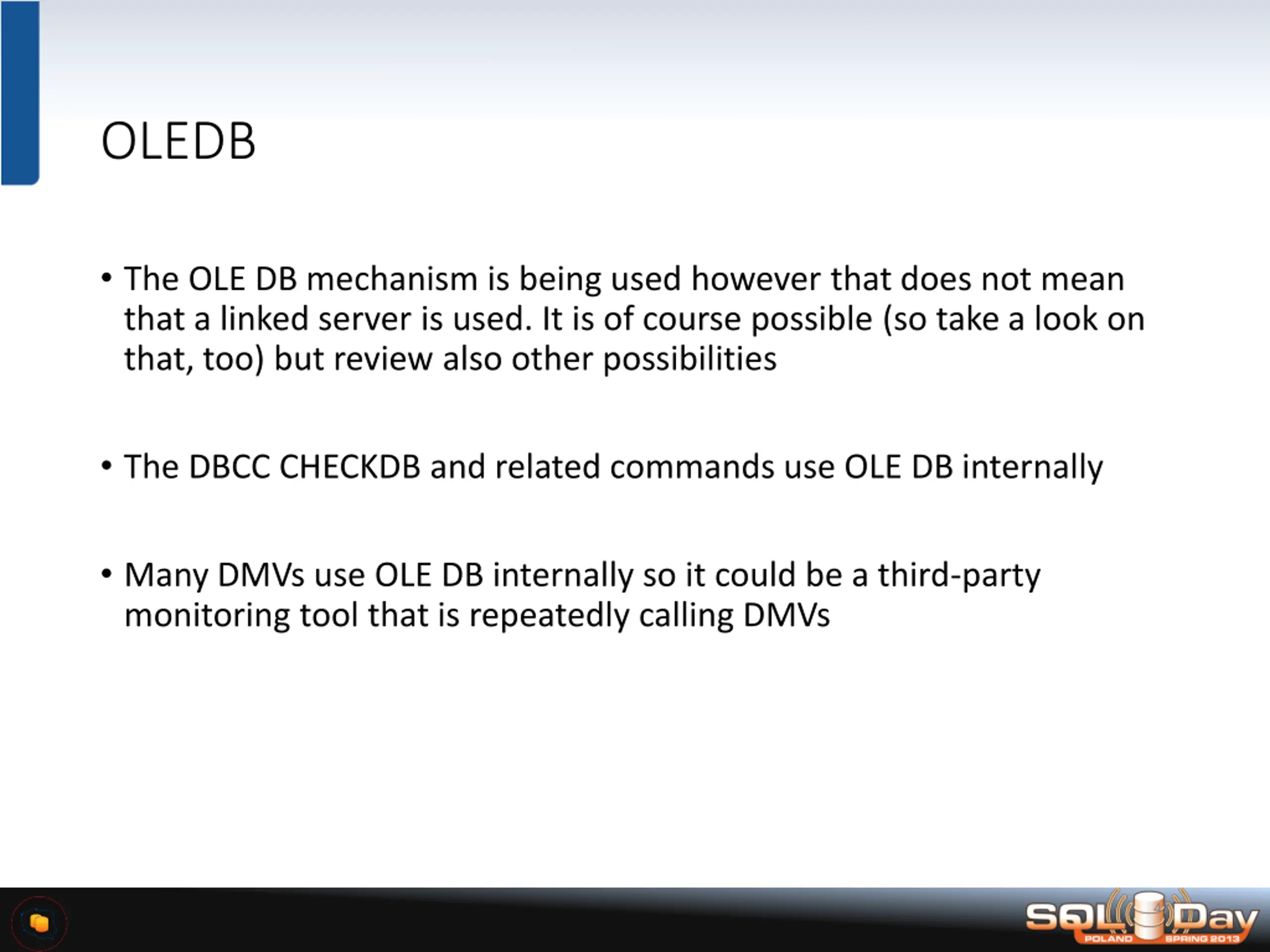

OLEDB The OLE DB mechanism is being used however that does not mean that a linked server is used. It is of course possible (so take a look on that, too) but review also other possibilities The DBCC CHECKDB and related commands use OLE DB internally Many DMVs use OLE DB internally so it could be a third-party monitoring tool that is repeatedly calling DMVs 47

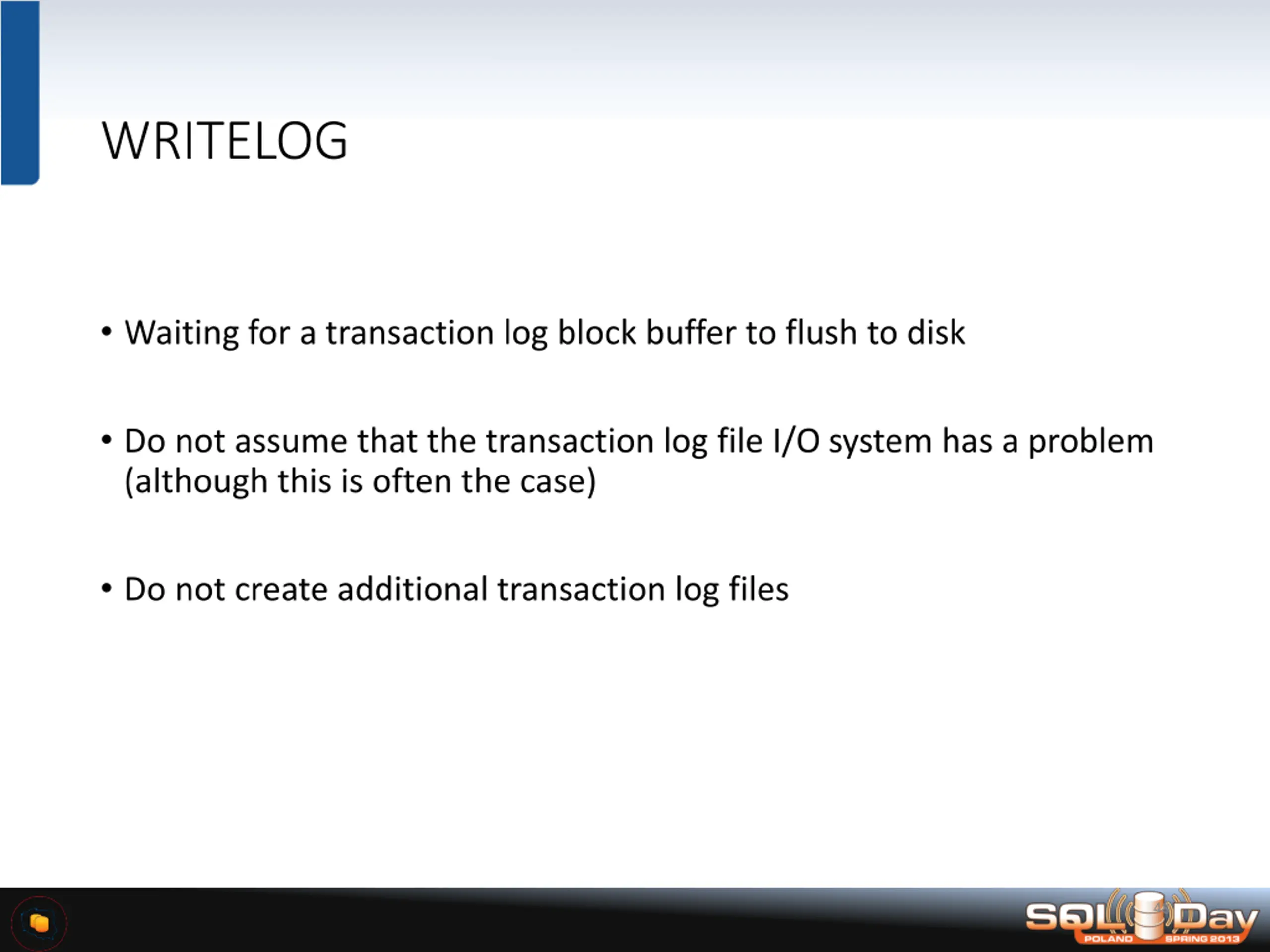

WRITELOG Waiting for a transaction log block buffer to flush to disk Do not assume that the transaction log file I/O system has a problem (although this is often the case) Do not create additional transaction log files 48

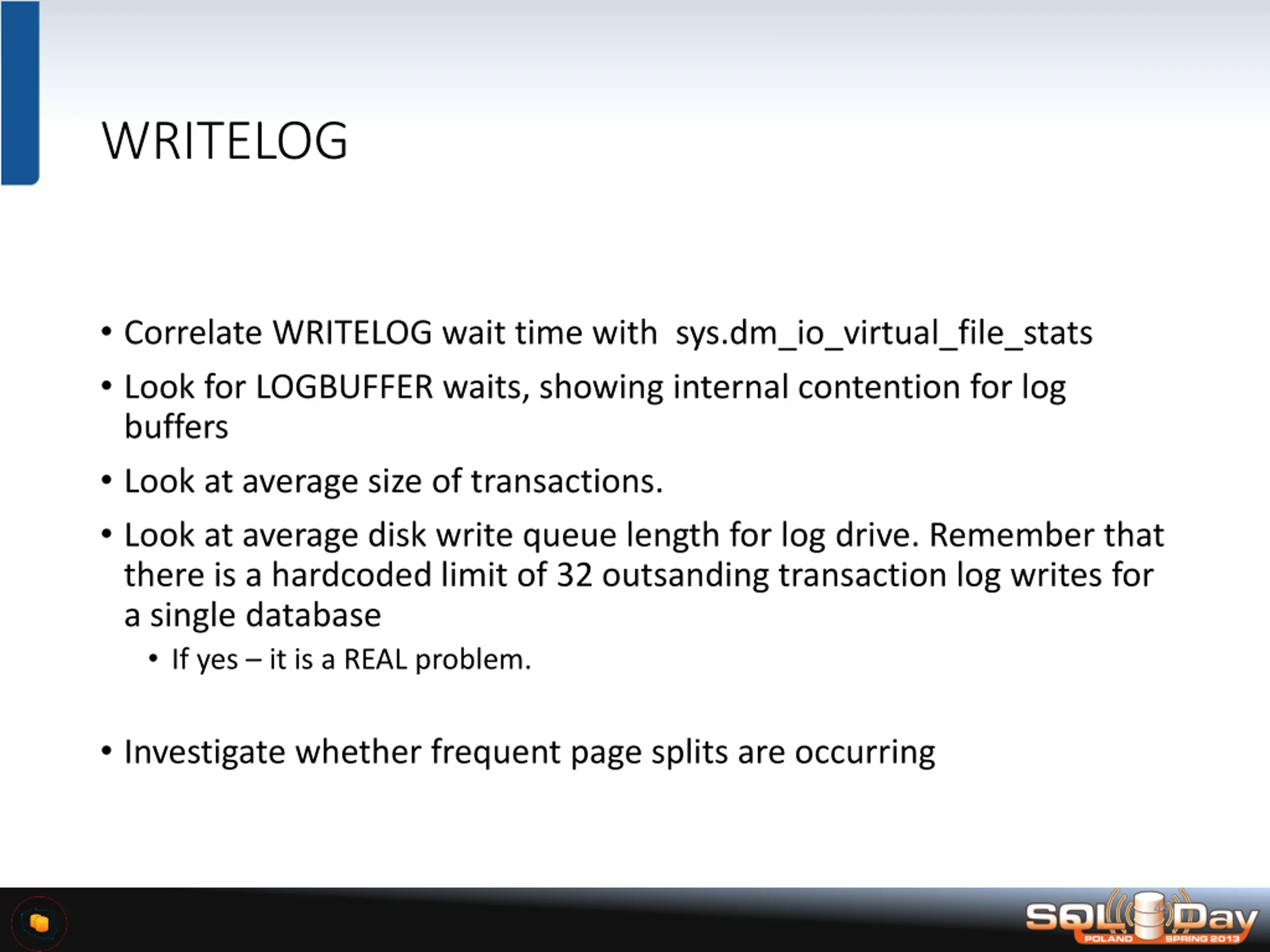

WRITELOG Correlate WRITELOG wait time with sys.dm_io_virtual_file_stats Look for LOGBUFFER waits, showing internal contention for log buffers Look at average size of transactions. Look at average disk write queue length for log drive. Remember that there is a hardcoded limit of 32 outsanding transaction log writes for a single database If yes it is a REAL problem. Investigate whether frequent page splits are occurring 49

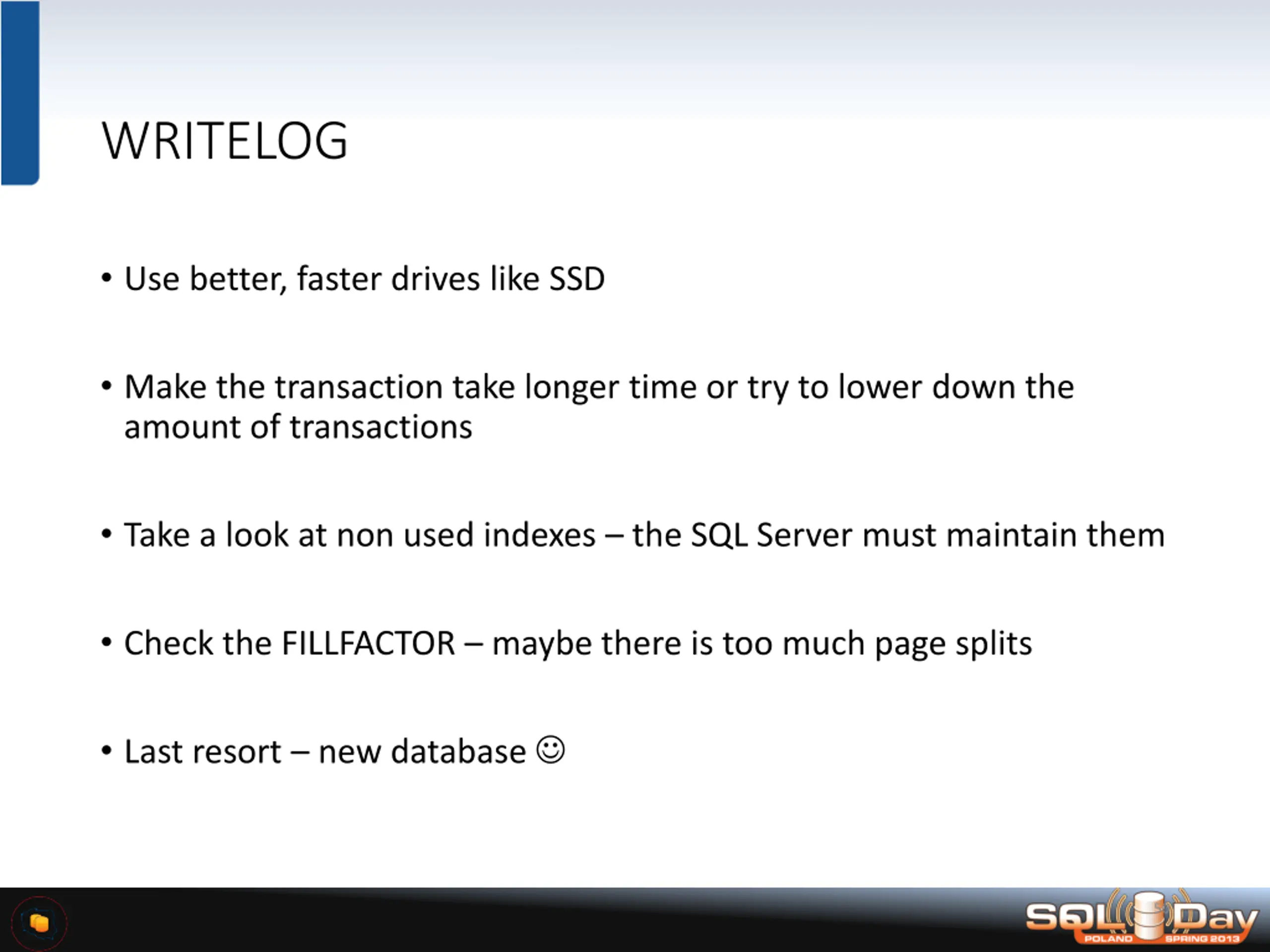

WRITELOG Use better, faster drives like SSD Make the transaction take longer time or try to lower down the amount of transactions Take a look at non used indexes the SQL Server must maintain them Check the FILLFACTOR maybe there is too much page splits Last resort new database 50
