Allocated Resources Management in Operation Playback Modes
Learn about how resources allocated to operations in a process plan behave in different playback modes such as default hide and default show in Creo View. Understand the visibility and actions needed for managing allocated resources effectively.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Issue 357 Resources allocated with operations in a Process Plan will become default hide if an operation is open Default Representation in play back mode

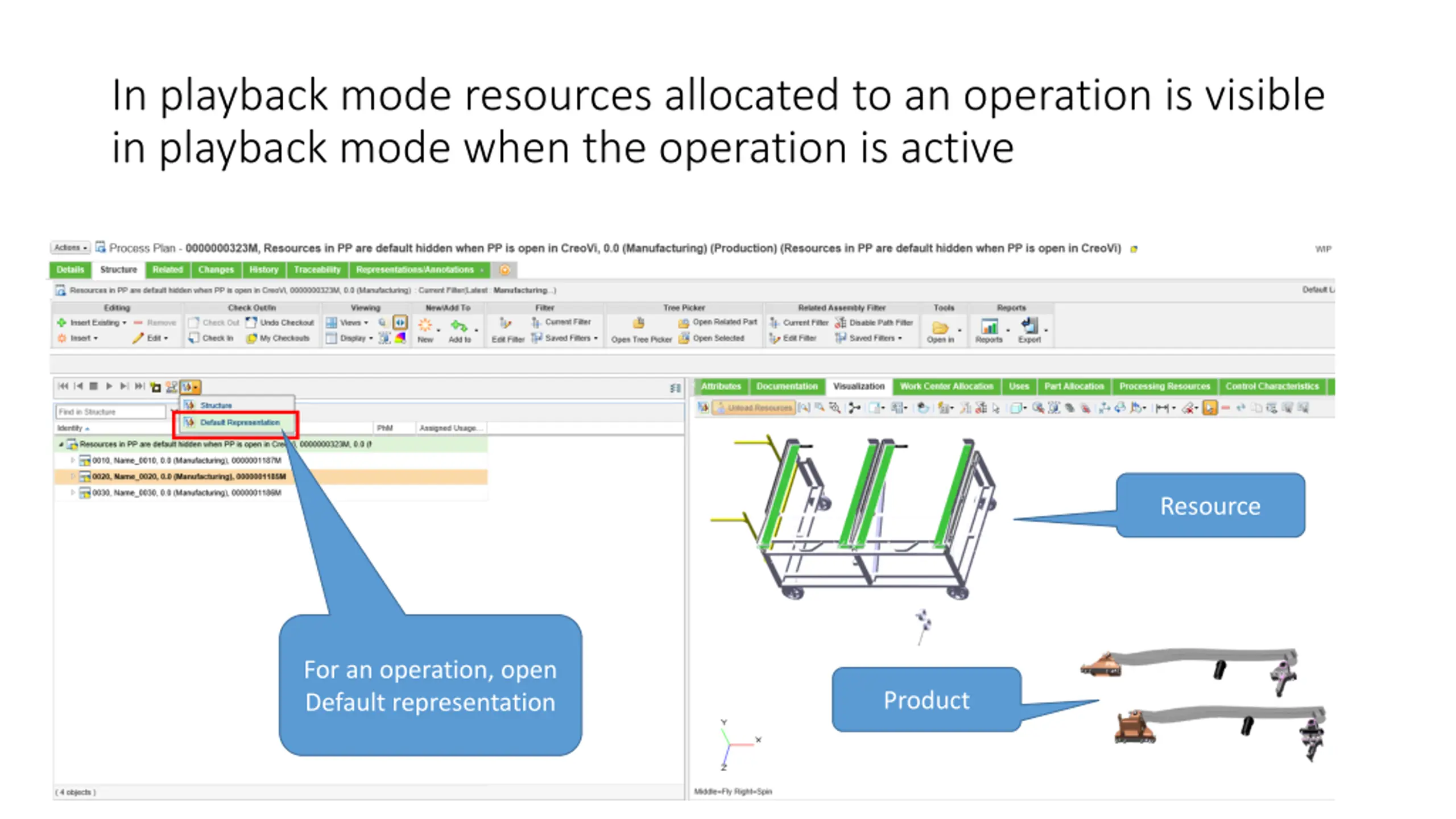

In playback mode resources allocated to an operation is visible in playback mode when the operation is active Resource For an operation, open Default representation Product

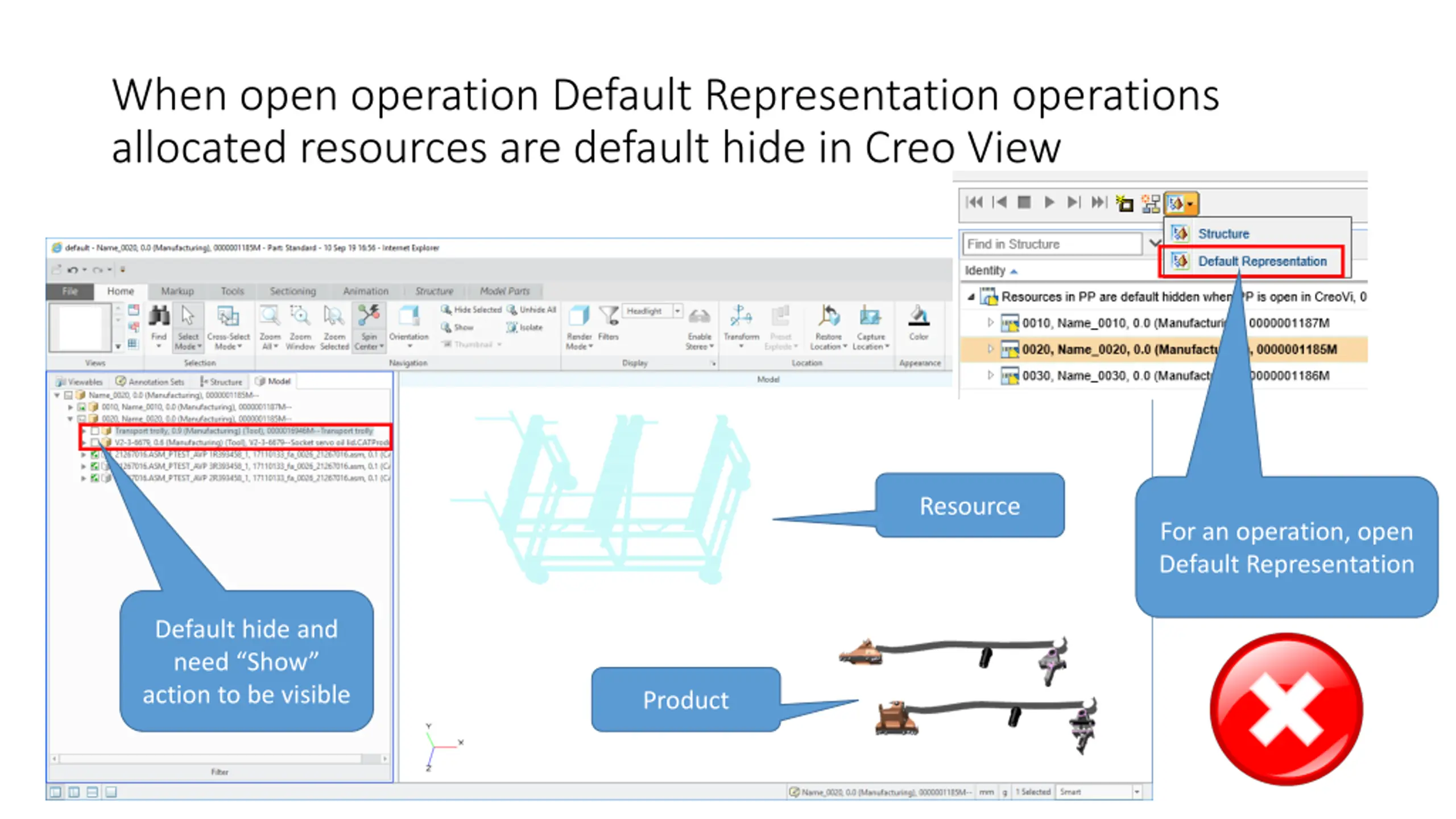

When open operation Default Representation operations allocated resources are default hide in Creo View Resource For an operation, open Default Representation Default hide and need Show action to be visible Product

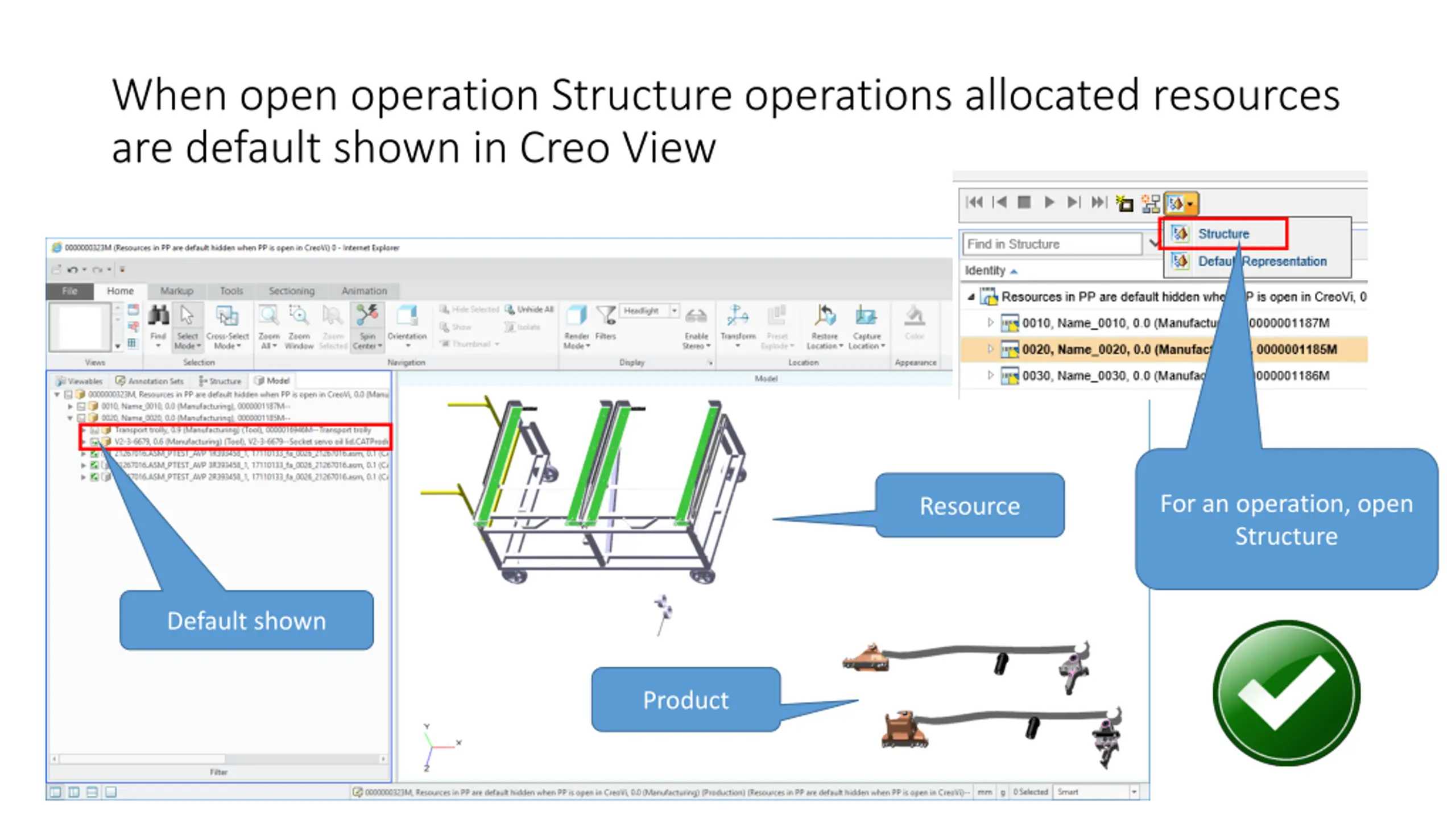

When open operation Structure operations allocated resources are default shown in Creo View For an operation, open Structure Resource Default shown Product
