Ambisonics: Capturing the Soundfield
Ambisonics encompasses the encoding, storage, and rendering of directional auditory data by spatially sampling a sound field. Born out of the Mid/Side review of pressure and velocity transducers, Ambisonics involves capturing sound waves from all directions on the surface of a sphere. Components of the sound field include pressure (omni) as the 0 order, first-order bidirectional gradients in X (front/rear), Y (left/right), and Z (up/down). Using a tetrahedral array or sphere concept with 4 cardioids positioned in a tetrahedron, Ambisonics aims to provide an immersive audio experience with formats like A-format, B-format, and higher-order Ambisonics for improved resolution and accuracy through spherical harmonics. File formats like Furse-Malham (FuMa) and AmbiX are commonly used for Ambisonics applications. Explore the world of Ambisonics and step into the sound field.
Uploaded on Mar 06, 2025 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
Ambisonics Capturing the Soundfield

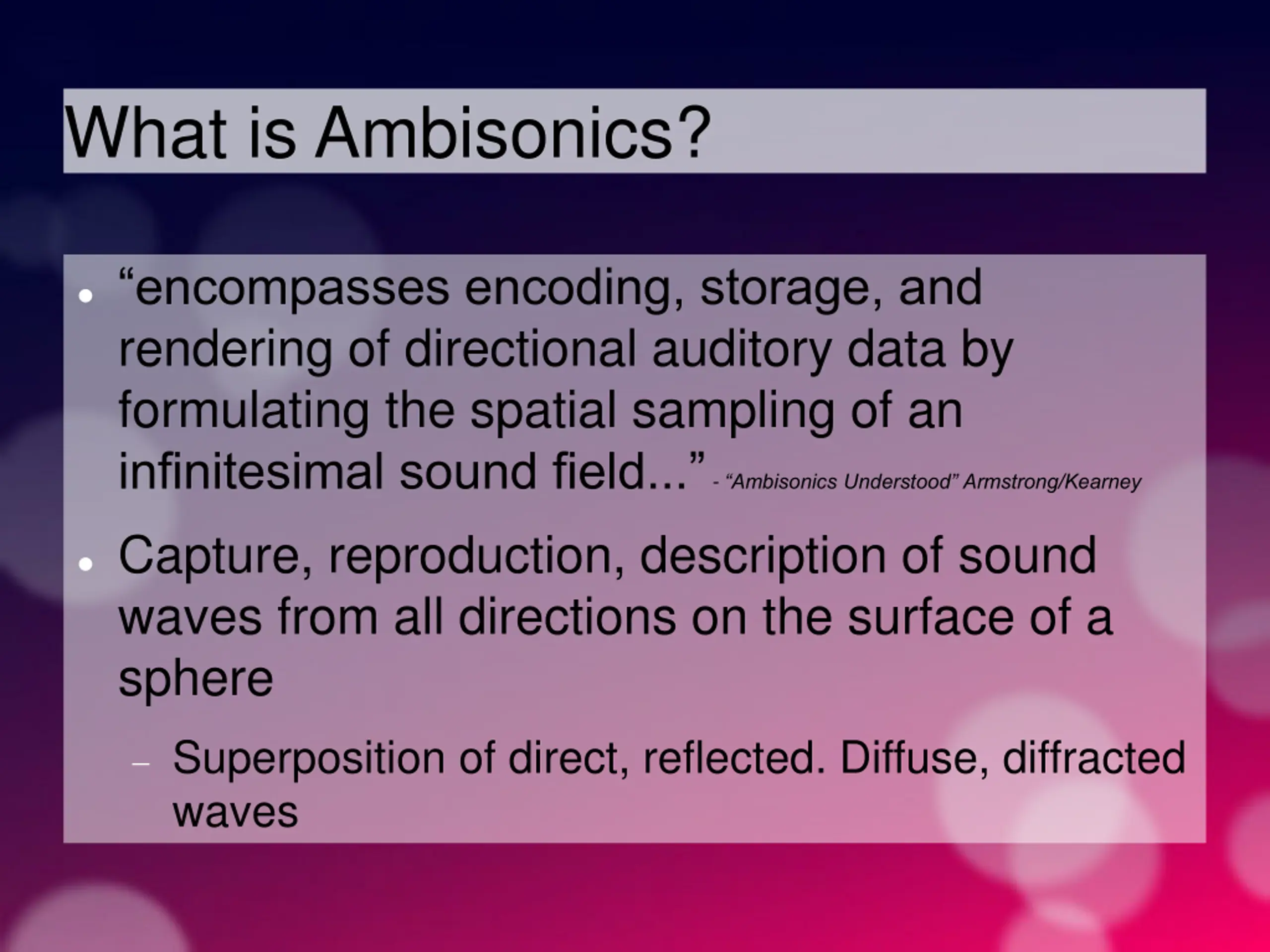

What is Ambisonics? encompasses encoding, storage, and rendering of directional auditory data by formulating the spatial sampling of an infinitesimal sound field... - Ambisonics Understood Armstrong/Kearney Capture, reproduction, description of sound waves from all directions on the surface of a sphere Superposition of direct, reflected. Diffuse, diffracted waves

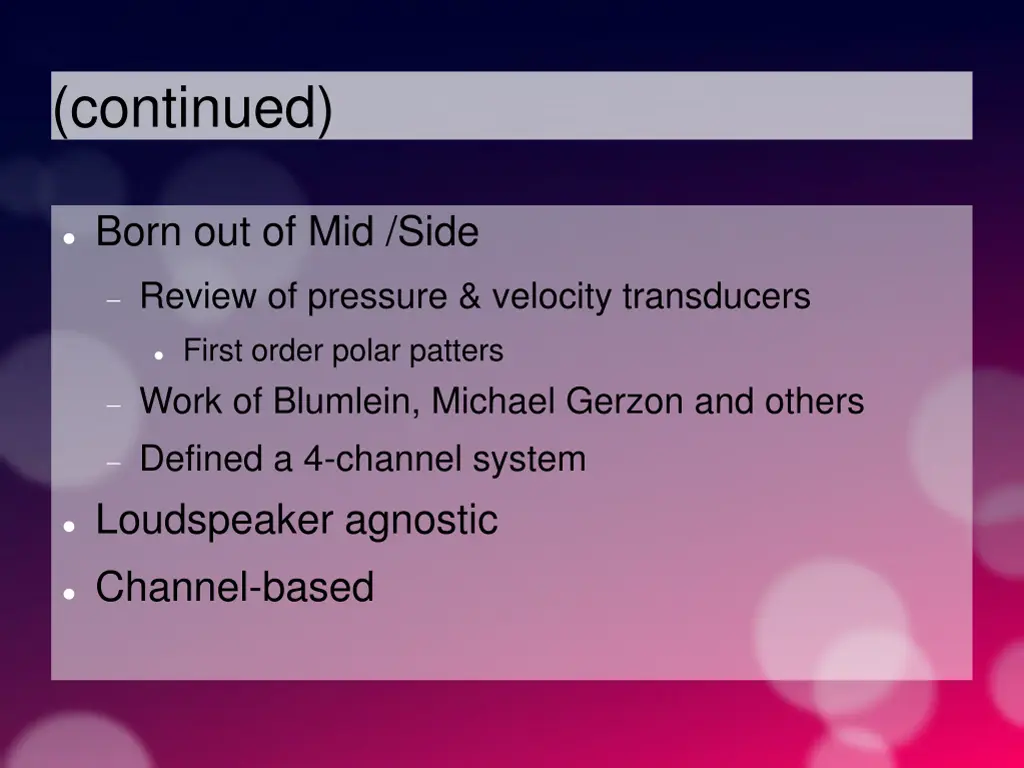

(continued) Born out of Mid /Side Review of pressure & velocity transducers First order polar patters Work of Blumlein, Michael Gerzon and others Defined a 4-channel system Loudspeaker agnostic Channel-based

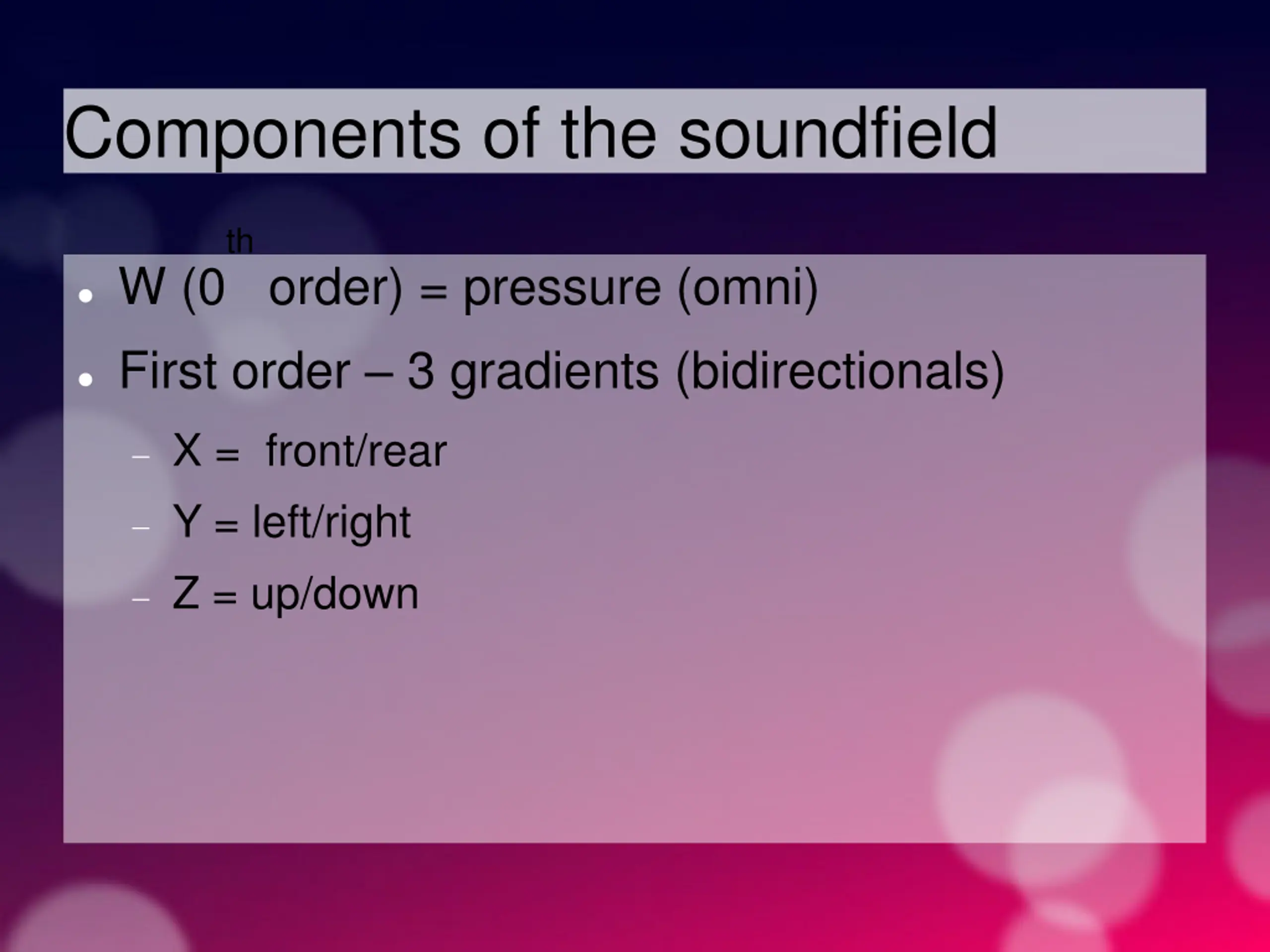

Components of the soundfield th W (0 order) = pressure (omni) First order 3 gradients (bidirectionals) X = front/rear Y = left/right Z = up/down

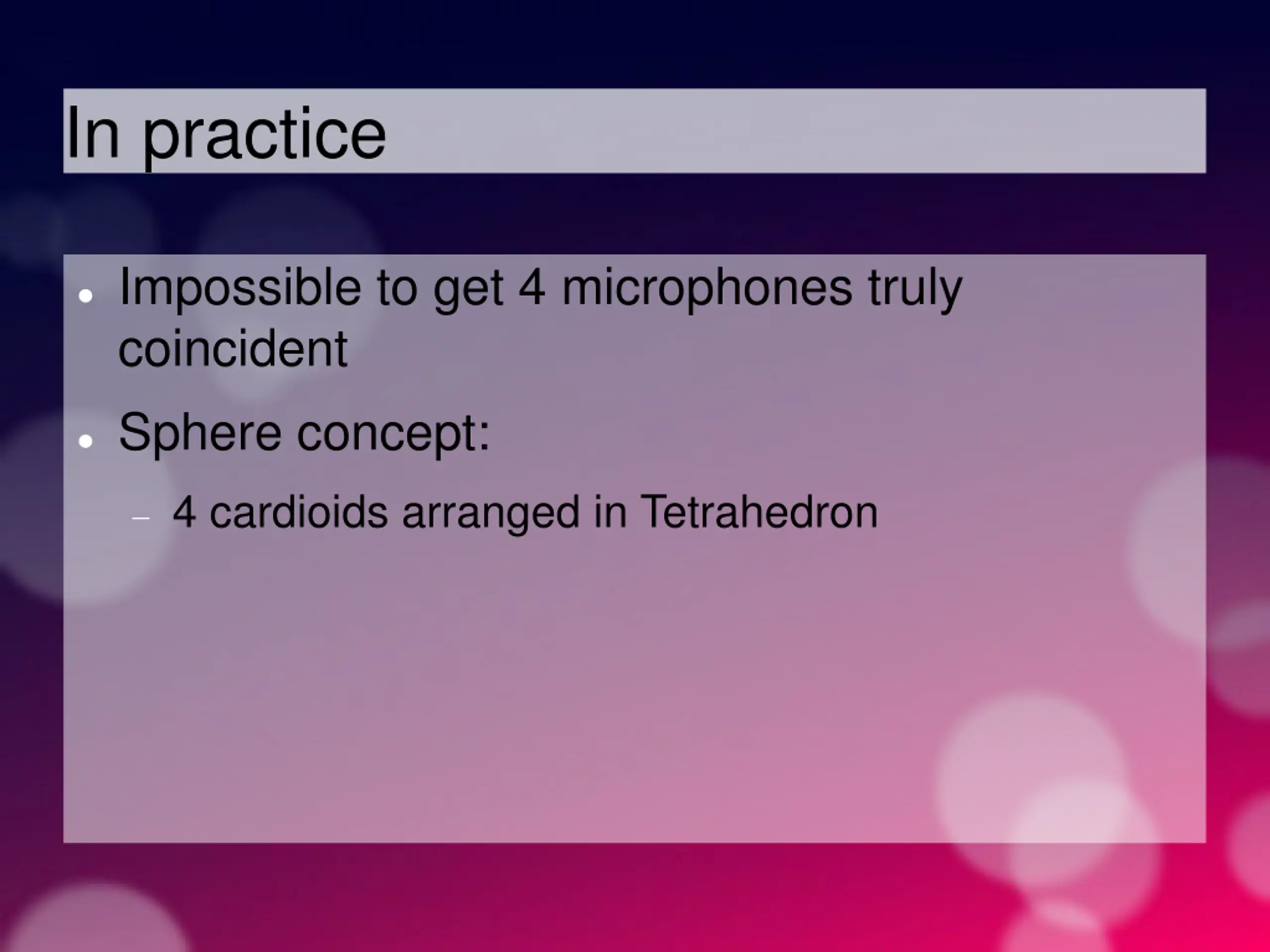

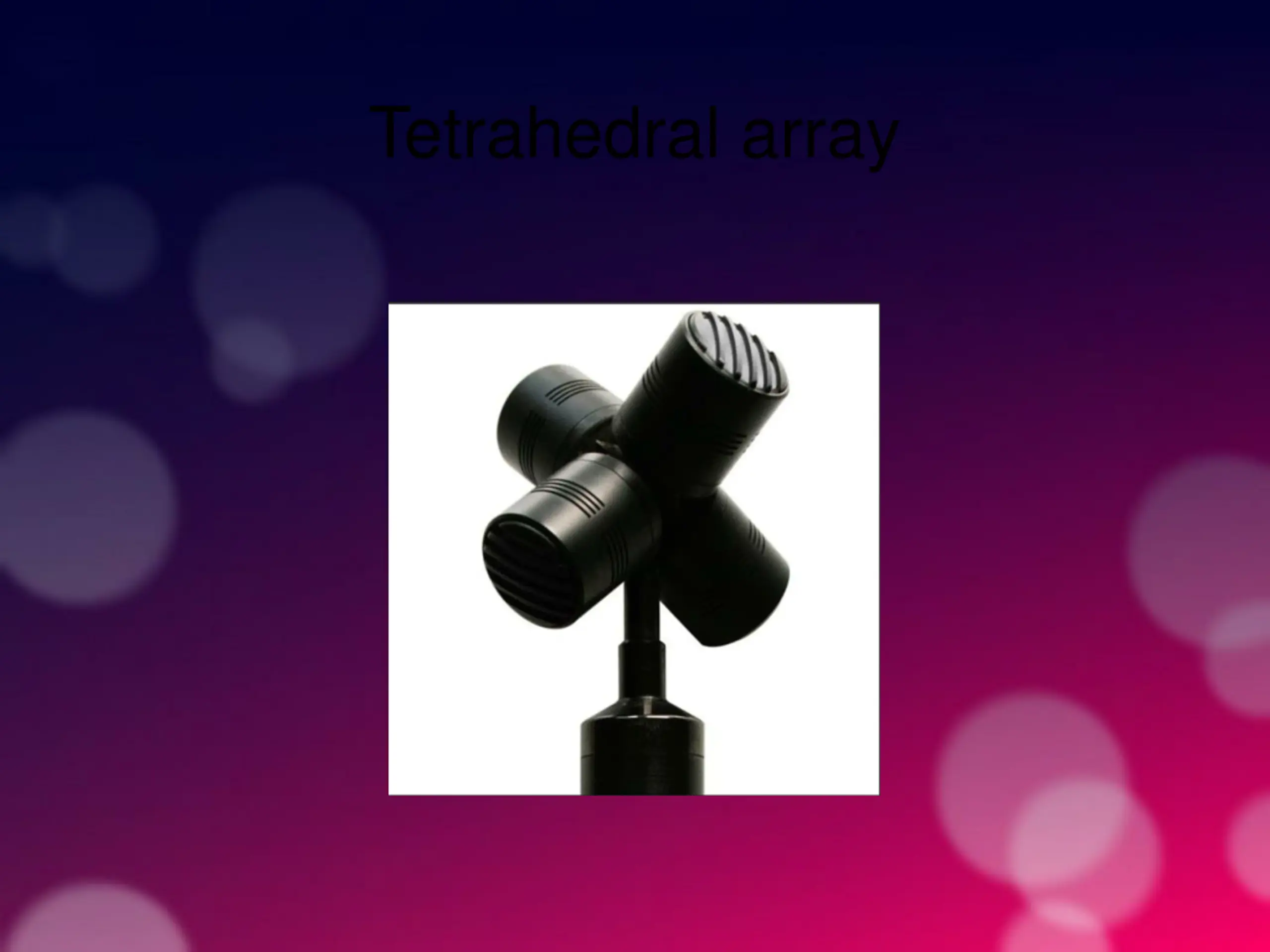

In practice Impossible to get 4 microphones truly coincident Sphere concept: 4 cardioids arranged in Tetrahedron

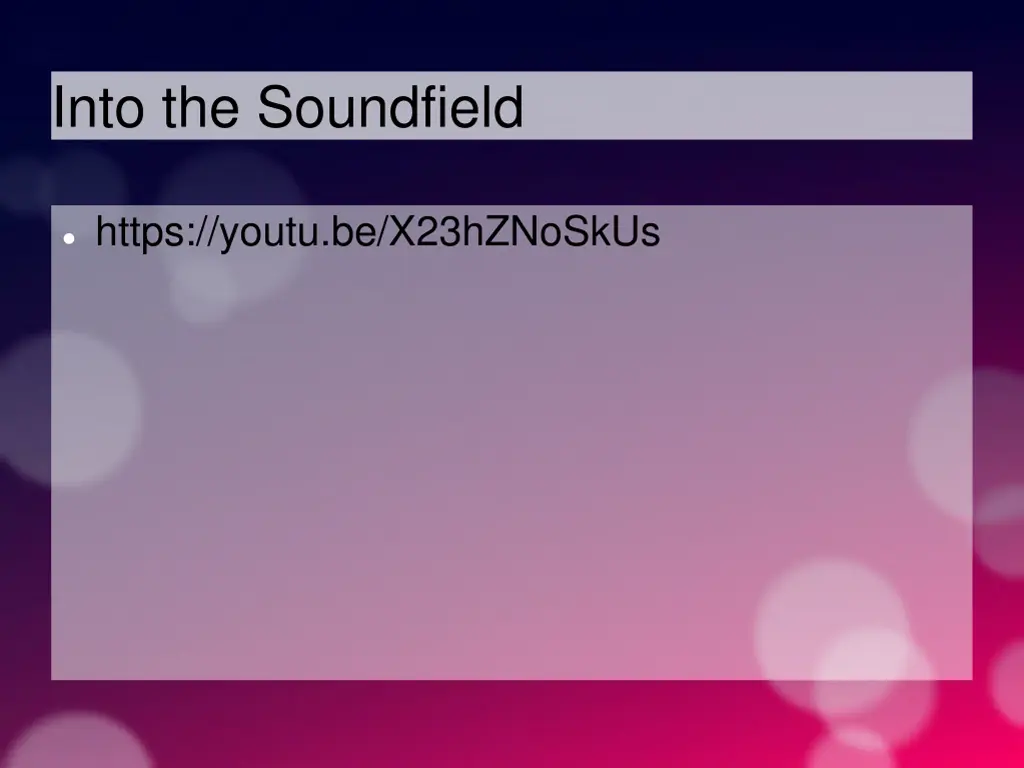

Into the Soundfield https://youtu.be/X23hZNoSkUs

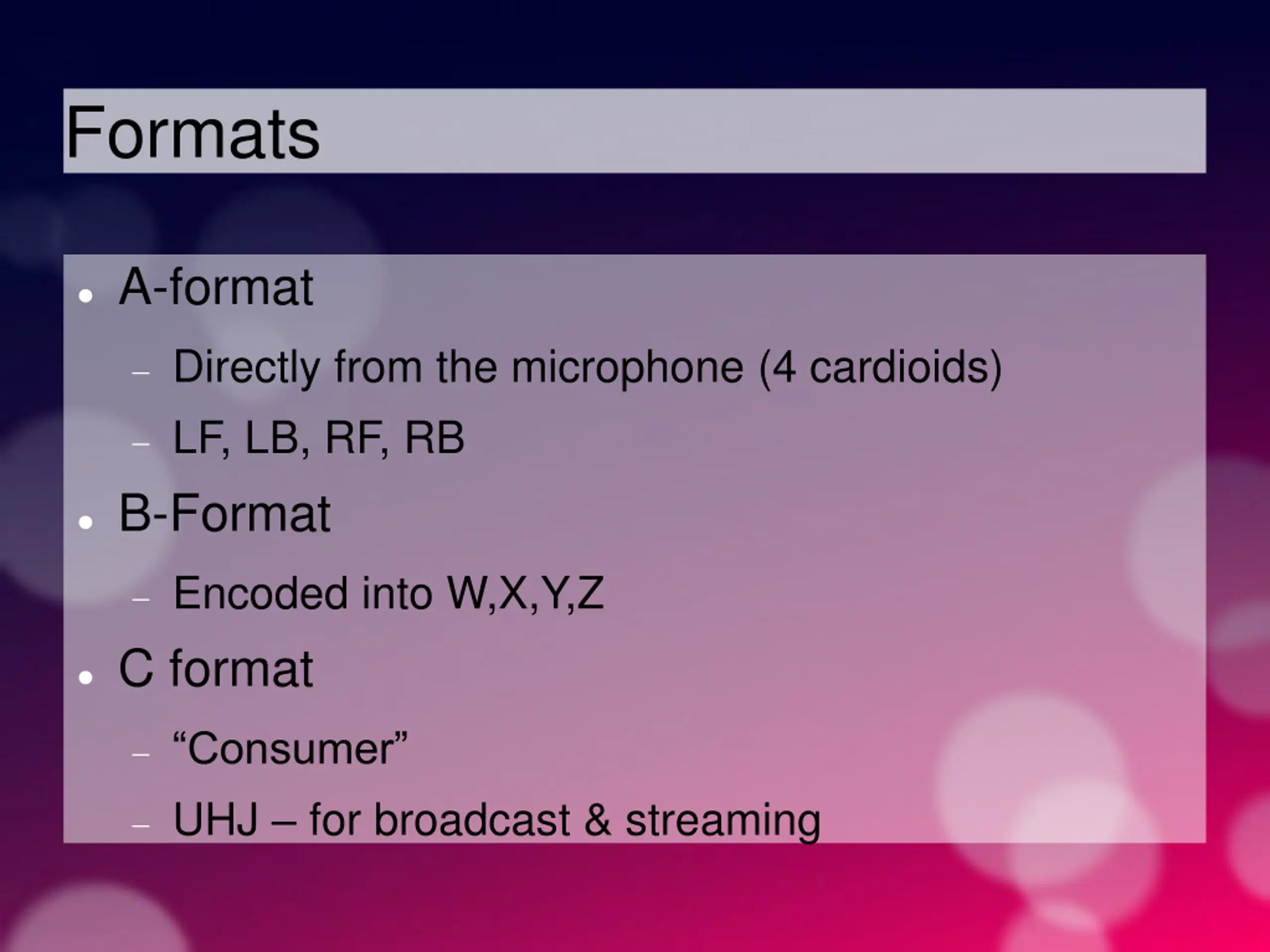

Formats A-format Directly from the microphone (4 cardioids) LF, LB, RF, RB B-Format Encoded into W,X,Y,Z C format Consumer UHJ for broadcast & streaming

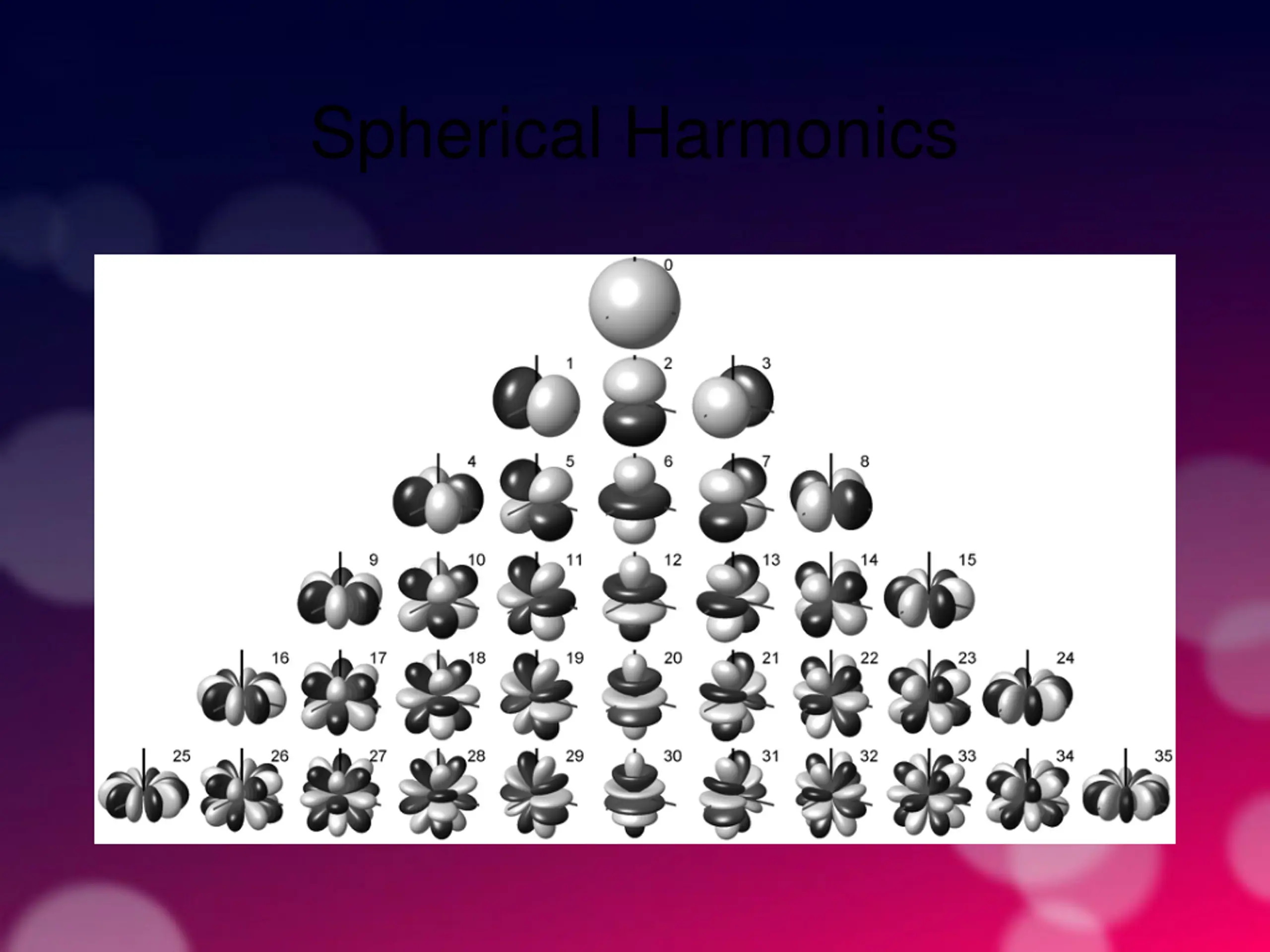

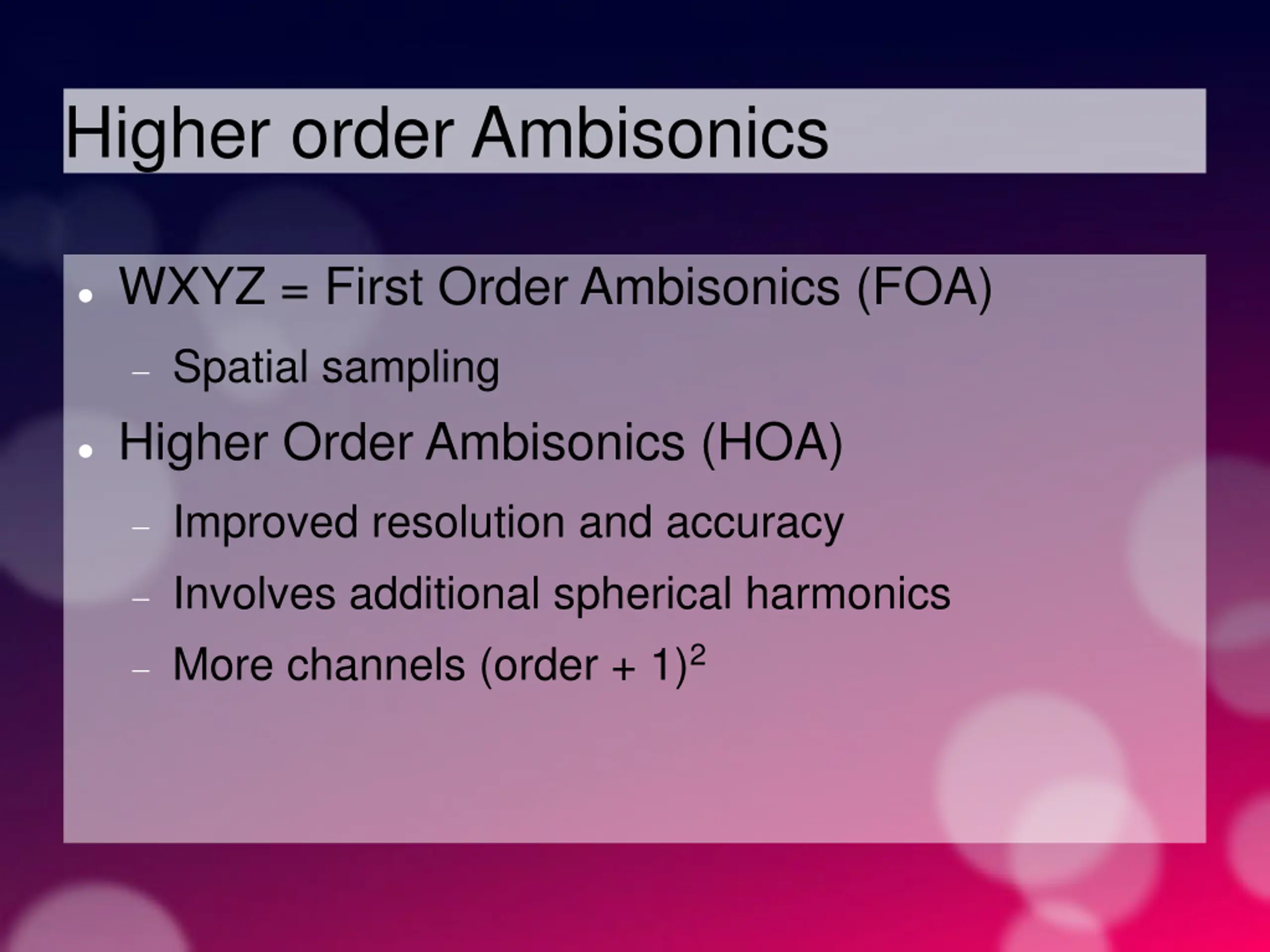

Higher order Ambisonics WXYZ = First Order Ambisonics (FOA) Spatial sampling Higher Order Ambisonics (HOA) Improved resolution and accuracy Involves additional spherical harmonics More channels (order + 1)2

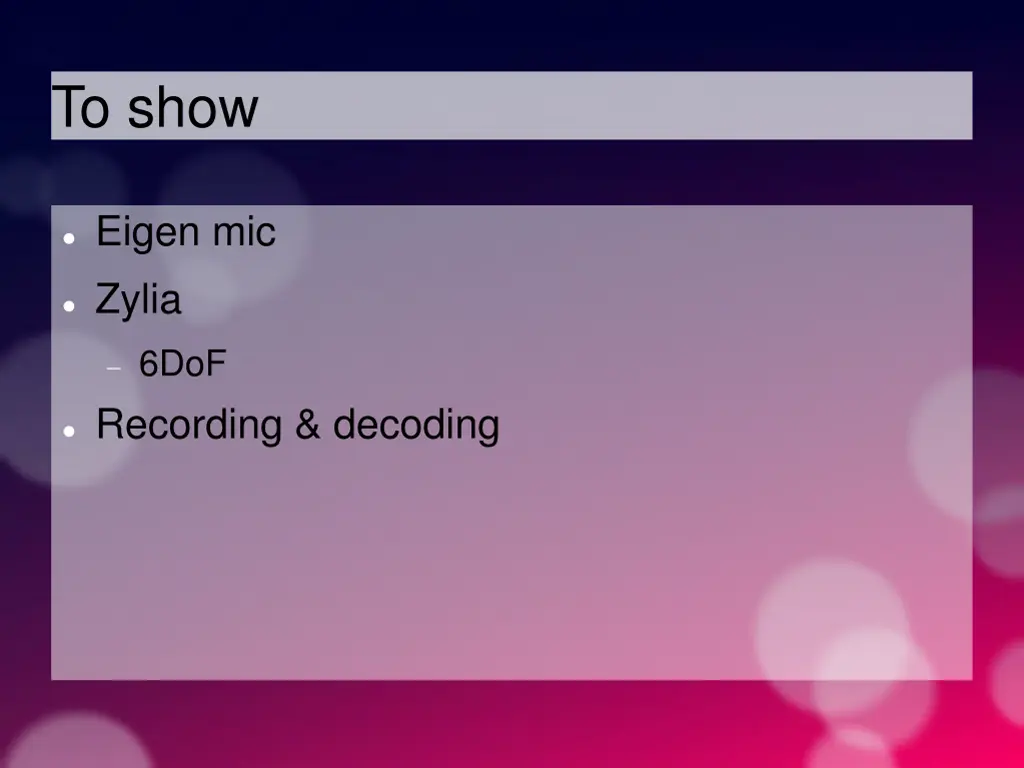

To show Eigen mic Zylia 6DoF Recording & decoding

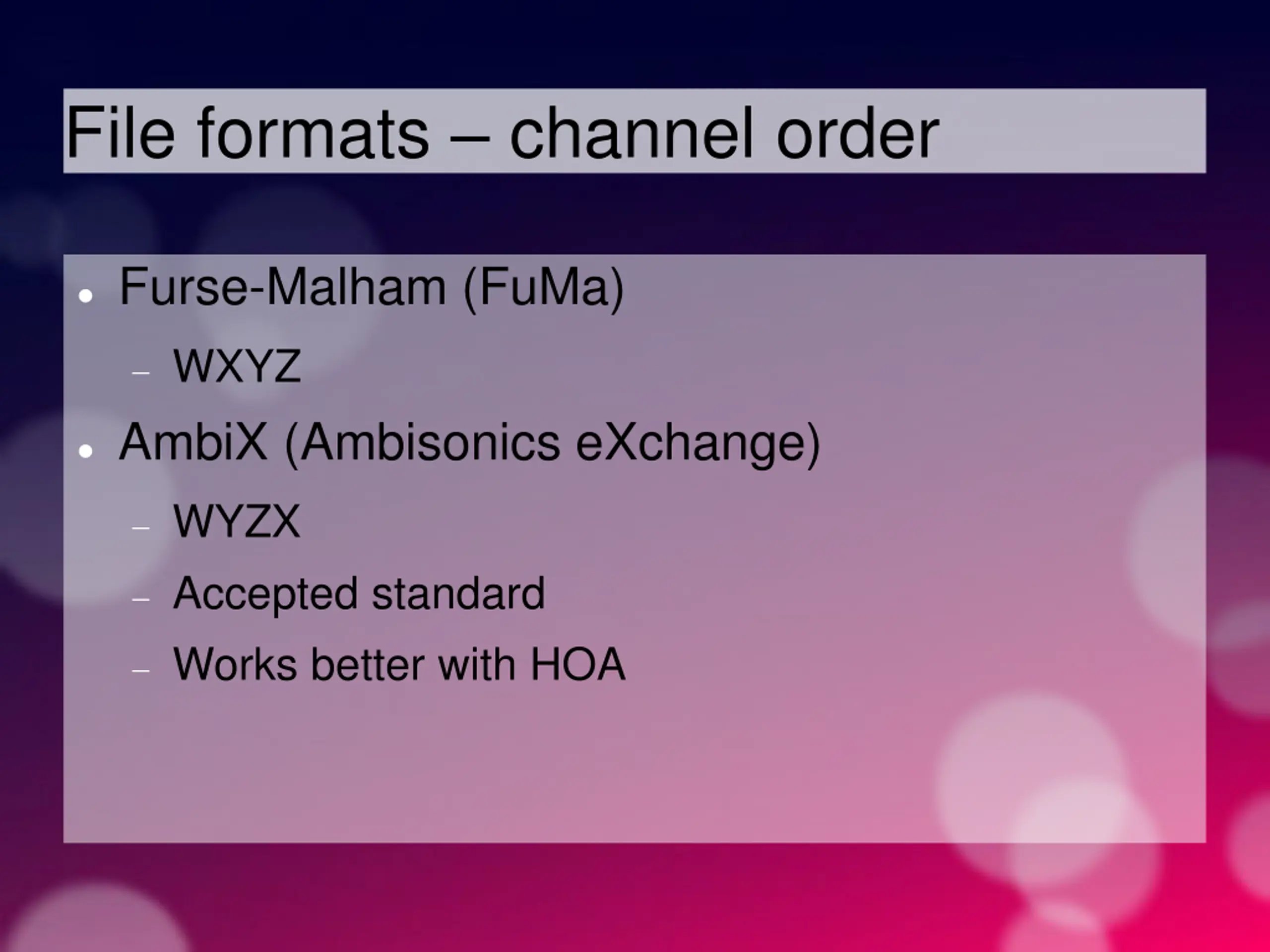

File formats channel order Furse-Malham (FuMa) WXYZ AmbiX (Ambisonics eXchange) WYZX Accepted standard Works better with HOA

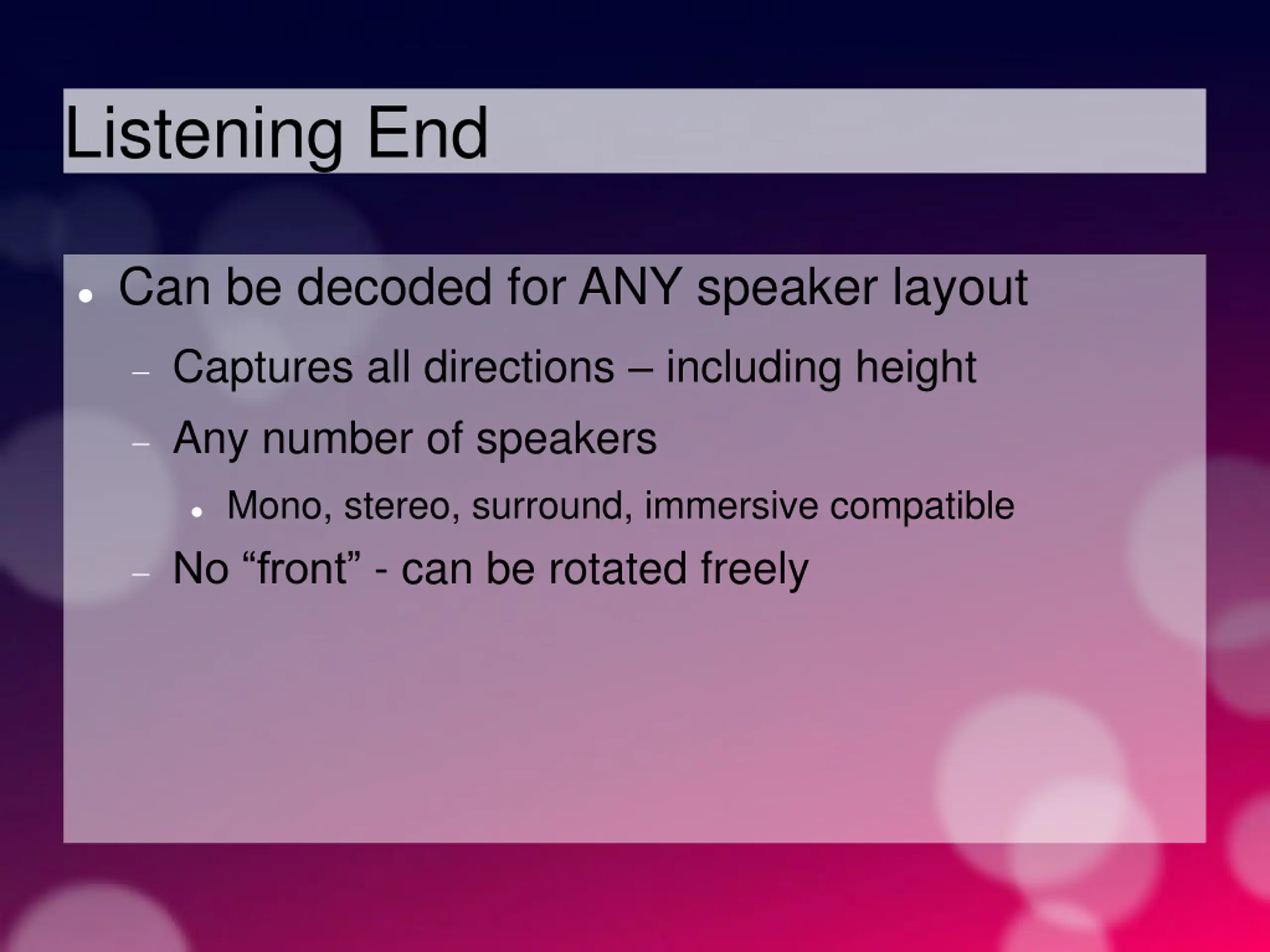

Listening End Can be decoded for ANY speaker layout Captures all directions including height Any number of speakers Mono, stereo, surround, immersive compatible No front - can be rotated freely
