[AMD Official Use Only - General] DS125DF410SQ Retimer Port 0 TX and RX Channel CDR Status and Eye Details

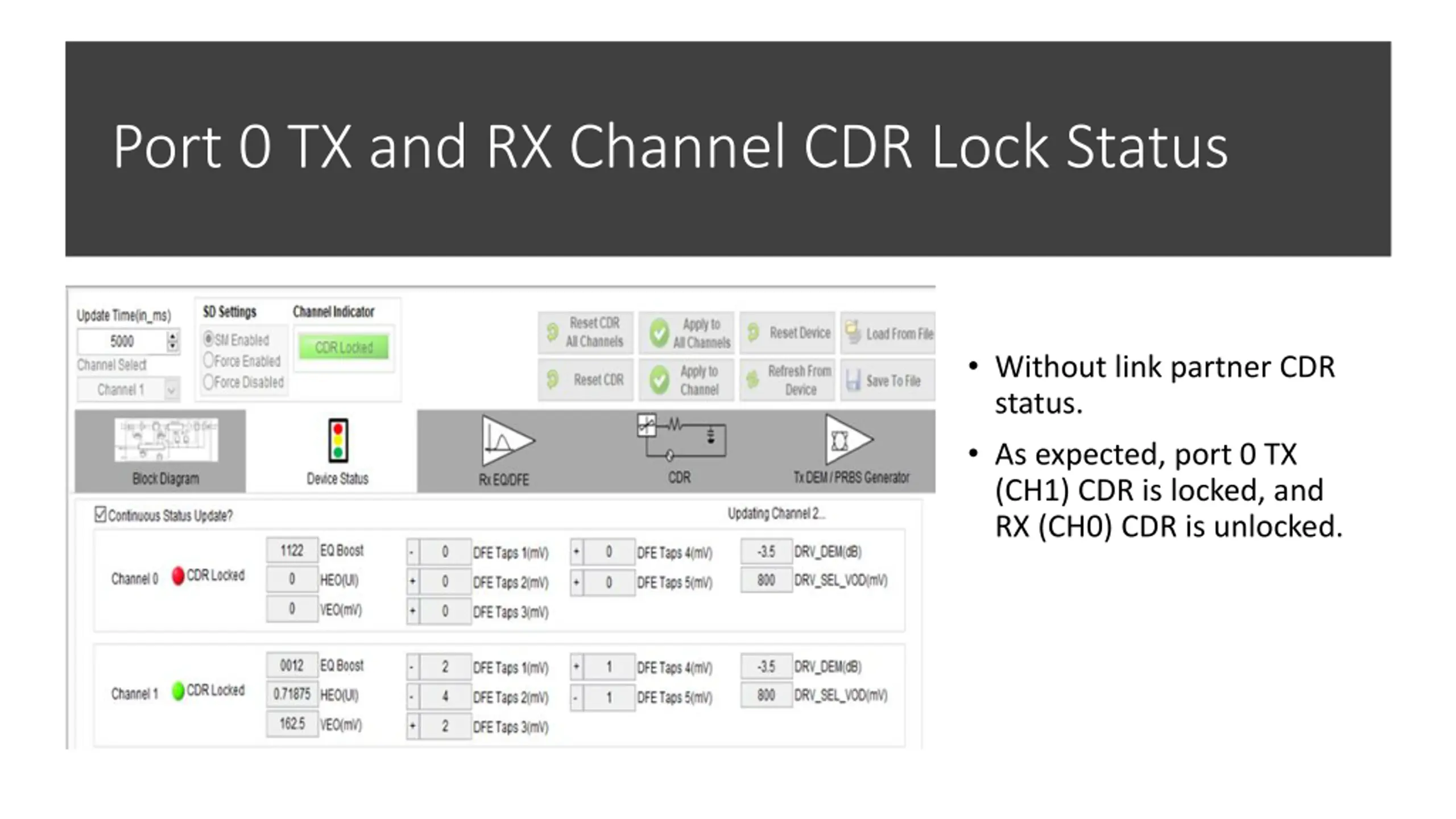

[AMD Official Use Only - General] Port 0 TX and RX Channel CDR Lock Status Without link partner CDR status. As expected, port 0 TX (CH1) CDR is locked, and RX (CH0) CDR is unlocked.

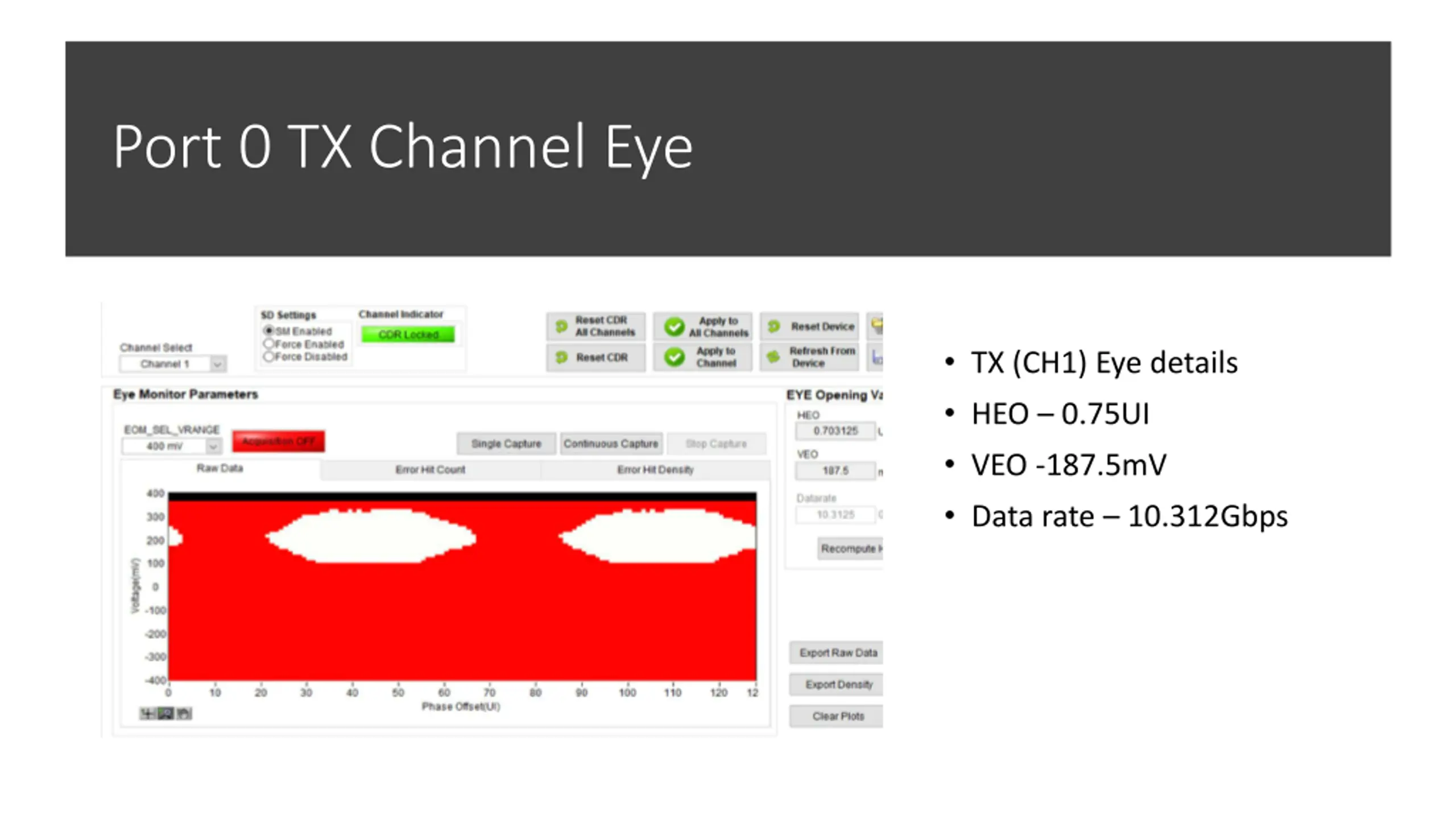

[AMD Official Use Only - General] Port 0 TX Channel Eye TX (CH1) Eye details HEO 0.75UI VEO -187.5mV Data rate 10.312Gbps

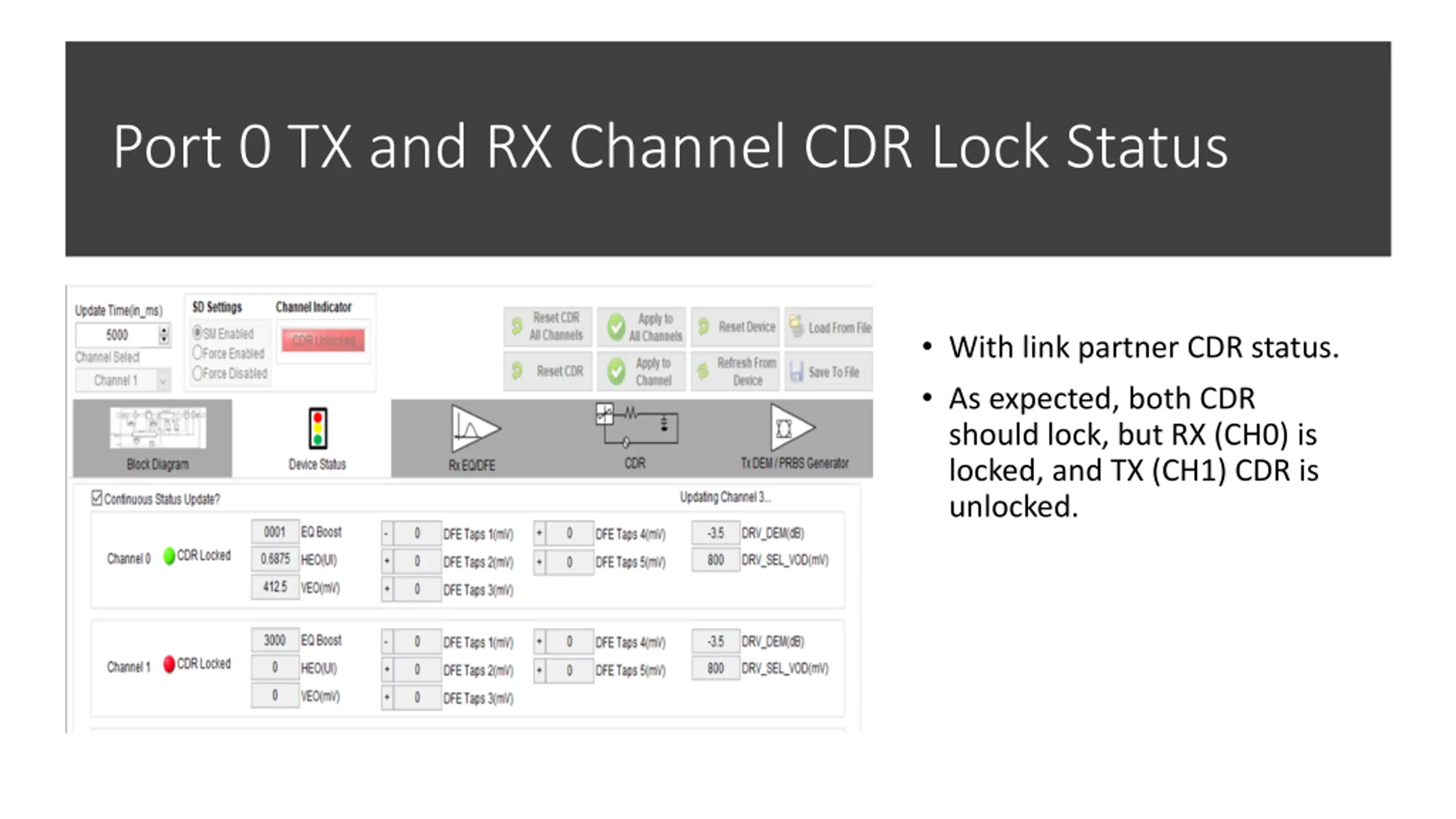

[AMD Official Use Only - General] Port 0 TX and RX Channel CDR Lock Status With link partner CDR status. As expected, both CDR should lock, but RX (CH0) is locked, and TX (CH1) CDR is unlocked.

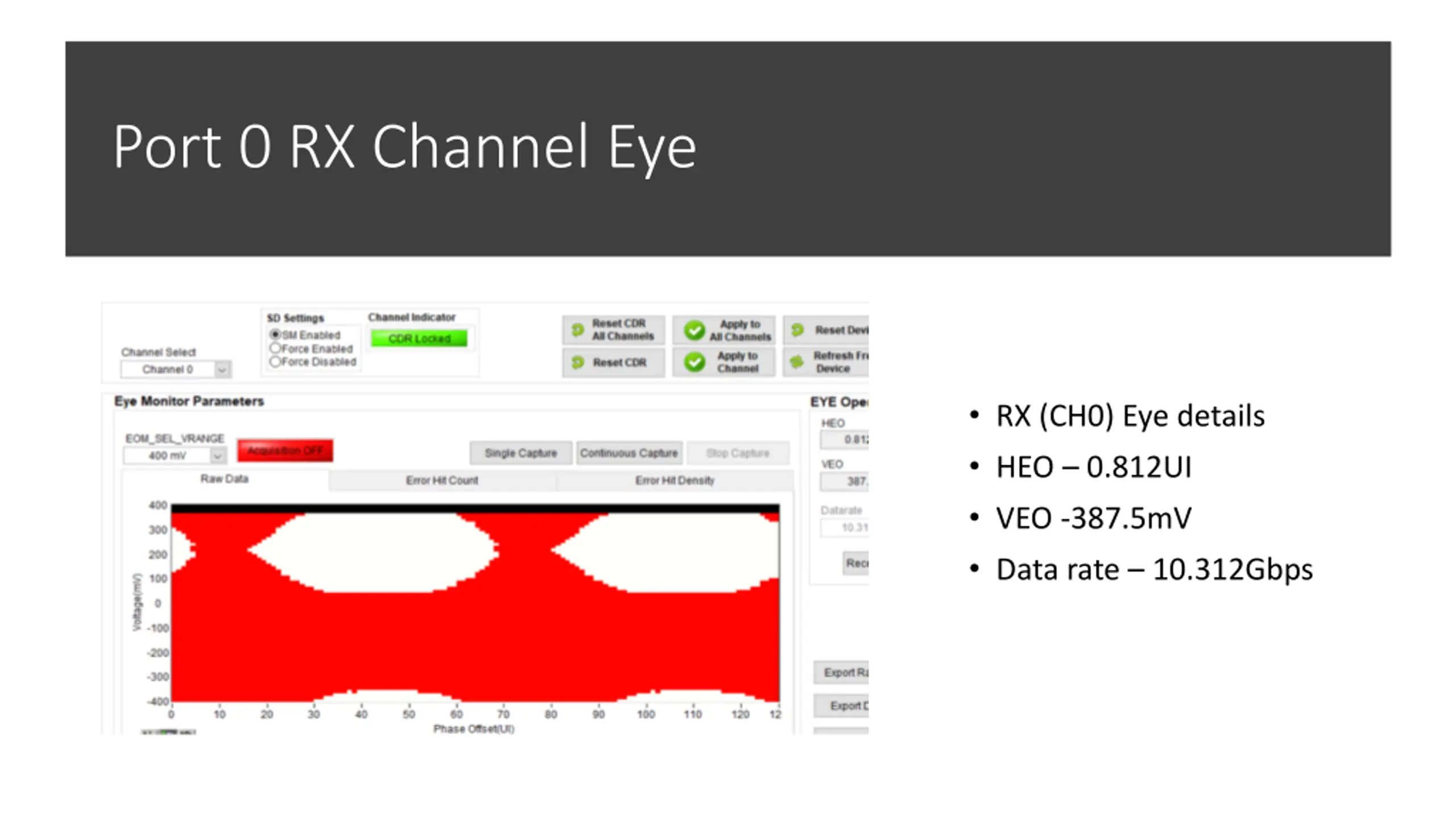

[AMD Official Use Only - General] Port 0 RX Channel Eye RX (CH0) Eye details HEO 0.812UI VEO -387.5mV Data rate 10.312Gbps

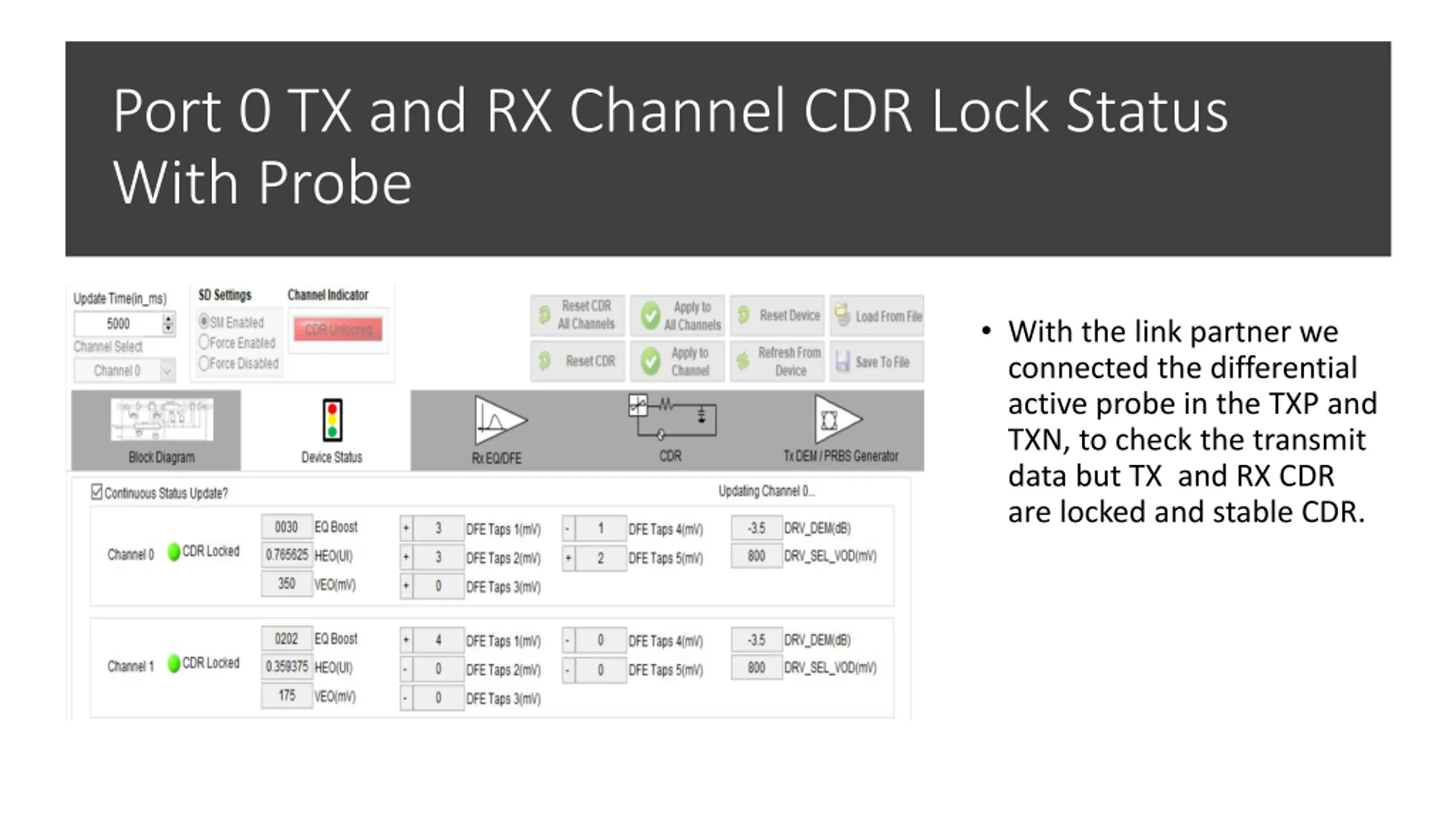

[AMD Official Use Only - General] Port 0 TX and RX Channel CDR Lock Status With Probe With the link partner we connected the differential active probe in the TXP and TXN, to check the transmit data but TX and RX CDR are locked and stable CDR.

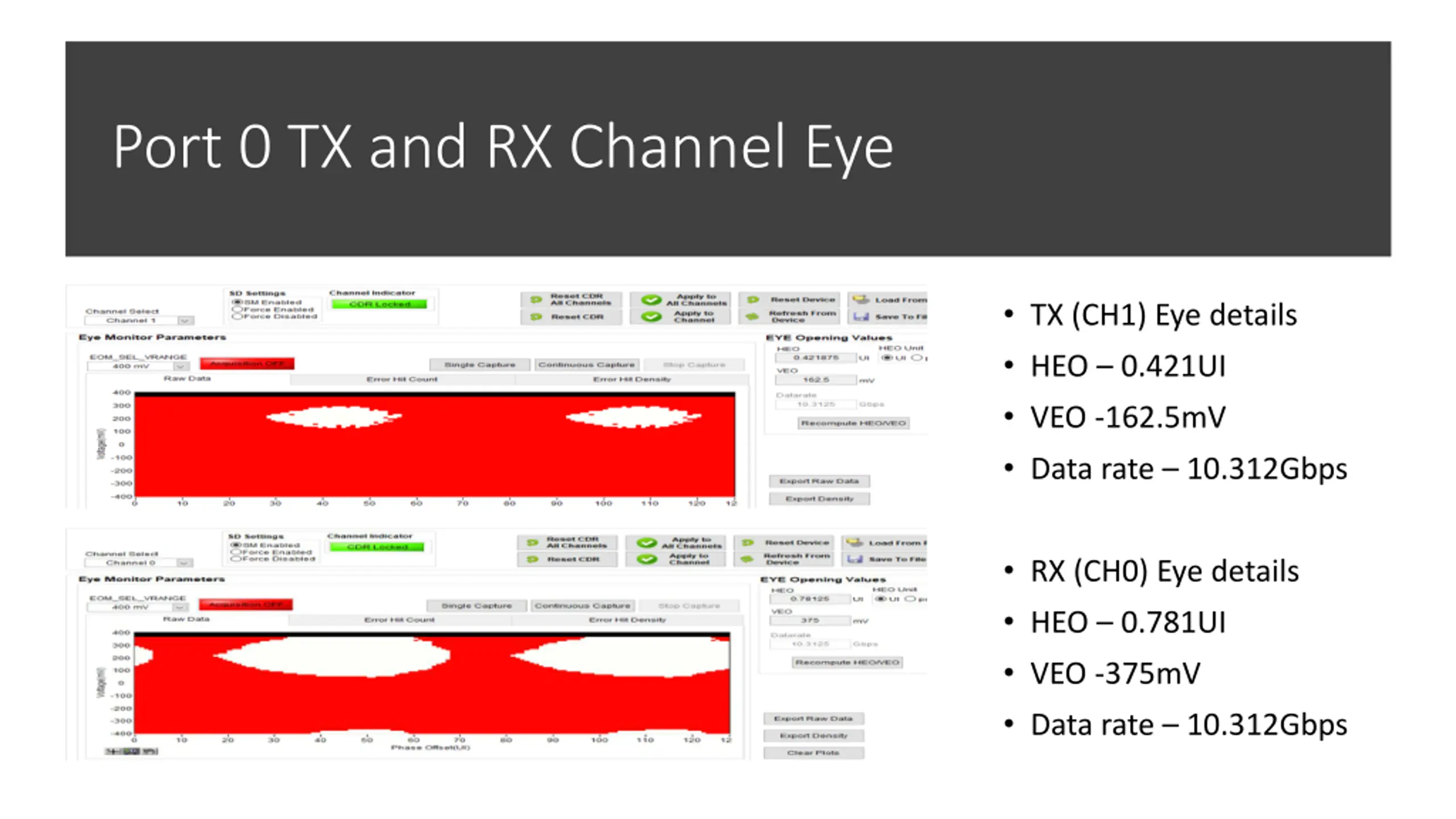

[AMD Official Use Only - General] Port 0 TX and RX Channel Eye TX (CH1) Eye details HEO 0.421UI VEO -162.5mV Data rate 10.312Gbps RX (CH0) Eye details HEO 0.781UI VEO -375mV Data rate 10.312Gbps
