Amplifying Load Cell Signal with INA126 in Elevator Design
"Learn how to amplify a load cell signal for a small elevator design using the INA126 instrumentation amplifier. Get insights on connecting the REF pin to achieve the desired output voltage range and calibration for optimal performance."
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

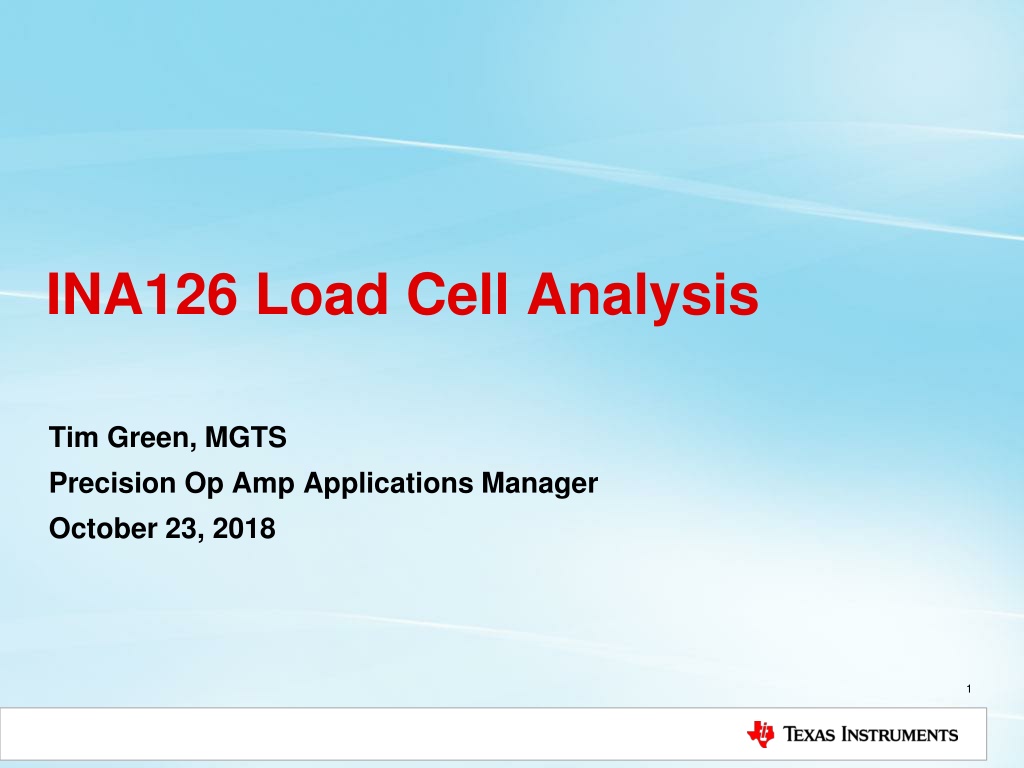

INA126 Load Cell Analysis Tim Green, MGTS Precision Op Amp Applications Manager October 23, 2018 1

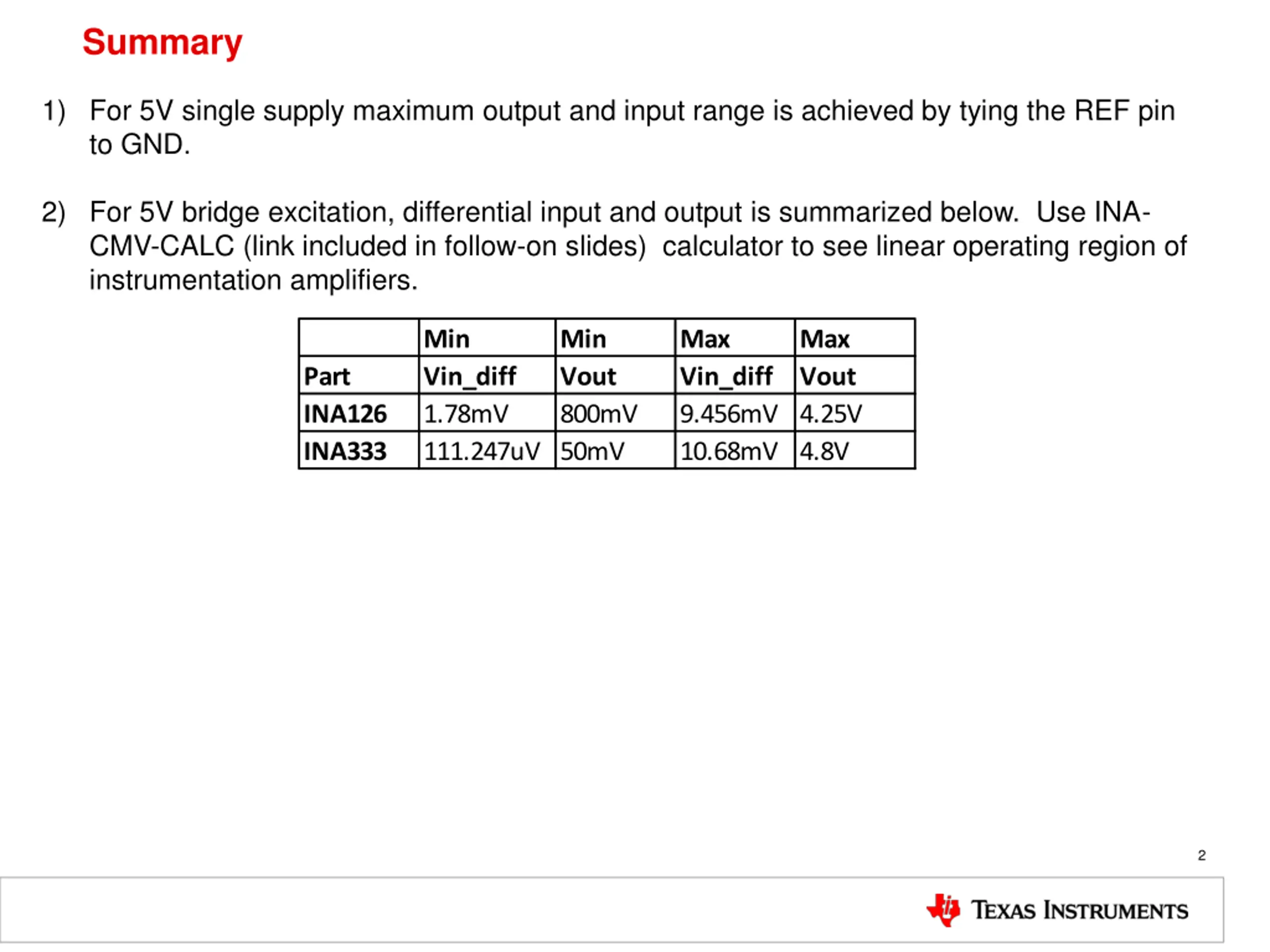

Summary 1) For 5V single supply maximum output and input range is achieved by tying the REF pin to GND. 2) For 5V bridge excitation, differential input and output is summarized below. Use INA- CMV-CALC (link included in follow-on slides) calculator to see linear operating region of instrumentation amplifiers. Min Vin_diff 1.78mV 111.247uV 50mV Min Vout 800mV Max Vin_diff 9.456mV 4.25V 10.68mV 4.8V Max Vout Part INA126 INA333 2

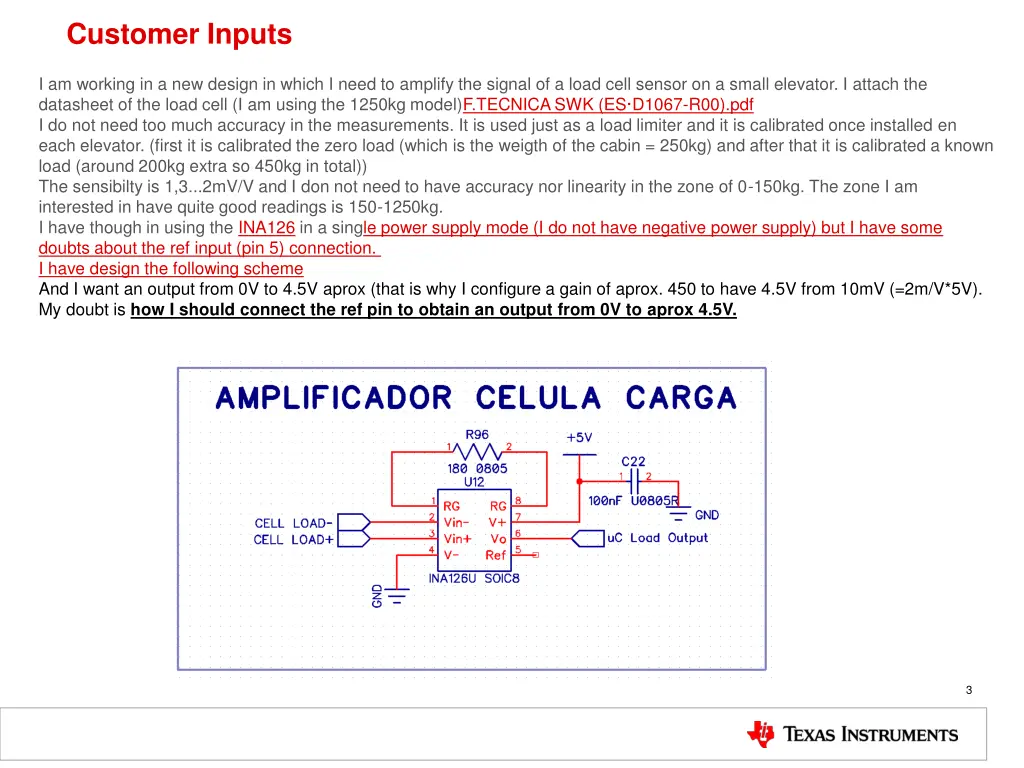

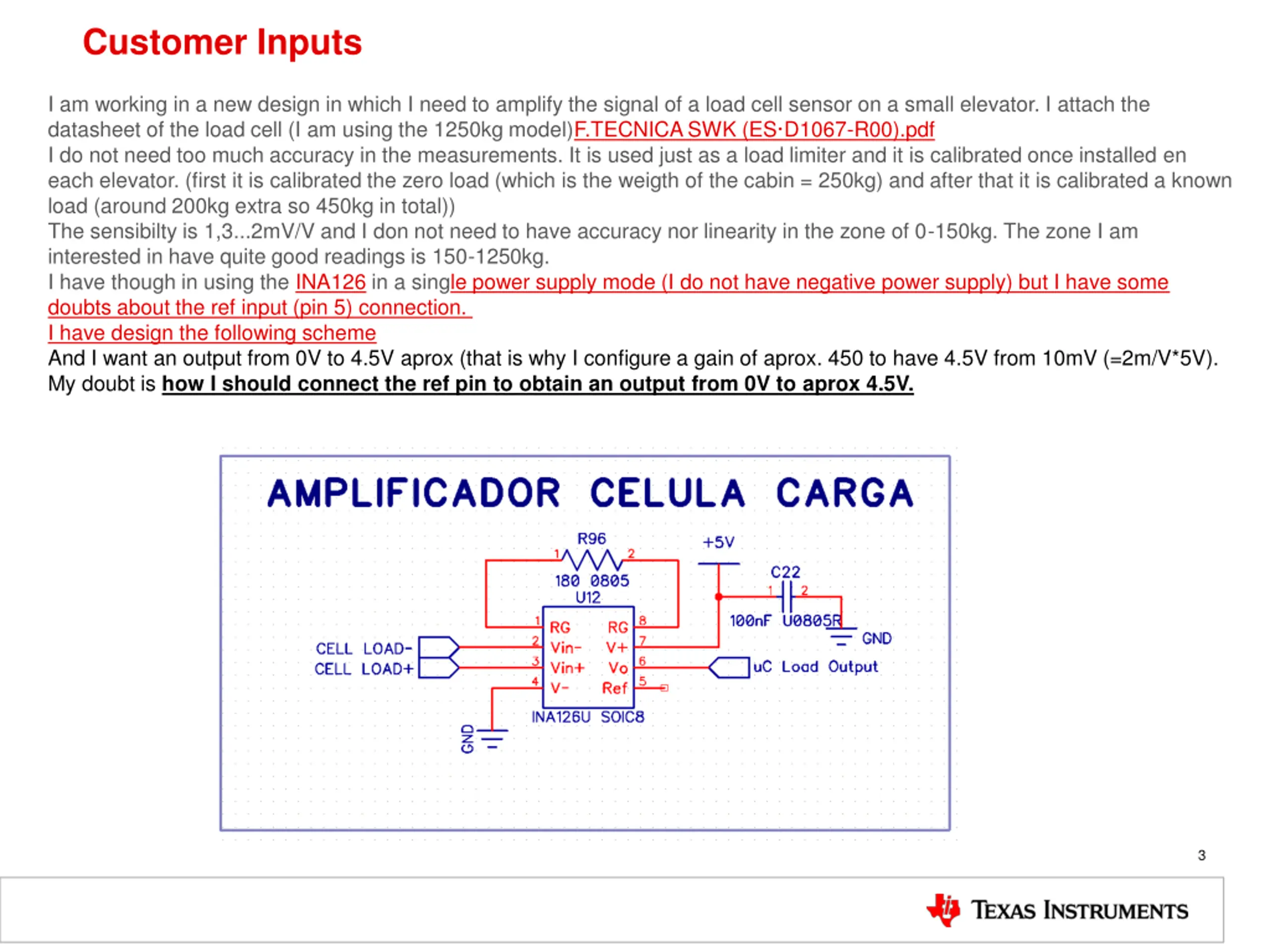

Customer Inputs I am working in a new design in which I need to amplify the signal of a load cell sensor on a small elevator. I attach the datasheet of the load cell (I am using the 1250kg model)F.TECNICA SWK (ES D1067-R00).pdf I do not need too much accuracy in the measurements. It is used just as a load limiter and it is calibrated once installed en each elevator. (first it is calibrated the zero load (which is the weigth of the cabin = 250kg) and after that it is calibrated a known load (around 200kg extra so 450kg in total)) The sensibilty is 1,3...2mV/V and I don not need to have accuracy nor linearity in the zone of 0-150kg. The zone I am interested in have quite good readings is 150-1250kg. I have though in using the INA126 in a single power supply mode (I do not have negative power supply) but I have some doubts about the ref input (pin 5) connection. I have design the following scheme And I want an output from 0V to 4.5V aprox (that is why I configure a gain of aprox. 450 to have 4.5V from 10mV (=2m/V*5V). My doubt is how I should connect the ref pin to obtain an output from 0V to aprox 4.5V. 3

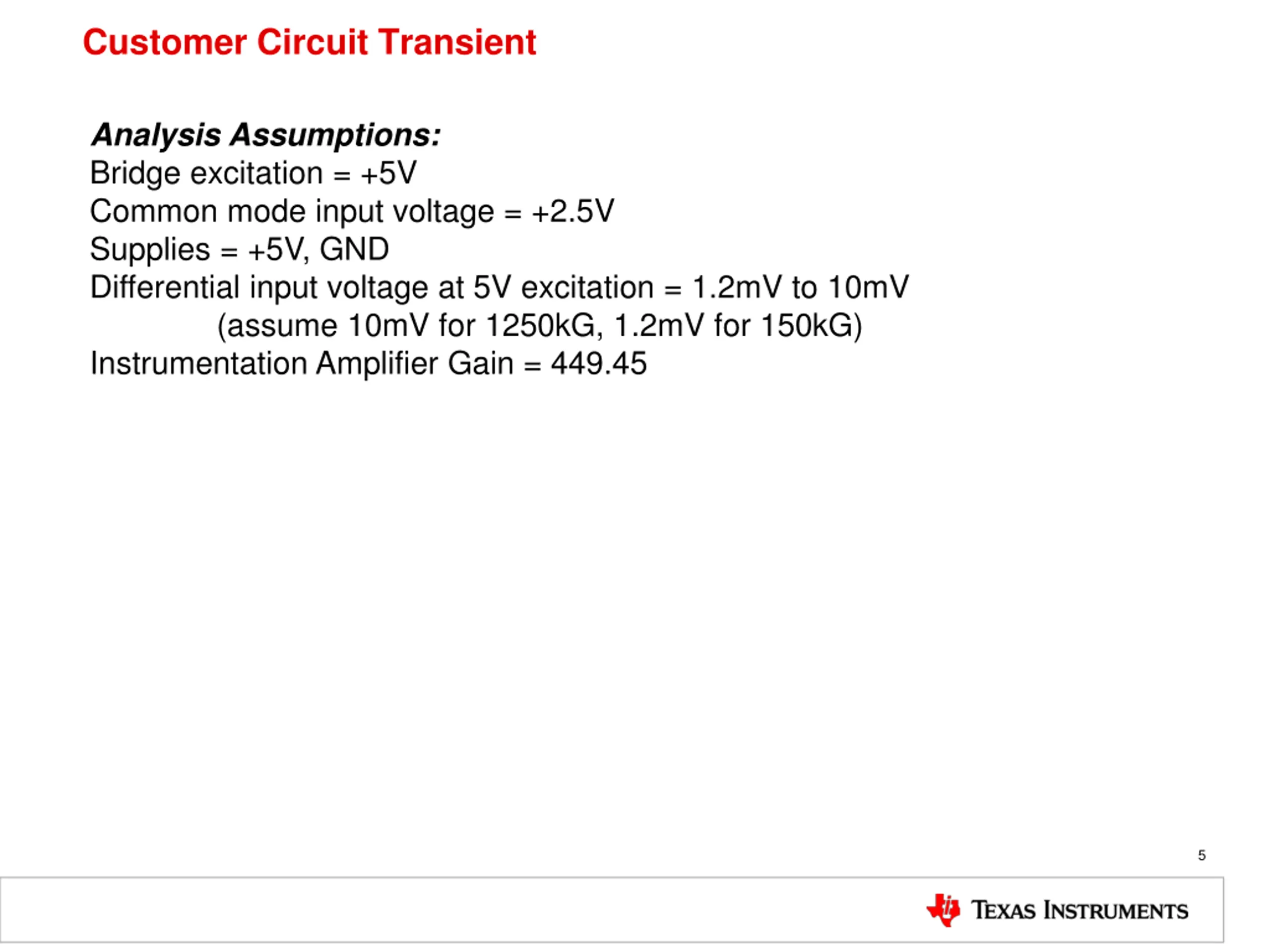

Customer Circuit Transient Analysis Assumptions: Bridge excitation = +5V Common mode input voltage = +2.5V Supplies = +5V, GND Differential input voltage at 5V excitation = 1.2mV to 10mV (assume 10mV for 1250kG, 1.2mV for 150kG) Instrumentation Amplifier Gain = 449.45 5

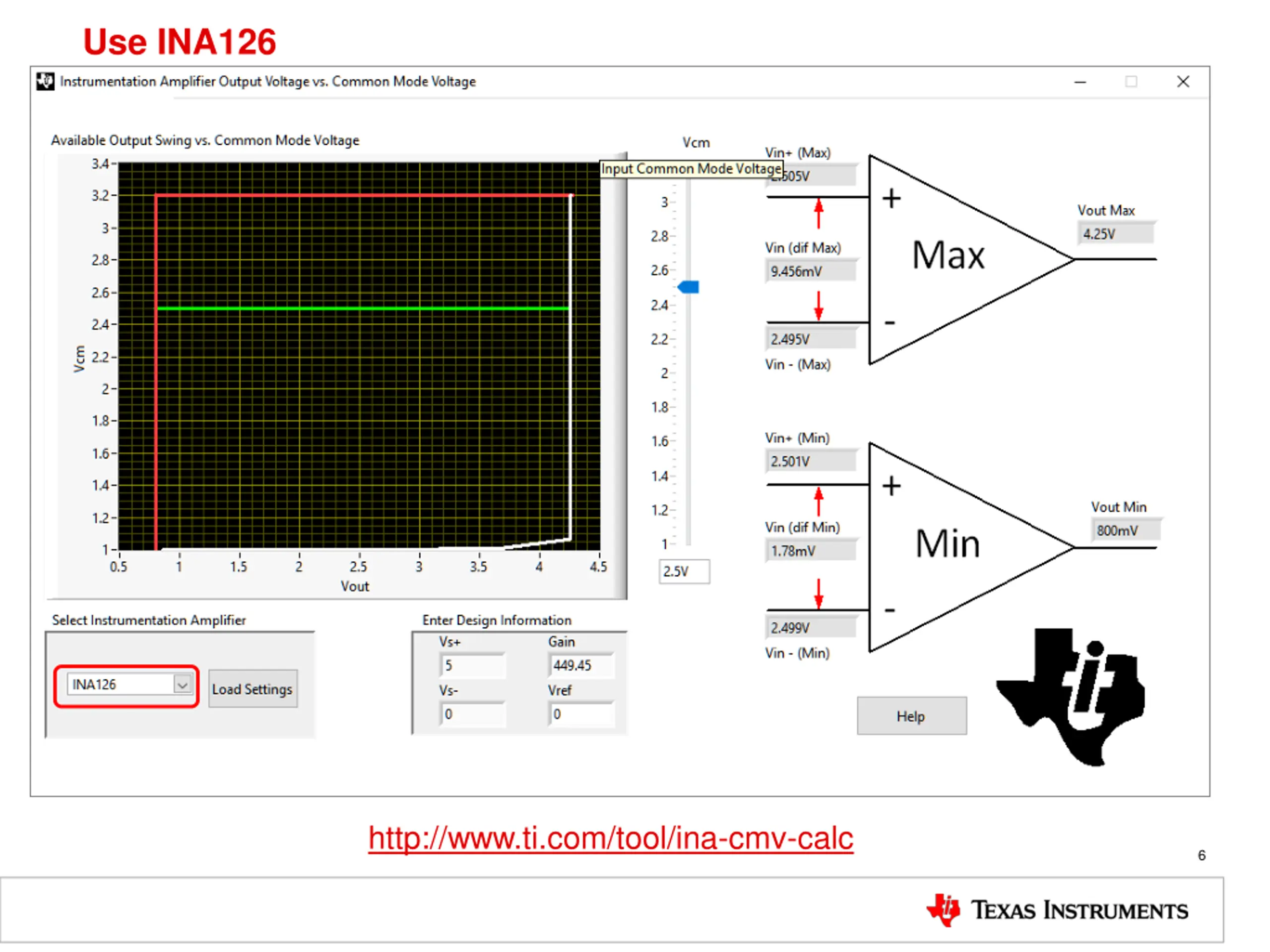

Use INA126 http://www.ti.com/tool/ina-cmv-calc 6

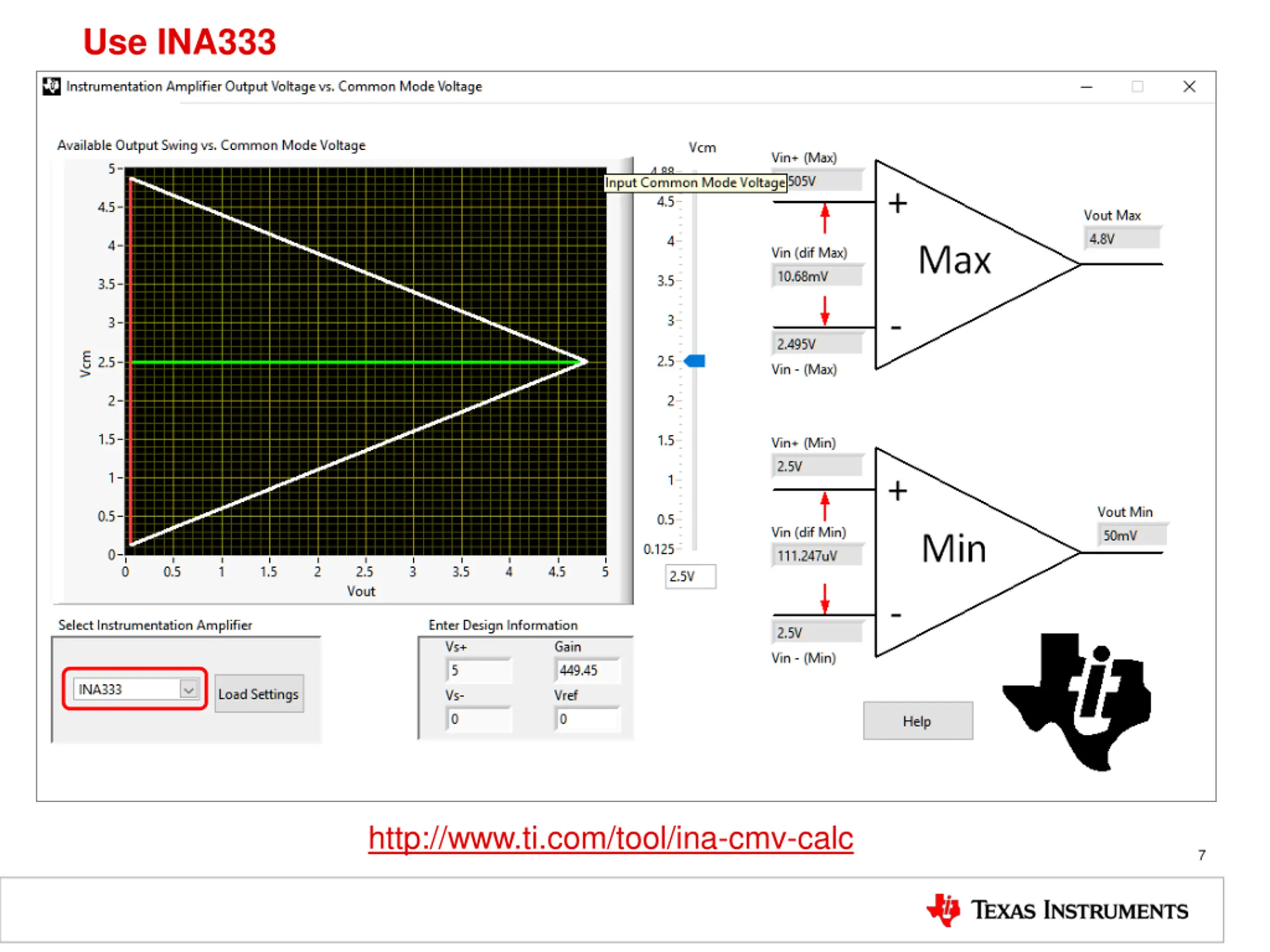

Use INA333 http://www.ti.com/tool/ina-cmv-calc 7
