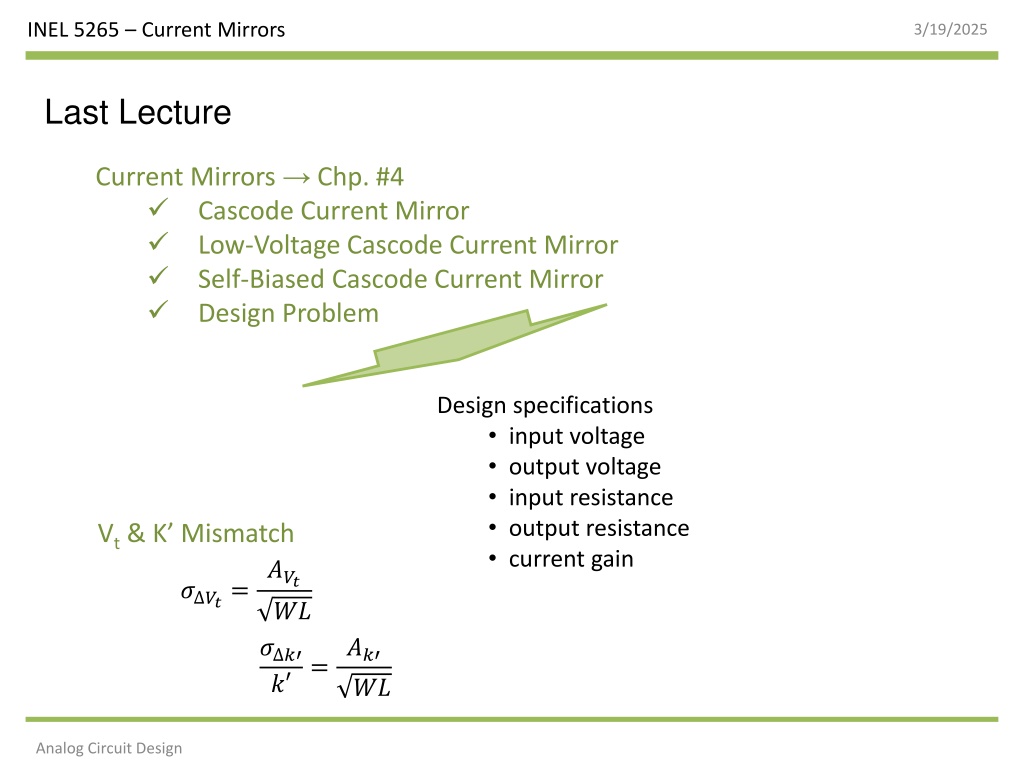

INEL 5265 Current Mirrors 3/19/2025 Last Lecture Current Mirrors Chp. #4 Cascode Current Mirror Low-Voltage Cascode Current Mirror Self-Biased Cascode Current Mirror Design Problem Design specifications input voltage output voltage input resistance output resistance current gain Vt& K Mismatch ??? ?? ? ? ? ? ??= ?? ?? = Analog Circuit Design

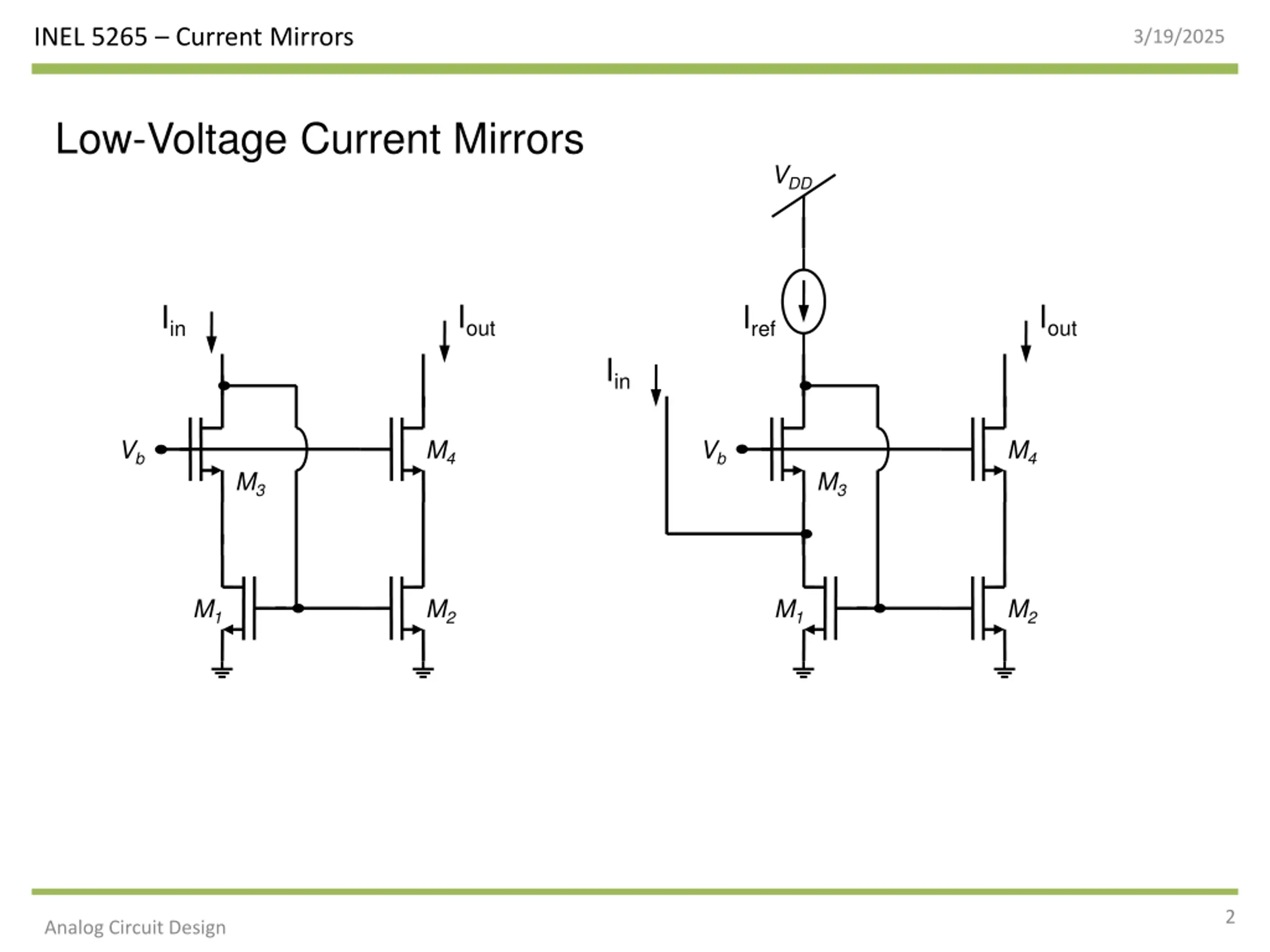

INEL 5265 Current Mirrors 3/19/2025 Low-Voltage Current Mirrors VDD Iout Iout Iin Iref Iin Vb M4 Vb M4 M3 M3 M1 M2 M1 M2 2 Analog Circuit Design

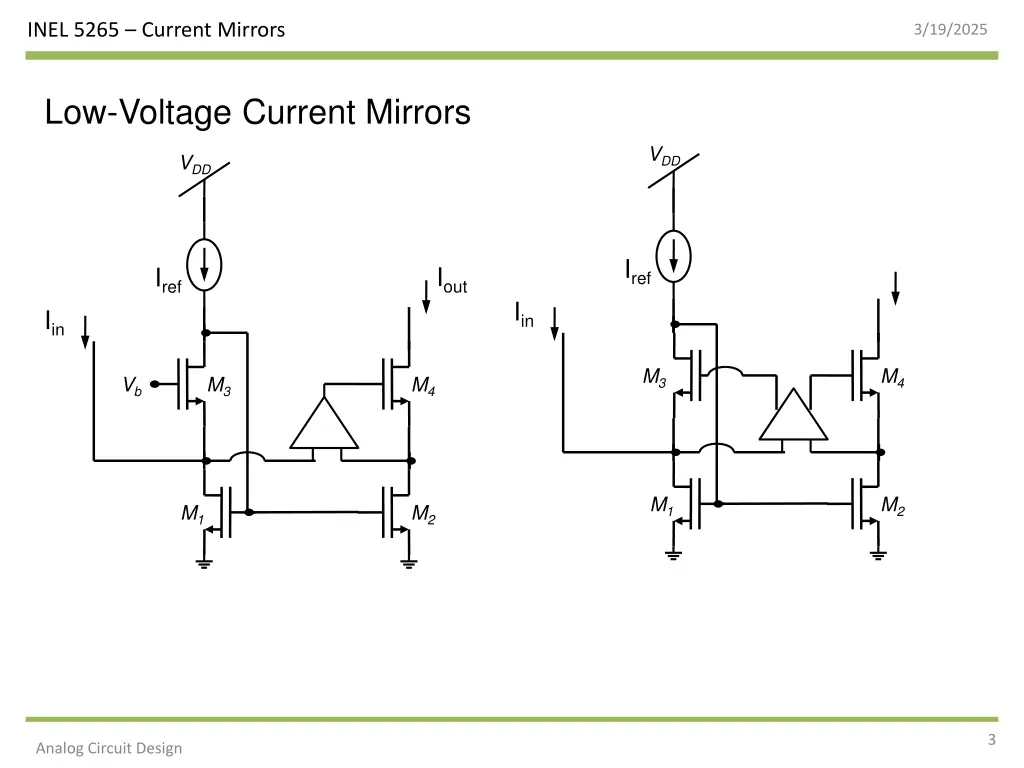

INEL 5265 Current Mirrors 3/19/2025 Low-Voltage Current Mirrors VDD VDD Iref Iout Iref Iin Iin M3 M4 Vb M3 M4 M1 M2 M1 M2 3 Analog Circuit Design

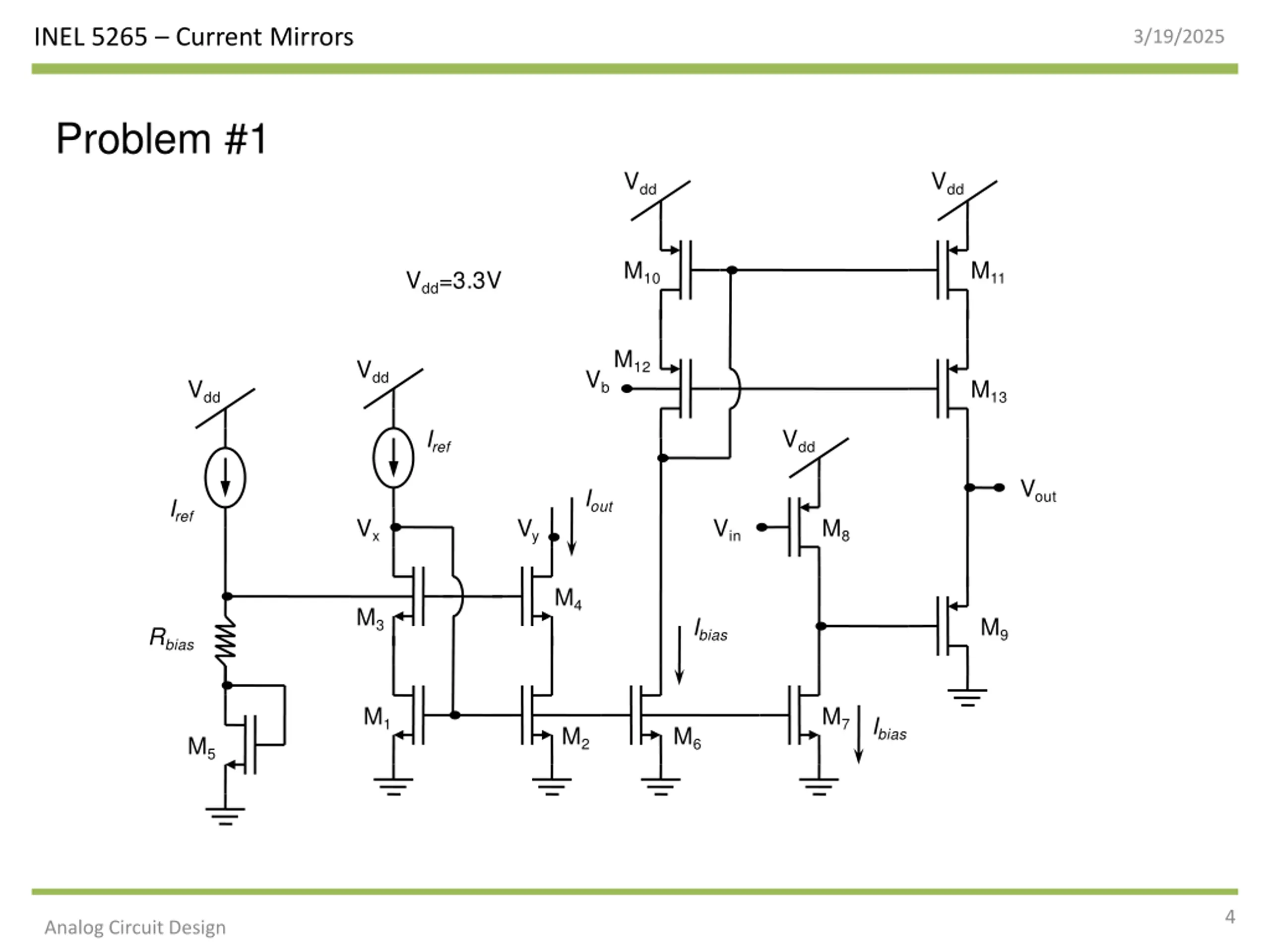

INEL 5265 Current Mirrors 3/19/2025 Problem #1 Vdd Vdd M10 M11 Vdd=3.3V M12 Vdd Vb Vdd M13 Iref Vdd Vout Iout Iref Vx Vy Vin M8 M4 M3 Ibias M9 Rbias M1 M7 Ibias M2 M6 M5 4 Analog Circuit Design

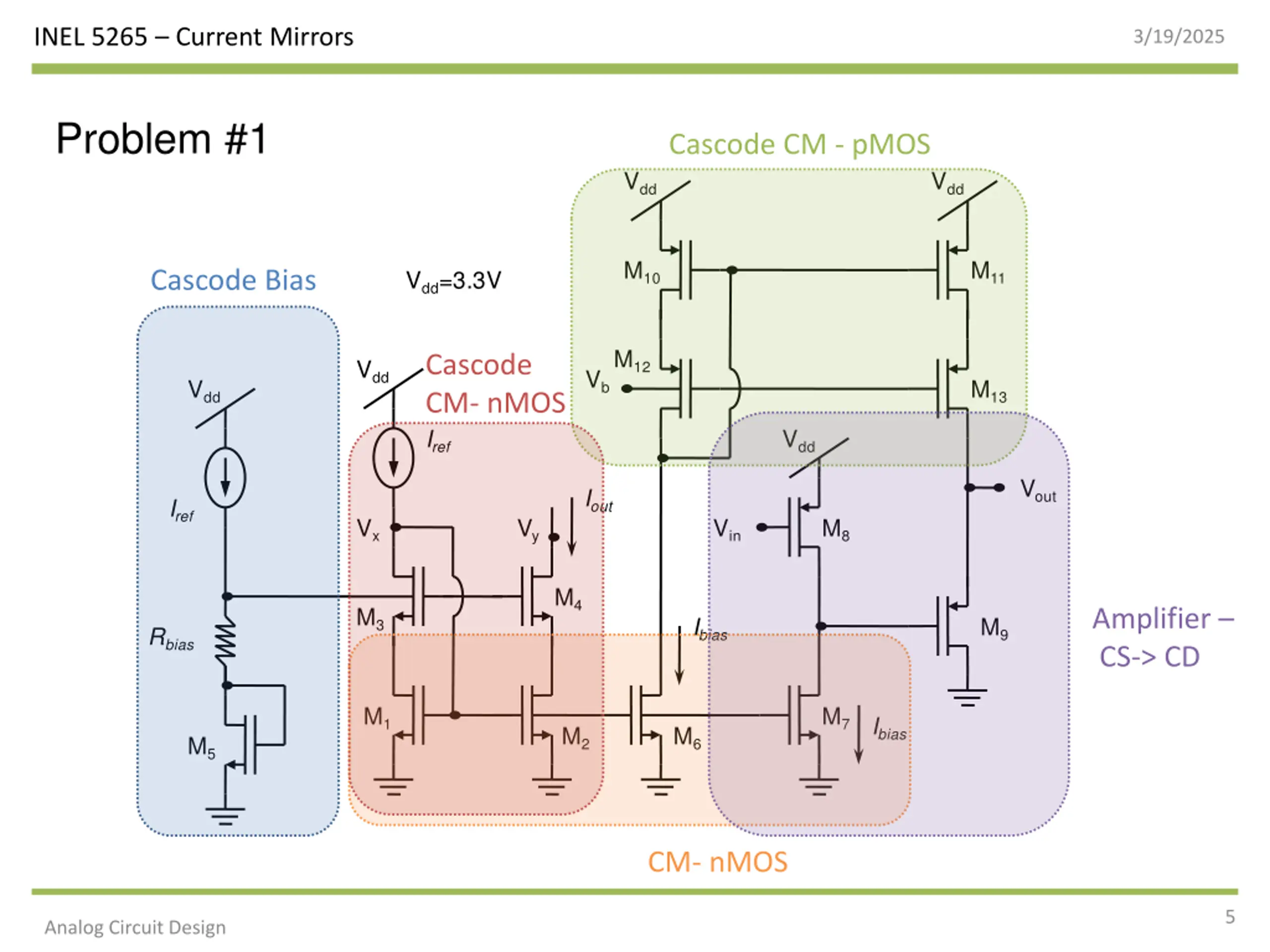

INEL 5265 Current Mirrors 3/19/2025 Problem #1 Cascode CM - pMOS Vdd Vdd M10 M11 Cascode Bias Vdd=3.3V M12 Cascode CM- nMOS Vdd Vb Vdd M13 Iref Vdd Vout Iout Iref Vx Vy Vin M8 M4 M3 Amplifier CS-> CD Ibias M9 Rbias M1 M7 Ibias M2 M6 M5 CM- nMOS 5 Analog Circuit Design

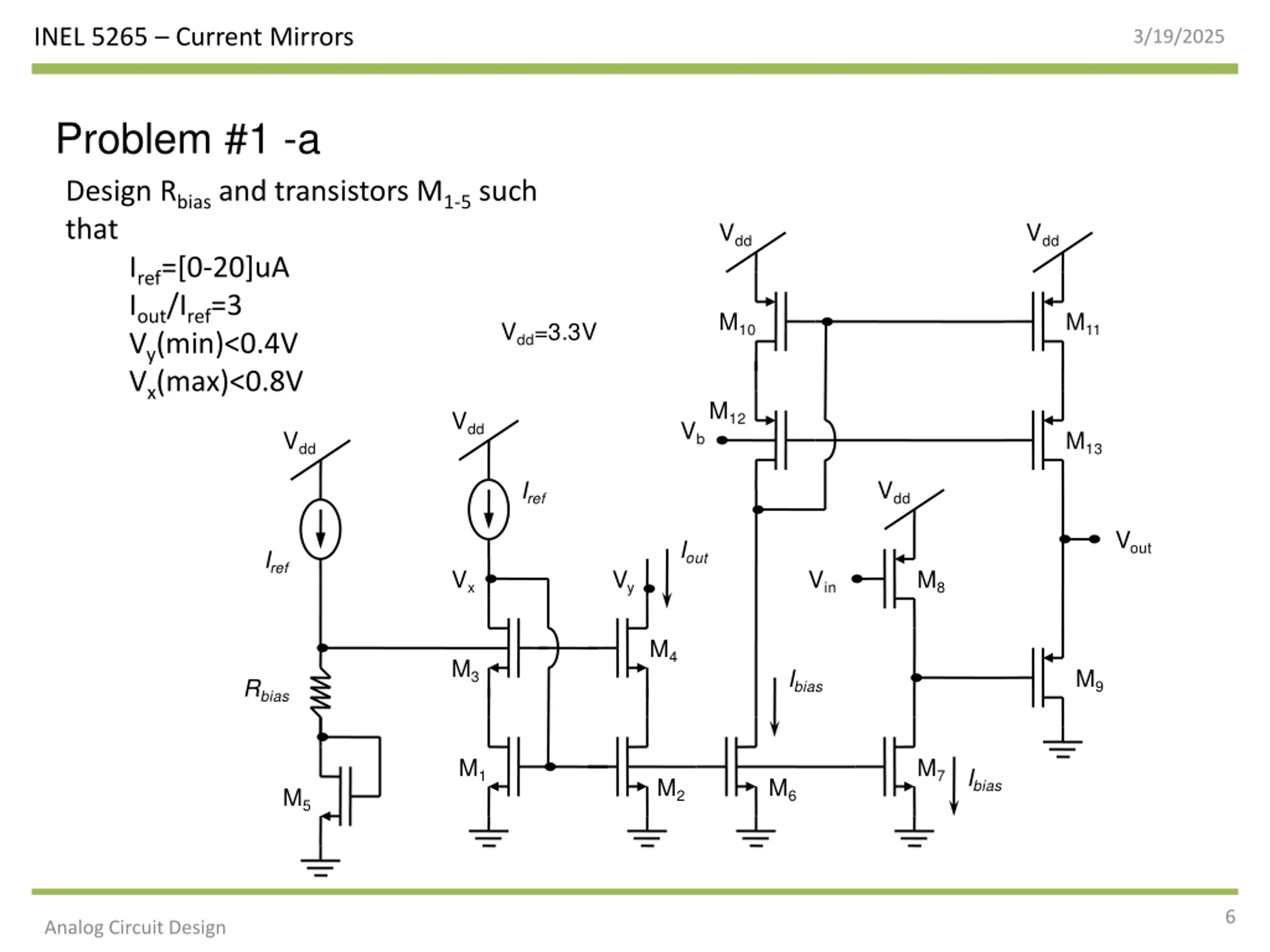

INEL 5265 Current Mirrors 3/19/2025 Problem #1 -a Design Rbias and transistors M1-5 such that Iref=[0-20]uA Iout/Iref=3 Vy(min)<0.4V Vx(max)<0.8V Vdd Vdd M10 M11 Vdd=3.3V M12 Vdd Vb Vdd M13 Iref Vdd Vout Iout Iref Vx Vy Vin M8 M4 M3 Ibias M9 Rbias M1 M7 Ibias M2 M6 M5 6 Analog Circuit Design
