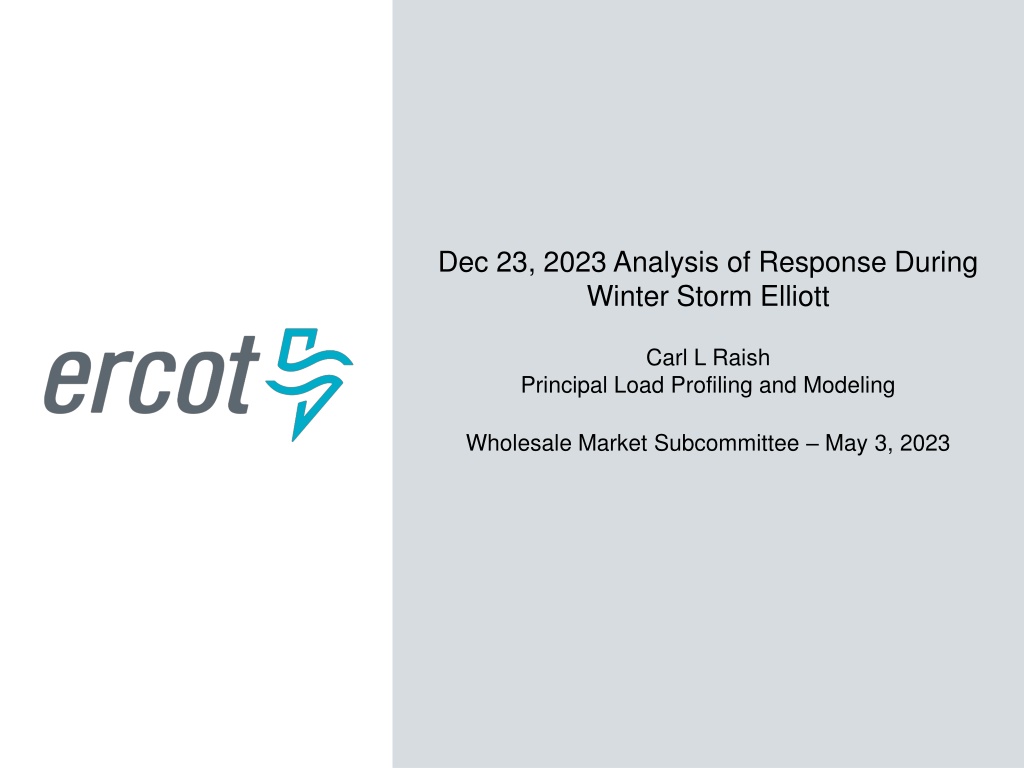

Dec 23, 2023 Analysis of Response During Winter Storm Elliott Carl L Raish Principal Load Profiling and Modeling Wholesale Market Subcommittee May 3, 2023

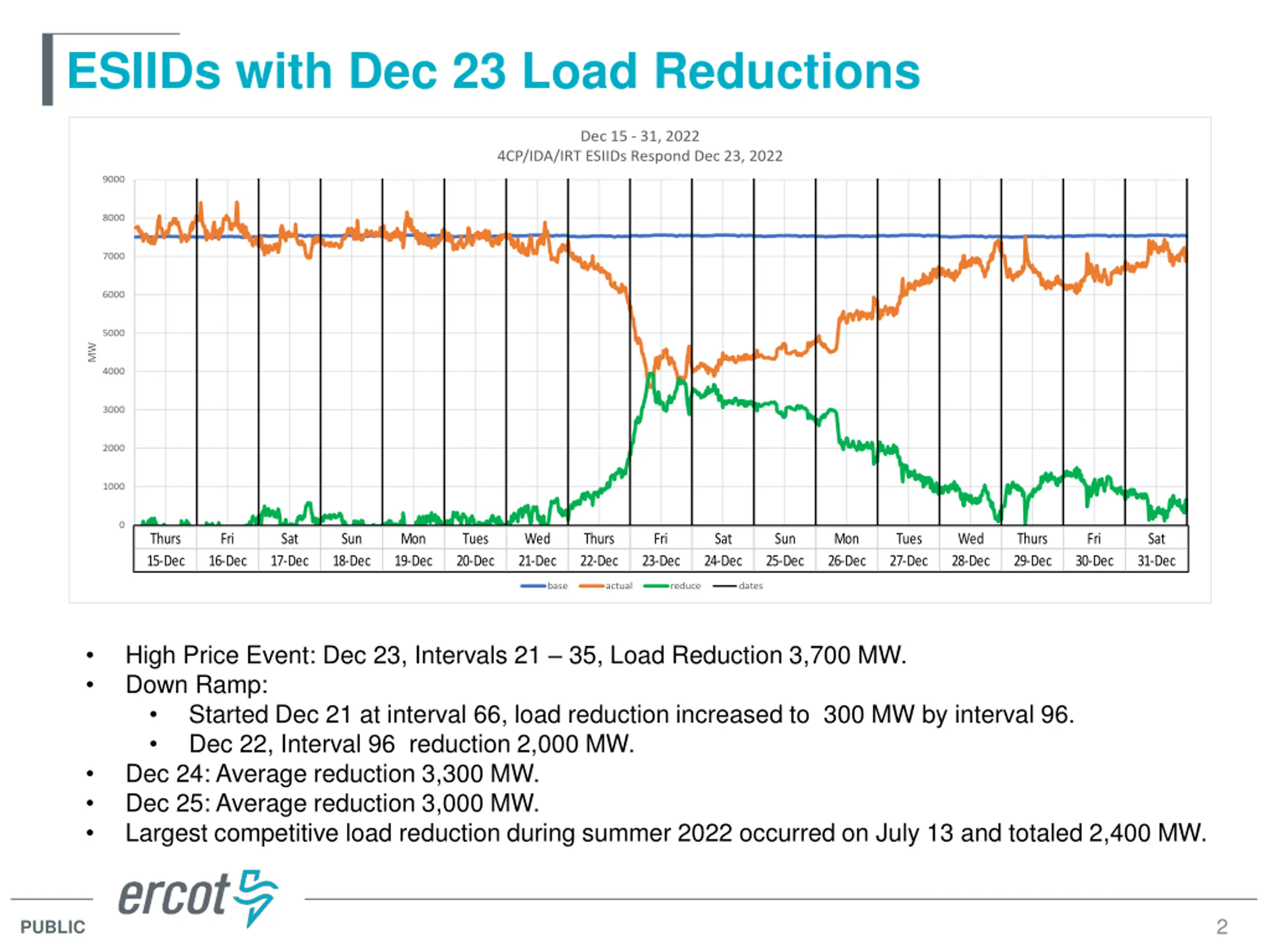

ESIIDs with Dec 23 Load Reductions Dec 15 - 31, 2022 4CP/IDA/IRT ESIIDs Respond Dec 23, 2022 9000 8000 7000 6000 5000 MW 4000 3000 2000 1000 0 Thurs 15-Dec Fri Sat Sun 18-Dec Mon 19-Dec Tues 20-Dec Wed 21-Dec Thurs 22-Dec Fri Sat Sun 25-Dec Mon 26-Dec Tues 27-Dec Wed 28-Dec Thurs 29-Dec Fri Sat Interval 23-Dec 16-Dec 17-Dec 24-Dec 30-Dec 31-Dec base actual reduce dates High Price Event: Dec 23, Intervals 21 35, Load Reduction 3,700 MW. Down Ramp: Started Dec 21 at interval 66, load reduction increased to 300 MW by interval 96. Dec 22, Interval 96 reduction 2,000 MW. Dec 24: Average reduction 3,300 MW. Dec 25: Average reduction 3,000 MW. Largest competitive load reduction during summer 2022 occurred on July 13 and totaled 2,400 MW. 2 PUBLIC

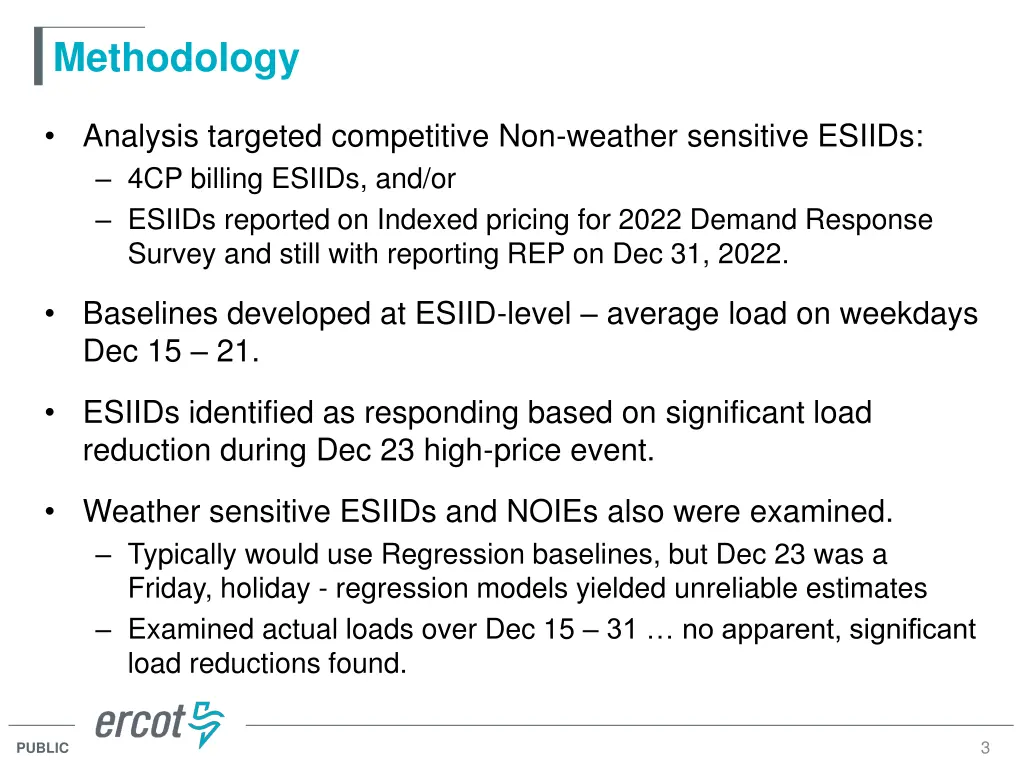

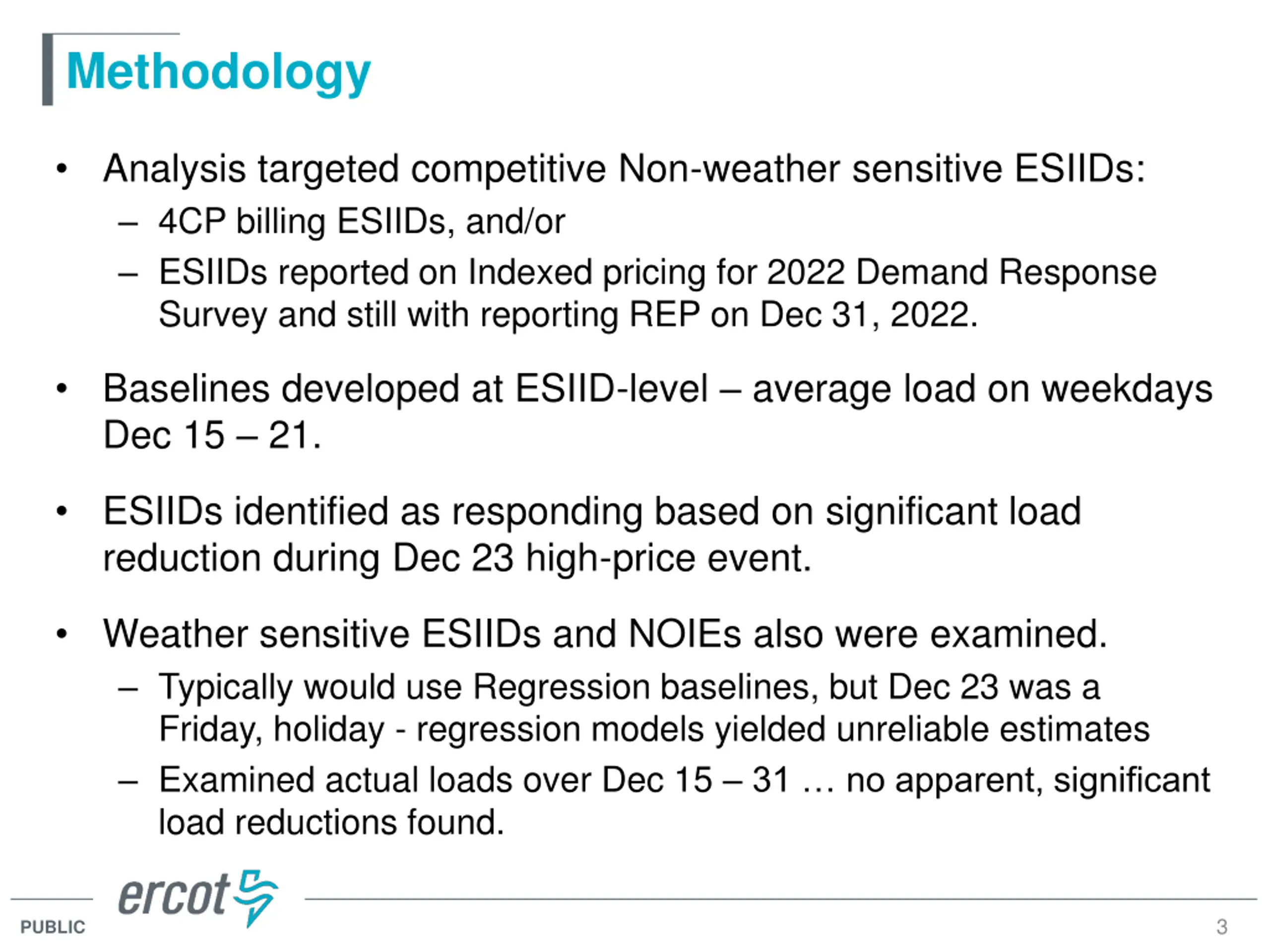

Methodology Analysis targeted competitive Non-weather sensitive ESIIDs: 4CP billing ESIIDs, and/or ESIIDs reported on Indexed pricing for 2022 Demand Response Survey and still with reporting REP on Dec 31, 2022. Baselines developed at ESIID-level average load on weekdays Dec 15 21. ESIIDs identified as responding based on significant load reduction during Dec 23 high-price event. Weather sensitive ESIIDs and NOIEs also were examined. Typically would use Regression baselines, but Dec 23 was a Friday, holiday - regression models yielded unreliable estimates Examined actual loads over Dec 15 31 no apparent, significant load reductions found. 3 PUBLIC

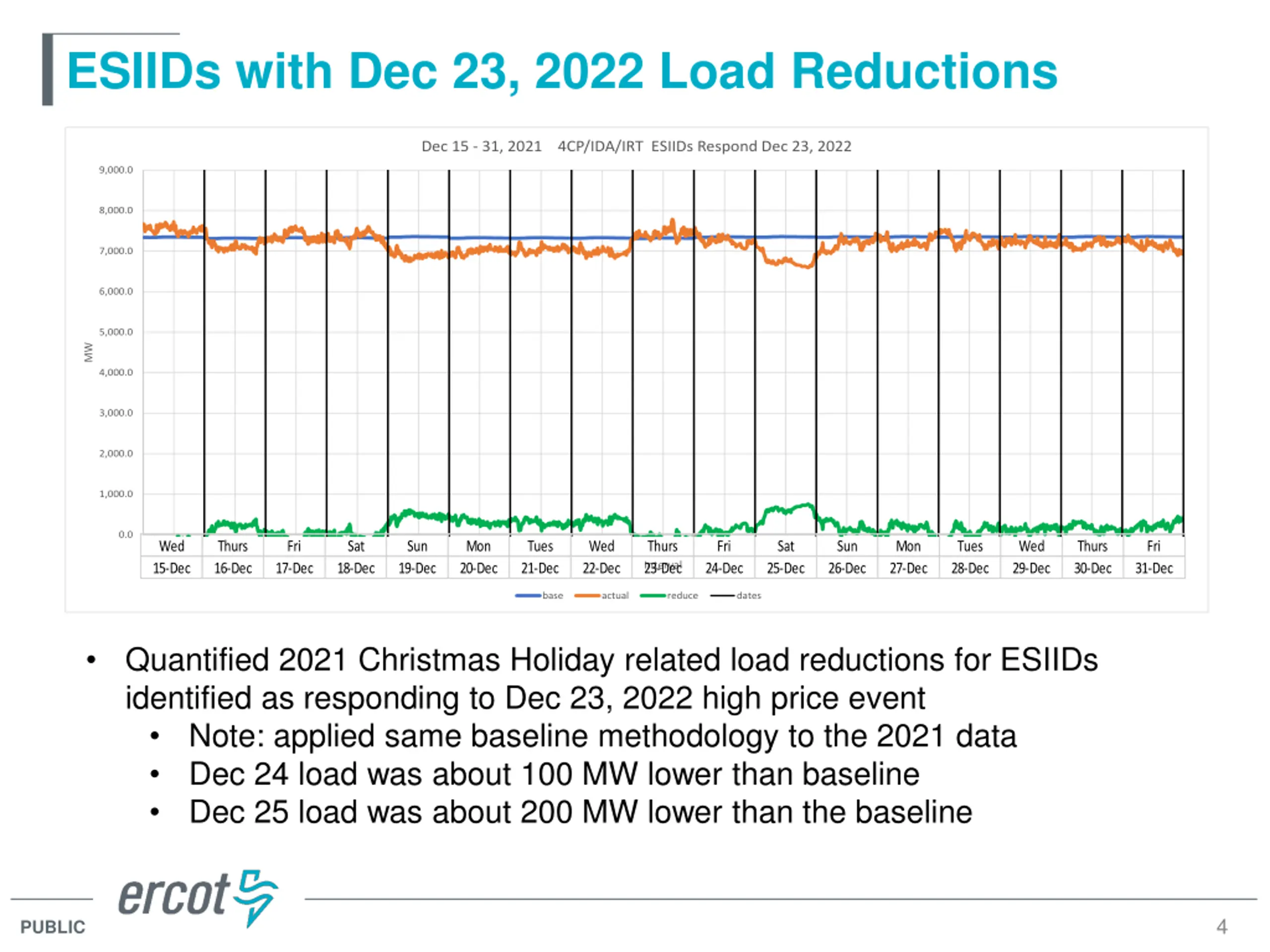

ESIIDs with Dec 23, 2022 Load Reductions Dec 15 - 31, 2021 4CP/IDA/IRT ESIIDs Respond Dec 23, 2022 9,000.0 8,000.0 7,000.0 6,000.0 5,000.0 MW 4,000.0 3,000.0 2,000.0 1,000.0 0.0 Wed 15-Dec Thurs 16-Dec Fri Sat Sun 19-Dec Mon 20-Dec Tues 21-Dec Wed 22-Dec Thurs Fri Sat Sun 26-Dec Mon 27-Dec Tues 28-Dec Wed 29-Dec Thurs 30-Dec Fri Interval 23-Dec 17-Dec 18-Dec 24-Dec 25-Dec 31-Dec base actual reduce dates Quantified 2021 Christmas Holiday related load reductions for ESIIDs identified as responding to Dec 23, 2022 high price event Note: applied same baseline methodology to the 2021 data Dec 24 load was about 100 MW lower than baseline Dec 25 load was about 200 MW lower than the baseline 4 PUBLIC

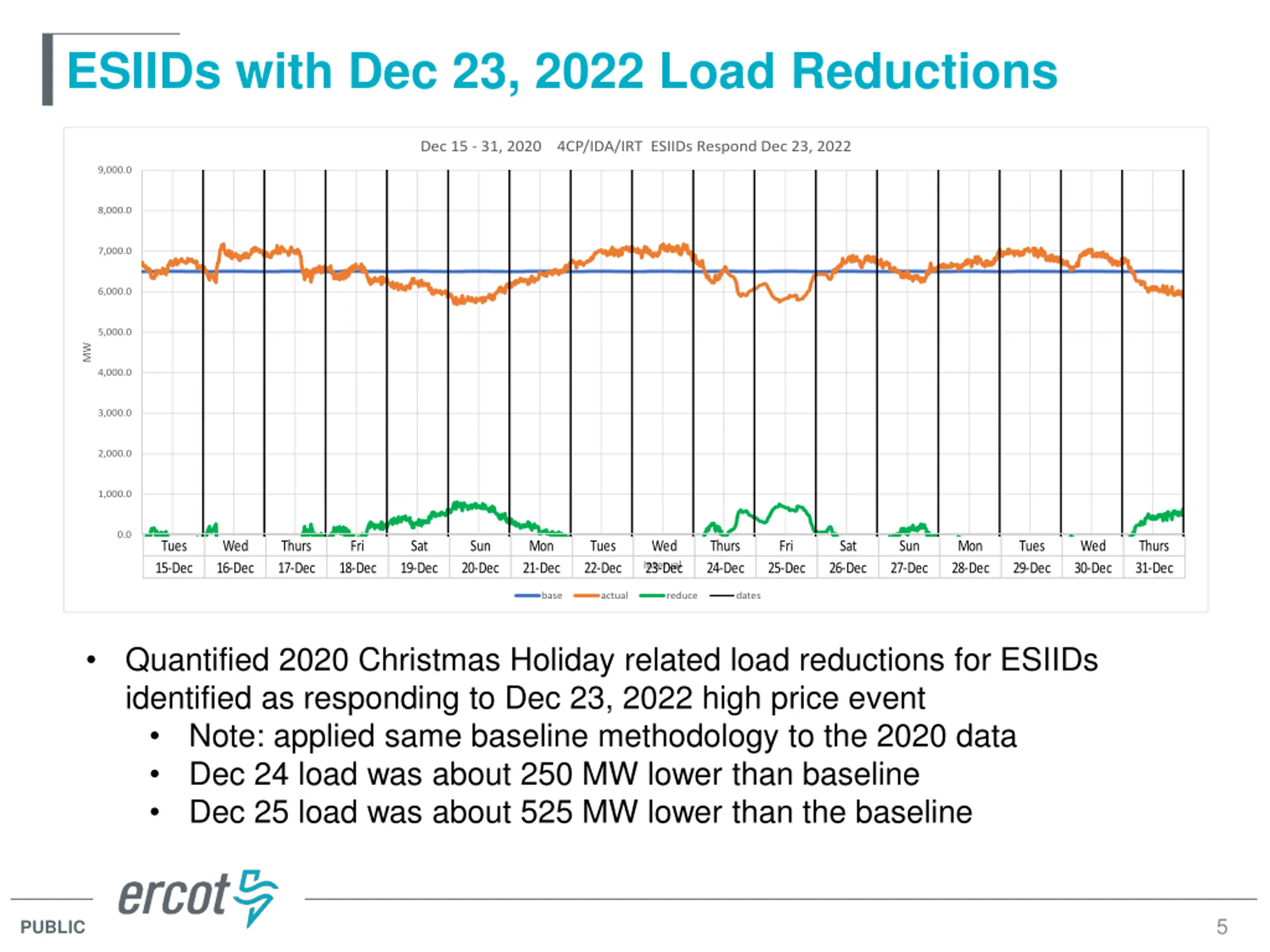

ESIIDs with Dec 23, 2022 Load Reductions Dec 15 - 31, 2020 4CP/IDA/IRT ESIIDs Respond Dec 23, 2022 9,000.0 8,000.0 7,000.0 6,000.0 5,000.0 MW 4,000.0 3,000.0 2,000.0 1,000.0 0.0 Tues 15-Dec Wed 16-Dec Thurs 17-Dec Fri Sat Sun 20-Dec Mon 21-Dec Tues 22-Dec Wed Thurs 24-Dec Fri Sat Sun 27-Dec Mon 28-Dec Tues 29-Dec Wed 30-Dec Thurs 31-Dec Interval 23-Dec 18-Dec 19-Dec 25-Dec 26-Dec base actual reduce dates Quantified 2020 Christmas Holiday related load reductions for ESIIDs identified as responding to Dec 23, 2022 high price event Note: applied same baseline methodology to the 2020 data Dec 24 load was about 250 MW lower than baseline Dec 25 load was about 525 MW lower than the baseline 5 PUBLIC

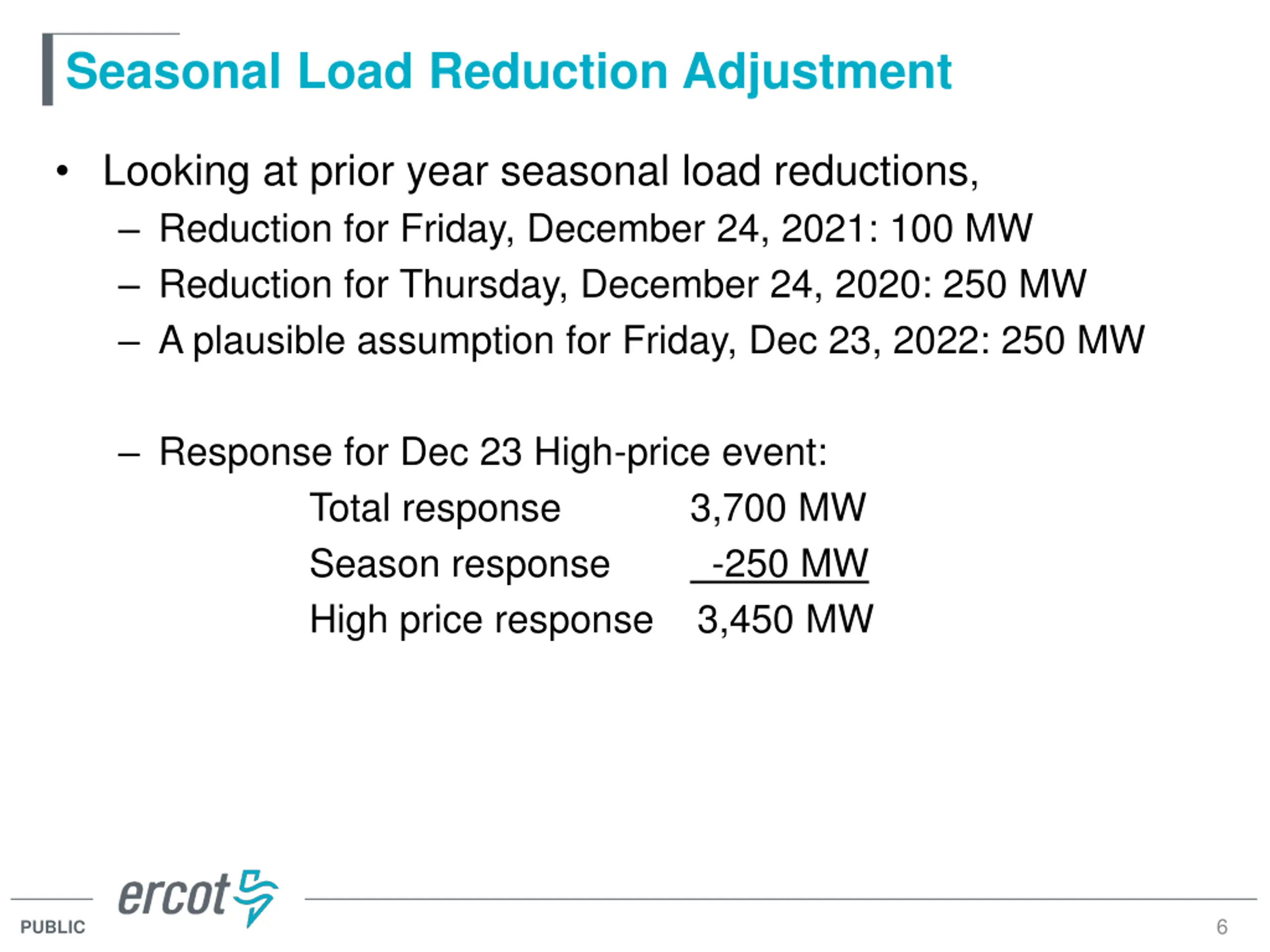

Seasonal Load Reduction Adjustment Looking at prior year seasonal load reductions, Reduction for Friday, December 24, 2021: 100 MW Reduction for Thursday, December 24, 2020: 250 MW A plausible assumption for Friday, Dec 23, 2022: 250 MW Response for Dec 23 High-price event: Total response Season response High price response 3,450 MW 3,700 MW -250 MW 6 PUBLIC

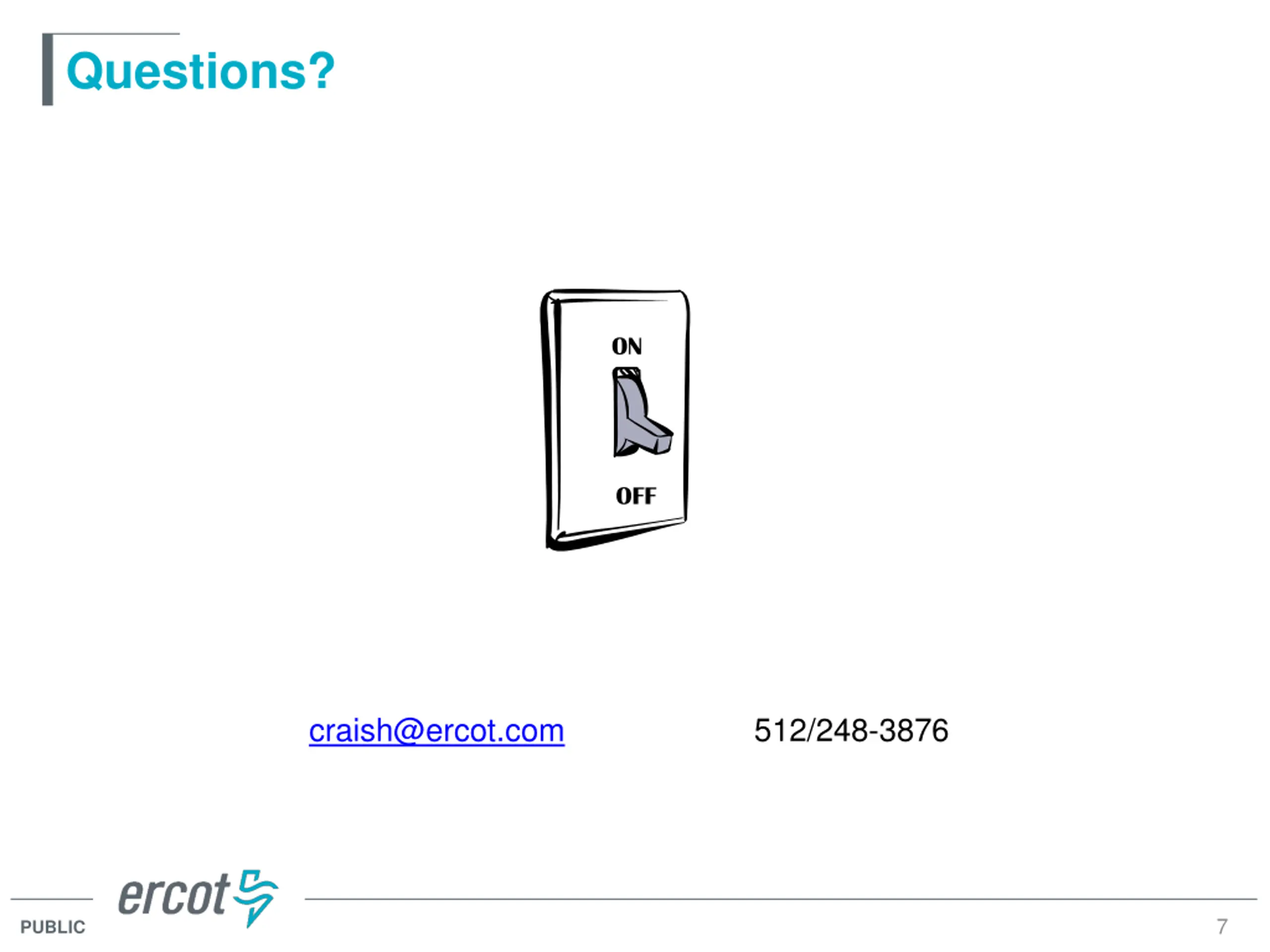

Questions? ON OFF craish@ercot.com 512/248-3876 7 PUBLIC
