Regulation Bias Analysis Post SCR-773 Dec 2021 ERCOT Operations Planning PDCWG | Jan 19th, 2021

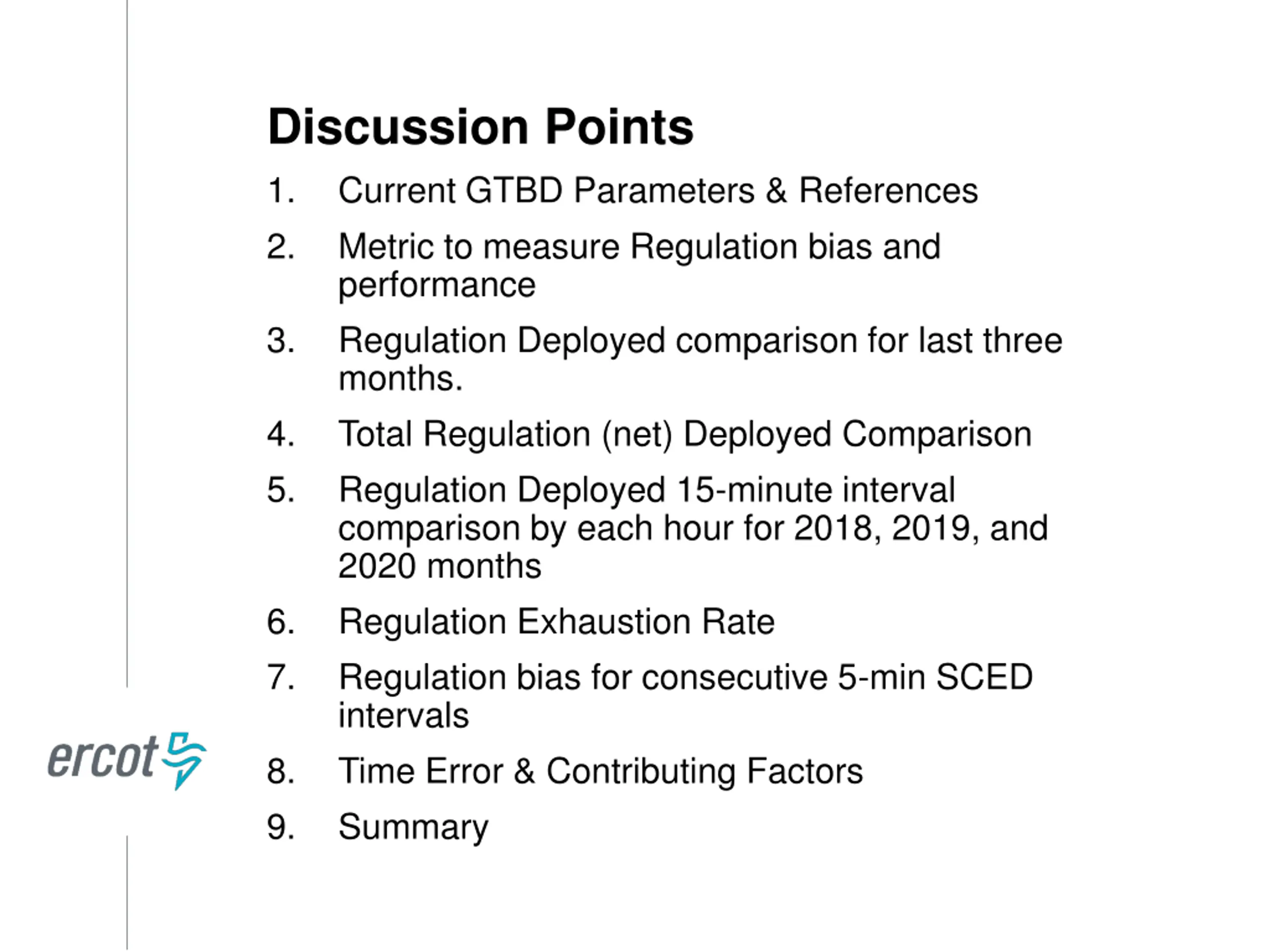

Discussion Points 1. Current GTBD Parameters & References 2. Metric to measure Regulation bias and performance 3. Regulation Deployed comparison for last three months. 4. Total Regulation (net) Deployed Comparison 5. Regulation Deployed 15-minute interval comparison by each hour for 2018, 2019, and 2020 months 6. Regulation Exhaustion Rate 7. Regulation bias for consecutive 5-min SCED intervals 8. Time Error & Contributing Factors 9. Summary

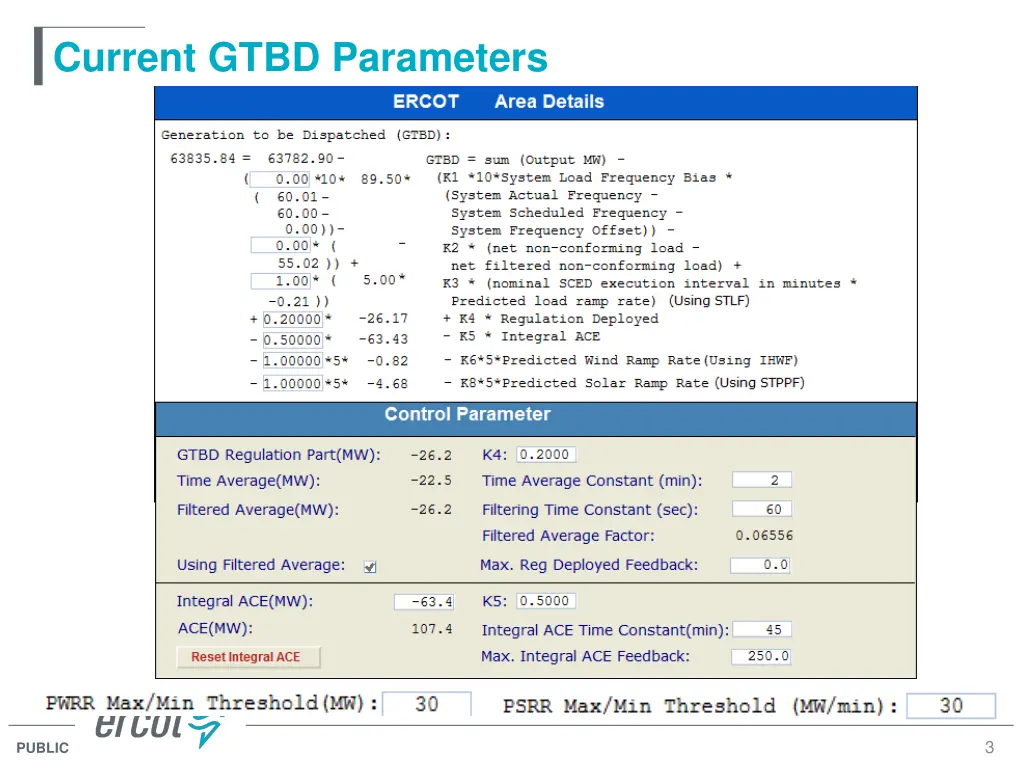

Current GTBD Parameters 3 PUBLIC

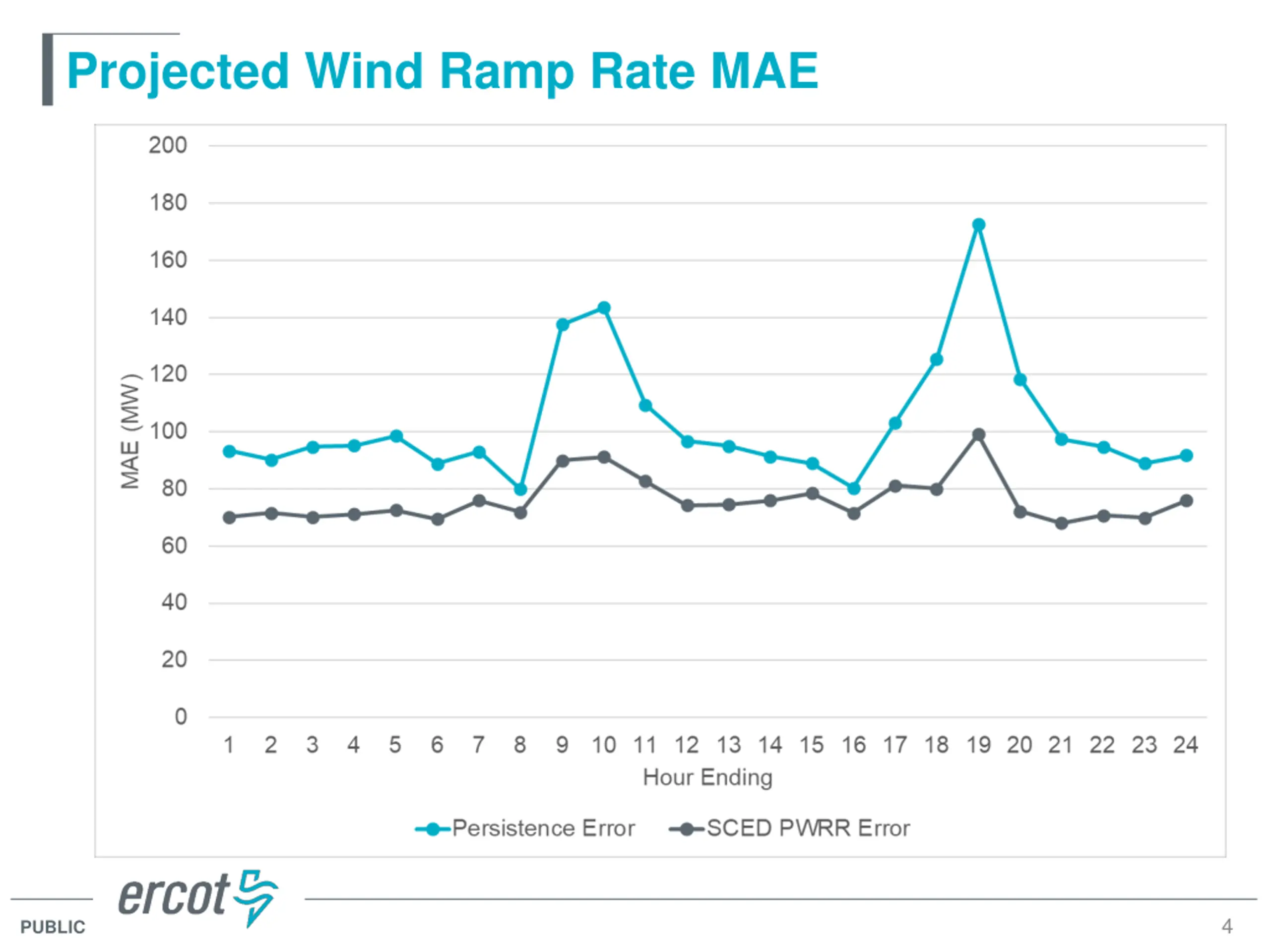

Projected Wind Ramp Rate MAE 4 PUBLIC

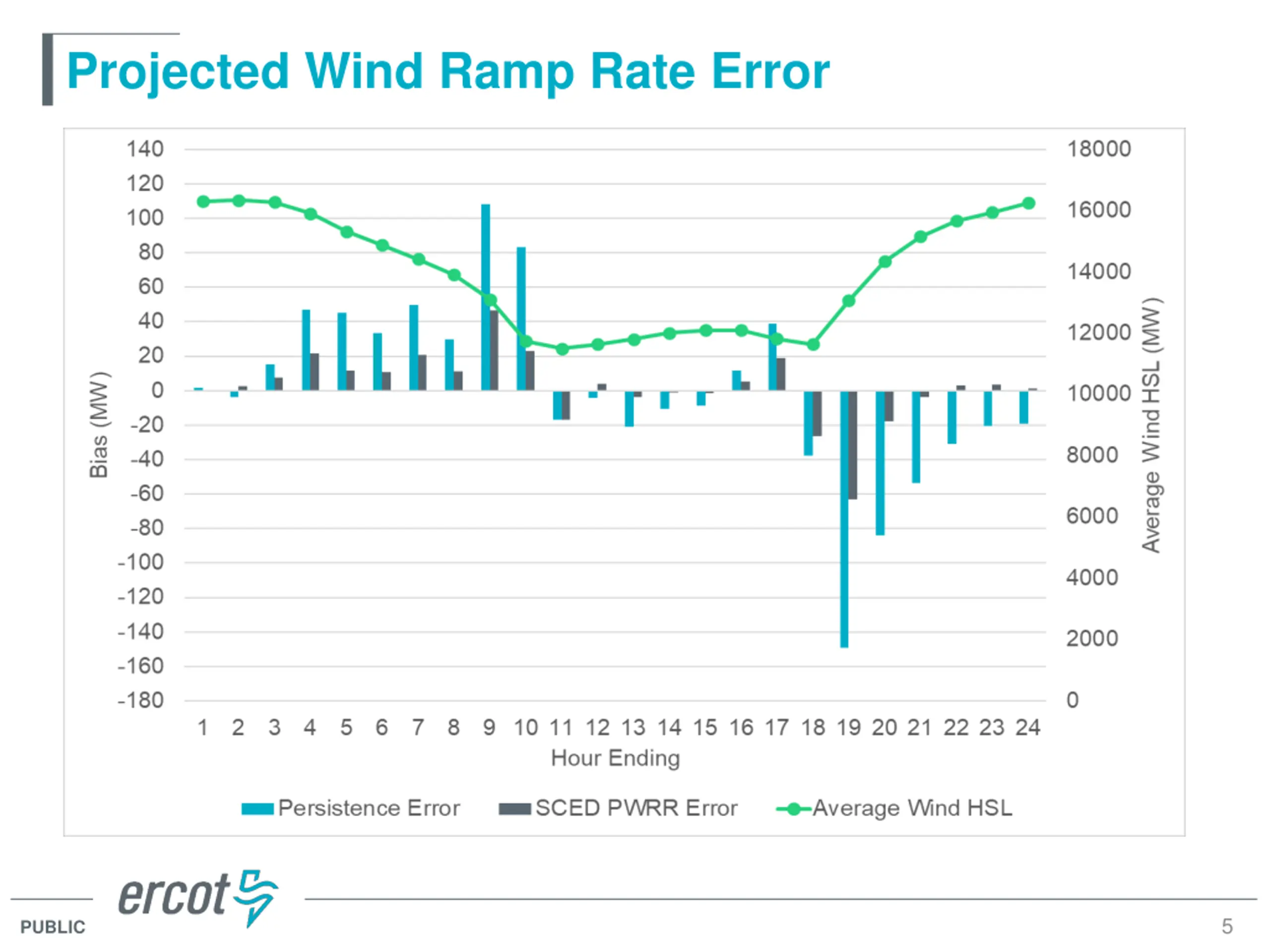

Projected Wind Ramp Rate Error 5 PUBLIC

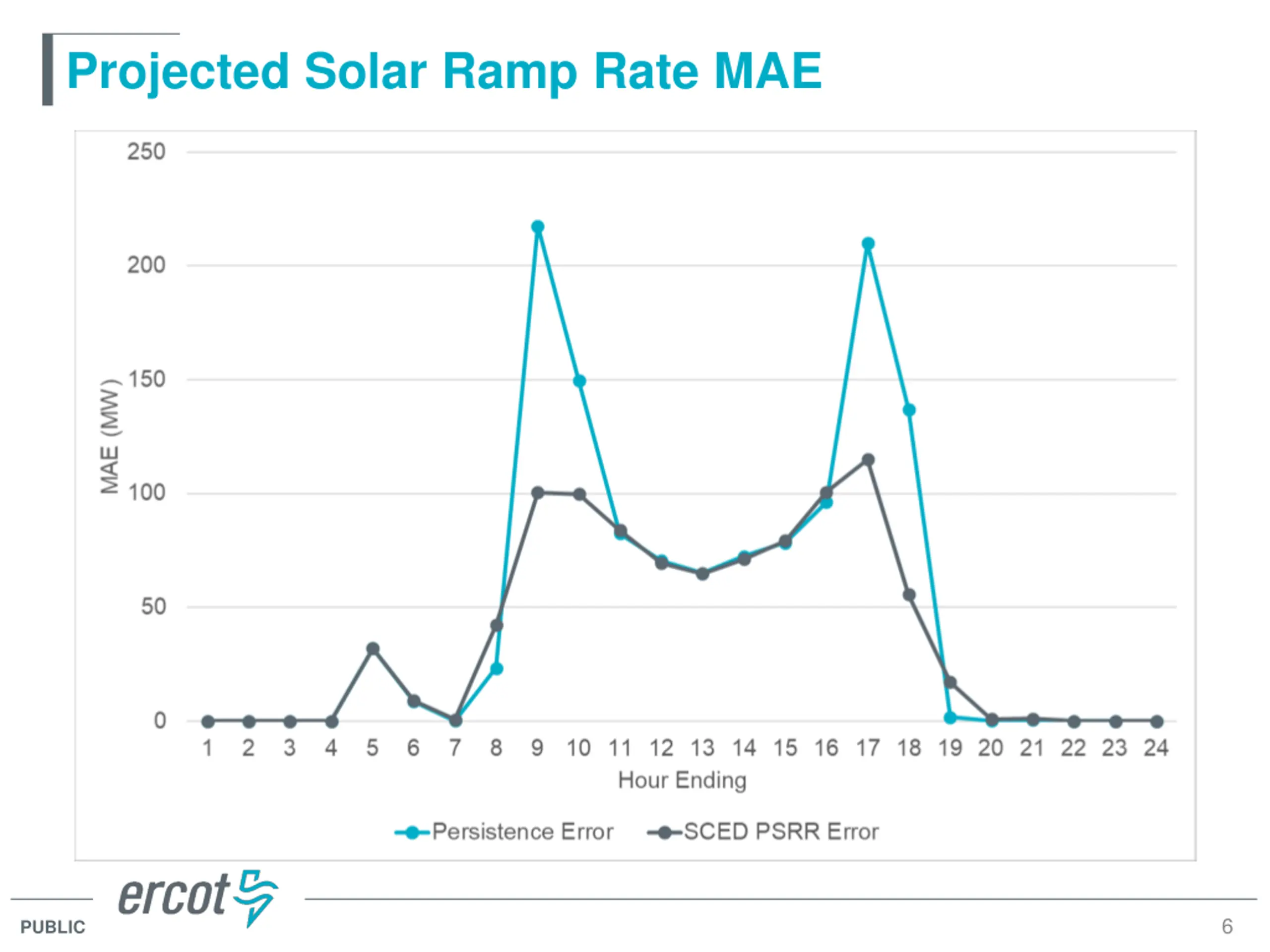

Projected Solar Ramp Rate MAE 6 PUBLIC

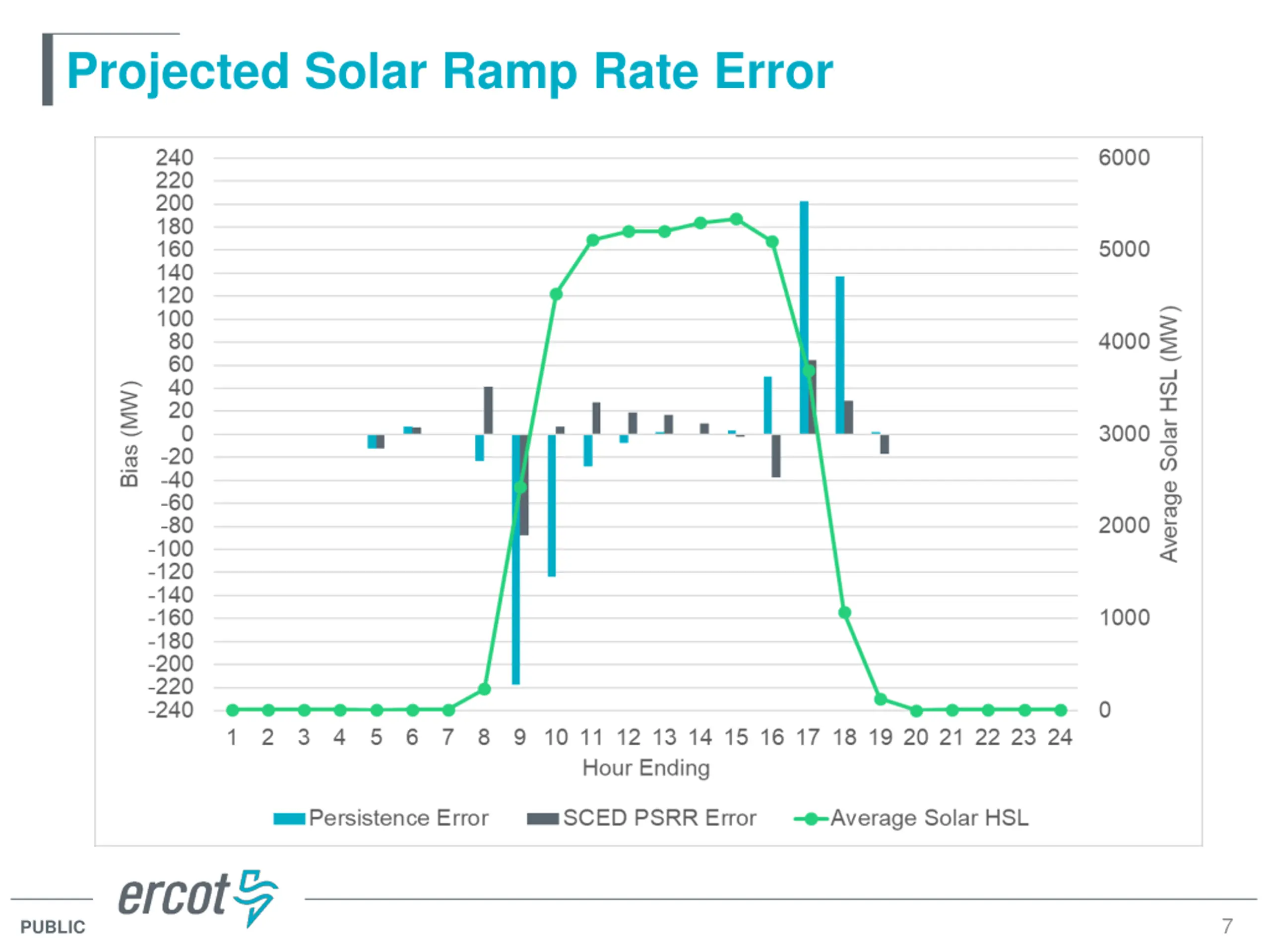

Projected Solar Ramp Rate Error 7 PUBLIC

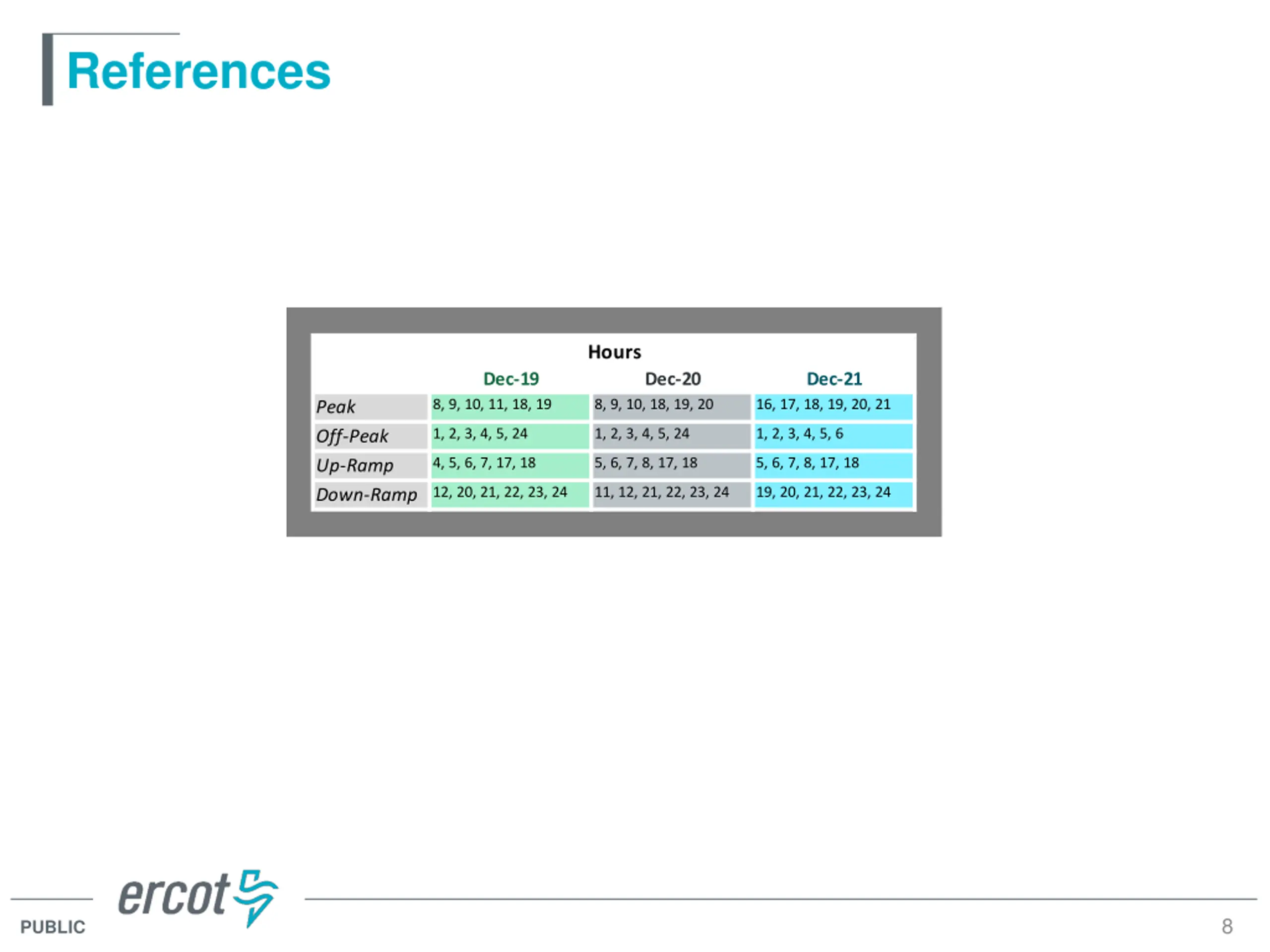

References Hours Dec-19 Dec-20 Dec-21 8, 9, 10, 11, 18, 19 8, 9, 10, 18, 19, 20 16, 17, 18, 19, 20, 21 Peak Off-Peak Up-Ramp Down-Ramp 1, 2, 3, 4, 5, 24 1, 2, 3, 4, 5, 24 1, 2, 3, 4, 5, 6 4, 5, 6, 7, 17, 18 5, 6, 7, 8, 17, 18 5, 6, 7, 8, 17, 18 12, 20, 21, 22, 23, 24 11, 12, 21, 22, 23, 24 19, 20, 21, 22, 23, 24 8 PUBLIC

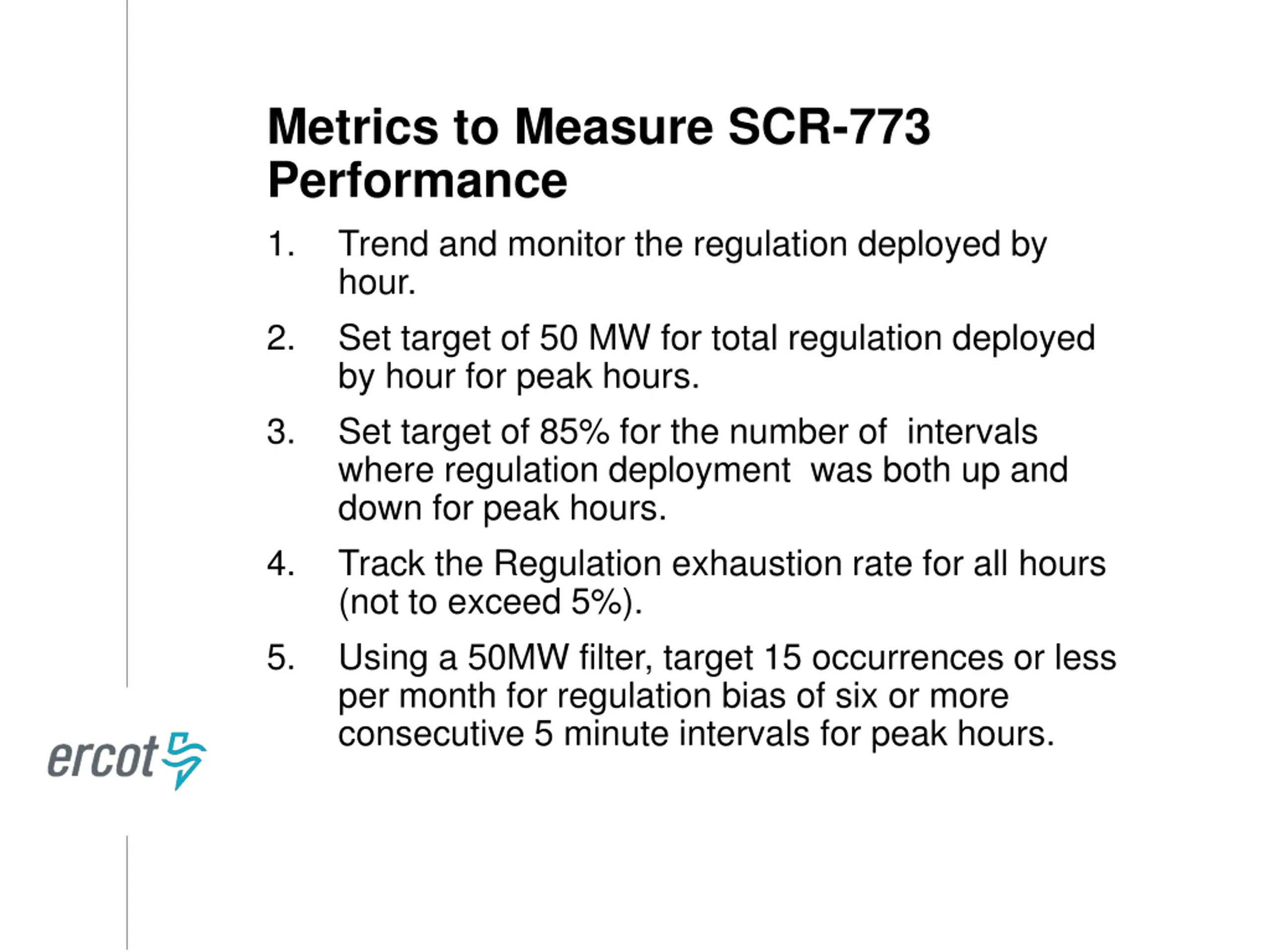

Metrics to Measure SCR-773 Performance 1. Trend and monitor the regulation deployed by hour. 2. Set target of 50 MW for total regulation deployed by hour for peak hours. 3. Set target of 85% for the number of intervals where regulation deployment was both up and down for peak hours. 4. Track the Regulation exhaustion rate for all hours (not to exceed 5%). 5. Using a 50MW filter, target 15 occurrences or less per month for regulation bias of six or more consecutive 5 minute intervals for peak hours.

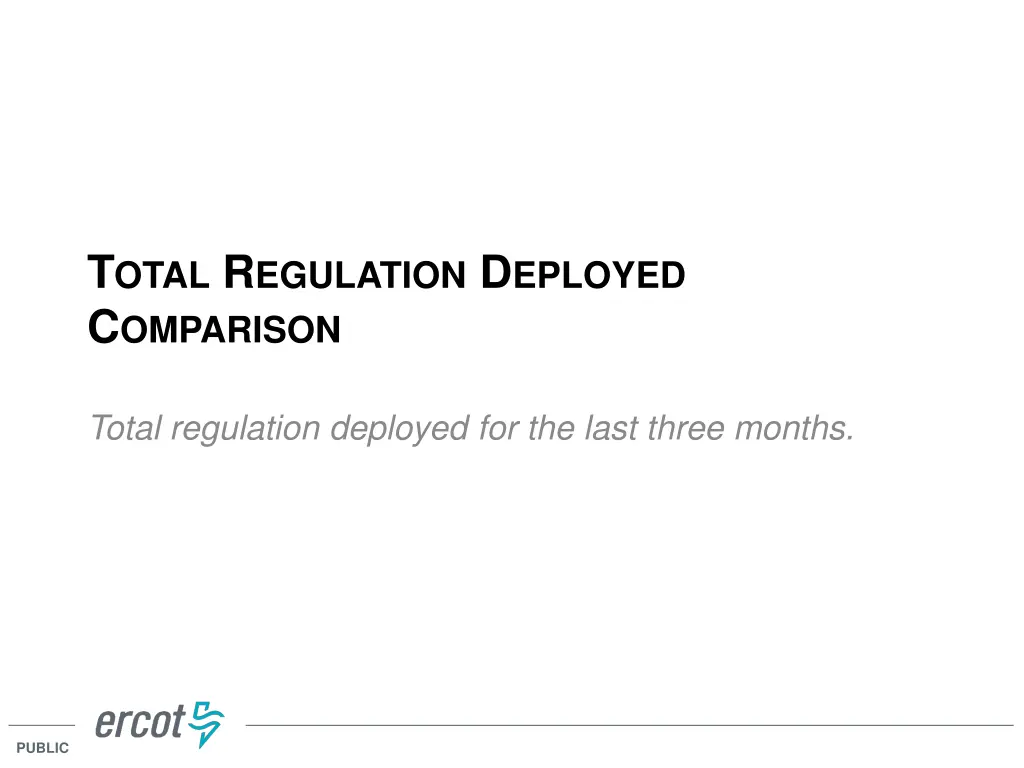

TOTAL REGULATION DEPLOYED COMPARISON Total regulation deployed for the last three months. PUBLIC
METRIC 1: REGULATION DEPLOYED COMPARISONS Trend and monitor the regulation deployed by hour. PUBLIC

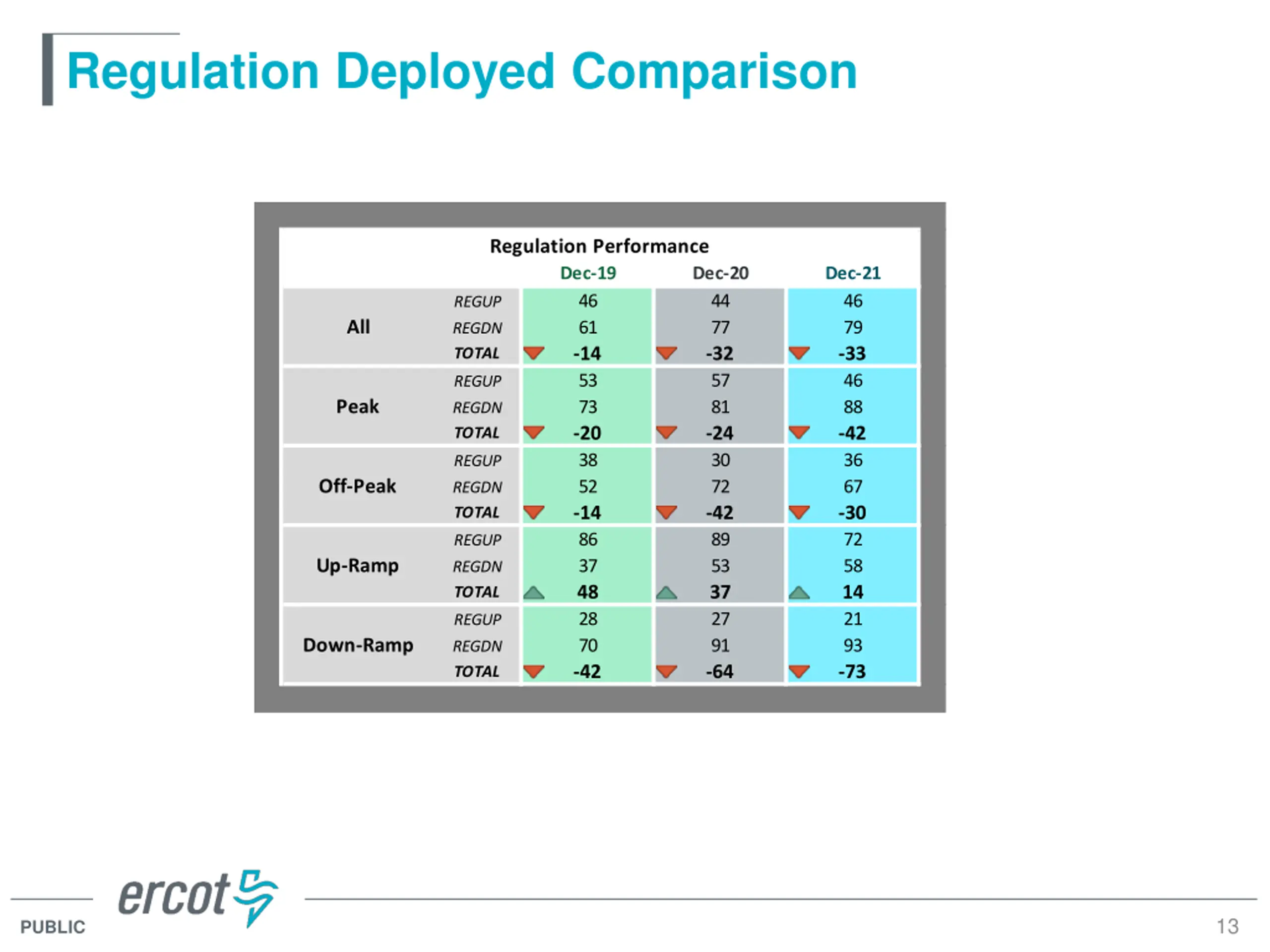

Regulation Deployed Comparison Regulation Performance Dec-19 46 61 -14 53 73 -20 38 52 -14 86 37 48 28 70 -42 Dec-20 44 77 -32 57 81 -24 30 72 -42 89 53 37 27 91 -64 Dec-21 46 79 -33 46 88 -42 36 67 -30 72 58 14 21 93 -73 REGUP All REGDN TOTAL REGUP Peak REGDN TOTAL REGUP Off-Peak REGDN TOTAL REGUP Up-Ramp REGDN TOTAL REGUP Down-Ramp REGDN TOTAL 13 PUBLIC

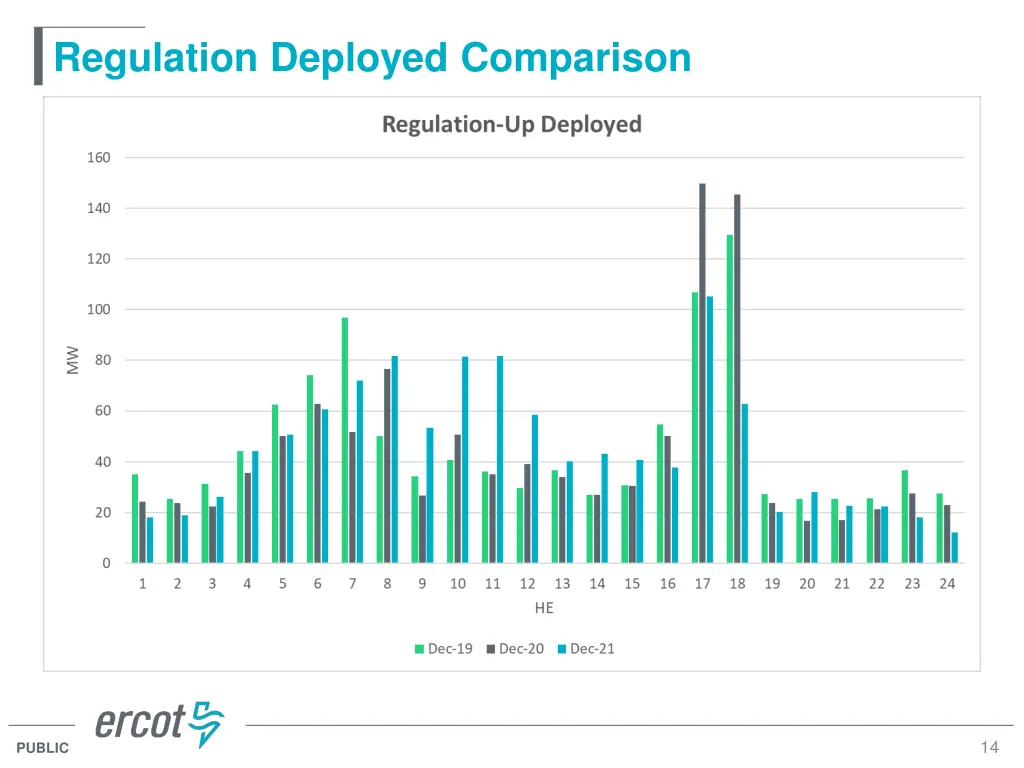

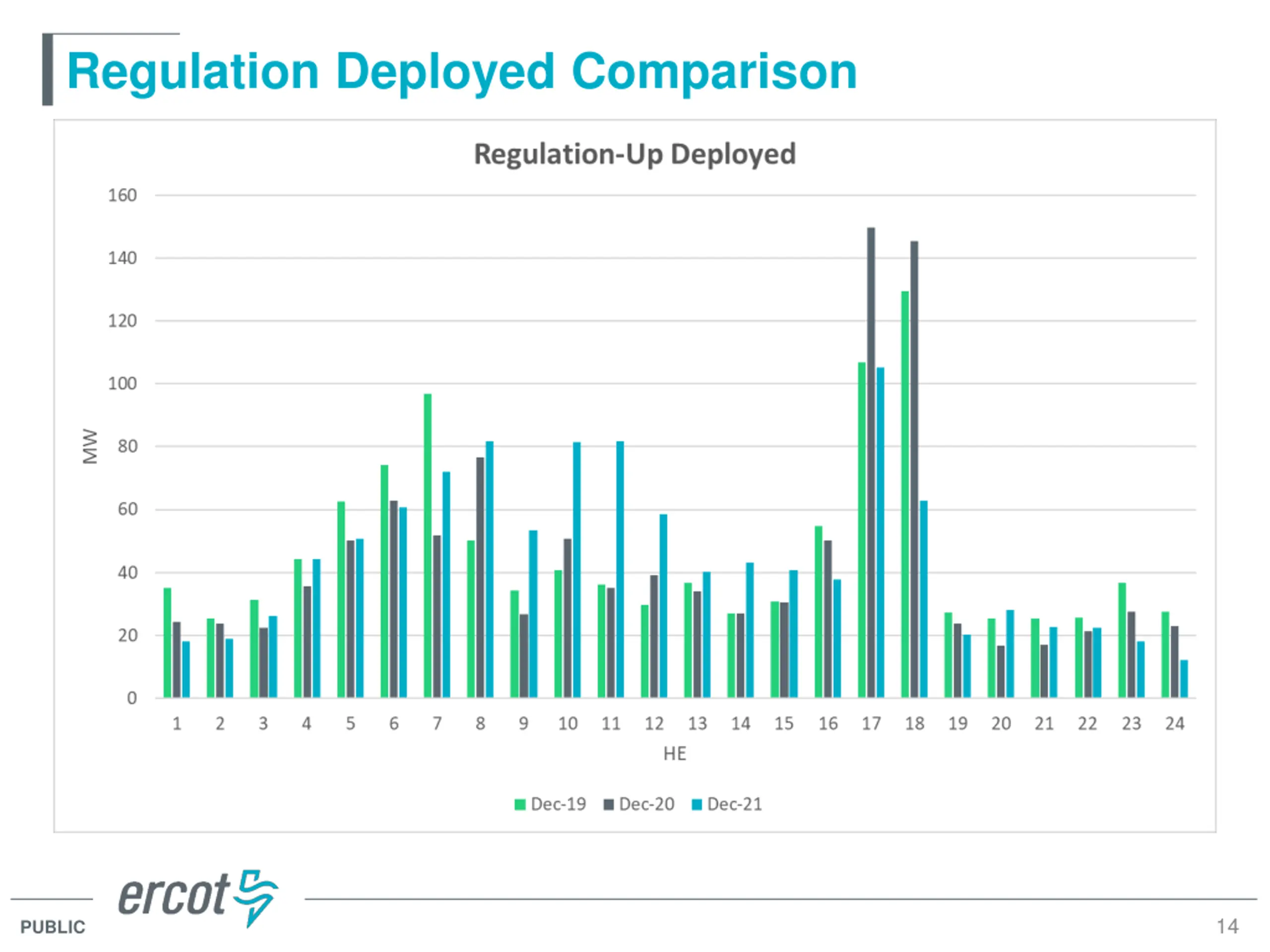

Regulation Deployed Comparison 14 PUBLIC

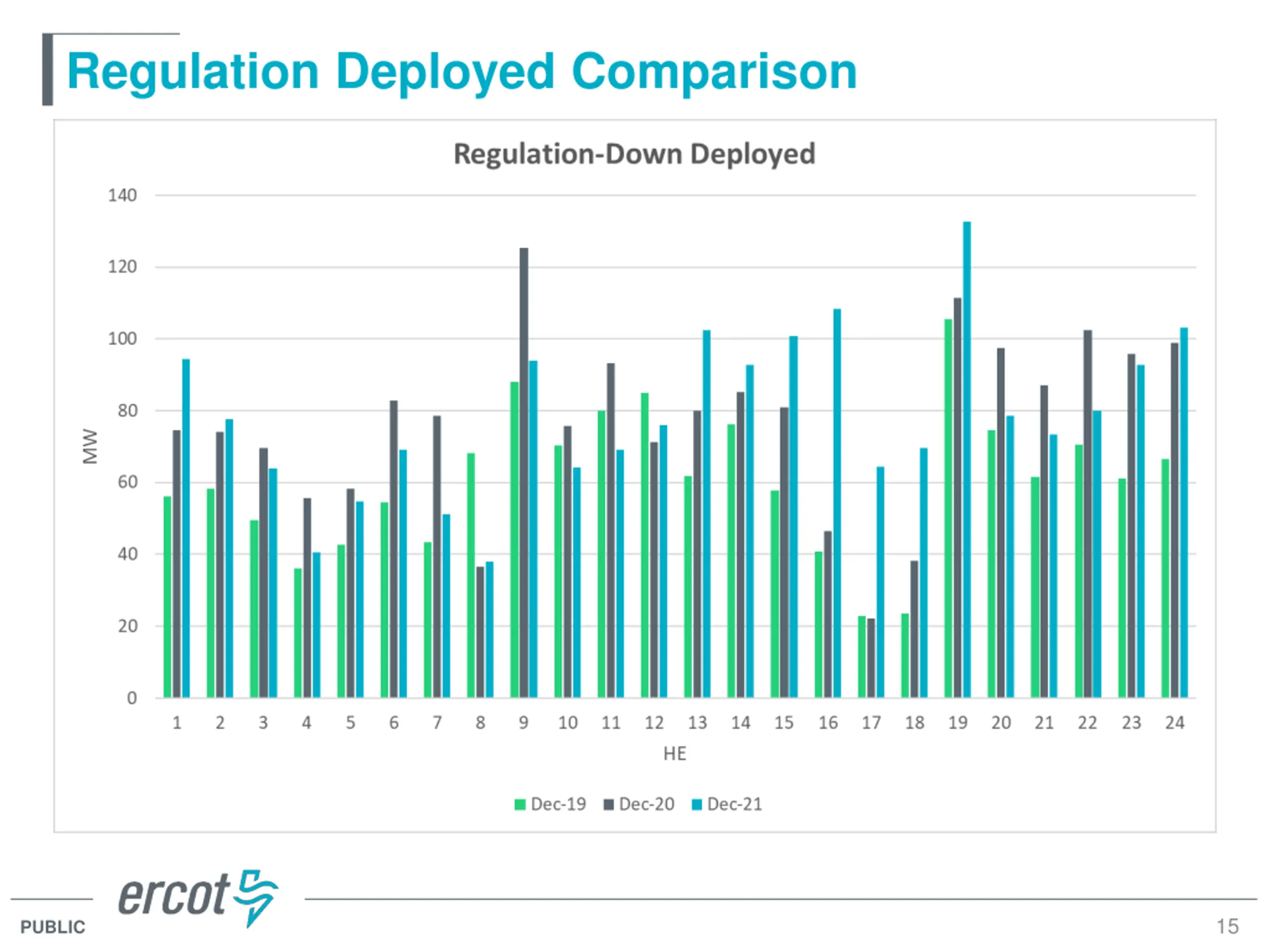

Regulation Deployed Comparison 15 PUBLIC

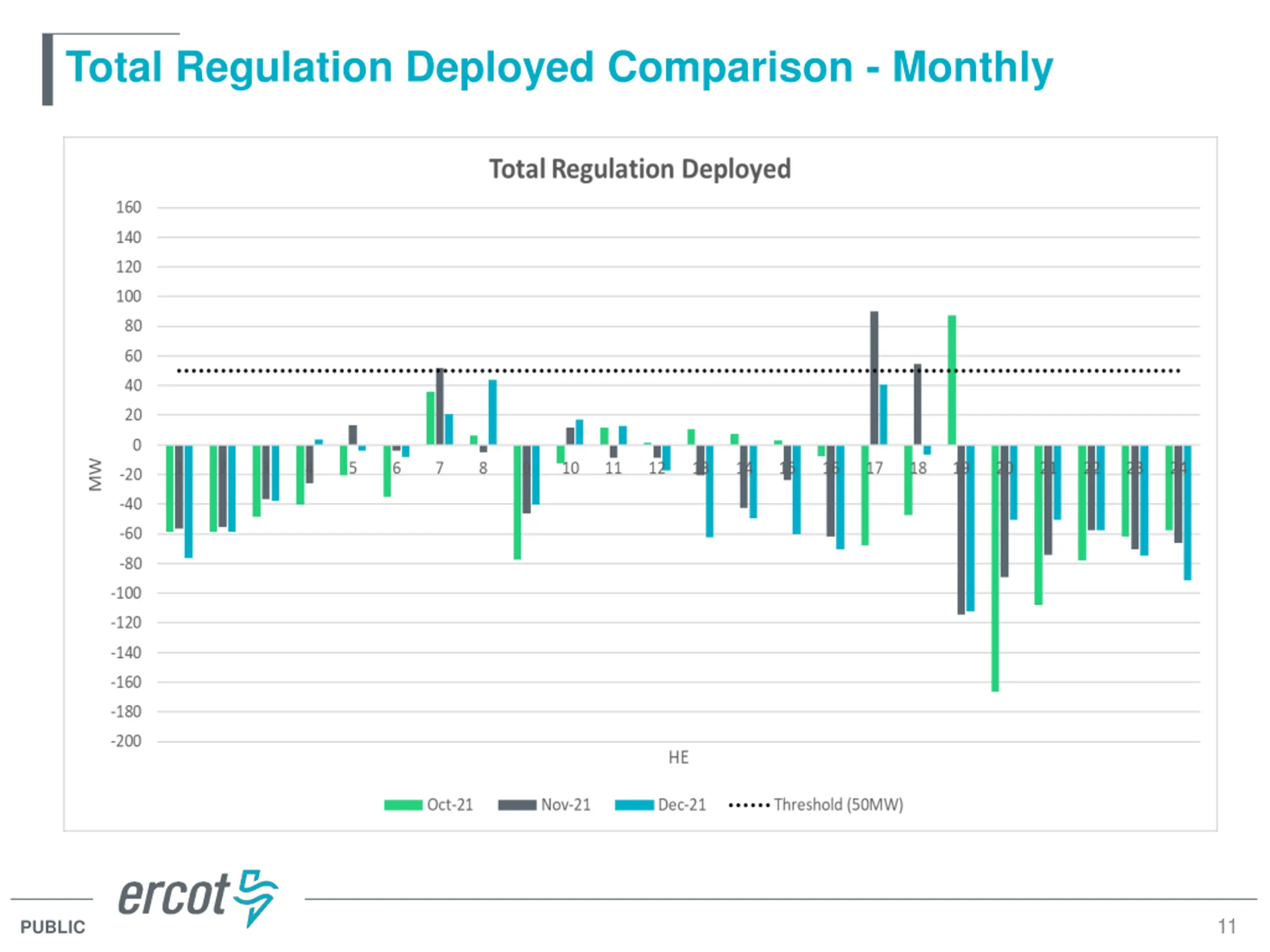

METRIC 2: TOTAL REGULATION DEPLOYED COMPARISONS Set target of 50MW for total regulation deployed by hour for peak hours. PUBLIC

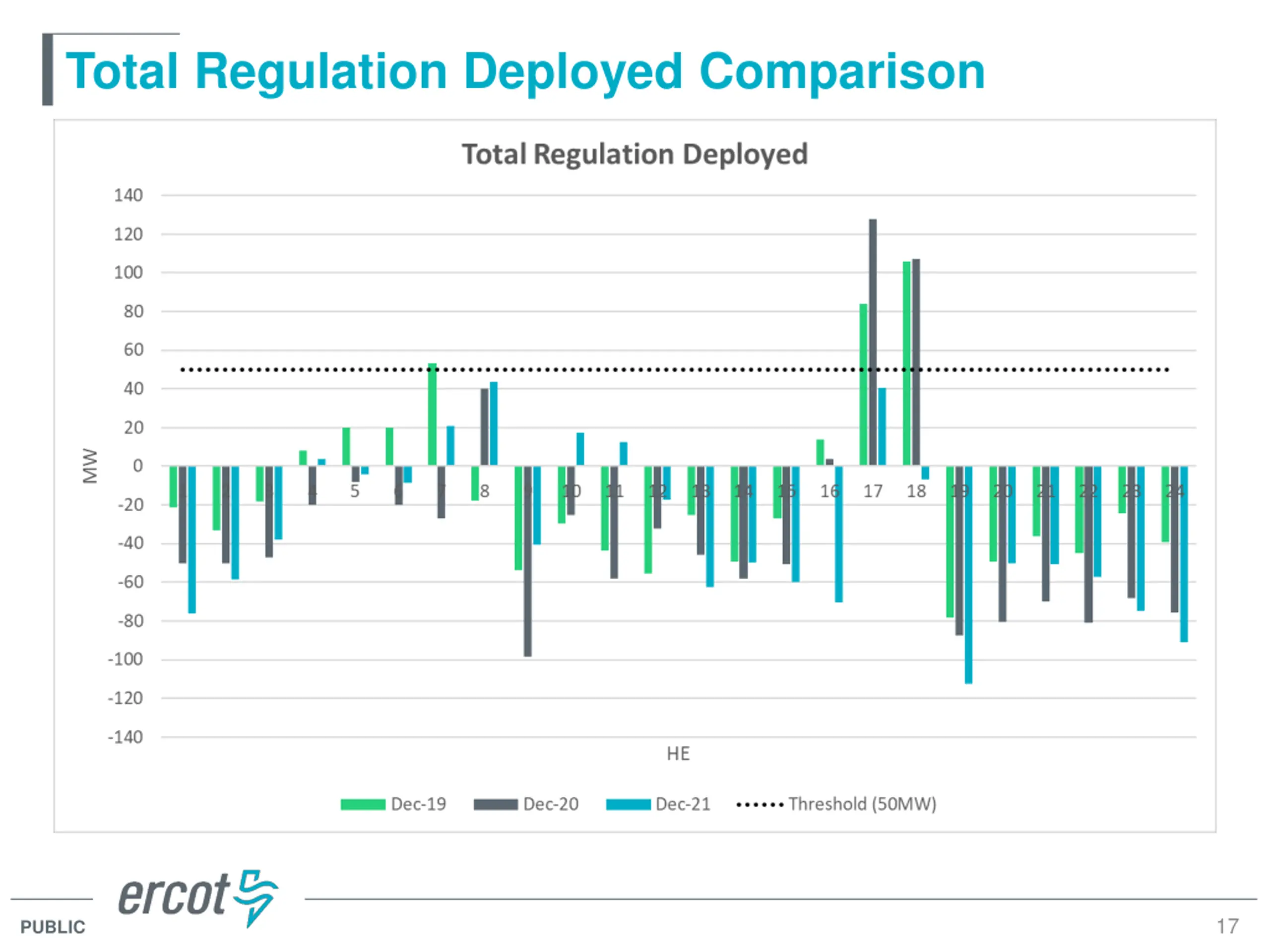

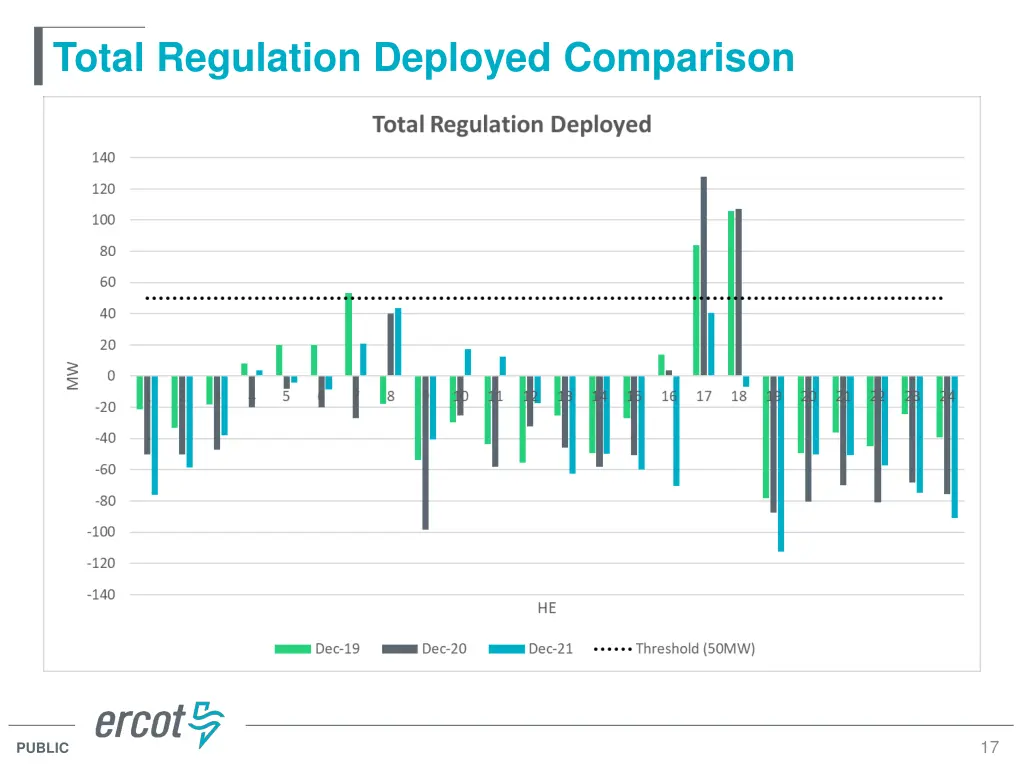

Total Regulation Deployed Comparison 17 PUBLIC
METRIC 3: 15-MIN INTERVALS WHERE BOTH REGUP/REGDN WERE DEPLOYED Set target of 85% for the number of intervals where regulation deployment was both up and down. PUBLIC
Zero Crossing Regulation Zero-Crossing Regulation HE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Dec-19 94.35% 94.35% 93.55% 95.16% 91.13% 84.68% 89.52% 82.26% 70.97% 83.87% 80.65% 84.68% 95.16% 87.10% 94.35% 90.32% 72.58% 70.97% 69.35% 82.26% 92.74% 87.90% 89.52% 90.32% Dec-20 86.29% 86.29% 83.87% 83.87% 91.94% 86.29% 89.52% 88.71% 70.16% 70.16% 79.03% 91.13% 85.48% 80.65% 84.68% 87.90% 61.29% 69.35% 73.39% 79.03% 83.06% 82.26% 84.68% 83.87% Dec-21 73.39% 81.45% 74.19% 86.29% 87.10% 91.13% 88.71% 80.65% 81.45% 77.42% 85.48% 88.71% 83.87% 82.26% 87.90% 72.58% 70.97% 70.97% 70.16% 83.87% 91.13% 84.68% 78.23% 79.03% 19 PUBLIC

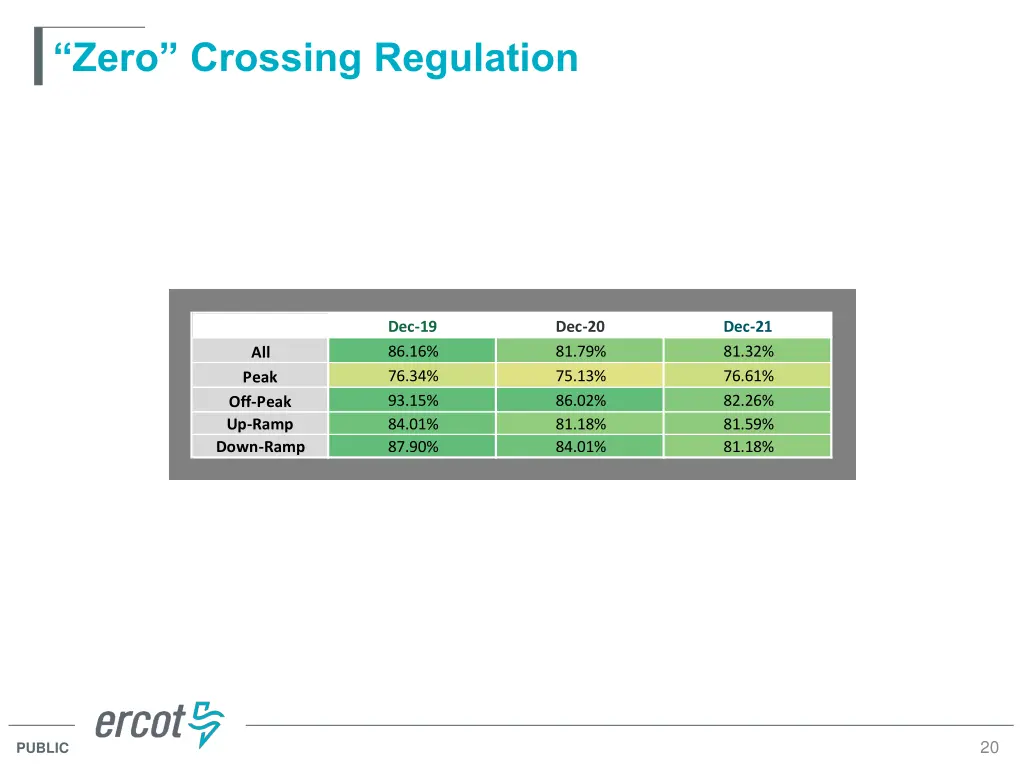

Zero Crossing Regulation Dec-19 86.16% 76.34% 93.15% 84.01% 87.90% Dec-20 81.79% 75.13% 86.02% 81.18% 84.01% Dec-21 81.32% 76.61% 82.26% 81.59% 81.18% All Peak Off-Peak Up-Ramp Down-Ramp 20 PUBLIC
METRIC 4: REGULATION EXHAUSTION RATE Track the regulation exhaustion rate for all hours (not to exceed 5%.) PUBLIC

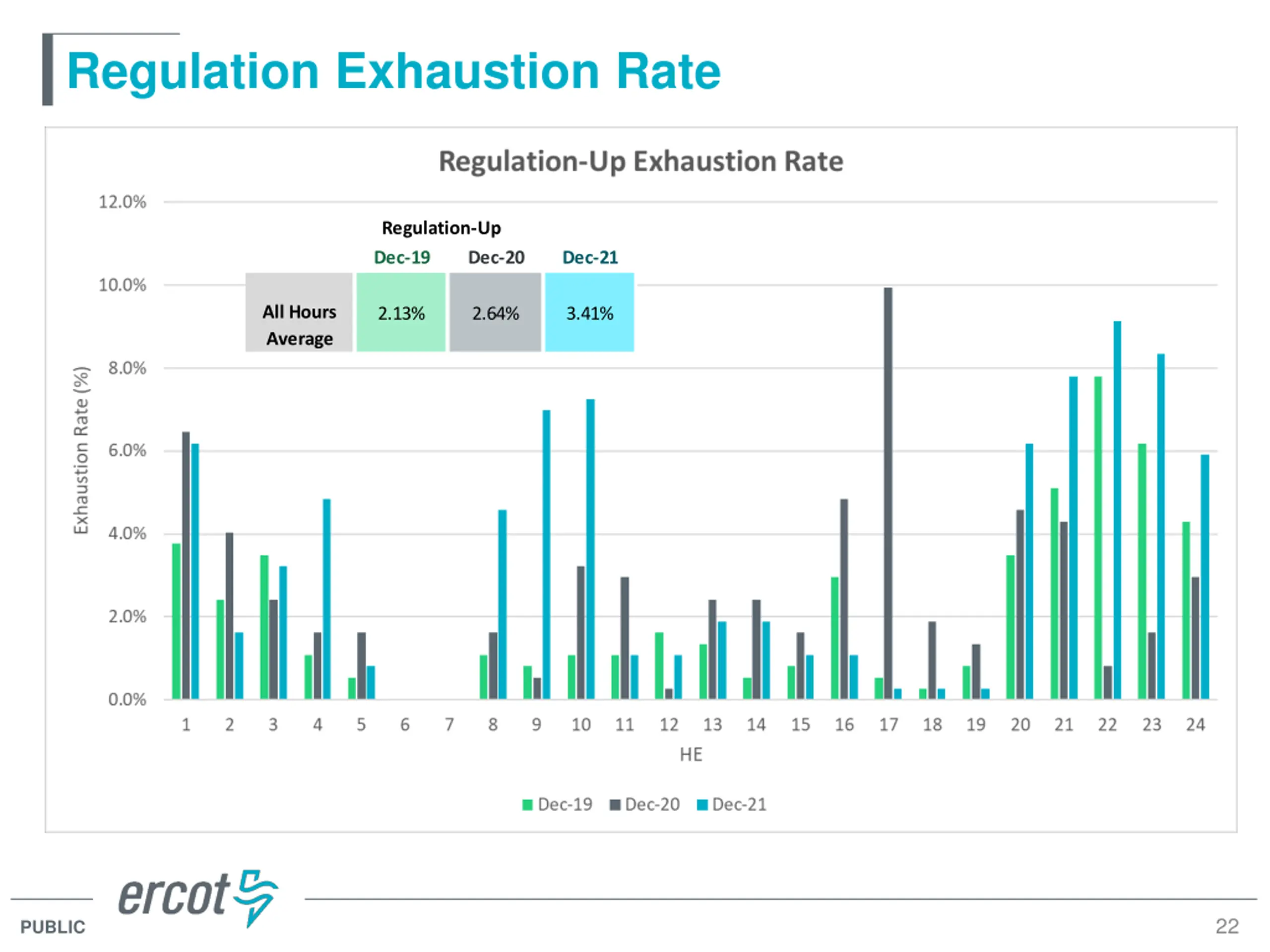

Regulation Exhaustion Rate Regulation-Up Dec-19 Dec-20 Dec-21 All Hours Average 2.13% 2.64% 3.41% 22 PUBLIC

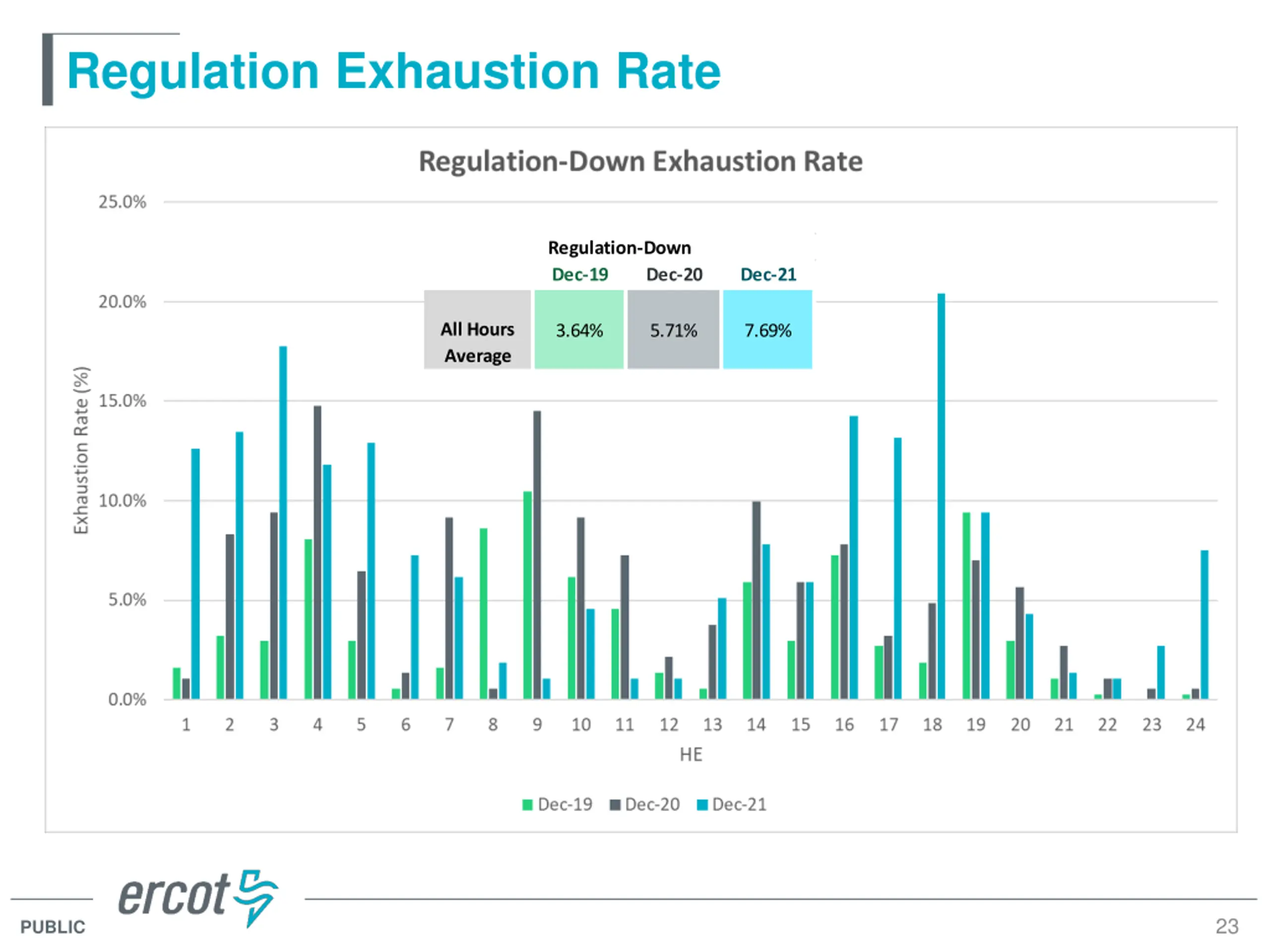

Regulation Exhaustion Rate Regulation-Down Dec-19 Dec-20 Dec-21 All Hours Average 3.64% 5.71% 7.69% 23 PUBLIC
METRIC 5: STATSON REGUP BIASFOR CONSECUTIVE 5-MIN INTERVALS Using a 50MW filter, target 15 occurrences or less per month for regulation bias of six or more consecutive 5- minute intervals for peak hours. PUBLIC

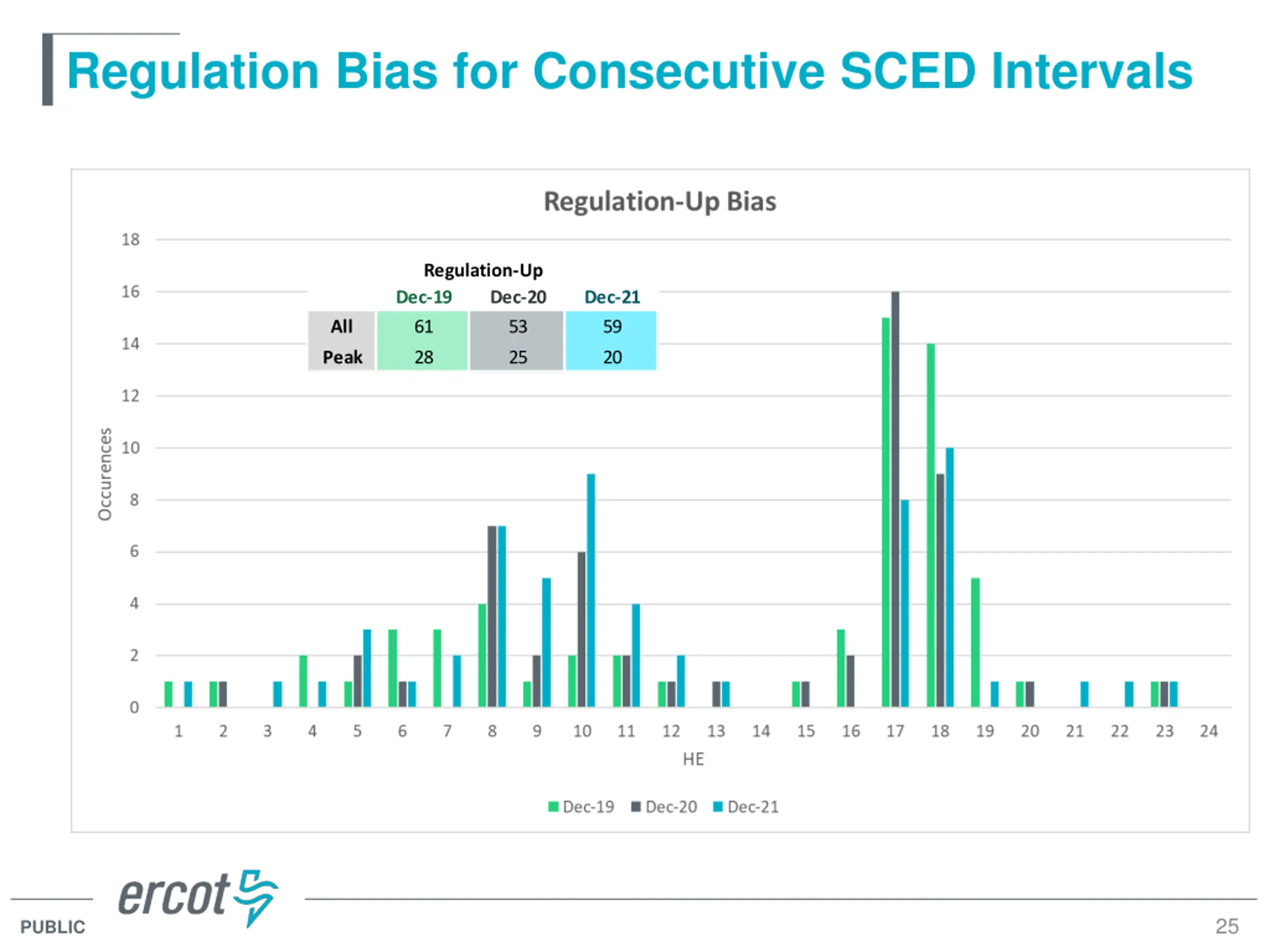

Regulation Bias for Consecutive SCED Intervals Regulation-Up Dec-19 61 Dec-20 53 Dec-21 59 All Peak 28 25 20 25 PUBLIC

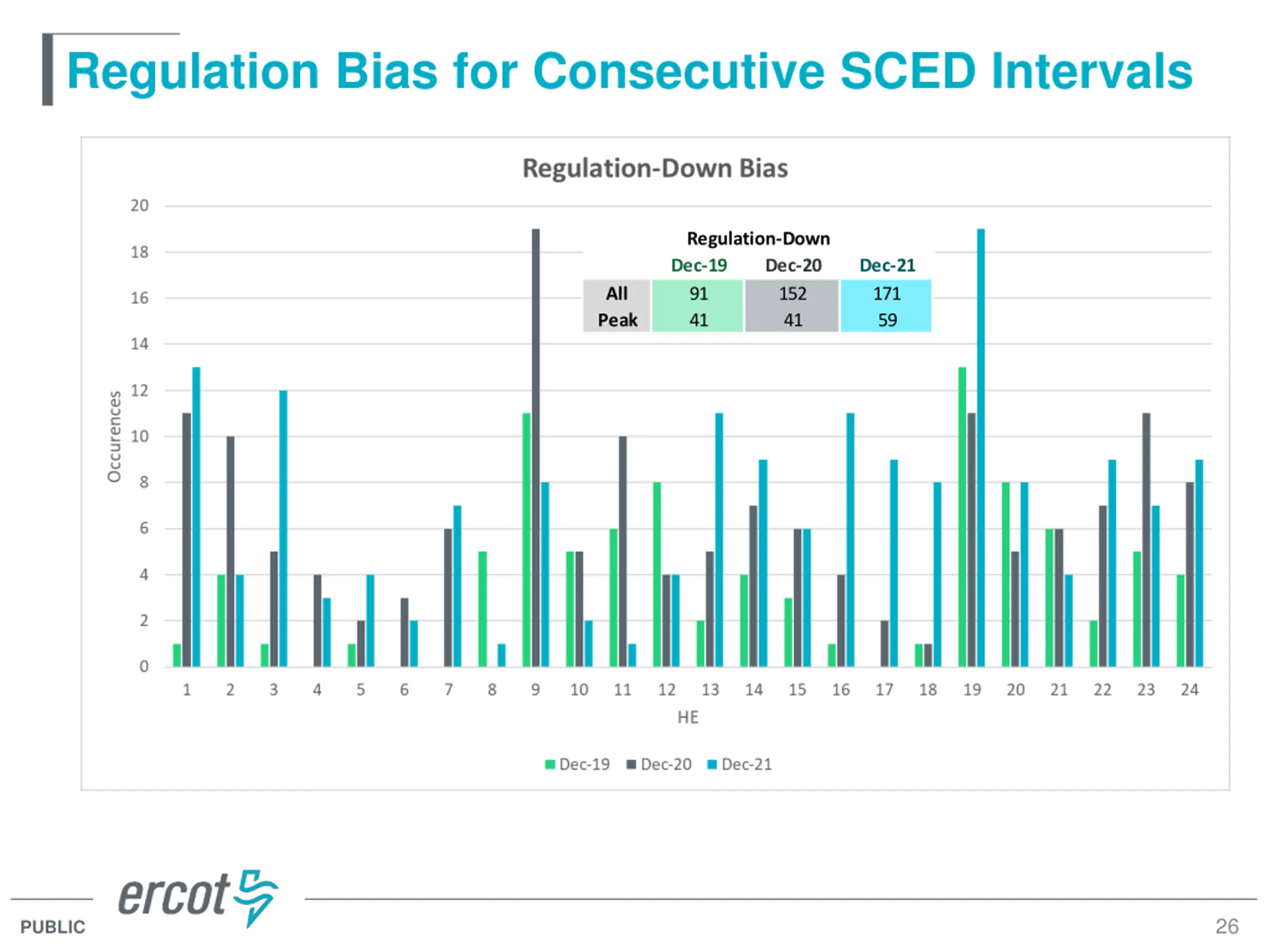

Regulation Bias for Consecutive SCED Intervals Regulation-Down Dec-19 91 41 Dec-20 152 41 Dec-21 171 59 All Peak 26 PUBLIC
TIME ERRORAND CONTRIBUTING FACTORS Accumulated Time Error, Load and Wind Ramp, PWRR Error, Start-Up/Shut-Down Hours, STLF Error, and Expected Generation Deviation. PUBLIC

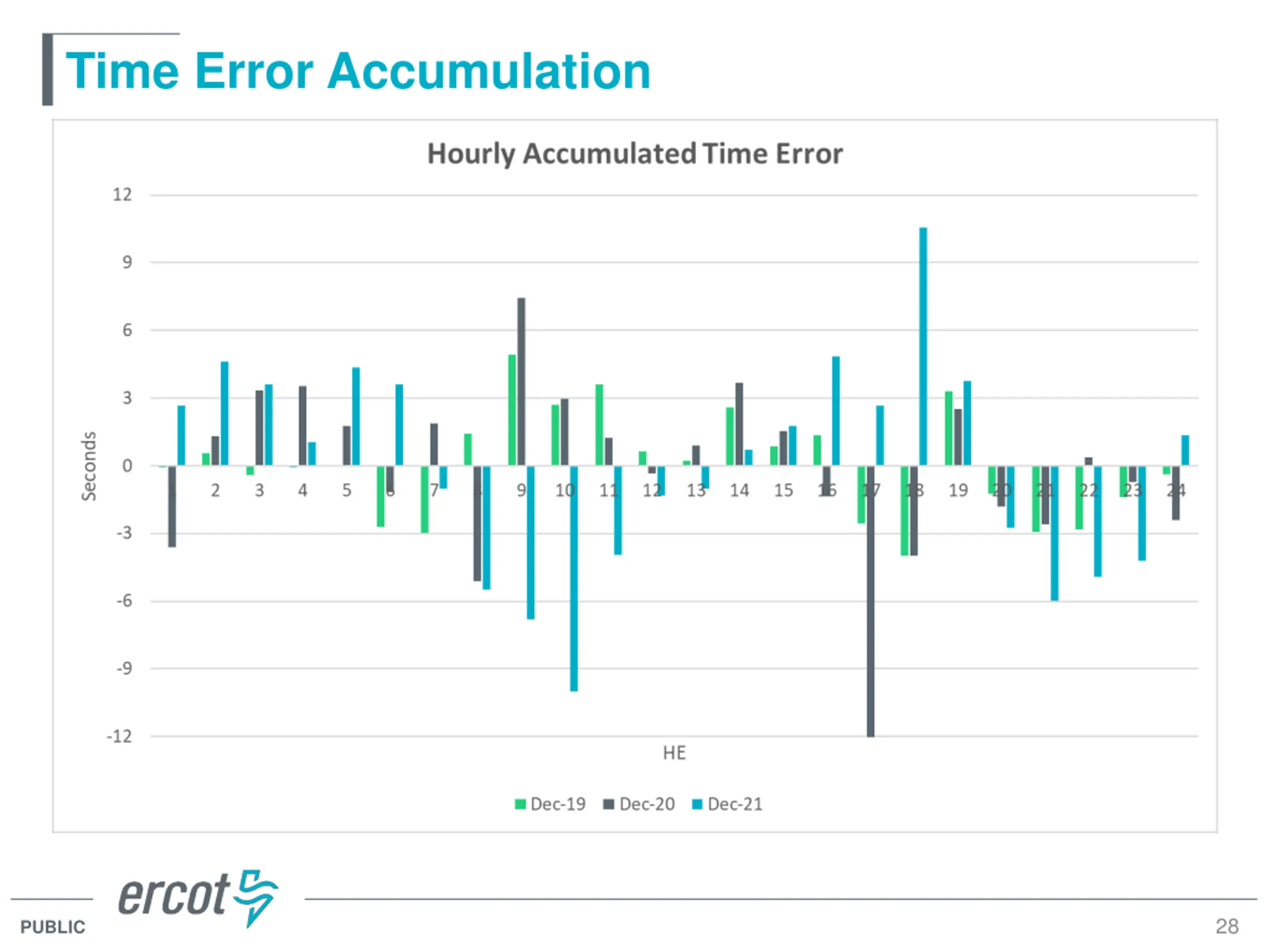

Time Error Accumulation 28 PUBLIC

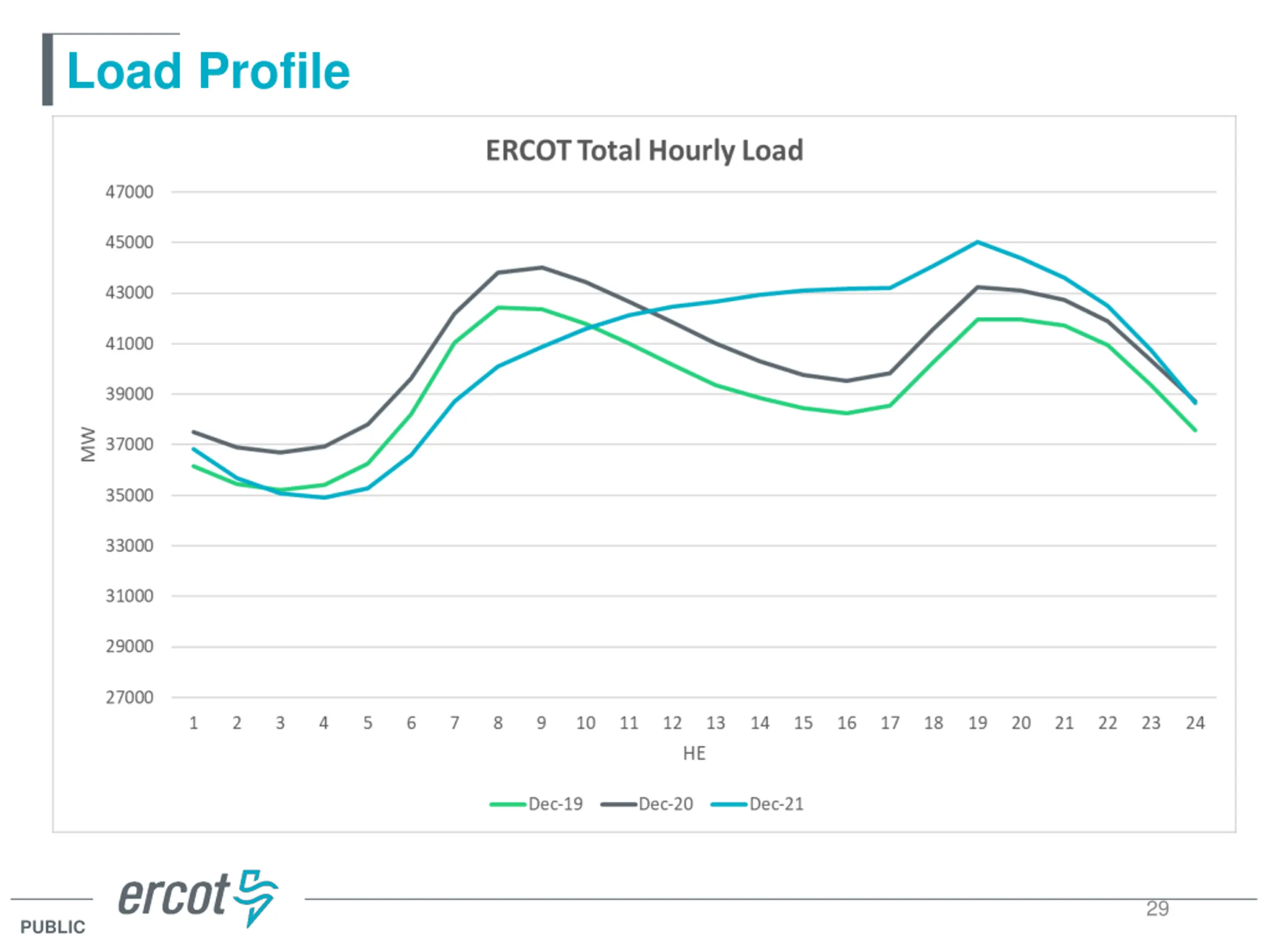

Load Profile 29 PUBLIC

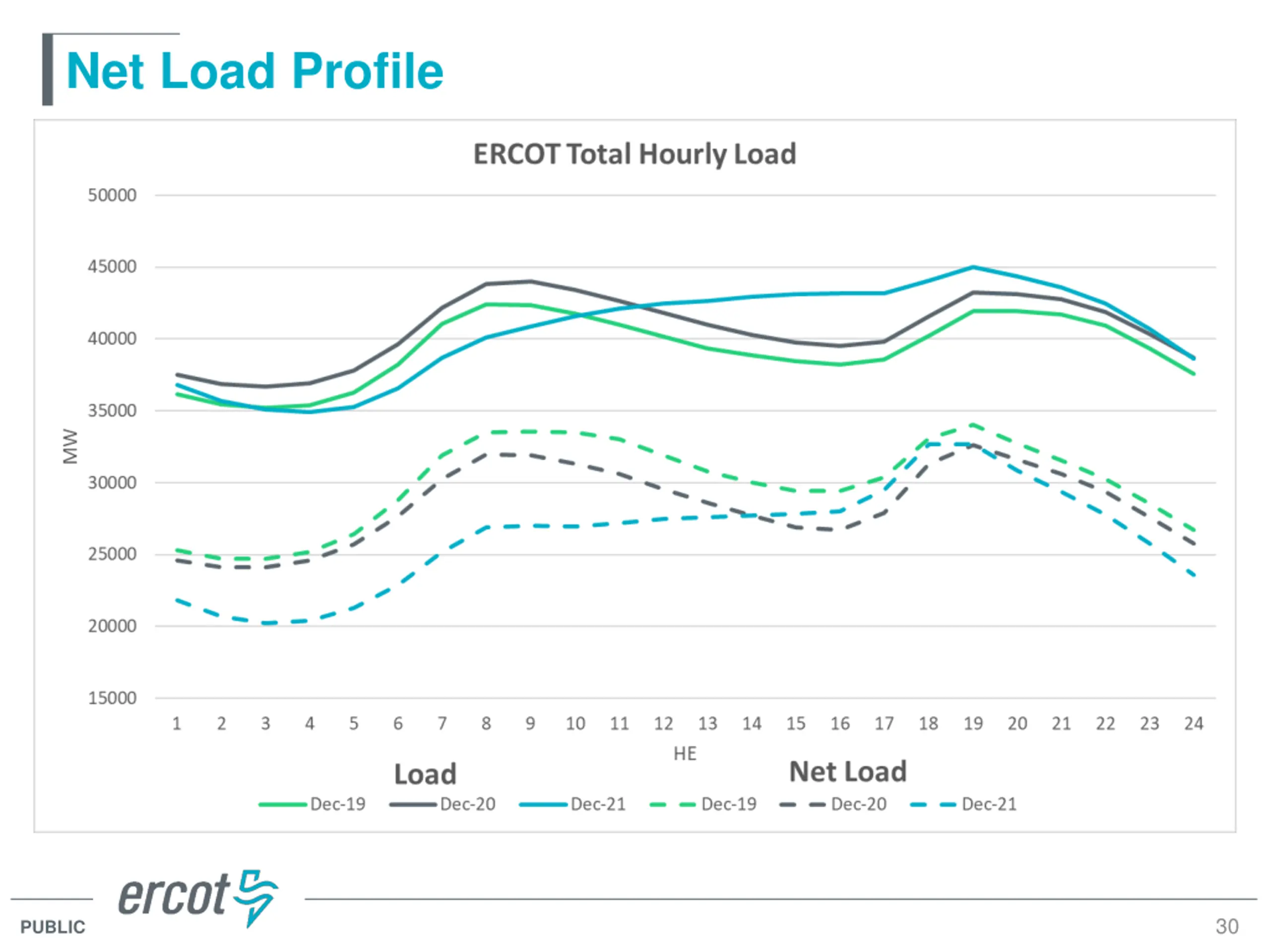

Net Load Profile 30 PUBLIC

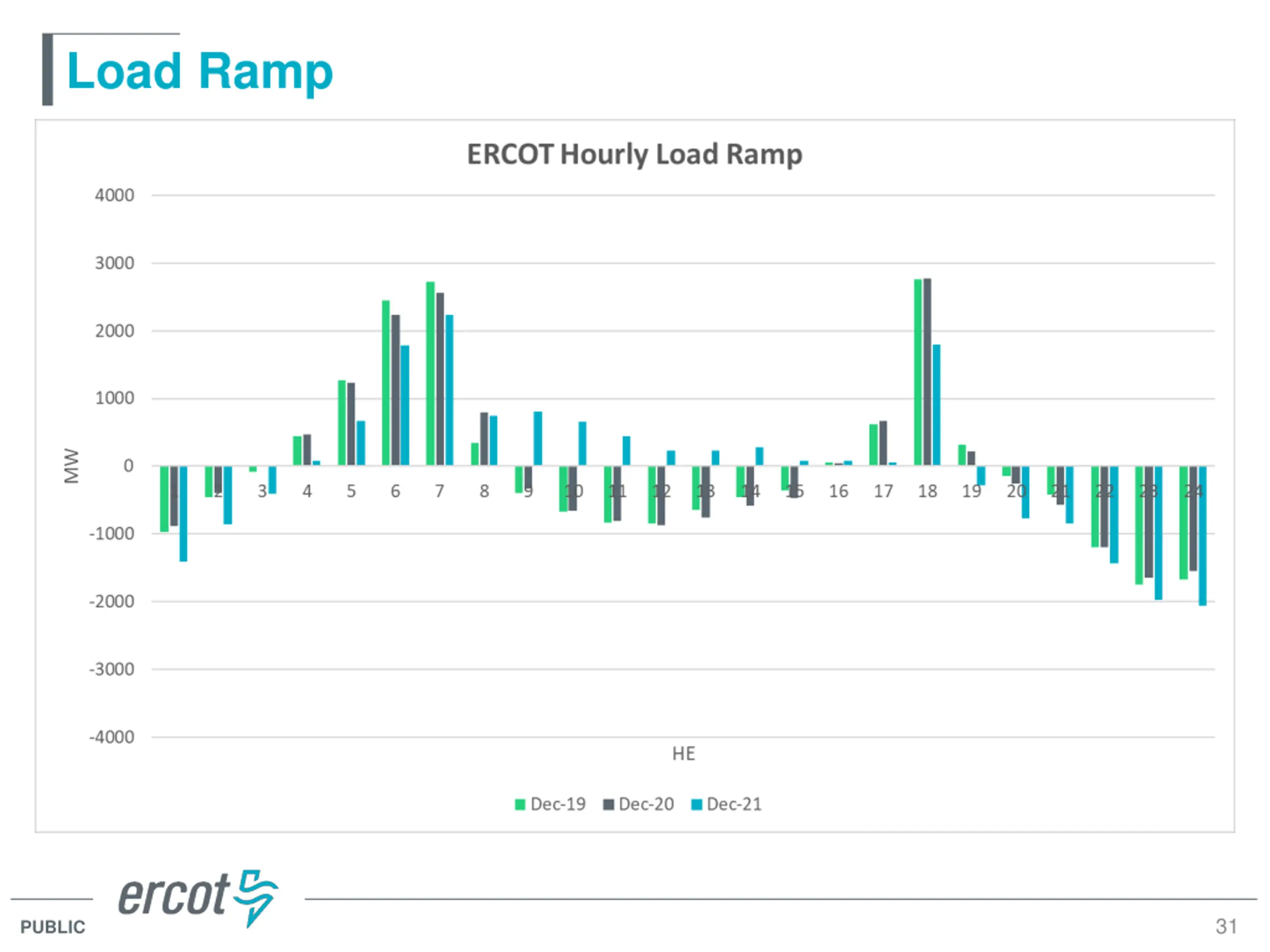

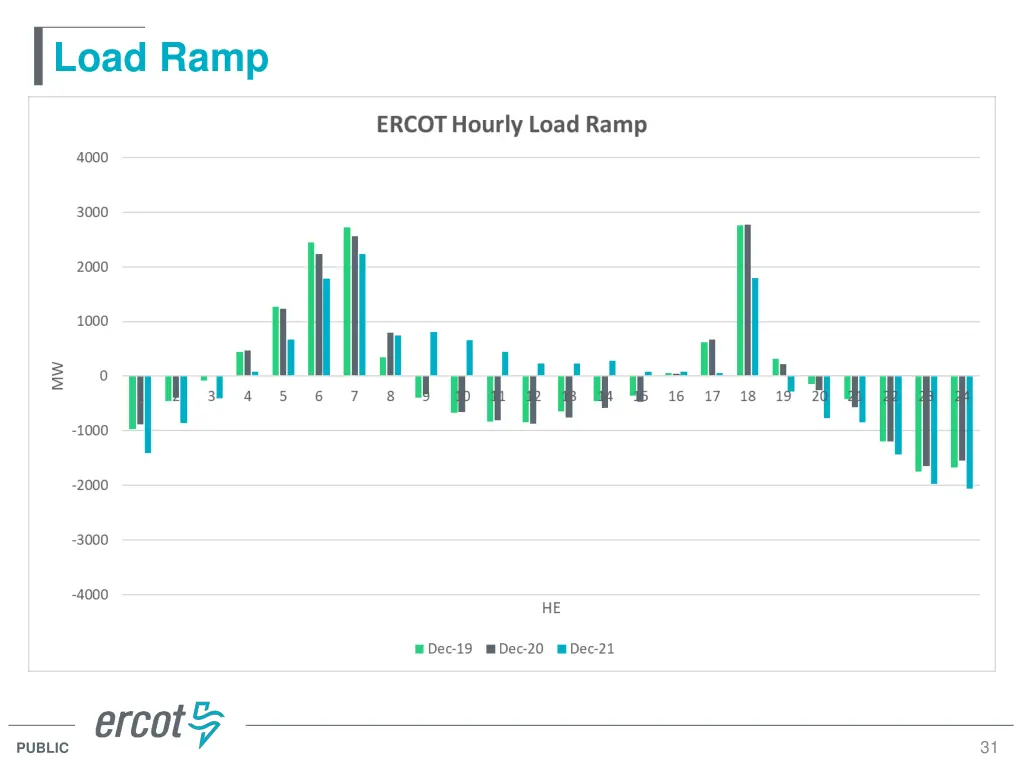

Load Ramp 31 PUBLIC

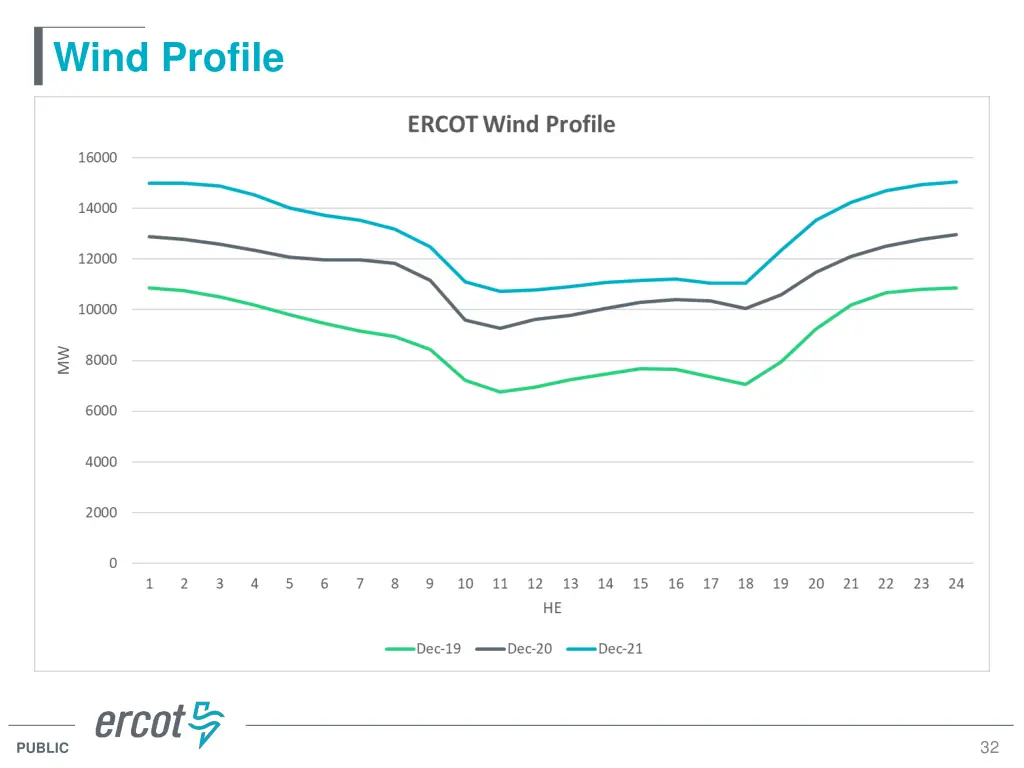

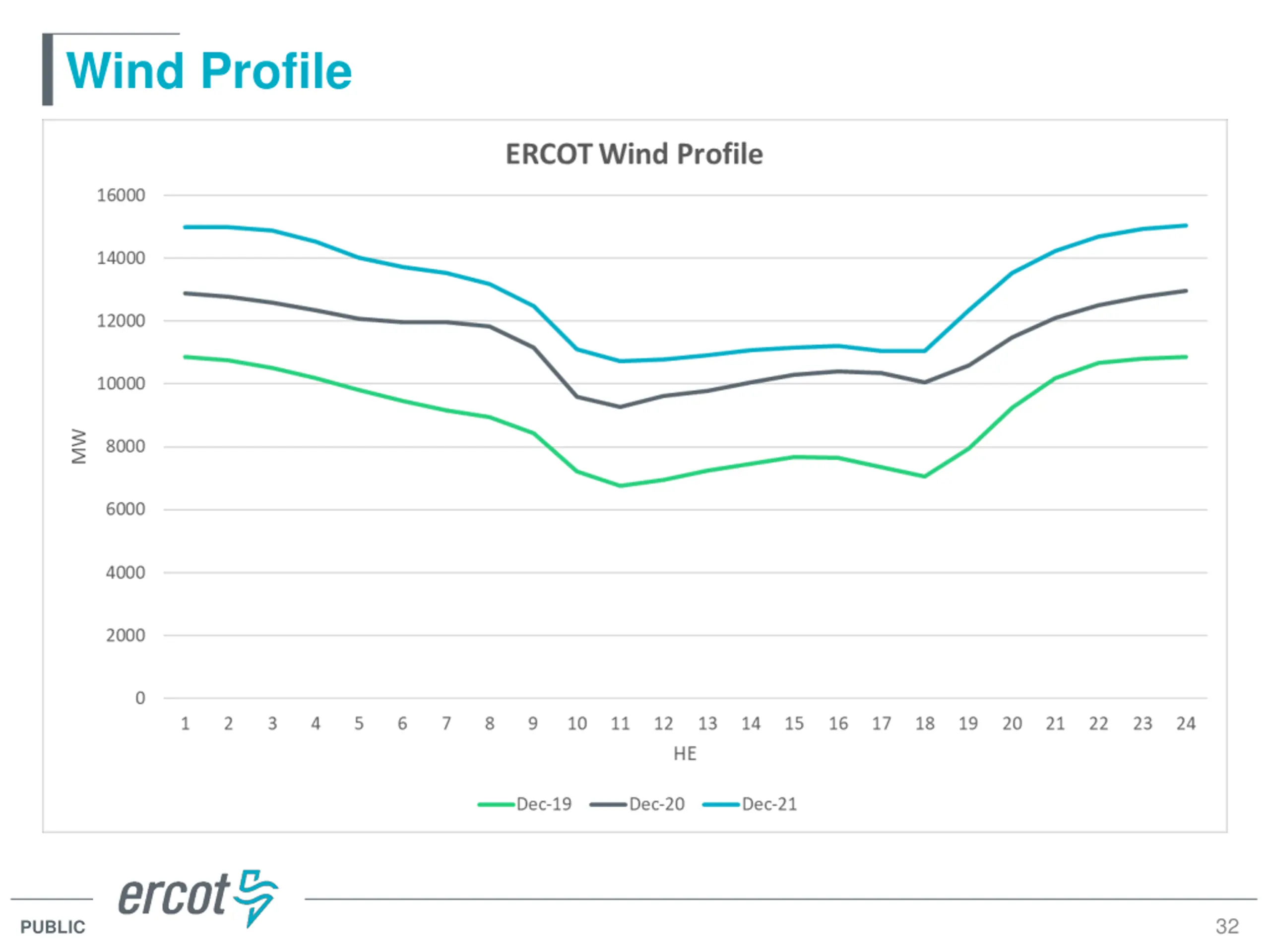

Wind Profile 32 PUBLIC

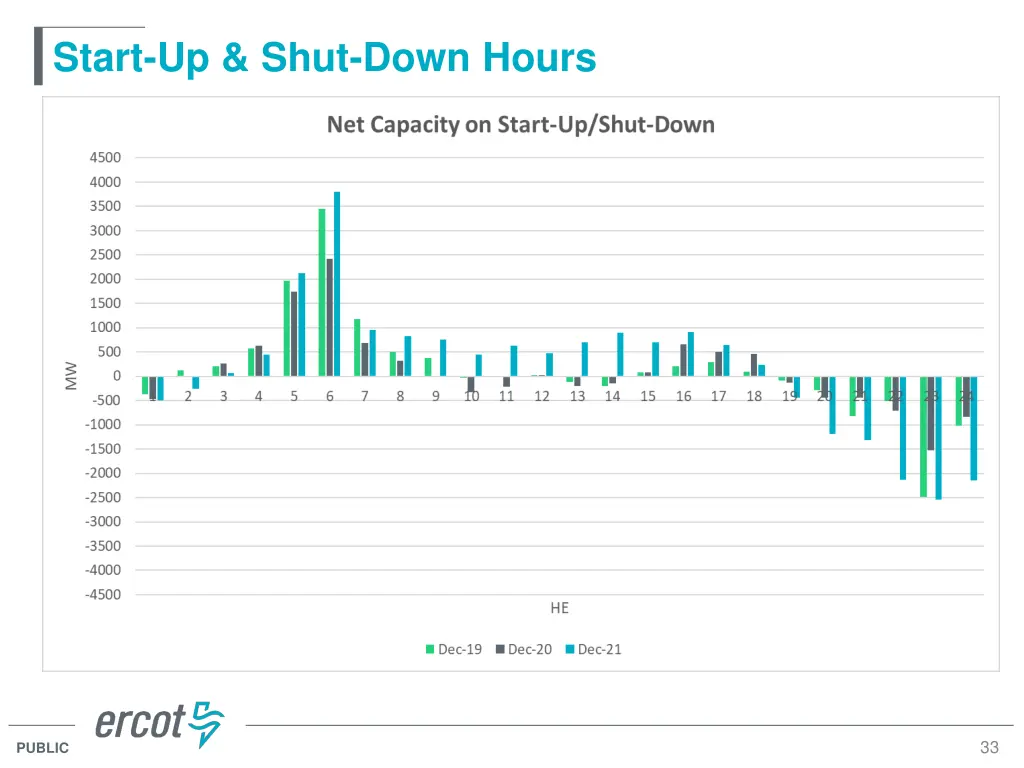

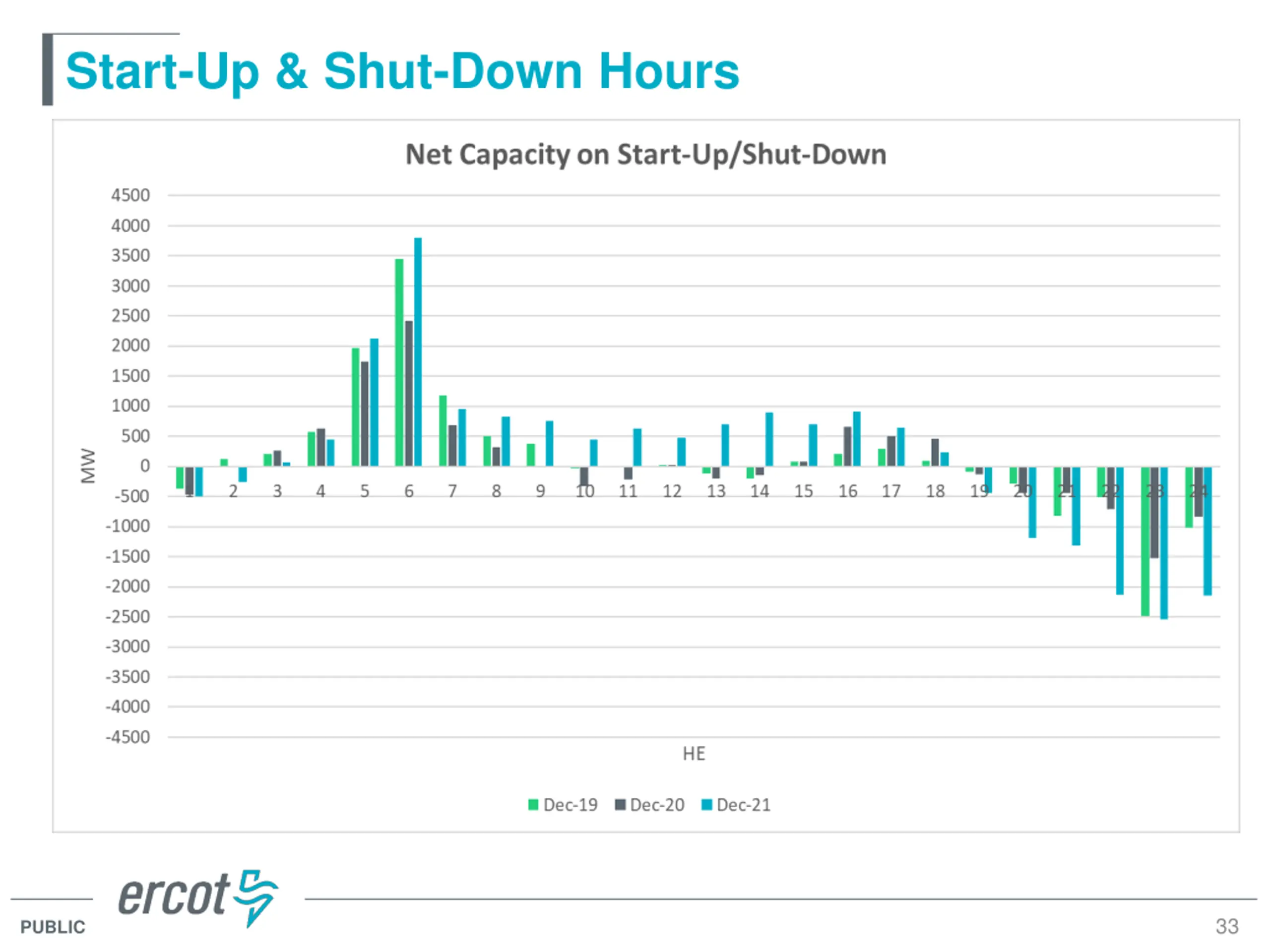

Start-Up & Shut-Down Hours 33 PUBLIC

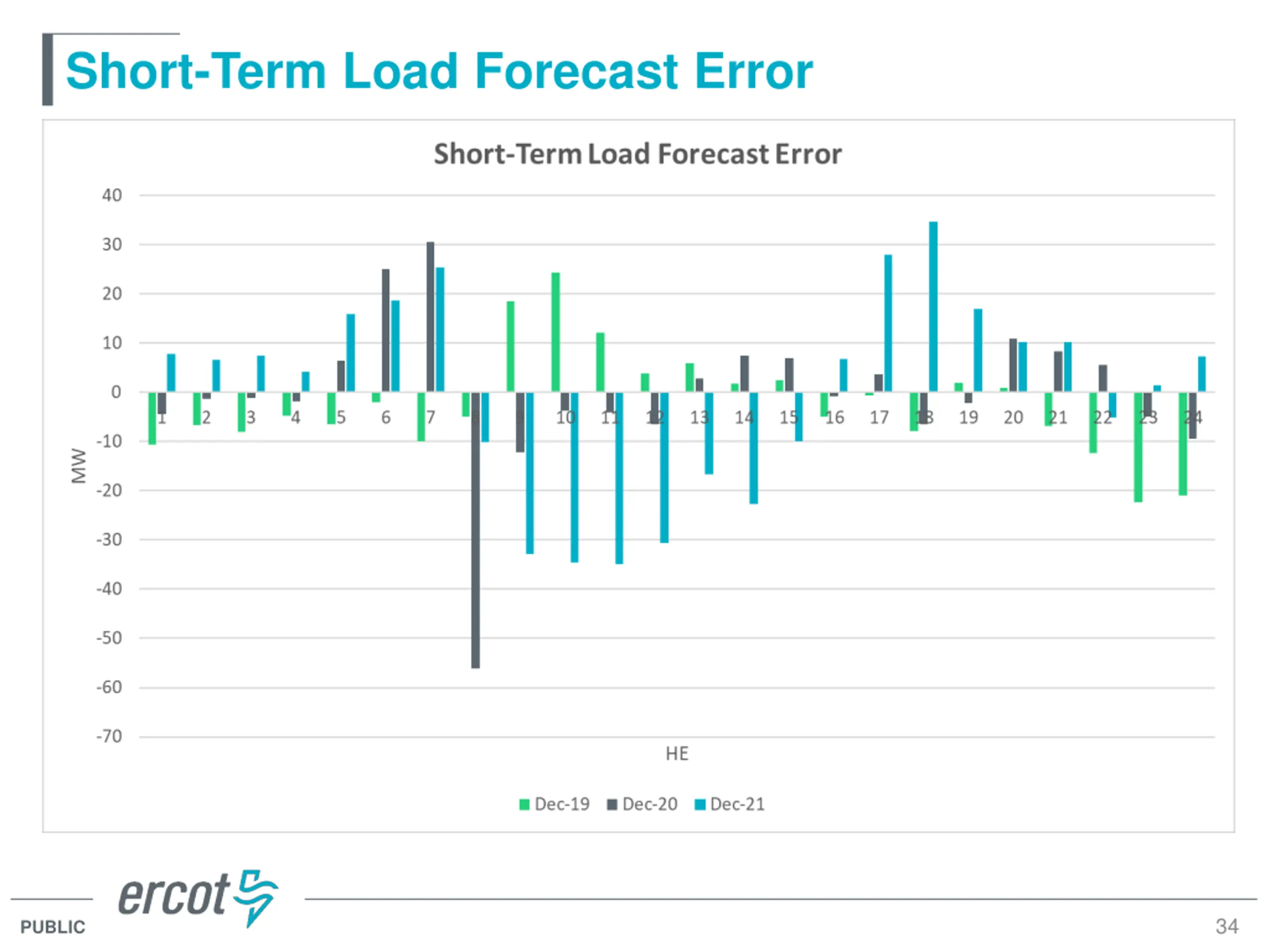

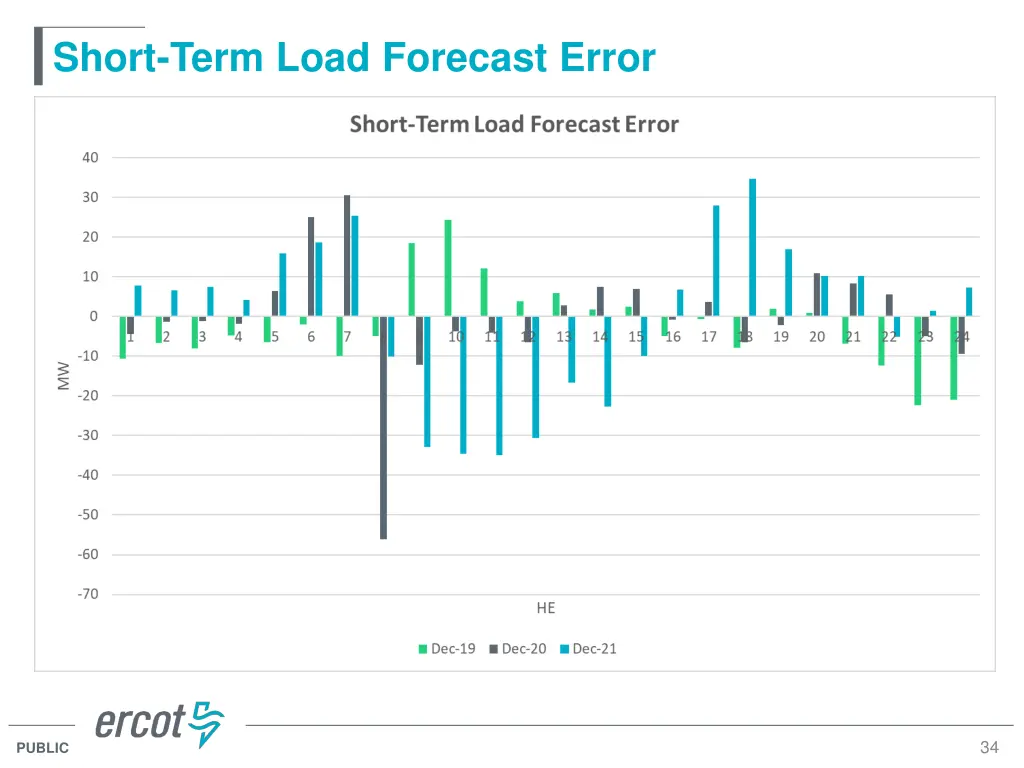

Short-Term Load Forecast Error 34 PUBLIC

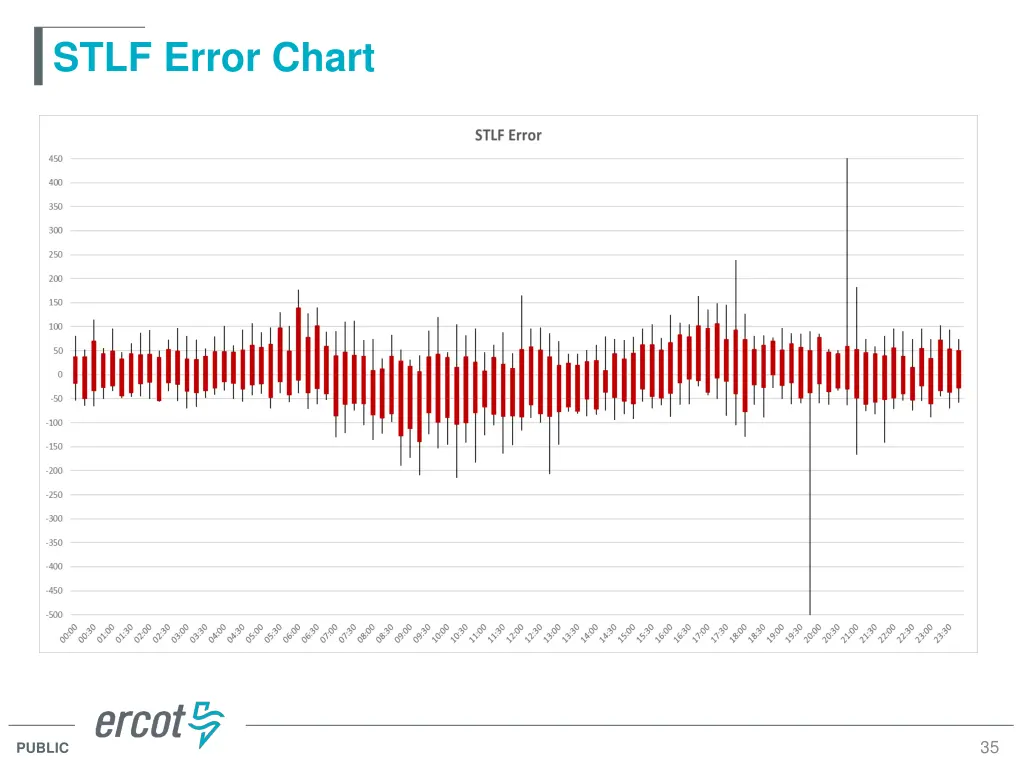

STLF Error Chart 35 PUBLIC

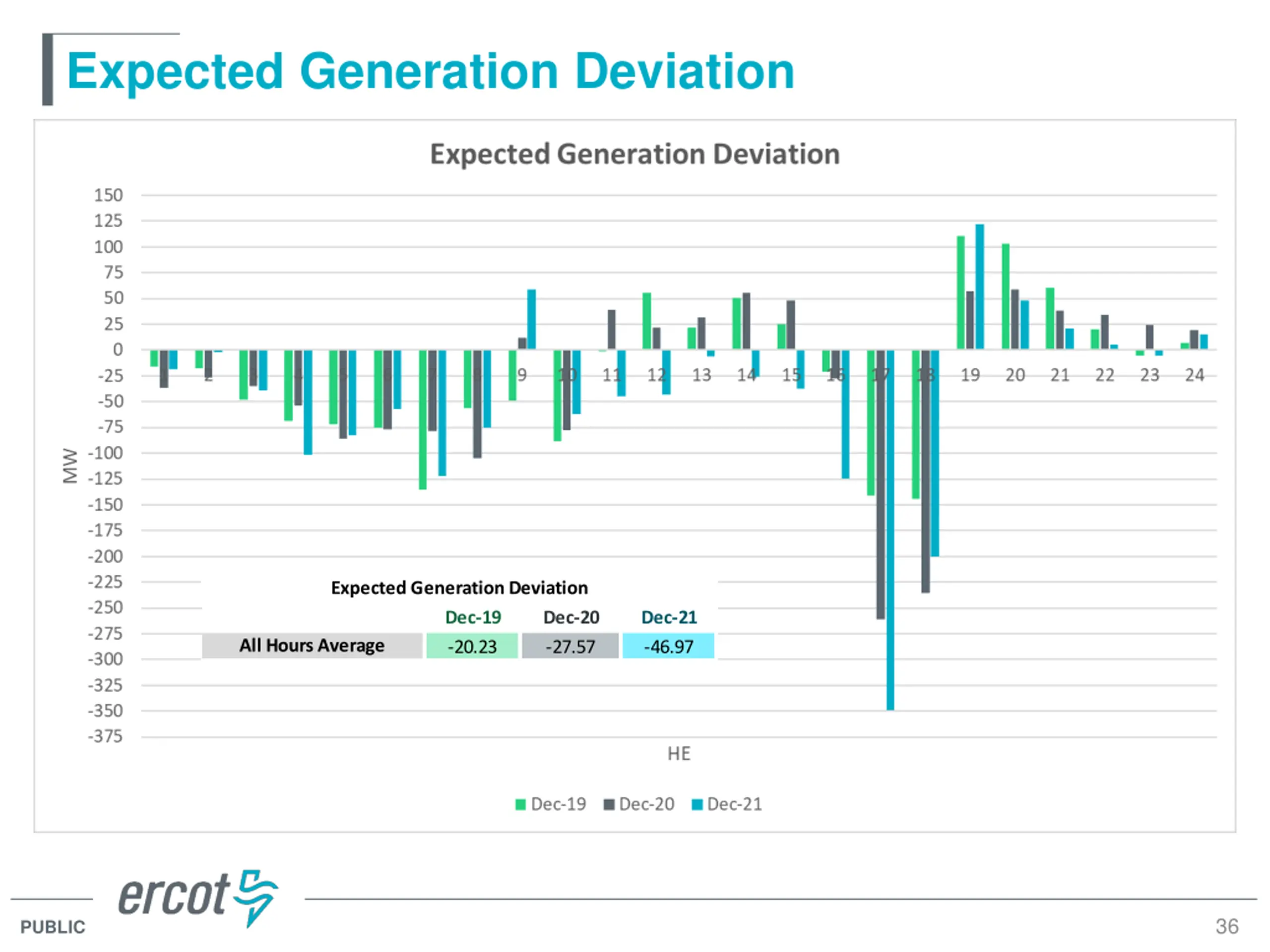

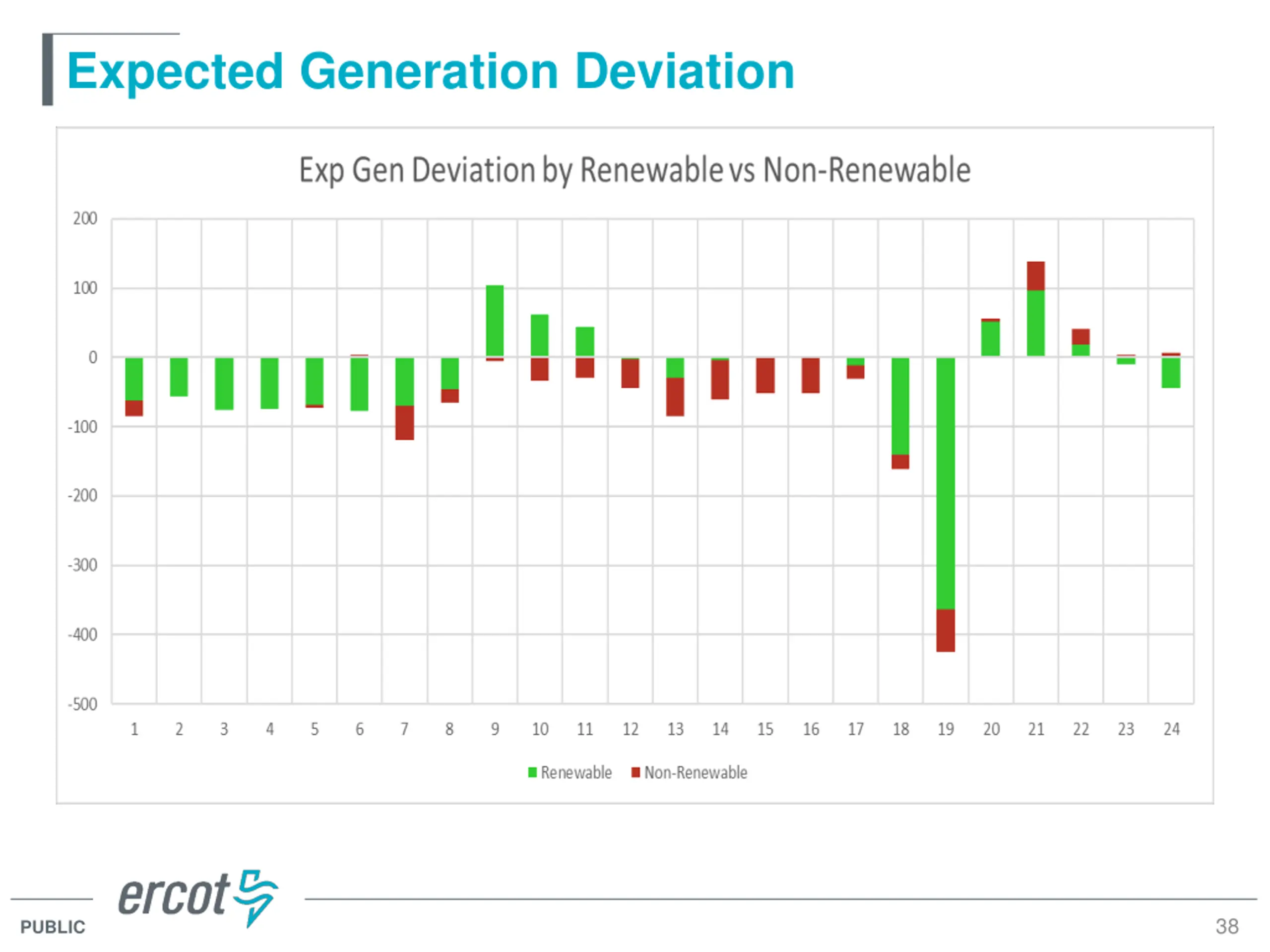

Expected Generation Deviation Expected Generation Deviation Dec-19 -20.23 Dec-20 -27.57 Dec-21 -46.97 All Hours Average 36 PUBLIC

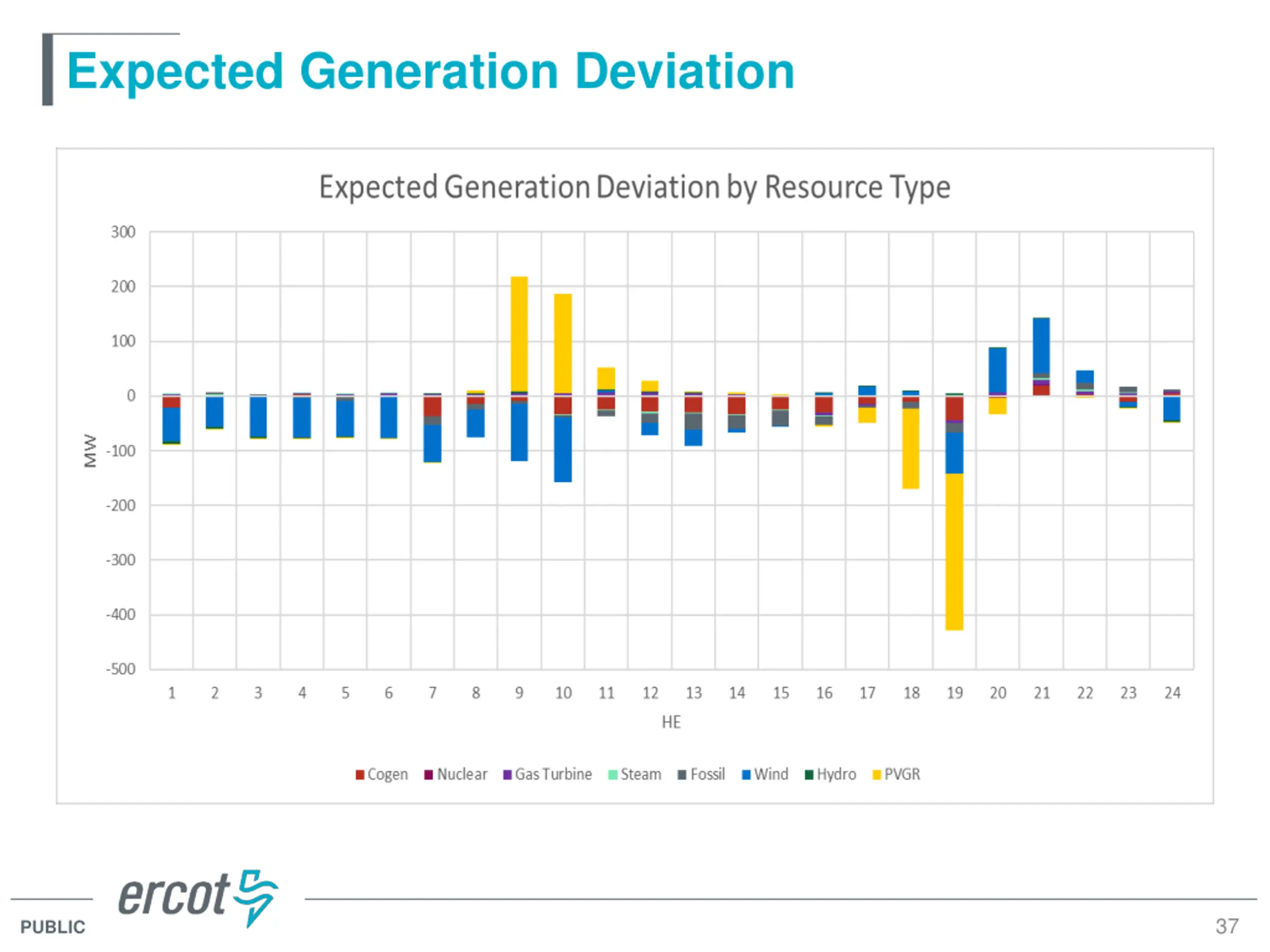

Expected Generation Deviation 37 PUBLIC
Expected Generation Deviation 38 PUBLIC
QUESTIONS? Thank you! PUBLIC
