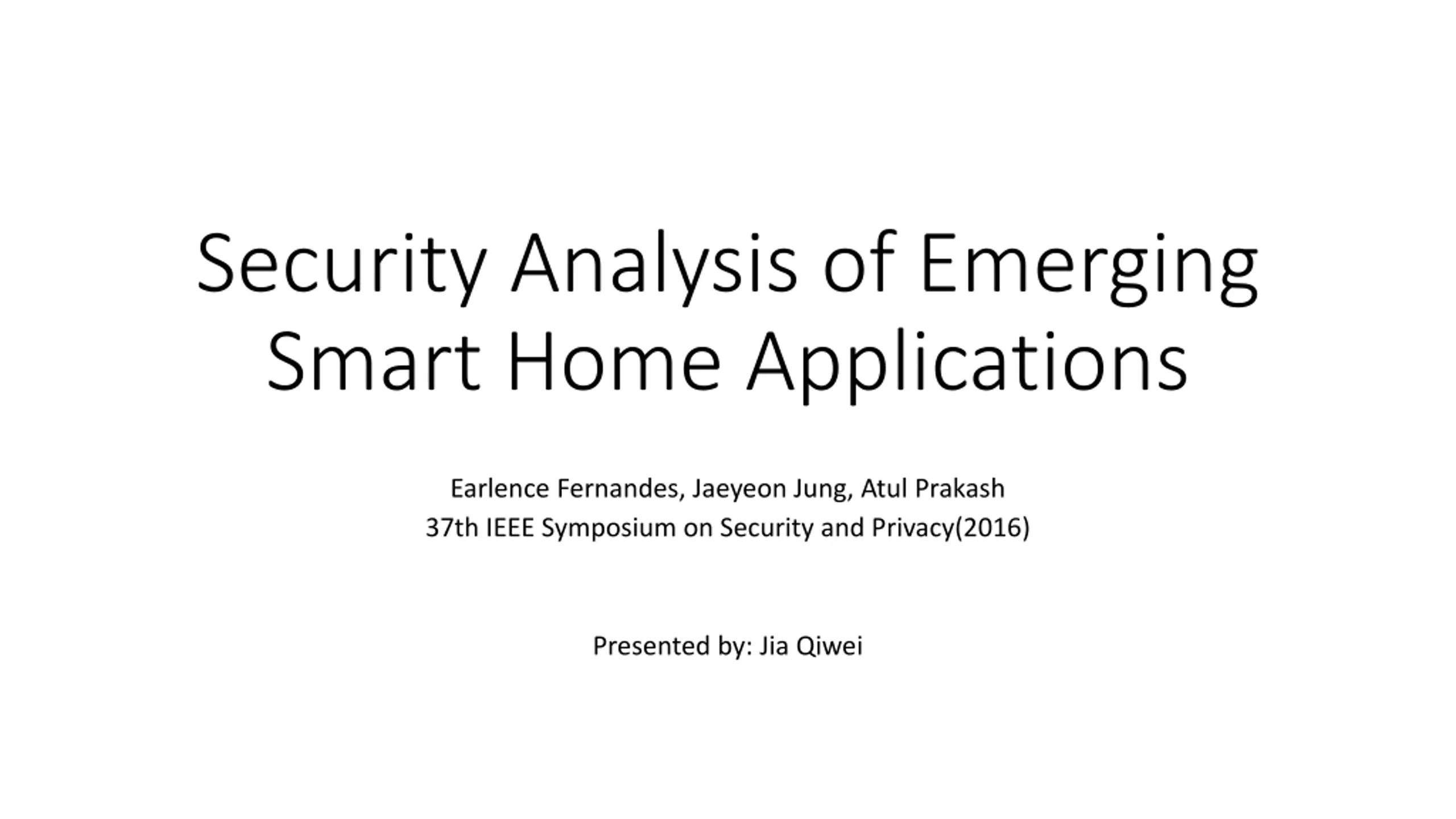

Security Analysis of Emerging Smart Home Applications Earlence Fernandes, Jaeyeon Jung, Atul Prakash 37th IEEE Symposium on Security and Privacy(2016) Presented by: Jia Qiwei

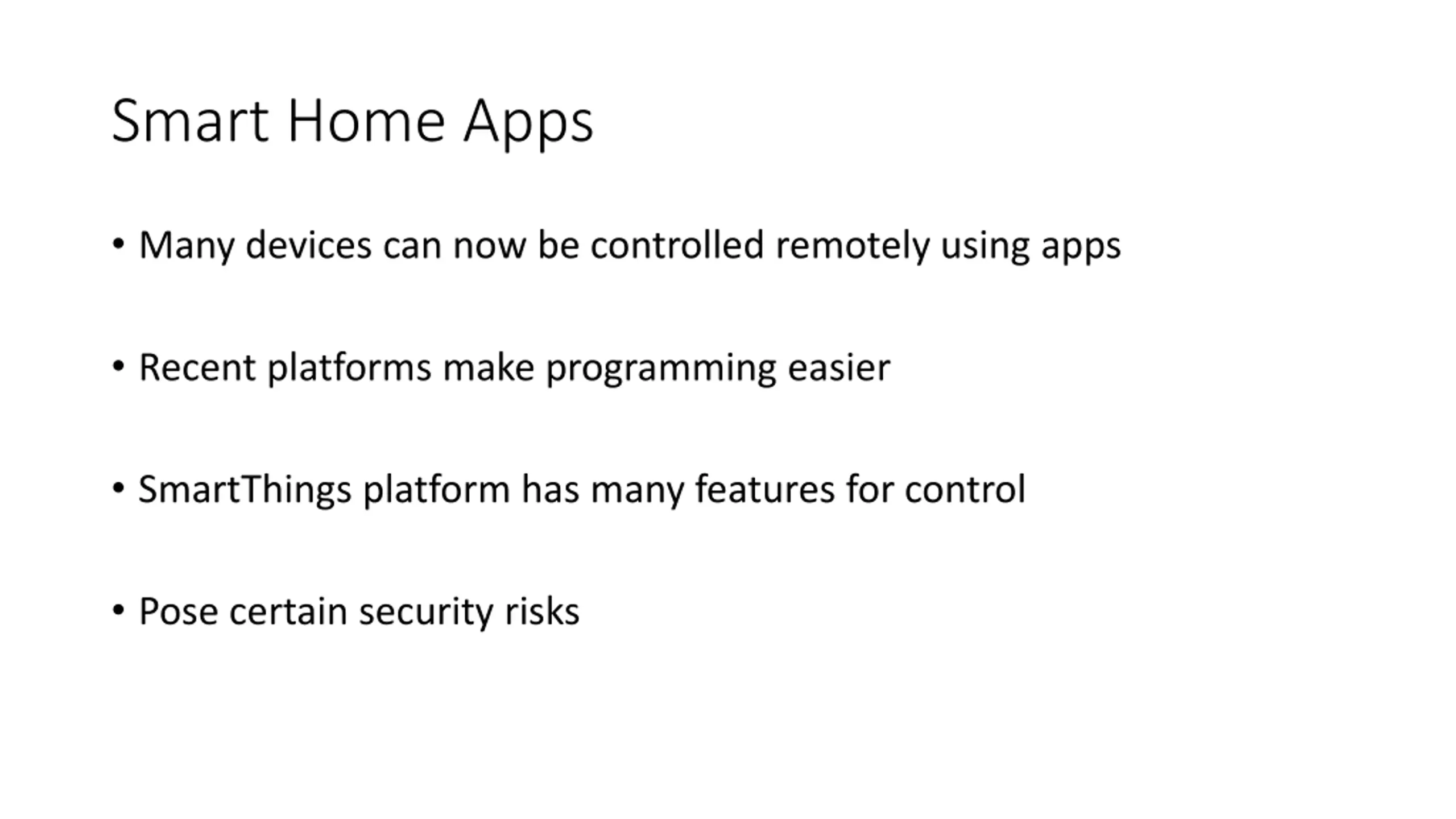

Smart Home Apps Many devices can now be controlled remotely using apps Recent platforms make programming easier SmartThings platform has many features for control Pose certain security risks

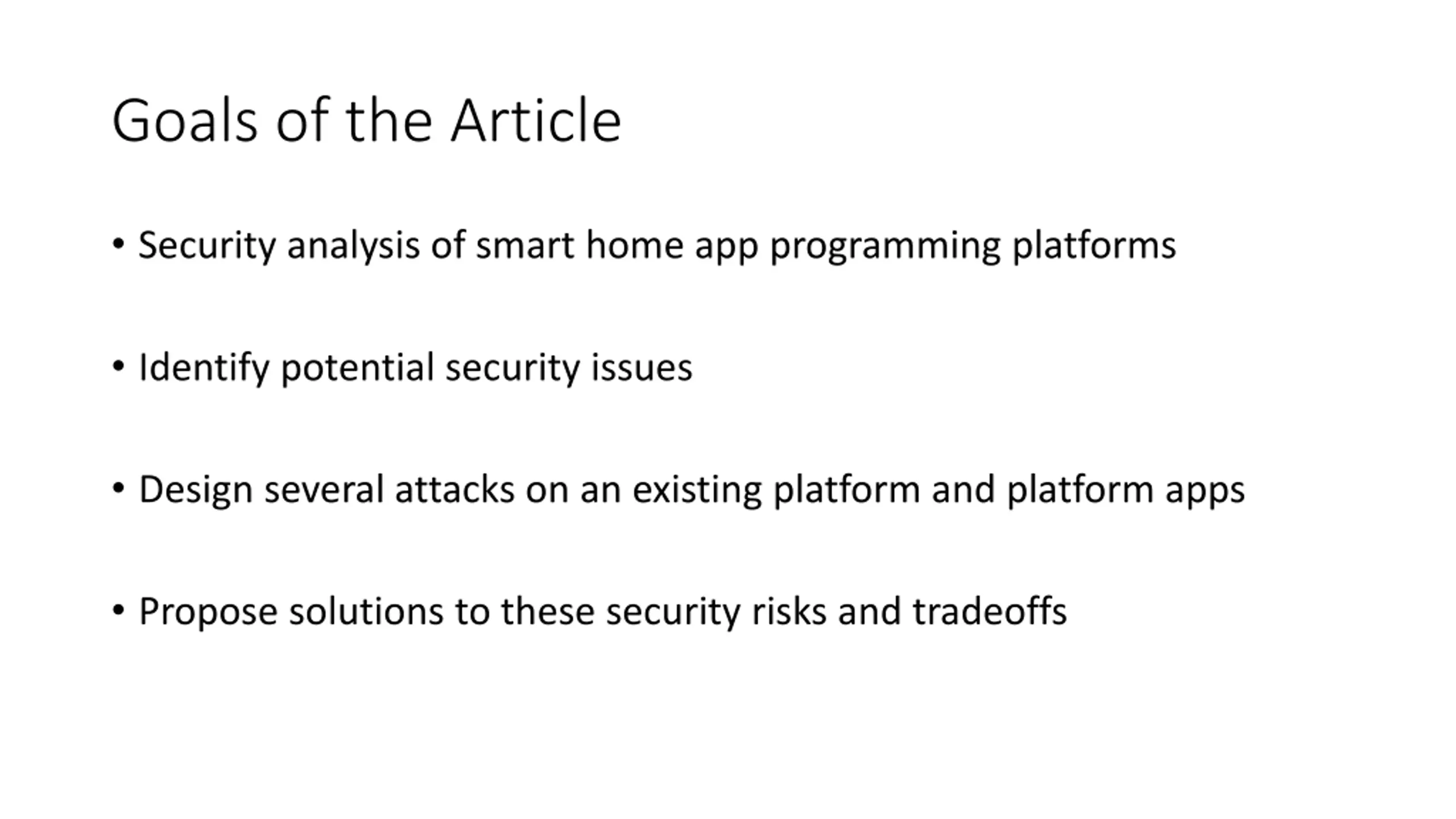

Goals of the Article Security analysis of smart home app programming platforms Identify potential security issues Design several attacks on an existing platform and platform apps Propose solutions to these security risks and tradeoffs

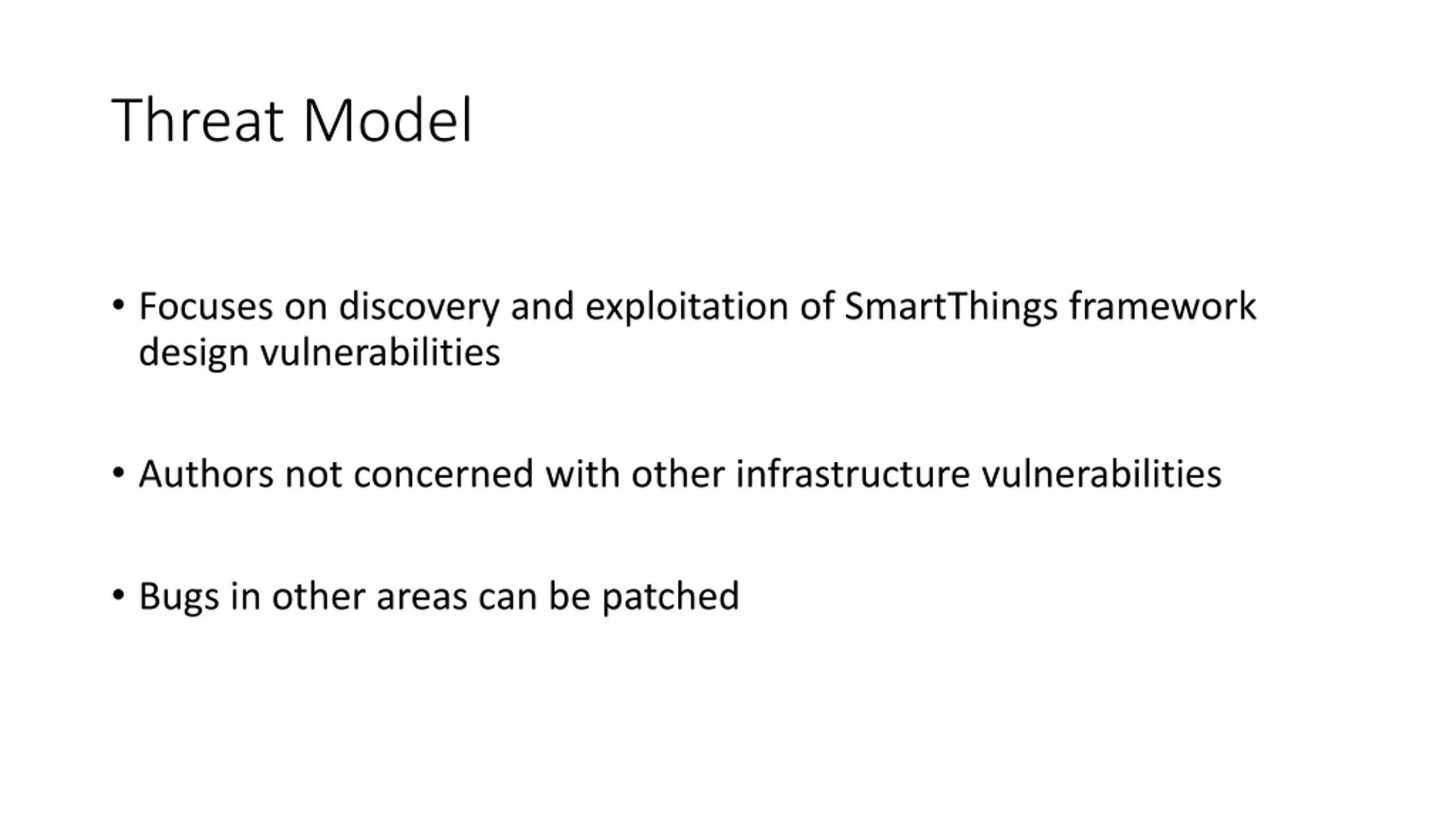

Threat Model Focuses on discovery and exploitation of SmartThings framework design vulnerabilities Authors not concerned with other infrastructure vulnerabilities Bugs in other areas can be patched

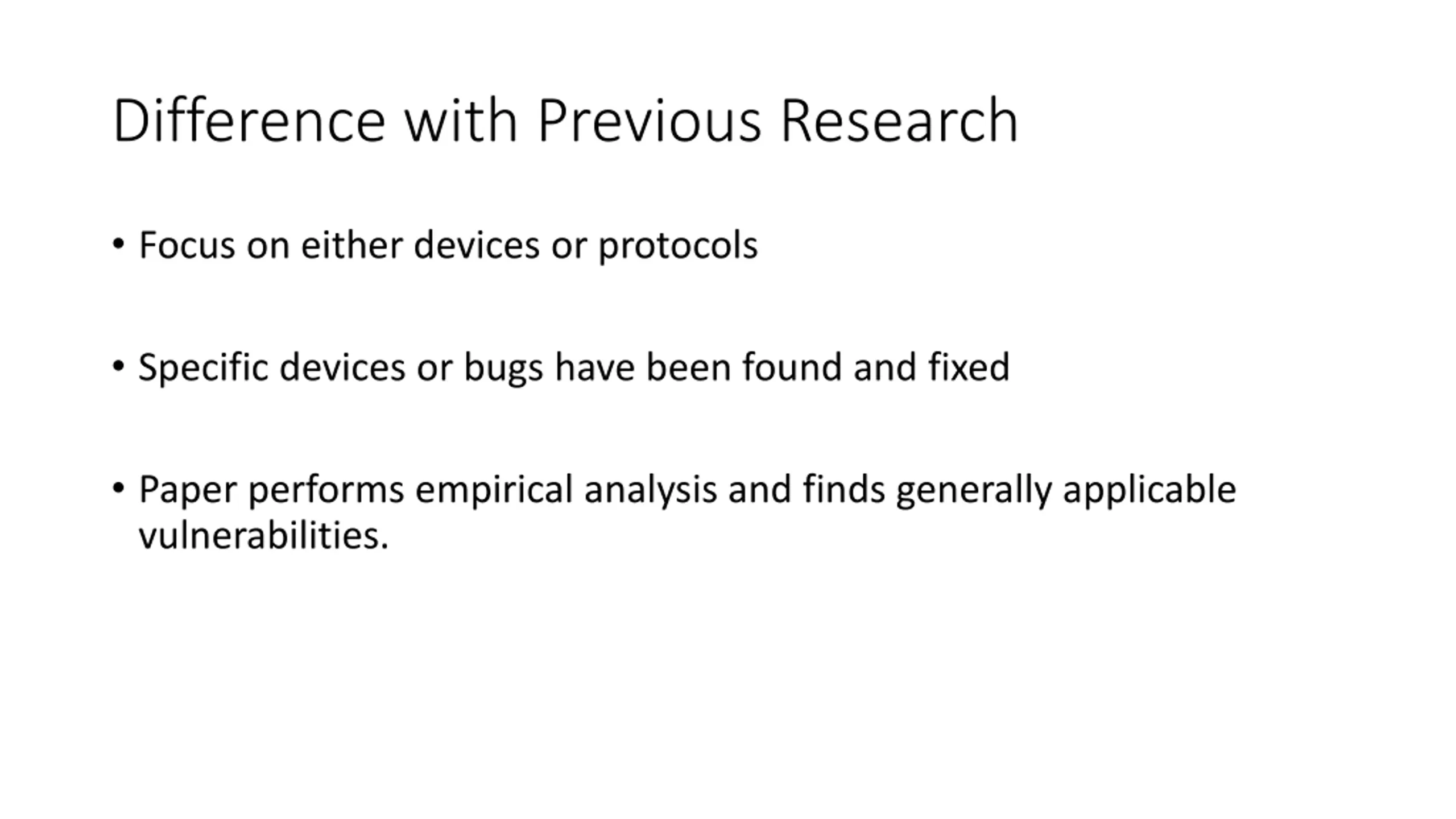

Difference with Previous Research Focus on either devices or protocols Specific devices or bugs have been found and fixed Paper performs empirical analysis and finds generally applicable vulnerabilities.

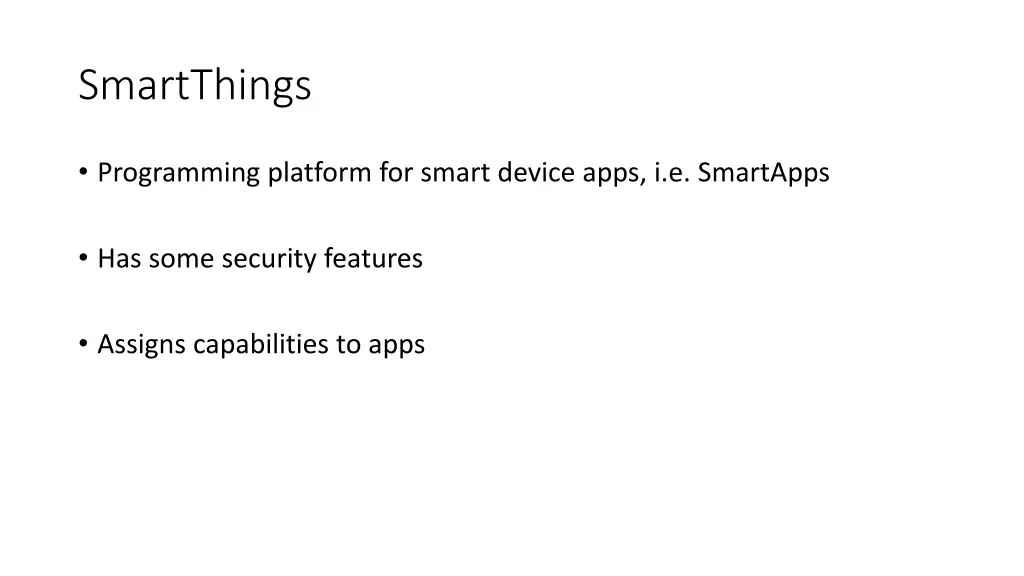

SmartThings Programming platform for smart device apps, i.e. SmartApps Has some security features Assigns capabilities to apps

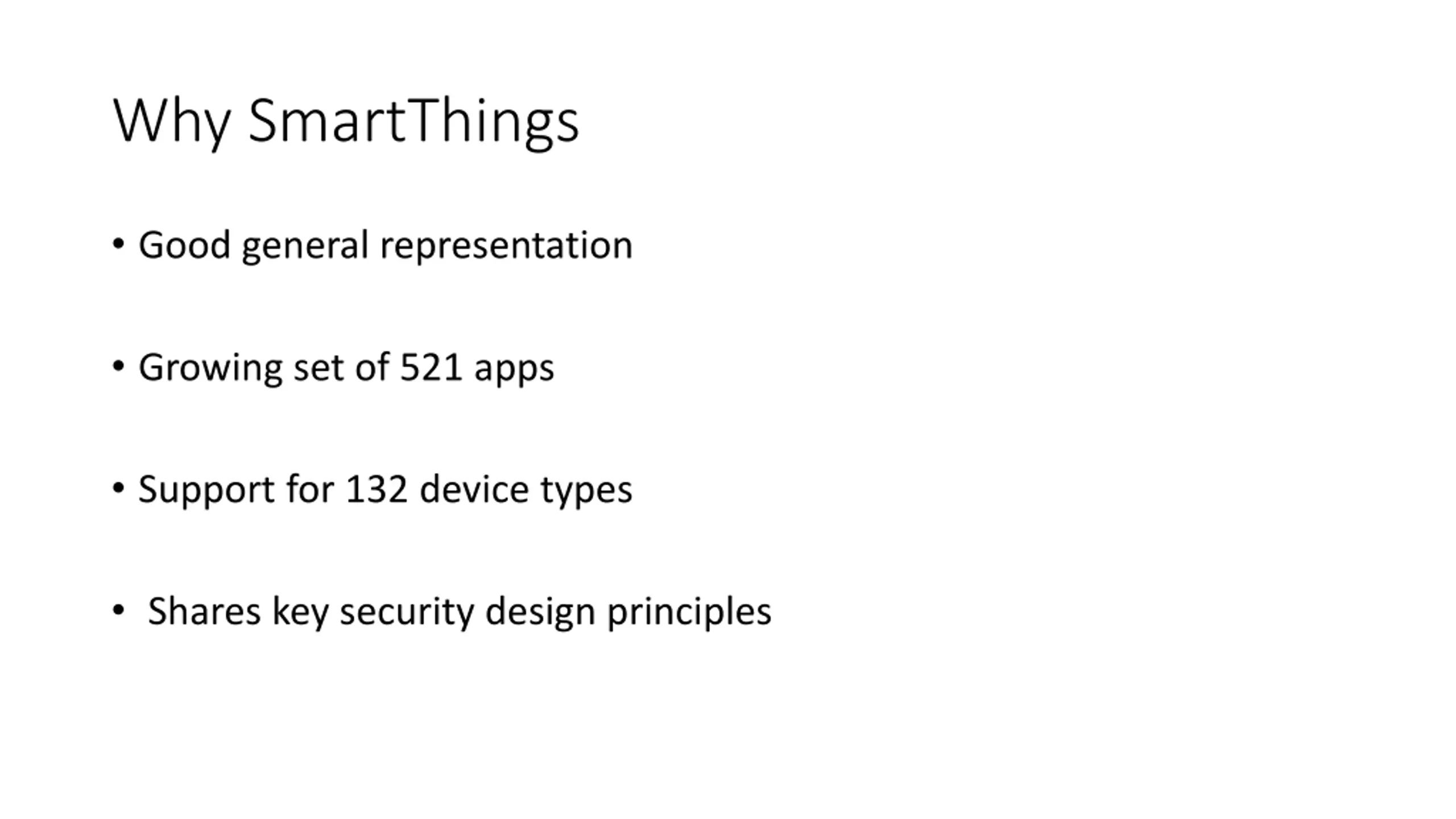

Why SmartThings Good general representation Growing set of 521 apps Support for 132 device types Shares key security design principles

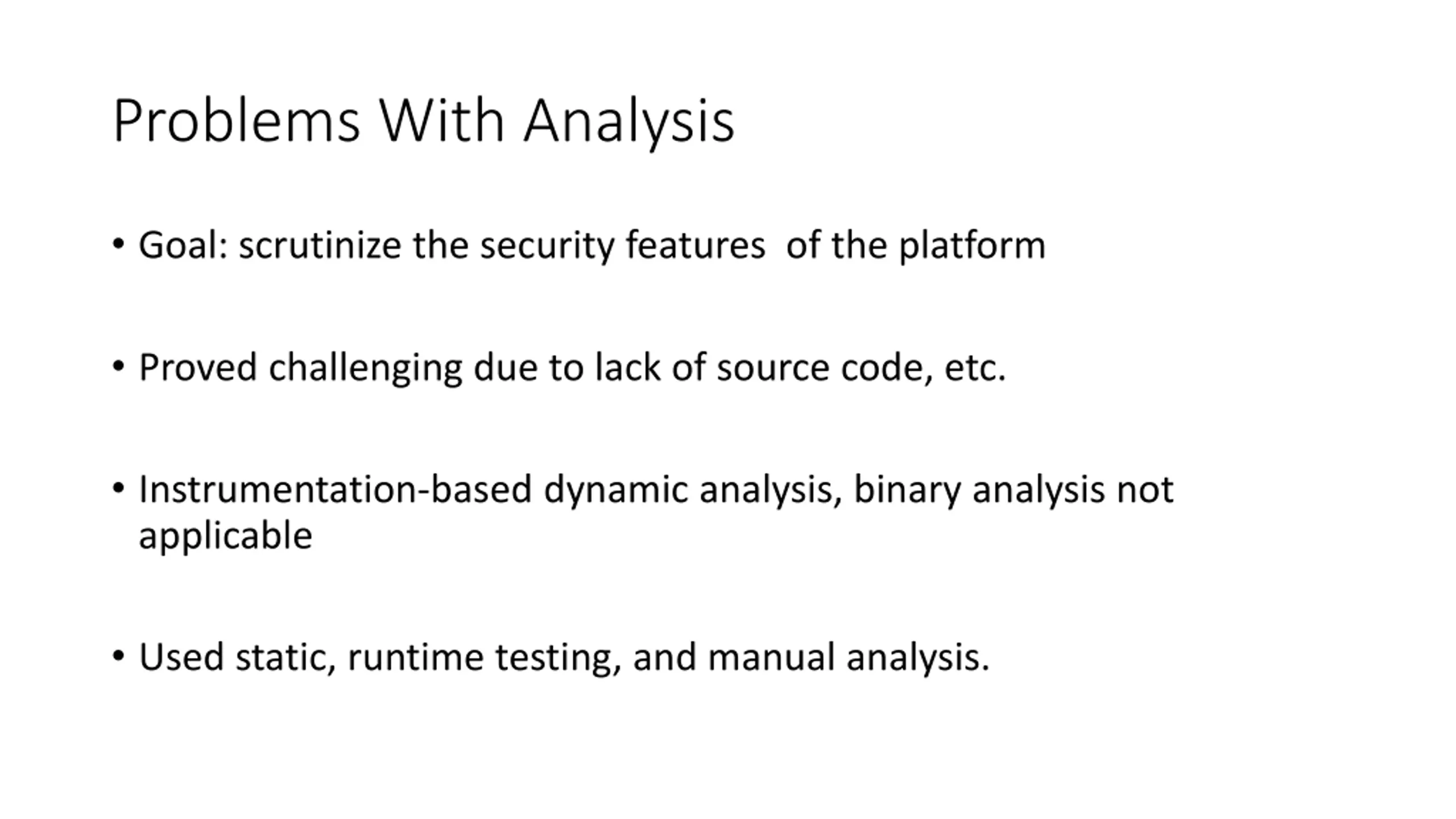

Problems With Analysis Goal: scrutinize the security features of the platform Proved challenging due to lack of source code, etc. Instrumentation-based dynamic analysis, binary analysis not applicable Used static, runtime testing, and manual analysis.

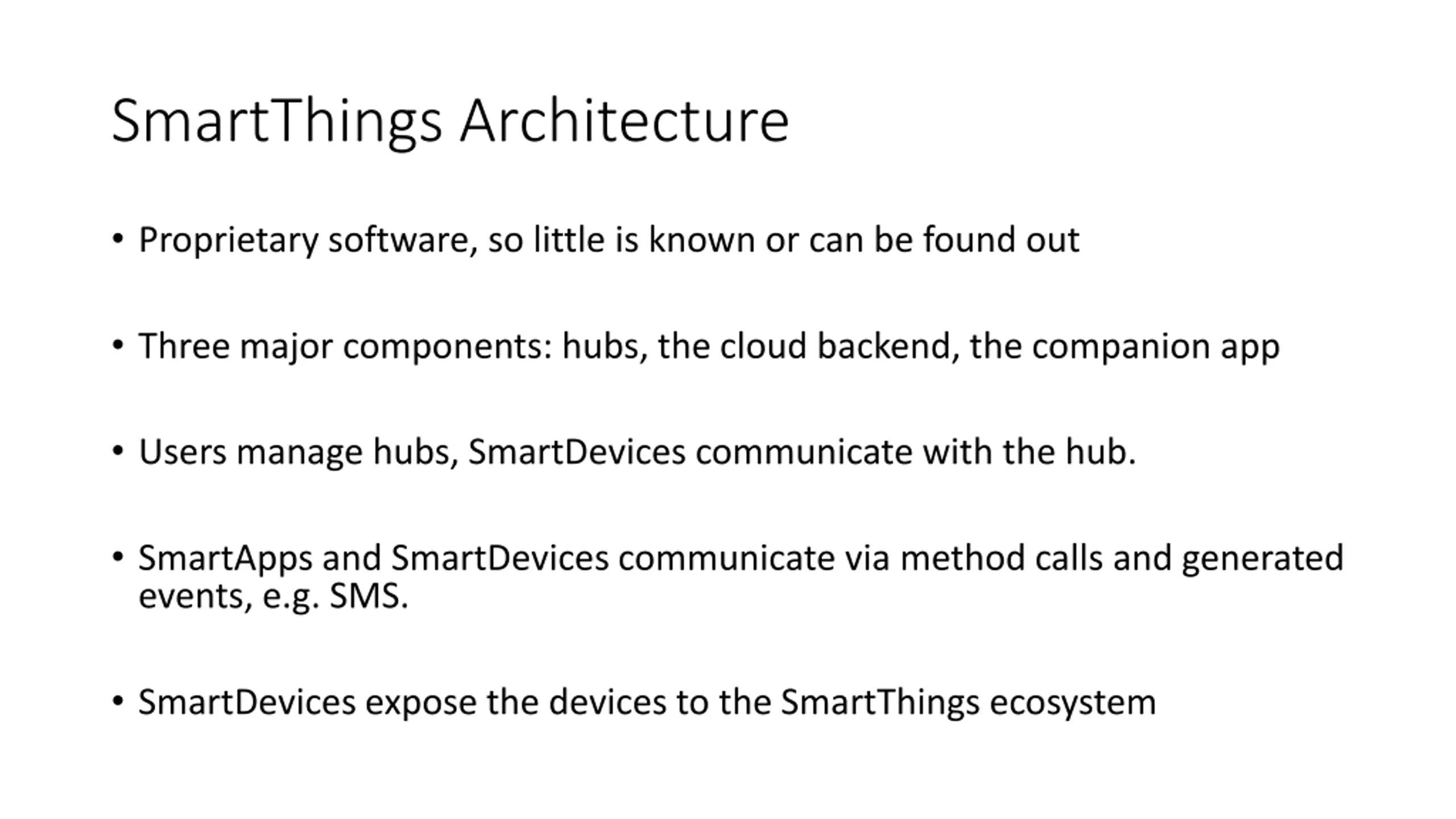

SmartThings Architecture Proprietary software, so little is known or can be found out Three major components: hubs, the cloud backend, the companion app Users manage hubs, SmartDevices communicate with the hub. SmartApps and SmartDevices communicate via method calls and generated events, e.g. SMS. SmartDevices expose the devices to the SmartThings ecosystem

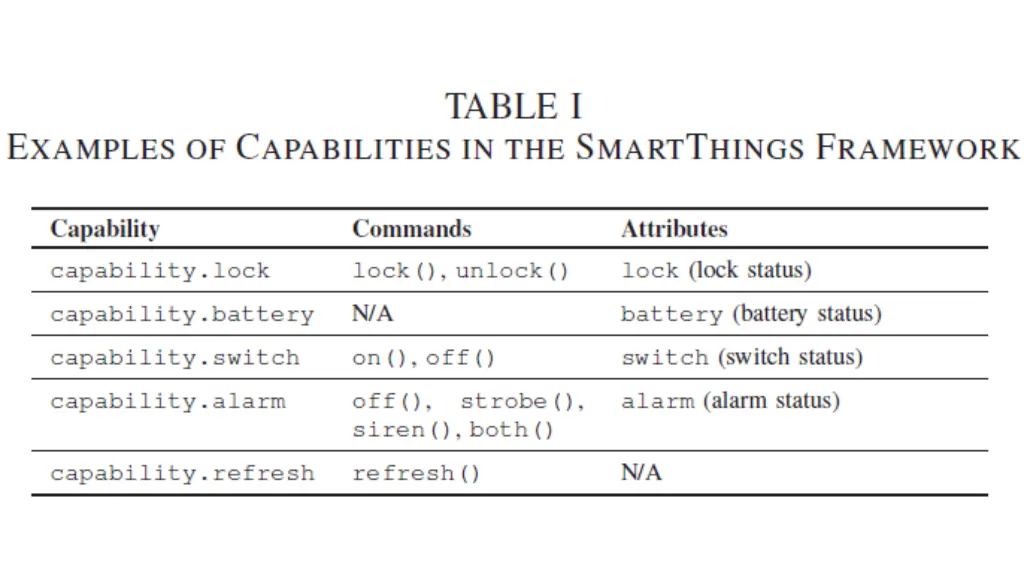

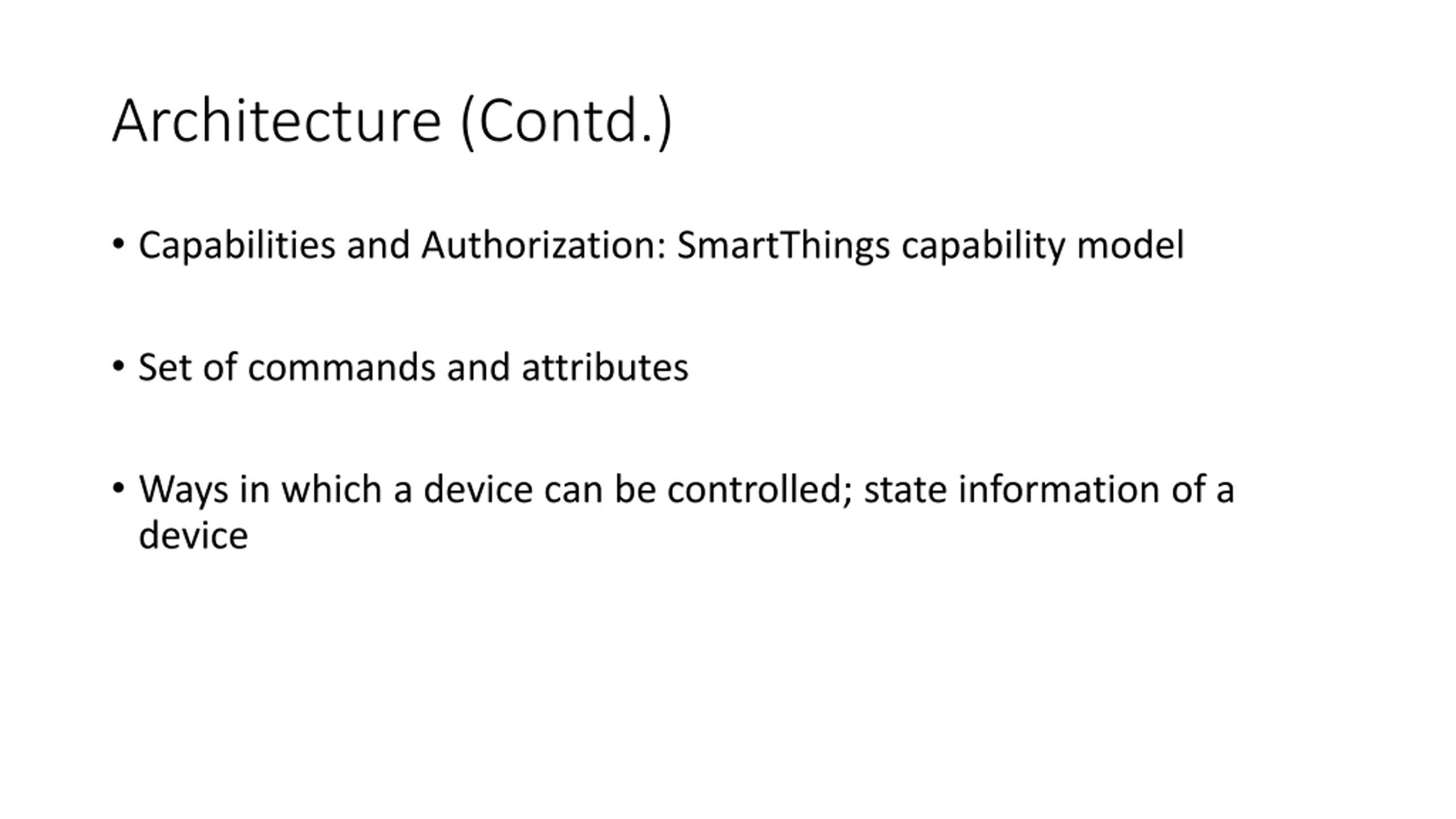

Architecture (Contd.) Capabilities and Authorization: SmartThings capability model Set of commands and attributes Ways in which a device can be controlled; state information of a device

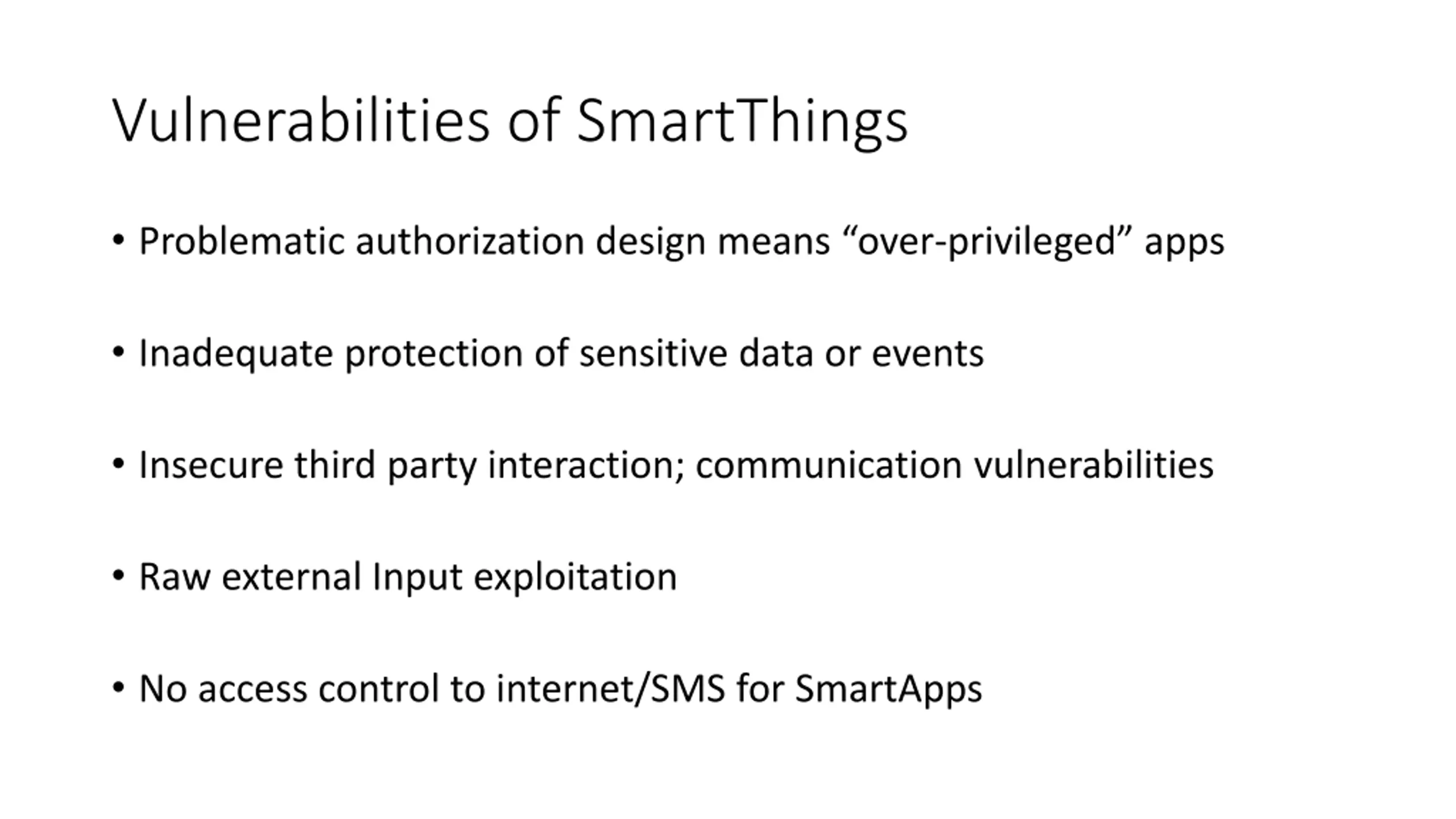

Vulnerabilities of SmartThings Problematic authorization design means over-privileged apps Inadequate protection of sensitive data or events Insecure third party interaction; communication vulnerabilities Raw external Input exploitation No access control to internet/SMS for SmartApps

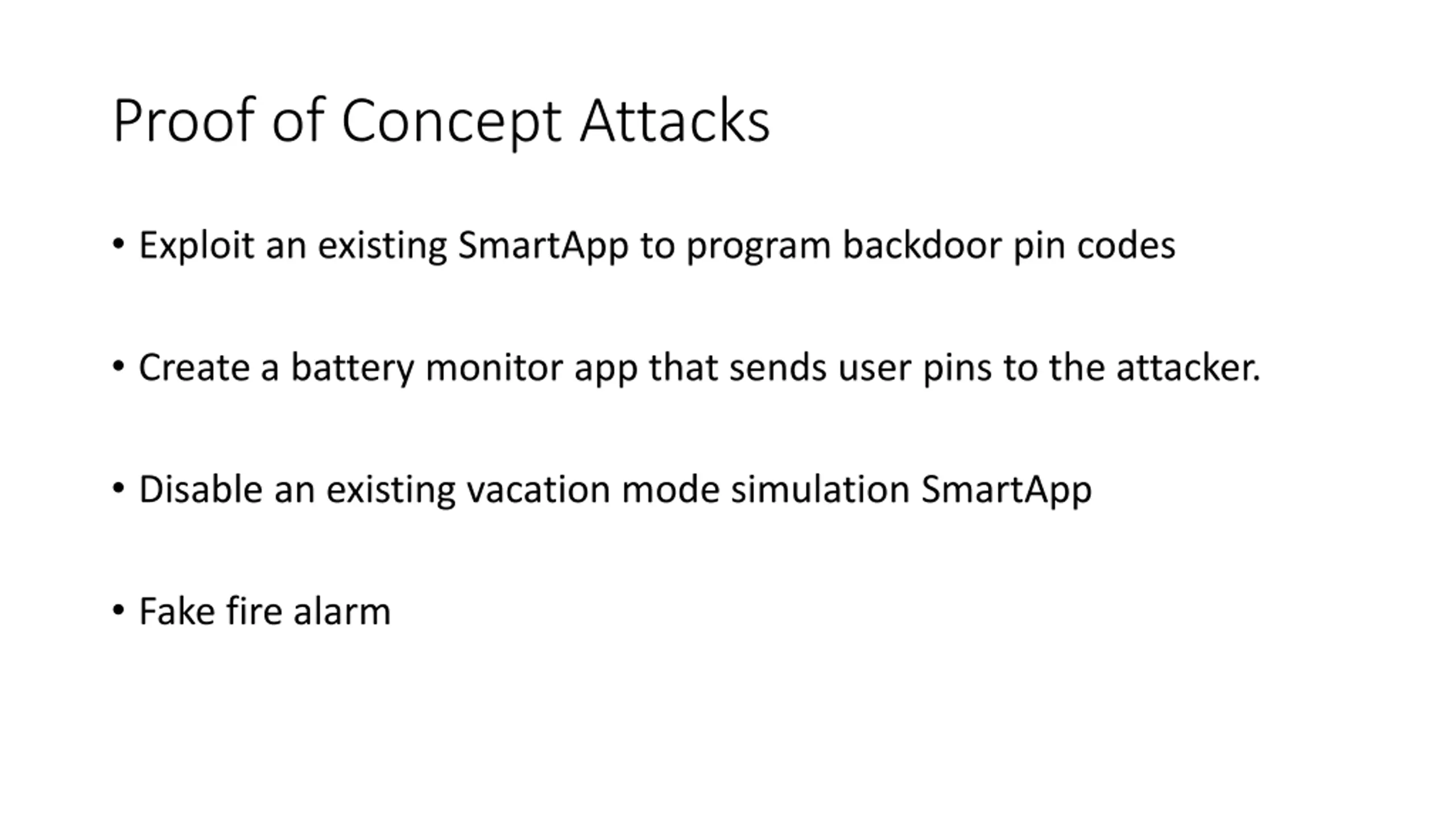

Proof of Concept Attacks Exploit an existing SmartApp to program backdoor pin codes Create a battery monitor app that sends user pins to the attacker. Disable an existing vacation mode simulation SmartApp Fake fire alarm

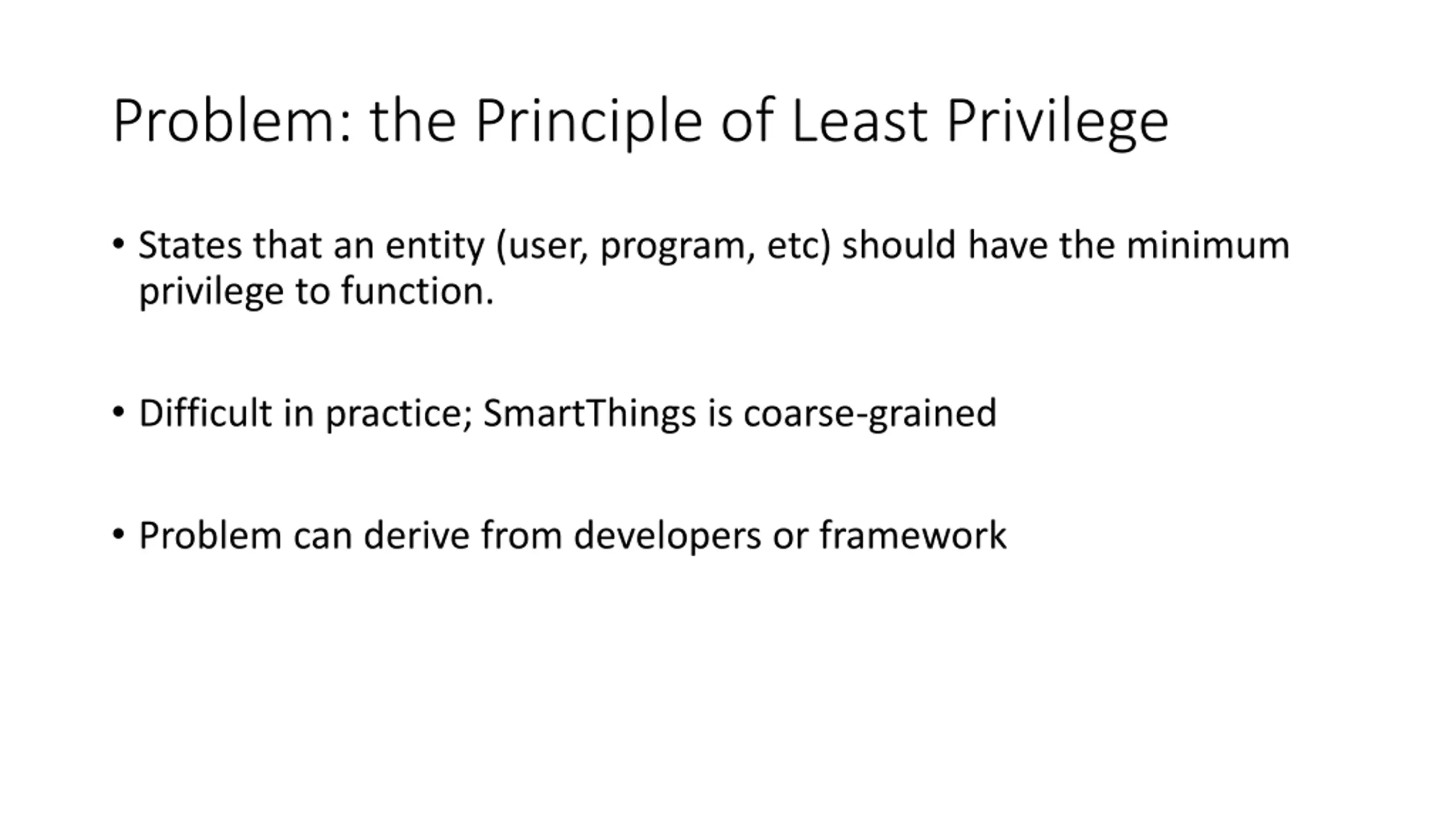

Problem: the Principle of Least Privilege States that an entity (user, program, etc) should have the minimum privilege to function. Difficult in practice; SmartThings is coarse-grained Problem can derive from developers or framework

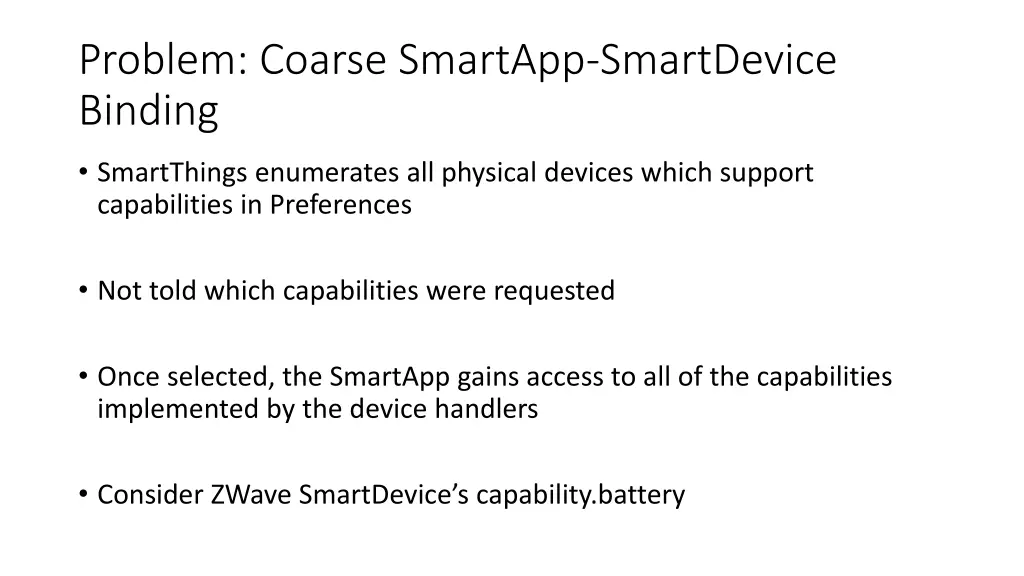

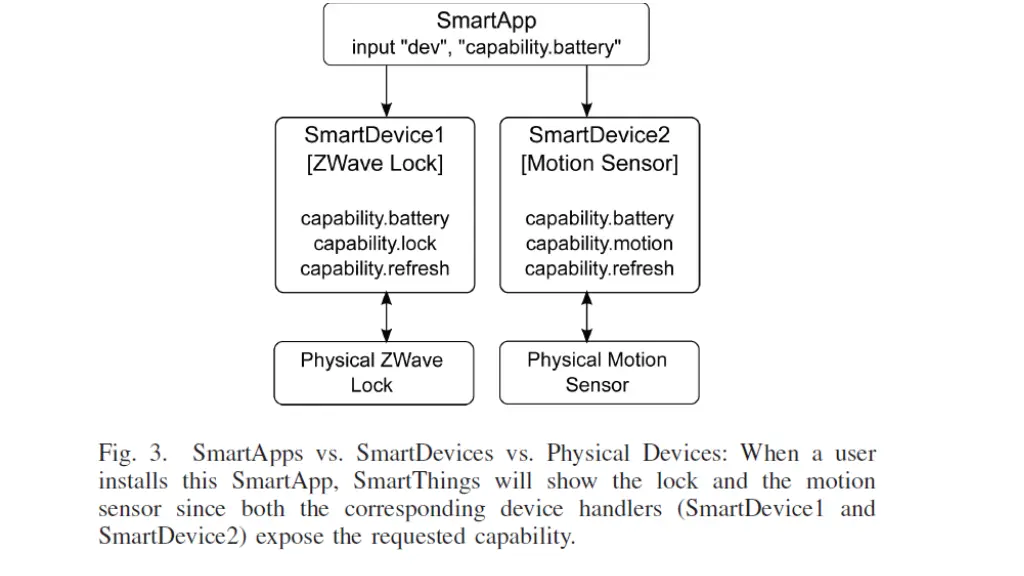

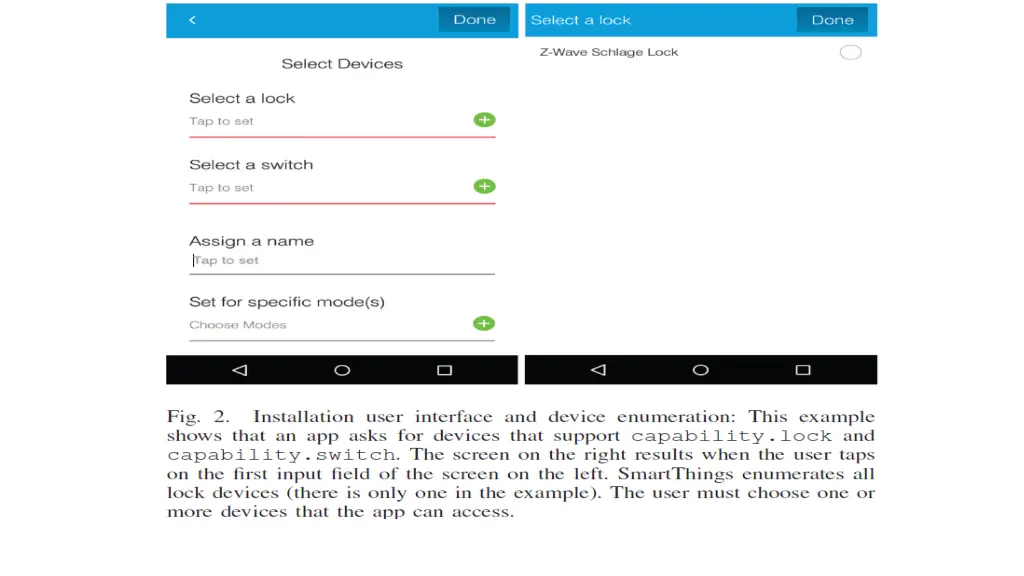

Problem: Coarse SmartApp-SmartDevice Binding SmartThings enumerates all physical devices which support capabilities in Preferences Not told which capabilities were requested Once selected, the SmartApp gains access to all of the capabilities implemented by the device handlers Consider ZWave SmartDevice s capability.battery

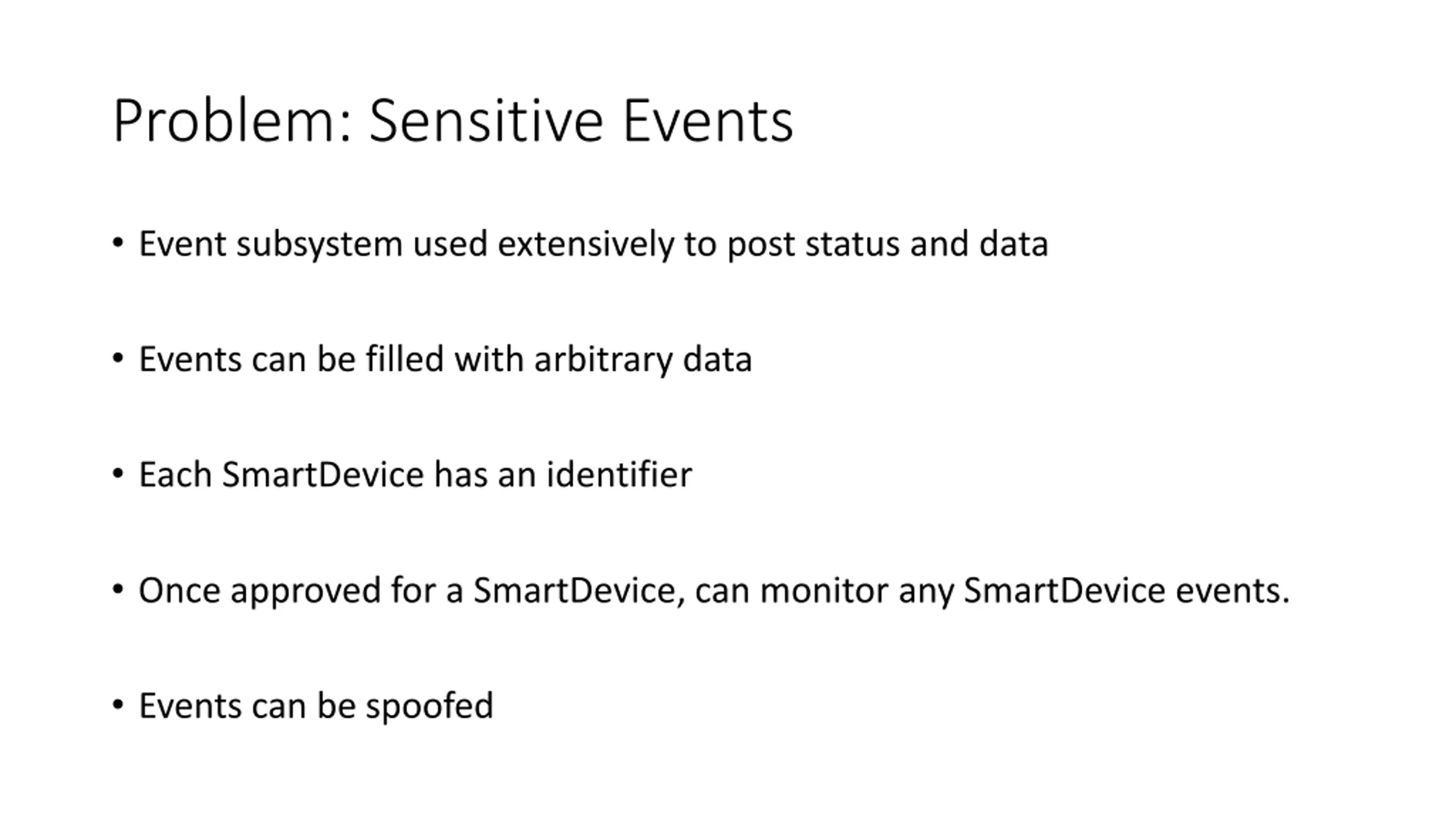

Problem: Sensitive Events Event subsystem used extensively to post status and data Events can be filled with arbitrary data Each SmartDevice has an identifier Once approved for a SmartDevice, can monitor any SmartDevice events. Events can be spoofed

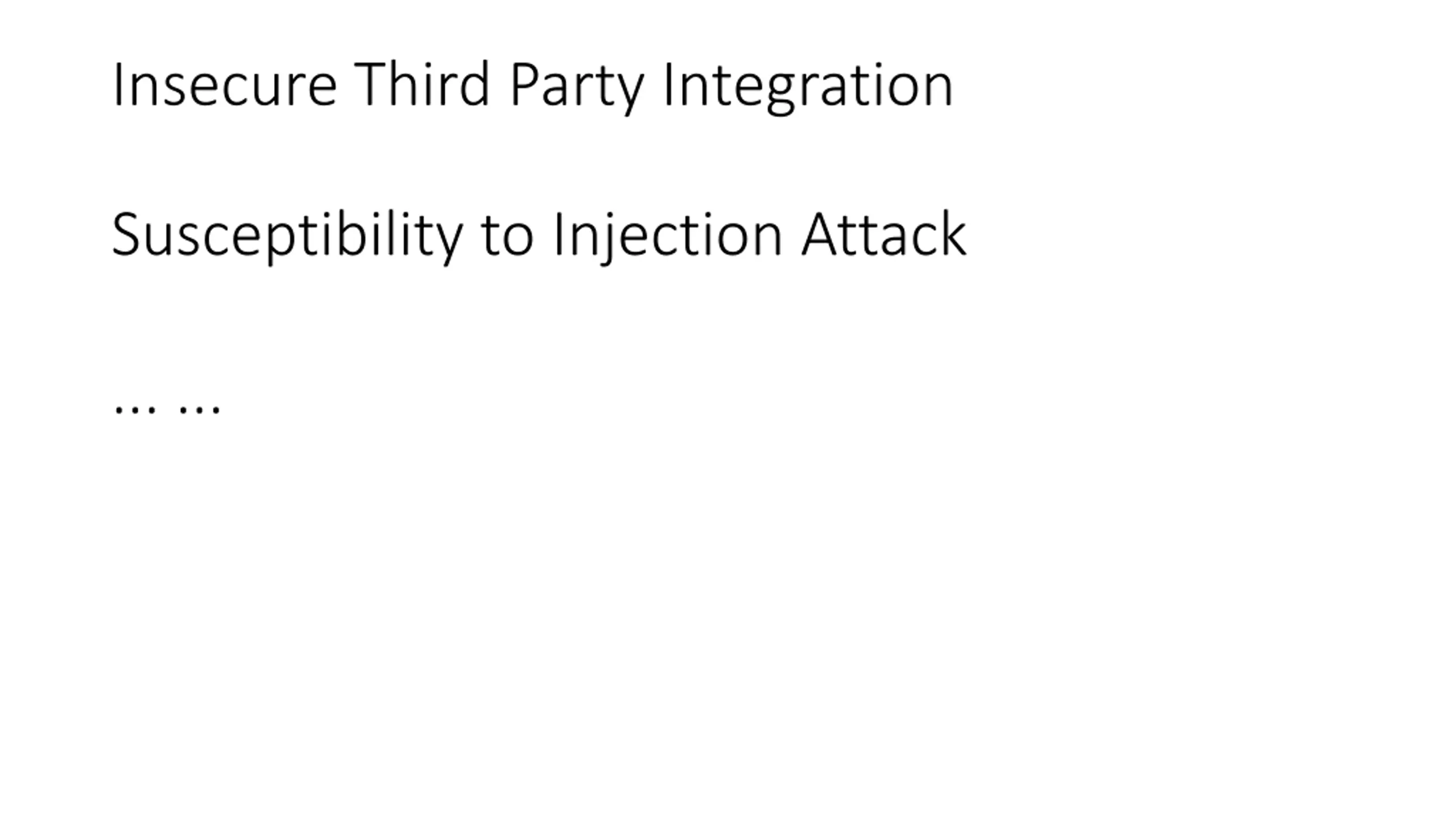

Insecure Third Party Integration Susceptibility to Injection Attack ... ...
