Analyzing the Impact of Aspect-Oriented Refactoring on Software Components

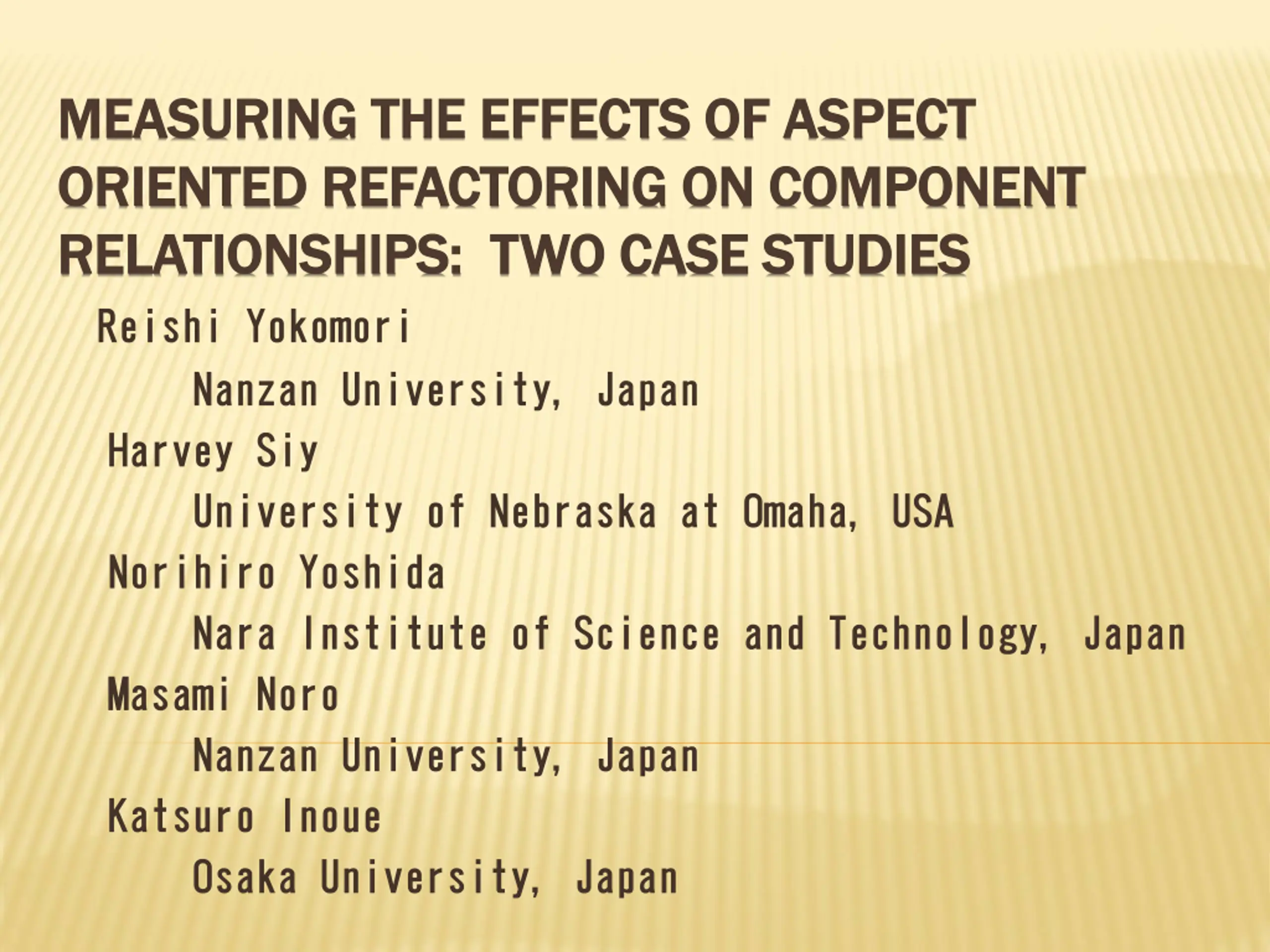

MEASURING THE EFFECTS OF MEASURING THE EFFECTS OF ASPECT ORIENTED ORIENTED REFACTORING REFACTORING ON COMPONENT RELATIONSHIPS: RELATIONSHIPS: TWO TWO CASE STUDIES Reishi Yokomori Nanzan University, Japan Harvey Siy University of Nebraska at Omaha, USA Norihiro Yoshida Nara Institute of Science and Technology, Japan Masami Noro Nanzan University, Japan Katsuro Inoue Osaka University, Japan ASPECT ON COMPONENT CASE STUDIES

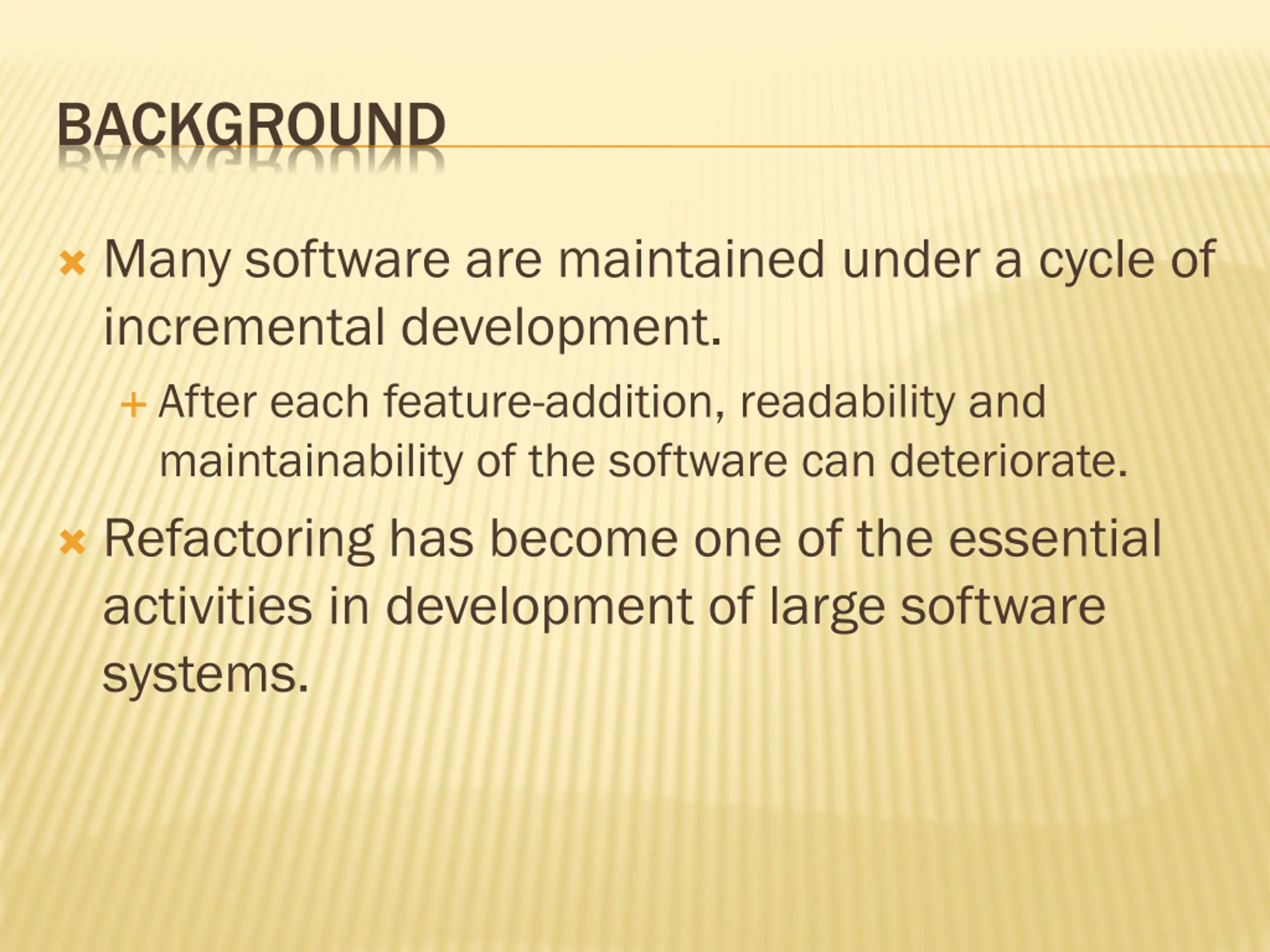

BACKGROUND Many software are maintained under a cycle of incremental development. After each feature-addition, readability and maintainability of the software can deteriorate. Refactoring has become one of the essential activities in development of large software systems.

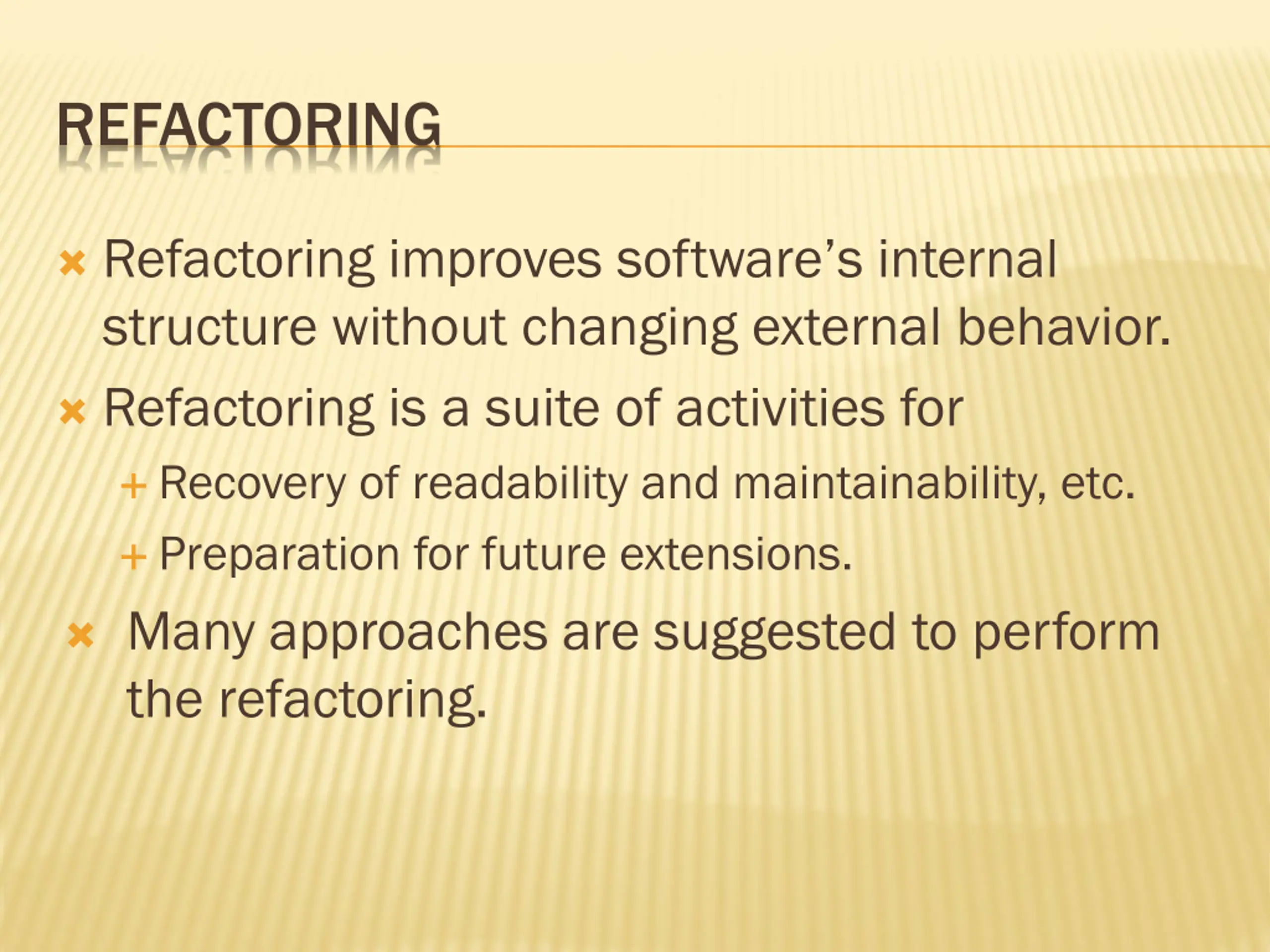

REFACTORING Refactoring improves software s internal structure without changing external behavior. Refactoring is a suite of activities for Recovery of readability and maintainability, etc. Preparation for future extensions. Many approaches are suggested to perform the refactoring.

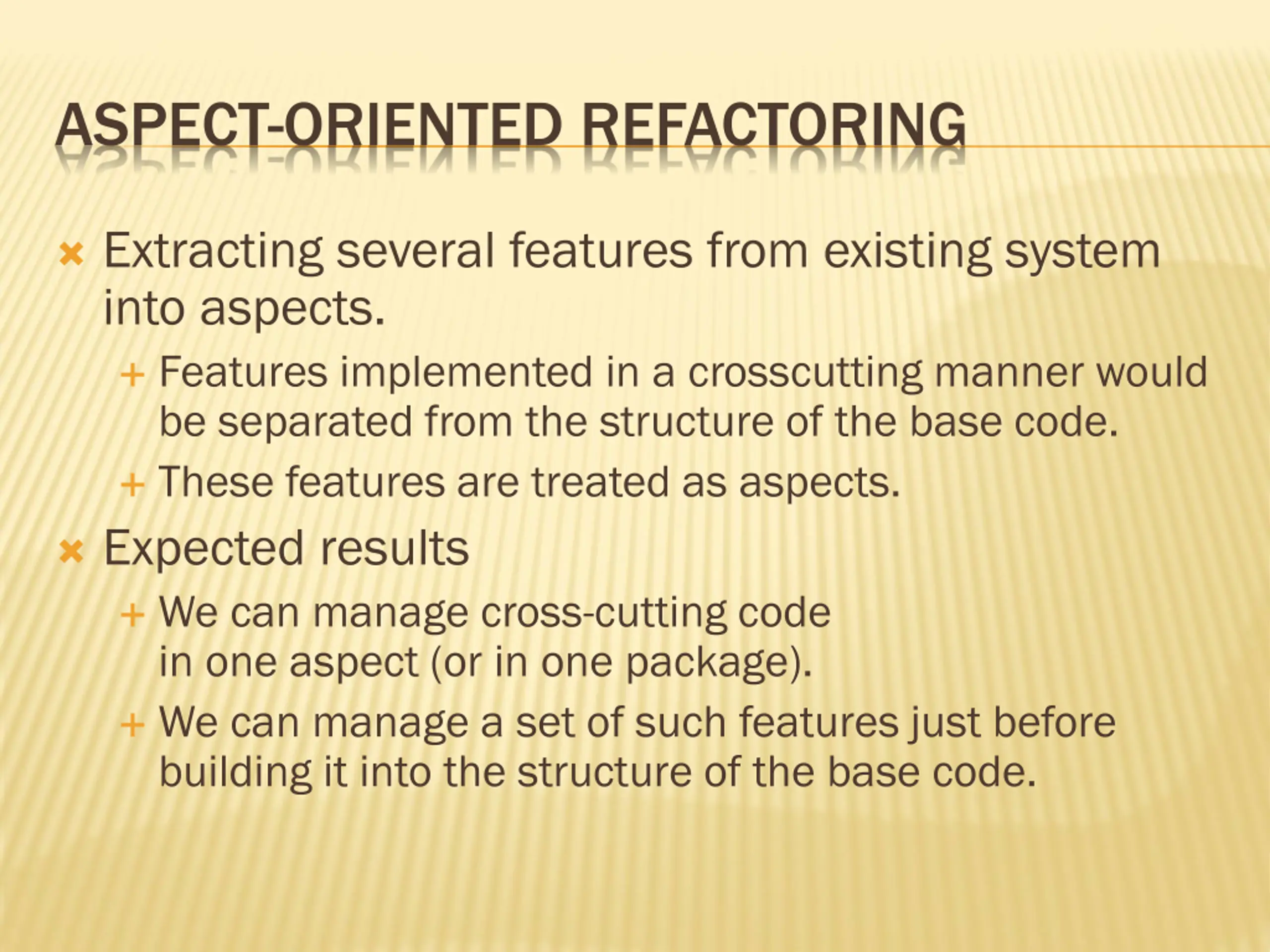

ASPECT-ORIENTED REFACTORING Extracting several features from existing system into aspects. Features implemented in a crosscutting manner would be separated from the structure of the base code. These features are treated as aspects. Expected results We can manage cross-cutting code in one aspect (or in one package). We can manage a set of such features just before building it into the structure of the base code.

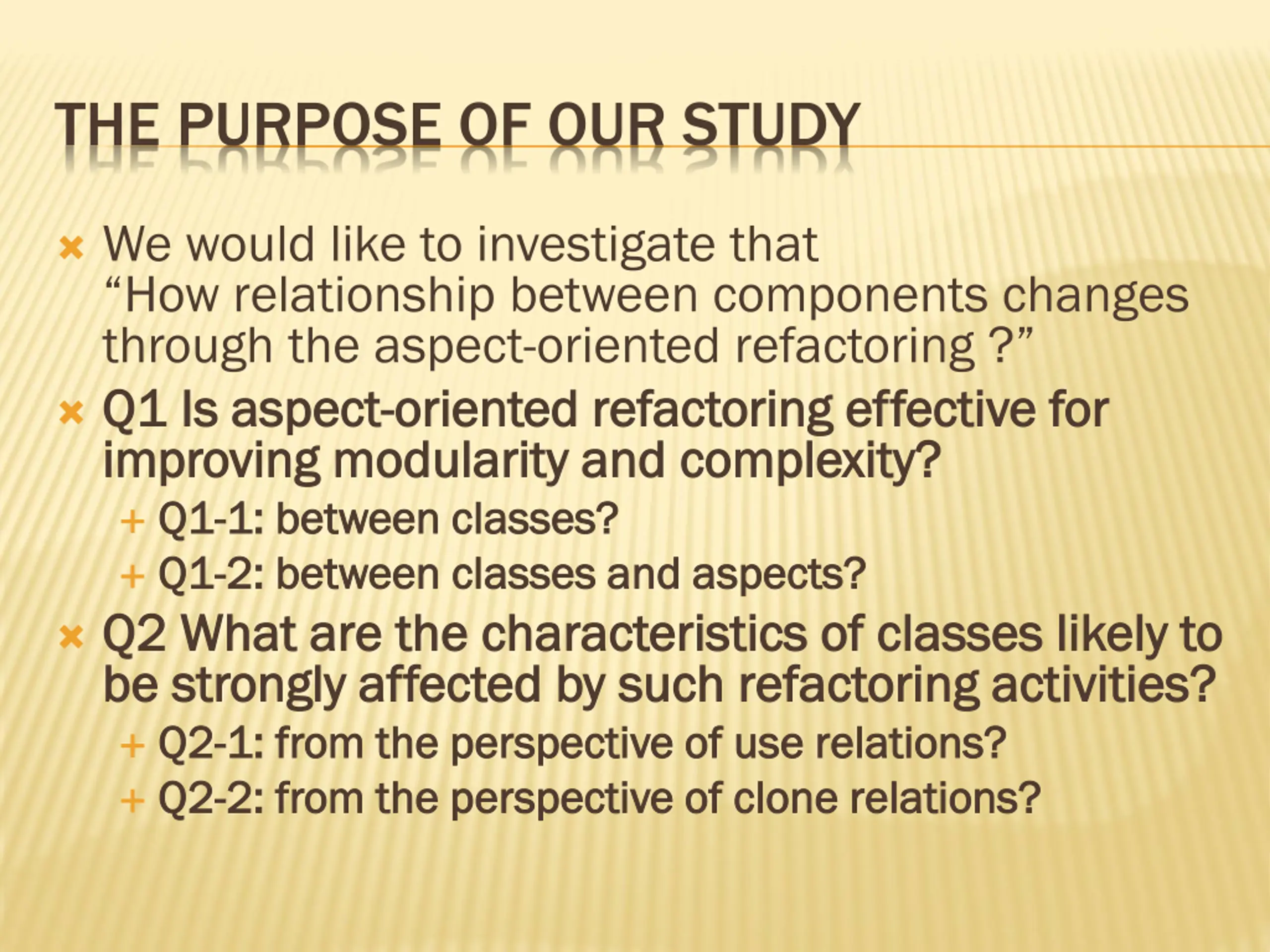

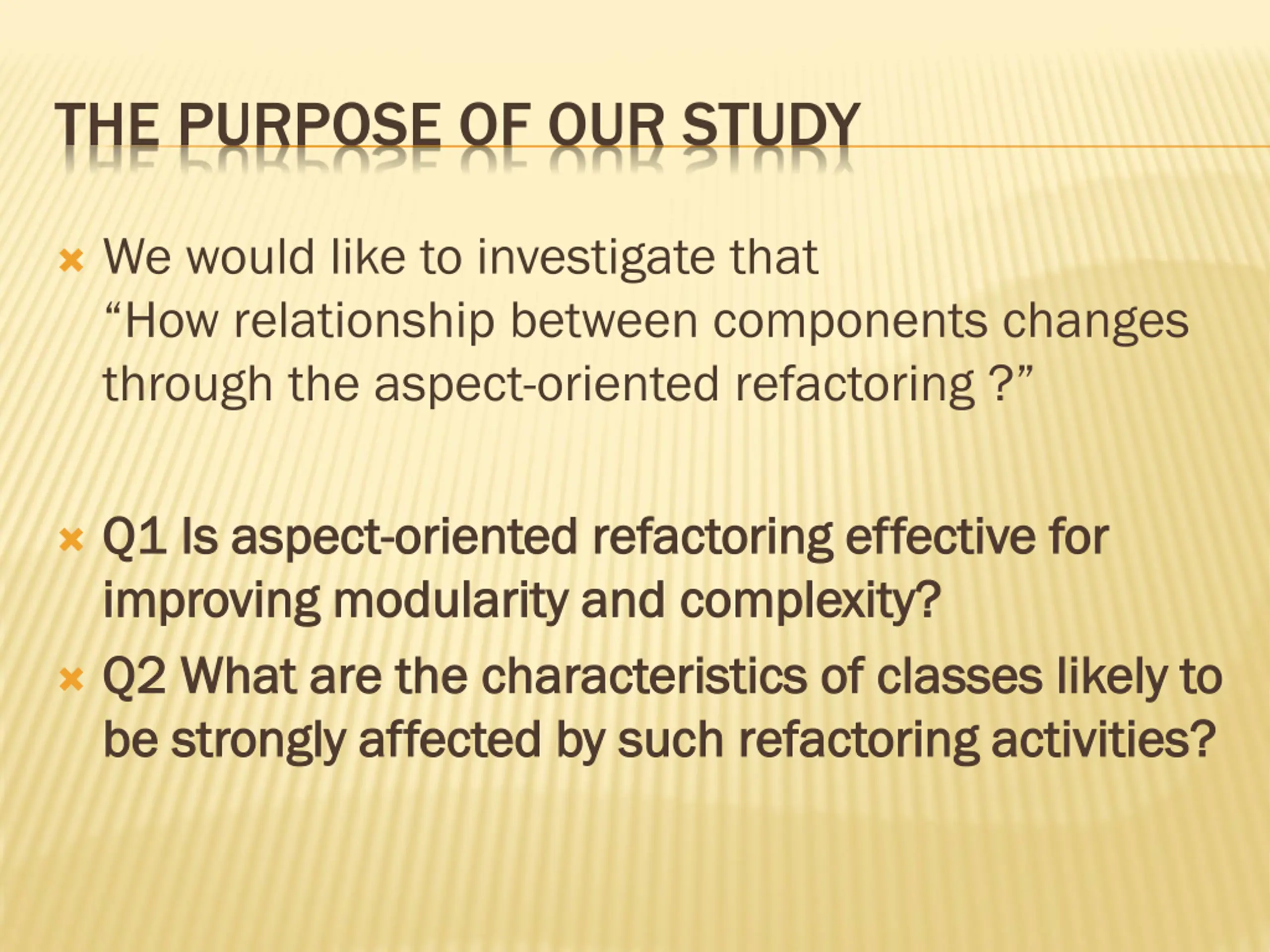

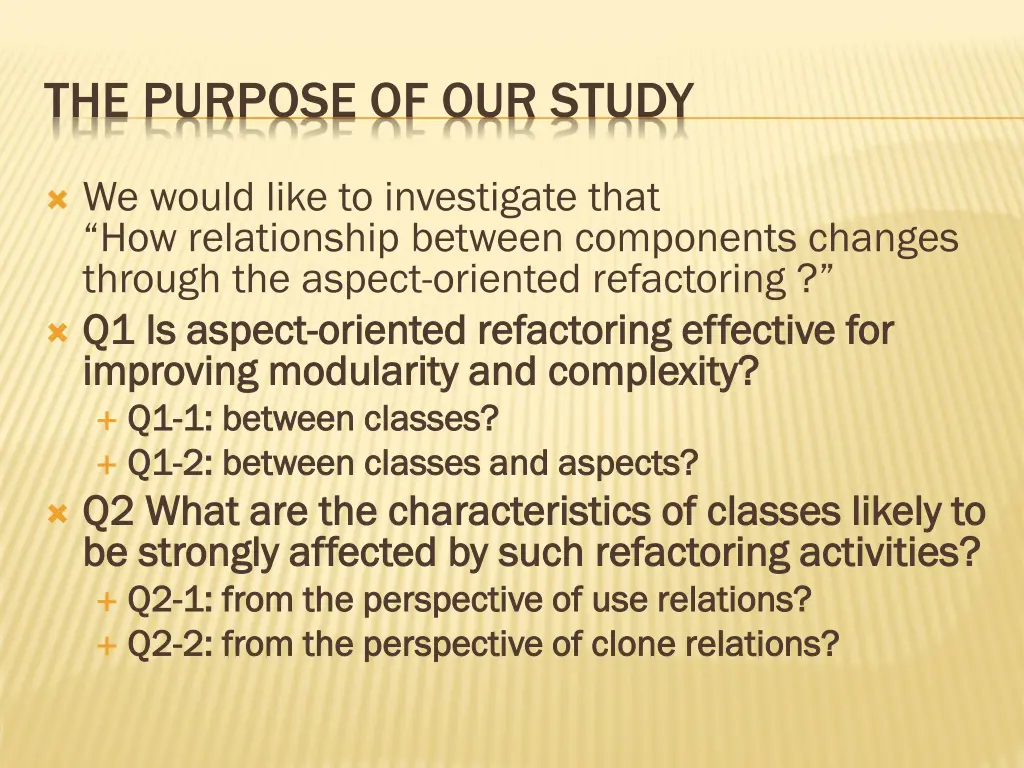

THE PURPOSE OF OUR STUDY We would like to investigate that How relationship between components changes through the aspect-oriented refactoring ? Q1 Q1 Is aspect Is aspect- -oriented refactoring effective for oriented refactoring effective for improving improving modularity and modularity and complexity Q2 What are the characteristics of classes likely to Q2 What are the characteristics of classes likely to be be strongly affected strongly affected by such refactoring activities by such refactoring activities? ? complexity? ?

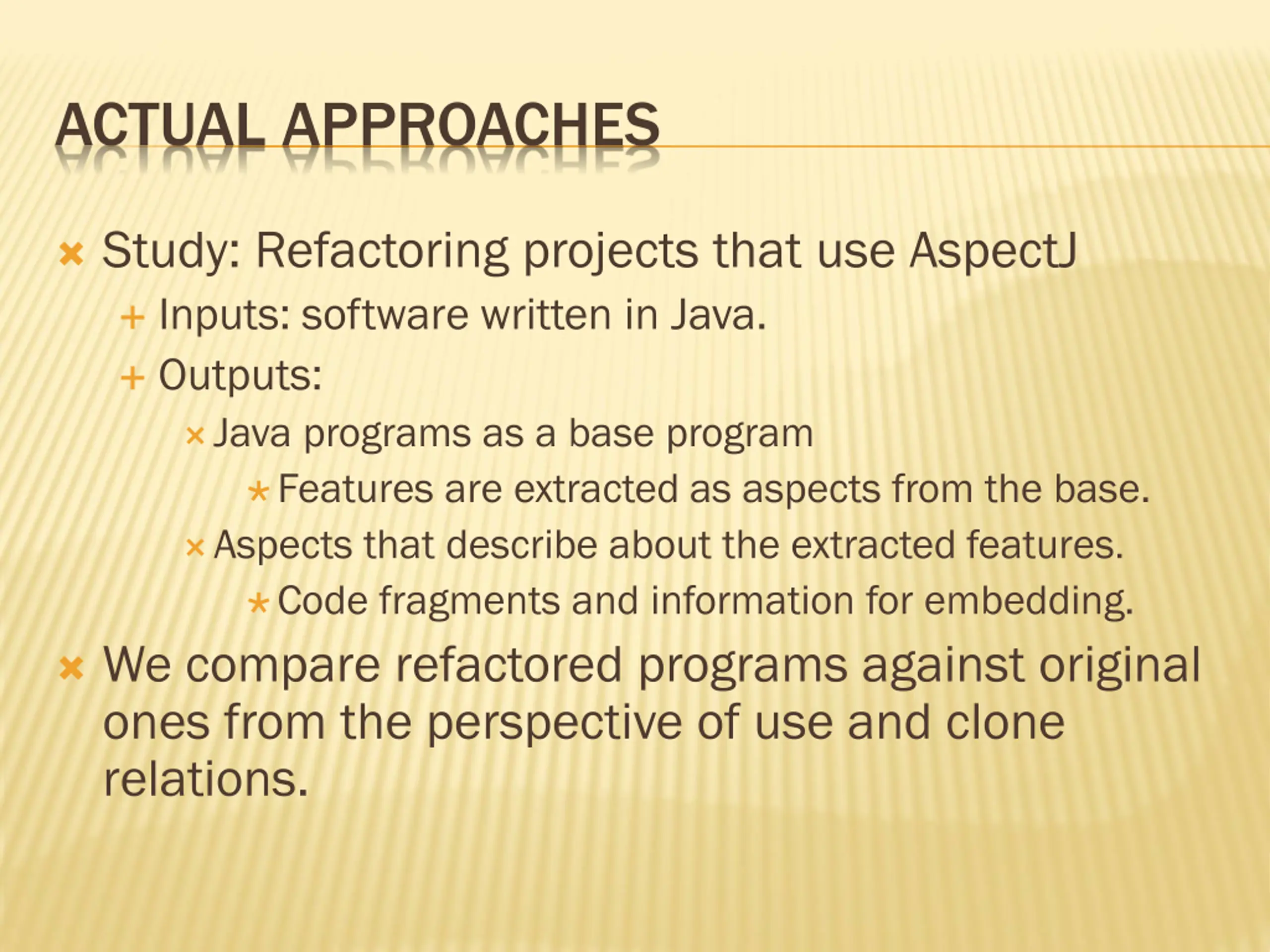

ACTUAL APPROACHES Study: Refactoring projects that use AspectJ Inputs: software written in Java. Outputs: Java programs as a base program Features are extracted as aspects from the base. Aspects that describe about the extracted features. Code fragments and information for embedding. We compare refactored programs against original ones from the perspective of use and clone relations.

THE PURPOSE OF OUR STUDY We would like to investigate that How relationship between components changes through the aspect-oriented refactoring ? Q1 Q1 Is aspect Is aspect- -oriented refactoring effective for oriented refactoring effective for improving improving modularity and modularity and complexity Q1 Q1- -1: between classes? 1: between classes? Q1 Q1- -2: between classes and aspects? 2: between classes and aspects? Q2 What are the characteristics of classes likely to Q2 What are the characteristics of classes likely to be be strongly affected strongly affected by such refactoring activities by such refactoring activities? ? Q2 Q2- -1: from the perspective of use relations? 1: from the perspective of use relations? Q2 Q2- -2: 2: from from the perspective of clone relations? the perspective of clone relations? complexity? ?

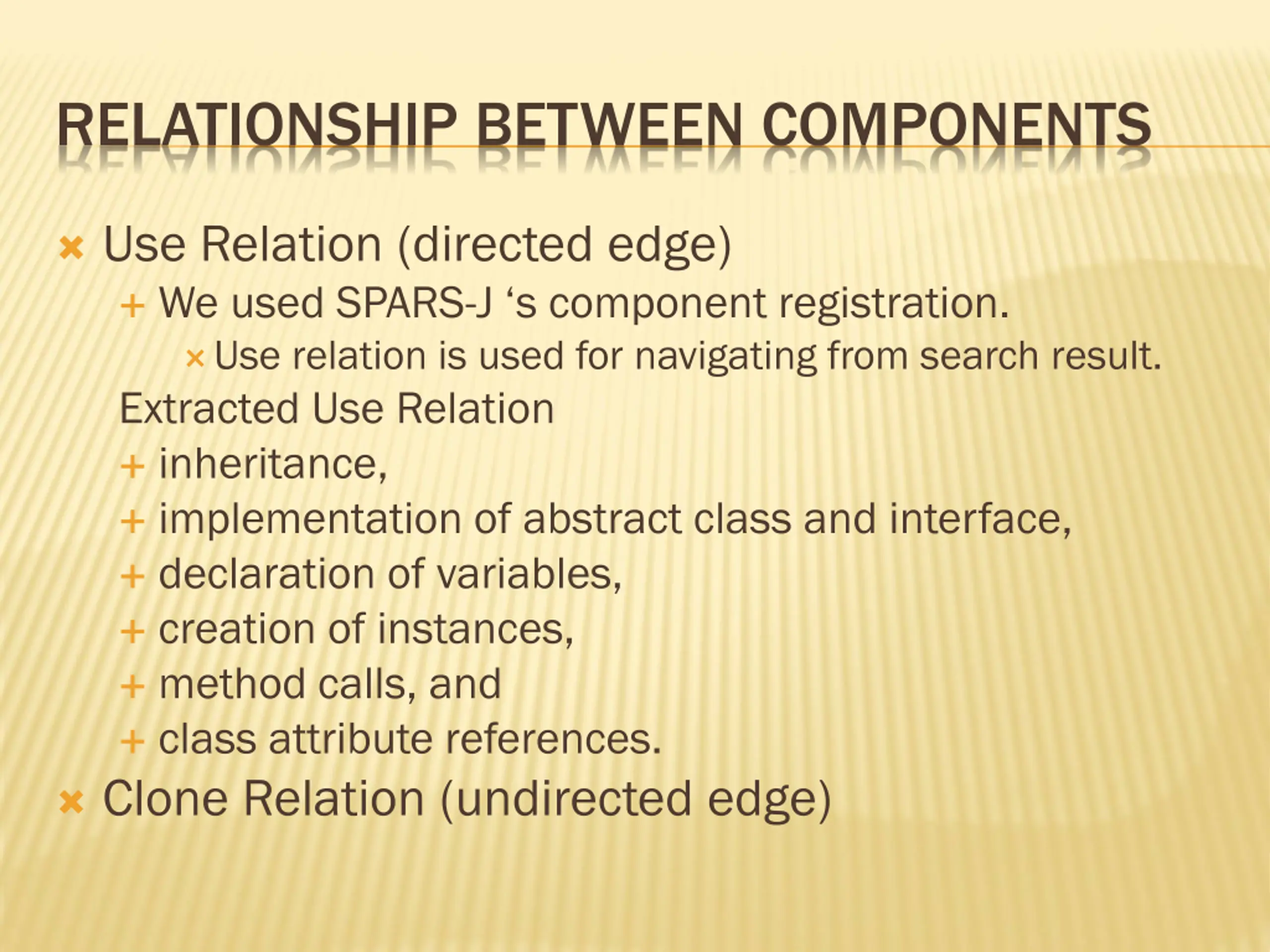

RELATIONSHIP BETWEEN COMPONENTS Use Relation (directed edge) We used SPARS-J s component registration. Use relation is used for navigating from search result. Extracted Use Relation inheritance, implementation of abstract class and interface, declaration of variables, creation of instances, method calls, and class attribute references. Clone Relation (undirected edge)

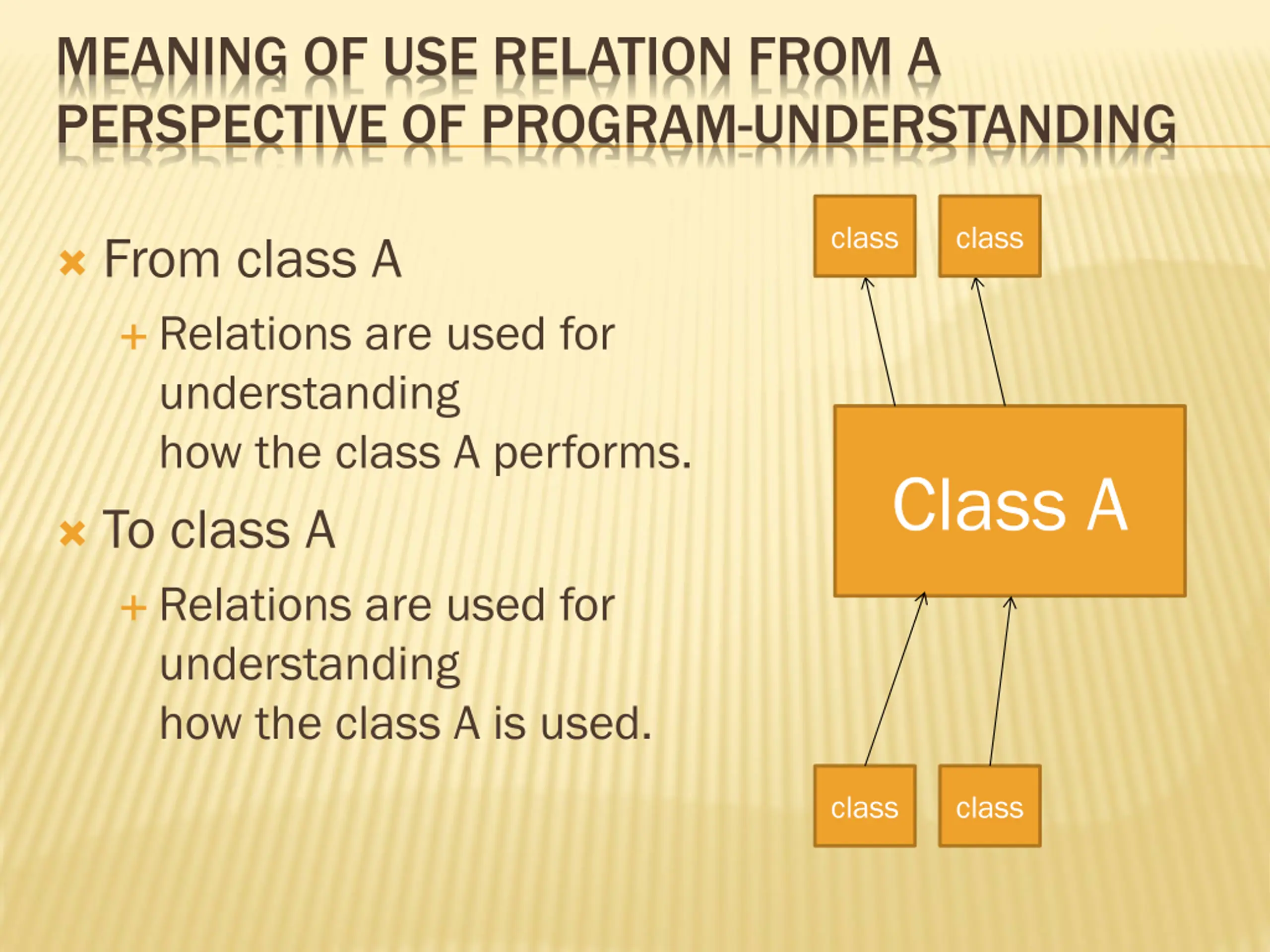

MEANING OF USE RELATION FROM A PERSPECTIVE OF PROGRAM-UNDERSTANDING class class From class A Relations are used for understanding how the class A performs. To class A Relations are used for understanding how the class A is used. Class A class class

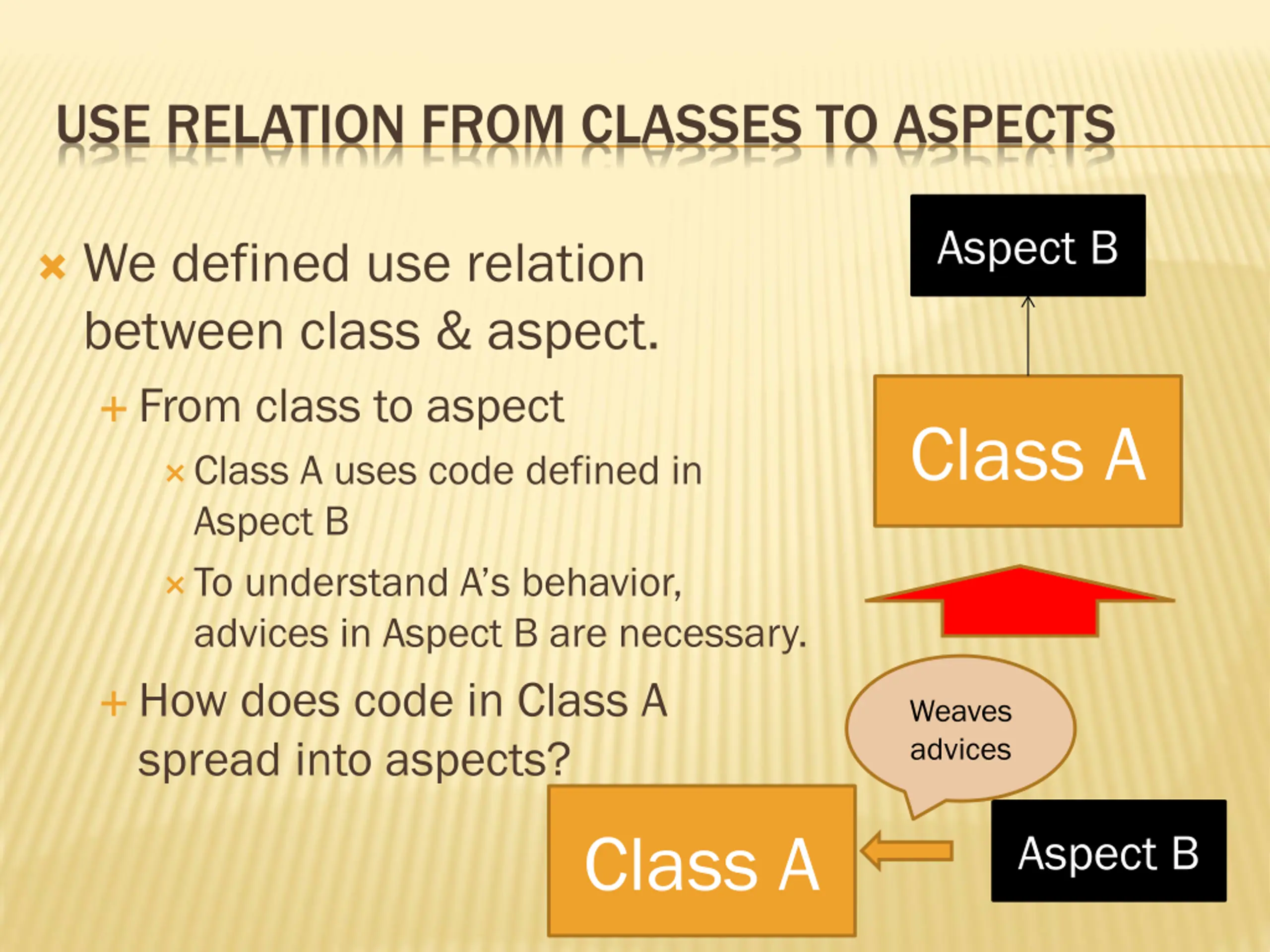

USE RELATION FROM CLASSES TO ASPECTS Aspect B We defined use relation between class & aspect. From class to aspect Class A uses code defined in Aspect B To understand A s behavior, advices in Aspect B are necessary. How does code in Class A spread into aspects? Class A Weaves advices Class A Aspect B

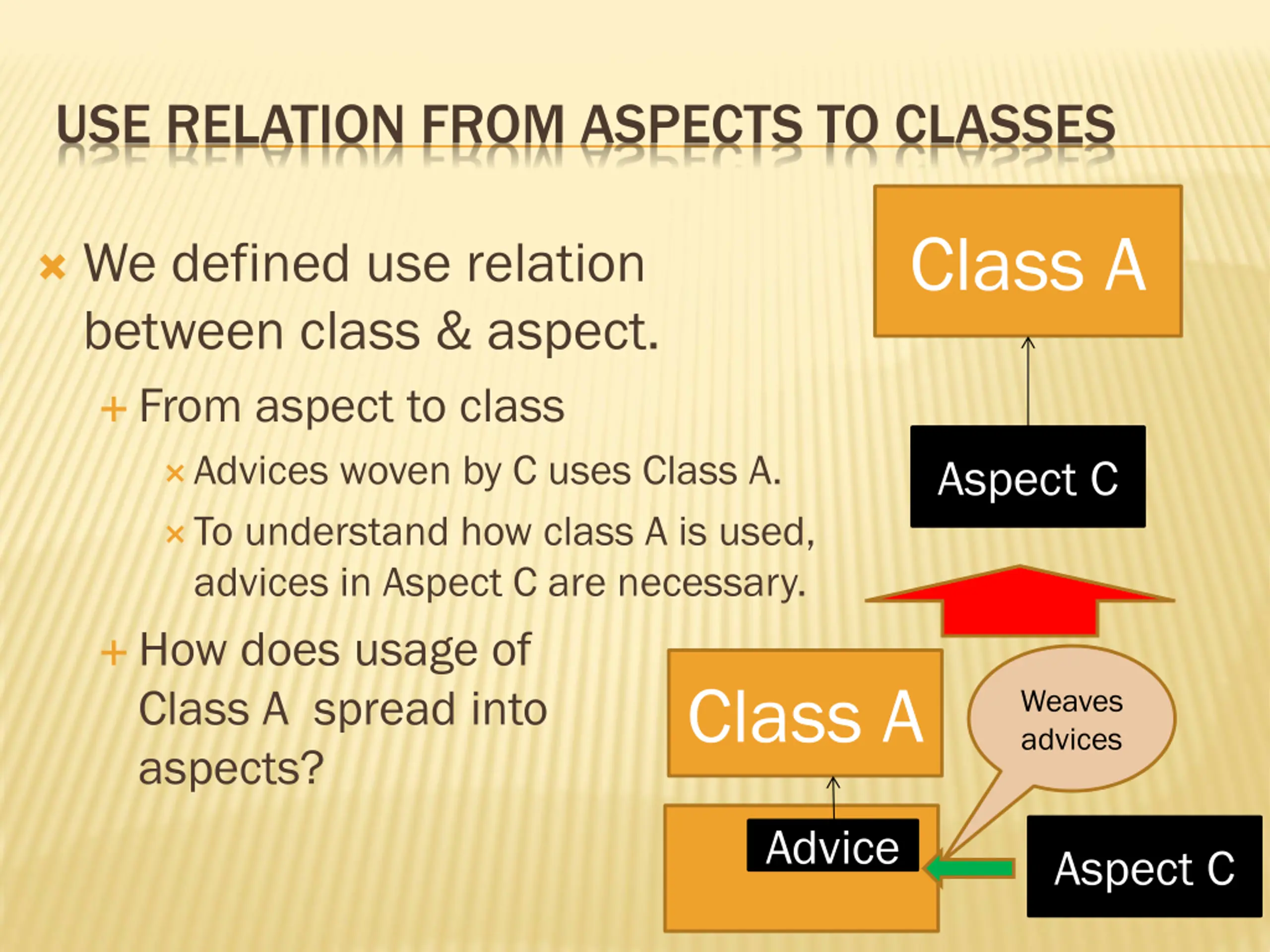

USE RELATION FROM ASPECTS TO CLASSES Class A We defined use relation between class & aspect. From aspect to class Advices woven by C uses Class A. To understand how class A is used, advices in Aspect C are necessary. How does usage of Class A spread into aspects? Aspect C Class A Weaves advices Advice Aspect C

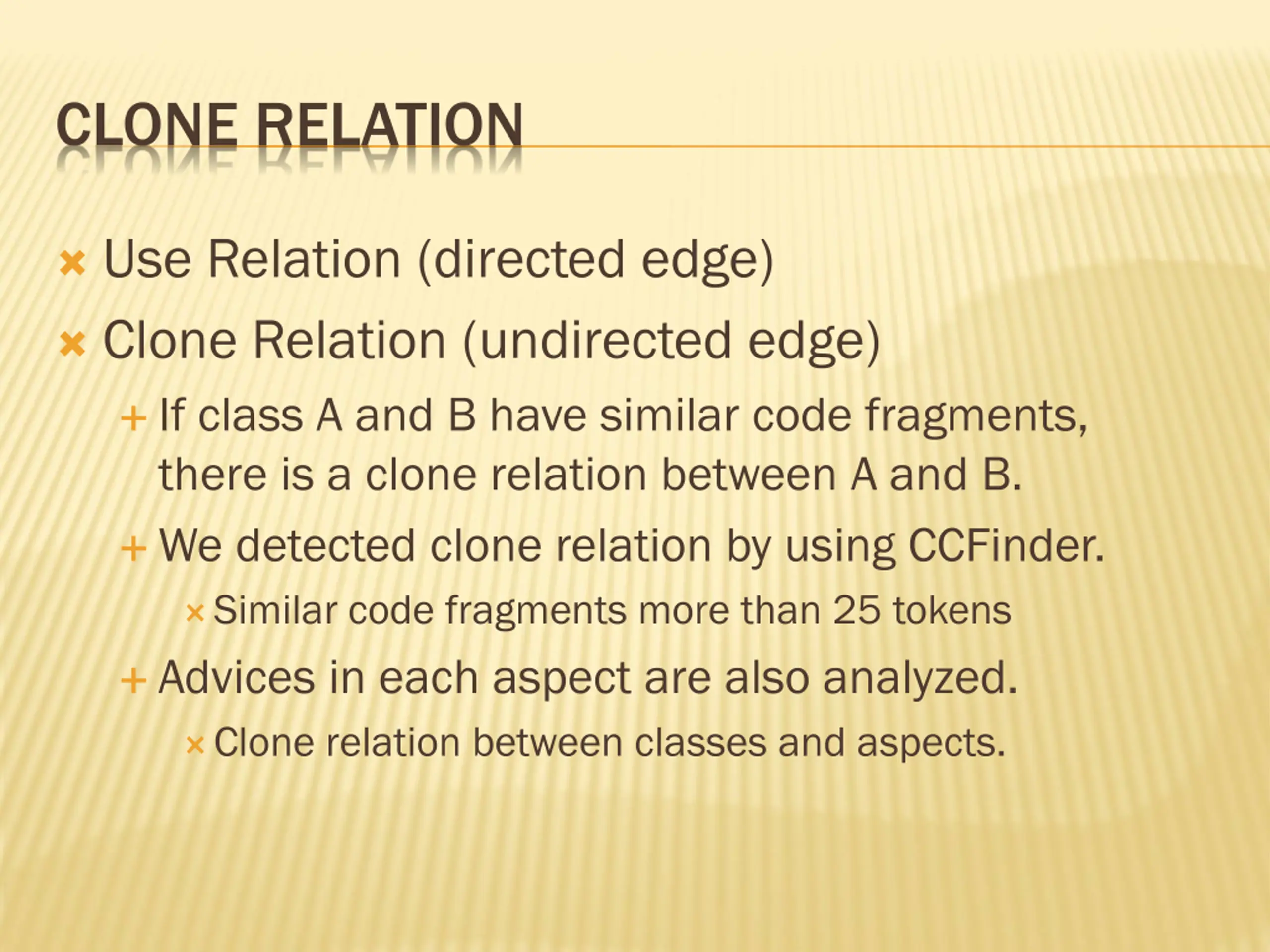

CLONE RELATION Use Relation (directed edge) Clone Relation (undirected edge) If class A and B have similar code fragments, there is a clone relation between A and B. We detected clone relation by using CCFinder. Similar code fragments more than 25 tokens Advices in each aspect are also analyzed. Clone relation between classes and aspects.

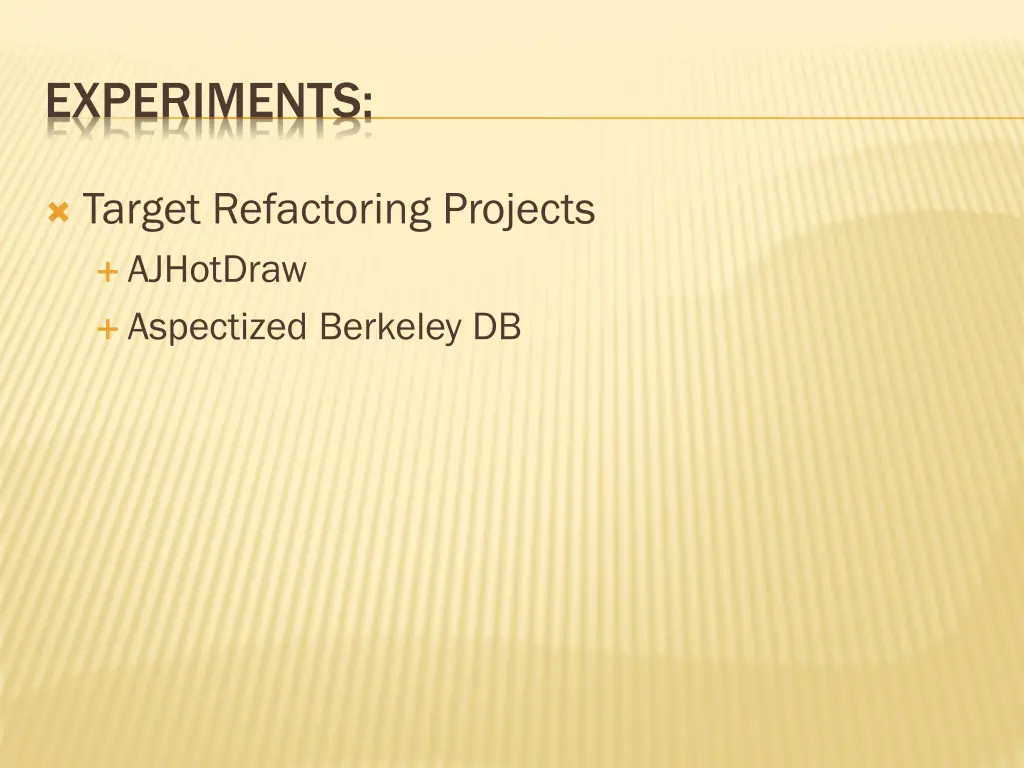

EXPERIMENTS: Target Refactoring Projects AJHotDraw Aspectized Berkeley DB

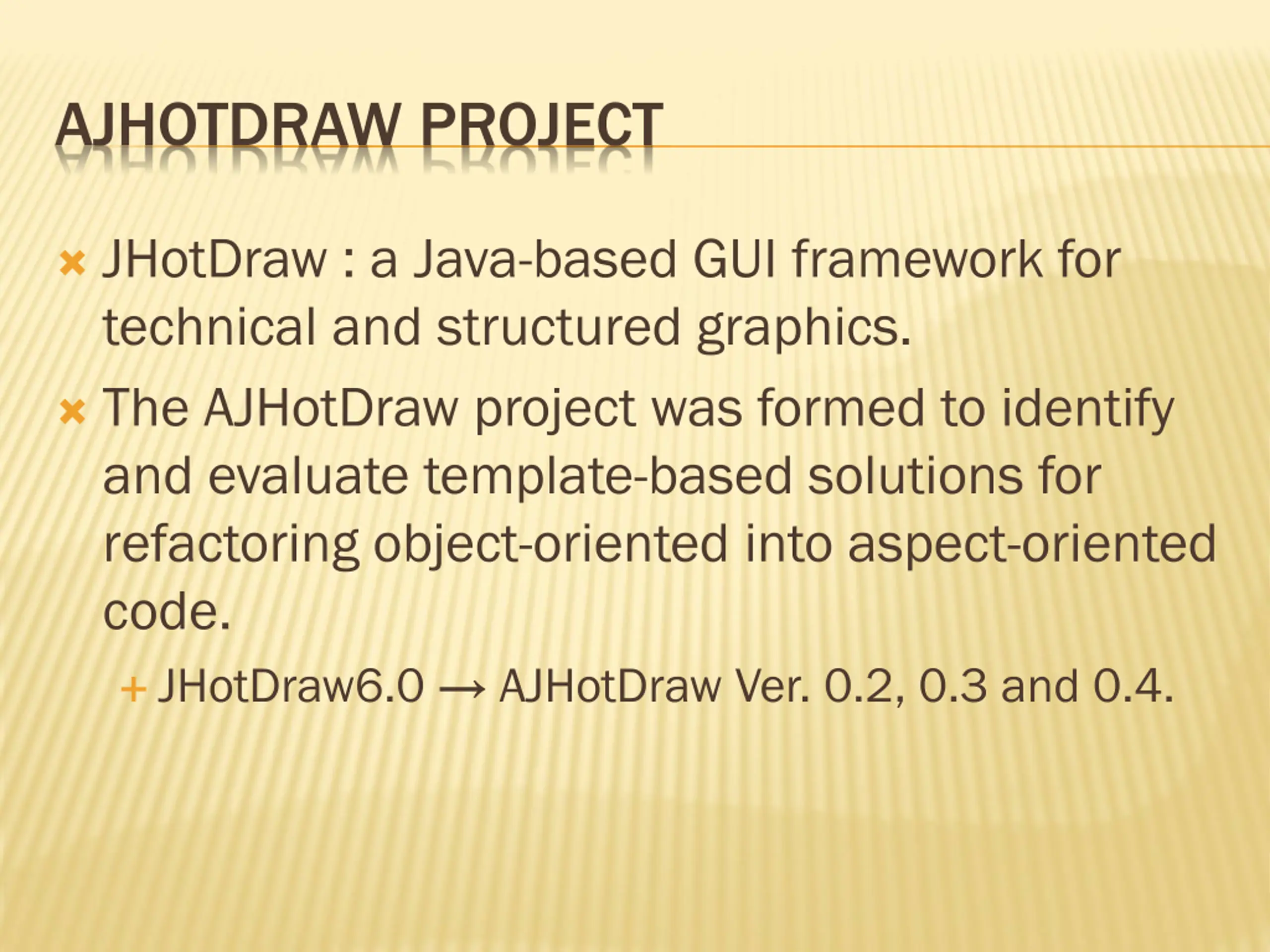

AJHOTDRAW PROJECT JHotDraw : a Java-based GUI framework for technical and structured graphics. The AJHotDraw project was formed to identify and evaluate template-based solutions for refactoring object-oriented into aspect-oriented code. JHotDraw6.0 AJHotDraw Ver. 0.2, 0.3 and 0.4.

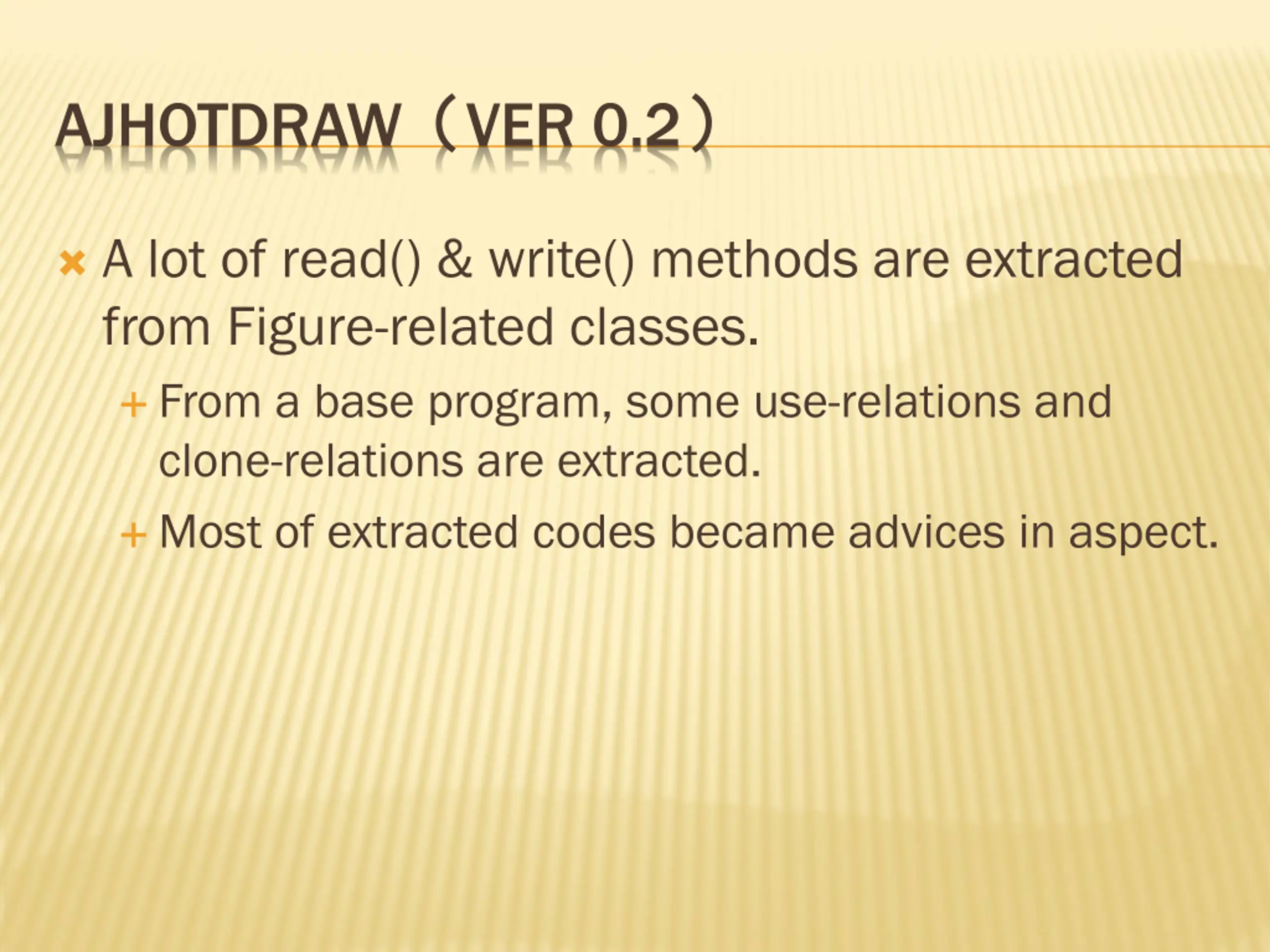

AJHOTDRAWVER 0.2 A lot of read() & write() methods are extracted from Figure-related classes. From a base program, some use-relations and clone-relations are extracted. Most of extracted codes became advices in aspect.

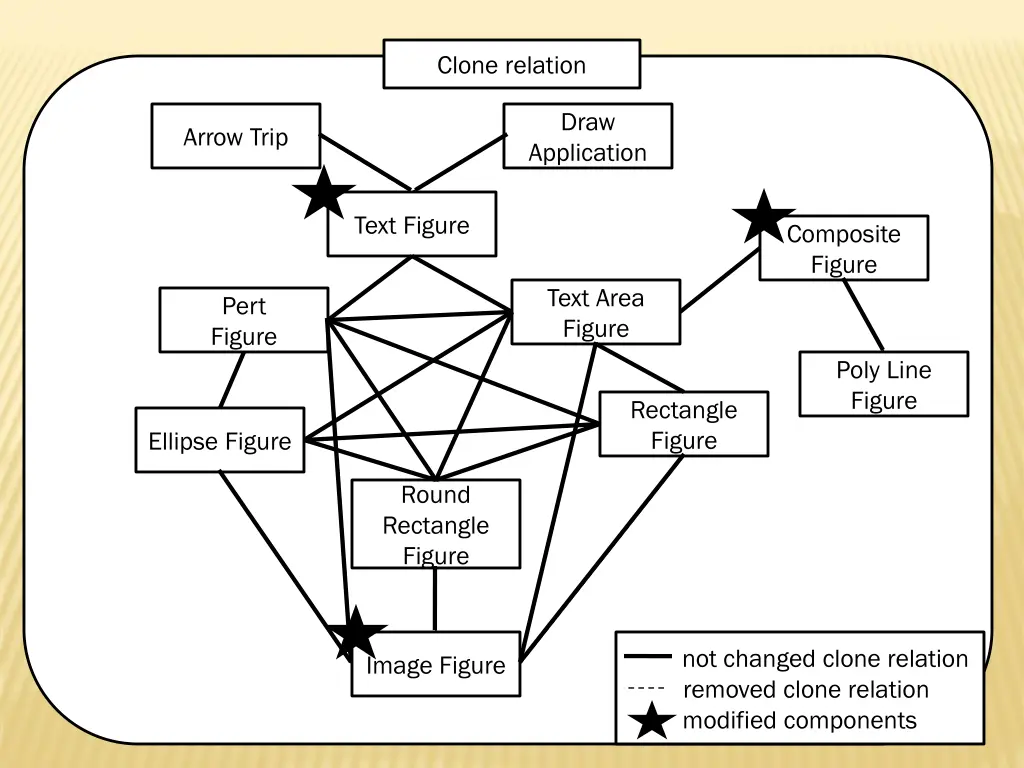

Clone relation Draw Arrow Trip Application Text Figure Composite Figure Text Area Figure Pert Figure Poly Line Figure Rectangle Figure Ellipse Figure Round Rectangle Figure not changed clone relation removed clone relation modified components Image Figure

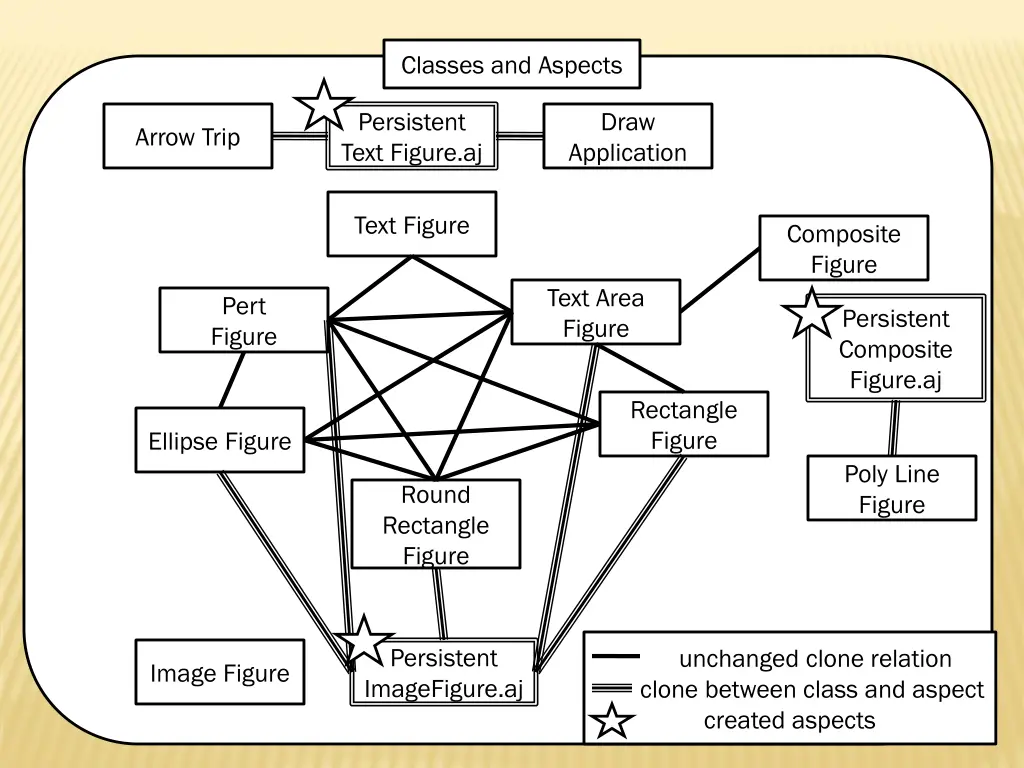

Classes and Aspects Persistent Text Figure.aj Draw Arrow Trip Application Text Figure Composite Figure Text Area Figure Pert Figure Persistent Composite Figure.aj Rectangle Figure Ellipse Figure Poly Line Figure Round Rectangle Figure Persistent ImageFigure.aj unchanged clone relation clone between class and aspect created aspects Image Figure

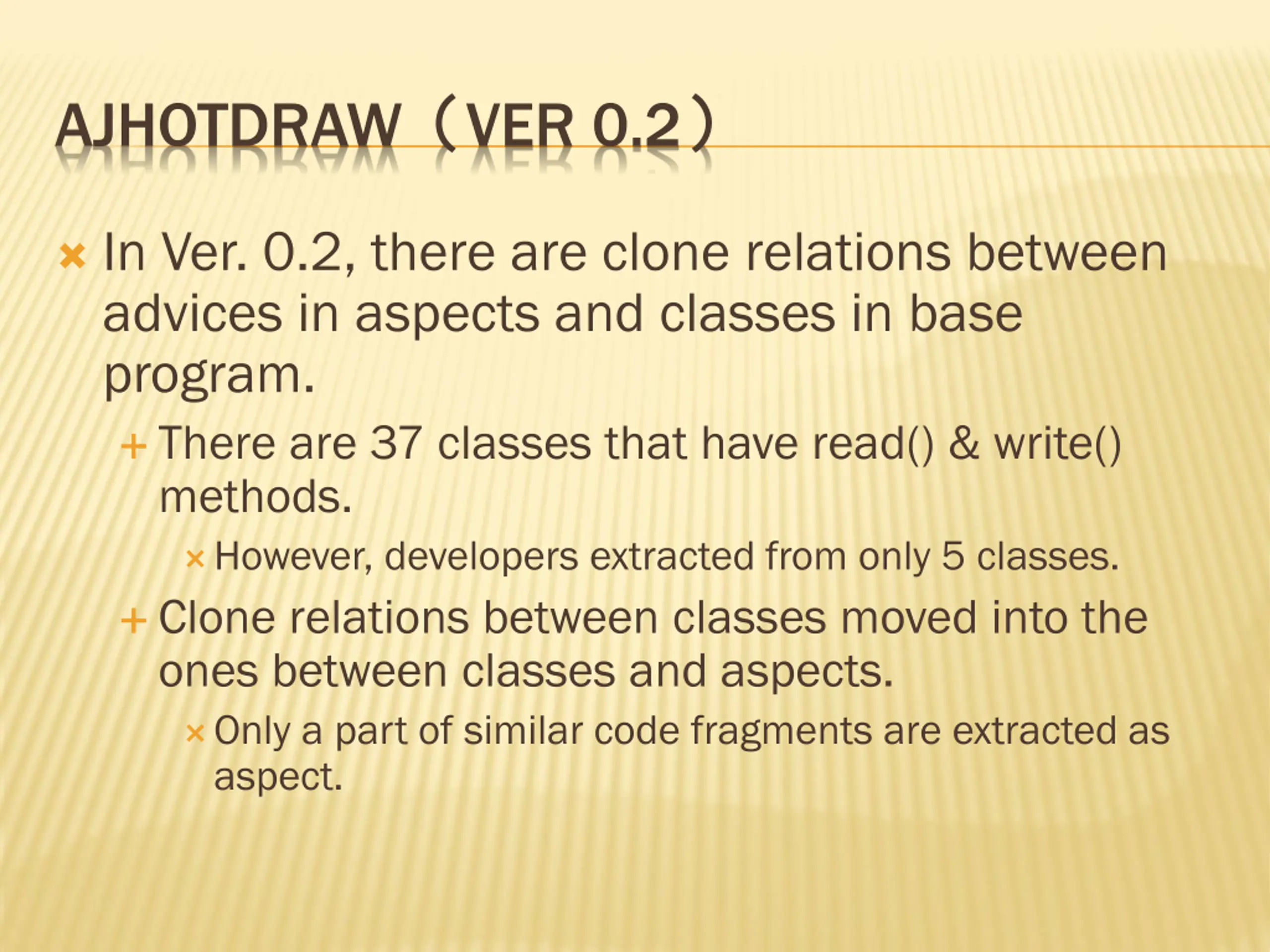

AJHOTDRAWVER 0.2 In Ver. 0.2, there are clone relations between advices in aspects and classes in base program. There are 37 classes that have read() & write() methods. However, developers extracted from only 5 classes. Clone relations between classes moved into the ones between classes and aspects. Only a part of similar code fragments are extracted as aspect.

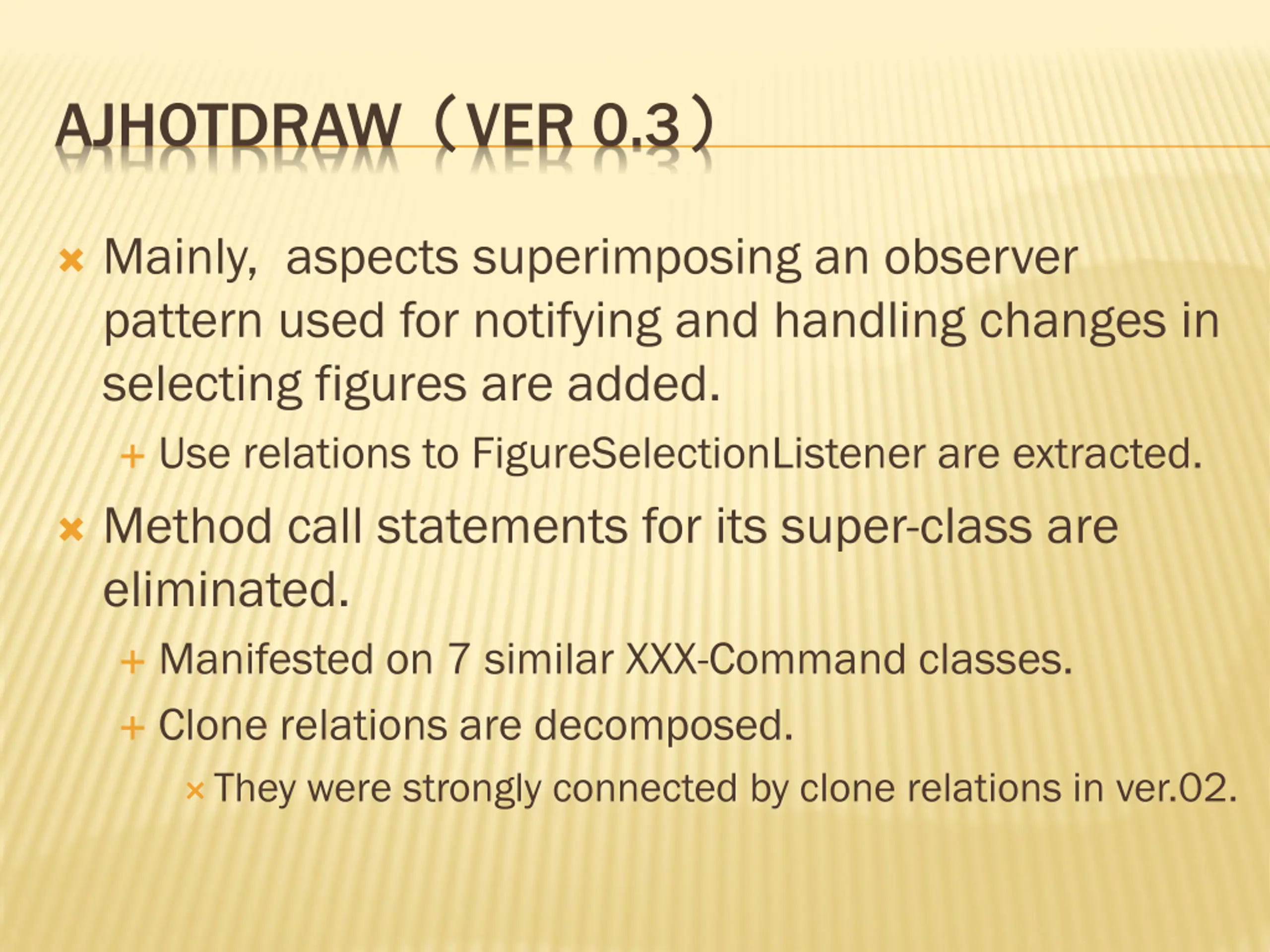

AJHOTDRAWVER 0.3 Mainly, aspects superimposing an observer pattern used for notifying and handling changes in selecting figures are added. Use relations to FigureSelectionListener are extracted. Method call statements for its super-class are eliminated. Manifested on 7 similar XXX-Command classes. Clone relations are decomposed. They were strongly connected by clone relations in ver.02.

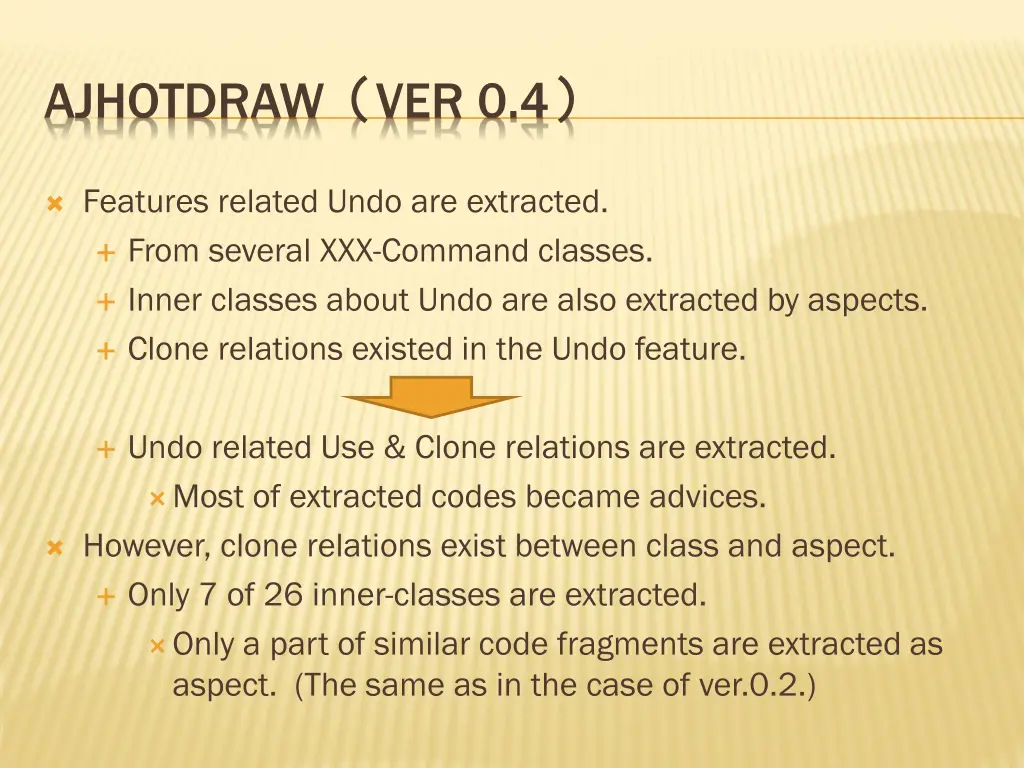

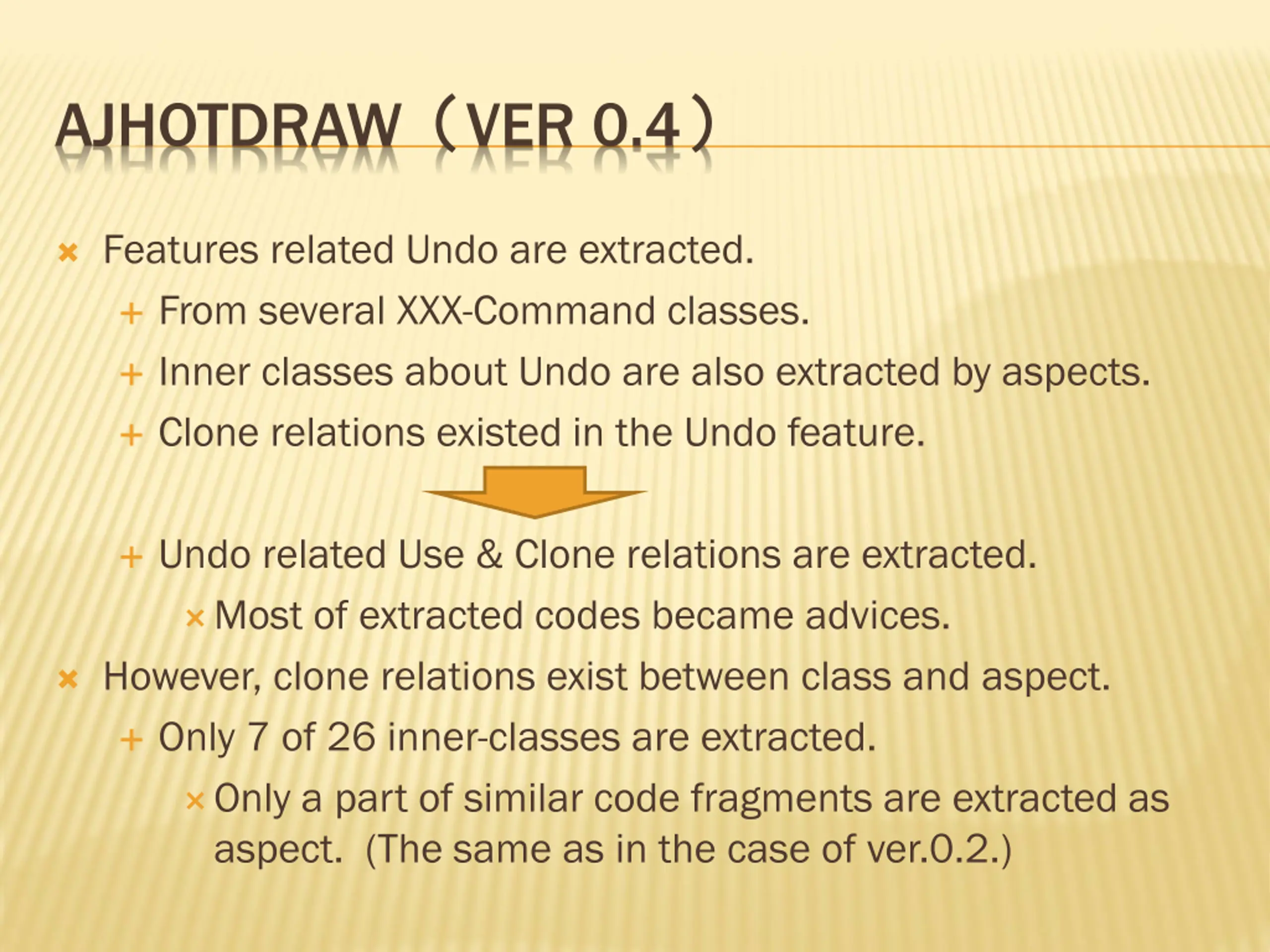

AJHOTDRAWVER 0.4 Features related Undo are extracted. From several XXX-Command classes. Inner classes about Undo are also extracted by aspects. Clone relations existed in the Undo feature. Undo related Use & Clone relations are extracted. Most of extracted codes became advices. However, clone relations exist between class and aspect. Only 7 of 26 inner-classes are extracted. Only a part of similar code fragments are extracted as aspect. (The same as in the case of ver.0.2.)

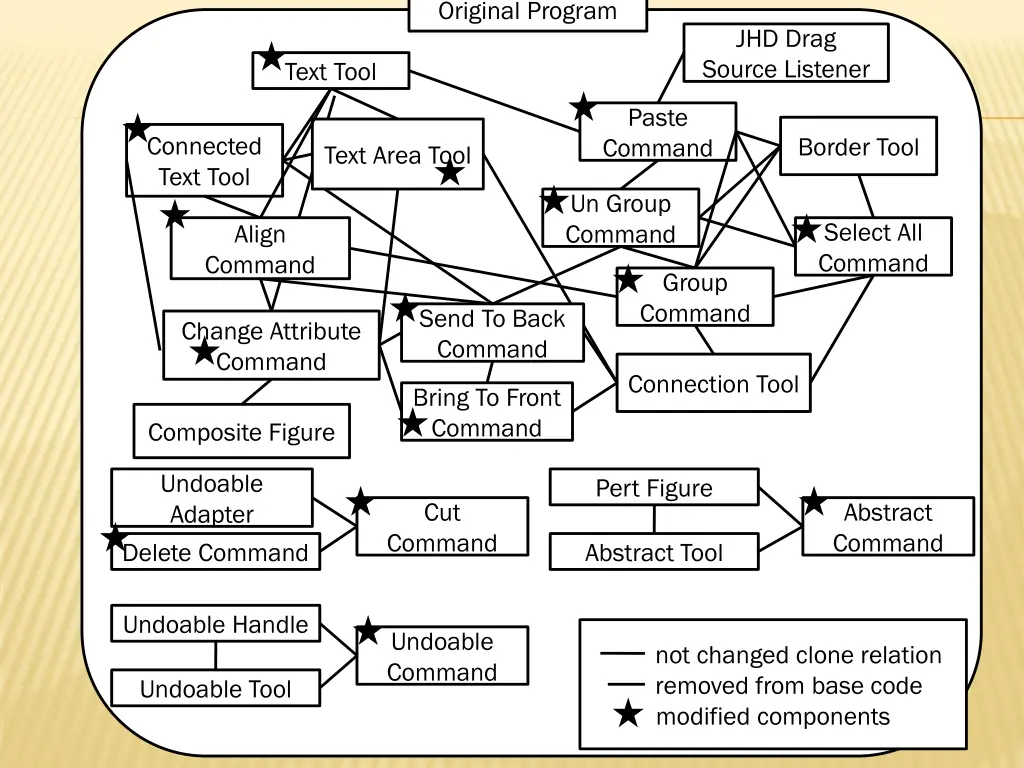

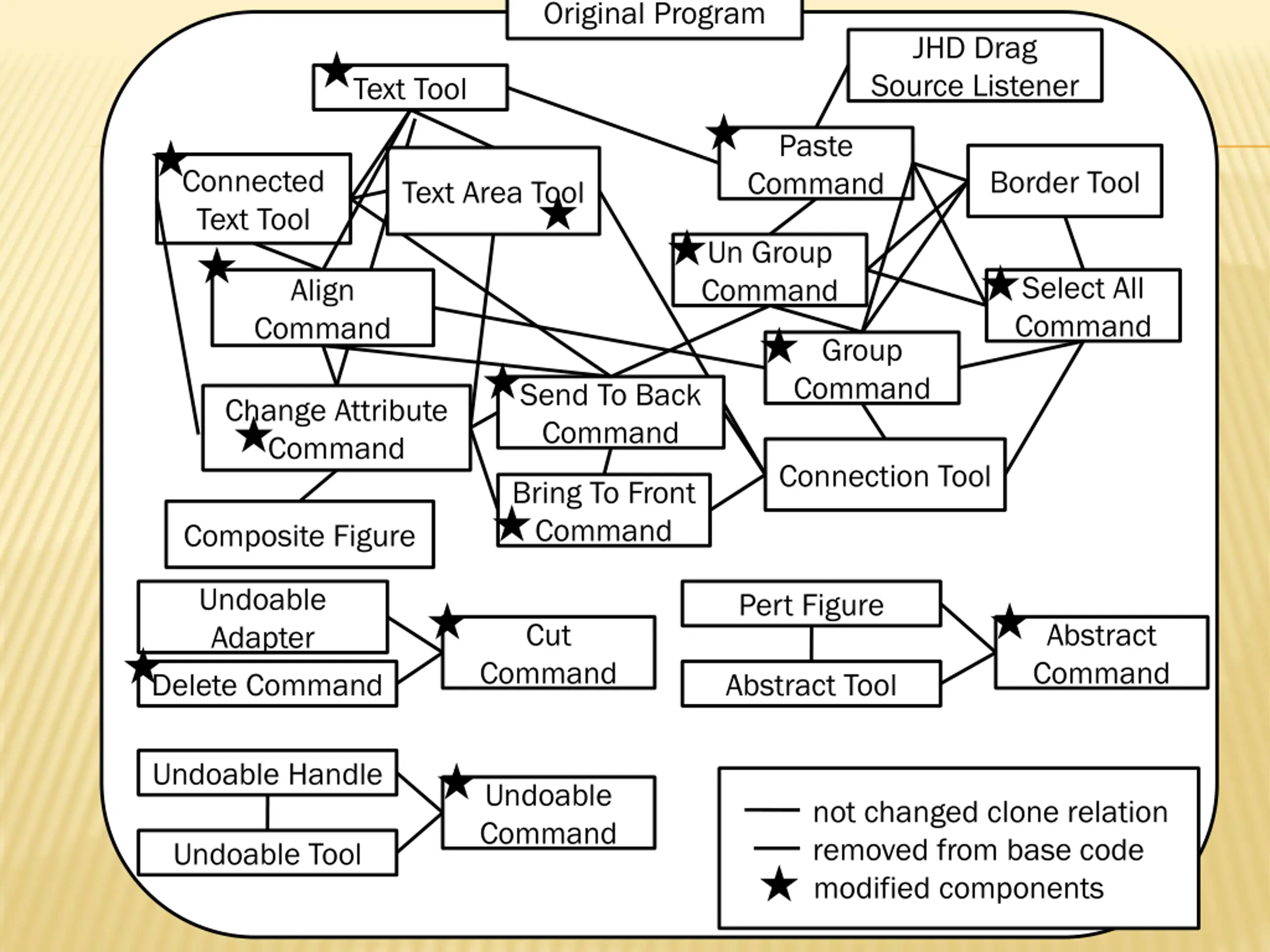

Original Program JHD Drag Source Listener Text Tool Paste Command Connected Text Tool Border Tool Text Area Tool Un Group Command Select All Command Align Command Group Command Send To Back Command Change Attribute Command Connection Tool Bring To Front Command Composite Figure Undoable Adapter Delete Command Pert Figure Cut Abstract Command Command Abstract Tool Undoable Handle Undoable Command not changed clone relation removed from base code modified components Undoable Tool

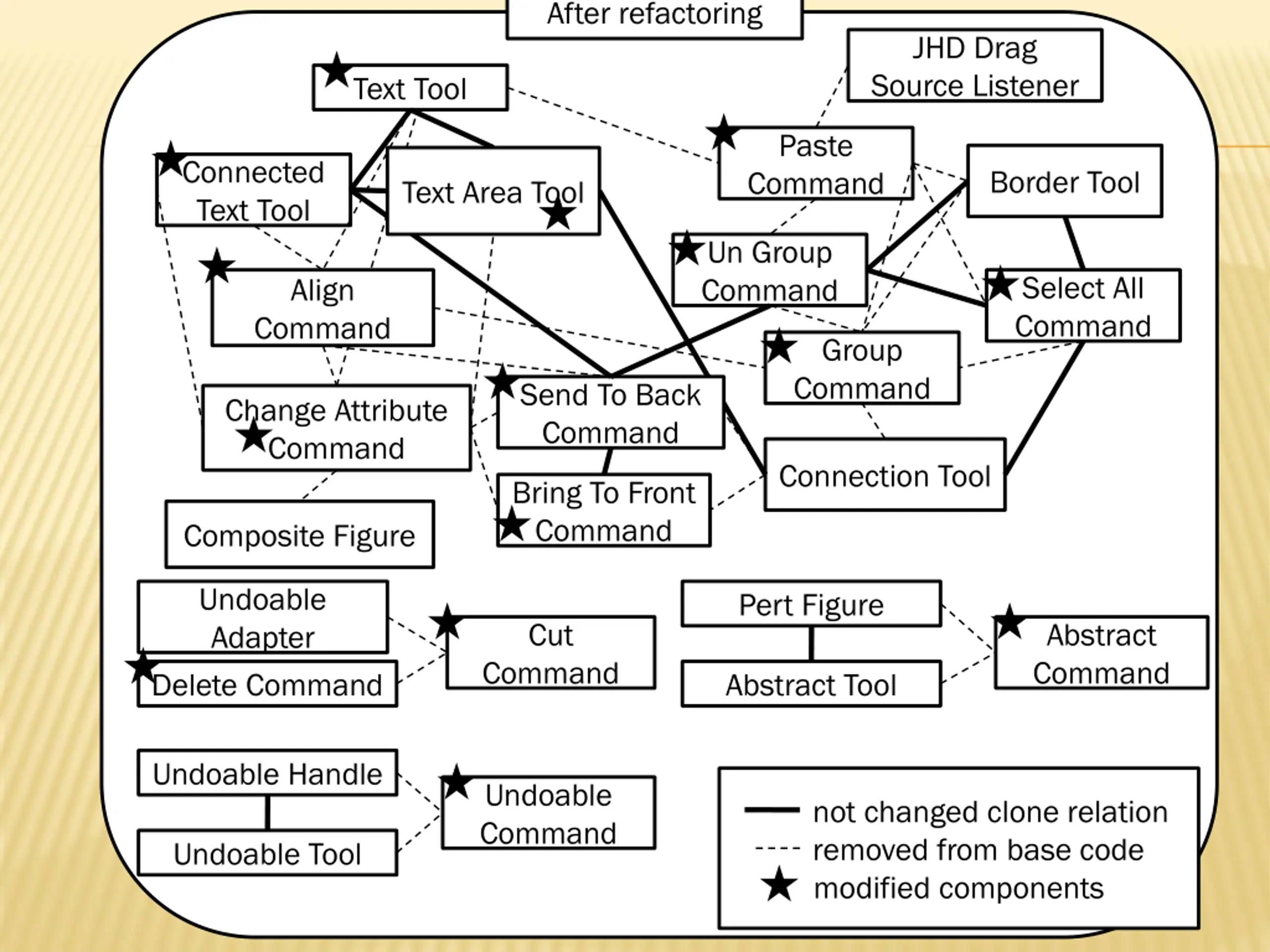

After refactoring JHD Drag Source Listener Text Tool Paste Command Connected Text Tool Border Tool Text Area Tool Un Group Command Select All Command Align Command Group Command Send To Back Command Change Attribute Command Connection Tool Bring To Front Command Composite Figure Undoable Adapter Delete Command Pert Figure Cut Abstract Command Command Abstract Tool Undoable Handle Undoable Command not changed clone relation removed from base code modified components Undoable Tool

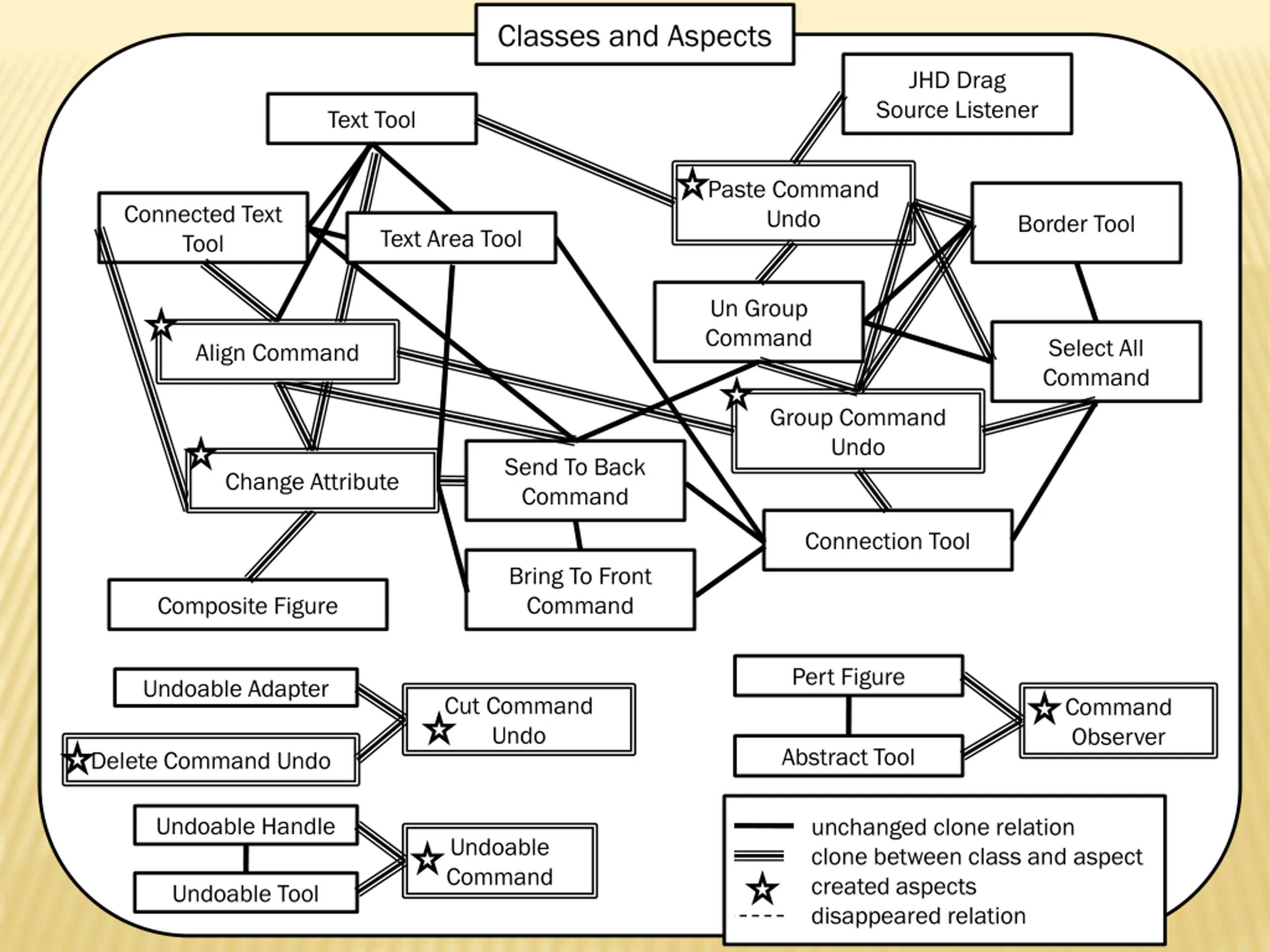

Classes and Aspects JHD Drag Source Listener Text Tool Paste Command Undo Connected Text Tool Border Tool Text Area Tool Un Group Command Select All Command Align Command Align Command Group Command Undo Send To Back Command Change Attribute Change Attribute Connection Tool Bring To Front Command Composite Figure Pert Figure Undoable Adapter Cut Command Undo Command Observer Abstract Tool Delete Command Undo Undoable Handle unchanged clone relation clone between class and aspect created aspects disappeared relation Undoable Command Undoable Tool

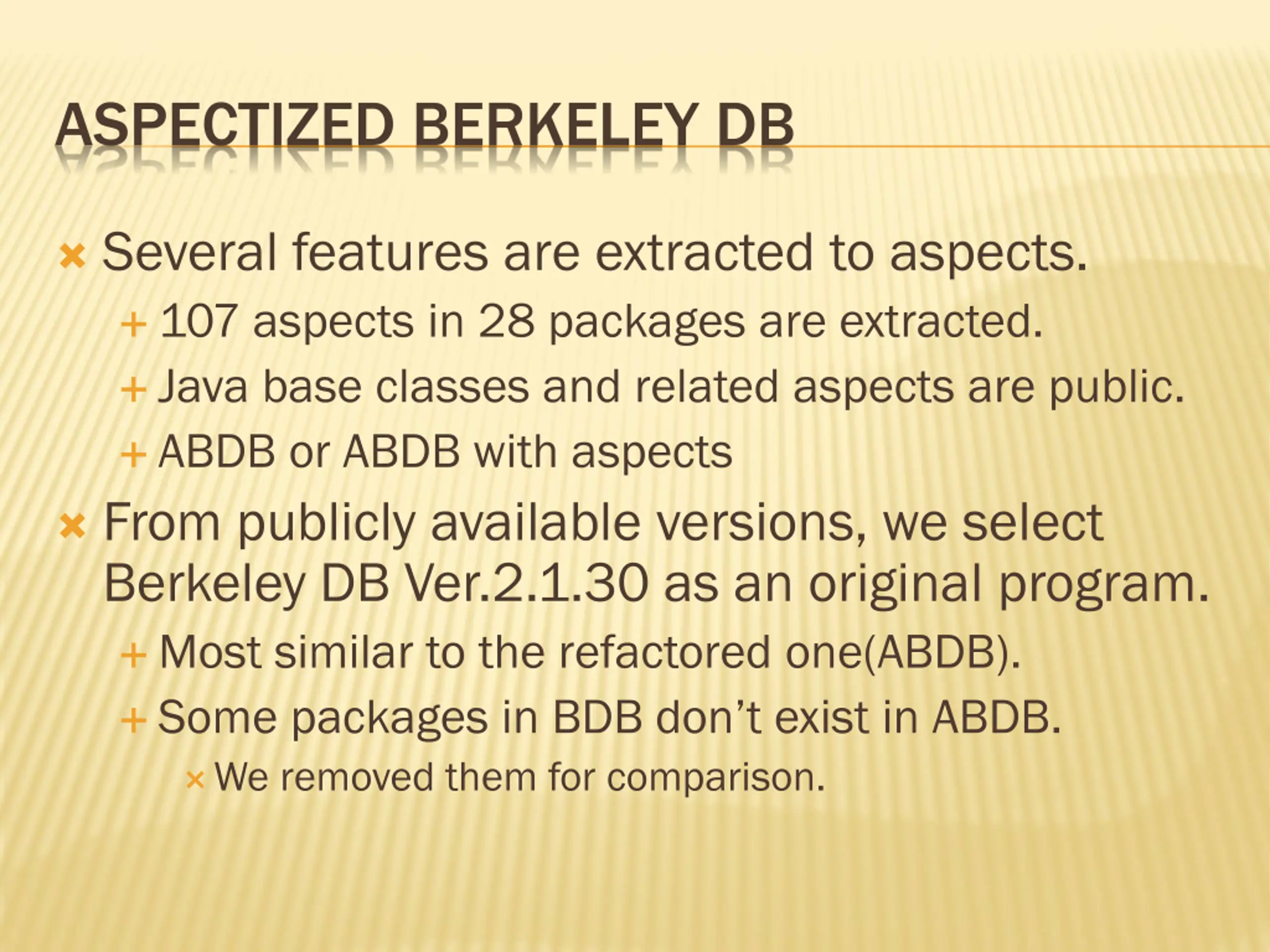

ASPECTIZED BERKELEY DB Several features are extracted to aspects. 107 aspects in 28 packages are extracted. Java base classes and related aspects are public. ABDB or ABDB with aspects From publicly available versions, we select Berkeley DB Ver.2.1.30 as an original program. Most similar to the refactored one(ABDB). Some packages in BDB don t exist in ABDB. We removed them for comparison.

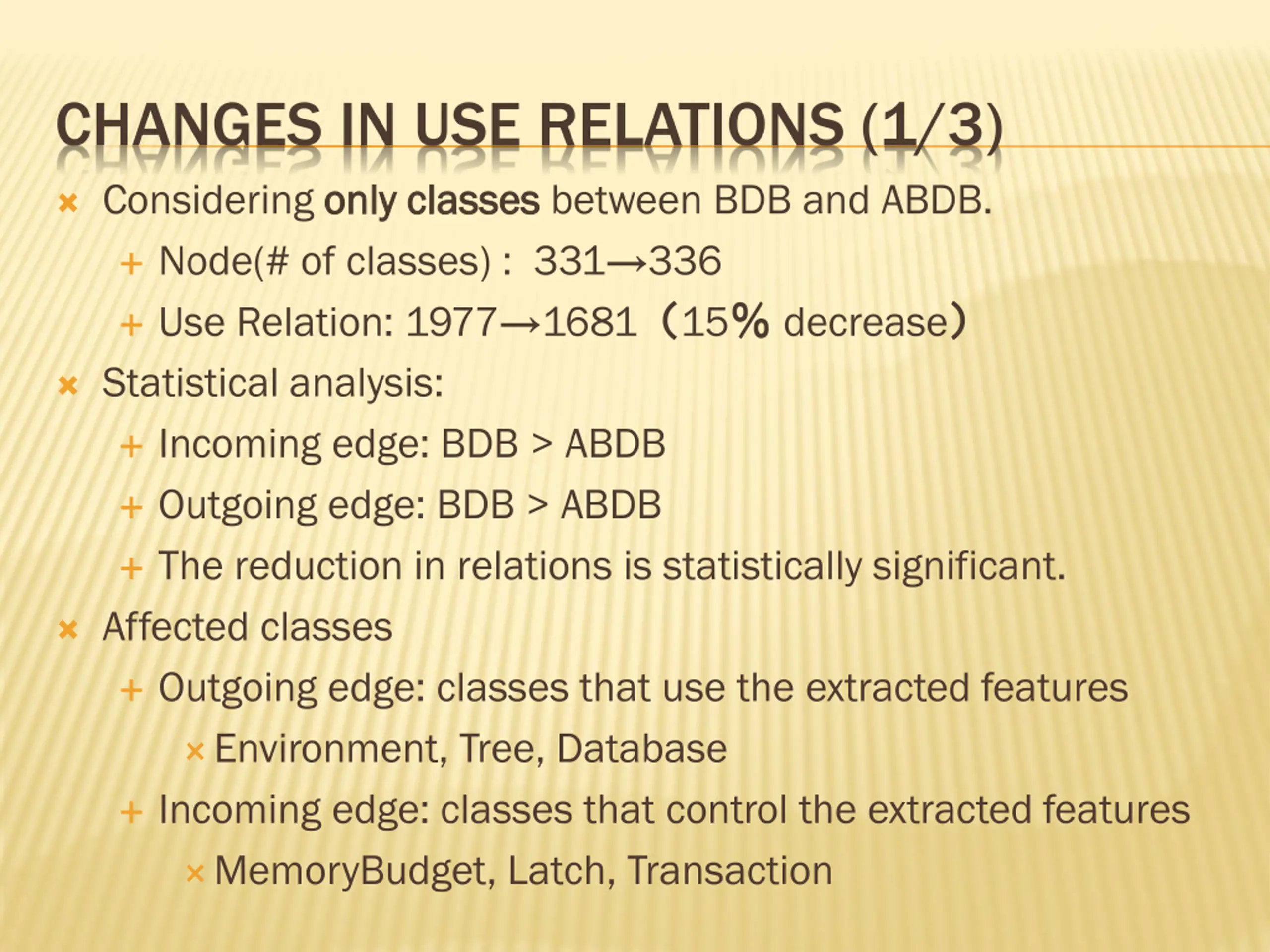

CHANGES IN USE RELATIONS (1/3) only classes between BDB and ABDB. Node(# of classes) : 331 336 Use Relation: 1977 1681 15 decrease Statistical analysis: Incoming edge: BDB > ABDB Outgoing edge: BDB > ABDB The reduction in relations is statistically significant. Affected classes Outgoing edge: classes that use the extracted features Environment, Tree, Database Incoming edge: classes that control the extracted features MemoryBudget, Latch, Transaction Considering only classes

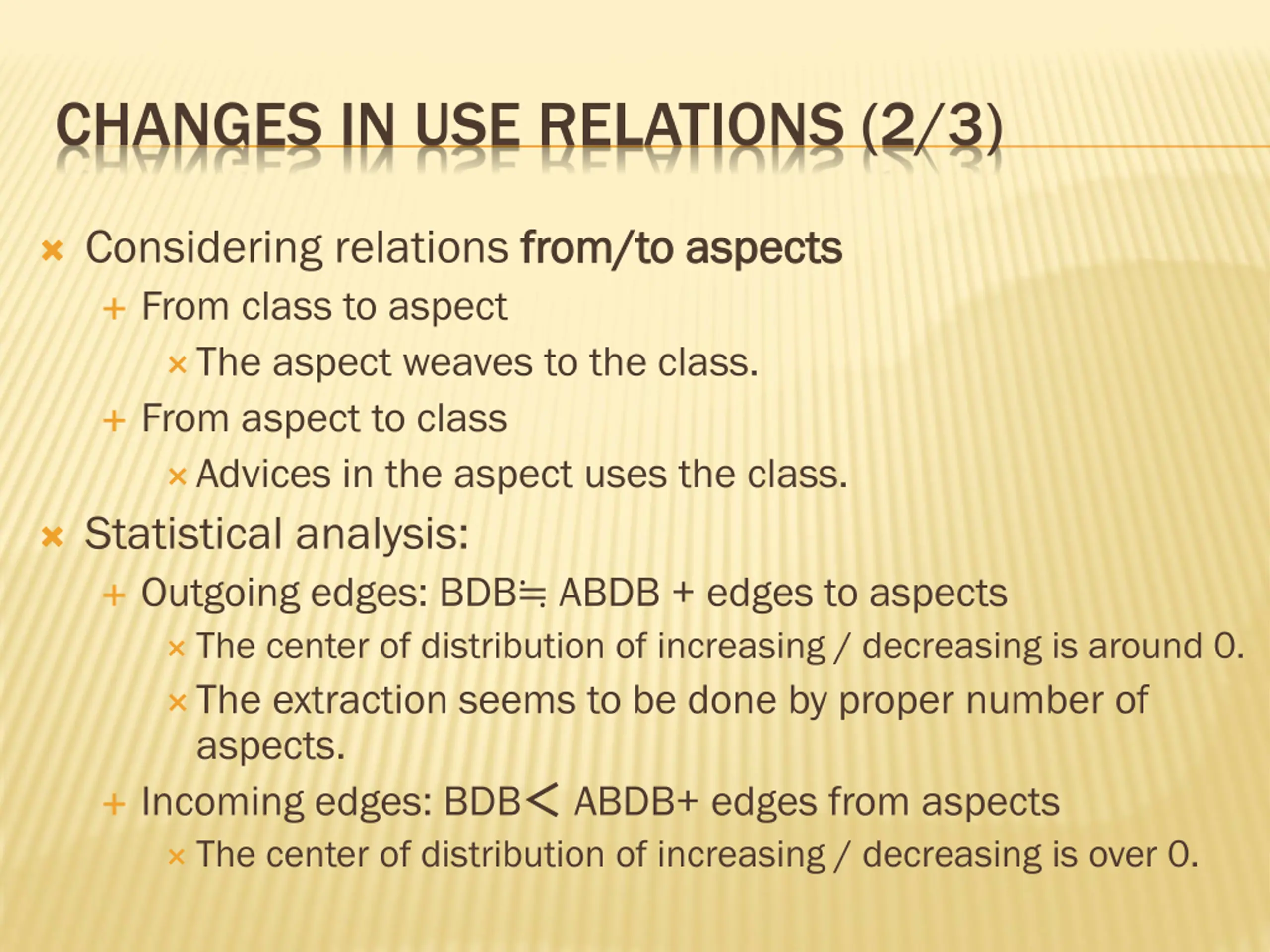

CHANGES IN USE RELATIONS (2/3) Considering relations from/to aspects From class to aspect The aspect weaves to the class. From aspect to class Advices in the aspect uses the class. Statistical analysis: Outgoing edges: BDB ABDB + edges to aspects The center of distribution of increasing / decreasing is around 0. The extraction seems to be done by proper number of aspects. Incoming edges: BDB ABDB+ edges from aspects The center of distribution of increasing / decreasing is over 0. from/to aspects

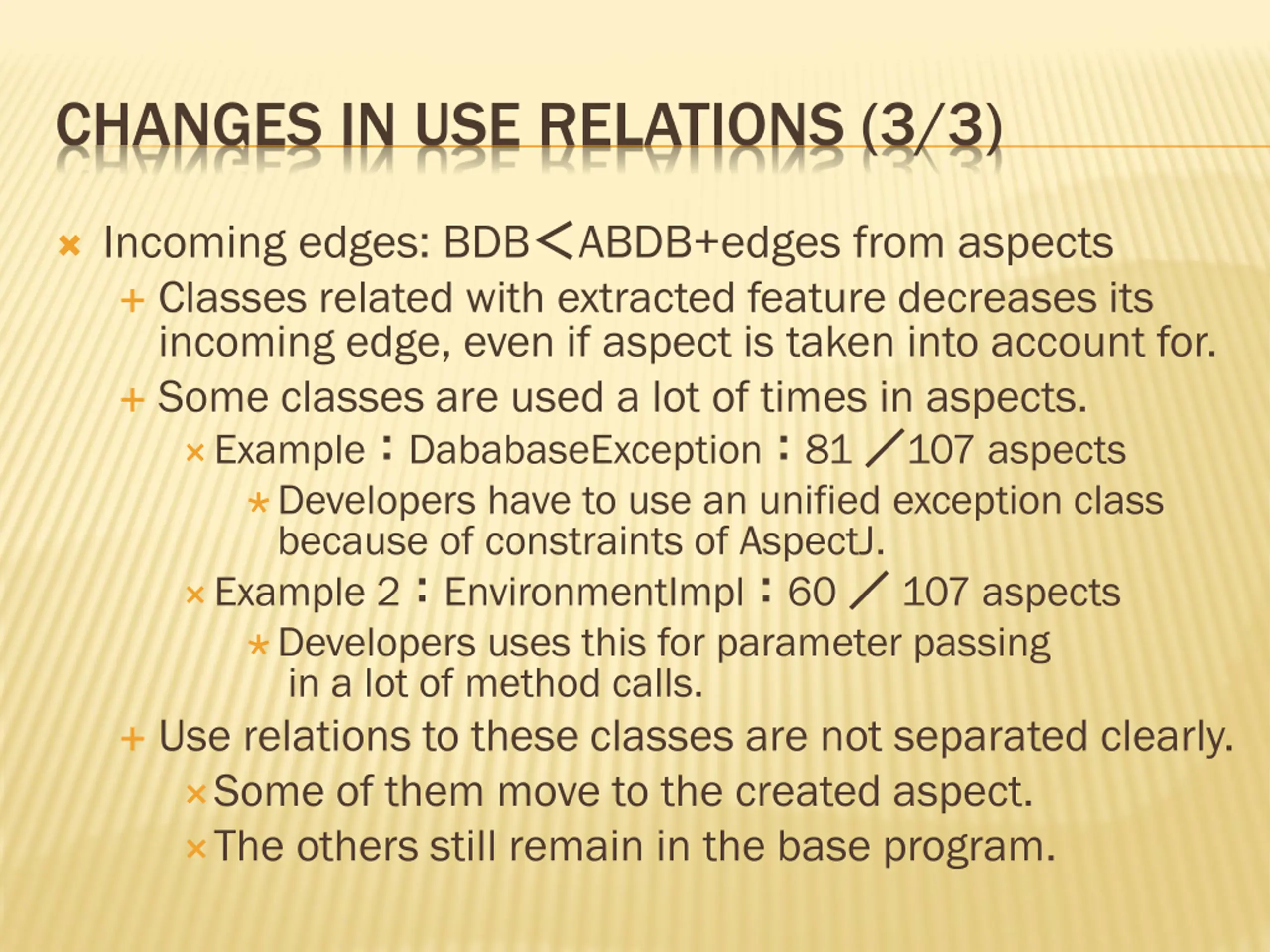

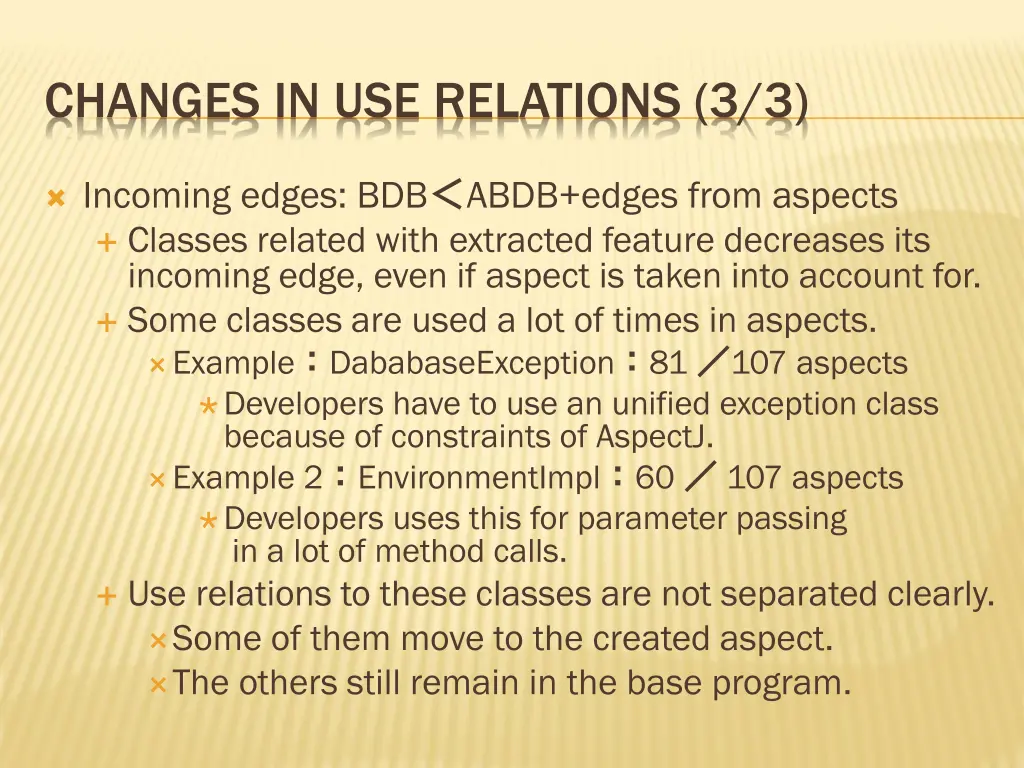

CHANGES IN USE RELATIONS (3/3) Incoming edges: BDB ABDB+edges from aspects Classes related with extracted feature decreases its incoming edge, even if aspect is taken into account for. Some classes are used a lot of times in aspects. Example DababaseException 81 107 aspects Developers have to use an unified exception class because of constraints of AspectJ. Example 2 EnvironmentImpl 60 107 aspects Developers uses this for parameter passing in a lot of method calls. Use relations to these classes are not separated clearly. Some of them move to the created aspect. The others still remain in the base program.

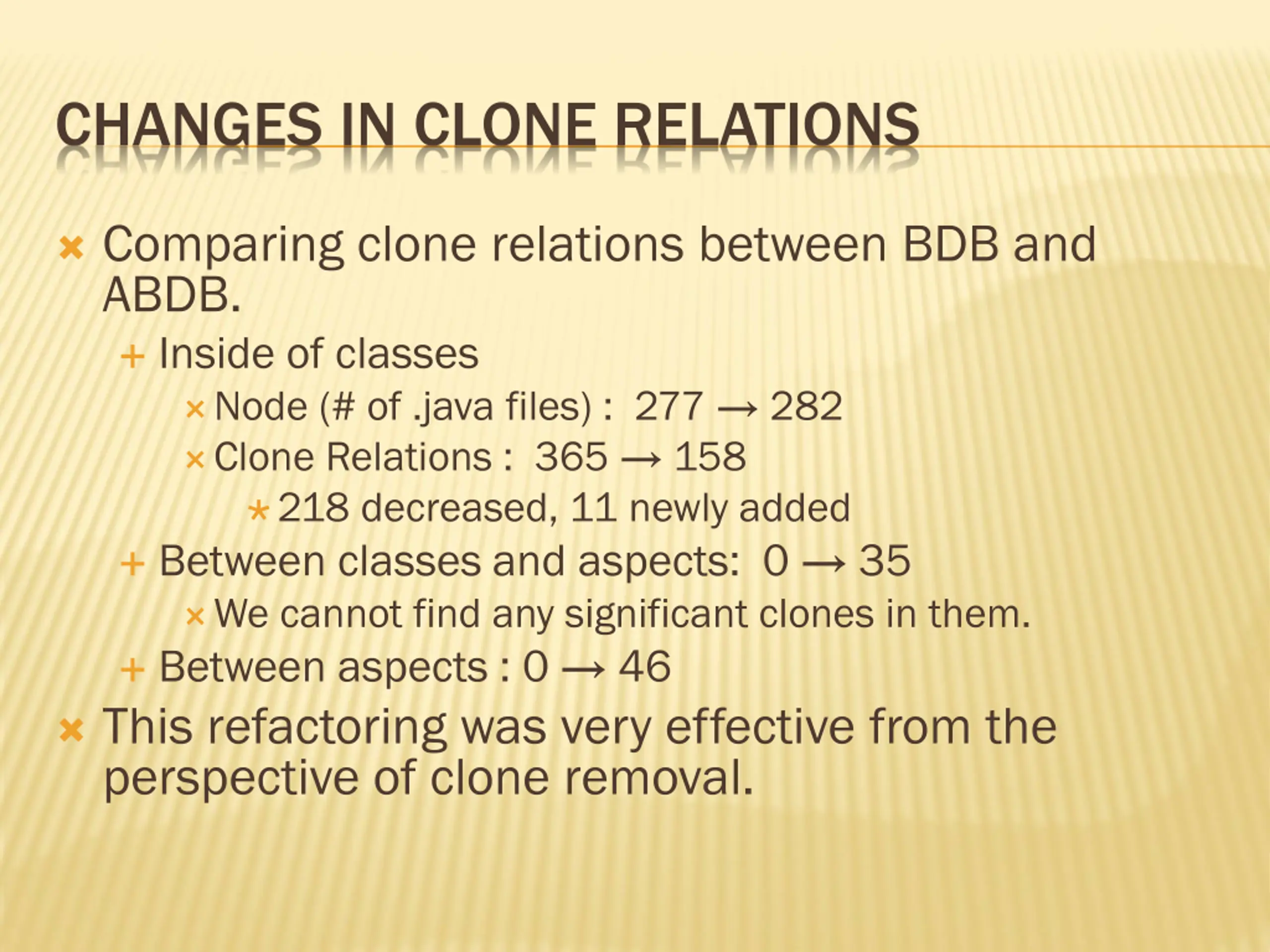

CHANGES IN CLONE RELATIONS Comparing clone relations between BDB and ABDB. Inside of classes Node (# of .java files) : 277 282 Clone Relations : 365 158 218 decreased, 11 newly added Between classes and aspects: 0 35 We cannot find any significant clones in them. Between aspects : 0 46 This refactoring was very effective from the perspective of clone removal.

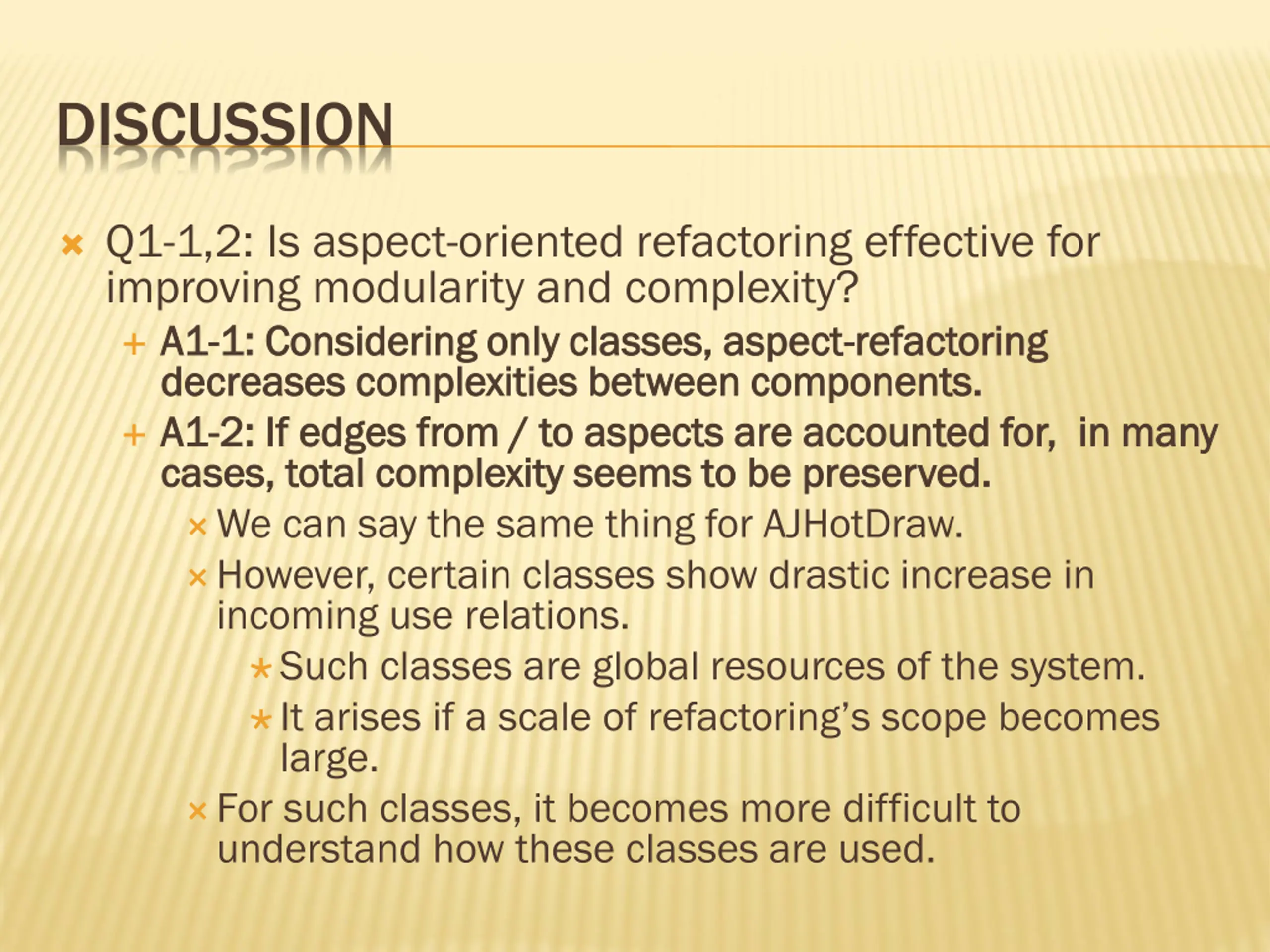

DISCUSSION Q1-1,2: Is aspect-oriented refactoring effective for improving modularity and complexity? A1 A1- -1: Considering only classes, aspect 1: Considering only classes, aspect- -refactoring decreases complexities between components. decreases complexities between components. A1 A1- -2: If edges from / to aspects are accounted for, in many 2: If edges from / to aspects are accounted for, in many cases, total complexity seems to be preserved. cases, total complexity seems to be preserved. We can say the same thing for AJHotDraw. However, certain classes show drastic increase in incoming use relations. Such classes are global resources of the system. It arises if a scale of refactoring s scope becomes large. For such classes, it becomes more difficult to understand how these classes are used. refactoring

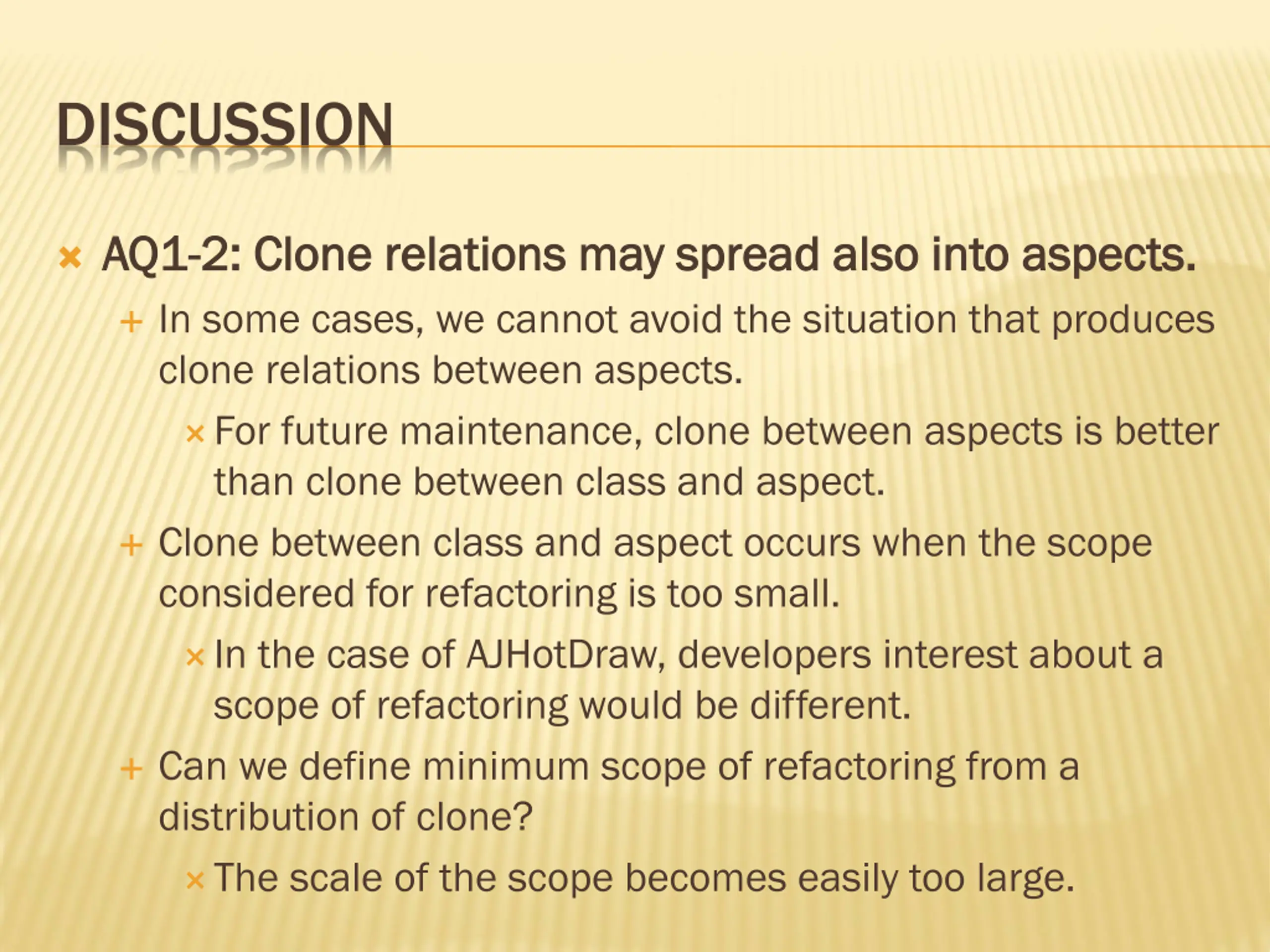

DISCUSSION AQ1 AQ1- -2: Clone relations may spread also into aspects. 2: Clone relations may spread also into aspects. In some cases, we cannot avoid the situation that produces clone relations between aspects. For future maintenance, clone between aspects is better than clone between class and aspect. Clone between class and aspect occurs when the scope considered for refactoring is too small. In the case of AJHotDraw, developers interest about a scope of refactoring would be different. Can we define minimum scope of refactoring from a distribution of clone? The scale of the scope becomes easily too large.

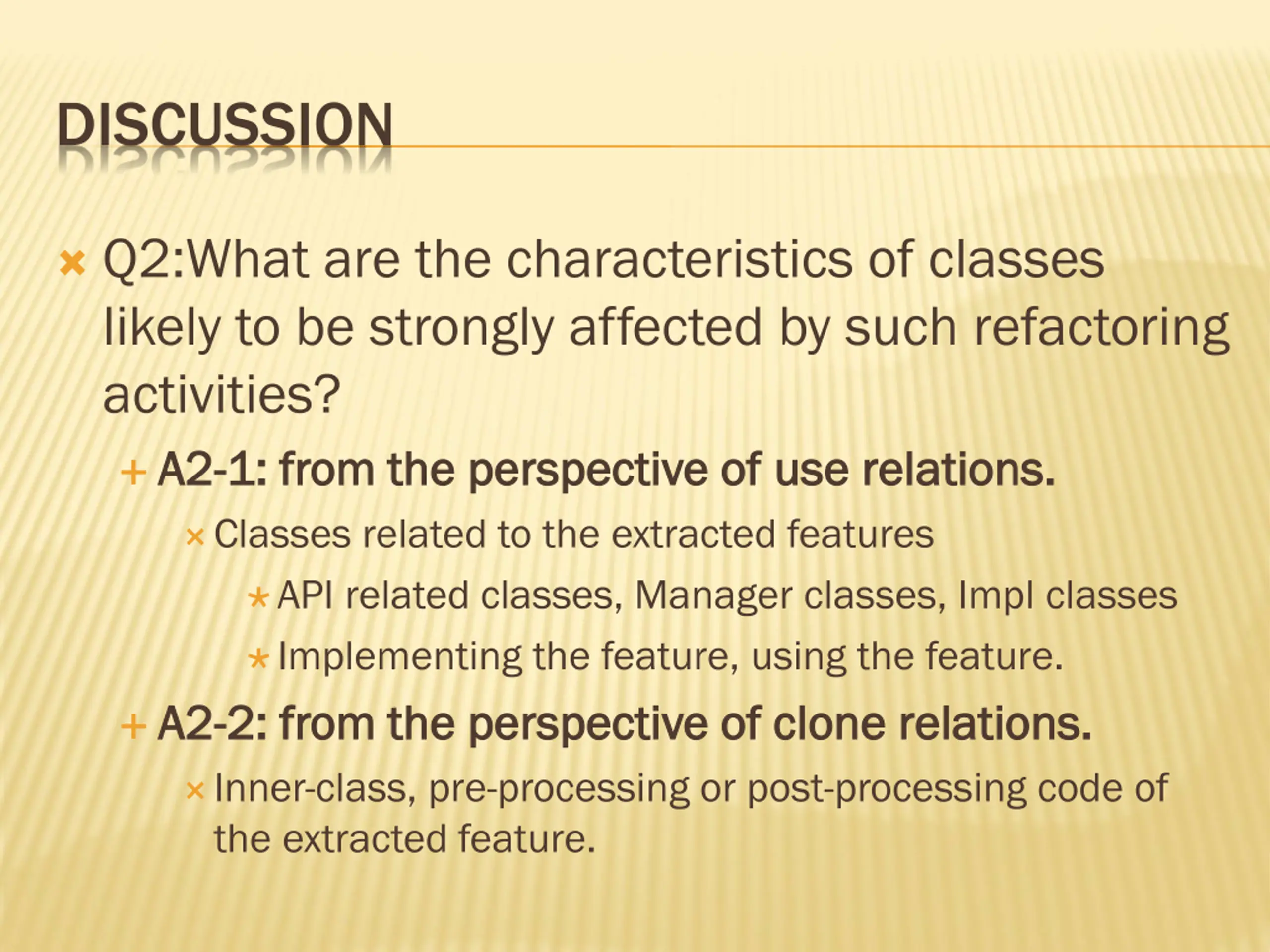

DISCUSSION Q2:What are the characteristics of classes likely to be strongly affected by such refactoring activities? A2 A2- -1 1: from : from the perspective of the perspective of use Classes related to the extracted features API related classes, Manager classes, Impl classes Implementing the feature, using the feature. A2 A2- -2 2: from : from the perspective of clone relations. the perspective of clone relations. Inner-class, pre-processing or post-processing code of the extracted feature. use relations. relations.

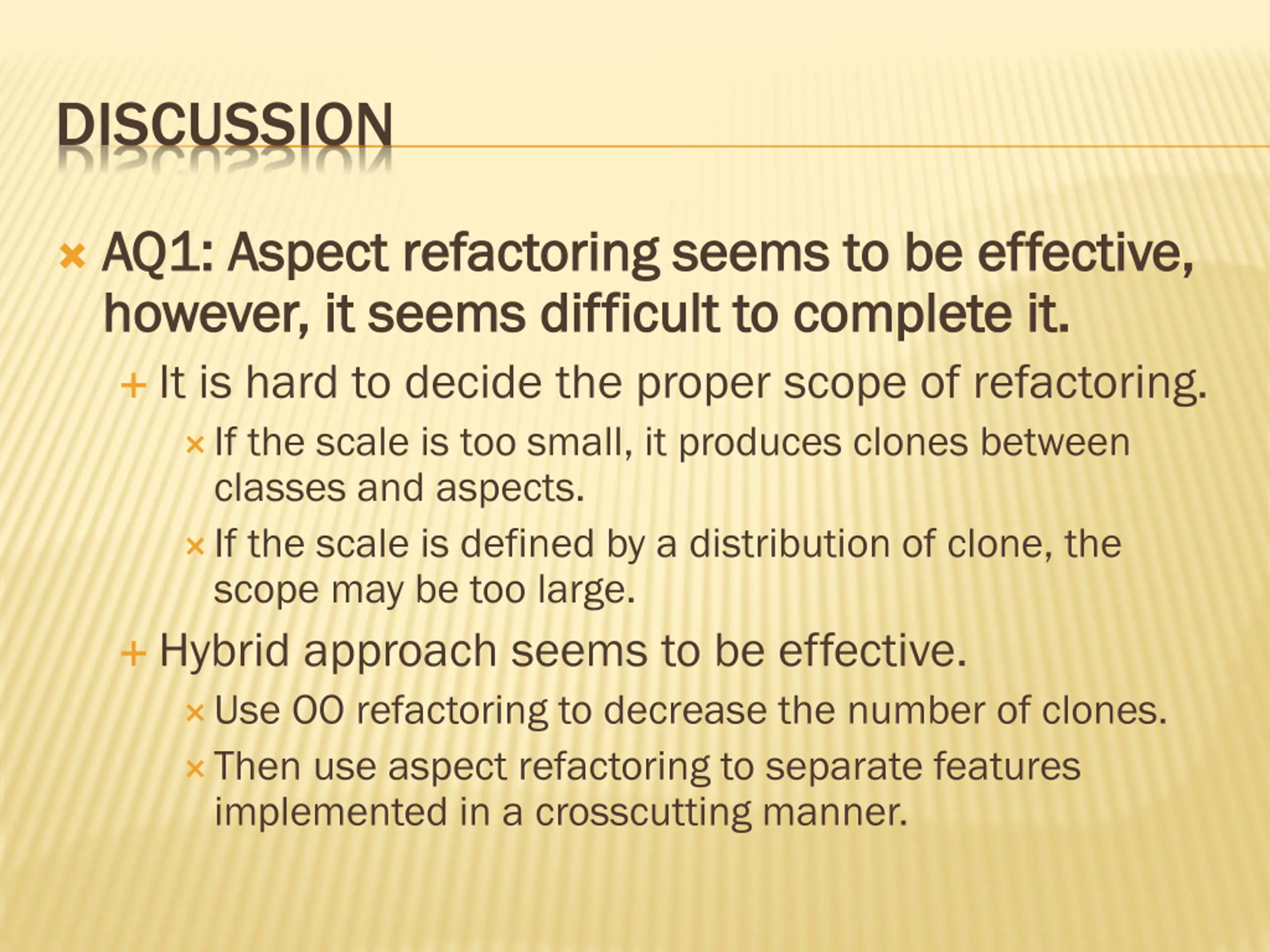

DISCUSSION AQ1: Aspect refactoring seems to be effective, AQ1: Aspect refactoring seems to be effective, however, it seems difficult to complete it. however, it seems difficult to complete it. It is hard to decide the proper scope of refactoring. If the scale is too small, it produces clones between classes and aspects. If the scale is defined by a distribution of clone, the scope may be too large. Hybrid approach seems to be effective. Use OO refactoring to decrease the number of clones. Then use aspect refactoring to separate features implemented in a crosscutting manner.

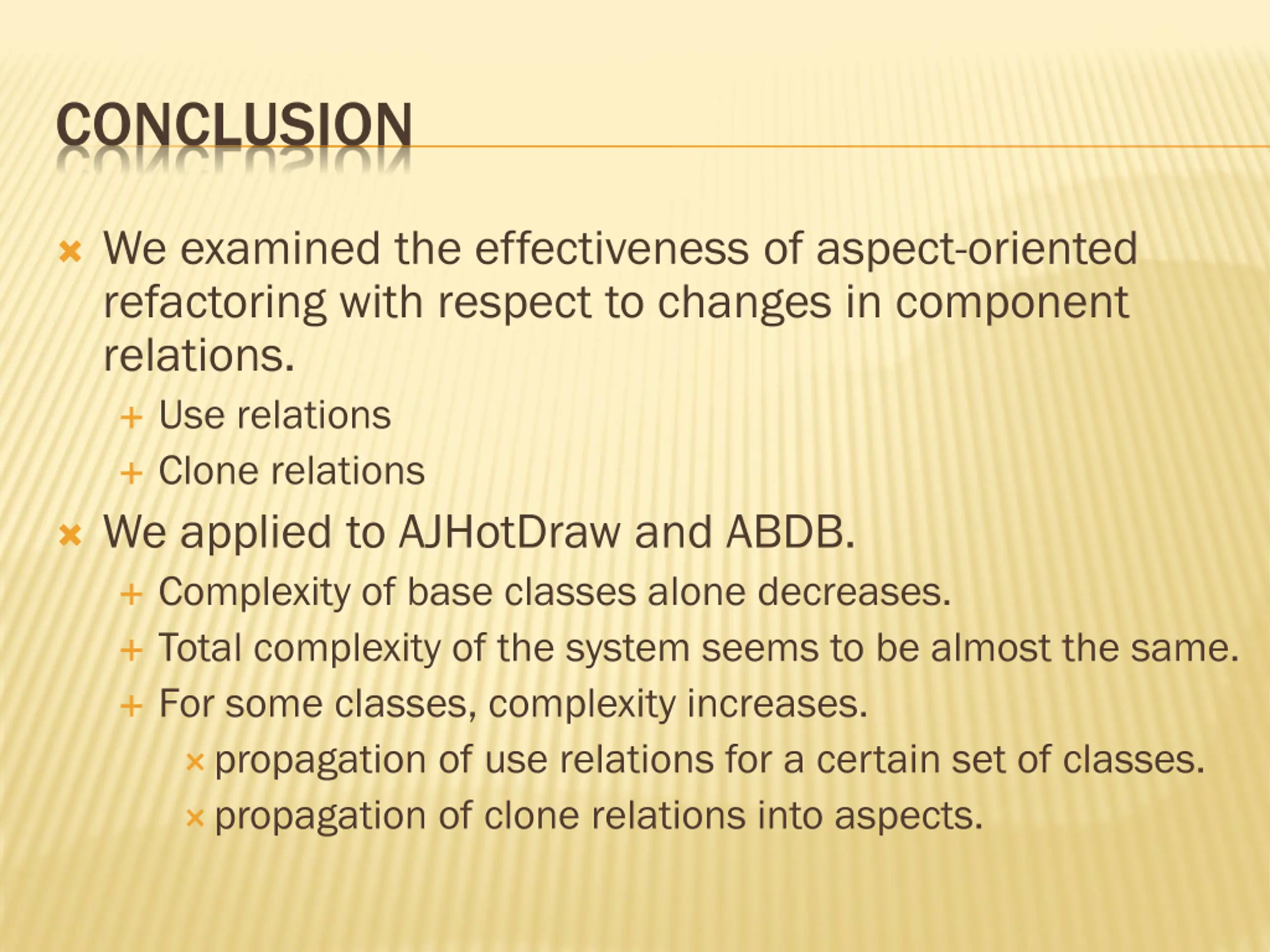

CONCLUSION We examined the effectiveness of aspect-oriented refactoring with respect to changes in component relations. Use relations Clone relations We applied to AJHotDraw and ABDB. Complexity of base classes alone decreases. Total complexity of the system seems to be almost the same. For some classes, complexity increases. propagation of use relations for a certain set of classes. propagation of clone relations into aspects.

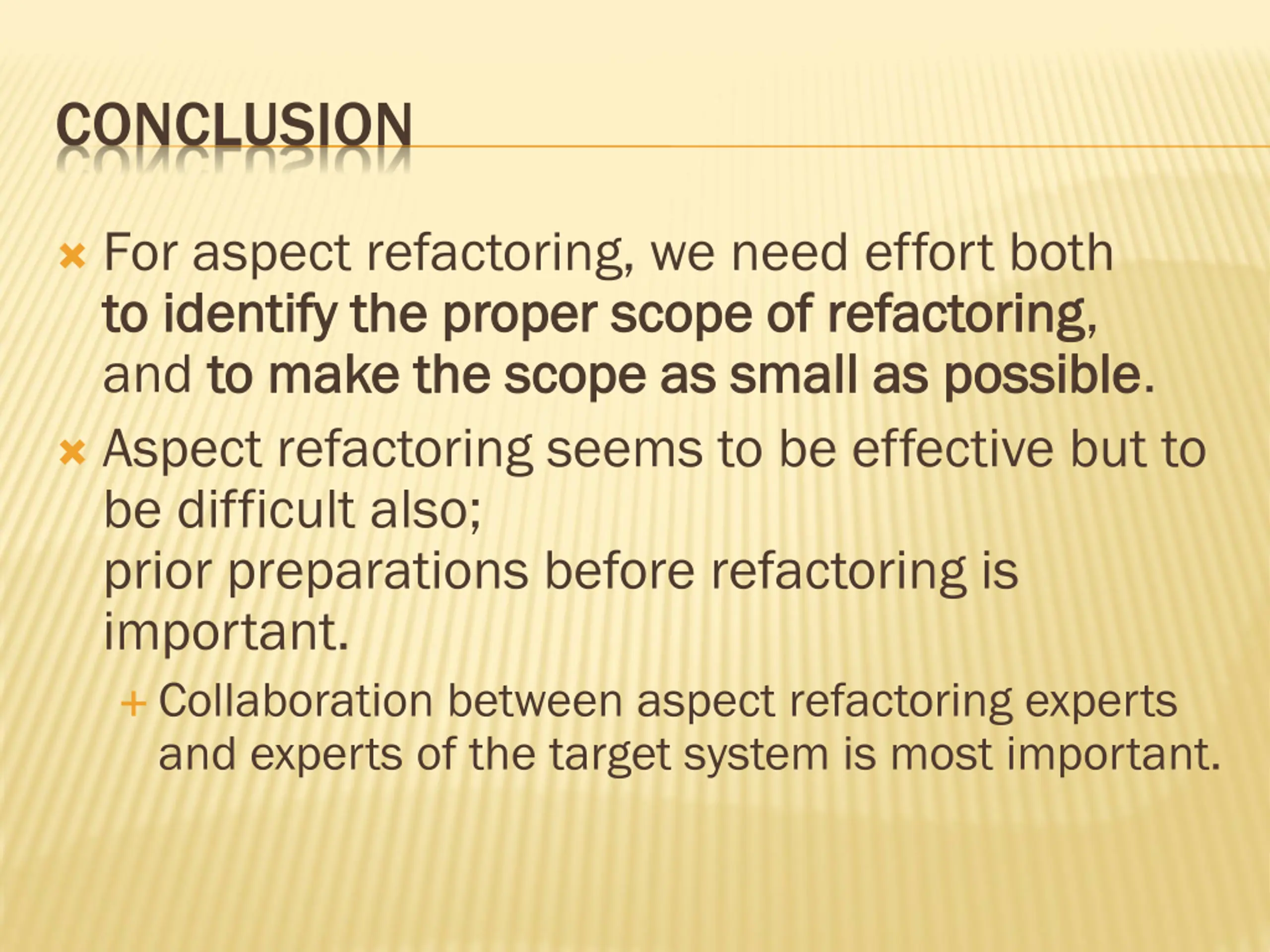

CONCLUSION For aspect refactoring, we need effort both to identify the proper scope of refactoring to identify the proper scope of refactoring, and to make the scope as small as possible to make the scope as small as possible. Aspect refactoring seems to be effective but to be difficult also; prior preparations before refactoring is important. Collaboration between aspect refactoring experts and experts of the target system is most important.

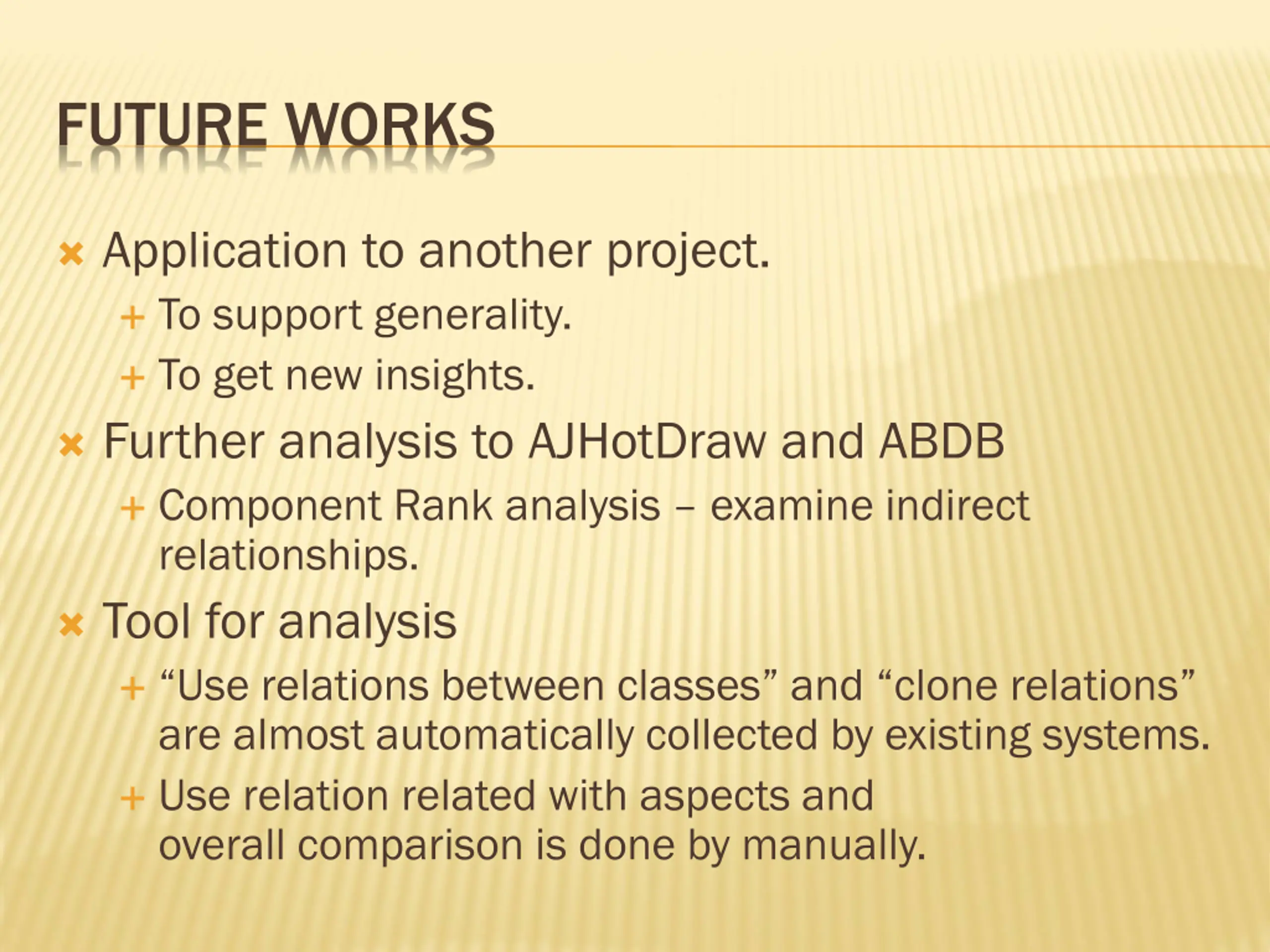

FUTURE WORKS Application to another project. To support generality. To get new insights. Further analysis to AJHotDraw and ABDB Component Rank analysis examine indirect relationships. Tool for analysis Use relations between classes and clone relations are almost automatically collected by existing systems. Use relation related with aspects and overall comparison is done by manually.

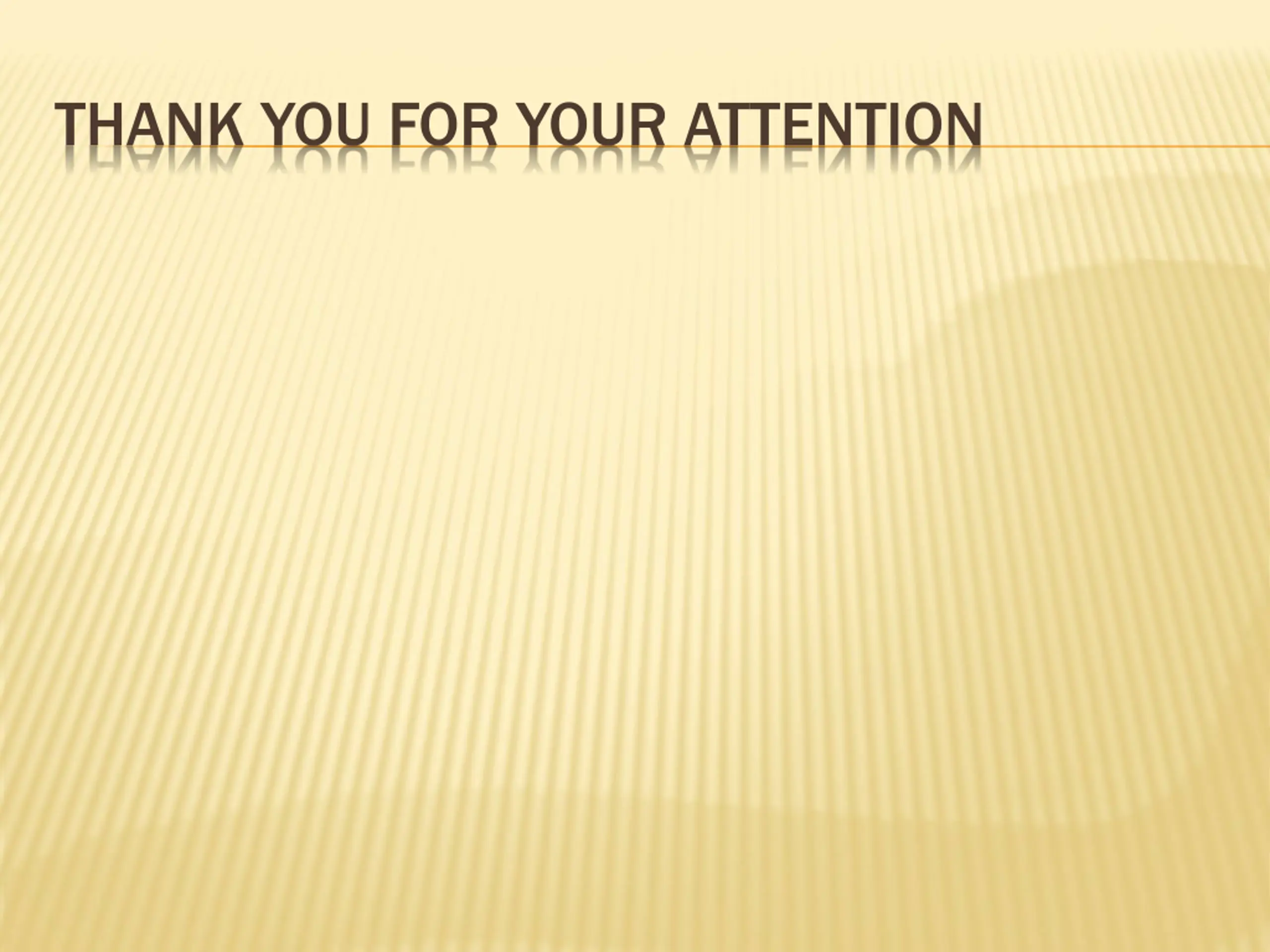

THANK YOU FOR YOUR ATTENTION
