Probability Plot Examples Jake Blanchard Spring 2008 Uncertainty Analysis for Engineers 1

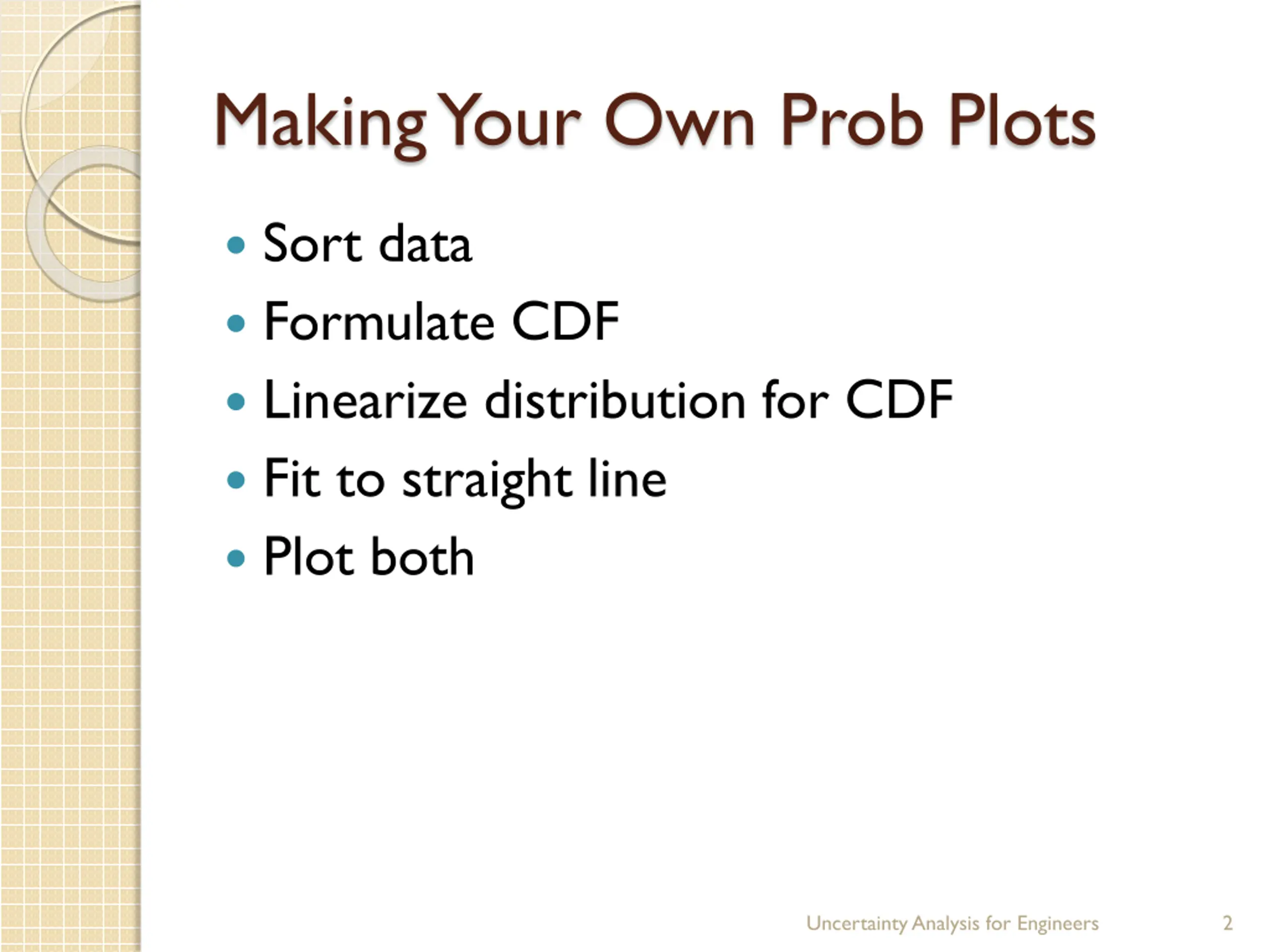

Making Your Own Prob Plots Sort data Formulate CDF Linearize distribution for CDF Fit to straight line Plot both Uncertainty Analysis for Engineers 2

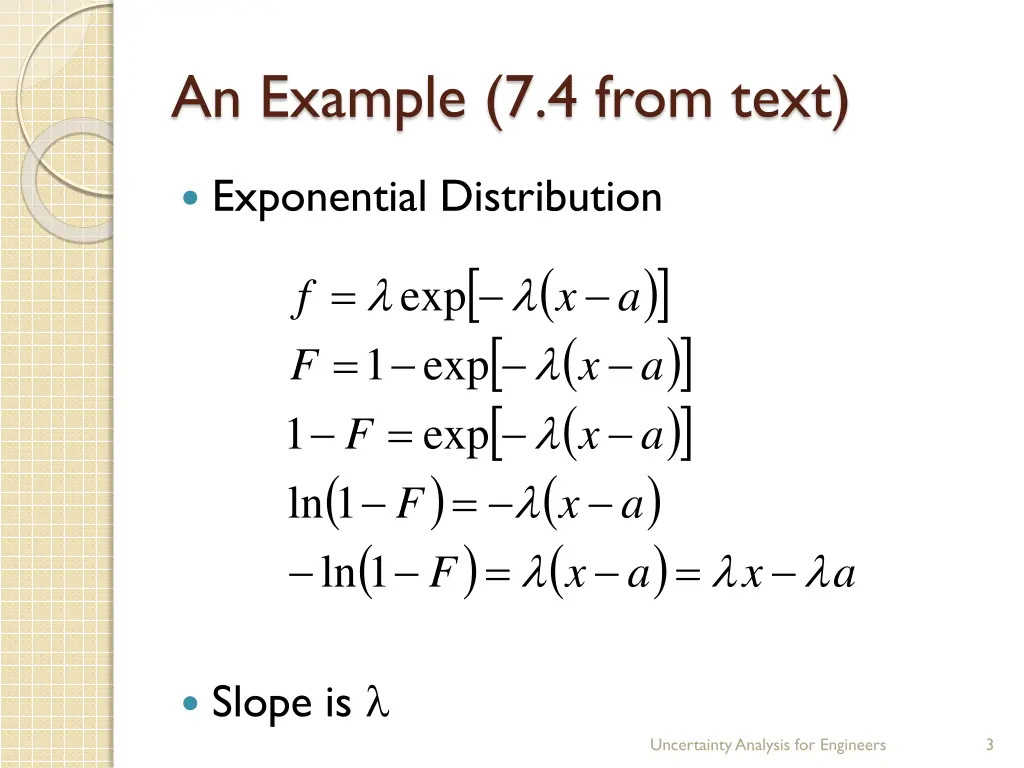

An Example (7.4 from text) Exponential Distribution ( ) a = 1 exp f x a ( ( x ) ) = exp F 1 x = exp F 1 x a ( ln ) F ( ( ) ) 1 = ln F a ( ) = = x a x a Slope is Uncertainty Analysis for Engineers 3

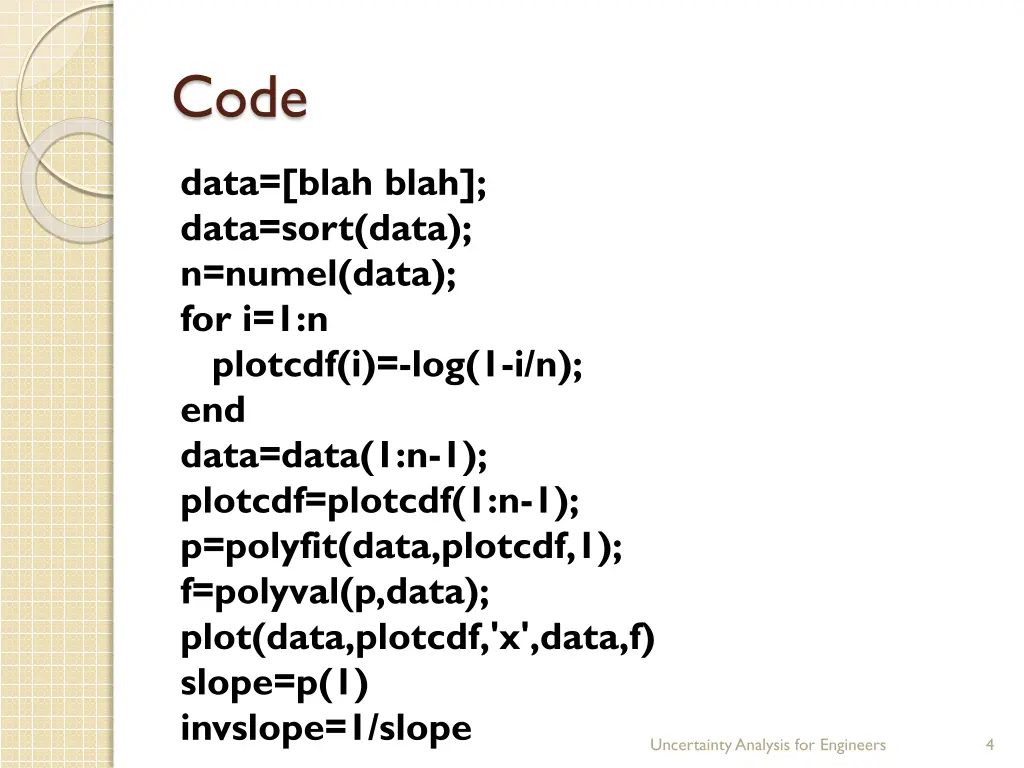

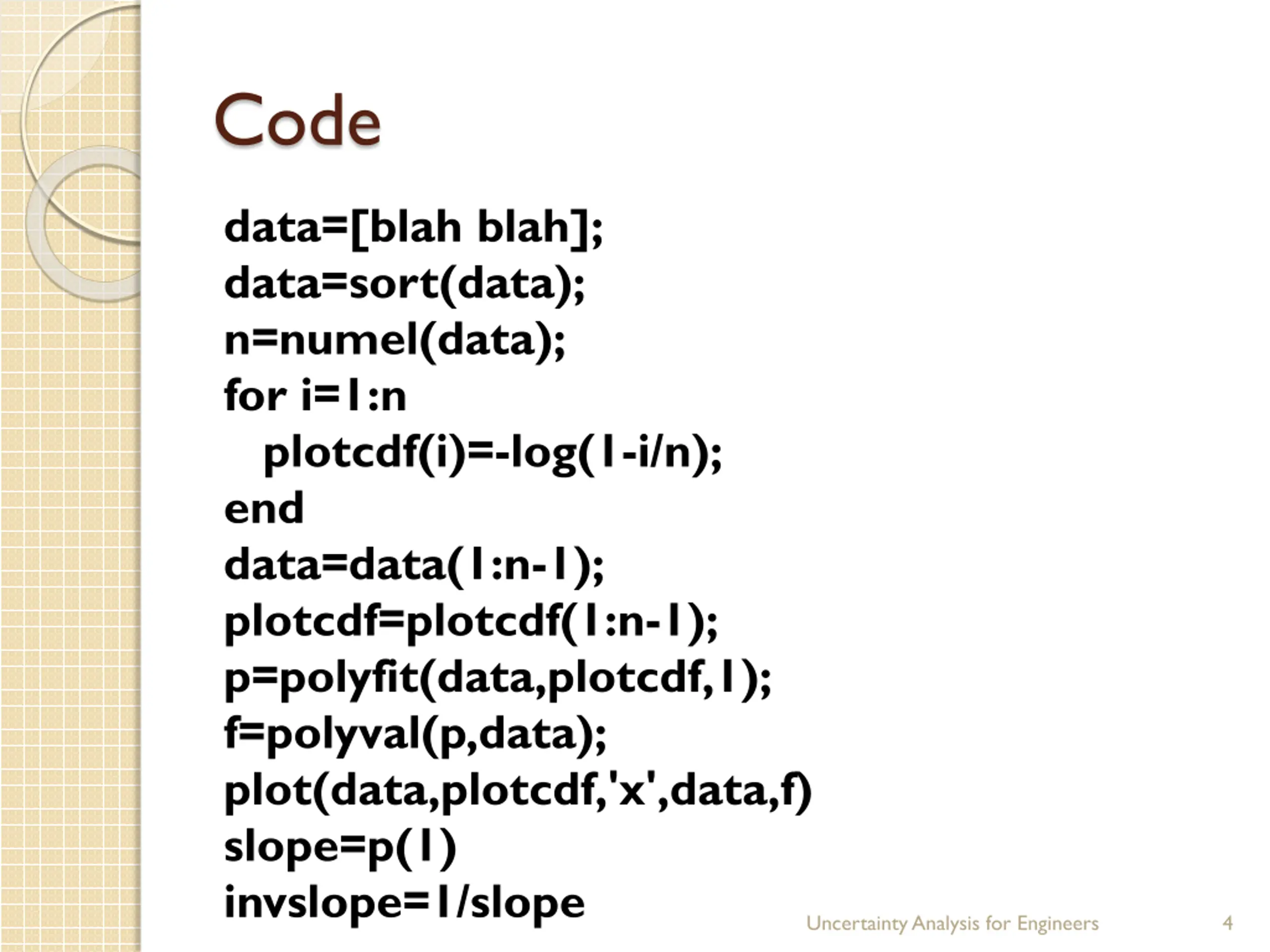

Code data=[blah blah]; data=sort(data); n=numel(data); for i=1:n plotcdf(i)=-log(1-i/n); end data=data(1:n-1); plotcdf=plotcdf(1:n-1); p=polyfit(data,plotcdf,1); f=polyval(p,data); plot(data,plotcdf,'x',data,f) slope=p(1) invslope=1/slope Uncertainty Analysis for Engineers 4

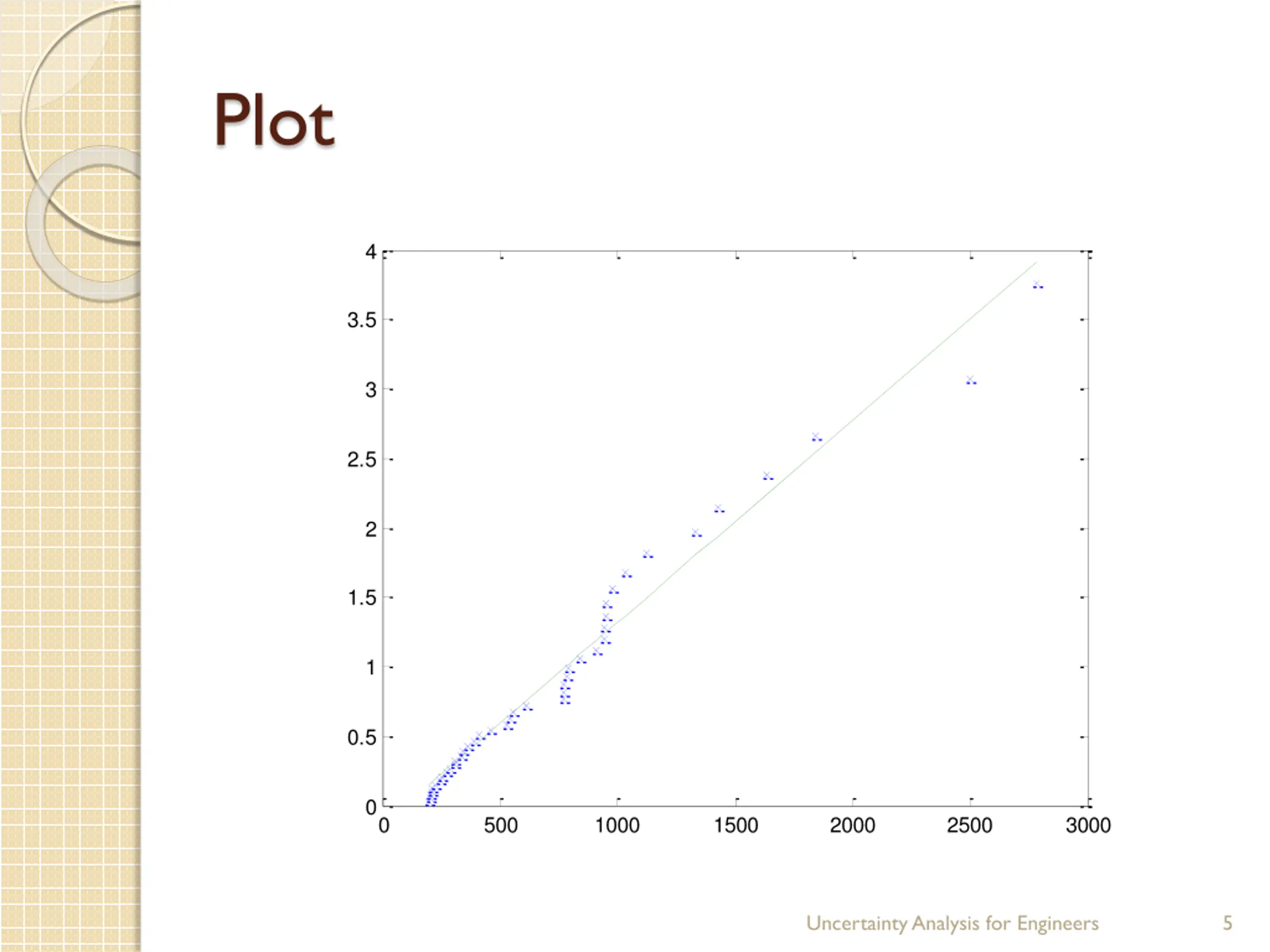

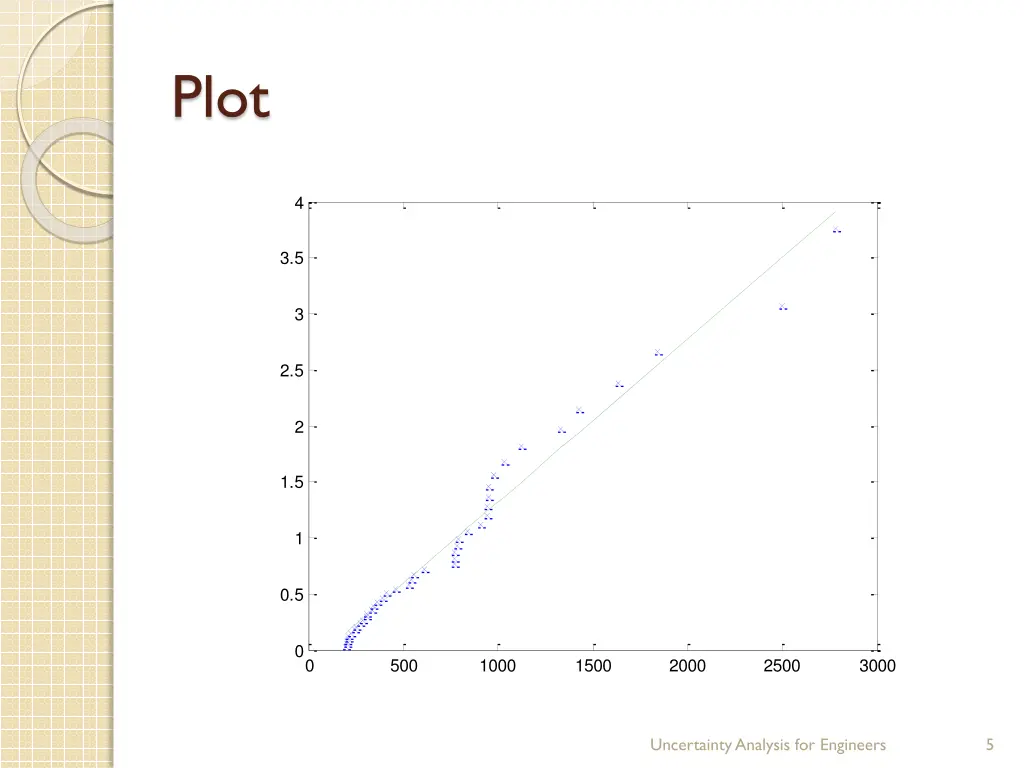

Plot 4 3.5 3 2.5 2 1.5 1 0.5 0 0 500 1000 1500 2000 2500 3000 Uncertainty Analysis for Engineers 5

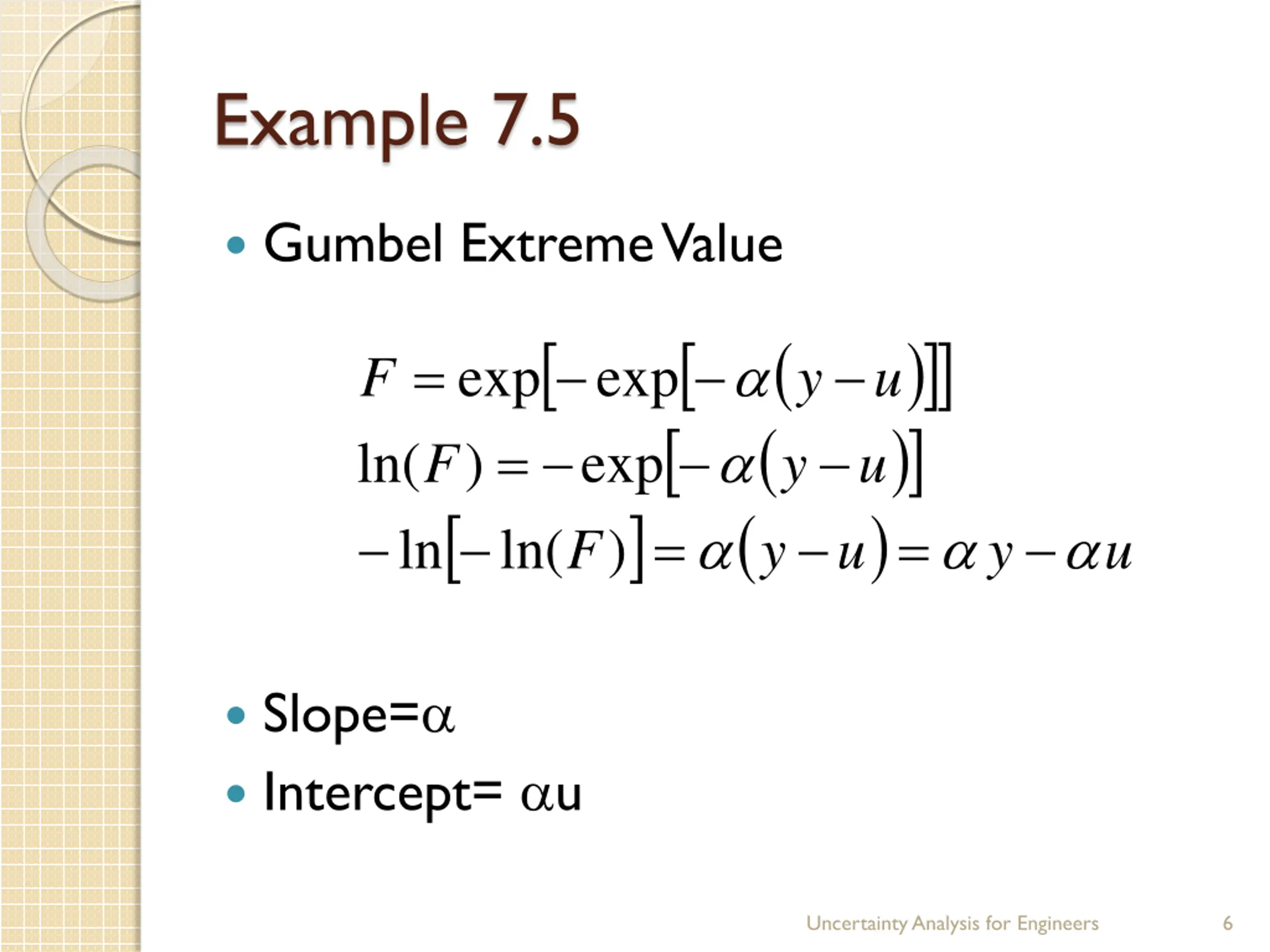

Example 7.5 Gumbel Extreme Value ( y ) = = exp exp F ln( y u = ( y ) = ln( ) exp F u ( ) ln ) F u y u Slope= Intercept= u Uncertainty Analysis for Engineers 6

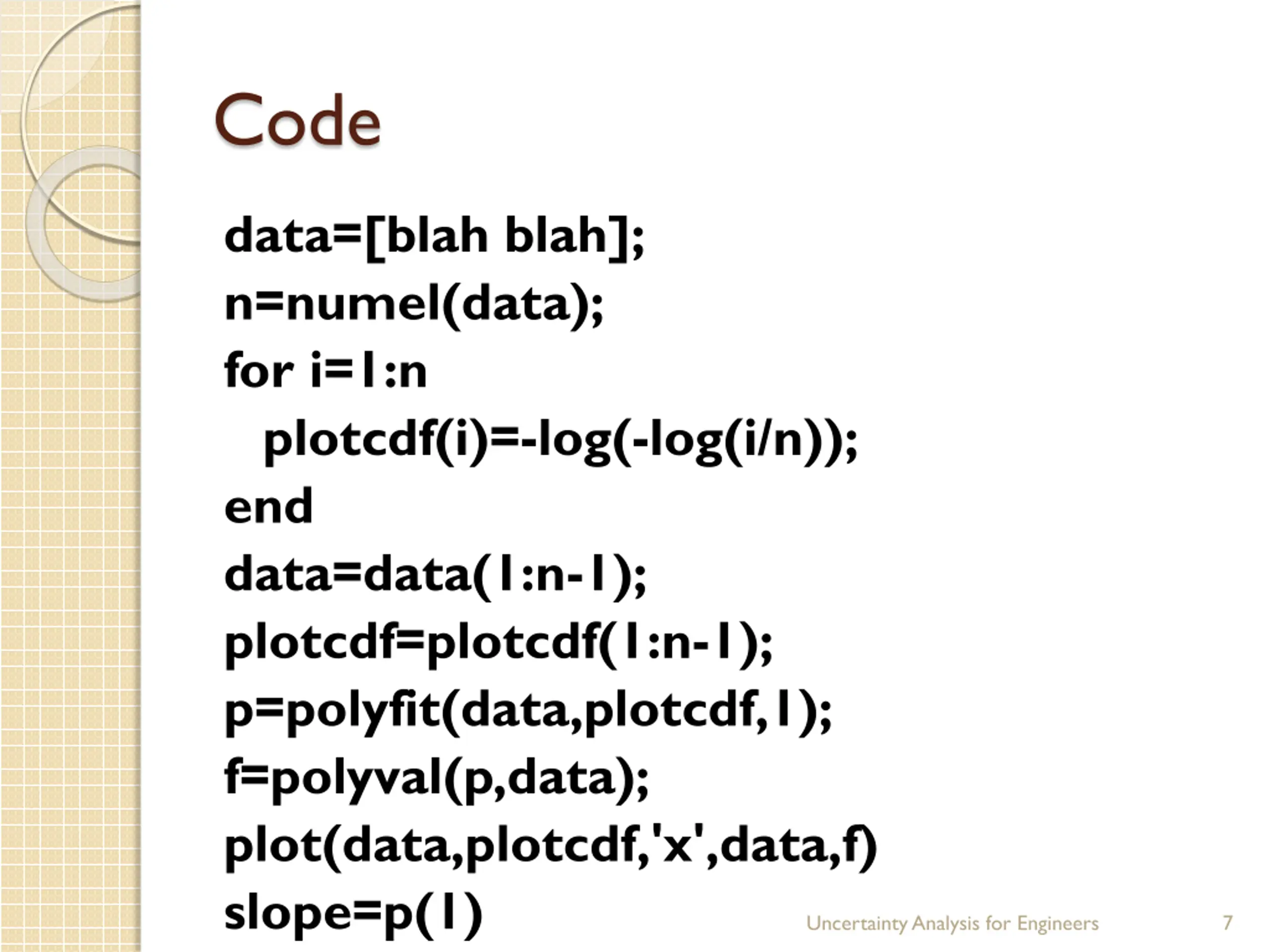

Code data=[blah blah]; n=numel(data); for i=1:n plotcdf(i)=-log(-log(i/n)); end data=data(1:n-1); plotcdf=plotcdf(1:n-1); p=polyfit(data,plotcdf,1); f=polyval(p,data); plot(data,plotcdf,'x',data,f) slope=p(1) Uncertainty Analysis for Engineers 7

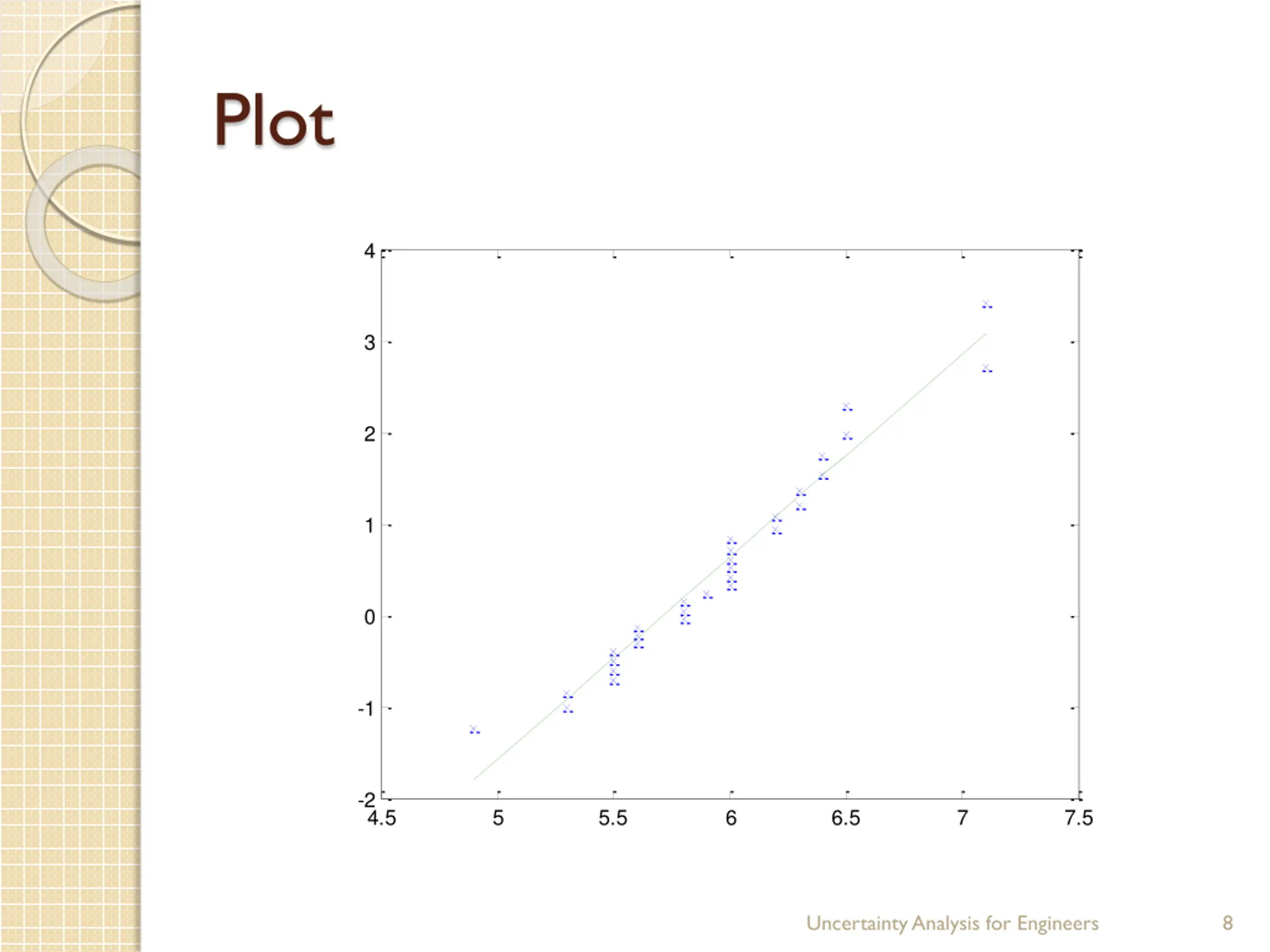

Plot 4 3 2 1 0 -1 -2 4.5 5 5.5 6 6.5 7 7.5 Uncertainty Analysis for Engineers 8
