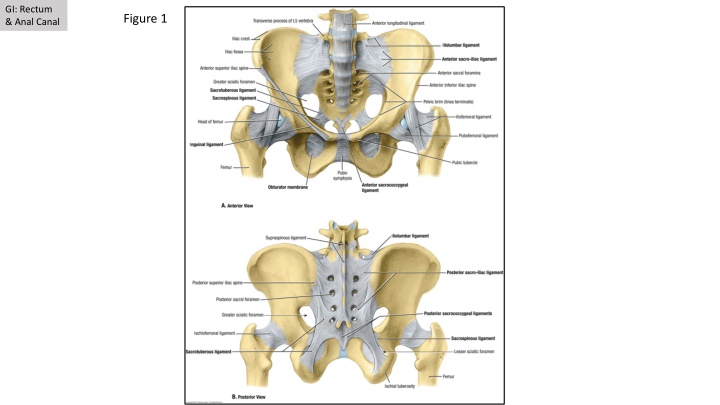

1. GI: Rectum & Anal Canal Figure 1

2. GI: Rectum & Anal Canal Figure 1.2

3. GI: Rectum & Anal Canal Figure 2.2 Figure 2.1 Piriformis Coccygeus Figure 2.3 Iliococcygeus Rectum Obturator Internus Vagina/ Uterus Tendinous Arch Urethra Bladder Pubococcygeus Puborectalis

4. GI: Rectum & Anal Canal Figure 3.1 Figure 3.2 1= Sigmoid Colon 2 = Rectum 3 =Anal Canal = Rectosigmoid Junction = Rectoanal Junction 4 = External Anal Sphincter 5 = Internal Anal Sphincter 6 = Transverse Rectal Fold 1 2 6 5 4 4 3

5. GI: Rectum & Anal Canal Figure 4.1 Blue + Red = Perineum Blue = Anal Triangle Red = Genitofemoral Triangle Yellow = Ischioanal Fossa Levator Ani A = Iliococcygeus B = Pubococcygeus C = Puborectalis A B C Anterior

6. GI: Rectum & Anal Canal Figure 4.2 Figure 4.3 Pelvic diaphragm (pelvic floor) External anal sphincter 1= Sigmoid Colon 2 = Rectum 3 =Anal Canal = Rectosigmoid Junction = Rectoanal Junction 4 = External Anal Sphincter 5 = Internal Anal Sphincter 6 = Transverse Rectal Fold Inferior rectal nn. Internal Pudendal a. Pudendal n. 1 Piriformis m. 2 Sacrospinous ligament 6 Sacrotuberous ligament 5 4 4 3
