Presentation Transcript
Class : 3rd-year First Lecture Faculty of Engineering, Electrical Engineering Department Definition and circuit theory description By: Asst. Prof. Dr. Malik Jasim Asst. Lect. Mustafa Mahdi 1

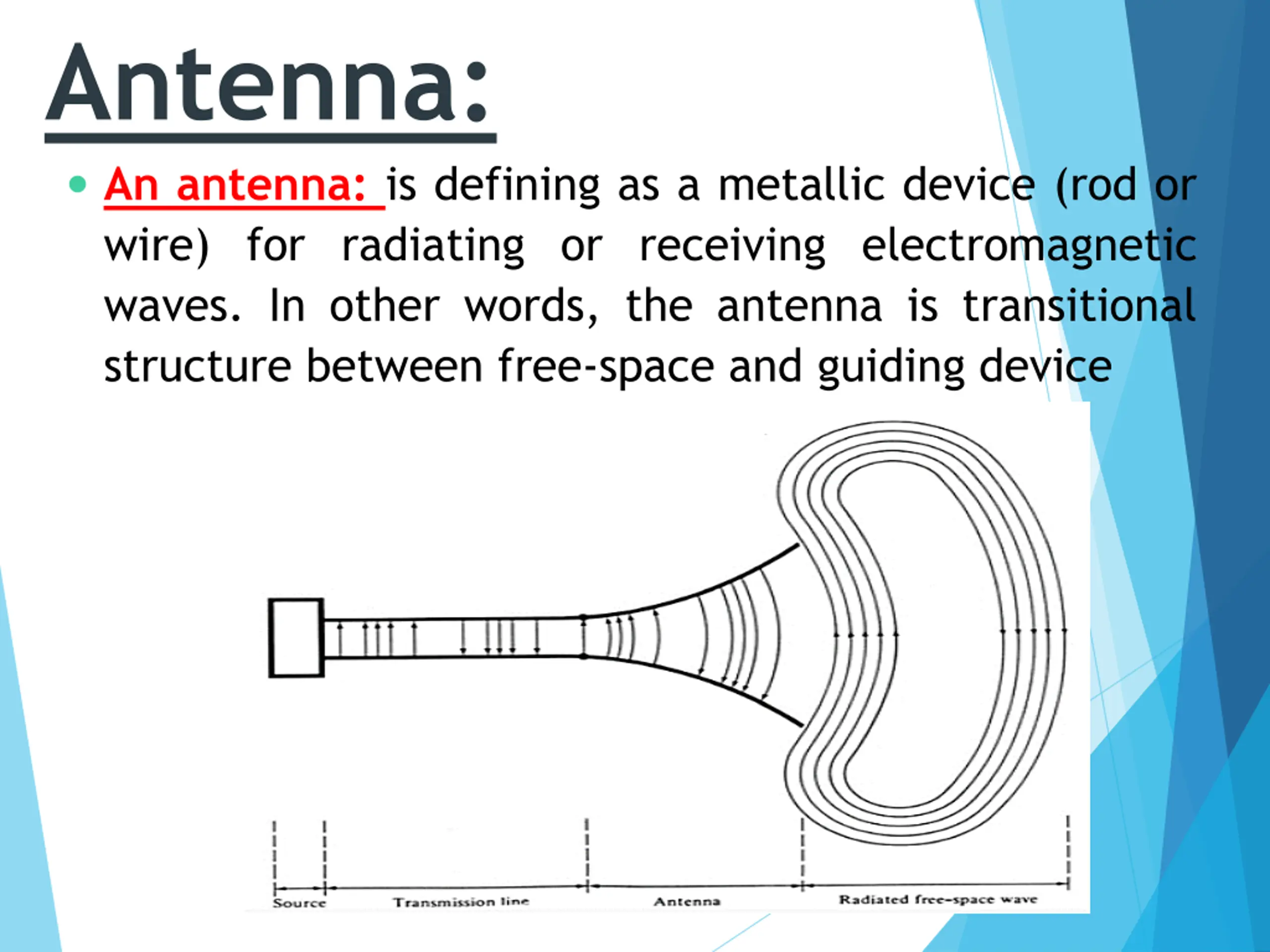

Antenna: An antenna: is defining as a metallic device (rod or wire) for radiating or receiving electromagnetic waves. In other words, the antenna is transitional structure between free-space and guiding device

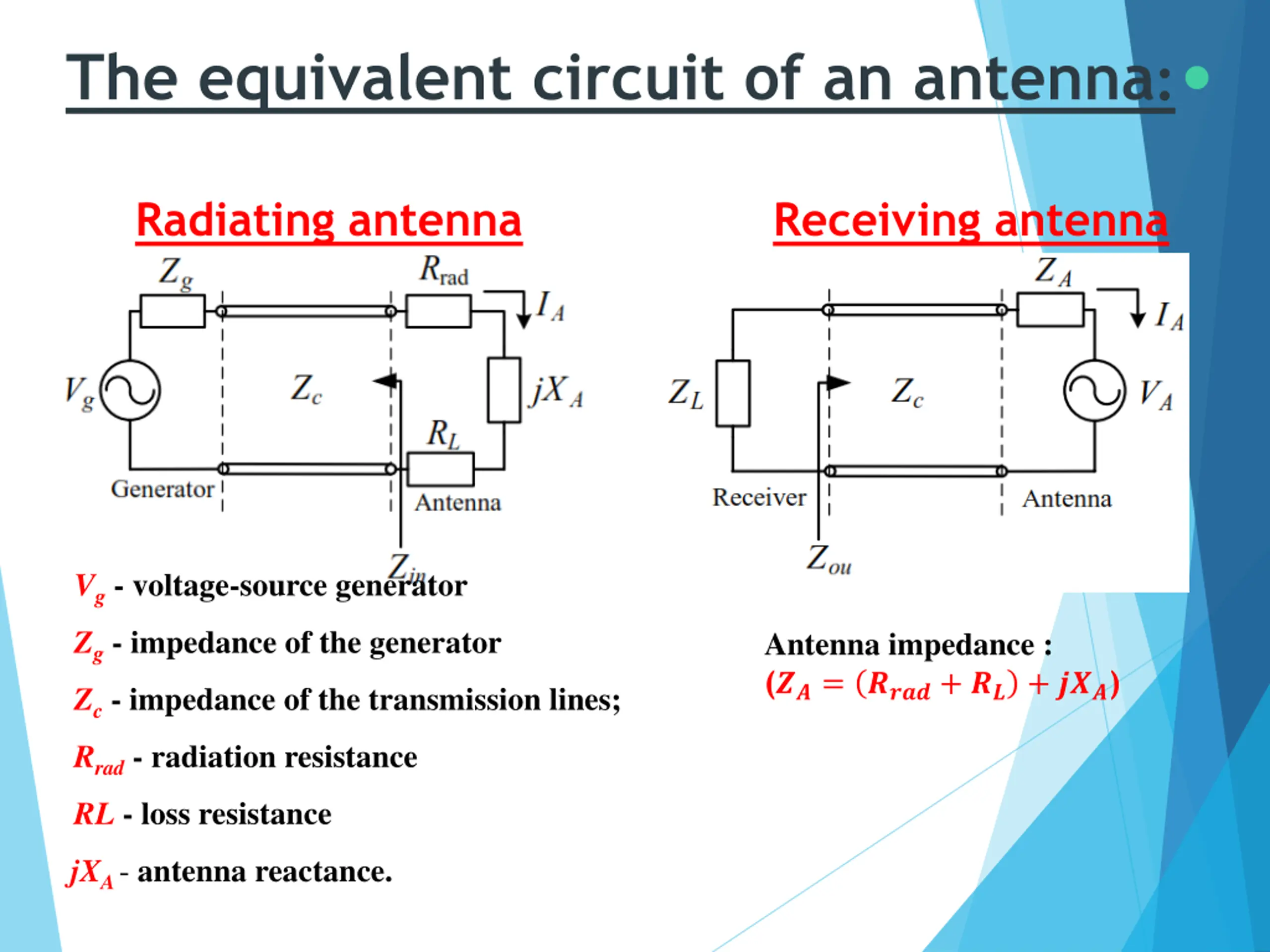

The equivalent circuit of an antenna: Radiating antenna Receiving antenna Vg - voltage-source generator Zg - impedance of the generator Zc - impedance of the transmission lines; Rrad - radiation resistance RL -loss resistance Antenna impedance : (??= ????+ ?? + ???) jXA - antenna reactance.

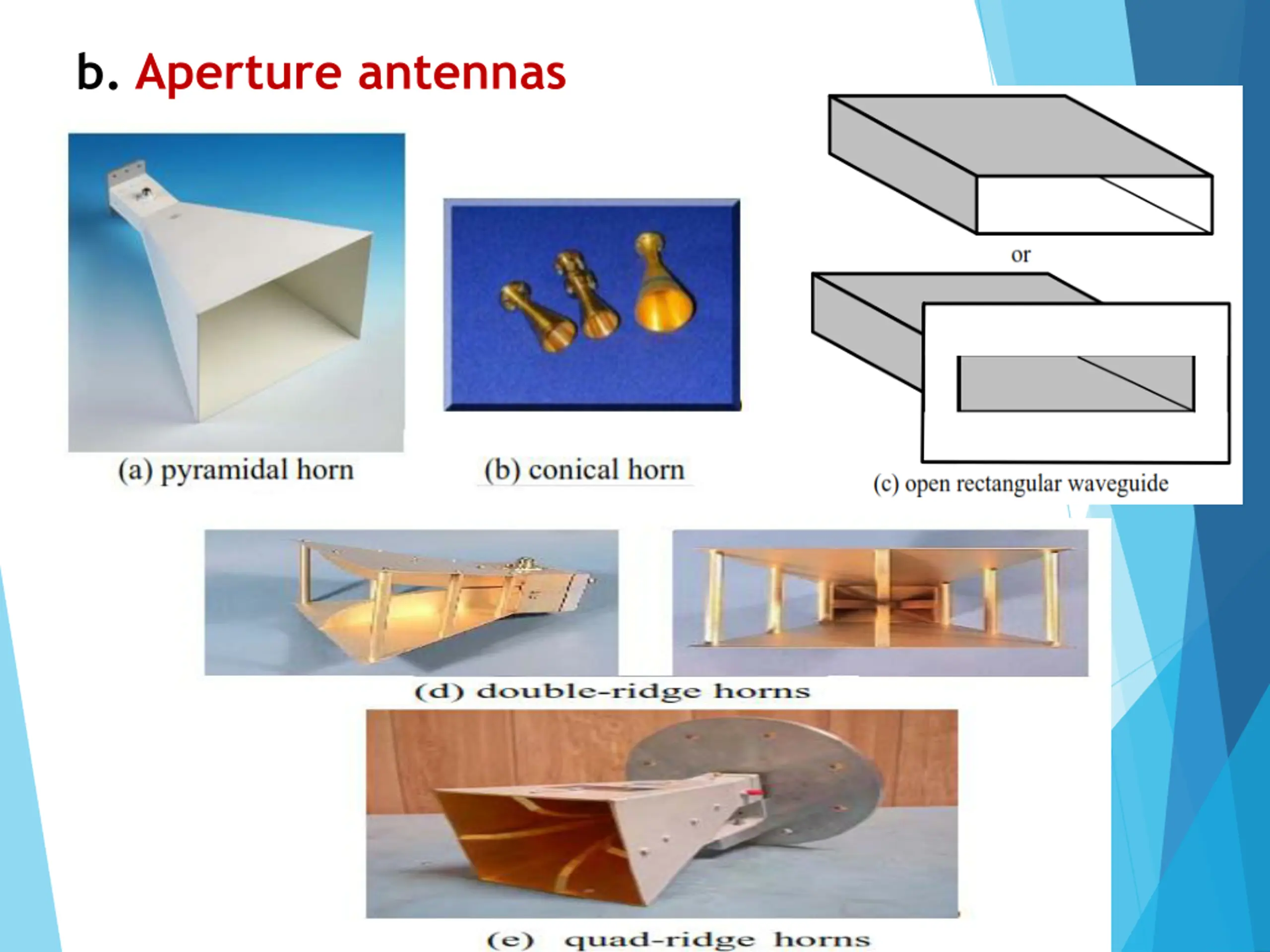

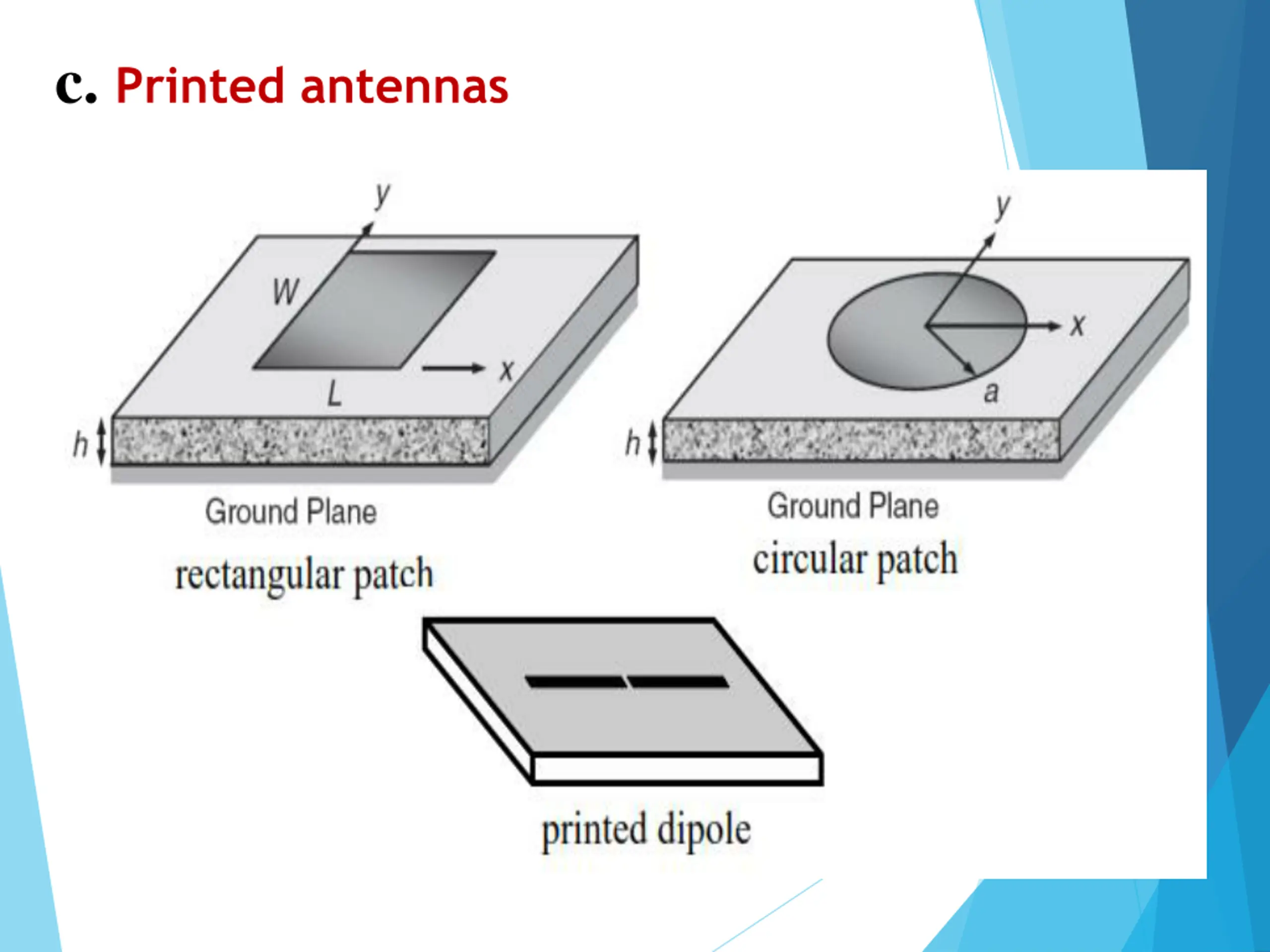

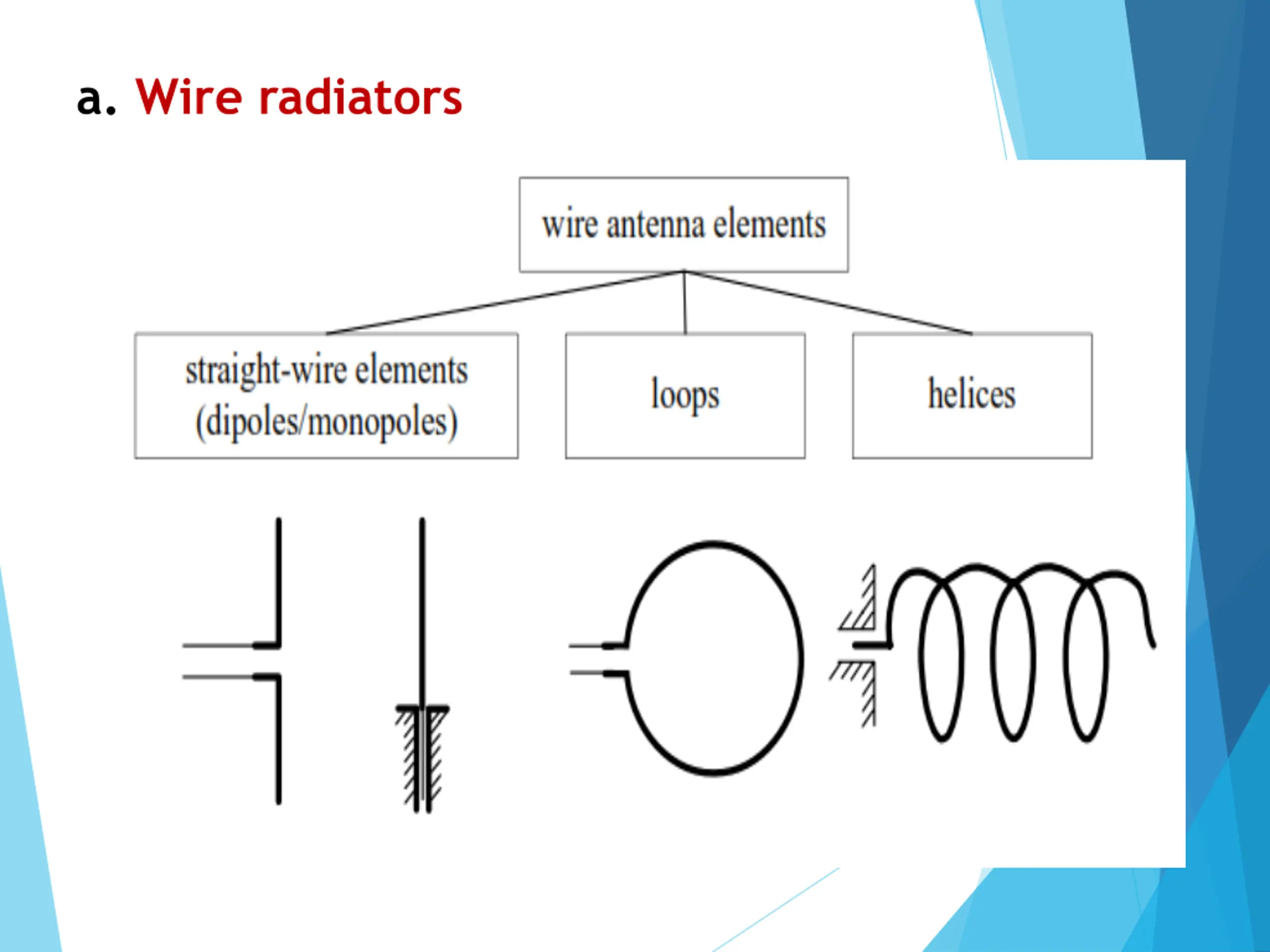

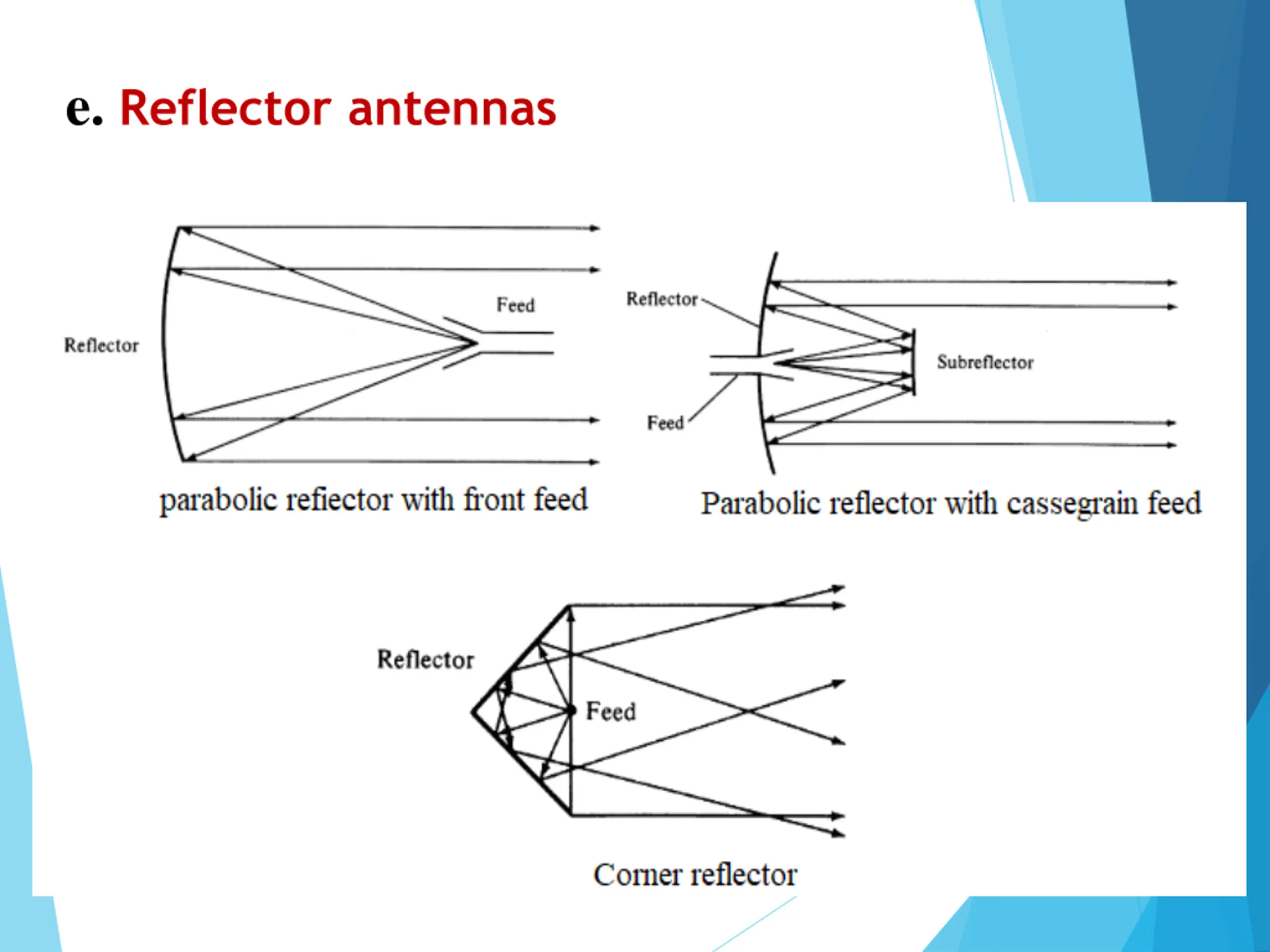

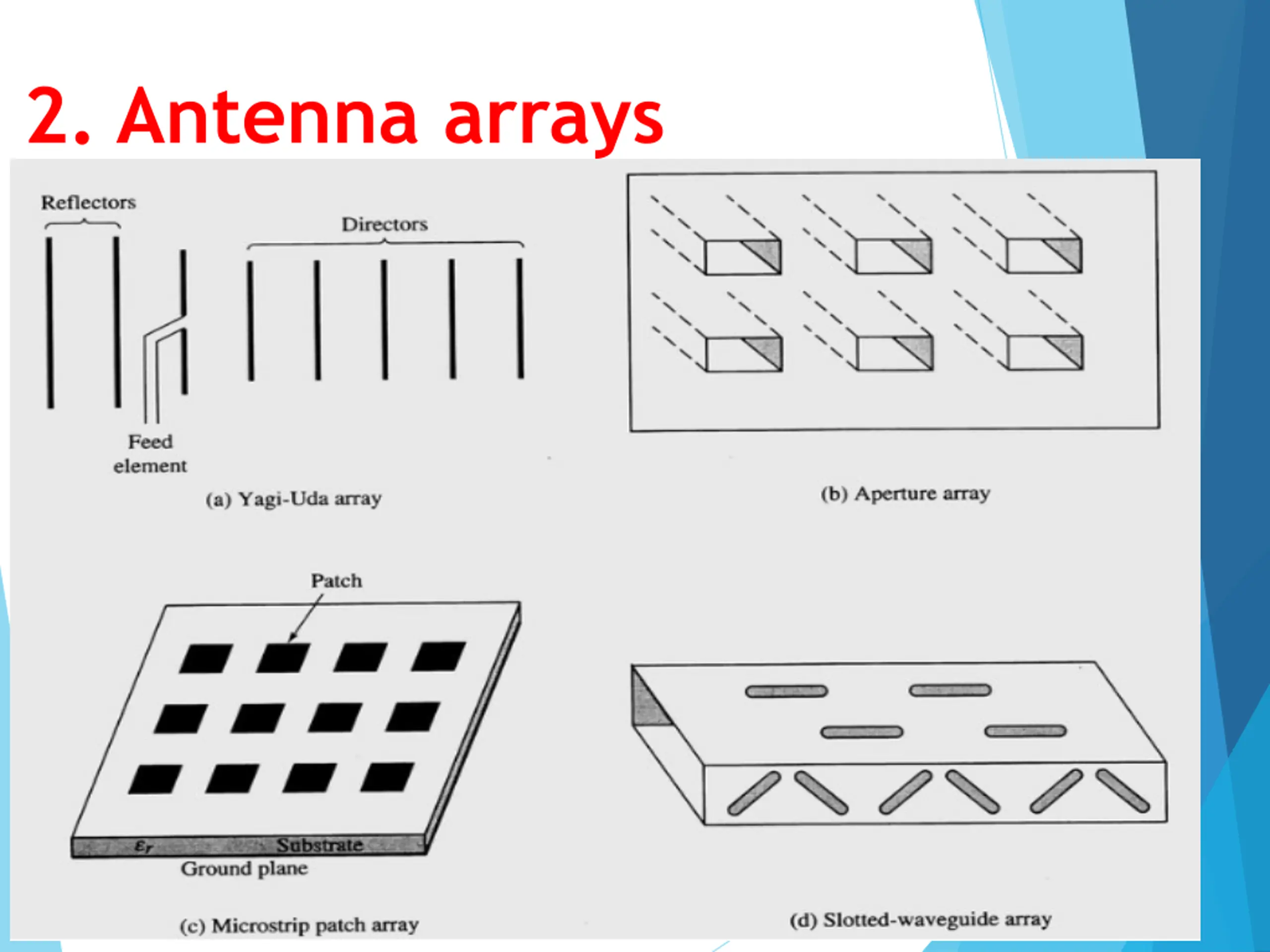

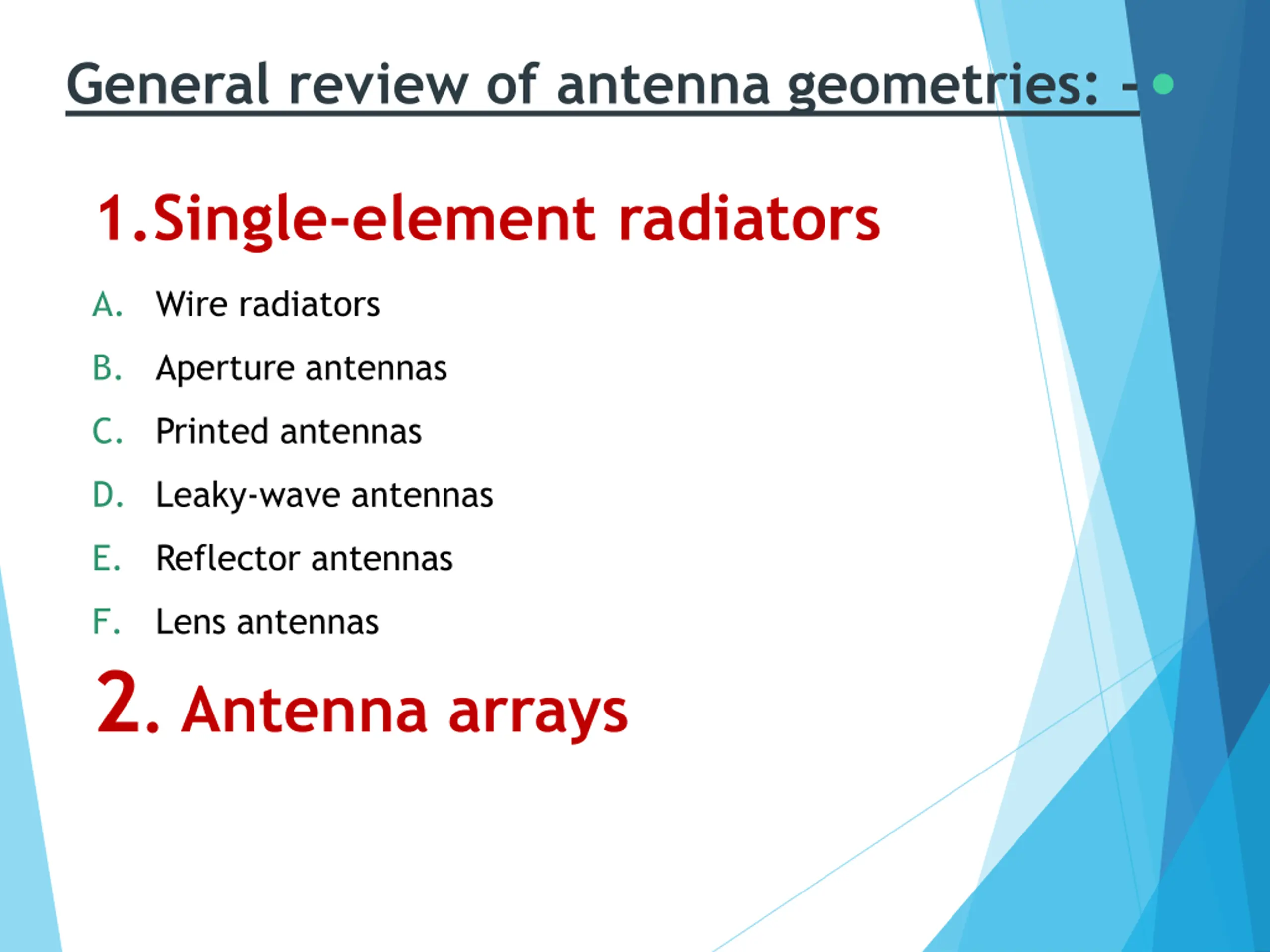

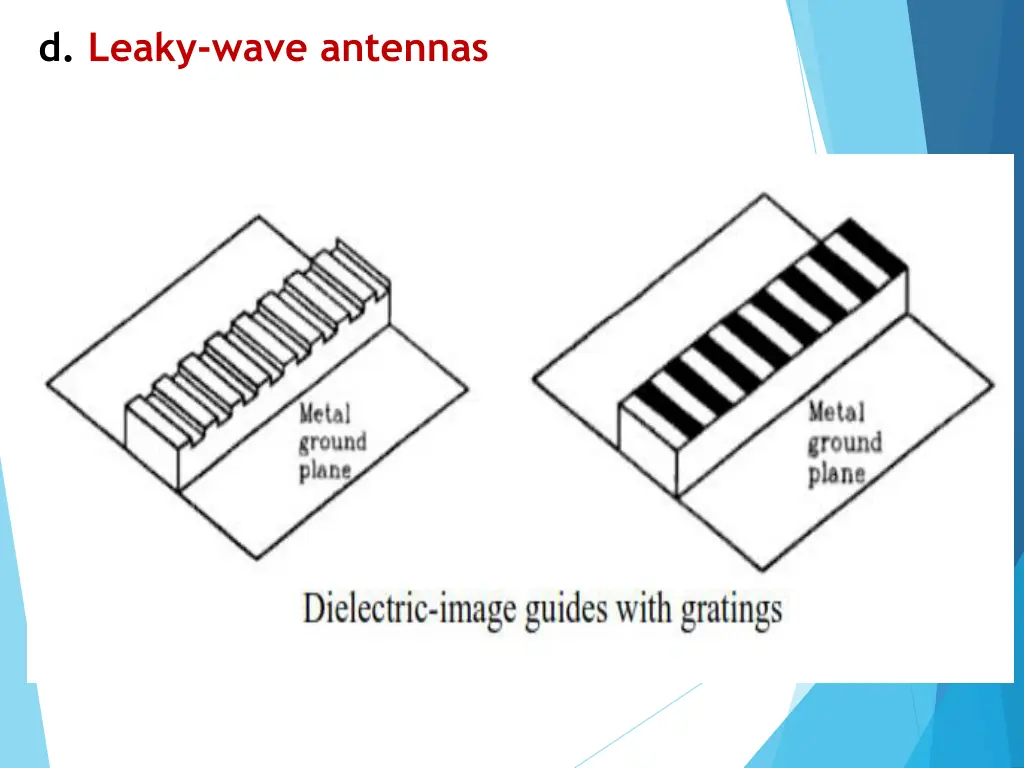

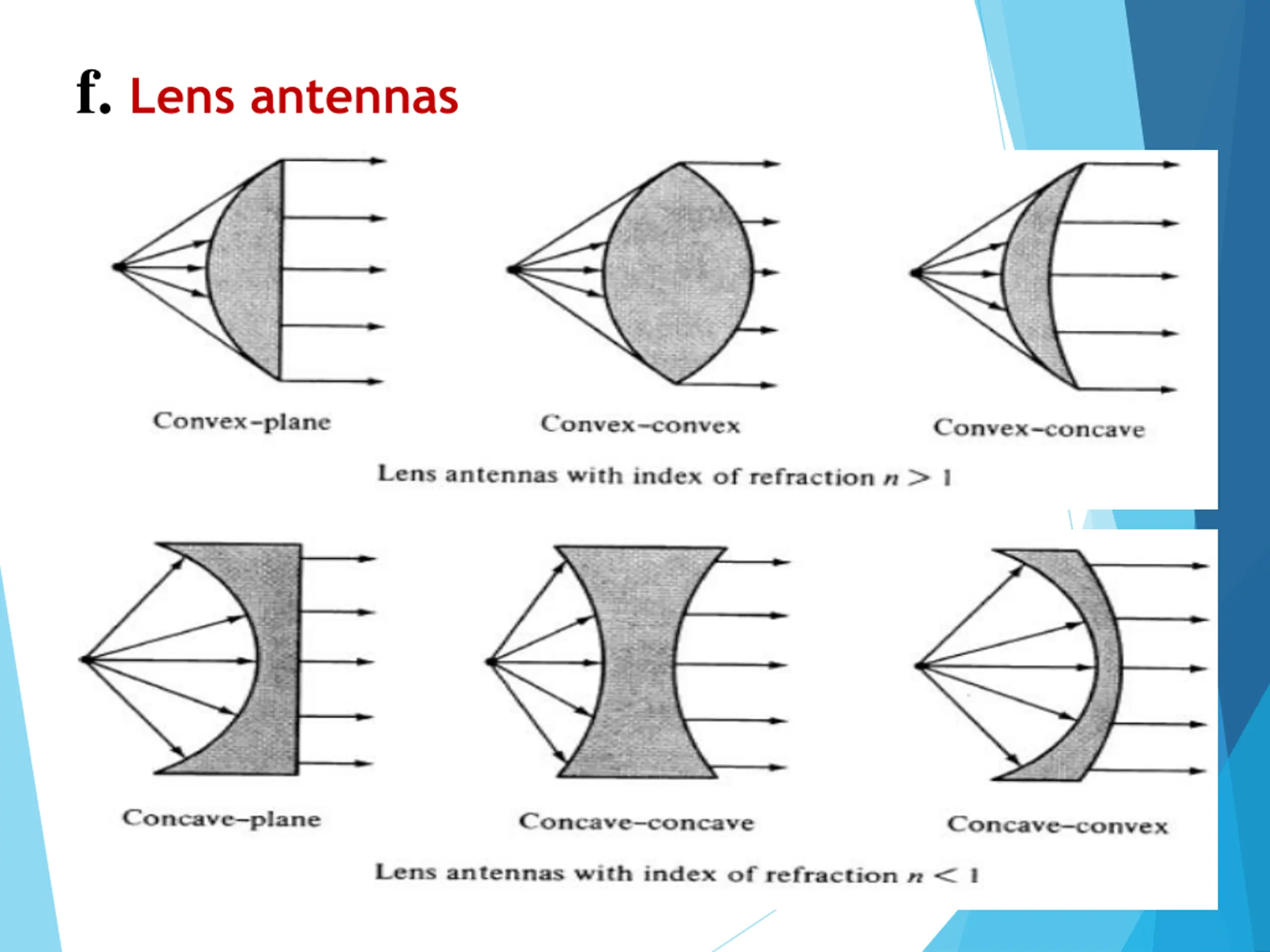

General review of antenna geometries: - 1.Single-element radiators A. Wire radiators B. Aperture antennas C. Printed antennas D. Leaky-wave antennas E. Reflector antennas F. 2. Antenna arrays Lens antennas
