Application of Taint Analysis in Reverse Engineering

William Whistler REcon 2010

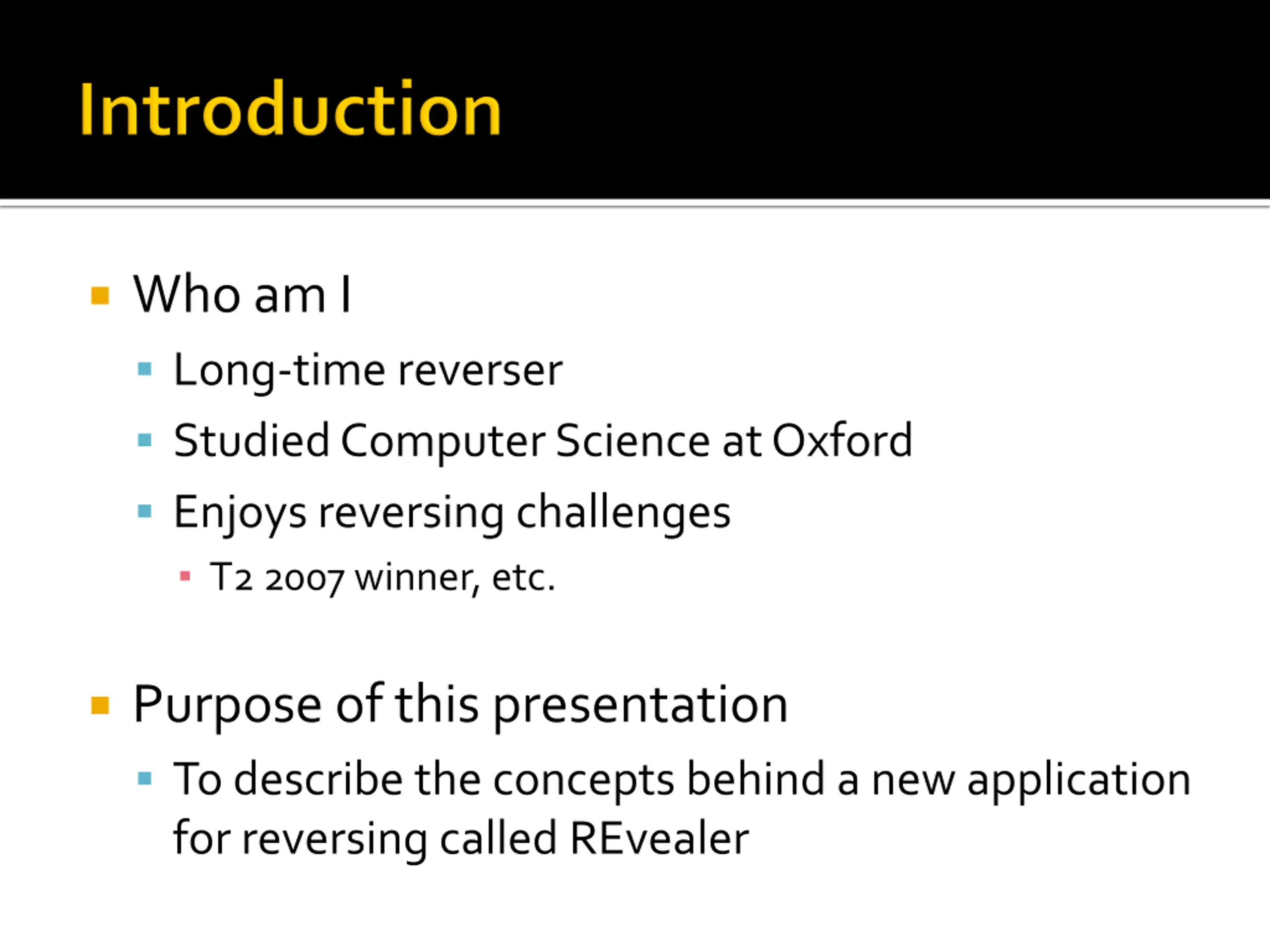

Who am I Long-time reverser Studied Computer Science at Oxford Enjoys reversing challenges T2 2007 winner, etc. Purpose of this presentation To describe the concepts behind a new application for reversing called REvealer

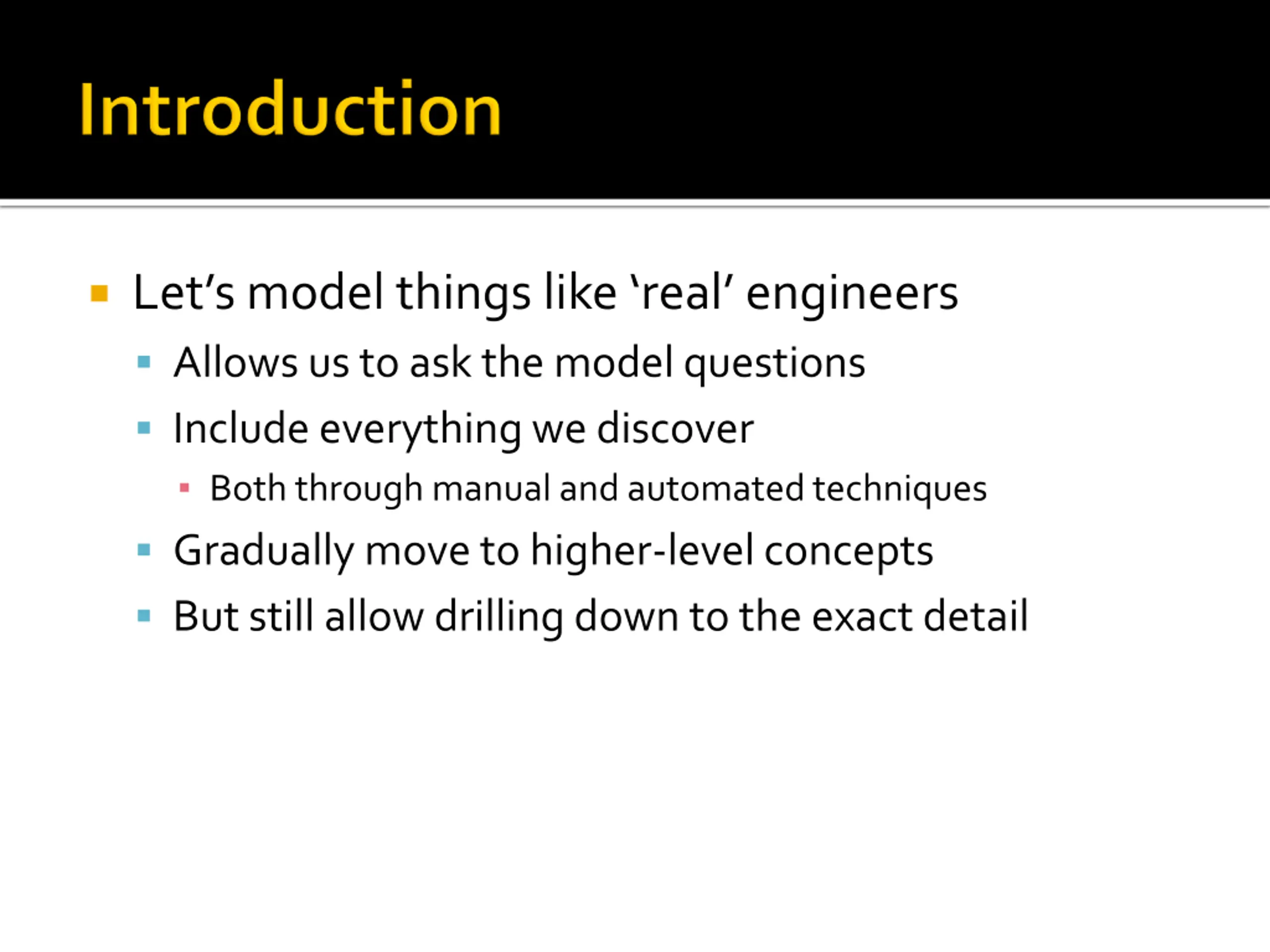

Lets model things like real engineers Allows us to ask the model questions Include everything we discover Both through manual and automated techniques Gradually move to higher-level concepts But still allow drilling down to the exact detail

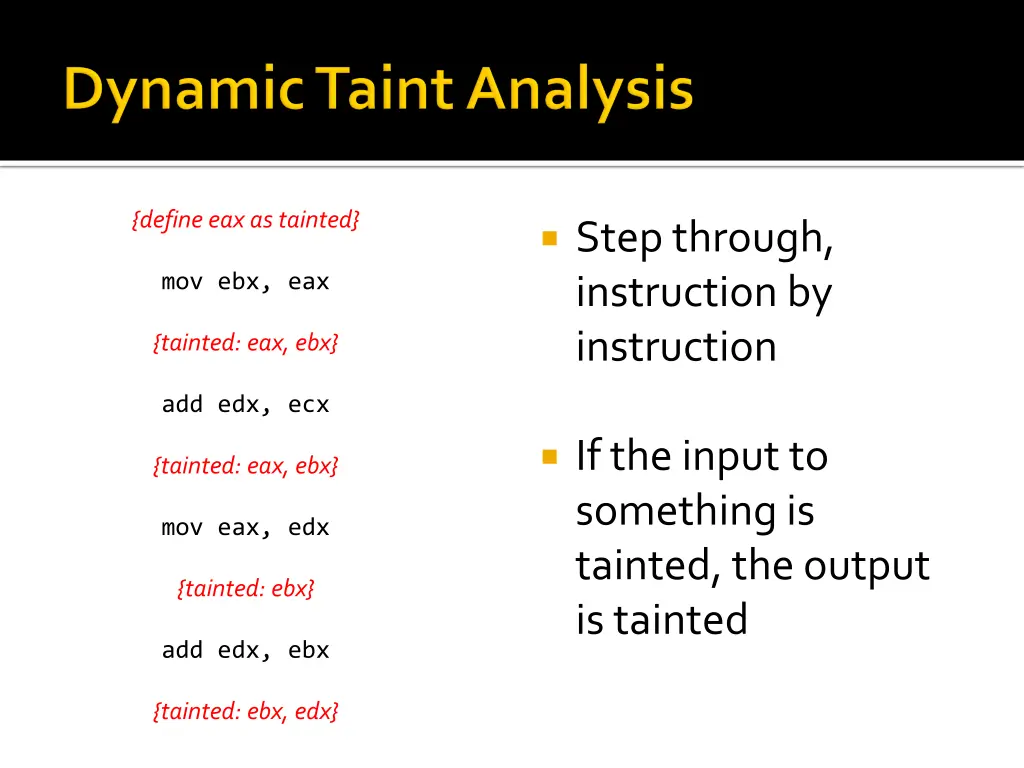

{define eax as tainted} Step through, instruction by instruction mov ebx, eax {tainted: eax, ebx} add edx, ecx If the input to something is tainted, the output is tainted {tainted: eax, ebx} mov eax, edx {tainted: ebx} add edx, ebx {tainted: ebx, edx}

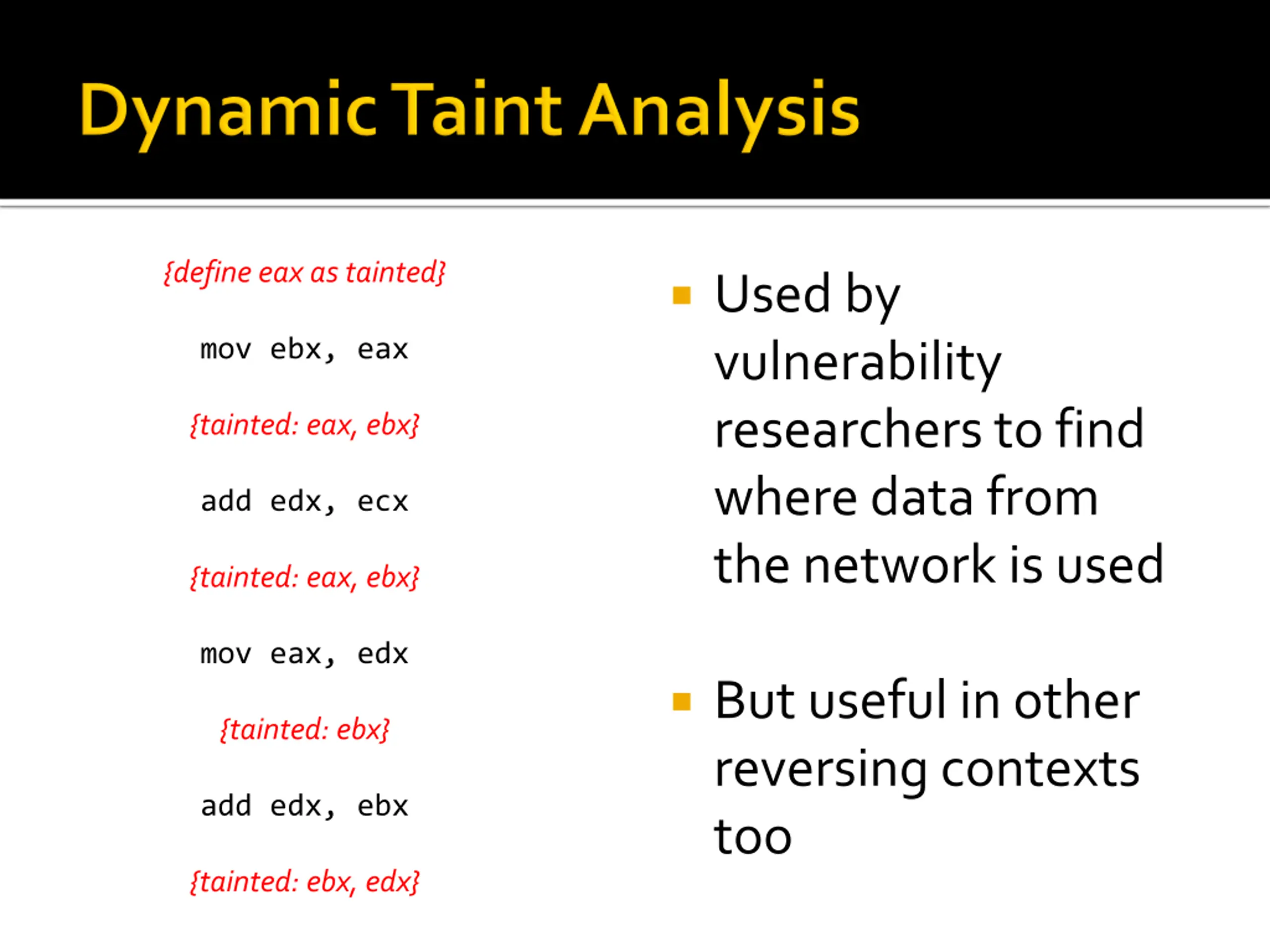

{define eax as tainted} Used by vulnerability researchers to find where data from the network is used mov ebx, eax {tainted: eax, ebx} add edx, ecx {tainted: eax, ebx} mov eax, edx But useful in other reversing contexts too {tainted: ebx} add edx, ebx {tainted: ebx, edx}

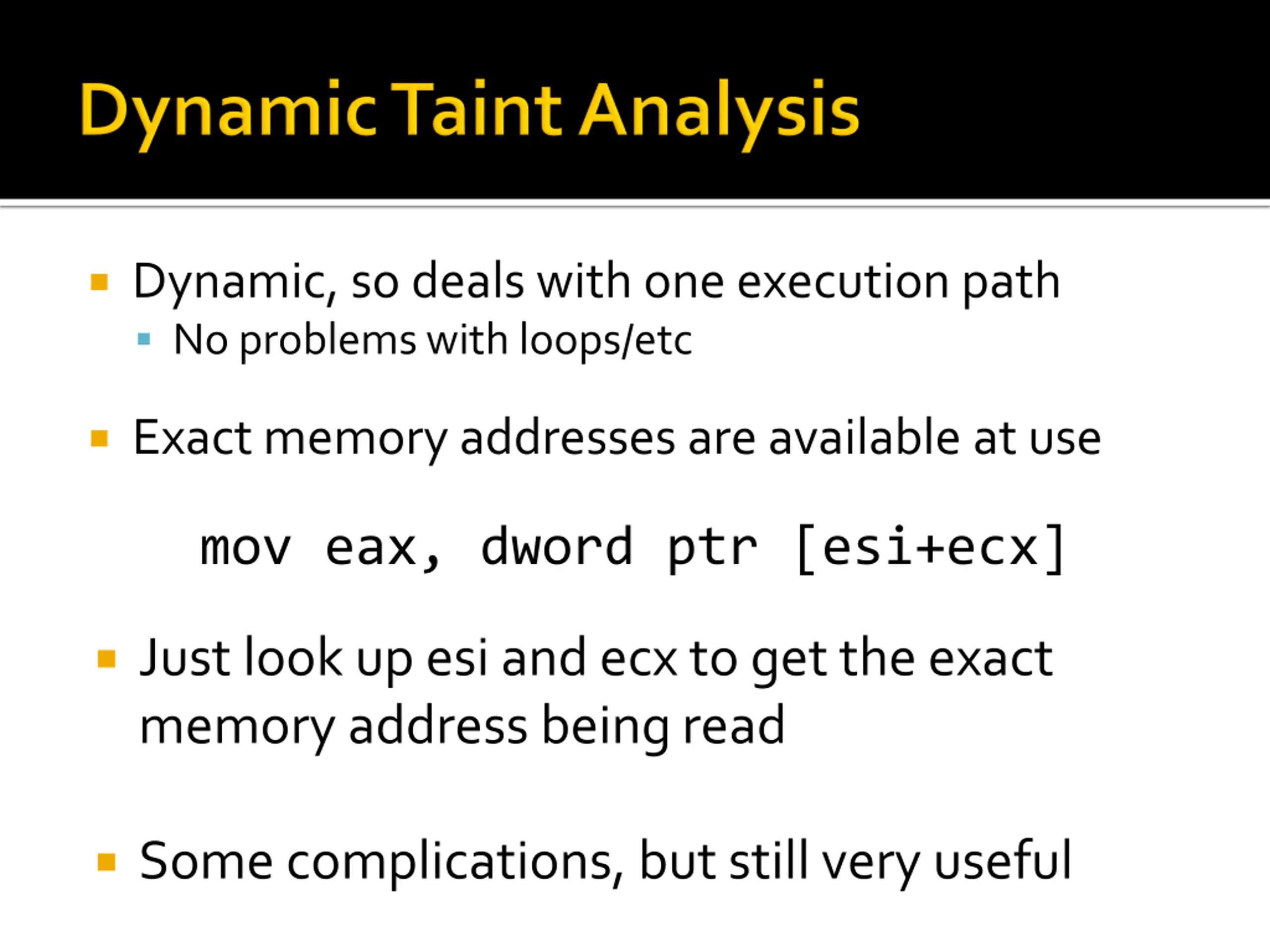

Dynamic, so deals with one execution path No problems with loops/etc Exact memory addresses are available at use mov eax, dword ptr [esi+ecx] Just look up esi and ecx to get the exact memory address being read Some complications, but still very useful

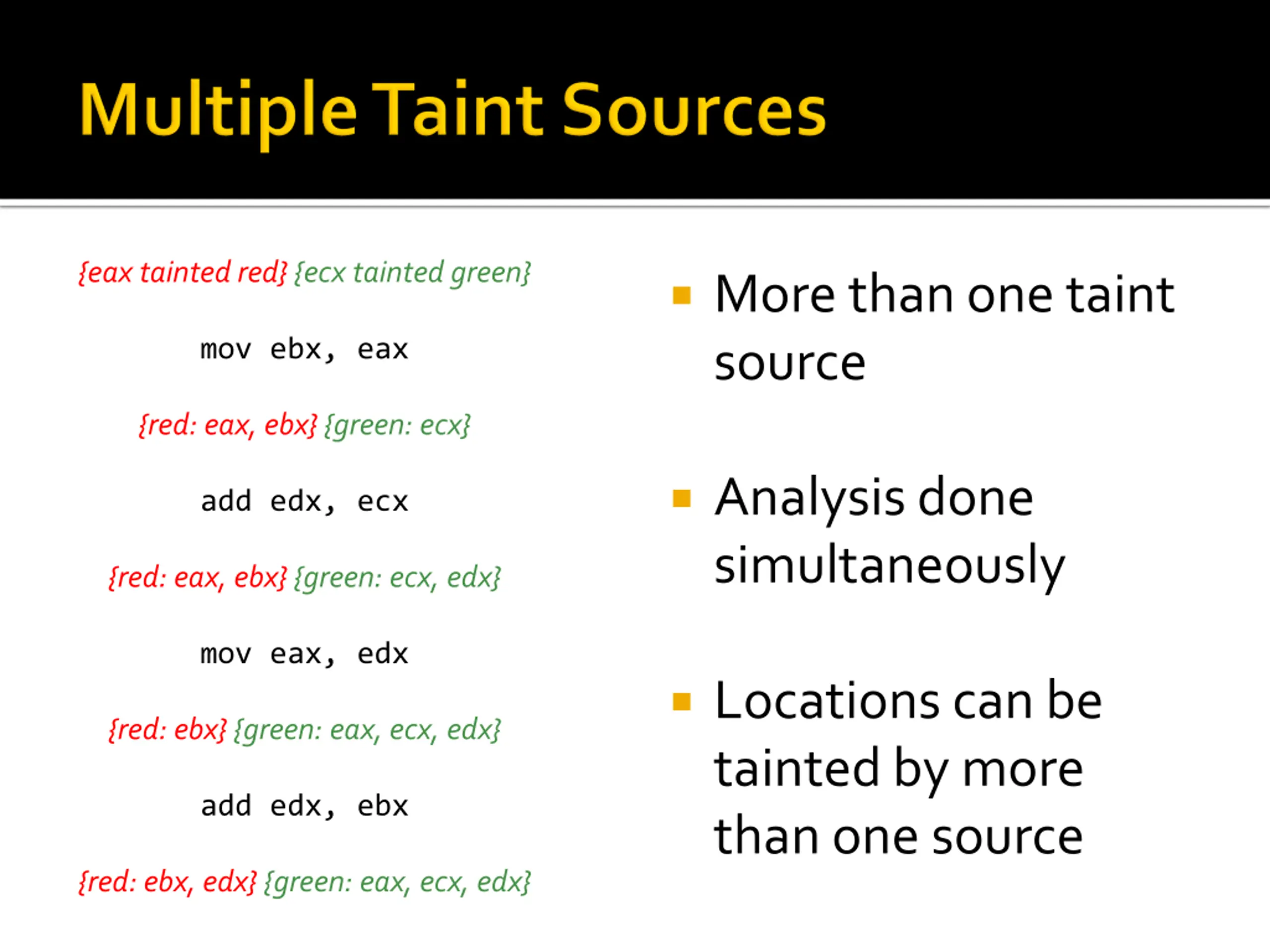

{eax tainted red} {ecx tainted green} More than one taint source mov ebx, eax {red: eax, ebx} {green: ecx} Analysis done simultaneously add edx, ecx {red: eax, ebx} {green: ecx, edx} mov eax, edx Locations can be tainted by more than one source {red: ebx} {green: eax, ecx, edx} add edx, ebx {red: ebx, edx} {green: eax, ecx, edx}

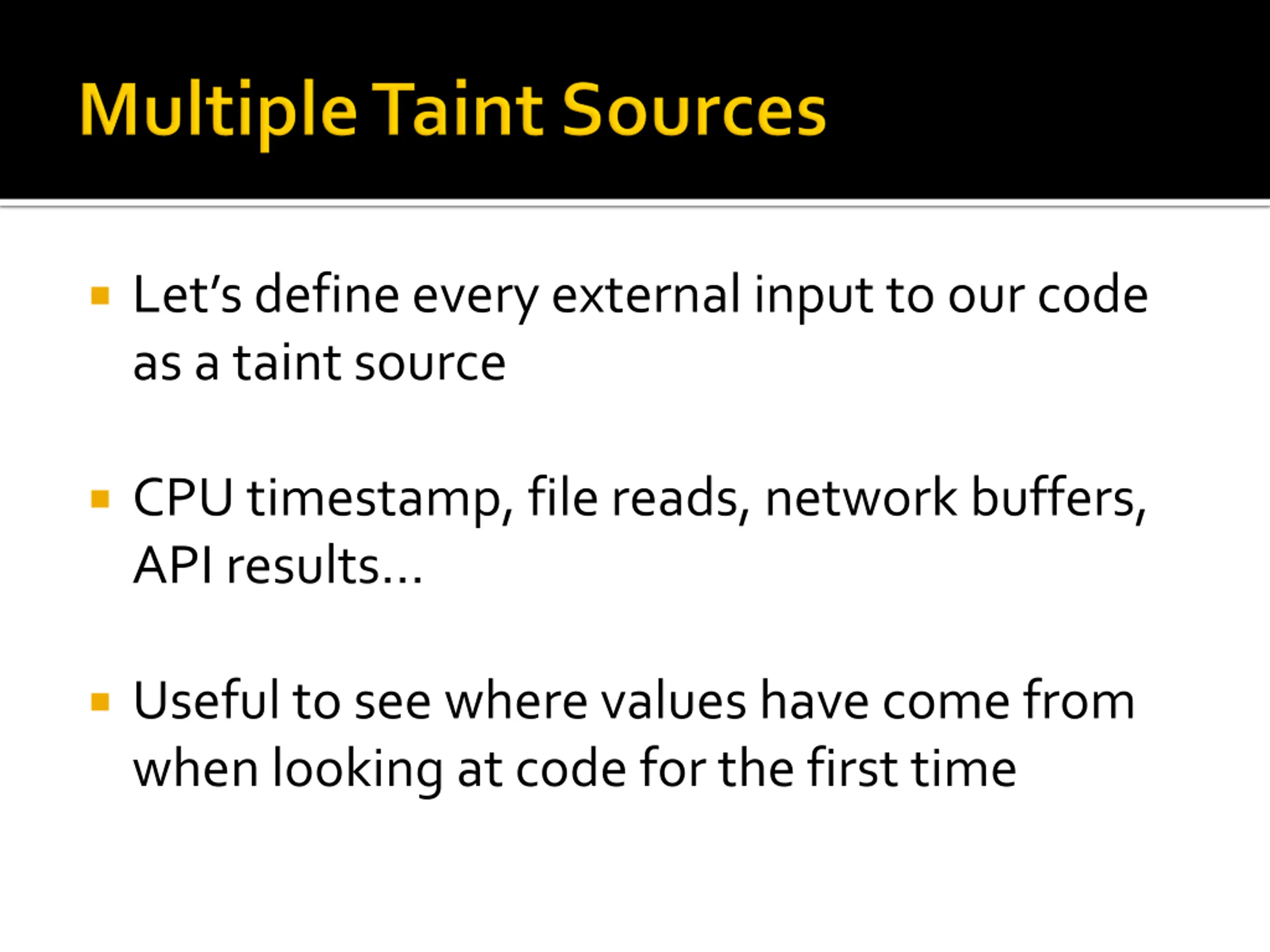

Lets define every external input to our code as a taint source CPU timestamp, file reads, network buffers, API results Useful to see where values have come from when looking at code for the first time

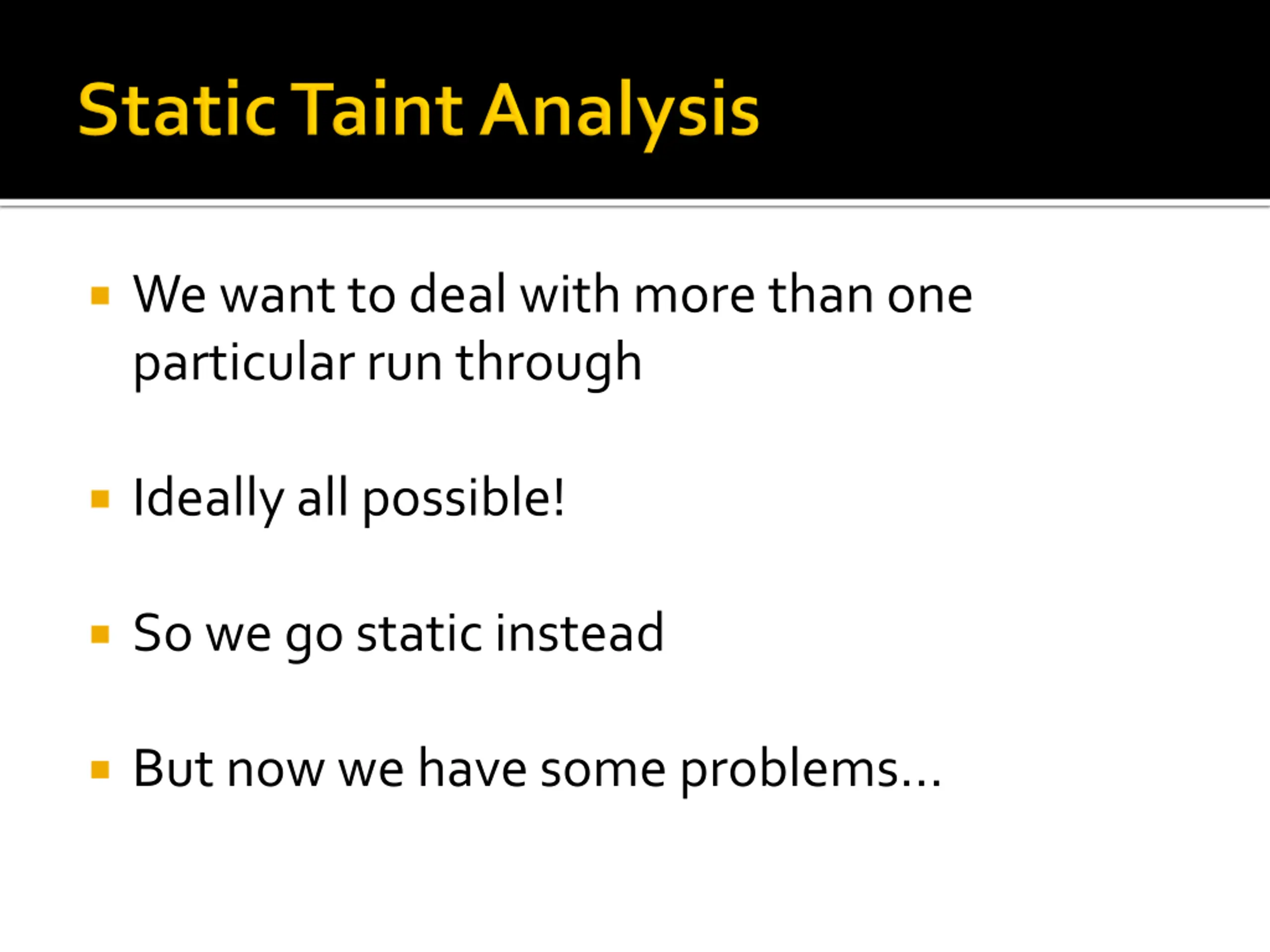

We want to deal with more than one particular run through Ideally all possible! So we go static instead But now we have some problems

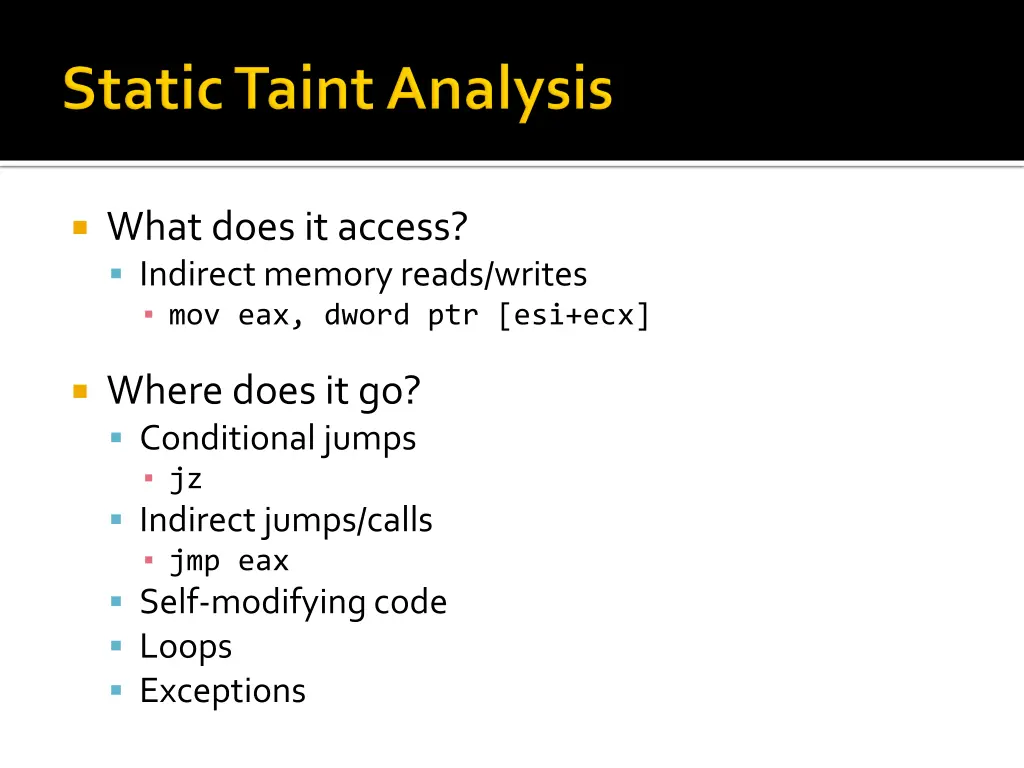

What does it access? Indirect memory reads/writes mov eax, dword ptr [esi+ecx] Where does it go? Conditional jumps jz Indirect jumps/calls jmp eax Self-modifying code Loops Exceptions

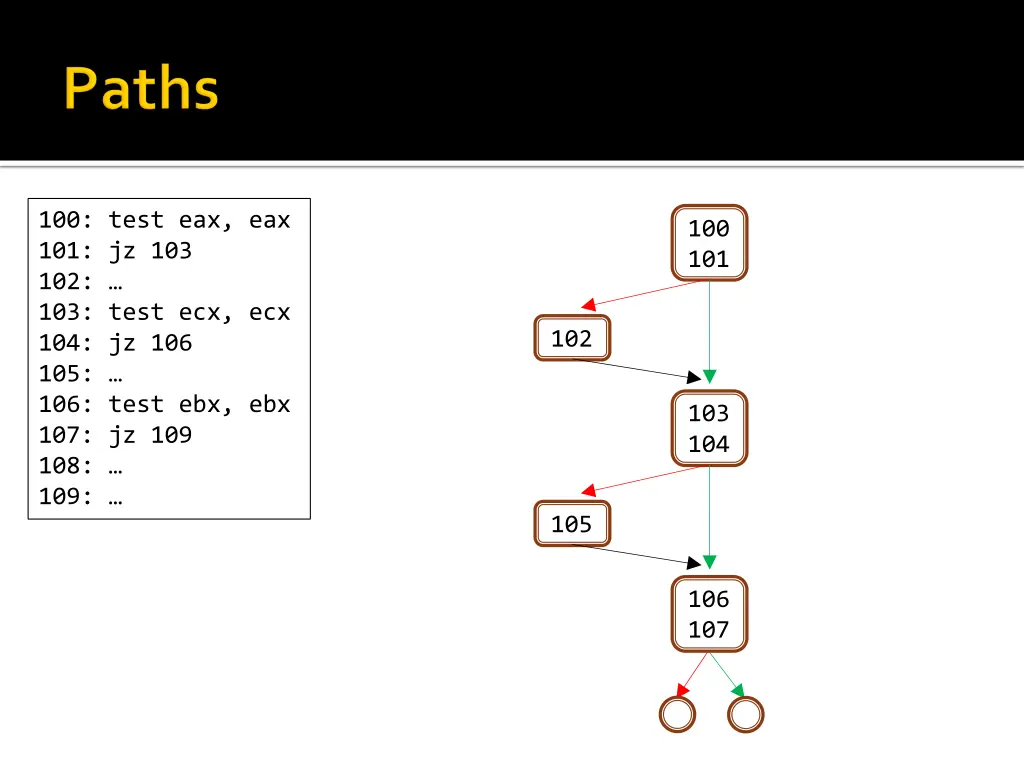

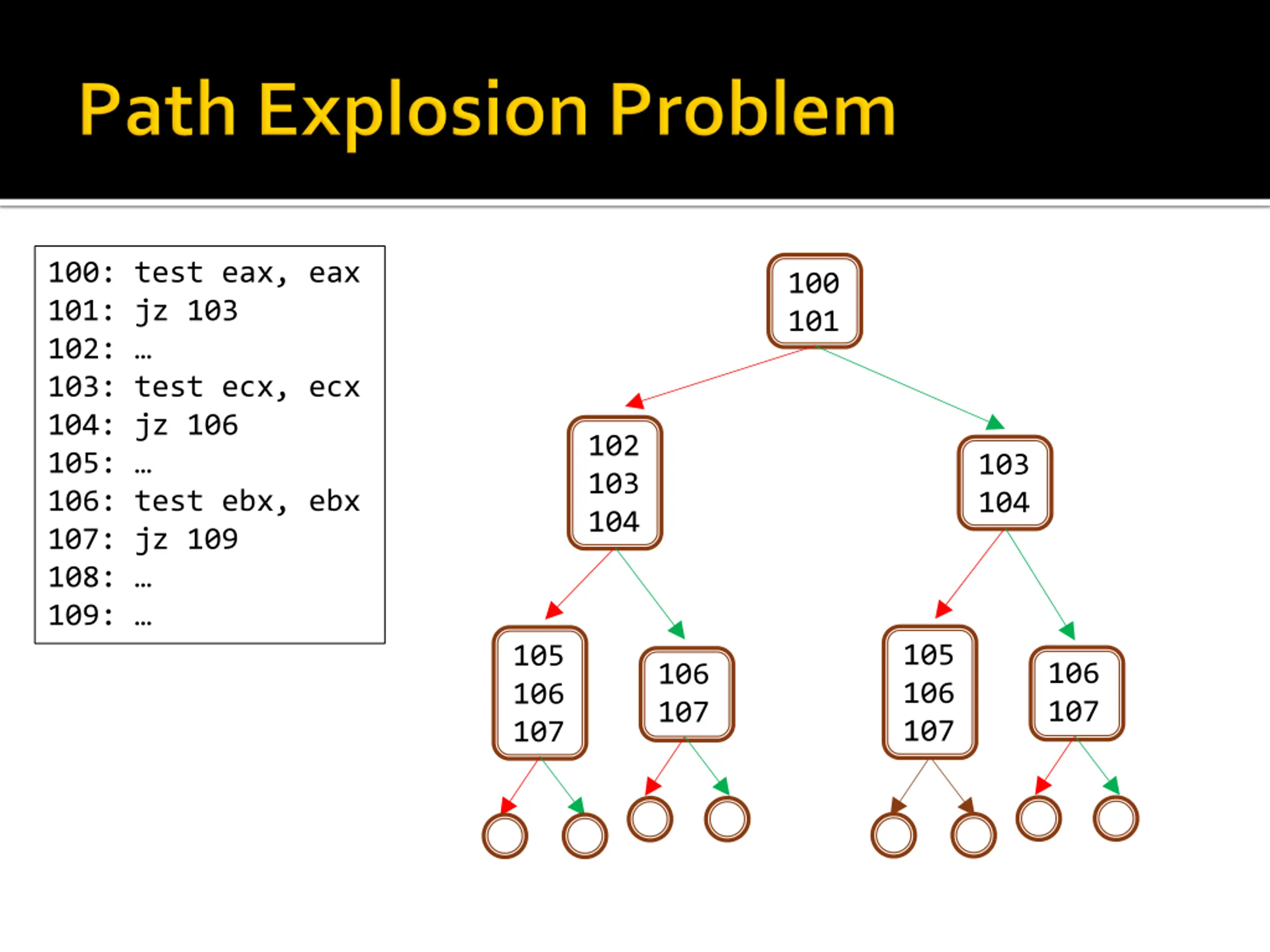

100: test eax, eax 101: jz 103 102: 103: test ecx, ecx 104: jz 106 105: 106: test ebx, ebx 107: jz 109 108: 109: 100 101 102 103 104 103 104 105 106 107 105 106 107 106 107 106 107

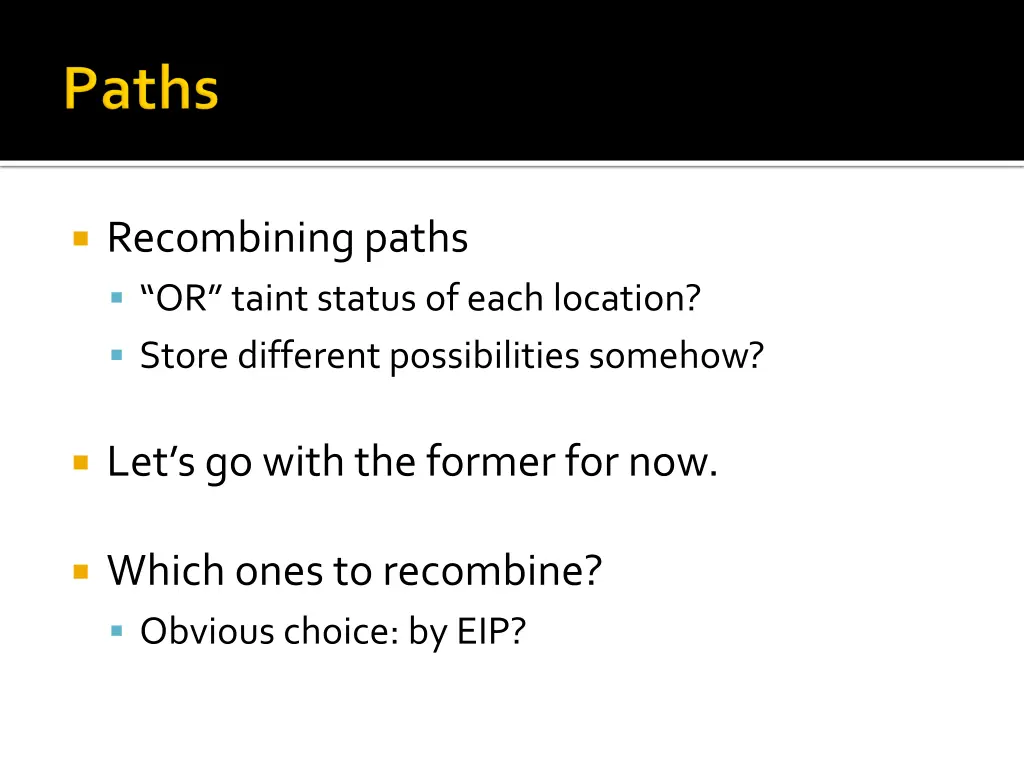

Recombining paths OR taint status of each location? Store different possibilities somehow? Let s go with the former for now. Which ones to recombine? Obvious choice: by EIP?

100: test eax, eax 101: jz 103 102: 103: test ecx, ecx 104: jz 106 105: 106: test ebx, ebx 107: jz 109 108: 109: 100 101 102 103 104 105 106 107

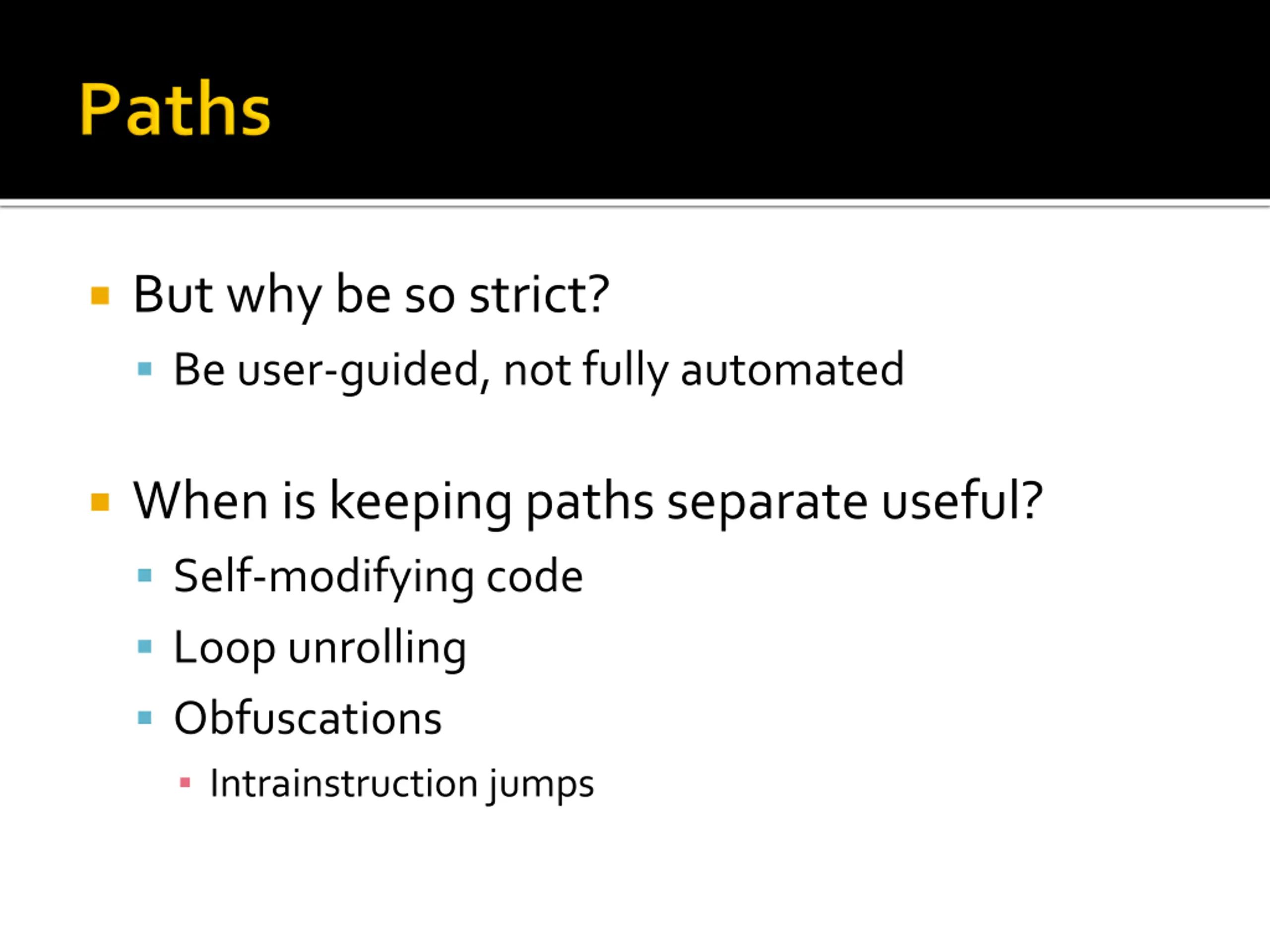

But why be so strict? Be user-guided, not fully automated When is keeping paths separate useful? Self-modifying code Loop unrolling Obfuscations Intrainstruction jumps

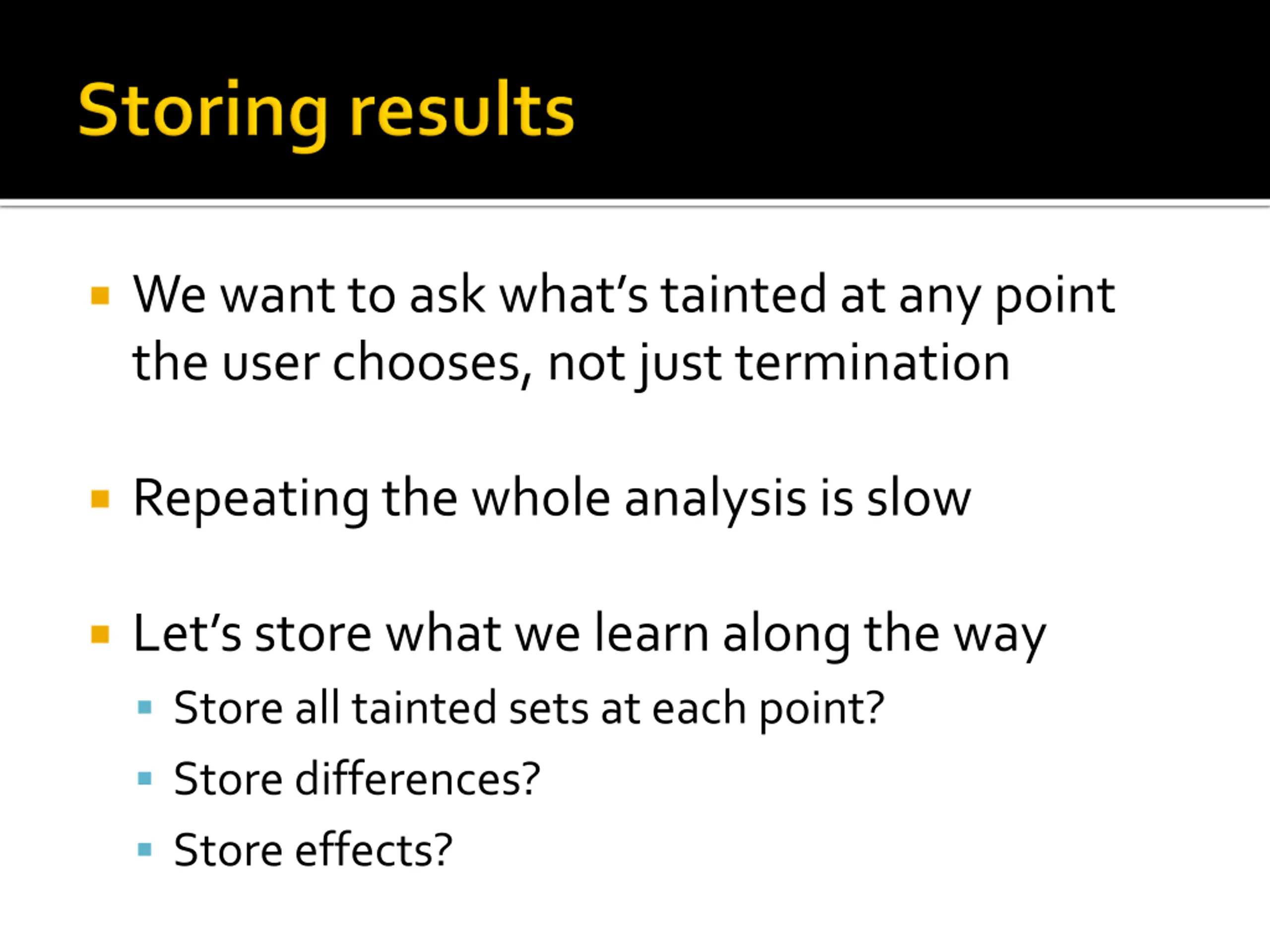

We want to ask whats tainted at any point the user chooses, not just termination Repeating the whole analysis is slow Let s store what we learn along the way Store all tainted sets at each point? Store differences? Store effects?

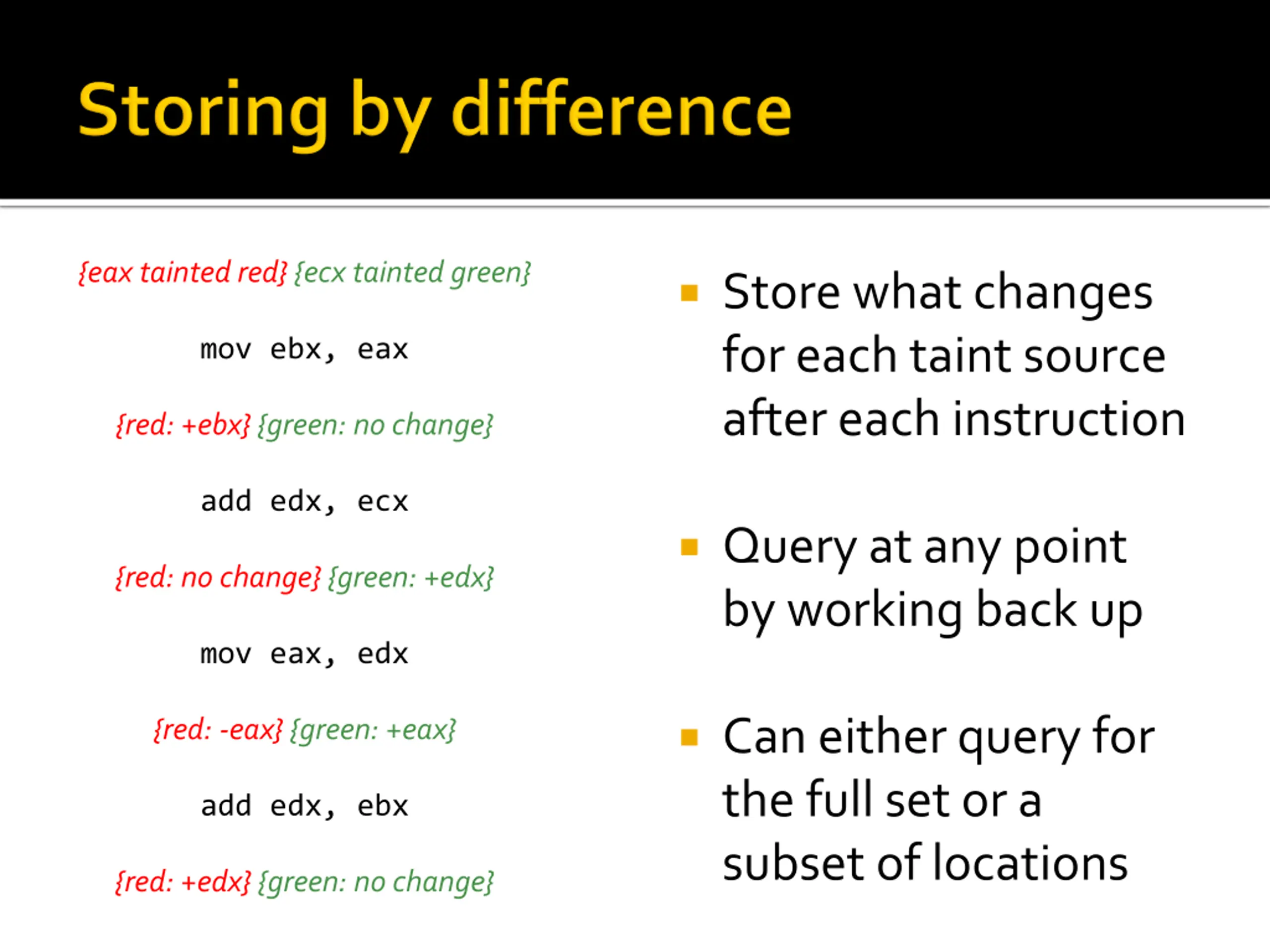

{eax tainted red} {ecx tainted green} Store what changes for each taint source after each instruction mov ebx, eax {red: +ebx} {green: no change} add edx, ecx Query at any point by working back up {red: no change} {green: +edx} mov eax, edx Can either query for the full set or a subset of locations {red: -eax} {green: +eax} add edx, ebx {red: +edx} {green: no change}

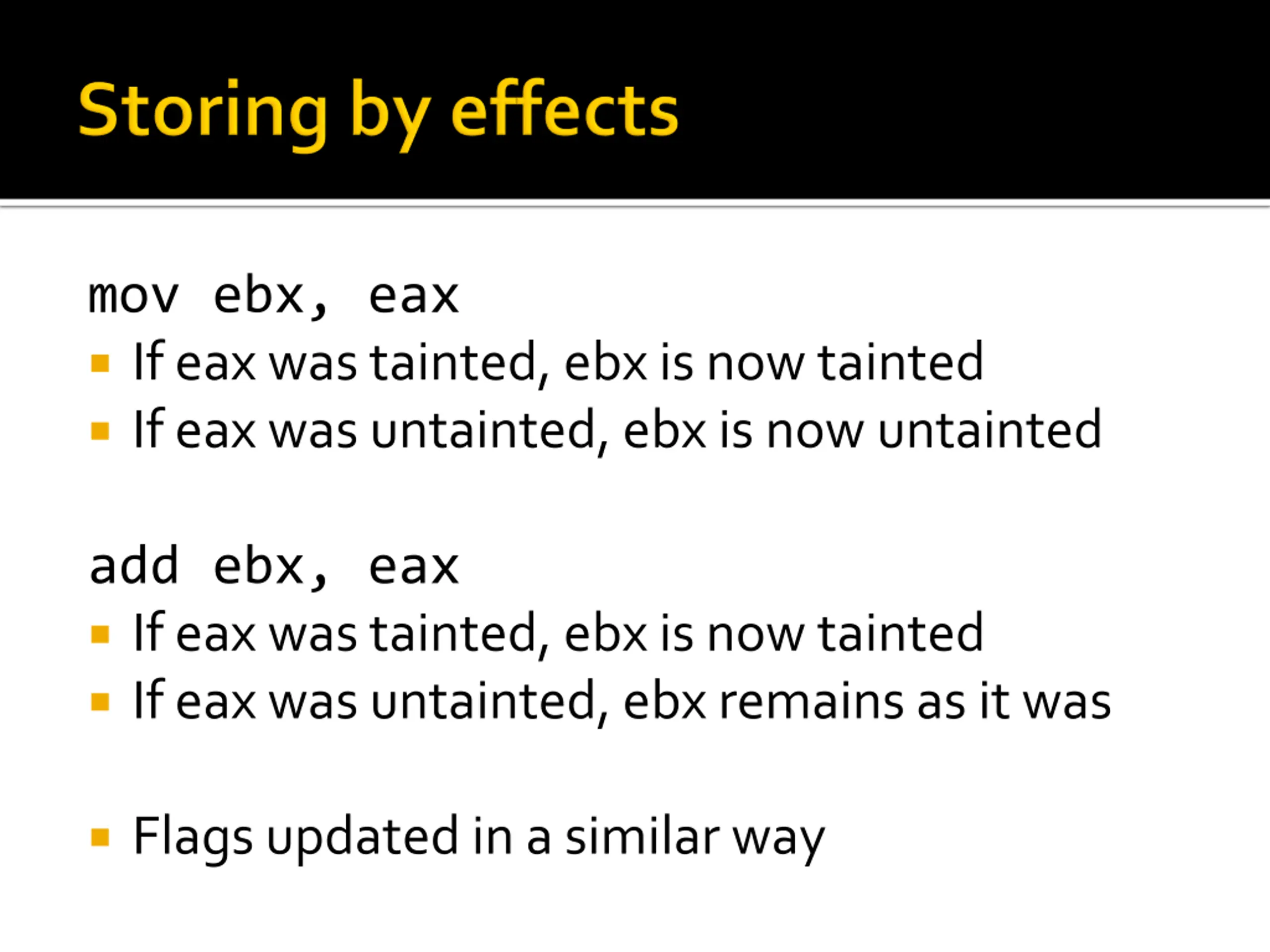

mov ebx, eax If eax was tainted, ebx is now tainted If eax was untainted, ebx is now untainted add ebx, eax If eax was tainted, ebx is now tainted If eax was untainted, ebx remains as it was Flags updated in a similar way

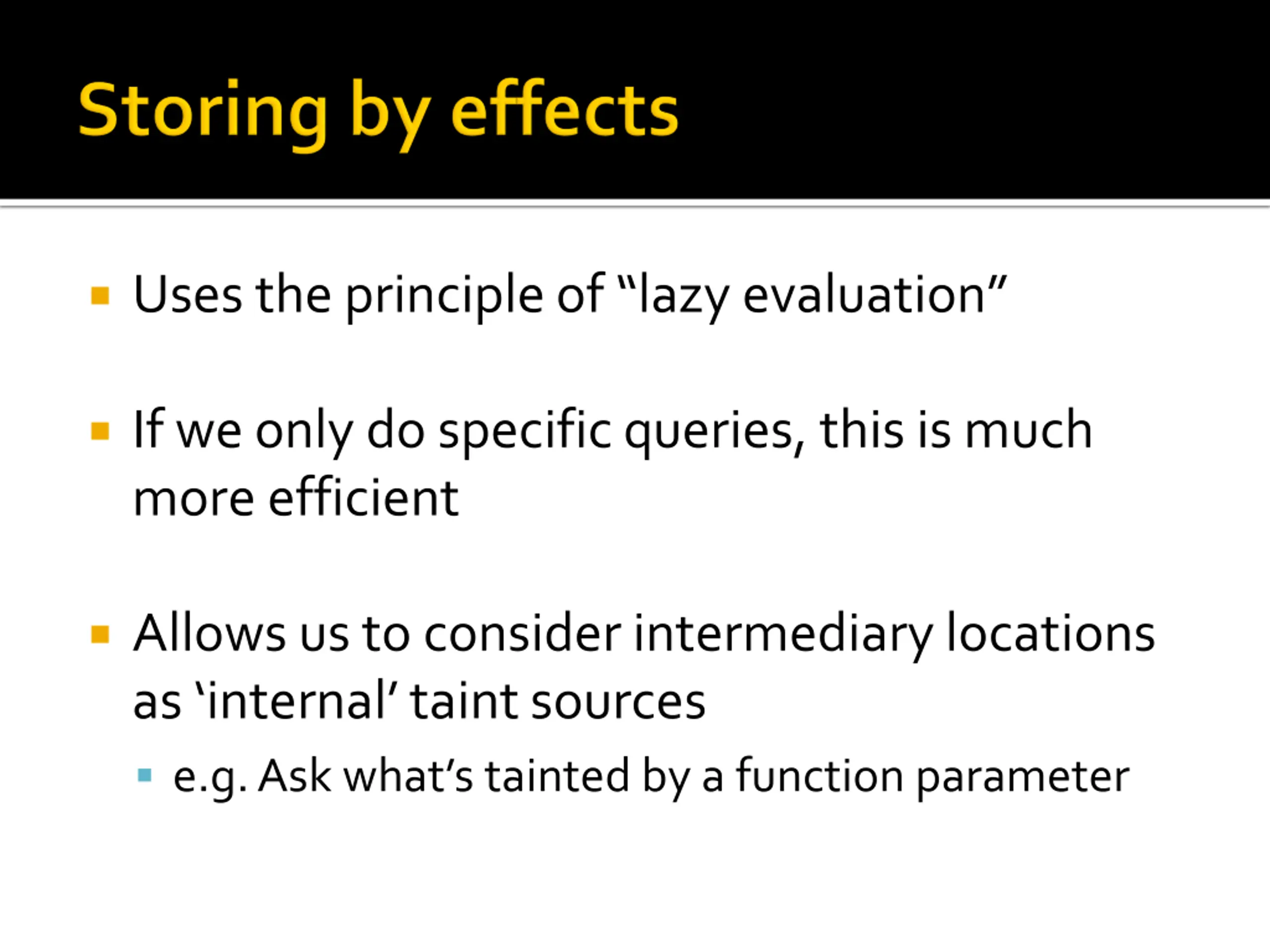

Uses the principle of lazy evaluation If we only do specific queries, this is much more efficient Allows us to consider intermediary locations as internal taint sources e.g. Ask what s tainted by a function parameter

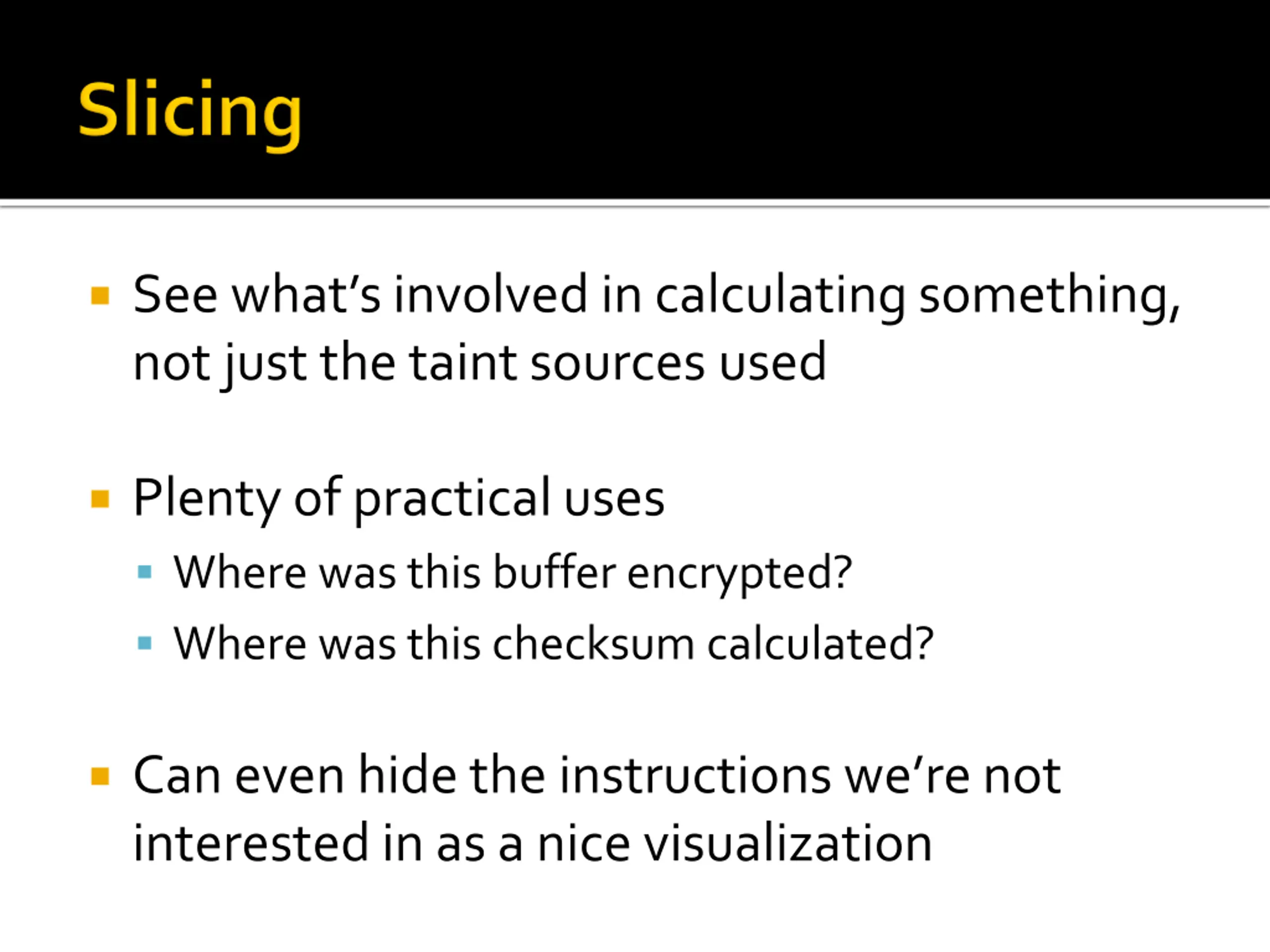

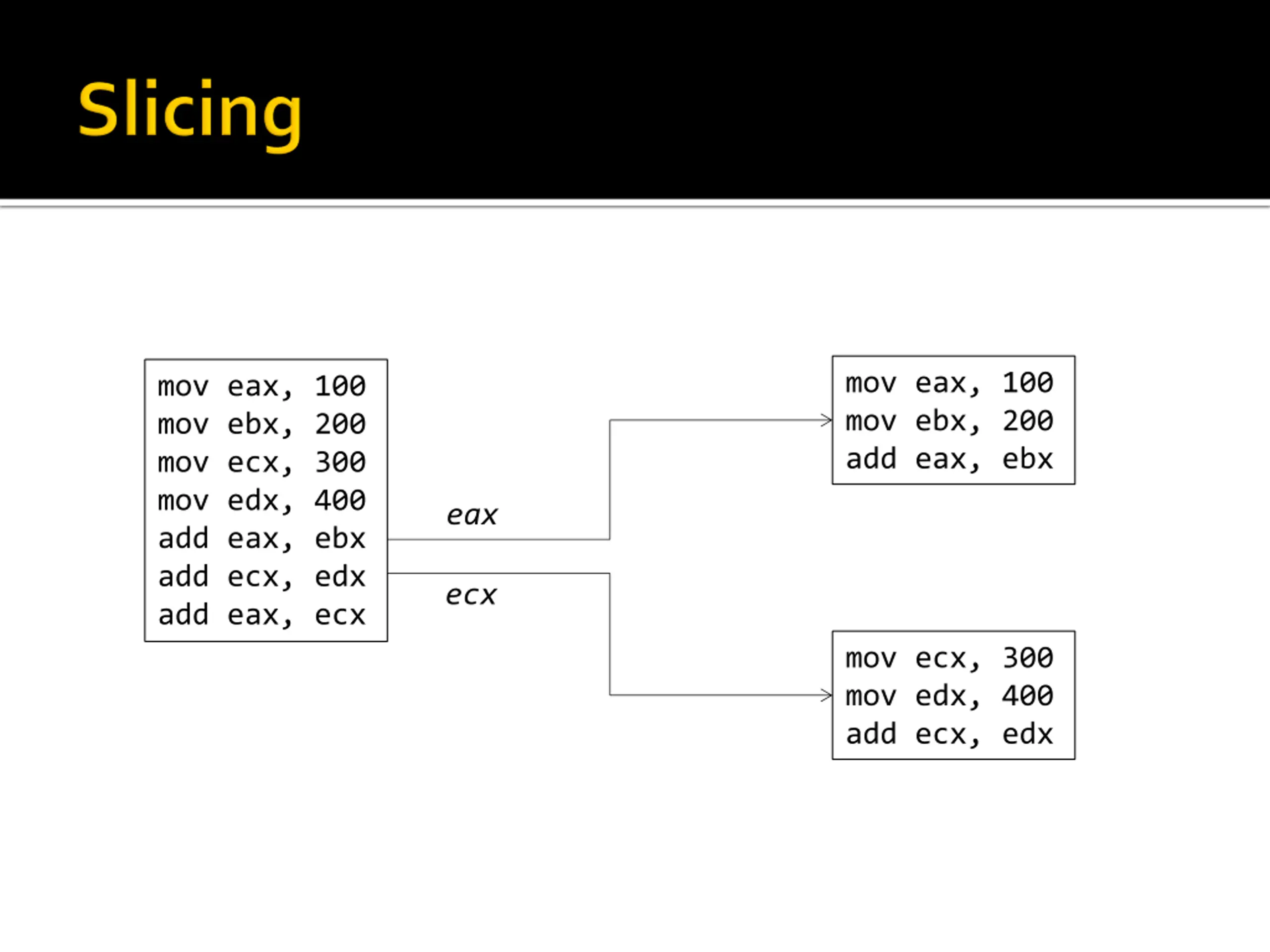

See whats involved in calculating something, not just the taint sources used Plenty of practical uses Where was this buffer encrypted? Where was this checksum calculated? Can even hide the instructions we re not interested in as a nice visualization

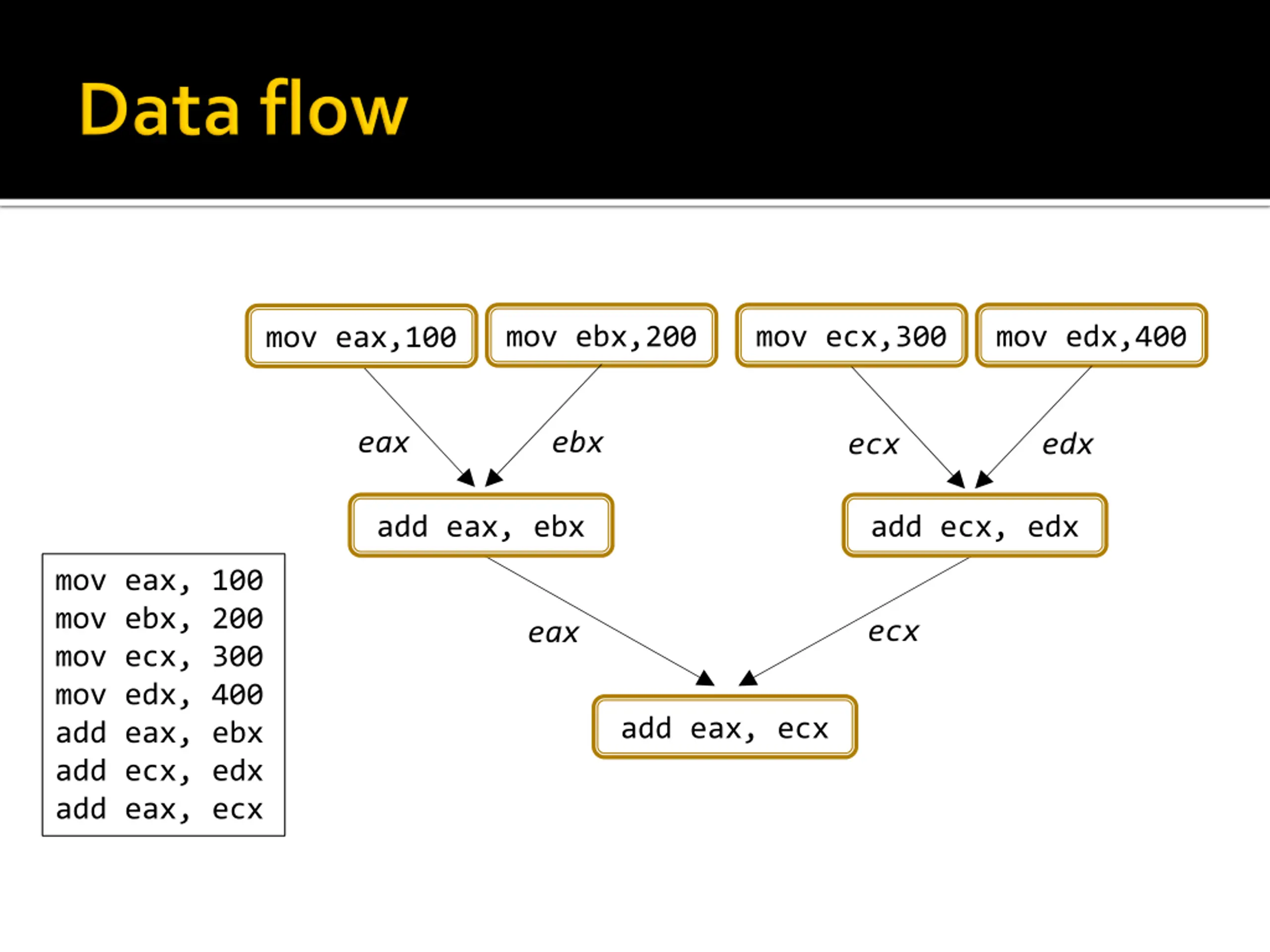

mov eax, 100 mov ebx, 200 add eax, ebx mov eax, 100 mov ebx, 200 mov ecx, 300 mov edx, 400 add eax, ebx add ecx, edx add eax, ecx eax ecx mov ecx, 300 mov edx, 400 add ecx, edx

mov ebx,200 mov ecx,300 mov edx,400 mov eax,100 eax ebx ecx edx add eax, ebx add ecx, edx mov eax, 100 mov ebx, 200 mov ecx, 300 mov edx, 400 add eax, ebx add ecx, edx add eax, ecx ecx eax add eax, ecx

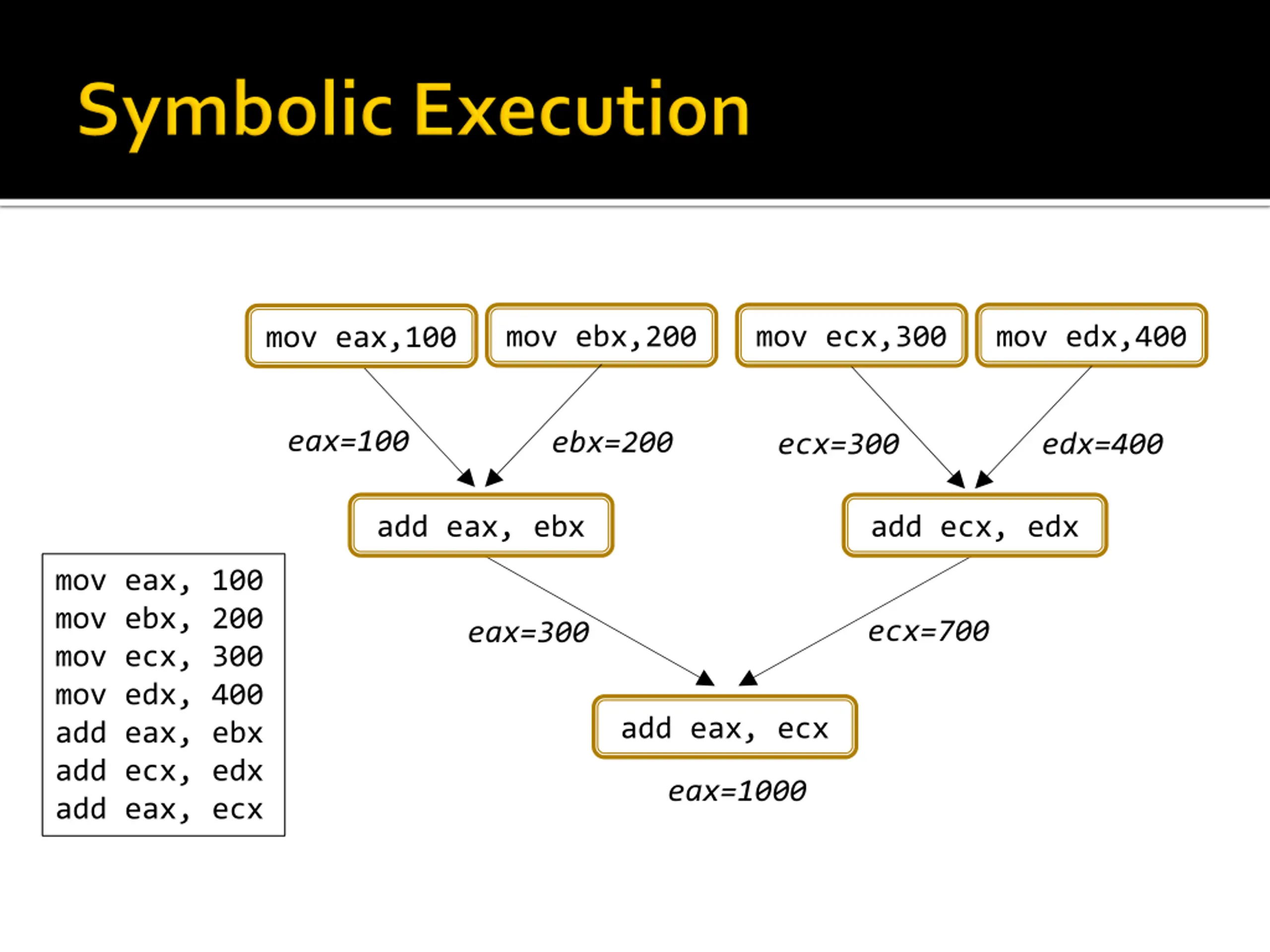

mov ebx,200 mov ecx,300 mov edx,400 mov eax,100 eax=100 ebx=200 ecx=300 edx=400 add eax, ebx add ecx, edx mov eax, 100 mov ebx, 200 mov ecx, 300 mov edx, 400 add eax, ebx add ecx, edx add eax, ecx ecx=700 eax=300 add eax, ecx eax=1000

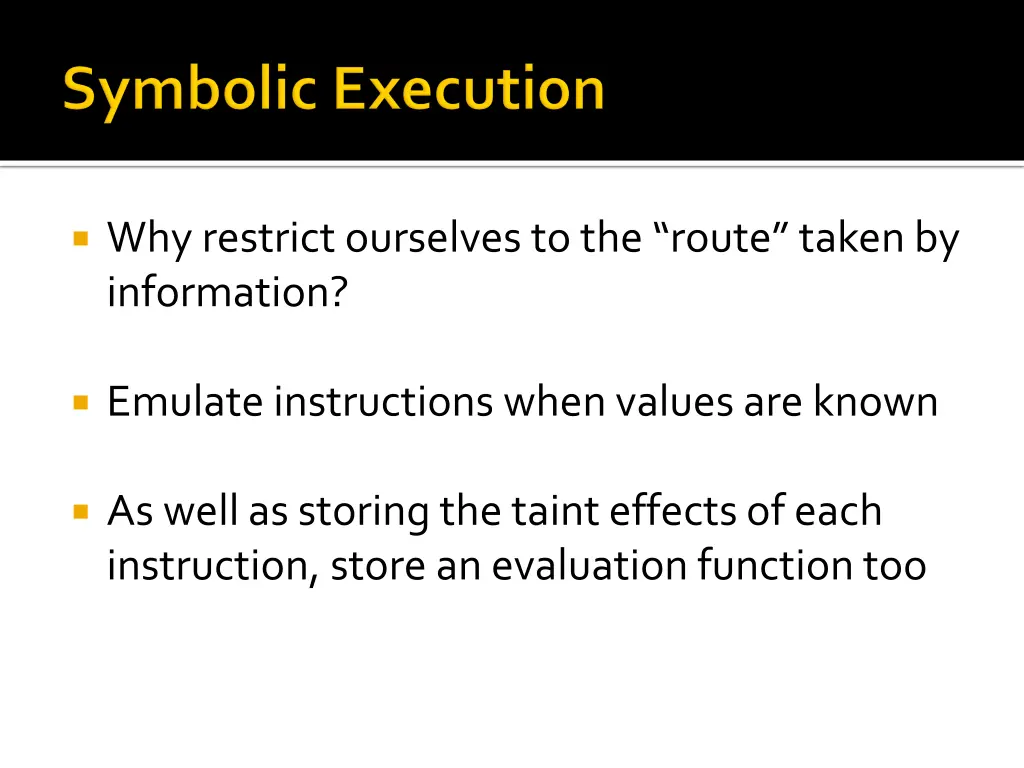

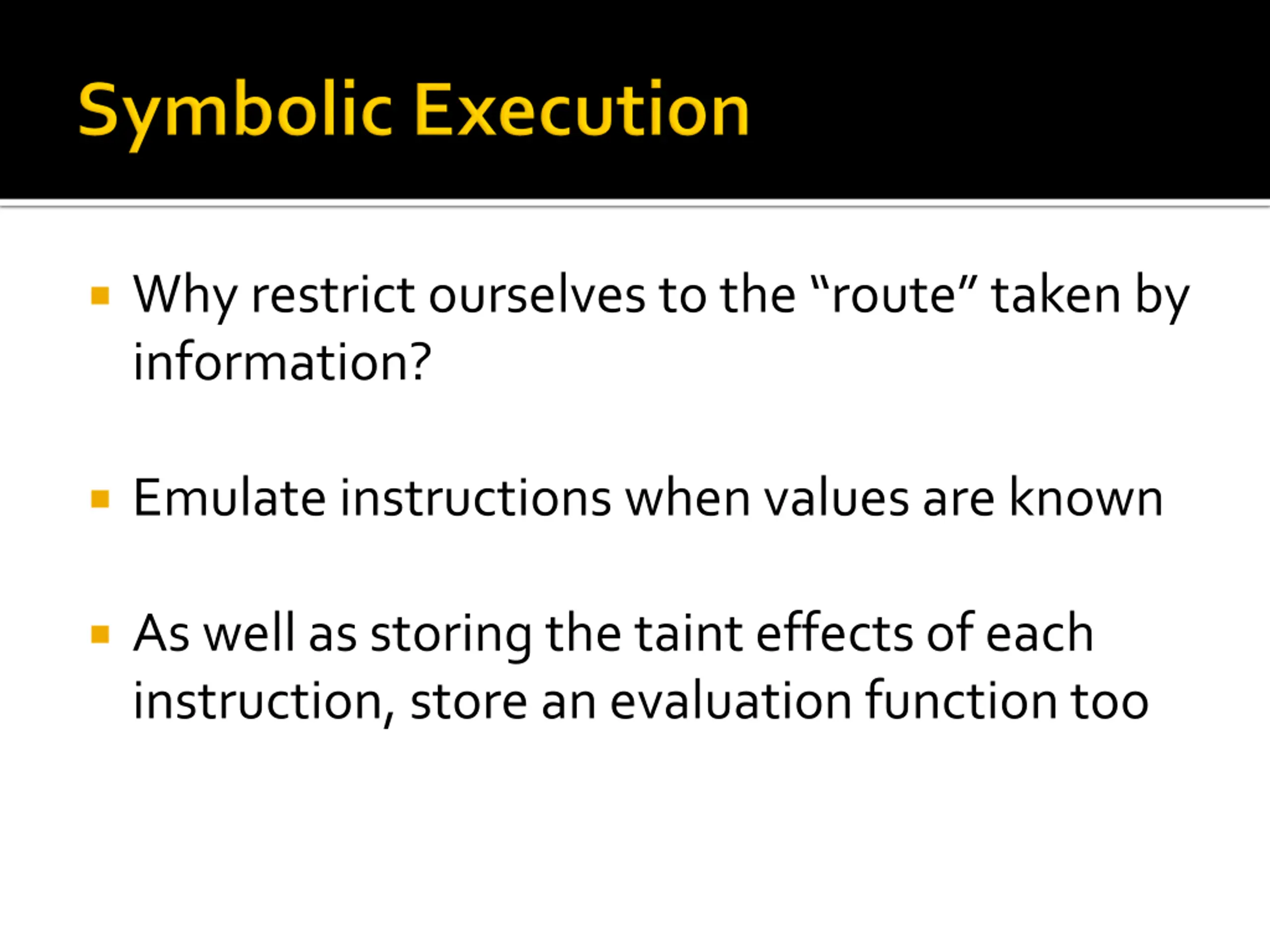

Why restrict ourselves to the route taken by information? Emulate instructions when values are known As well as storing the taint effects of each instruction, store an evaluation function too

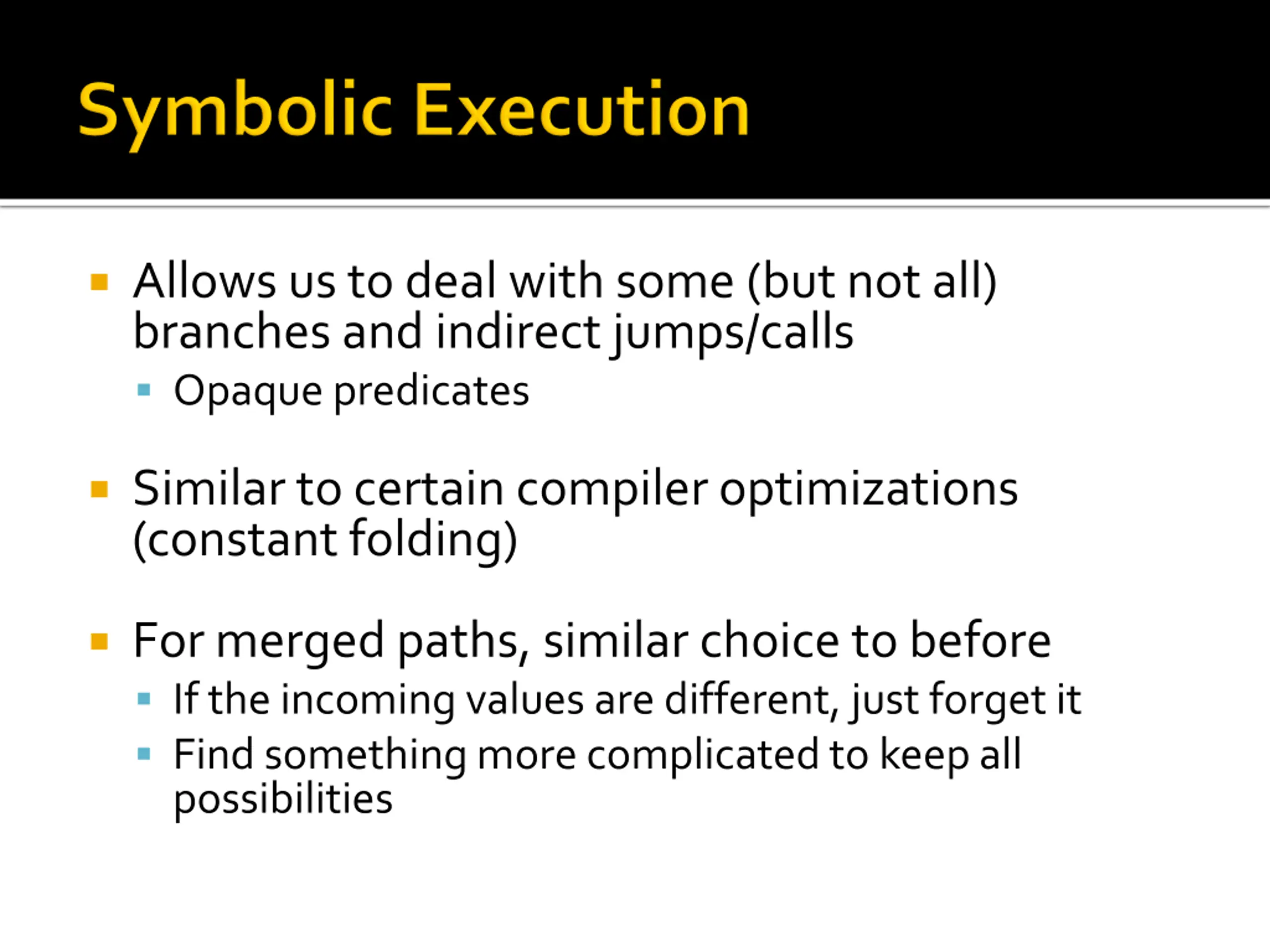

Allows us to deal with some (but not all) branches and indirect jumps/calls Opaque predicates Similar to certain compiler optimizations (constant folding) For merged paths, similar choice to before If the incoming values are different, just forget it Find something more complicated to keep all possibilities

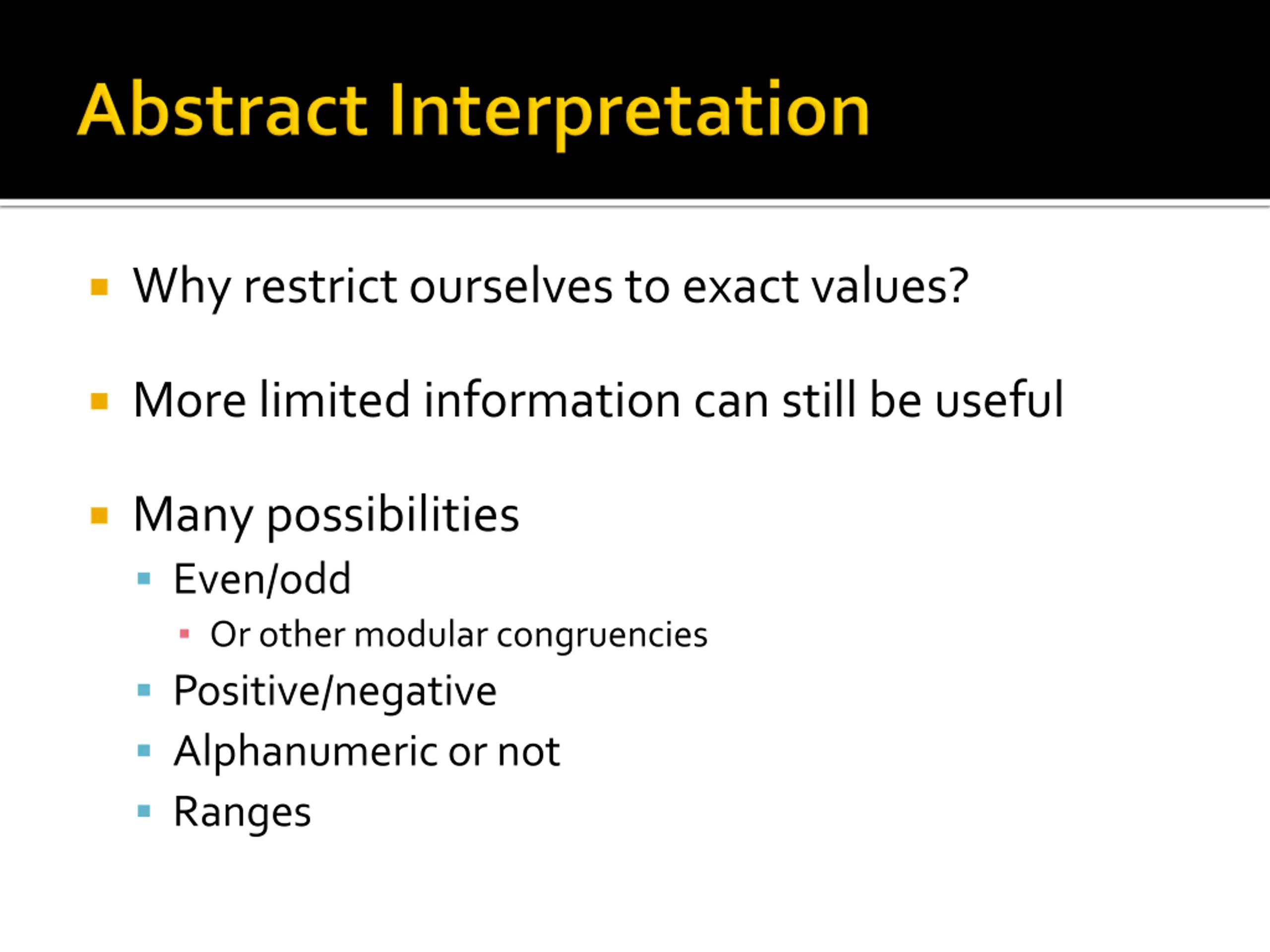

Why restrict ourselves to exact values? More limited information can still be useful Many possibilities Even/odd Or other modular congruencies Positive/negative Alphanumeric or not Ranges

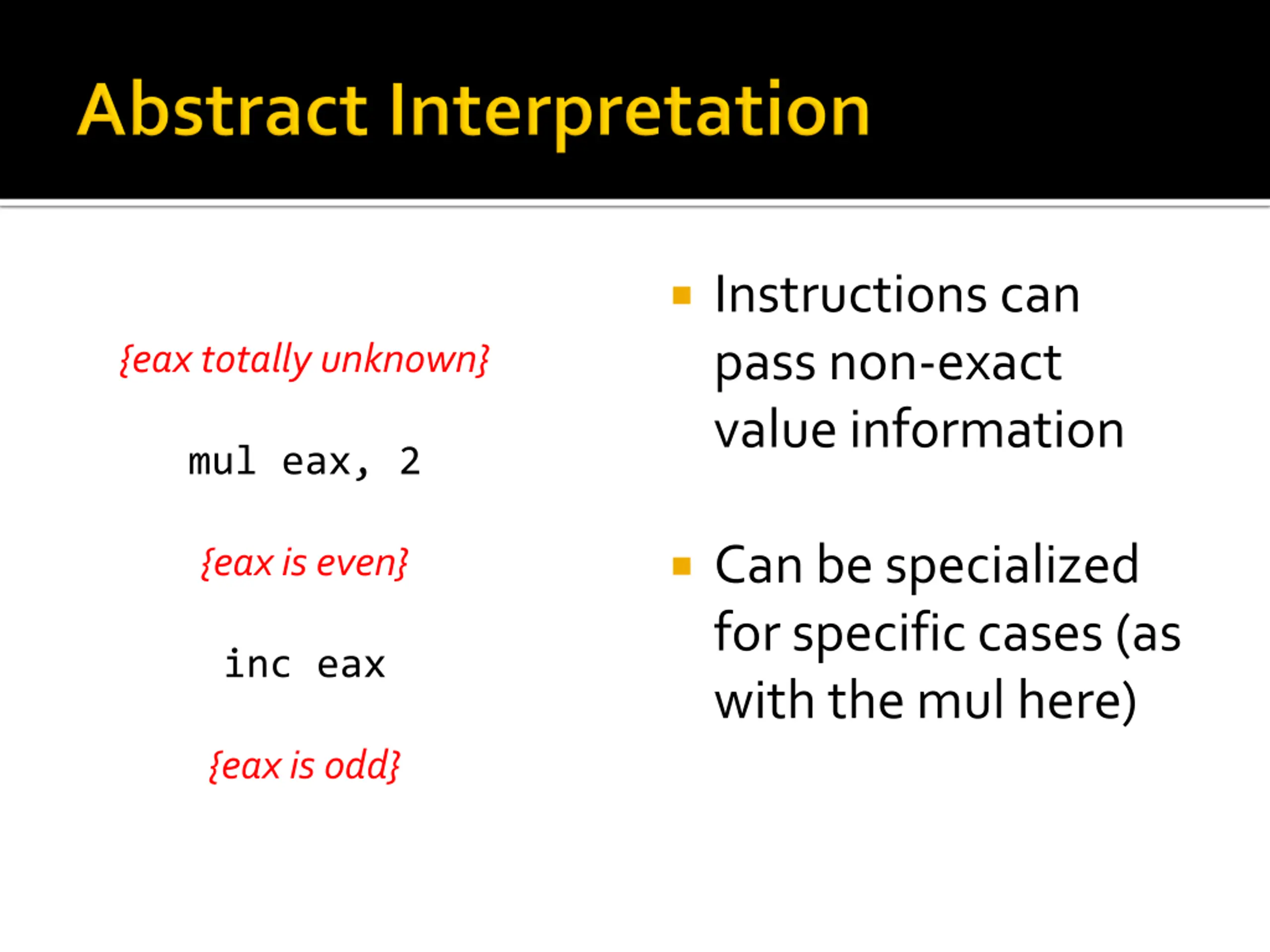

Instructions can pass non-exact value information {eax totally unknown} mul eax, 2 Can be specialized for specific cases (as with the mul here) {eax is even} inc eax {eax is odd}

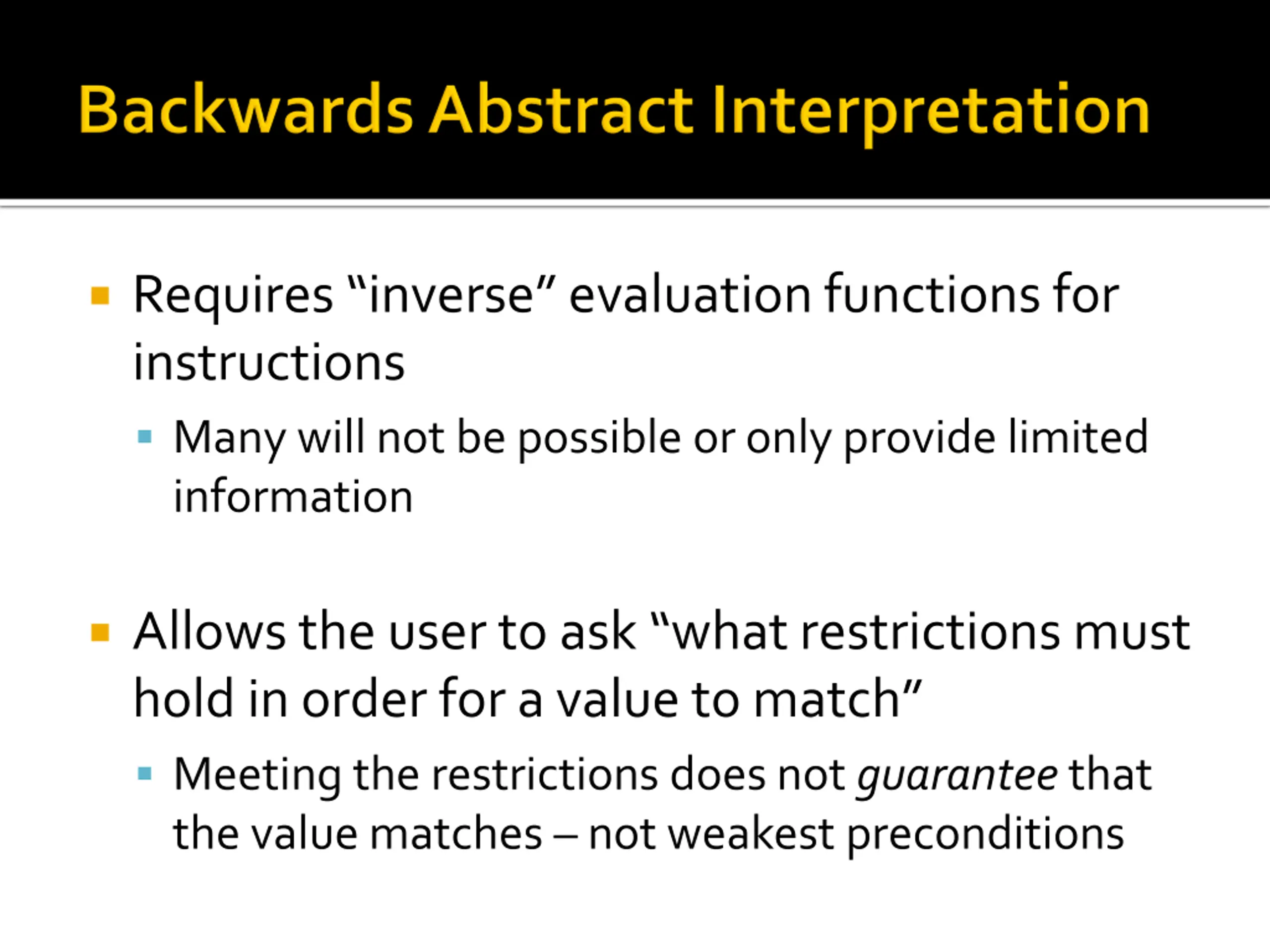

Requires inverse evaluation functions for instructions Many will not be possible or only provide limited information Allows the user to ask what restrictions must hold in order for a value to match Meeting the restrictions does not guarantee that the value matches not weakest preconditions

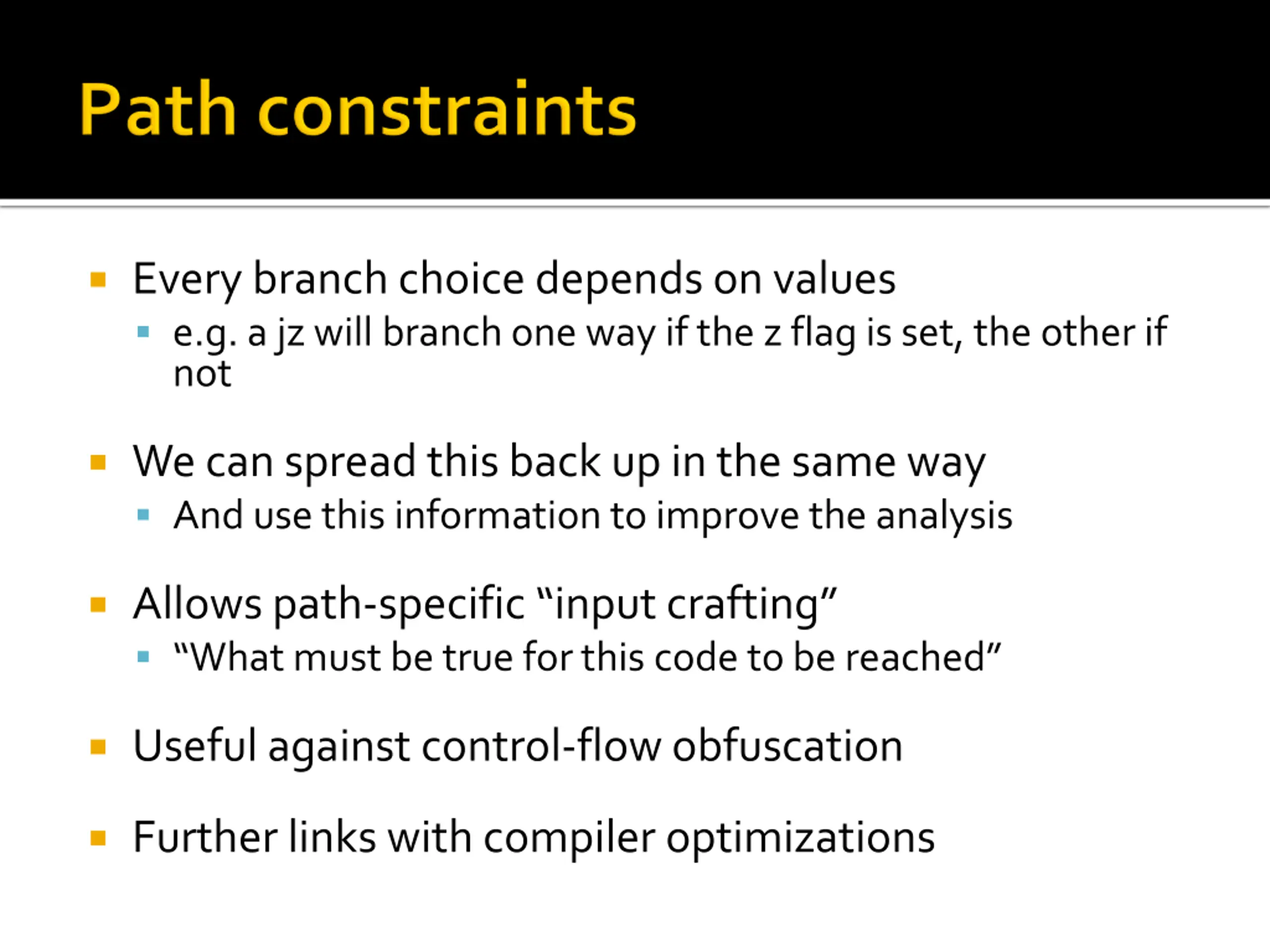

Every branch choice depends on values e.g. a jz will branch one way if the z flag is set, the other if not We can spread this back up in the same way And use this information to improve the analysis Allows path-specific input crafting What must be true for this code to be reached Useful against control-flow obfuscation Further links with compiler optimizations

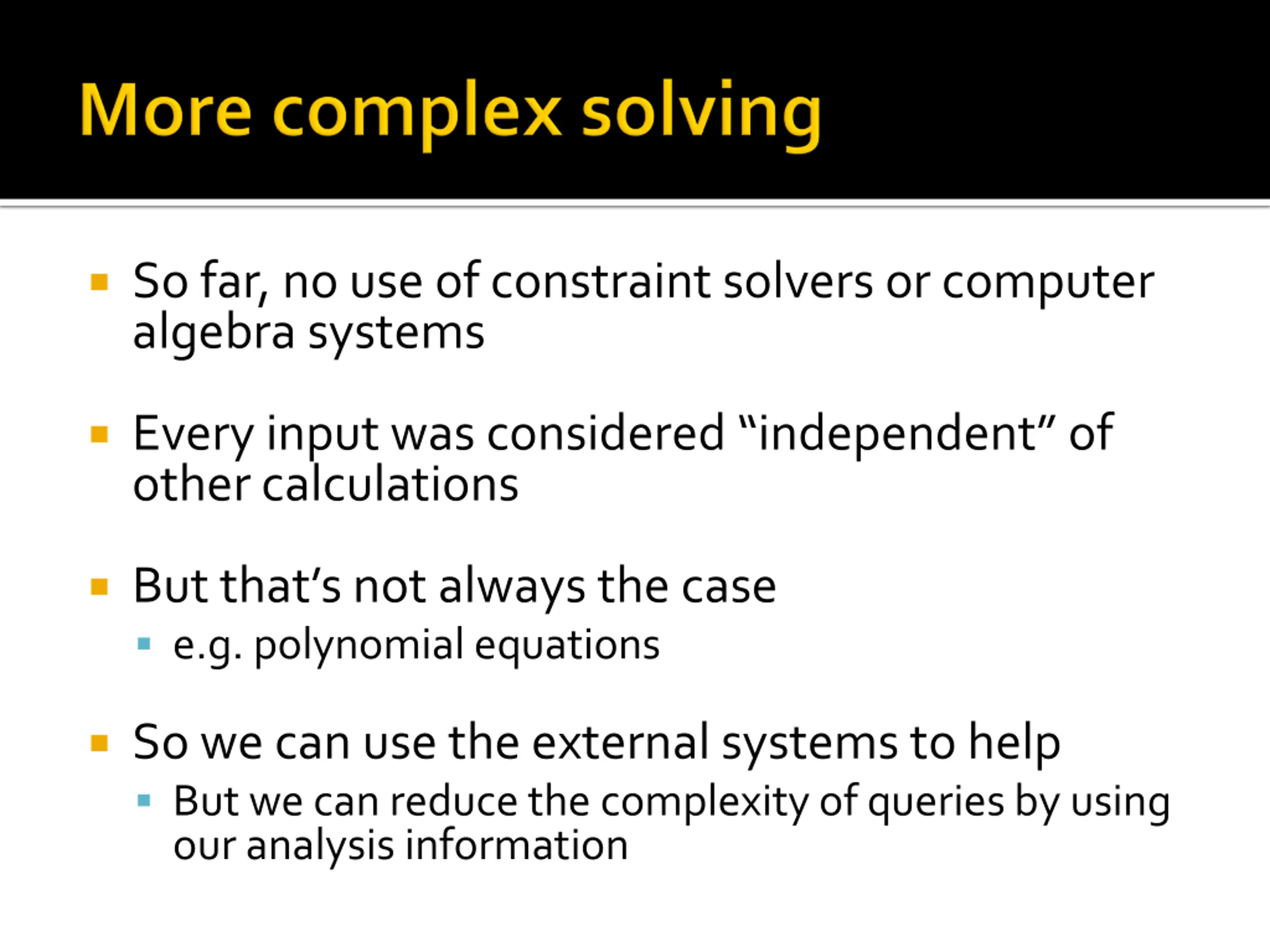

So far, no use of constraint solvers or computer algebra systems Every input was considered independent of other calculations But that s not always the case e.g. polynomial equations So we can use the external systems to help But we can reduce the complexity of queries by using our analysis information

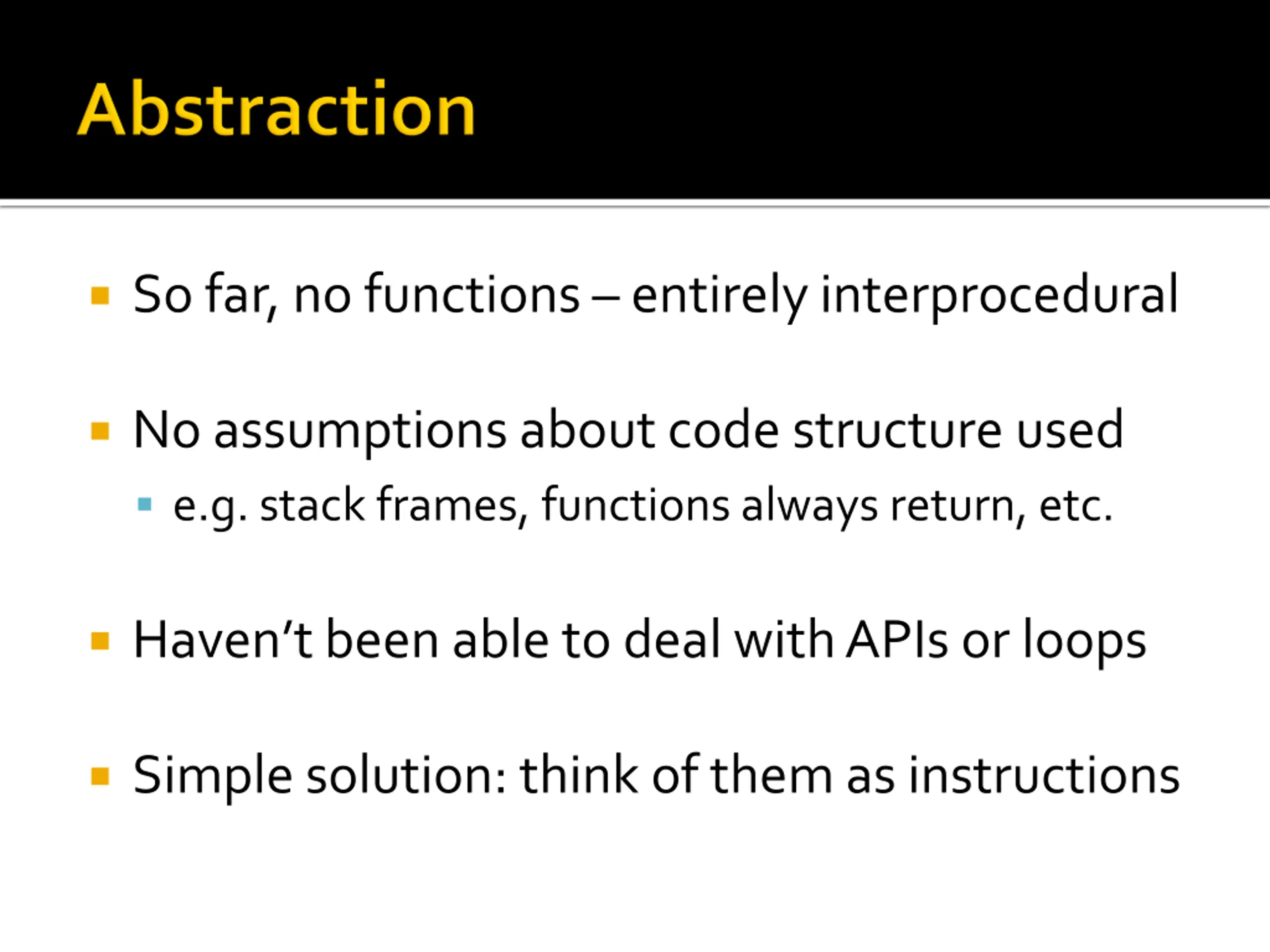

So far, no functions entirely interprocedural No assumptions about code structure used e.g. stack frames, functions always return, etc. Haven t been able to deal with APIs or loops Simple solution: think of them as instructions

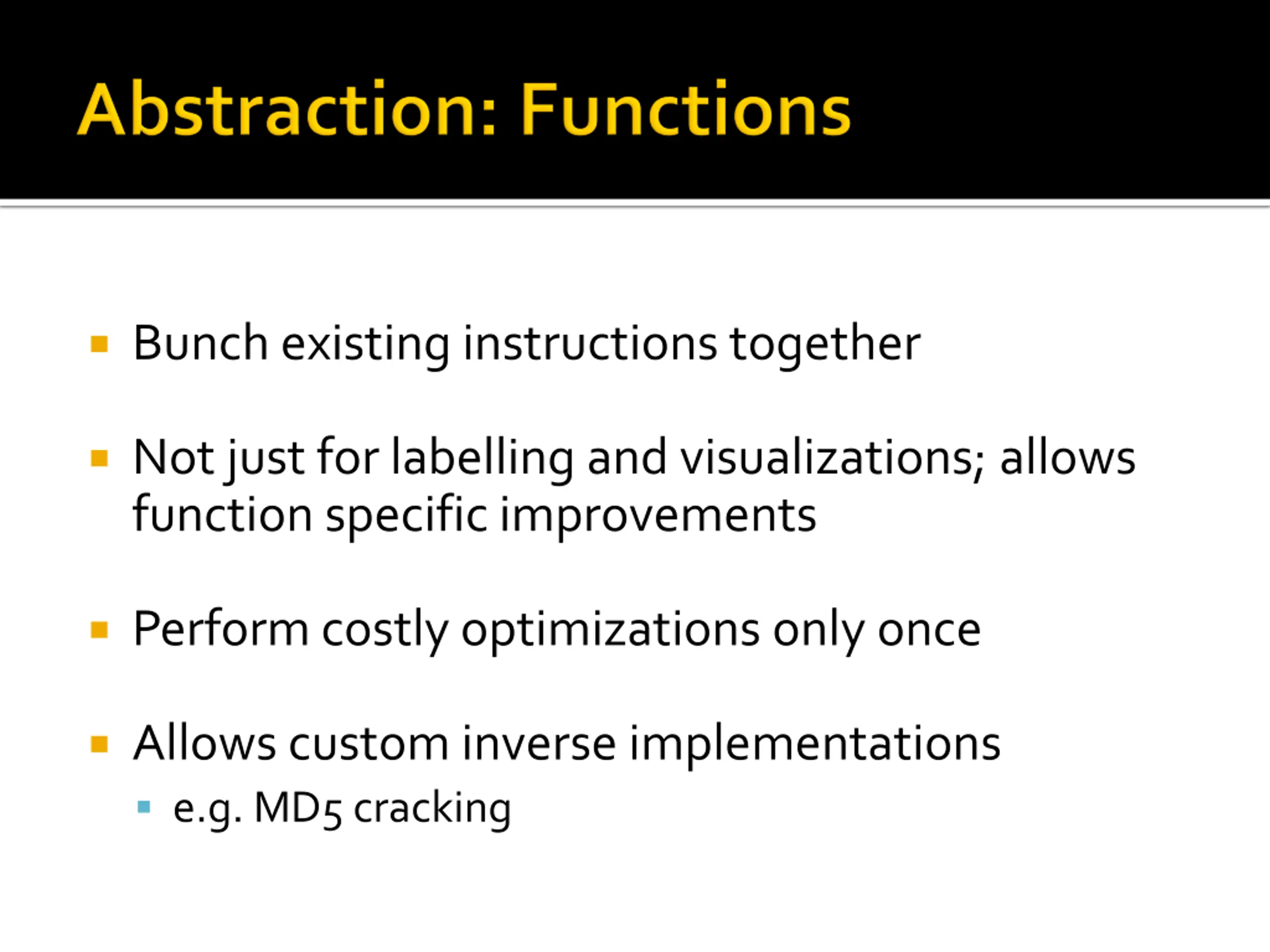

Bunch existing instructions together Not just for labelling and visualizations; allows function specific improvements Perform costly optimizations only once Allows custom inverse implementations e.g. MD5 cracking

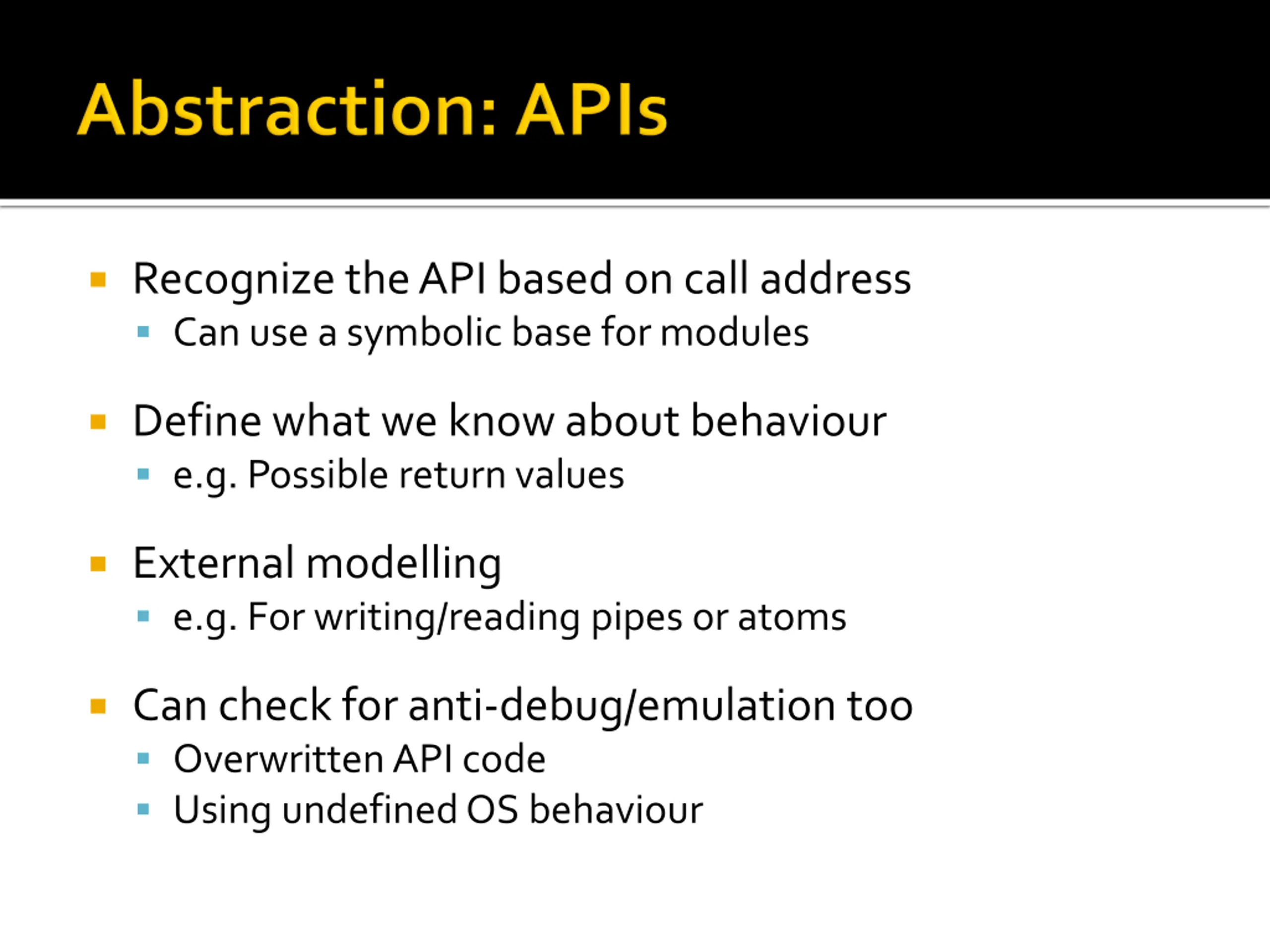

Recognize the API based on call address Can use a symbolic base for modules Define what we know about behaviour e.g. Possible return values External modelling e.g. For writing/reading pipes or atoms Can check for anti-debug/emulation too Overwritten API code Using undefined OS behaviour

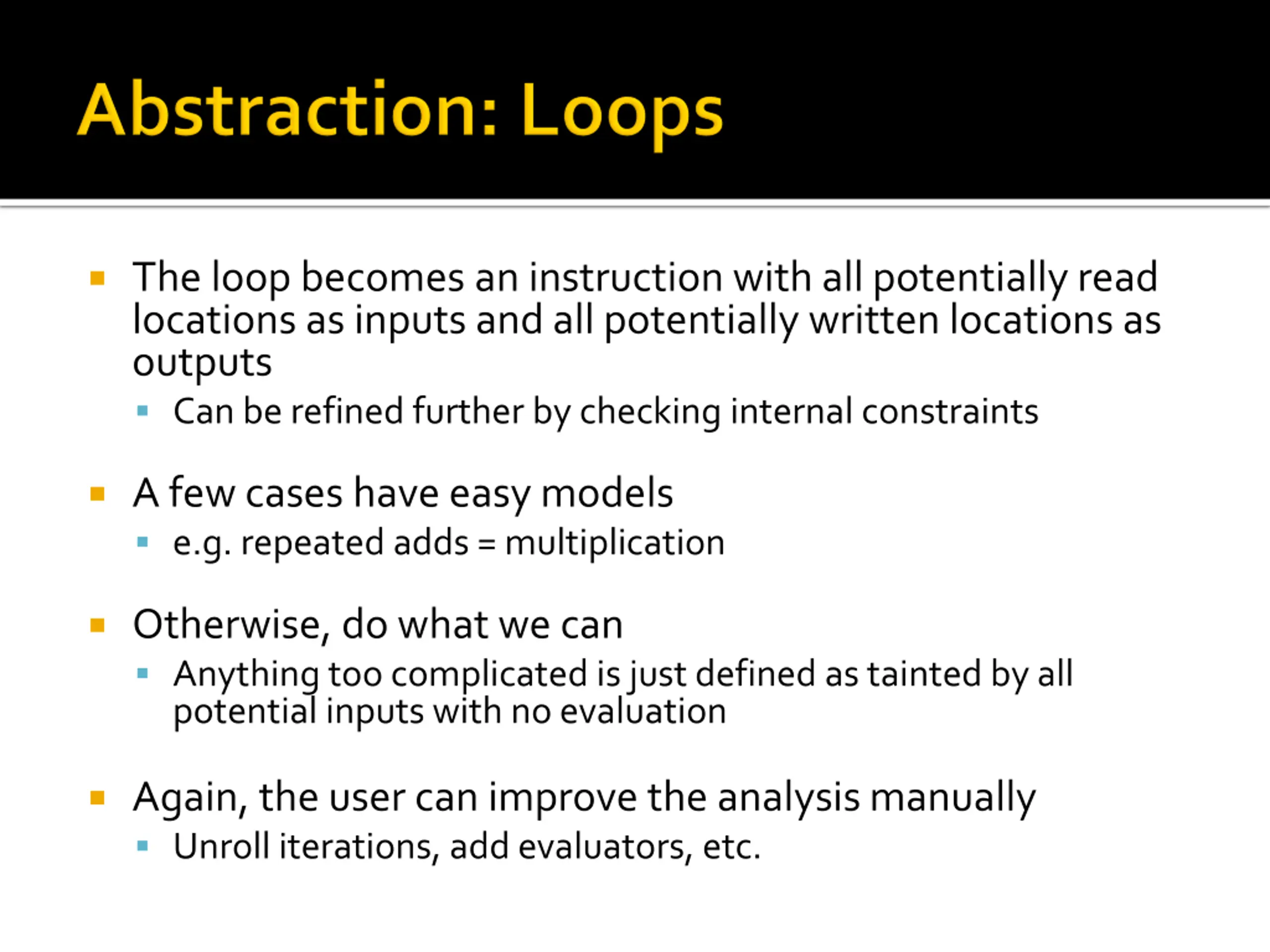

The loop becomes an instruction with all potentially read locations as inputs and all potentially written locations as outputs Can be refined further by checking internal constraints A few cases have easy models e.g. repeated adds = multiplication Otherwise, do what we can Anything too complicated is just defined as tainted by all potential inputs with no evaluation Again, the user can improve the analysis manually Unroll iterations, add evaluators, etc.

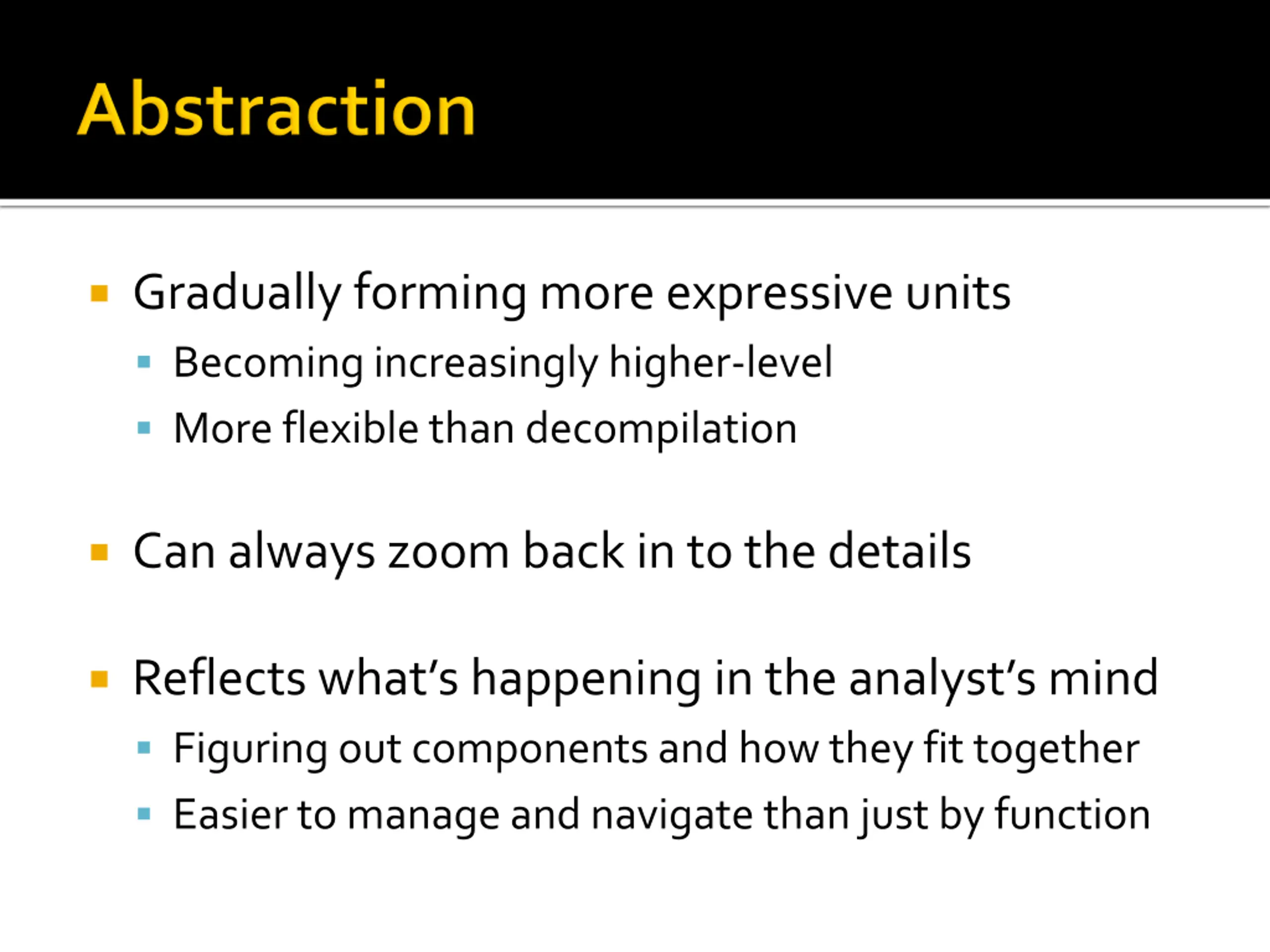

Gradually forming more expressive units Becoming increasingly higher-level More flexible than decompilation Can always zoom back in to the details Reflects what s happening in the analyst s mind Figuring out components and how they fit together Easier to manage and navigate than just by function

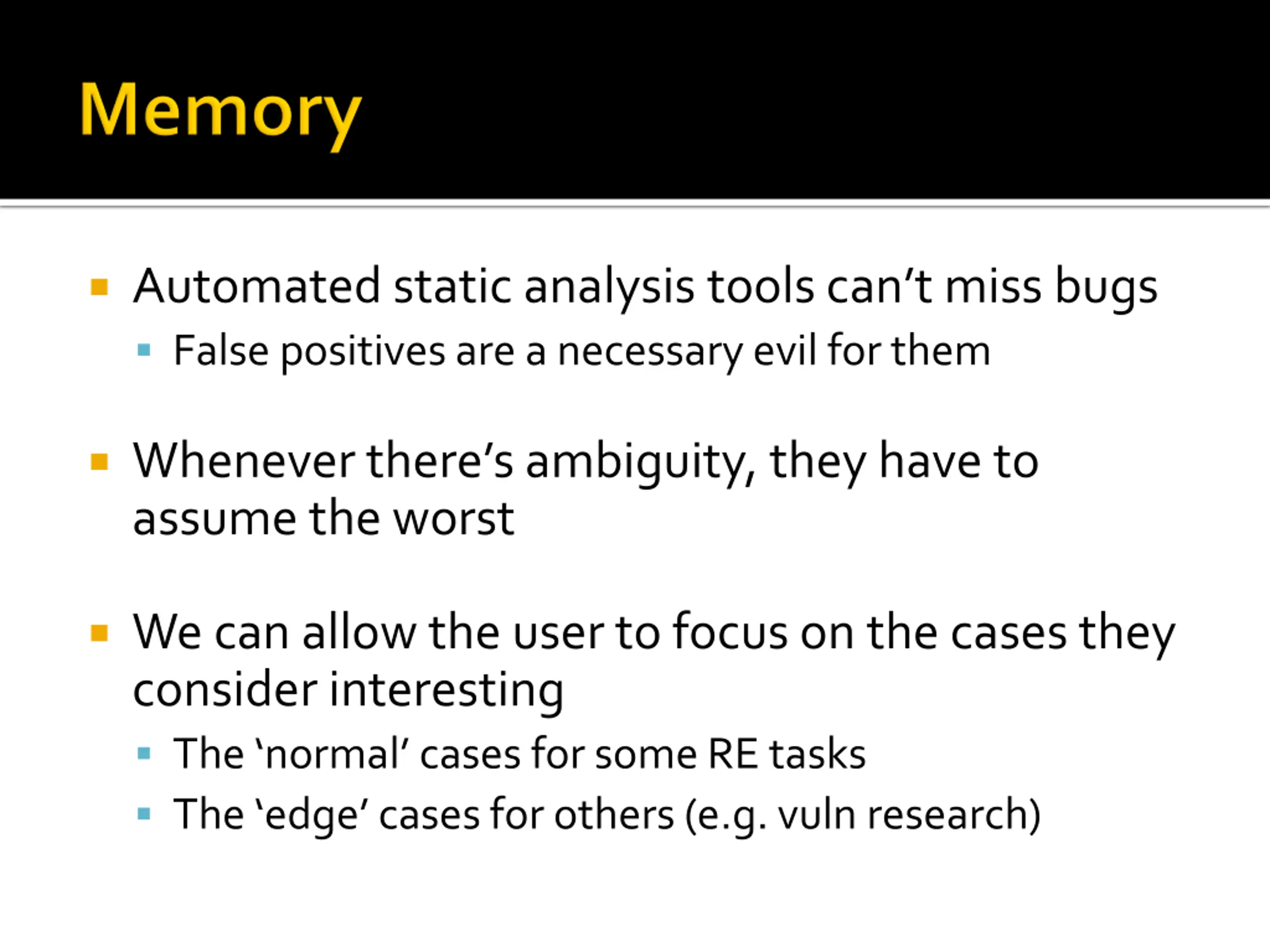

Automated static analysis tools cant miss bugs False positives are a necessary evil for them Whenever there s ambiguity, they have to assume the worst We can allow the user to focus on the cases they consider interesting The normal cases for some RE tasks The edge cases for others (e.g. vuln research)

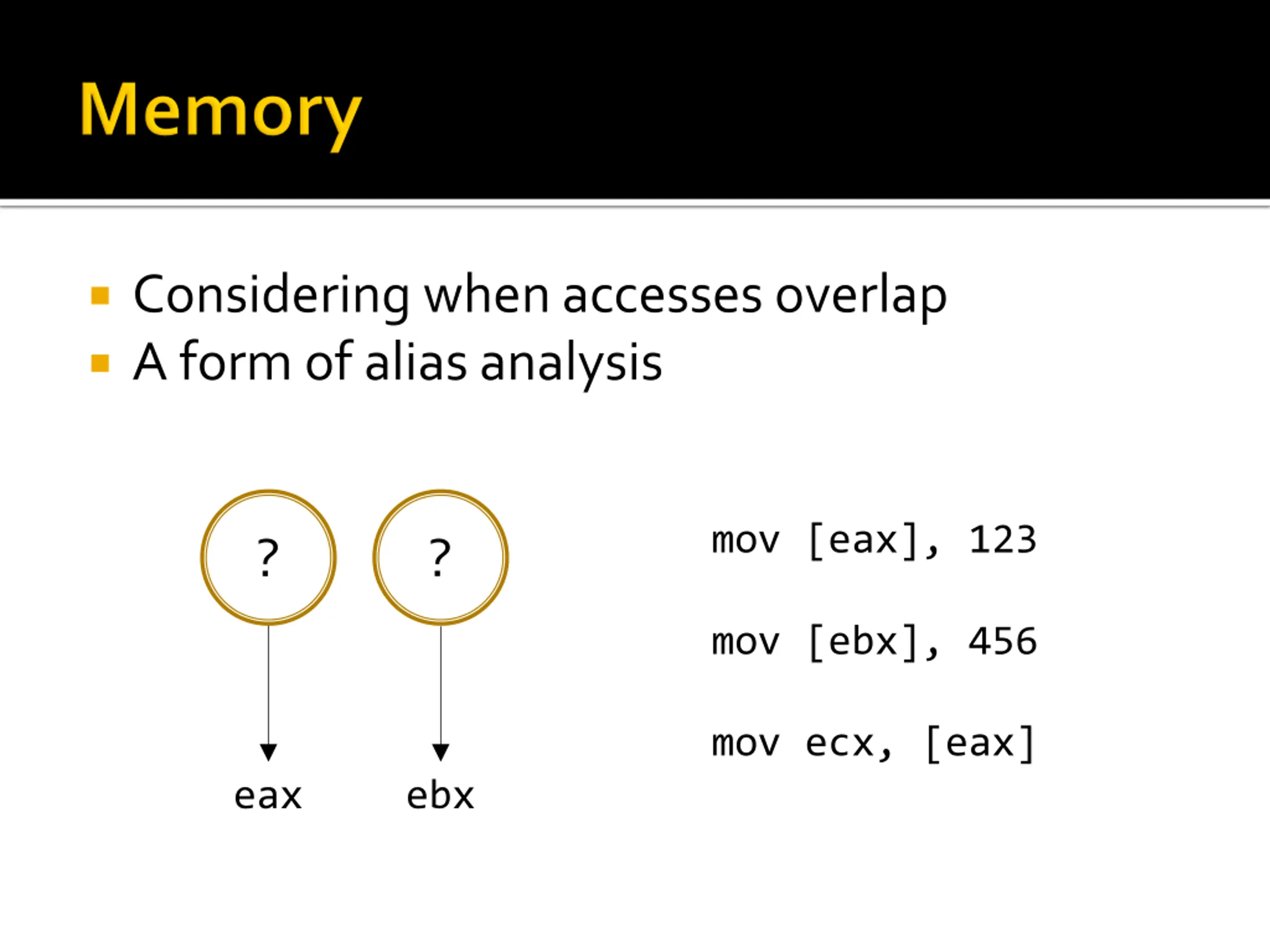

Considering when accesses overlap A form of alias analysis mov [eax], 123 ? ? mov [ebx], 456 mov ecx, [eax] eax ebx

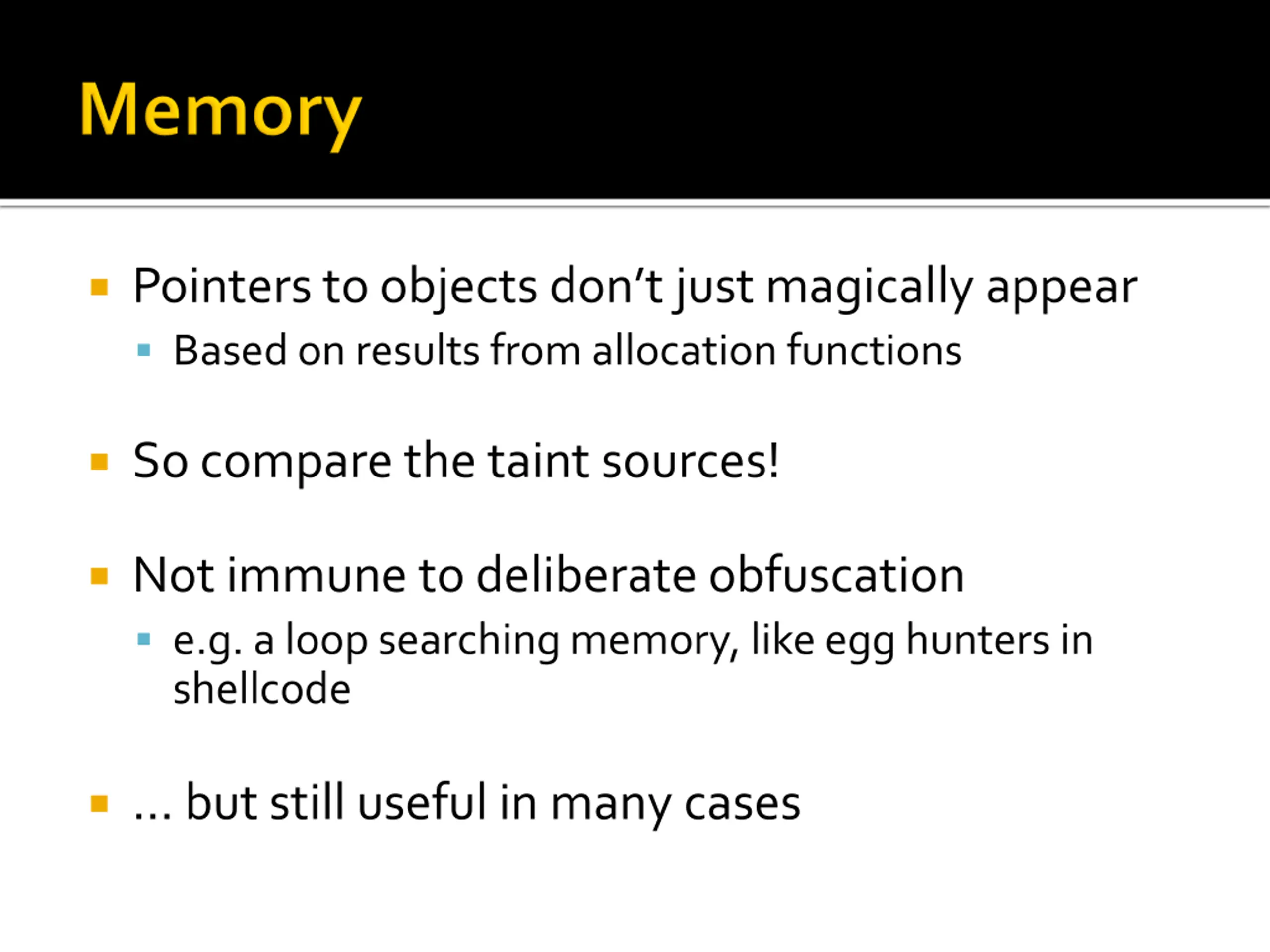

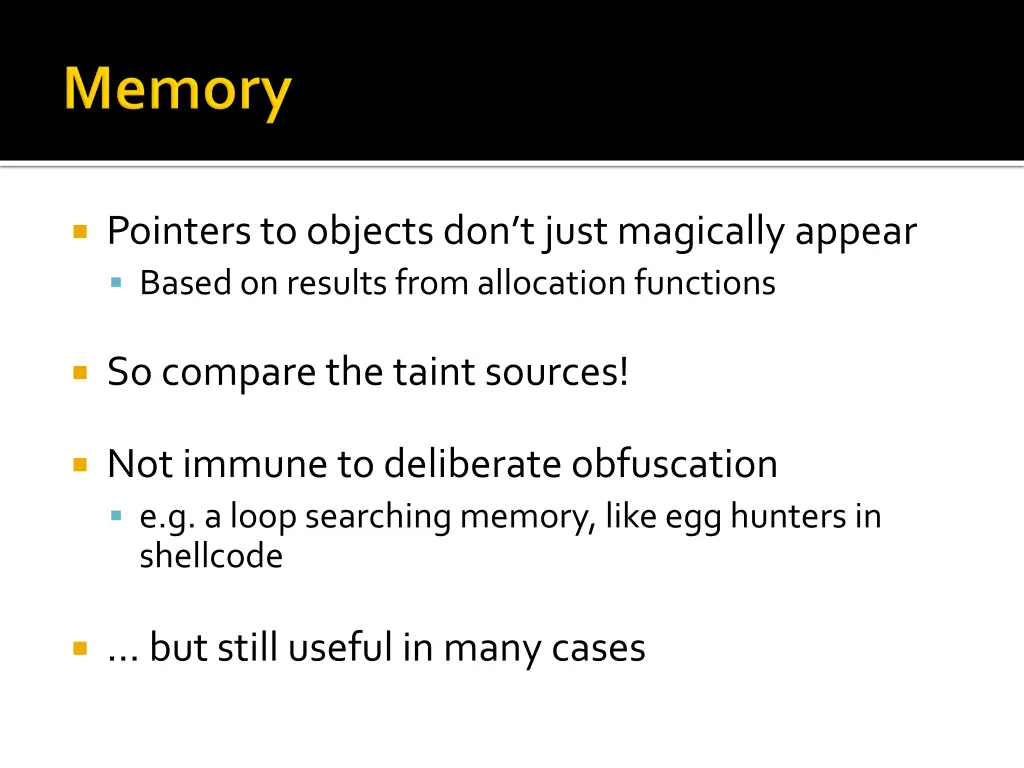

Pointers to objects dont just magically appear Based on results from allocation functions So compare the taint sources! Not immune to deliberate obfuscation e.g. a loop searching memory, like egg hunters in shellcode but still useful in many cases

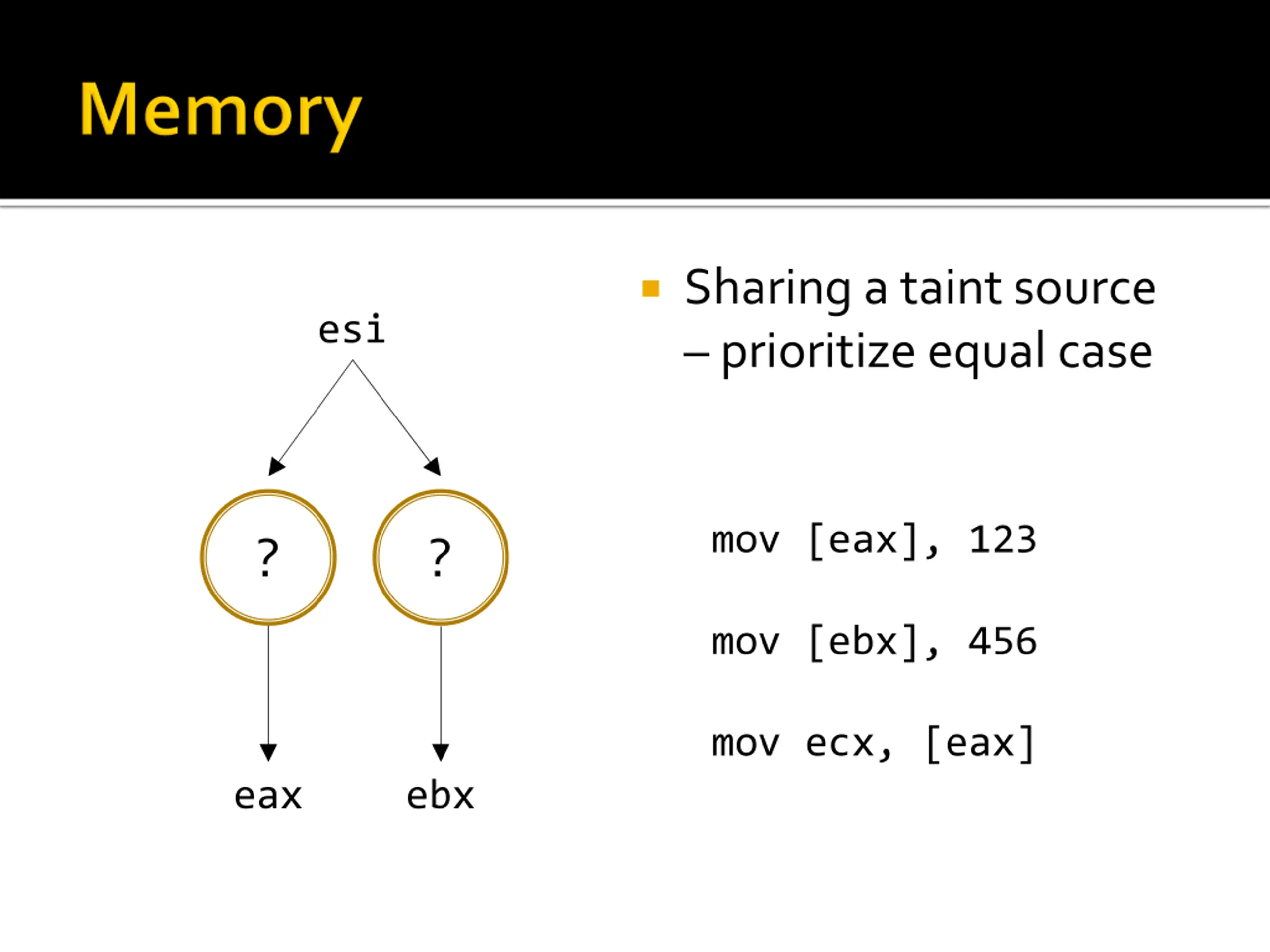

Sharing a taint source prioritize equal case esi mov [eax], 123 ? ? mov [ebx], 456 mov ecx, [eax] eax ebx

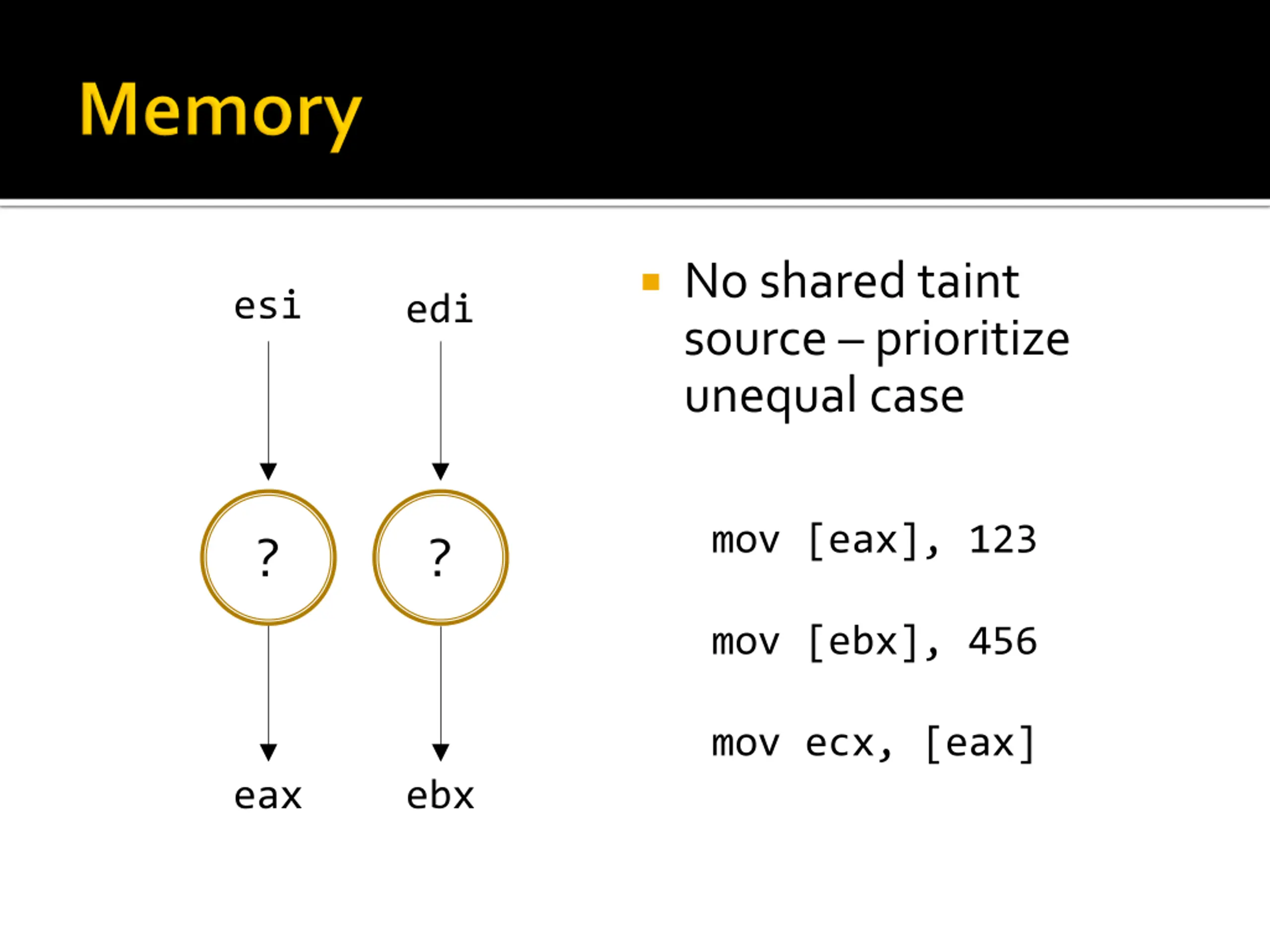

No shared taint source prioritize unequal case esi edi mov [eax], 123 ? ? mov [ebx], 456 mov ecx, [eax] eax ebx

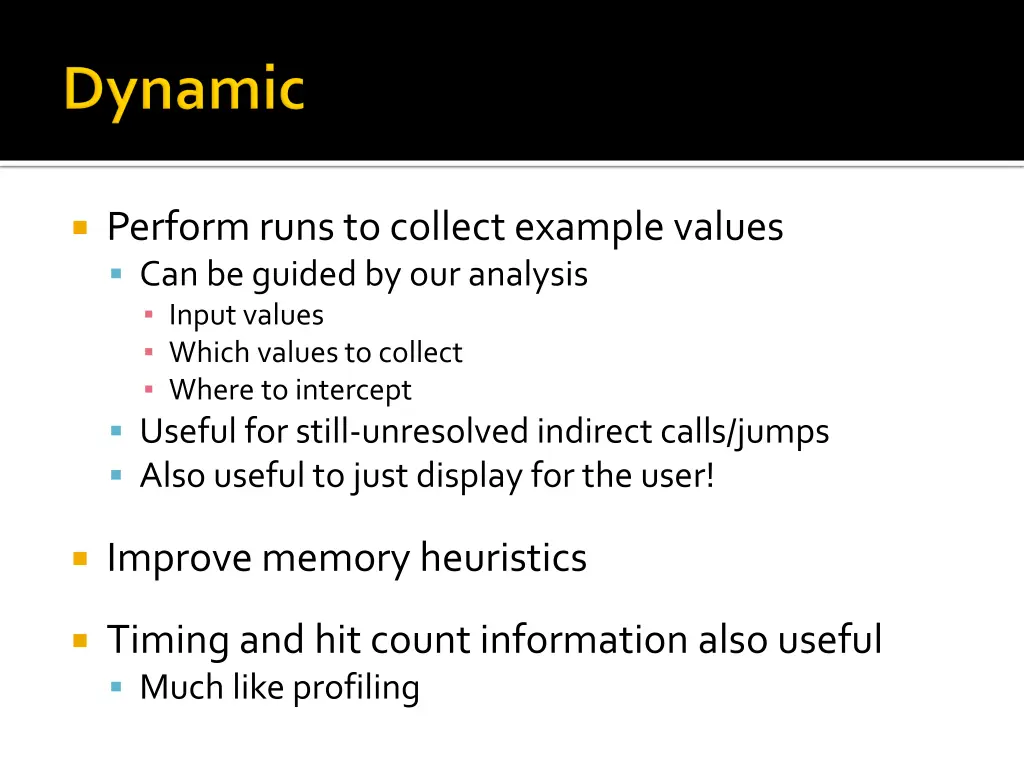

Perform runs to collect example values Can be guided by our analysis Input values Which values to collect Where to intercept Useful for still-unresolved indirect calls/jumps Also useful to just display for the user! Improve memory heuristics Timing and hit count information also useful Much like profiling

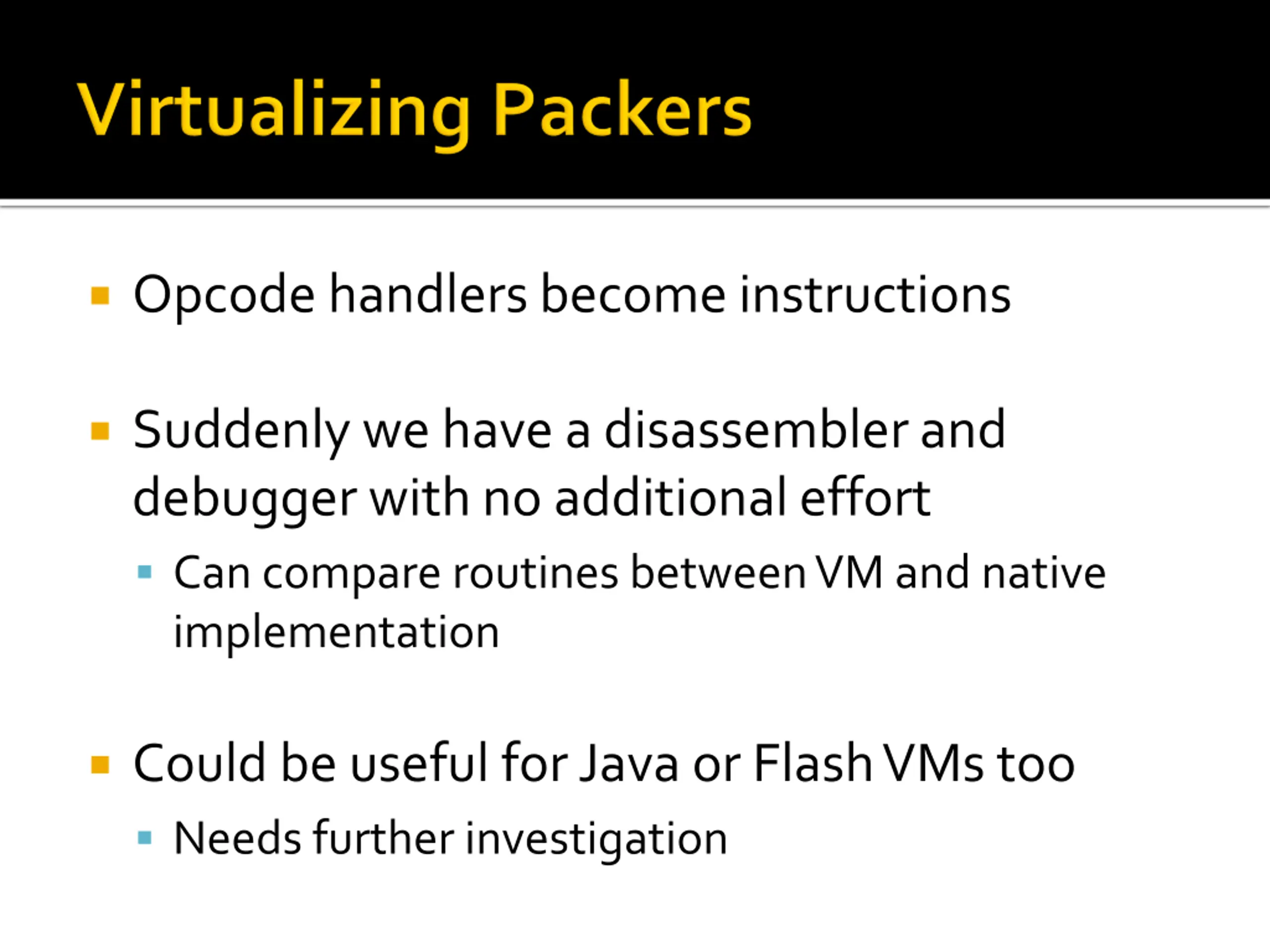

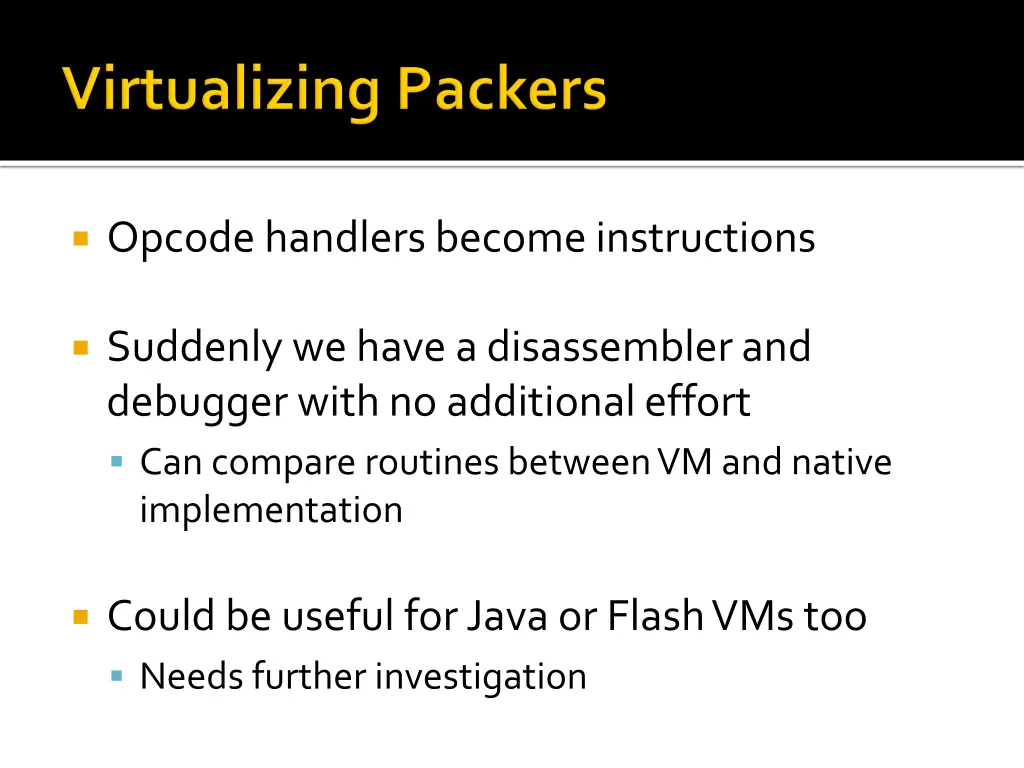

Opcode handlers become instructions Suddenly we have a disassembler and debugger with no additional effort Can compare routines between VM and native implementation Could be useful for Java or Flash VMs too Needs further investigation

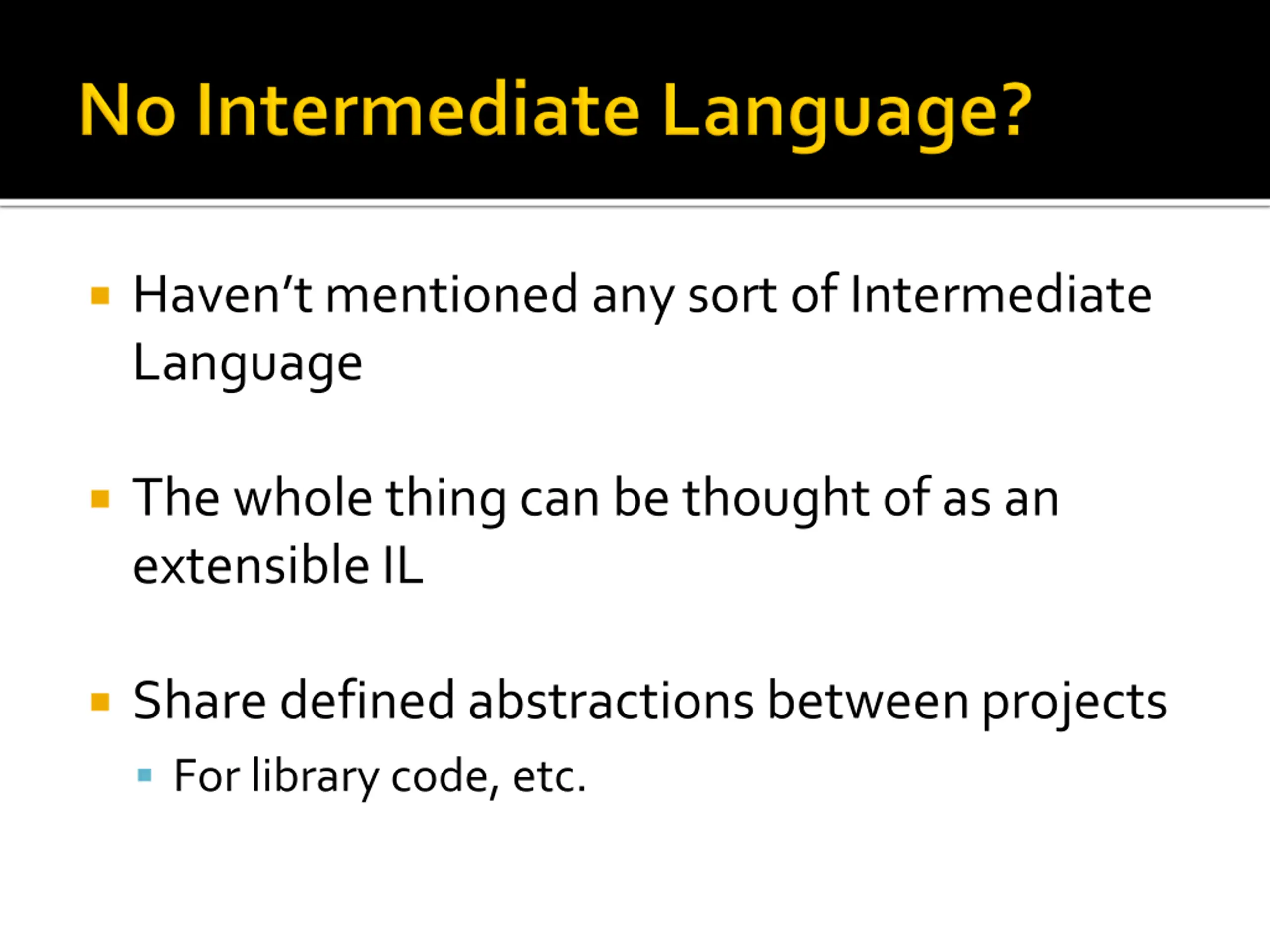

Havent mentioned any sort of Intermediate Language The whole thing can be thought of as an extensible IL Share defined abstractions between projects For library code, etc.

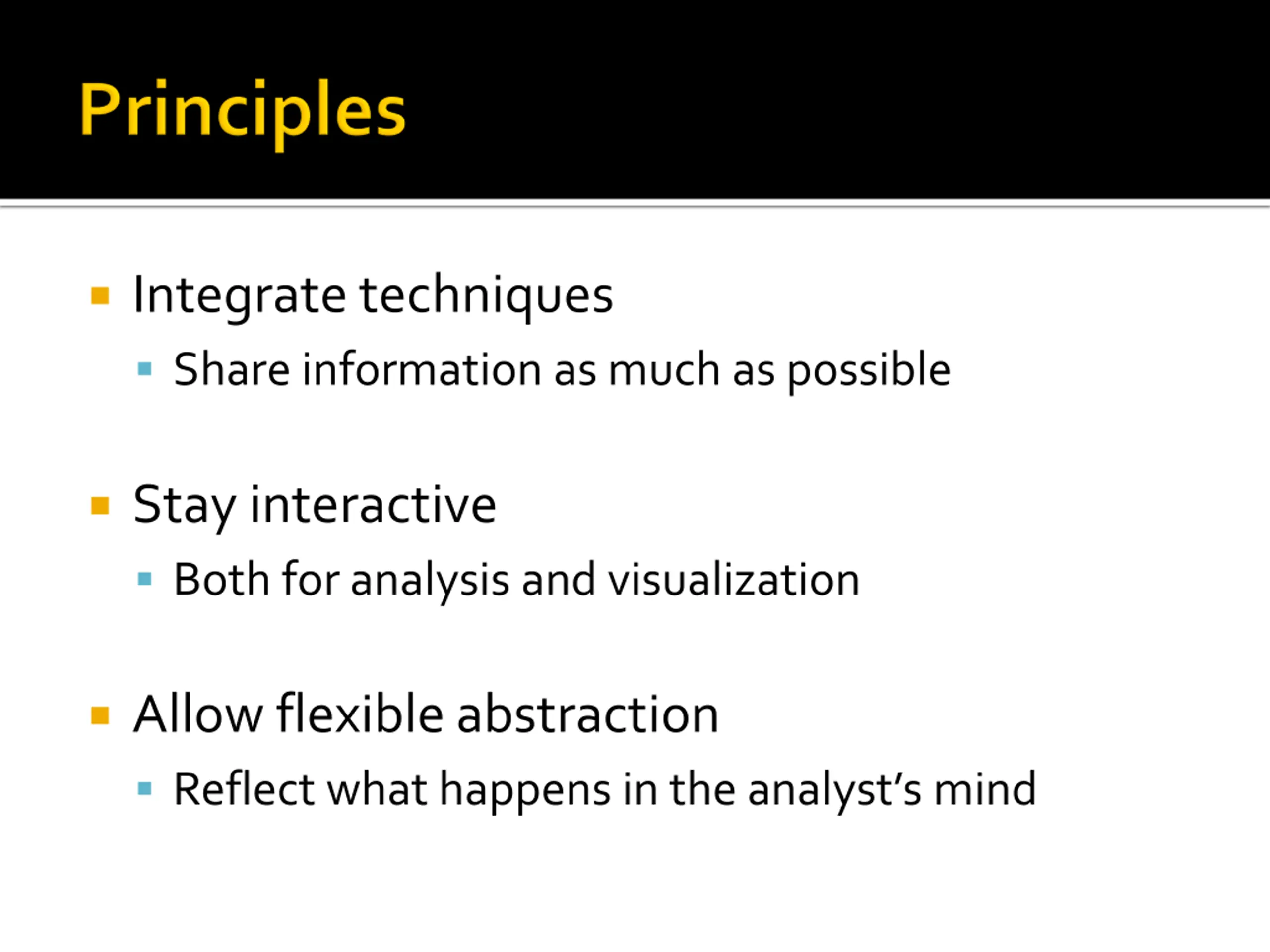

Integrate techniques Share information as much as possible Stay interactive Both for analysis and visualization Allow flexible abstraction Reflect what happens in the analyst s mind

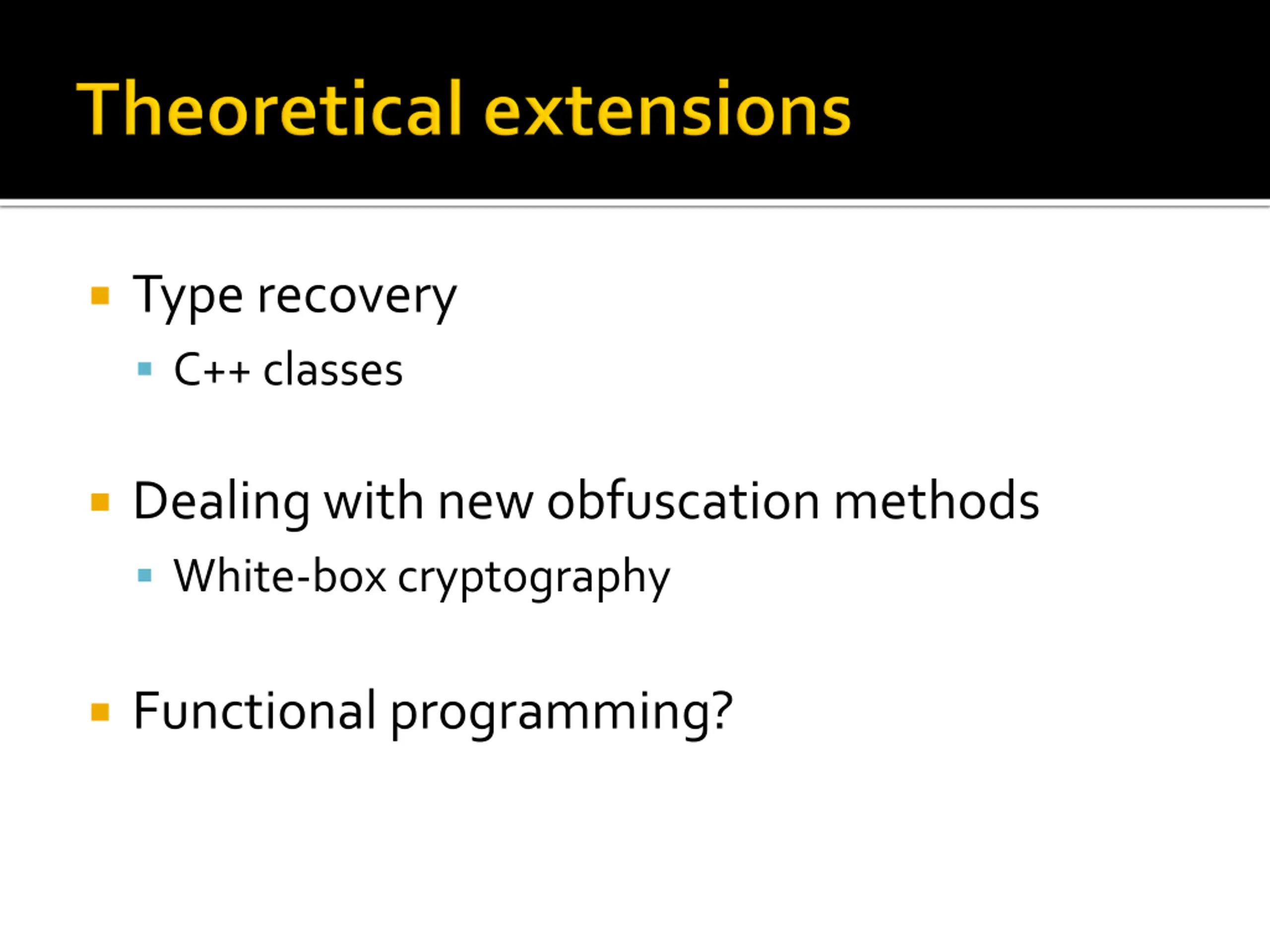

Type recovery C++ classes Dealing with new obfuscation methods White-box cryptography Functional programming?

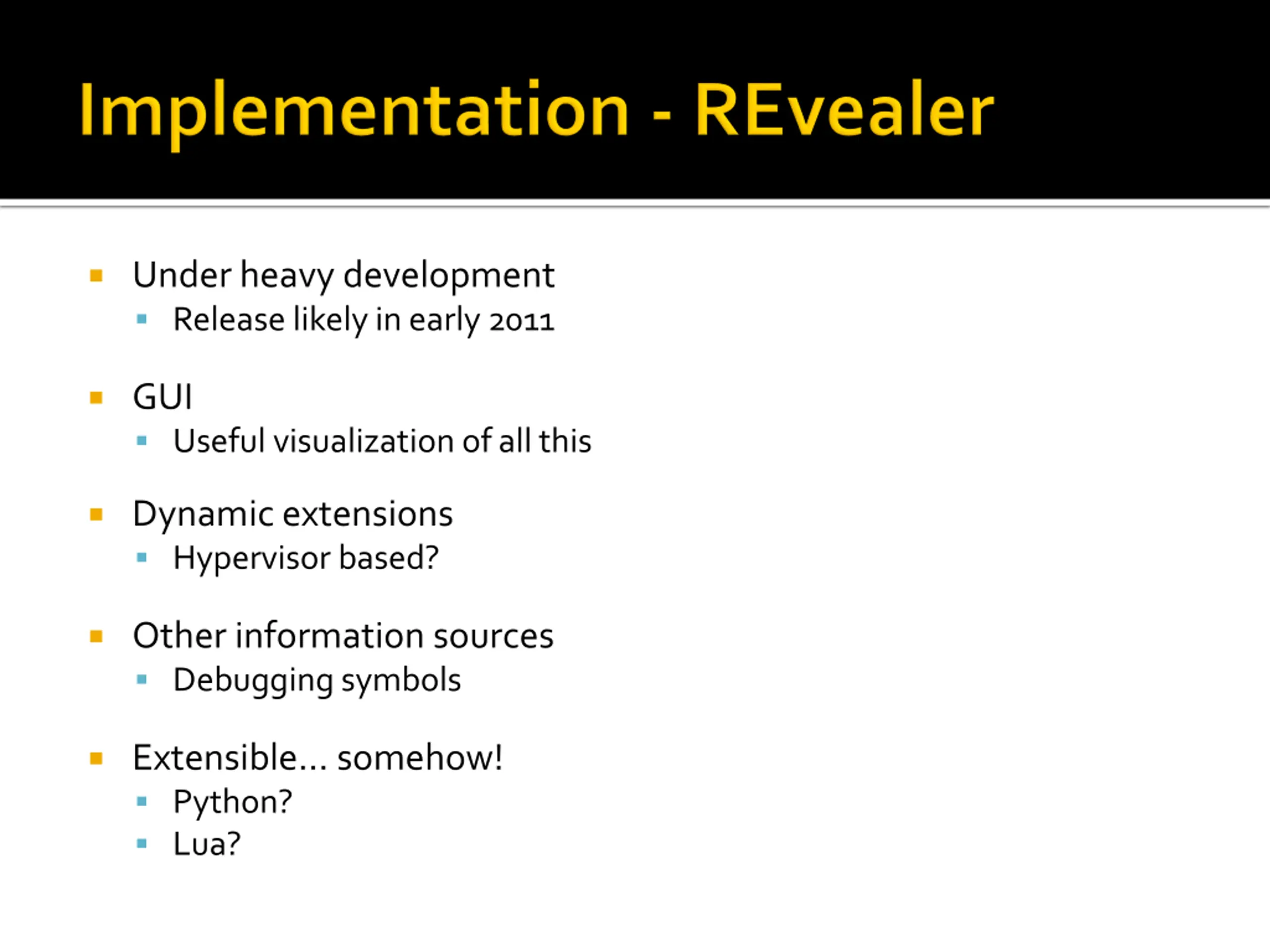

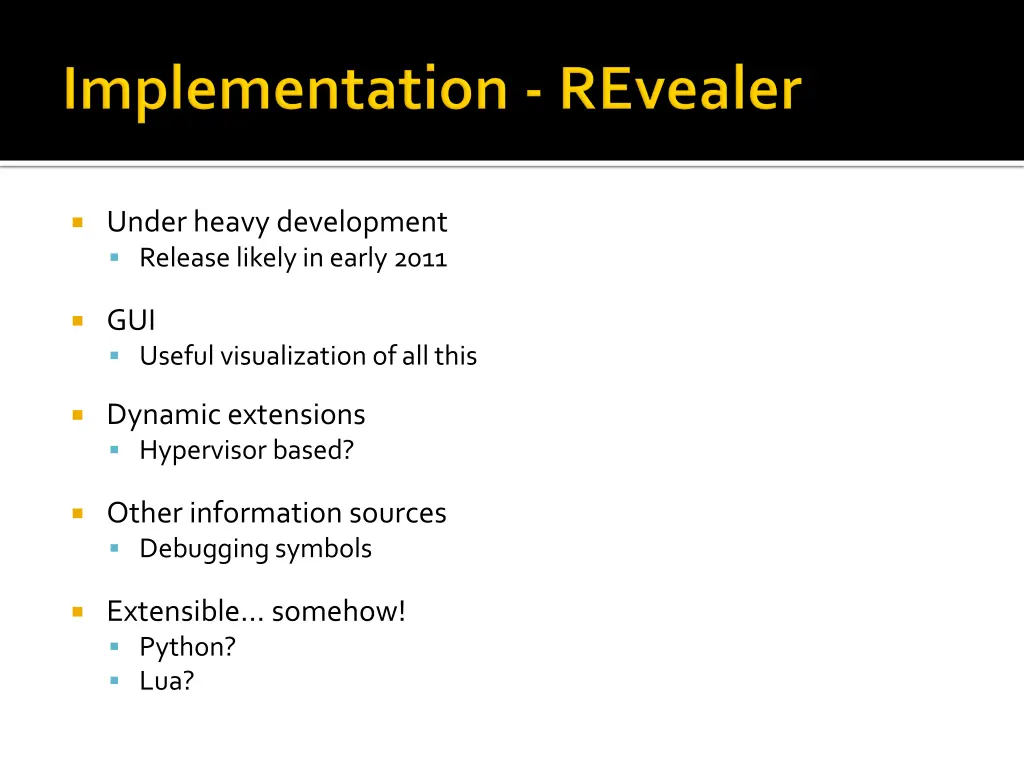

Under heavy development Release likely in early 2011 GUI Useful visualization of all this Dynamic extensions Hypervisor based? Other information sources Debugging symbols Extensible somehow! Python? Lua?
