Applying Coulomb's Law in Physics Lab with PASCO Capstone
Explore the application of Coulomb's Law in a physics lab setting using PASCO Capstone for electrical and magnetic measurements. Learn how to perform the experiments, analyze the data, and generate a laboratory report. Dive into hands-on activities such as tape charge experiments and utilizing Capstone software for accurate results.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

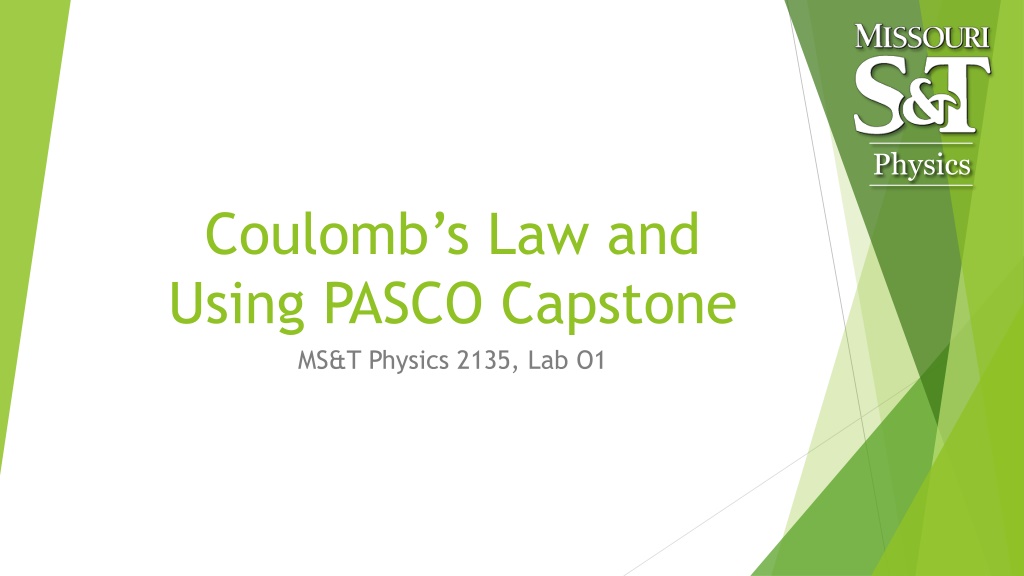

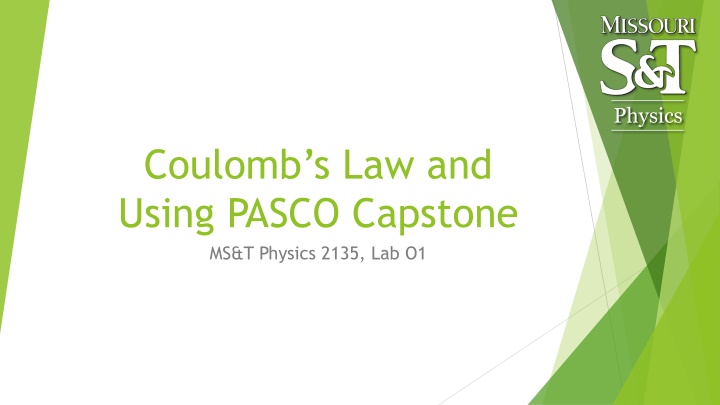

Physics Coulomb s Law and Using PASCO Capstone MS&T Physics 2135, Lab O1

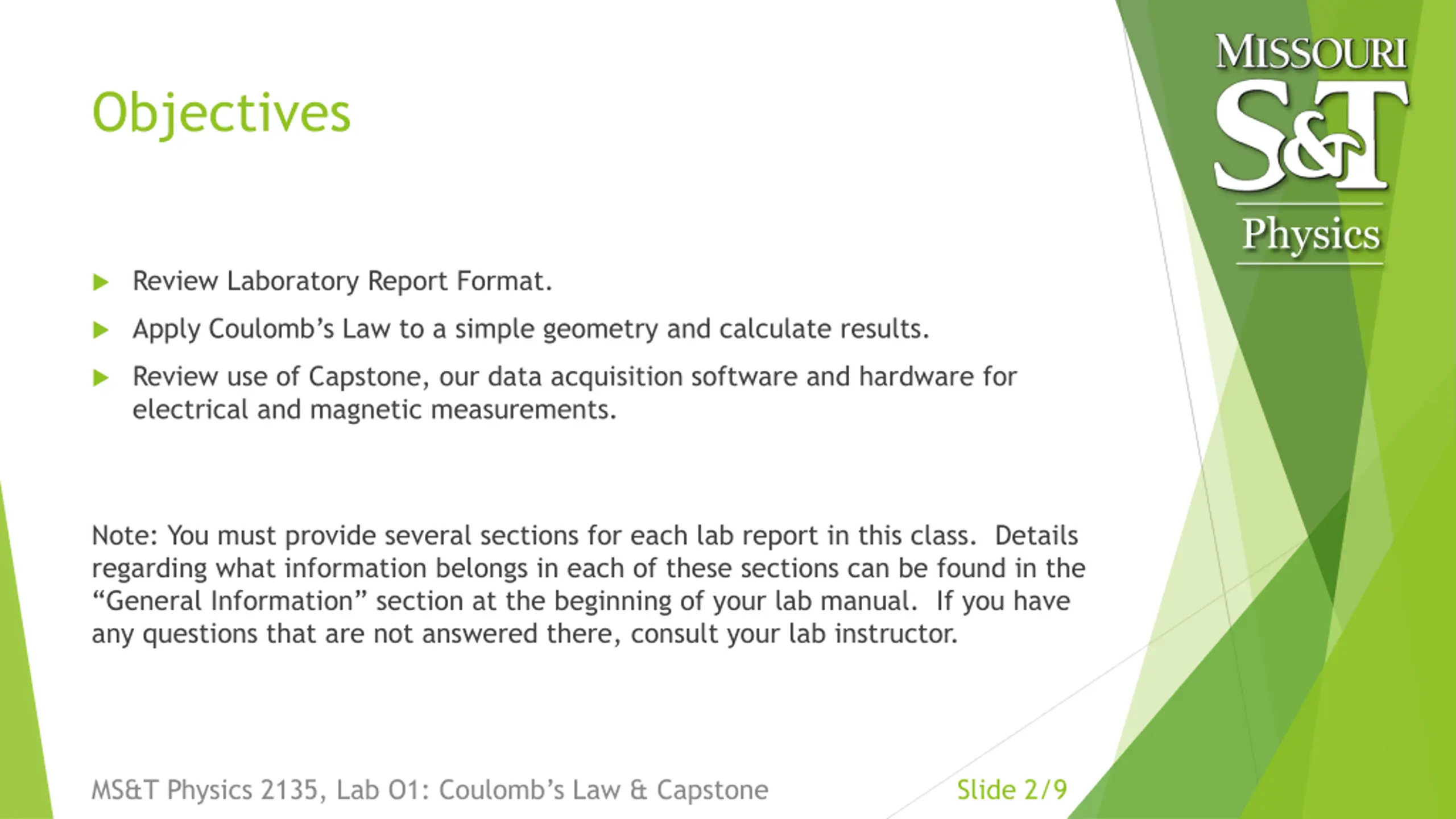

Objectives Physics Review Laboratory Report Format. Apply Coulomb s Law to a simple geometry and calculate results. Review use of Capstone, our data acquisition software and hardware for electrical and magnetic measurements. Note: You must provide several sections for each lab report in this class. Details regarding what information belongs in each of these sections can be found in the General Information section at the beginning of your lab manual. If you have any questions that are not answered there, consult your lab instructor. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 2/9

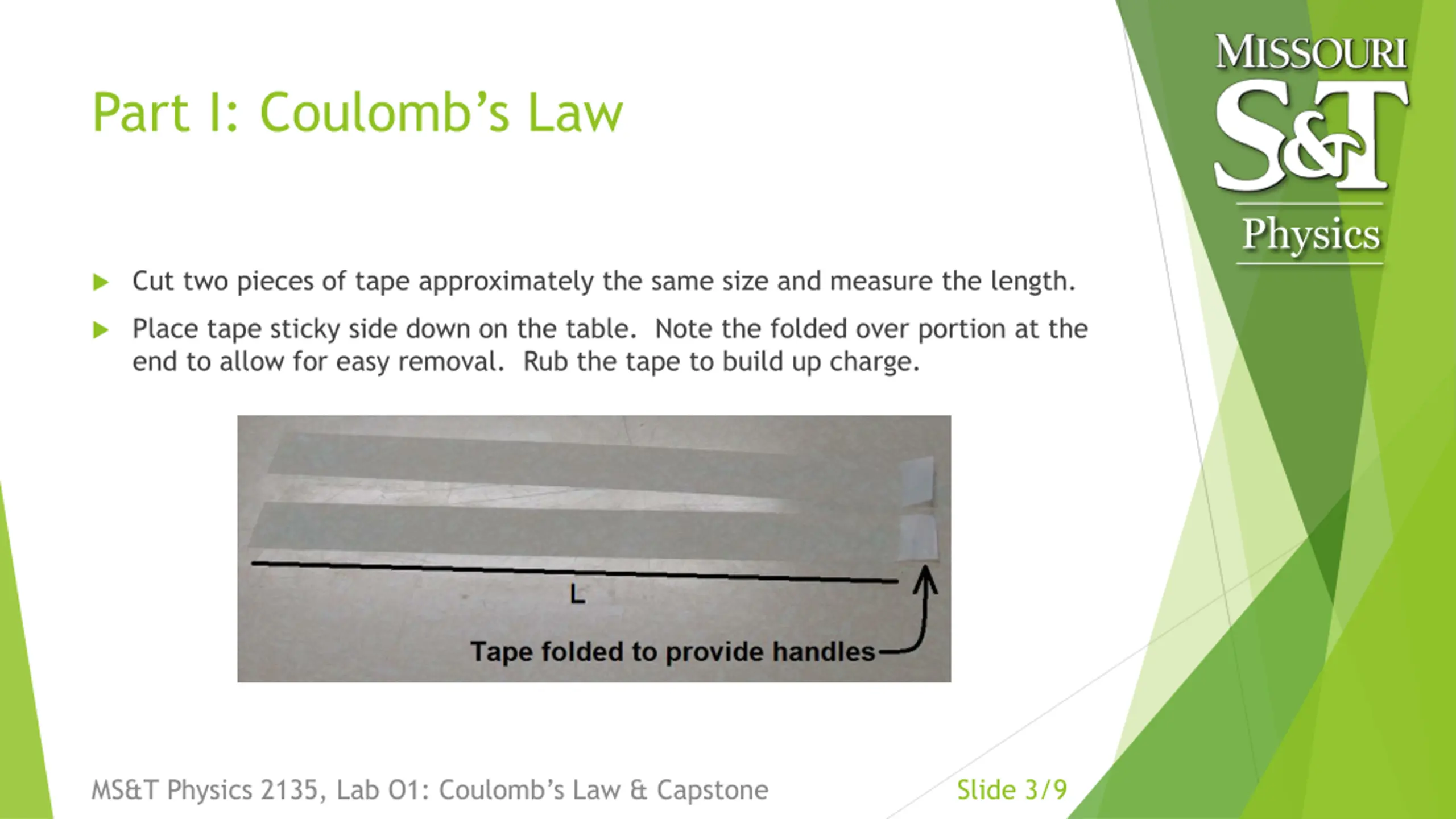

Part I: Coulombs Law Physics Cut two pieces of tape approximately the same size and measure the length. Place tape sticky side down on the table. Note the folded over portion at the end to allow for easy removal. Rub the tape to build up charge. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 3/9

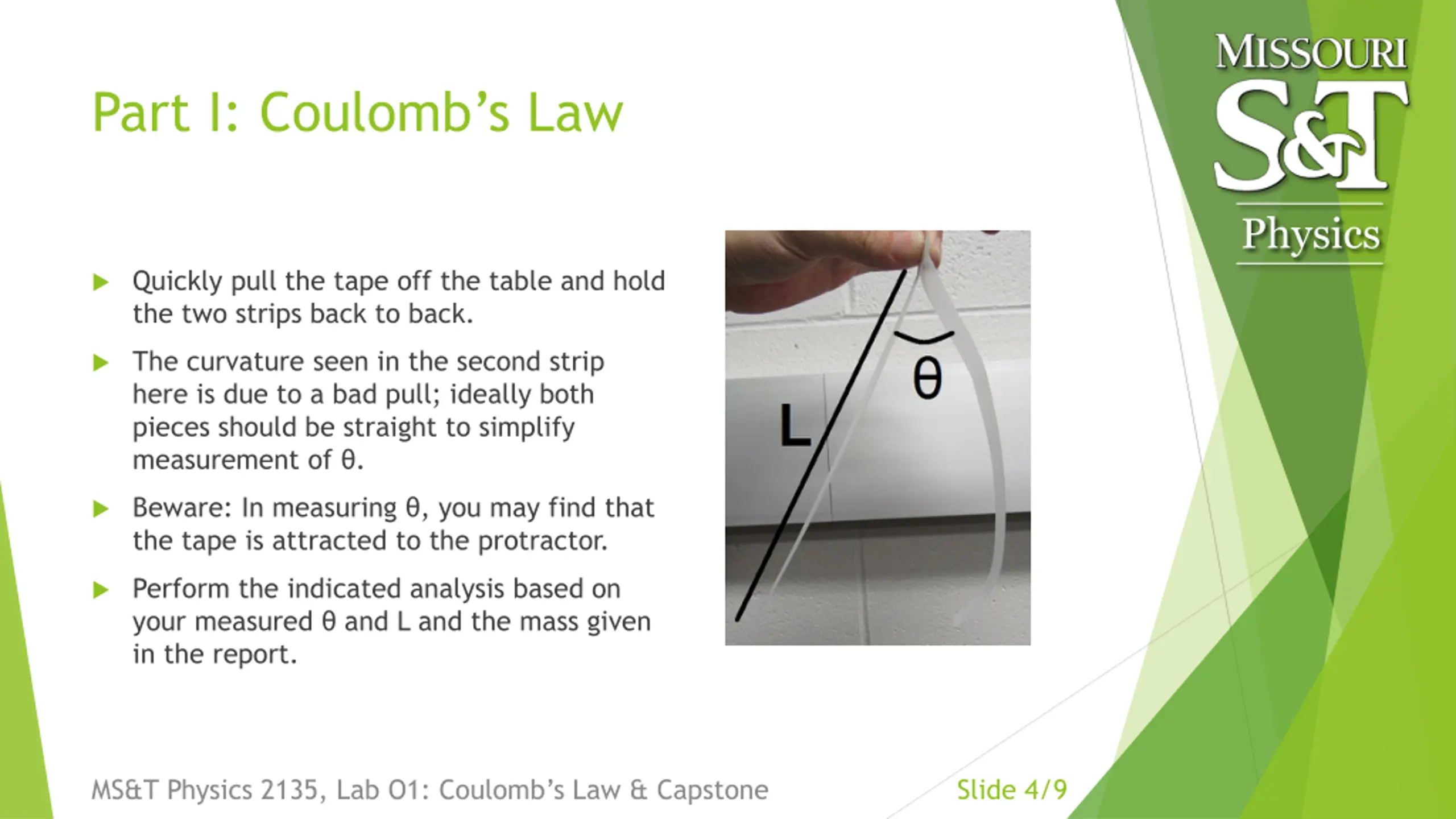

Part I: Coulombs Law Physics Quickly pull the tape off the table and hold the two strips back to back. The curvature seen in the second strip here is due to a bad pull; ideally both pieces should be straight to simplify measurement of . Beware: In measuring , you may find that the tape is attracted to the protractor. Perform the indicated analysis based on your measured and L and the mass given in the report. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 4/9

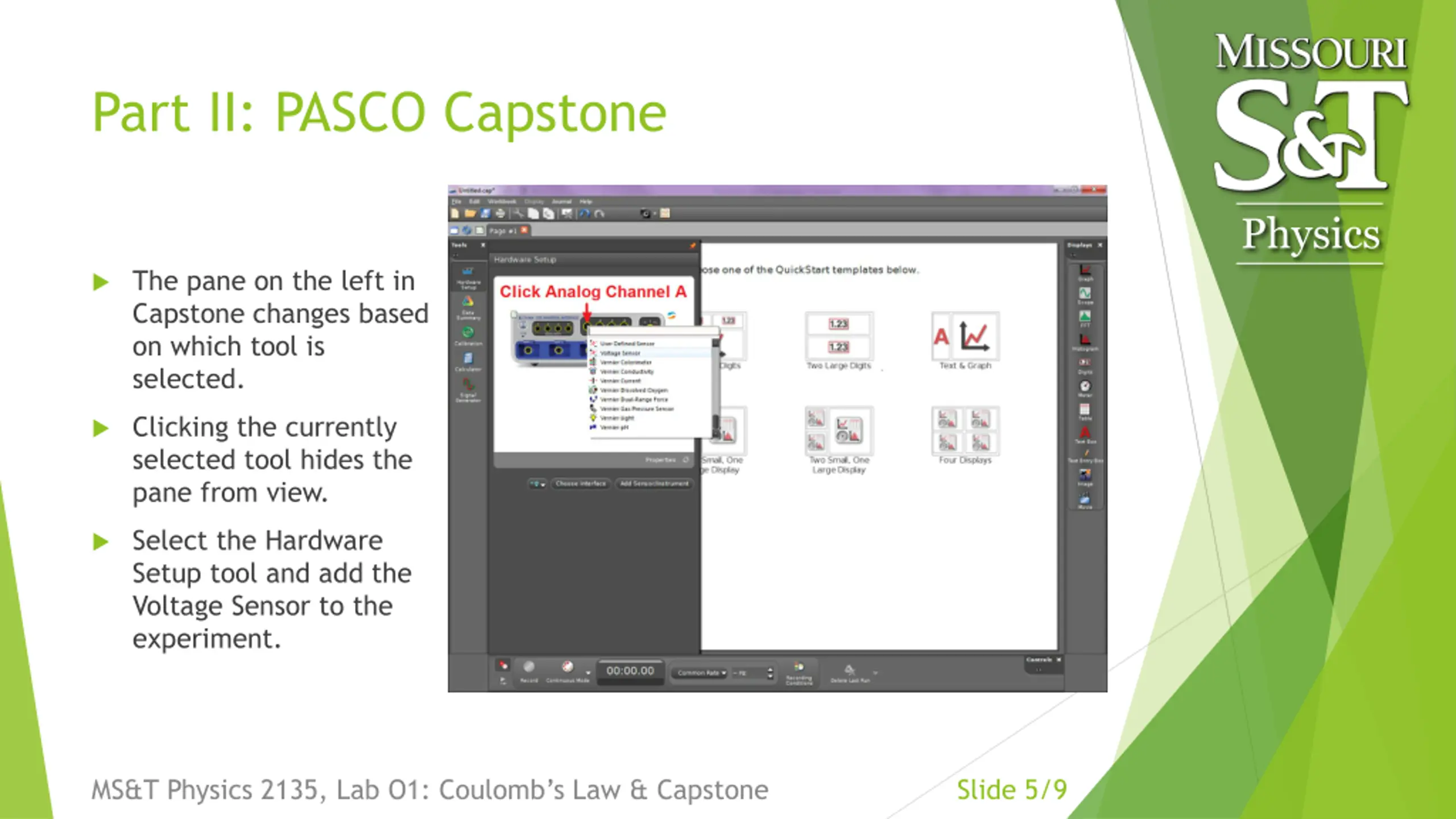

Part II: PASCO Capstone Physics The pane on the left in Capstone changes based on which tool is selected. Clicking the currently selected tool hides the pane from view. Select the Hardware Setup tool and add the Voltage Sensor to the experiment. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 5/9

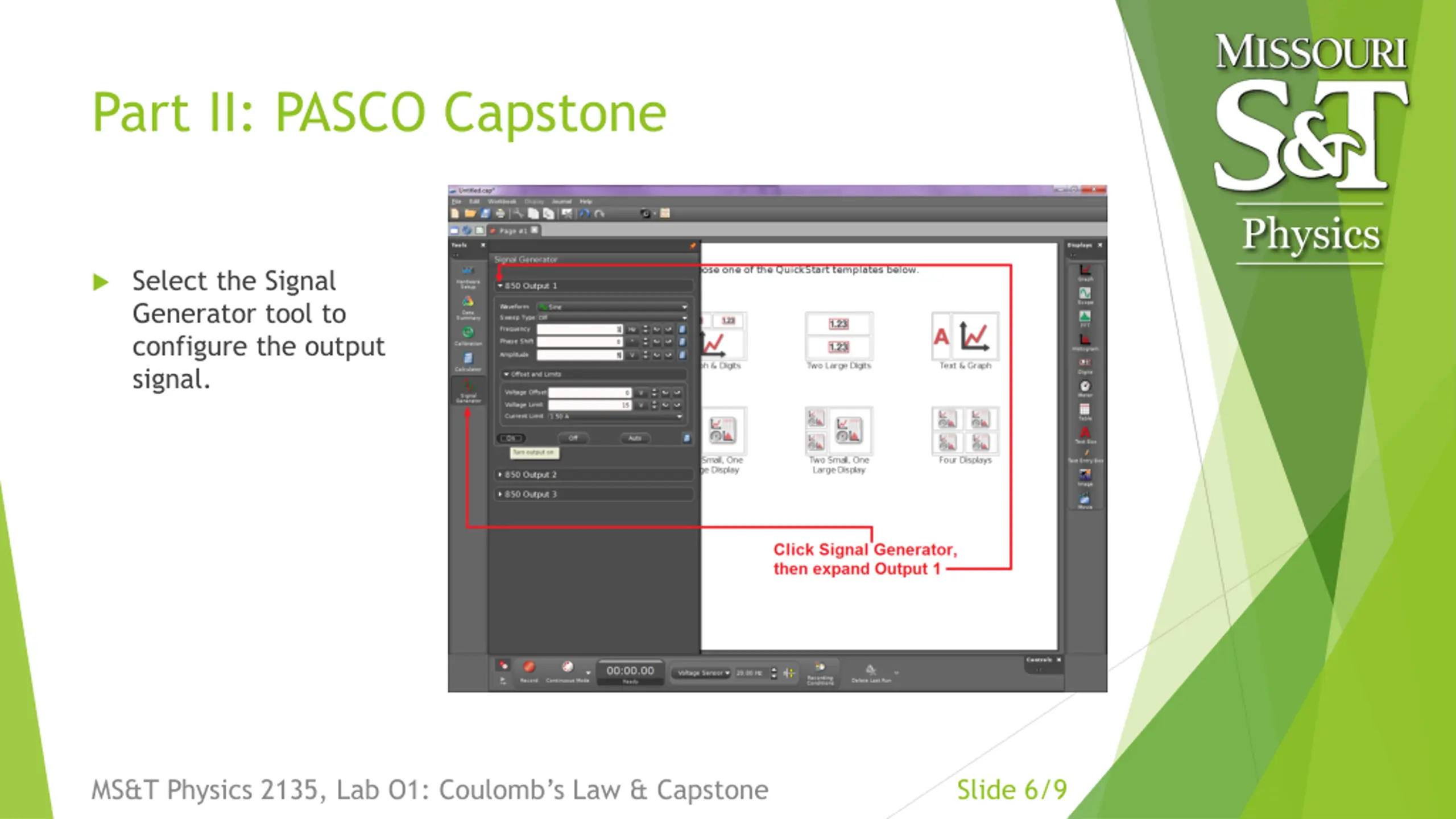

Part II: PASCO Capstone Physics Select the Signal Generator tool to configure the output signal. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 6/9

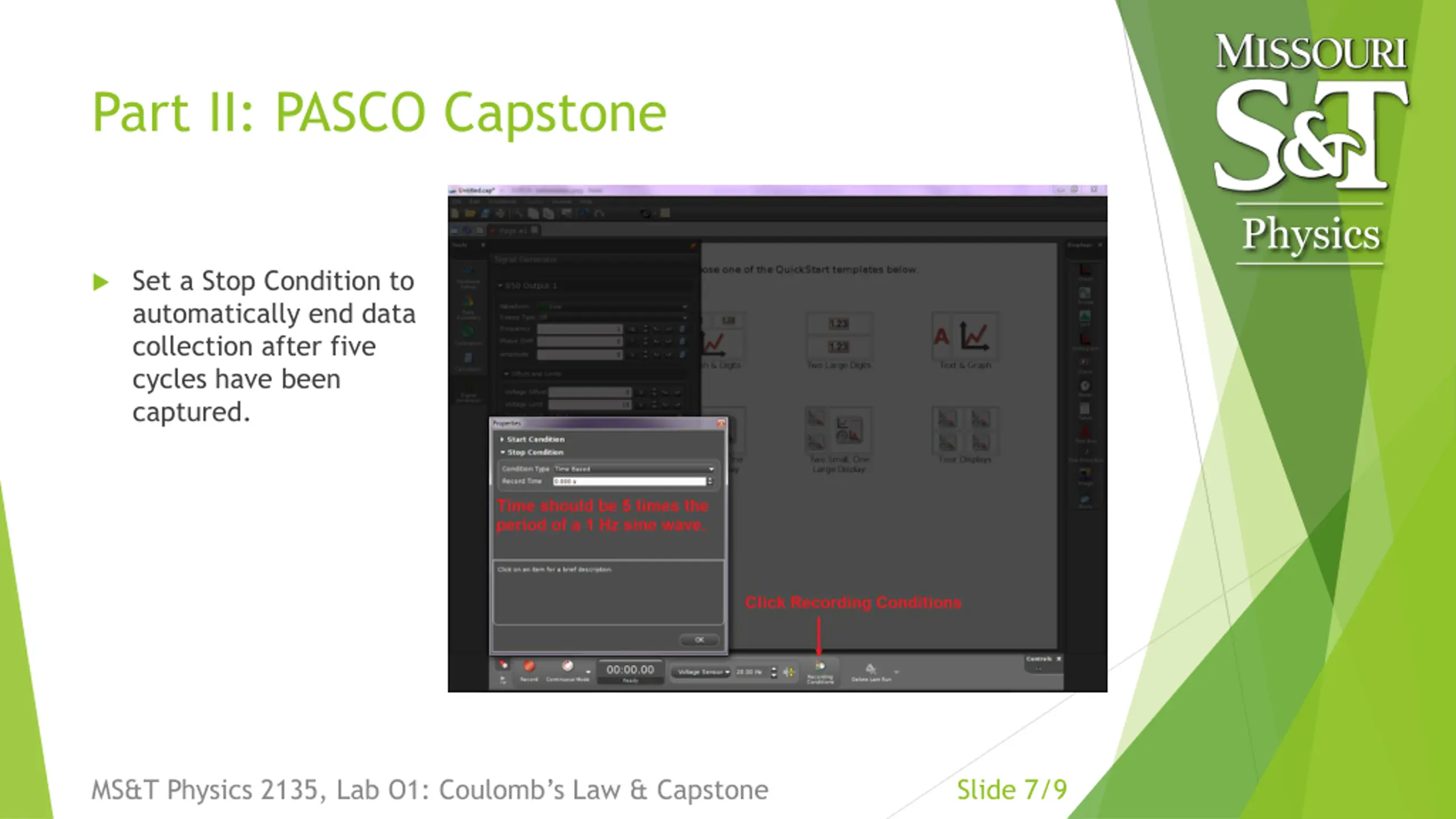

Part II: PASCO Capstone Physics Set a Stop Condition to automatically end data collection after five cycles have been captured. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 7/9

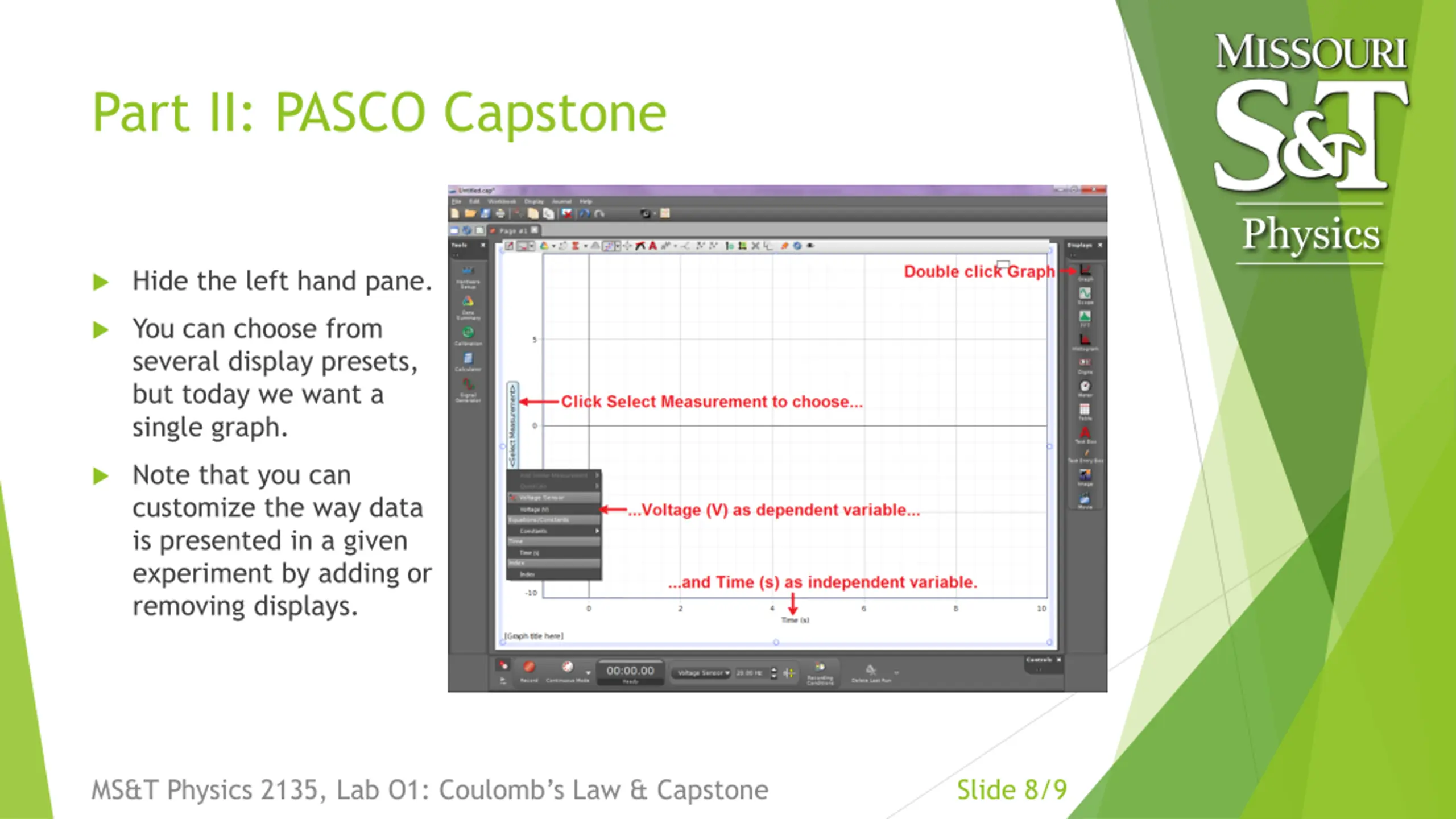

Part II: PASCO Capstone Physics Hide the left hand pane. You can choose from several display presets, but today we want a single graph. Note that you can customize the way data is presented in a given experiment by adding or removing displays. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 8/9

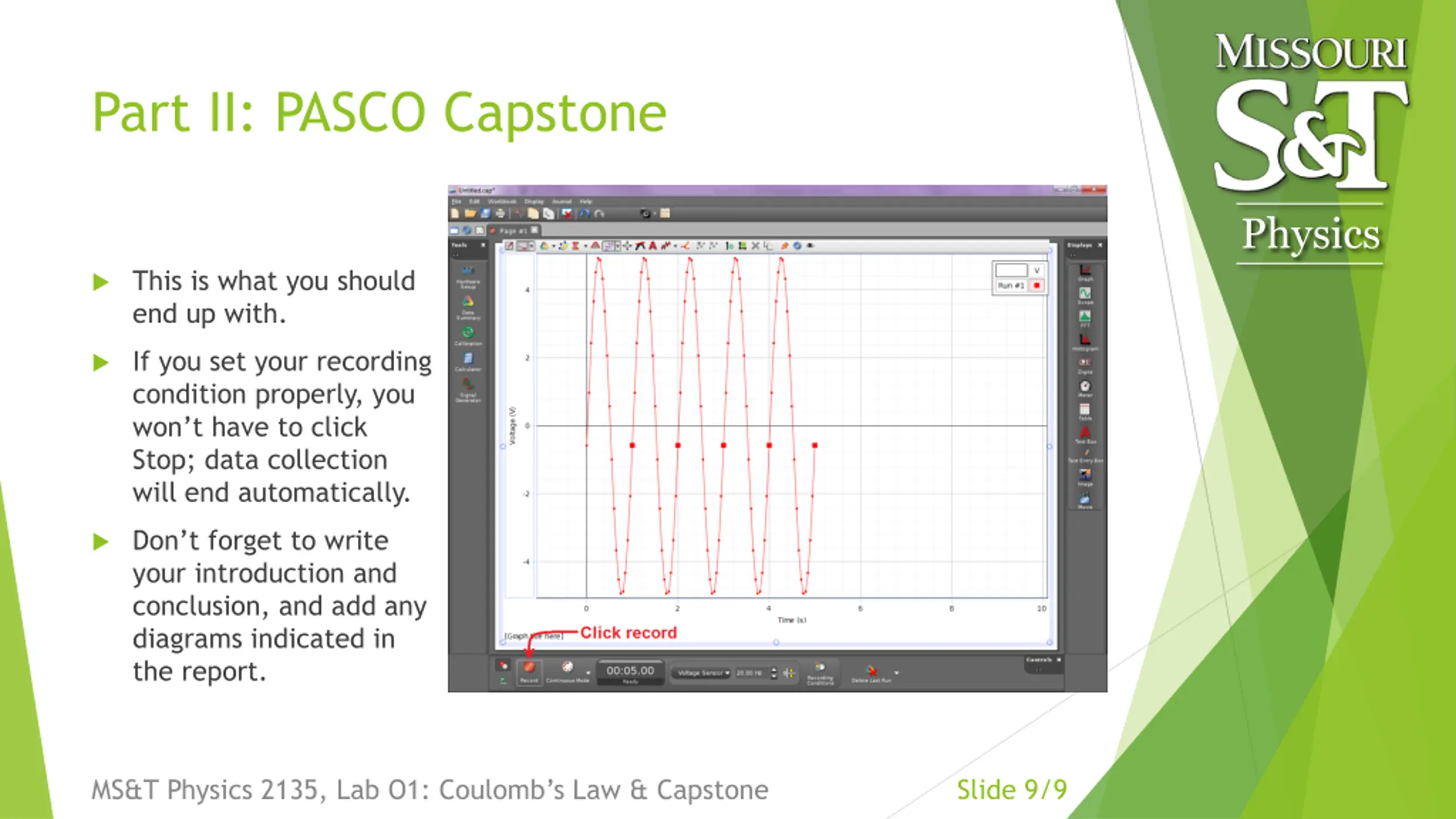

Part II: PASCO Capstone Physics This is what you should end up with. If you set your recording condition properly, you won t have to click Stop; data collection will end automatically. Don t forget to write your introduction and conclusion, and add any diagrams indicated in the report. MS&T Physics 2135, Lab O1: Coulomb s Law & Capstone Slide 9/9
