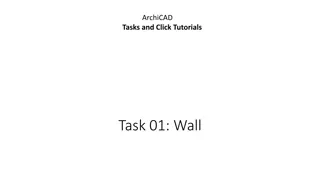

ArchiCAD Tasks and Click Tutorials Task 01: Wall

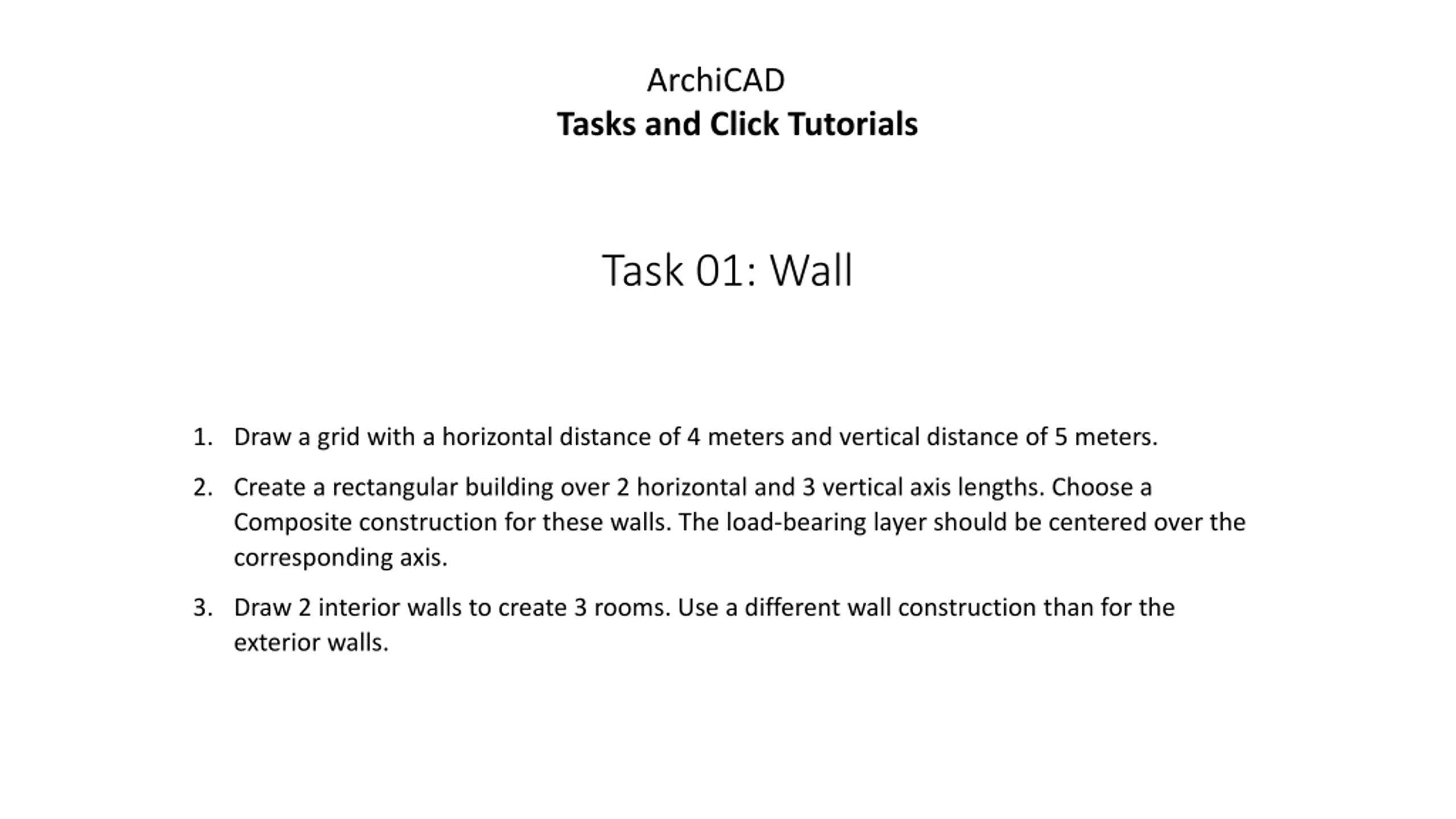

ArchiCAD Tasks and Click Tutorials Task 01: Wall 1. Draw a grid with a horizontal distance of 4 meters and vertical distance of 5 meters. 2. Create a rectangular building over 2 horizontal and 3 vertical axis lengths. Choose a Composite construction for these walls. The load-bearing layer should be centered over the corresponding axis. 3. Draw 2 interior walls to create 3 rooms. Use a different wall construction than for the exterior walls.

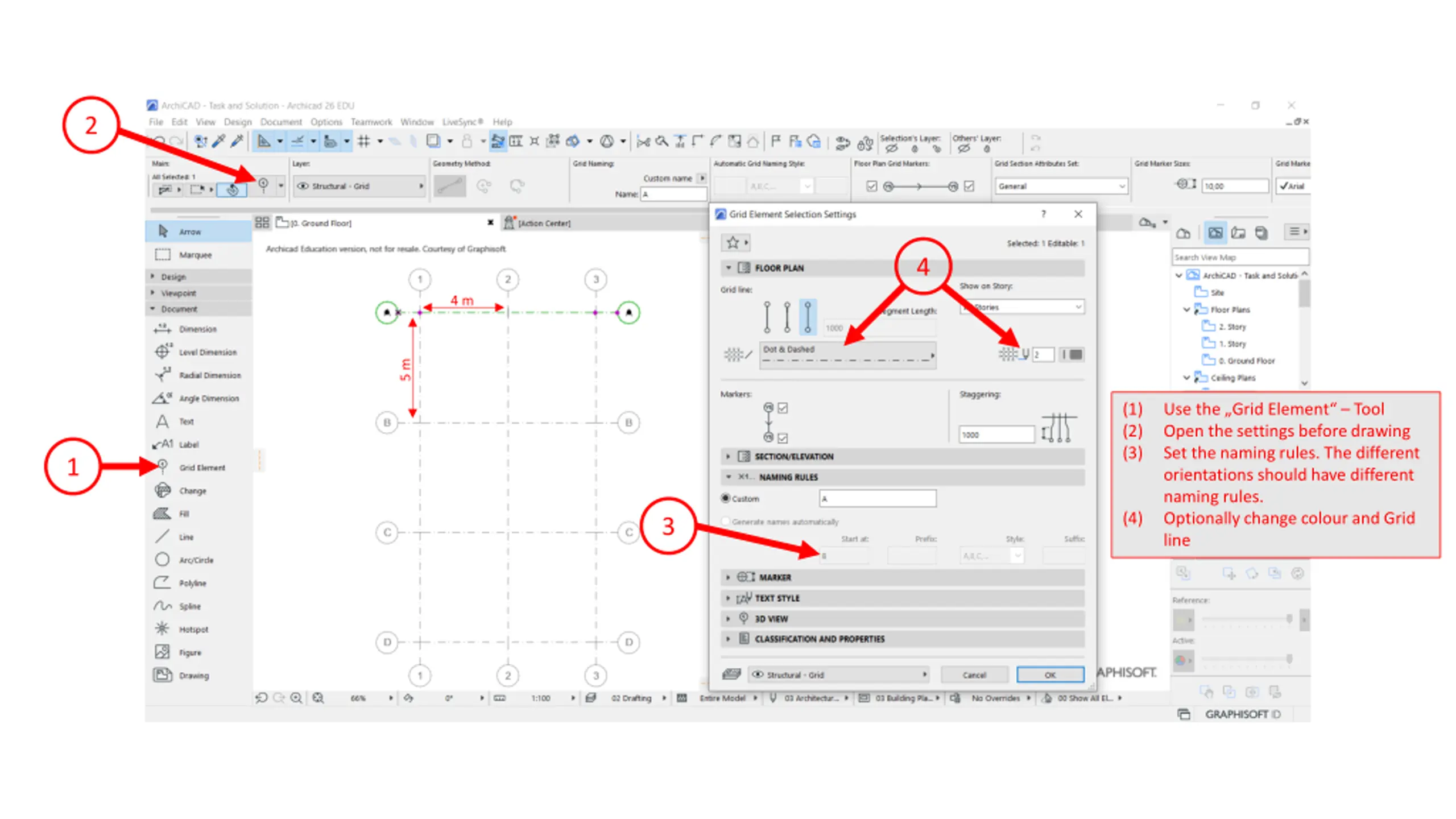

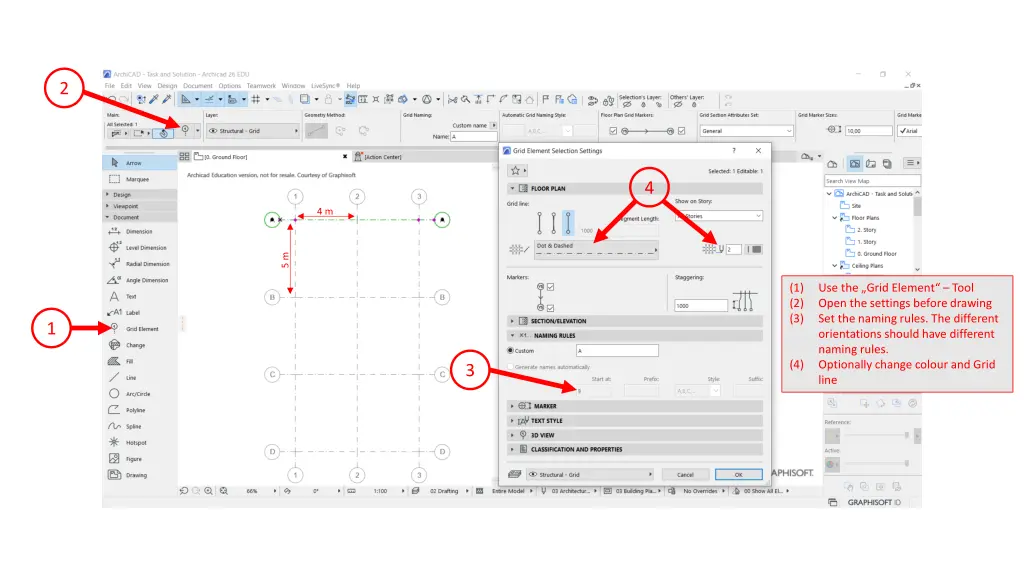

2 4 4 m 5 m (1) (2) (3) Use the Grid Element Tool Open the settings before drawing Set the naming rules. The different orientations should have different naming rules. Optionally change colour and Grid line 1 (4) 3

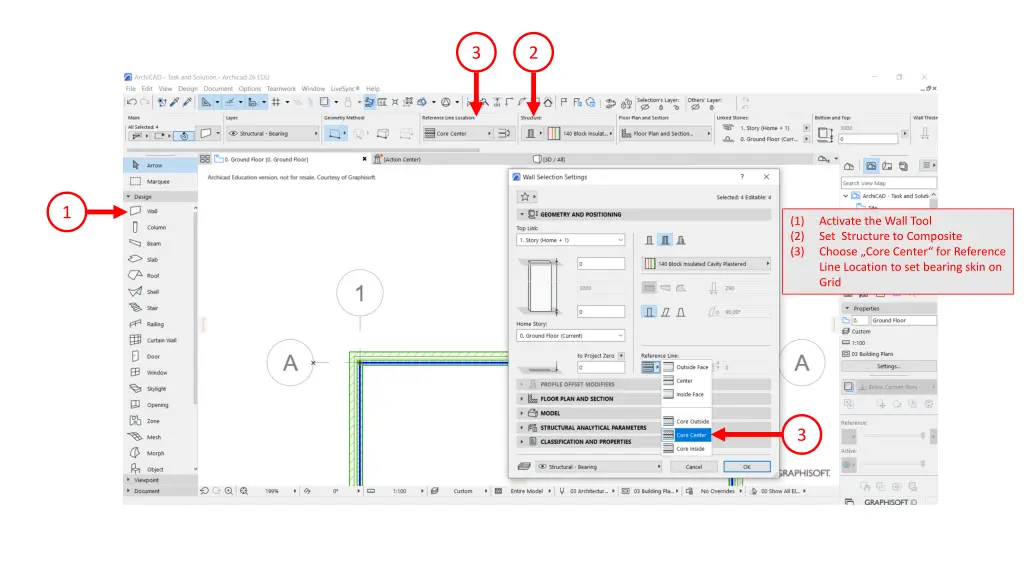

3 2 1 (1) (2) (3) Activate the Wall Tool Set Structure to Composite Choose Core Center for Reference Line Location to set bearing skin on Grid 3

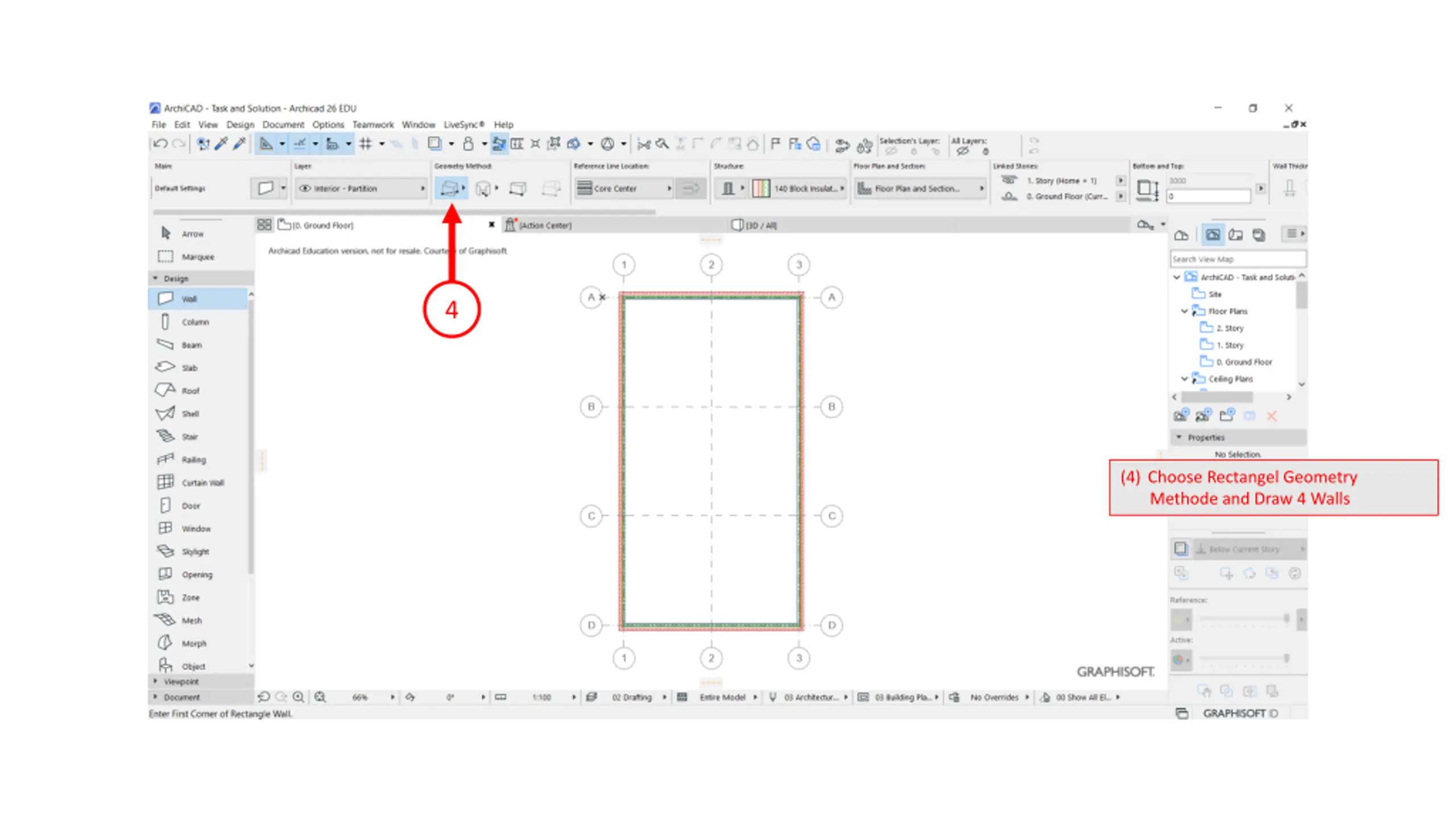

4 (4) Choose Rectangel Geometry Methode and Draw 4 Walls

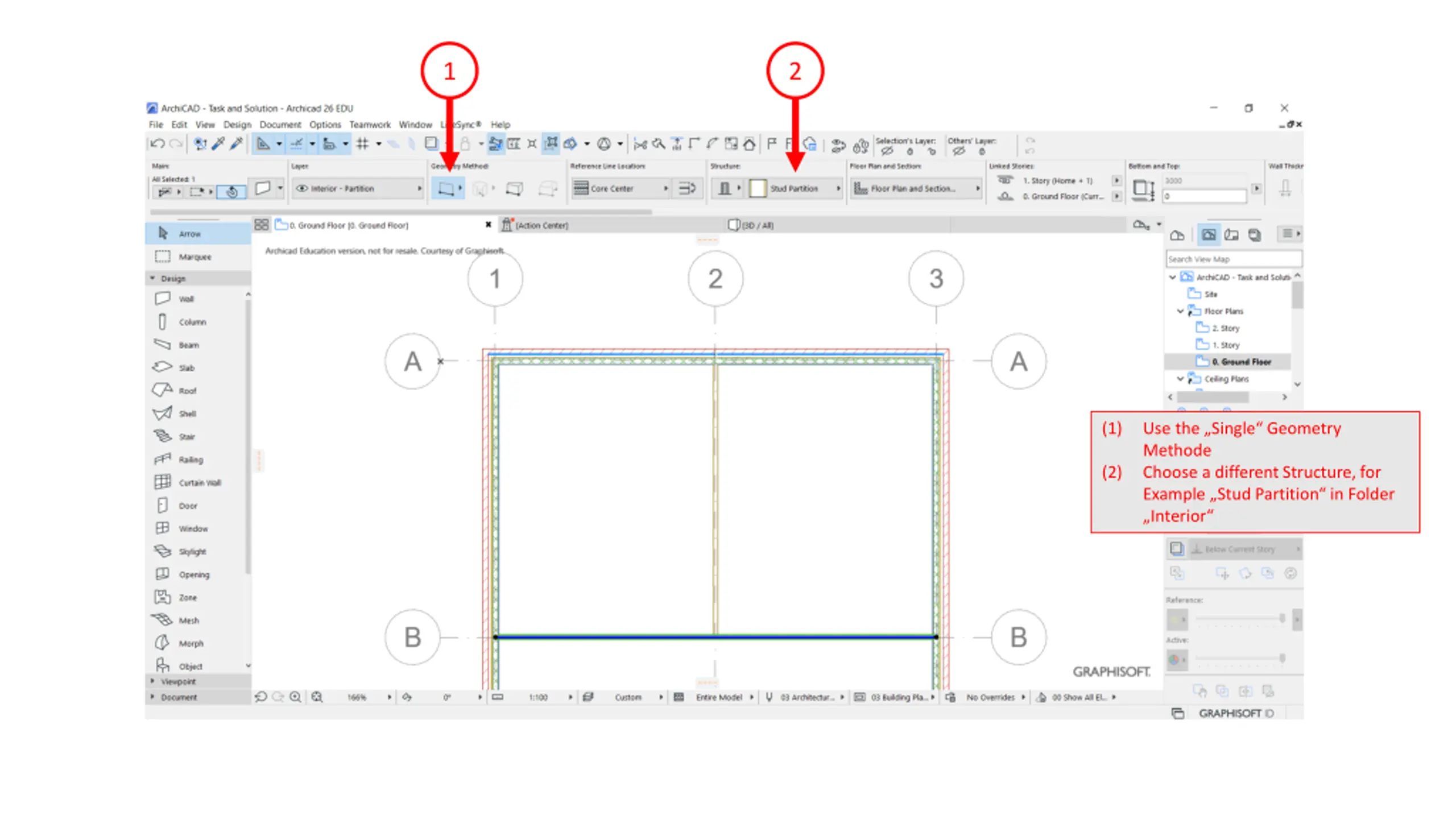

1 2 (1) Use the Single Geometry Methode Choose a different Structure, for Example Stud Partition in Folder Interior (2)
