Lecture 5: PCAP Analysis Part II, ARP and IPv4 SI430 Computer Network Security

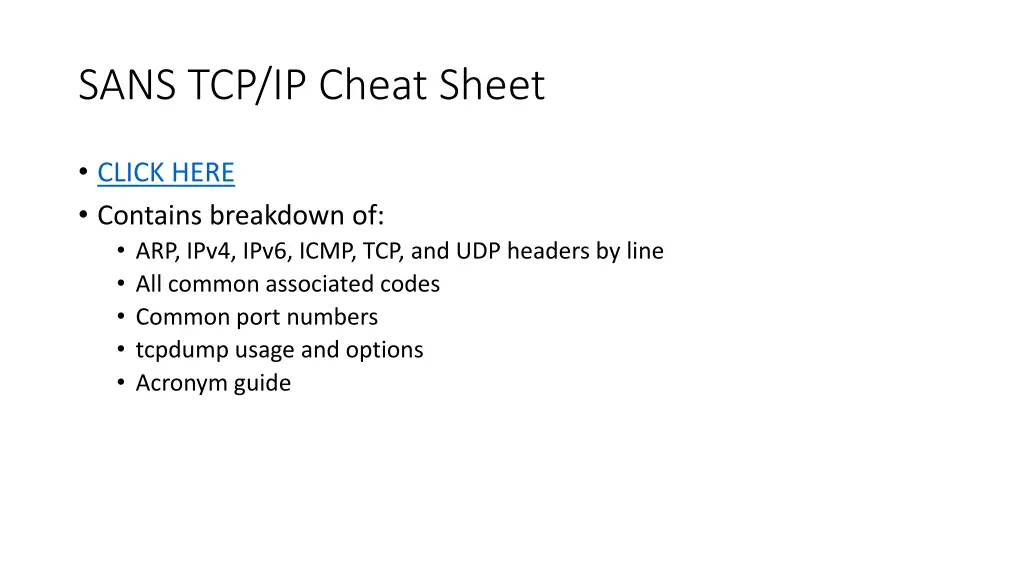

SANS TCP/IP Cheat Sheet CLICK HERE Contains breakdown of: ARP, IPv4, IPv6, ICMP, TCP, and UDP headers by line All common associated codes Common port numbers tcpdump usage and options Acronym guide

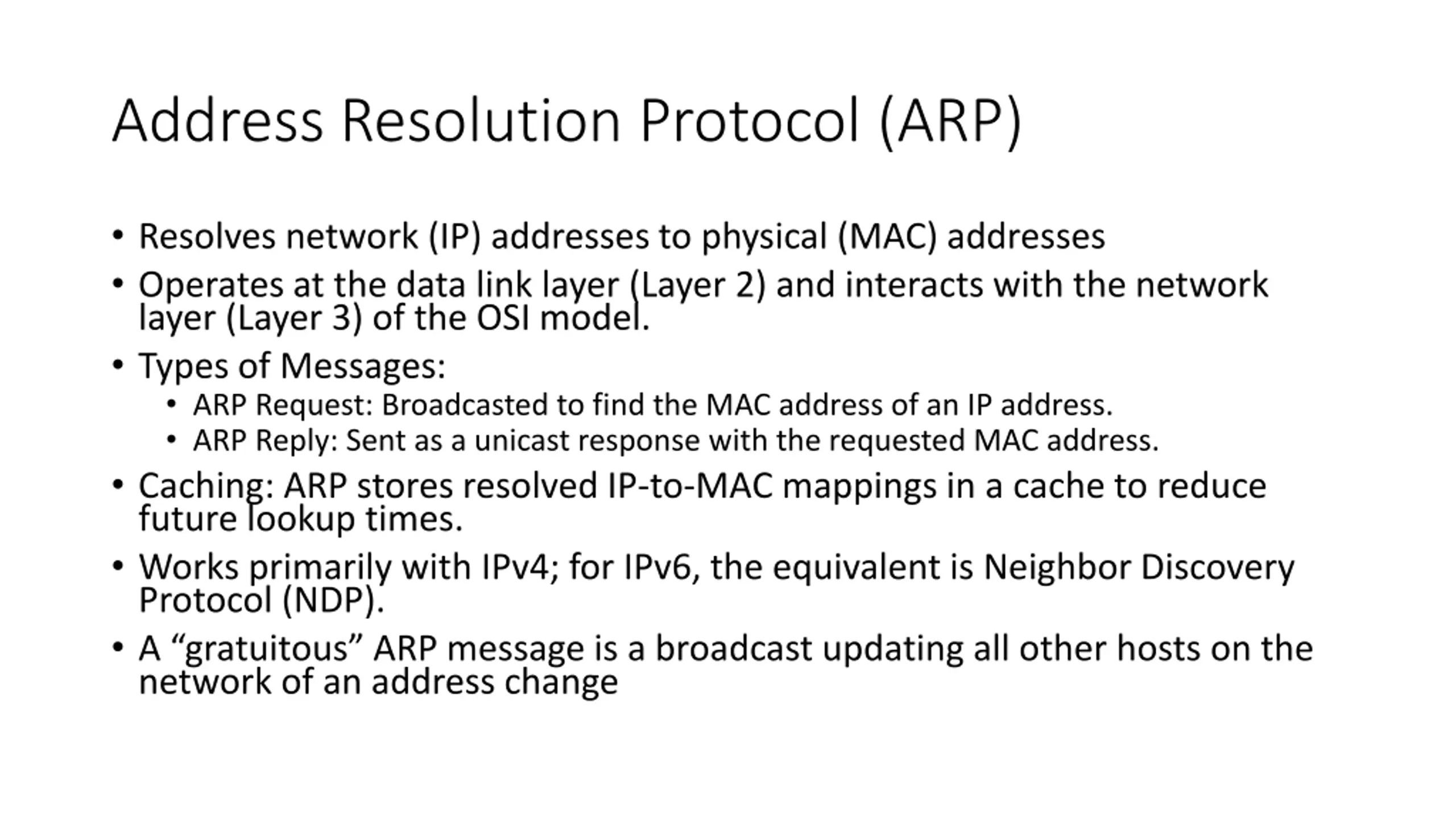

Address Resolution Protocol (ARP) Resolves network (IP) addresses to physical (MAC) addresses Operates at the data link layer (Layer 2) and interacts with the network layer (Layer 3) of the OSI model. Types of Messages: ARP Request: Broadcasted to find the MAC address of an IP address. ARP Reply: Sent as a unicast response with the requested MAC address. Caching: ARP stores resolved IP-to-MAC mappings in a cache to reduce future lookup times. Works primarily with IPv4; for IPv6, the equivalent is Neighbor Discovery Protocol (NDP). A gratuitous ARP message is a broadcast updating all other hosts on the network of an address change

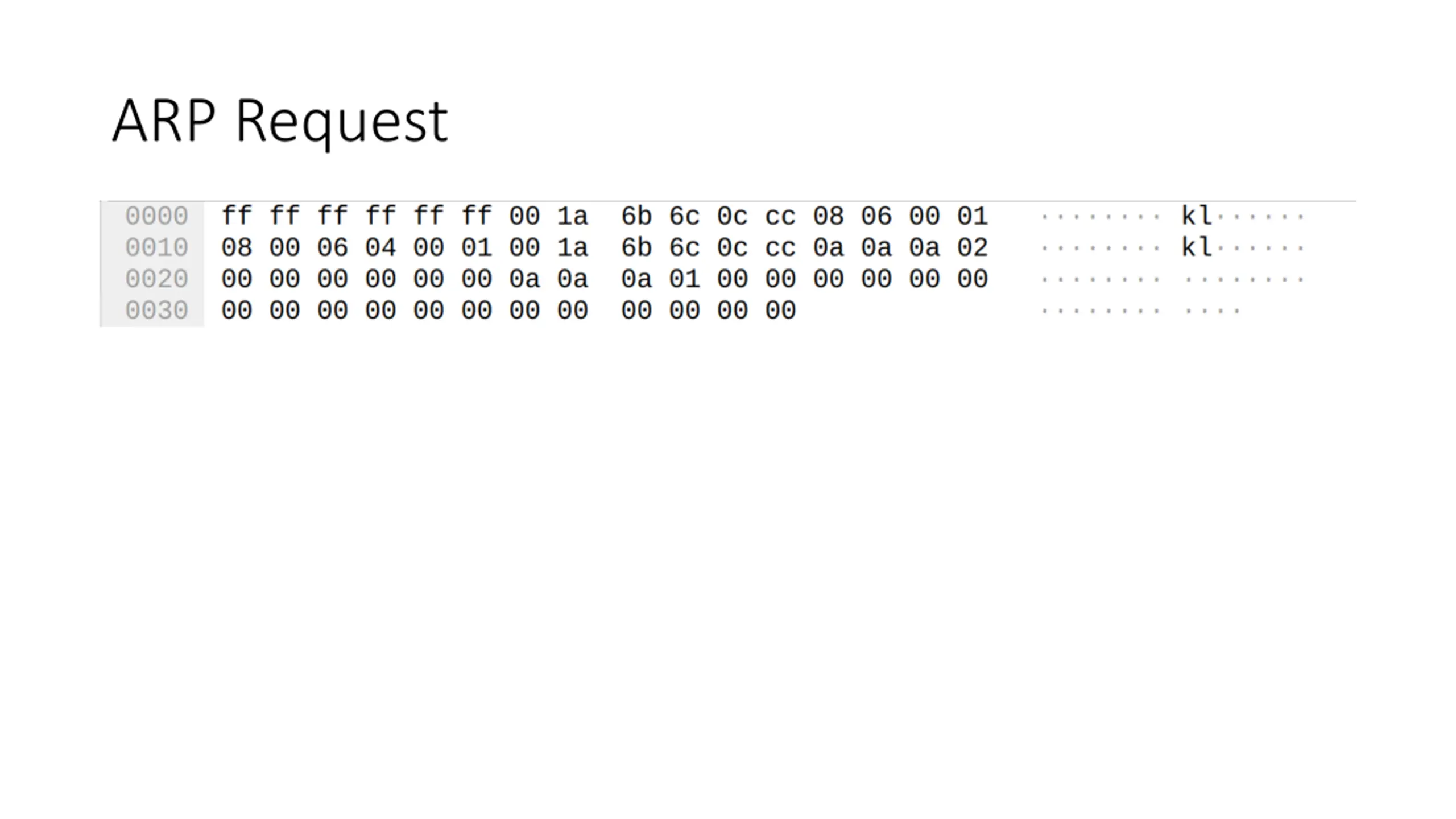

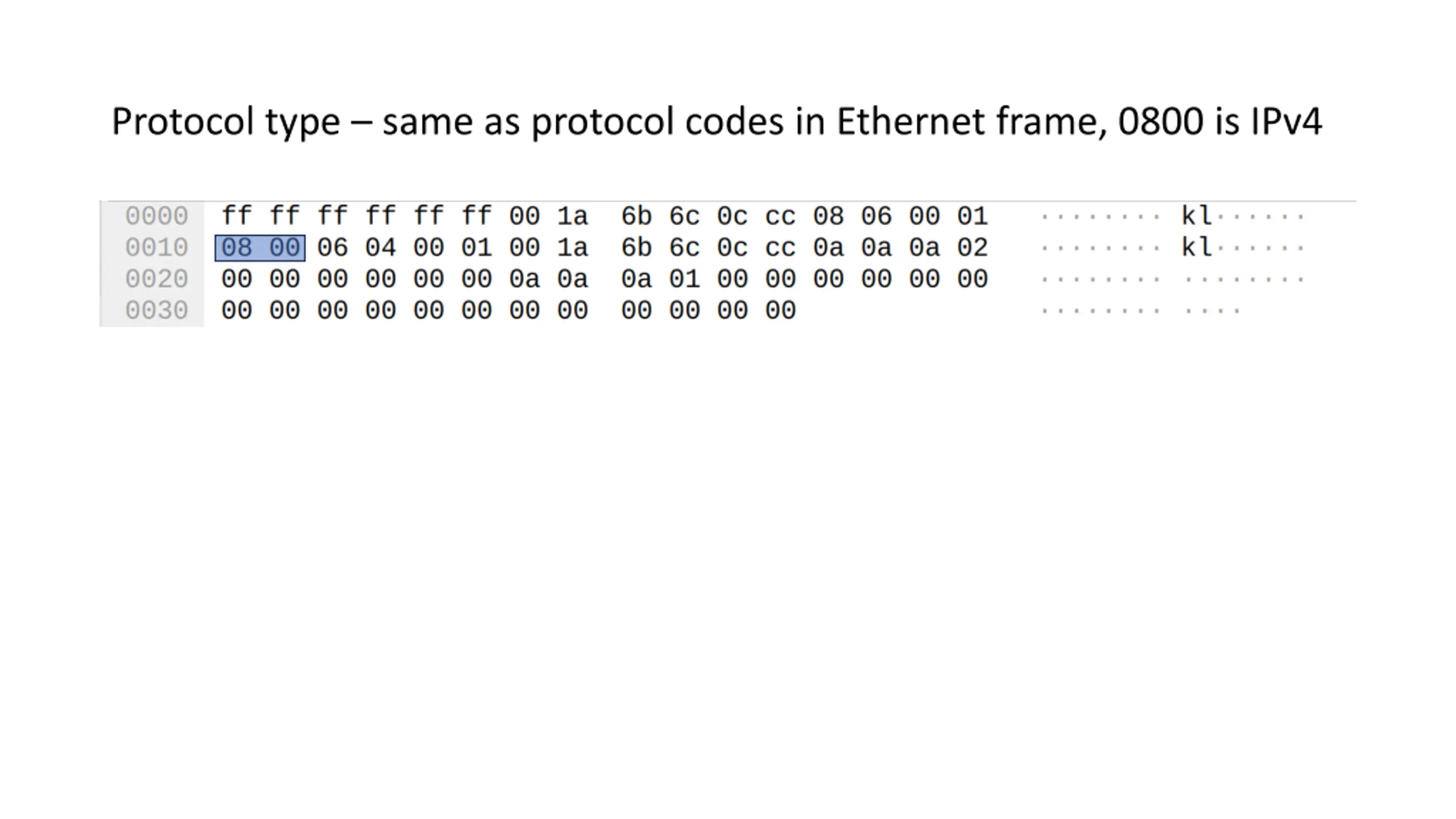

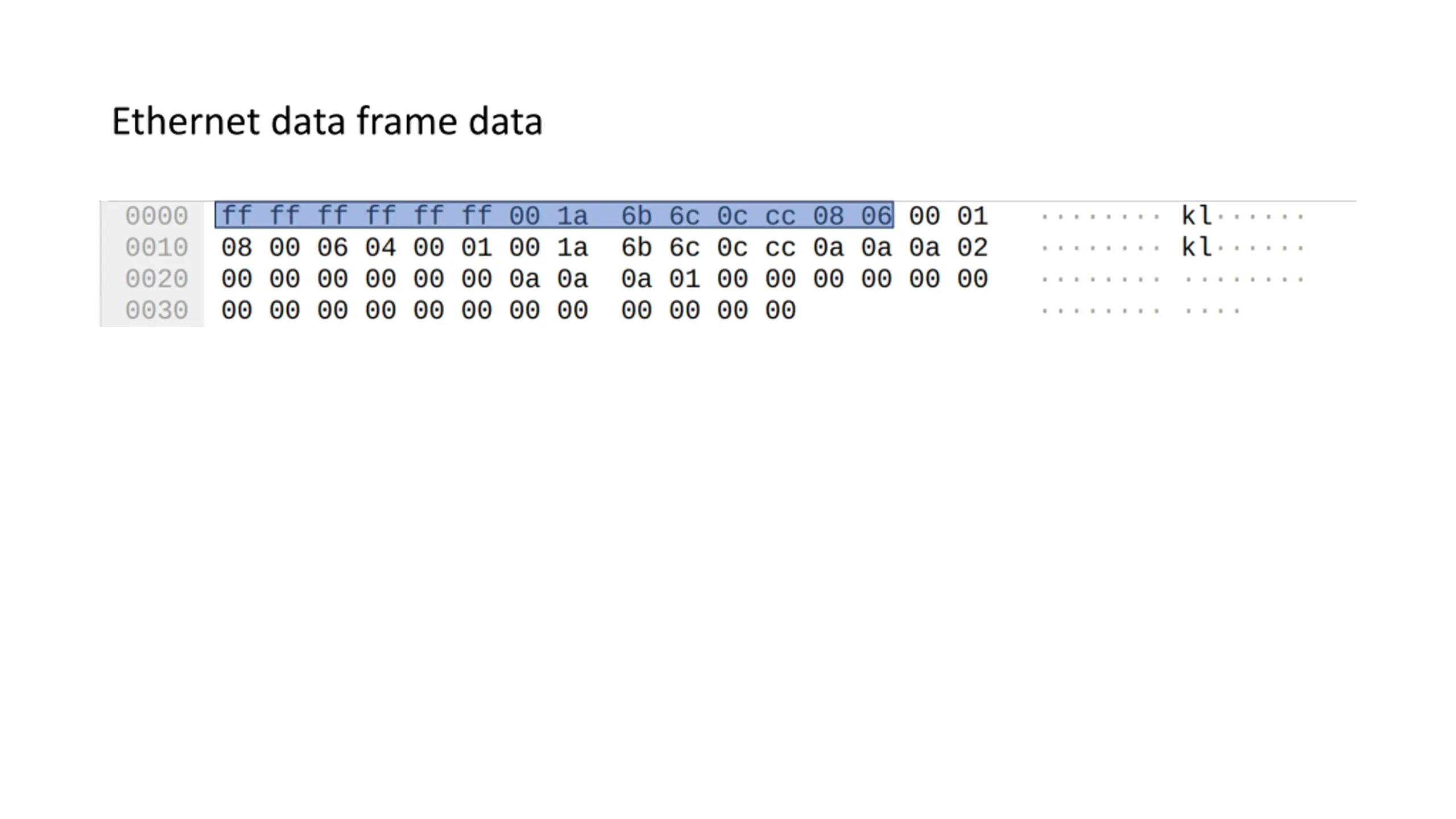

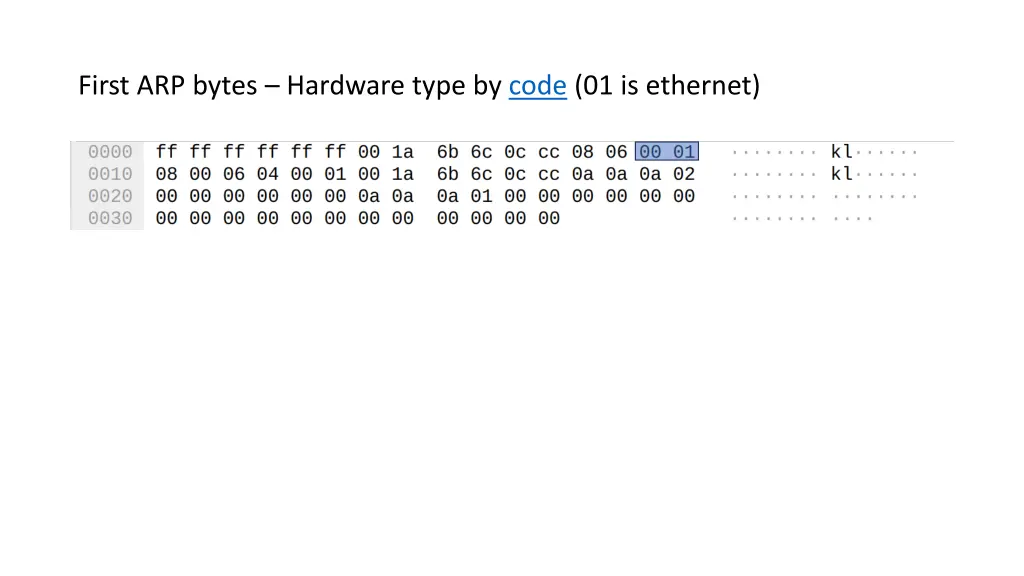

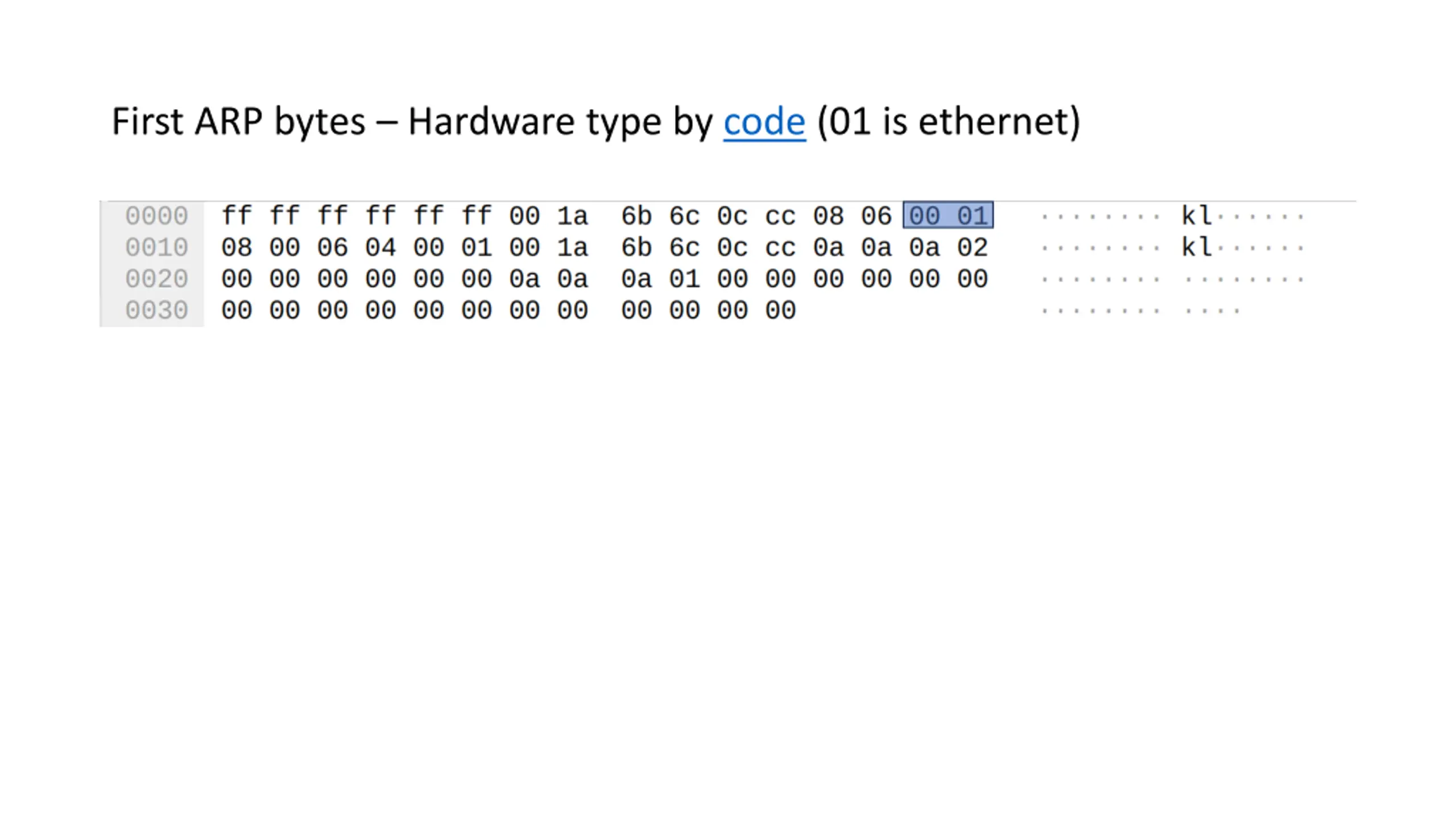

Protocol type same as protocol codes in Ethernet frame, 0800 is IPv4

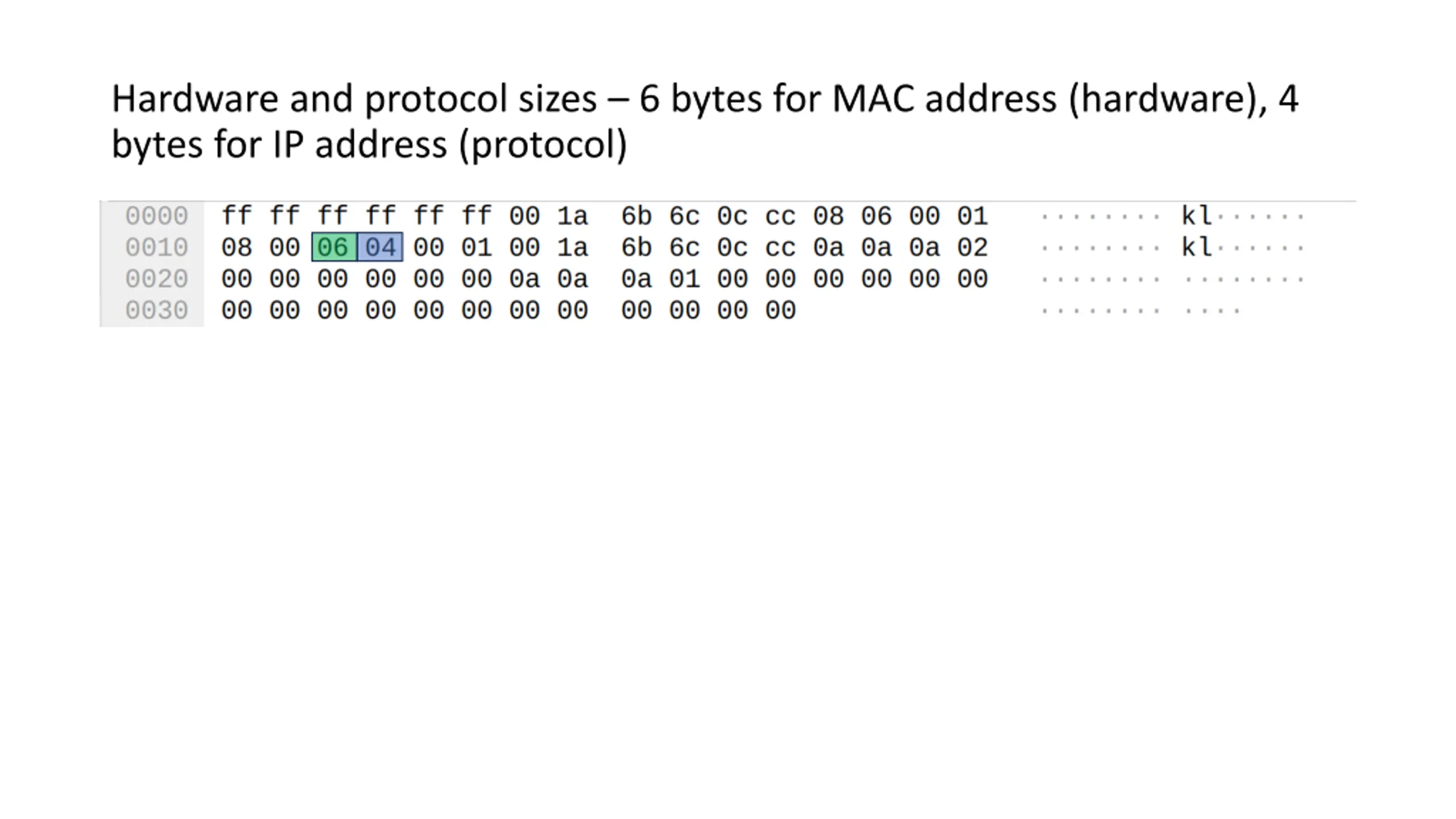

Hardware and protocol sizes 6 bytes for MAC address (hardware), 4 bytes for IP address (protocol)

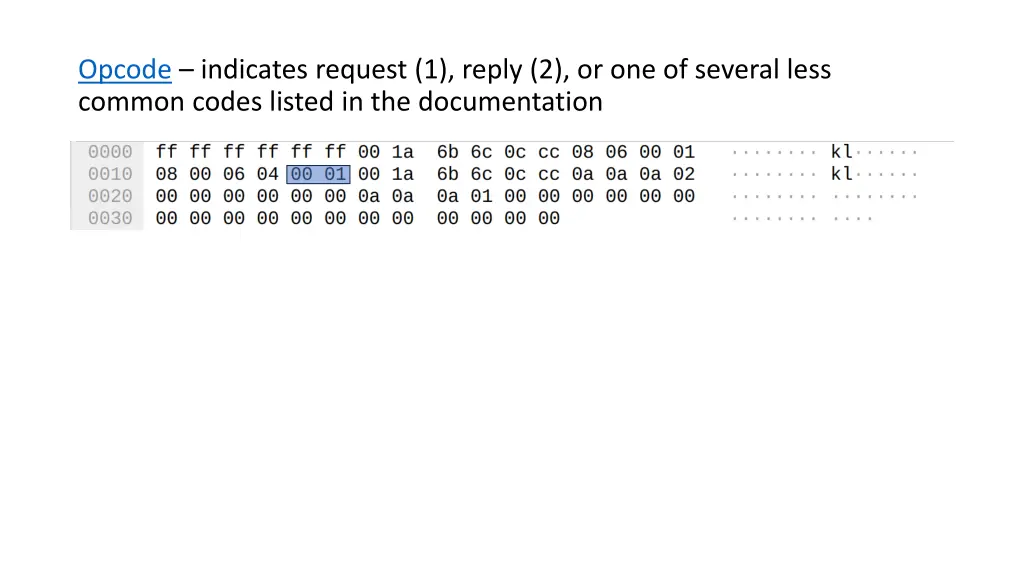

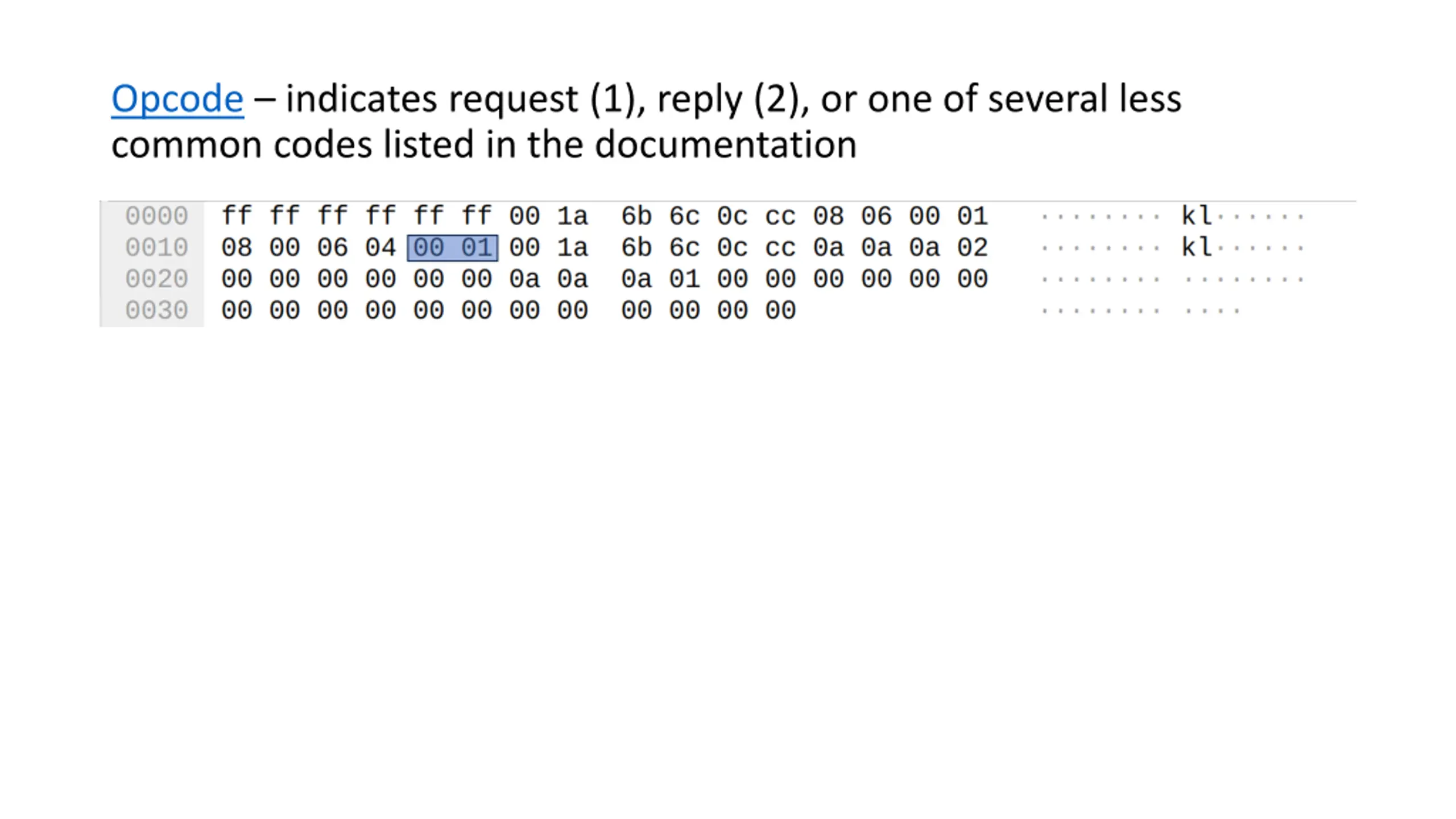

Opcode indicates request (1), reply (2), or one of several less common codes listed in the documentation

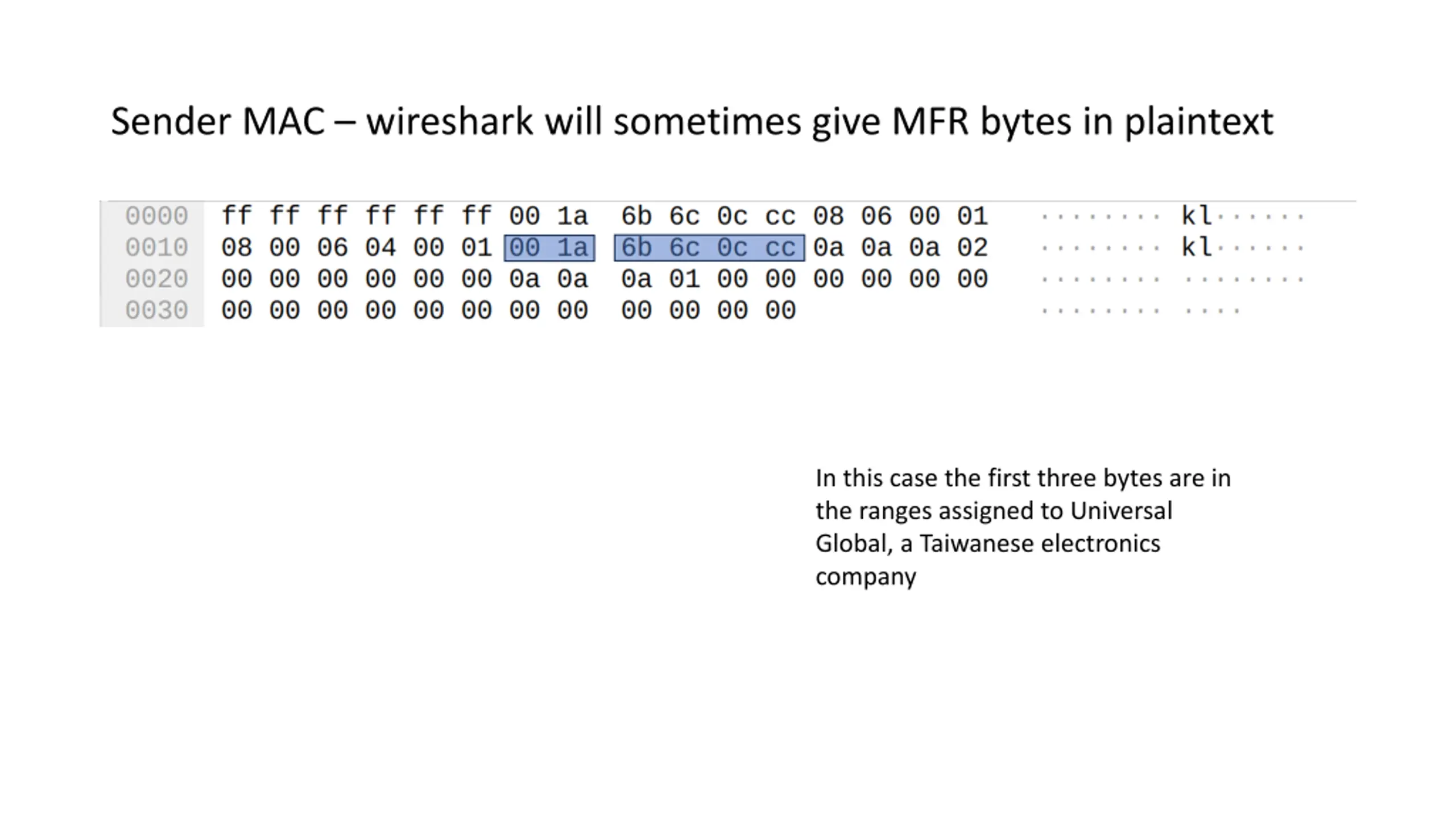

Sender MAC wireshark will sometimes give MFR bytes in plaintext In this case the first three bytes are in the ranges assigned to Universal Global, a Taiwanese electronics company

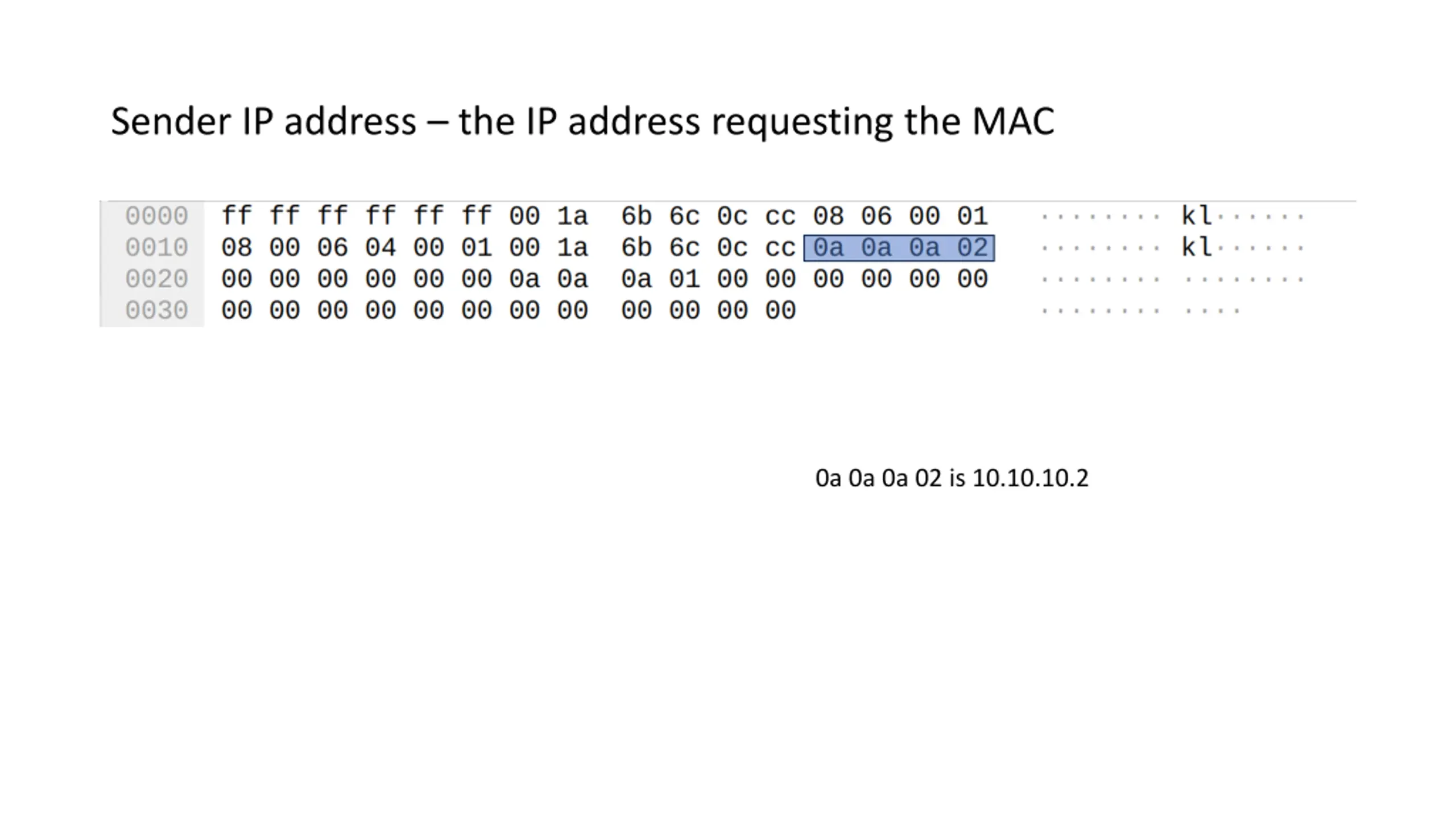

Sender IP address the IP address requesting the MAC 0a 0a 0a 02 is 10.10.10.2

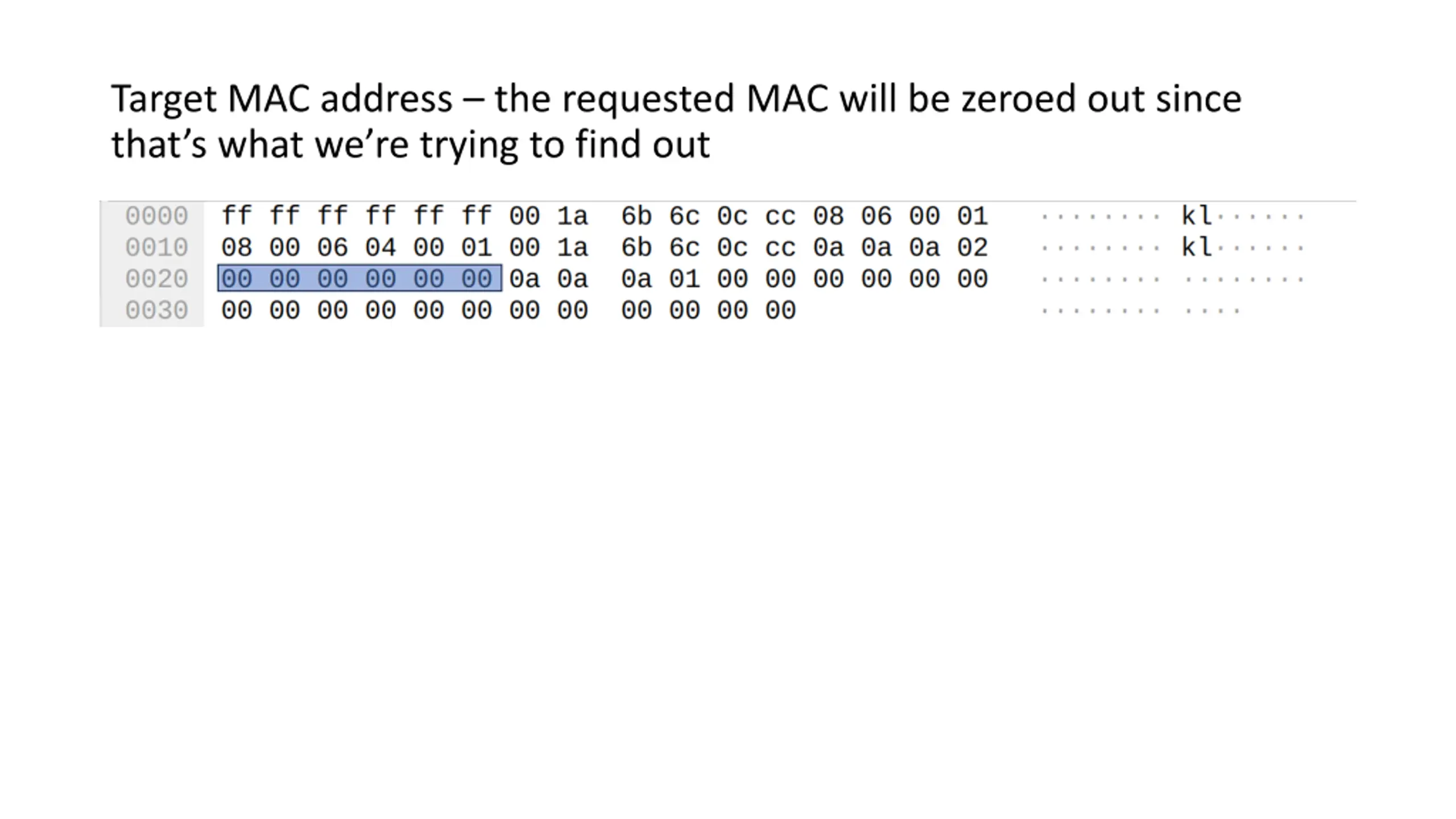

Target MAC address the requested MAC will be zeroed out since that s what we re trying to find out

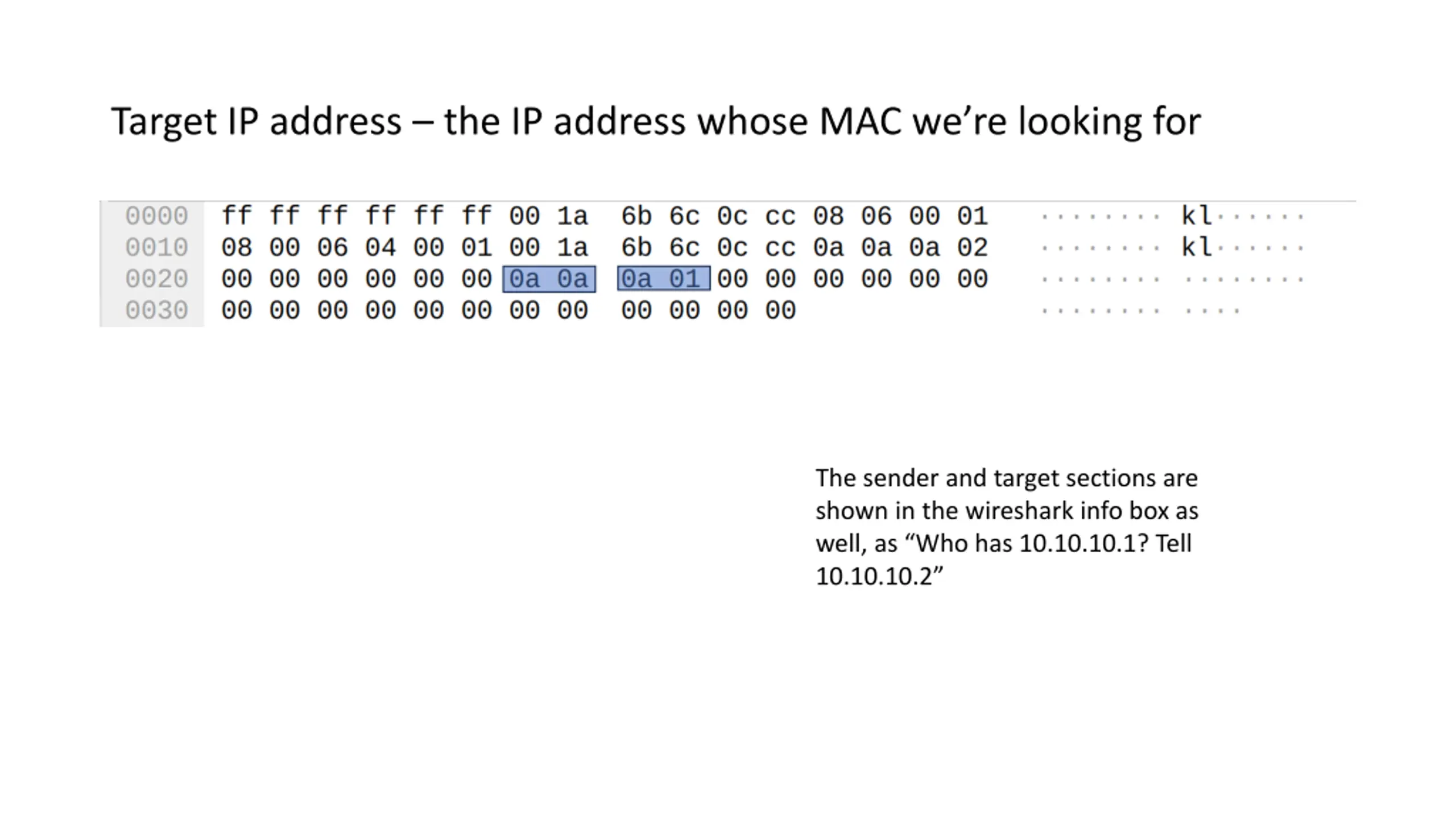

Target IP address the IP address whose MAC were looking for The sender and target sections are shown in the wireshark info box as well, as Who has 10.10.10.1? Tell 10.10.10.2

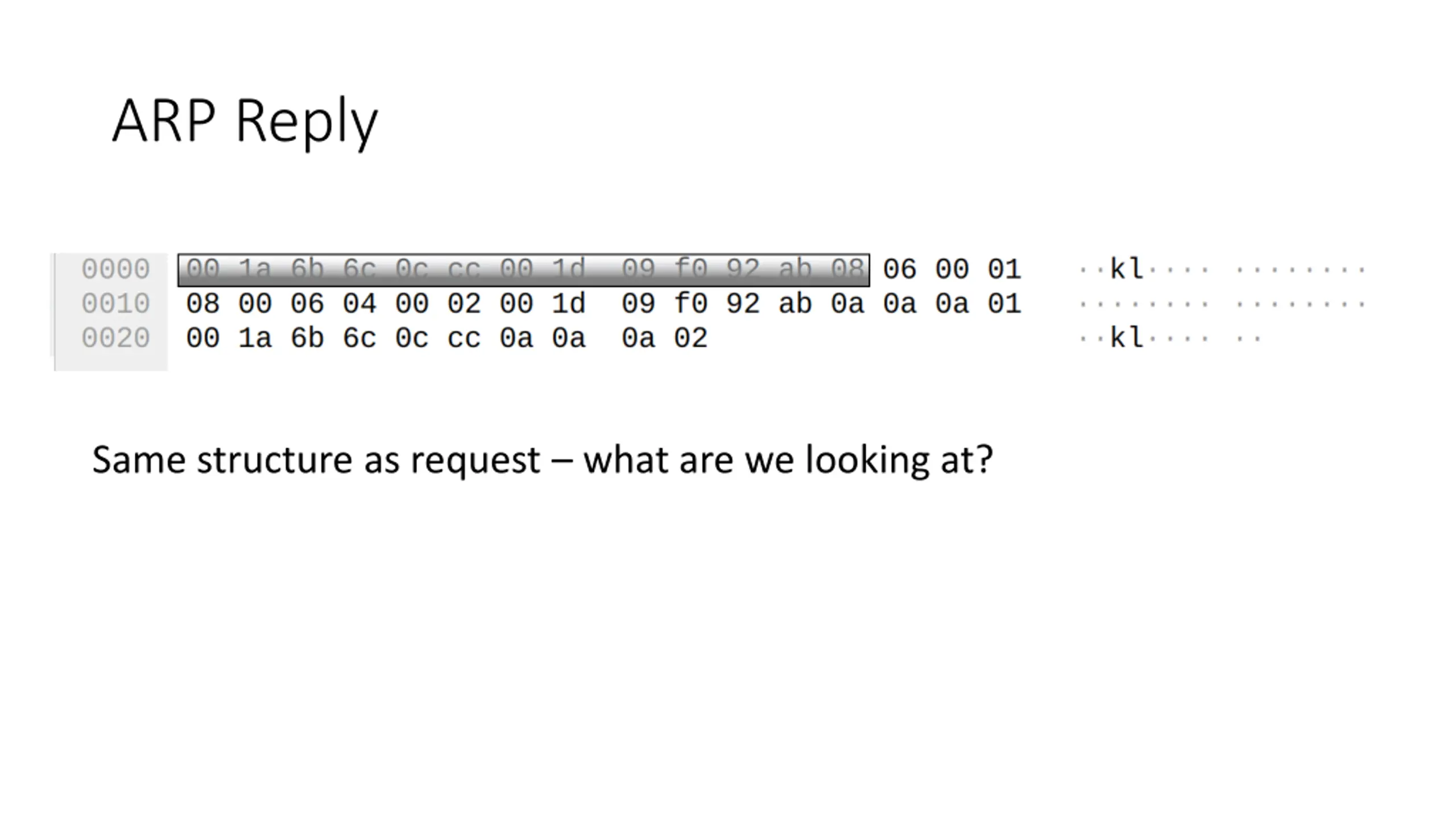

ARP Reply Same structure as request what are we looking at?

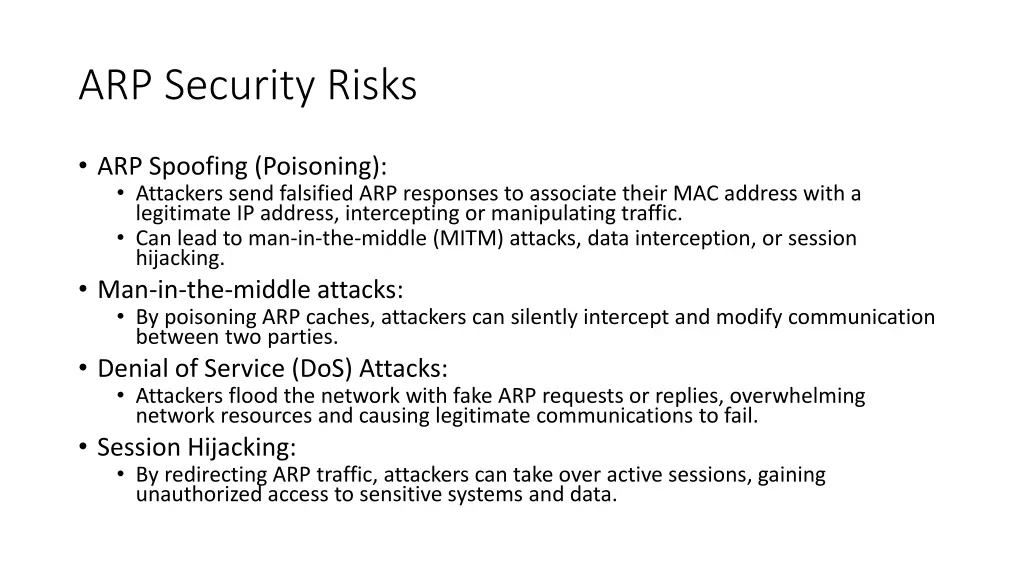

ARP Security Risks ARP Spoofing (Poisoning): Attackers send falsified ARP responses to associate their MAC address with a legitimate IP address, intercepting or manipulating traffic. Can lead to man-in-the-middle (MITM) attacks, data interception, or session hijacking. Man-in-the-middle attacks: By poisoning ARP caches, attackers can silently intercept and modify communication between two parties. Denial of Service (DoS) Attacks: Attackers flood the network with fake ARP requests or replies, overwhelming network resources and causing legitimate communications to fail. Session Hijacking: By redirecting ARP traffic, attackers can take over active sessions, gaining unauthorized access to sensitive systems and data.

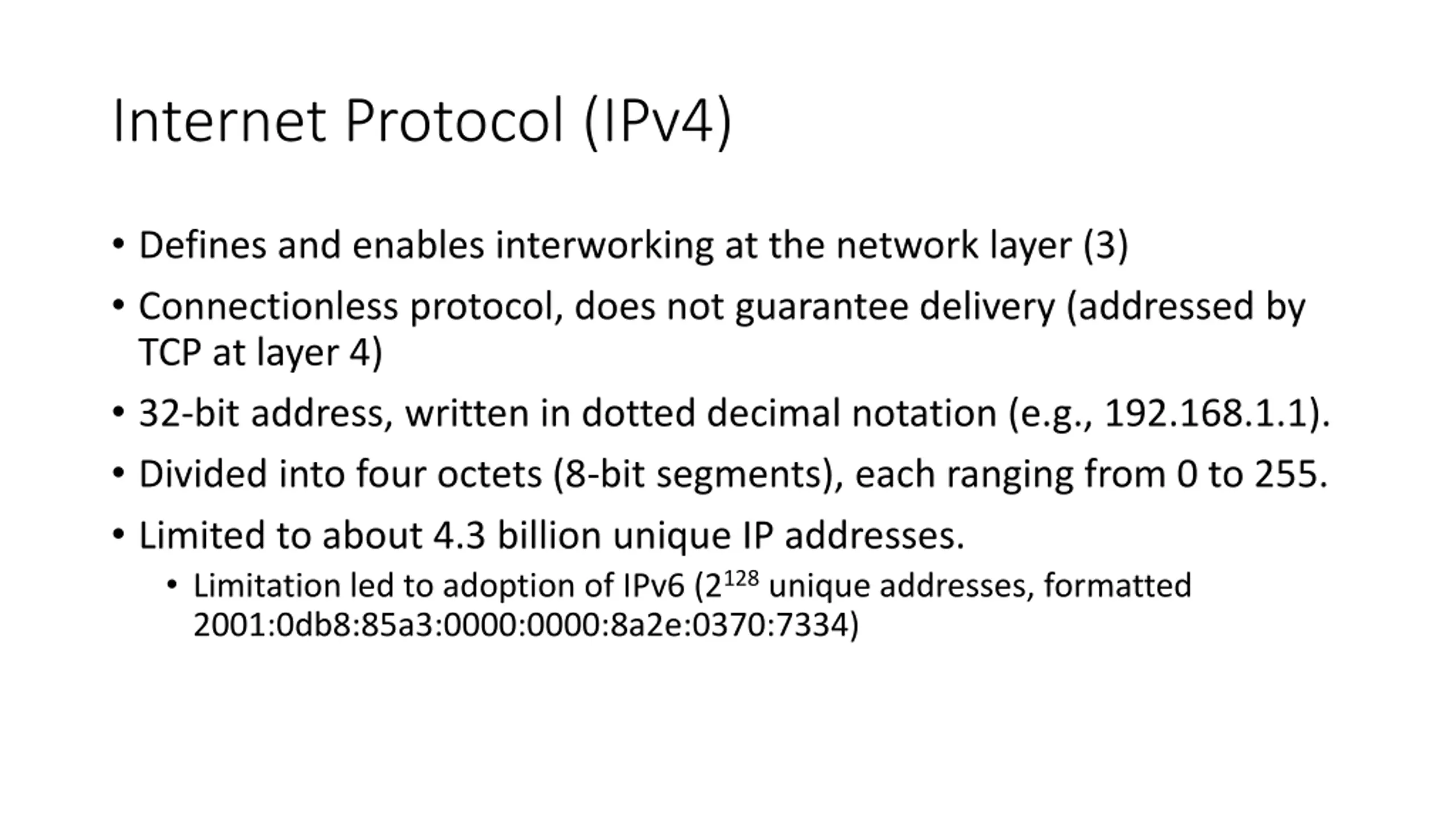

Internet Protocol (IPv4) Defines and enables interworking at the network layer (3) Connectionless protocol, does not guarantee delivery (addressed by TCP at layer 4) 32-bit address, written in dotted decimal notation (e.g., 192.168.1.1). Divided into four octets (8-bit segments), each ranging from 0 to 255. Limited to about 4.3 billion unique IP addresses. Limitation led to adoption of IPv6 (2128 unique addresses, formatted 2001:0db8:85a3:0000:0000:8a2e:0370:7334)

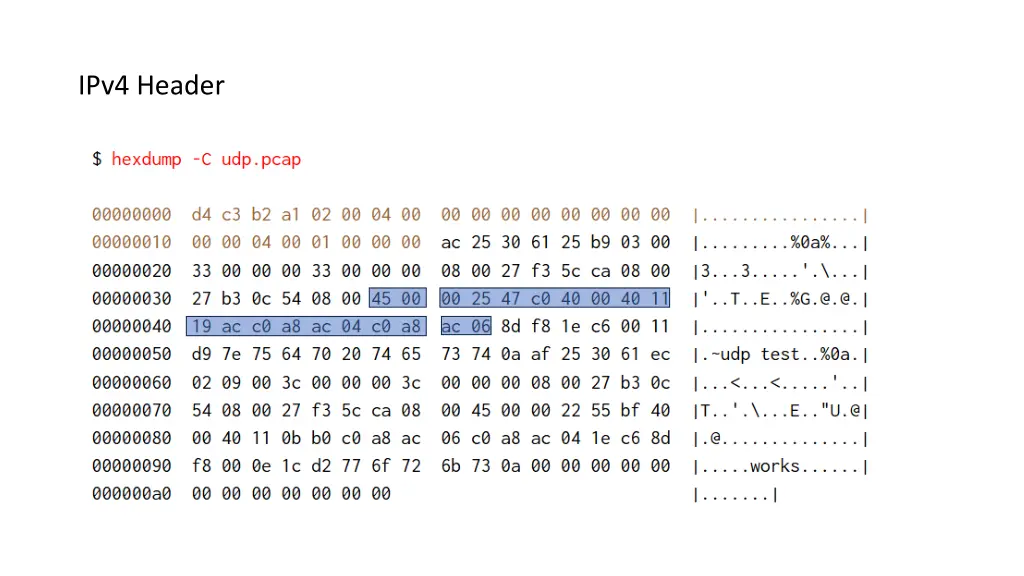

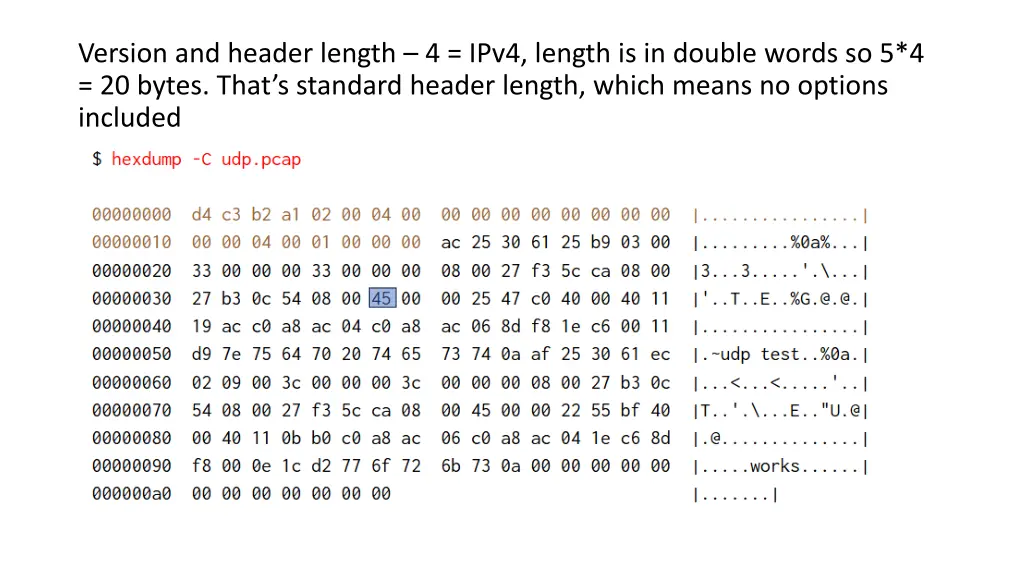

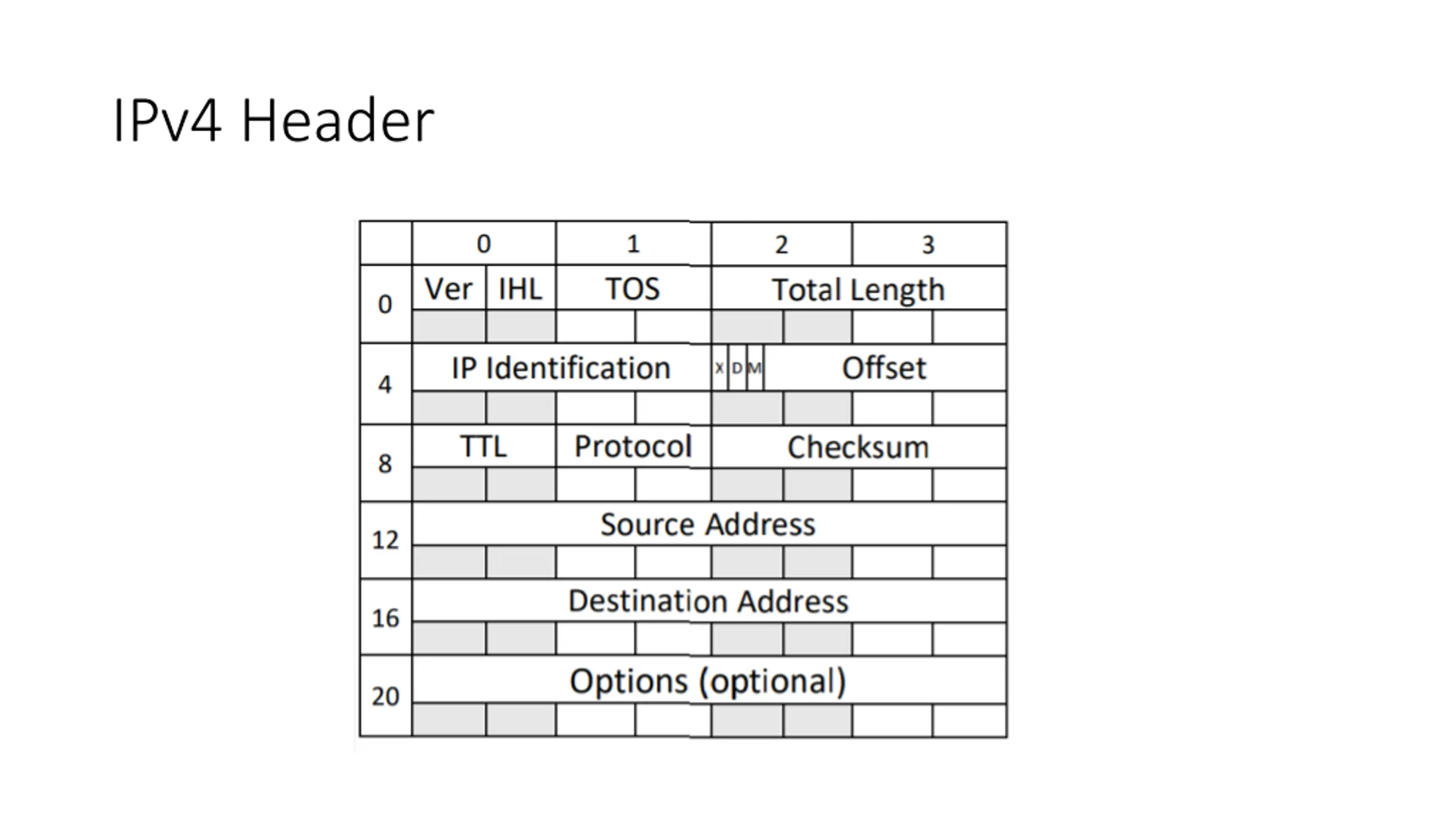

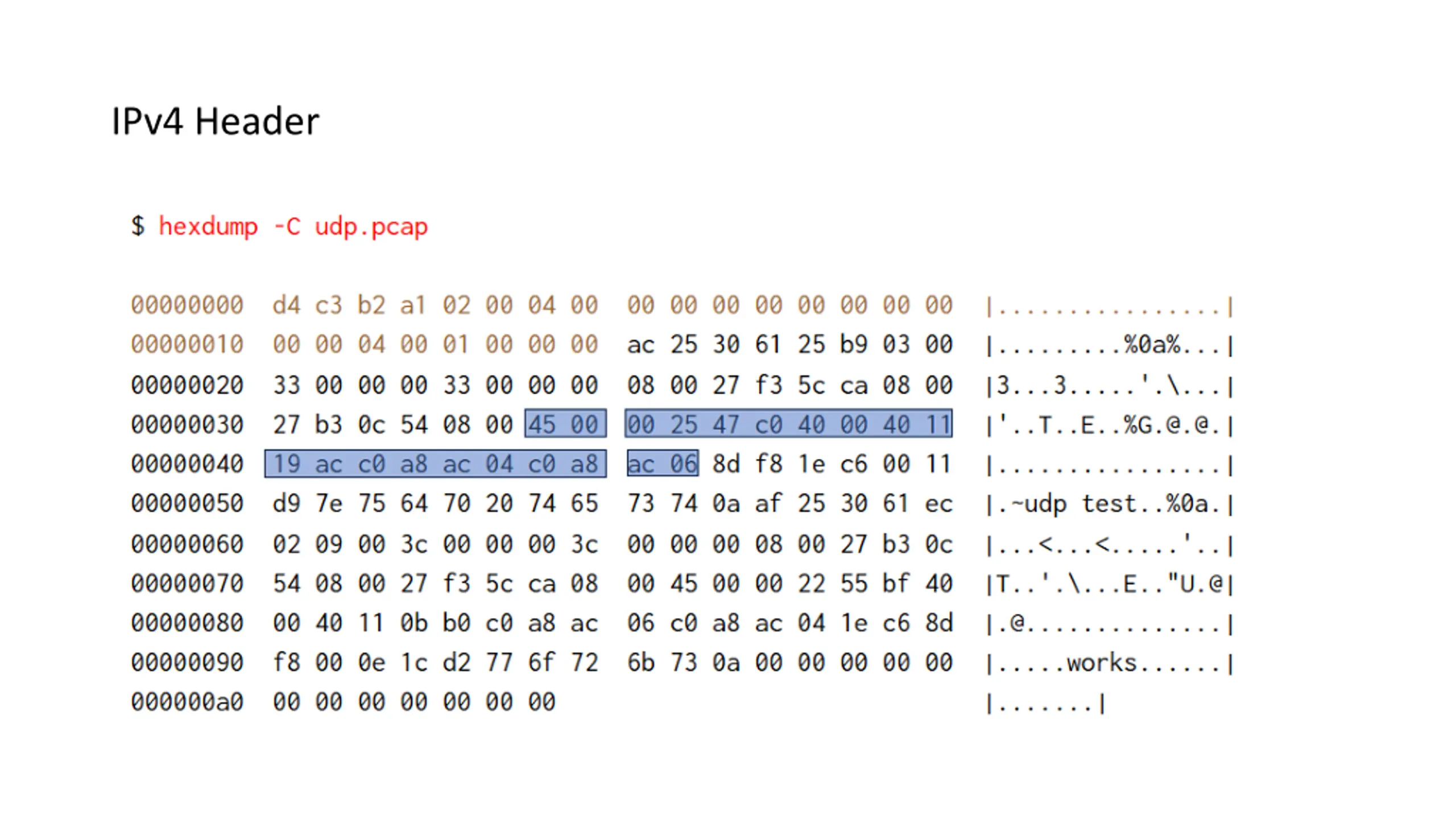

Version and header length 4 = IPv4, length is in double words so 5*4 = 20 bytes. That s standard header length, which means no options included

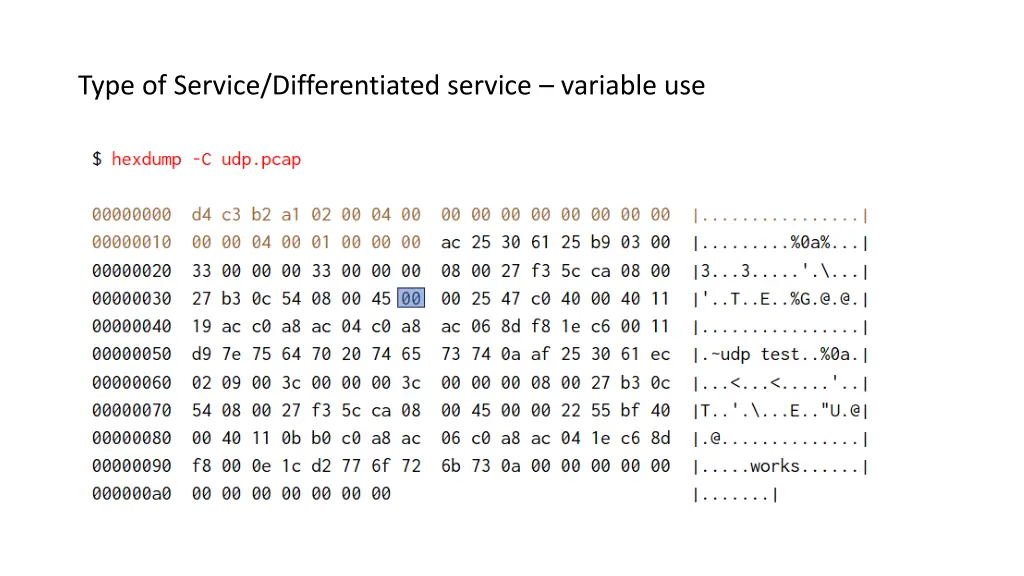

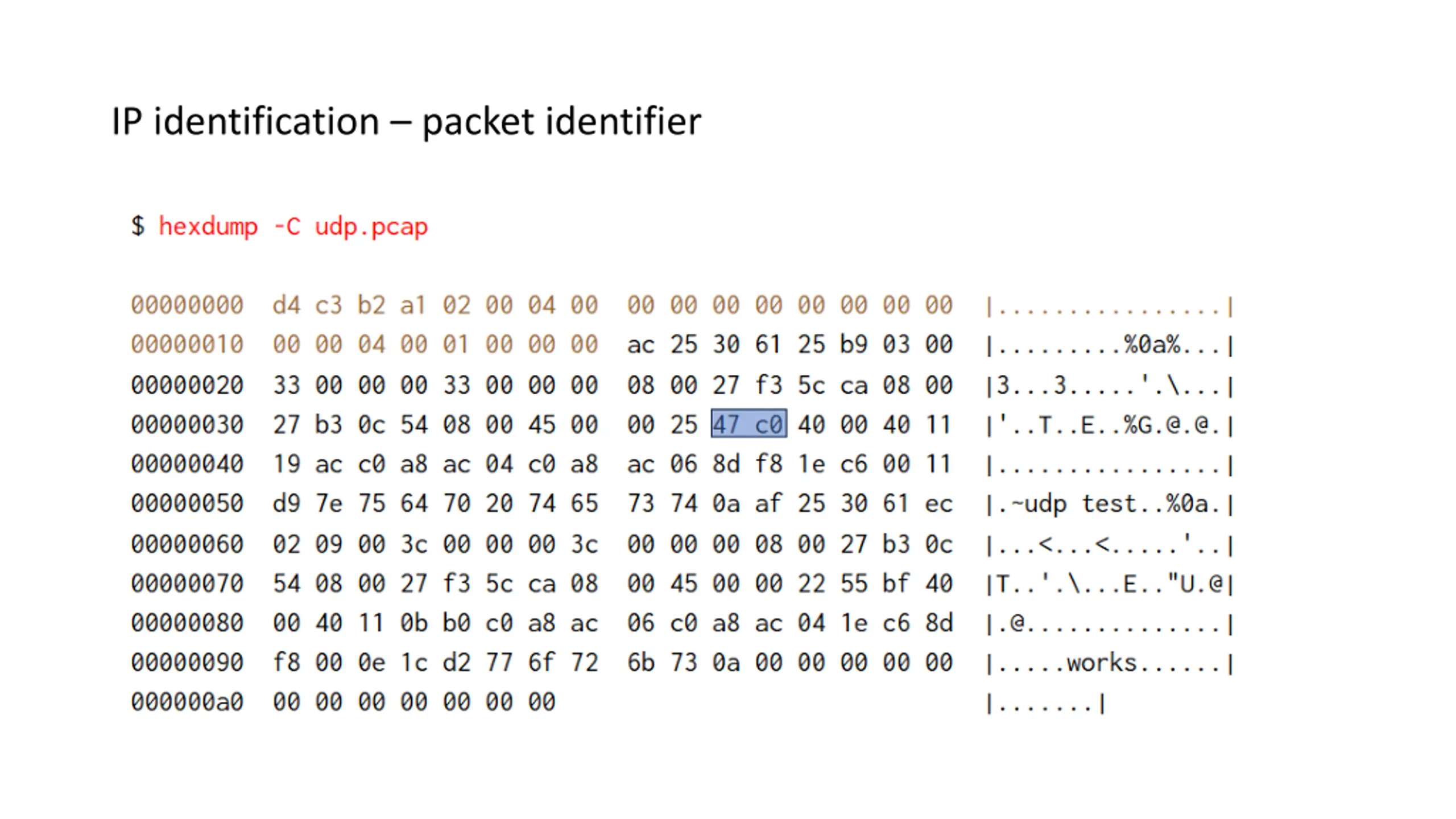

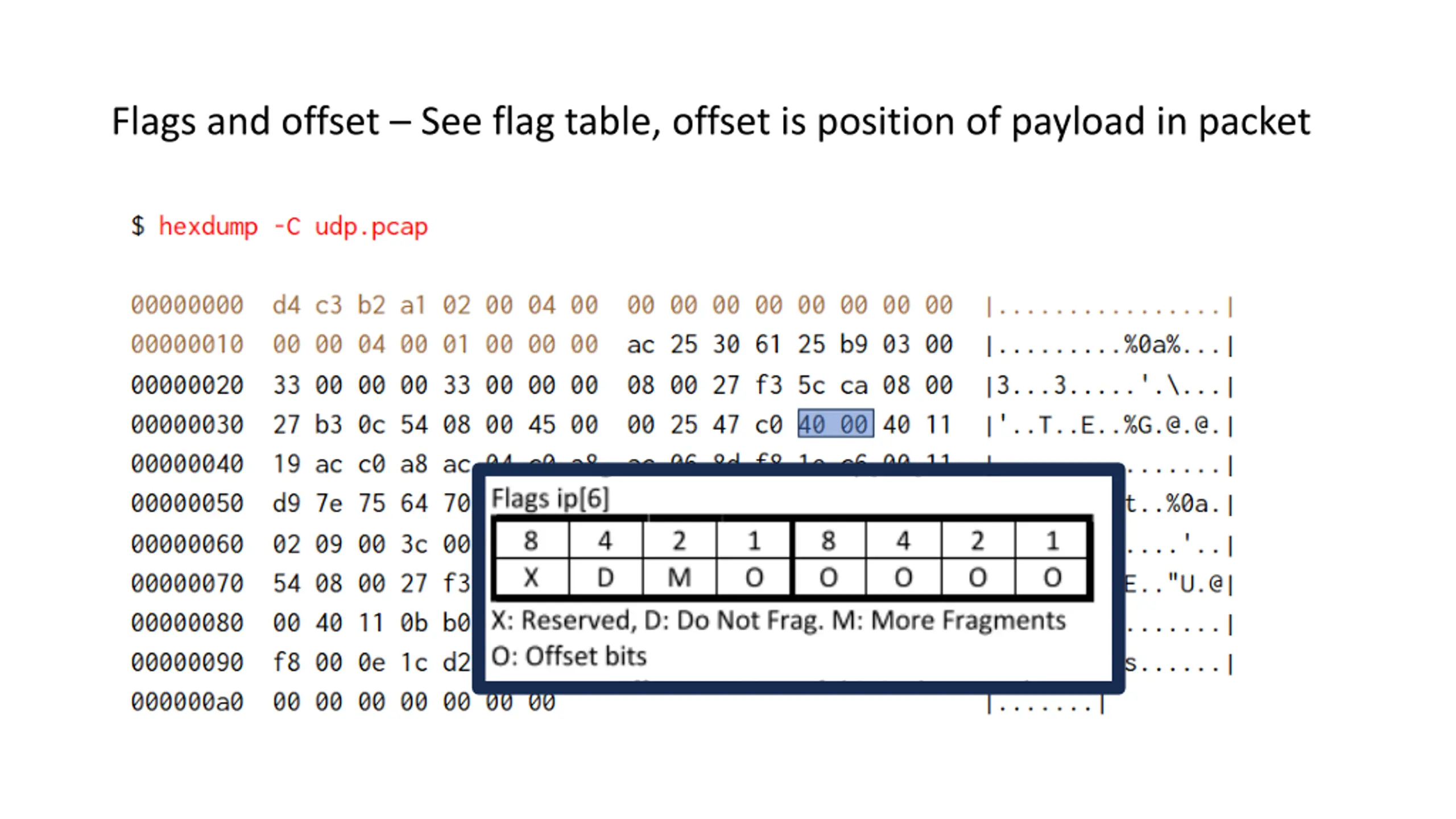

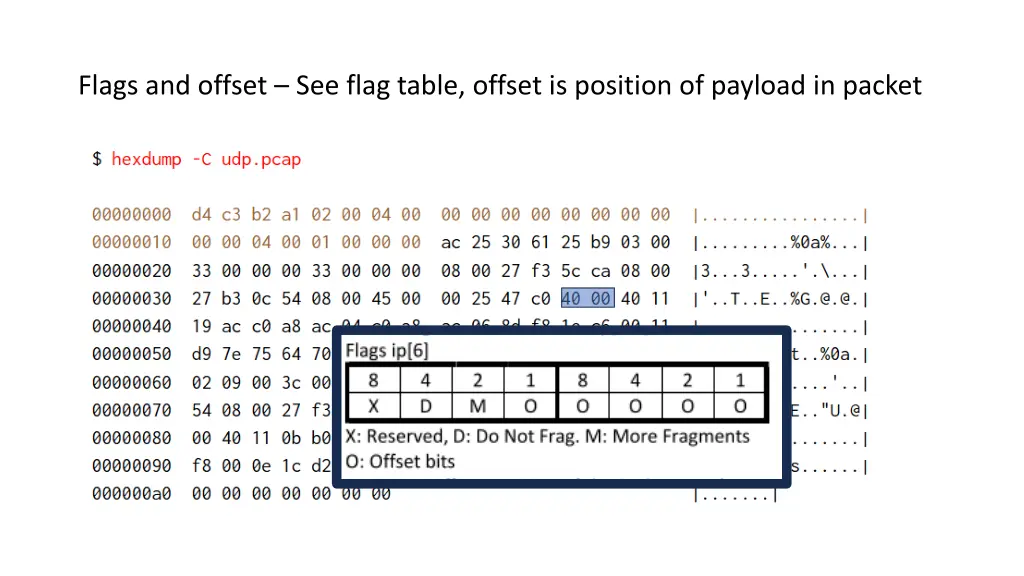

Flags and offset See flag table, offset is position of payload in packet

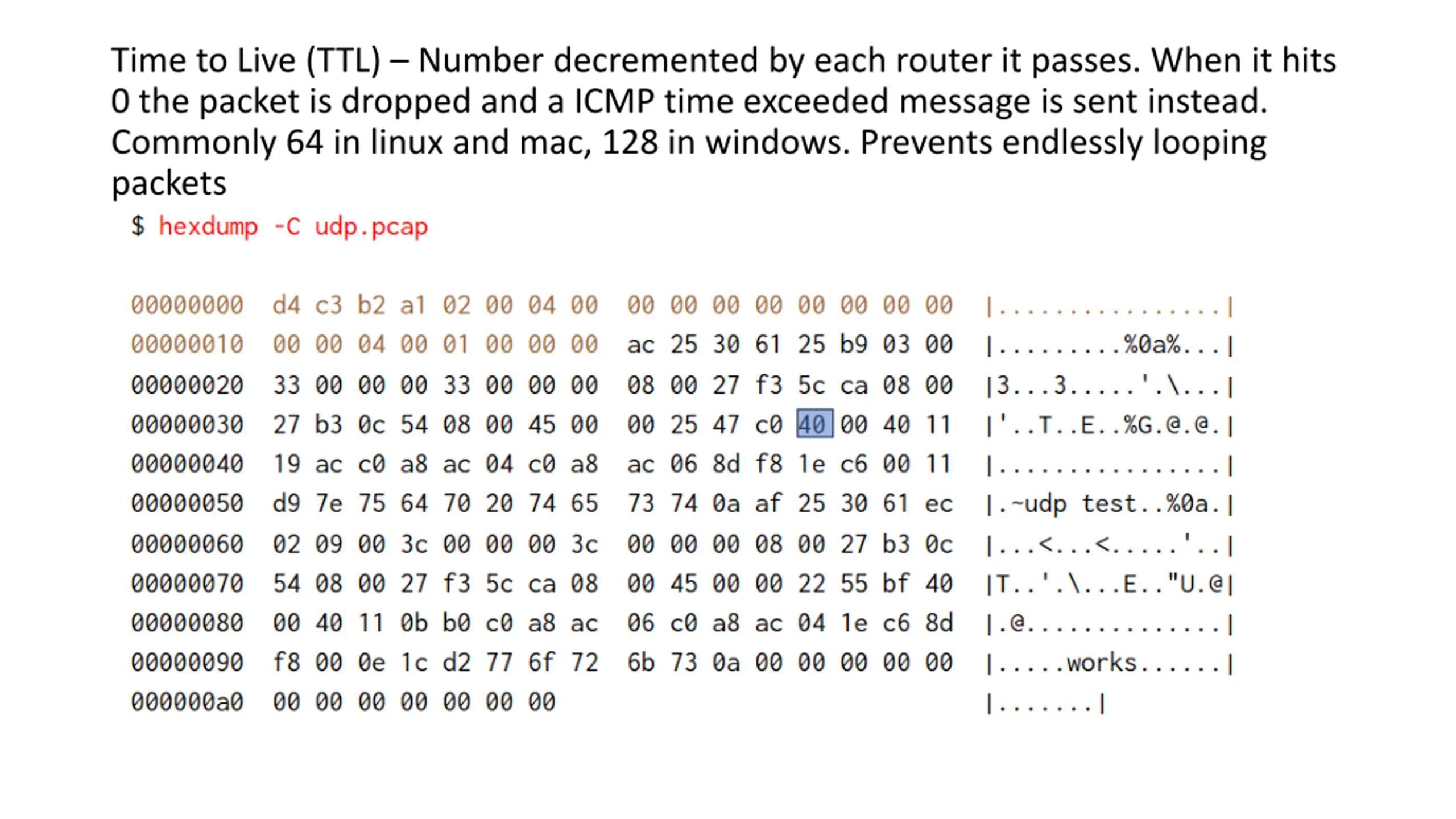

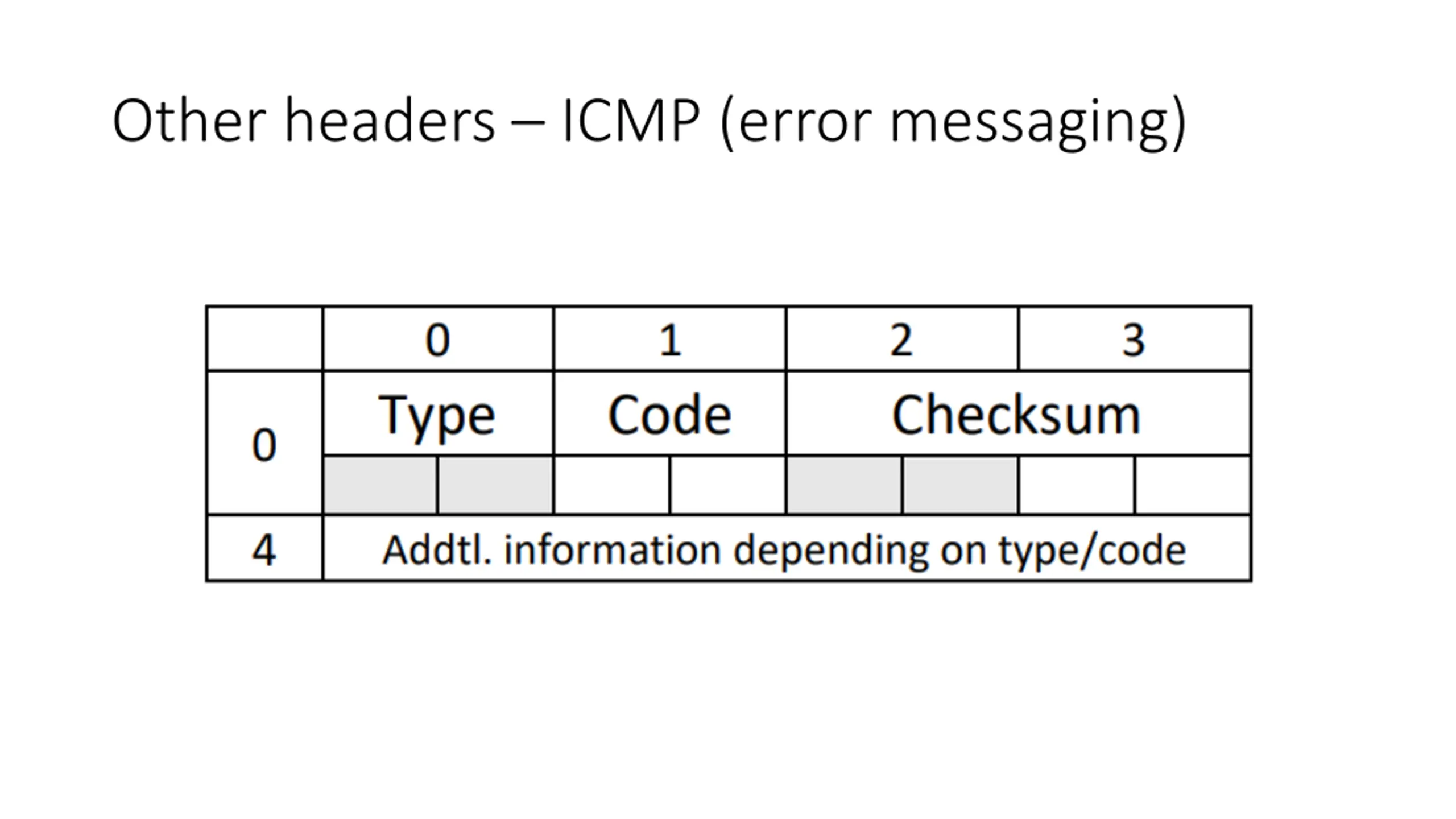

Time to Live (TTL) Number decremented by each router it passes. When it hits 0 the packet is dropped and a ICMP time exceeded message is sent instead. Commonly 64 in linux and mac, 128 in windows. Prevents endlessly looping packets

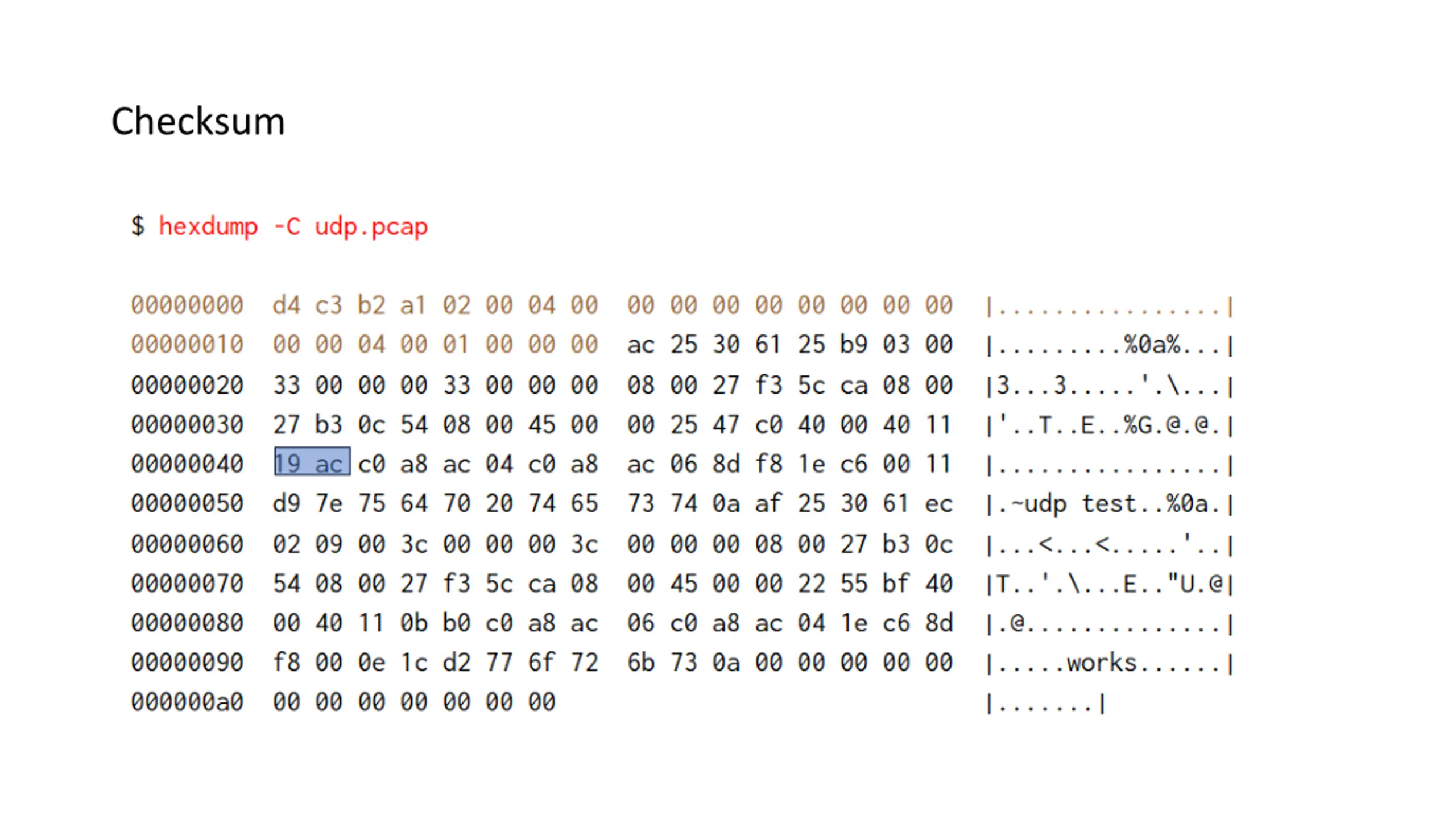

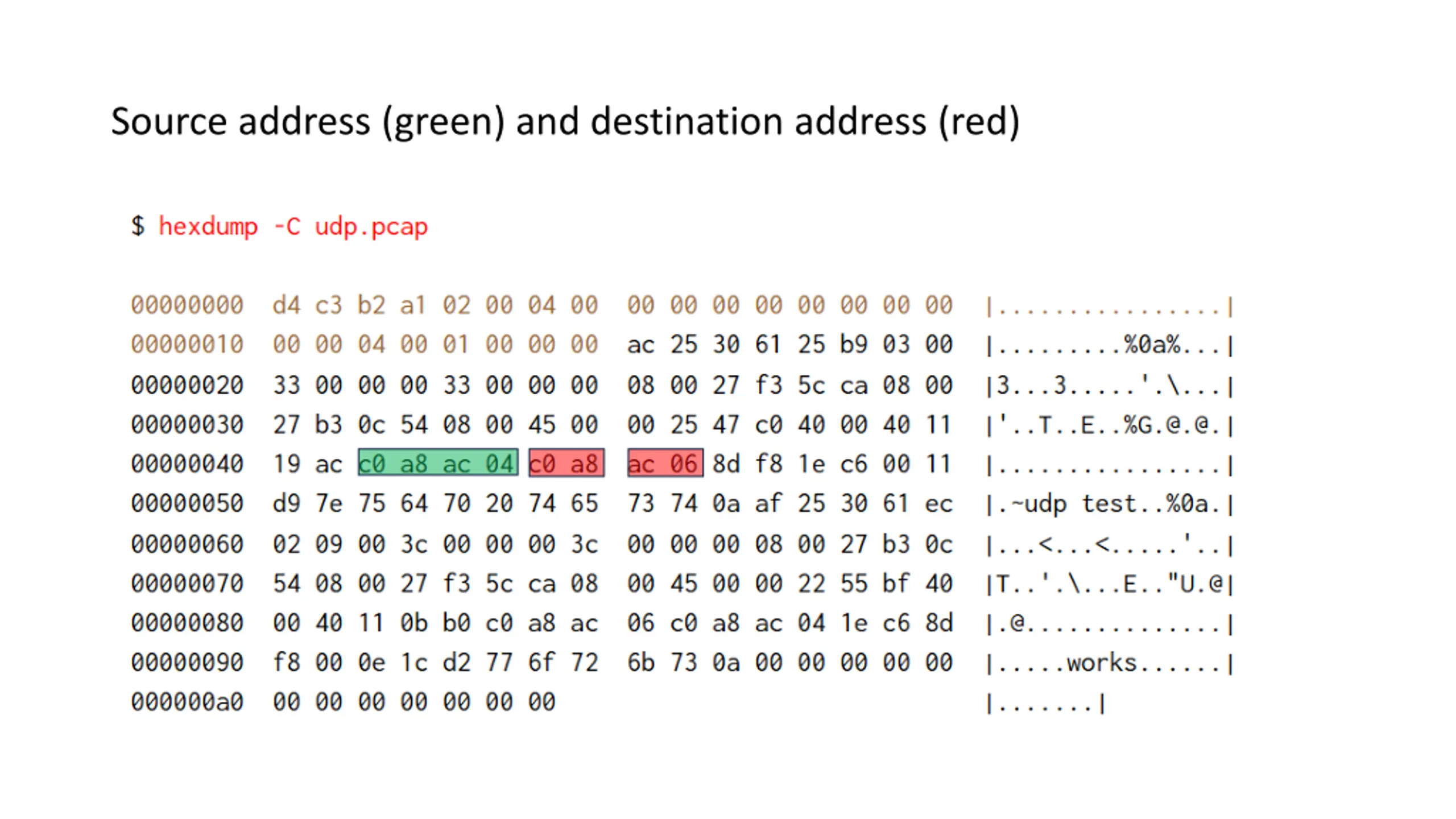

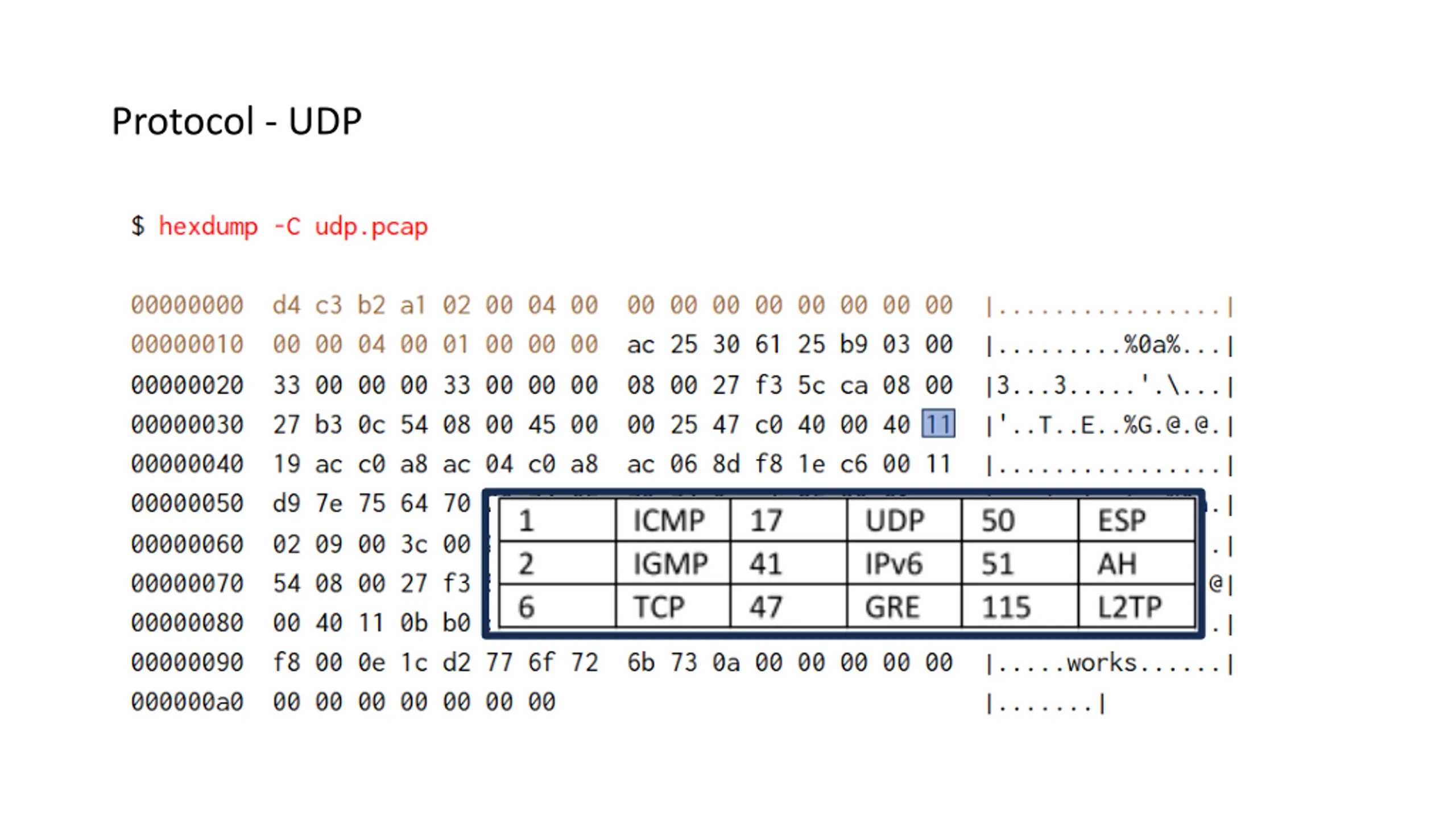

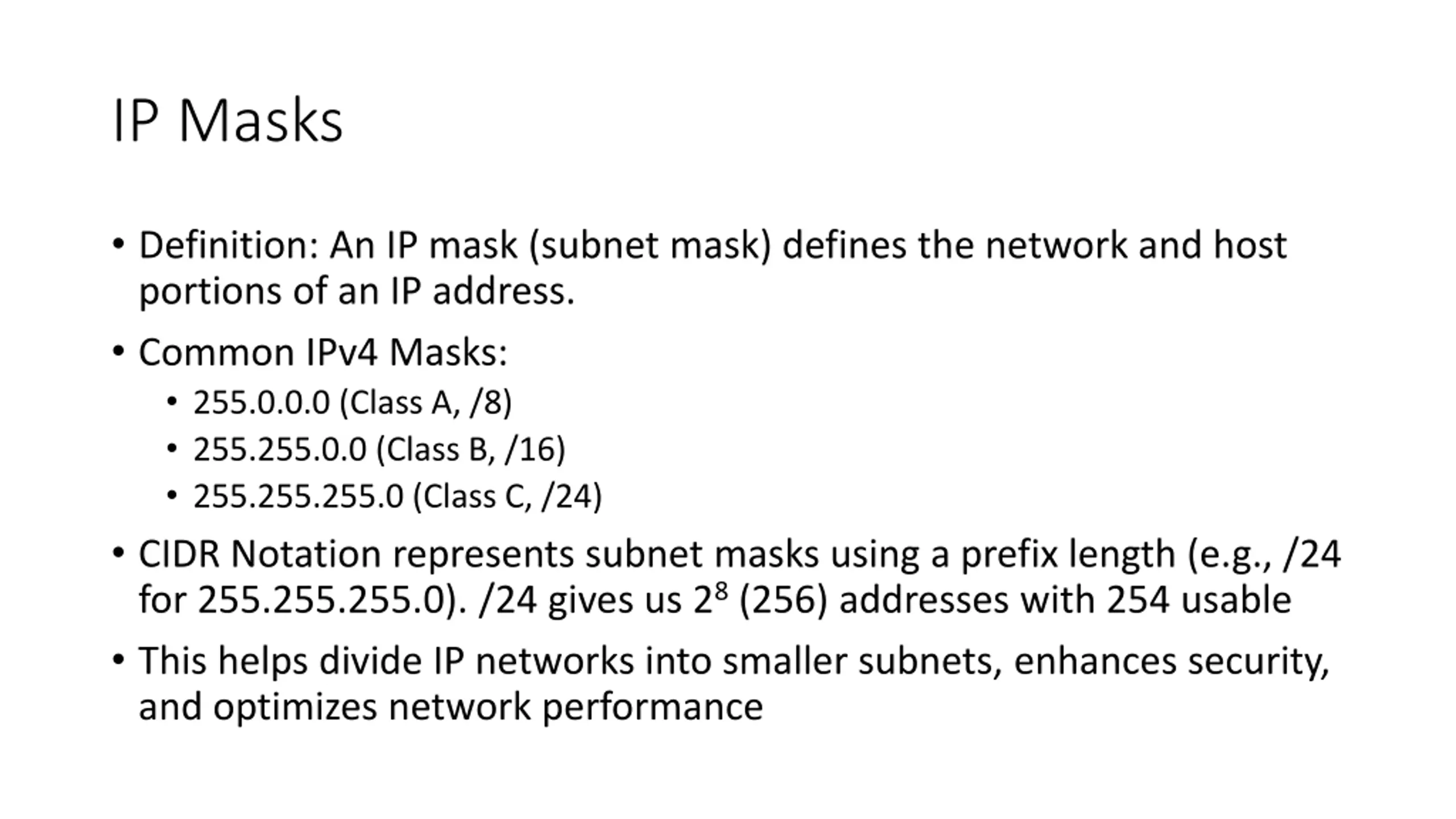

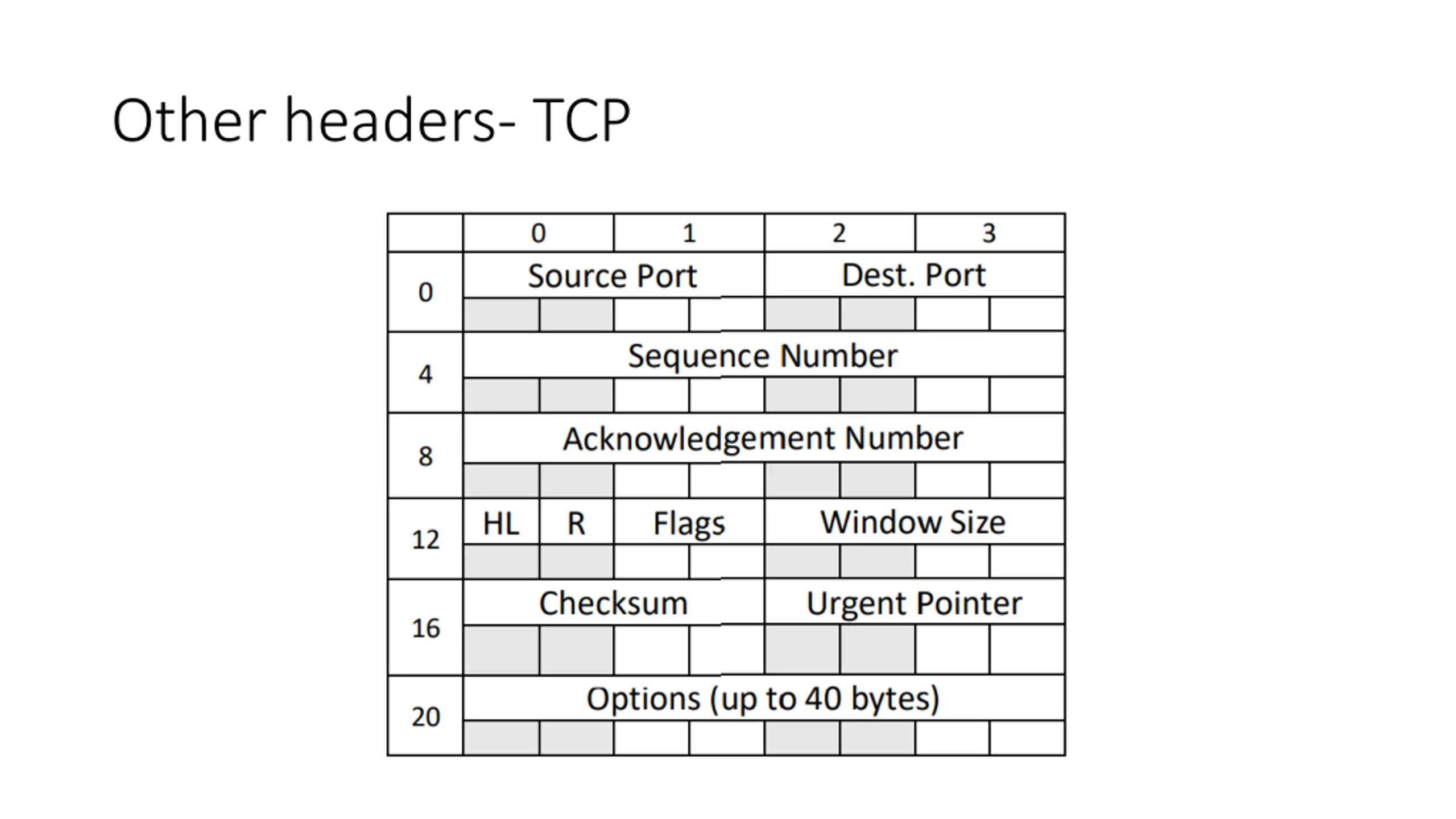

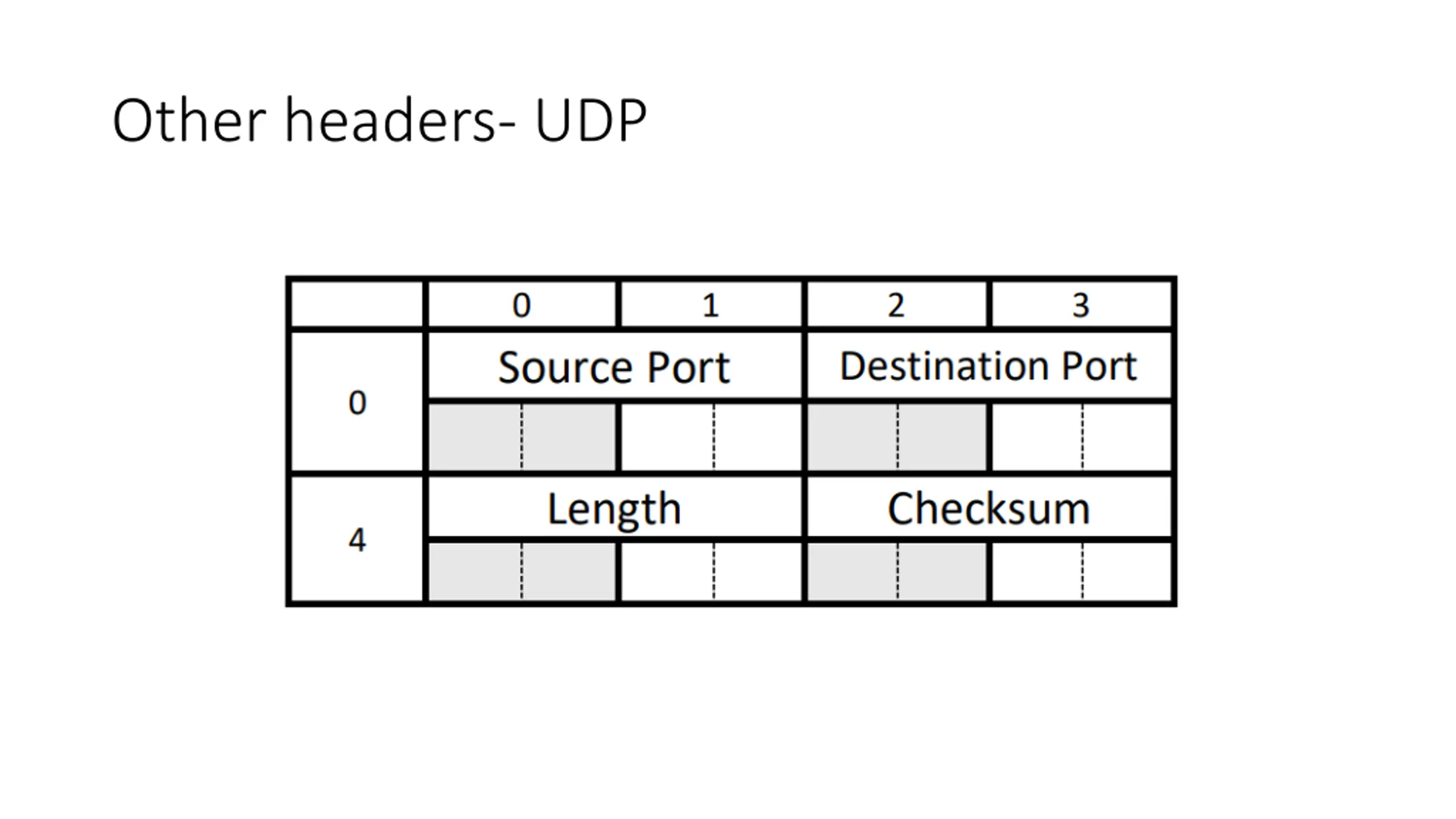

IP Masks Definition: An IP mask (subnet mask) defines the network and host portions of an IP address. Common IPv4 Masks: 255.0.0.0 (Class A, /8) 255.255.0.0 (Class B, /16) 255.255.255.0 (Class C, /24) CIDR Notation represents subnet masks using a prefix length (e.g., /24 for 255.255.255.0). /24 gives us 28 (256) addresses with 254 usable This helps divide IP networks into smaller subnets, enhances security, and optimizes network performance
