CS 4/527: Artificial Intelligence Perceptrons Instructor: Jared Saia--- University of New Mexico [These slides were created by Dan Klein, Pieter Abbeel, Anca Dragan for CS188 Intro to AI at UC Berkeley. All CS188 materials are available at http://ai.berkeley.edu.]

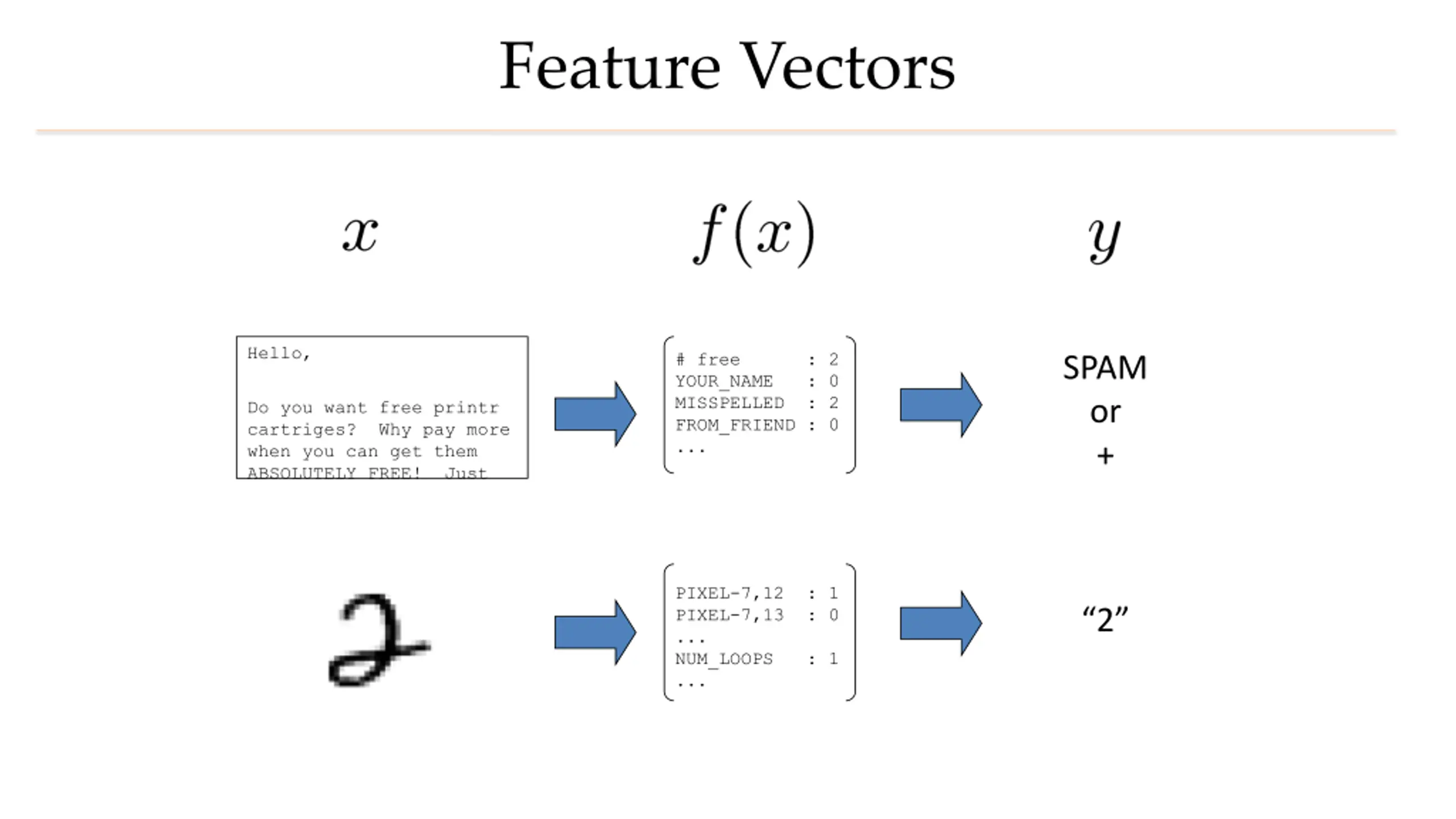

Feature Vectors Hello, # free : 2 YOUR_NAME : 0 MISSPELLED : 2 FROM_FRIEND : 0 ... SPAM or + Do you want free printr cartriges? Why pay more when you can get them ABSOLUTELY FREE! Just PIXEL-7,12 : 1 PIXEL-7,13 : 0 ... NUM_LOOPS : 1 ... 2
Linear Classifiers o Inputs are feature values o Each feature has a weight o Sum is the activation o If the activation is: o Positive, output +1 o Negative, output -1 w1 w2 w3 f1 f2 f3 >0?

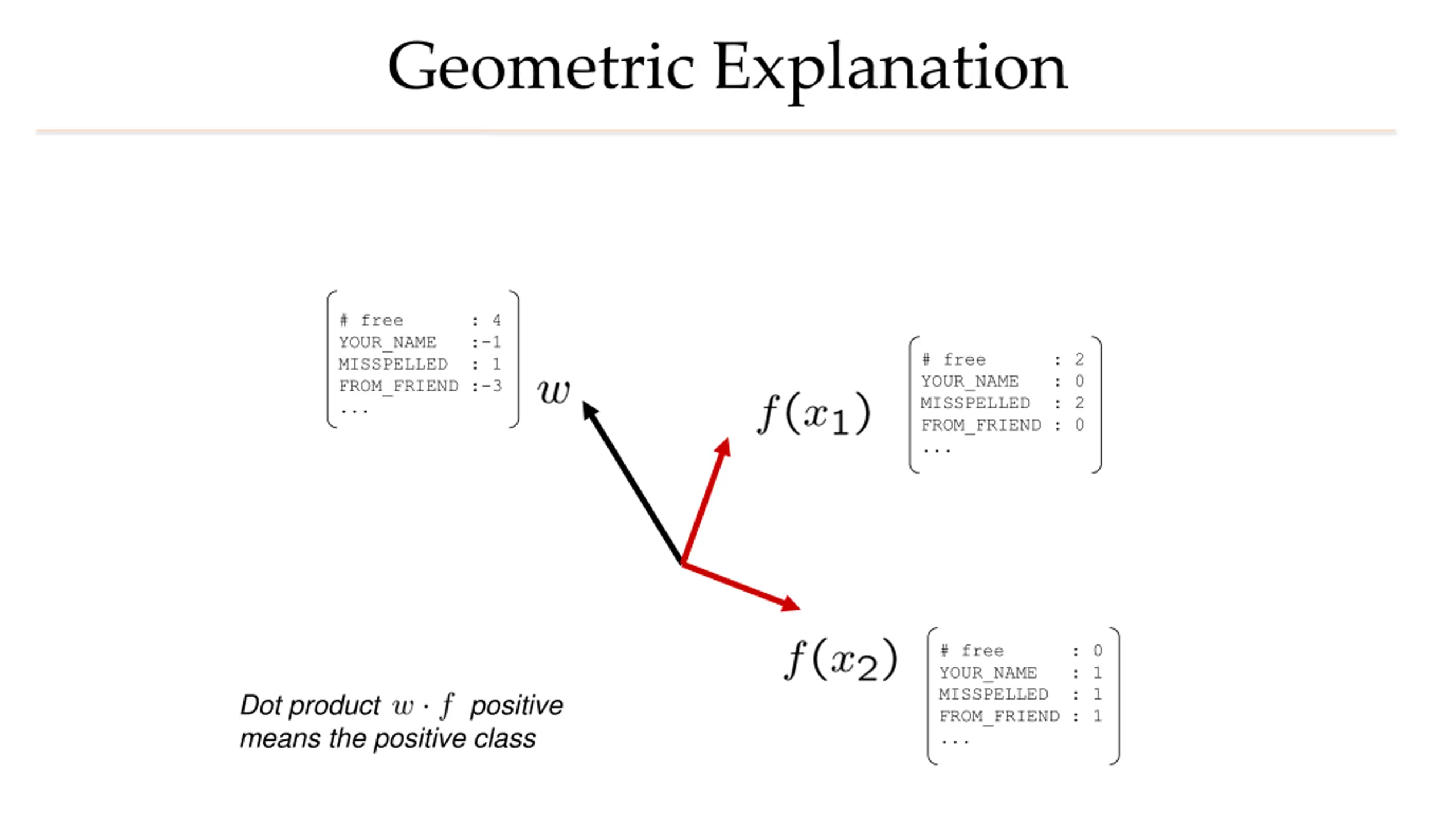

Geometric Explanation # free : 4 YOUR_NAME :-1 MISSPELLED : 1 FROM_FRIEND :-3 ... # free : 2 YOUR_NAME : 0 MISSPELLED : 2 FROM_FRIEND : 0 ... # free : 0 YOUR_NAME : 1 MISSPELLED : 1 FROM_FRIEND : 1 ... Dot product positive means the positive class

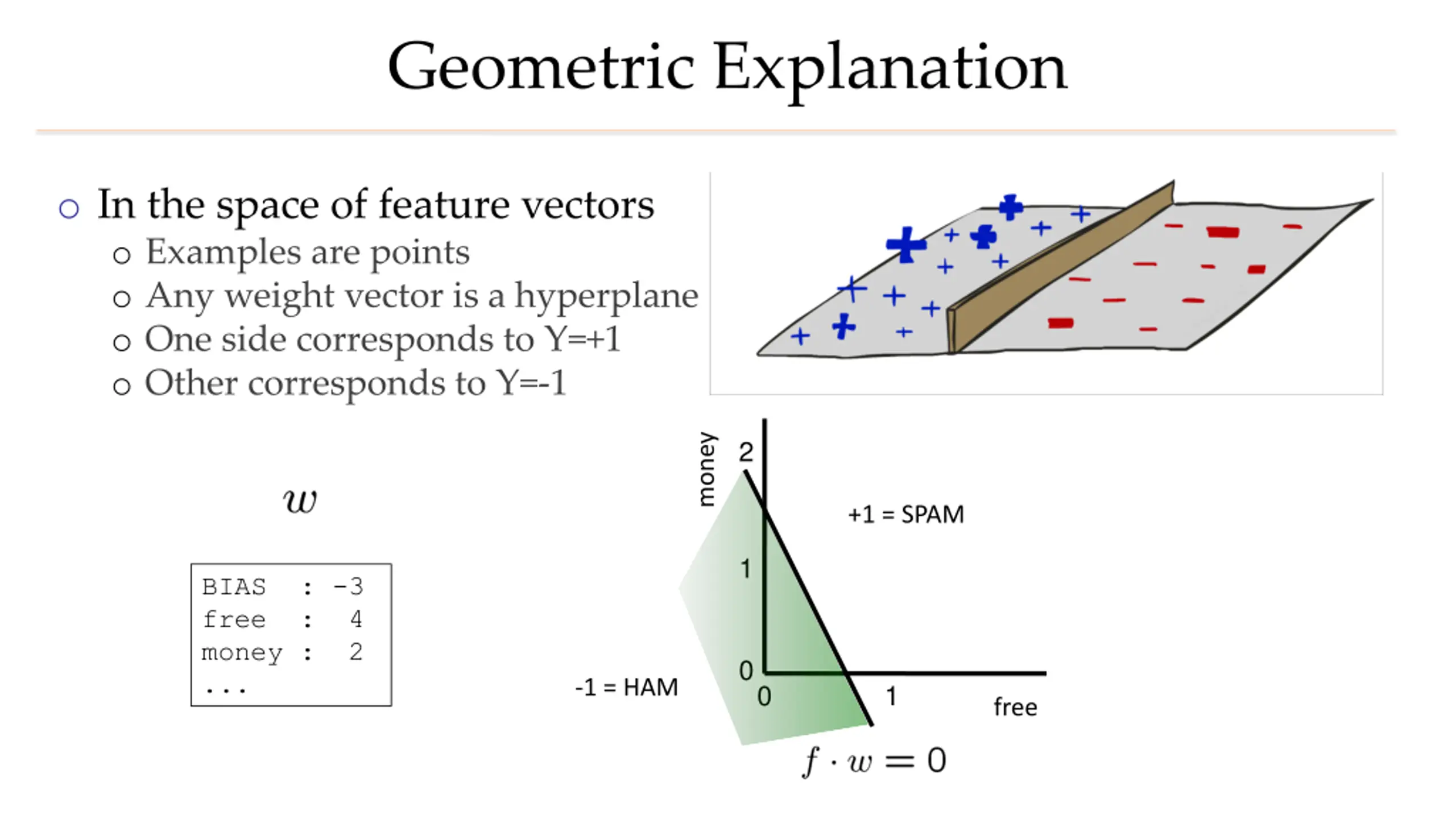

Geometric Explanation o In the space of feature vectors o Examples are points o Any weight vector is a hyperplane o One side corresponds to Y=+1 o Other corresponds to Y=-1 money 2 +1 = SPAM 1 BIAS : -3 free : 4 money : 2 ... 0 -1 = HAM 0 1 free
Learning: Binary Perceptron o Start with weights = 0 o For each training instance: o Classify with current weights o If correct (i.e., y=y*), no change! o If wrong: adjust the weight vector
Learning: Binary Perceptron o Start with weights = 0 o For each training instance: o Classify with current weights o If correct (i.e., y=y*), no change! o If wrong: adjust the weight vector by adding or subtracting the feature vector. Subtract if y* is -1.

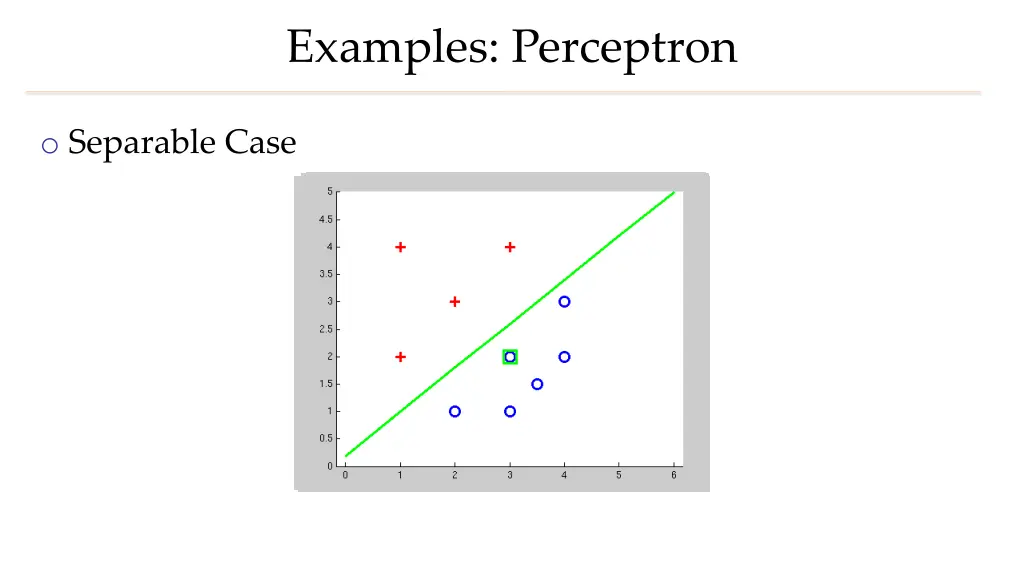

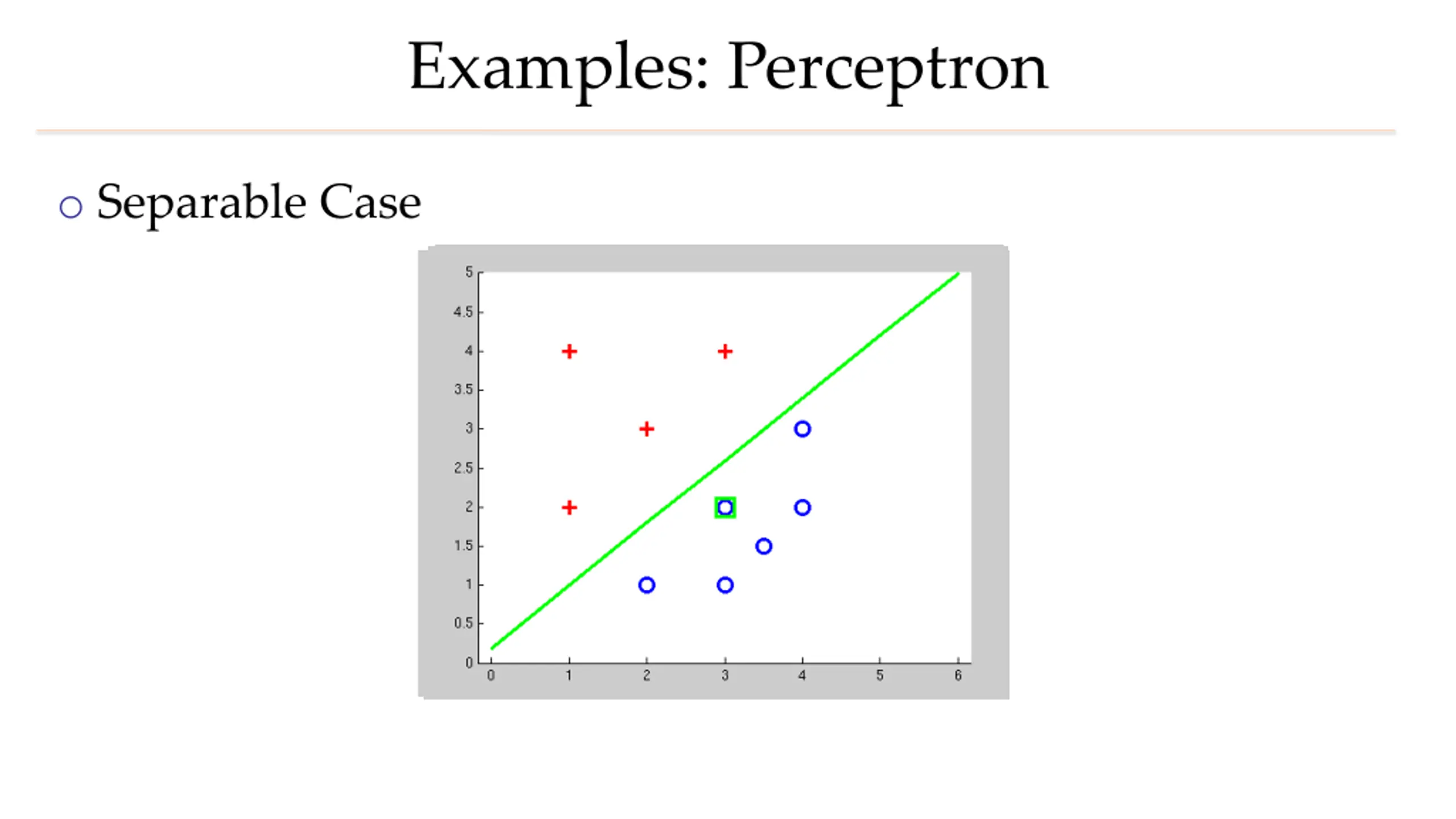

Examples: Perceptron o Separable Case

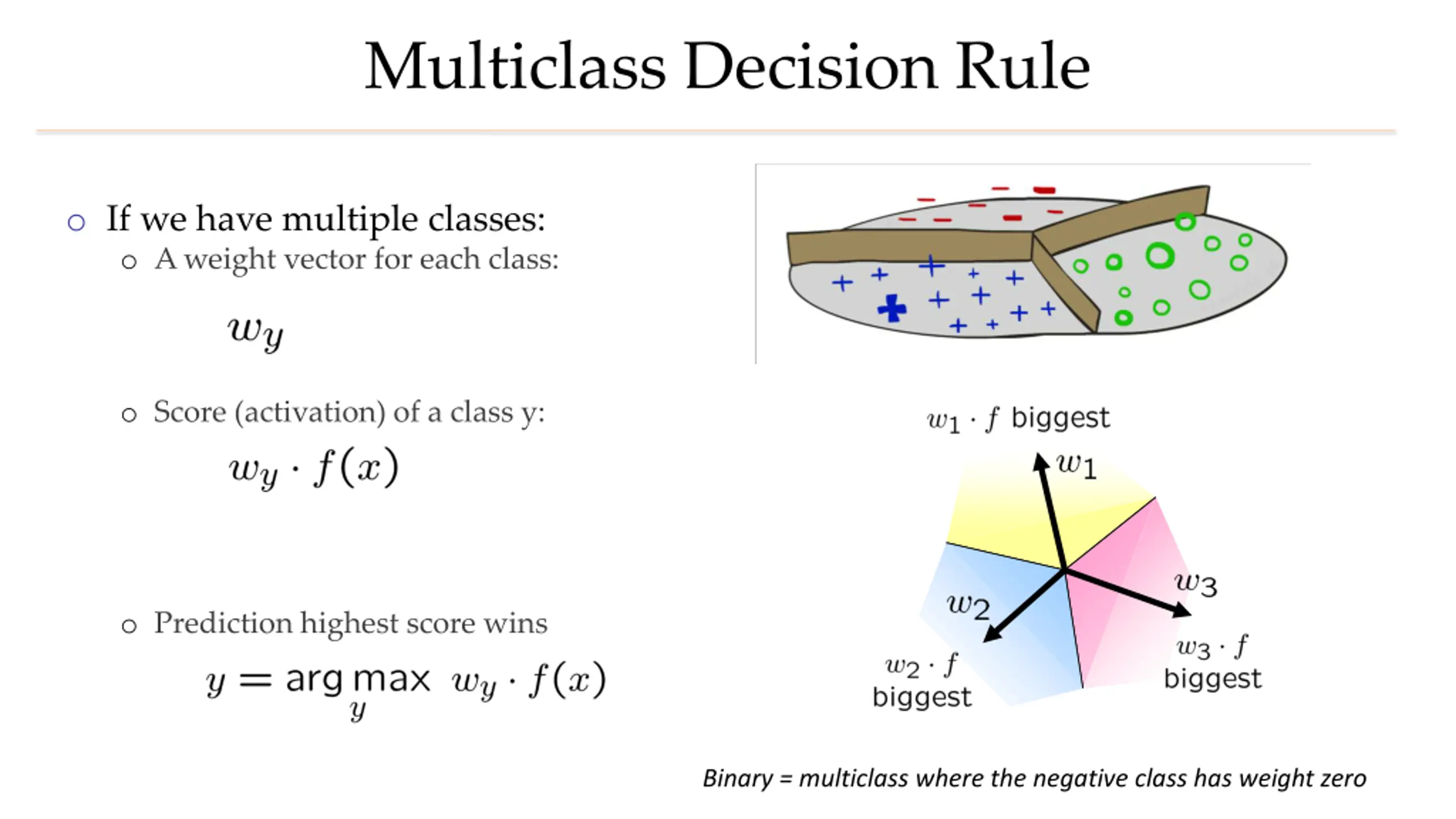

Multiclass Decision Rule o If we have multiple classes: o A weight vector for each class: o Score (activation) of a class y: o Prediction highest score wins Binary = multiclass where the negative class has weight zero

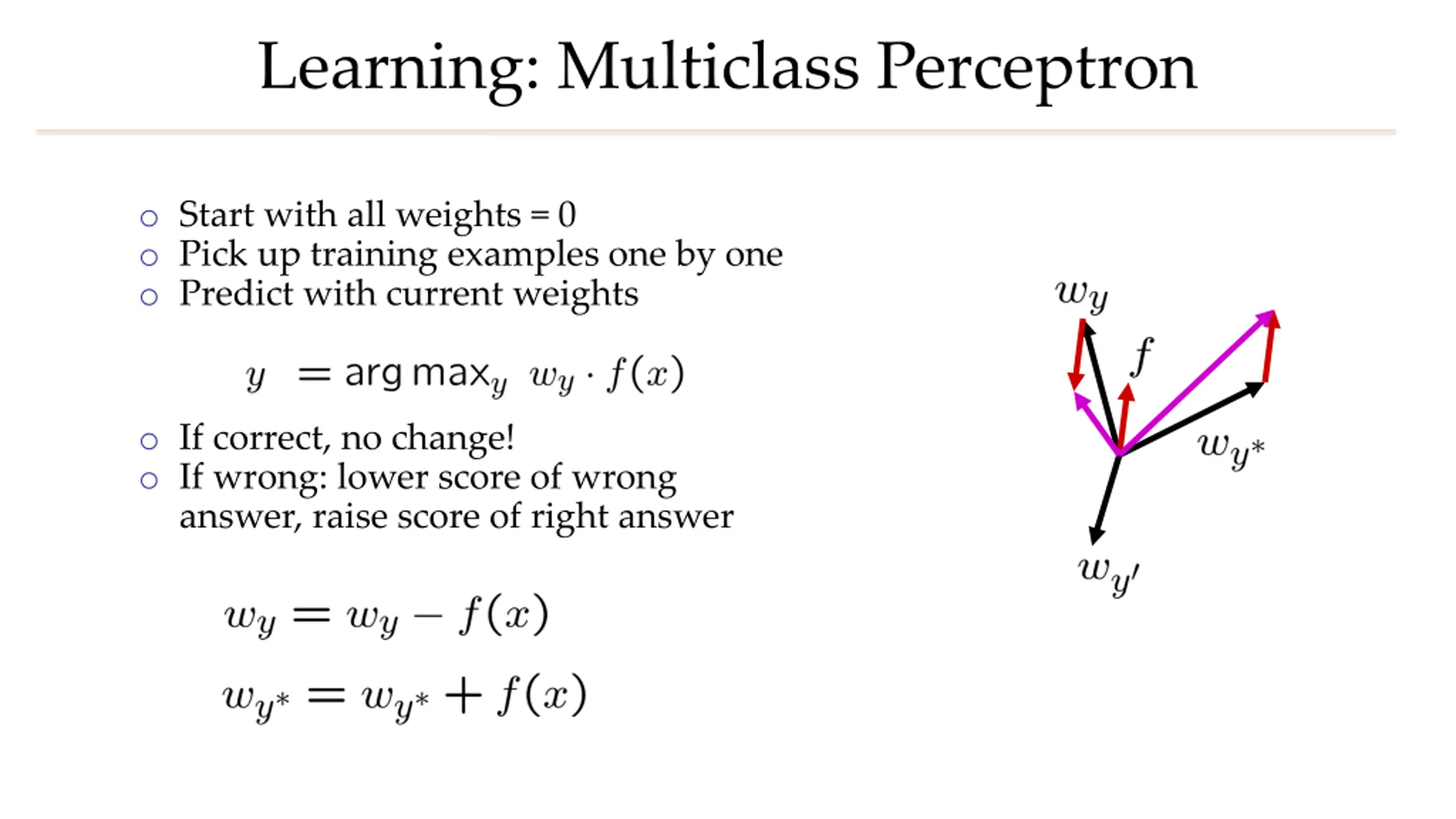

Learning: Multiclass Perceptron o Start with all weights = 0 o Pick up training examples one by one o Predict with current weights o If correct, no change! o If wrong: lower score of wrong answer, raise score of right answer
Example: Multiclass Perceptron win the vote win the election win the game BIAS : 1 win : 0 game : 0 vote : 0 the : 0 ... BIAS : 0 win : 0 game : 0 vote : 0 the : 0 ... BIAS : 0 win : 0 game : 0 vote : 0 the : 0 ...
Multiclass Example Show example from video

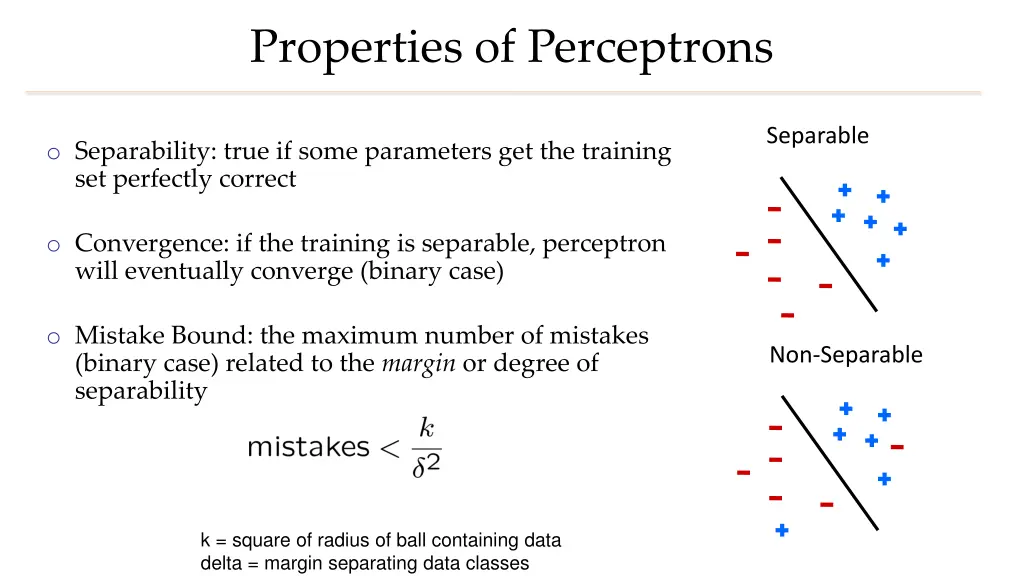

Properties of Perceptrons Separable o Separability: true if some parameters get the training set perfectly correct o Convergence: if the training is separable, perceptron will eventually converge (binary case) o Mistake Bound: the maximum number of mistakes (binary case) related to the margin or degree of separability Non-Separable k = square of radius of ball containing data delta = margin separating data classes

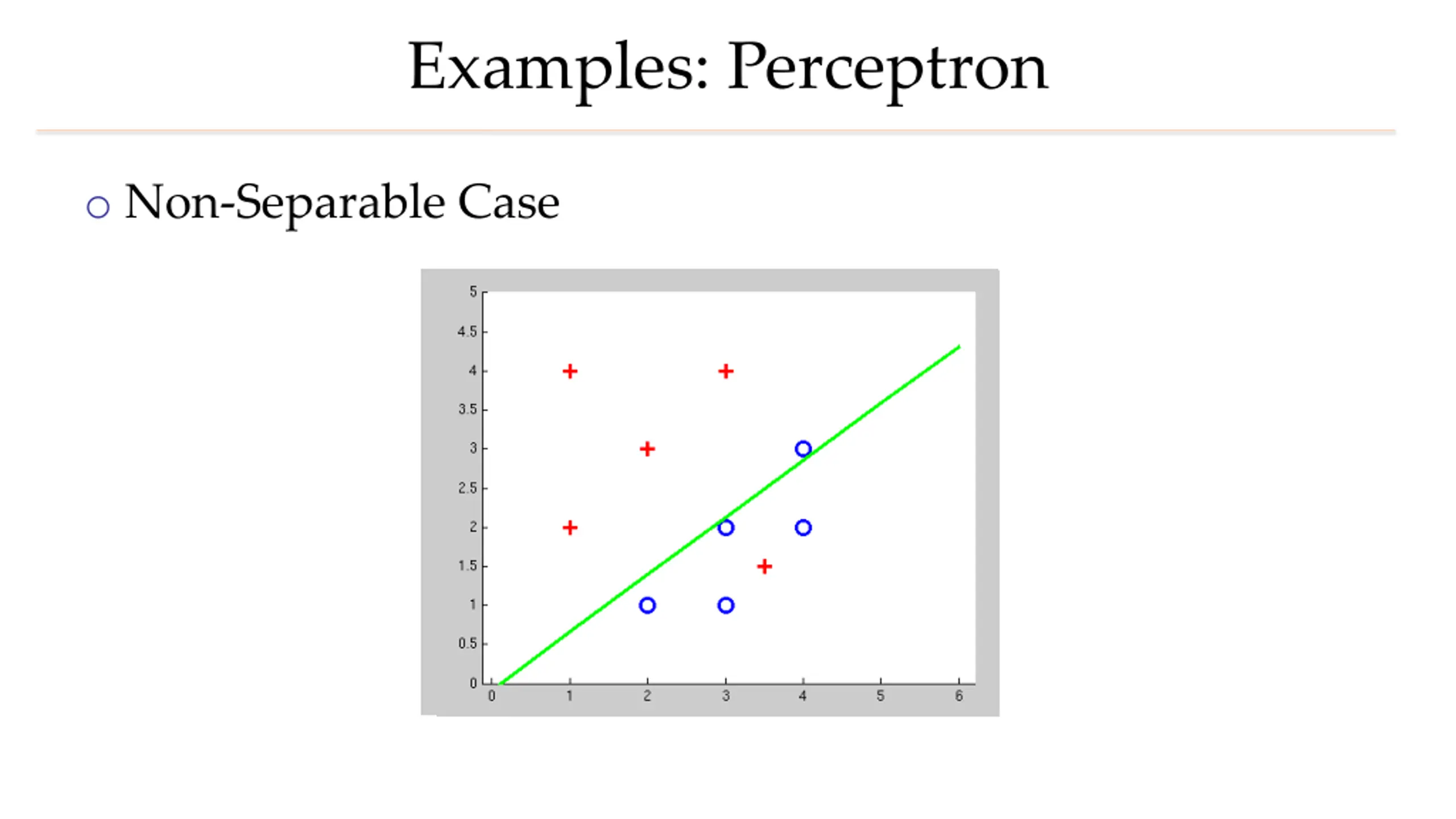

Examples: Perceptron o Non-Separable Case

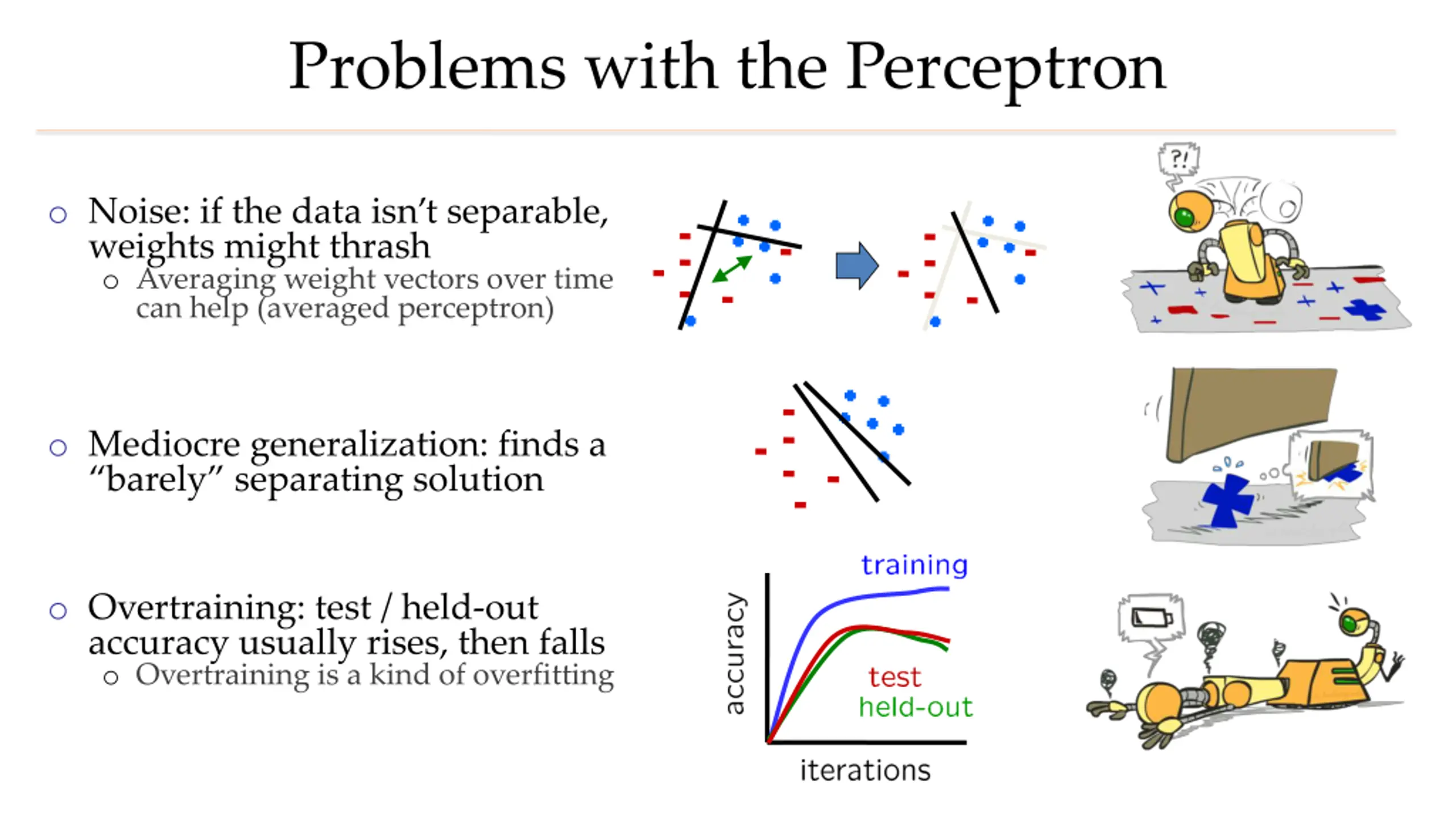

Problems with the Perceptron o Noise: if the data isn t separable, weights might thrash o Averaging weight vectors over time can help (averaged perceptron) o Mediocre generalization: finds a barely separating solution o Overtraining: test / held-out accuracy usually rises, then falls o Overtraining is a kind of overfitting

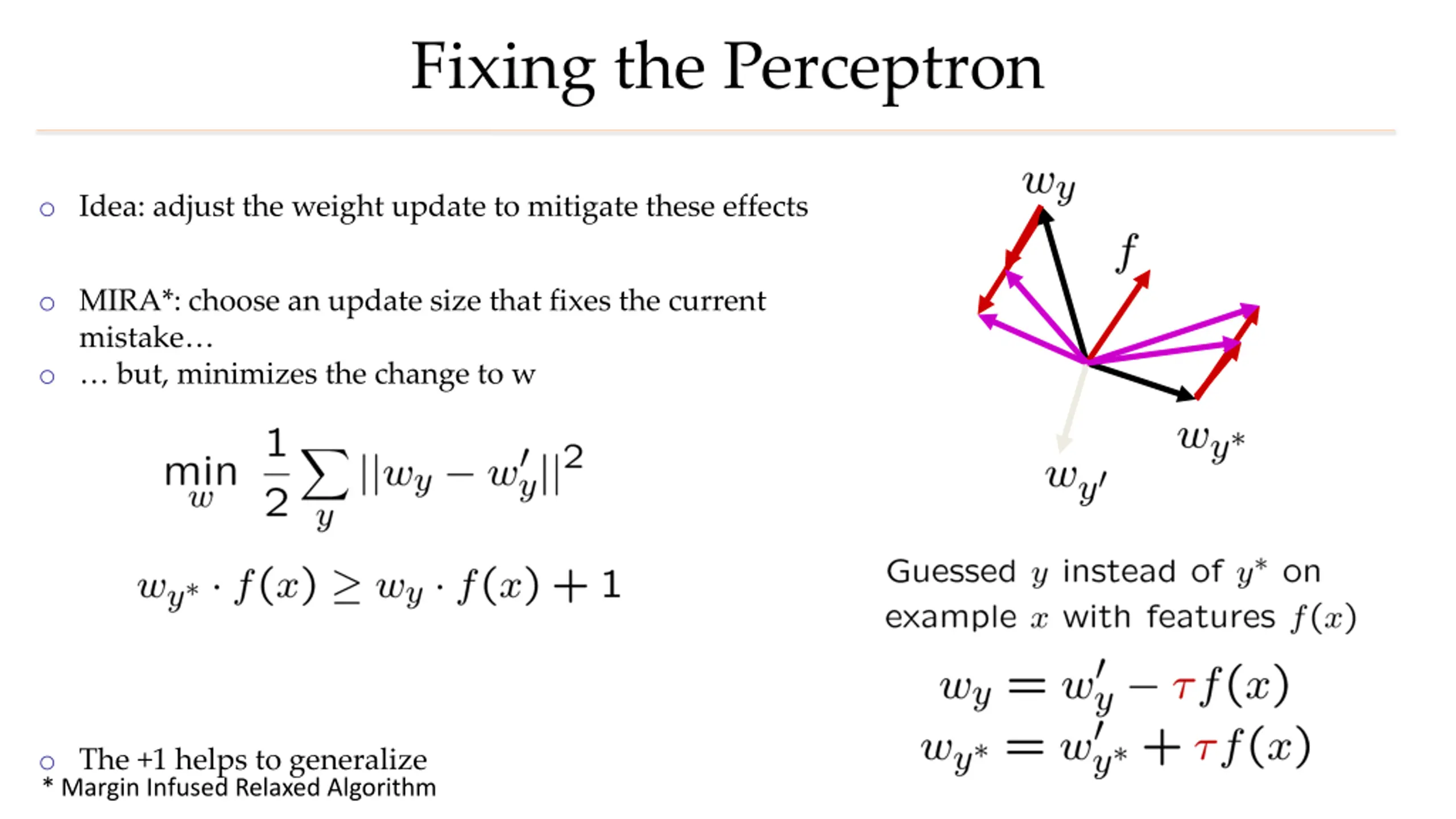

Fixing the Perceptron o Idea: adjust the weight update to mitigate these effects o MIRA*: choose an update size that fixes the current mistake o but, minimizes the change to w o The +1 helps to generalize * Margin Infused Relaxed Algorithm
Minimum Correcting Update min not =0, or would not have made an error, so min will be where equality holds

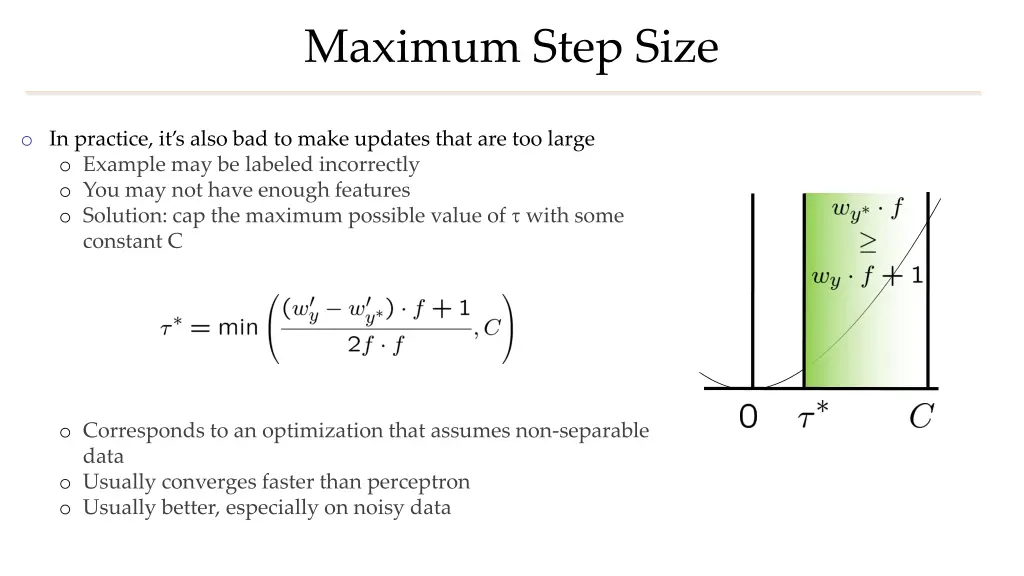

Maximum Step Size o In practice, it s also bad to make updates that are too large o Example may be labeled incorrectly o You may not have enough features o Solution: cap the maximum possible value of with some constant C o Corresponds to an optimization that assumes non-separable data o Usually converges faster than perceptron o Usually better, especially on noisy data
Linear Separators o Which of these linear separators is optimal?
Support Vector Machines o Maximizing the margin: good according to intuition, theory, practice o Only support vectors matter; other training examples are ignorable o Support vector machines (SVMs) find the separator with max margin o Basically, SVMs are MIRA where you optimize over all examples at once MIRA SVM
Classification: Comparison o Na ve Bayes o Builds a model training data o Gives prediction probabilities o Strong assumptions about feature independence o One pass through data (counting) o Perceptrons / MIRA: o Makes less assumptions about data o Mistake-driven learning o Multiple passes through data (prediction) o Often more accurate
