  1. Authentication/Authorization extension for ElasticSearch and Kibana platform Wataru Takase Computing Research Center, KEK 10thFebruary, 2016 FJPPL Computing Project Annual Workshop 1

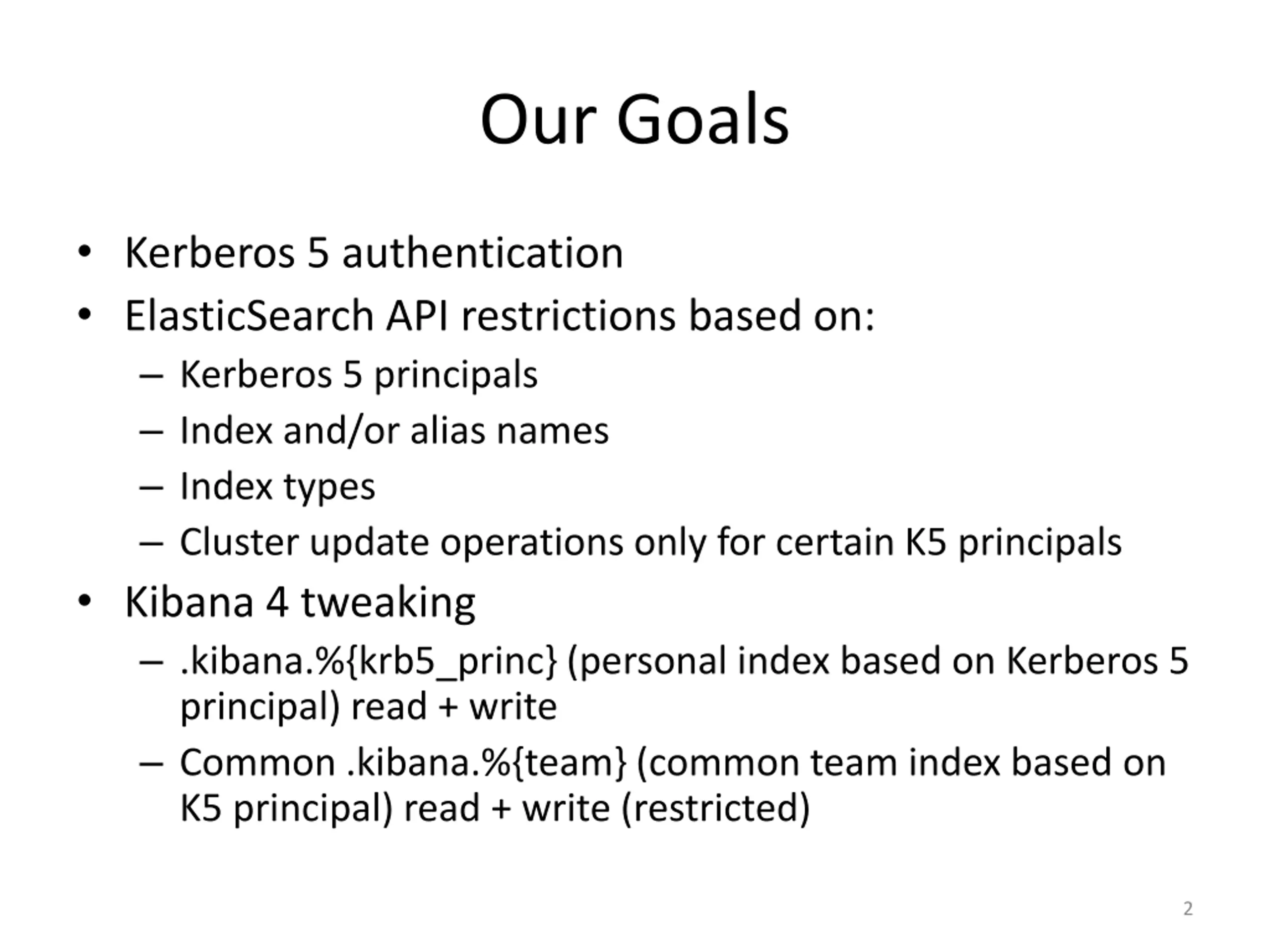

  2. Our Goals Kerberos 5 authentication ElasticSearch API restrictions based on: Kerberos 5 principals Index and/or alias names Index types Cluster update operations only for certain K5 principals Kibana 4 tweaking .kibana.%{krb5_princ} (personal index based on Kerberos 5 principal) read + write Common .kibana.%{team} (common team index based on K5 principal) read + write (restricted) 2

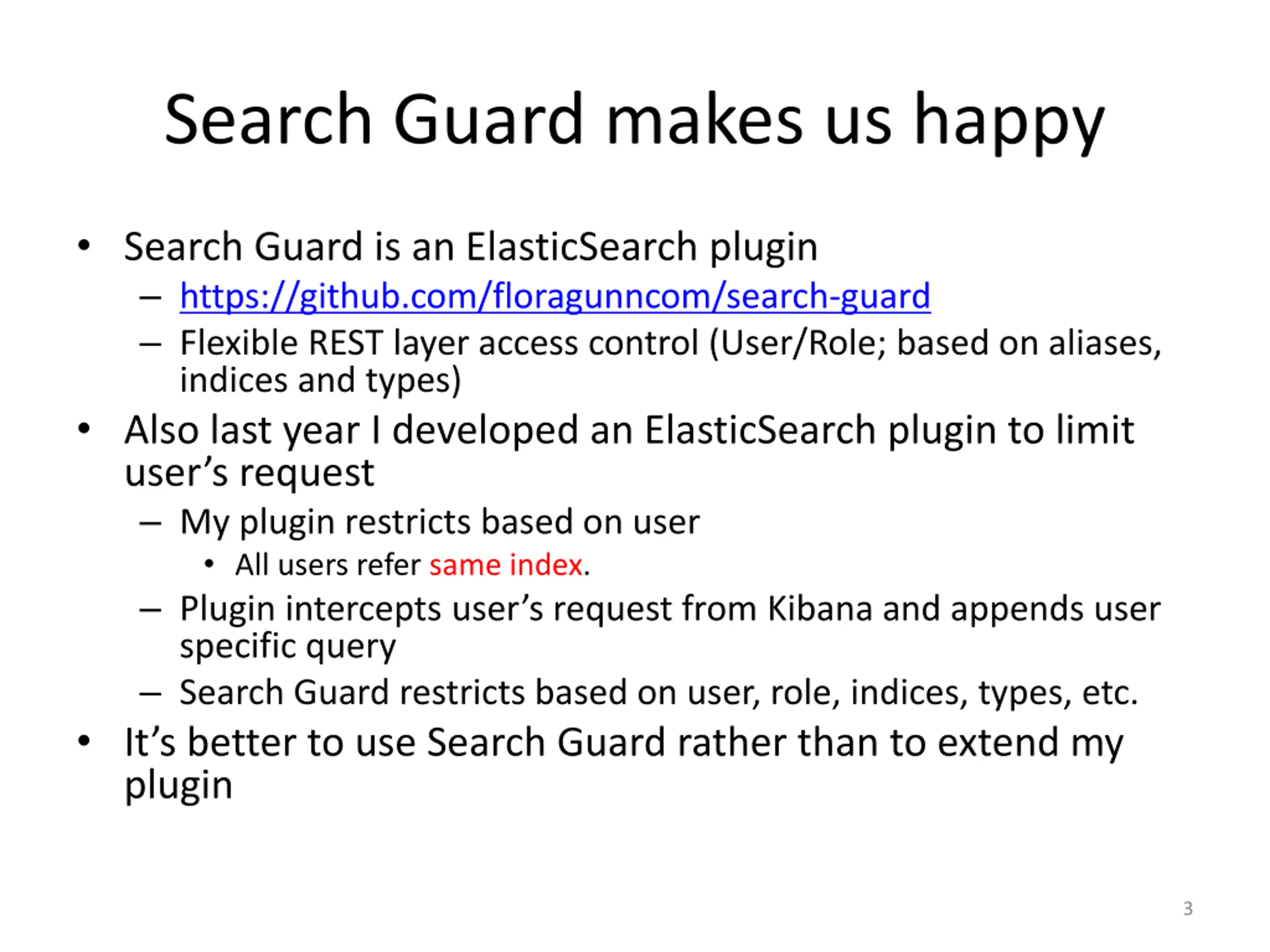

  3. Search Guard makes us happy Search Guard is an ElasticSearch plugin https://github.com/floragunncom/search-guard Flexible REST layer access control (User/Role; based on aliases, indices and types) Also last year I developed an ElasticSearch plugin to limit user s request My plugin restricts based on user All users refer same index. Plugin intercepts user s request from Kibana and appends user specific query Search Guard restricts based on user, role, indices, types, etc. It s better to use Search Guard rather than to extend my plugin 3

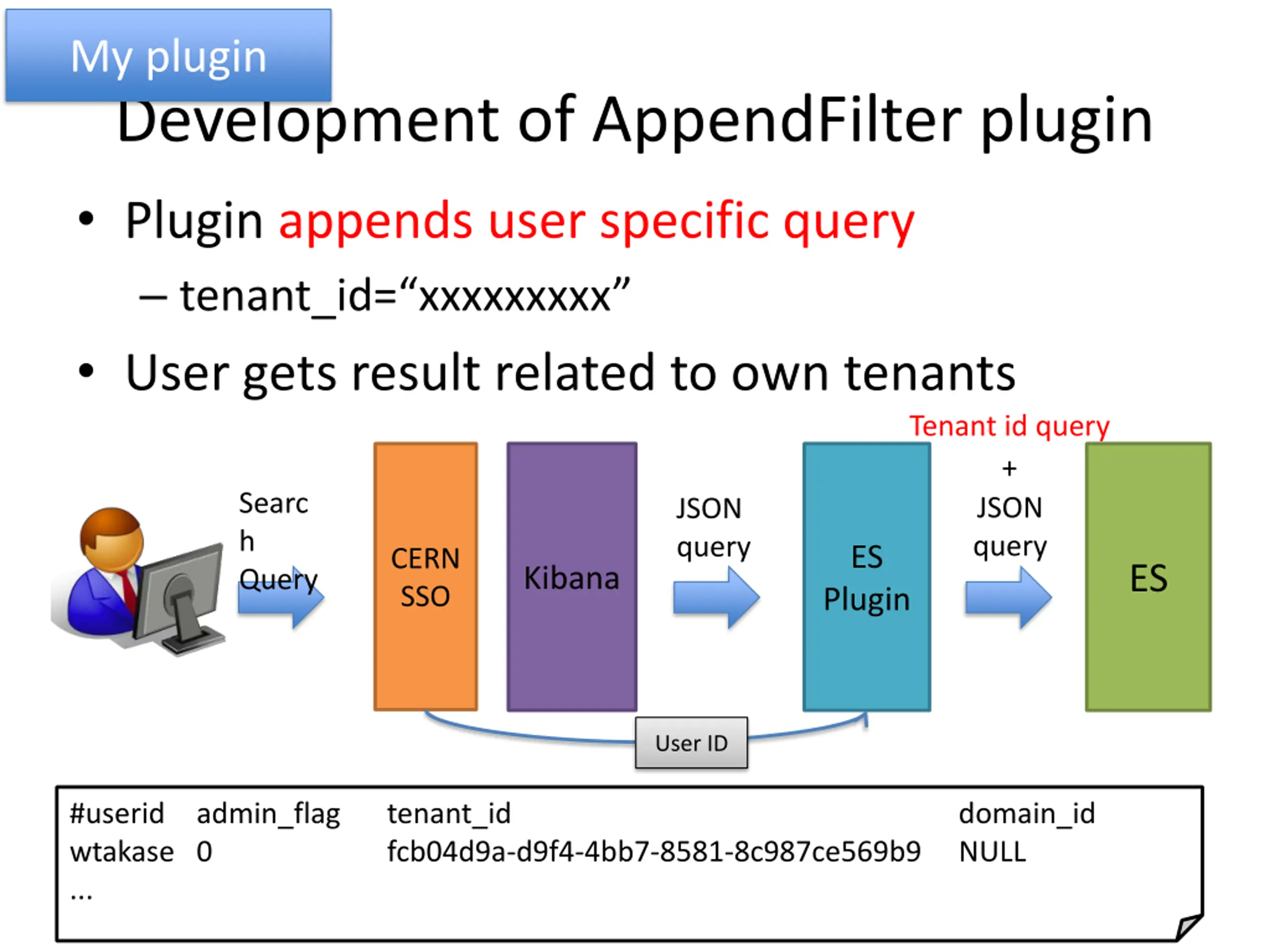

  4. My plugin Development of AppendFilter plugin Plugin appends user specific query tenant_id= xxxxxxxxx User gets result related to own tenants Tenant id query + Searc h Query JSON query JSON query ES CERN SSO ES Kibana Plugin User ID #userid wtakase 0 ... admin_flag tenant_id fcb04d9a-d9f4-4bb7-8581-8c987ce569b9 domain_id NULL 4

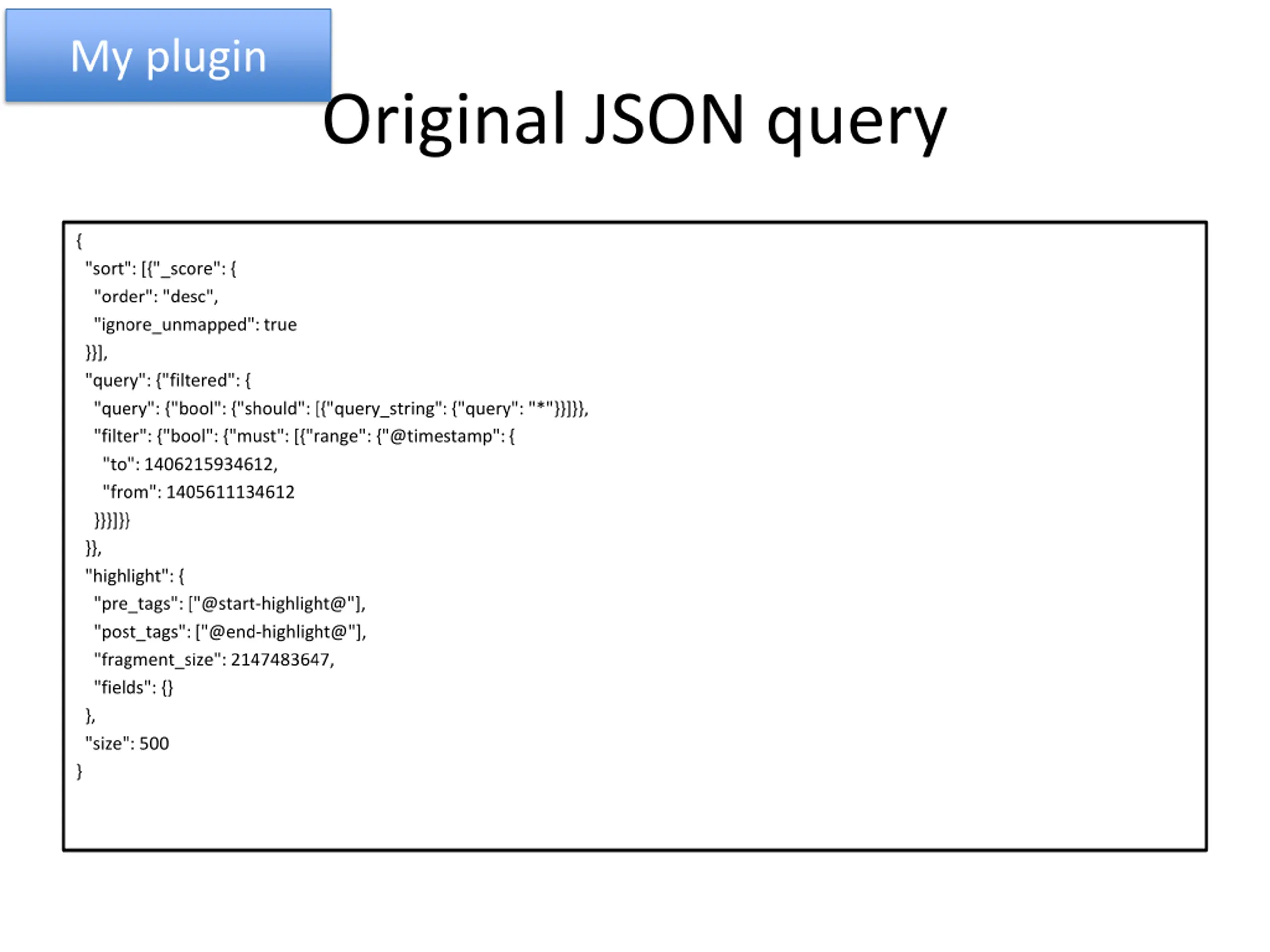

  5. My plugin Original JSON query { "sort": [{"_score": { "order": "desc", "ignore_unmapped": true }}], "query": {"filtered": { "query": {"bool": {"should": [{"query_string": {"query": "*"}}]}}, "filter": {"bool": {"must": [{"range": {"@timestamp": { "to": 1406215934612, "from": 1405611134612 }}}]}} }}, "highlight": { "pre_tags": ["@start-highlight@"], "post_tags": ["@end-highlight@"], "fragment_size": 2147483647, "fields": {} }, "size": 500 }

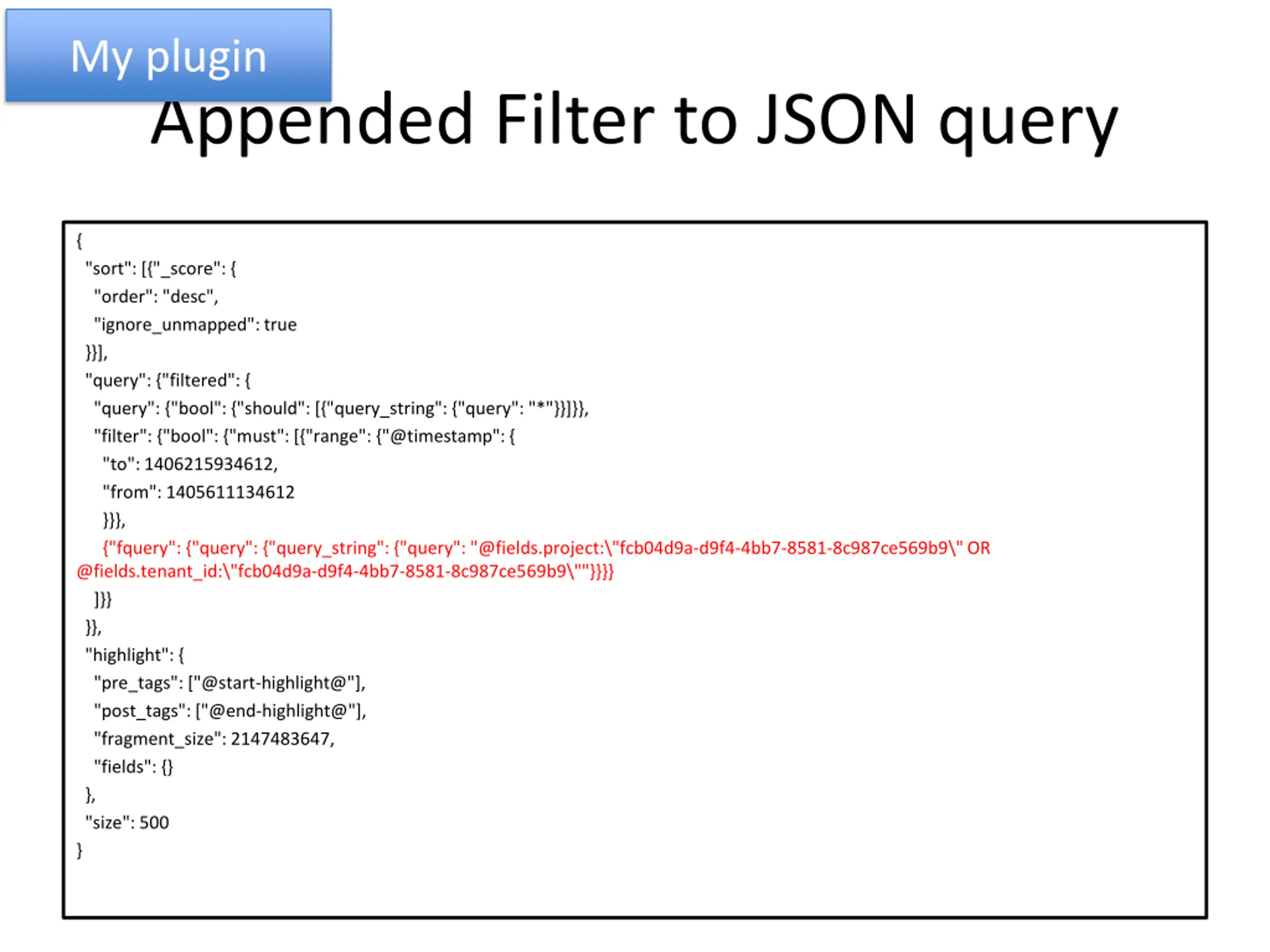

  6. My plugin Appended Filter to JSON query { "sort": [{"_score": { "order": "desc", "ignore_unmapped": true }}], "query": {"filtered": { "query": {"bool": {"should": [{"query_string": {"query": "*"}}]}}, "filter": {"bool": {"must": [{"range": {"@timestamp": { "to": 1406215934612, "from": 1405611134612 }}}, {"fquery": {"query": {"query_string": {"query": "@fields.project:\"fcb04d9a-d9f4-4bb7-8581-8c987ce569b9\" OR @fields.tenant_id:\"fcb04d9a-d9f4-4bb7-8581-8c987ce569b9\""}}}} ]}} }}, "highlight": { "pre_tags": ["@start-highlight@"], "post_tags": ["@end-highlight@"], "fragment_size": 2147483647, "fields": {} }, "size": 500 }

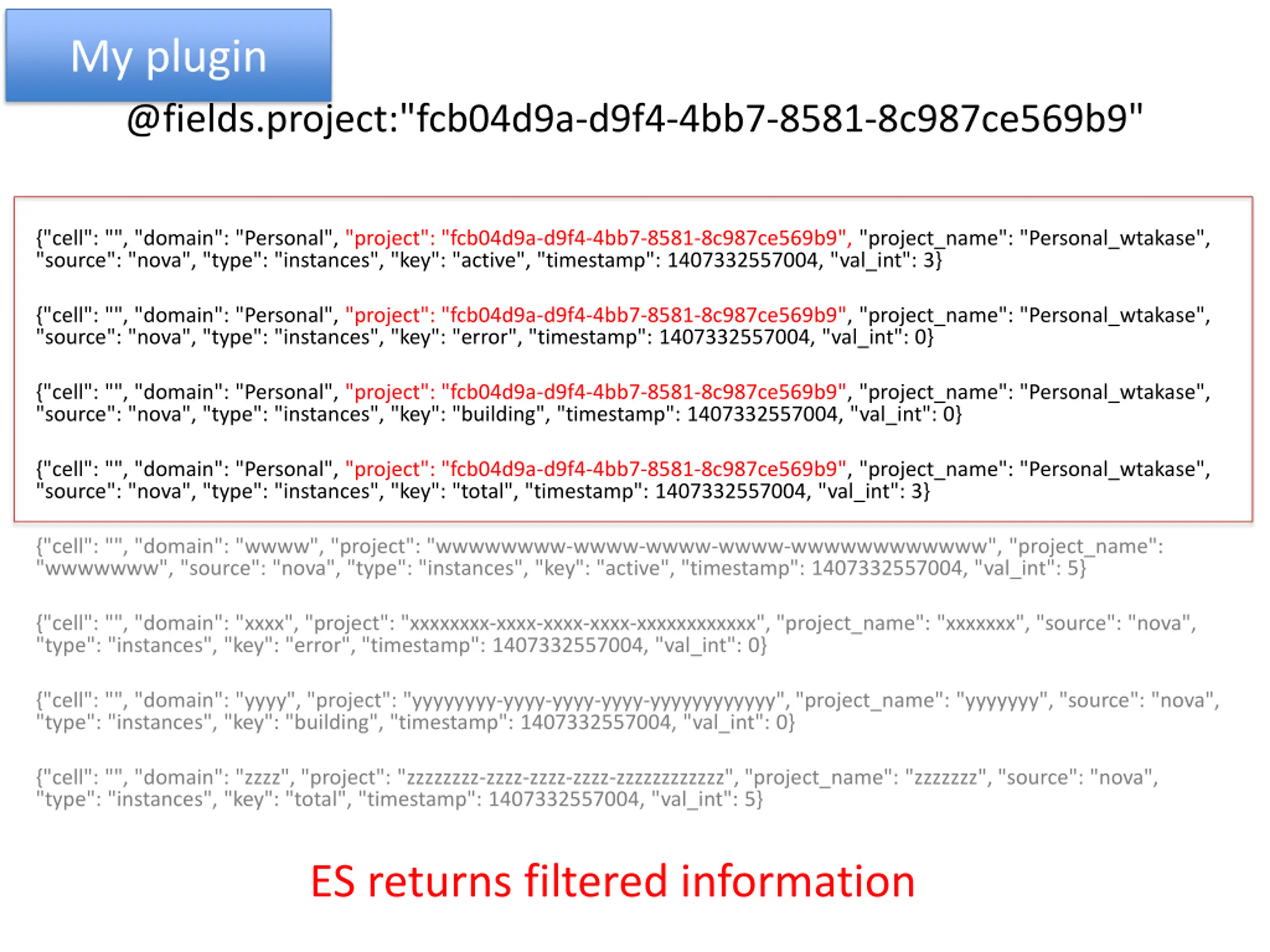

  7. My plugin @fields.project:"fcb04d9a-d9f4-4bb7-8581-8c987ce569b9" {"cell": "", "domain": "Personal", "project": "fcb04d9a-d9f4-4bb7-8581-8c987ce569b9", "project_name": "Personal_wtakase", "source": "nova", "type": "instances", "key": "active", "timestamp": 1407332557004, "val_int": 3} {"cell": "", "domain": "Personal", "project": "fcb04d9a-d9f4-4bb7-8581-8c987ce569b9", "project_name": "Personal_wtakase", "source": "nova", "type": "instances", "key": "error", "timestamp": 1407332557004, "val_int": 0} {"cell": "", "domain": "Personal", "project": "fcb04d9a-d9f4-4bb7-8581-8c987ce569b9", "project_name": "Personal_wtakase", "source": "nova", "type": "instances", "key": "building", "timestamp": 1407332557004, "val_int": 0} {"cell": "", "domain": "Personal", "project": "fcb04d9a-d9f4-4bb7-8581-8c987ce569b9", "project_name": "Personal_wtakase", "source": "nova", "type": "instances", "key": "total", "timestamp": 1407332557004, "val_int": 3} {"cell": "", "domain": "wwww", "project": "wwwwwwww-wwww-wwww-wwww-wwwwwwwwwwww", "project_name": "wwwwwww", "source": "nova", "type": "instances", "key": "active", "timestamp": 1407332557004, "val_int": 5} {"cell": "", "domain": "xxxx", "project": "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx", "project_name": "xxxxxxx", "source": "nova", "type": "instances", "key": "error", "timestamp": 1407332557004, "val_int": 0} {"cell": "", "domain": "yyyy", "project": "yyyyyyyy-yyyy-yyyy-yyyy-yyyyyyyyyyyy", "project_name": "yyyyyyy", "source": "nova", "type": "instances", "key": "building", "timestamp": 1407332557004, "val_int": 0} {"cell": "", "domain": "zzzz", "project": "zzzzzzzz-zzzz-zzzz-zzzz-zzzzzzzzzzzz", "project_name": "zzzzzzz", "source": "nova", "type": "instances", "key": "total", "timestamp": 1407332557004, "val_int": 5} ES returns filtered information

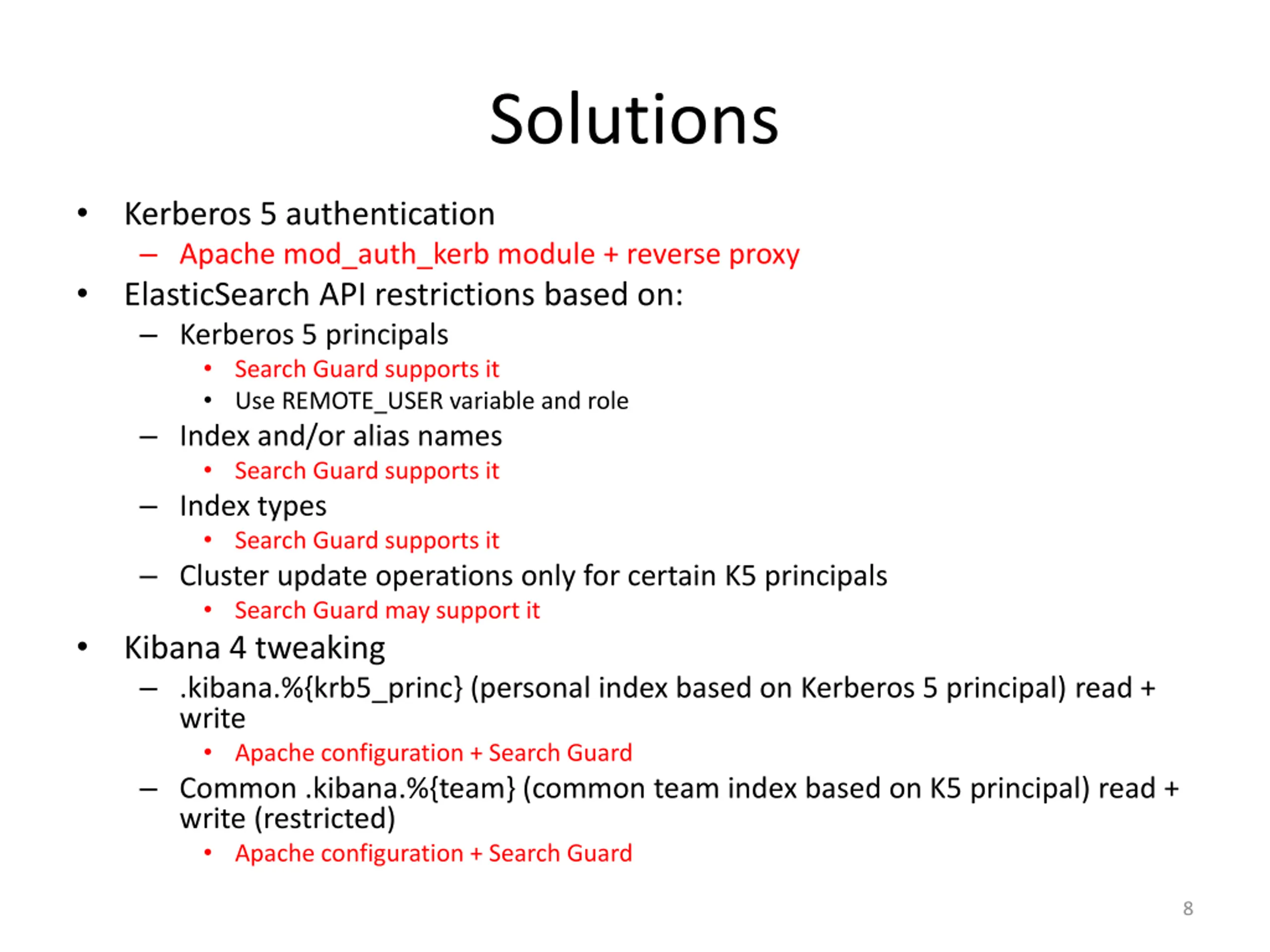

  8. Solutions Kerberos 5 authentication Apache mod_auth_kerb module + reverse proxy ElasticSearch API restrictions based on: Kerberos 5 principals Search Guard supports it Use REMOTE_USER variable and role Index and/or alias names Search Guard supports it Index types Search Guard supports it Cluster update operations only for certain K5 principals Search Guard may support it Kibana 4 tweaking .kibana.%{krb5_princ} (personal index based on Kerberos 5 principal) read + write Apache configuration + Search Guard Common .kibana.%{team} (common team index based on K5 principal) read + write (restricted) Apache configuration + Search Guard 8

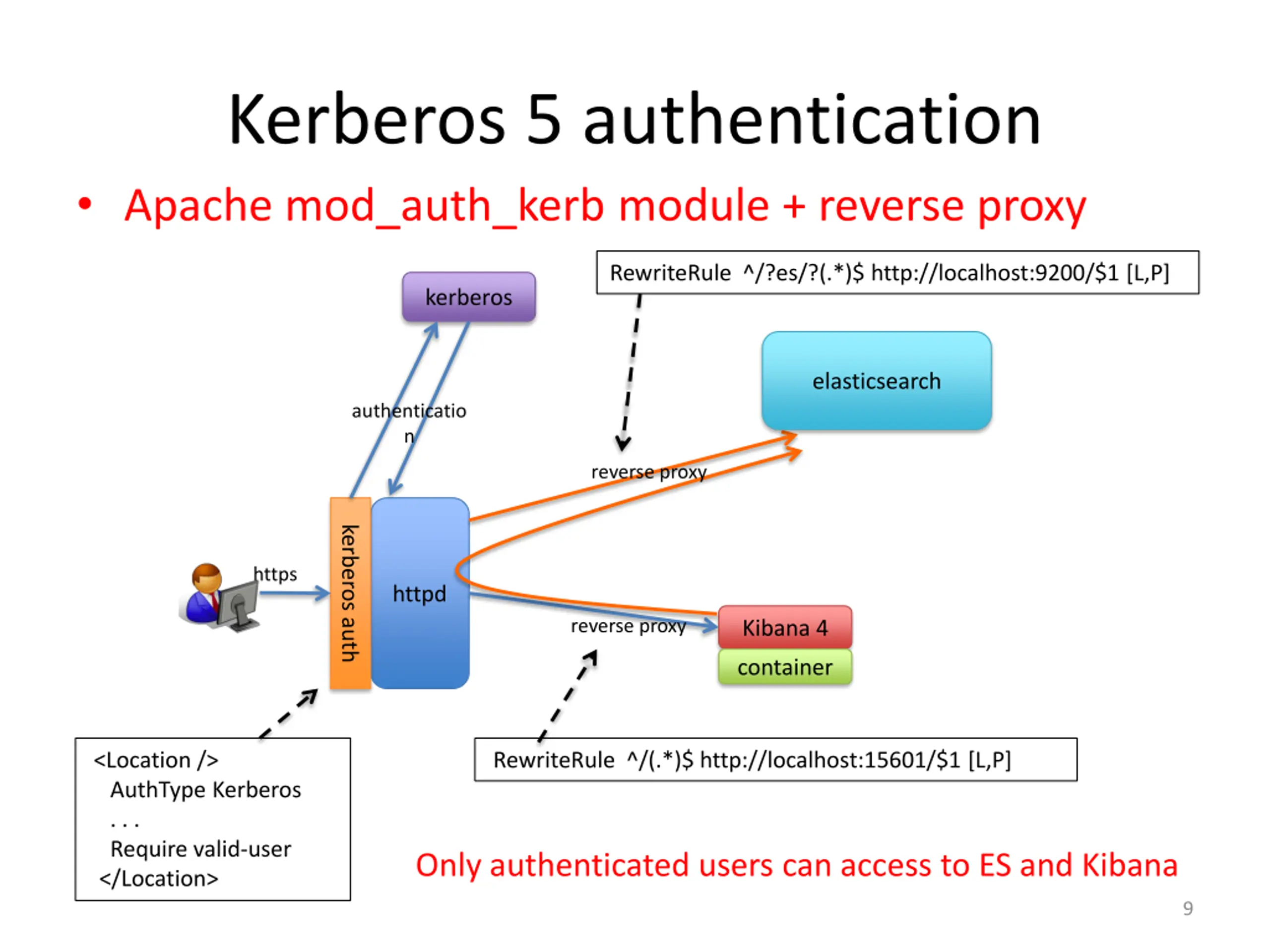

  9. Kerberos 5 authentication Apache mod_auth_kerb module + reverse proxy RewriteRule ^/?es/?(.*)$ http://localhost:9200/$1 [L,P] kerberos elasticsearch authenticatio n reverse proxy kerberos auth https httpd reverse proxy Kibana 4 container <Location /> AuthType Kerberos . . . Require valid-user </Location> RewriteRule ^/(.*)$ http://localhost:15601/$1 [L,P] Only authenticated users can access to ES and Kibana 9

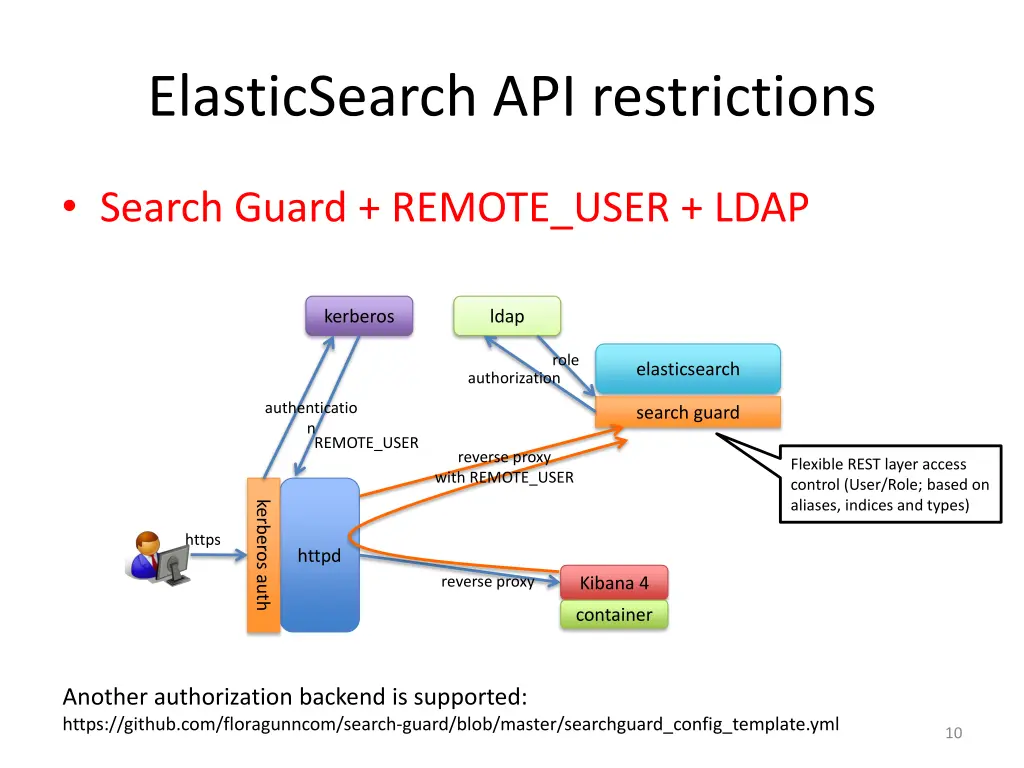

  10. ElasticSearch API restrictions Search Guard + REMOTE_USER + LDAP kerberos ldap role elasticsearch authorization authenticatio n search guard REMOTE_USER reverse proxy with REMOTE_USER Flexible REST layer access control (User/Role; based on aliases, indices and types) kerberos auth https httpd reverse proxy Kibana 4 container Another authorization backend is supported: https://github.com/floragunncom/search-guard/blob/master/searchguard_config_template.yml 10

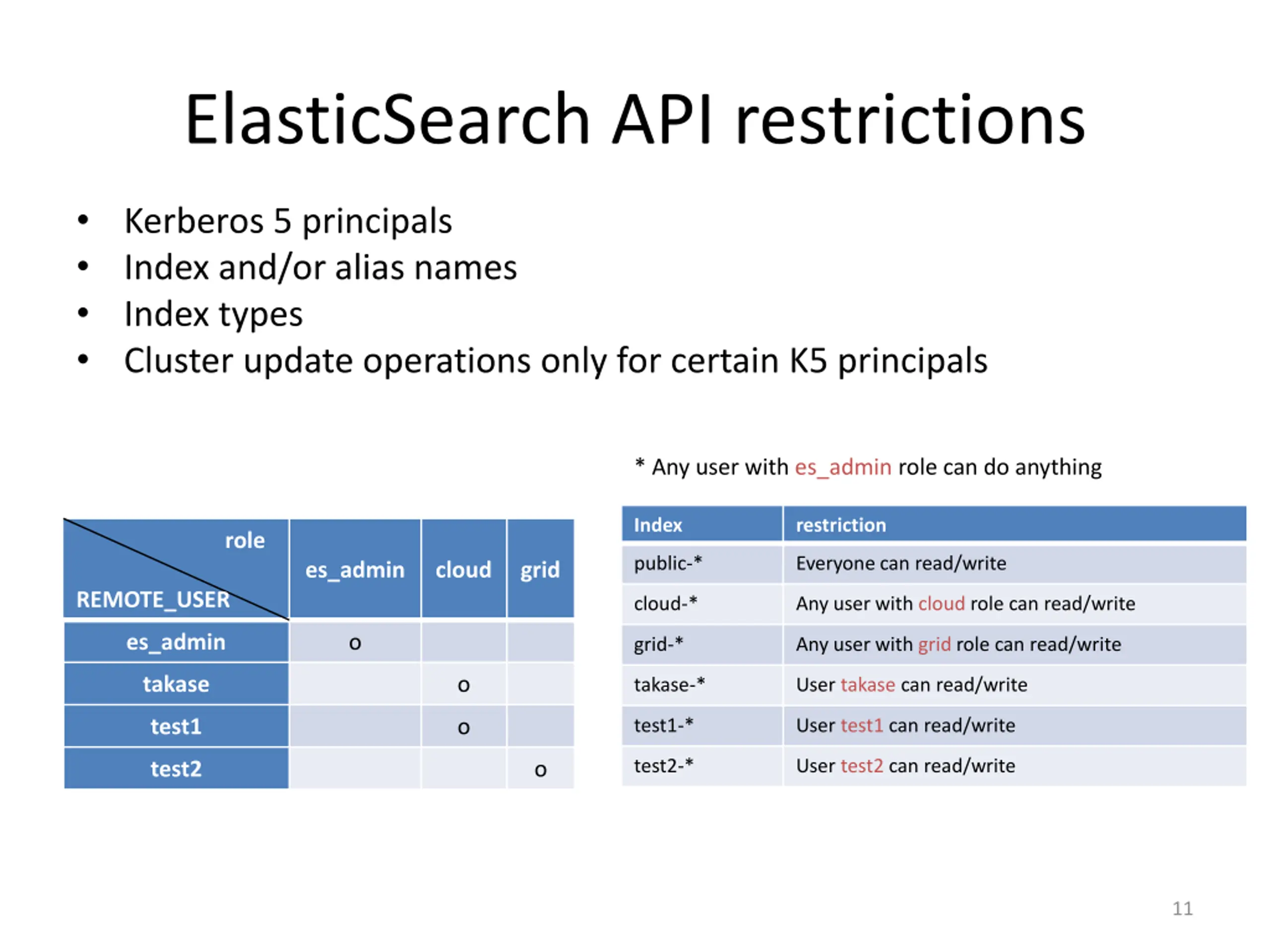

  11. ElasticSearch API restrictions Kerberos 5 principals Index and/or alias names Index types Cluster update operations only for certain K5 principals * Any user with es_admin role can do anything Index restriction role public-* Everyone can read/write es_admin cloud grid REMOTE_USER cloud-* Any user with cloud role can read/write es_admin o grid-* Any user with grid role can read/write takase o takase-* User takase can read/write test1 o test1-* User test1 can read/write test2-* User test2 can read/write test2 o 11

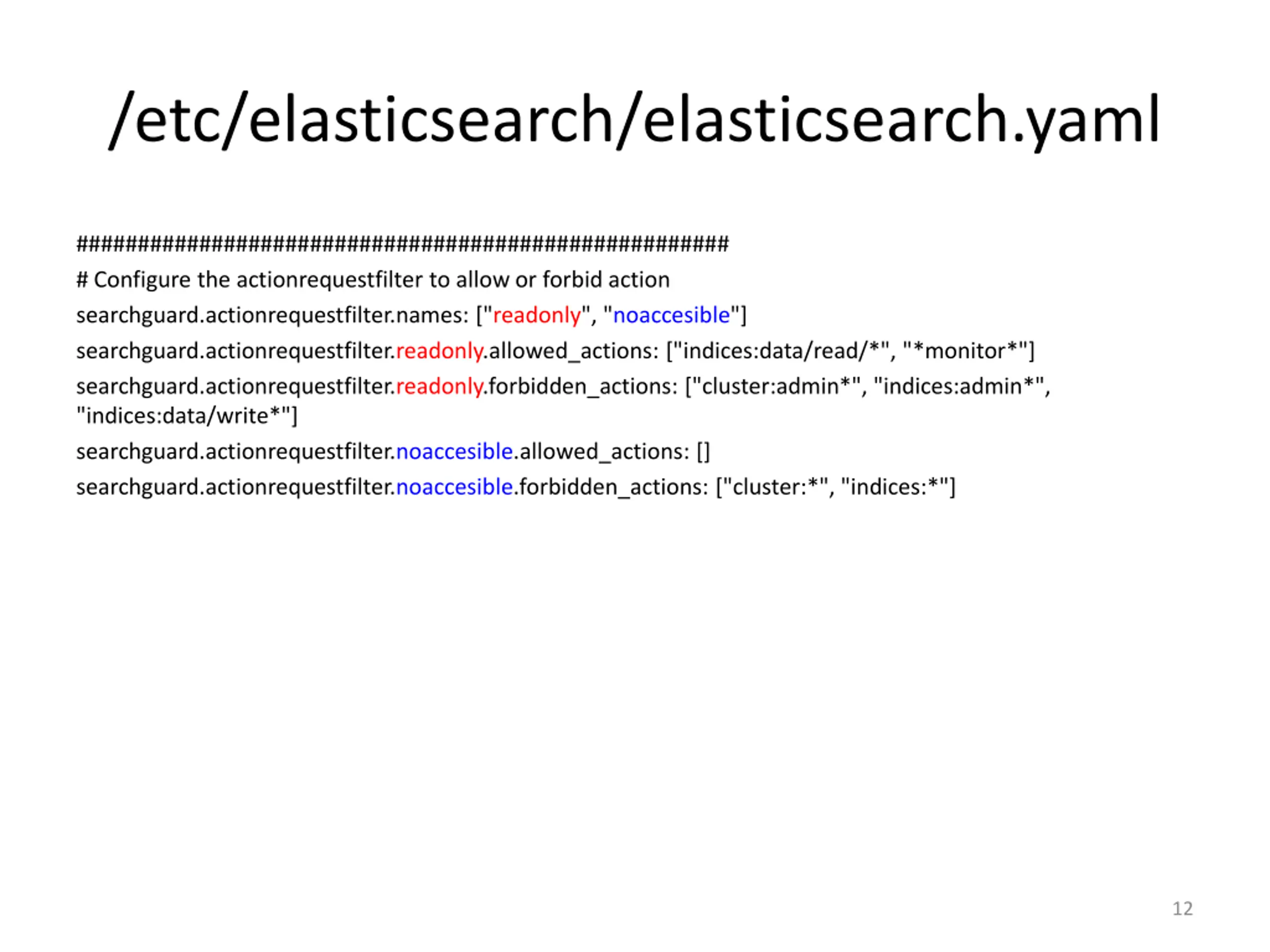

  12. /etc/elasticsearch/elasticsearch.yaml ##################################################### # Configure the actionrequestfilter to allow or forbid action searchguard.actionrequestfilter.names: ["readonly", "noaccesible"] searchguard.actionrequestfilter.readonly.allowed_actions: ["indices:data/read/*", "*monitor*"] searchguard.actionrequestfilter.readonly.forbidden_actions: ["cluster:admin*", "indices:admin*", "indices:data/write*"] searchguard.actionrequestfilter.noaccesible.allowed_actions: [] searchguard.actionrequestfilter.noaccesible.forbidden_actions: ["cluster:*", "indices:*"] 12

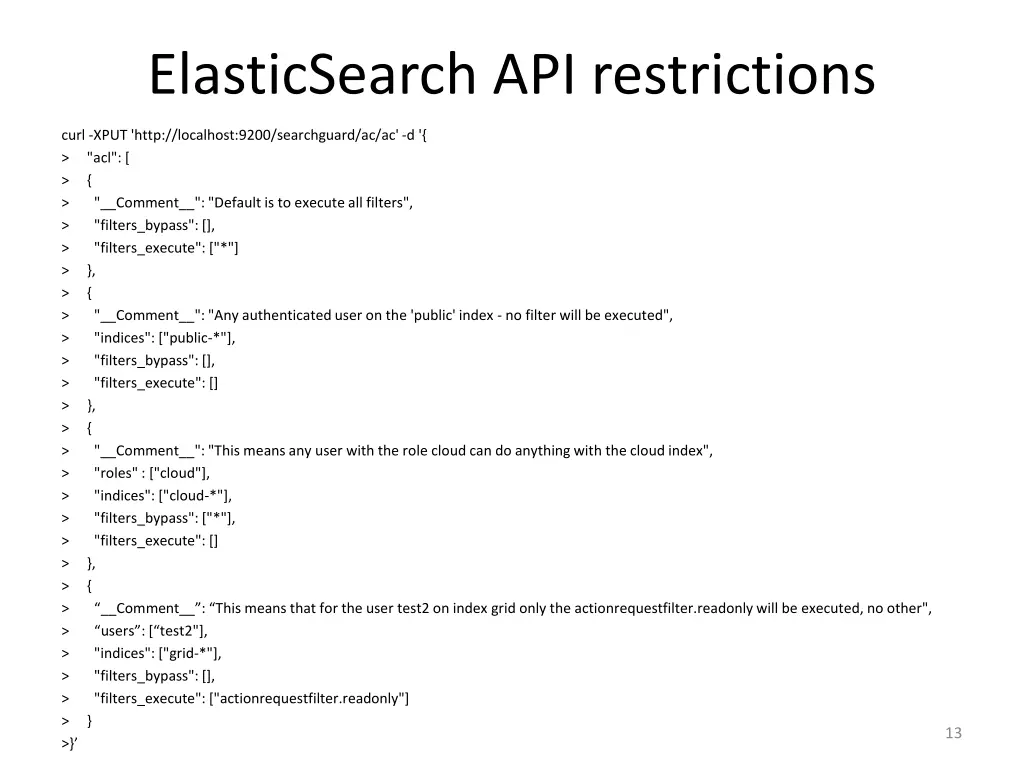

  13. ElasticSearch API restrictions curl -XPUT 'http://localhost:9200/searchguard/ac/ac' -d '{ > "acl": [ > { > "__Comment__": "Default is to execute all filters", > "filters_bypass": [], > "filters_execute": ["*"] > }, > { > "__Comment__": "Any authenticated user on the 'public' index - no filter will be executed", > "indices": ["public-*"], > "filters_bypass": [], > "filters_execute": [] > }, > { > "__Comment__": "This means any user with the role cloud can do anything with the cloud index", > "roles" : ["cloud"], > "indices": ["cloud-*"], > "filters_bypass": ["*"], > "filters_execute": [] > }, > { > __Comment__ : This means that for the user test2 on index grid only the actionrequestfilter.readonly will be executed, no other", > users : [ test2"], > "indices": ["grid-*"], > "filters_bypass": [], > "filters_execute": ["actionrequestfilter.readonly"] > } >} 13

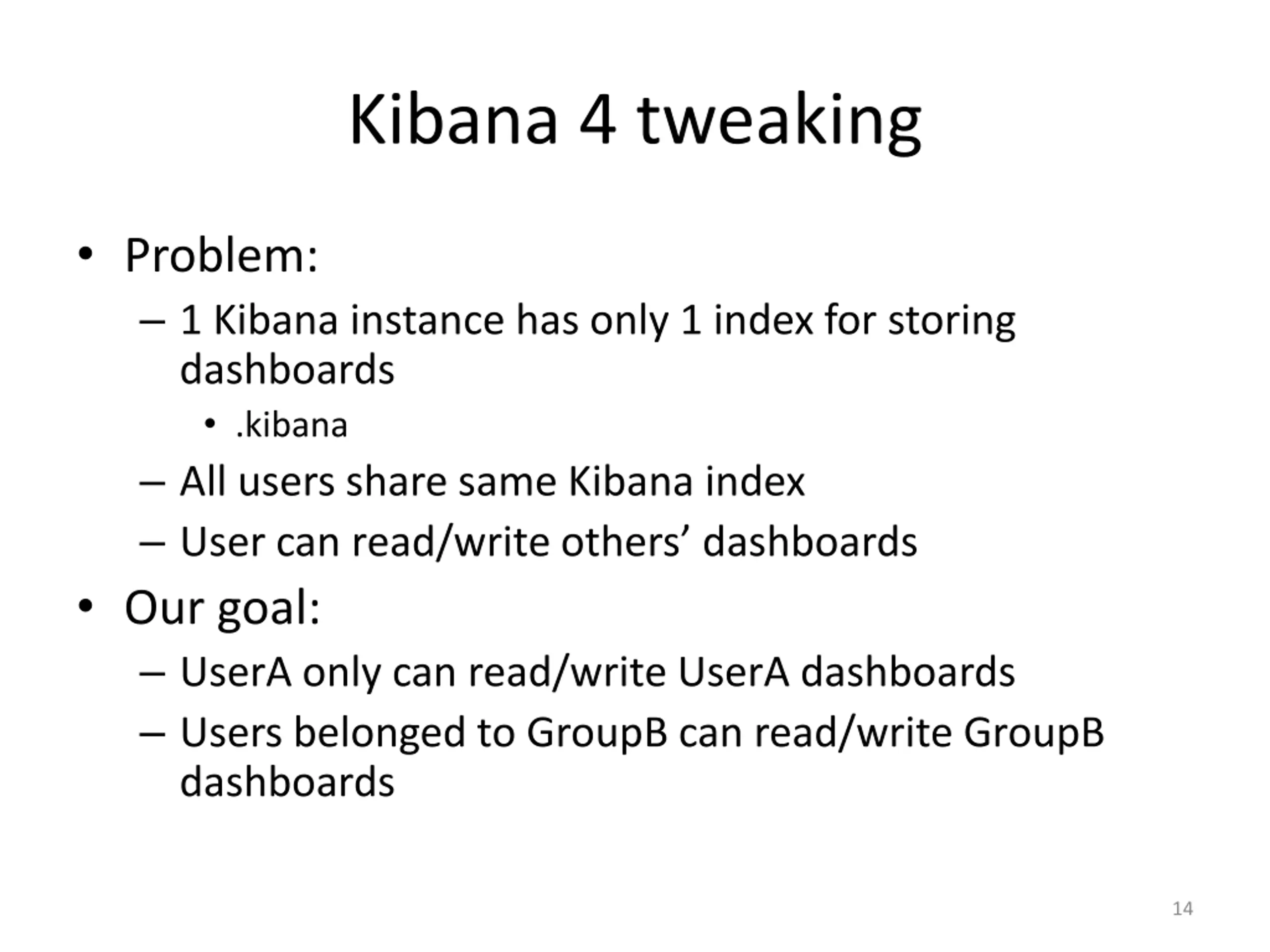

  14. Kibana 4 tweaking Problem: 1 Kibana instance has only 1 index for storing dashboards .kibana All users share same Kibana index User can read/write others dashboards Our goal: UserA only can read/write UserA dashboards Users belonged to GroupB can read/write GroupB dashboards 14

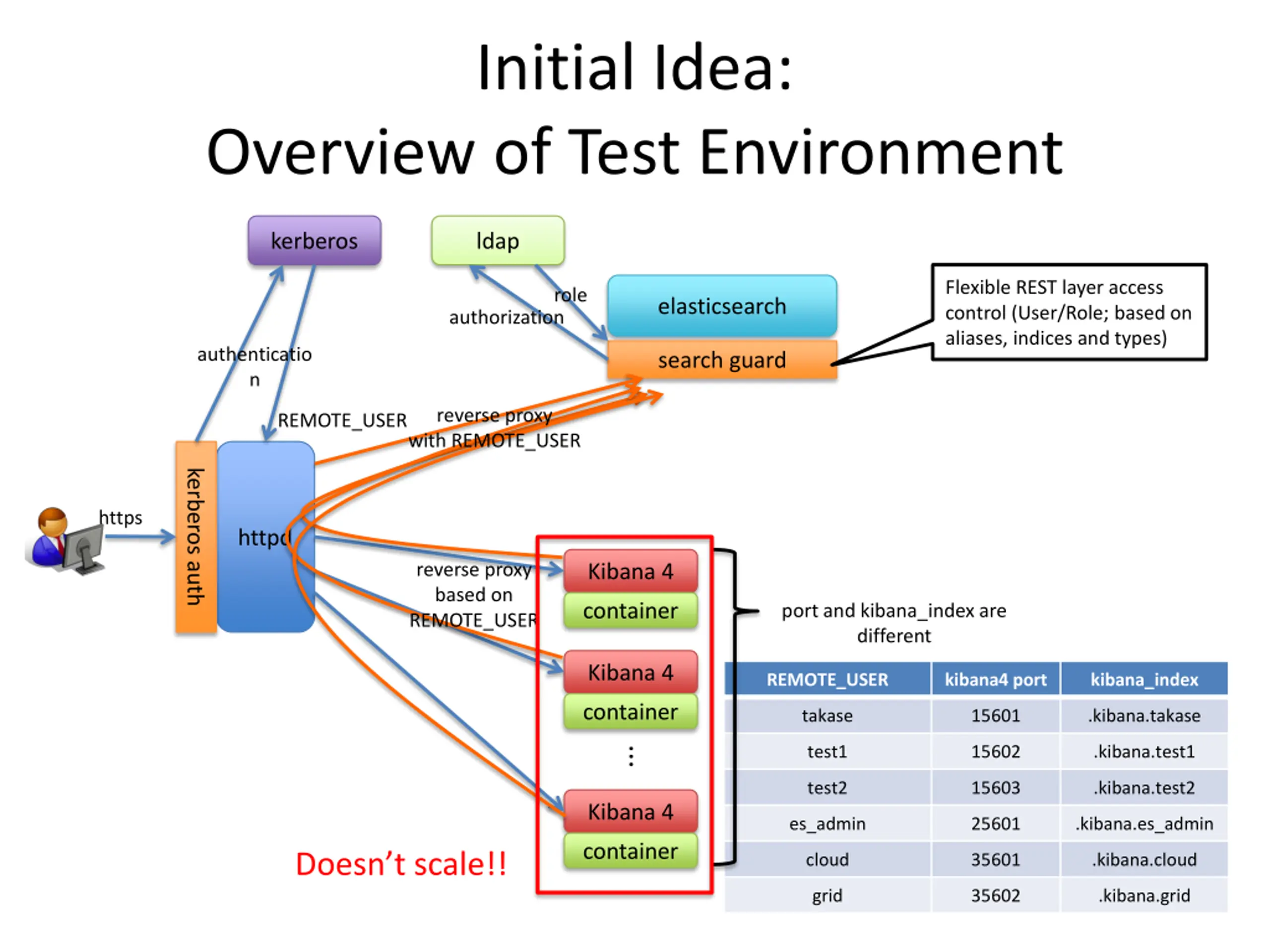

  15. Initial Idea: Overview of Test Environment kerberos ldap Flexible REST layer access control (User/Role; based on aliases, indices and types) role elasticsearch authorization authenticatio n search guard reverse proxy with REMOTE_USER REMOTE_USER kerberos auth https httpd reverse proxy based on REMOTE_USER Kibana 4 container port and kibana_index are different Kibana 4 REMOTE_USER kibana4 port kibana_index container takase 15601 .kibana.takase test1 15602 .kibana.test1 ... test2 15603 .kibana.test2 Kibana 4 es_admin 25601 .kibana.es_admin container Doesn t scale!! cloud 35601 .kibana.cloud grid 35602 .kibana.grid

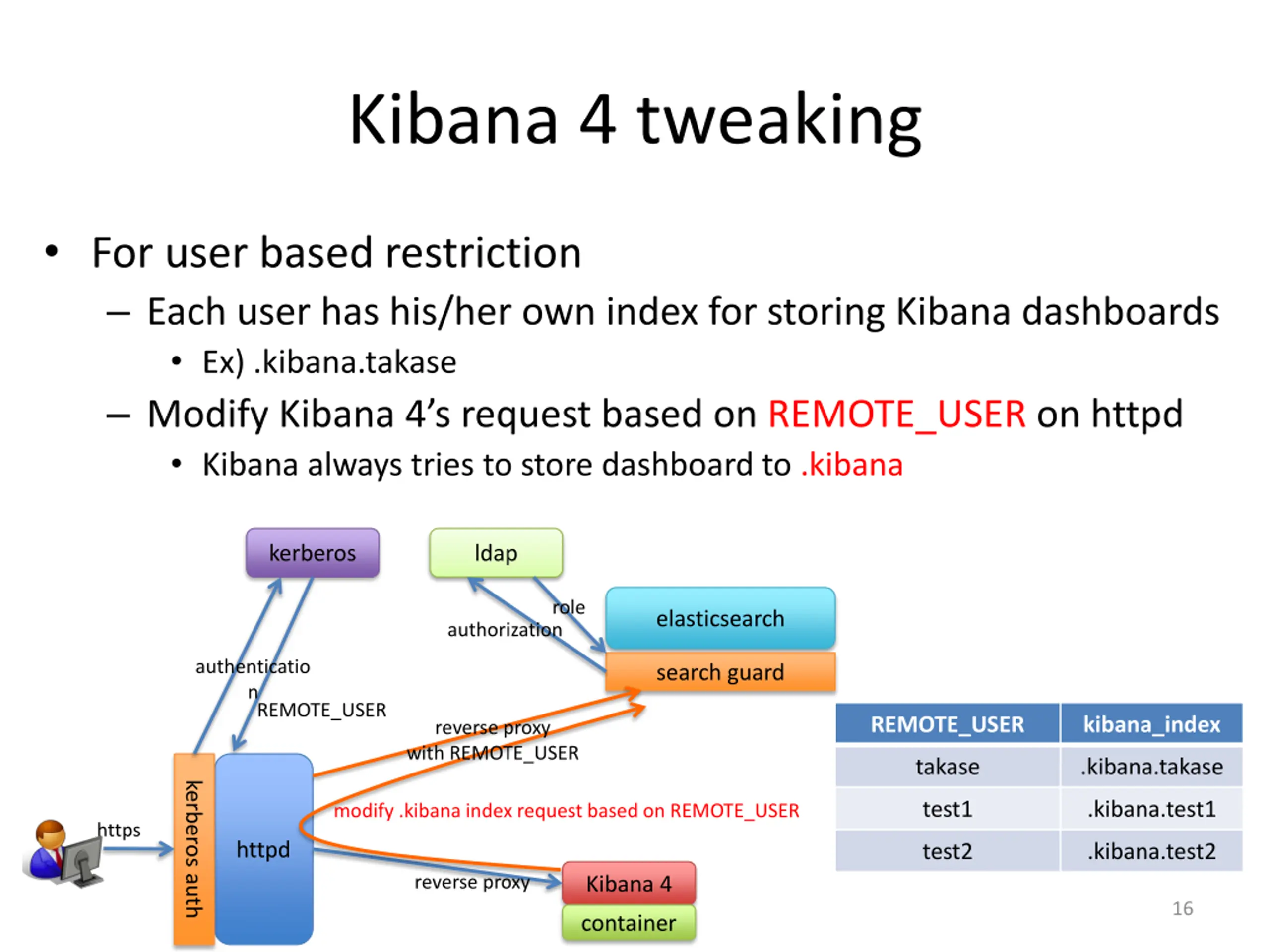

  16. Kibana 4 tweaking For user based restriction Each user has his/her own index for storing Kibana dashboards Ex) .kibana.takase Modify Kibana 4 s request based on REMOTE_USER on httpd Kibana always tries to store dashboard to .kibana kerberos ldap role elasticsearch authorization authenticatio n search guard REMOTE_USER REMOTE_USER kibana_index reverse proxy with REMOTE_USER takase .kibana.takase kerberos auth test1 .kibana.test1 modify .kibana index request based on REMOTE_USER https httpd test2 .kibana.test2 reverse proxy Kibana 4 16 container

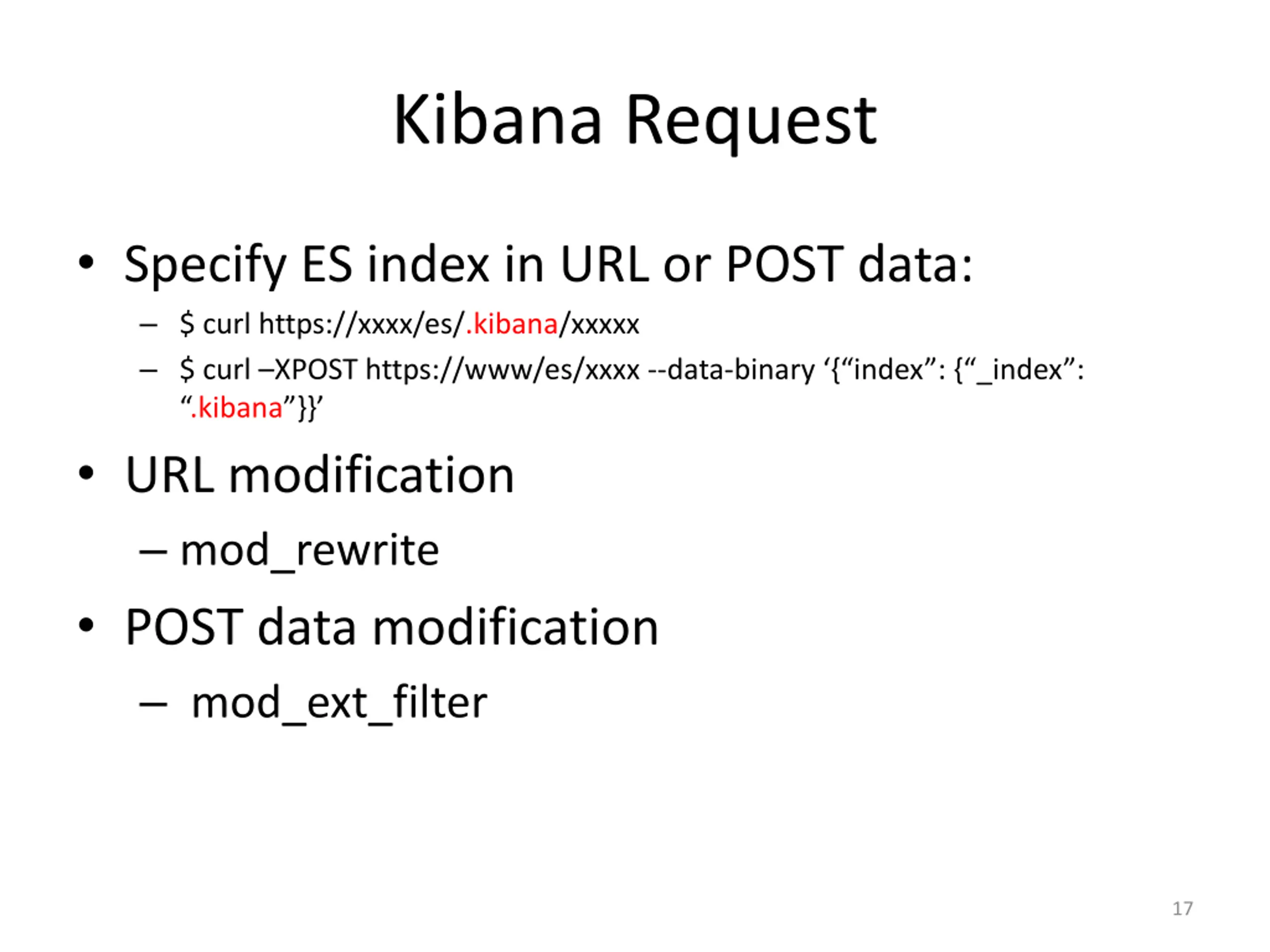

  17. Kibana Request Specify ES index in URL or POST data: $ curl https://xxxx/es/.kibana/xxxxx $ curl XPOST https://www/es/xxxx --data-binary { index : { _index : .kibana }} URL modification mod_rewrite POST data modification mod_ext_filter 17

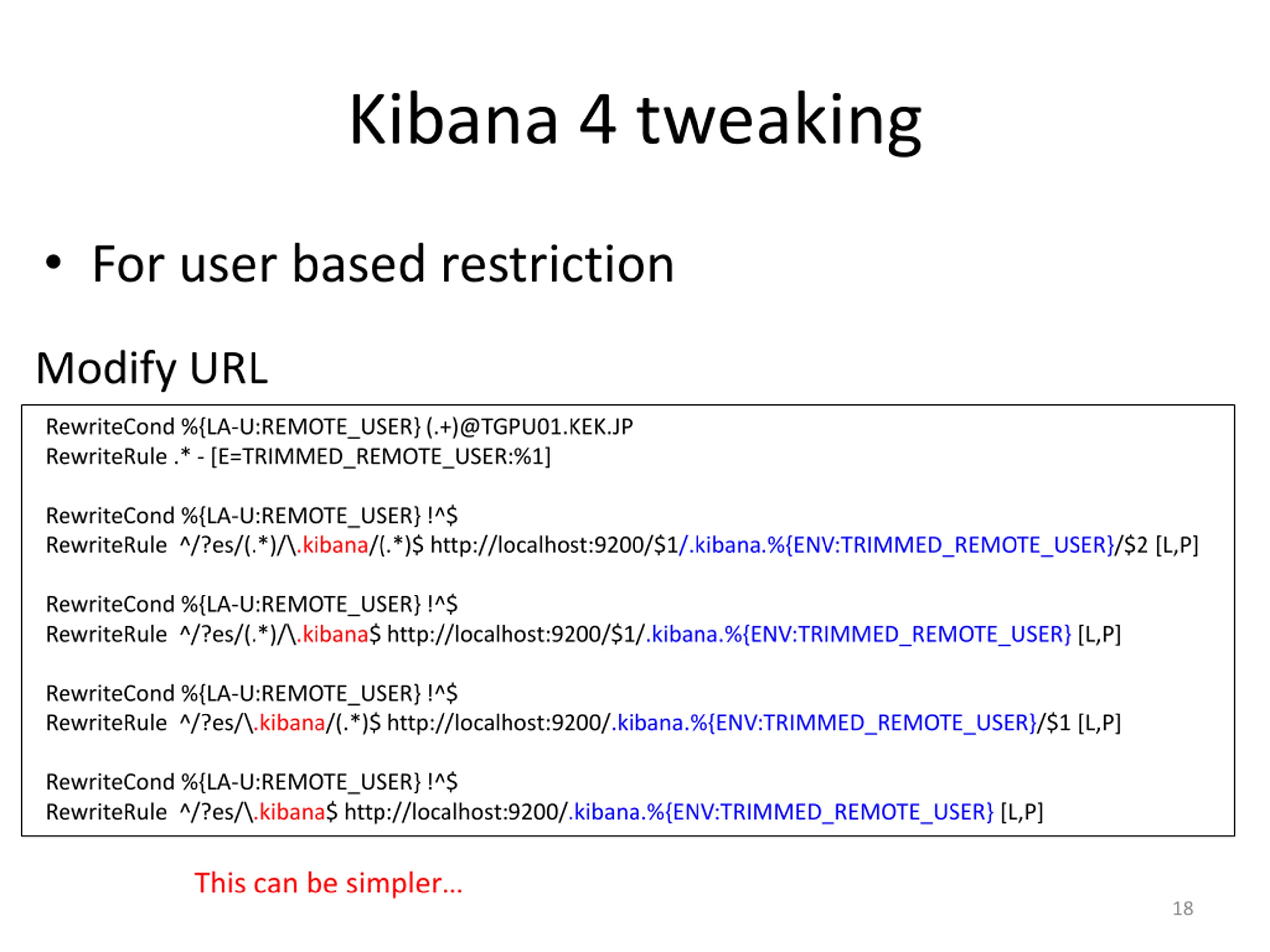

  18. Kibana 4 tweaking For user based restriction Modify URL RewriteCond %{LA-U:REMOTE_USER} (.+)@TGPU01.KEK.JP RewriteRule .* - [E=TRIMMED_REMOTE_USER:%1] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/(.*)/\.kibana/(.*)$ http://localhost:9200/$1/.kibana.%{ENV:TRIMMED_REMOTE_USER}/$2 [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/(.*)/\.kibana$ http://localhost:9200/$1/.kibana.%{ENV:TRIMMED_REMOTE_USER} [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/\.kibana/(.*)$ http://localhost:9200/.kibana.%{ENV:TRIMMED_REMOTE_USER}/$1 [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/\.kibana$ http://localhost:9200/.kibana.%{ENV:TRIMMED_REMOTE_USER} [L,P] This can be simpler 18

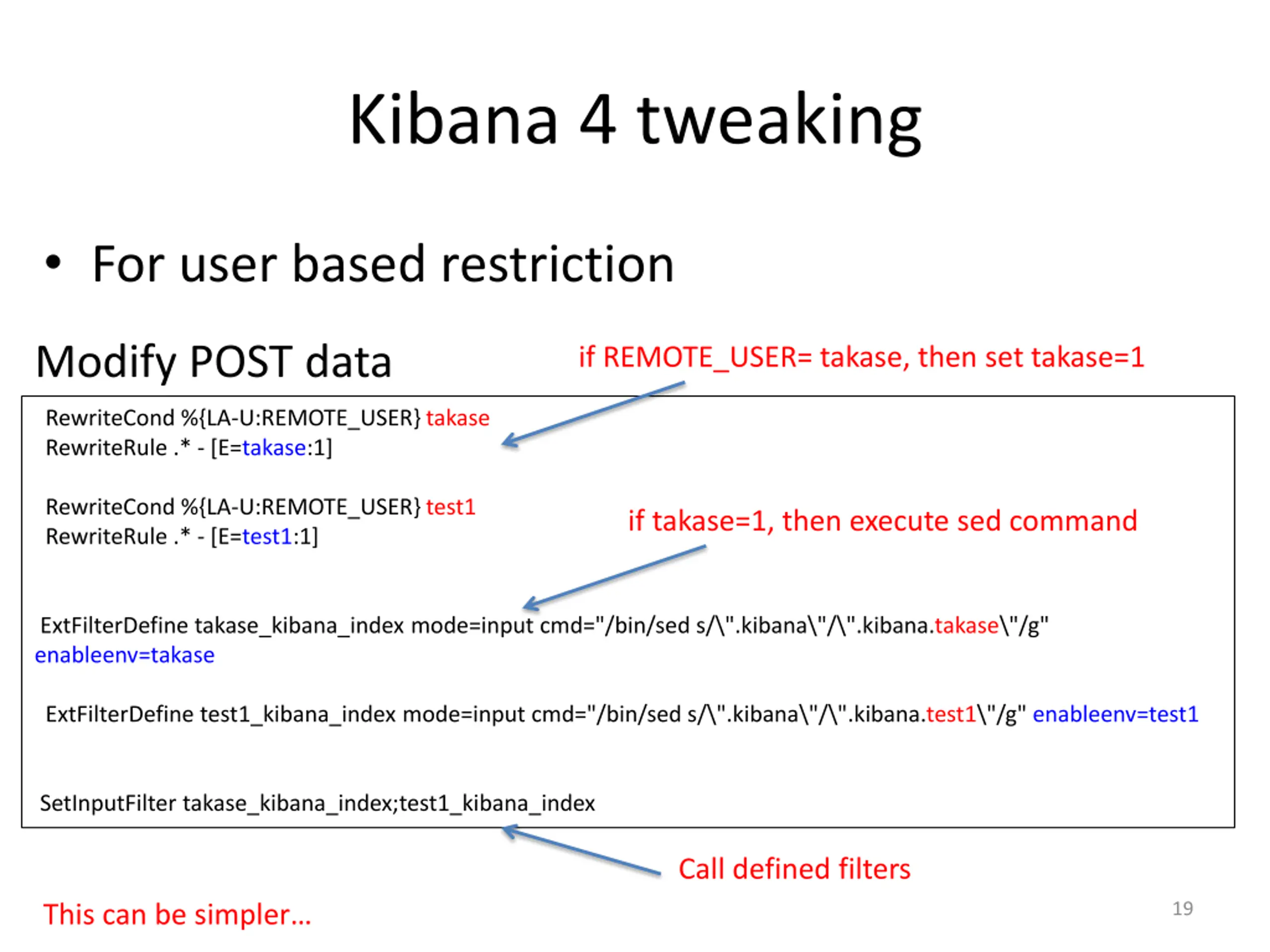

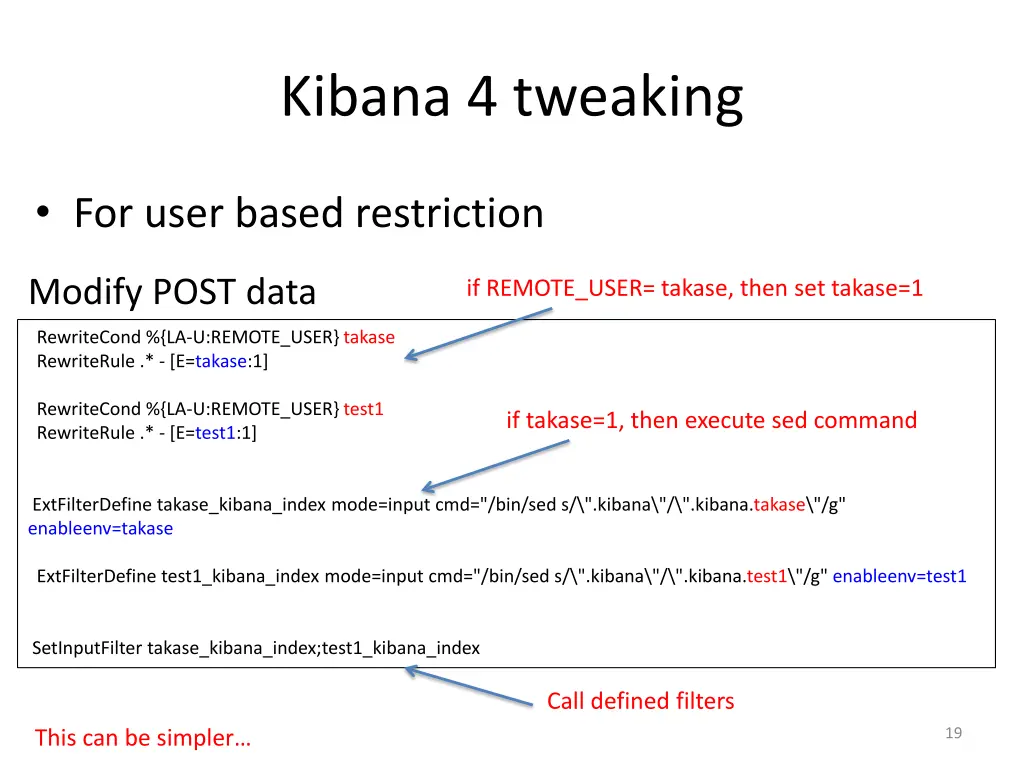

  19. Kibana 4 tweaking For user based restriction Modify POST data if REMOTE_USER= takase, then set takase=1 RewriteCond %{LA-U:REMOTE_USER} takase RewriteRule .* - [E=takase:1] RewriteCond %{LA-U:REMOTE_USER} test1 RewriteRule .* - [E=test1:1] if takase=1, then execute sed command ExtFilterDefine takase_kibana_index mode=input cmd="/bin/sed s/\".kibana\"/\".kibana.takase\"/g" enableenv=takase ExtFilterDefine test1_kibana_index mode=input cmd="/bin/sed s/\".kibana\"/\".kibana.test1\"/g" enableenv=test1 SetInputFilter takase_kibana_index;test1_kibana_index Call defined filters 19 This can be simpler

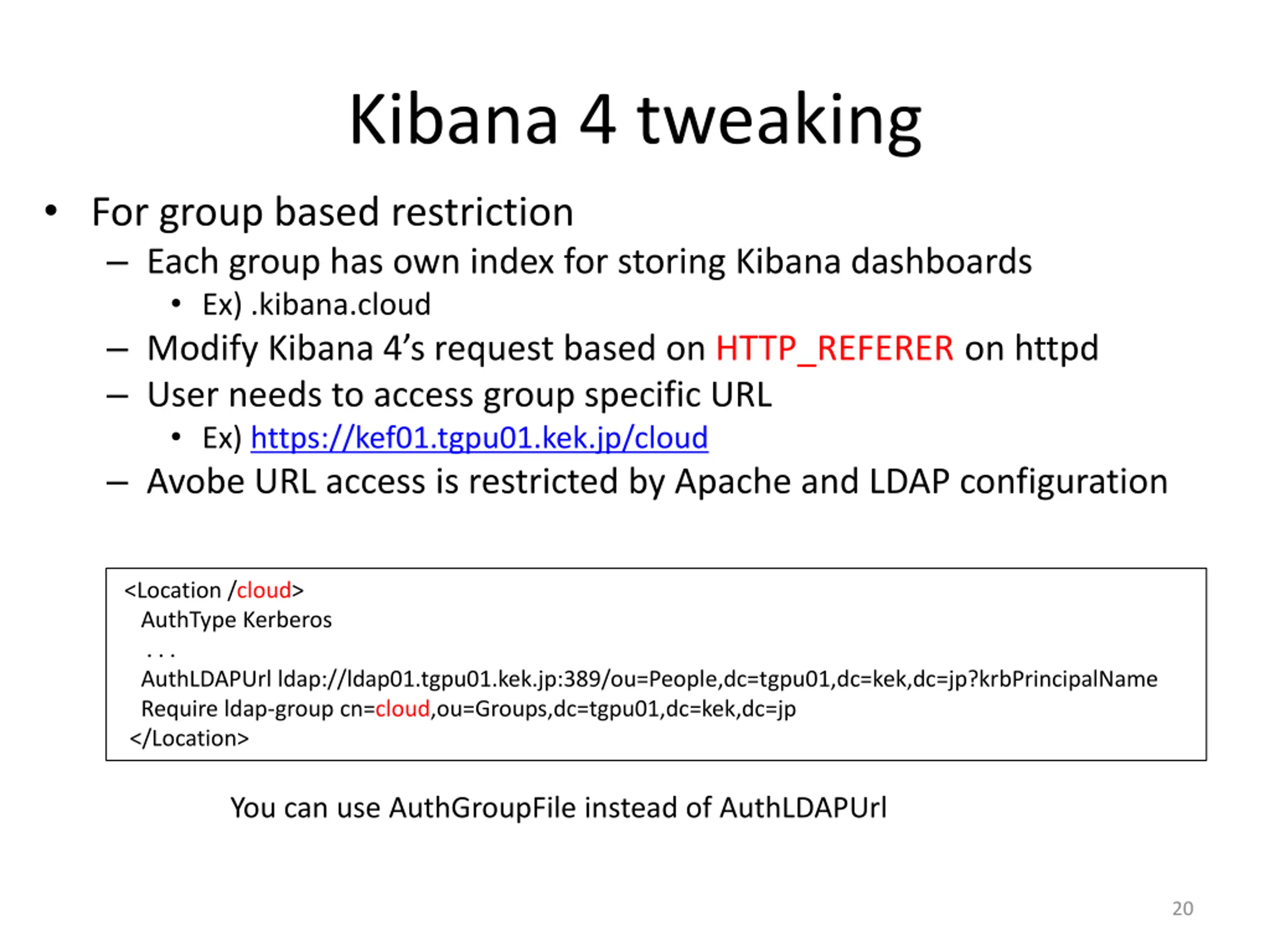

  20. Kibana 4 tweaking For group based restriction Each group has own index for storing Kibana dashboards Ex) .kibana.cloud Modify Kibana 4 s request based on HTTP_REFERER on httpd User needs to access group specific URL Ex) https://kef01.tgpu01.kek.jp/cloud Avobe URL access is restricted by Apache and LDAP configuration <Location /cloud> AuthType Kerberos . . . AuthLDAPUrl ldap://ldap01.tgpu01.kek.jp:389/ou=People,dc=tgpu01,dc=kek,dc=jp?krbPrincipalName Require ldap-group cn=cloud,ou=Groups,dc=tgpu01,dc=kek,dc=jp </Location> You can use AuthGroupFile instead of AuthLDAPUrl 20

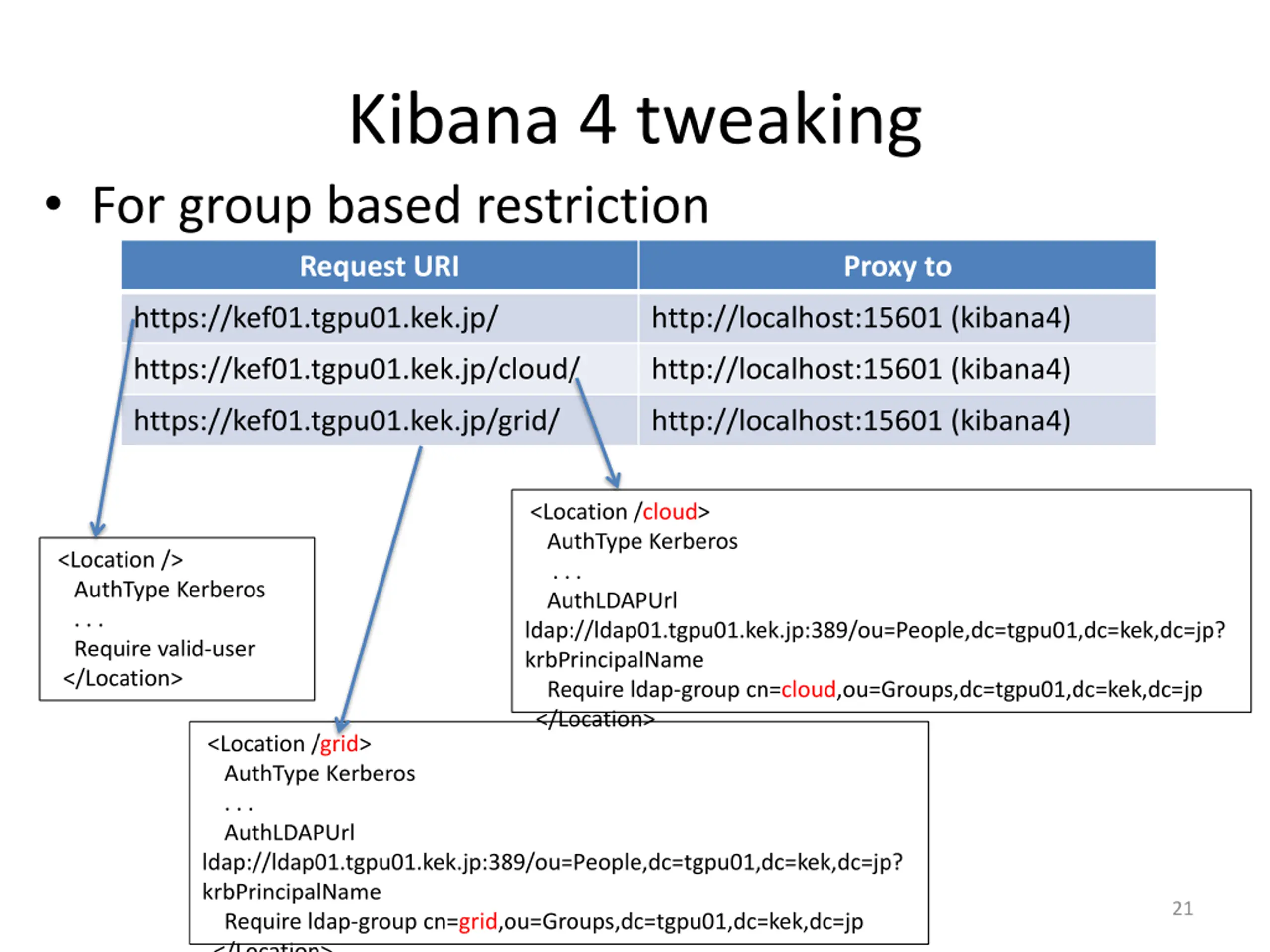

  21. Kibana 4 tweaking For group based restriction Request URI Proxy to https://kef01.tgpu01.kek.jp/ http://localhost:15601 (kibana4) https://kef01.tgpu01.kek.jp/cloud/ http://localhost:15601 (kibana4) https://kef01.tgpu01.kek.jp/grid/ http://localhost:15601 (kibana4) <Location /cloud> AuthType Kerberos . . . AuthLDAPUrl ldap://ldap01.tgpu01.kek.jp:389/ou=People,dc=tgpu01,dc=kek,dc=jp? krbPrincipalName Require ldap-group cn=cloud,ou=Groups,dc=tgpu01,dc=kek,dc=jp </Location> <Location /> AuthType Kerberos . . . Require valid-user </Location> <Location /grid> AuthType Kerberos . . . AuthLDAPUrl ldap://ldap01.tgpu01.kek.jp:389/ou=People,dc=tgpu01,dc=kek,dc=jp? krbPrincipalName Require ldap-group cn=grid,ou=Groups,dc=tgpu01,dc=kek,dc=jp </Location> 21

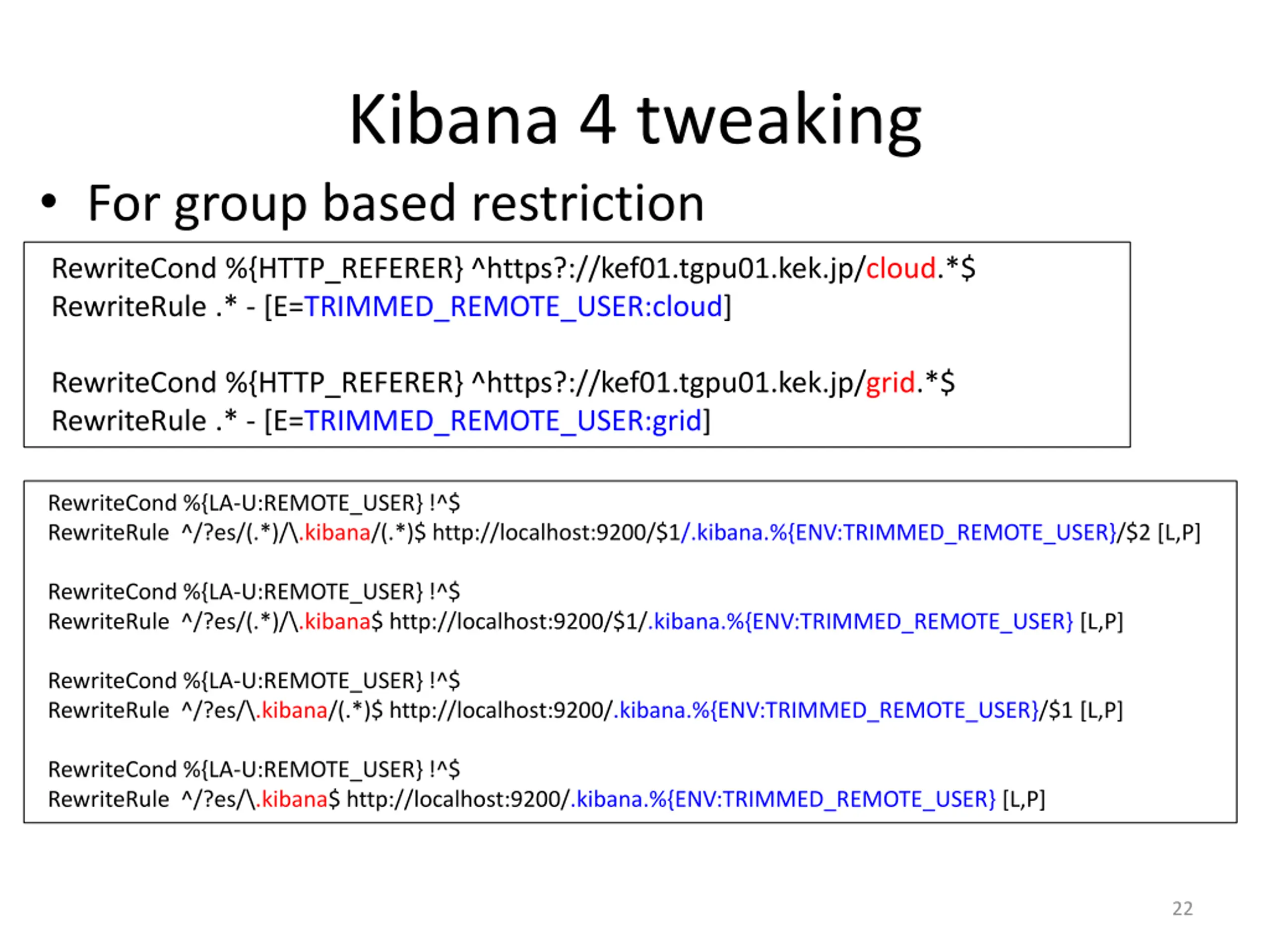

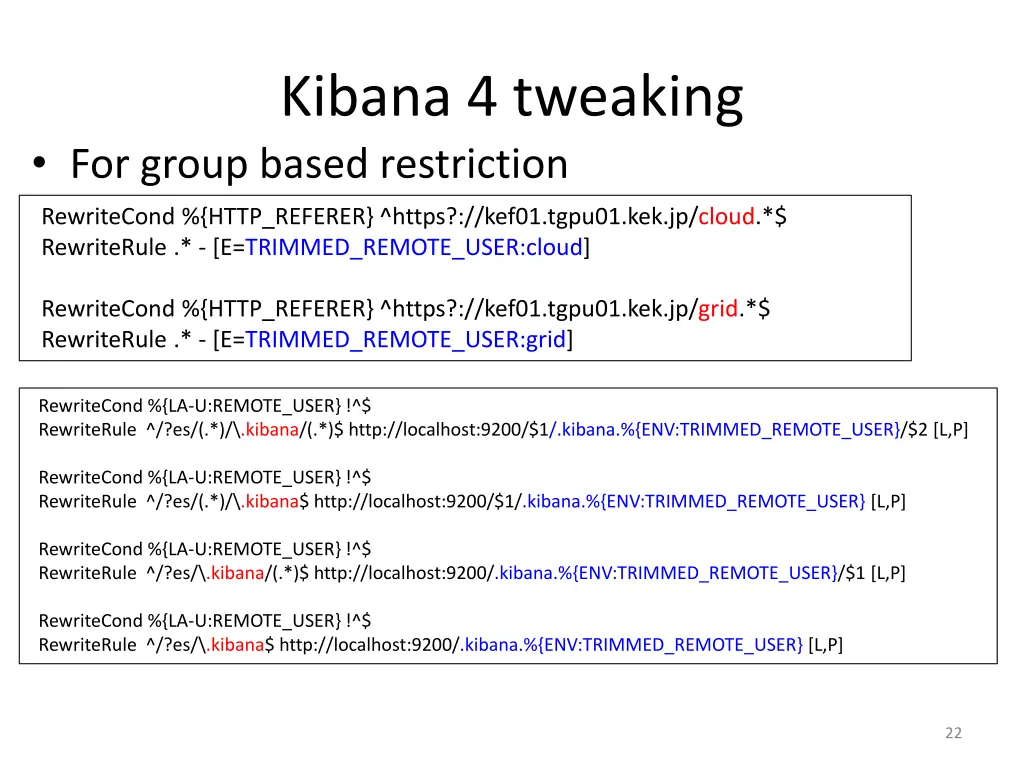

  22. Kibana 4 tweaking For group based restriction RewriteCond %{HTTP_REFERER} ^https?://kef01.tgpu01.kek.jp/cloud.*$ RewriteRule .* - [E=TRIMMED_REMOTE_USER:cloud] RewriteCond %{HTTP_REFERER} ^https?://kef01.tgpu01.kek.jp/grid.*$ RewriteRule .* - [E=TRIMMED_REMOTE_USER:grid] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/(.*)/\.kibana/(.*)$ http://localhost:9200/$1/.kibana.%{ENV:TRIMMED_REMOTE_USER}/$2 [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/(.*)/\.kibana$ http://localhost:9200/$1/.kibana.%{ENV:TRIMMED_REMOTE_USER} [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/\.kibana/(.*)$ http://localhost:9200/.kibana.%{ENV:TRIMMED_REMOTE_USER}/$1 [L,P] RewriteCond %{LA-U:REMOTE_USER} !^$ RewriteRule ^/?es/\.kibana$ http://localhost:9200/.kibana.%{ENV:TRIMMED_REMOTE_USER} [L,P] 22

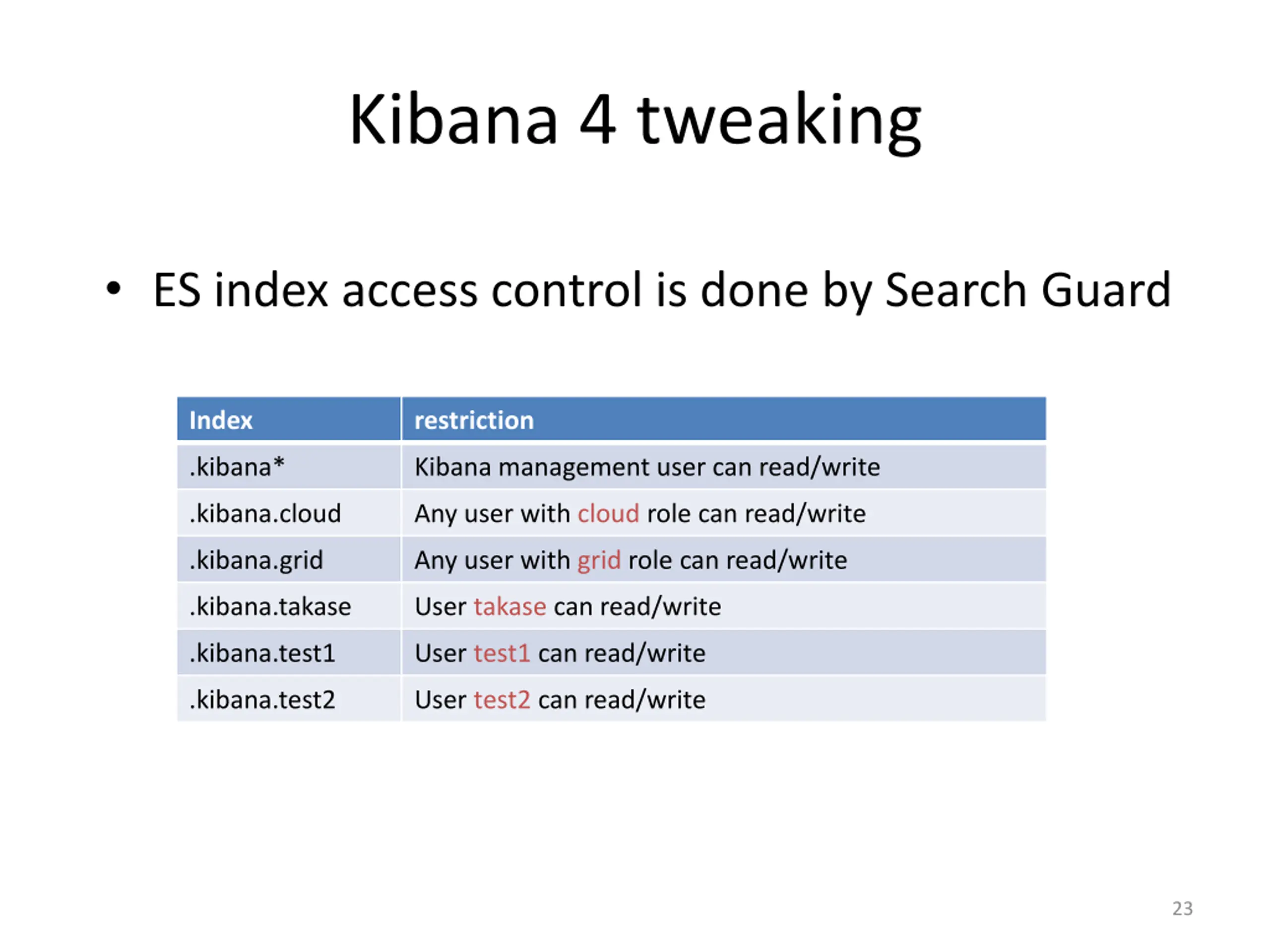

  23. Kibana 4 tweaking ES index access control is done by Search Guard Index restriction .kibana* Kibana management user can read/write .kibana.cloud Any user with cloud role can read/write .kibana.grid Any user with grid role can read/write .kibana.takase User takase can read/write .kibana.test1 User test1 can read/write .kibana.test2 User test2 can read/write 23

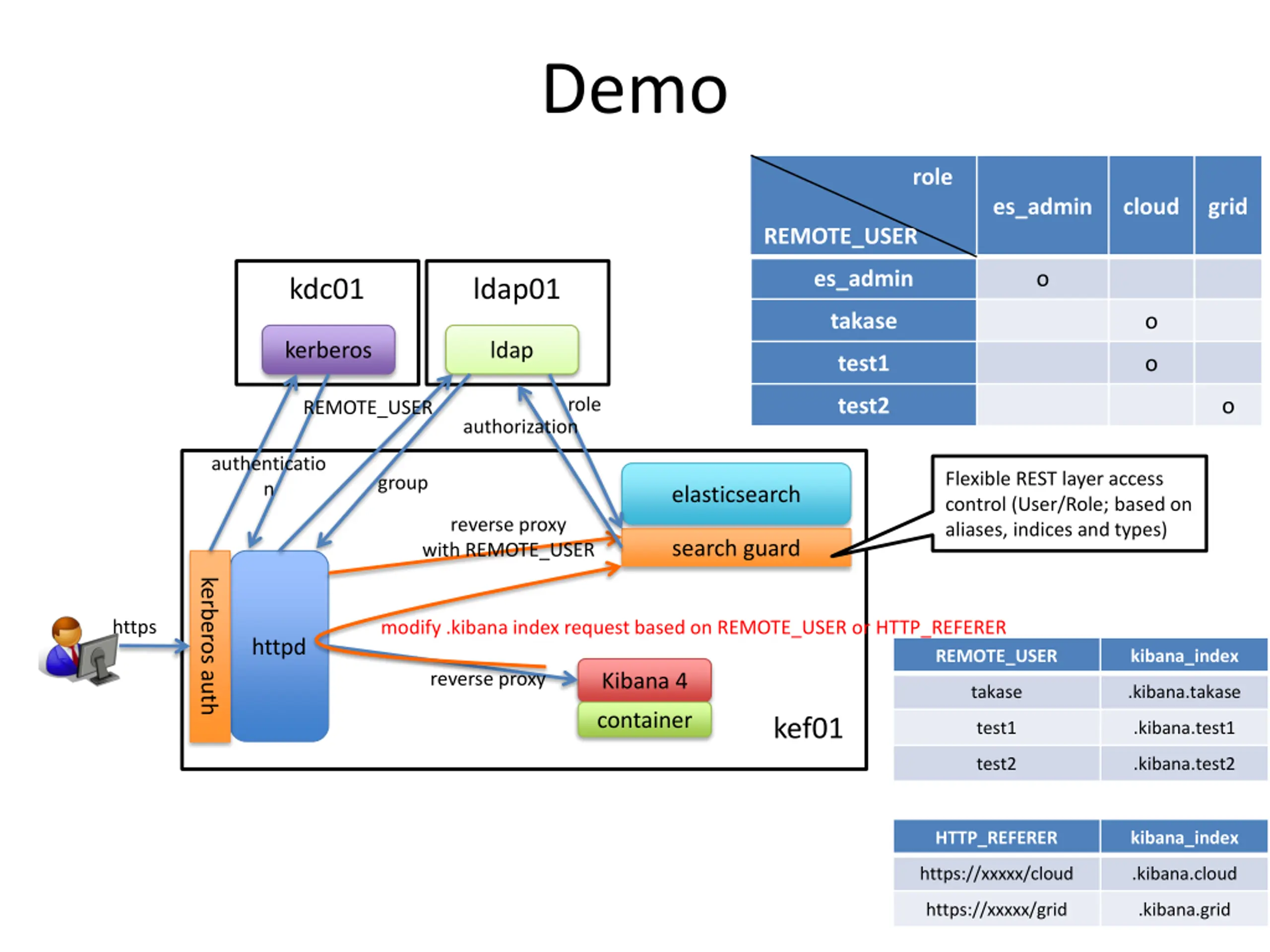

  24. Demo role es_admin cloud grid REMOTE_USER es_admin o kdc01 ldap01 takase o kerberos ldap test1 o test2 o role REMOTE_USER authorization authenticatio n Flexible REST layer access control (User/Role; based on aliases, indices and types) group elasticsearch reverse proxy with REMOTE_USER search guard kerberos auth https modify .kibana index request based on REMOTE_USER or HTTP_REFERER httpd REMOTE_USER kibana_index reverse proxy Kibana 4 takase .kibana.takase container kef01 test1 .kibana.test1 test2 .kibana.test2 HTTP_REFERER kibana_index https://xxxxx/cloud .kibana.cloud 24 https://xxxxx/grid .kibana.grid

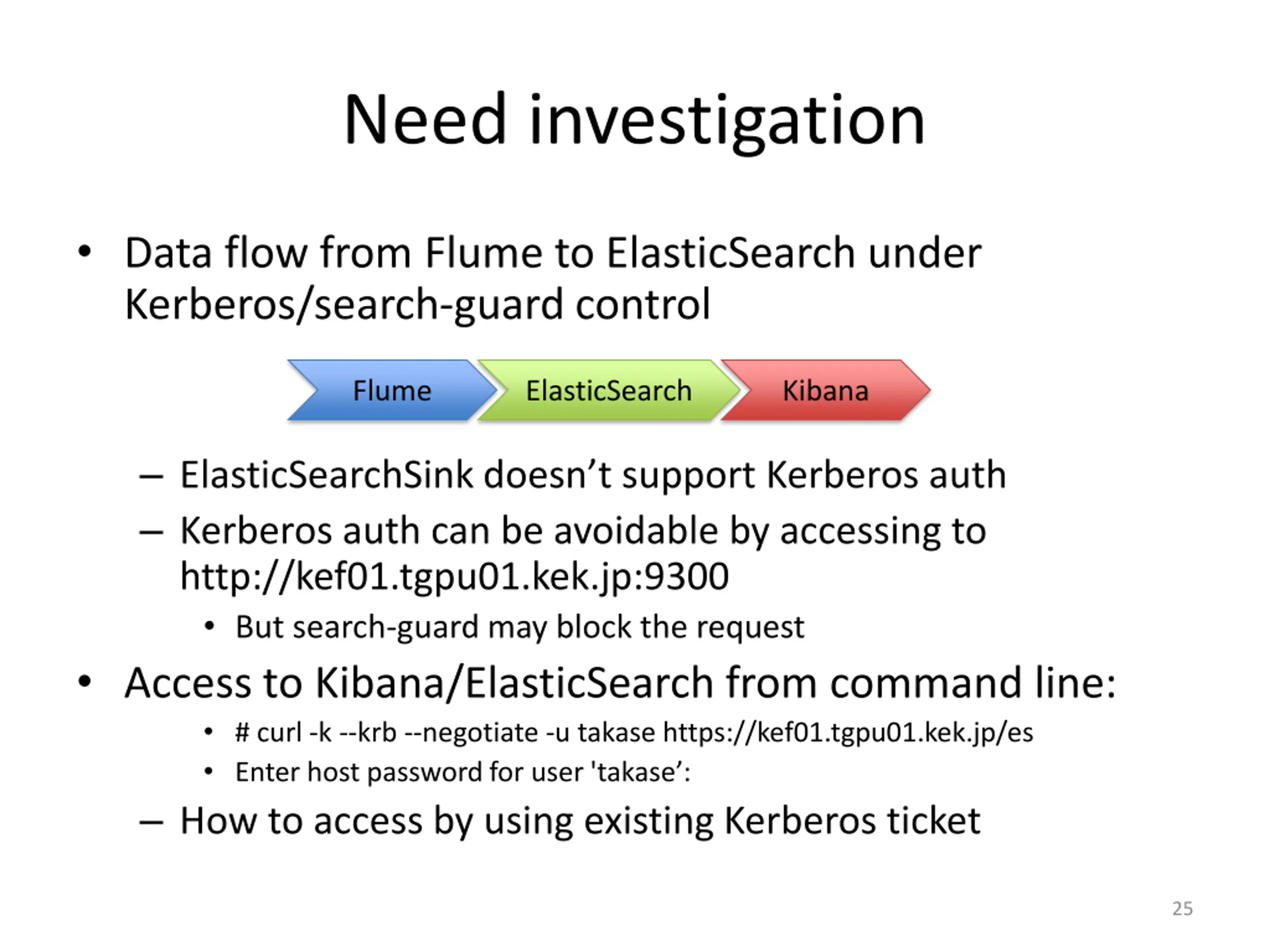

  25. Need investigation Data flow from Flume to ElasticSearch under Kerberos/search-guard control Flume ElasticSearch Kibana ElasticSearchSink doesn t support Kerberos auth Kerberos auth can be avoidable by accessing to http://kef01.tgpu01.kek.jp:9300 But search-guard may block the request Access to Kibana/ElasticSearch from command line: # curl -k --krb --negotiate -u takase https://kef01.tgpu01.kek.jp/es Enter host password for user 'takase : How to access by using existing Kerberos ticket 25
