2014 Automated Construction of an Active Directory Test Environment Gil Kirkpatrick Directory Services MVP CTO, ViewDS Identity Solutions

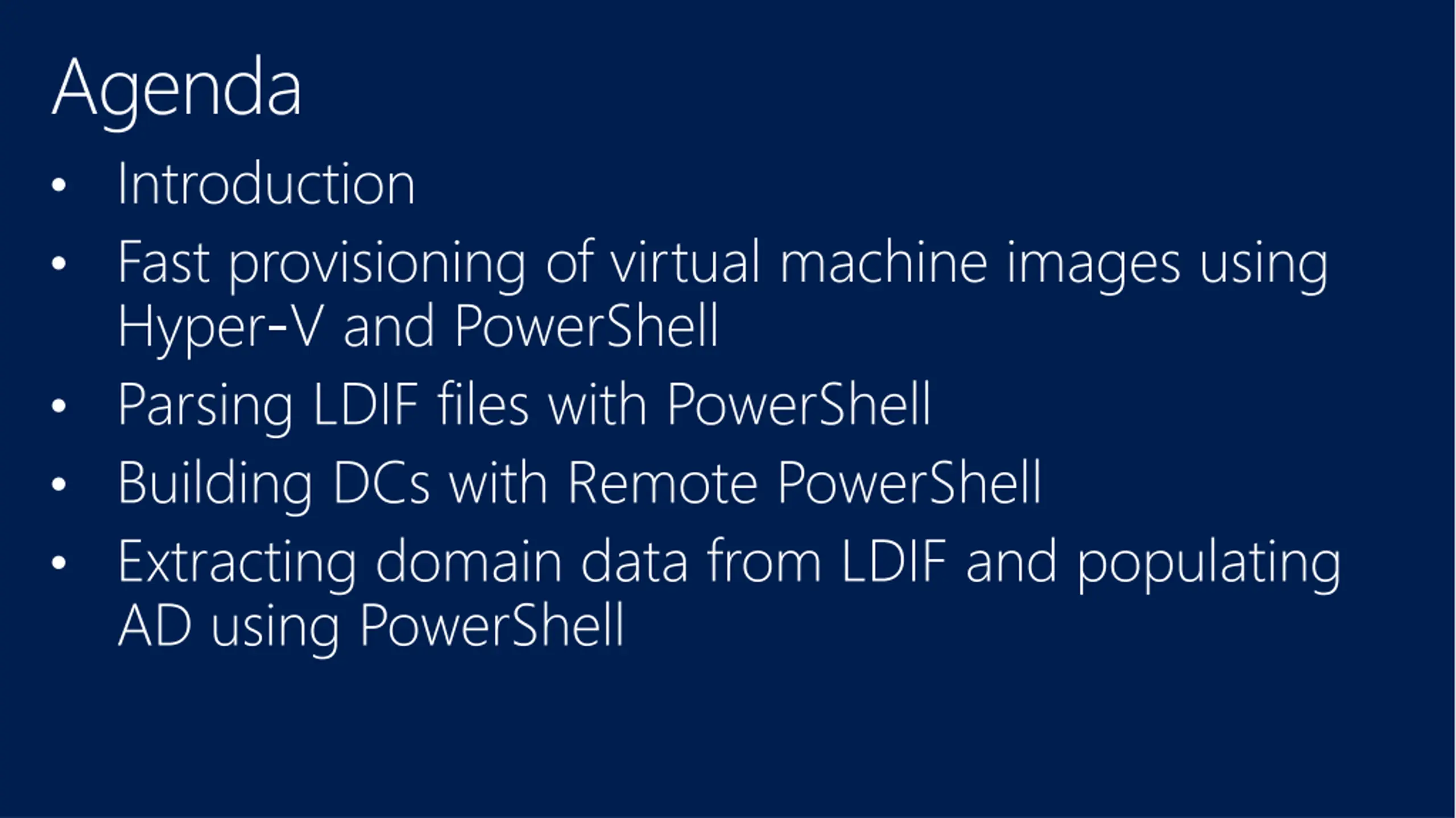

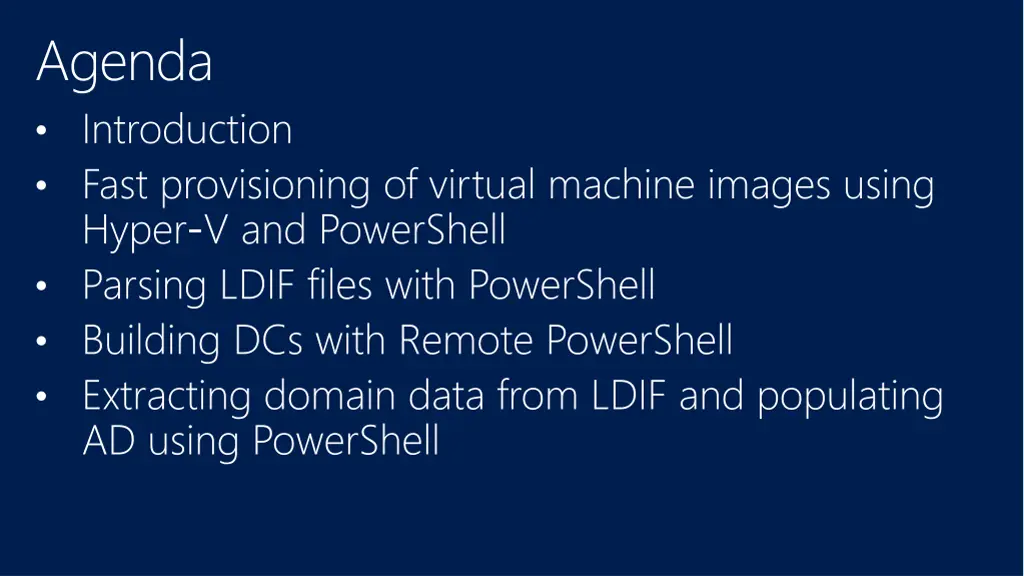

Agenda Introduction Fast provisioning of virtual machine images using Hyper-V and PowerShell Parsing LDIF files with PowerShell Building DCs with Remote PowerShell Extracting domain data from LDIF and populating AD using PowerShell

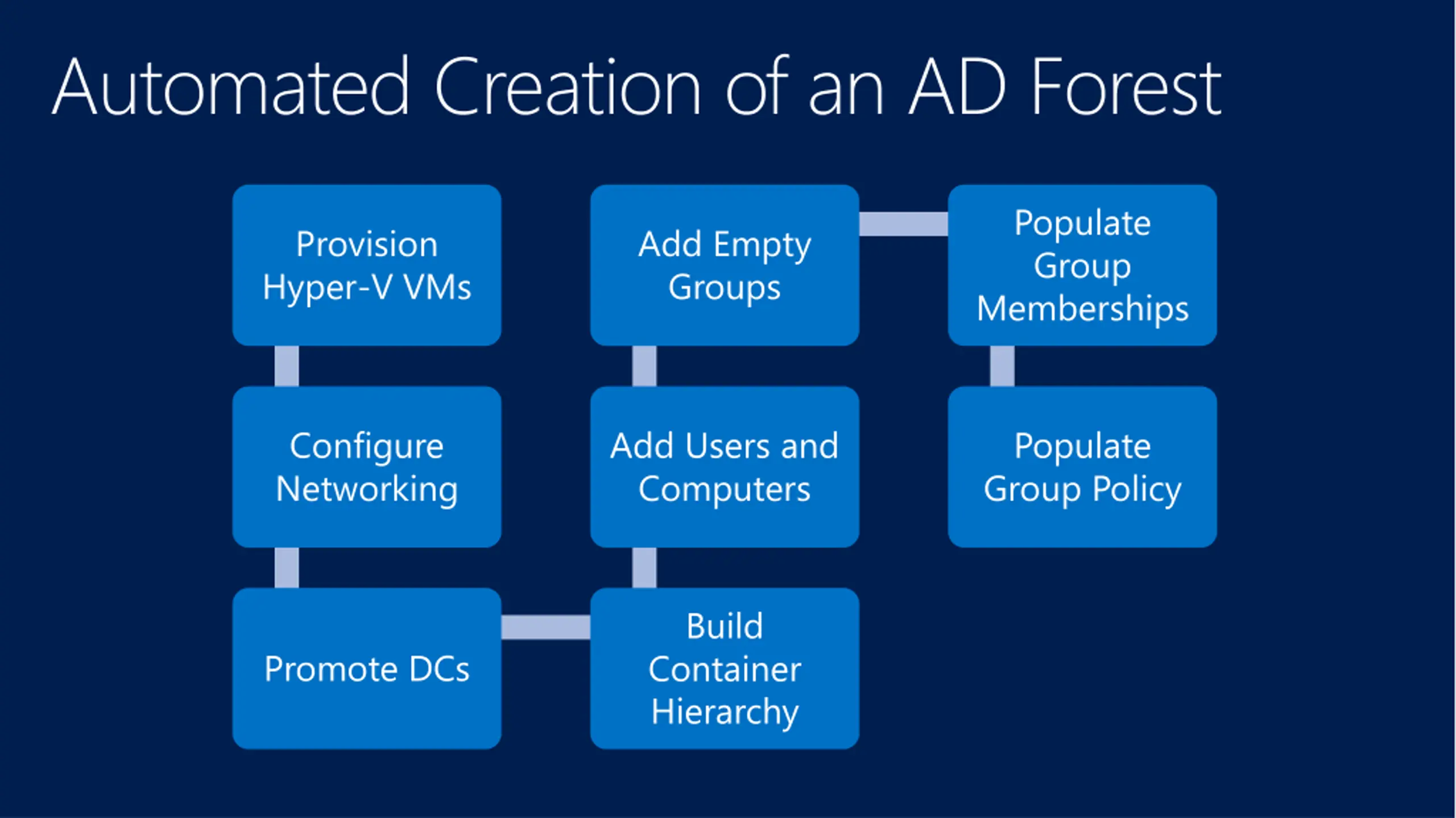

Automated Creation of an AD Forest Populate Group Memberships Provision Hyper-V VMs Add Empty Groups Configure Networking Add Users and Computers Populate Group Policy Build Container Hierarchy Promote DCs

Hyper-V Differencing Disks Create VM Install Windows Configure Install other software SYSPREP Save base image SYSPREP Windows Image VM1 VM2 VM3

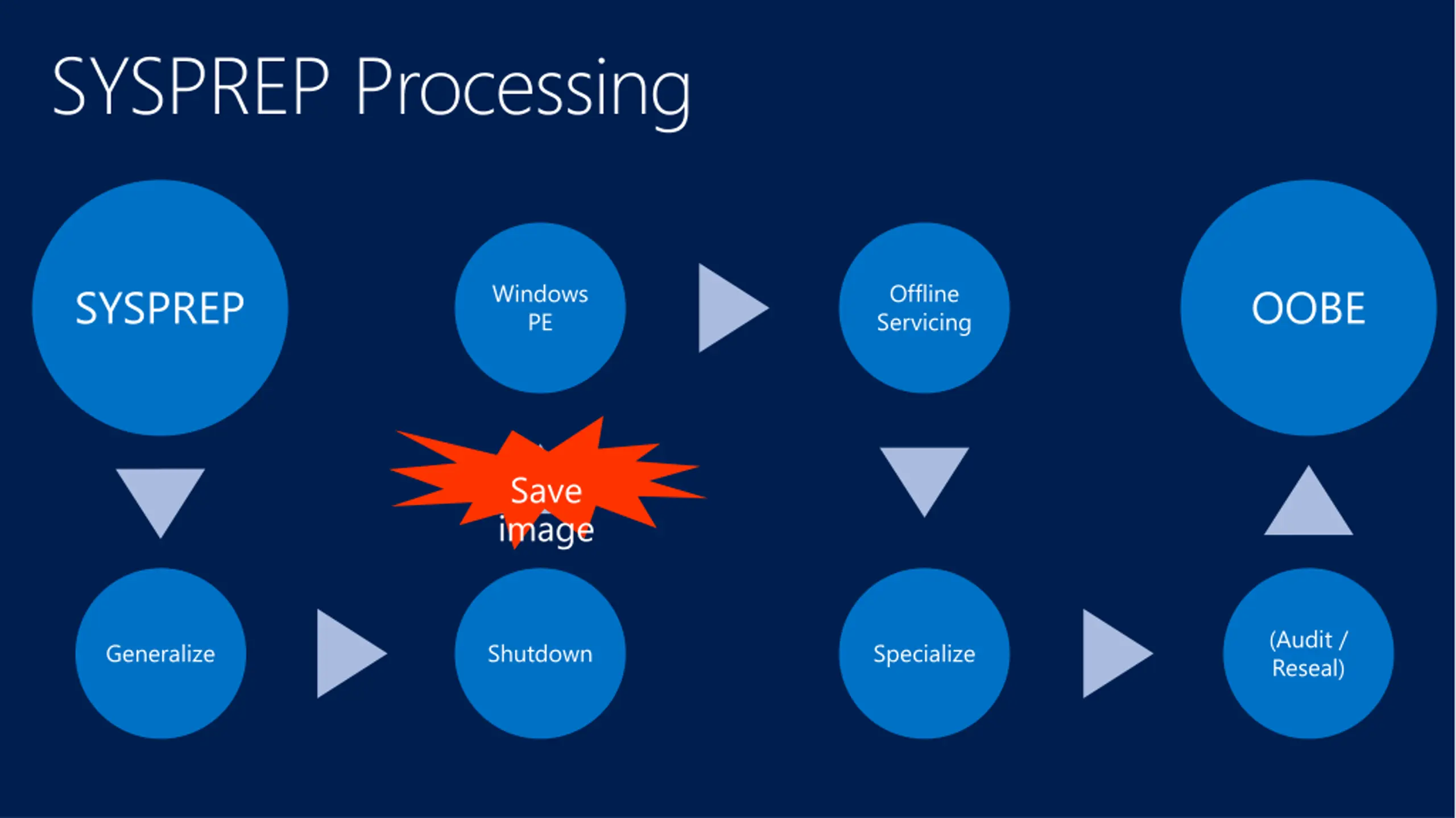

SYSPREP Processing SYSPREP OOBE Windows PE Offline Servicing Save image (Audit / Reseal) Generalize Shutdown Specialize

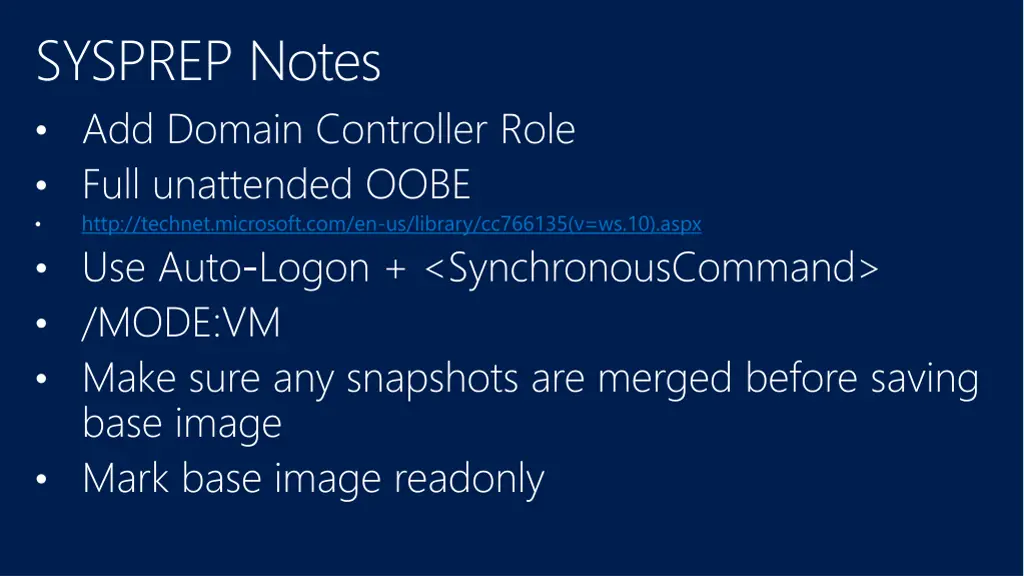

SYSPREP Notes Add Domain Controller Role Full unattended OOBE http://technet.microsoft.com/en-us/library/cc766135(v=ws.10).aspx Use Auto-Logon + <SynchronousCommand> /MODE:VM Make sure any snapshots are merged before saving base image Mark base image readonly

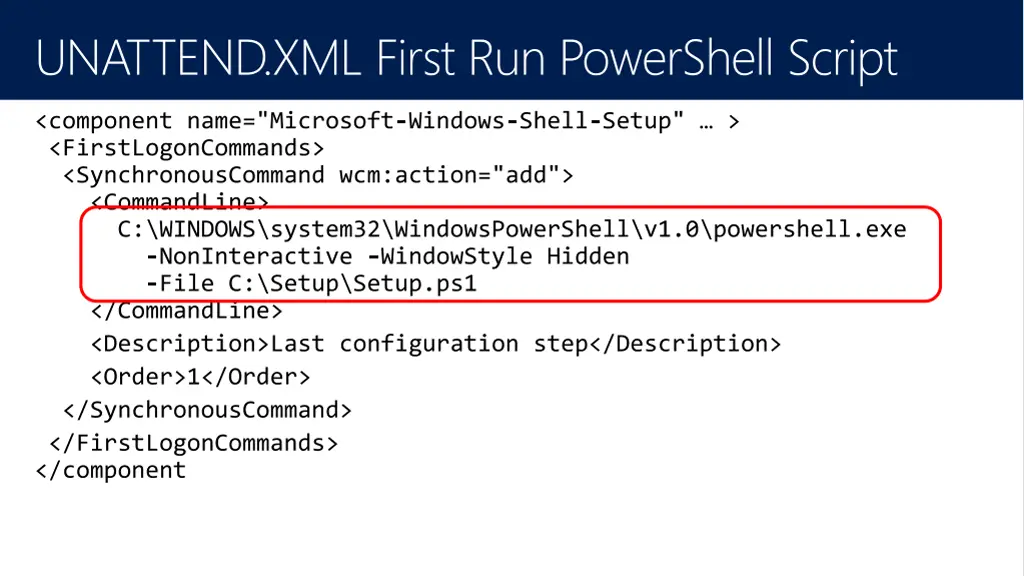

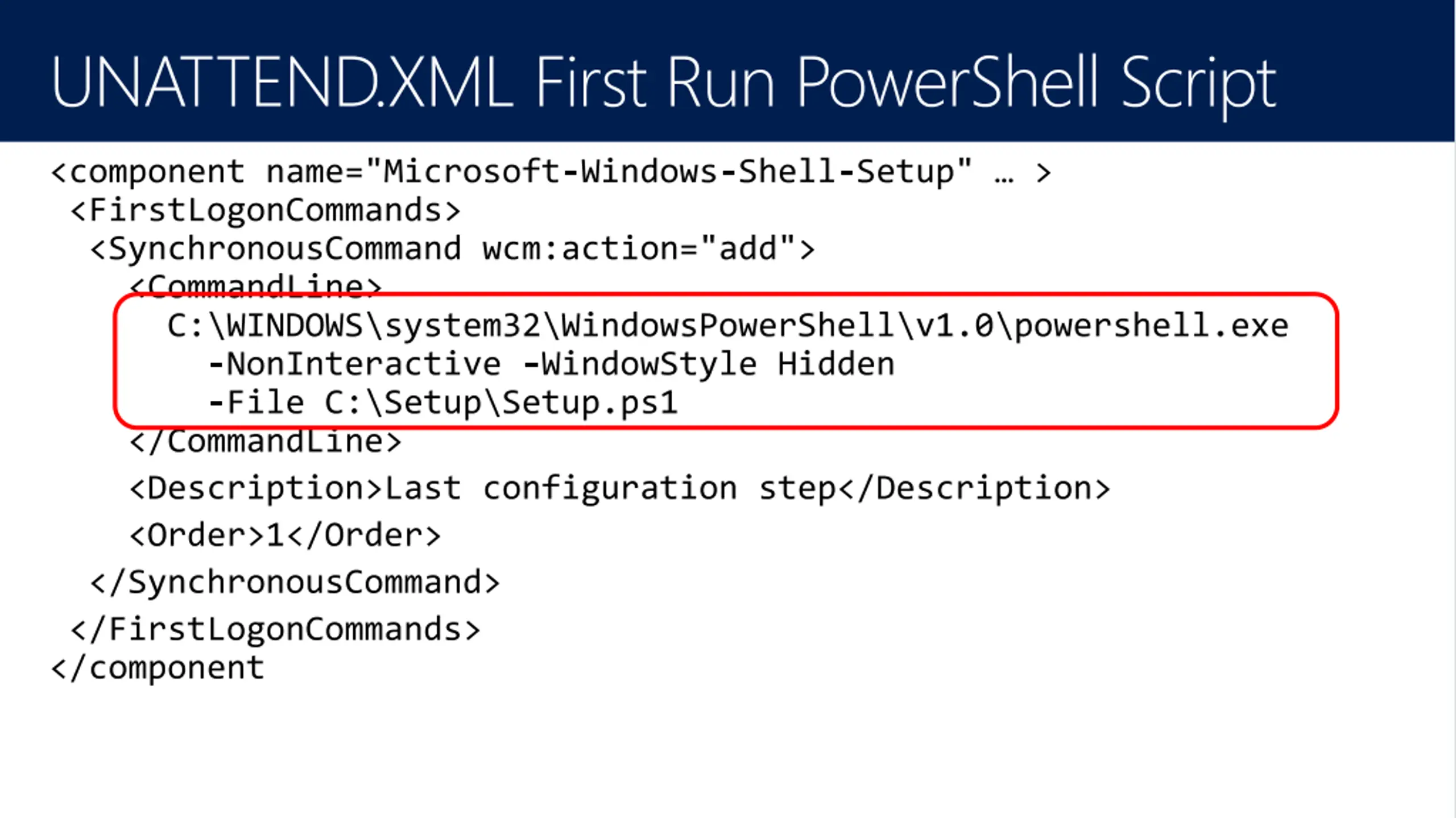

UNATTEND.XML First Run PowerShell Script <component name="Microsoft-Windows-Shell-Setup" > <FirstLogonCommands> <SynchronousCommand wcm:action="add"> <CommandLine> C:\WINDOWS\system32\WindowsPowerShell\v1.0\powershell.exe -NonInteractive -WindowStyle Hidden -File C:\Setup\Setup.ps1 </CommandLine> <Description>Last configuration step</Description> <Order>1</Order> </SynchronousCommand> </FirstLogonCommands> </component

Clone-VM PowerShell Script (abstracted) Param $VMName, $BaseVHD $vhdFolder = "$VMPath\$VMName\Virtual Hard Disks" $vm = New-VM -Name $VMName -MemoryStartupBytes 2048mb -Generation 2 -BootDevice VHD -NoVHD -Path $VMPath New-Item $vhdFolder -Type Directory | Out-Null New-VHD -Path $VHDPath -Differencing -ParentPath $BaseVHD | Out-Null $vhd = Add-VMHardDiskDrive -VM $vm -Path $VHDPath -ControllerType SCSI -PassThru Set-VMFirmware -VM $vm -FirstBootDevice $vhd -WhatIf:$WhatIf Enable-VMIntegrationService -Name "Guest Service Interface" -VM $vm

Demo Cloning a Hyper-V VM Using PowerShell

Machine Name and Networking How do you configure the networking before the networking is configured?

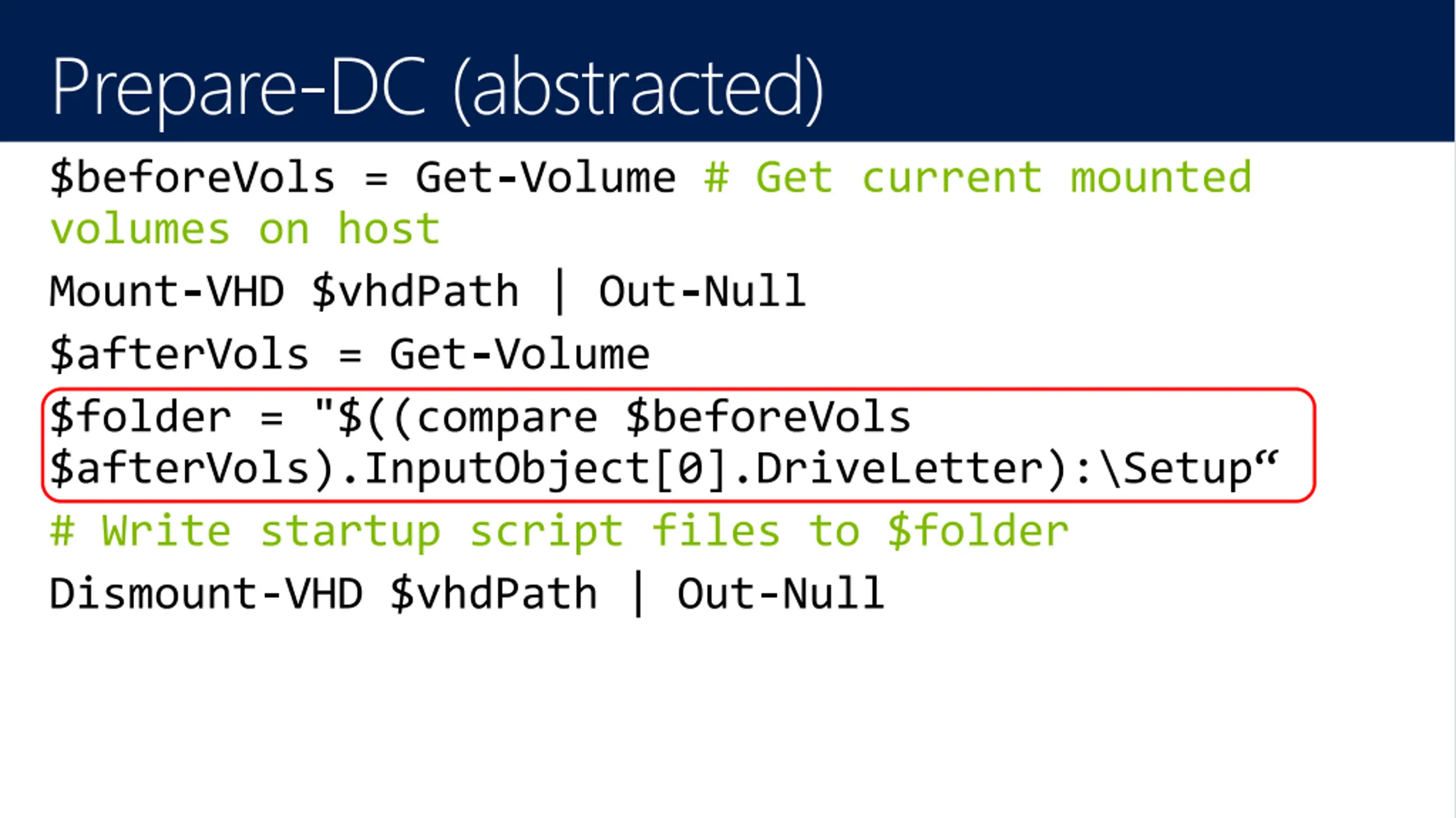

Prepare-DC (abstracted) $beforeVols = Get-Volume # Get current mounted volumes on host Mount-VHD $vhdPath | Out-Null $afterVols = Get-Volume $folder = "$((compare $beforeVols $afterVols).InputObject[0].DriveLetter):\Setup # Write startup script files to $folder Dismount-VHD $vhdPath | Out-Null

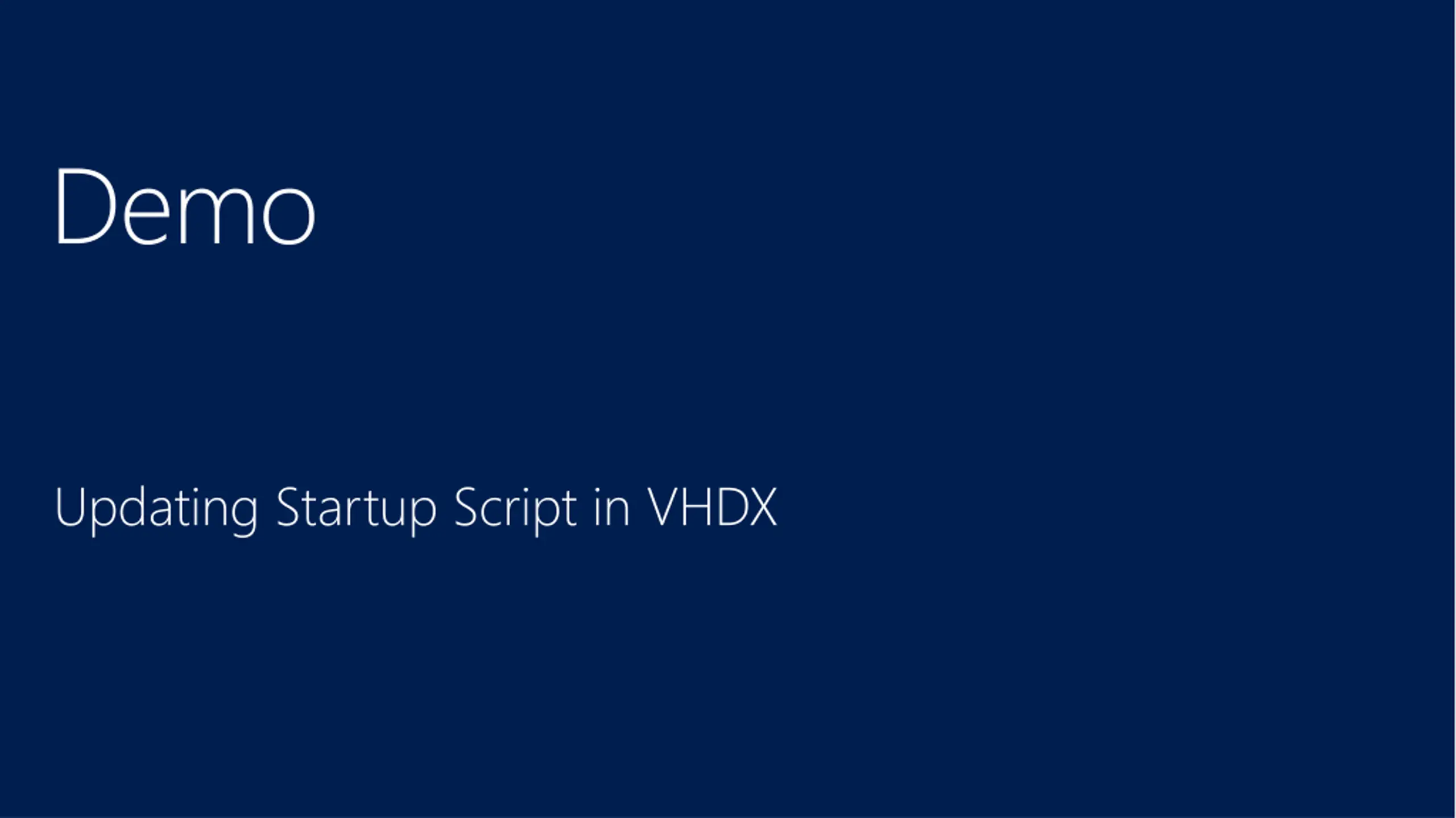

Demo Updating Startup Script in VHDX

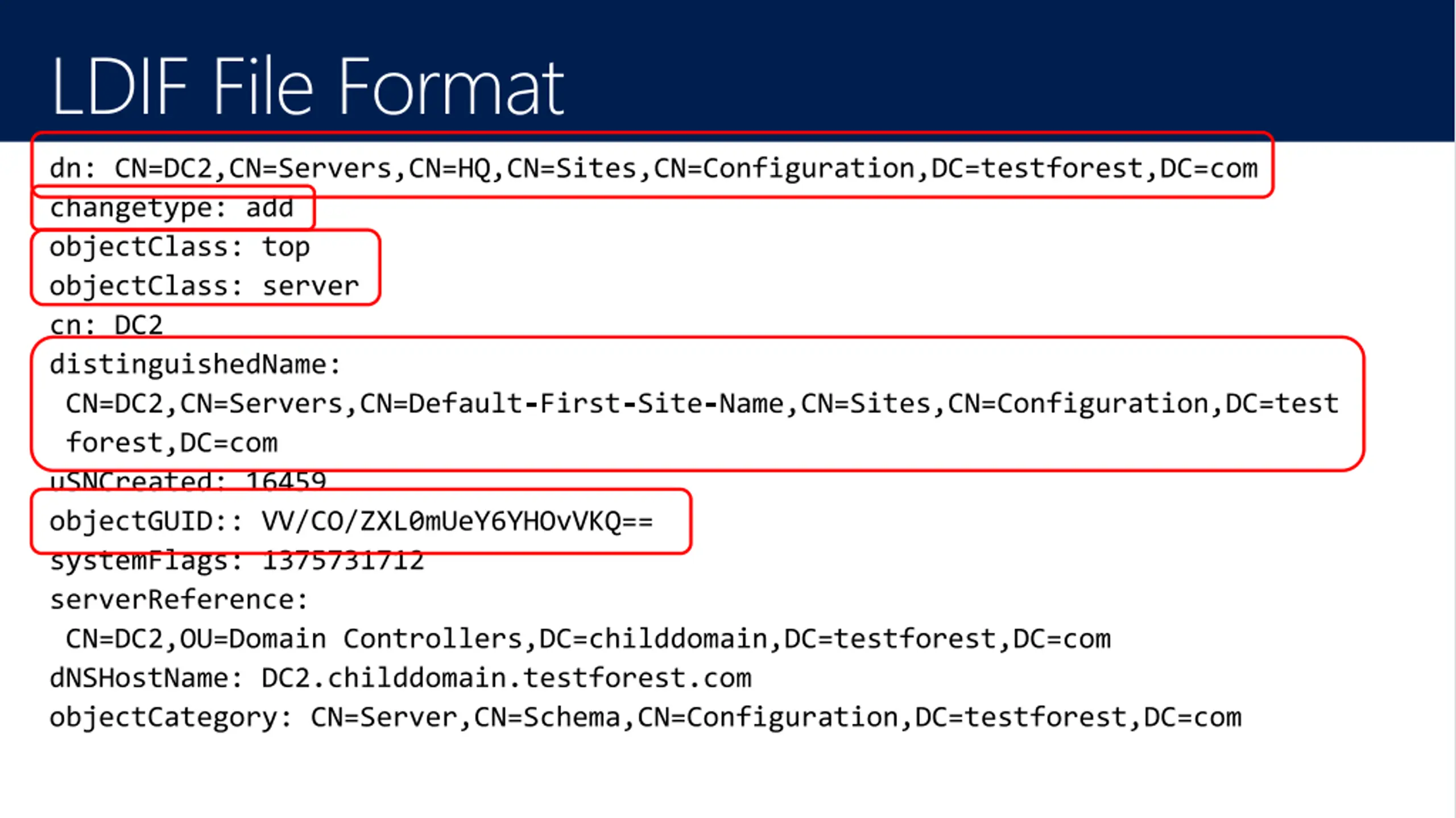

LDIF File Format dn: CN=DC2,CN=Servers,CN=HQ,CN=Sites,CN=Configuration,DC=testforest,DC=com changetype: add objectClass: top objectClass: server cn: DC2 distinguishedName: CN=DC2,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=test forest,DC=com uSNCreated: 16459 objectGUID:: VV/CO/ZXL0mUeY6YHOvVKQ== systemFlags: 1375731712 serverReference: CN=DC2,OU=Domain Controllers,DC=childdomain,DC=testforest,DC=com dNSHostName: DC2.childdomain.testforest.com objectCategory: CN=Server,CN=Schema,CN=Configuration,DC=testforest,DC=com

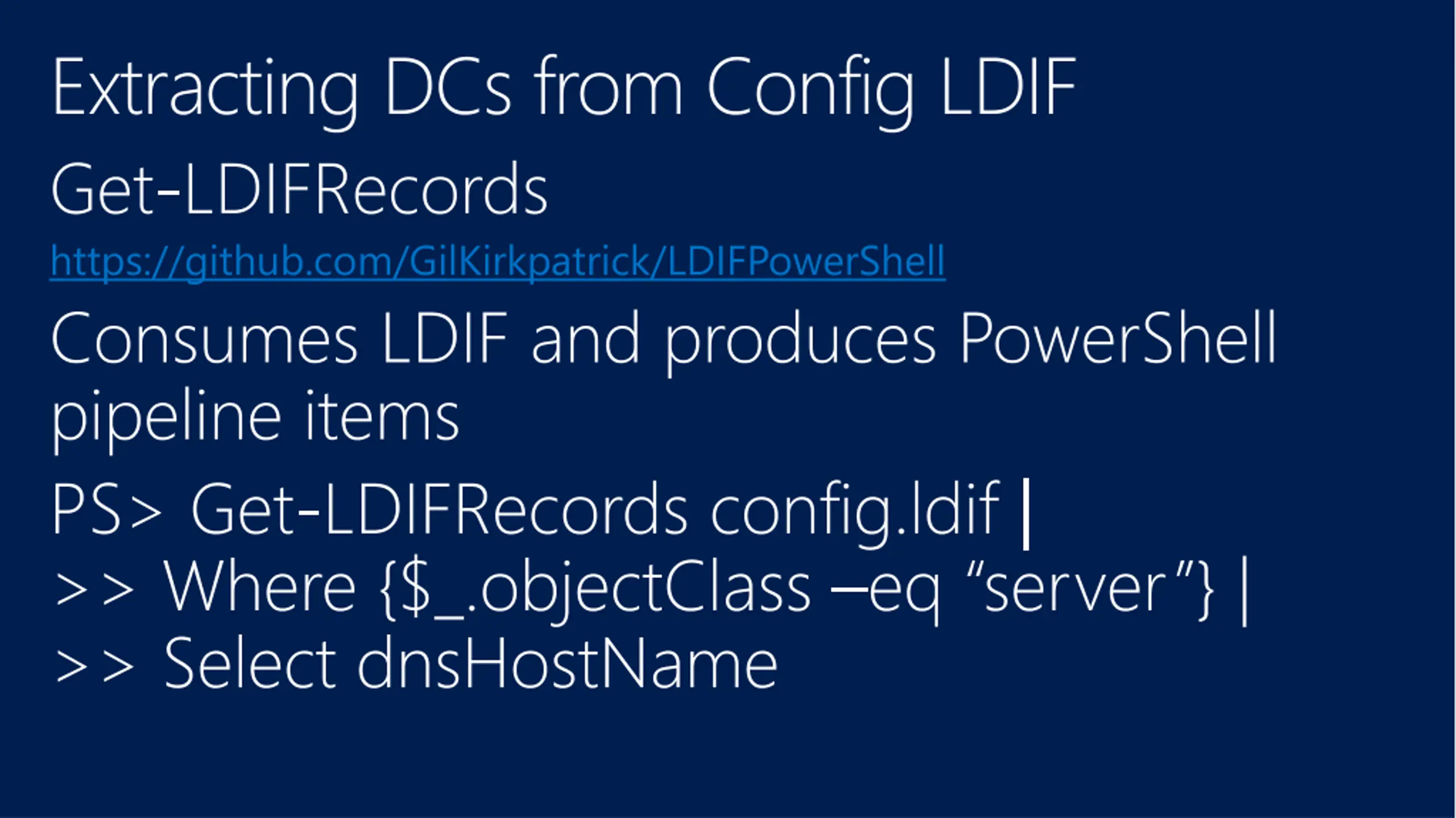

Extracting DCs from Config LDIF Get-LDIFRecords https://github.com/GilKirkpatrick/LDIFPowerShell Consumes LDIF and produces PowerShell pipeline items PS> Get-LDIFRecords config.ldif | >> Where {$_.objectClass eq server } | >> Select dnsHostName

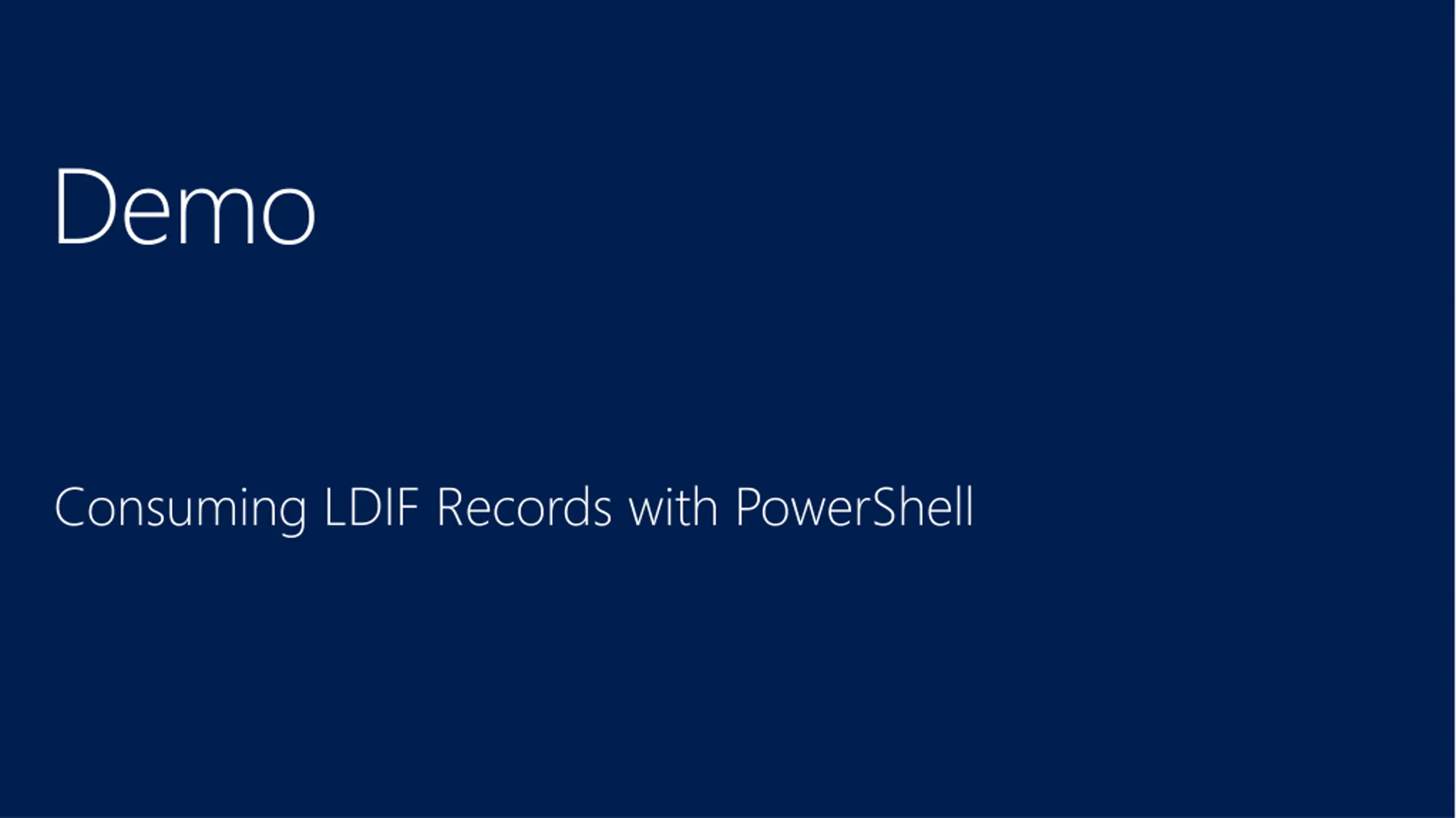

Demo Consuming LDIF Records with PowerShell

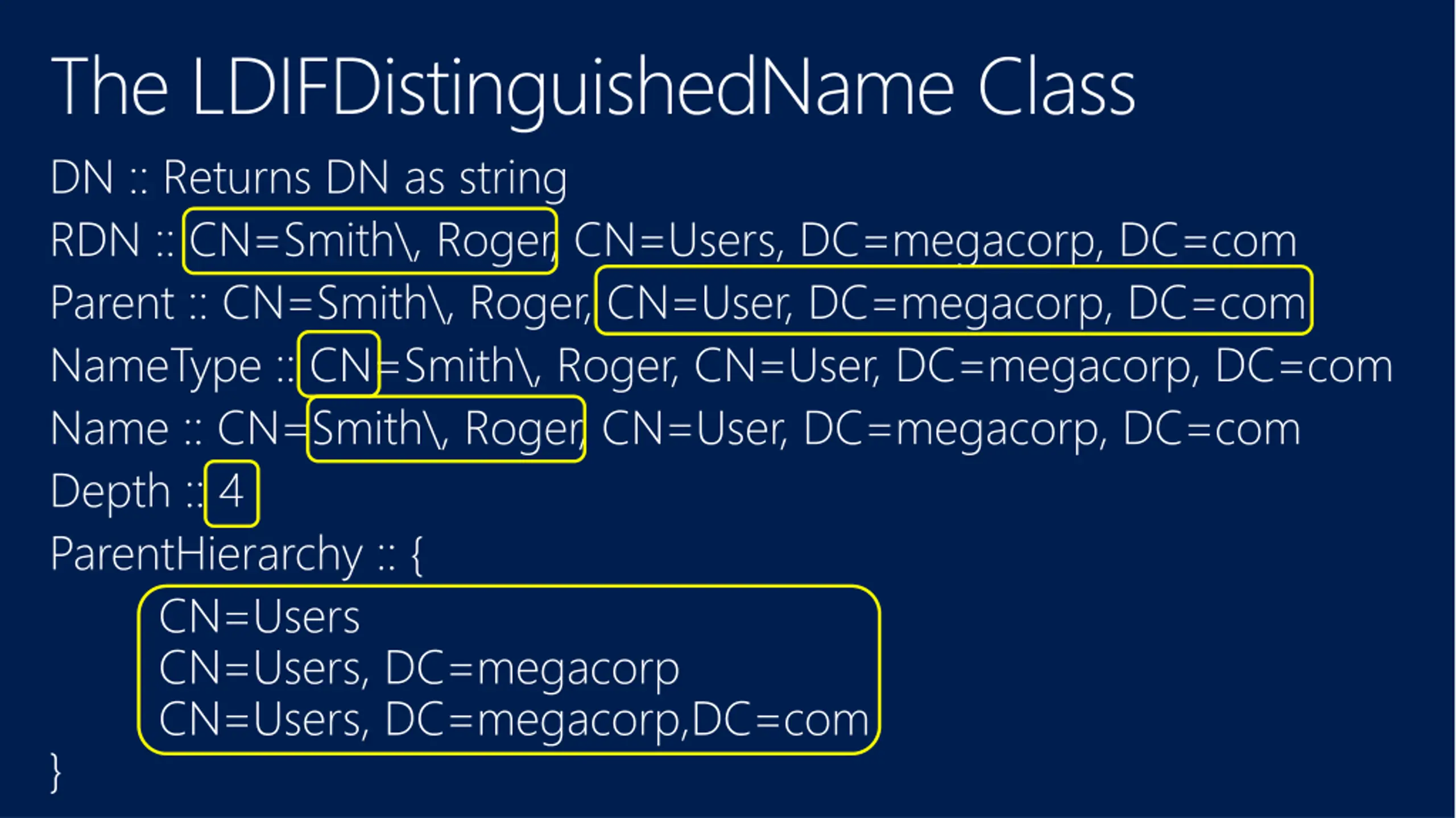

The LDIFDistinguishedName Class DN :: Returns DN as string RDN :: CN=Smith\, Roger, CN=Users, DC=megacorp, DC=com Parent :: CN=Smith\, Roger, CN=User, DC=megacorp, DC=com NameType :: CN=Smith\, Roger, CN=User, DC=megacorp, DC=com Name :: CN=Smith\, Roger, CN=User, DC=megacorp, DC=com Depth :: 4 ParentHierarchy :: { CN=Users CN=Users, DC=megacorp CN=Users, DC=megacorp,DC=com }

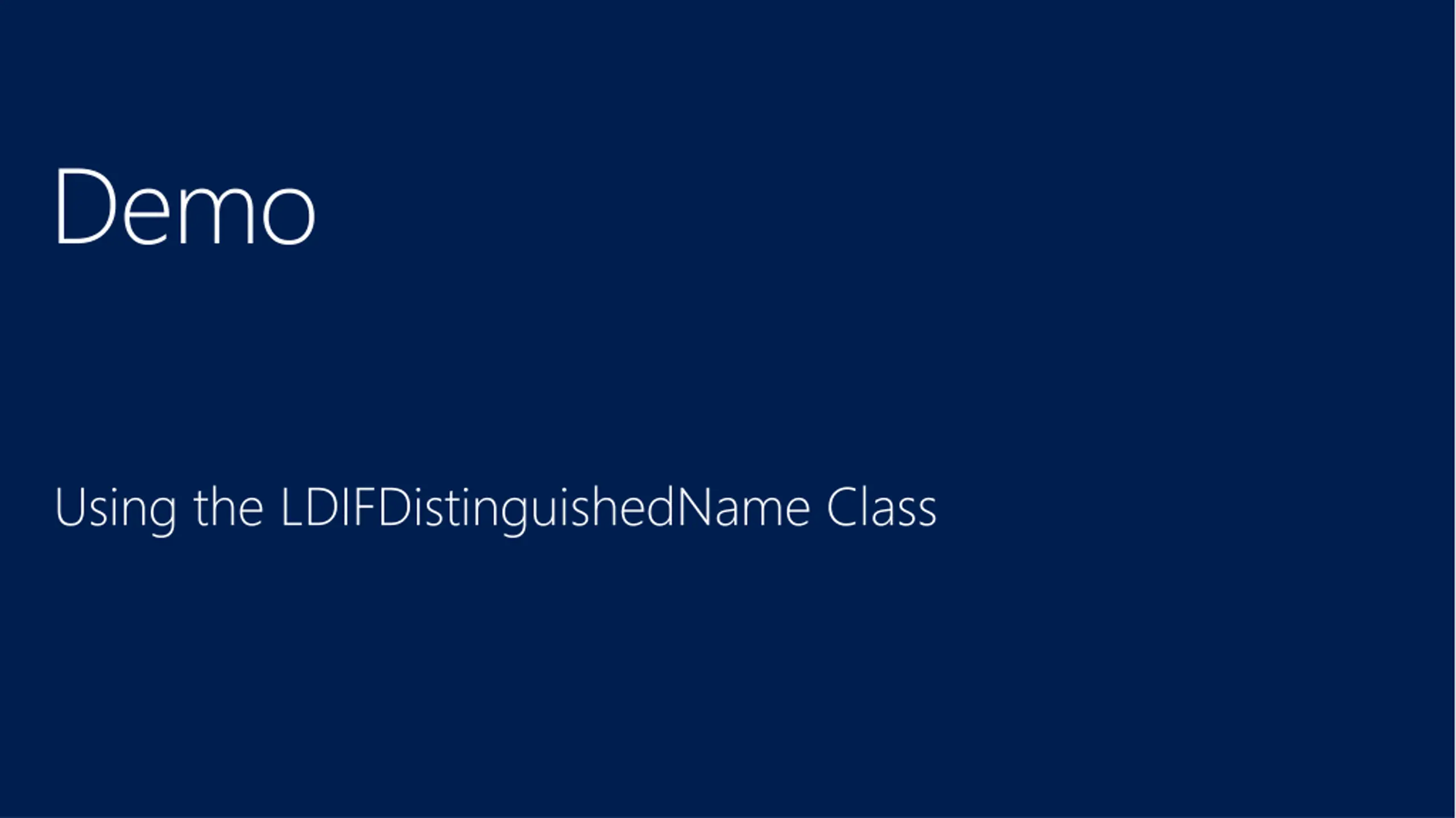

Demo Using the LDIFDistinguishedName Class

Promoting DCs with Remote PowerShell Setup WinRM on client and target VMs Set-WSManQuickConfig Force Configure security PS> set-item wsman:\localhost\client\TrustedHosts <IP1>,<IP2>, Much simpler that using winrm command Invoke-Command Variables are from remote machine scope $using: prefix to reference local scope variables Install-ADDSForest, Install-ADDSDomain, Install-ADDSDomainController

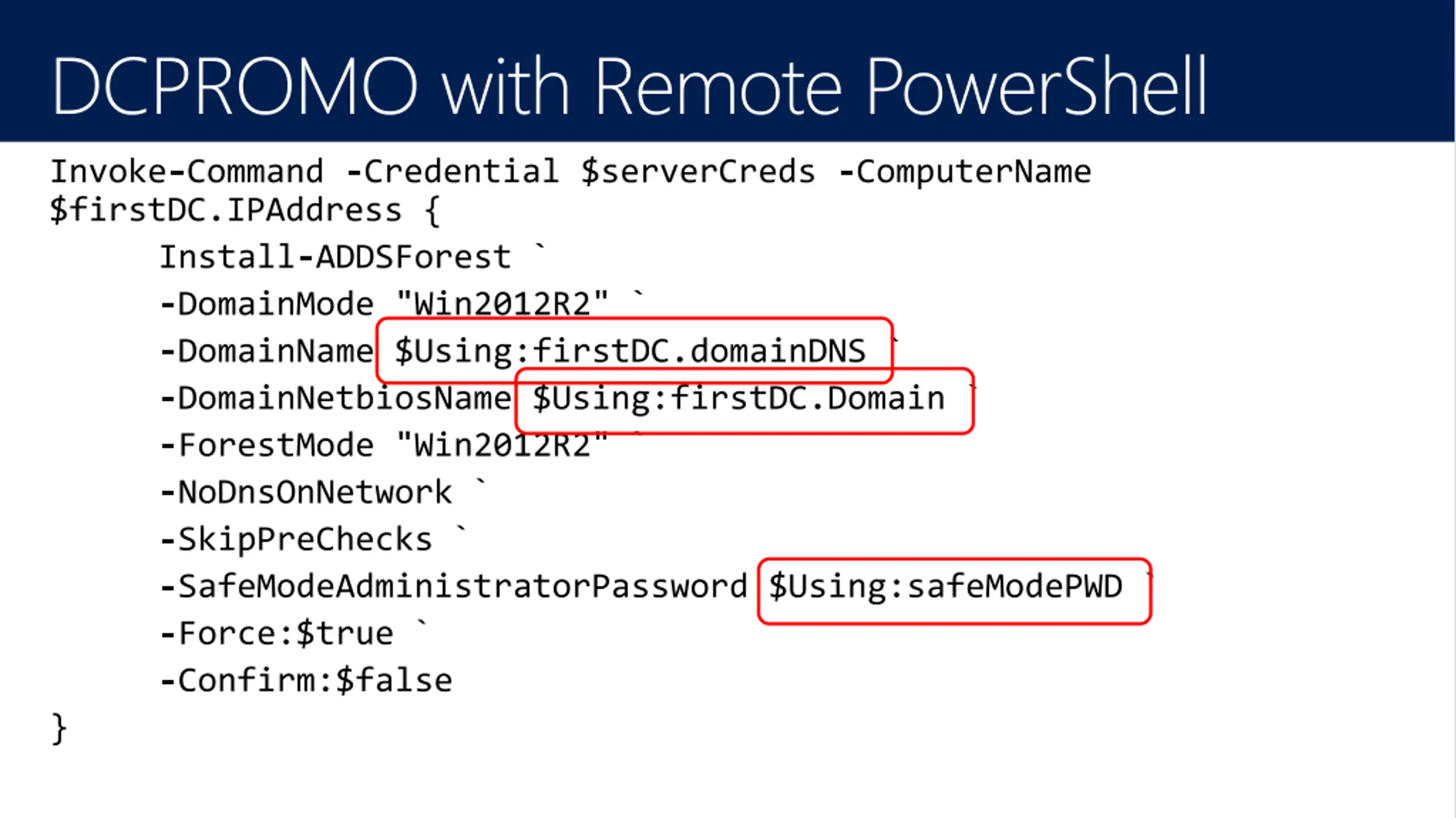

DCPROMO with Remote PowerShell Invoke-Command -Credential $serverCreds -ComputerName $firstDC.IPAddress { Install-ADDSForest ` -DomainMode "Win2012R2" ` -DomainName $Using:firstDC.domainDNS ` -DomainNetbiosName $Using:firstDC.Domain ` -ForestMode "Win2012R2" ` -NoDnsOnNetwork ` -SkipPreChecks ` -SafeModeAdministratorPassword $Using:safeModePWD ` -Force:$true ` -Confirm:$false }

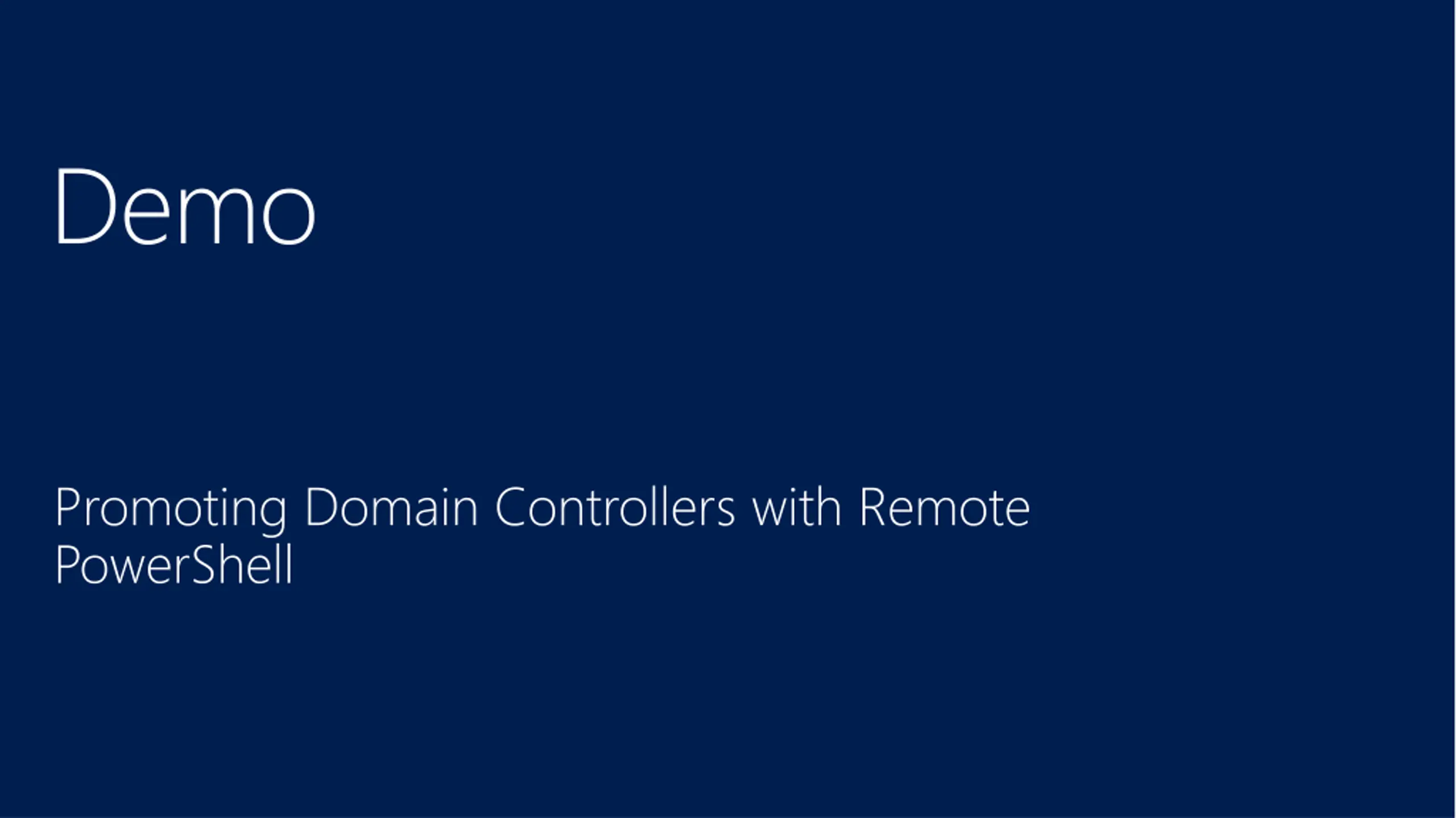

Demo Promoting Domain Controllers with Remote PowerShell

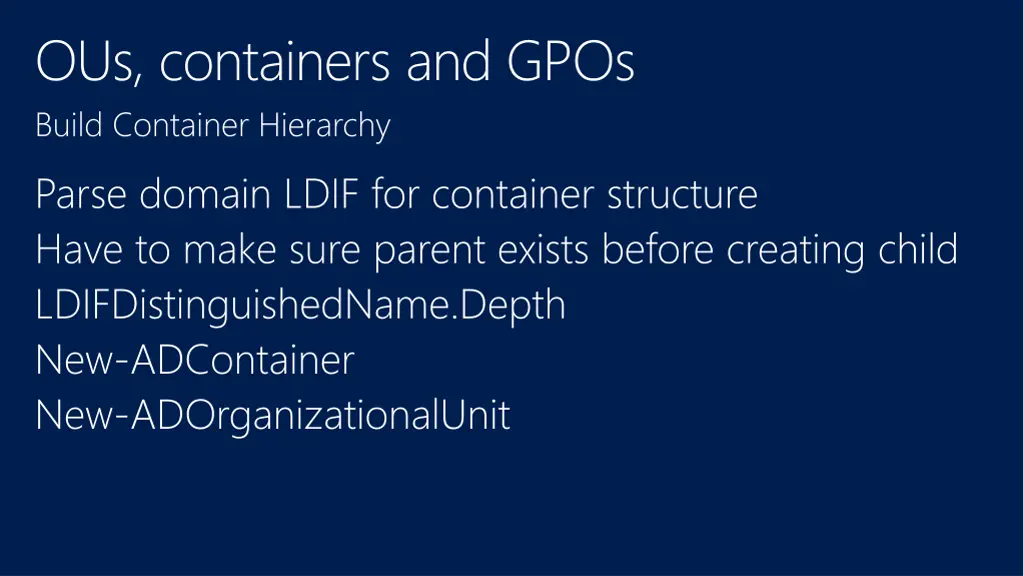

OUs, containers and GPOs Build Container Hierarchy Parse domain LDIF for container structure Have to make sure parent exists before creating child LDIFDistinguishedName.Depth New-ADContainer New-ADOrganizationalUnit

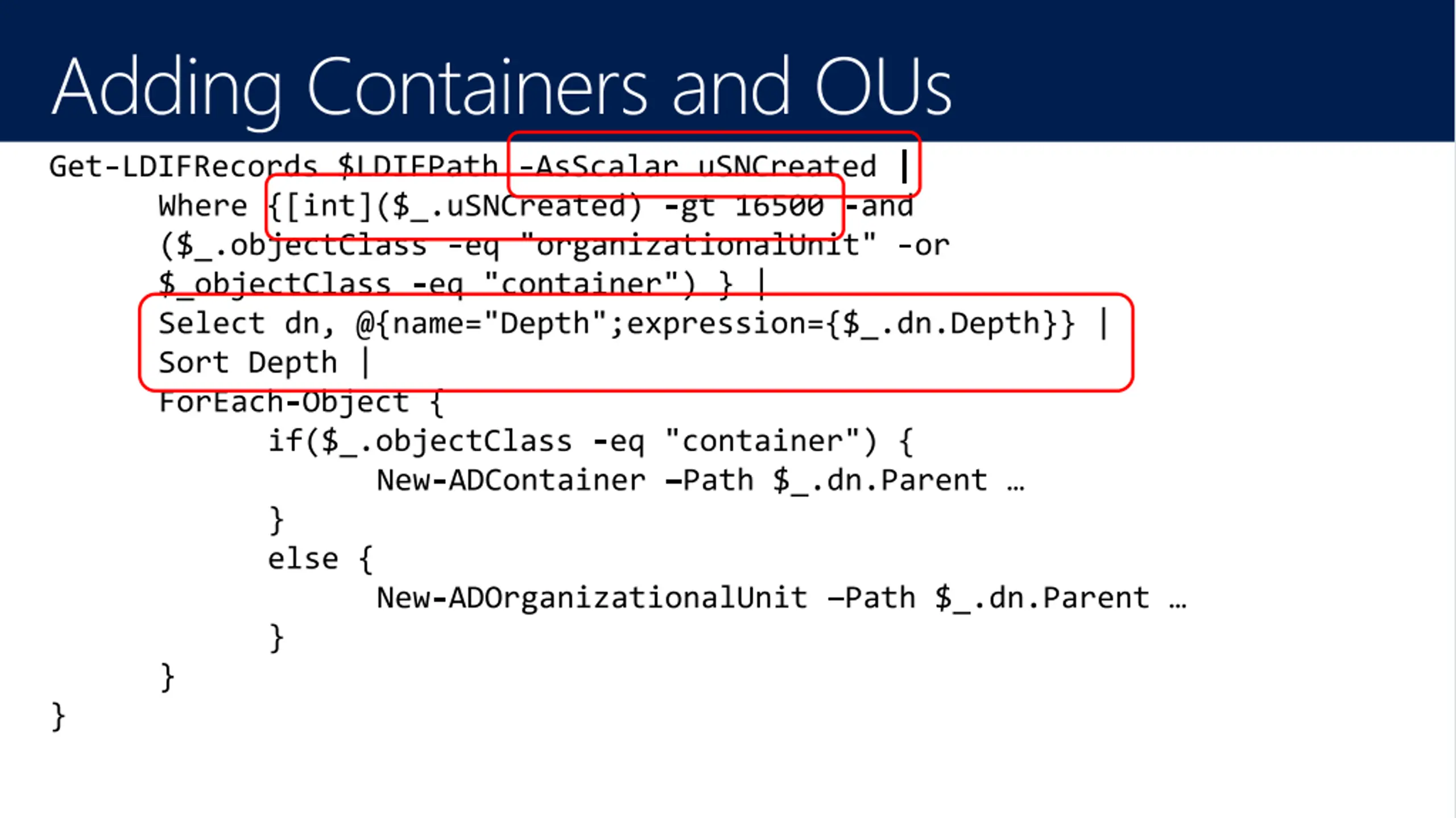

Adding Containers and OUs Get-LDIFRecords $LDIFPath -AsScalar uSNCreated | Where {[int]($_.uSNCreated) -gt 16500 -and ($_.objectClass -eq "organizationalUnit" -or $_objectClass -eq "container") } | Select dn, @{name="Depth";expression={$_.dn.Depth}} | Sort Depth | ForEach-Object { if($_.objectClass -eq "container") { New-ADContainer Path $_.dn.Parent } else { New-ADOrganizationalUnit Path $_.dn.Parent } } }

Demo Add Containers and OUs with PowerShell

Adding Users and Groups Parsing domain LDIF for users Anonymizing user data Adding users Adding empty groups Adding group memberships

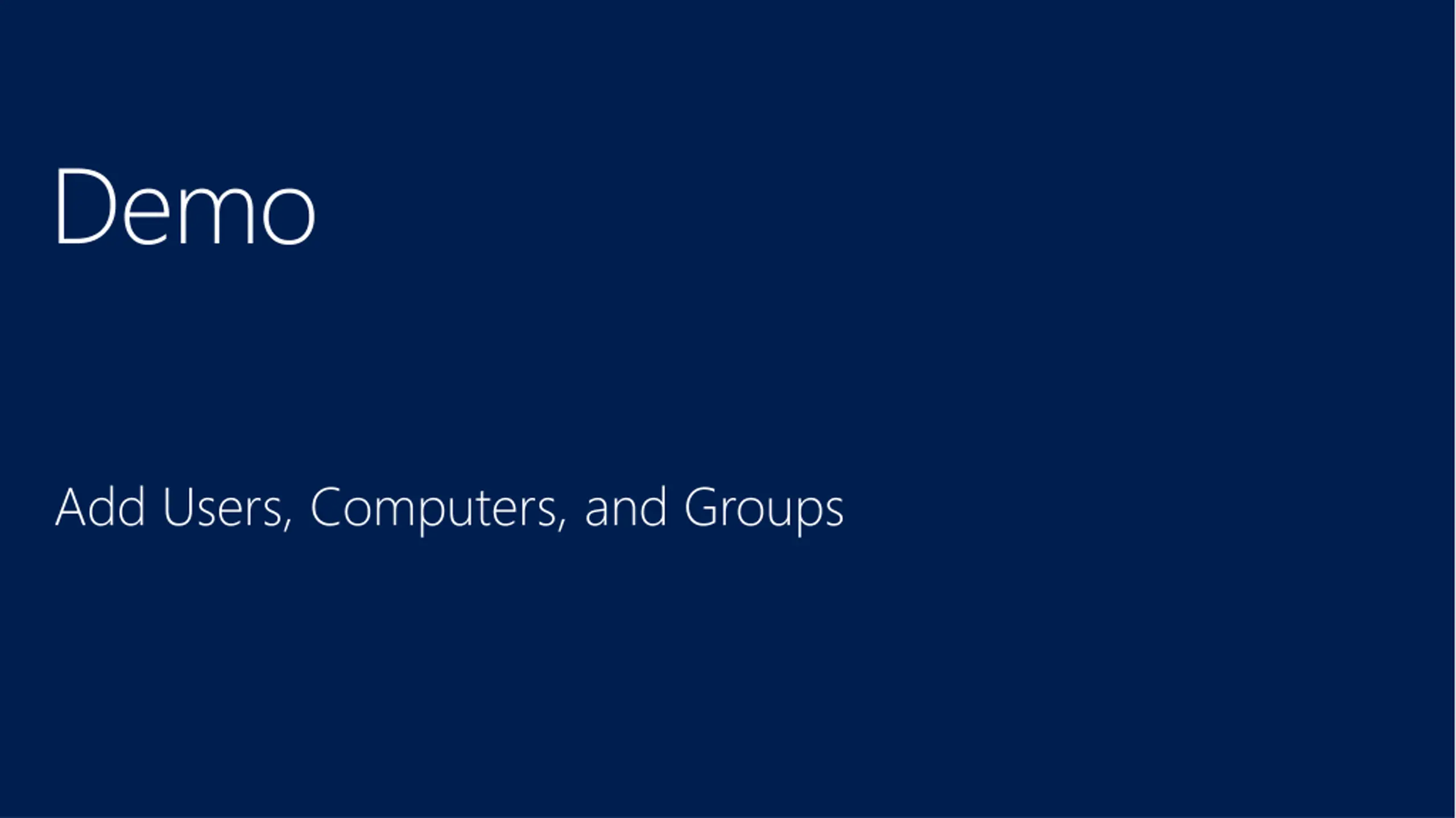

Demo Add Users, Computers, and Groups

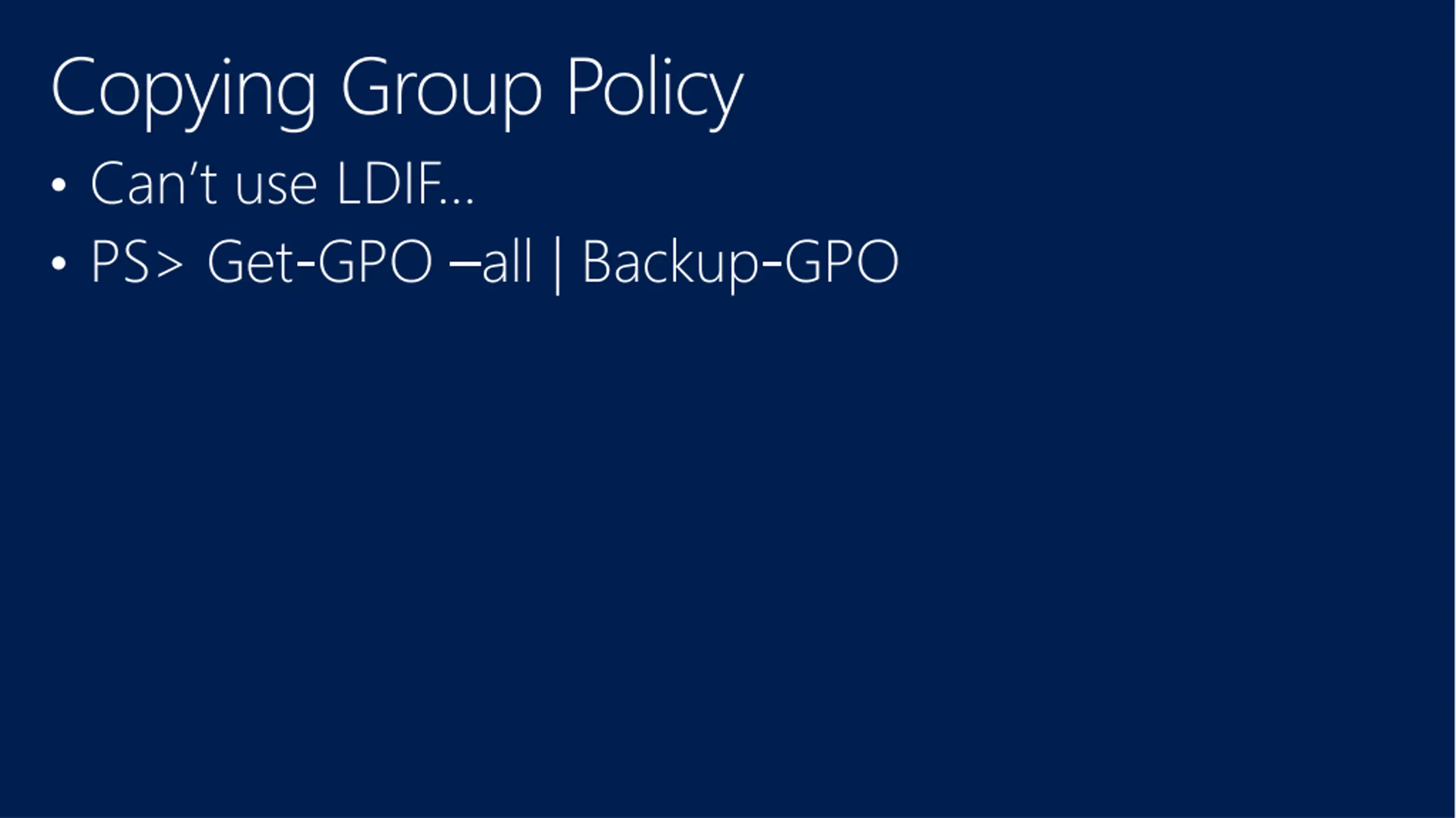

Copying Group Policy Can t use LDIF PS> Get-GPO all | Backup-GPO

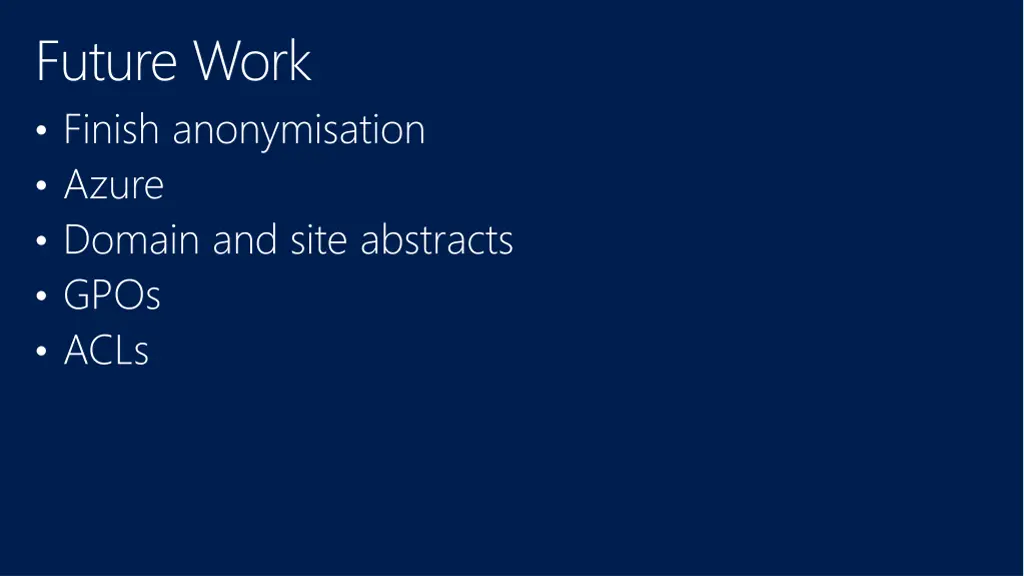

Future Work Finish anonymisation Azure Domain and site abstracts GPOs ACLs

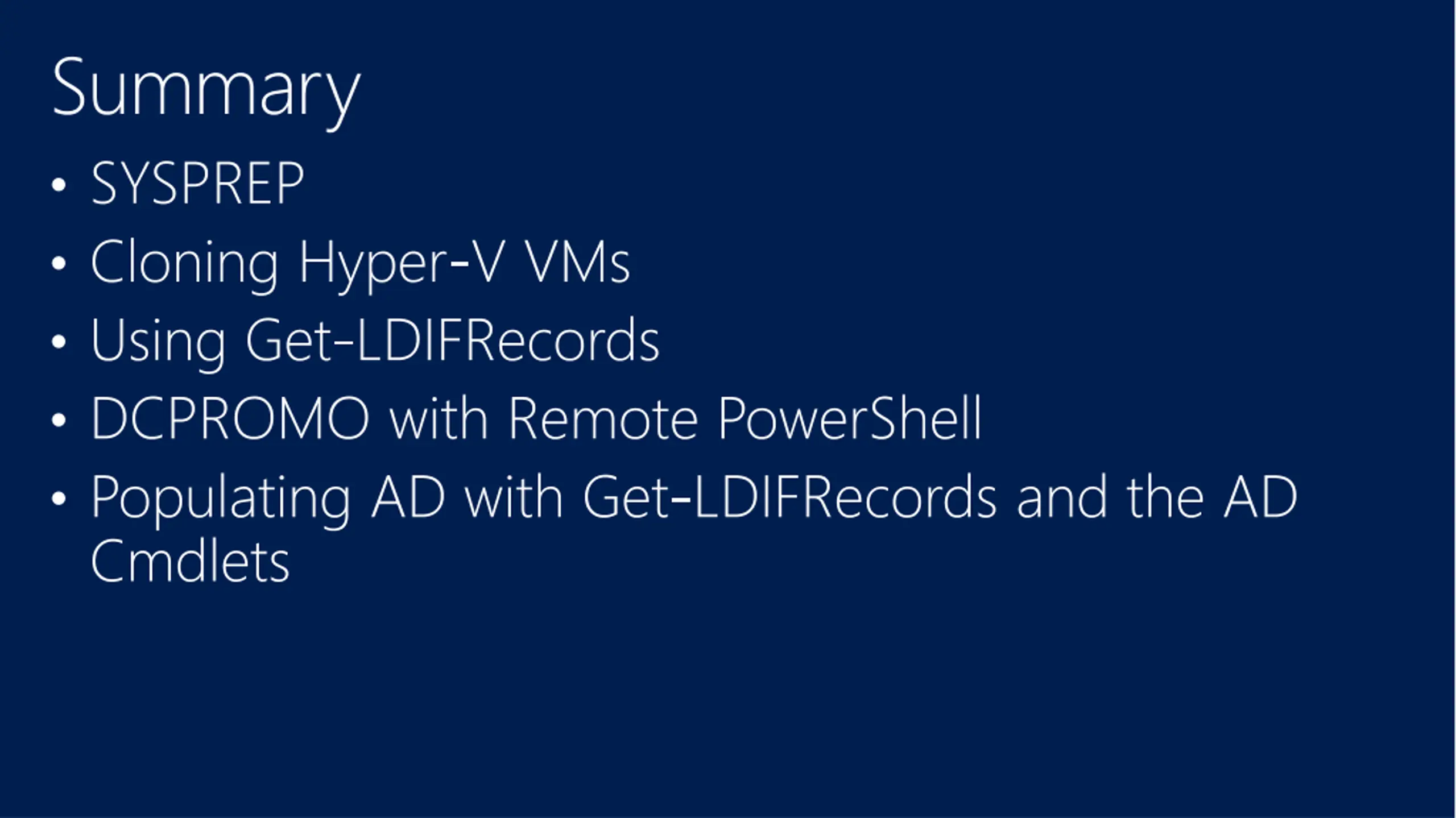

Summary SYSPREP Cloning Hyper-V VMs Using Get-LDIFRecords DCPROMO with Remote PowerShell Populating AD with Get-LDIFRecords and the AD Cmdlets
