Automated RF Conditioning for Pik RF Network

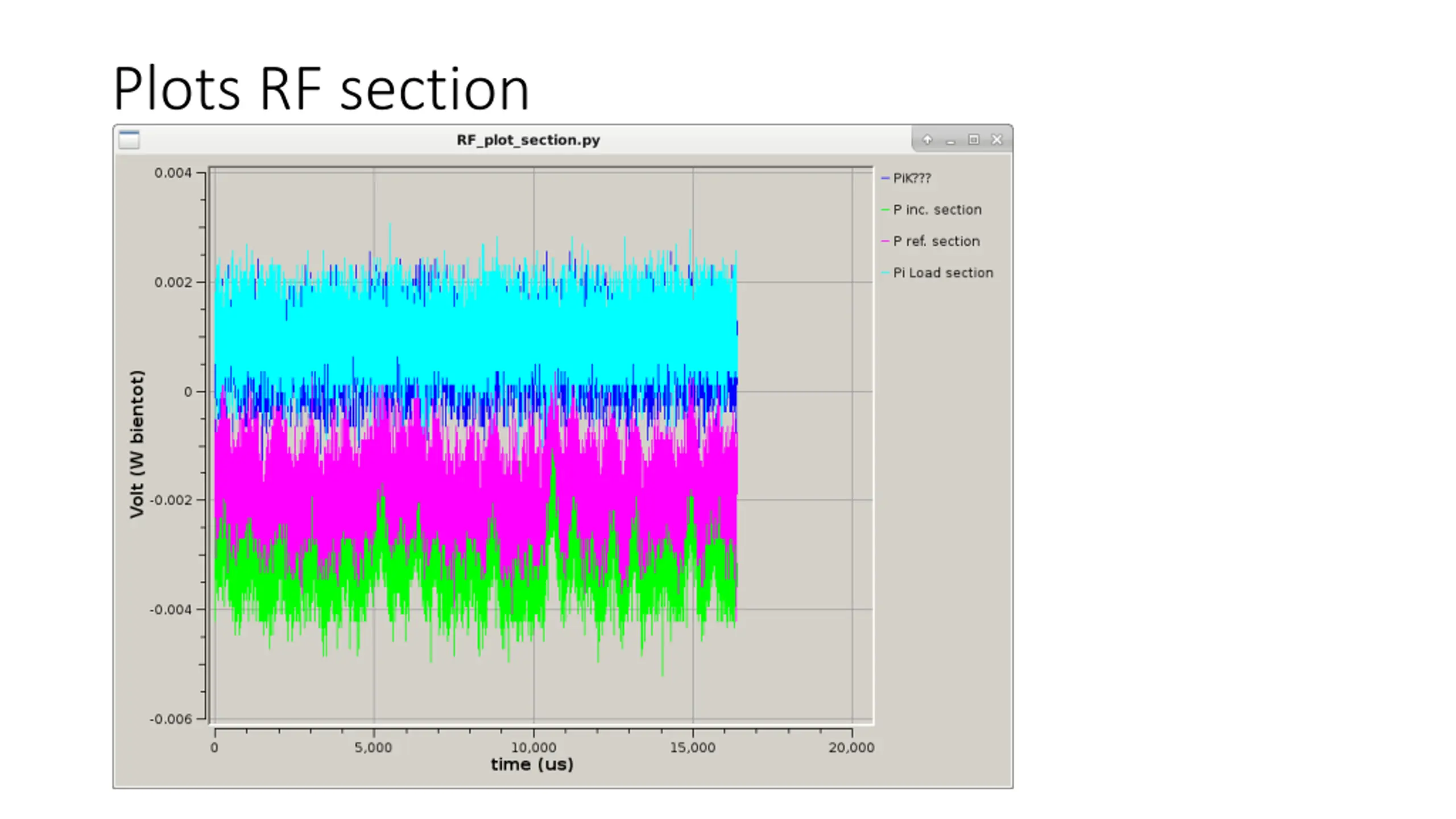

Explore the automated RF conditioning process for the Pik RF network, featuring protocols, procedures, and interface details for efficient operation. Discover the RF section plots, operator teams, and various regulation settings to ensure optimal performance and precise peak power management in a controlled environment.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

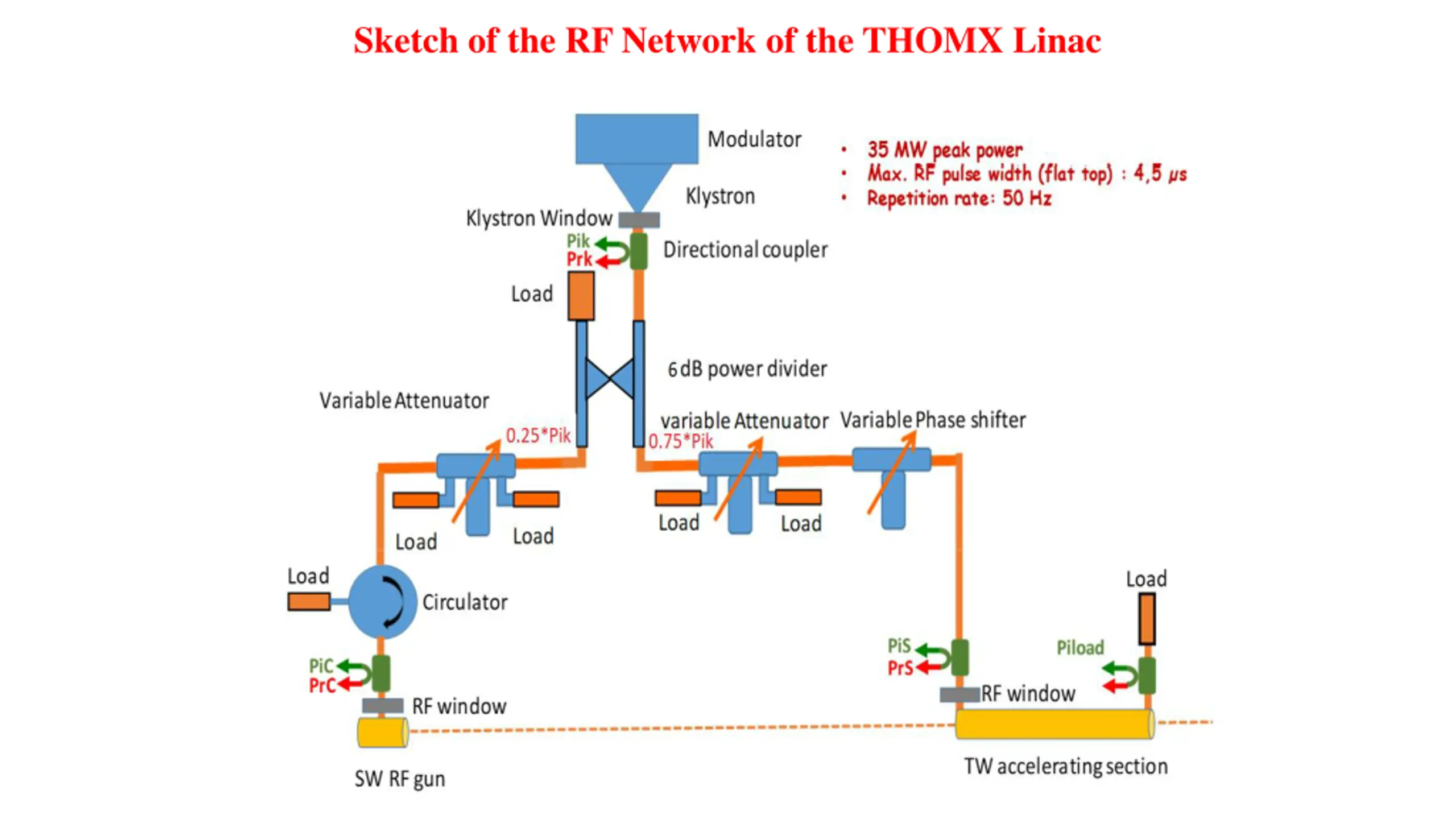

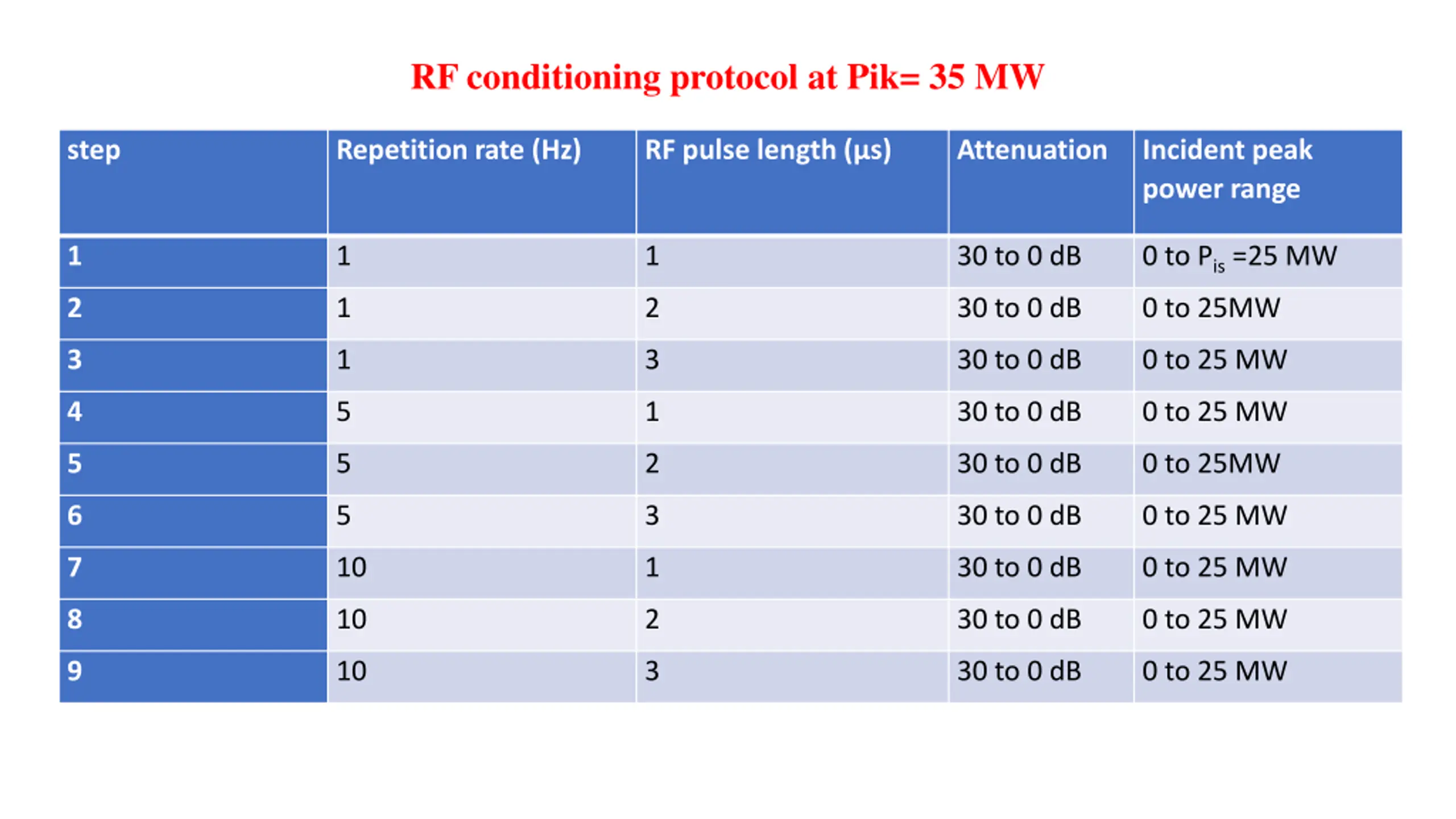

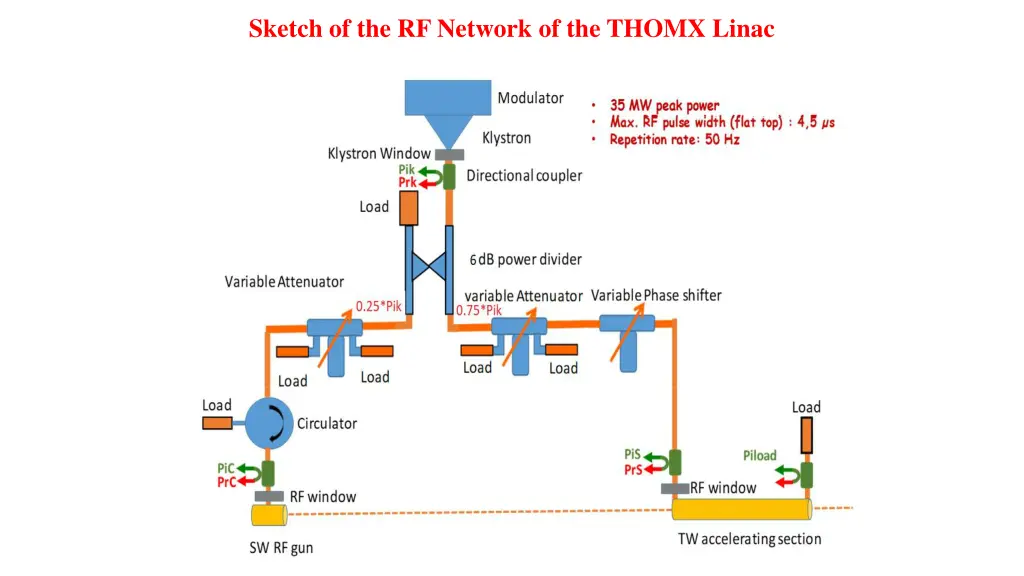

RF conditioning protocol at Pik= 35 MW step Repetition rate (Hz) RF pulse length ( s) Attenuation Incident peak power range 1 1 1 30 to 0 dB 0 to Pis=25 MW 2 1 2 30 to 0 dB 0 to 25MW 3 1 3 30 to 0 dB 0 to 25 MW 4 5 1 30 to 0 dB 0 to 25 MW 5 5 2 30 to 0 dB 0 to 25MW 6 5 3 30 to 0 dB 0 to 25 MW 7 10 1 30 to 0 dB 0 to 25 MW 8 10 2 30 to 0 dB 0 to 25 MW 9 10 3 30 to 0 dB 0 to 25 MW

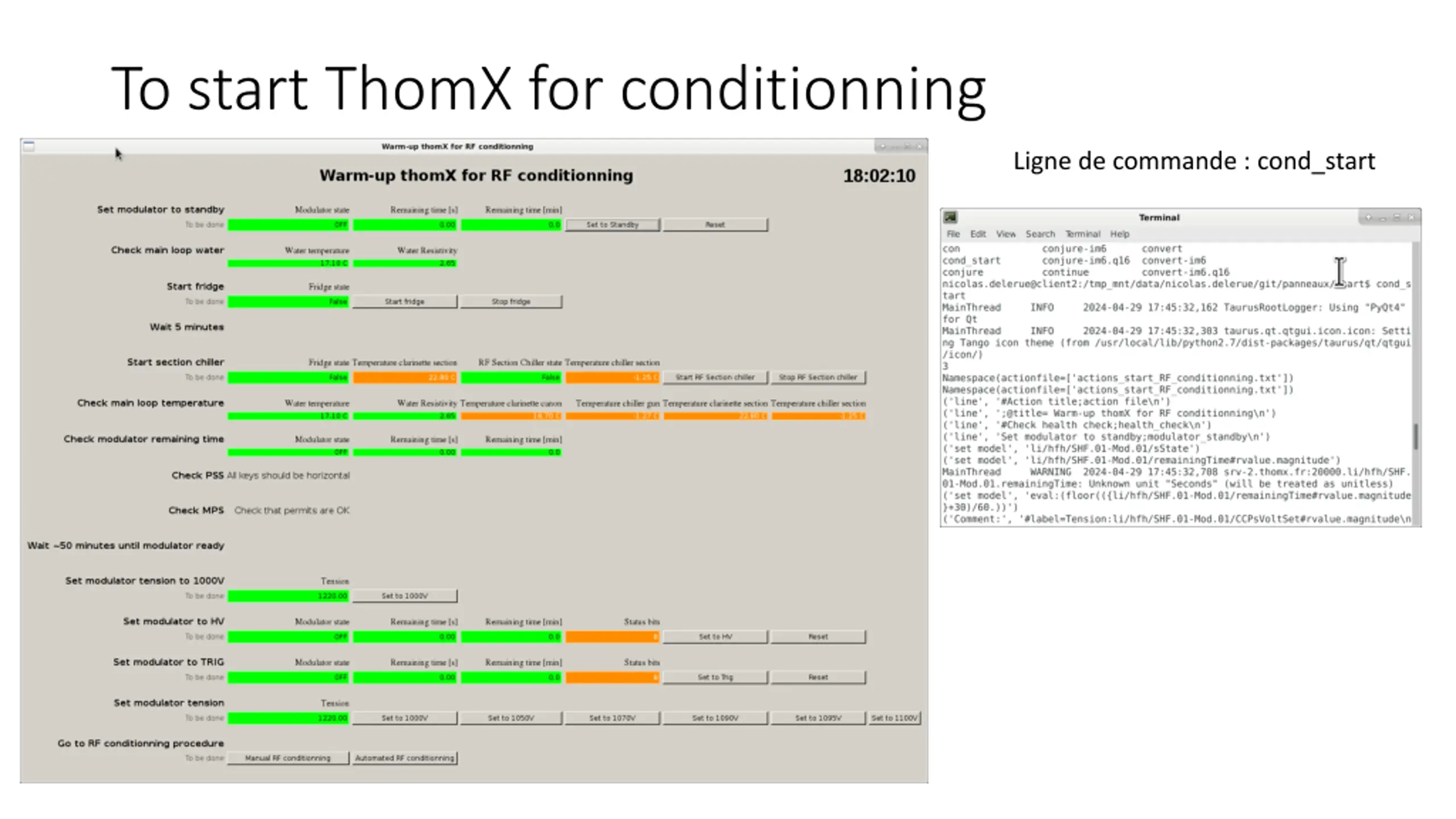

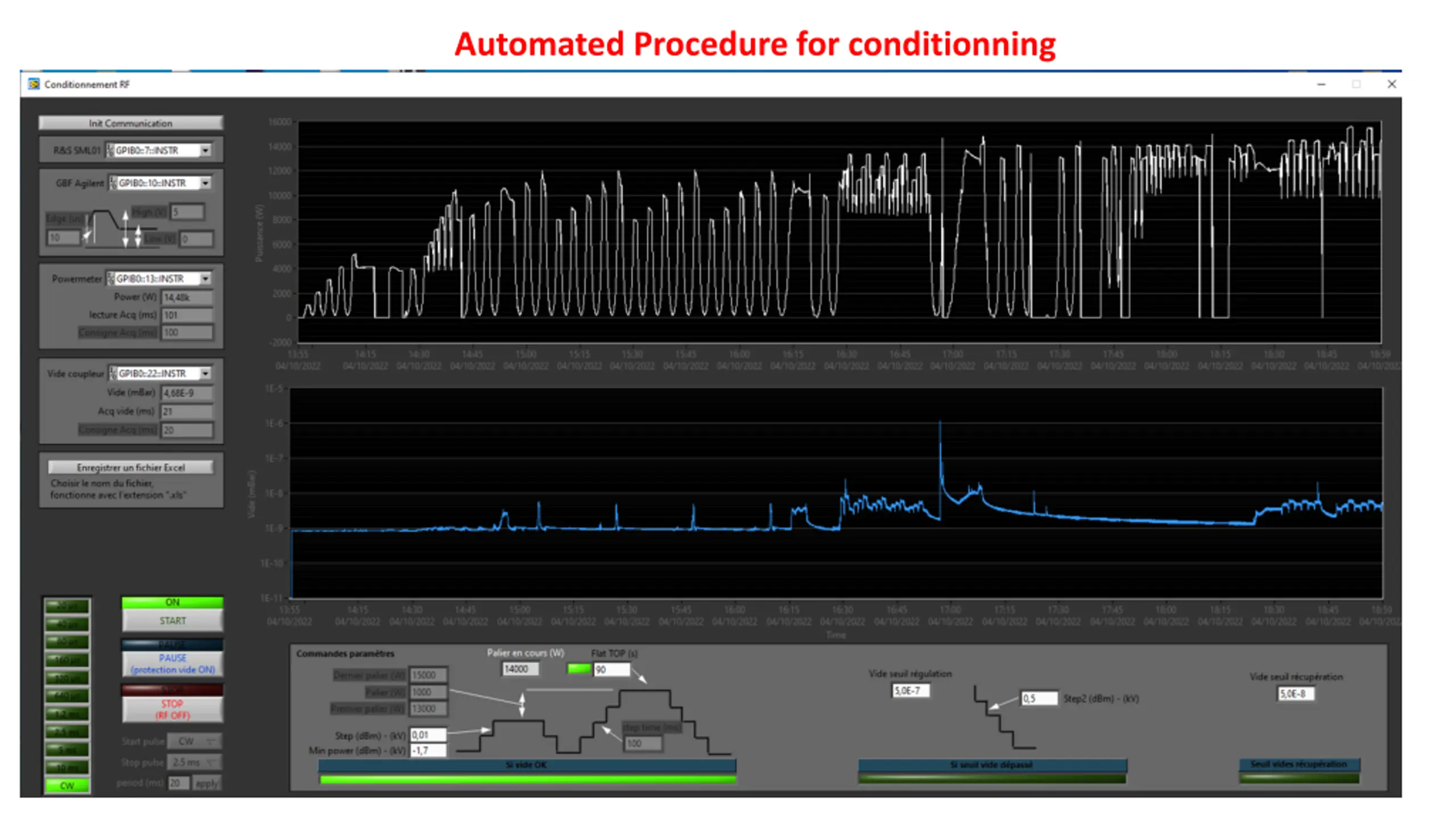

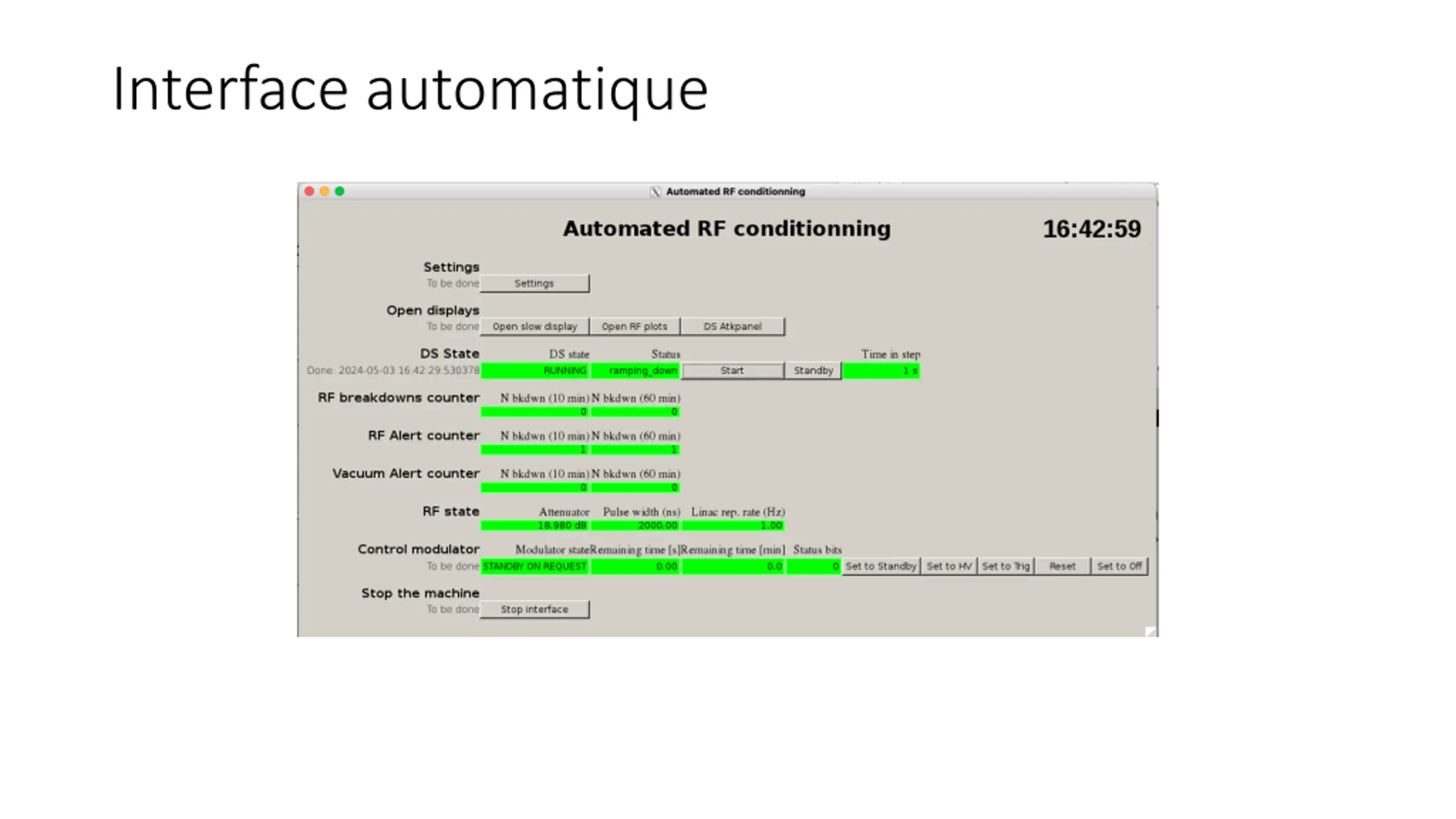

To start ThomX for conditionning Ligne de commande : cond_start

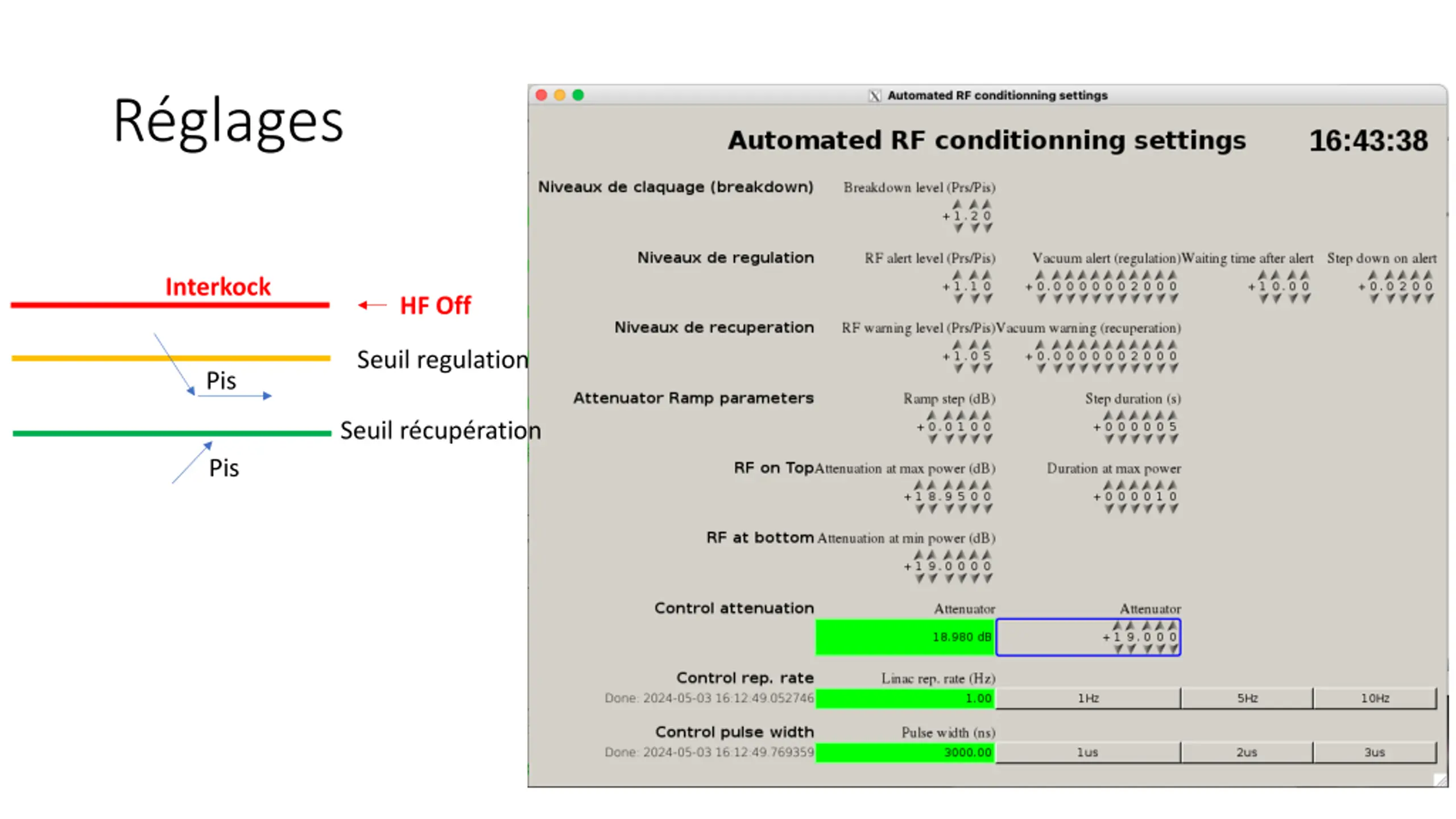

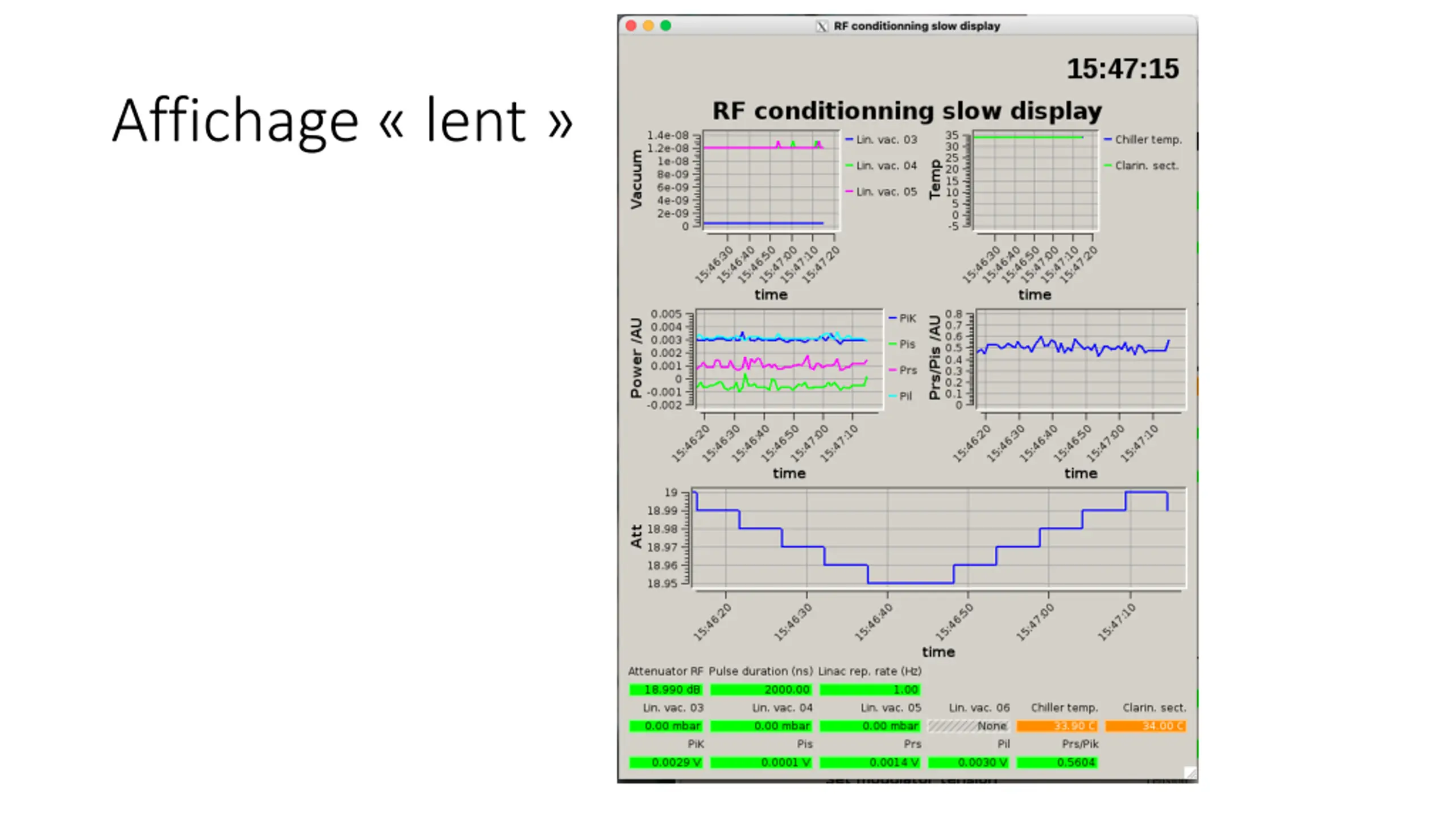

Rglages Interkock HF Off Seuil regulation Pis Seuil r cup ration Pis

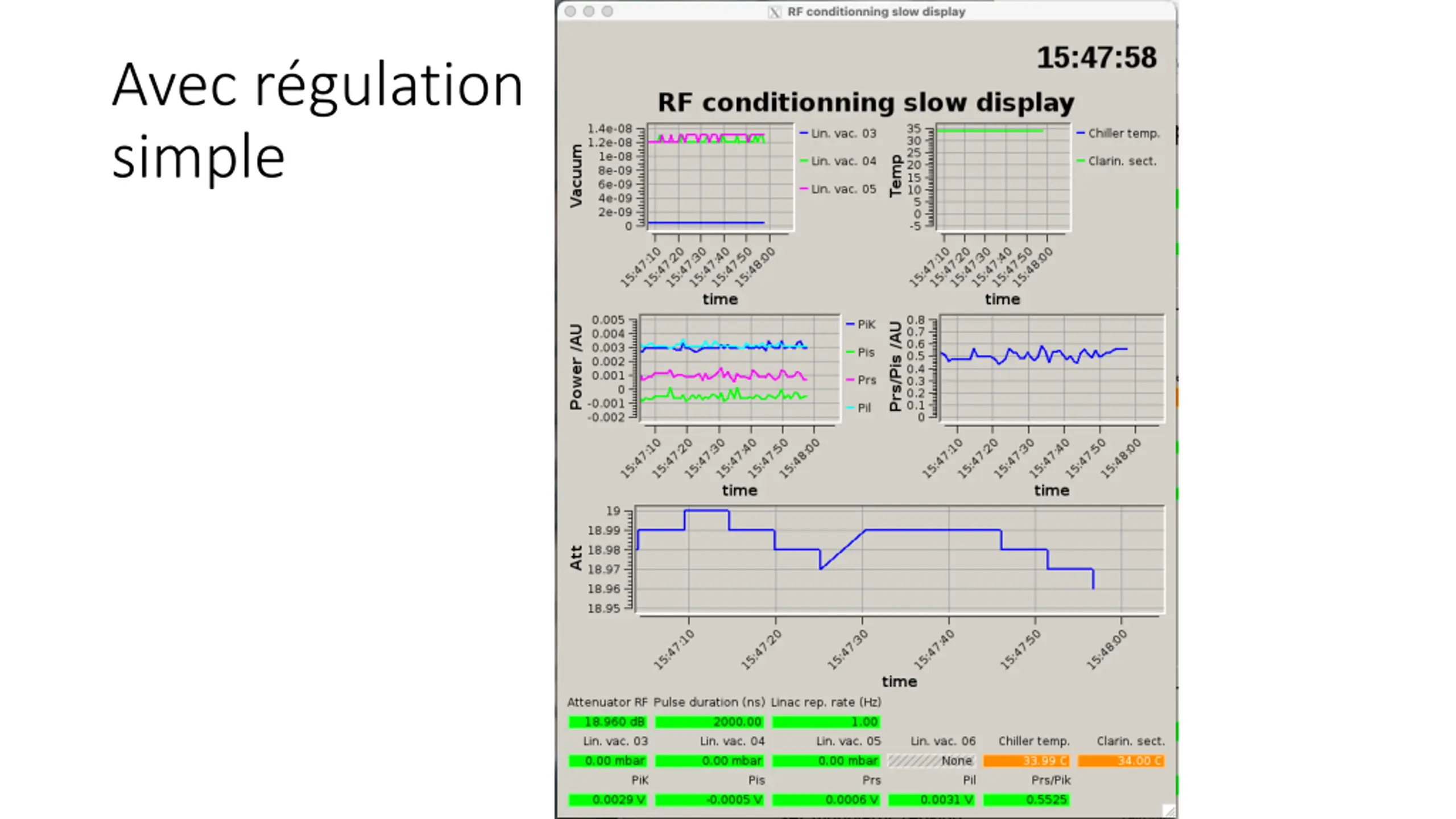

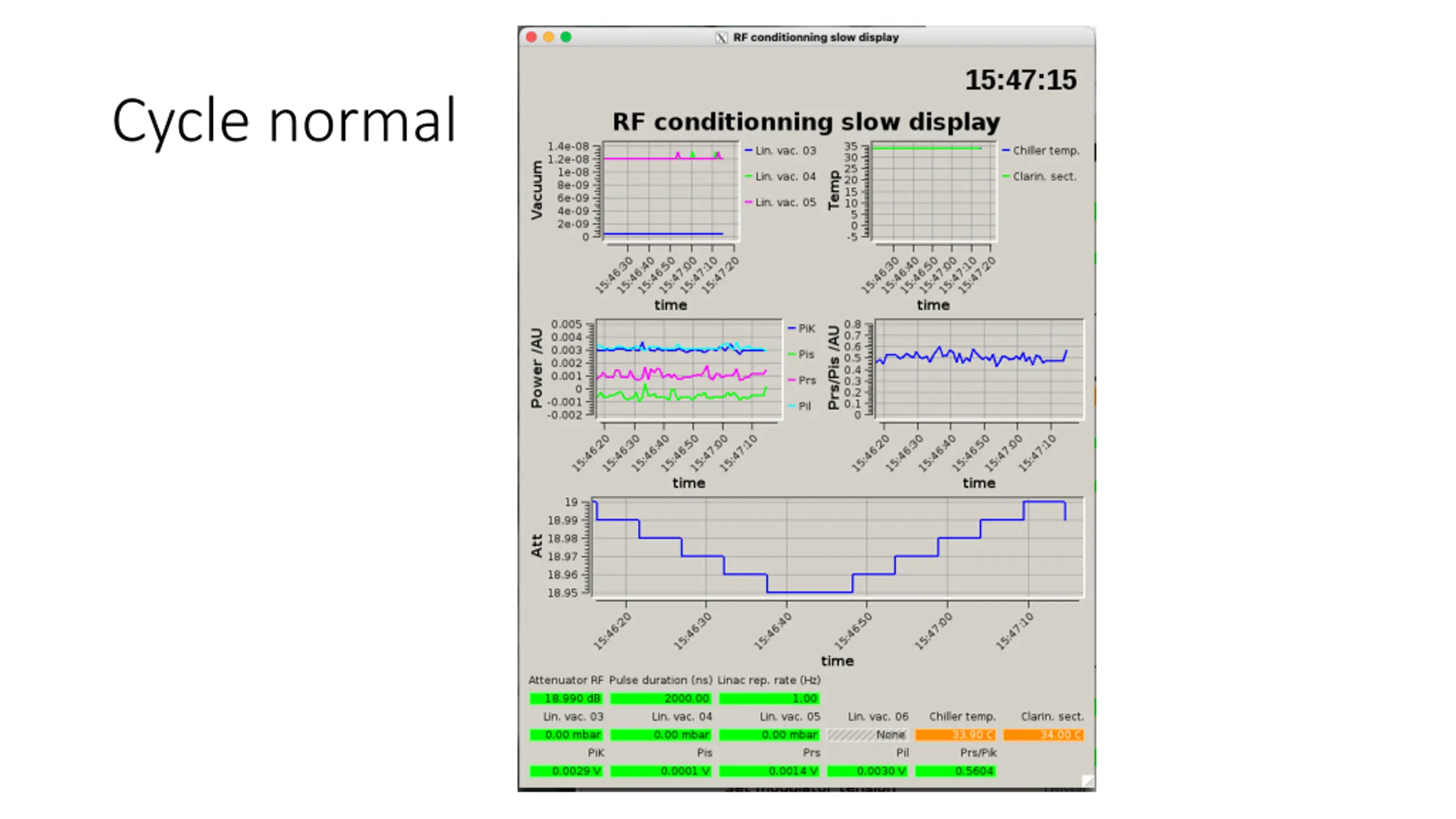

Avec rgulation simple
Avec rgulation double
