DeepXplore: Automated Whitebox Testing of Deep Learning Systems Kexin Pei Junfeng Yang Yinzhi Cao Suman Jana

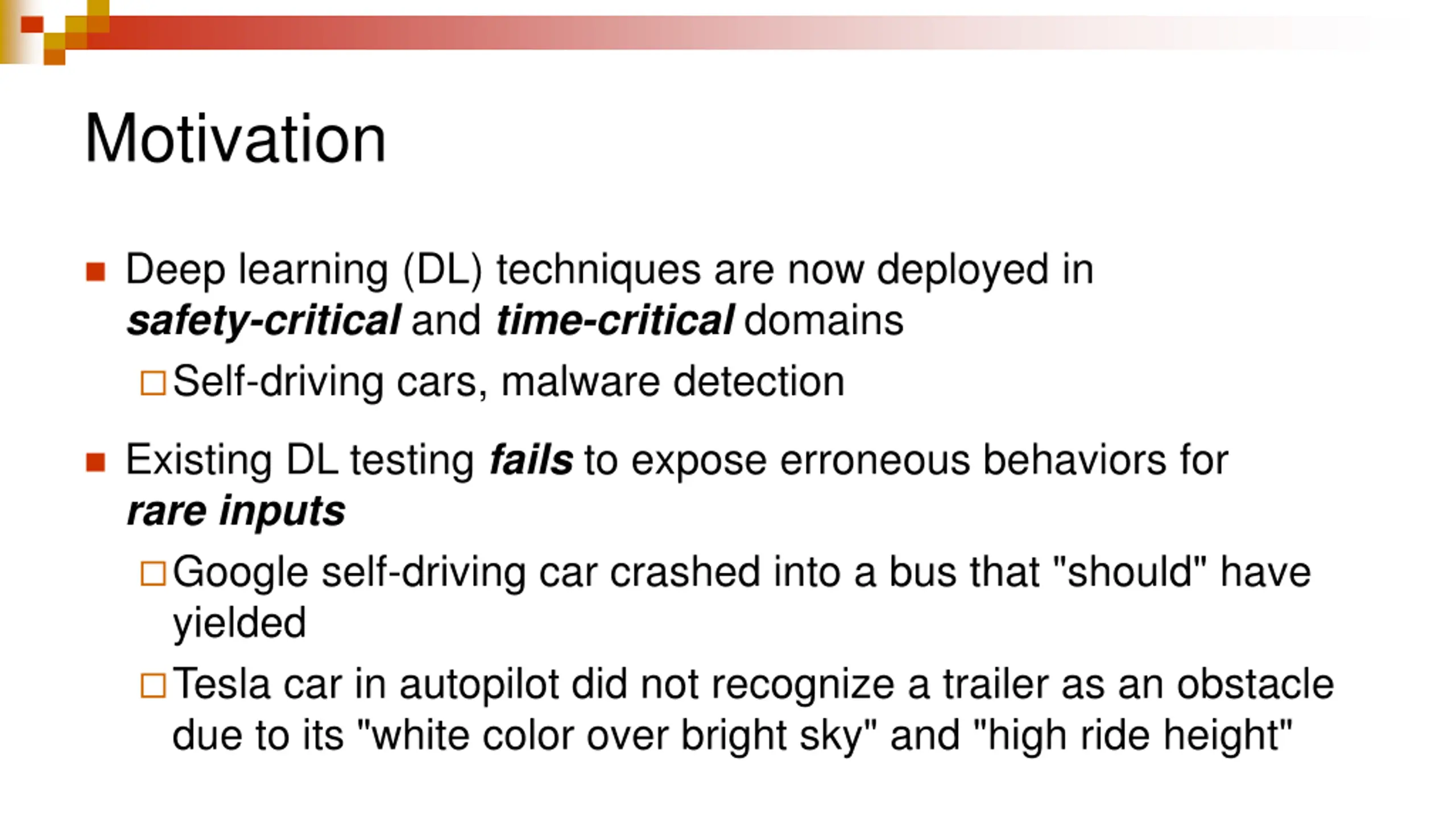

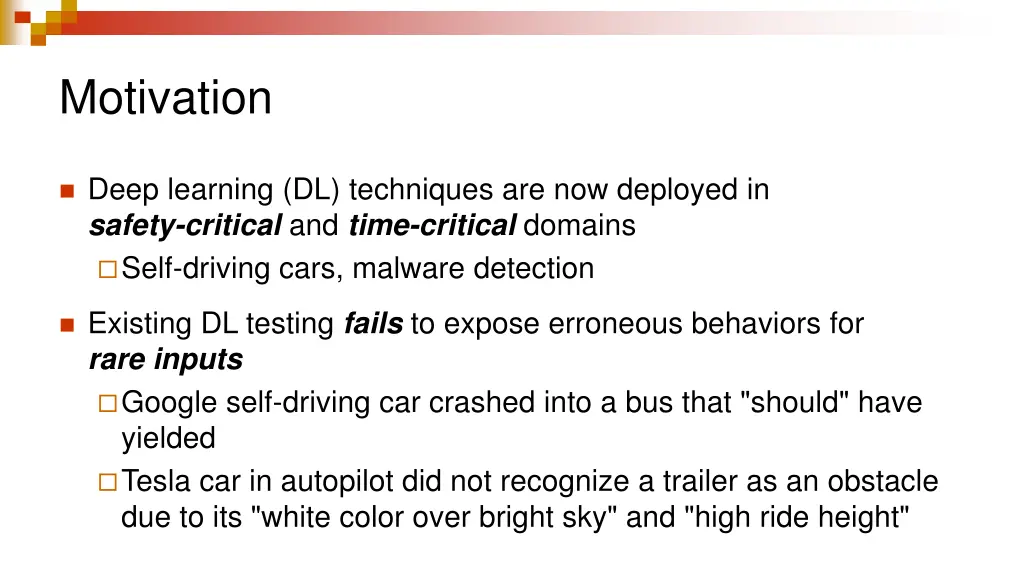

Motivation Deep learning (DL) techniques are now deployed in safety-critical and time-critical domains Self-driving cars, malware detection Existing DL testing fails to expose erroneous behaviors for rare inputs Google self-driving car crashed into a bus that "should" have yielded Tesla car in autopilot did not recognize a trailer as an obstacle due to its "white color over bright sky" and "high ride height"

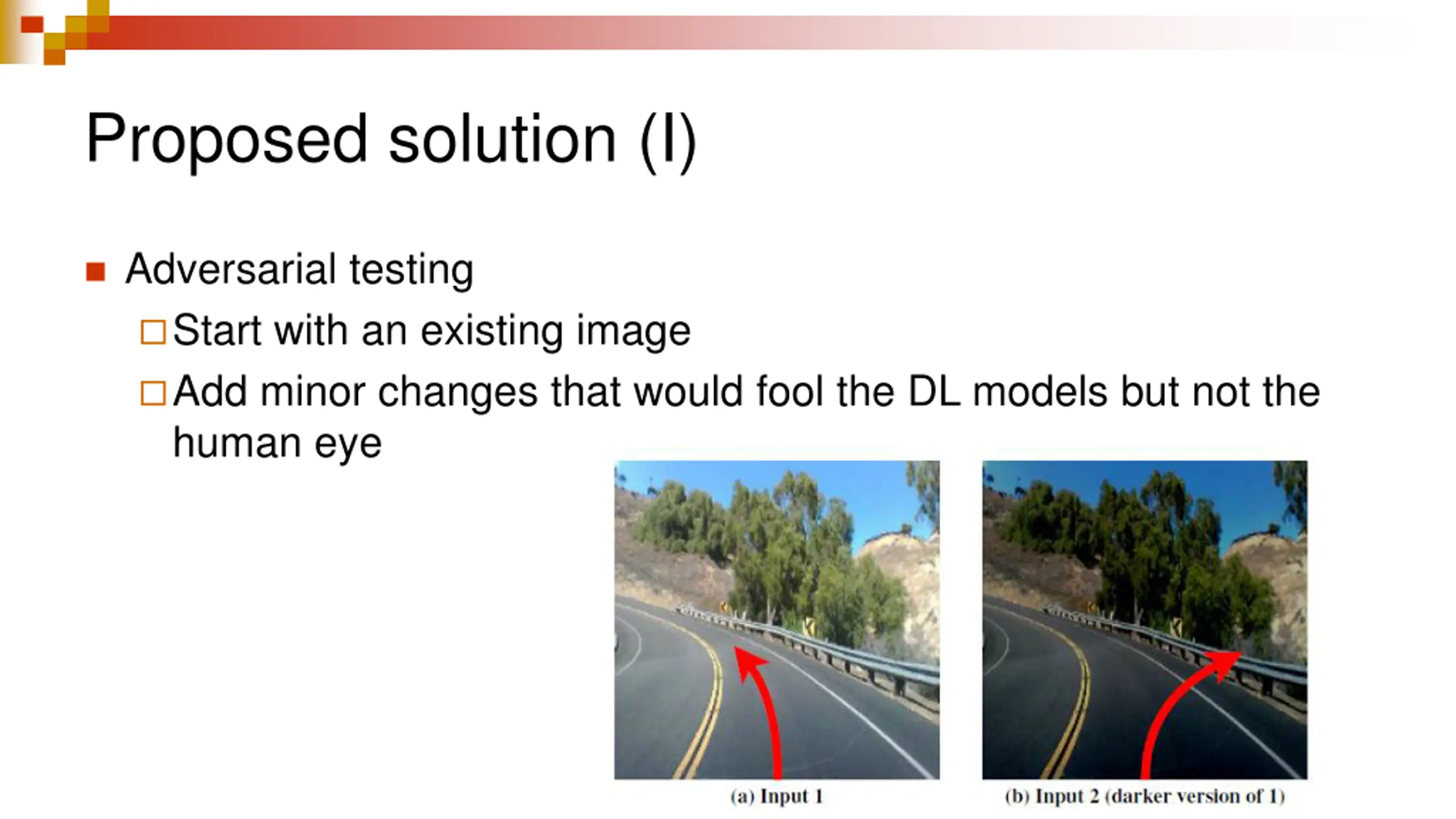

Proposed solution (I) Adversarial testing Start with an existing image Add minor changes that would fool the DL models but not the human eye

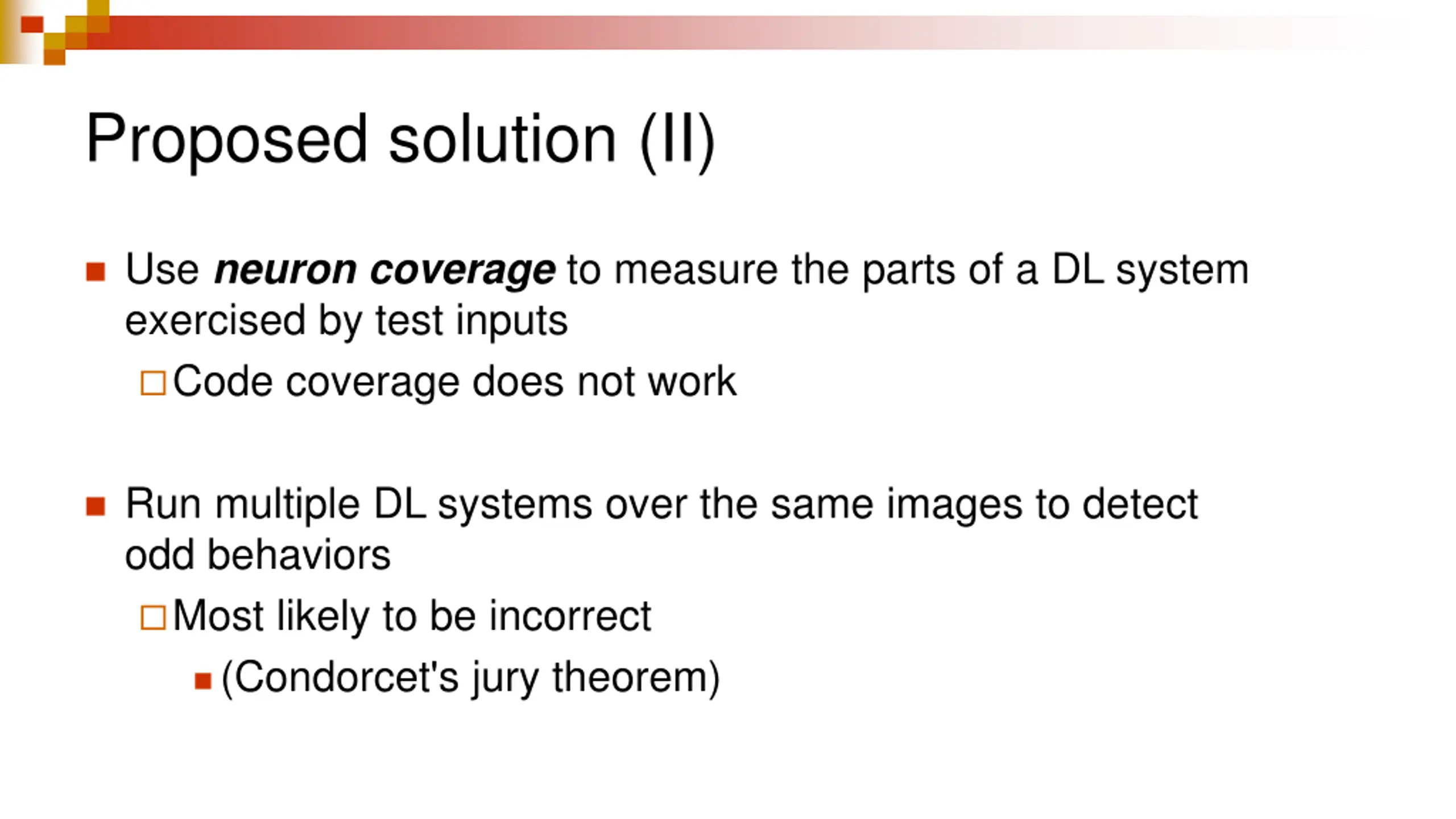

Proposed solution (II) Use neuron coverage to measure the parts of a DL system exercised by test inputs Code coverage does not work Run multiple DL systems over the same images to detect odd behaviors Most likely to be incorrect (Condorcet's jury theorem)

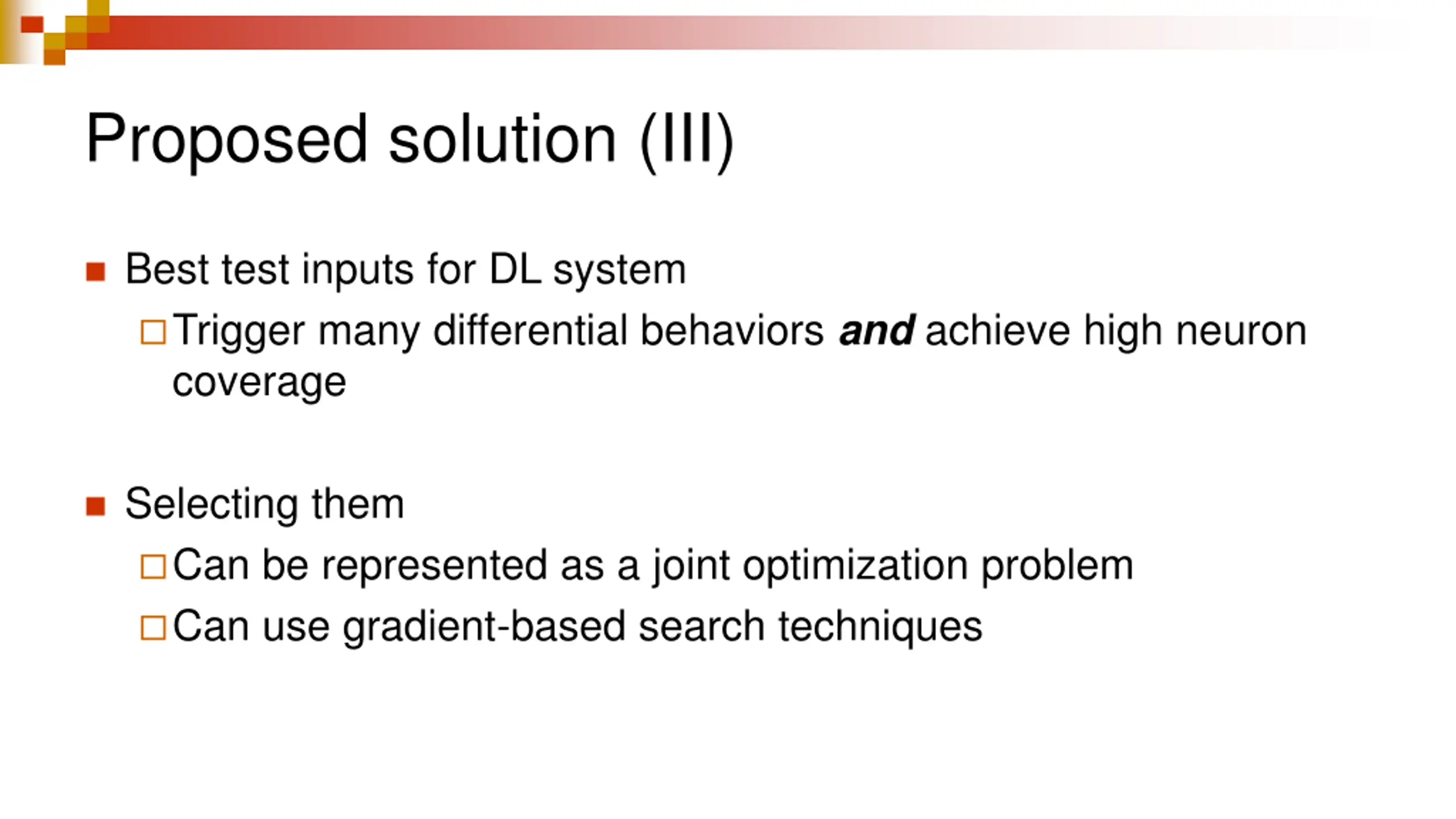

Proposed solution (III) Best test inputs for DL system Trigger many differential behaviors and achieve high neuron coverage Selecting them Can be represented as a joint optimization problem Can use gradient-based search techniques

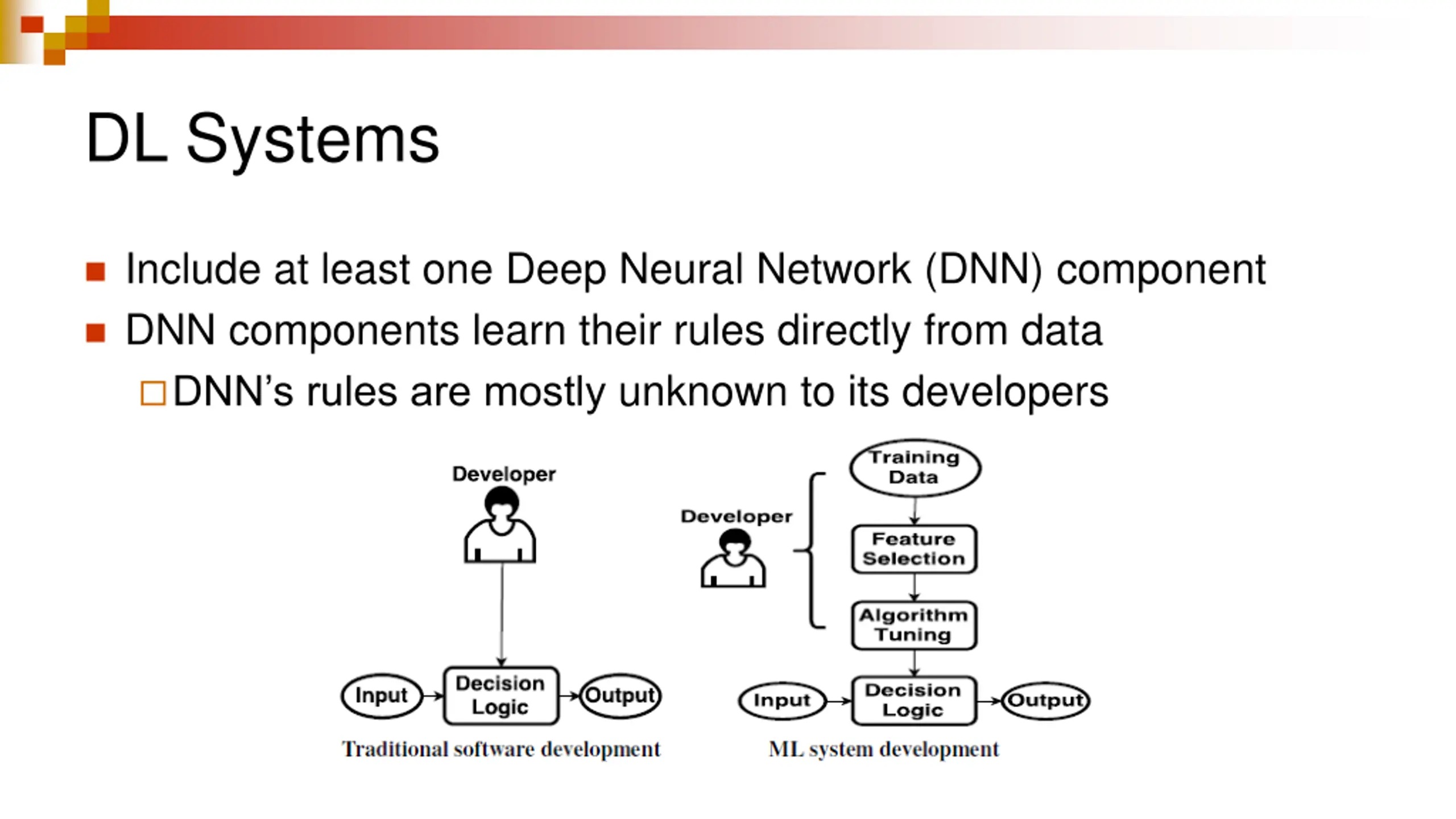

DL Systems Include at least one Deep Neural Network (DNN) component DNN components learn their rules directly from data DNN s rules are mostly unknown to its developers

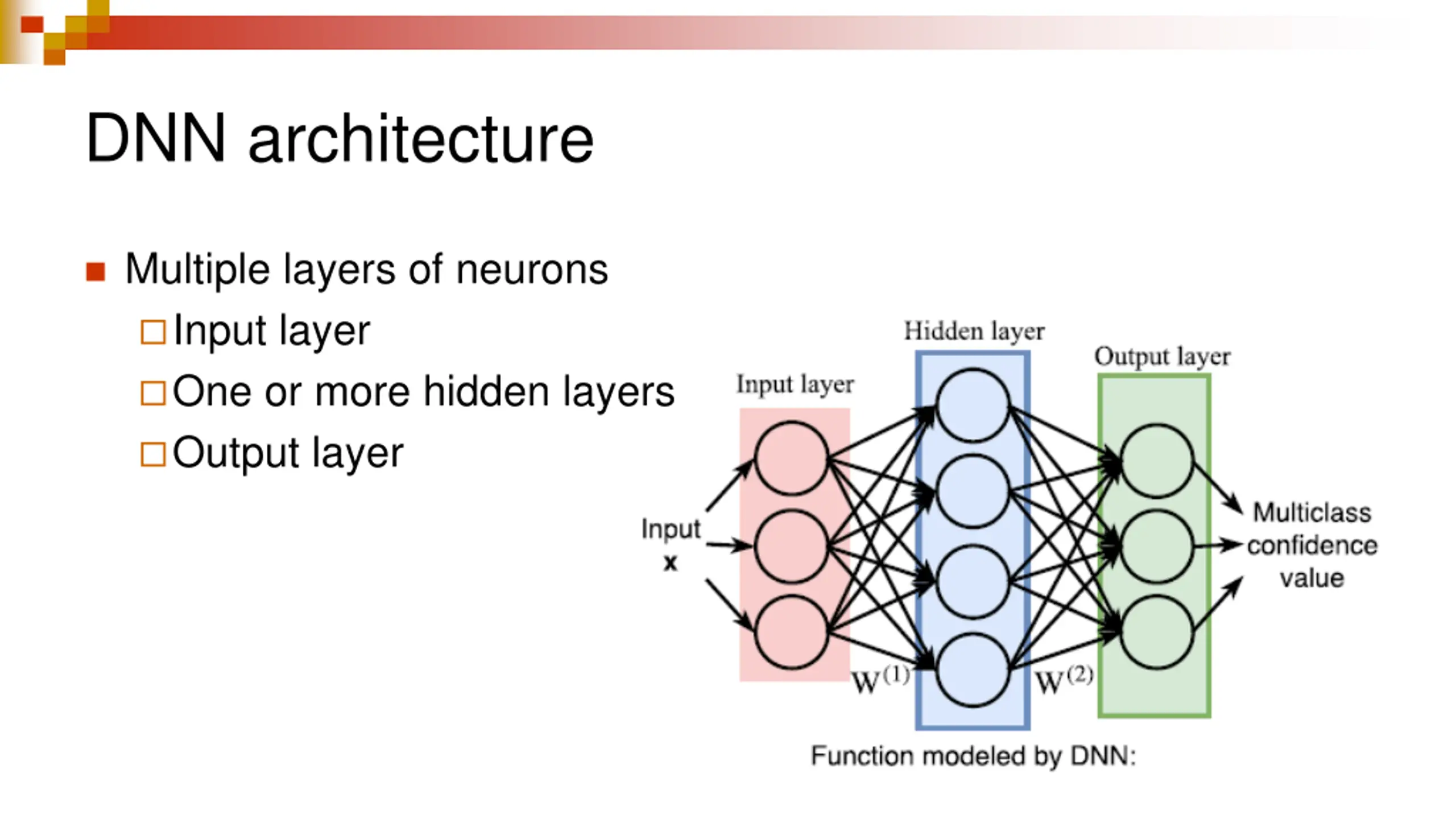

DNN architecture Multiple layers of neurons Input layer One or more hidden layers Output layer

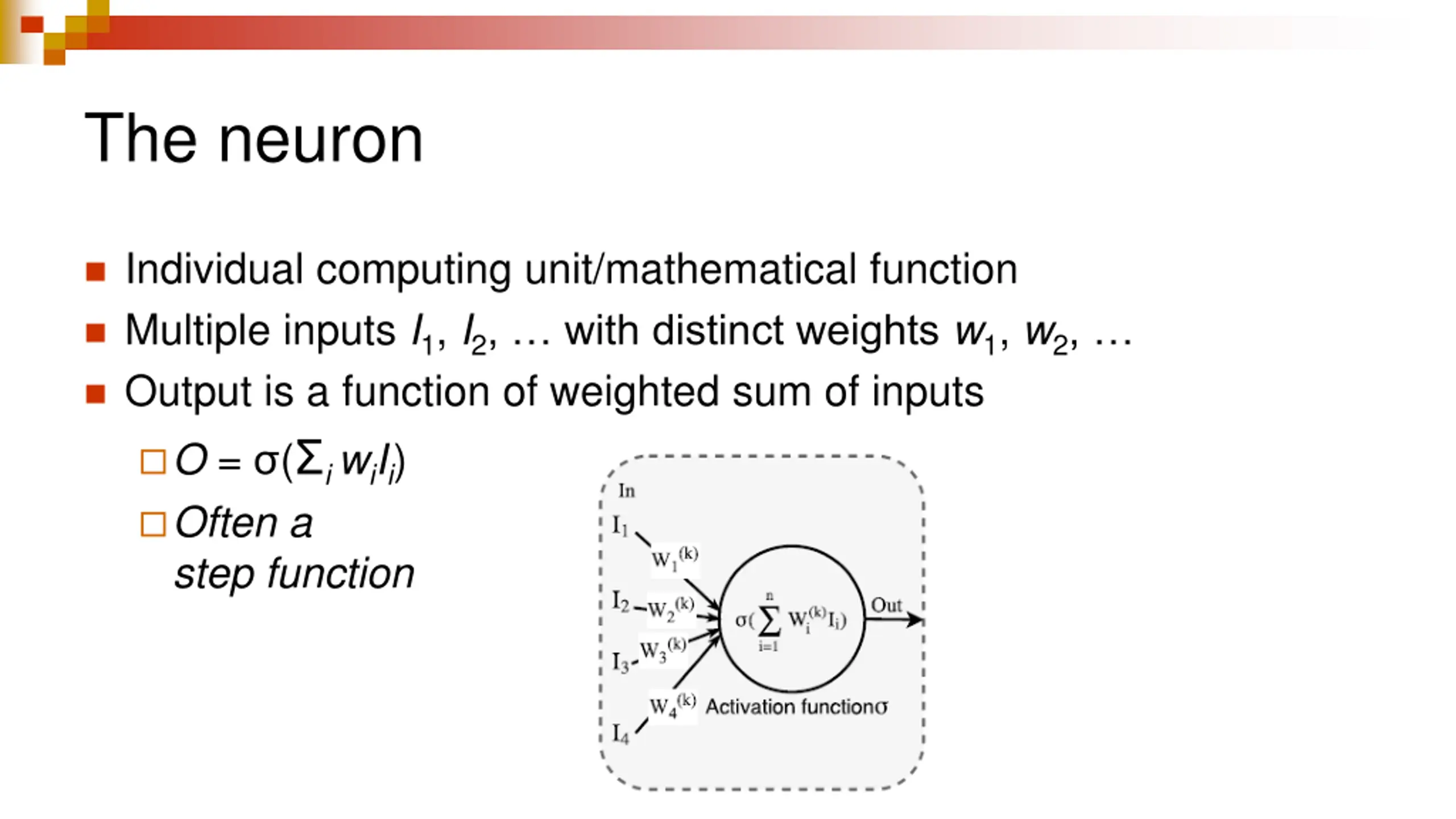

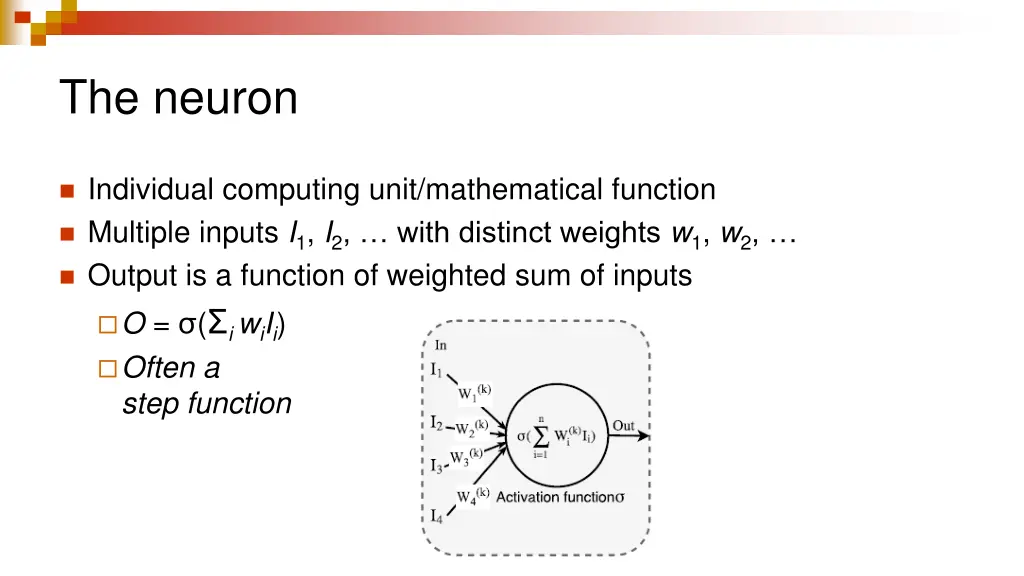

The neuron Individual computing unit/mathematical function Multiple inputs I1, I2, with distinct weights w1, w2, Output is a function of weighted sum of inputs O = ( iwiIi) Often a step function

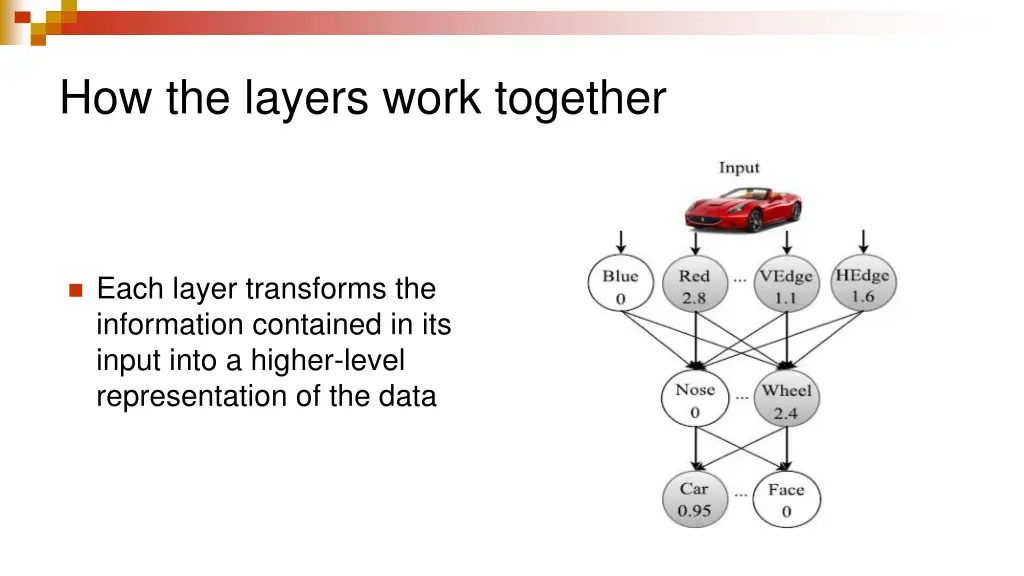

How the layers work together Each layer transforms the information contained in its input into a higher-level representation of the data

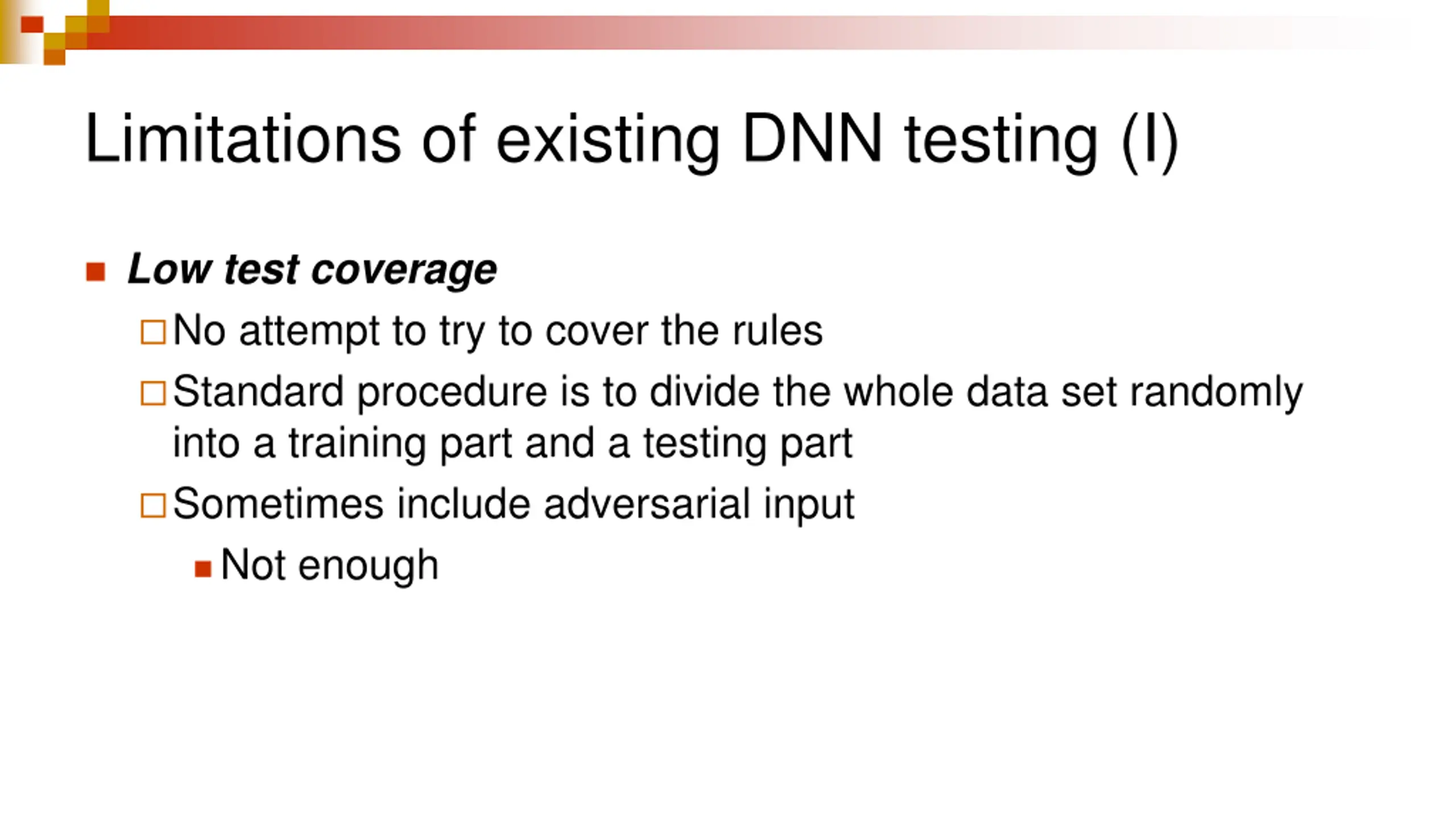

Limitations of existing DNN testing (I) Low test coverage No attempt to try to cover the rules Standard procedure is to divide the whole data set randomly into a training part and a testing part Sometimes include adversarial input Not enough

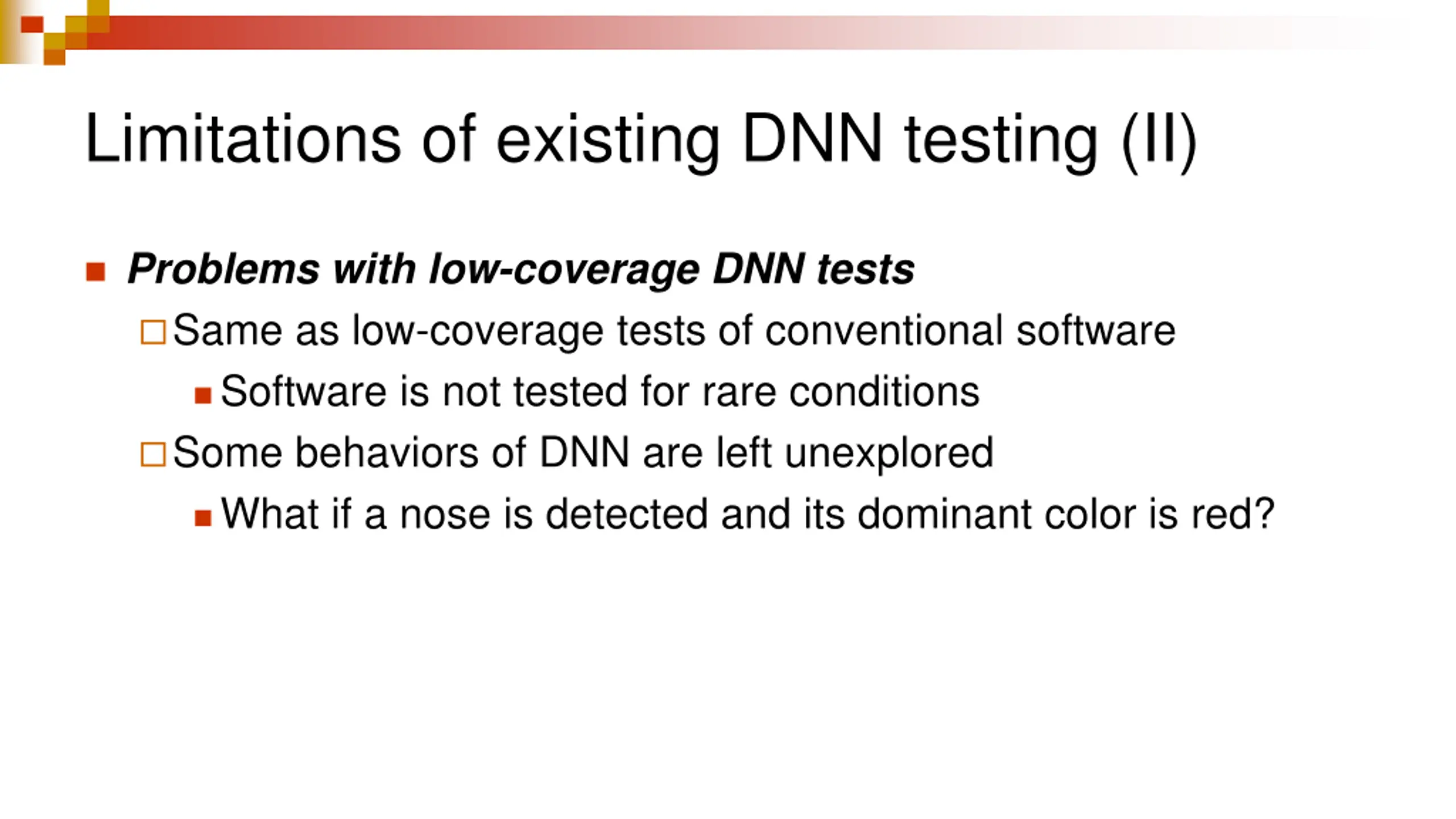

Limitations of existing DNN testing (II) Problems with low-coverage DNN tests Same as low-coverage tests of conventional software Software is not tested for rare conditions Some behaviors of DNN are left unexplored What if a nose is detected and its dominant color is red?
